Advantech “Fanless” Embedded Automation Computer Market-Driven UNO Series Χρήστος Χρόνης Service Manager Ιούνιος 26, 2007

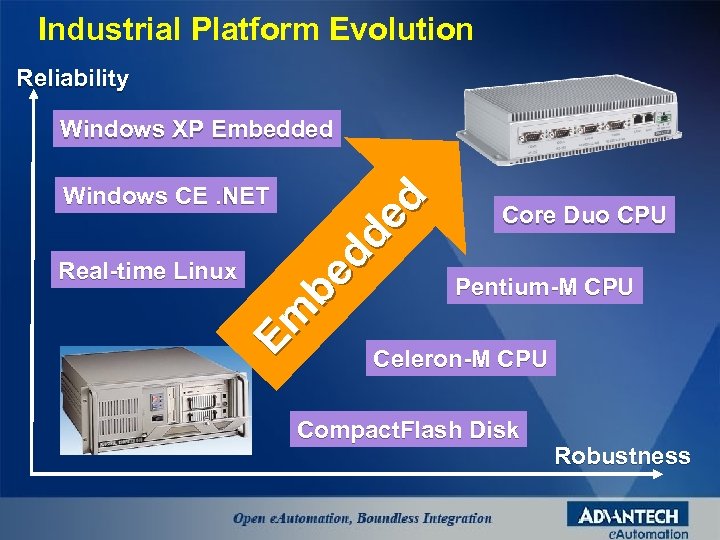

Industrial Platform Evolution Reliability Windows XP Embedded Em be dd ed Windows CE. NET Real-time Linux Core Duo CPU Pentium-M CPU Celeron-M CPU Compact. Flash Disk Robustness
Needs of Next-generation Platform No moving parts inside, like fan, HDD I wish. . . DC power input for factory floor usage No cabling inside, everything is on board Embedded OS support, such as XPe & CE Wide operating temperature Light & small footprint
UNO – Fanless Embedded Automation Computer • UNO is… – – – Ready-for-application open Embedded platform Field-approved Automation computer Compact and fanless BOX PC Embedded Design Automation Feature PC-based Platform

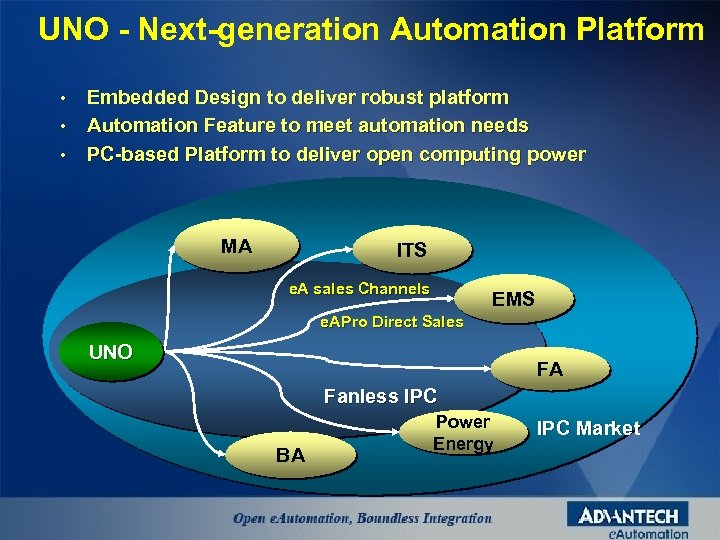

UNO - Next-generation Automation Platform • • • Embedded Design to deliver robust platform Automation Feature to meet automation needs PC-based Platform to deliver open computing power MA ITS e. A sales Channels EMS e. APro Direct Sales UNO FA Fanless IPC BA Power Energy IPC Market

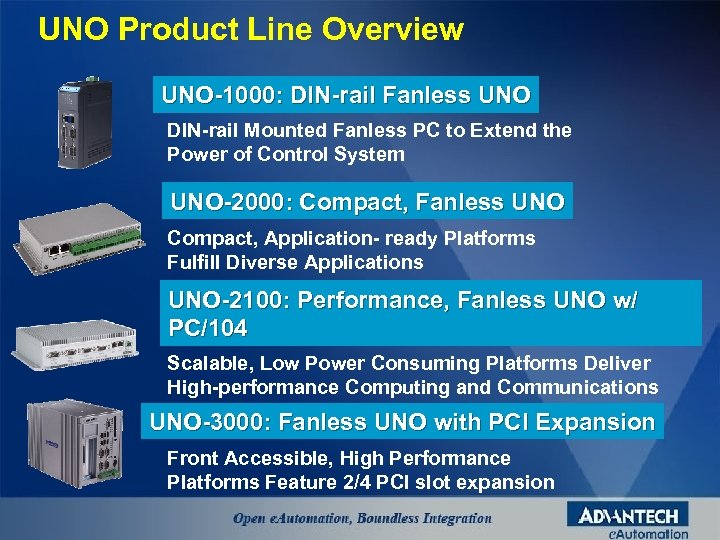

UNO Product Line Overview UNO-1000: DIN-rail Fanless UNO DIN-rail Mounted Fanless PC to Extend the Power of Control System UNO-2000: Compact, Fanless UNO Compact, Application- ready Platforms Fulfill Diverse Applications UNO-2100: Performance, Fanless UNO w/ PC/104 Scalable, Low Power Consuming Platforms Deliver High-performance Computing and Communications UNO-3000: Fanless UNO with PCI Expansion Front Accessible, High Performance Platforms Feature 2/4 PCI slot expansion

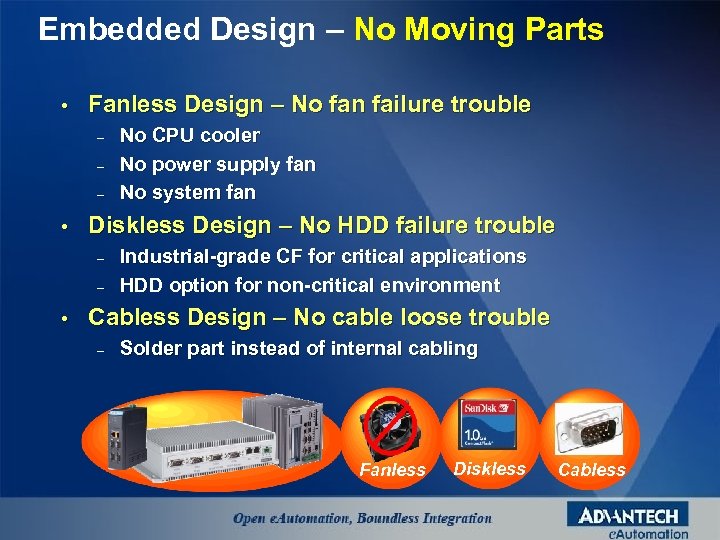

Embedded Design – No Moving Parts • Fanless Design – No fan failure trouble – – – • Diskless Design – No HDD failure trouble – – • No CPU cooler No power supply fan No system fan Industrial-grade CF for critical applications HDD option for non-critical environment Cabless Design – No cable loose trouble – Solder part instead of internal cabling Fanless Diskless Cabless

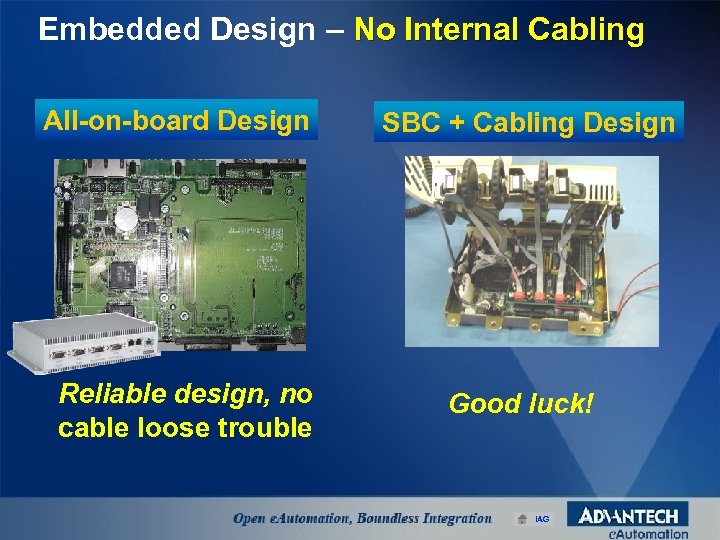

Embedded Design – No Internal Cabling All-on-board Design Reliable design, no cable loose trouble SBC + Cabling Design Good luck! IAG

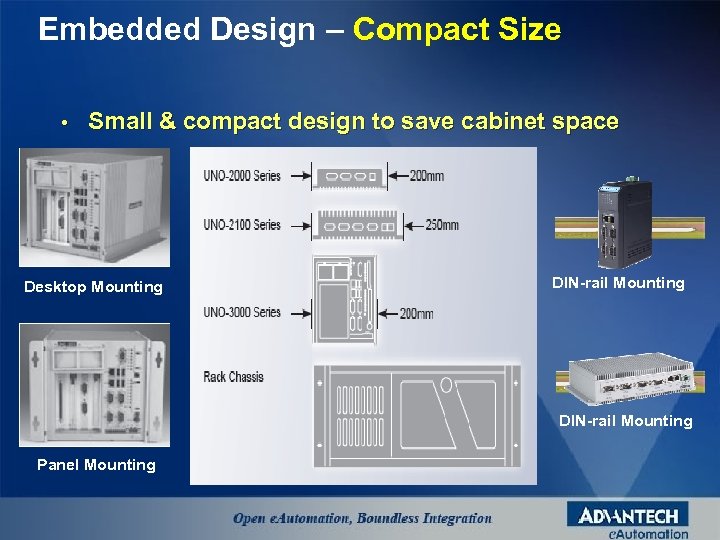

Embedded Design – Compact Size • Small & compact design to save cabinet space Desktop Mounting DIN-rail Mounting Panel Mounting

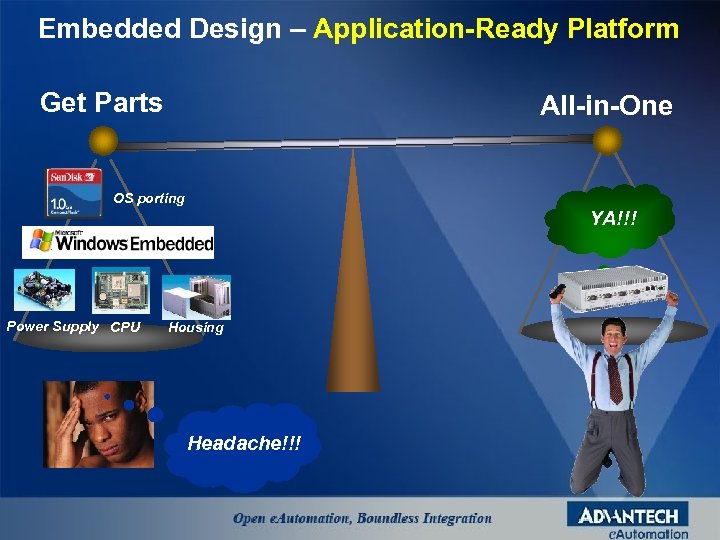

Embedded Design – Application-Ready Platform Get Parts All-in-One OS porting YA!!! Power Supply CPU Housing Headache!!!

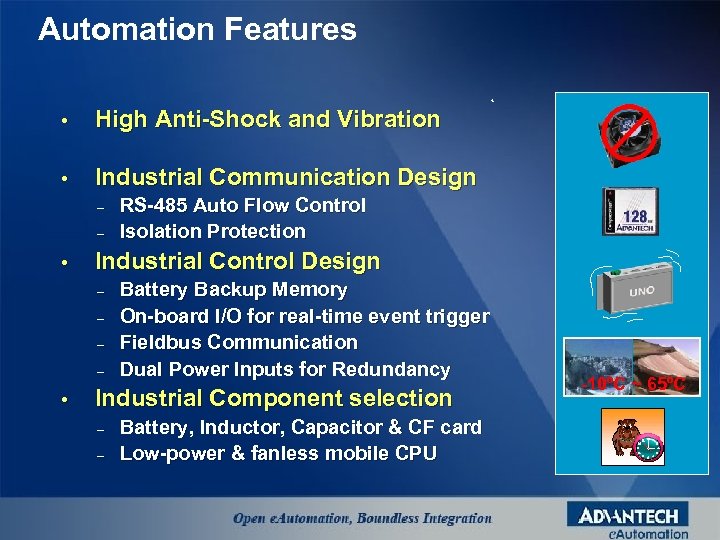

Automation Features • High Anti-Shock and Vibration • Industrial Communication Design – – • Industrial Control Design – – • RS-485 Auto Flow Control Isolation Protection Battery Backup Memory On-board I/O for real-time event trigger Fieldbus Communication Dual Power Inputs for Redundancy Industrial Component selection – – Battery, Inductor, Capacitor & CF card Low-power & fanless mobile CPU -10ºC ~ 65ºC

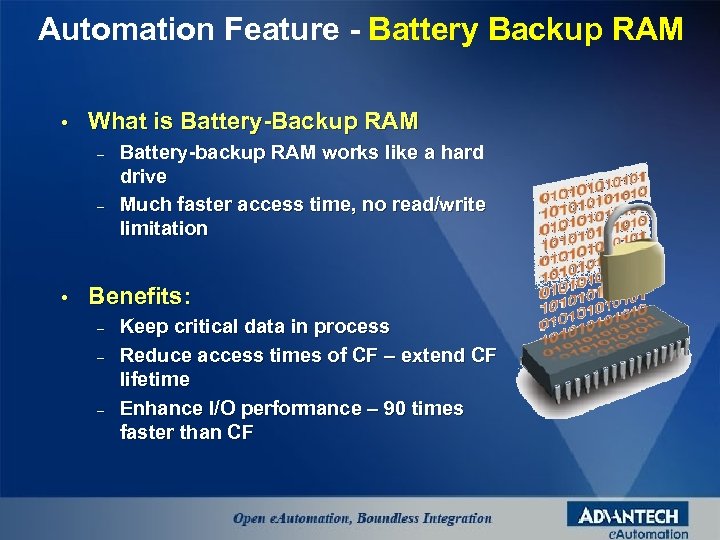

Automation Feature - Battery Backup RAM • What is Battery-Backup RAM – – • Battery-backup RAM works like a hard drive Much faster access time, no read/write limitation Benefits: – – – Keep critical data in process Reduce access times of CF – extend CF lifetime Enhance I/O performance – 90 times faster than CF

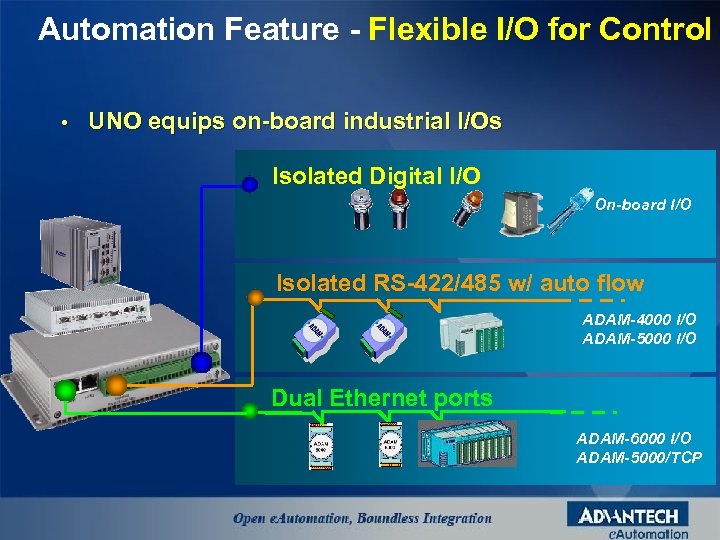

Automation Feature - Flexible I/O for Control • UNO equips on-board industrial I/Os Isolated Digital I/O On-board I/O Isolated RS-422/485 w/ auto flow ADAM-4000 I/O ADAM-5000 I/O Dual Ethernet ports ADAM-6000 I/O ADAM-5000/TCP

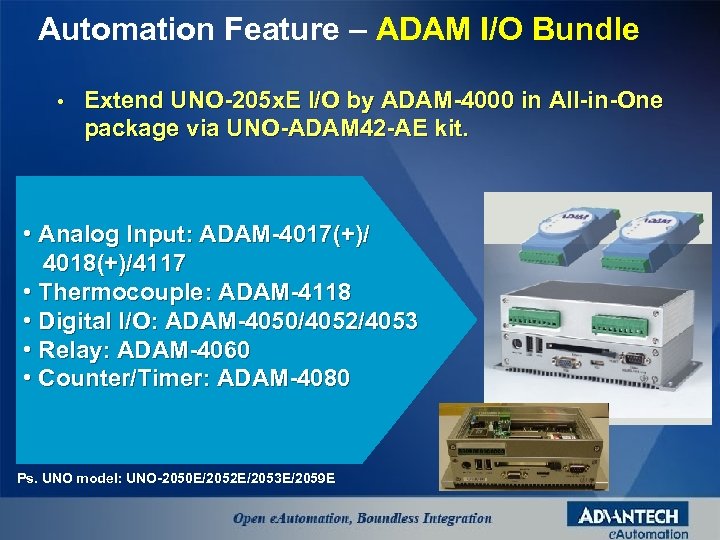

Automation Feature – ADAM I/O Bundle • Extend UNO-205 x. E I/O by ADAM-4000 in All-in-One package via UNO-ADAM 42 -AE kit. • Analog Input: ADAM-4017(+)/ 4018(+)/4117 • Thermocouple: ADAM-4118 • Digital I/O: ADAM-4050/4052/4053 • Relay: ADAM-4060 • Counter/Timer: ADAM-4080 Ps. UNO model: UNO-2050 E/2052 E/2053 E/2059 E

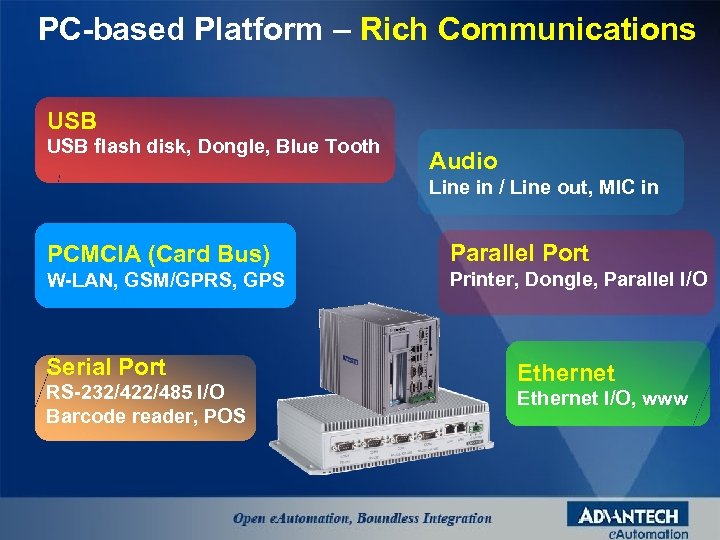

PC-based Platform – Rich Communications USB flash disk, Dongle, Blue Tooth Audio Line in / Line out, MIC in PCMCIA (Card Bus) Parallel Port W-LAN, GSM/GPRS, GPS Printer, Dongle, Parallel I/O Serial Port RS-232/422/485 I/O Barcode reader, POS Ethernet I/O, www
PC-based Platform – Complete Computing Power UNO-218 x • Core Duo 1. 66 GHz • 512 MB/1 GB/2 GB RAM UNO-1000 • XScale PXA 255 200 MHz • 64 MB RAM UNO-2000 • AMD GX 2 -533 400 MHz • 256 MB RAM UNO-217 x • C-M 1 G/1. 5 GHz • P-M 1. 4 G/1. 6 GHz • 512 MB/1 GB RAM UNO-3100 • Core 2 Duo 1. 5 GHz • 512 MB/1 GB/2 GB RAM UNO-3000 • C-M 1 G/1. 5 GHz • P-M 1. 4 G/1. 6 GHz • 512 MB/1 GB RAM Price

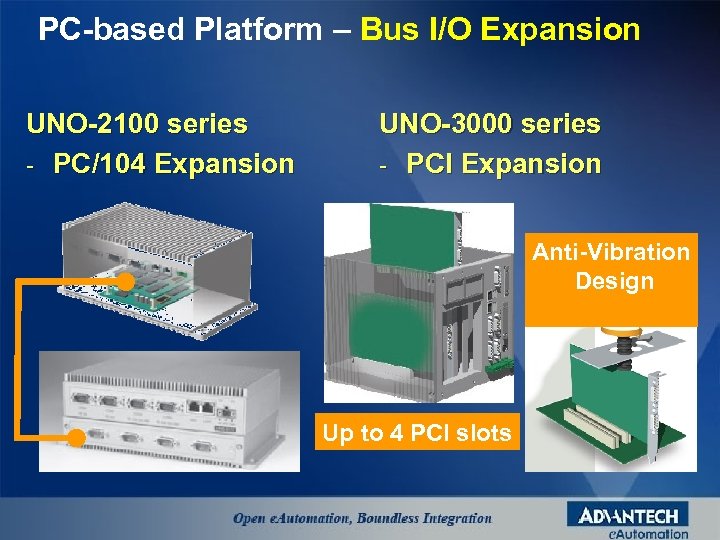

PC-based Platform – Bus I/O Expansion UNO-2100 series - PC/104 Expansion UNO-3000 series - PCI Expansion Anti-Vibration Design Up to 4 PCI slots

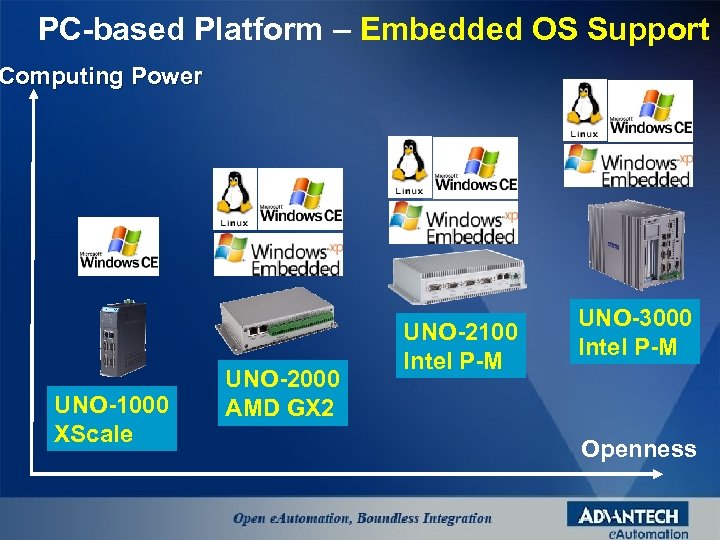

PC-based Platform – Embedded OS Support Computing Power UNO-1000 XScale UNO-2000 AMD GX 2 UNO-2100 Intel P-M UNO-3000 Intel P-M Openness

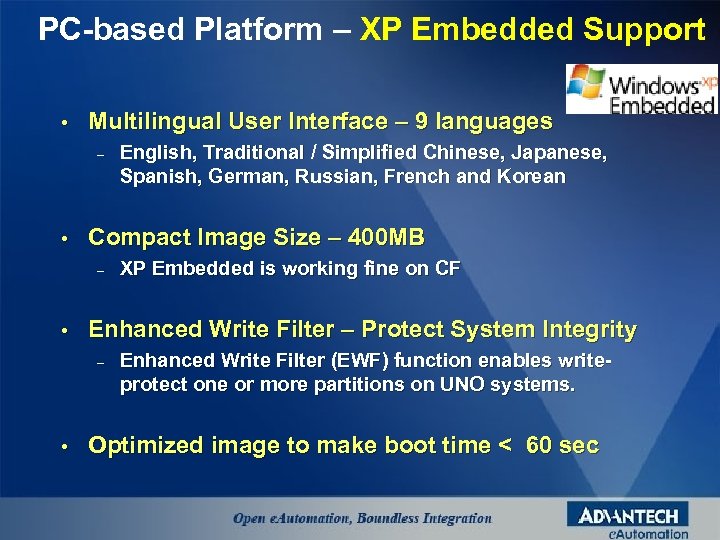

PC-based Platform – XP Embedded Support • Multilingual User Interface – 9 languages – • Compact Image Size – 400 MB – • XP Embedded is working fine on CF Enhanced Write Filter – Protect System Integrity – • English, Traditional / Simplified Chinese, Japanese, Spanish, German, Russian, French and Korean Enhanced Write Filter (EWF) function enables writeprotect one or more partitions on UNO systems. Optimized image to make boot time < 60 sec

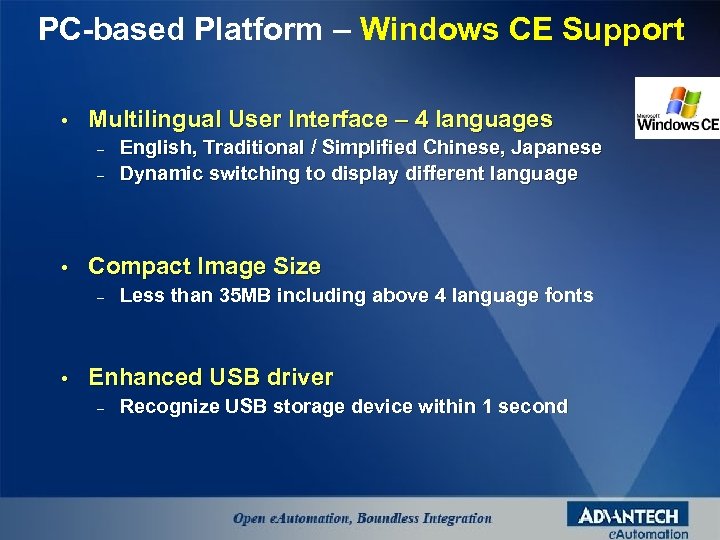

PC-based Platform – Windows CE Support • Multilingual User Interface – 4 languages – – • Compact Image Size – • English, Traditional / Simplified Chinese, Japanese Dynamic switching to display different language Less than 35 MB including above 4 language fonts Enhanced USB driver – Recognize USB storage device within 1 second
Remote Management Service - Diag. Anywhere enables users to diagnose up to 16 UNOs by remote host PC running Win 2000/XP • Free utility developed by Advantech provided in UNO driver CD • Diag. Anywhere . . . . • Remote Monitoring • Remote Control • Remote Screen Snapshot • Remote Screen Recoding Up to 16 UNO devices • File Upload & Download • Device Grouping

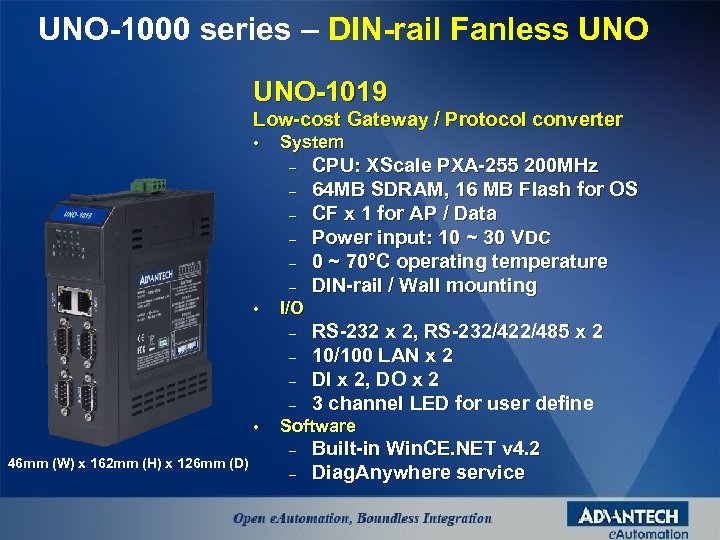

UNO-1000 series – DIN-rail Fanless UNO-1019 Low-cost Gateway / Protocol converter • System – – – • I/O – – • 46 mm (W) x 162 mm (H) x 126 mm (D) CPU: XScale PXA-255 200 MHz 64 MB SDRAM, 16 MB Flash for OS CF x 1 for AP / Data Power input: 10 ~ 30 VDC 0 ~ 70°C operating temperature DIN-rail / Wall mounting RS-232 x 2, RS-232/422/485 x 2 10/100 LAN x 2 DI x 2, DO x 2 3 channel LED for user define Software – – Built-in Win. CE. NET v 4. 2 Diag. Anywhere service

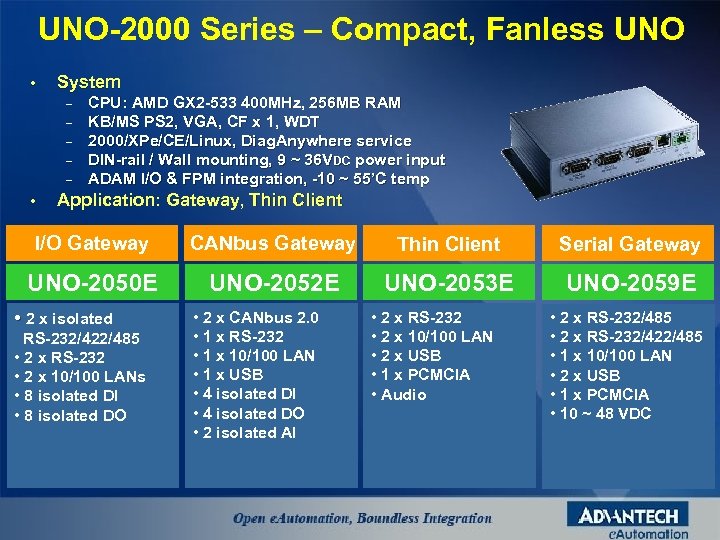

UNO-2000 Series – Compact, Fanless UNO • System – – – • CPU: AMD GX 2 -533 400 MHz, 256 MB RAM KB/MS PS 2, VGA, CF x 1, WDT 2000/XPe/CE/Linux, Diag. Anywhere service DIN-rail / Wall mounting, 9 ~ 36 VDC power input ADAM I/O & FPM integration, -10 ~ 55’C temp Application: Gateway, Thin Client I/O Gateway CANbus Gateway Thin Client Serial Gateway UNO-2050 E UNO-2052 E UNO-2053 E UNO-2059 E • 2 x isolated RS-232/422/485 • 2 x RS-232 • 2 x 10/100 LANs • 8 isolated DI • 8 isolated DO • 2 x CANbus 2. 0 • 1 x RS-232 • 1 x 10/100 LAN • 1 x USB • 4 isolated DI • 4 isolated DO • 2 isolated AI • 2 x RS-232 • 2 x 10/100 LAN • 2 x USB • 1 x PCMCIA • Audio • 2 x RS-232/485 • 2 x RS-232/422/485 • 1 x 10/100 LAN • 2 x USB • 1 x PCMCIA • 10 ~ 48 VDC

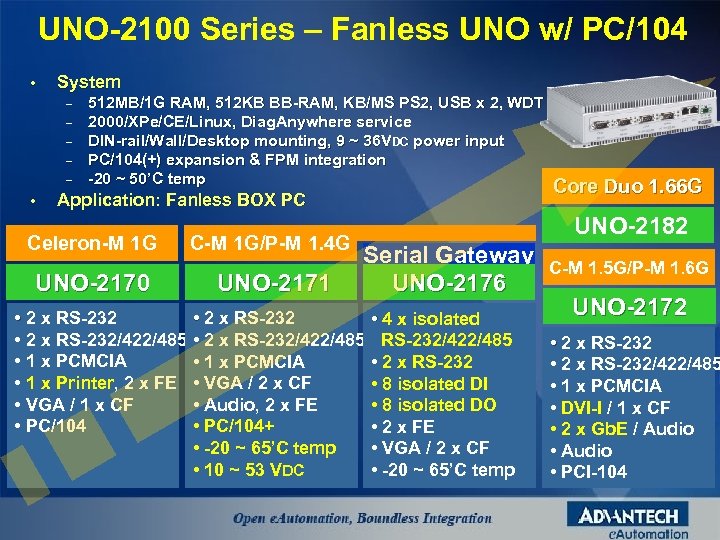

UNO-2100 Series – Fanless UNO w/ PC/104 • System – – – • 512 MB/1 G RAM, 512 KB BB-RAM, KB/MS PS 2, USB x 2, WDT 2000/XPe/CE/Linux, Diag. Anywhere service DIN-rail/Wall/Desktop mounting, 9 ~ 36 VDC power input PC/104(+) expansion & FPM integration -20 ~ 50’C temp Application: Fanless BOX PC Celeron-M 1 G UNO-2170 • 2 x RS-232/422/485 • 1 x PCMCIA • 1 x Printer, 2 x FE • VGA / 1 x CF • PC/104 C-M 1 G/P-M 1. 4 G UNO-2171 Core Duo 1. 66 G UNO-2182 Serial Gateway UNO-2176 • 2 x RS-232/422/485 • 1 x PCMCIA • VGA / 2 x CF • Audio, 2 x FE • PC/104+ • -20 ~ 65’C temp • 10 ~ 53 VDC • 4 x isolated RS-232/422/485 • 2 x RS-232 • 8 isolated DI • 8 isolated DO • 2 x FE • VGA / 2 x CF • -20 ~ 65’C temp C-M 1. 5 G/P-M 1. 6 G UNO-2172 • 2 x RS-232/422/485 • 1 x PCMCIA • DVI-I / 1 x CF • 2 x Gb. E / Audio • PCI-104

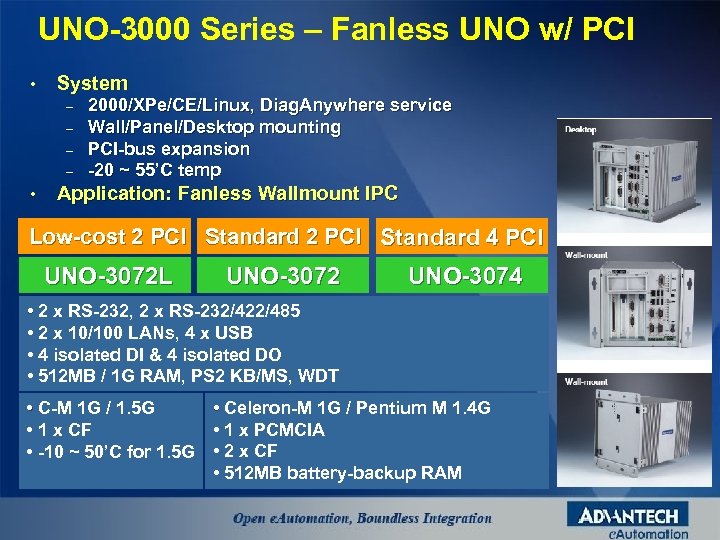

UNO-3000 Series – Fanless UNO w/ PCI • System – – • 2000/XPe/CE/Linux, Diag. Anywhere service Wall/Panel/Desktop mounting PCI-bus expansion -20 ~ 55’C temp Application: Fanless Wallmount IPC Low-cost 2 PCI Standard 4 PCI UNO-3072 L UNO-3072 UNO-3074 • 2 x RS-232, 2 x RS-232/422/485 • 2 x 10/100 LANs, 4 x USB • 4 isolated DI & 4 isolated DO • 512 MB / 1 G RAM, PS 2 KB/MS, WDT • Celeron-M 1 G / Pentium M 1. 4 G • C-M 1 G / 1. 5 G • 1 x PCMCIA • 1 x CF • -10 ~ 50’C for 1. 5 G • 2 x CF • 512 MB battery-backup RAM

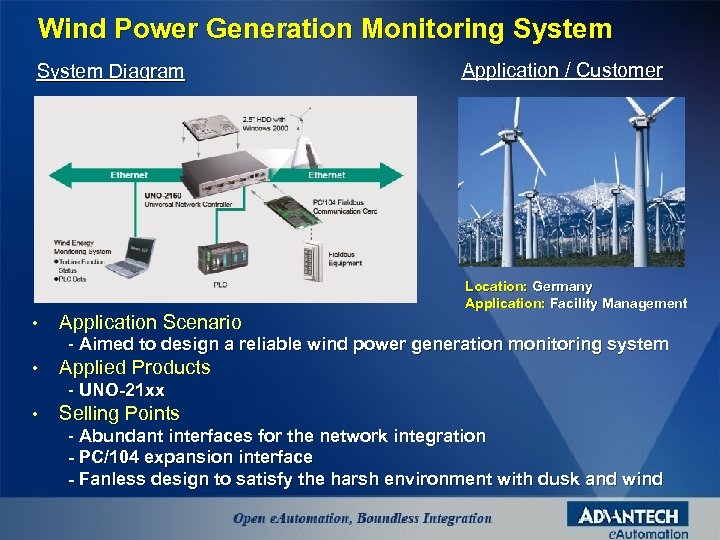

Wind Power Generation Monitoring System Diagram • Application Scenario Application / Customer Location: Germany Application: Facility Management - Aimed to design a reliable wind power generation monitoring system • Applied Products - UNO-21 xx • Selling Points - Abundant interfaces for the network integration - PC/104 expansion interface - Fanless design to satisfy the harsh environment with dusk and wind

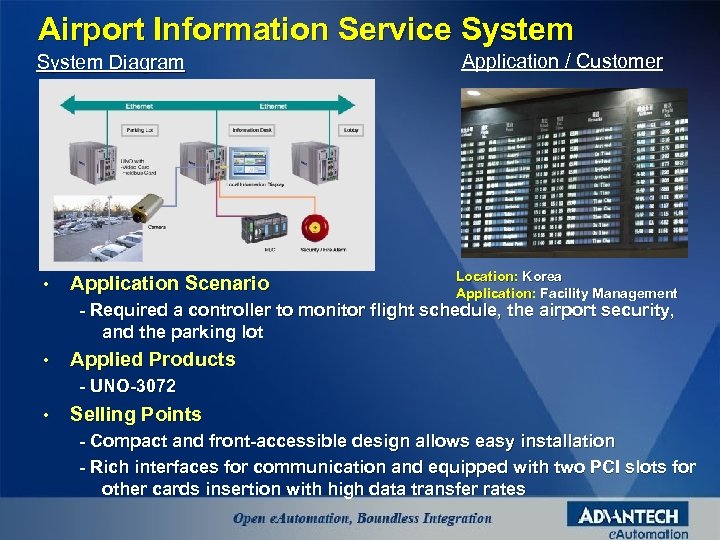

Airport Information Service System Diagram • Application Scenario Application / Customer Location: Korea Application: Facility Management - Required a controller to monitor flight schedule, the airport security, and the parking lot • Applied Products - UNO-3072 • Selling Points - Compact and front-accessible design allows easy installation - Rich interfaces for communication and equipped with two PCI slots for other cards insertion with high data transfer rates

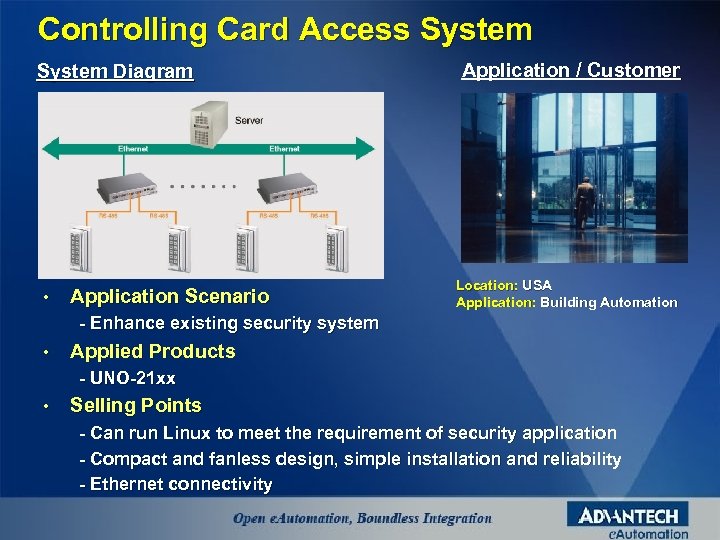

Controlling Card Access System Diagram • Application Scenario Application / Customer Location: USA Application: Building Automation - Enhance existing security system • Applied Products - UNO-21 xx • Selling Points - Can run Linux to meet the requirement of security application - Compact and fanless design, simple installation and reliability - Ethernet connectivity
UNO No. 1 Embedded Automation Computer www. advantech. gr - info@advantech. gr
