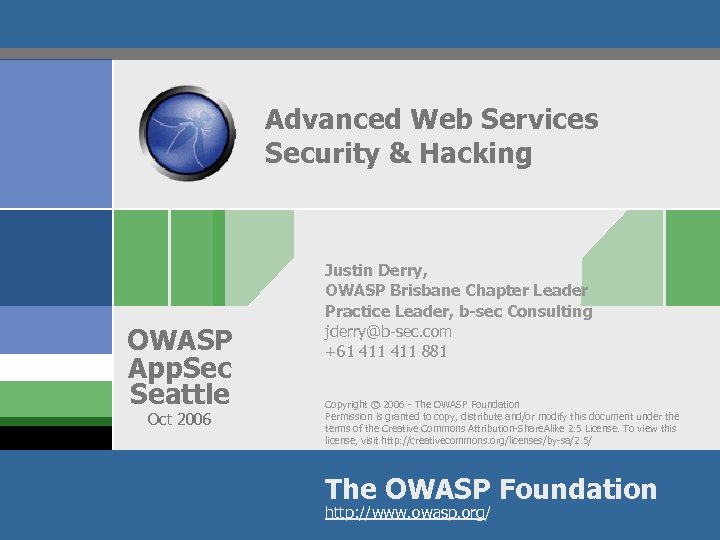

Advanced Web Services Security & Hacking OWASP App. Sec Seattle Oct 2006 Justin Derry, OWASP Brisbane Chapter Leader Practice Leader, b-sec Consulting jderry@b-sec. com +61 411 881 Copyright © 2006 - The OWASP Foundation Permission is granted to copy, distribute and/or modify this document under the terms of the Creative Commons Attribution-Share. Alike 2. 5 License. To view this license, visit http: //creativecommons. org/licenses/by-sa/2. 5/ The OWASP Foundation http: //www. owasp. org/

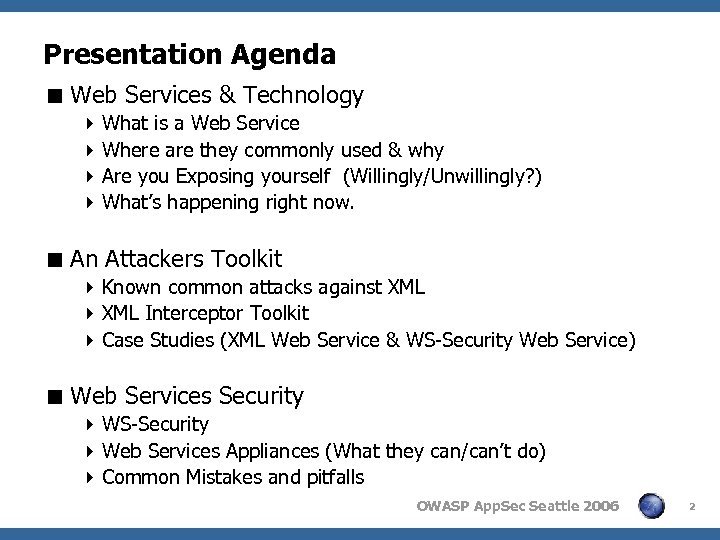

Presentation Agenda < Web Services & Technology 4 What is a Web Service 4 Where are they commonly used & why 4 Are you Exposing yourself (Willingly/Unwillingly? ) 4 What’s happening right now. < An Attackers Toolkit 4 Known common attacks against XML 4 XML Interceptor Toolkit 4 Case Studies (XML Web Service & WS-Security Web Service) < Web Services Security 4 WS-Security 4 Web Services Appliances (What they can/can’t do) 4 Common Mistakes and pitfalls OWASP App. Sec Seattle 2006 2

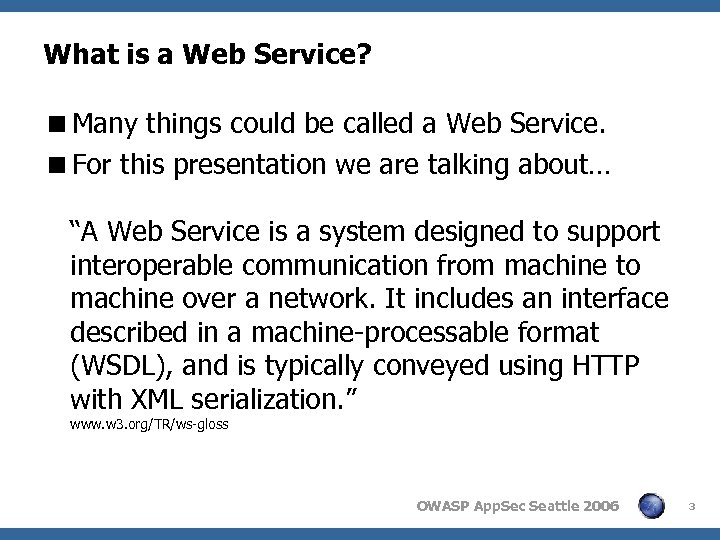

What is a Web Service? <Many things could be called a Web Service. <For this presentation we are talking about… “A Web Service is a system designed to support interoperable communication from machine to machine over a network. It includes an interface described in a machine-processable format (WSDL), and is typically conveyed using HTTP with XML serialization. ” www. w 3. org/TR/ws-gloss OWASP App. Sec Seattle 2006 3

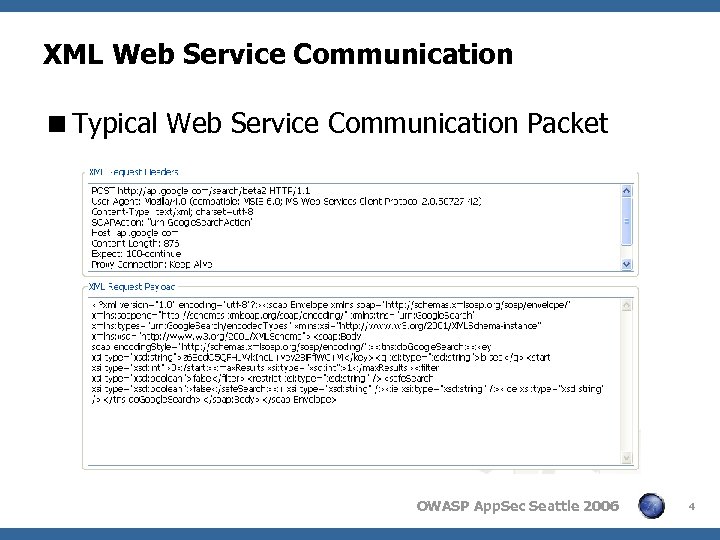

XML Web Service Communication <Typical Web Service Communication Packet OWASP App. Sec Seattle 2006 4

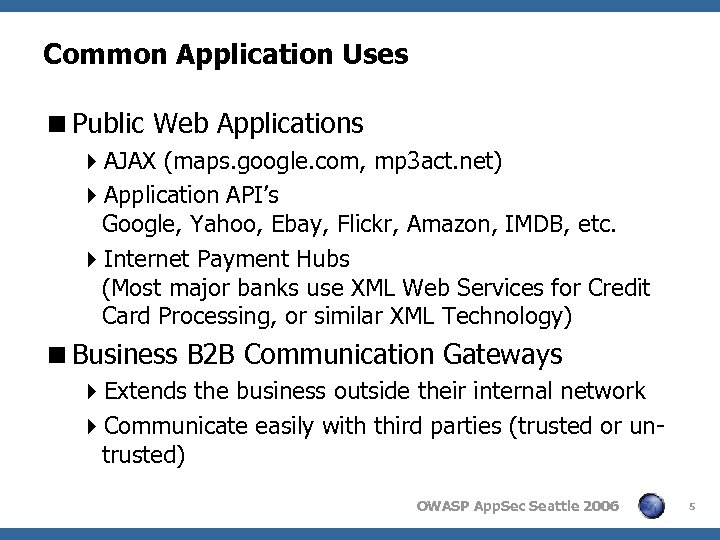

Common Application Uses <Public Web Applications 4 AJAX (maps. google. com, mp 3 act. net) 4 Application API’s Google, Yahoo, Ebay, Flickr, Amazon, IMDB, etc. 4 Internet Payment Hubs (Most major banks use XML Web Services for Credit Card Processing, or similar XML Technology) <Business B 2 B Communication Gateways 4 Extends the business outside their internal network 4 Communicate easily with third parties (trusted or untrusted) OWASP App. Sec Seattle 2006 5

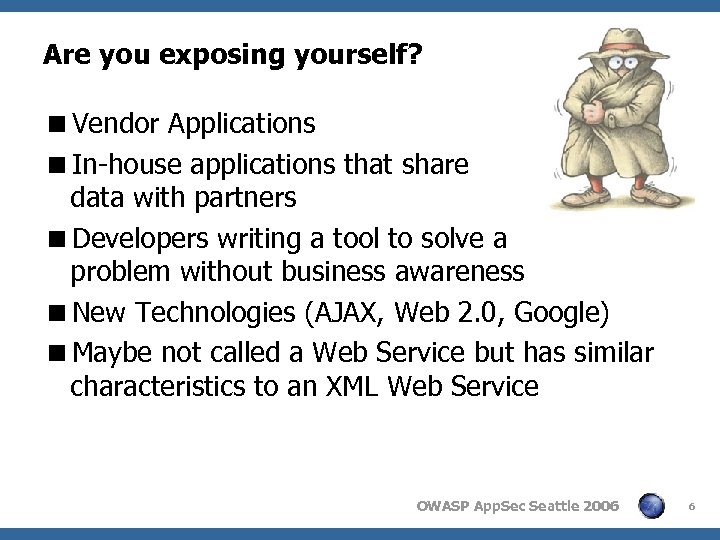

Are you exposing yourself? <Vendor Applications <In-house applications that share data with partners <Developers writing a tool to solve a problem without business awareness <New Technologies (AJAX, Web 2. 0, Google) <Maybe not called a Web Service but has similar characteristics to an XML Web Service OWASP App. Sec Seattle 2006 6

Known Common Web Service Attacks < Parsing Exploits 4 SAX/DOM Known Common Exploits on Vendor Frameworks 4 Custom parsers that are poorly written < XML Injection (Passed into XML Stream) < XPath Injection Attacks < XML Manipulation (i. e. CDATA Manipulation etc. ) < WSDL Discovery and Manipulation with schemas < Do. S attacks against Web Services < Typical HTTP/S Style Header Injection attacks < Common Application Attacks (SQL Injection etc. ) OWASP App. Sec Seattle 2006 7

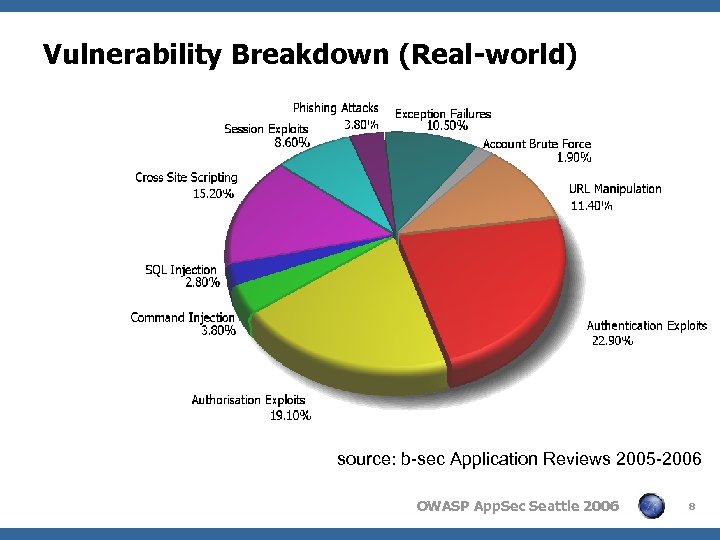

Vulnerability Breakdown (Real-world) source: b-sec Application Reviews 2005 -2006 OWASP App. Sec Seattle 2006 8

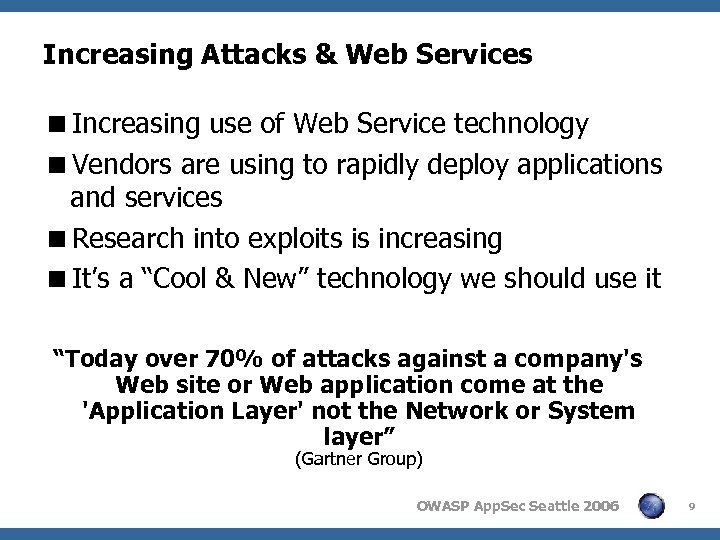

Increasing Attacks & Web Services <Increasing use of Web Service technology <Vendors are using to rapidly deploy applications and services <Research into exploits is increasing <It’s a “Cool & New” technology we should use it “Today over 70% of attacks against a company's Web site or Web application come at the 'Application Layer' not the Network or System layer” (Gartner Group) OWASP App. Sec Seattle 2006 9

XML Interceptor Toolkit (1. 0) < Windows Forms. NET Toolkit (vb. net 2. 0) < Developed in Australia < Currently in initial release for OWASP Seattle 06 < Work in Progress – Do you want to get involved? OWASP App. Sec Seattle 2006 10

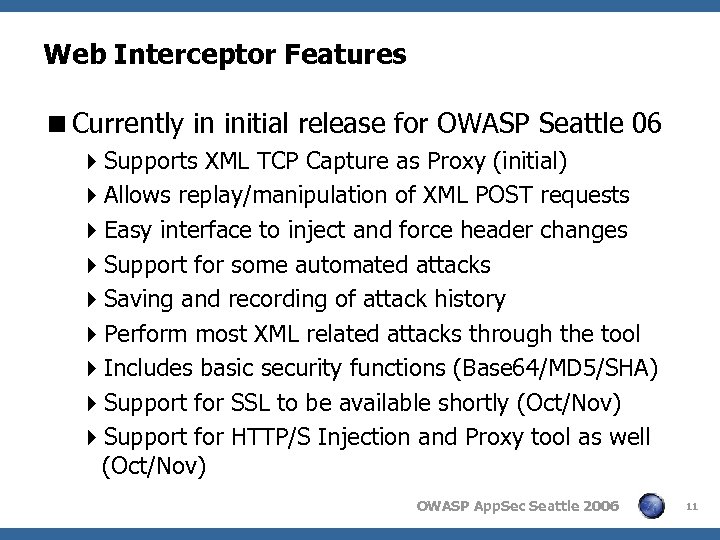

Web Interceptor Features <Currently in initial release for OWASP Seattle 06 4 Supports XML TCP Capture as Proxy (initial) 4 Allows replay/manipulation of XML POST requests 4 Easy interface to inject and force header changes 4 Support for some automated attacks 4 Saving and recording of attack history 4 Perform most XML related attacks through the tool 4 Includes basic security functions (Base 64/MD 5/SHA) 4 Support for SSL to be available shortly (Oct/Nov) 4 Support for HTTP/S Injection and Proxy tool as well (Oct/Nov) OWASP App. Sec Seattle 2006 11

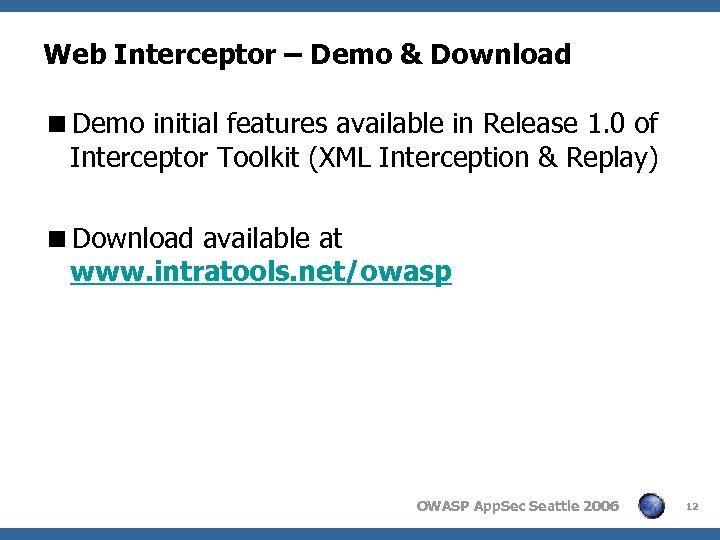

Web Interceptor – Demo & Download <Demo initial features available in Release 1. 0 of Interceptor Toolkit (XML Interception & Replay) <Download available at www. intratools. net/owasp OWASP App. Sec Seattle 2006 12

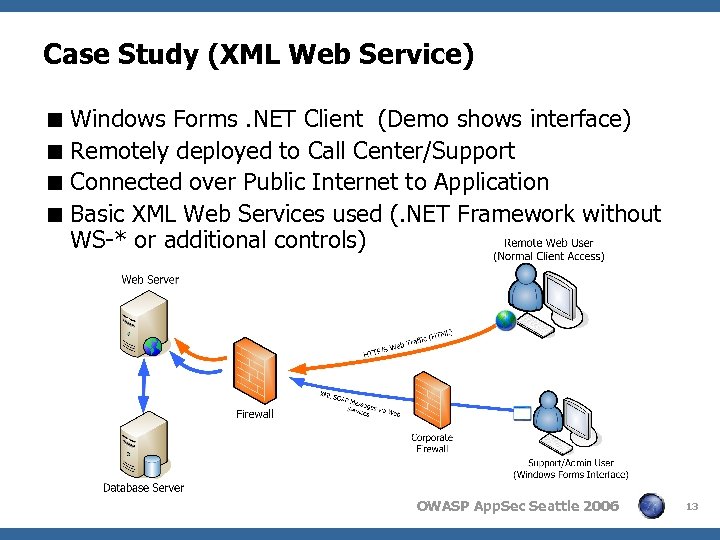

Case Study (XML Web Service) < Windows Forms. NET Client (Demo shows interface) < Remotely deployed to Call Center/Support < Connected over Public Internet to Application < Basic XML Web Services used (. NET Framework without WS-* or additional controls) OWASP App. Sec Seattle 2006 13

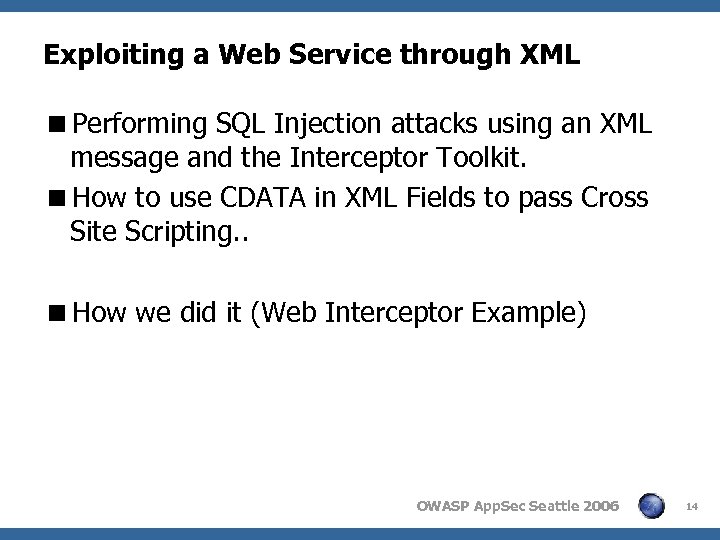

Exploiting a Web Service through XML <Performing SQL Injection attacks using an XML message and the Interceptor Toolkit. <How to use CDATA in XML Fields to pass Cross Site Scripting. . <How we did it (Web Interceptor Example) OWASP App. Sec Seattle 2006 14

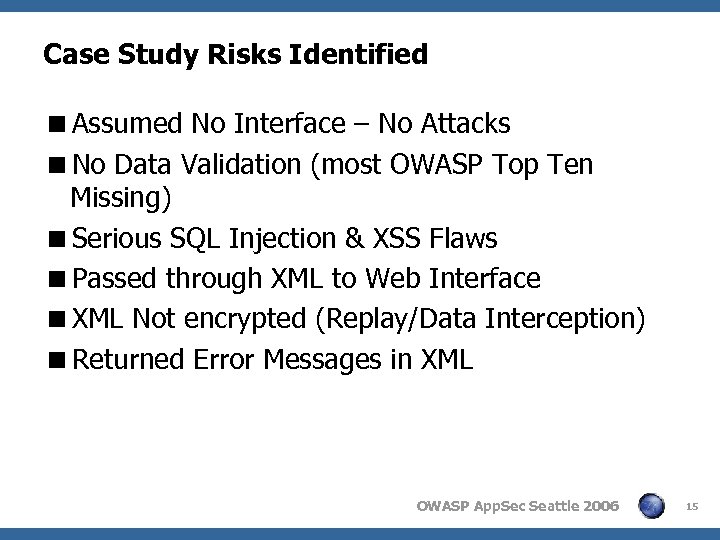

Case Study Risks Identified <Assumed No Interface – No Attacks <No Data Validation (most OWASP Top Ten Missing) <Serious SQL Injection & XSS Flaws <Passed through XML to Web Interface <XML Not encrypted (Replay/Data Interception) <Returned Error Messages in XML OWASP App. Sec Seattle 2006 15

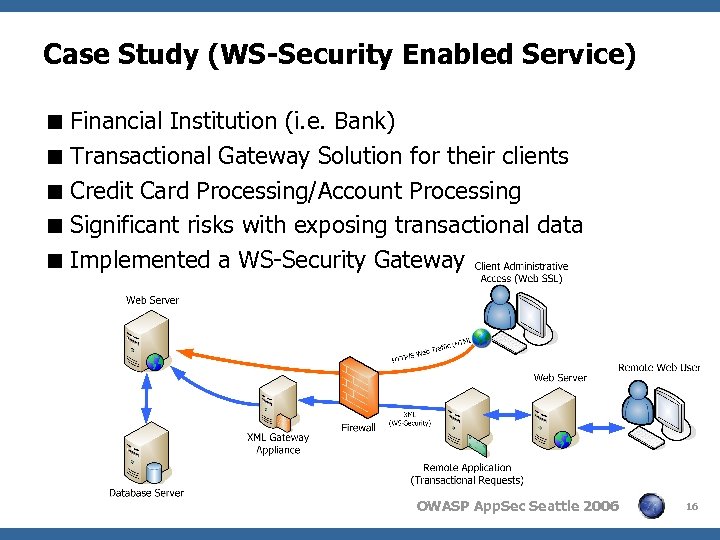

Case Study (WS-Security Enabled Service) < Financial Institution (i. e. Bank) < Transactional Gateway Solution for their clients < Credit Card Processing/Account Processing < Significant risks with exposing transactional data < Implemented a WS-Security Gateway OWASP App. Sec Seattle 2006 16

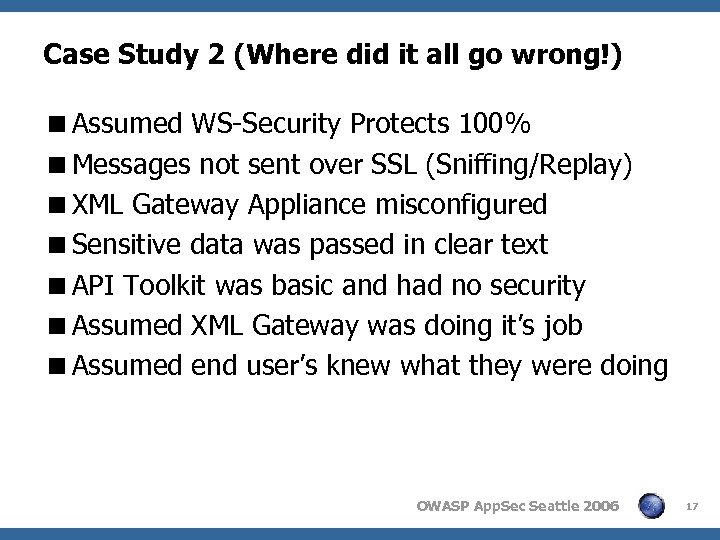

Case Study 2 (Where did it all go wrong!) <Assumed WS-Security Protects 100% <Messages not sent over SSL (Sniffing/Replay) <XML Gateway Appliance misconfigured <Sensitive data was passed in clear text <API Toolkit was basic and had no security <Assumed XML Gateway was doing it’s job <Assumed end user’s knew what they were doing OWASP App. Sec Seattle 2006 17

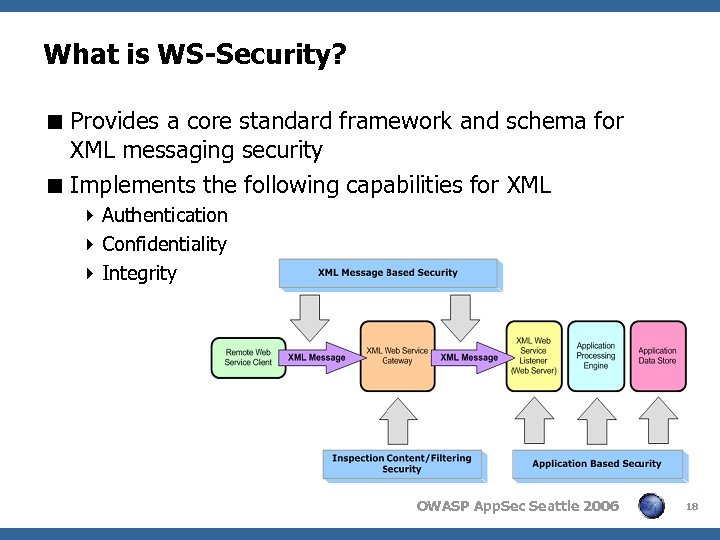

What is WS-Security? < Provides a core standard framework and schema for XML messaging security < Implements the following capabilities for XML 4 Authentication 4 Confidentiality 4 Integrity OWASP App. Sec Seattle 2006 18

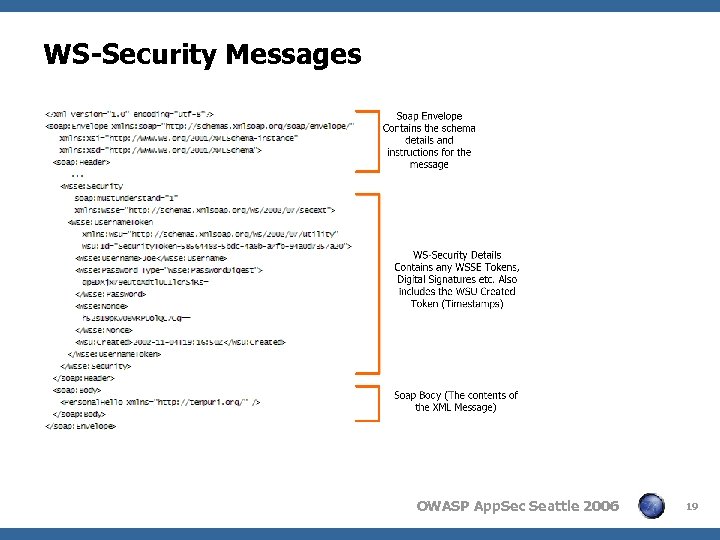

WS-Security Messages OWASP App. Sec Seattle 2006 19

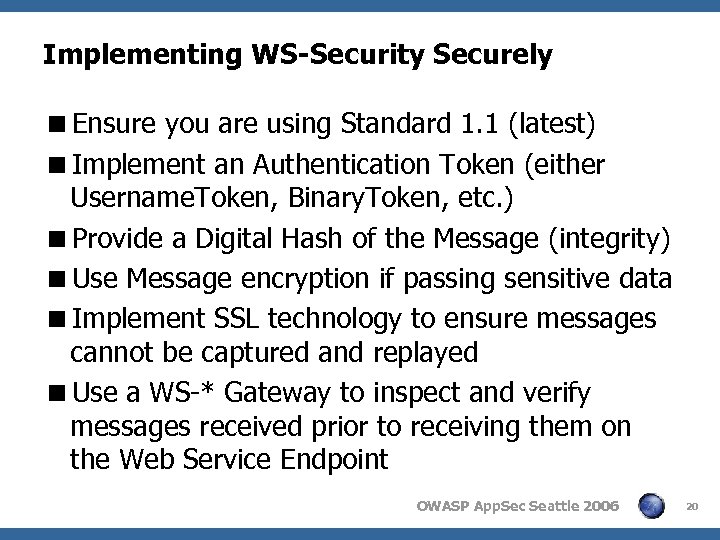

Implementing WS-Security Securely <Ensure you are using Standard 1. 1 (latest) <Implement an Authentication Token (either Username. Token, Binary. Token, etc. ) <Provide a Digital Hash of the Message (integrity) <Use Message encryption if passing sensitive data <Implement SSL technology to ensure messages cannot be captured and replayed <Use a WS-* Gateway to inspect and verify messages received prior to receiving them on the Web Service Endpoint OWASP App. Sec Seattle 2006 20

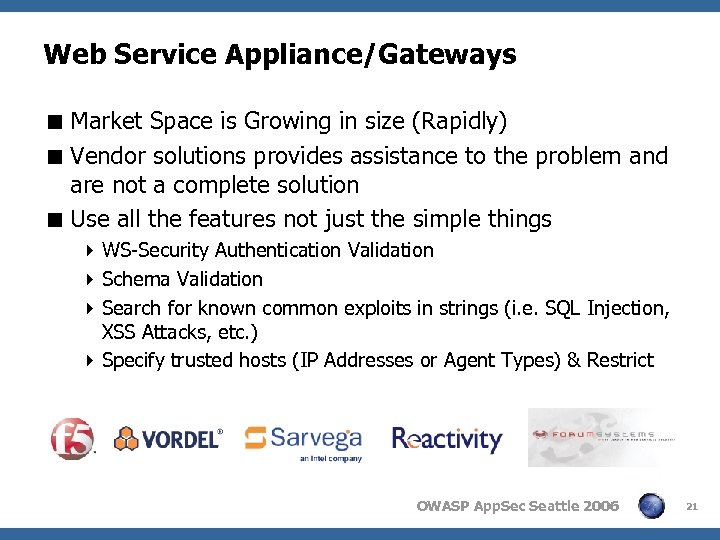

Web Service Appliance/Gateways < Market Space is Growing in size (Rapidly) < Vendor solutions provides assistance to the problem and are not a complete solution < Use all the features not just the simple things 4 WS-Security Authentication Validation 4 Schema Validation 4 Search for known common exploits in strings (i. e. SQL Injection, XSS Attacks, etc. ) 4 Specify trusted hosts (IP Addresses or Agent Types) & Restrict OWASP App. Sec Seattle 2006 21

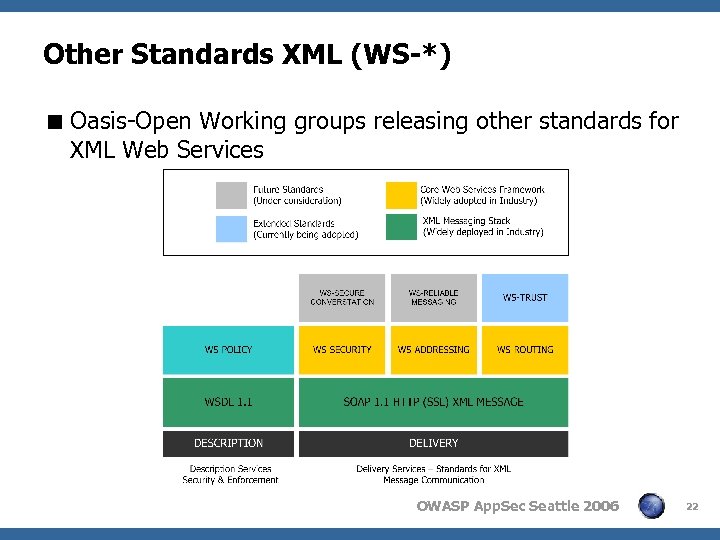

Other Standards XML (WS-*) < Oasis-Open Working groups releasing other standards for XML Web Services OWASP App. Sec Seattle 2006 22

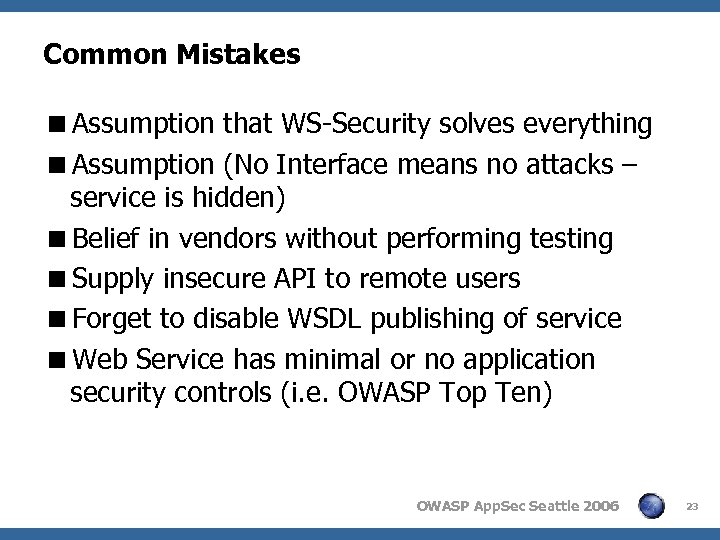

Common Mistakes <Assumption that WS-Security solves everything <Assumption (No Interface means no attacks – service is hidden) <Belief in vendors without performing testing <Supply insecure API to remote users <Forget to disable WSDL publishing of service <Web Service has minimal or no application security controls (i. e. OWASP Top Ten) OWASP App. Sec Seattle 2006 23

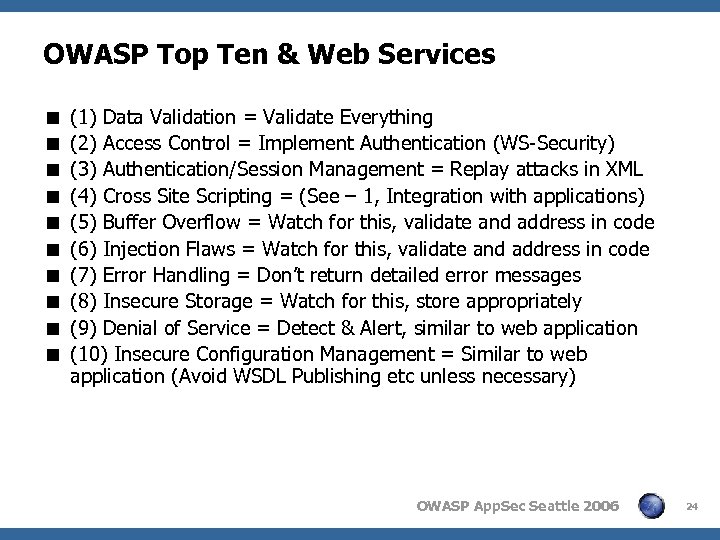

OWASP Top Ten & Web Services < < < < < (1) Data Validation = Validate Everything (2) Access Control = Implement Authentication (WS-Security) (3) Authentication/Session Management = Replay attacks in XML (4) Cross Site Scripting = (See – 1, Integration with applications) (5) Buffer Overflow = Watch for this, validate and address in code (6) Injection Flaws = Watch for this, validate and address in code (7) Error Handling = Don’t return detailed error messages (8) Insecure Storage = Watch for this, store appropriately (9) Denial of Service = Detect & Alert, similar to web application (10) Insecure Configuration Management = Similar to web application (Avoid WSDL Publishing etc unless necessary) OWASP App. Sec Seattle 2006 24

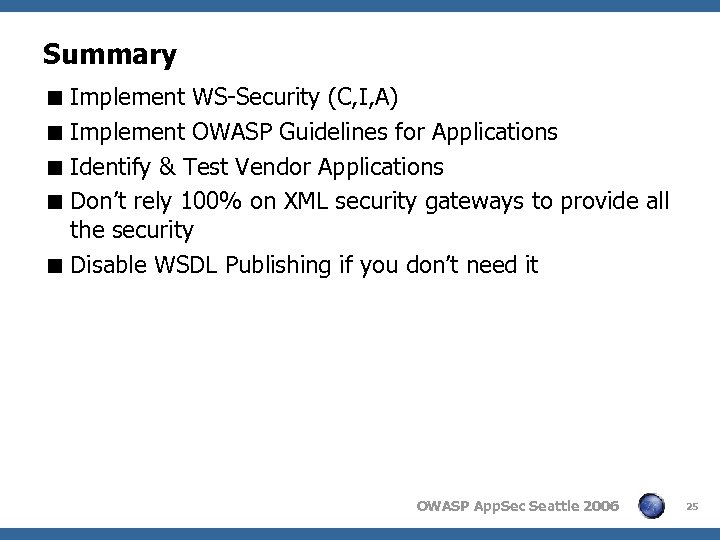

Summary < Implement WS-Security (C, I, A) < Implement OWASP Guidelines for Applications < Identify & Test Vendor Applications < Don’t rely 100% on XML security gateways to provide all the security < Disable WSDL Publishing if you don’t need it OWASP App. Sec Seattle 2006 25

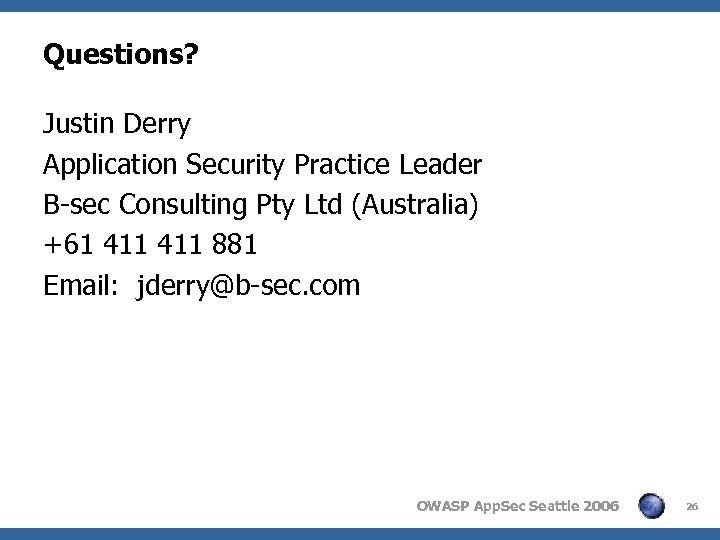

Questions? Justin Derry Application Security Practice Leader B-sec Consulting Pty Ltd (Australia) +61 411 881 Email: jderry@b-sec. com OWASP App. Sec Seattle 2006 26
