Advanced Resuscitation Certificate Supporting Surfers Paradise SLSC 2004 2005

Advanced Resuscitation Certificate Supporting Surfers Paradise SLSC 2004/2005 Surf Lifesaving Club Help Program

Carry handle Protective case (Entire casing) C Size Oxygen Cylinder (Black with white shoulders) Thumb screw Cylinder cradle

Cut out allows use of tubing when lid is closed External Cylinder Connection Protective case (Entire casing) C Size Oxygen Cylinder Thumb screw (Black with white shoulders) Cylinder yoke Cylinder cradle (All parts inside red box)

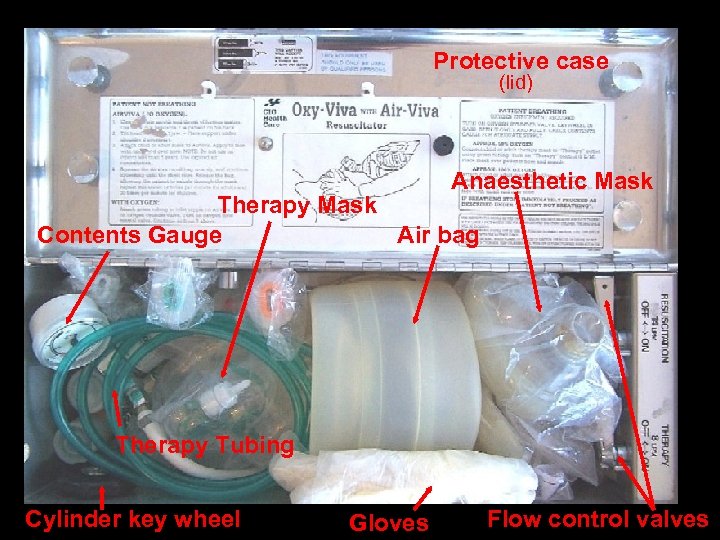

Protective case (lid) Anaesthetic Mask Therapy Mask Contents Gauge Air bag Therapy Tubing Cylinder key wheel Gloves Flow control valves

Contents Gauge Cylinder key wheel To external cylinder connection To flow control valves Regulator

Cylinder valve C Size Oxygen Cylinder (Black with white shoulders) Protective film / cover (Turned with cylinder key wheel. Turns the cylinder on and off) Oxygen outlet (what’s left after cracking) Locating holes (where locating pins sit) Contents type Cylinder Size Safety information Capacity / Volume

Key wheel chain attached to Oxy Viva casing Cylinder key wheel C Size Oxygen Cylinder (Black with white shoulders) Cylinder valve (Turned with cylinder key wheel. Turns the cylinder on and off) Protective film / cover Oxygen outlet (what’s left after cracking) Locating holes (where locating pins sit) Safety tag

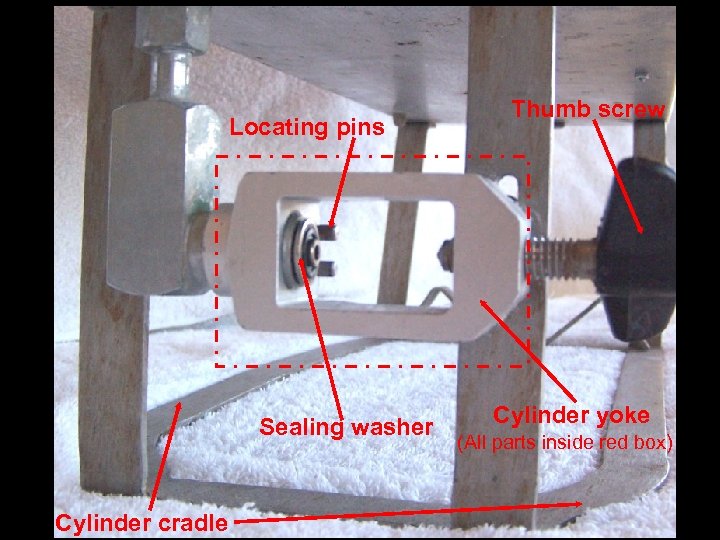

Locating pins Sealing washer Cylinder cradle Thumb screw Cylinder yoke (All parts inside red box)

Air bag This is used for inflating a patient’s lungs by squeezing, which supplies oxygen from an oxygen reservoir Anaesthetic Mask Each unit should contain one adult and one child-size mask Resuscitation tubing Normally clear. This tubing supplies oxygen to the airbag Oxygen reservoir Attached to an air bag, this supplies up to 95% oxygen when connected to an oxygen supply

Therapy Mask A clear, colourless disposable type of therapy mask, such as the Hudson No. 1041 or 1043 is recommended Nose piece. Pinch on nose to seal Therapy tubing Normally green. This tubing supplies oxygen to the mask Elastic strap. Holds on face Remember TIG! Therapy Is Green

Adult therapy mask Nose piece. Pinch on nose to seal Oxygen inlet Child therapy mask Elastic strap. Holds on face

Adult Anaesthetic Mask / Resuscitation mask This end over nose Air bag connection Child Anaesthetic Mask / Resuscitation mask

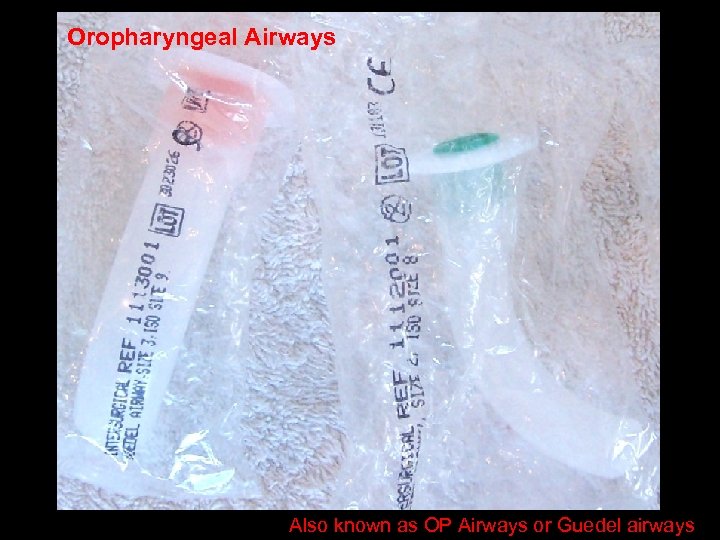

Oropharyngeal Airways Also known as OP Airways or Guedel airways

Oropharyngeal Airways Bite block Hollow curved tube Rigid Flange Also known as OP Airways or Guedel airways

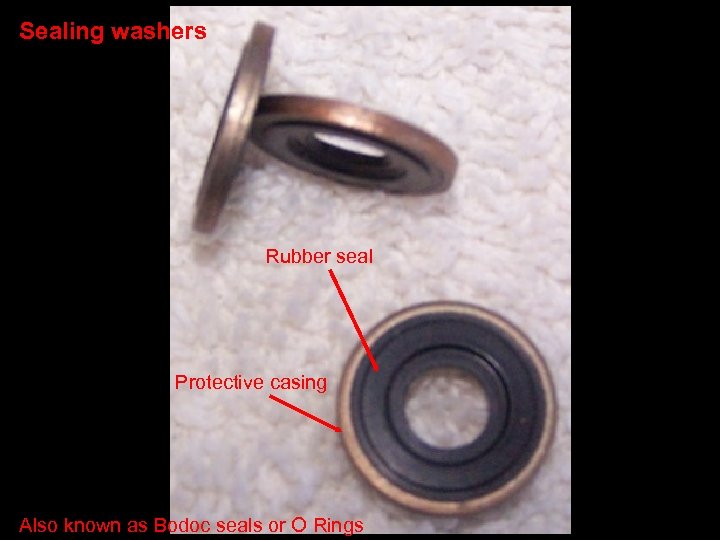

Sealing washers Rubber seal Protective casing Also known as Bodoc seals or O Rings

Chalk Write the Contents, Date, AM or PM and Initials of person who checked the equipment on the cylinder.

Gloves Remember to put gloves on before you do anything else!

Anaesthetic masks Therapy masks Sealing washers Chalk Oropharyngeal Airways Gloves Air bag Resuscitation tubing Oxygen reservoir Therapy tubing
