Advanced Next g. Eneration Mobile Open NEtwork Tridentcom 2008 4 th International Conference on Advanced Next g. Eneration Mobile Open NEtwork Tridentcom 2008 4 th International Conference on Testbeds and Research Infrastructures for the Development of Networks & Communities ANEMONE Media Platform Services at BME 18 th March, 2008 Zoltán Faigl ([email protected] hu), László Bokor ([email protected] hu)

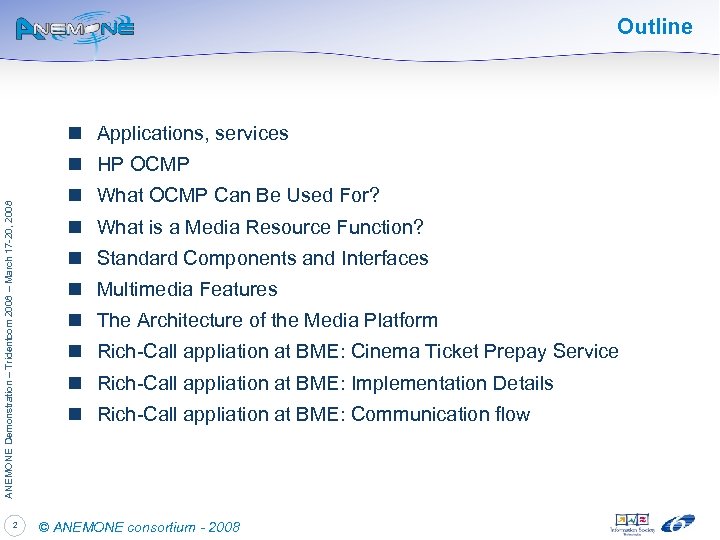

Outline n Applications, services ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Outline n Applications, services ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 n HP OCMP 2 n What OCMP Can Be Used For? n What is a Media Resource Function? n Standard Components and Interfaces n Multimedia Features n The Architecture of the Media Platform n Rich-Call appliation at BME: Cinema Ticket Prepay Service n Rich-Call appliation at BME: Implementation Details n Rich-Call appliation at BME: Communication flow © ANEMONE consortium - 2008

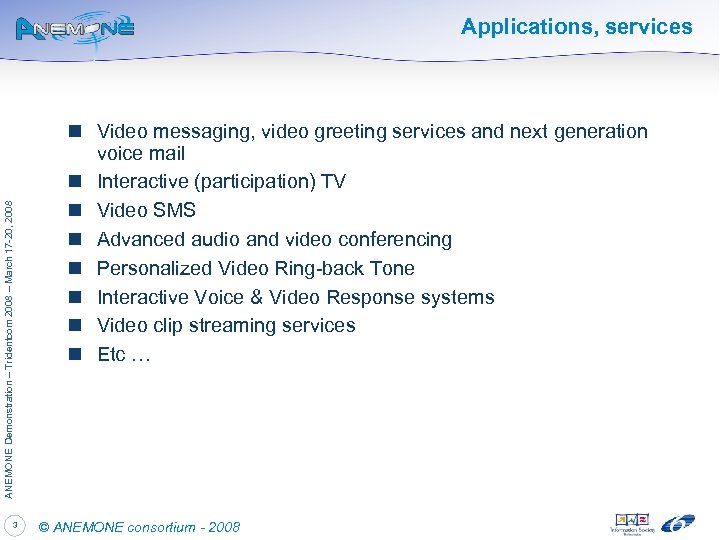

ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Applications, services 3 n ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Applications, services 3 n Video messaging, video greeting services and next generation voice mail n Interactive (participation) TV n Video SMS n Advanced audio and video conferencing n Personalized Video Ring-back Tone n Interactive Voice & Video Response systems n Video clip streaming services n Etc … © ANEMONE consortium - 2008

ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 HP O pe n. ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 HP O pe n. C all M ed ia Pl atf or m 4 The HP Open. Call Media Platform 4. 0 is a scalable, carrier-grade IP multimedia server and MRF (Media Resource Function) deploying audio and video services for multimedia portals, multimedia messaging, conferencing and other advanced multimedia applications © ANEMONE consortium - 2008

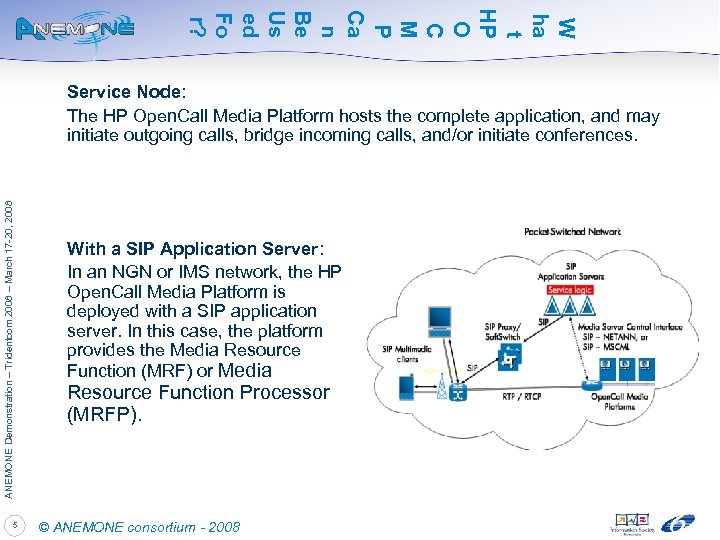

W ha t HP O C M P Ca n Be Us ed Fo W ha t HP O C M P Ca n Be Us ed Fo r? ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Service Node: The HP Open. Call Media Platform hosts the complete application, and may initiate outgoing calls, bridge incoming calls, and/or initiate conferences. 5 With a SIP Application Server: In an NGN or IMS network, the HP Open. Call Media Platform is deployed with a SIP application server. In this case, the platform provides the Media Resource Function (MRF) or Media Resource Function Processor (MRFP). © ANEMONE consortium - 2008

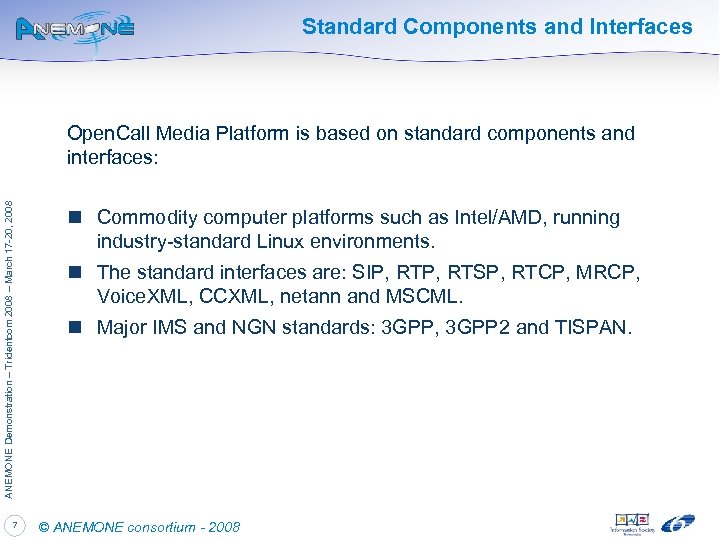

Standard Components and Interfaces ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Standard Components and Interfaces ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Open. Call Media Platform is based on standard components and interfaces: 7 n Commodity computer platforms such as Intel/AMD, running industry-standard Linux environments. n The standard interfaces are: SIP, RTSP, RTCP, MRCP, Voice. XML, CCXML, netann and MSCML. n Major IMS and NGN standards: 3 GPP, 3 GPP 2 and TISPAN. © ANEMONE consortium - 2008

ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Multimedia Features 8 n ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Multimedia Features 8 n n n n n Multimedia Codecs and Transcoding Capabilities Enhanced Multimedia Playing and Recording RTCP Support Early Media and Early Connect Automatic Speech Recognition (ASR) and Text-to-Speech (TTS) Support Bridging, Streaming, 1: N Sharing and Conferencing Video Conferencing, Multimedia Server Control Protocols (Netann, MSCML, H. 248) Etc. © ANEMONE consortium - 2008

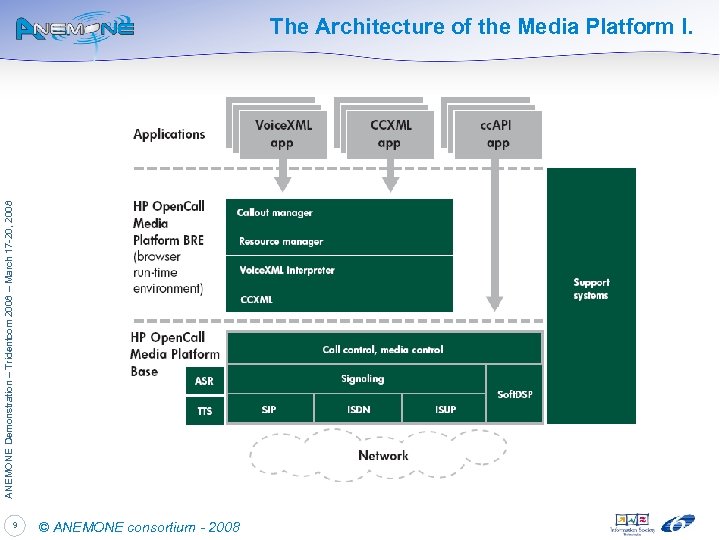

ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 The Architecture of the ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 The Architecture of the Media Platform I. 9 © ANEMONE consortium - 2008

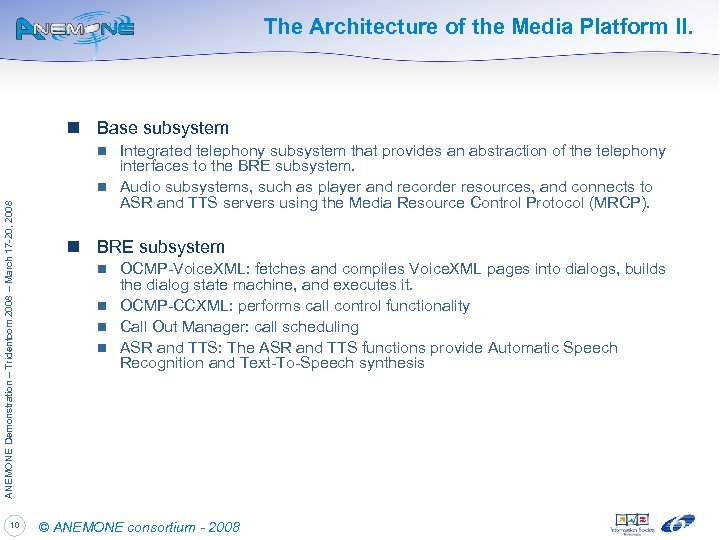

The Architecture of the Media Platform II. n Base subsystem Integrated telephony subsystem that The Architecture of the Media Platform II. n Base subsystem Integrated telephony subsystem that provides an abstraction of the telephony interfaces to the BRE subsystem. n Audio subsystems, such as player and recorder resources, and connects to ASR and TTS servers using the Media Resource Control Protocol (MRCP). ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 n 10 n BRE subsystem OCMP-Voice. XML: fetches and compiles Voice. XML pages into dialogs, builds the dialog state machine, and executes it. n OCMP-CCXML: performs call control functionality n Call Out Manager: call scheduling n ASR and TTS: The ASR and TTS functions provide Automatic Speech Recognition and Text-To-Speech synthesis n © ANEMONE consortium - 2008

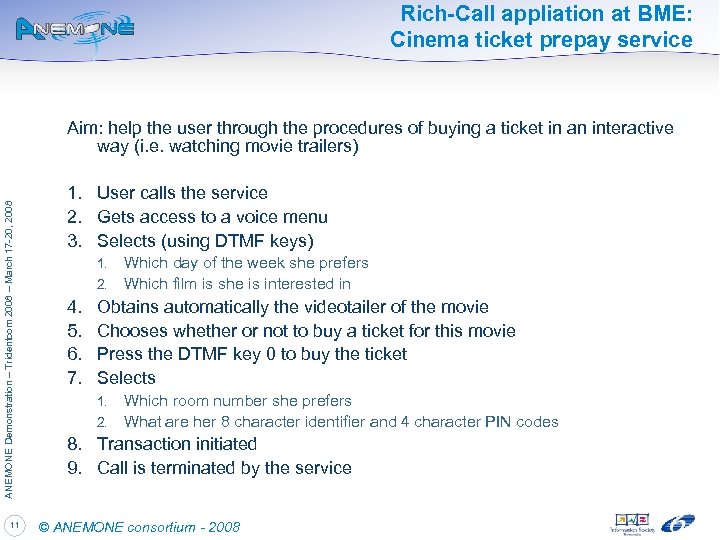

Rich-Call appliation at BME: Cinema ticket prepay service ANEMONE Demonstration – Tridentcom 2008 – Rich-Call appliation at BME: Cinema ticket prepay service ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Aim: help the user through the procedures of buying a ticket in an interactive way (i. e. watching movie trailers) 11 1. User calls the service 2. Gets access to a voice menu 3. Selects (using DTMF keys) Which day of the week she prefers 2. Which film is she is interested in 1. 4. 5. 6. 7. Obtains automatically the videotailer of the movie Chooses whether or not to buy a ticket for this movie Press the DTMF key 0 to buy the ticket Selects Which room number she prefers 2. What are her 8 character identifier and 4 character PIN codes 1. 8. Transaction initiated 9. Call is terminated by the service © ANEMONE consortium - 2008

ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Rich-Call appliation at BME: ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Rich-Call appliation at BME: Implementation Details 12 © ANEMONE consortium - 2008

ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Rich-Call appliation at BME: ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Rich-Call appliation at BME: Communication flow 13 © ANEMONE consortium - 2008

14 ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Thank you for 14 ANEMONE Demonstration – Tridentcom 2008 – March 17 -20, 2008 Thank you for your attention! © ANEMONE consortium - 2008
