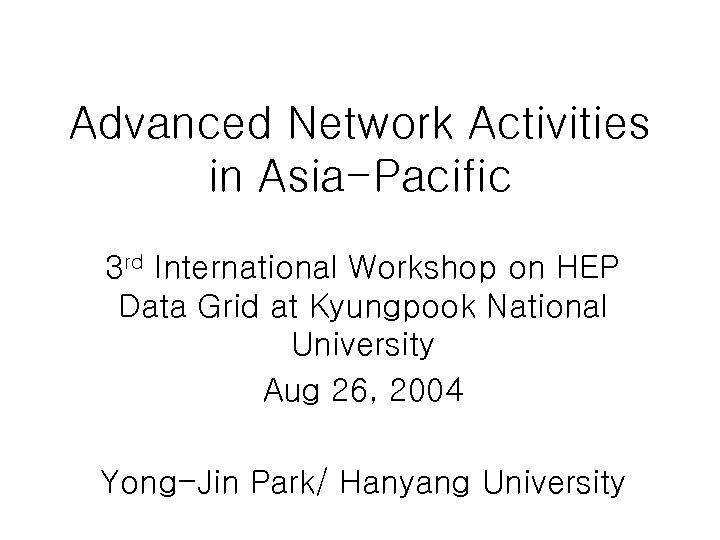

Advanced Network Activities in Asia-Pacific 3 rd International Workshop on HEP Data Grid at Kyungpook National University Aug 26, 2004 Yong-Jin Park/ Hanyang University

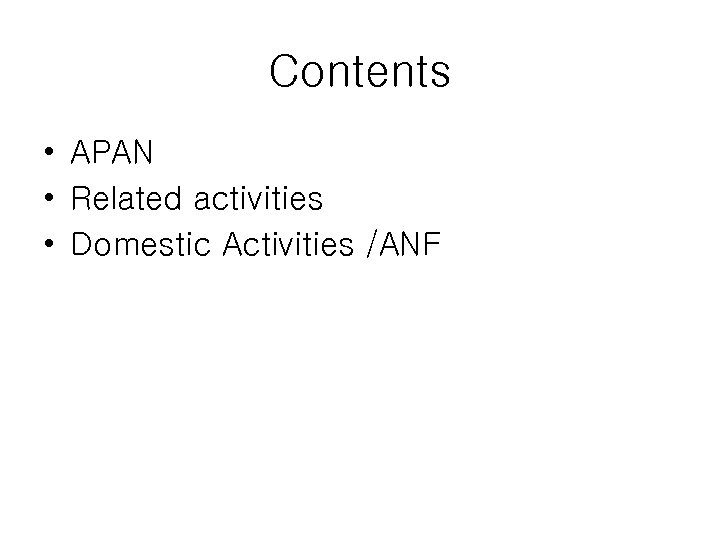

Contents • APAN • Related activities • Domestic Activities /ANF

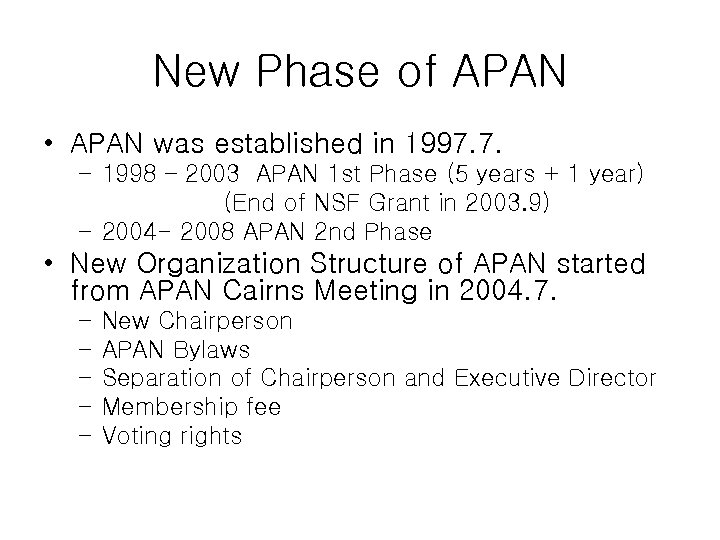

New Phase of APAN • APAN was established in 1997. 7. – 1998 – 2003 APAN 1 st Phase (5 years + 1 year) (End of NSF Grant in 2003. 9) – 2004 - 2008 APAN 2 nd Phase • New Organization Structure of APAN started from APAN Cairns Meeting in 2004. 7. – – – New Chairperson APAN Bylaws Separation of Chairperson and Executive Director Membership fee Voting rights

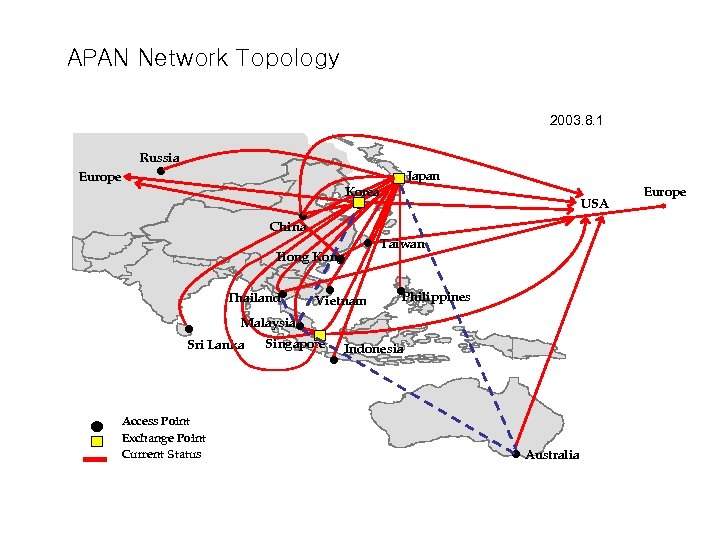

APAN Network Topology 2003. 8. 1 Europe Russia l Japan Korea l l China Hong Kong l Thailandl Access Point Exchange Point Current Status l Taiwan l Vietnam Malaysial l l Singapore Sri Lanka l USA l Philippines Indonesia l Australia Europe

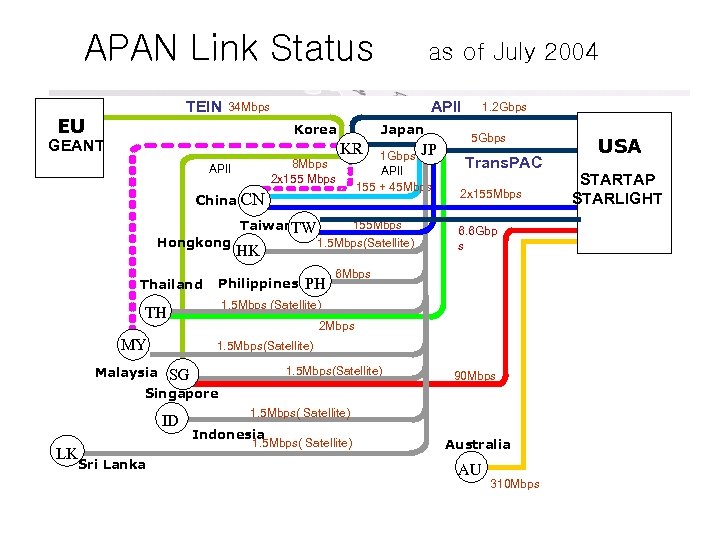

APAN Link Status TEIN EU APII 34 Mbps Korea GEANT 8 Mbps 2 x 155 Mbps APII Japan KR Hongkong HK Philippines 155 Mbps 1. 5 Mbps(Satellite) PH 1. 2 Gbps 5 Gbps Trans. PAC 2 x 155 Mbps 6. 6 Gbp s 6 Mbps 1. 5 Mbps (Satellite) TH 2 Mbps MY Malaysia Taiwan. TW JP 1 Gbps APII 155 + 45 Mbps China CN Thailand as of July 2004 1. 5 Mbps(Satellite) SG 90 Mbps Singapore ID LK 1. 5 Mbps( Satellite) Indonesia 1. 5 Mbps( Satellite) Sri Lanka Australia AU 310 Mbps USA STARTAP STARLIGHT

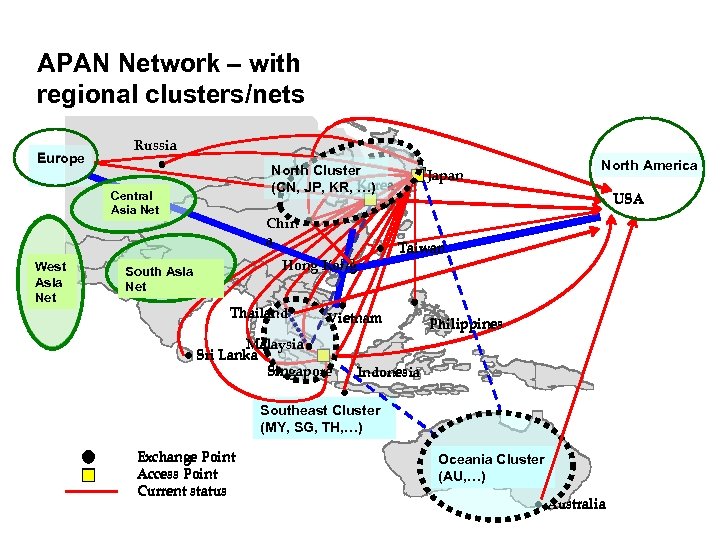

APAN Network – with regional clusters/nets Europe Russia North Cluster (CN, JP, KR, Korea …) Central Asia Net West Asia Net North America l Japan USA l China Chin a Hong Kong South Asia Net Thailand Malaysia l Sri Lanka l Taiwan l Vietnam l Singapore Philippines Indonesia Southeast Cluster (MY, SG, TH, …) Exchange Point Access Point Current status Oceania Cluster (AU, …) l Australia

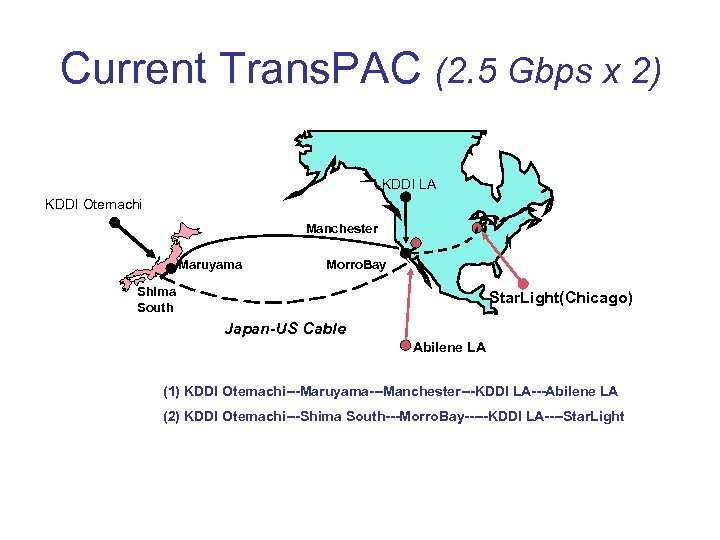

Current Trans. PAC (2. 5 Gbps x 2) KDDI LA KDDI Otemachi Manchester Maruyama Morro. Bay Shima South Star. Light(Chicago) Japan-US Cable Abilene LA (1) KDDI Otemachi---Maruyama---Manchester---KDDI LA---Abilene LA (2) KDDI Otemachi---Shima South---Morro. Bay-----KDDI LA----Star. Light

Trans. PAC links of OC 192 Cisco ONS (planned) Router Carrier ADM (NEC Product) Cisco ONS 15454 +ML x 4 +OC 192 IR x 1 +XC-10 G x 1 Carrier ADM Tokyo XP Cisco ONS 15454 +ML x 4 +OC 192 IR x 1 +XC-10 G x 1 SONET OC 192 STS 12 c x 16 (initial) Low Priority SONET OC-192 STS 12 c x 16 (initial) • • 10 Gig. E SL Switch CHIN Abilene Pro 8812+ OC 192 POS SONET STS 192 c Trans. LIGHT Lambda Tyco Shinagawa Tyco LA Carrier-LA SONET STS 192 c Tokyo-Chicago Protected – SONET OC 192 – STS-12 c x 16 (possible to change into STS 192 c, STS 48 c x 4 etc) – Tokyo. XP - Carrier-LA : Preemptive , Carrier-LA - NWU : Low Priority – Tokyo : APAN Tokyo. XP , Chicago : Star. Light Tokyo-LA – SONET STS 192 c – Tokyo. XP - Carrier-LA : Protected , Carrier-LA - Abilene : protected – Tokyo : APAN Tokyo. XP , LA : Abilene LOSA

TEIN The link will be upgraded to 155/622 Mbps. TEIN 2 has been planning.

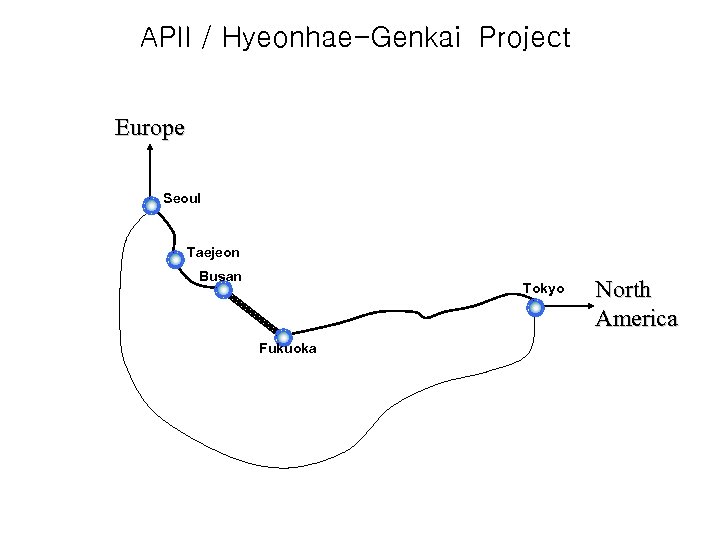

APII / Hyeonhae-Genkai Project Europe Seoul Taejeon New Gb. E Links Busan Tokyo North America Fukuoka previous 8 Mbps link

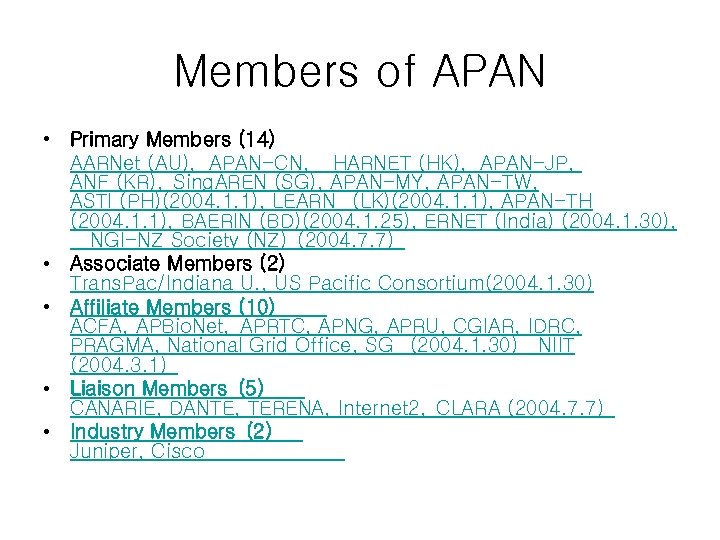

Members of APAN • Primary Members (14) AARNet (AU), APAN-CN, HARNET (HK), APAN-JP, ANF (KR), Sing. AREN (SG), APAN-MY, APAN-TW, ASTI (PH)(2004. 1. 1), LEARN (LK)(2004. 1. 1), APAN-TH (2004. 1. 1), BAERIN (BD)(2004. 1. 25), ERNET (India) (2004. 1. 30), NGI-NZ Society (NZ) (2004. 7. 7) • Associate Members (2) Trans. Pac/Indiana U. , US Pacific Consortium(2004. 1. 30) • Affiliate Members (10) ACFA, APBio. Net, APRTC, APNG, APRU, CGIAR, IDRC, PRAGMA, National Grid Office, SG (2004. 1. 30) NIIT (2004. 3. 1) • Liaison Members (5) CANARIE, DANTE, TERENA, Internet 2, CLARA (2004. 7. 7) • Industry Members (2) Juniper, Cisco

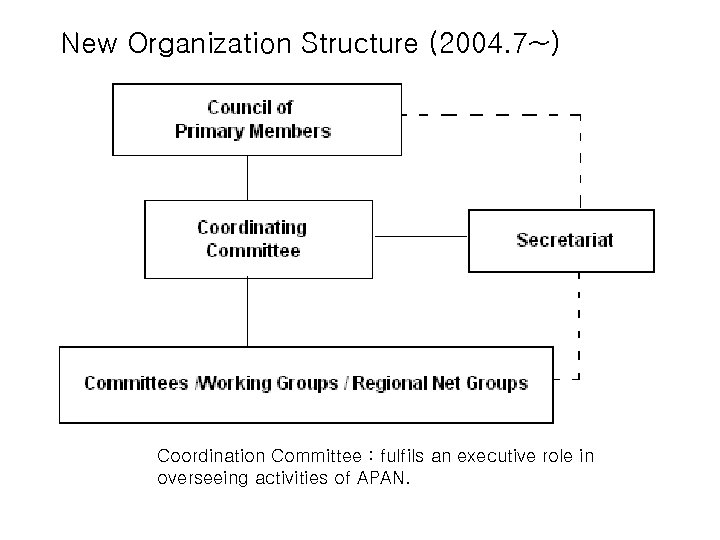

New Organization Structure (2004. 7~) Coordination Committee : fulfils an executive role in overseeing activities of APAN.

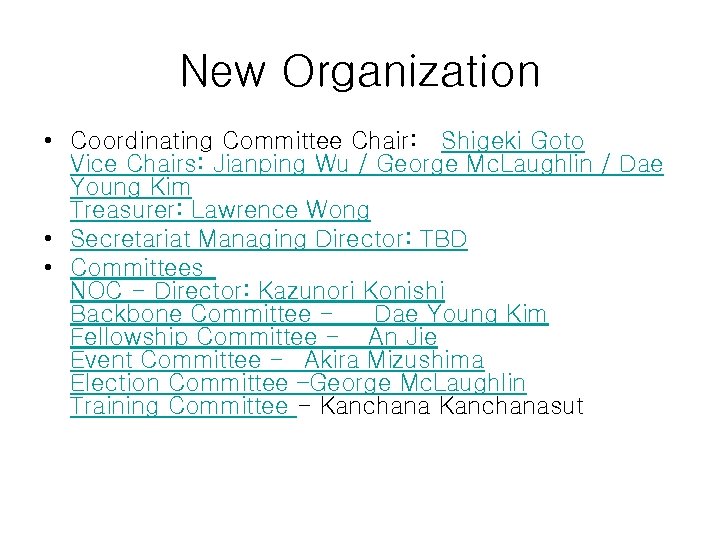

New Organization • Coordinating Committee Chair: Shigeki Goto Vice Chairs: Jianping Wu / George Mc. Laughlin / Dae Young Kim Treasurer: Lawrence Wong • Secretariat Managing Director: TBD • Committees NOC - Director: Kazunori Konishi Backbone Committee - Dae Young Kim Fellowship Committee - An Jie Event Committee - Akira Mizushima Election Committee –George Mc. Laughlin Training Committee - Kanchanasut

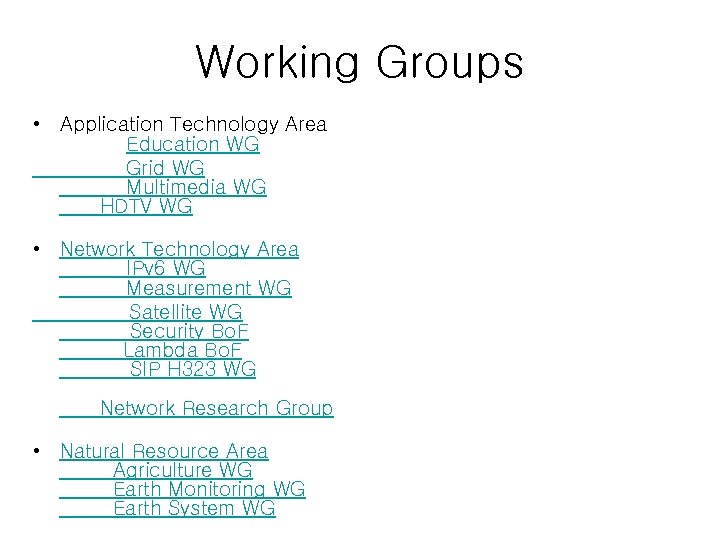

Working Groups • Application Technology Area Education WG Grid WG Multimedia WG HDTV WG • Network Technology Area IPv 6 WG Measurement WG Satellite WG Security Bo. F Lambda Bo. F SIP H 323 WG Network Research Group • Natural Resource Area Agriculture WG Earth Monitoring WG Earth System WG

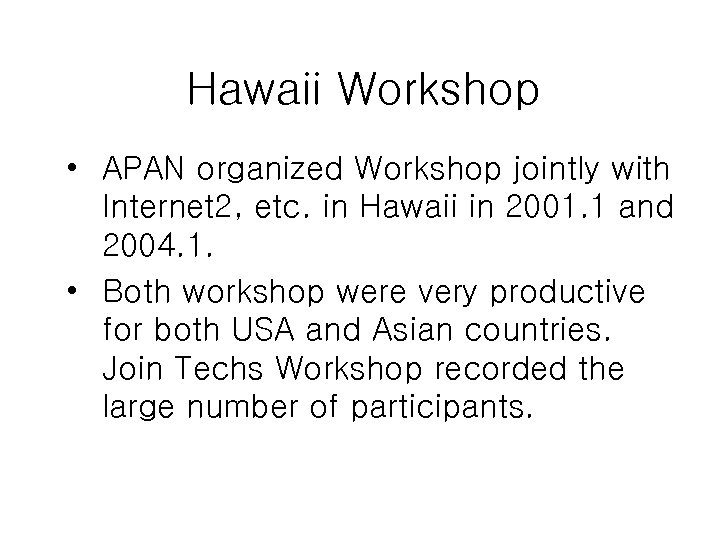

Hawaii Workshop • APAN organized Workshop jointly with Internet 2, etc. in Hawaii in 2001. 1 and 2004. 1. • Both workshop were very productive for both USA and Asian countries. Join Techs Workshop recorded the large number of participants.

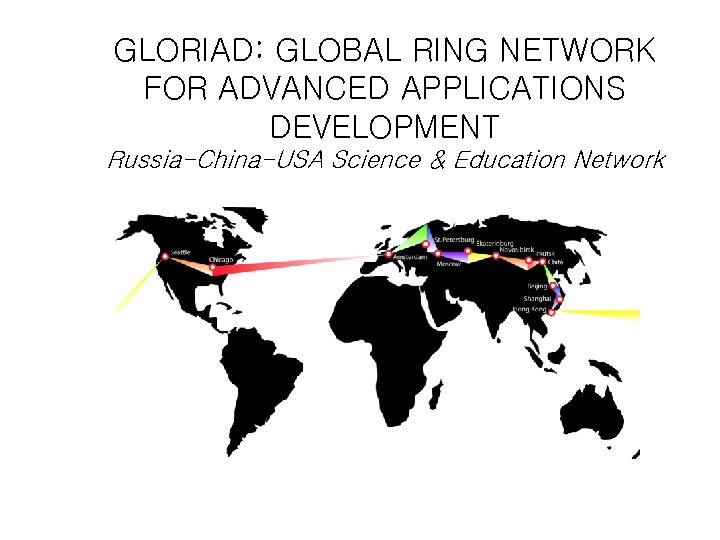

GLORIAD: GLOBAL RING NETWORK FOR ADVANCED APPLICATIONS DEVELOPMENT Russia-China-USA Science & Education Network

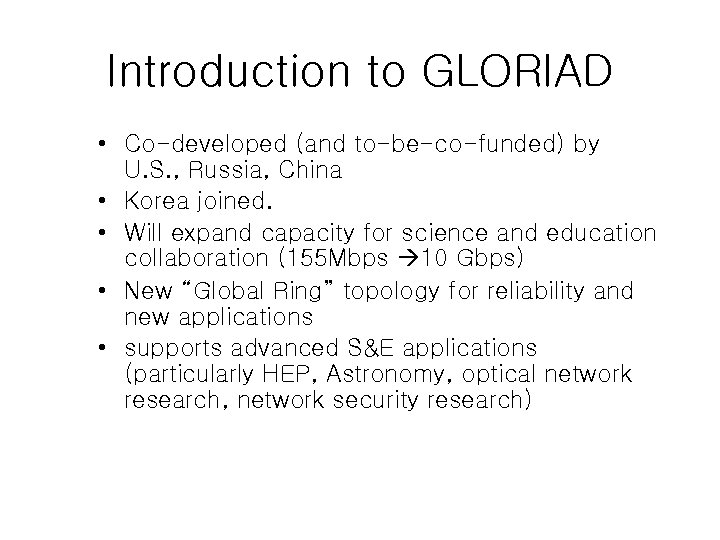

Introduction to GLORIAD • Co-developed (and to-be-co-funded) by U. S. , Russia, China • Korea joined. • Will expand capacity for science and education collaboration (155 Mbps 10 Gbps) • New “Global Ring” topology for reliability and new applications • supports advanced S&E applications (particularly HEP, Astronomy, optical network research, network security research)

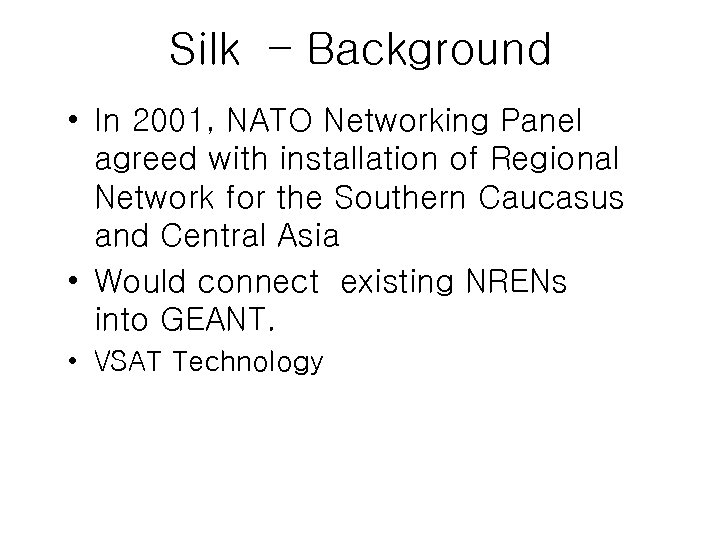

Silk – Background • In 2001, NATO Networking Panel agreed with installation of Regional Network for the Southern Caucasus and Central Asia • Would connect existing NRENs into GEANT. • VSAT Technology

Silk – Countries and Sites X X X X X

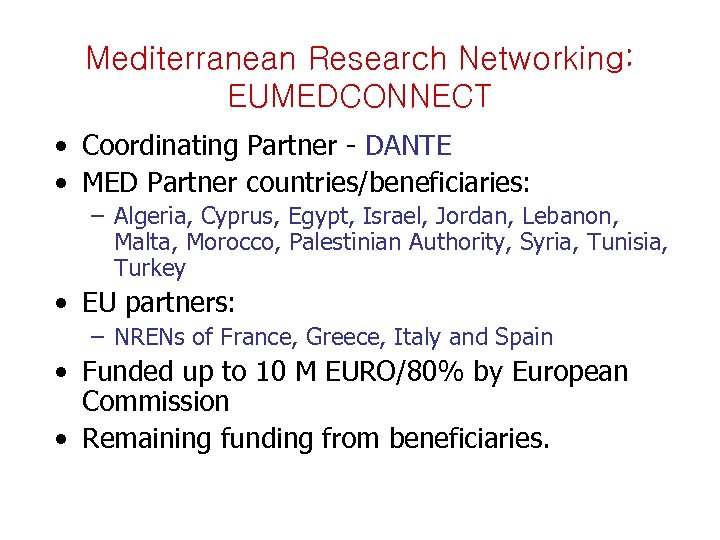

Mediterranean Research Networking: EUMEDCONNECT • Coordinating Partner - DANTE • MED Partner countries/beneficiaries: – Algeria, Cyprus, Egypt, Israel, Jordan, Lebanon, Malta, Morocco, Palestinian Authority, Syria, Tunisia, Turkey • EU partners: – NRENs of France, Greece, Italy and Spain • Funded up to 10 M EURO/80% by European Commission • Remaining funding from beneficiaries.

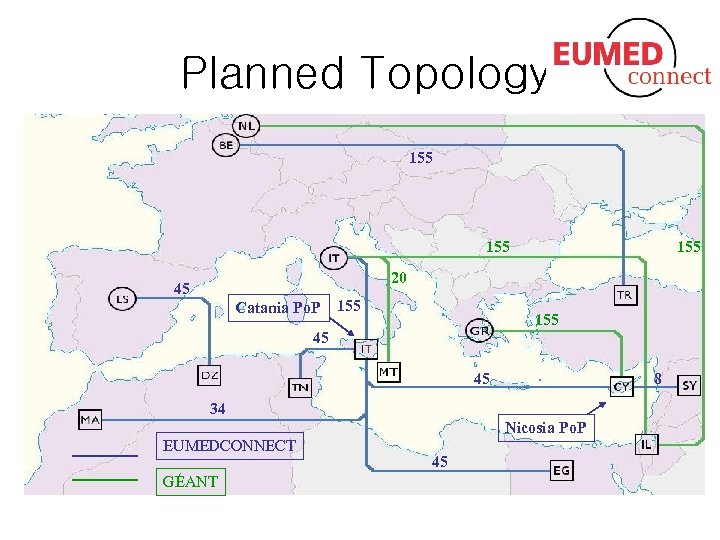

Planned Topology 155 155 20 45 Catania Po. P 155 45 45 8 34 Nicosia Po. P EUMEDCONNECT GÉANT 45

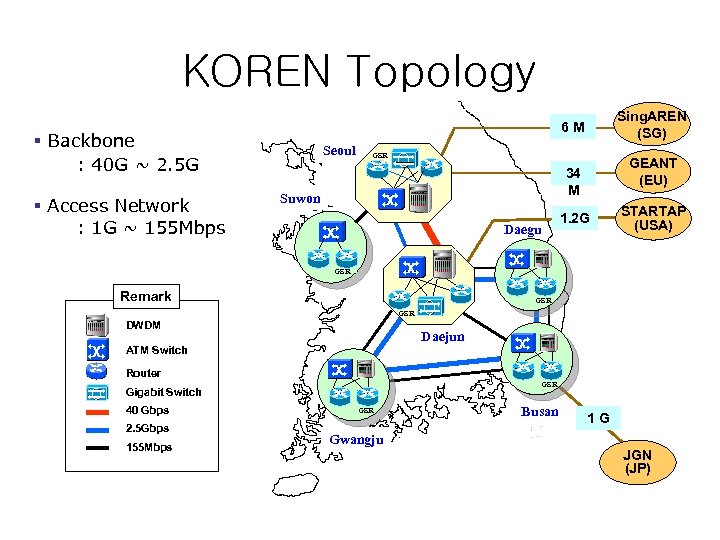

KOREN Topology § Backbone : 40 G ~ 2. 5 G § Access Network : 1 G ~ 155 Mbps Sing. AREN (SG) 6 M Seoul GSR GEANT (EU) 34 M Suwon Daegu 1. 2 G STARTAP (USA) GSR Remark GSR DWDM Daejun ATM Switch Router GSR Gigabit Switch 40 Gbps 2. 5 Gbps 155 Mbps GSR Gwangju Busan 1 G JGN (JP)

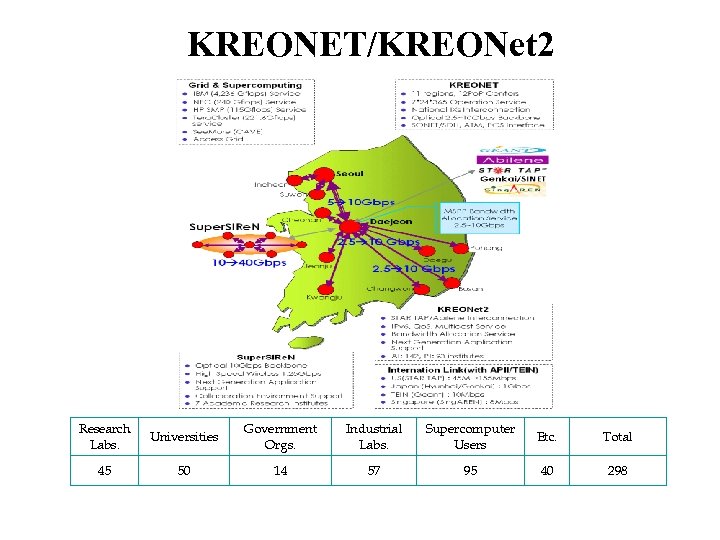

KREONET/KREONet 2 Research Labs. Universities Government Orgs. Industrial Labs. Supercomputer Users Etc. Total 45 50 14 57 95 40 298

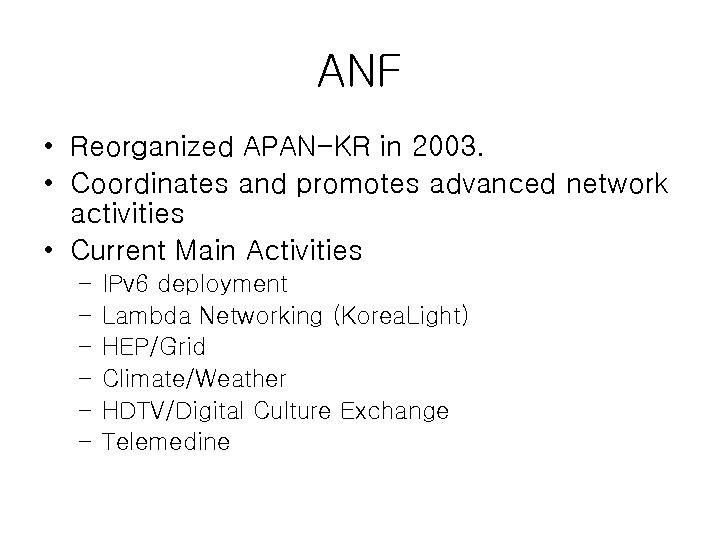

ANF • Reorganized APAN-KR in 2003. • Coordinates and promotes advanced network activities • Current Main Activities – – – IPv 6 deployment Lambda Networking (Korea. Light) HEP/Grid Climate/Weather HDTV/Digital Culture Exchange Telemedine

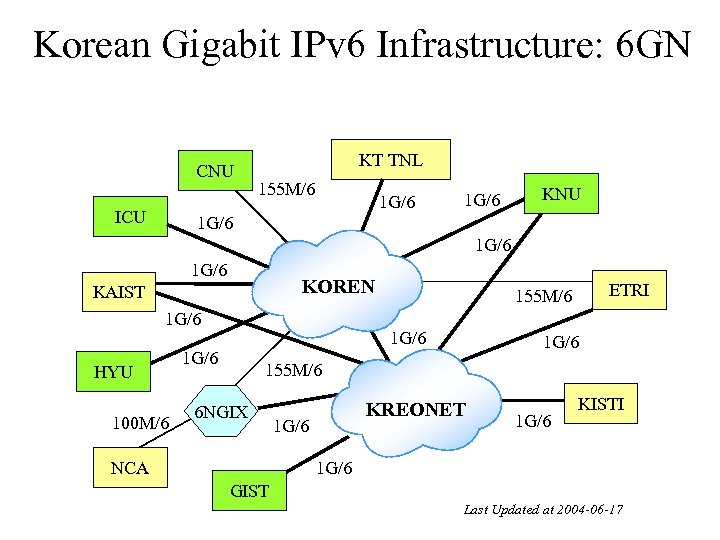

Korean Gigabit IPv 6 Infrastructure: 6 GN CNU ICU KT TNL 155 M/6 1 G/6 KNU 1 G/6 KOREN KAIST 1 G/6 HYU 100 M/6 1 G/6 ETRI 155 M/6 1 G/6 155 M/6 6 NGIX NCA KREONET 1 G/6 KISTI 1 G/6 GIST Last Updated at 2004 -06 -17

HDTV

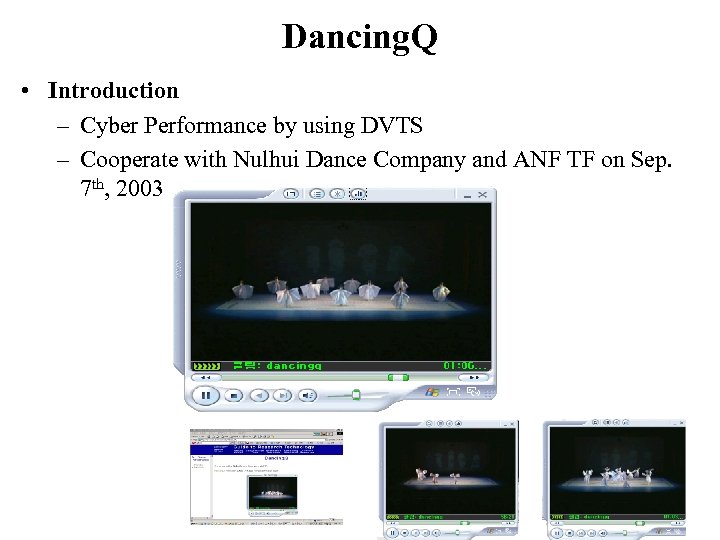

Dancing. Q • Introduction – Cyber Performance by using DVTS – Cooperate with Nulhui Dance Company and ANF TF on Sep. 7 th, 2003

Endoscopic surgery 　 Lifting device Surgery I, Kyushu Univ Long instrument

Neuro Surgery Conference room in Kyushu Univ. Operation room in Hanyang Univ.

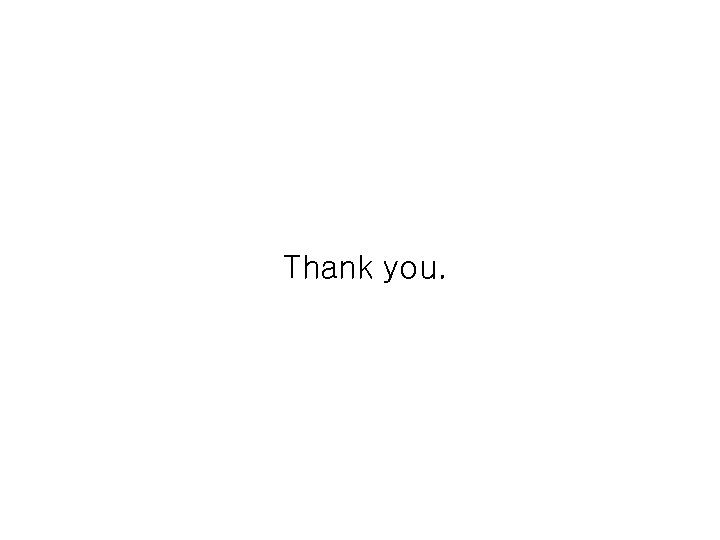

Thank you.
