Advanced Design and Methods of Simulation: the Point of View of a SME Giorgio Grasso G. G. G. ELETTROMECCANICA S. R. L.

General Information GGG Elettromeccanica Srl is a Limited company founded in 1962. With its three main acitvities, Veicoli Speciali (special purpose vehicles), Robotica (industrial automation) e Ricerca Industriale (industrial research), today the company has a modern infrastructure projected towards hi-tech applications, constantly investing in industrial research.

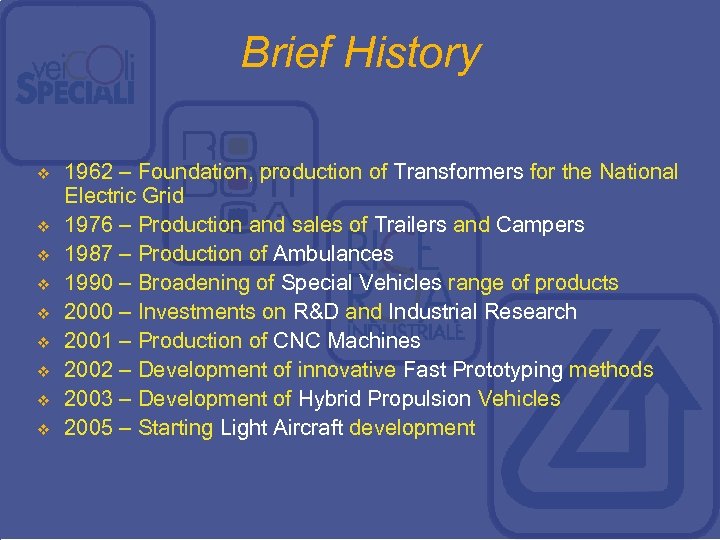

Brief History v v v v v 1962 – Foundation, production of Transformers for the National Electric Grid 1976 – Production and sales of Trailers and Campers 1987 – Production of Ambulances 1990 – Broadening of Special Vehicles range of products 2000 – Investments on R&D and Industrial Research 2001 – Production of CNC Machines 2002 – Development of innovative Fast Prototyping methods 2003 – Development of Hybrid Propulsion Vehicles 2005 – Starting Light Aircraft development

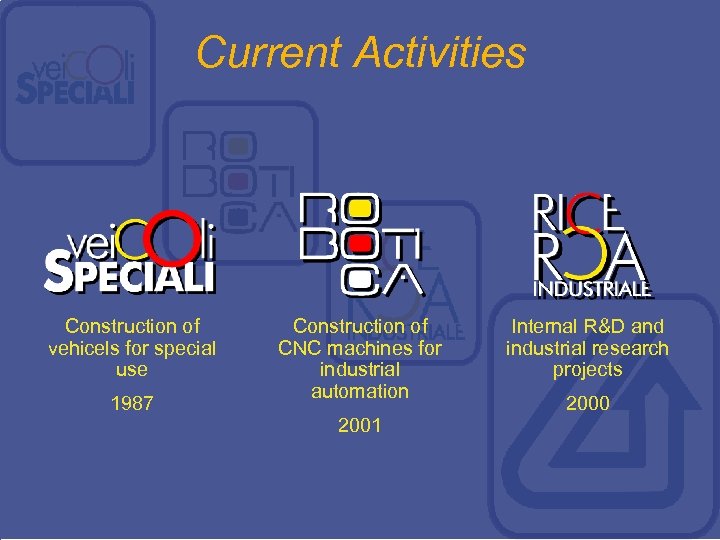

Current Activities Construction of vehicels for special use 1987 Construction of CNC machines for industrial automation 2001 Internal R&D and industrial research projects 2000

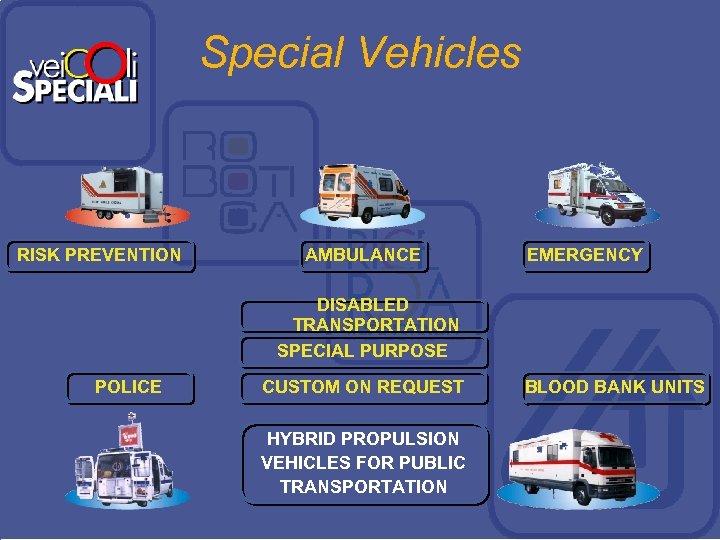

Special Vehicles RISK PREVENTION AMBULANCE EMERGENCY DISABLED TRANSPORTATION SPECIAL PURPOSE POLICE CUSTOM ON REQUEST HYBRID PROPULSION VEHICLES FOR PUBLIC TRANSPORTATION BLOOD BANK UNITS

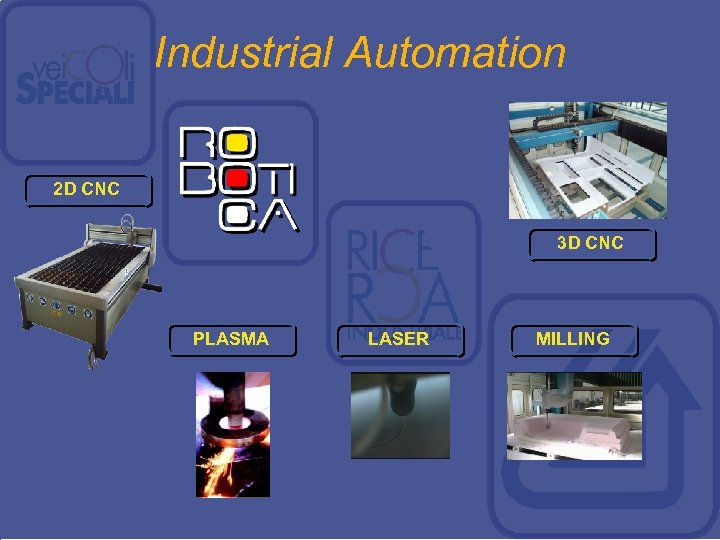

Industrial Automation 2 D CNC 3 D CNC PLASMA LASER MILLING

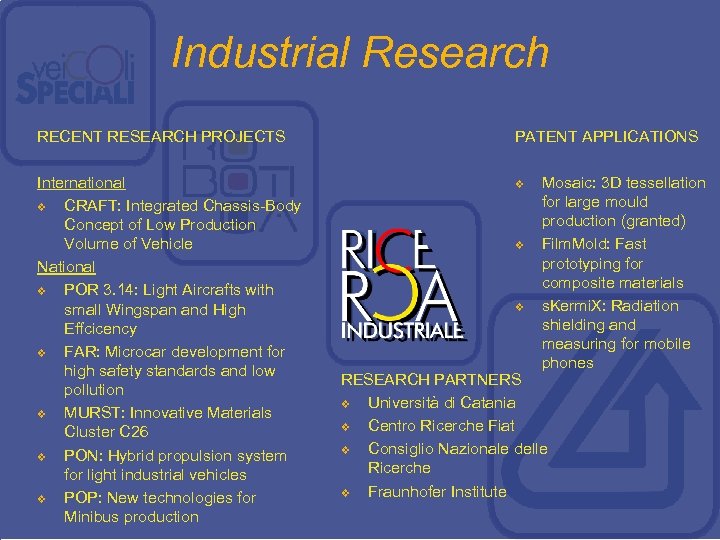

Industrial Research RECENT RESEARCH PROJECTS PATENT APPLICATIONS International v CRAFT: Integrated Chassis-Body Concept of Low Production Volume of Vehicle National v POR 3. 14: Light Aircrafts with small Wingspan and High Effcicency v FAR: Microcar development for high safety standards and low pollution v MURST: Innovative Materials Cluster C 26 v PON: Hybrid propulsion system for light industrial vehicles v POP: New technologies for Minibus production v v v Mosaic: 3 D tessellation for large mould production (granted) Film. Mold: Fast prototyping for composite materials s. Kermi. X: Radiation shielding and measuring for mobile phones RESEARCH PARTNERS v Università di Catania v Centro Ricerche Fiat v Consiglio Nazionale delle Ricerche v Fraunhofer Institute

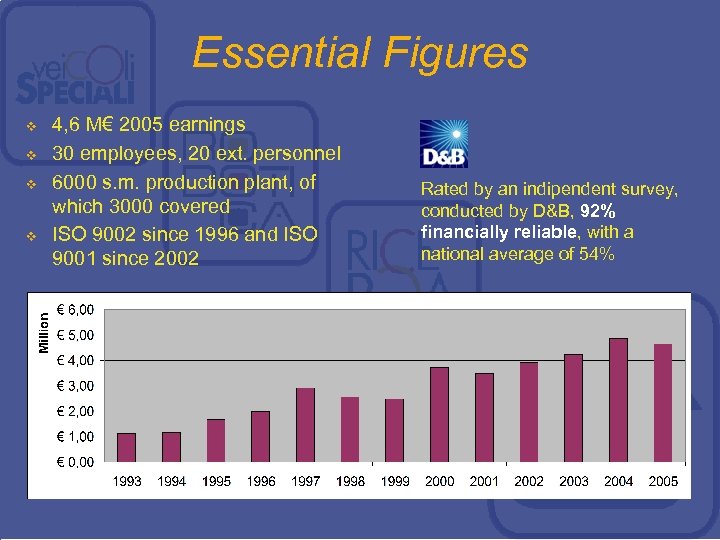

Essential Figures v v 4, 6 M€ 2005 earnings 30 employees, 20 ext. personnel 6000 s. m. production plant, of which 3000 covered ISO 9002 since 1996 and ISO 9001 since 2002 Rated by an indipendent survey, conducted by D&B, 92% financially reliable, with a national average of 54%

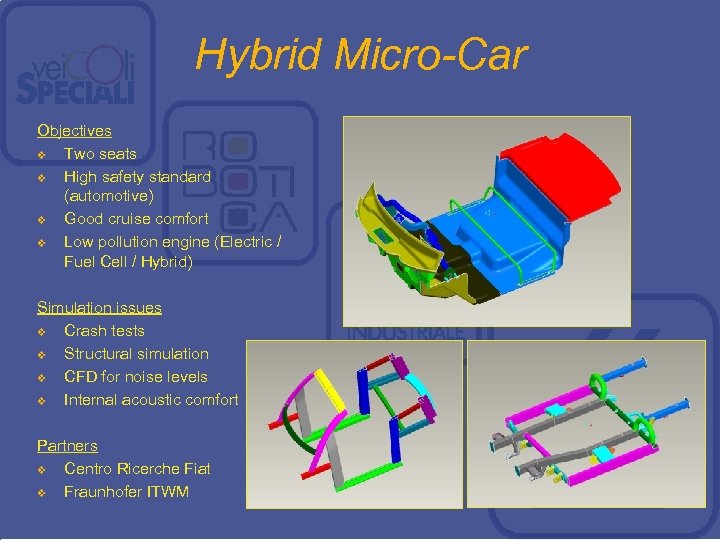

Hybrid Micro-Car Objectives v Two seats v High safety standard (automotive) v Good cruise comfort v Low pollution engine (Electric / Fuel Cell / Hybrid) Simulation issues v Crash tests v Structural simulation v CFD for noise levels v Internal acoustic comfort Partners v Centro Ricerche Fiat v Fraunhofer ITWM

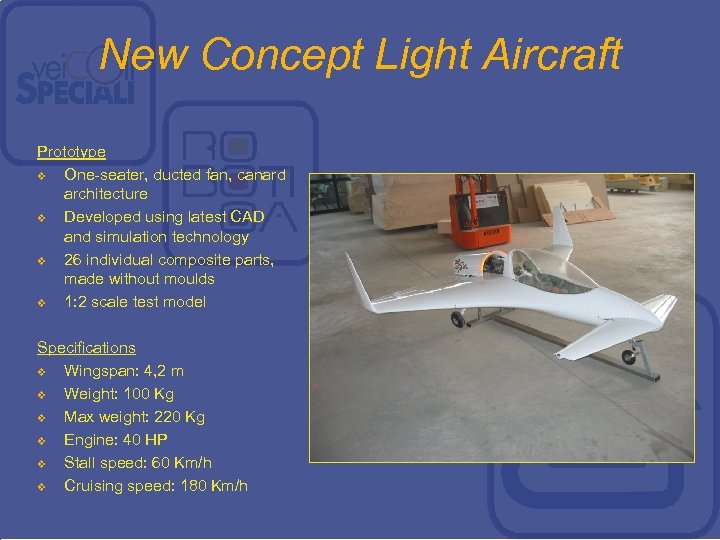

New Concept Light Aircraft Prototype v One-seater, ducted fan, canard architecture v Developed using latest CAD and simulation technology v 26 individual composite parts, made without moulds v 1: 2 scale test model Specifications v Wingspan: 4, 2 m v Weight: 100 Kg v Max weight: 220 Kg v Engine: 40 HP v Stall speed: 60 Km/h v Cruising speed: 180 Km/h

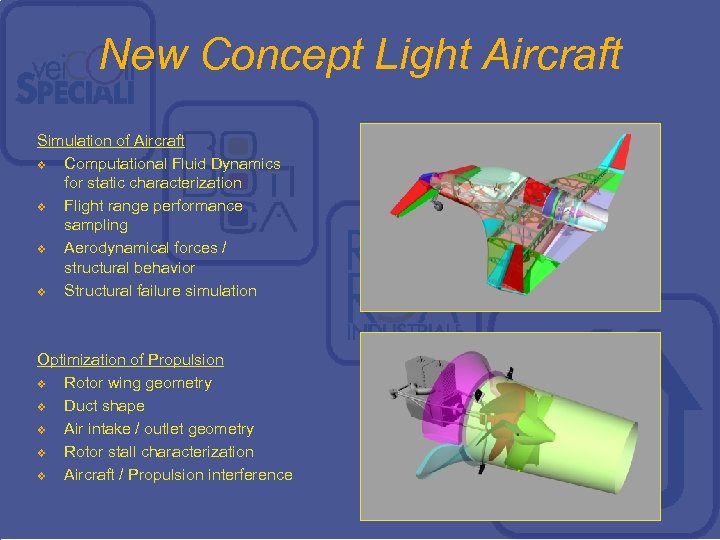

New Concept Light Aircraft Simulation of Aircraft v Computational Fluid Dynamics for static characterization v Flight range performance sampling v Aerodynamical forces / structural behavior v Structural failure simulation Optimization of Propulsion v Rotor wing geometry v Duct shape v Air intake / outlet geometry v Rotor stall characterization v Aircraft / Propulsion interference

New Concept Light Aircraft Prototype Development v Low development timeframe v Fully automated milling v Film assisted one-off moulding v Laser CNC cut structural parts v v Aeronautics assembly standards Large use of composite material Film assisted one-off moulding Laser CNC cut structural parts

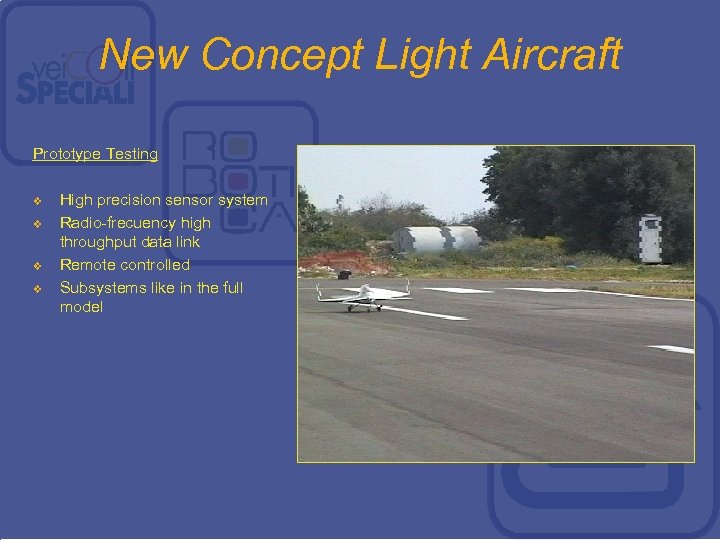

New Concept Light Aircraft Prototype Testing v v High precision sensor system Radio-frecuency high throughput data link Remote controlled Subsystems like in the full model

Perspective of an SMEs for the use Grid Computing v v v Local SMEs have serious technological limitations due to lack of access to state of the computational systems Often the need to stay on the edge of nowadays competitive market imposes the use of design and simulation methods of very high computational cost, even for small production series Grid Computing equipment is too costly for SME budgets Scientific/technical training for the use of Computational Grids is still limited There is a limited connection between SMEs and users of computational grids (Universities, Research Centers)

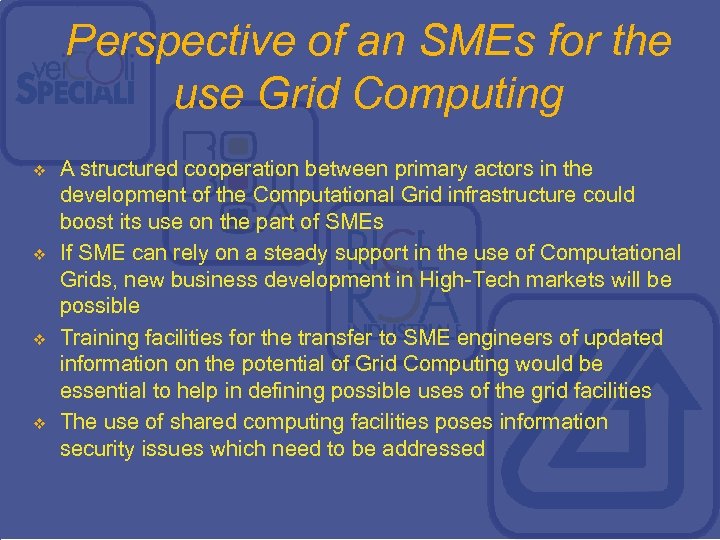

Perspective of an SMEs for the use Grid Computing v v A structured cooperation between primary actors in the development of the Computational Grid infrastructure could boost its use on the part of SMEs If SME can rely on a steady support in the use of Computational Grids, new business development in High-Tech markets will be possible Training facilities for the transfer to SME engineers of updated information on the potential of Grid Computing would be essential to help in defining possible uses of the grid facilities The use of shared computing facilities poses information security issues which need to be addressed

G. G. G. Elettromeccanica Srl Stradale Primosole, 46 I-95029 Catania Tel. +39 095 591019 Fax. +39 095 592501 Email: info@gggele. it Web: www. gggele. it
