Ad hoc 환경에서의 IPv 6 적용 기술 정재훈 PEC, ETRI paul@etri. re. kr 1

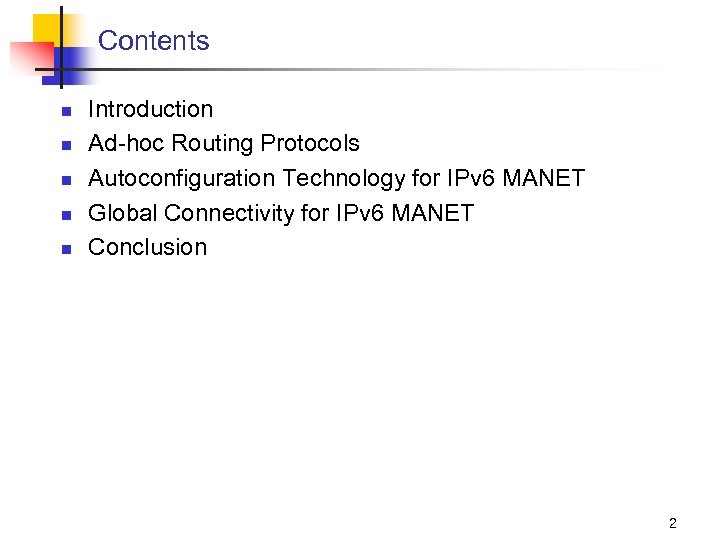

Contents n n n Introduction Ad-hoc Routing Protocols Autoconfiguration Technology for IPv 6 MANET Global Connectivity for IPv 6 MANET Conclusion 2
Introduction (1/2) n Categories of Wireless Networks n Infrastructured Networks n n Infrastructureless Networks n n Cellular Networks, Wireless LAN (WLAN) Ad-hoc Networks n n n 유선 기반 망 (Infrastrured Networks) 없이 무선 이동단말로만 구 성된 망 Multi-hop Routing을 위해 각 이동단말이 Router 역할을 수행함 용도 n 긴급구조, 전쟁, 홈 네트워크, Shopping Mall, 임시 공동작업, 도로에서의 차량 간의 통신, 공항에서의 티켓팅, 사무실 등. 3

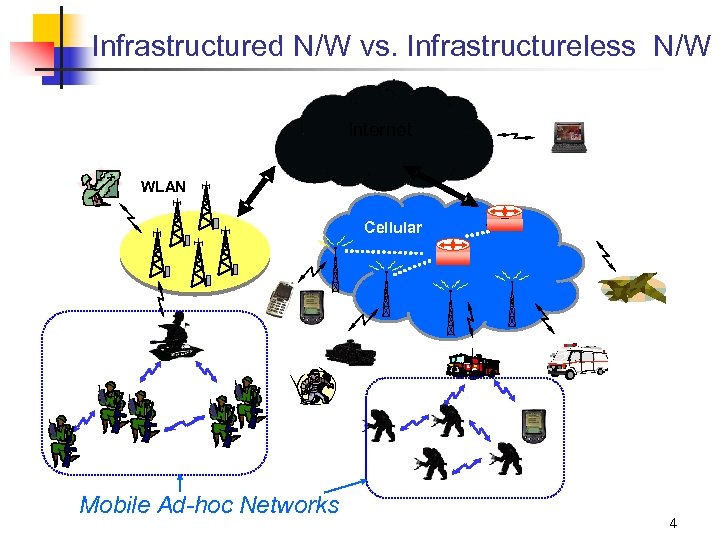

Infrastructured N/W vs. Infrastructureless N/W Internet WLAN Cellular Mobile Ad-hoc Networks 4
Introduction (2/2) n MANET에서의 이슈 n n Ad-hoc Unicast Routing Ad-hoc Multicast/Broadcast Routing Power Saving Automatic Support of Networking Facility in MANET n n Autoconfiguration Technology Global Connectivity for MANET 5

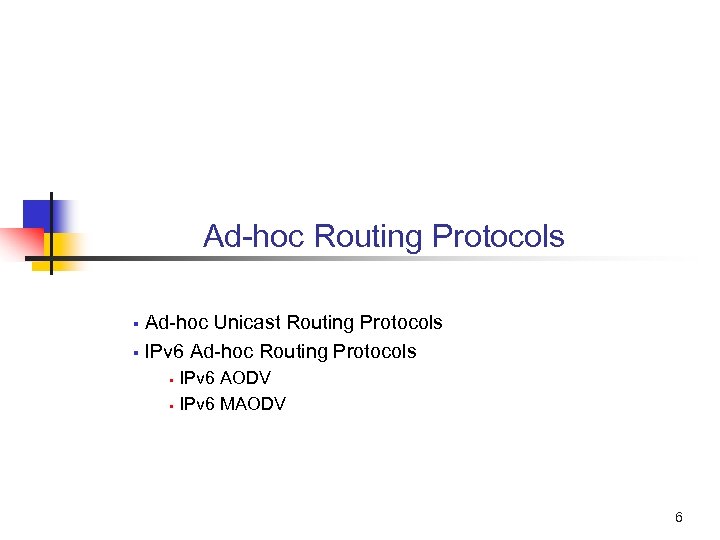

Ad-hoc Routing Protocols Ad-hoc Unicast Routing Protocols § IPv 6 Ad-hoc Routing Protocols § IPv 6 AODV § IPv 6 MAODV § 6
Ad-hoc Unicast Routing Protocols Ad-hoc routing protocols Source-initiated Demand-driven Table-driven DSDV CGSR WRP AODV DSR LMR ABR TORA SSR 7

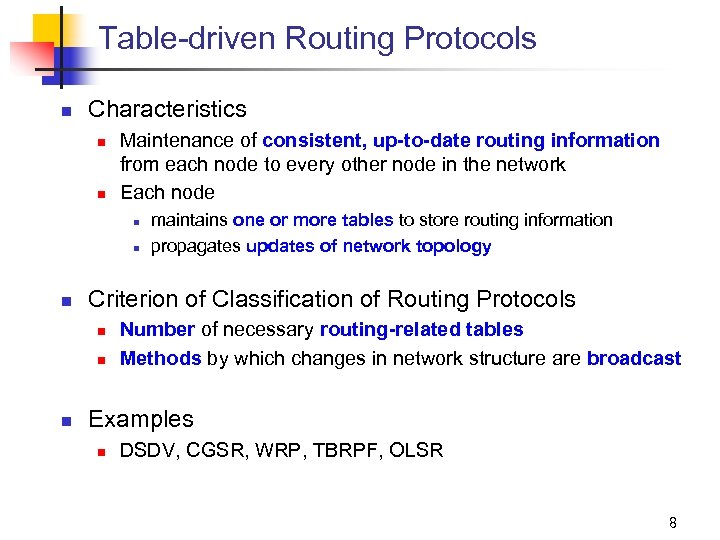

Table-driven Routing Protocols n Characteristics n n Maintenance of consistent, up-to-date routing information from each node to every other node in the network Each node n n n Criterion of Classification of Routing Protocols n n n maintains one or more tables to store routing information propagates updates of network topology Number of necessary routing-related tables Methods by which changes in network structure are broadcast Examples n DSDV, CGSR, WRP, TBRPF, OLSR 8

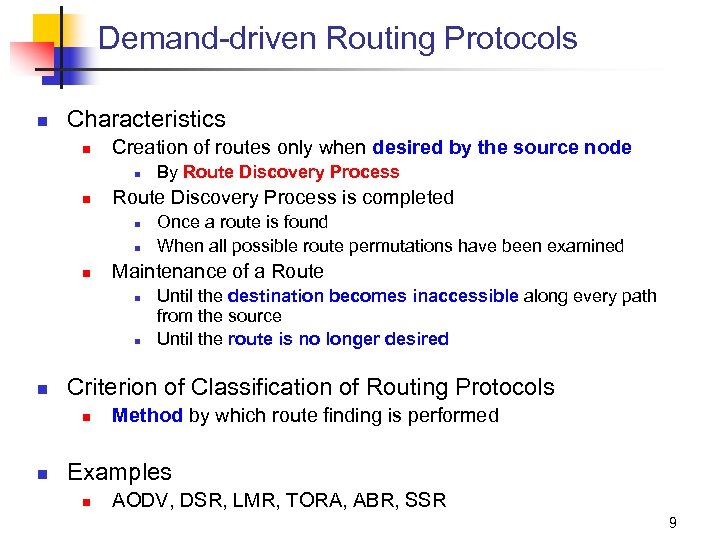

Demand-driven Routing Protocols n Characteristics n Creation of routes only when desired by the source node n n Route Discovery Process is completed n n Until the destination becomes inaccessible along every path from the source Until the route is no longer desired Criterion of Classification of Routing Protocols n n Once a route is found When all possible route permutations have been examined Maintenance of a Route n n By Route Discovery Process Method by which route finding is performed Examples n AODV, DSR, LMR, TORA, ABR, SSR 9

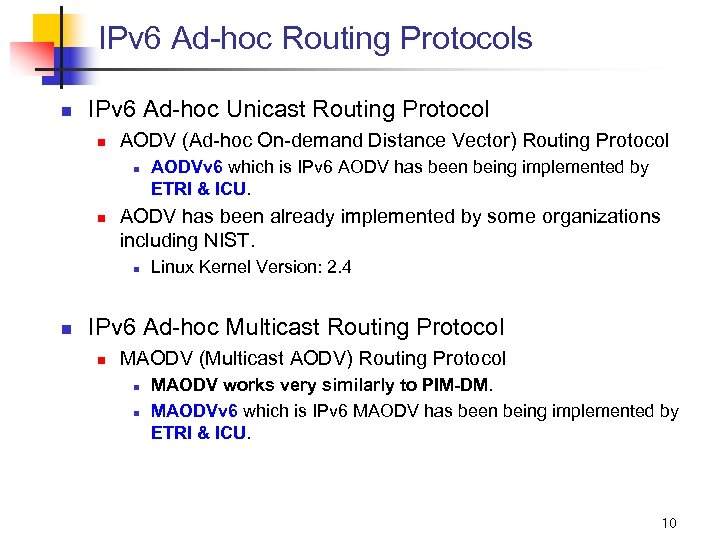

IPv 6 Ad-hoc Routing Protocols n IPv 6 Ad-hoc Unicast Routing Protocol n AODV (Ad-hoc On-demand Distance Vector) Routing Protocol n n AODV has been already implemented by some organizations including NIST. n n AODVv 6 which is IPv 6 AODV has been being implemented by ETRI & ICU. Linux Kernel Version: 2. 4 IPv 6 Ad-hoc Multicast Routing Protocol n MAODV (Multicast AODV) Routing Protocol n n MAODV works very similarly to PIM-DM. MAODVv 6 which is IPv 6 MAODV has been being implemented by ETRI & ICU. 10

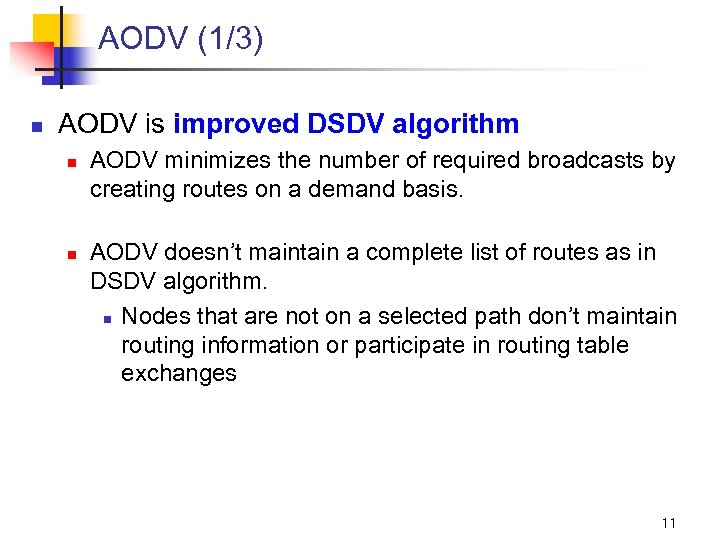

AODV (1/3) n AODV is improved DSDV algorithm n n AODV minimizes the number of required broadcasts by creating routes on a demand basis. AODV doesn’t maintain a complete list of routes as in DSDV algorithm. n Nodes that are not on a selected path don’t maintain routing information or participate in routing table exchanges 11

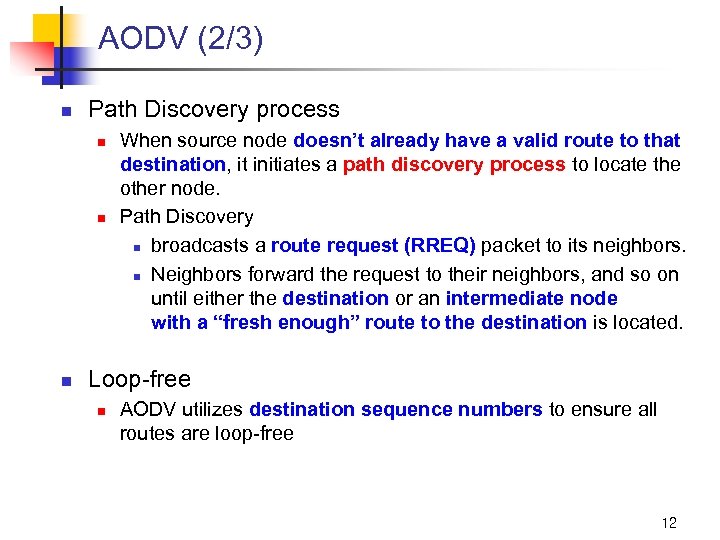

AODV (2/3) n Path Discovery process n n n When source node doesn’t already have a valid route to that destination, it initiates a path discovery process to locate the other node. Path Discovery n broadcasts a route request (RREQ) packet to its neighbors. n Neighbors forward the request to their neighbors, and so on until either the destination or an intermediate node with a “fresh enough” route to the destination is located. Loop-free n AODV utilizes destination sequence numbers to ensure all routes are loop-free 12

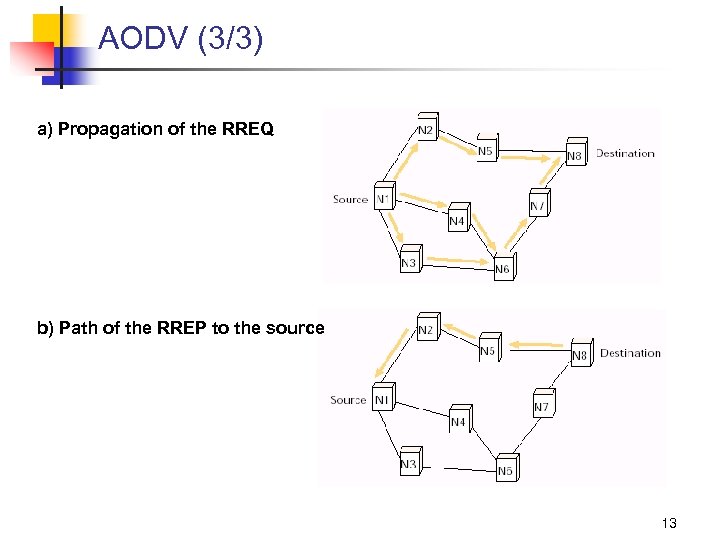

AODV (3/3) a) Propagation of the RREQ b) Path of the RREP to the source 13

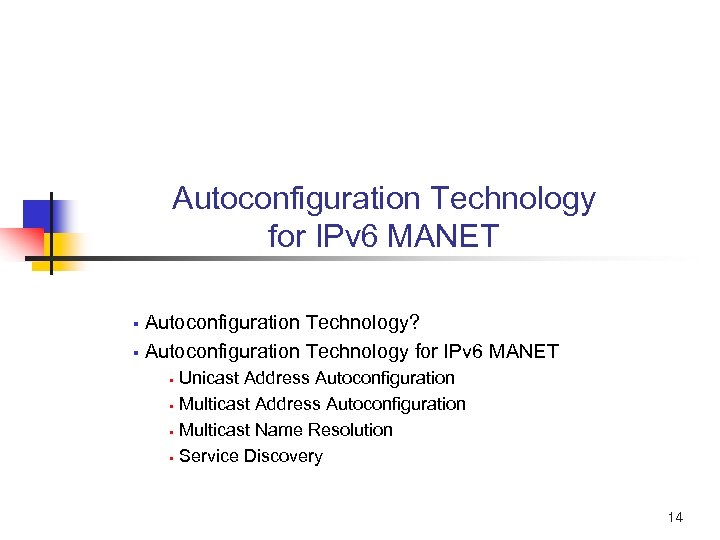

Autoconfiguration Technology for IPv 6 MANET Autoconfiguration Technology? § Autoconfiguration Technology for IPv 6 MANET § Unicast Address Autoconfiguration § Multicast Name Resolution § Service Discovery § 14

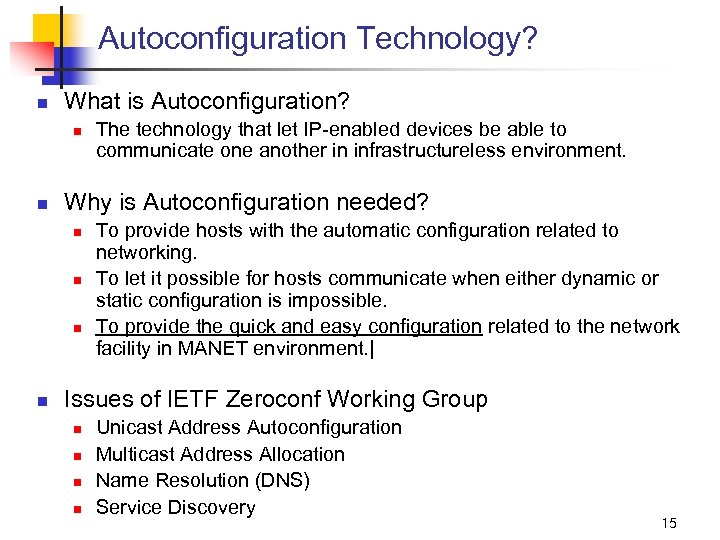

Autoconfiguration Technology? n What is Autoconfiguration? n n Why is Autoconfiguration needed? n n The technology that let IP-enabled devices be able to communicate one another in infrastructureless environment. To provide hosts with the automatic configuration related to networking. To let it possible for hosts communicate when either dynamic or static configuration is impossible. To provide the quick and easy configuration related to the network facility in MANET environment. | Issues of IETF Zeroconf Working Group n n Unicast Address Autoconfiguration Multicast Address Allocation Name Resolution (DNS) Service Discovery 15

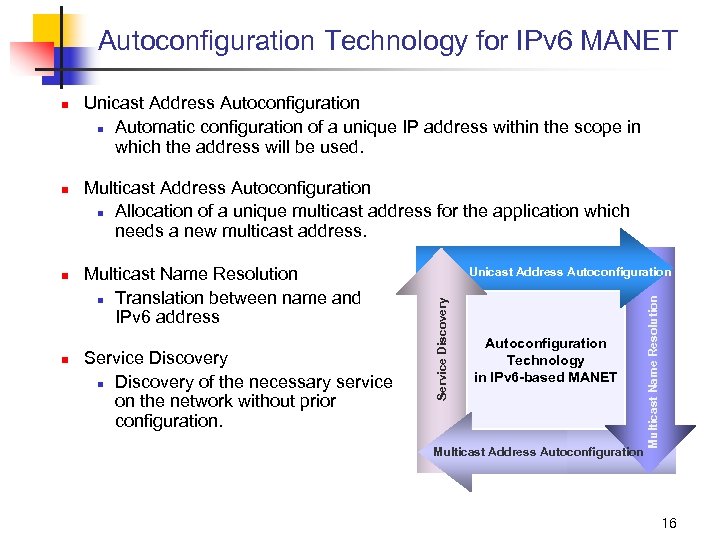

Autoconfiguration Technology for IPv 6 MANET n n Multicast Address Autoconfiguration n Allocation of a unique multicast address for the application which needs a new multicast address. Multicast Name Resolution n Translation between name and IPv 6 address Service Discovery n Discovery of the necessary service on the network without prior configuration. Unicast Address Autoconfiguration Technology in IPv 6 -based MANET Multicast Address Autoconfiguration Multicast Name Resolution n Unicast Address Autoconfiguration n Automatic configuration of a unique IP address within the scope in which the address will be used. Service Discovery n 16

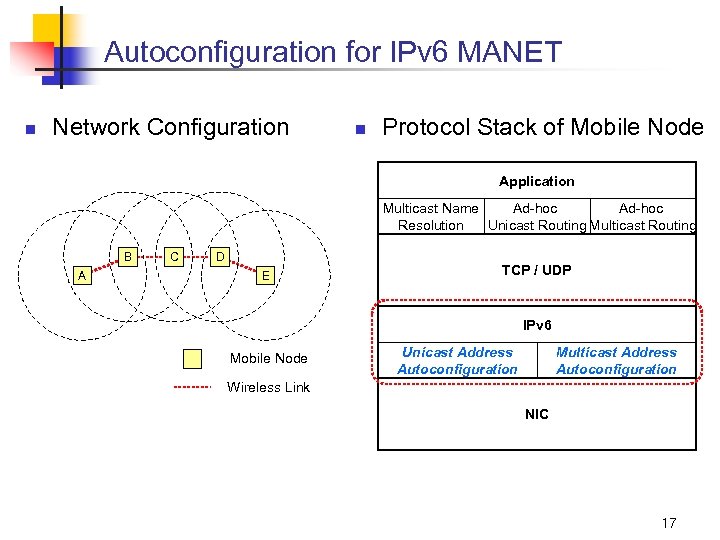

Autoconfiguration for IPv 6 MANET n Network Configuration n Protocol Stack of Mobile Node Application Multicast Name Ad-hoc Resolution Unicast Routing Multicast Routing B A C D E TCP / UDP IPv 6 Mobile Node Unicast Address Autoconfiguration Multicast Address Autoconfiguration Wireless Link NIC 17

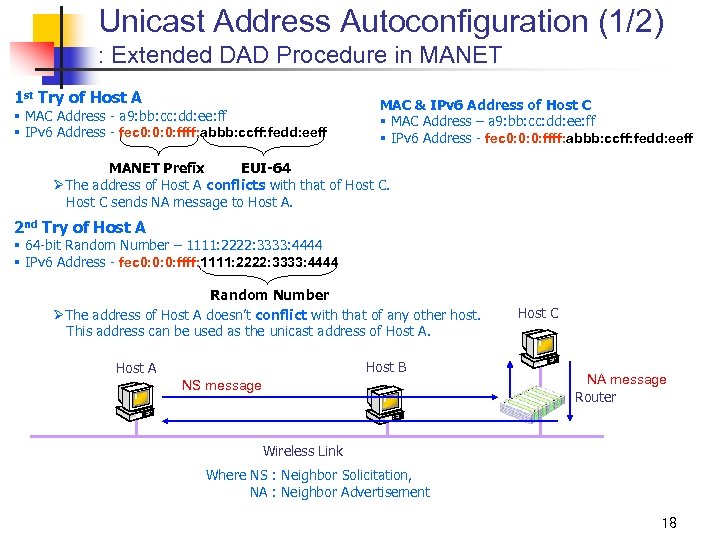

Unicast Address Autoconfiguration (1/2) : Extended DAD Procedure in MANET 1 st Try of Host A § MAC Address - a 9: bb: cc: dd: ee: ff § IPv 6 Address - fec 0: 0: 0: ffff: abbb: ccff: fedd: eeff MAC & IPv 6 Address of Host C § MAC Address – a 9: bb: cc: dd: ee: ff § IPv 6 Address - fec 0: 0: 0: ffff: abbb: ccff: fedd: eeff MANET Prefix EUI-64 ØThe address of Host A conflicts with that of Host C sends NA message to Host A. 2 nd Try of Host A § 64 -bit Random Number – 1111: 2222: 3333: 4444 § IPv 6 Address - fec 0: 0: 0: ffff: 1111: 2222: 3333: 4444 Random Number ØThe address of Host A doesn’t conflict with that of any other host. This address can be used as the unicast address of Host A. Host B Host A NS message Host C NA message Router Wireless Link Where NS : Neighbor Solicitation, NA : Neighbor Advertisement 18

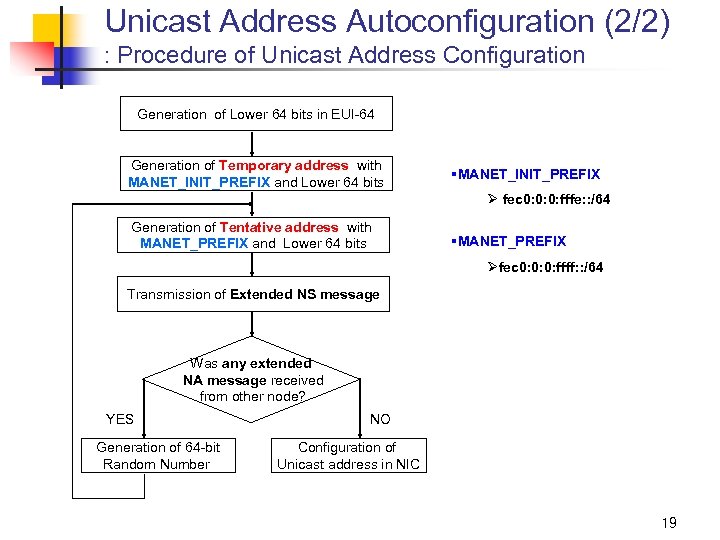

Unicast Address Autoconfiguration (2/2) : Procedure of Unicast Address Configuration Generation of Lower 64 bits in EUI-64 Generation of Temporary address with MANET_INIT_PREFIX and Lower 64 bits §MANET_INIT_PREFIX Ø fec 0: 0: 0: fffe: : /64 Generation of Tentative address with MANET_PREFIX and Lower 64 bits §MANET_PREFIX Øfec 0: 0: 0: ffff: : /64 Transmission of Extended NS message Was any extended NA message received from other node? YES Generation of 64 -bit Random Number NO Configuration of Unicast address in NIC 19

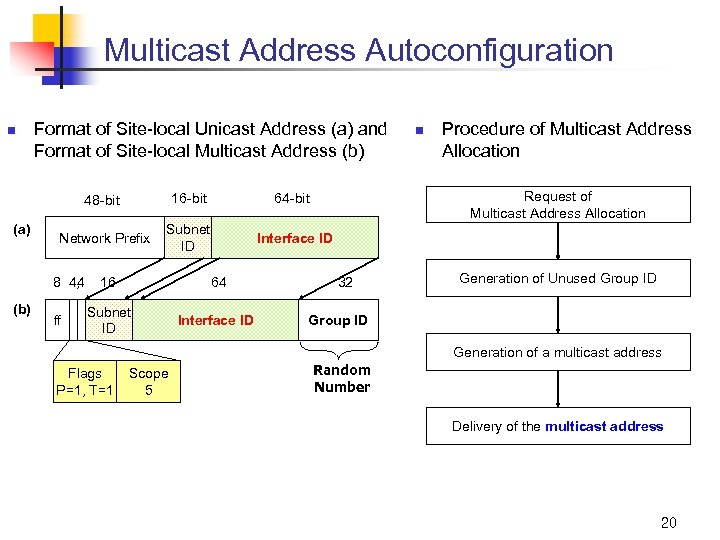

Multicast Address Autoconfiguration n Format of Site-local Unicast Address (a) and Format of Site-local Multicast Address (b) 16 -bit 64 -bit Network Prefix Subnet ID Interface ID 8 4, 4 (b) Procedure of Multicast Address Allocation Request of Multicast Address Allocation 48 -bit (a) n ff 16 64 Subnet ID Interface ID 32 Generation of Unused Group ID Generation of a multicast address Flags P=1, T=1 Scope 5 Random Number Delivery of the multicast address 20

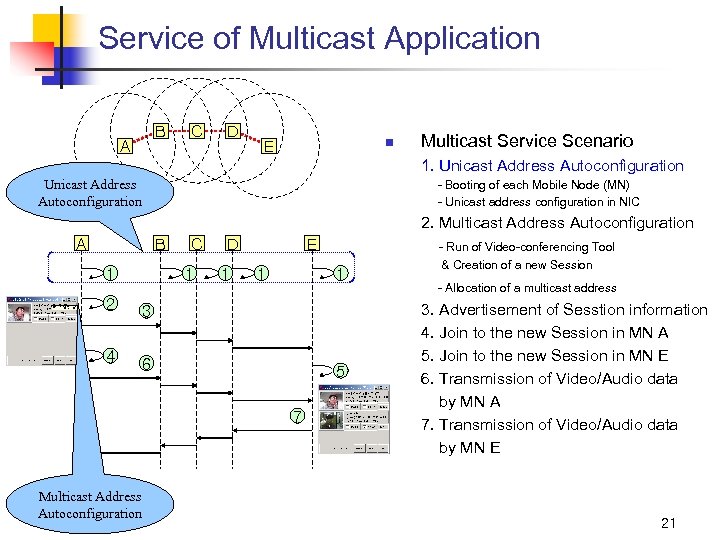

Service of Multicast Application B A C D n E Multicast Service Scenario 1. Unicast Address Autoconfiguration - Booting of each Mobile Node (MN) - Unicast address configuration in NIC 2. Multicast Address Autoconfiguration A B 1 C 1 2 1 E 1 - Run of Video-conferencing Tool 1 3 4 D 6 5 7 Multicast Address Autoconfiguration & Creation of a new Session - Allocation of a multicast address 3. Advertisement of Sesstion information 4. Join to the new Session in MN A 5. Join to the new Session in MN E 6. Transmission of Video/Audio data by MN A 7. Transmission of Video/Audio data by MN E 21

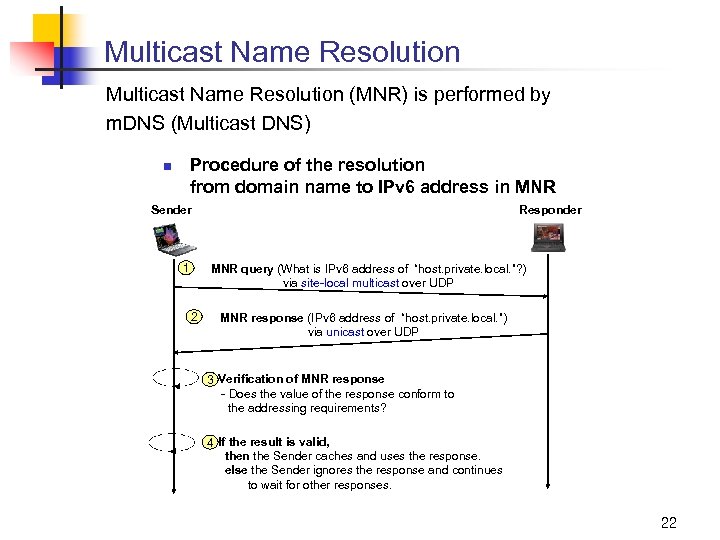

Multicast Name Resolution (MNR) is performed by m. DNS (Multicast DNS) Procedure of the resolution from domain name to IPv 6 address in MNR n Sender 1 Responder MNR query (What is IPv 6 address of “host. private. local. ”? ) via site-local multicast over UDP 2 MNR response (IPv 6 address of “host. private. local. ”) via unicast over UDP 3 Verification of MNR response - Does the value of the response conform to the addressing requirements? 4 If the result is valid, then the Sender caches and uses the response. else the Sender ignores the response and continues to wait for other responses. 22

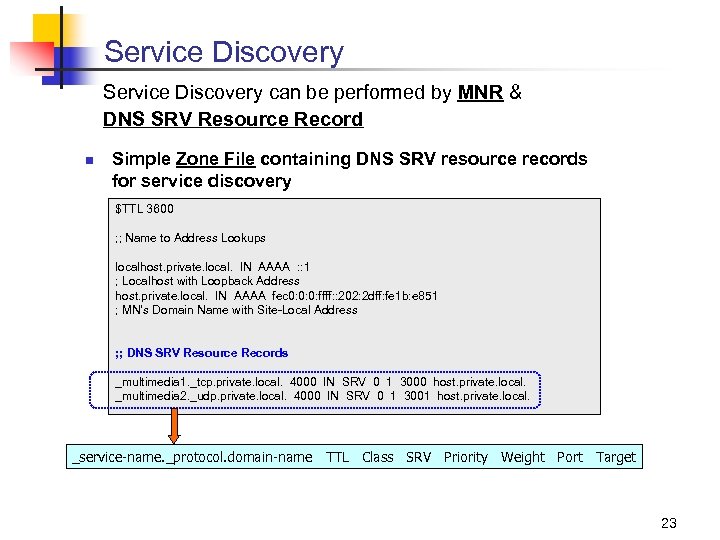

Service Discovery can be performed by MNR & DNS SRV Resource Record n Simple Zone File containing DNS SRV resource records for service discovery $TTL 3600 ; ; Name to Address Lookups localhost. private. local. IN AAAA : : 1 ; Localhost with Loopback Address host. private. local. IN AAAA fec 0: 0: 0: ffff: : 202: 2 dff: fe 1 b: e 851 ; MN’s Domain Name with Site-Local Address ; ; DNS SRV Resource Records _multimedia 1. _tcp. private. local. 4000 IN SRV 0 1 3000 host. private. local. _multimedia 2. _udp. private. local. 4000 IN SRV 0 1 3001 host. private. local. _service-name. _protocol. domain-name TTL Class SRV Priority Weight Port Target 23

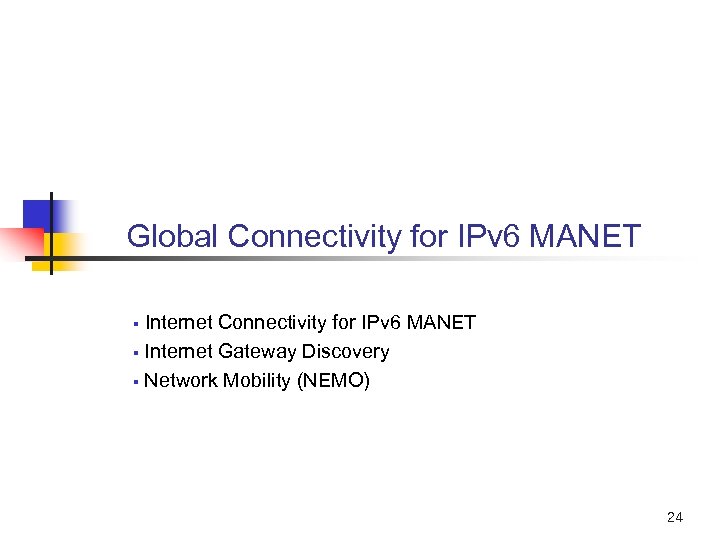

Global Connectivity for IPv 6 MANET Internet Connectivity for IPv 6 MANET § Internet Gateway Discovery § Network Mobility (NEMO) § 24

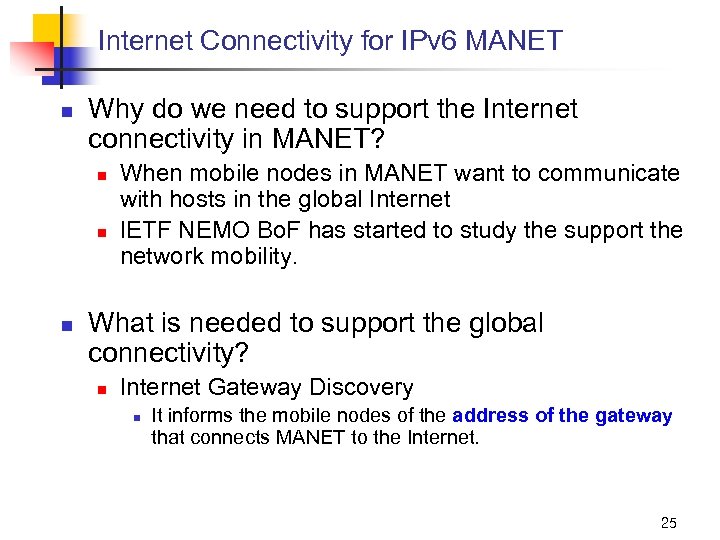

Internet Connectivity for IPv 6 MANET n Why do we need to support the Internet connectivity in MANET? n n n When mobile nodes in MANET want to communicate with hosts in the global Internet IETF NEMO Bo. F has started to study the support the network mobility. What is needed to support the global connectivity? n Internet Gateway Discovery n It informs the mobile nodes of the address of the gateway that connects MANET to the Internet. 25

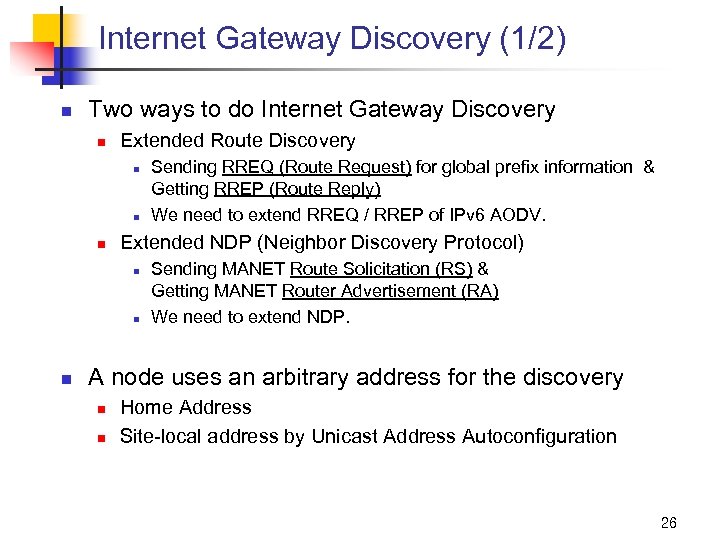

Internet Gateway Discovery (1/2) n Two ways to do Internet Gateway Discovery n Extended Route Discovery n n n Extended NDP (Neighbor Discovery Protocol) n n n Sending RREQ (Route Request) for global prefix information & Getting RREP (Route Reply) We need to extend RREQ / RREP of IPv 6 AODV. Sending MANET Route Solicitation (RS) & Getting MANET Router Advertisement (RA) We need to extend NDP. A node uses an arbitrary address for the discovery n n Home Address Site-local address by Unicast Address Autoconfiguration 26

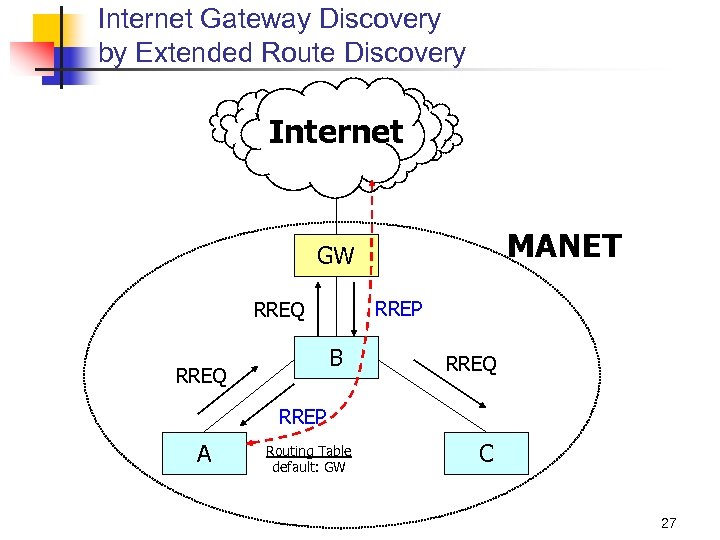

Internet Gateway Discovery by Extended Route Discovery Internet MANET GW RREP RREQ B RREQ RREP A Routing Table default: GW C 27

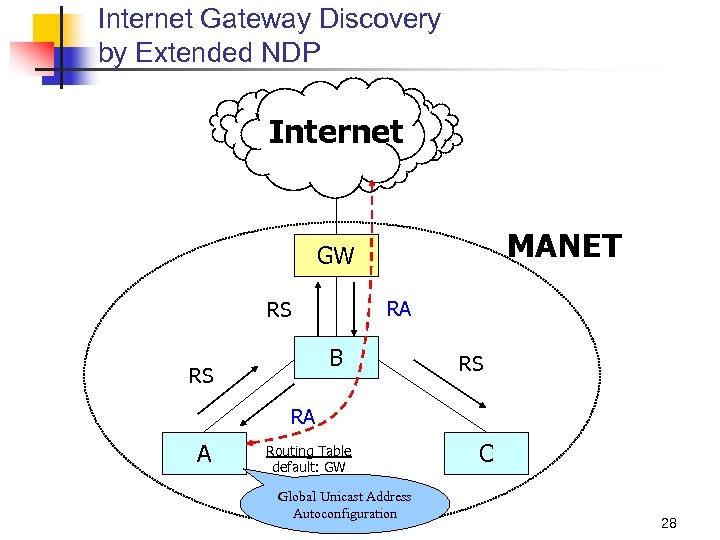

Internet Gateway Discovery by Extended NDP Internet MANET GW RA RS B RS RS RA A Routing Table default: GW Global Unicast Address Autoconfiguration C 28

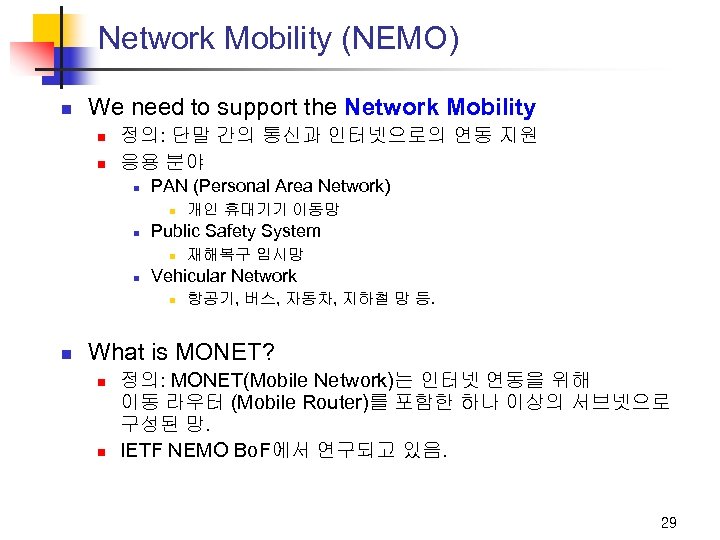

Network Mobility (NEMO) n We need to support the Network Mobility n n 정의: 단말 간의 통신과 인터넷으로의 연동 지원 응용 분야 n PAN (Personal Area Network) n n Public Safety System n n 재해복구 임시망 Vehicular Network n n 개인 휴대기기 이동망 항공기, 버스, 자동차, 지하철 망 등. What is MONET? n n 정의: MONET(Mobile Network)는 인터넷 연동을 위해 이동 라우터 (Mobile Router)를 포함한 하나 이상의 서브넷으로 구성된 망. IETF NEMO Bo. F에서 연구되고 있음. 29

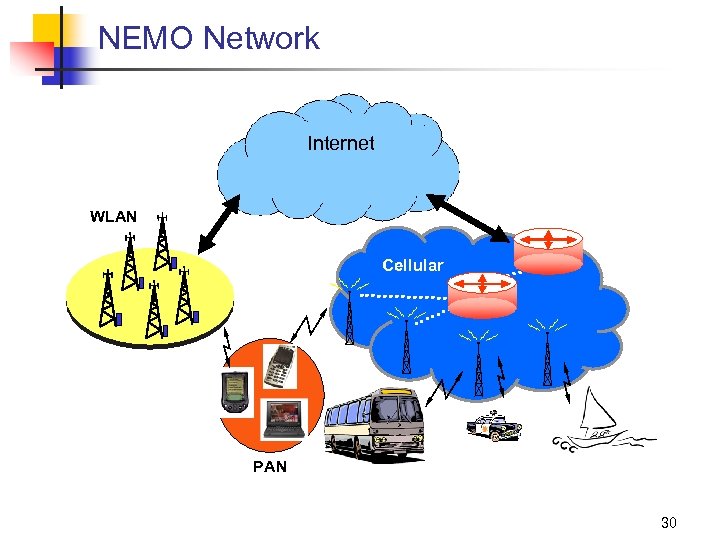

NEMO Network Internet WLAN Cellular PAN 30

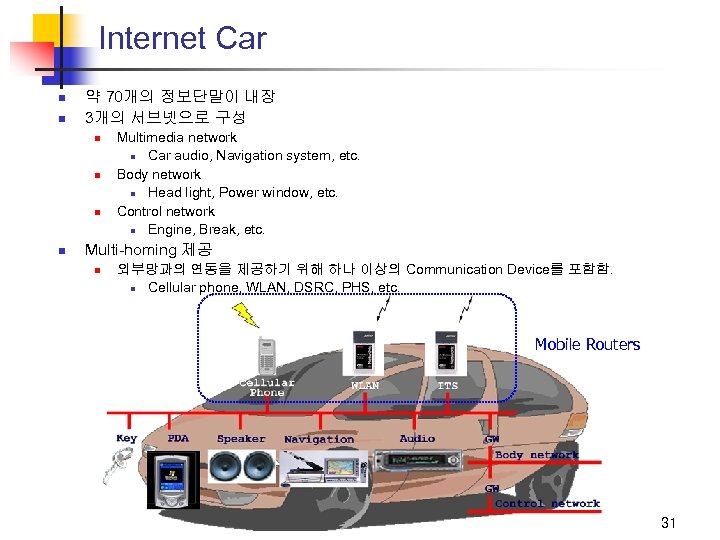

Internet Car n n 약 70개의 정보단말이 내장 3개의 서브넷으로 구성 n n Multimedia network n Car audio, Navigation system, etc. Body network n Head light, Power window, etc. Control network n Engine, Break, etc. Multi-homing 제공 n 외부망과의 연동을 제공하기 위해 하나 이상의 Communication Device를 포함함. n Cellular phone, WLAN, DSRC, PHS, etc. Mobile Routers 31

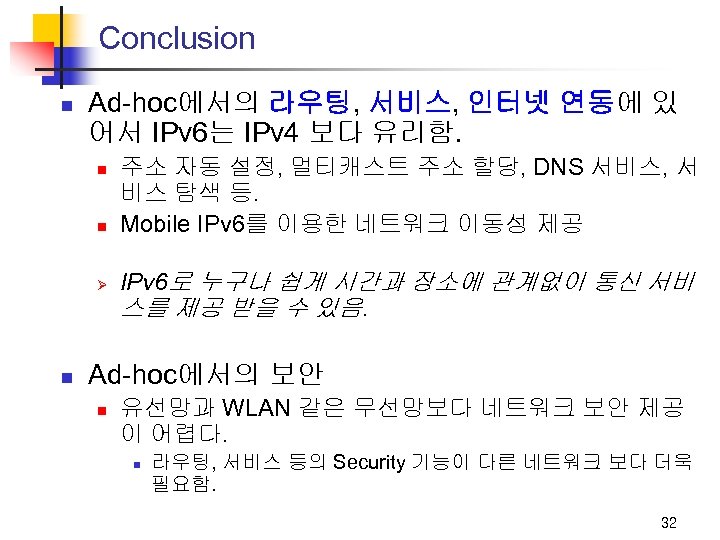

Conclusion n Ad-hoc에서의 라우팅, 서비스, 인터넷 연동에 있 어서 IPv 6는 IPv 4 보다 유리함. n n Ø n 주소 자동 설정, 멀티캐스트 주소 할당, DNS 서비스, 서 비스 탐색 등. Mobile IPv 6를 이용한 네트워크 이동성 제공 IPv 6로 누구나 쉽게 시간과 장소에 관계없이 통신 서비 스를 제공 받을 수 있음. Ad-hoc에서의 보안 n 유선망과 WLAN 같은 무선망보다 네트워크 보안 제공 이 어렵다. n 라우팅, 서비스 등의 Security 기능이 다른 네트워크 보다 더욱 필요함. 32

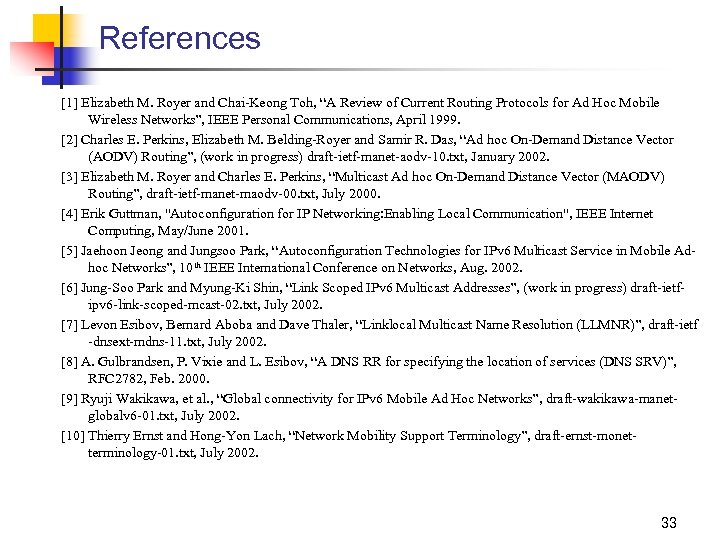

References [1] Elizabeth M. Royer and Chai-Keong Toh, “A Review of Current Routing Protocols for Ad Hoc Mobile Wireless Networks”, IEEE Personal Communications, April 1999. [2] Charles E. Perkins, Elizabeth M. Belding-Royer and Samir R. Das, “Ad hoc On-Demand Distance Vector (AODV) Routing”, (work in progress) draft-ietf-manet-aodv-10. txt, January 2002. [3] Elizabeth M. Royer and Charles E. Perkins, “Multicast Ad hoc On-Demand Distance Vector (MAODV) Routing”, draft-ietf-manet-maodv-00. txt, July 2000. [4] Erik Guttman, "Autoconfiguration for IP Networking: Enabling Local Communication", IEEE Internet Computing, May/June 2001. [5] Jaehoon Jeong and Jungsoo Park, “Autoconfiguration Technologies for IPv 6 Multicast Service in Mobile Adhoc Networks”, 10 th IEEE International Conference on Networks, Aug. 2002. [6] Jung-Soo Park and Myung-Ki Shin, “Link Scoped IPv 6 Multicast Addresses”, (work in progress) draft-ietfipv 6 -link-scoped-mcast-02. txt, July 2002. [7] Levon Esibov, Bernard Aboba and Dave Thaler, “Linklocal Multicast Name Resolution (LLMNR)”, draft-ietf -dnsext-mdns-11. txt, July 2002. [8] A. Gulbrandsen, P. Vixie and L. Esibov, “A DNS RR for specifying the location of services (DNS SRV)”, RFC 2782, Feb. 2000. [9] Ryuji Wakikawa, et al. , “Global connectivity for IPv 6 Mobile Ad Hoc Networks”, draft-wakikawa-manetglobalv 6 -01. txt, July 2002. [10] Thierry Ernst and Hong-Yon Lach, “Network Mobility Support Terminology”, draft-ernst-monetterminology-01. txt, July 2002. 33
