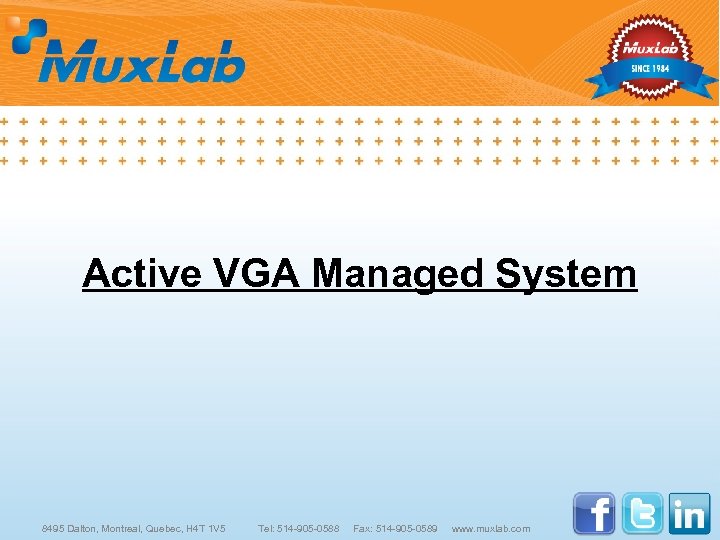

Active VGA Managed System 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

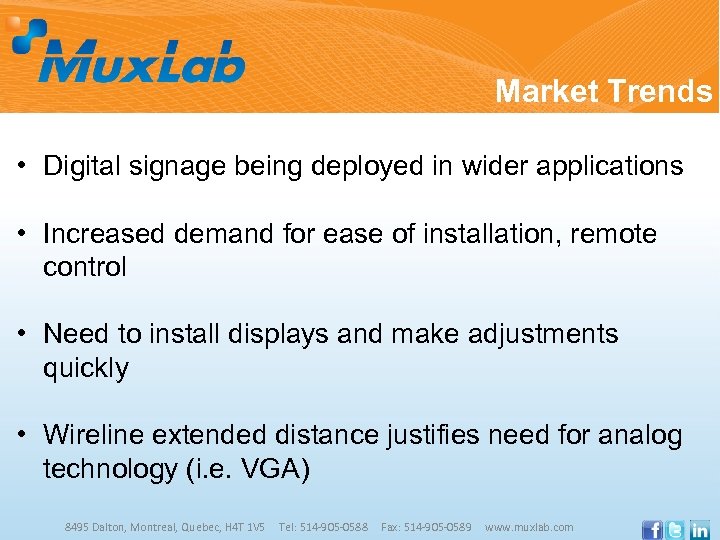

Market Trends • Digital signage being deployed in wider applications • Increased demand for ease of installation, remote control • Need to install displays and make adjustments quickly • Wireline extended distance justifies need for analog technology (i. e. VGA) 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

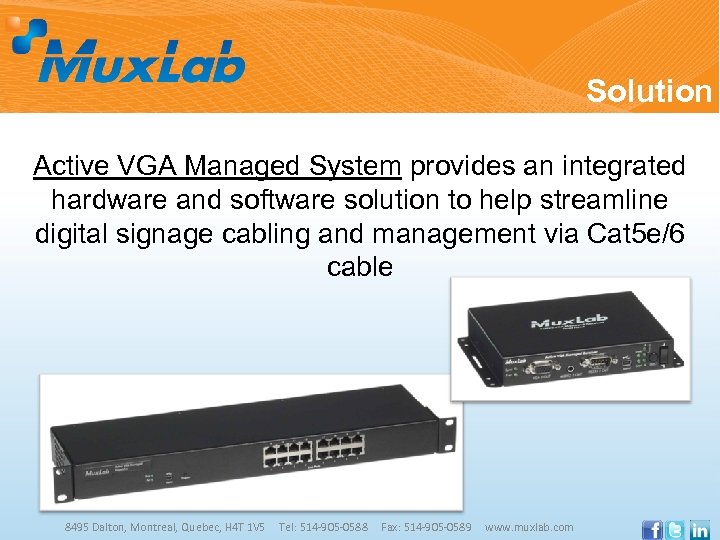

Solution Active VGA Managed System provides an integrated hardware and software solution to help streamline digital signage cabling and management via Cat 5 e/6 cable 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

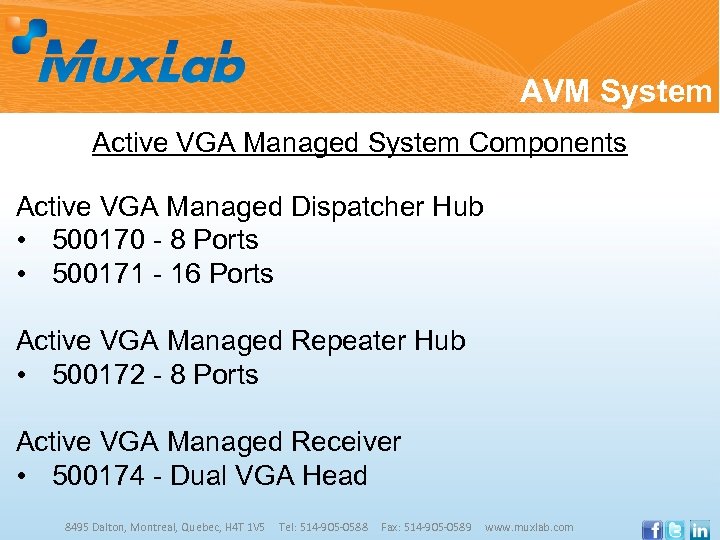

AVM System Active VGA Managed System Components Active VGA Managed Dispatcher Hub • 500170 - 8 Ports • 500171 - 16 Ports Active VGA Managed Repeater Hub • 500172 - 8 Ports Active VGA Managed Receiver • 500174 - Dual VGA Head 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com
AVM System Active VGA Managed Dispatcher (500170/171) • Distributes VGA/Audio to up to 8 or 16 displays • Up to 1, 000 ft (305 m) via Cat 5 e/6 • Gain/sharpness/skew adjustment via pushbutton, RS 232 • Cascadable with Active Repeater Hub (500172) • Works with Active Managed Receiver (500174) • GUI software controls gain, sharpness, skew • Local VGA and audio output 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com
AVM System Active VGA Managed Repeater (500172) • Distributes VGA/Audio to up to 8 displays • Extends distance additional 1, 000 ft (305 m) • Gain, sharpness, skew adjustment via pushbutton, RS 232 • Works with the Active VGA Managed Dispatcher Hub (500170/171) and Active VGA Managed Receiver (500174) 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

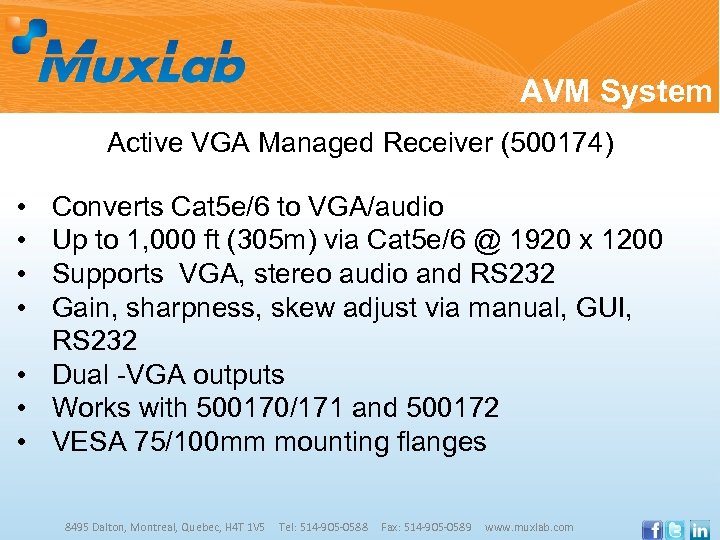

AVM System Active VGA Managed Receiver (500174) • • Converts Cat 5 e/6 to VGA/audio Up to 1, 000 ft (305 m) via Cat 5 e/6 @ 1920 x 1200 Supports VGA, stereo audio and RS 232 Gain, sharpness, skew adjust via manual, GUI, RS 232 • Dual -VGA outputs • Works with 500170/171 and 500172 • VESA 75/100 mm mounting flanges 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

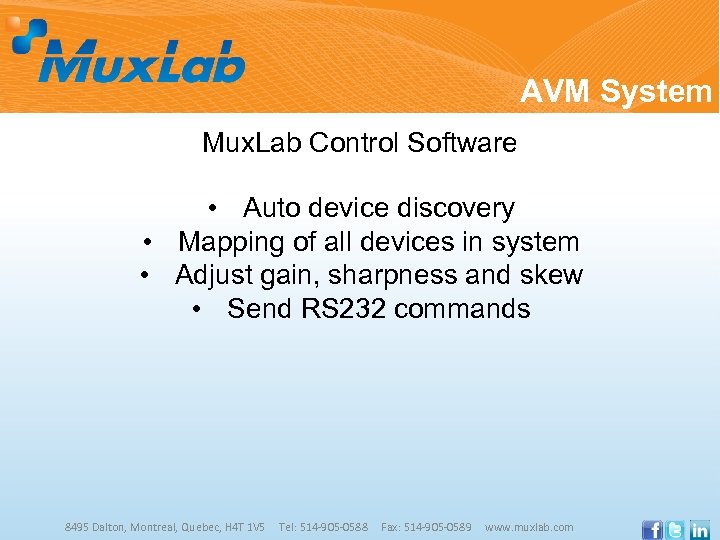

AVM System Mux. Lab Control Software • Auto device discovery • Mapping of all devices in system • Adjust gain, sharpness and skew • Send RS 232 commands 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

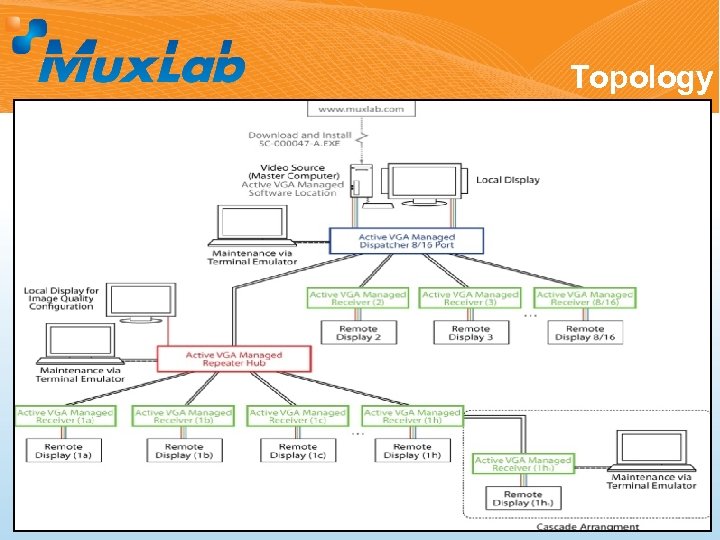

Topology
Tuning
Skew Test Pattern

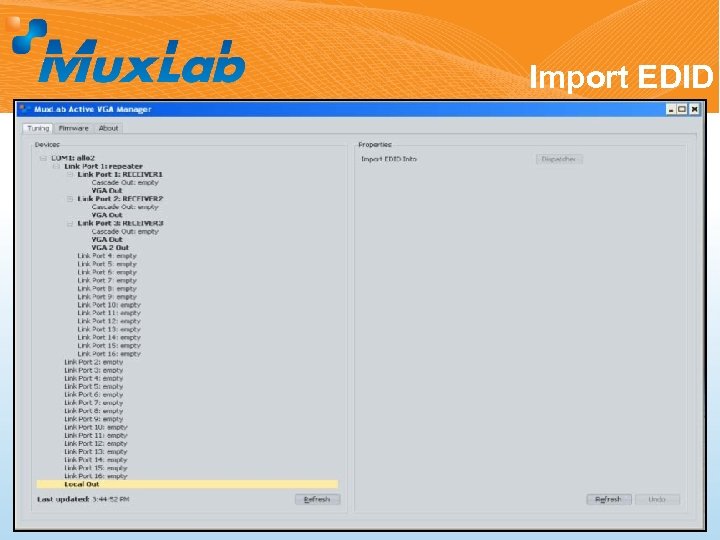

Import EDID

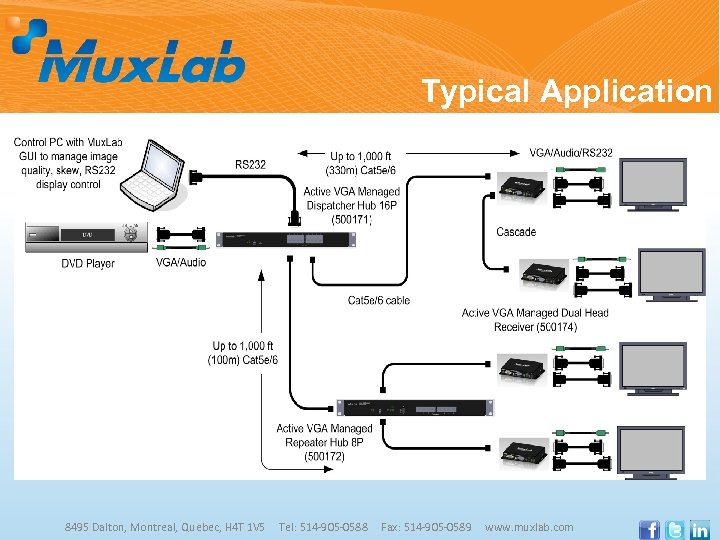

Typical Application 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com
Comparison Table 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com
Typical Scenarios 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

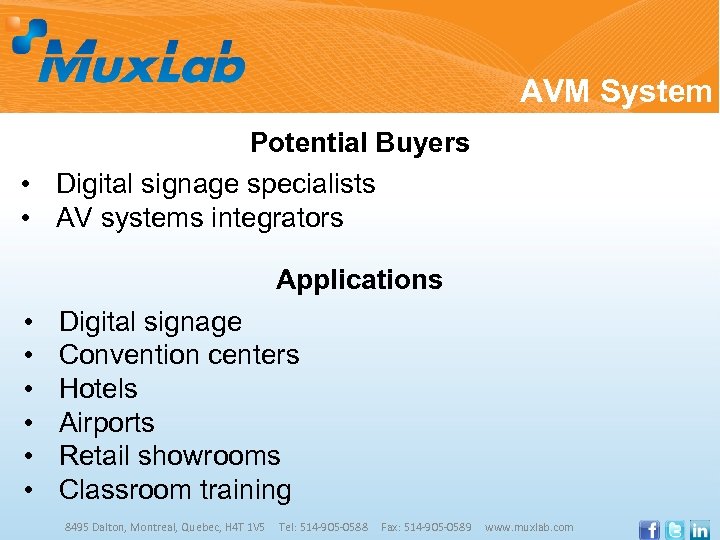

AVM System Potential Buyers • Digital signage specialists • AV systems integrators Applications • • • Digital signage Convention centers Hotels Airports Retail showrooms Classroom training 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

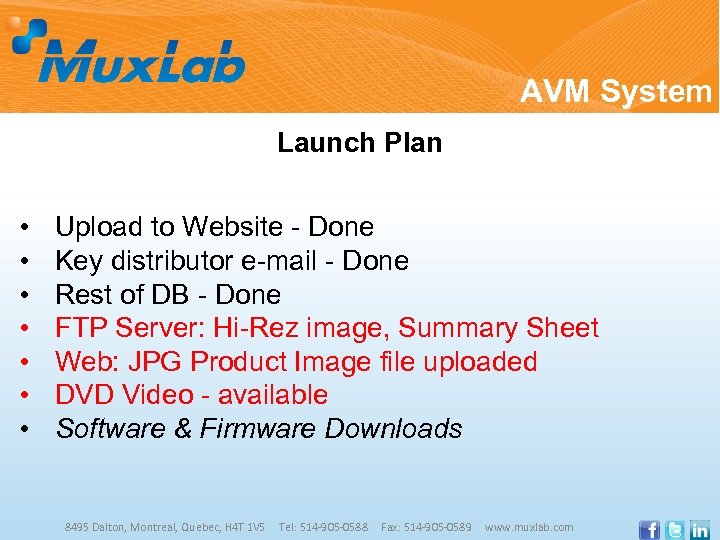

AVM System • • Launch Plan Upload to Website - Done Key distributor e-mail - Done Rest of DB - Done FTP Server: Hi-Rez image, Summary Sheet Web: JPG Product Image file uploaded DVD Video - available Software & Firmware Downloads 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com
AVM System Launch Plan • • Upload to Website - Done Key distributor e-mail - Done Rest of DB - Done FTP Server: Hi-Rez image, Summary Sheet Web: JPG Product Image file uploaded DVD Video - available Software & Firmware Downloads 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com

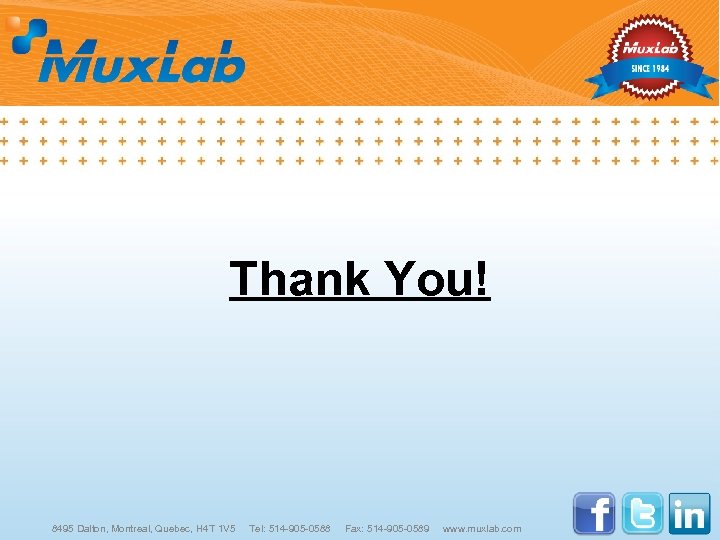

Thank You! 8495 Dalton, Montreal, Quebec, H 4 T 1 V 5 Tel: 514 -905 -0588 Fax: 514 -905 -0589 www. muxlab. com
