ACTIVE DEMAND NETWORK OPERATORS ADDRESS INTERNATIONAL WORKSHOP TITLE OF THEDEMAND: THE FUTURE OF ELECTRICITY ACTIVE DEMAND NETWORK OPERATORS ADDRESS INTERNATIONAL WORKSHOP TITLE OF THEDEMAND: THE FUTURE OF ELECTRICITY ACTIVE SPEECH Giovanni Valtorta, Enel Distribuzione Paris, June 9 th 2010 reliability The research leading to these results has received funding from the European Community's Seventh Framework Programme (FP 7/2007 -2013) under grant agreement n° 207643

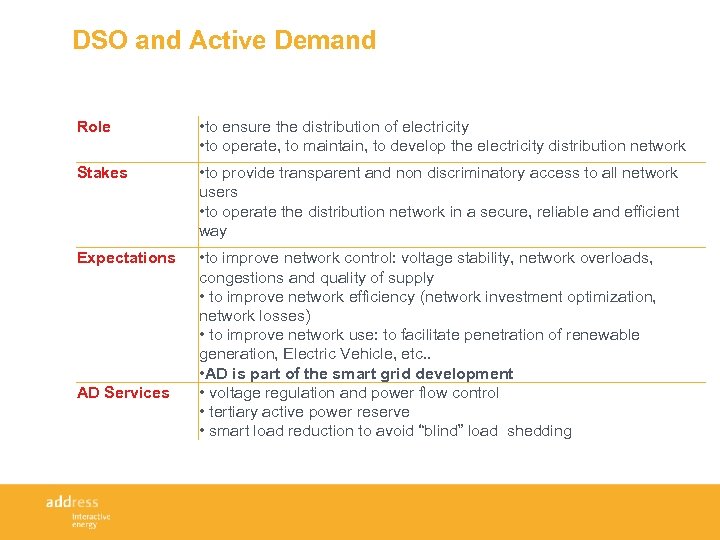

DSO and Active Demand Role • to ensure the distribution of electricity • to DSO and Active Demand Role • to ensure the distribution of electricity • to operate, to maintain, to develop the electricity distribution network Stakes • to provide transparent and non discriminatory access to all network users • to operate the distribution network in a secure, reliable and efficient way Expectations • to improve network control: voltage stability, network overloads, congestions and quality of supply • to improve network efficiency (network investment optimization, network losses) • to improve network use: to facilitate penetration of renewable generation, Electric Vehicle, etc. . • AD is part of the smart grid development • voltage regulation and power flow control • tertiary active power reserve • smart load reduction to avoid “blind” load shedding AD Services

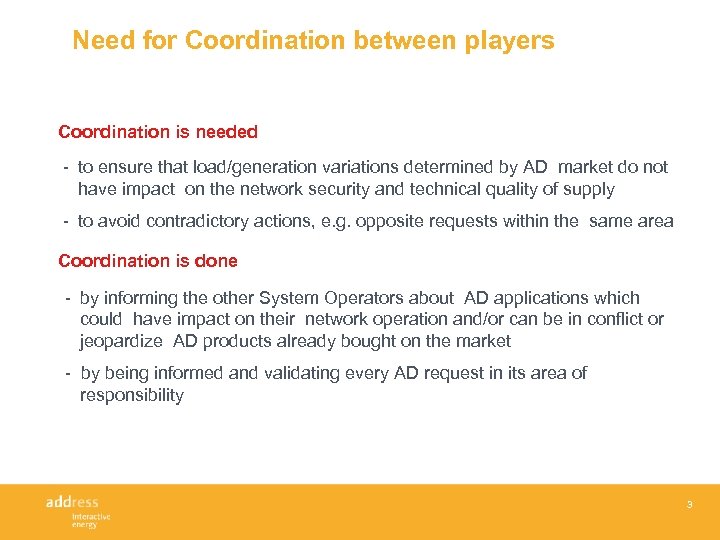

Need for Coordination between players Coordination is needed - to ensure that load/generation variations Need for Coordination between players Coordination is needed - to ensure that load/generation variations determined by AD market do not have impact on the network security and technical quality of supply - to avoid contradictory actions, e. g. opposite requests within the same area Coordination is done - by informing the other System Operators about AD applications which could have impact on their network operation and/or can be in conflict or jeopardize AD products already bought on the market - by being informed and validating every AD request in its area of responsibility 3

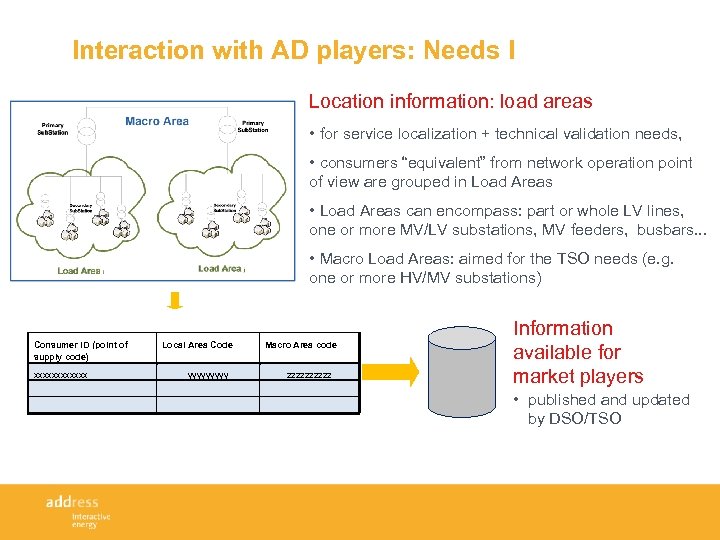

Interaction with AD players: Needs I Location information: load areas • for service localization Interaction with AD players: Needs I Location information: load areas • for service localization + technical validation needs, • consumers “equivalent” from network operation point of view are grouped in Load Areas • Load Areas can encompass: part or whole LV lines, one or more MV/LV substations, MV feeders, busbars. . . • Macro Load Areas: aimed for the TSO needs (e. g. one or more HV/MV substations) Consumer ID (point of supply code) xxxxxx Local Area Code yyyyy Macro Area code zzzzz Information available for market players • published and updated by DSO/TSO 4

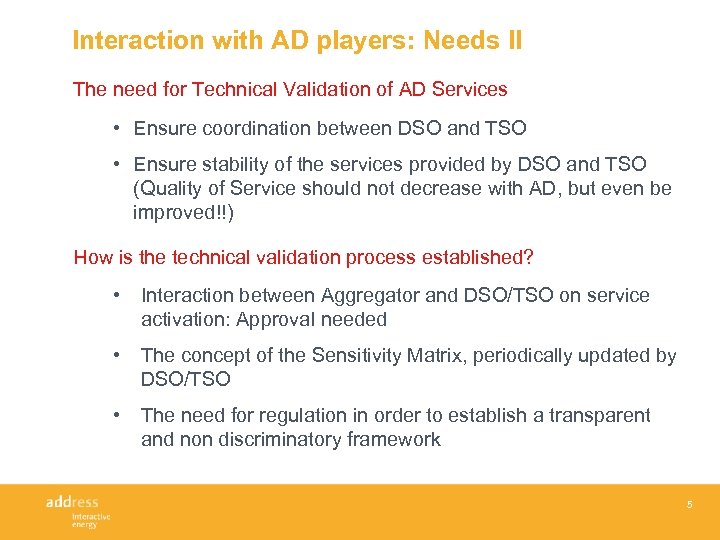

Interaction with AD players: Needs II The need for Technical Validation of AD Services Interaction with AD players: Needs II The need for Technical Validation of AD Services • Ensure coordination between DSO and TSO • Ensure stability of the services provided by DSO and TSO (Quality of Service should not decrease with AD, but even be improved!!) How is the technical validation process established? • Interaction between Aggregator and DSO/TSO on service activation: Approval needed • The concept of the Sensitivity Matrix, periodically updated by DSO/TSO • The need for regulation in order to establish a transparent and non discriminatory framework 5

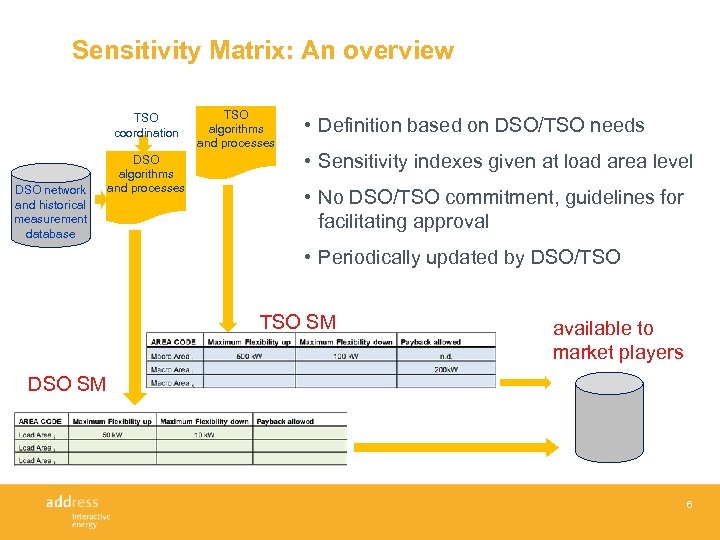

Sensitivity Matrix: An overview TSO coordination DSO network and historical measurement database DSO algorithms Sensitivity Matrix: An overview TSO coordination DSO network and historical measurement database DSO algorithms and processes TSO algorithms and processes • Definition based on DSO/TSO needs • Sensitivity indexes given at load area level • No DSO/TSO commitment, guidelines for facilitating approval • Periodically updated by DSO/TSO SM available to market players DSO SM 6

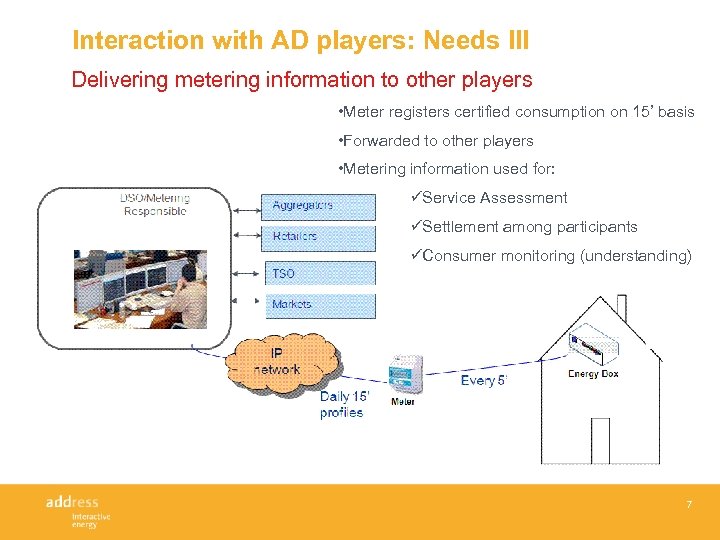

Interaction with AD players: Needs III Delivering metering information to other players • Meter Interaction with AD players: Needs III Delivering metering information to other players • Meter registers certified consumption on 15’ basis • Forwarded to other players • Metering information used for: üService Assessment üSettlement among participants üConsumer monitoring (understanding) 7

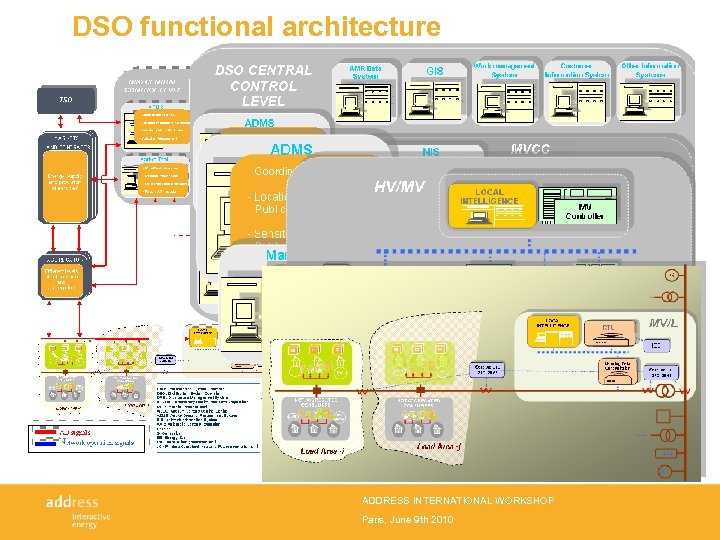

DSO functional architecture ADDRESS INTERNATIONAL WORKSHOP Paris, June 9 th 2010 DSO functional architecture ADDRESS INTERNATIONAL WORKSHOP Paris, June 9 th 2010

TSO Functional Architecture ADDRESS INTERNATIONAL WORKSHOP Paris, June 9 th 2010 TSO Functional Architecture ADDRESS INTERNATIONAL WORKSHOP Paris, June 9 th 2010

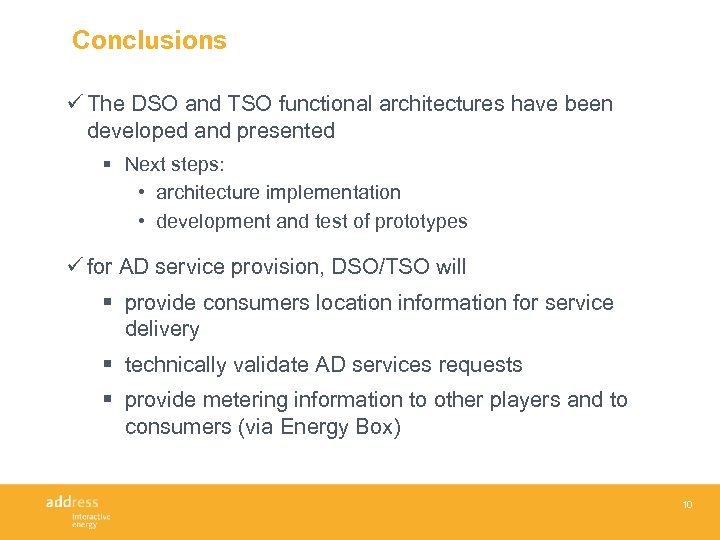

Conclusions ü The DSO and TSO functional architectures have been developed and presented § Conclusions ü The DSO and TSO functional architectures have been developed and presented § Next steps: • architecture implementation • development and test of prototypes ü for AD service provision, DSO/TSO will § provide consumers location information for service delivery § technically validate AD services requests § provide metering information to other players and to consumers (via Energy Box) 10

THANK YOU The research leading to these results has received funding from the European THANK YOU The research leading to these results has received funding from the European Community's Seventh Framework Programme (FP 7/2007 -2013) under grant agreement n° 207643
