ACON Since 1985 SUVEG ELECTRONICS An ISO 9001

ACON Since 1985 SUVEG ELECTRONICS An ISO 9001: 2008 Company 80% Energy Saving ACON HYBRID STREET LIGHT Life Long Brilliance

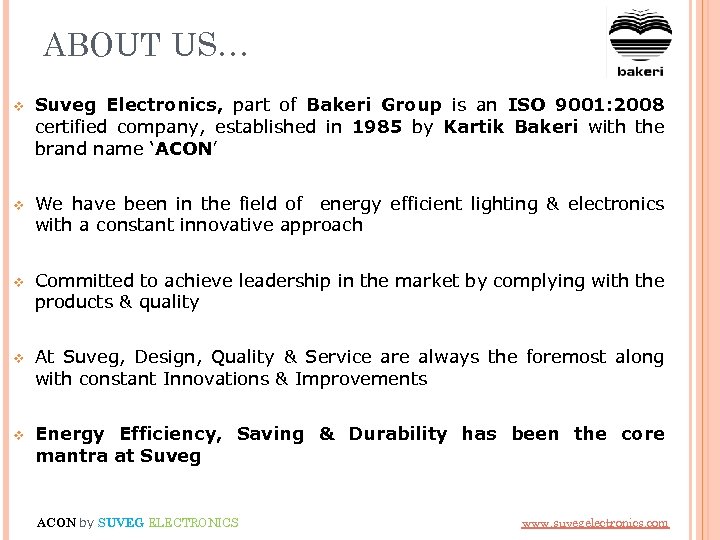

ABOUT US… v Suveg Electronics, part of Bakeri Group is an ISO 9001: 2008 certified company, established in 1985 by Kartik Bakeri with the brand name ‘ACON’ v We have been in the field of energy efficient lighting & electronics with a constant innovative approach v Committed to achieve leadership in the market by complying with the products & quality v At Suveg, Design, Quality & Service are always the foremost along with constant Innovations & Improvements v Energy Efficiency, Saving & Durability has been the core mantra at Suveg ACON by SUVEG ELECTRONICS www. suvegelectronics. com

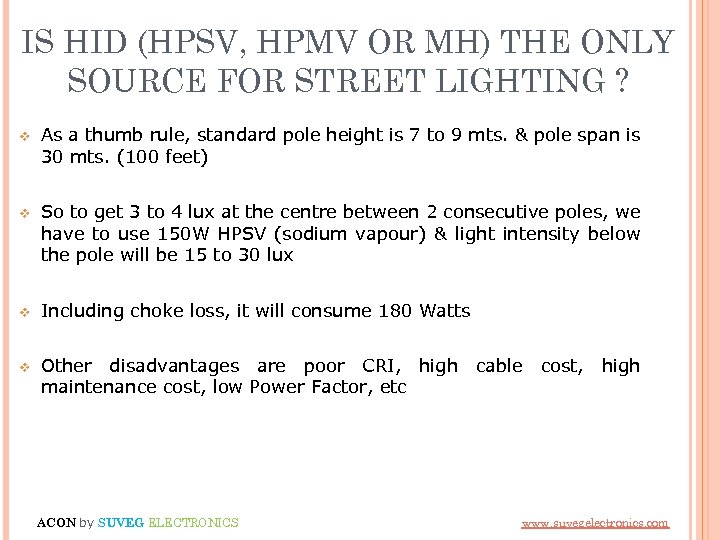

IS HID (HPSV, HPMV OR MH) THE ONLY SOURCE FOR STREET LIGHTING ? v As a thumb rule, standard pole height is 7 to 9 mts. & pole span is 30 mts. (100 feet) v So to get 3 to 4 lux at the centre between 2 consecutive poles, we have to use 150 W HPSV (sodium vapour) & light intensity below the pole will be 15 to 30 lux v Including choke loss, it will consume 180 Watts v Other disadvantages are poor CRI, high cable cost, high maintenance cost, low Power Factor, etc ACON by SUVEG ELECTRONICS www. suvegelectronics. com

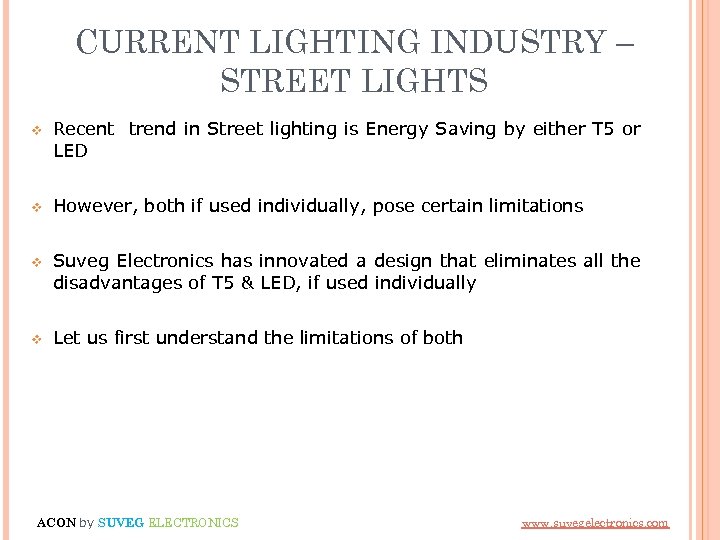

CURRENT LIGHTING INDUSTRY – STREET LIGHTS v Recent trend in Street lighting is Energy Saving by either T 5 or LED v However, both if used individually, pose certain limitations v Suveg Electronics has innovated a design that eliminates all the disadvantages of T 5 & LED, if used individually v Let us first understand the limitations of both ACON by SUVEG ELECTRONICS www. suvegelectronics. com

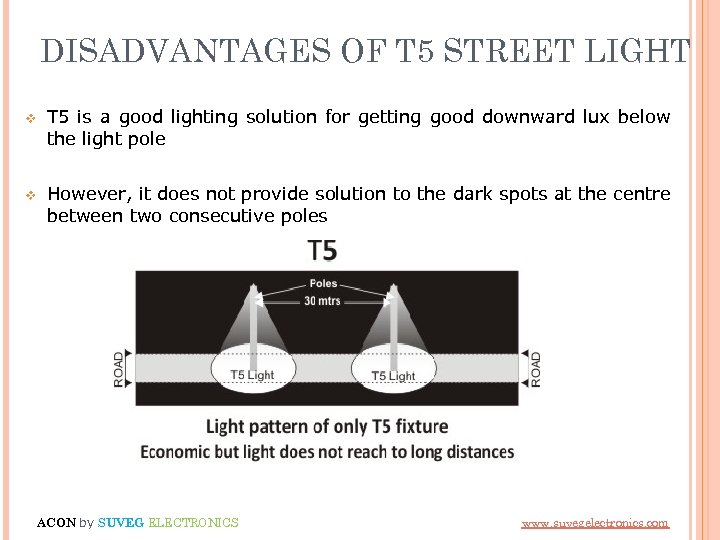

DISADVANTAGES OF T 5 STREET LIGHT v T 5 is a good lighting solution for getting good downward lux below the light pole v However, it does not provide solution to the dark spots at the centre between two consecutive poles ACON by SUVEG ELECTRONICS www. suvegelectronics. com

DISADVANTAGES OF LED STREET LIGHT v A major disadvantage of LED Street Light is its HIGH CAPITAL COST ACON by SUVEG ELECTRONICS www. suvegelectronics. com

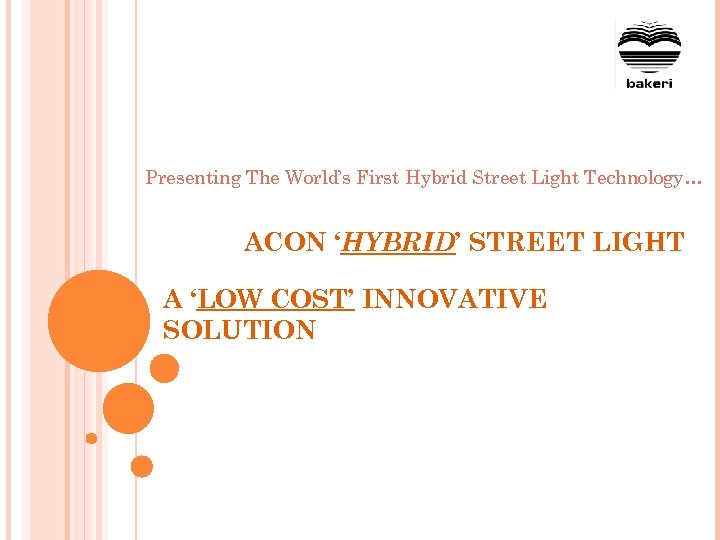

Presenting The World’s First Hybrid Street Light Technology… ACON ‘HYBRID’ STREET LIGHT A ‘LOW COST’ INNOVATIVE SOLUTION

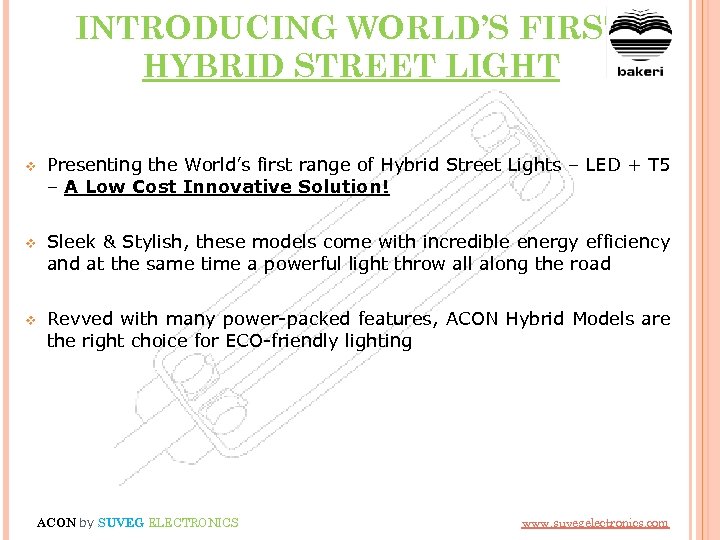

INTRODUCING WORLD’S FIRST HYBRID STREET LIGHT v Presenting the World’s first range of Hybrid Street Lights – LED + T 5 – A Low Cost Innovative Solution! v Sleek & Stylish, these models come with incredible energy efficiency and at the same time a powerful light throw all along the road v Revved with many power-packed features, ACON Hybrid Models are the right choice for ECO-friendly lighting ACON by SUVEG ELECTRONICS www. suvegelectronics. com

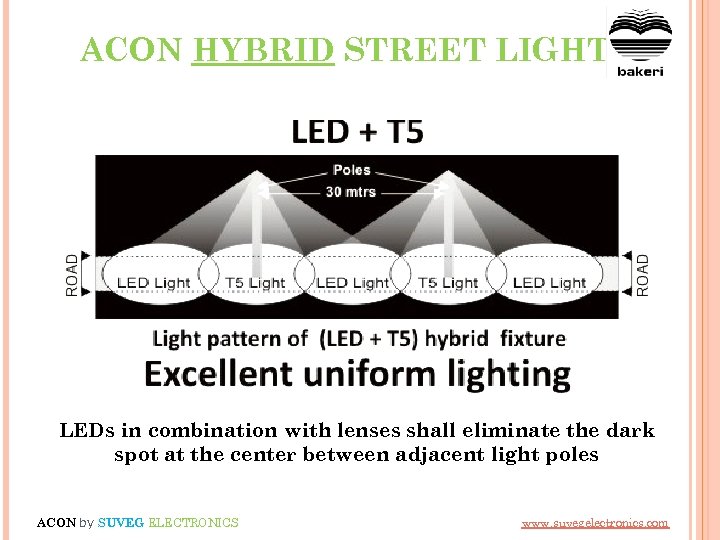

ACON HYBRID STREET LIGHT LEDs in combination with lenses shall eliminate the dark spot at the center between adjacent light poles ACON by SUVEG ELECTRONICS www. suvegelectronics. com

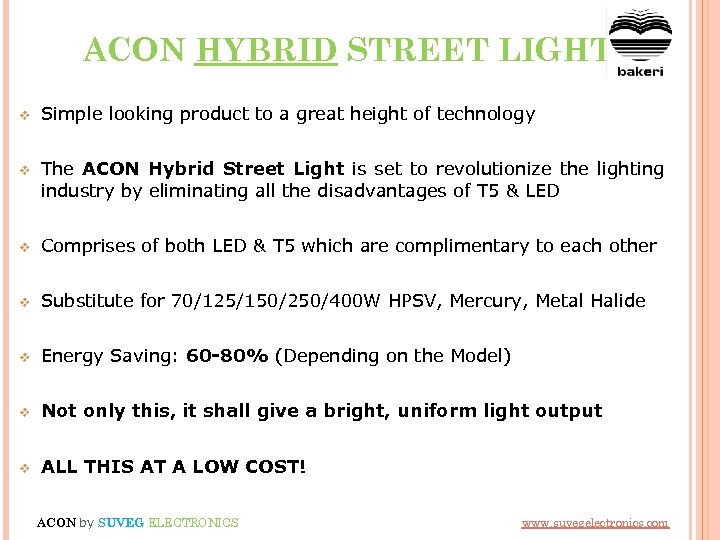

ACON HYBRID STREET LIGHT v Simple looking product to a great height of technology v The ACON Hybrid Street Light is set to revolutionize the lighting industry by eliminating all the disadvantages of T 5 & LED v Comprises of both LED & T 5 which are complimentary to each other v Substitute for 70/125/150/250/400 W HPSV, Mercury, Metal Halide v Energy Saving: 60 -80% (Depending on the Model) v Not only this, it shall give a bright, uniform light output v ALL THIS AT A LOW COST! ACON by SUVEG ELECTRONICS www. suvegelectronics. com

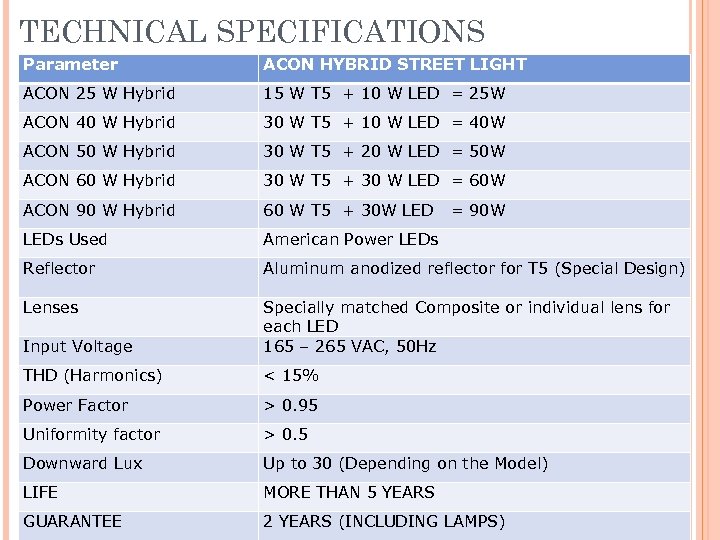

TECHNICAL SPECIFICATIONS Parameter ACON HYBRID STREET LIGHT ACON 25 W Hybrid 15 W T 5 + 10 W LED = 25 W ACON 40 W Hybrid 30 W T 5 + 10 W LED = 40 W ACON 50 W Hybrid 30 W T 5 + 20 W LED = 50 W ACON 60 W Hybrid 30 W T 5 + 30 W LED = 60 W ACON 90 W Hybrid 60 W T 5 + 30 W LEDs Used American Power LEDs Reflector Aluminum anodized reflector for T 5 (Special Design) Lenses Input Voltage Specially matched Composite or individual lens for each LED 165 – 265 VAC, 50 Hz THD (Harmonics) < 15% Power Factor > 0. 95 Uniformity factor > 0. 5 Downward Lux Up to 30 (Depending on the Model) LIFE MORE THAN 5 YEARS GUARANTEE 2 YEARS (INCLUDING LAMPS) = 90 W

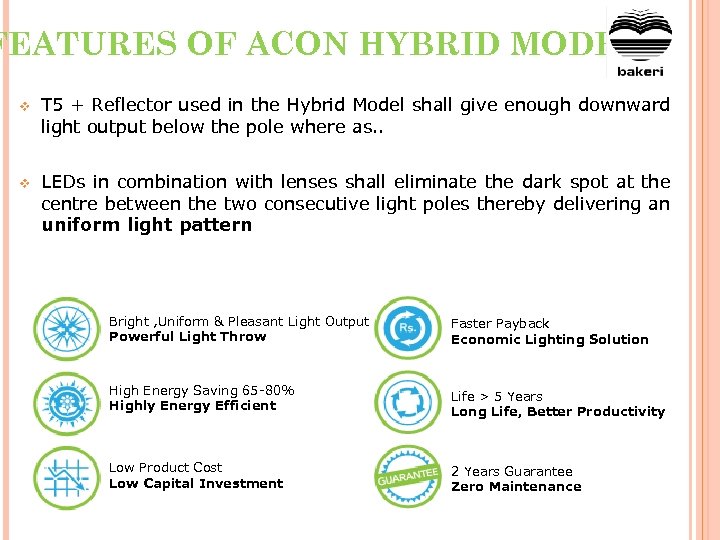

FEATURES OF ACON HYBRID MODELS v T 5 + Reflector used in the Hybrid Model shall give enough downward light output below the pole where as. . v LEDs in combination with lenses shall eliminate the dark spot at the centre between the two consecutive light poles thereby delivering an uniform light pattern Bright , Uniform & Pleasant Light Output Powerful Light Throw Faster Payback Economic Lighting Solution High Energy Saving 65 -80% Highly Energy Efficient Life > 5 Years Long Life, Better Productivity Low Product Cost Low Capital Investment 2 Years Guarantee Zero Maintenance

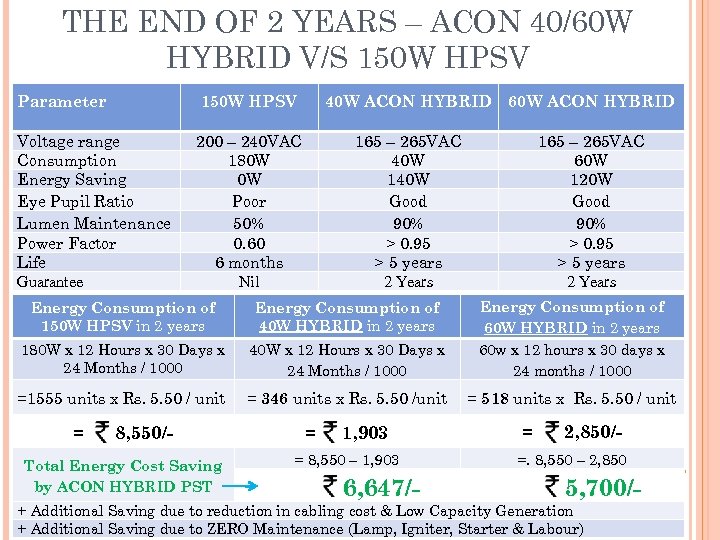

THE END OF 2 YEARS – ACON 40/60 W HYBRID V/S 150 W HPSV Parameter 150 W HPSV 40 W ACON HYBRID 60 W ACON HYBRID Voltage range Consumption Energy Saving Eye Pupil Ratio Lumen Maintenance Power Factor Life Guarantee 200 – 240 VAC 180 W 0 W Poor 50% 0. 60 6 months Nil 165 – 265 VAC 40 W 140 W Good 90% > 0. 95 > 5 years 2 Years 165 – 265 VAC 60 W 120 W Good 90% > 0. 95 > 5 years 2 Years Energy Consumption of 150 W HPSV in 2 years Energy Consumption of 40 W HYBRID in 2 years 180 W x 12 Hours x 30 Days x 24 Months / 1000 40 W x 12 Hours x 30 Days x 24 Months / 1000 Energy Consumption of 60 W HYBRID in 2 years 60 w x 12 hours x 30 days x 24 months / 1000 =1555 units x Rs. 5. 50 / unit = 346 units x Rs. 5. 50 /unit = 518 units x Rs. 5. 50 / unit = 8, 550/- Total Energy Cost Saving by ACON HYBRID PST = 1, 903 = 8, 550 – 1, 903 6, 647/- = 2, 850/- =. 8, 550 – 2, 850 5, 700/- + Additional Saving due to reduction in cabling cost & Low Capacity Generation + Additional Saving due to ZERO Maintenance (Lamp, Igniter, Starter & Labour)

OTHER PRODUCTS MODEL / WATTS Saving 80% 14/28 w T 5 2 ft/4 ft Stand Alone 50% 14/28 w T 5 2 ft/4 ft Retrofit (With Reflector) 60% 1, 2, 4 x 14/28 w T 5 Mirror Optic 50% 1 x 28 / 2 x 28 w T 5 4 ft Box Type 50% 14/24/28/54 w T 5 Ballast 50% 36/45/55/65 w T 8 Ballast 35% IP 65 Fittings & Clean Room Fittings INDOOR 3/6/9/12/18 w LED Downlighters 50% Radiance Lumino T 5 4 ft 1 x 28 w √ √ T 5 2 ft 1 x 14 w/1 x 24 w √ √ T 5 2 ft 2 x 14 w/2 x 24 w √ √ T 5 2 ft 4 x 14 w/4 x 24 w √ √ T 5 2 ft 5 x 14 w/5 x 24 w √ OUTDOOR MODEL / WATTS Saving 1 x 28 w T 5 4 ft Retrofit (with Reflector) 50%

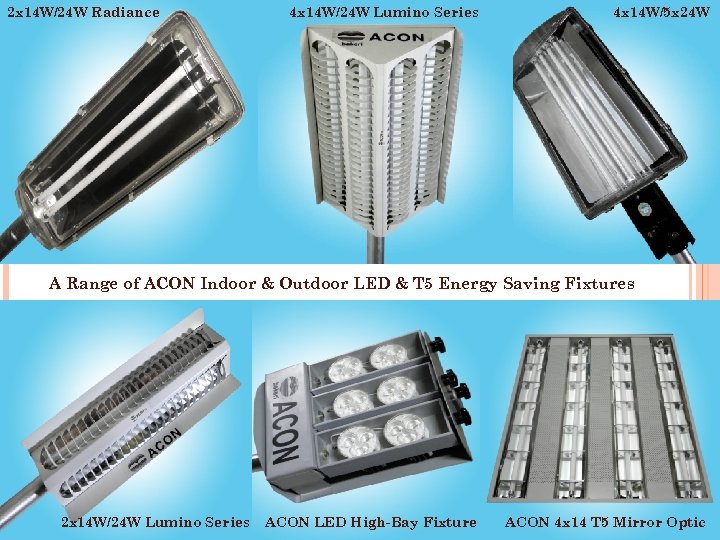

2 x 14 W/24 W Radiance 4 x 14 W/24 W Lumino Series 4 x 14 W/5 x 24 W A Range of ACON Indoor & Outdoor LED & T 5 Energy Saving Fixtures 2 x 14 W/24 W Lumino Series ACON LED High-Bay Fixture ACON 4 x 14 T 5 Mirror Optic

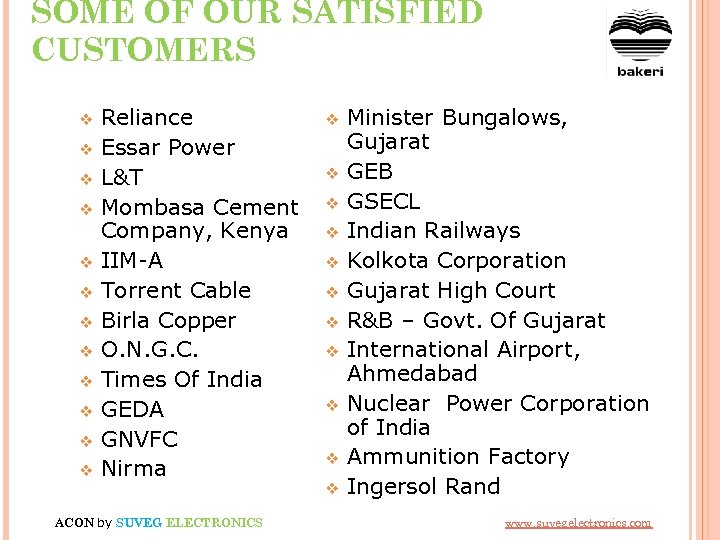

SOME OF OUR SATISFIED CUSTOMERS v v v Reliance Essar Power L&T Mombasa Cement Company, Kenya IIM-A Torrent Cable Birla Copper O. N. G. C. Times Of India GEDA GNVFC Nirma ACON by SUVEG ELECTRONICS v v v Minister Bungalows, Gujarat GEB GSECL Indian Railways Kolkota Corporation Gujarat High Court R&B – Govt. Of Gujarat International Airport, Ahmedabad Nuclear Power Corporation of India Ammunition Factory Ingersol Rand www. suvegelectronics. com

SUVEG ELECTRONICS AT A GLANCE v Vast Product Range aesthetically designed v Many of the products patented v Unique concepts and specifications v Tests carried out at ERDA & EQDC as per IS 13021 Part 1 & 2, IS 6842 for Electronic Ballasts and IS 10322 for Outdoor Luminaries v Product Testing done at 3 stages for ensuring quality v Suveg Electronics is the only company to offer guarantee on lamps as well and assuring highest uniformity along with maximum energy saving Offering energy efficient lighting solutions worldwide! ACON by SUVEG ELECTRONICS www. suvegelectronics. com

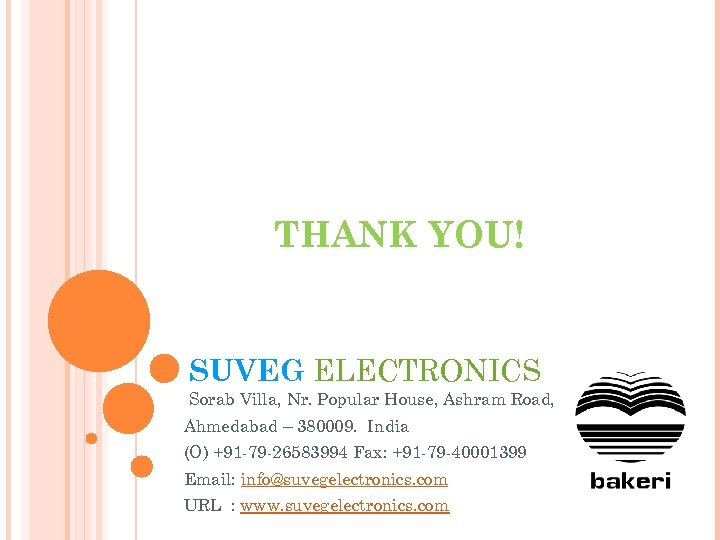

THANK YOU! SUVEG ELECTRONICS Sorab Villa, Nr. Popular House, Ashram Road, Ahmedabad – 380009. India (O) +91 -79 -26583994 Fax: +91 -79 -40001399 Email: info@suvegelectronics. com URL : www. suvegelectronics. com
