Achieving Higher Density Development In Areas Without Sewer Water

Achieving Higher Density Development In Areas Without Sewer/Water Service Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

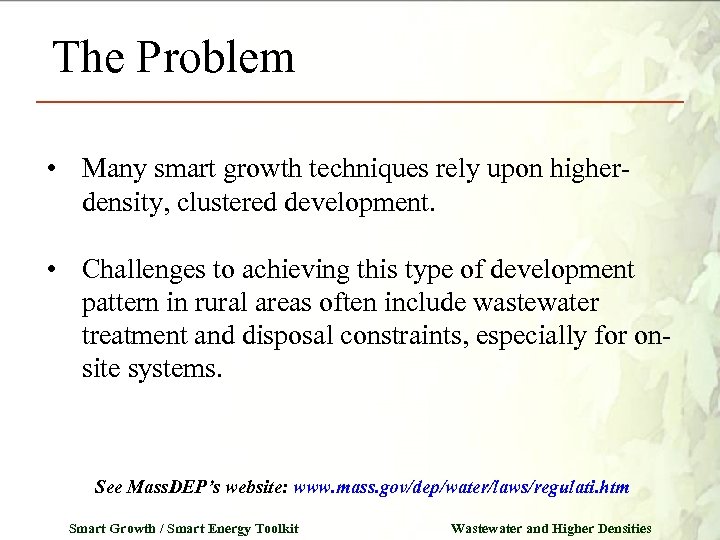

The Problem • Many smart growth techniques rely upon higherdensity, clustered development. • Challenges to achieving this type of development pattern in rural areas often include wastewater treatment and disposal constraints, especially for onsite systems. See Mass. DEP’s website: www. mass. gov/dep/water/laws/regulati. htm Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

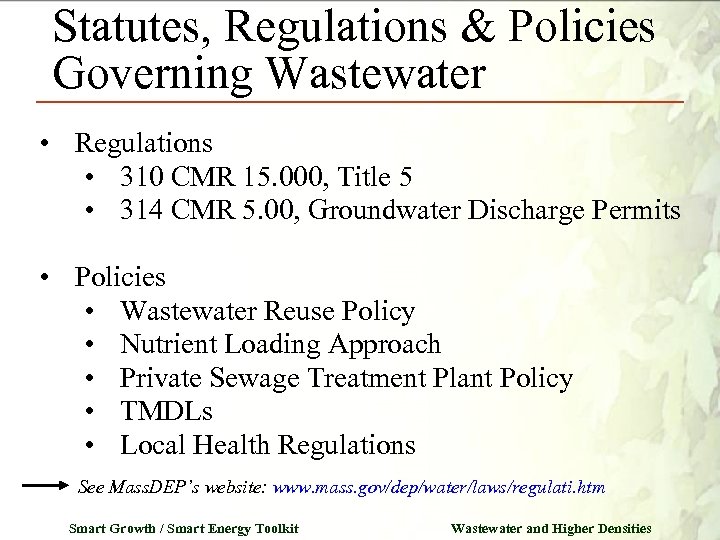

Statutes, Regulations & Policies Governing Wastewater • Regulations • 310 CMR 15. 000, Title 5 • 314 CMR 5. 00, Groundwater Discharge Permits • Policies • Wastewater Reuse Policy • Nutrient Loading Approach • Private Sewage Treatment Plant Policy • TMDLs • Local Health Regulations See Mass. DEP’s website: www. mass. gov/dep/water/laws/regulati. htm Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

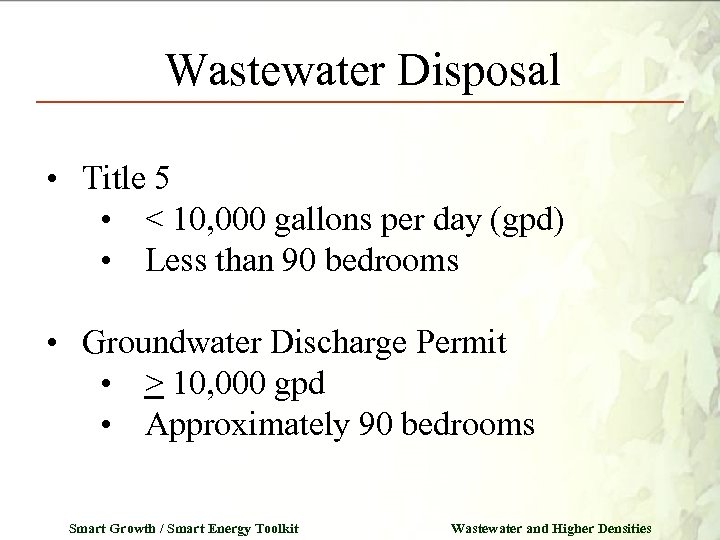

Wastewater Disposal • Title 5 • < 10, 000 gallons per day (gpd) • Less than 90 bedrooms • Groundwater Discharge Permit • > 10, 000 gpd • Approximately 90 bedrooms Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

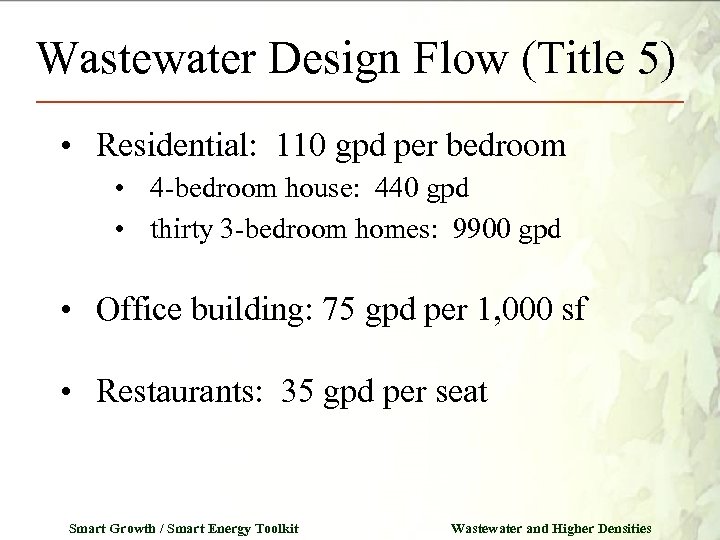

Wastewater Design Flow (Title 5) • Residential: 110 gpd per bedroom • 4 -bedroom house: 440 gpd • thirty 3 -bedroom homes: 9900 gpd • Office building: 75 gpd per 1, 000 sf • Restaurants: 35 gpd per seat Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

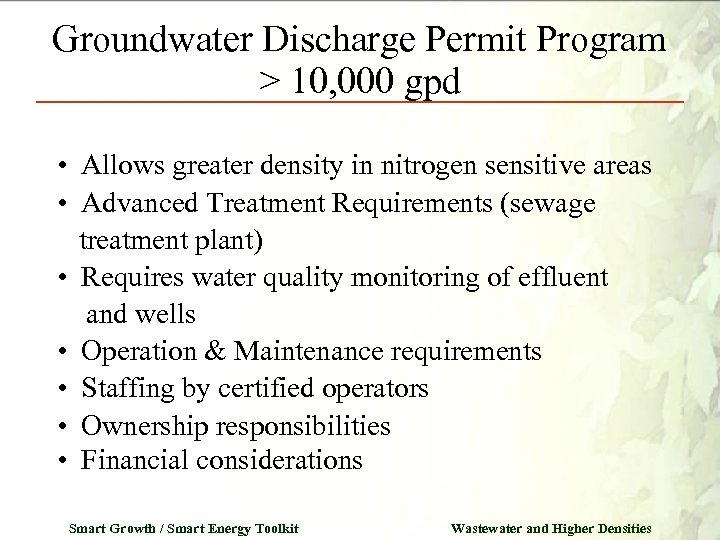

Groundwater Discharge Permit Program > 10, 000 gpd • Allows greater density in nitrogen sensitive areas • Advanced Treatment Requirements (sewage treatment plant) • Requires water quality monitoring of effluent and wells • Operation & Maintenance requirements • Staffing by certified operators • Ownership responsibilities • Financial considerations Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

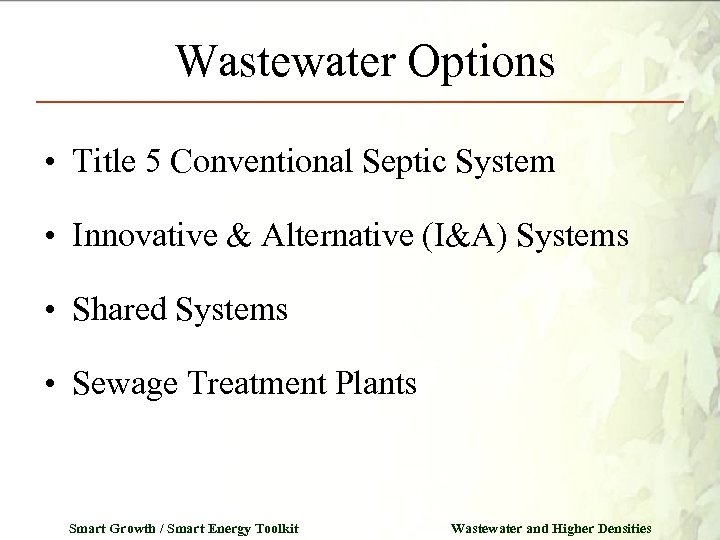

Wastewater Options • Title 5 Conventional Septic System • Innovative & Alternative (I&A) Systems • Shared Systems • Sewage Treatment Plants Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

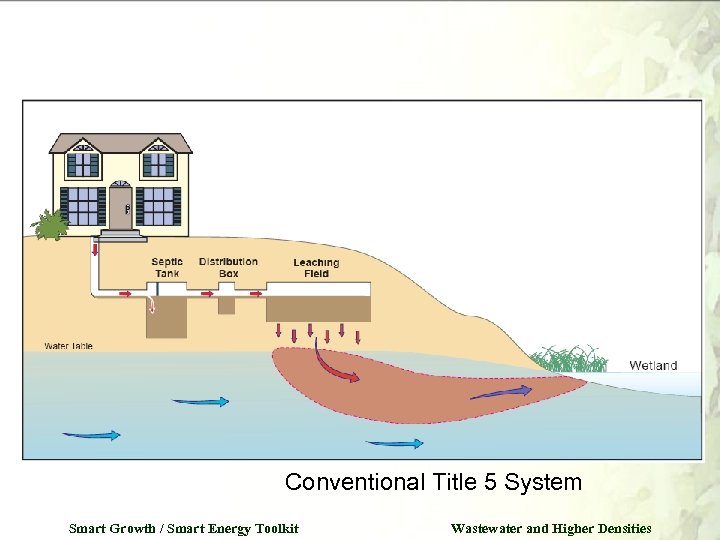

Conventional Title 5 System Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

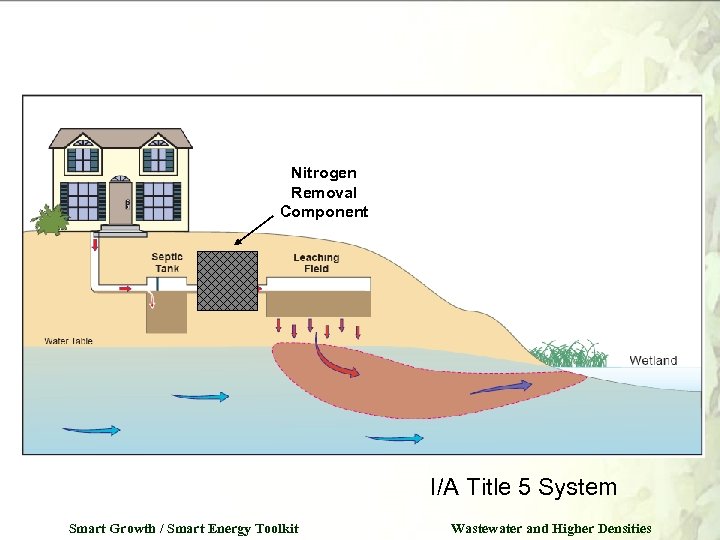

Nitrogen Removal Component I/A Title 5 System Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

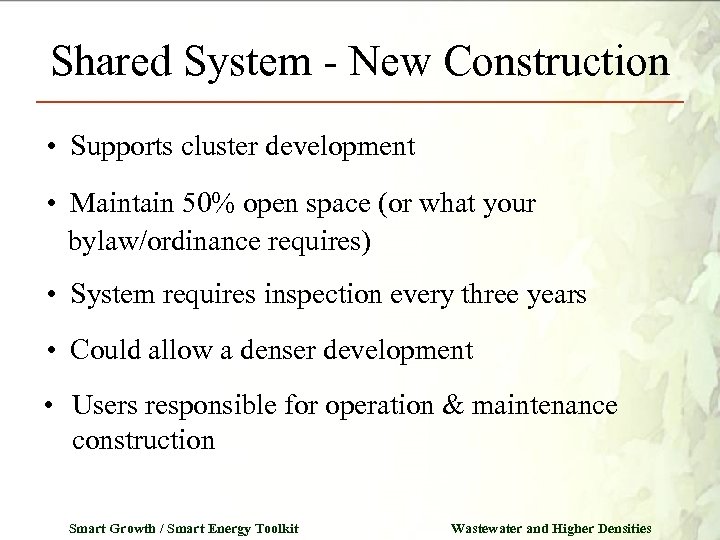

Shared System - New Construction • Supports cluster development • Maintain 50% open space (or what your bylaw/ordinance requires) • System requires inspection every three years • Could allow a denser development • Users responsible for operation & maintenance construction Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

Leaching fields for individual Title 5 Septic Systems Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

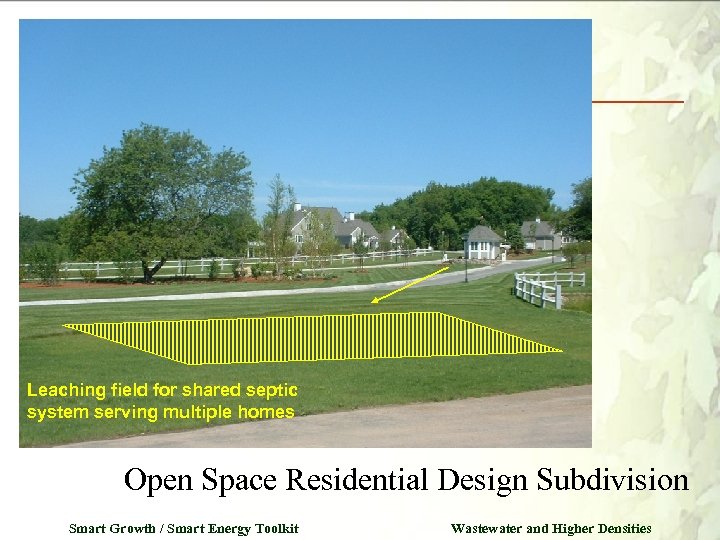

Leaching field for shared septic system serving multiple homes Open Space Residential Design Subdivision Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

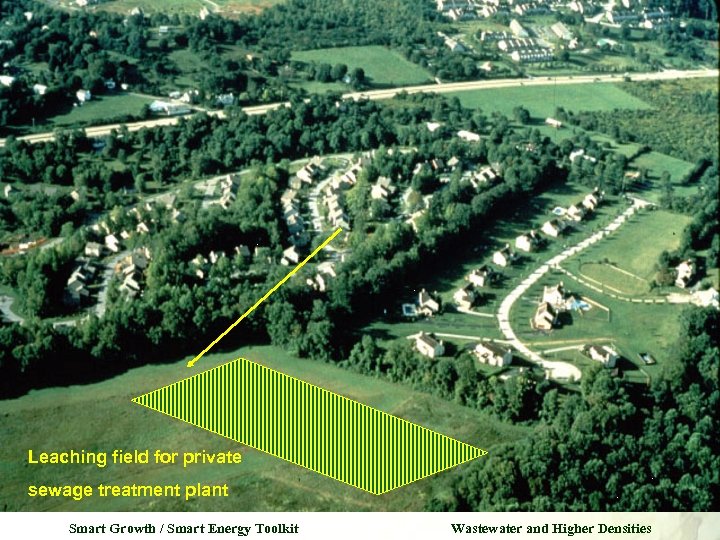

Leaching field for private sewage treatment plant Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

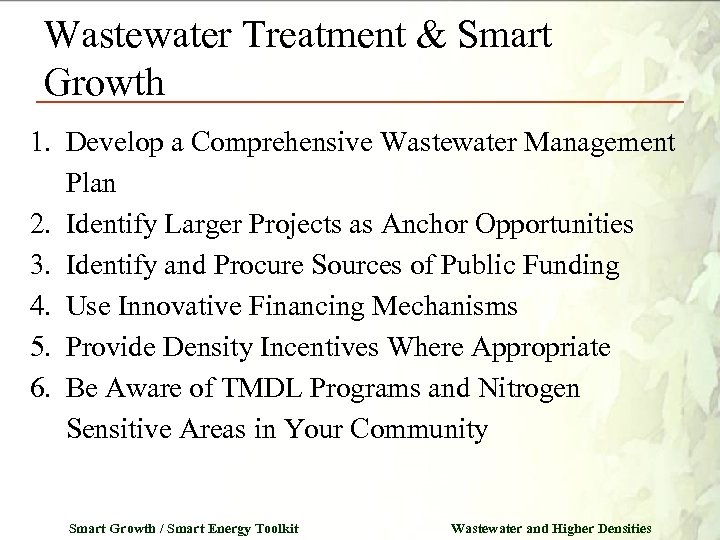

Wastewater Treatment & Smart Growth 1. Develop a Comprehensive Wastewater Management Plan 2. Identify Larger Projects as Anchor Opportunities 3. Identify and Procure Sources of Public Funding 4. Use Innovative Financing Mechanisms 5. Provide Density Incentives Where Appropriate 6. Be Aware of TMDL Programs and Nitrogen Sensitive Areas in Your Community Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

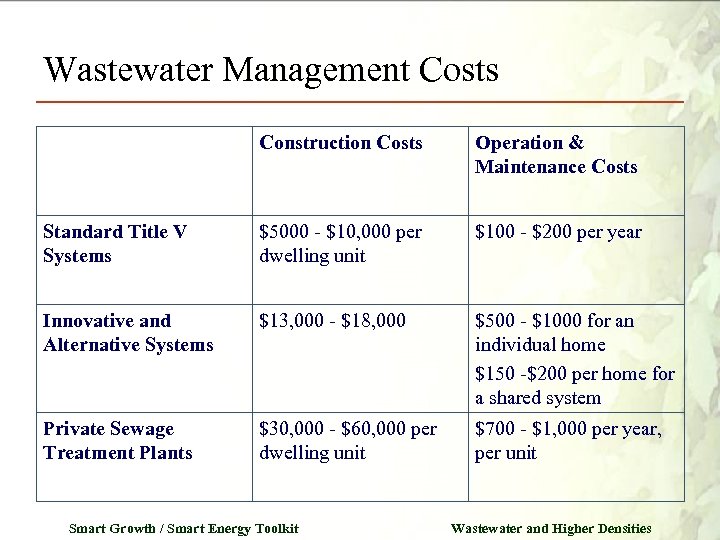

Wastewater Management Costs Construction Costs Operation & Maintenance Costs Standard Title V Systems $5000 - $10, 000 per dwelling unit $100 - $200 per year Innovative and Alternative Systems $13, 000 - $18, 000 $500 - $1000 for an individual home $150 -$200 per home for a shared system Private Sewage Treatment Plants $30, 000 - $60, 000 per dwelling unit $700 - $1, 000 per year, per unit Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

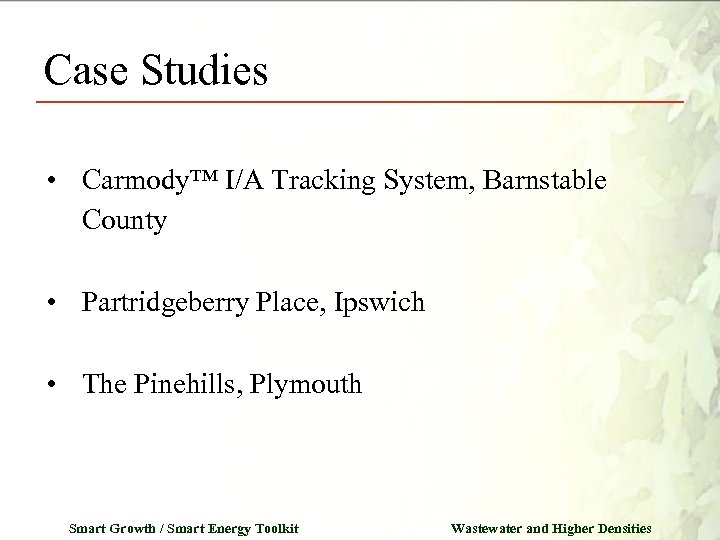

Case Studies • Carmody™ I/A Tracking System, Barnstable County • Partridgeberry Place, Ipswich • The Pinehills, Plymouth Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

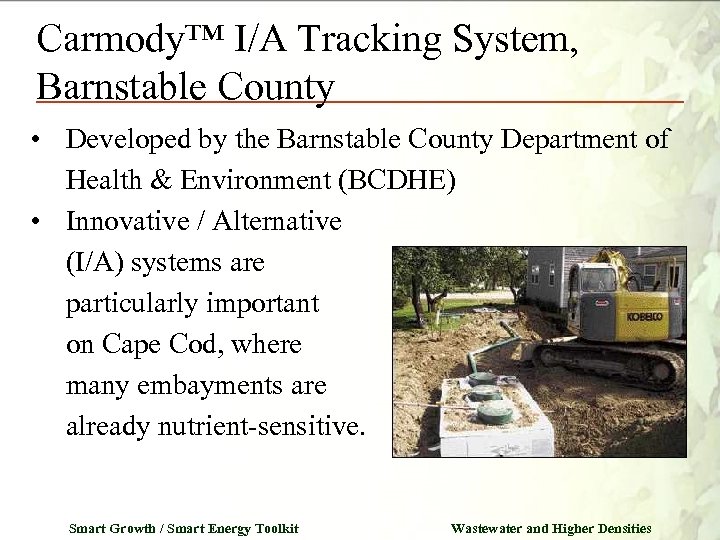

Carmody™ I/A Tracking System, Barnstable County • Developed by the Barnstable County Department of Health & Environment (BCDHE) • Innovative / Alternative (I/A) systems are particularly important on Cape Cod, where many embayments are already nutrient-sensitive. Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

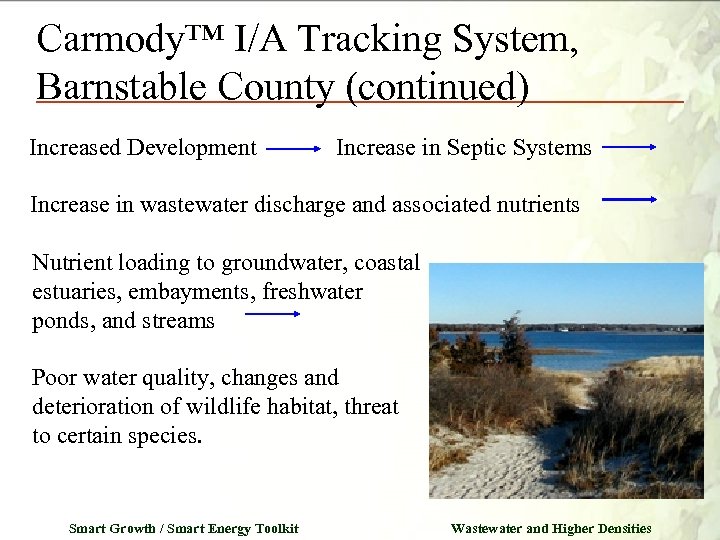

Carmody™ I/A Tracking System, Barnstable County (continued) Increased Development Increase in Septic Systems Increase in wastewater discharge and associated nutrients Nutrient loading to groundwater, coastal estuaries, embayments, freshwater ponds, and streams Poor water quality, changes and deterioration of wildlife habitat, threat to certain species. Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

Carmody™ I/A Tracking System, Barnstable County (continued) • Tracks construction, maintenance, and monitoring results of I/A systems within 14 of the 15 Towns • Automatic tracking and compliance notification once system is manually entered into database. • Also being used to evaluate functionality of different I/A systems. Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

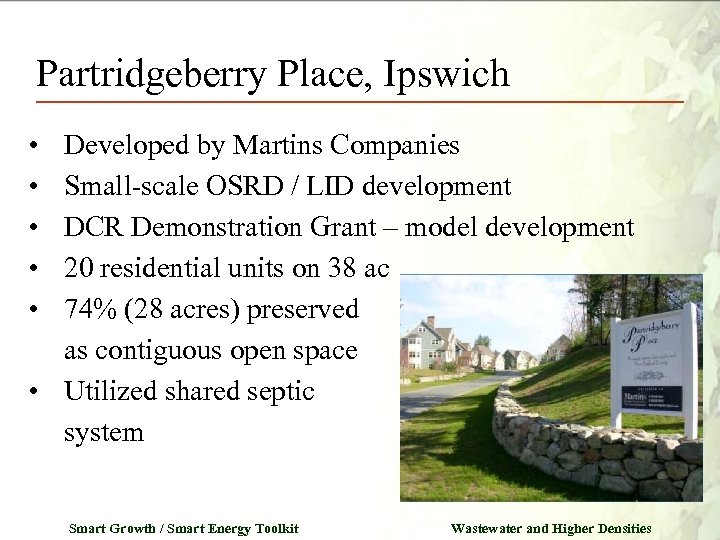

Partridgeberry Place, Ipswich • • • Developed by Martins Companies Small-scale OSRD / LID development DCR Demonstration Grant – model development 20 residential units on 38 ac 74% (28 acres) preserved as contiguous open space • Utilized shared septic system Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

Partridgeberry Place, Ipswich (continued) Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

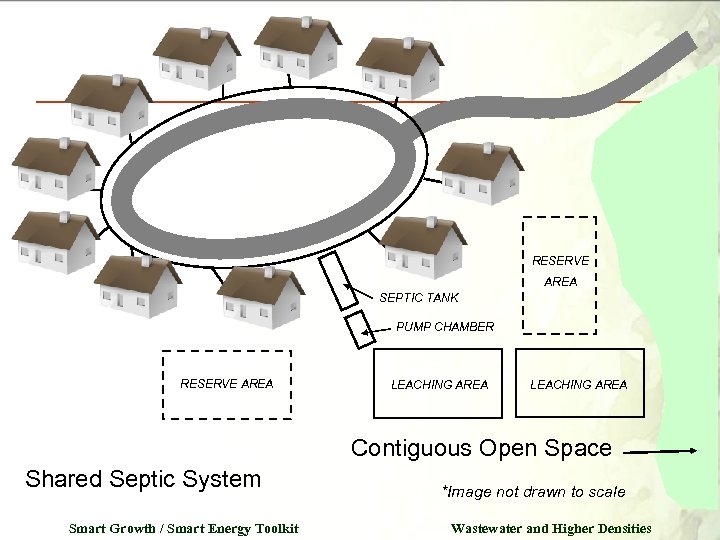

RESERVE AREA SEPTIC TANK PUMP CHAMBER RESERVE AREA LEACHING AREA Contiguous Open Space Shared Septic System Smart Growth / Smart Energy Toolkit *Image not drawn to scale Wastewater and Higher Densities

Partridgeberry Place, Ipswich (continued) • Shared Septic System • Design flow: 8, 800 gpd • 27, 000 gallon septic tank • 13, 000 gallon pump chamber • Two standard Title 5 leaching fields • Homeowners Association responsible for maintaining. • Monitored and checked quarterly by Clearwater Industries of Ipswich Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

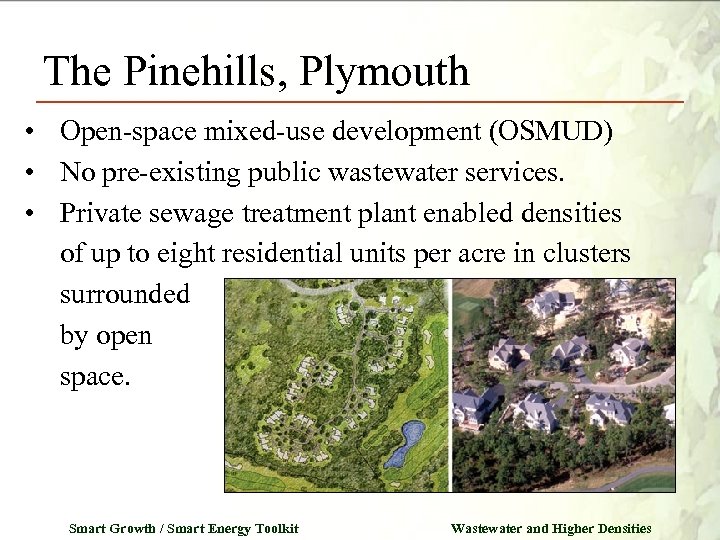

The Pinehills, Plymouth • Open-space mixed-use development (OSMUD) • No pre-existing public wastewater services. • Private sewage treatment plant enabled densities of up to eight residential units per acre in clusters surrounded by open space. Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

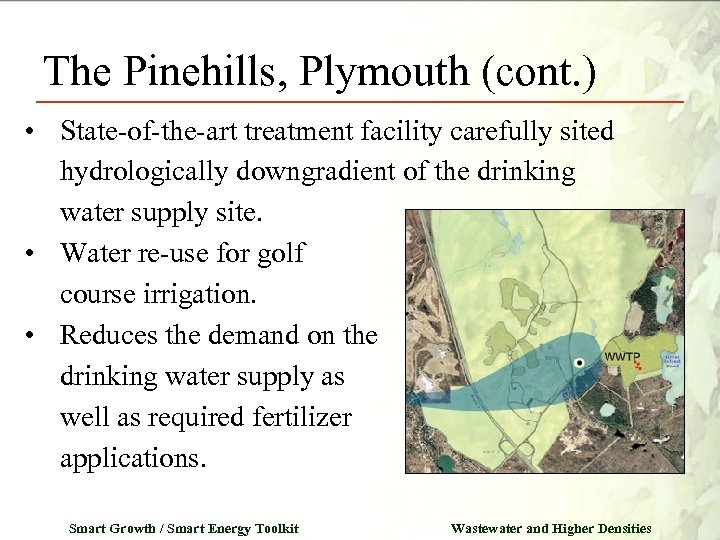

The Pinehills, Plymouth (cont. ) • State-of-the-art treatment facility carefully sited hydrologically downgradient of the drinking water supply site. • Water re-use for golf course irrigation. • Reduces the demand on the drinking water supply as well as required fertilizer applications. Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

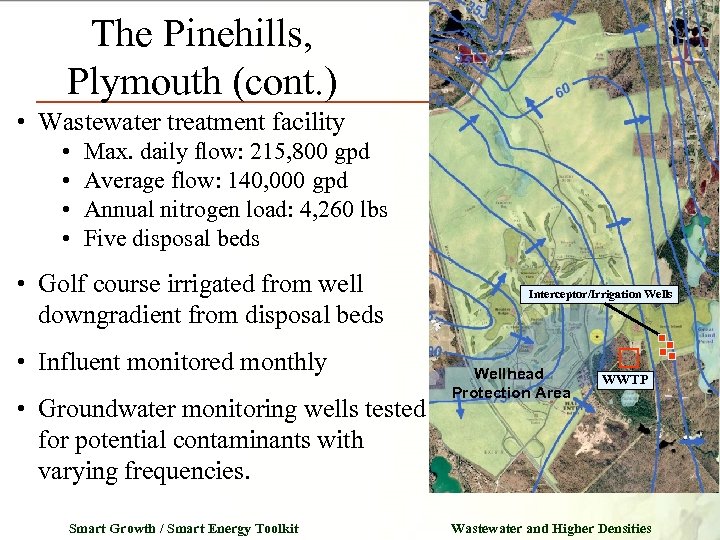

The Pinehills, Plymouth (cont. ) • Wastewater treatment facility • • Max. daily flow: 215, 800 gpd Average flow: 140, 000 gpd Annual nitrogen load: 4, 260 lbs Five disposal beds • Golf course irrigated from well downgradient from disposal beds • Influent monitored monthly • Groundwater monitoring wells tested for potential contaminants with varying frequencies. Smart Growth / Smart Energy Toolkit Interceptor/Irrigation Wells Wellhead Protection Area WWTP Wastewater and Higher Densities

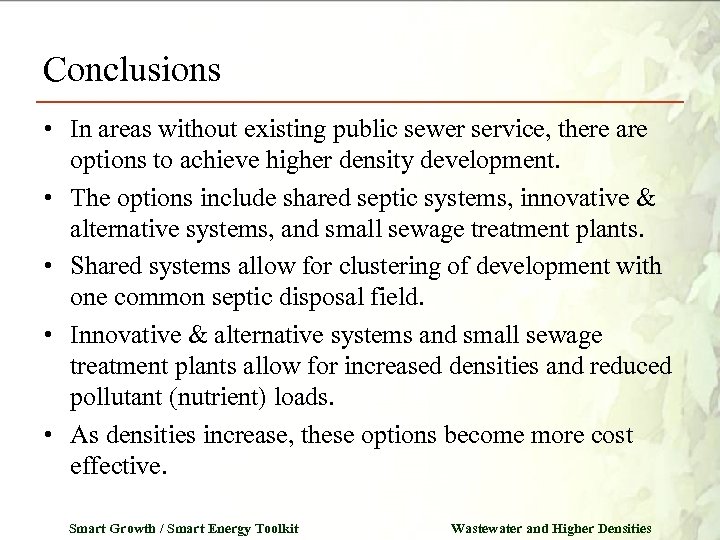

Conclusions • In areas without existing public sewer service, there are options to achieve higher density development. • The options include shared septic systems, innovative & alternative systems, and small sewage treatment plants. • Shared systems allow for clustering of development with one common septic disposal field. • Innovative & alternative systems and small sewage treatment plants allow for increased densities and reduced pollutant (nutrient) loads. • As densities increase, these options become more cost effective. Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities

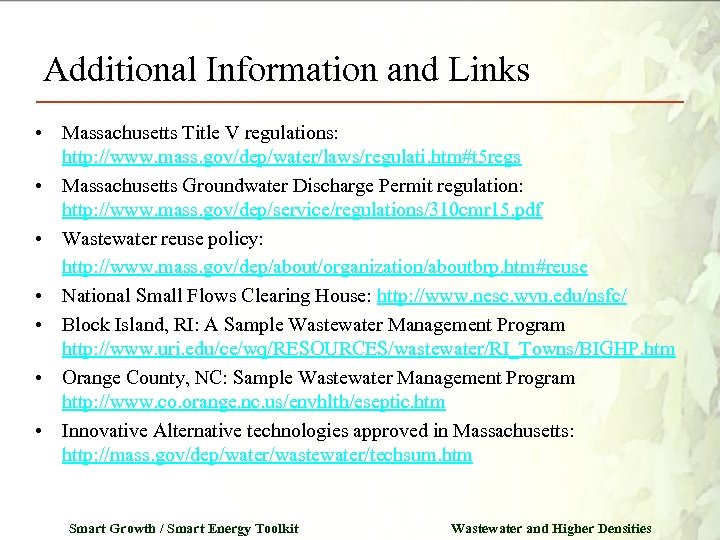

Additional Information and Links • Massachusetts Title V regulations: http: //www. mass. gov/dep/water/laws/regulati. htm#t 5 regs • Massachusetts Groundwater Discharge Permit regulation: http: //www. mass. gov/dep/service/regulations/310 cmr 15. pdf • Wastewater reuse policy: http: //www. mass. gov/dep/about/organization/aboutbrp. htm#reuse • National Small Flows Clearing House: http: //www. nesc. wvu. edu/nsfc/ • Block Island, RI: A Sample Wastewater Management Program http: //www. uri. edu/ce/wq/RESOURCES/wastewater/RI_Towns/BIGHP. htm • Orange County, NC: Sample Wastewater Management Program http: //www. co. orange. nc. us/envhlth/eseptic. htm • Innovative Alternative technologies approved in Massachusetts: http: //mass. gov/dep/water/wastewater/techsum. htm Smart Growth / Smart Energy Toolkit Wastewater and Higher Densities
