ACACIA Threaded Case Study Presented By Louise Maguire

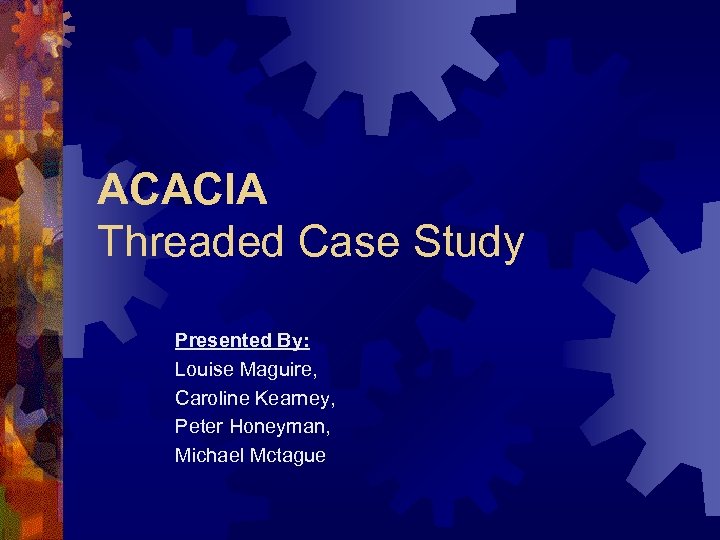

ACACIA Threaded Case Study Presented By: Louise Maguire, Caroline Kearney, Peter Honeyman, Michael Mctague

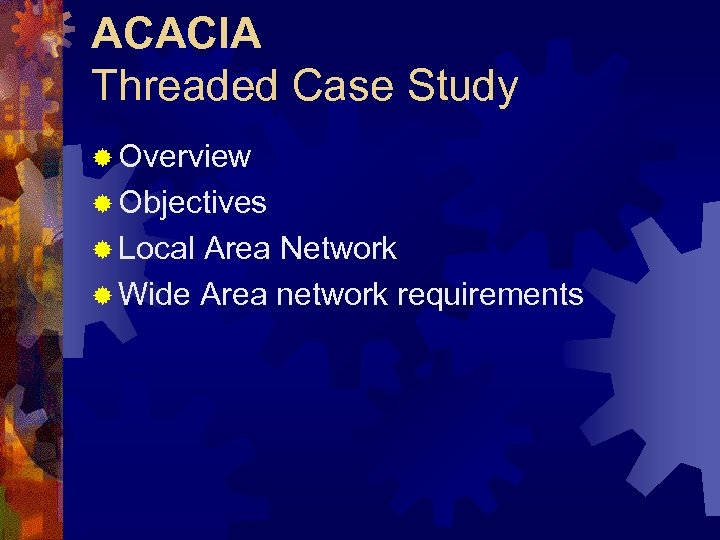

ACACIA Threaded Case Study ® Overview ® Objectives ® Local Area Network ® Wide Area network requirements

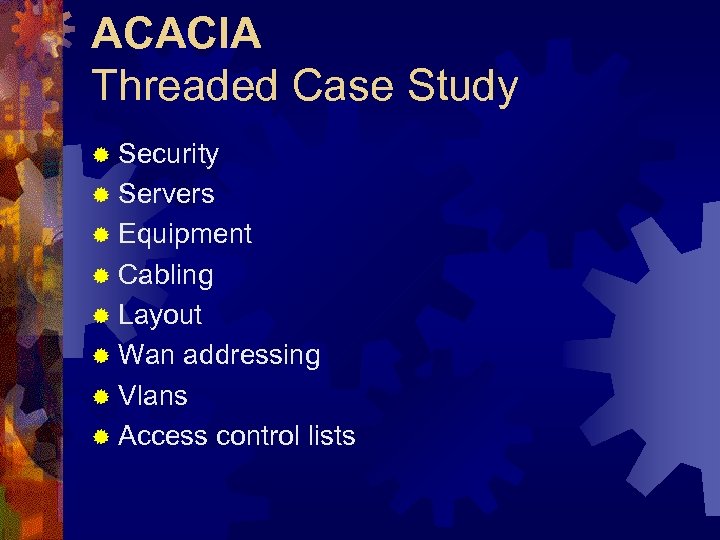

ACACIA Threaded Case Study ® Security ® Servers ® Equipment ® Cabling ® Layout ® Wan addressing ® Vlans ® Access control lists

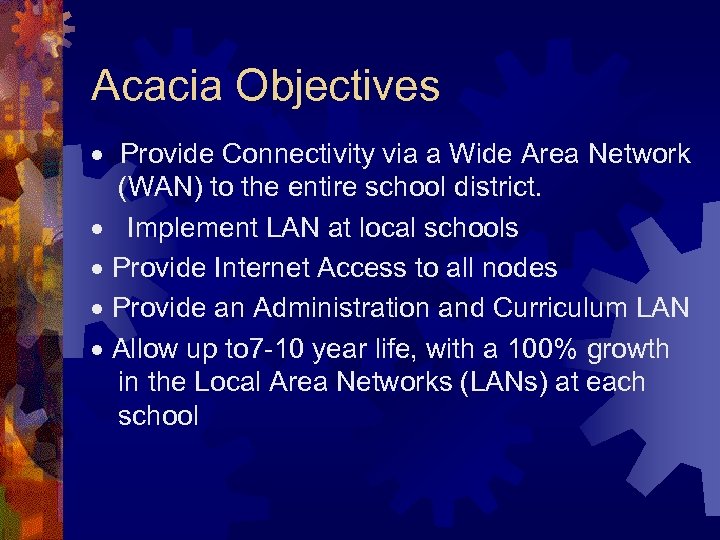

Acacia Objectives · Provide Connectivity via a Wide Area Network (WAN) to the entire school district. · Implement LAN at local schools · Provide Internet Access to all nodes · Provide an Administration and Curriculum LAN · Allow up to 7 -10 year life, with a 100% growth in the Local Area Networks (LANs) at each school

Acacia Overview ® The Washington School District is implementing an enterprisewide network to provide data connectivity between all the schools in the district administrative offices and the District Office ® . Three regional hubs are located at the District Office, the Service Center, and the Shaw Butte Elementary School. ® individual school site operates as a separate local area network (LAN), the District Office retains total management over the entire school district through a wide area network (WAN).

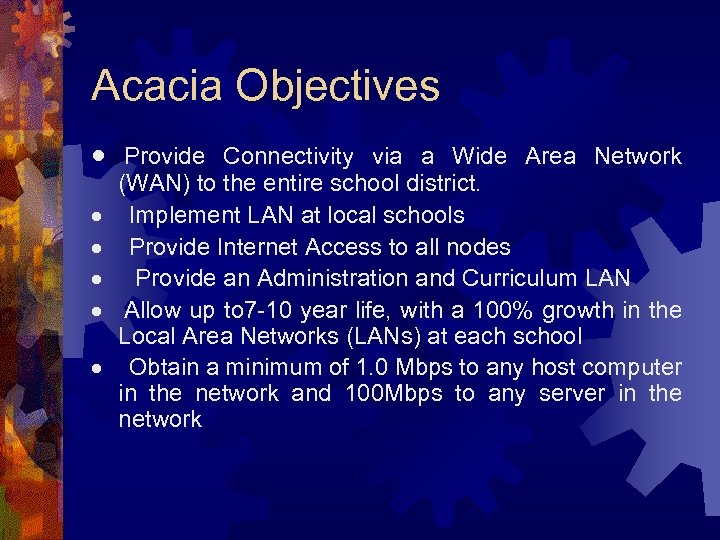

Acacia Objectives · Provide Connectivity via a Wide Area Network (WAN) to the entire school district. · Implement LAN at local schools · Provide Internet Access to all nodes · Provide an Administration and Curriculum LAN · Allow up to 7 -10 year life, with a 100% growth in the Local Area Networks (LANs) at each school · Obtain a minimum of 1. 0 Mbps to any host computer in the network and 100 Mbps to any server in the network

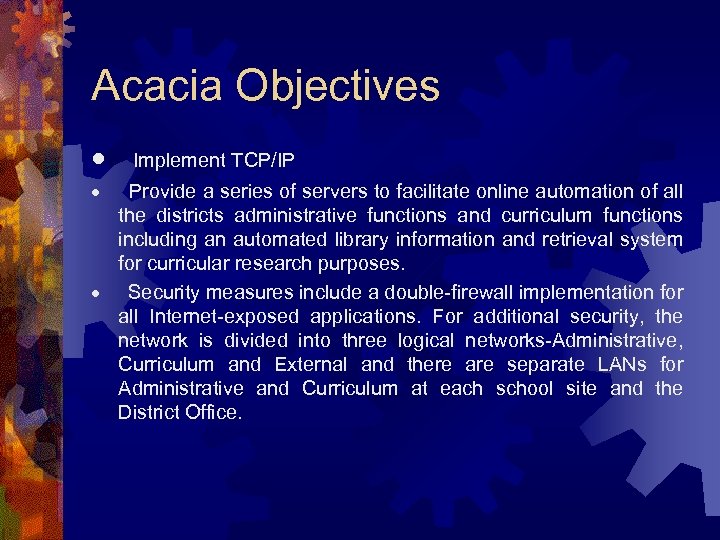

Acacia Objectives · Implement TCP/IP · Provide a series of servers to facilitate online automation of all the districts administrative functions and curriculum functions including an automated library information and retrieval system for curricular research purposes. · Security measures include a double-firewall implementation for all Internet-exposed applications. For additional security, the network is divided into three logical networks-Administrative, Curriculum and External and there are separate LANs for Administrative and Curriculum at each school site and the District Office.

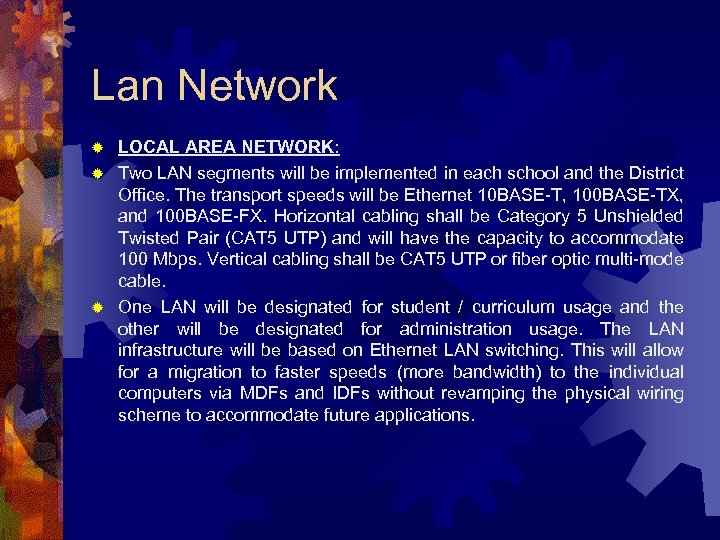

Lan Network LOCAL AREA NETWORK: ® Two LAN segments will be implemented in each school and the District Office. The transport speeds will be Ethernet 10 BASE-T, 100 BASE-TX, and 100 BASE-FX. Horizontal cabling shall be Category 5 Unshielded Twisted Pair (CAT 5 UTP) and will have the capacity to accommodate 100 Mbps. Vertical cabling shall be CAT 5 UTP or fiber optic multi-mode cable. ® One LAN will be designated for student / curriculum usage and the other will be designated for administration usage. The LAN infrastructure will be based on Ethernet LAN switching. This will allow for a migration to faster speeds (more bandwidth) to the individual computers via MDFs and IDFs without revamping the physical wiring scheme to accommodate future applications. ®

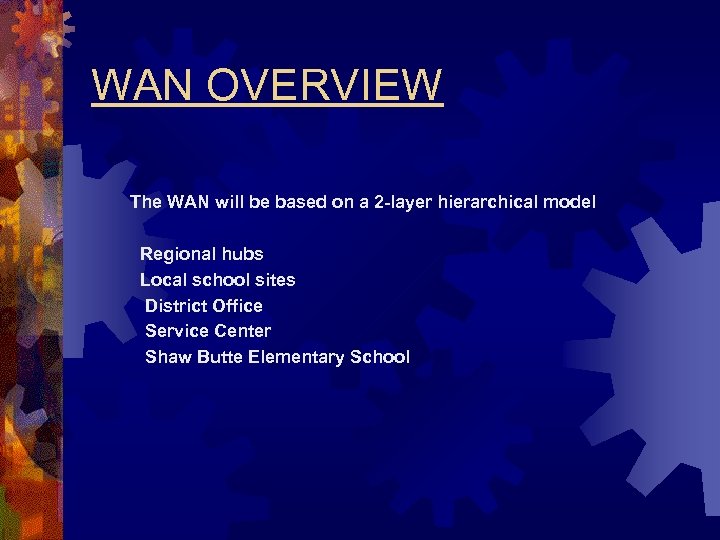

WAN OVERVIEW The WAN will be based on a 2 -layer hierarchical model Regional hubs Local school sites District Office Service Center Shaw Butte Elementary School

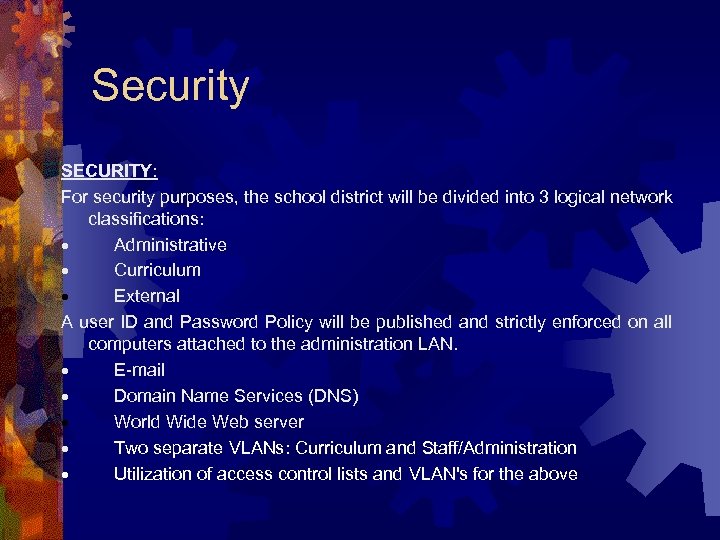

Security SECURITY: For security purposes, the school district will be divided into 3 logical network classifications: · Administrative · Curriculum · External A user ID and Password Policy will be published and strictly enforced on all computers attached to the administration LAN. · E-mail · Domain Name Services (DNS) · World Wide Web server · Two separate VLANs: Curriculum and Staff/Administration · Utilization of access control lists and VLAN's for the above

Servers ® ® ® All servers must have 100 megabits per second (Mbps) connections. All file servers will be categorized as Enterprise or Workgroup type services, and then placed on the network topology according to function and anticipated traffic patterns of users. Administration server Dns and Email Severs Library server Application server Other Servers

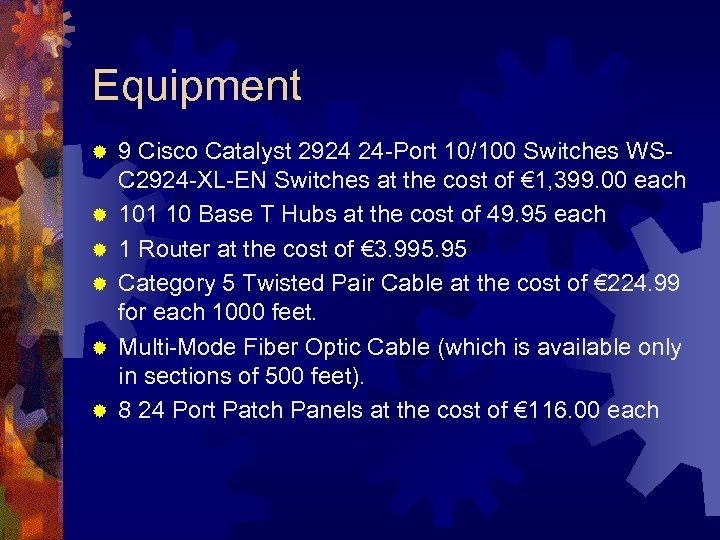

Equipment ® ® ® 9 Cisco Catalyst 2924 24 -Port 10/100 Switches WSC 2924 -XL-EN Switches at the cost of € 1, 399. 00 each 101 10 Base T Hubs at the cost of 49. 95 each 1 Router at the cost of € 3. 995. 95 Category 5 Twisted Pair Cable at the cost of € 224. 99 for each 1000 feet. Multi-Mode Fiber Optic Cable (which is available only in sections of 500 feet). 8 24 Port Patch Panels at the cost of € 116. 00 each

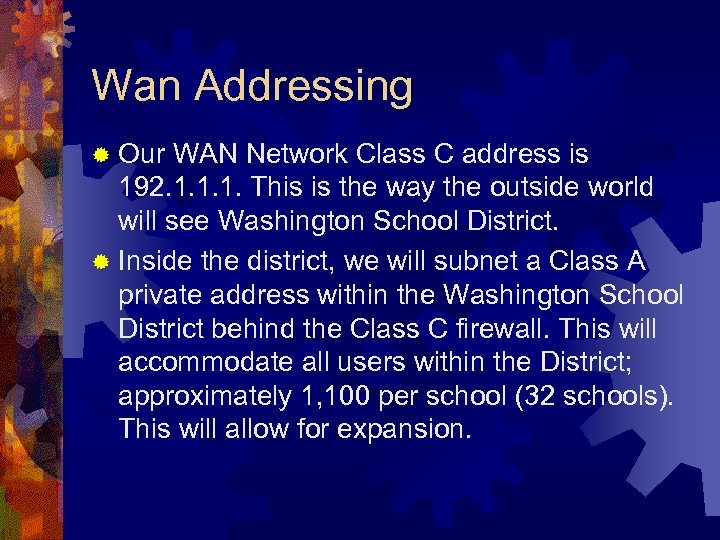

Wan Addressing ® Our WAN Network Class C address is 192. 1. 1. 1. This is the way the outside world will see Washington School District. ® Inside the district, we will subnet a Class A private address within the Washington School District behind the Class C firewall. This will accommodate all users within the District; approximately 1, 100 per school (32 schools). This will allow for expansion.

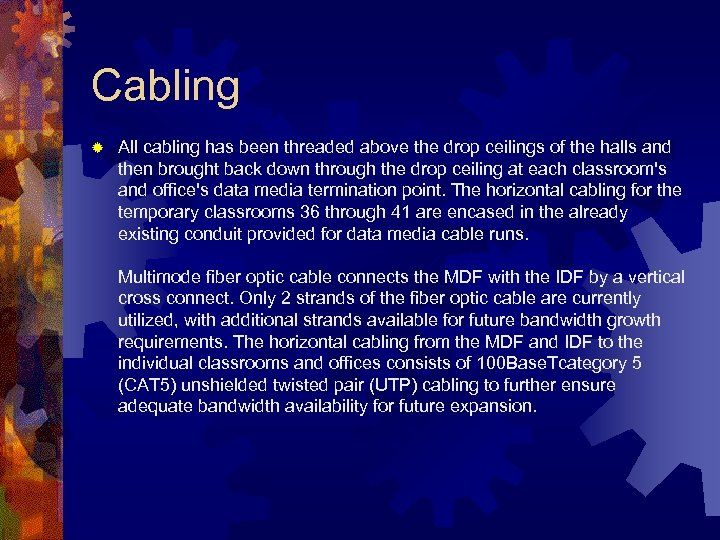

Cabling ® All cabling has been threaded above the drop ceilings of the halls and then brought back down through the drop ceiling at each classroom's and office's data media termination point. The horizontal cabling for the temporary classrooms 36 through 41 are encased in the already existing conduit provided for data media cable runs. Multimode fiber optic cable connects the MDF with the IDF by a vertical cross connect. Only 2 strands of the fiber optic cable are currently utilized, with additional strands available for future bandwidth growth requirements. The horizontal cabling from the MDF and IDF to the individual classrooms and offices consists of 100 Base. Tcategory 5 (CAT 5) unshielded twisted pair (UTP) cabling to further ensure adequate bandwidth availability for future expansion.

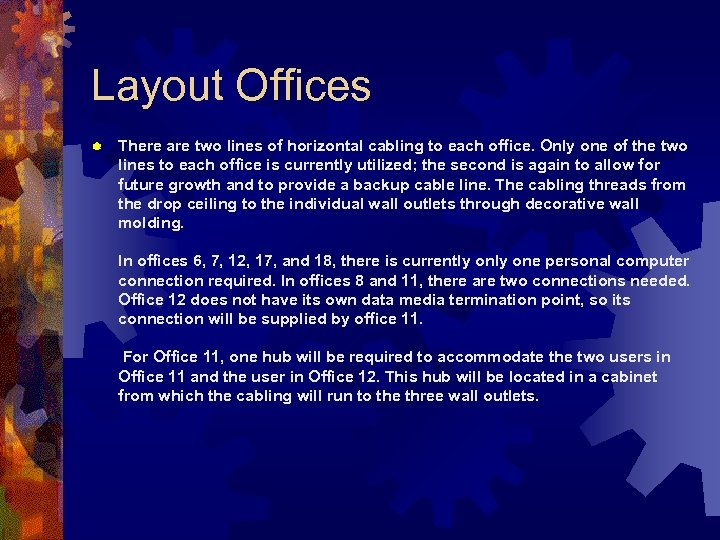

Layout Offices ® There are two lines of horizontal cabling to each office. Only one of the two lines to each office is currently utilized; the second is again to allow for future growth and to provide a backup cable line. The cabling threads from the drop ceiling to the individual wall outlets through decorative wall molding. In offices 6, 7, 12, 17, and 18, there is currently one personal computer connection required. In offices 8 and 11, there are two connections needed. Office 12 does not have its own data media termination point, so its connection will be supplied by office 11. For Office 11, one hub will be required to accommodate the two users in Office 11 and the user in Office 12. This hub will be located in a cabinet from which the cabling will run to the three wall outlets.

Layout Class Rooms ® There are five lines of horizontal cabling to each classroom. Only four of the five lines are currently utilized; the fifth is to allow for future growth and to provide a backup should one of the other cable lines fail. In each classroom, the wiring from the drop ceiling descends to a locked cabinet in which is located the 3 hubs for each classroom. Three of the four cable lines are connected to these hubs. The other cable line is connected to the teacher's personal computer. Eight cable lines are connected to each of the 3 hubs, and these 24 cable lines will connect to student personal computers. From the locked cabinet, the cabling threads to the individual wall outlets through decorative wall molding.

Vlans ® The VLANS are implemented for the following reasons ® Reduces administration costs related to moves, additions, and changes Provides better control broadcasts Tightens network security Micro segments with scalability Distributes traffic load Relocates servers into secured locations Saves money by using existing hubs ® ® ®

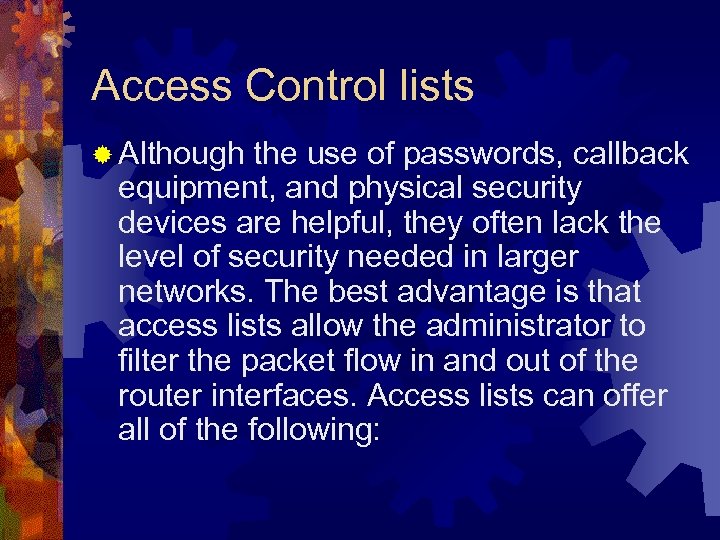

Access Control lists ® Although the use of passwords, callback equipment, and physical security devices are helpful, they often lack the level of security needed in larger networks. The best advantage is that access lists allow the administrator to filter the packet flow in and out of the router interfaces. Access lists can offer all of the following:

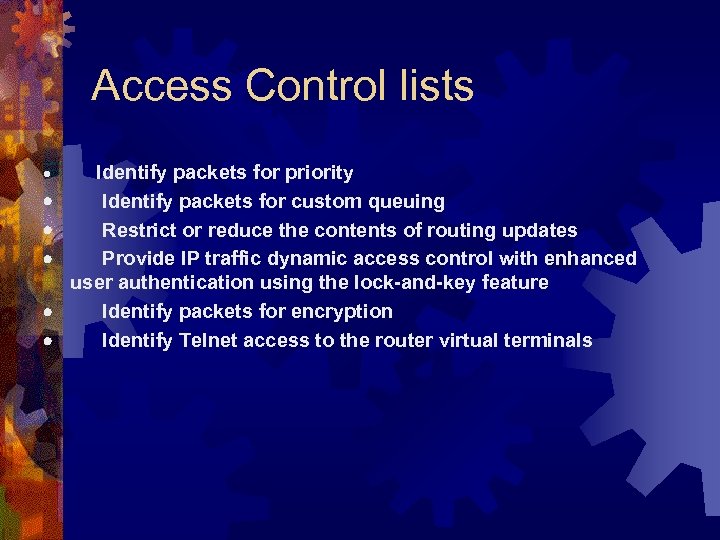

Access Control lists · Identify packets for priority · Identify packets for custom queuing · Restrict or reduce the contents of routing updates · Provide IP traffic dynamic access control with enhanced user authentication using the lock-and-key feature · Identify packets for encryption · Identify Telnet access to the router virtual terminals

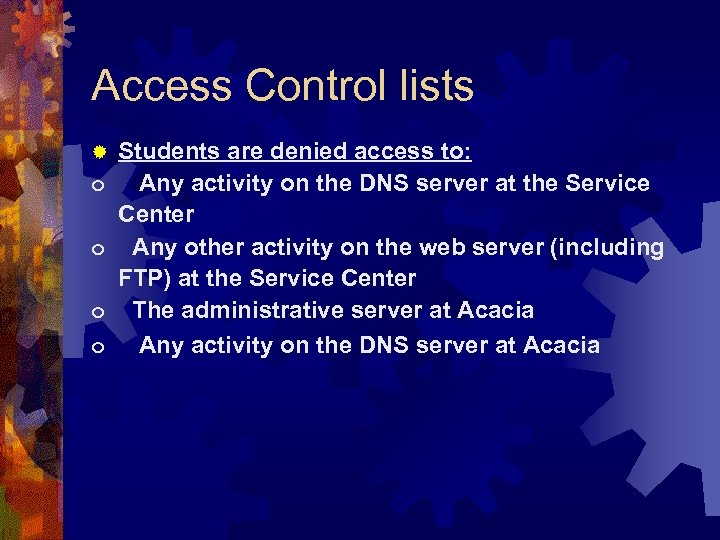

Access Control lists Students are denied access to: o Any activity on the DNS server at the Service Center o Any other activity on the web server (including FTP) at the Service Center o The administrative server at Acacia o Any activity on the DNS server at Acacia ®

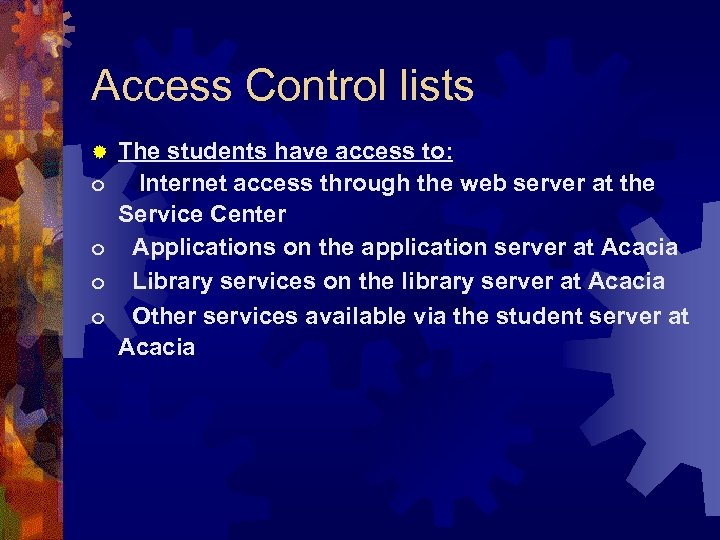

Access Control lists The students have access to: o Internet access through the web server at the Service Center o Applications on the application server at Acacia o Library services on the library server at Acacia o Other services available via the student server at Acacia ®

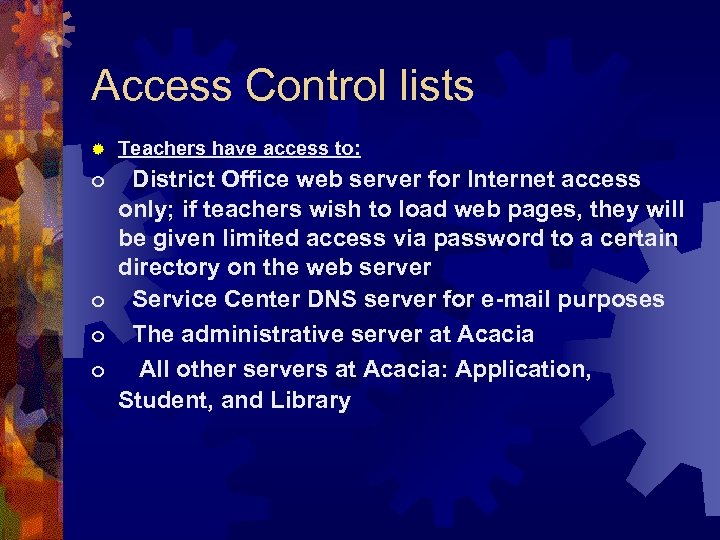

Access Control lists ® Teachers have access to: o District Office web server for Internet access only; if teachers wish to load web pages, they will be given limited access via password to a certain directory on the web server o Service Center DNS server for e-mail purposes o The administrative server at Acacia o All other servers at Acacia: Application, Student, and Library

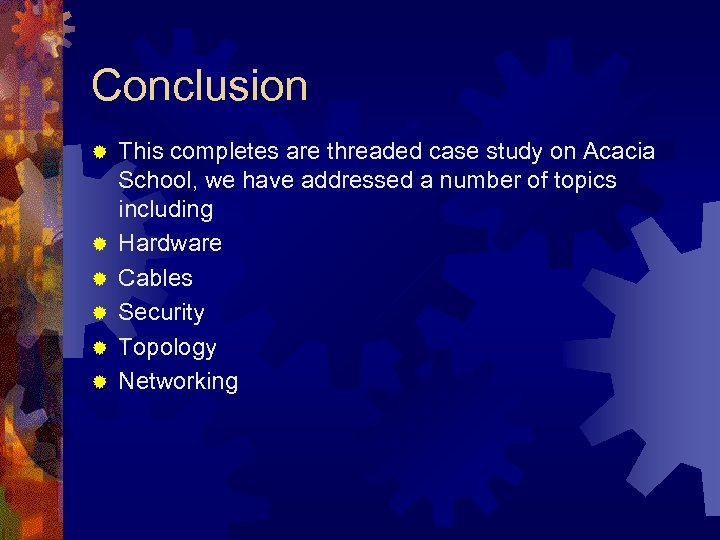

Conclusion ® ® ® This completes are threaded case study on Acacia School, we have addressed a number of topics including Hardware Cables Security Topology Networking
