About PKI Key Stores Dartmouth College PKI Lab

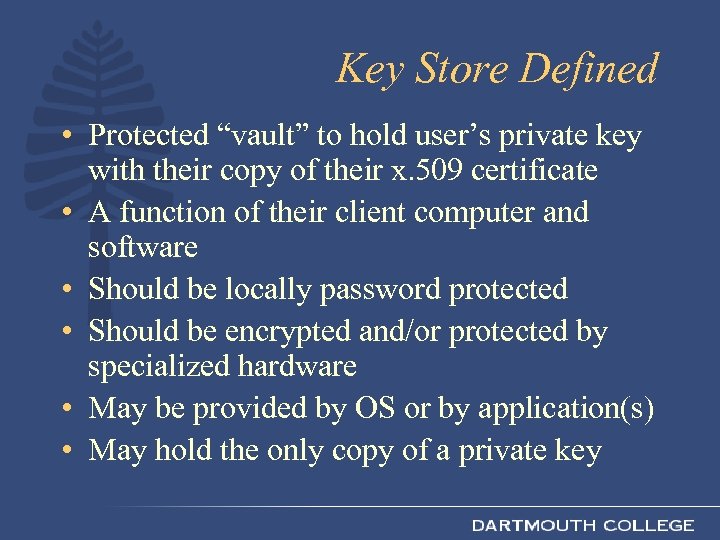

Key Store Defined • Protected “vault” to hold user’s private key with their copy of their x. 509 certificate • A function of their client computer and software • Should be locally password protected • Should be encrypted and/or protected by specialized hardware • May be provided by OS or by application(s) • May hold the only copy of a private key

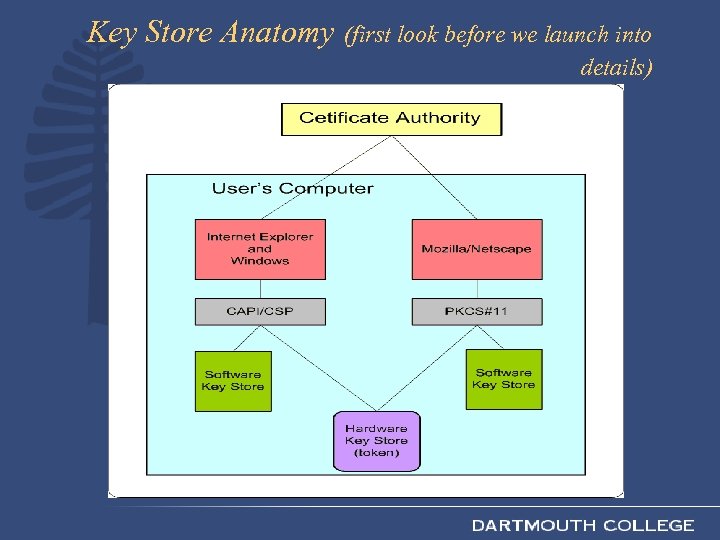

Key Store Anatomy (first look before we launch into details)

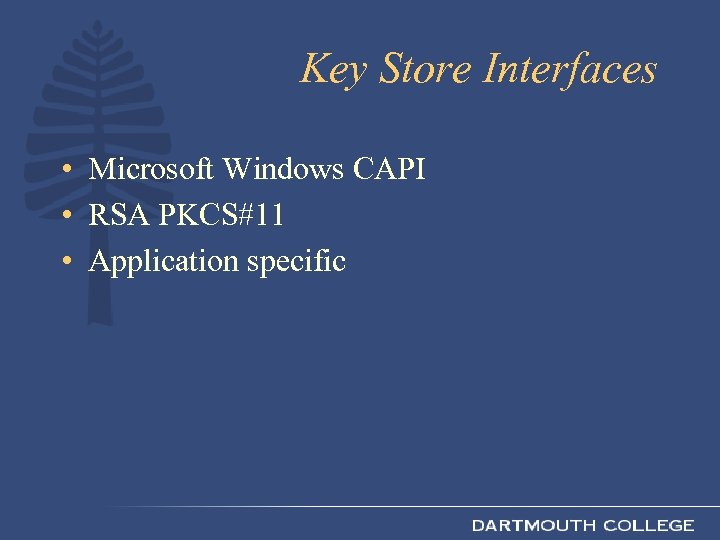

Key Store Interfaces • Microsoft Windows CAPI • RSA PKCS#11 • Application specific

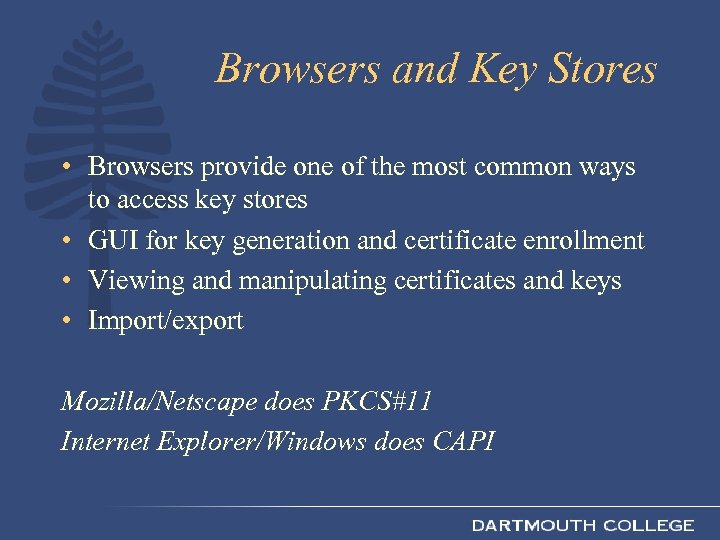

Browsers and Key Stores • Browsers provide one of the most common ways to access key stores • GUI for key generation and certificate enrollment • Viewing and manipulating certificates and keys • Import/export Mozilla/Netscape does PKCS#11 Internet Explorer/Windows does CAPI

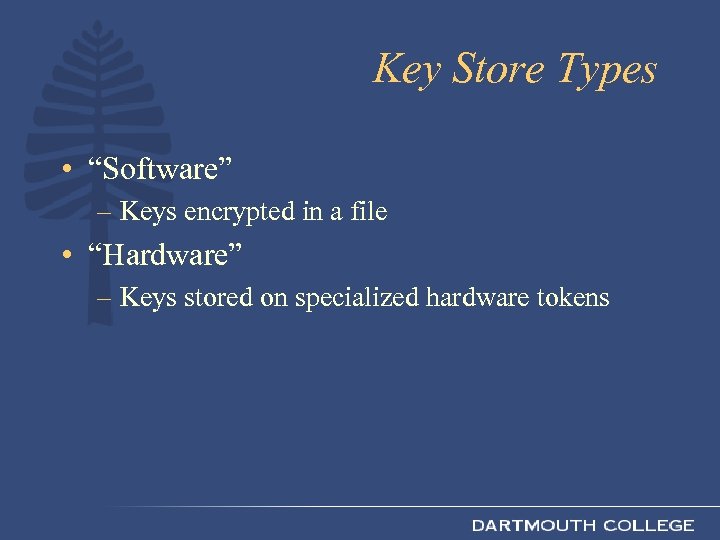

Key Store Types • “Software” – Keys encrypted in a file • “Hardware” – Keys stored on specialized hardware tokens

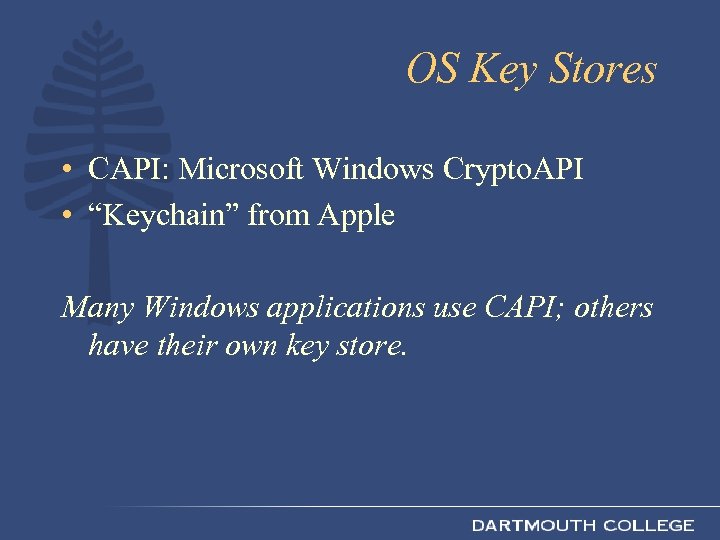

OS Key Stores • CAPI: Microsoft Windows Crypto. API • “Keychain” from Apple Many Windows applications use CAPI; others have their own key store.

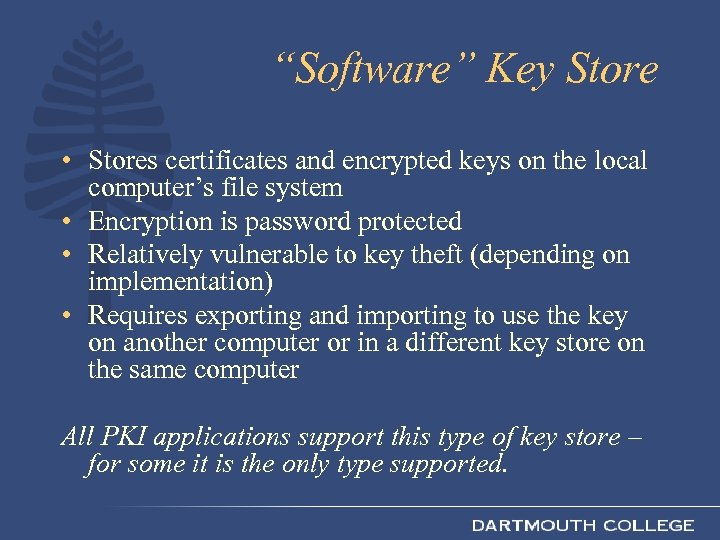

“Software” Key Store • Stores certificates and encrypted keys on the local computer’s file system • Encryption is password protected • Relatively vulnerable to key theft (depending on implementation) • Requires exporting and importing to use the key on another computer or in a different key store on the same computer All PKI applications support this type of key store – for some it is the only type supported.

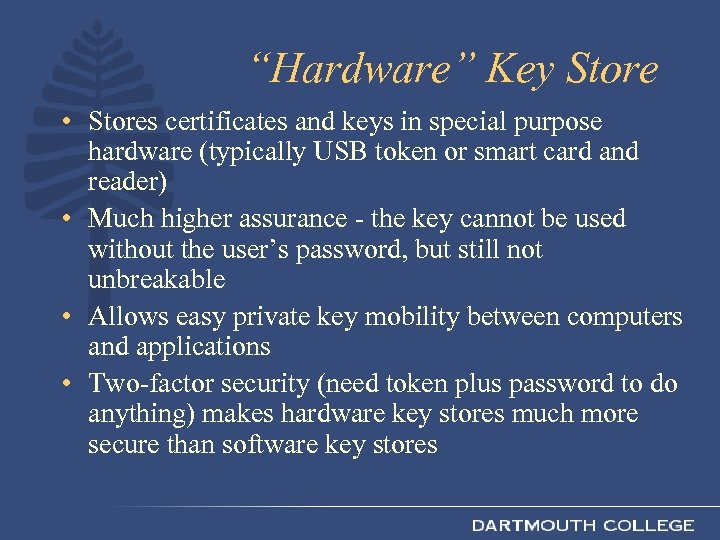

“Hardware” Key Store • Stores certificates and keys in special purpose hardware (typically USB token or smart card and reader) • Much higher assurance - the key cannot be used without the user’s password, but still not unbreakable • Allows easy private key mobility between computers and applications • Two-factor security (need token plus password to do anything) makes hardware key stores much more secure than software key stores

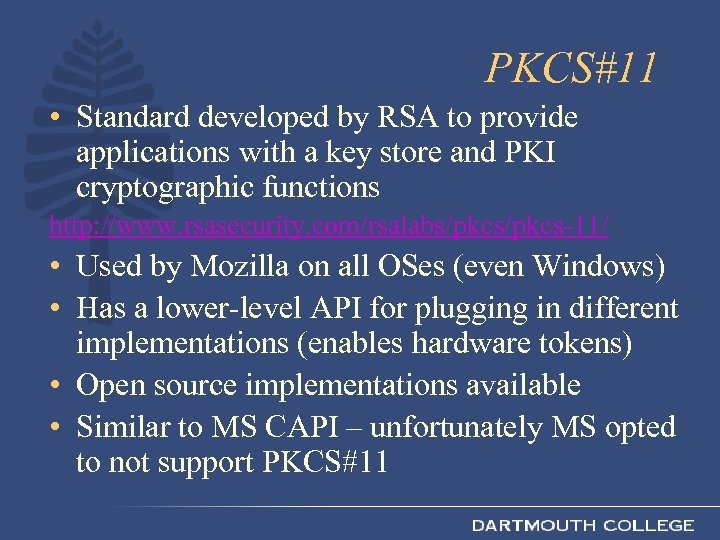

PKCS#11 • Standard developed by RSA to provide applications with a key store and PKI cryptographic functions http: //www. rsasecurity. com/rsalabs/pkcs-11/ • Used by Mozilla on all OSes (even Windows) • Has a lower-level API for plugging in different implementations (enables hardware tokens) • Open source implementations available • Similar to MS CAPI – unfortunately MS opted to not support PKCS#11

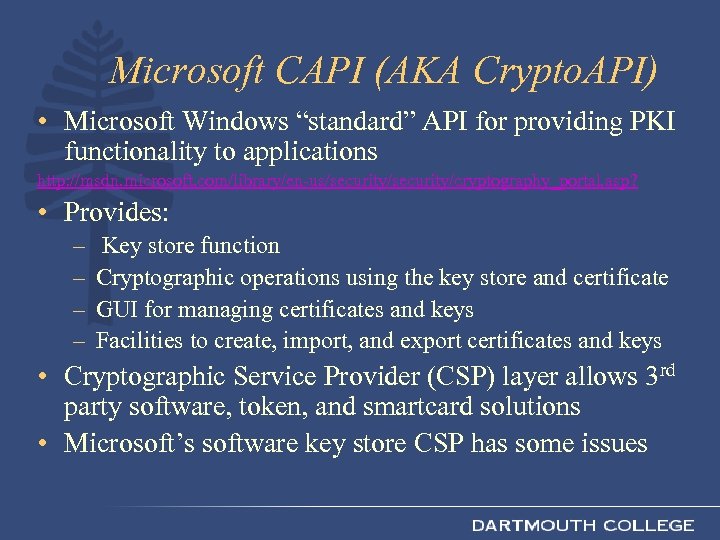

Microsoft CAPI (AKA Crypto. API) • Microsoft Windows “standard” API for providing PKI functionality to applications http: //msdn. microsoft. com/library/en-us/security/cryptography_portal. asp? • Provides: – – Key store function Cryptographic operations using the key store and certificate GUI for managing certificates and keys Facilities to create, import, and export certificates and keys • Cryptographic Service Provider (CSP) layer allows 3 rd party software, token, and smartcard solutions • Microsoft’s software key store CSP has some issues

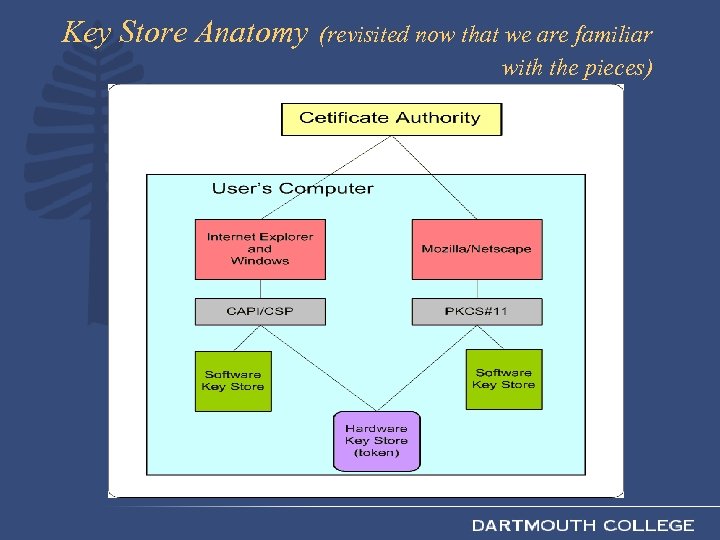

Key Store Anatomy (revisited now that we are familiar with the pieces)

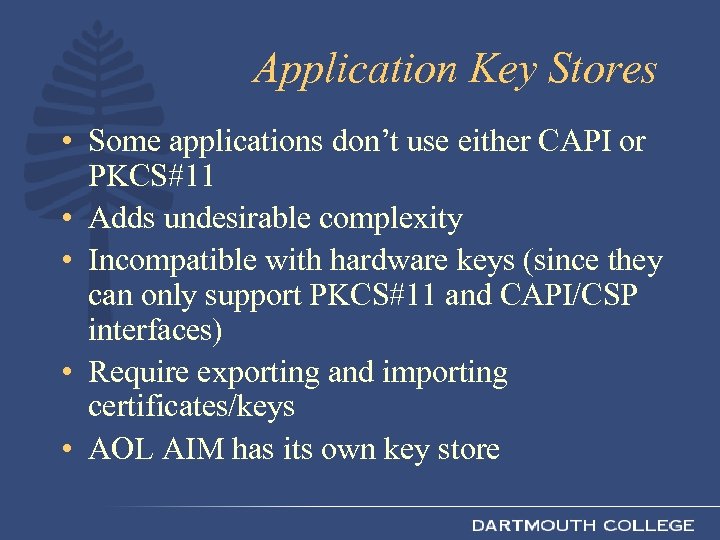

Application Key Stores • Some applications don’t use either CAPI or PKCS#11 • Adds undesirable complexity • Incompatible with hardware keys (since they can only support PKCS#11 and CAPI/CSP interfaces) • Require exporting and importing certificates/keys • AOL AIM has its own key store

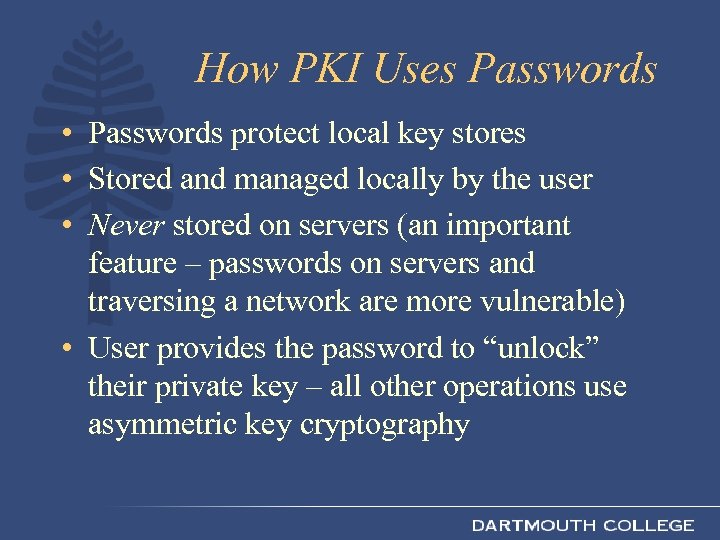

How PKI Uses Passwords • Passwords protect local key stores • Stored and managed locally by the user • Never stored on servers (an important feature – passwords on servers and traversing a network are more vulnerable) • User provides the password to “unlock” their private key – all other operations use asymmetric key cryptography

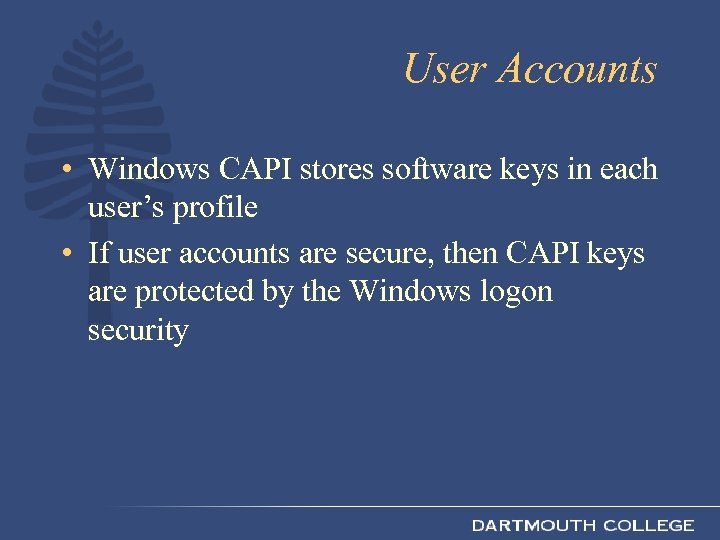

User Accounts • Windows CAPI stores software keys in each user’s profile • If user accounts are secure, then CAPI keys are protected by the Windows logon security
PKCS#7 and PKCS#12 • More RSA standards • No awards for imaginative names… • PKCS#7 is general syntax for data that may have cryptography applied to it http: //www. rsasecurity. com/rsalabs/pkcs-7/index. html • PKCS#12 specifies secure containers for transporting PKI certificates with private keys http: //www. rsasecurity. com/rsalabs/pkcs-12/index. html
