About HW group s r o company

About HW group s. r. o company § HW group produces IP sensors & M 2 M Monitoring solutions § HW group is an original manufacturer from Prague, Czech Republic § HW group products are distributed in 37 countries 1

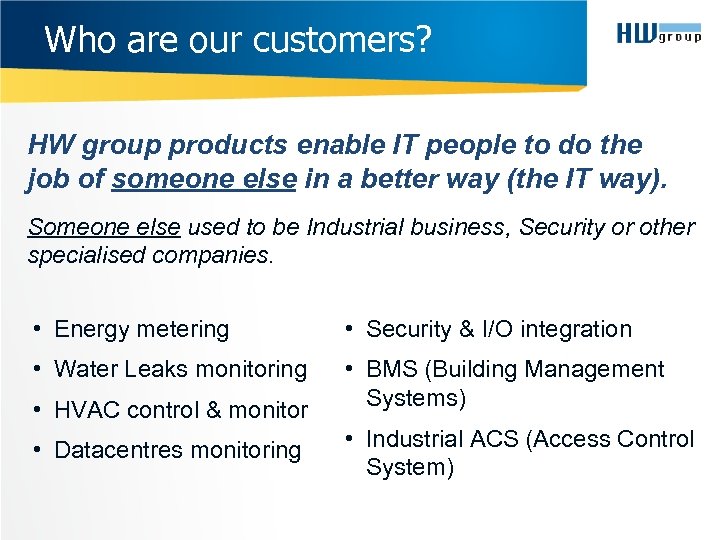

Who are our customers? HW group products enable IT people to do the job of someone else in a better way (the IT way). Someone else used to be Industrial business, Security or other specialised companies. • Energy metering • Security & I/O integration • Water Leaks monitoring • BMS (Building Management Systems) • HVAC control & monitor • Datacentres monitoring • Industrial ACS (Access Control System)

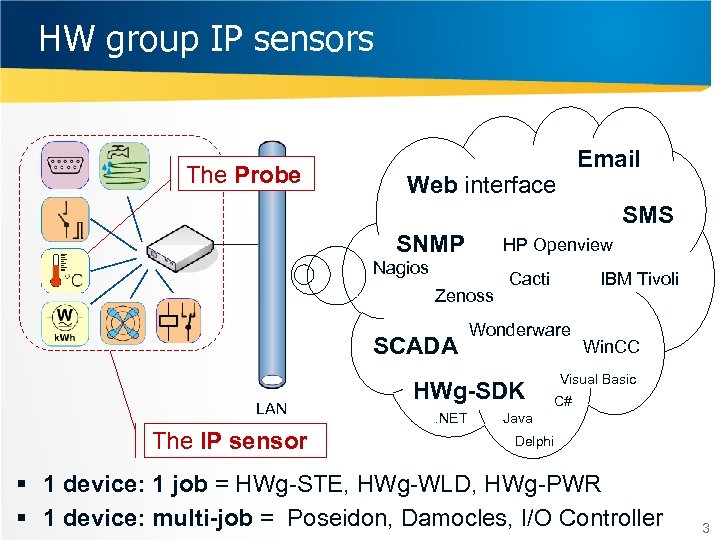

HW group IP sensors The Probe Email Web interface SMS SNMP HP Openview Nagios Zenoss SCADA LAN The IP sensor Cacti Wonderware HWg-SDK. NET IBM Tivoli Win. CC Visual Basic C# Java Delphi § 1 device: 1 job = HWg-STE, HWg-WLD, HWg-PWR § 1 device: multi-job = Poseidon, Damocles, I/O Controller 3

HW group vision IP Monitoring solutions are easy to install and easy to use in your daily business. 1) HW group solutions and products are IT friendly. 2) With HW group products you can always start with something small and simple. And later expand it. 3) HW group offers products for high added value services. Typically unique on the market. • (1) Measure • (2) Analyze • (3) M 2 M Transfer • (4) SW Application 4

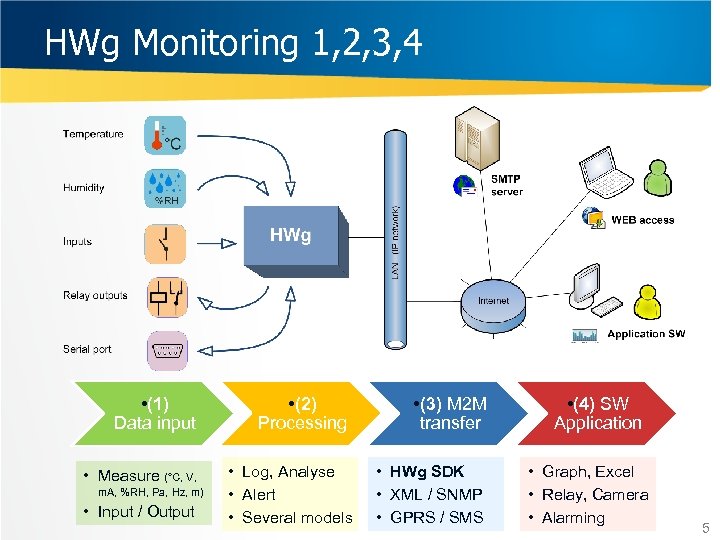

HWg Monitoring 1, 2, 3, 4 • (1) Data input • Measure (°C, V, m. A, %RH, Pa, Hz, m) • Input / Output • (2) Processing • Log, Analyse • Alert • Several models • (3) M 2 M transfer • HWg SDK • XML / SNMP • GPRS / SMS • (4) SW Application • Graph, Excel • Relay, Camera • Alarming 5

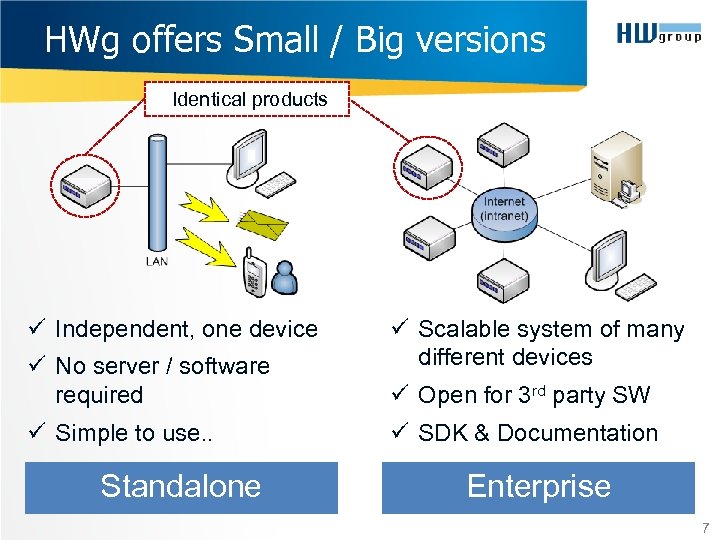

HWg offers Small / Big versions Identical products ü Independent, one device ü No server / software required ü Simple to use. . Standalone ü Scalable system of many different devices ü Open for 3 rd party SW ü SDK & Documentation Enterprise 7

Market segments • IT SOHO (Small Office / Home Office) • IT in Small Companies • • Warehouses Hospitals Factories Buildings • Retail (Shops) SCADA Email & SMS • Datacenters • Carriers Telco / GSM operators • Cable TVs • Banks SNMP • • • Banks Buildings Hospitals Warehouses Datacenters Supermarkets IP CCTV 8

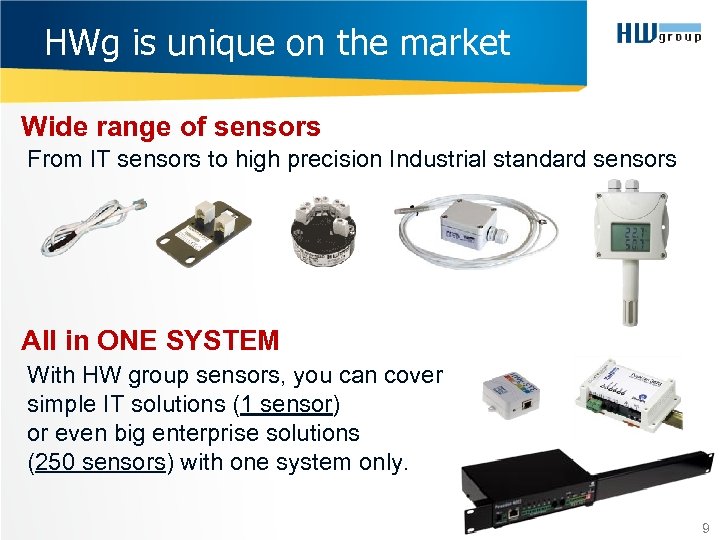

HWg is unique on the market Wide range of sensors From IT sensors to high precision Industrial standard sensors All in ONE SYSTEM With HW group sensors, you can cover simple IT solutions (1 sensor) or even big enterprise solutions (250 sensors) with one system only. 9

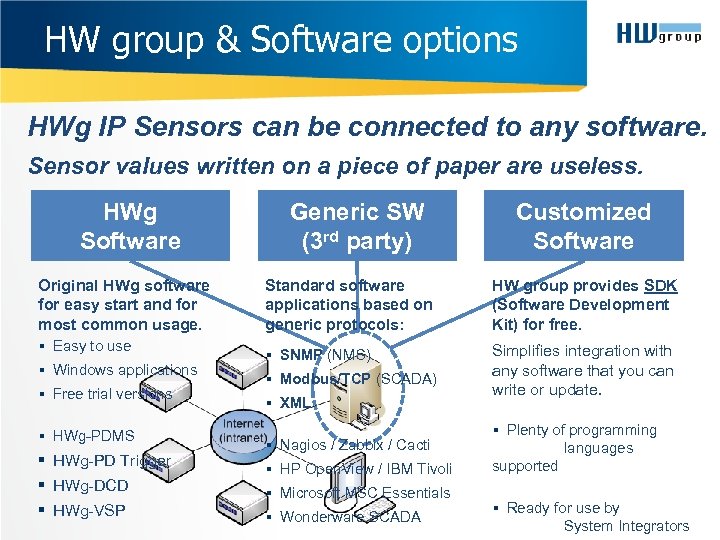

HW group & Software options HWg IP Sensors can be connected to any software. Sensor values written on a piece of paper are useless. HWg Software Original HWg software for easy start and for most common usage. § Easy to use § Windows applications § Free trial versions § HWg-PDMS § HWg-PD Trigger § HWg-DCD § HWg-VSP Generic SW (3 rd party) Customized Software Standard software applications based on generic protocols: HW group provides SDK (Software Development Kit) for free. § SNMP (NMS) Simplifies integration with any software that you can write or update. § Modbus/TCP (SCADA) § XML § Nagios / Zabbix / Cacti § HP Open. View / IBM Tivoli § Microsoft MSC Essentials § Wonderware SCADA § Plenty of programming languages supported § Ready for use by System Integrators

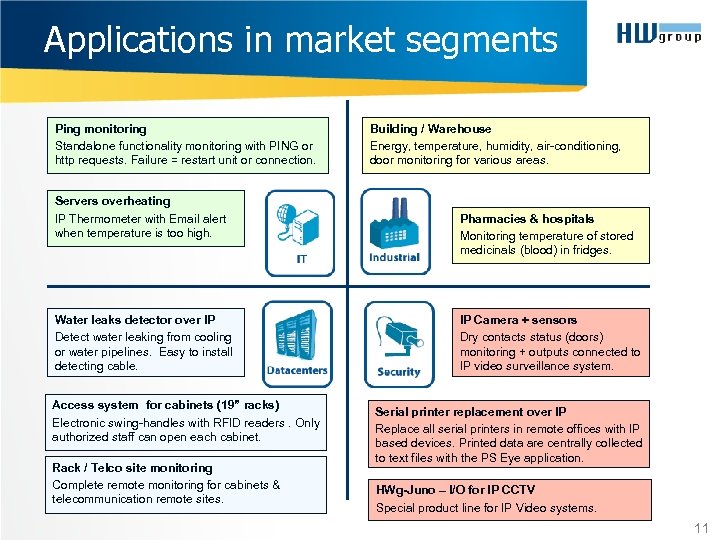

Applications in market segments Ping monitoring Standalone functionality monitoring with PING or http requests. Failure = restart unit or connection. Servers overheating IP Thermometer with Email alert when temperature is too high. Water leaks detector over IP Detect water leaking from cooling or water pipelines. Easy to install detecting cable. Access system for cabinets (19” racks) Electronic swing-handles with RFID readers. Only authorized staff can open each cabinet. Rack / Telco site monitoring Complete remote monitoring for cabinets & telecommunication remote sites. Building / Warehouse Energy, temperature, humidity, air-conditioning, door monitoring for various areas. Pharmacies & hospitals Monitoring temperature of stored medicinals (blood) in fridges. IP Camera + sensors Dry contacts status (doors) monitoring + outputs connected to IP video surveillance system. Serial printer replacement over IP Replace all serial printers in remote offices with IP based devices. Printed data are centrally collected to text files with the PS Eye application. HWg-Juno – I/O for IP CCTV Special product line for IP Video systems. 11

HWg-STE: Web SNMP Thermometer ü ü Very simple WEB thermometer Max 2 sensors (Temperature / Humidity) WEB, SNMP, Email alarms Retail package includes a temperature sensor (3 m), power adaptor and Windows SW license (HWg-PDMS) ü Mobile WEB browsers supported 12

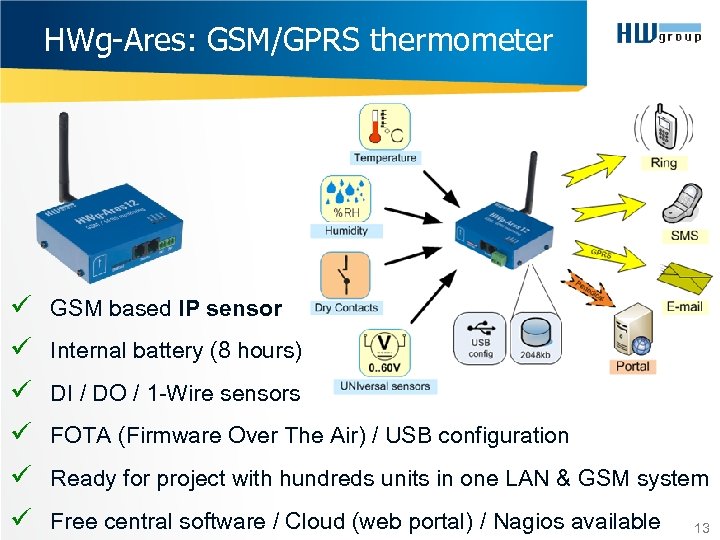

HWg-Ares: GSM/GPRS thermometer ü GSM based IP sensor ü Internal battery (8 hours) ü DI / DO / 1 -Wire sensors ü FOTA (Firmware Over The Air) / USB configuration ü Ready for project with hundreds units in one LAN & GSM system ü Free central software / Cloud (web portal) / Nagios available 13

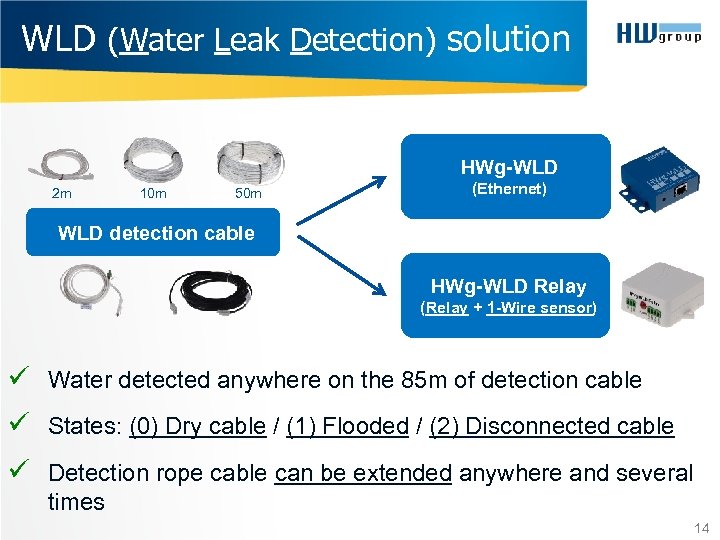

WLD (Water Leak Detection) solution HWg-WLD 2 m 10 m 50 m (Ethernet) WLD detection cable HWg-WLD Relay (Relay + 1 -Wire sensor) ü Water detected anywhere on the 85 m of detection cable ü States: (0) Dry cable / (1) Flooded / (2) Disconnected cable ü Detection rope cable can be extended anywhere and several times 14

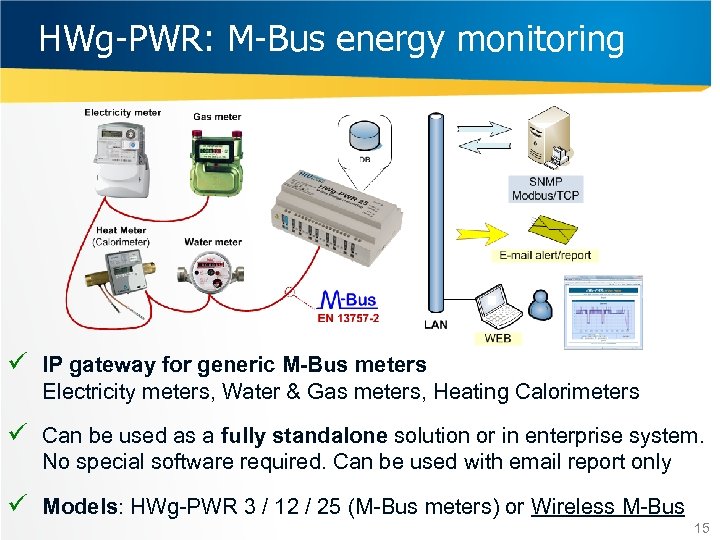

HWg-PWR: M-Bus energy monitoring ü IP gateway for generic M-Bus meters Electricity meters, Water & Gas meters, Heating Calorimeters ü Can be used as a fully standalone solution or in enterprise system. No special software required. Can be used with email report only ü Models: HWg-PWR 3 / 12 / 25 (M-Bus meters) or Wireless M-Bus 15

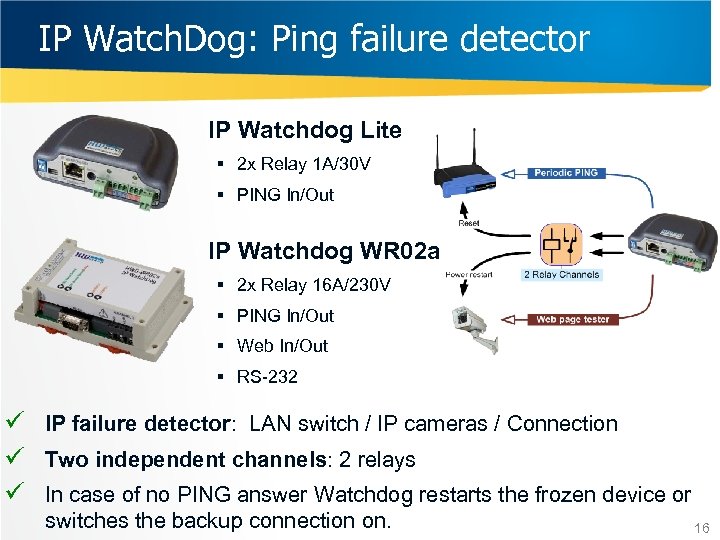

IP Watch. Dog: Ping failure detector IP Watchdog Lite § 2 x Relay 1 A/30 V § PING In/Out IP Watchdog WR 02 a § 2 x Relay 16 A/230 V § PING In/Out § Web In/Out § RS-232 ü IP failure detector: LAN switch / IP cameras / Connection ü Two independent channels: 2 relays ü In case of no PING answer Watchdog restarts the frozen device or switches the backup connection on. 16

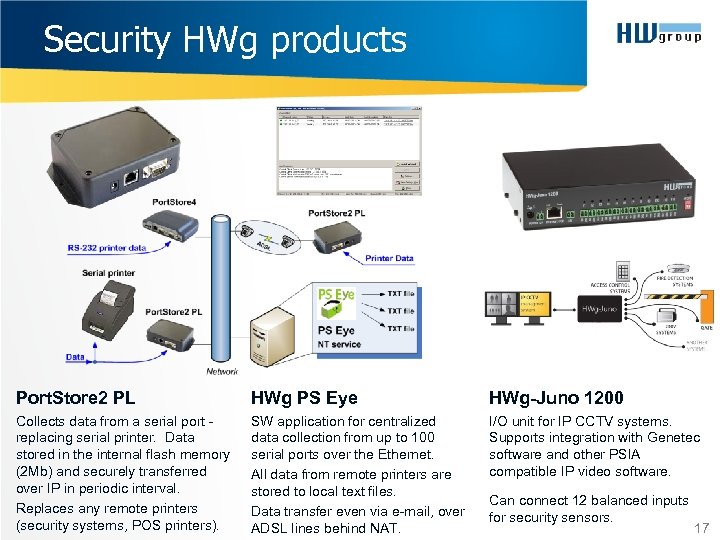

Security HWg products Port. Store 2 PL HWg PS Eye HWg-Juno 1200 Collects data from a serial port replacing serial printer. Data stored in the internal flash memory (2 Mb) and securely transferred over IP in periodic interval. Replaces any remote printers (security systems, POS printers). SW application for centralized data collection from up to 100 serial ports over the Ethernet. All data from remote printers are stored to local text files. Data transfer even via e-mail, over ADSL lines behind NAT. I/O unit for IP CCTV systems. Supports integration with Genetec software and other PSIA compatible IP video software. Can connect 12 balanced inputs for security sensors. 17

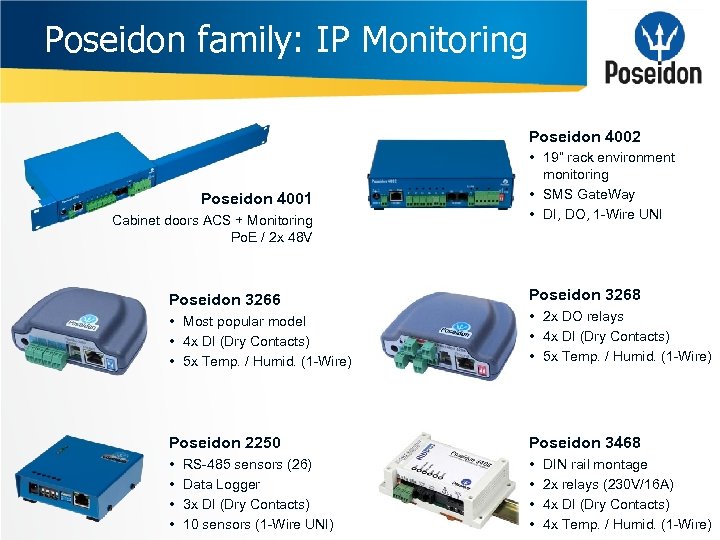

Poseidon family: IP Monitoring Poseidon 4002 Poseidon 4001 Cabinet doors ACS + Monitoring Po. E / 2 x 48 V Poseidon 3266 • 19“ rack environment monitoring • SMS Gate. Way • DI, DO, 1 -Wire UNI Poseidon 3268 • Most popular model • 4 x DI (Dry Contacts) • 5 x Temp. / Humid. (1 -Wire) • 2 x DO relays • 4 x DI (Dry Contacts) • 5 x Temp. / Humid. (1 -Wire) Poseidon 2250 Poseidon 3468 • • RS-485 sensors (26) Data Logger 3 x DI (Dry Contacts) 10 sensors (1 -Wire UNI) DIN rail montage 2 x relays (230 V/16 A) 4 x DI (Dry Contacts) 4 x Temp. / Humid. (1 -Wire)

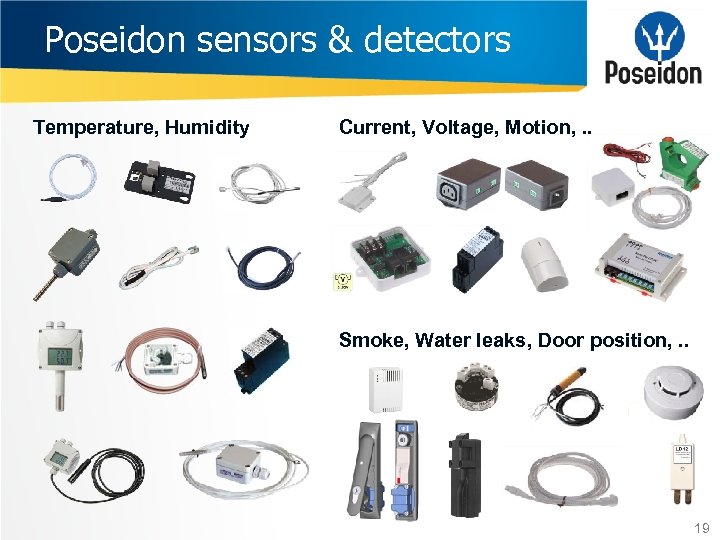

Poseidon sensors & detectors Temperature, Humidity Current, Voltage, Motion, . . Smoke, Water leaks, Door position, . . 19

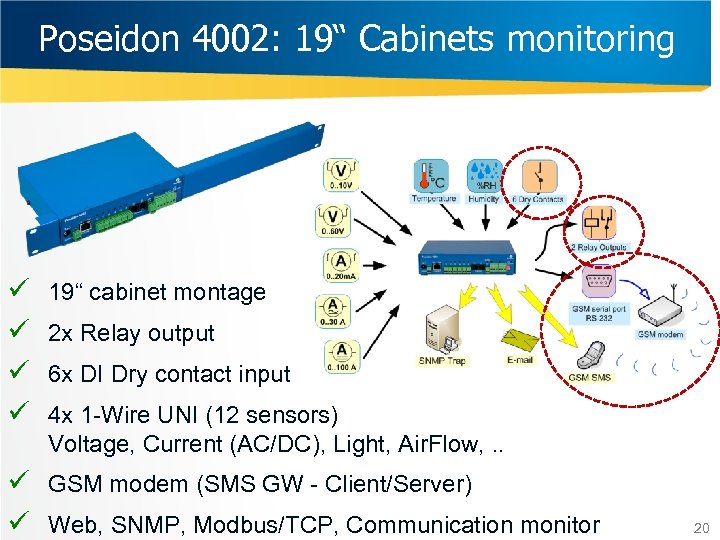

Poseidon 4002: 19“ Cabinets monitoring ü ü 19“ cabinet montage 2 x Relay output 6 x DI Dry contact input 4 x 1 -Wire UNI (12 sensors) Voltage, Current (AC/DC), Light, Air. Flow, . . ü GSM modem (SMS GW - Client/Server) ü Web, SNMP, Modbus/TCP, Communication monitor 20

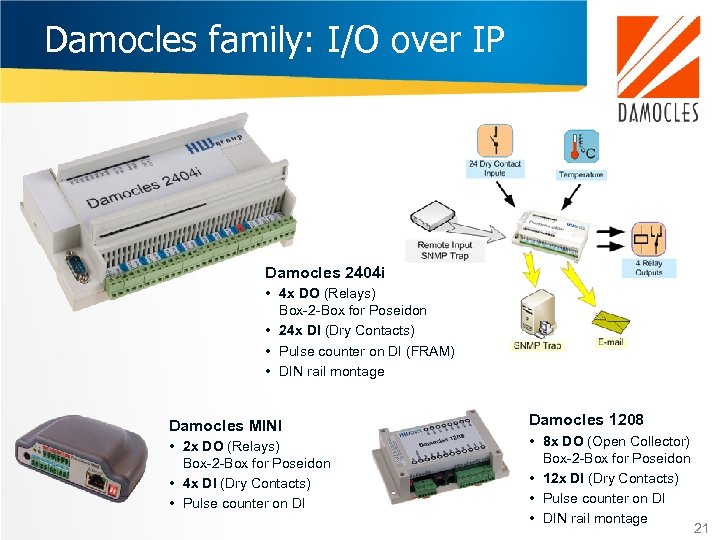

Damocles family: I/O over IP Damocles 2404 i • 4 x DO (Relays) Box-2 -Box for Poseidon • 24 x DI (Dry Contacts) • Pulse counter on DI (FRAM) • DIN rail montage Damocles MINI • 2 x DO (Relays) Box-2 -Box for Poseidon • 4 x DI (Dry Contacts) • Pulse counter on DI Damocles 1208 • 8 x DO (Open Collector) Box-2 -Box for Poseidon • 12 x DI (Dry Contacts) • Pulse counter on DI • DIN rail montage 21

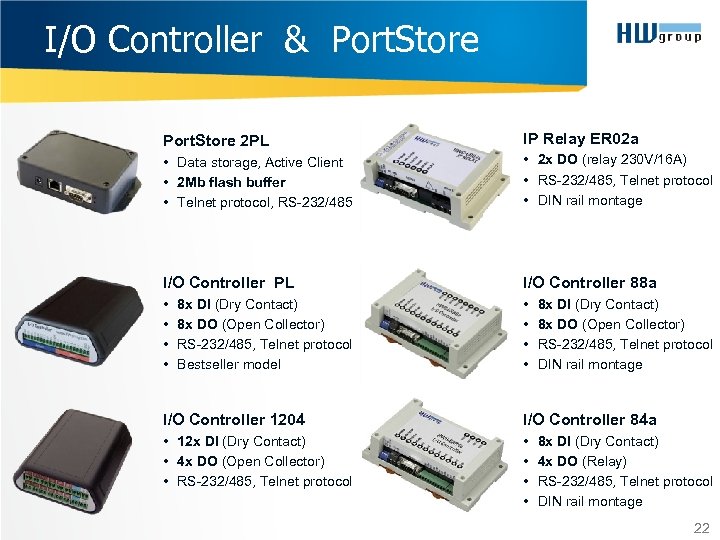

I/O Controller & Port. Store 2 PL IP Relay ER 02 a • Data storage, Active Client • 2 Mb flash buffer • Telnet protocol, RS-232/485 • 2 x DO (relay 230 V/16 A) • RS-232/485, Telnet protocol • DIN rail montage I/O Controller PL I/O Controller 88 a • • 8 x DI (Dry Contact) 8 x DO (Open Collector) RS-232/485, Telnet protocol Bestseller model 8 x DI (Dry Contact) 8 x DO (Open Collector) RS-232/485, Telnet protocol DIN rail montage I/O Controller 1204 I/O Controller 84 a • 12 x DI (Dry Contact) • 4 x DO (Open Collector) • RS-232/485, Telnet protocol • • 8 x DI (Dry Contact) 4 x DO (Relay) RS-232/485, Telnet protocol DIN rail montage 22

References >> Online references 23
