Room Master RM/S x. 1 The Room Master RM/S 1. 1 and RM/S 2. 1 offers smart home and intelligent building control for hotel rooms and apartments n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 2 n Modern buildings need intelligent building control systems in order to operate safely and efficiently. The full potential of many buildings worldwide is being achieved only through use of such a networked electrical installation.

Room Master RM/S x. 1 Hotels, hospitals, student residences, assisted living facilities, apartments and many more – the Room Master opens up new possibilities for properties in the residential and hotel sectors. n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 3 n The communication of the devices via the KNX bus also enables central control functions and allows emergency signals to be sent from the rooms to a central control station.

Room Master RM/S x. 1 n The Room Master was developed for all rooms of this type. It covers all the electrical installation requirements for this application and offers the following functions in a compact unit: Light switching n Heating/air-conditioning control n Shading (via blinds or curtains) n Switching of socket outlets and consumers © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 4 n

Room Master RM/S x. 1 © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 5 n Connection to a hotel management system enables the rooms to be managed and prepared efficiently. For instance, when a guest checks out, the room can automatically be set to stand-by operation.

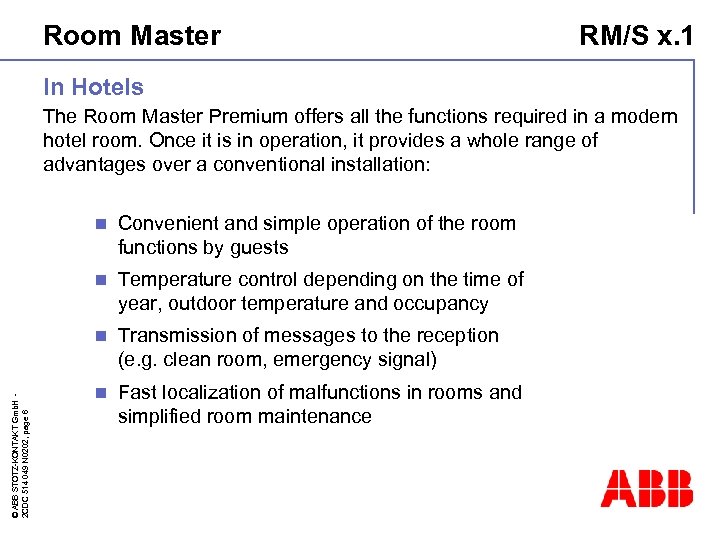

Room Master RM/S x. 1 In Hotels The Room Master Premium offers all the functions required in a modern hotel room. Once it is in operation, it provides a whole range of advantages over a conventional installation: Convenient and simple operation of the room functions by guests n Temperature control depending on the time of year, outdoor temperature and occupancy n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 6 n Transmission of messages to the reception (e. g. clean room, emergency signal) n Fast localization of malfunctions in rooms and simplified room maintenance

Room Master RM/S x. 1 In Hotels The benefits of the Room Master are evident not only in operation, but also in the planning stage: Can be used anywhere in the world n Compact design: can be installed in a simple sub-circuit distribution board together with circuit breakers n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 7 n One standard solution for many projects

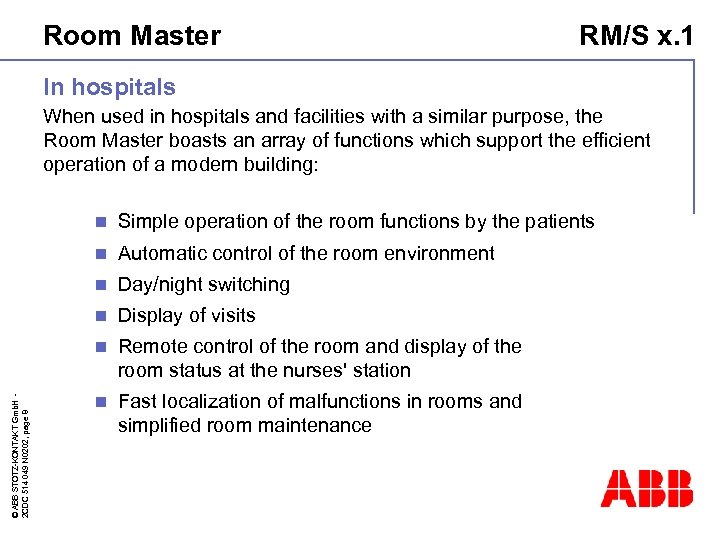

Room Master RM/S x. 1 In hospitals When used in hospitals and facilities with a similar purpose, the Room Master boasts an array of functions which support the efficient operation of a modern building: Simple operation of the room functions by the patients n Automatic control of the room environment n Day/night switching n Display of visits n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 8 n Remote control of the room and display of the room status at the nurses' station n Fast localization of malfunctions in rooms and simplified room maintenance

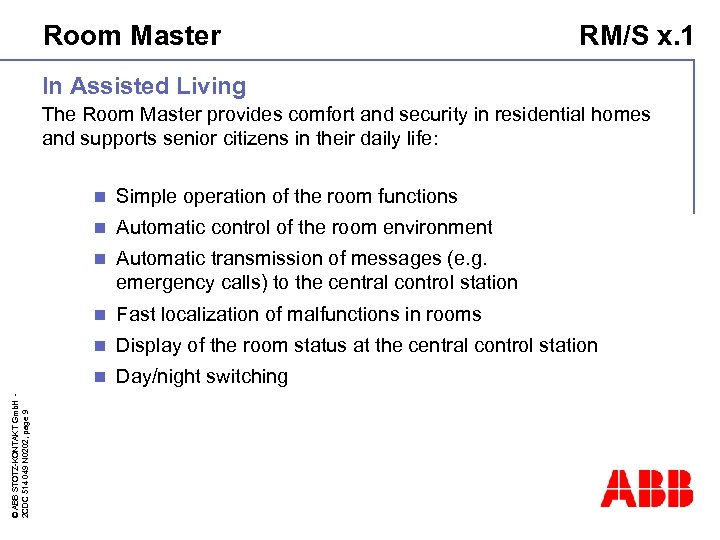

Room Master RM/S x. 1 In Assisted Living The Room Master provides comfort and security in residential homes and supports senior citizens in their daily life: Simple operation of the room functions n Automatic control of the room environment n Automatic transmission of messages (e. g. emergency calls) to the central control station n Fast localization of malfunctions in rooms n Display of the room status at the central control station n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 9 n Day/night switching

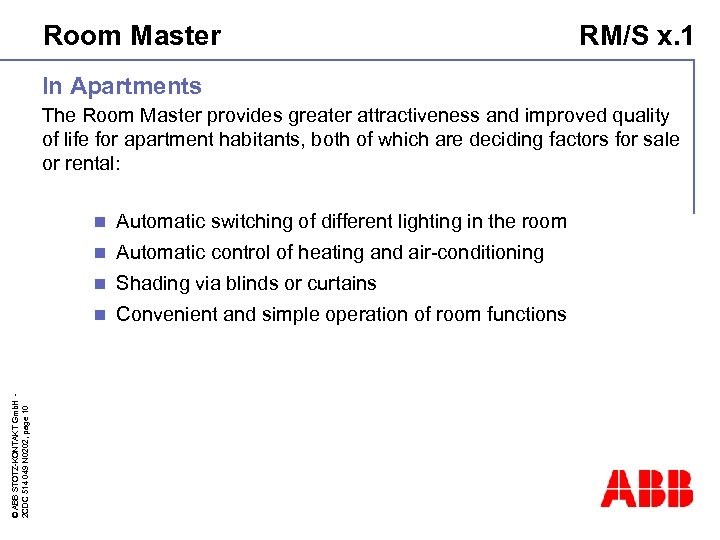

Room Master RM/S x. 1 In Apartments The Room Master provides greater attractiveness and improved quality of life for apartment habitants, both of which are deciding factors for sale or rental: Automatic switching of different lighting in the room n Automatic control of heating and air-conditioning n Shading via blinds or curtains n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 10 n Convenient and simple operation of room functions

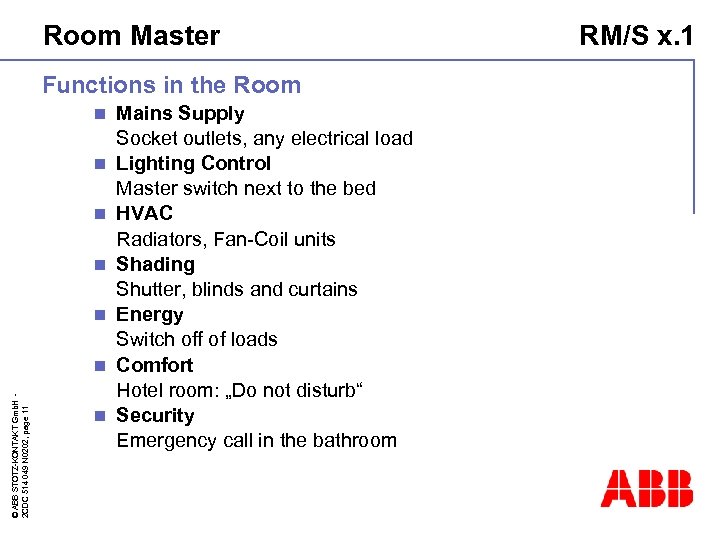

Room Master Functions in the Room n n n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 11 n n Mains Supply Socket outlets, any electrical load Lighting Control Master switch next to the bed HVAC Radiators, Fan-Coil units Shading Shutter, blinds and curtains Energy Switch off of loads Comfort Hotel room: „Do not disturb“ Security Emergency call in the bathroom RM/S x. 1

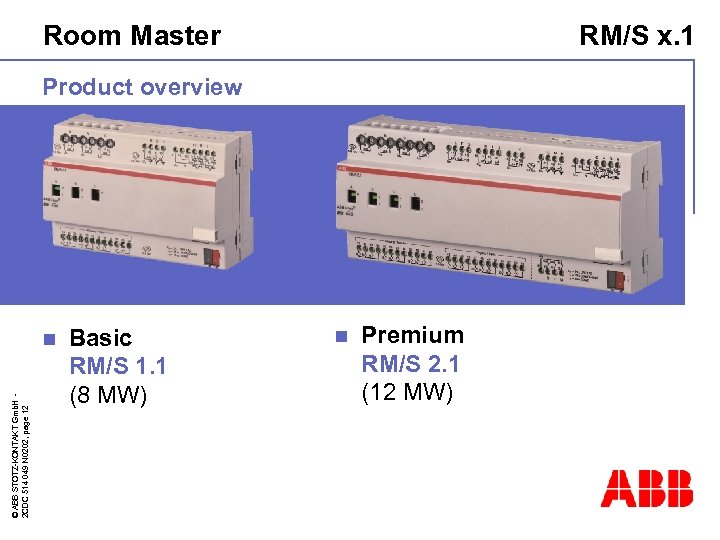

Room Master RM/S x. 1 Product overview © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 12 n Basic RM/S 1. 1 (8 MW) n Premium RM/S 2. 1 (12 MW)

© ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 13 ABB

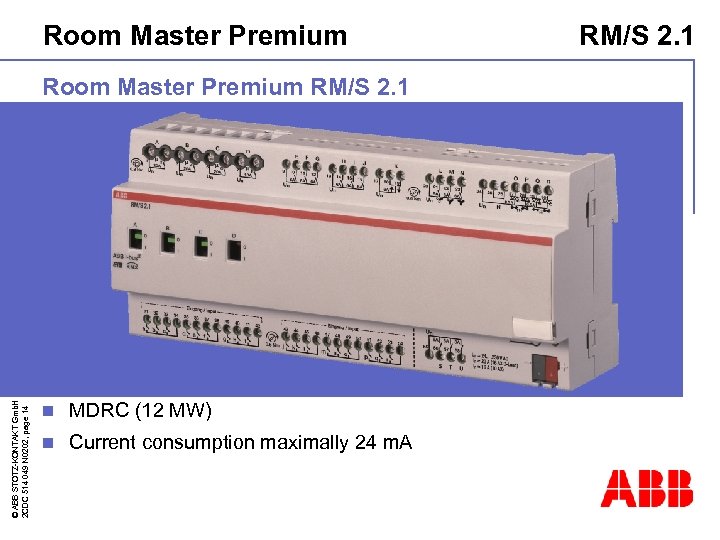

Room Master Premium © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 14 Room Master Premium RM/S 2. 1 n MDRC (12 MW) n Current consumption maximally 24 m. A RM/S 2. 1

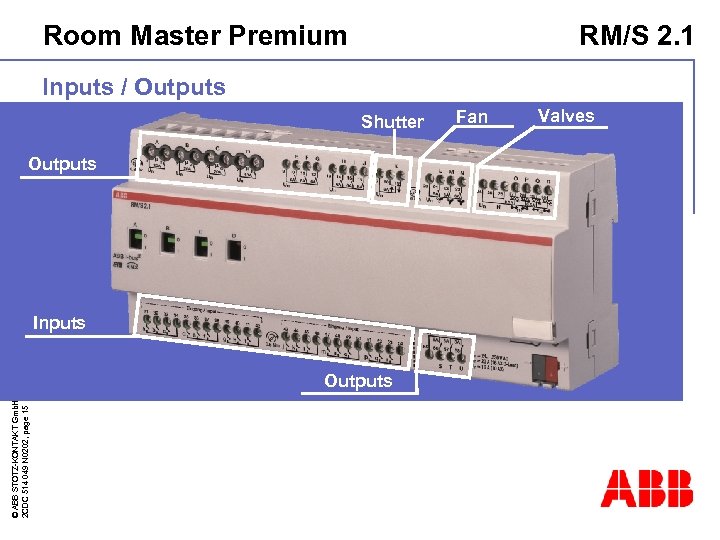

Room Master Premium RM/S 2. 1 Inputs / Outputs Shutter Outputs Inputs © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 15 Outputs Fan Valves

Room Master Premium RM/S 2. 1 Inputs / Outputs overview Inputs Binary via contact scanning Outputs Numbers 18 Numbers 3 Relay 16 A (10 AX) 1 Relay 6 A © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 16 Relay 20 A (16 A C-Load) 12 Electronic outputs 0. 5 A 4 Change over contact 6 A (shutter) 1

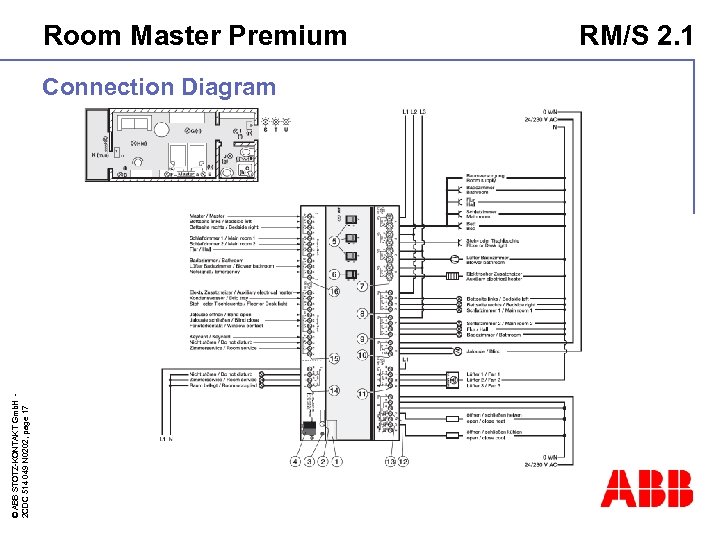

© ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 17 Room

Room Master Premium Info: Floor plan RM/S 2. 1 Shutter hall Lighting(curtain) bathroom Do tray contact Fan-Coilbedside Window living Drip cardmain Cooling-valve Heating-valve Auxiliarybathroom outlet Fannot close Shutter open Master (curtain) left Switchable socket heater Lightingoutlets room Blower bathroomright Socket disturbroom control-unit electrical Key Shutter close (low, medium, high) Emergency call Room occupied / vacant service TV 2 2 © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 18 2

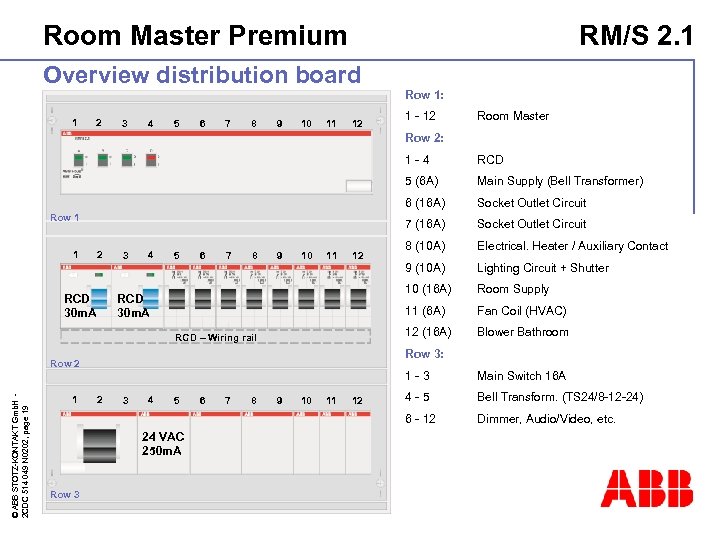

Room Master Premium RM/S 2. 1 Overview distribution board Row 1: 1 2 3 4 5 6 7 8 9 10 11 12 1 - 12 Room Master Row 2: 1 -4 5 (6 A) 2 RCD 30 m. A 3 4 7 8 10 11 12 RCD 30 m. A RCD – Wiring rail 9 (10 A) Lighting Circuit + Shutter Room Supply Fan Coil (HVAC) Blower Bathroom Row 3: Row 2 © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 19 Electrical. Heater / Auxiliary Contact 12 (16 A) 9 8 (10 A) 11 (6 A) 6 Socket Outlet Circuit 10 (16 A) 5 Socket Outlet Circuit 7 (16 A) 1 Main Supply (Bell Transformer) 6 (16 A) Row 1 RCD 2 3 4 5 24 VAC 250 m. A Row 3 6 7 8 9 10 11 12 Main Switch 16 A 4 -5 Bell Transform. (TS 24/8 -12 -24) 6 - 12 1 1 -3 Dimmer, Audio/Video, etc.

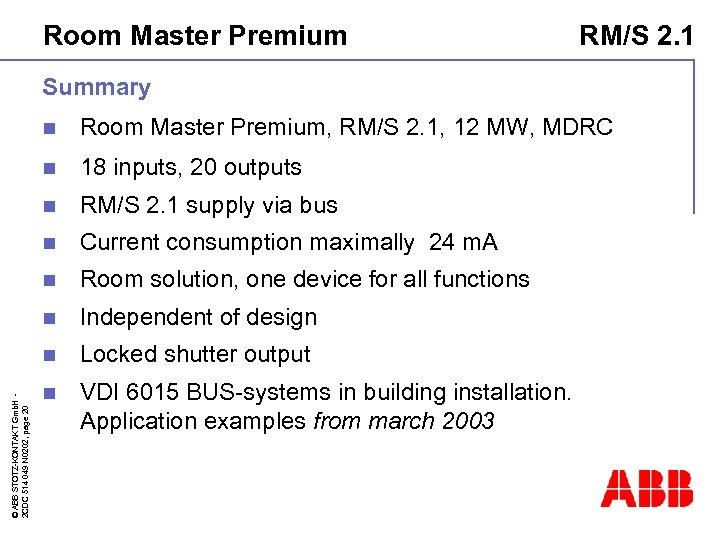

Room Master Premium RM/S 2. 1 Summary Room Master Premium, RM/S 2. 1, 12 MW, MDRC n 18 inputs, 20 outputs n RM/S 2. 1 supply via bus n Current consumption maximally 24 m. A n Room solution, one device for all functions n Independent of design n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 20 n Locked shutter output n VDI 6015 BUS-systems in building installation. Application examples from march 2003

© ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 21 ABB

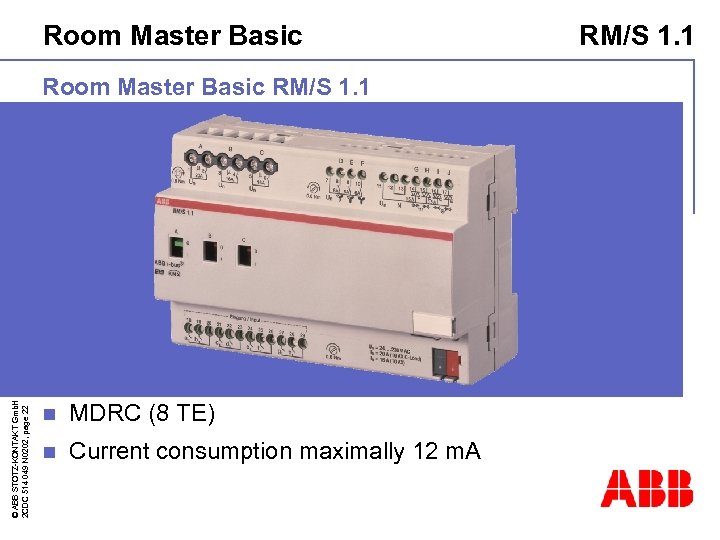

Room Master Basic © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 22 Room Master Basic RM/S 1. 1 n MDRC (8 TE) n Current consumption maximally 12 m. A RM/S 1. 1

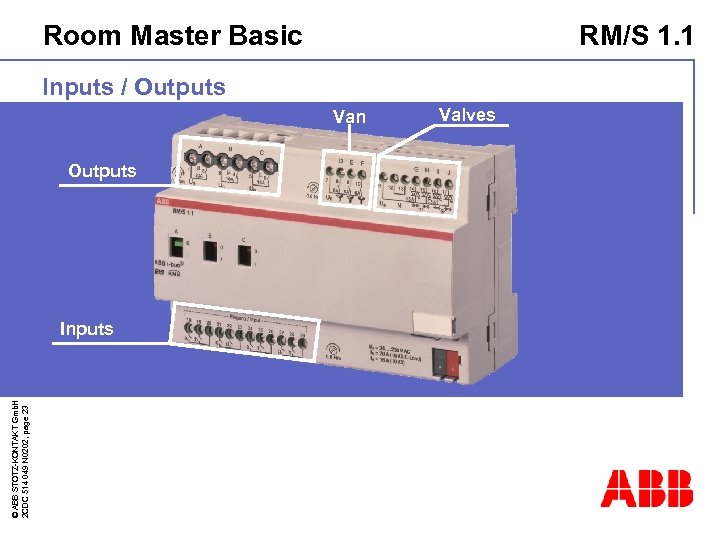

Room Master Basic RM/S 1. 1 Inputs / Outputs Van Outputs © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 23 Inputs Valves

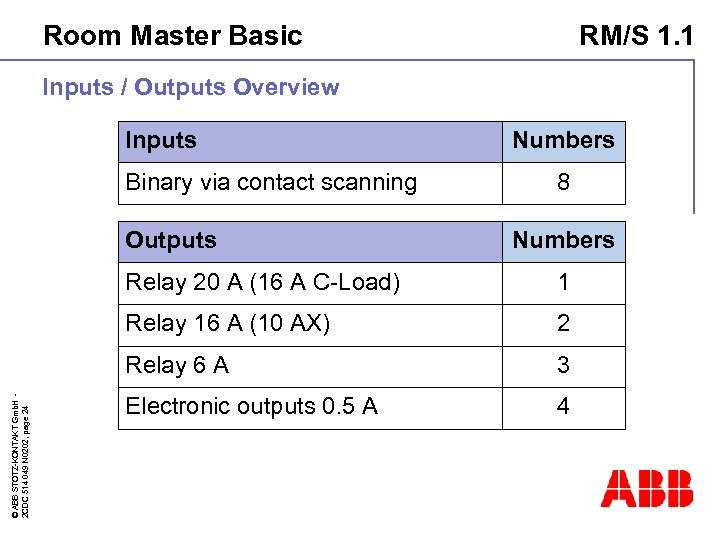

Room Master Basic RM/S 1. 1 Inputs / Outputs Overview Inputs Binary via contact scanning Outputs Numbers 8 Numbers 1 Relay 16 A (10 AX) 2 Relay 6 A © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 24 Relay 20 A (16 A C-Load) 3 Electronic outputs 0. 5 A 4

© ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 25 Room

© ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 26 Room

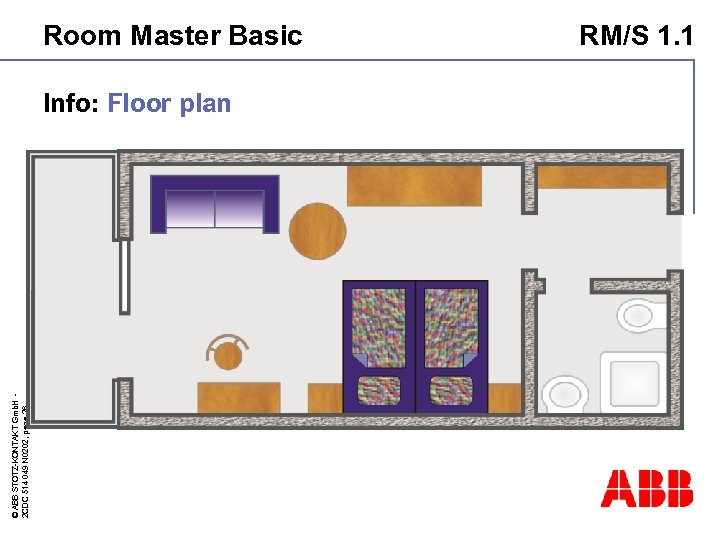

Room Master Basic RM/S 1. 1 Info: Floor plan - completely © ABB STOTZ-KONTAKT

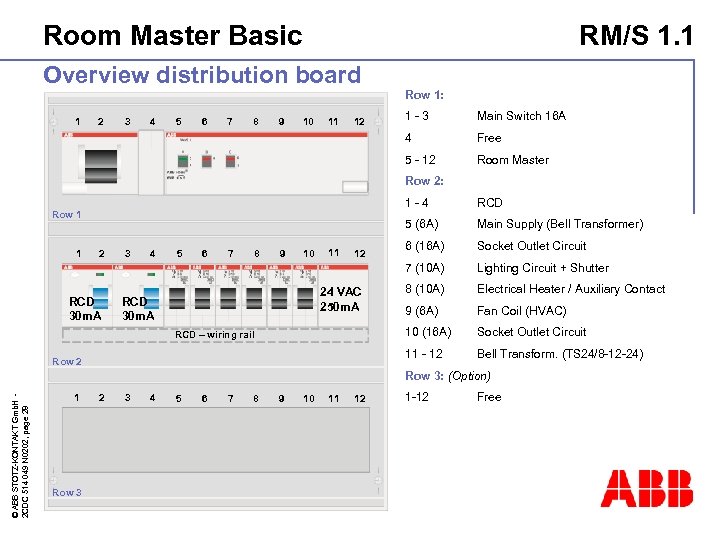

Room Master Basic RM/S 1. 1 Overview distribution board Row 1: 3 4 5 6 7 8 9 10 11 12 Main Switch 16 A Free 5 - 12 2 1 -3 4 1 Room Master Row 2: 1 -4 RCD 30 m. A 3 4 5 6 7 8 10 11 12 24 VAC 250 m. A RCD 30 m. A RCD – wiring rail Row 2 Socket Outlet Circuit Lighting Circuit + Shutter 8 (10 A) Electrical Heater / Auxiliary Contact 9 (6 A) Fan Coil (HVAC) 10 (16 A) 9 6 (16 A) Socket Outlet Circuit 11 - 12 2 Main Supply (Bell Transformer) 7 (10 A) 1 RCD 5 (6 A) Row 1 Bell Transform. (TS 24/8 -12 -24) © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 28 Row 3: (Option) 1 Row 3 2 3 4 5 6 7 8 9 10 11 12 1 -12 Free

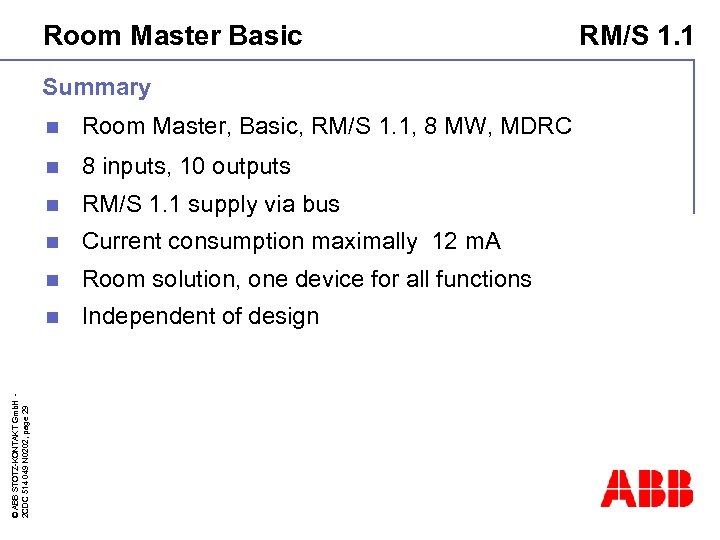

Room Master Basic Summary Room Master, Basic, RM/S 1. 1, 8 MW, MDRC n 8 inputs, 10 outputs n RM/S 1. 1 supply via bus n Current consumption maximally 12 m. A n Room solution, one device for all functions n © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 29 n Independent of design RM/S 1. 1

© ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 30 ABB

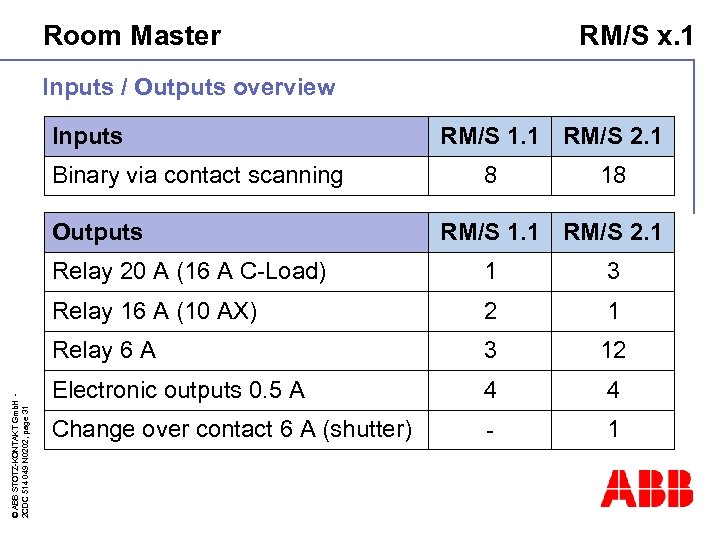

Room Master RM/S x. 1 Inputs / Outputs overview Inputs Binary via contact scanning Outputs RM/S 1. 1 RM/S 2. 1 8 18 RM/S 1. 1 RM/S 2. 1 1 3 Relay 16 A (10 AX) 2 1 Relay 6 A © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 049 N 0202, page 31 Relay 20 A (16 A C-Load) 3 12 Electronic outputs 0. 5 A 4 4 Change over contact 6 A (shutter) - 1
