Aastra Technologies Limited, with its Headquarters in the Canadian city of Concord, Ontario, is one of the leading manufacturers of telecommunications systems Worldwide. Aastra Ticker: AAH. TO Toronto Stock Exchange © 2009 Aastra Technologies, LTD.

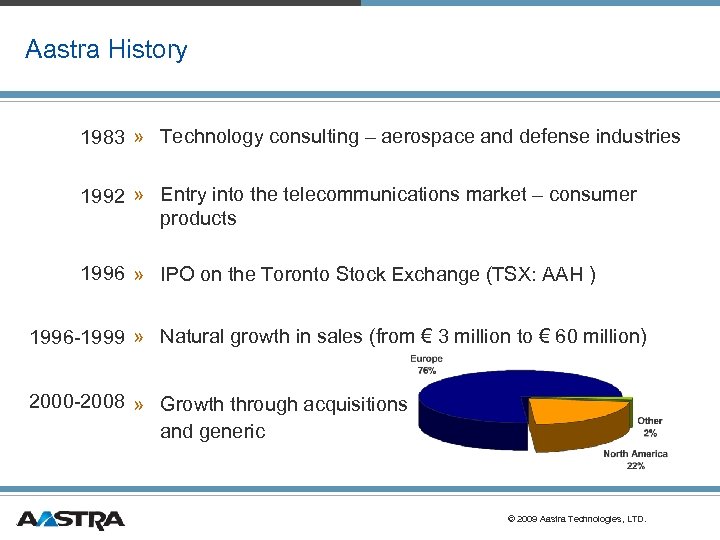

Aastra History 1983 » Technology consulting – aerospace and defense industries 1992 » Entry into the telecommunications market – consumer products 1996 » IPO on the Toronto Stock Exchange (TSX: AAH ) 1996 -1999 » Natural growth in sales (from € 3 million to € 60 million) 2000 -2008 » Growth through acquisitions and generic © 2009 Aastra Technologies, LTD.

Aastra Acquisitions January 2000 May 2001 September 2001 May 2002 September 2003 March 2005 August 2005 April 2008 » Parts of Nortel Networks, network solutions » Nortel, Centrex and ISDN terminals » Lucent, Digital Video Division » Nortel, CVX & CSG Division » Ascom, Telecom Systems Division » EADS Telecom, Telecom Systems Division » De. Te. We » Ericsson © 2009 Aastra Technologies, LTD.

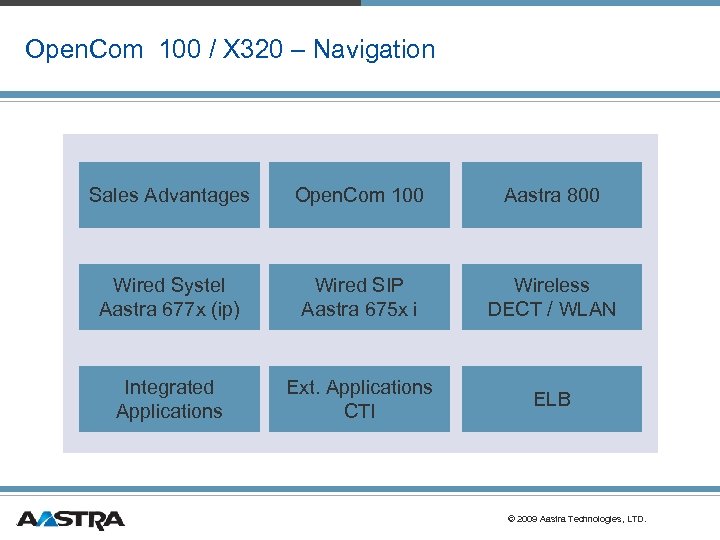

Open. Com 100 / X 320 – Navigation Sales Advantages Open. Com 100 Aastra 800 Wired Systel Aastra 677 x (ip) Wired SIP Aastra 675 x i Wireless DECT / WLAN Integrated Applications Ext. Applications CTI ELB © 2009 Aastra Technologies, LTD.

Open. Com 100 Family – Key benefits » Communications servers for individual telecommunications and IP environments » Single solution – The systems combine conventional telephony with Voice over IP and mobility functions » Easy setup – Software assisted – Browser controlled » All-in-one – Built-in applications – all browser controlled © 2009 Aastra Technologies, LTD.

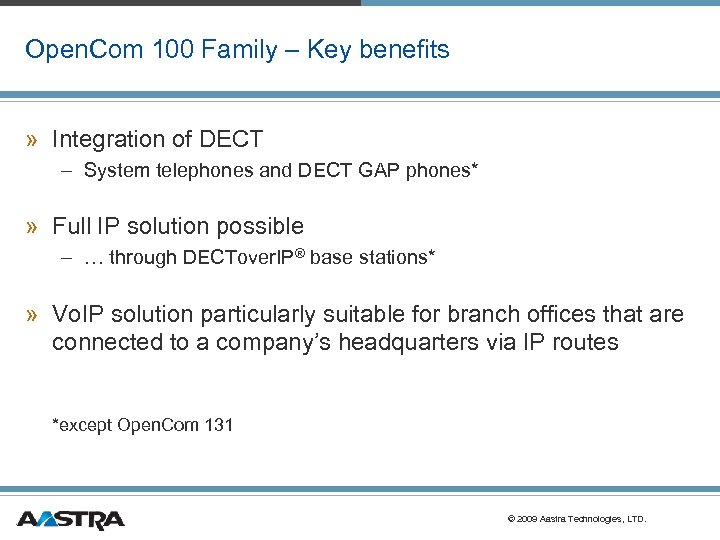

Open. Com 100 Family – Key benefits » Integration of DECT – System telephones and DECT GAP phones* » Full IP solution possible – … through DECTover. IP® base stations* » Vo. IP solution particularly suitable for branch offices that are connected to a company’s headquarters via IP routes *except Open. Com 131 © 2009 Aastra Technologies, LTD.

Key Features of Open. Com 100 PBX Family » » » » » Modular, IP-aware, rack-versions available Two families of modules (4 … 60 ports / 16 … 200 ports) 13 display languages, 19 country specific adoptions Configuration and maintenance are web browser based remote service via ISDN PPP dial-in / IP Built-in applications: Web browser based, 60 days free trial DECT fully integrated, TDM-DECT and DECTover. IP® System terminals (digital / IP) with complete menu control Router, DHCP server, Q. SIG-IP, VPN (OC X 320 only) 3 days training course will help for a good start © 2009 Aastra Technologies, LTD.

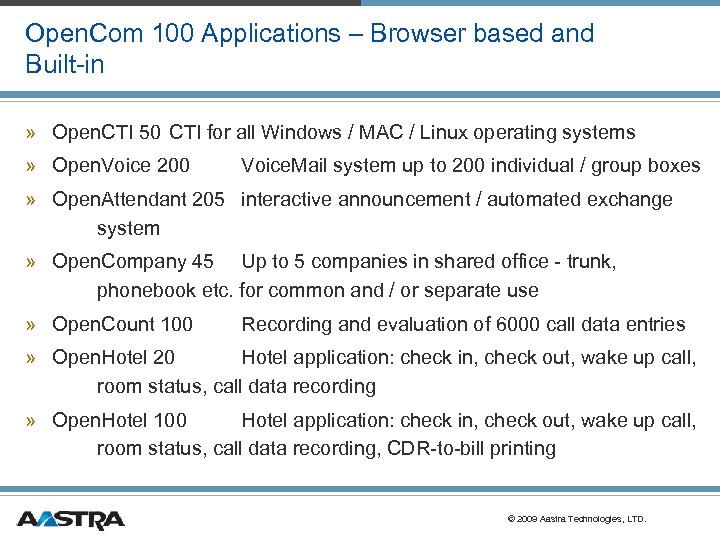

Open. Com 100 Applications – Browser based and Built-in » Open. CTI 50 CTI for all Windows / MAC / Linux operating systems » Open. Voice 200 Voice. Mail system up to 200 individual / group boxes » Open. Attendant 205 interactive announcement / automated exchange system » Open. Company 45 Up to 5 companies in shared office - trunk, phonebook etc. for common and / or separate use » Open. Count 100 Recording and evaluation of 6000 call data entries » Open. Hotel 20 Hotel application: check in, check out, wake up call, room status, call data recording » Open. Hotel 100 Hotel application: check in, check out, wake up call, room status, call data recording, CDR-to-bill printing © 2009 Aastra Technologies, LTD.

Aastra 800 – Why? » Aastra 800 is the new call manager for standard PC with Windows XP professional® SP 2 or Server 2003 » PC-hardware will become the standard for PBXs in next 3… 5 years » Aastra 800 is Aastra’s answer to the Asterisk challenge – – Full featured, mature call manager (OC 100 release 8. ff) Country specific features Mobility support: DECT and / or WLAN Maintained by a company dedicated to PBX business » Aastra 800 addresses the SME port range at the first step (up to 200 user) © 2009 Aastra Technologies, LTD.

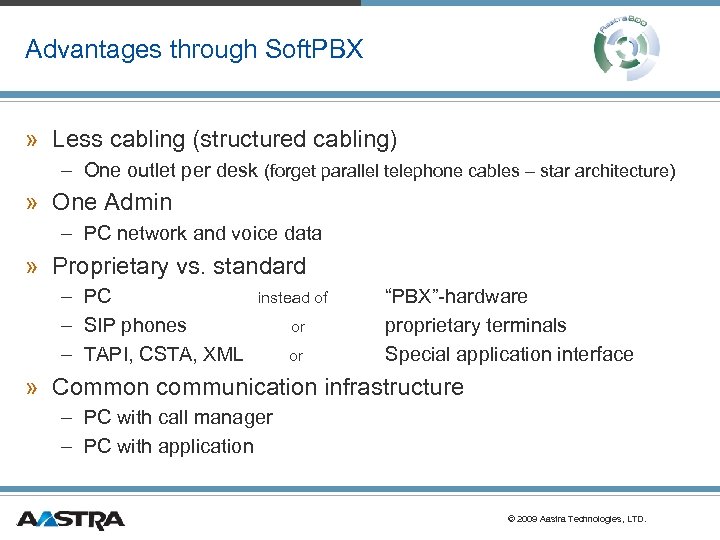

Advantages through Soft. PBX » Less cabling (structured cabling) – One outlet per desk (forget parallel telephone cables – star architecture) » One Admin – PC network and voice data » Proprietary vs. standard – PC instead of – SIP phones or – TAPI, CSTA, XML or “PBX”-hardware proprietary terminals Special application interface » Common communication infrastructure – PC with call manager – PC with application © 2009 Aastra Technologies, LTD.

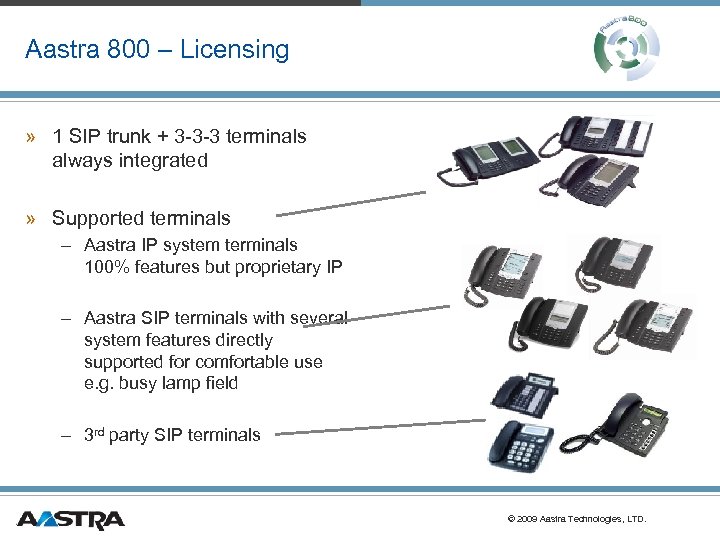

Aastra 800 – Licensing » 1 SIP trunk + 3 -3 -3 terminals always integrated » Supported terminals – Aastra IP system terminals 100% features but proprietary IP – Aastra SIP terminals with several system features directly supported for comfortable use e. g. busy lamp field – 3 rd party SIP terminals © 2009 Aastra Technologies, LTD.

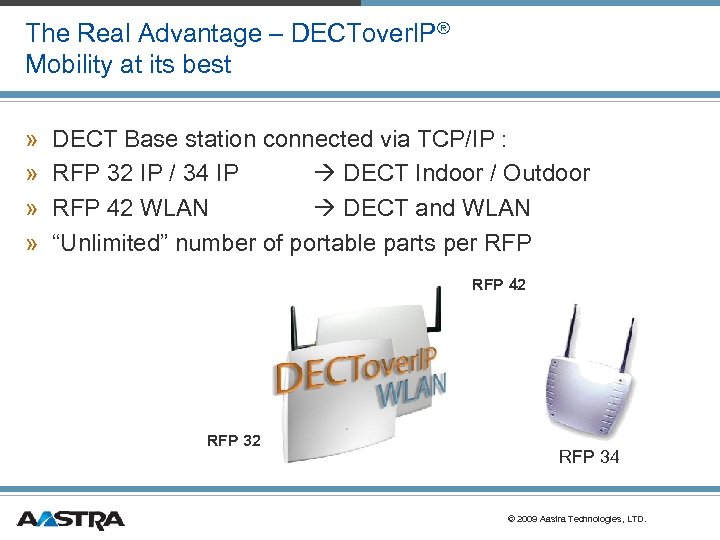

The Real Advantage – DECTover. IP® Mobility at its best » » DECT Base station connected via TCP/IP : RFP 32 IP / 34 IP DECT Indoor / Outdoor RFP 42 WLAN DECT and WLAN “Unlimited” number of portable parts per RFP 42 RFP 34 © 2009 Aastra Technologies, LTD.

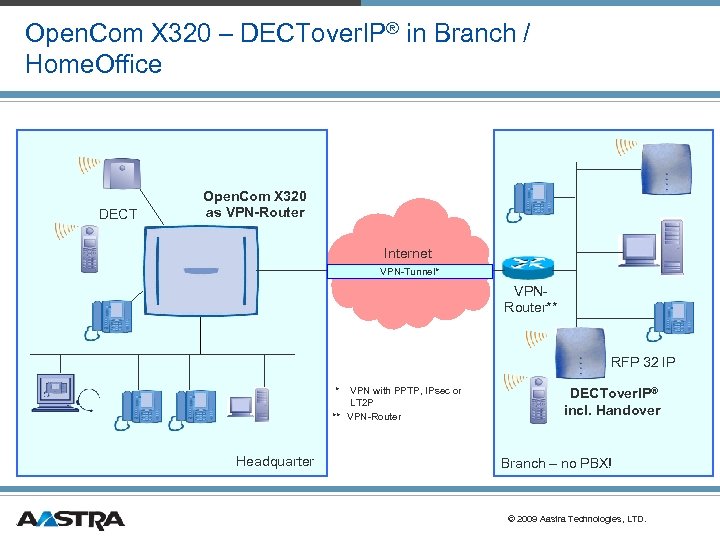

Open. Com X 320 – DECTover. IP® in Branch / Home. Office DECT Open. Com X 320 as VPN-Router Internet VPN-Tunnel* VPNRouter** RFP 32 IP * VPN with PPTP, IPsec or LT 2 P ** VPN-Router Headquarter DECTover. IP® incl. Handover Branch – no PBX! © 2009 Aastra Technologies, LTD.

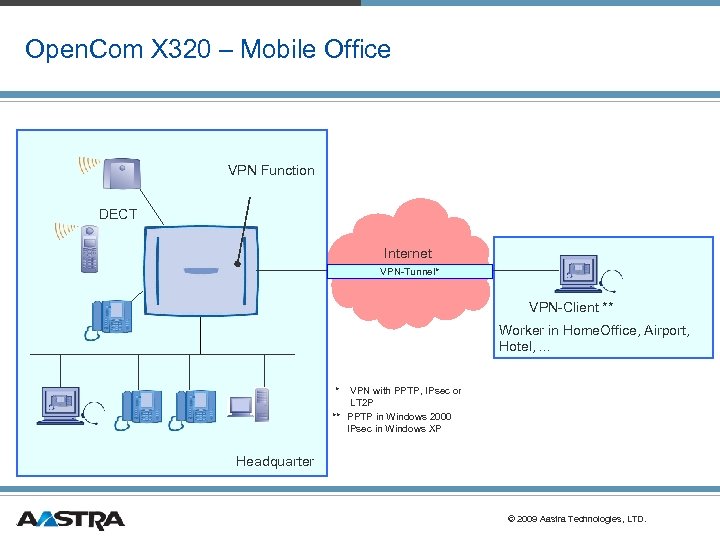

Open. Com X 320 – Mobile Office VPN Function DECT Internet VPN-Tunnel* VPN-Client ** Worker in Home. Office, Airport, Hotel, . . . * VPN with PPTP, IPsec or LT 2 P ** PPTP in Windows 2000 IPsec in Windows XP Headquarter © 2009 Aastra Technologies, LTD.

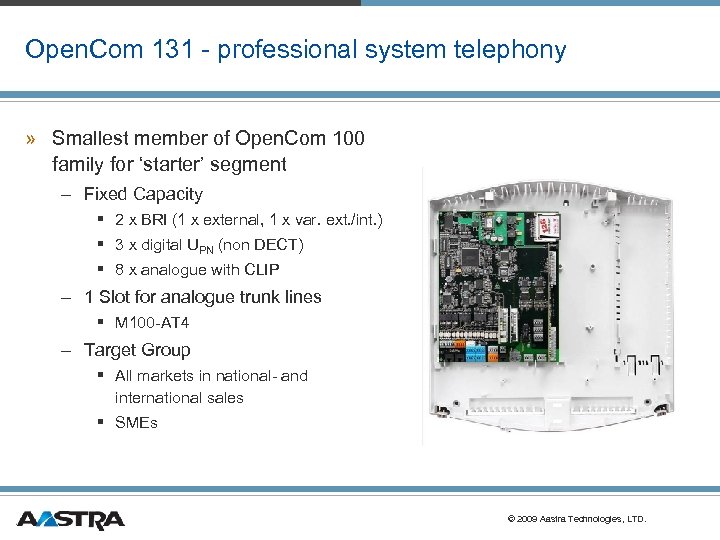

Open. Com 131 - professional system telephony » Smallest member of Open. Com 100 family for ‘starter’ segment – Fixed Capacity § 2 x BRI (1 x external, 1 x var. ext. /int. ) § 3 x digital UPN (non DECT) § 8 x analogue with CLIP – 1 Slot for analogue trunk lines § M 100 -AT 4 – Target Group § All markets in national- and international sales § SMEs © 2009 Aastra Technologies, LTD.

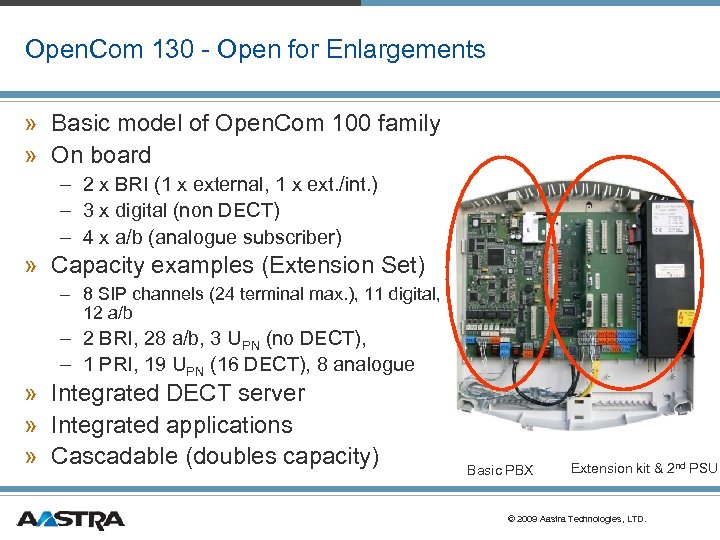

Open. Com 130 - Open for Enlargements » Basic model of Open. Com 100 family » On board – 2 x BRI (1 x external, 1 x ext. /int. ) – 3 x digital (non DECT) – 4 x a/b (analogue subscriber) » Capacity examples (Extension Set) – 8 SIP channels (24 terminal max. ), 11 digital, 12 a/b – 2 BRI, 28 a/b, 3 UPN (no DECT), – 1 PRI, 19 UPN (16 DECT), 8 analogue » Integrated DECT server » Integrated applications » Cascadable (doubles capacity) Basic PBX Extension kit & 2 nd PSU © 2009 Aastra Technologies, LTD.

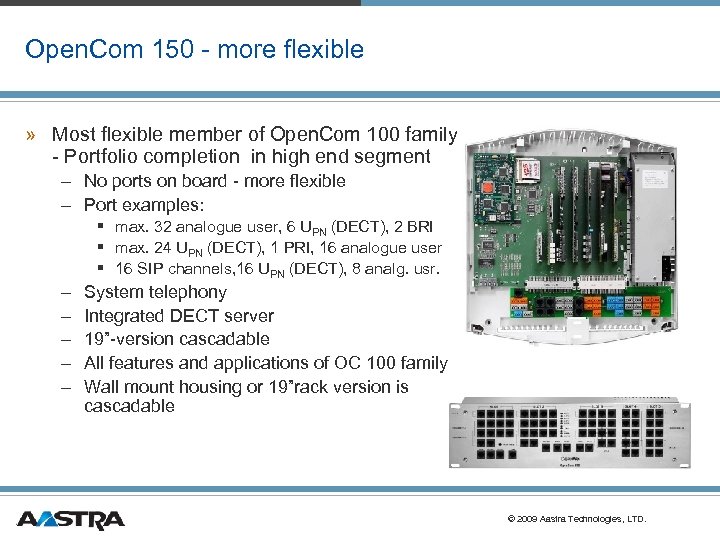

Open. Com 150 - more flexible » Most flexible member of Open. Com 100 family - Portfolio completion in high end segment – No ports on board - more flexible – Port examples: § max. 32 analogue user, 6 UPN (DECT), 2 BRI § max. 24 UPN (DECT), 1 PRI, 16 analogue user § 16 SIP channels, 16 UPN (DECT), 8 analg. usr. – – – System telephony Integrated DECT server 19”-version cascadable All features and applications of OC 100 family Wall mount housing or 19”rack version is cascadable © 2009 Aastra Technologies, LTD.

Open. Com 150 Slot for PRI interface (here: plugged) CF-Card for Open. Voice 200 and Open. Attendant 205 IP-SW if no M 100 -IPGateway installed Slot for M 100 -TFE 2 Slot for M 100 -V. 24 Pay attention to right manual! 5 slots for interfaces 3 x digital 4 x analogue © 2009 Aastra Technologies, LTD.

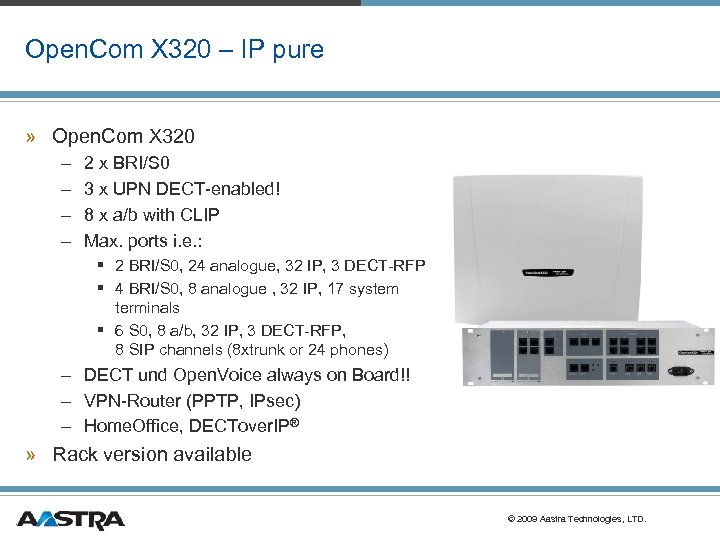

Open. Com X 320 – IP pure » Open. Com X 320 – – 2 x BRI/S 0 3 x UPN DECT-enabled! 8 x a/b with CLIP Max. ports i. e. : § 2 BRI/S 0, 24 analogue, 32 IP, 3 DECT-RFP § 4 BRI/S 0, 8 analogue , 32 IP, 17 system terminals § 6 S 0, 8 a/b, 32 IP, 3 DECT-RFP, 8 SIP channels (8 xtrunk or 24 phones) – DECT und Open. Voice always on Board!! – VPN-Router (PPTP, IPsec) – Home. Office, DECTover. IP® » Rack version available © 2009 Aastra Technologies, LTD.

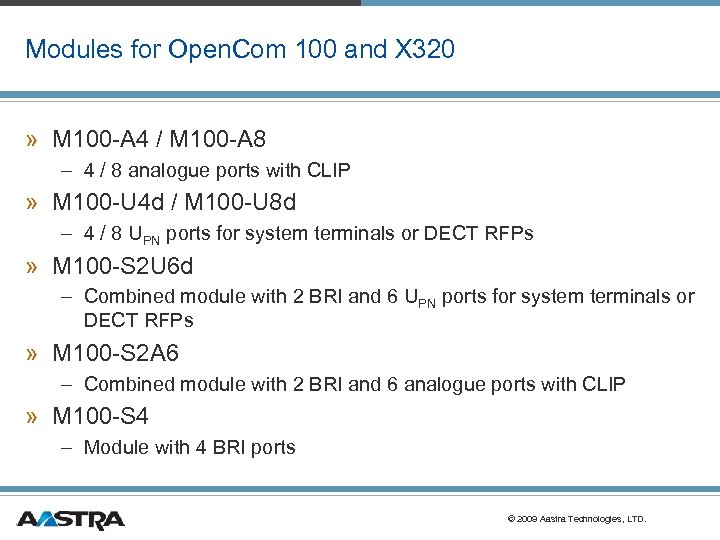

Modules for Open. Com 100 and X 320 » M 100 -A 4 / M 100 -A 8 – 4 / 8 analogue ports with CLIP » M 100 -U 4 d / M 100 -U 8 d – 4 / 8 UPN ports for system terminals or DECT RFPs » M 100 -S 2 U 6 d – Combined module with 2 BRI and 6 UPN ports for system terminals or DECT RFPs » M 100 -S 2 A 6 – Combined module with 2 BRI and 6 analogue ports with CLIP » M 100 -S 4 – Module with 4 BRI ports © 2009 Aastra Technologies, LTD.

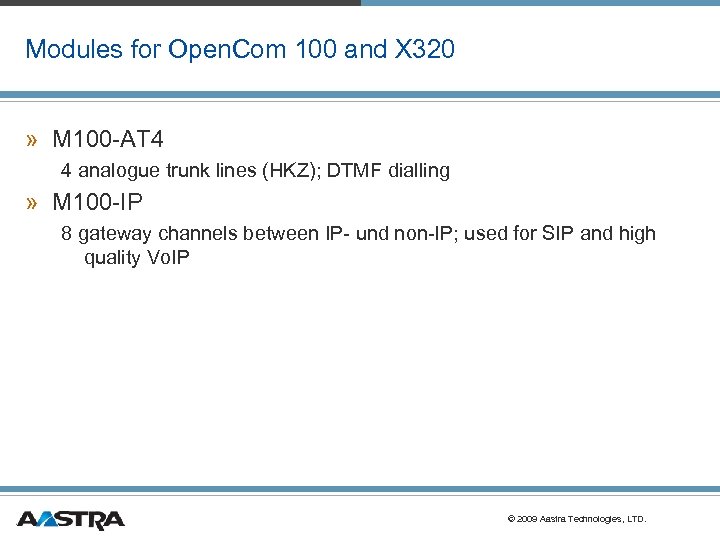

Modules for Open. Com 100 and X 320 » M 100 -AT 4 4 analogue trunk lines (HKZ); DTMF dialling » M 100 -IP 8 gateway channels between IP- und non-IP; used for SIP and high quality Vo. IP © 2009 Aastra Technologies, LTD.

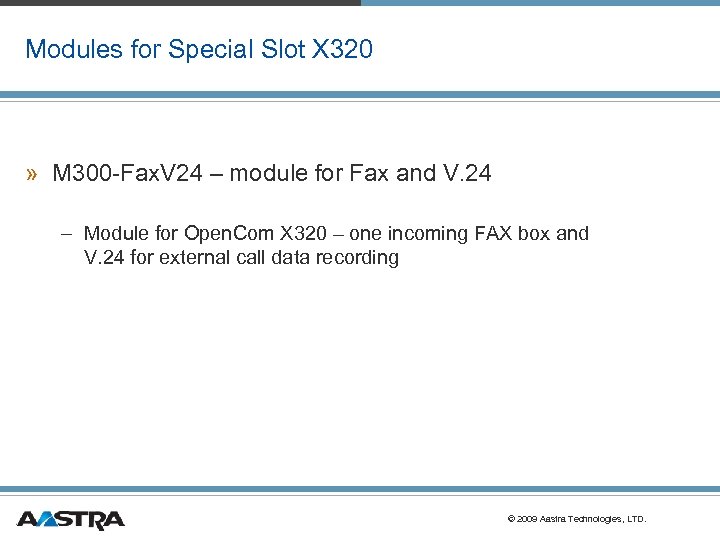

Modules for Special Slot X 320 » M 300 -Fax. V 24 – module for Fax and V. 24 – Module for Open. Com X 320 – one incoming FAX box and V. 24 for external call data recording © 2009 Aastra Technologies, LTD.

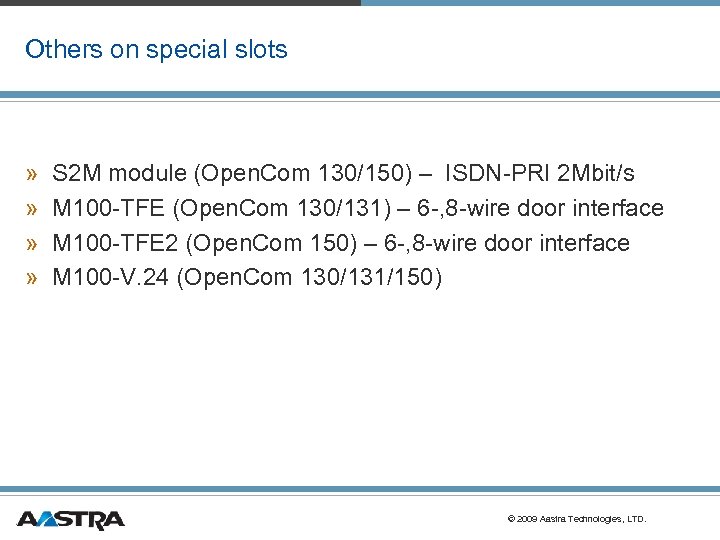

Others on special slots » » S 2 M module (Open. Com 130/150) – ISDN-PRI 2 Mbit/s M 100 -TFE (Open. Com 130/131) – 6 -, 8 -wire door interface M 100 -TFE 2 (Open. Com 150) – 6 -, 8 -wire door interface M 100 -V. 24 (Open. Com 130/131/150) © 2009 Aastra Technologies, LTD.

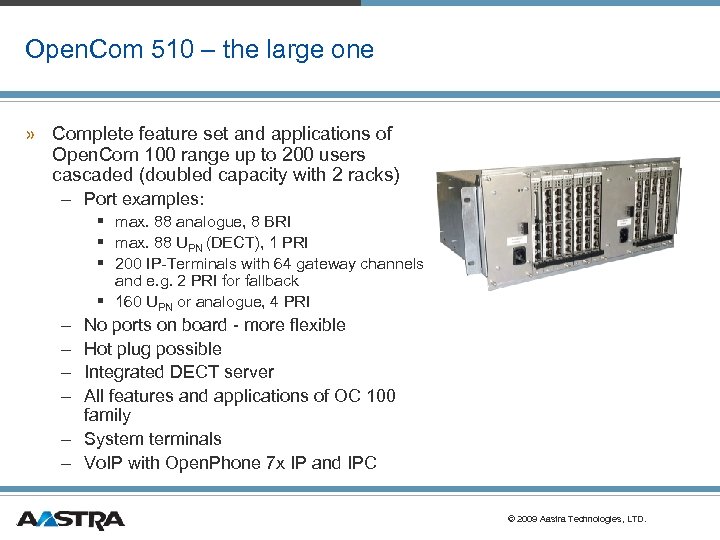

Open. Com 510 – the large one » Complete feature set and applications of Open. Com 100 range up to 200 users cascaded (doubled capacity with 2 racks) – Port examples: § max. 88 analogue, 8 BRI § max. 88 UPN (DECT), 1 PRI § 200 IP-Terminals with 64 gateway channels and e. g. 2 PRI for fallback § 160 UPN or analogue, 4 PRI – – No ports on board - more flexible Hot plug possible Integrated DECT server All features and applications of OC 100 family – System terminals – Vo. IP with Open. Phone 7 x IP and IPC © 2009 Aastra Technologies, LTD.

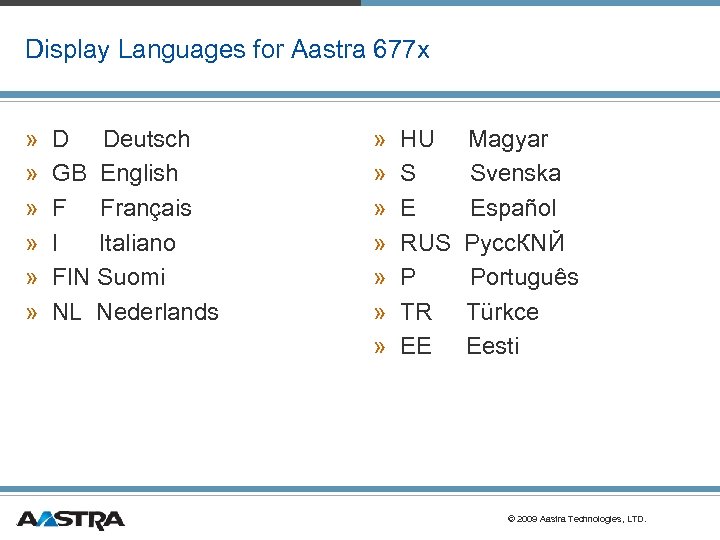

Display Languages for Aastra 677 x » D Deutsch » GB English » F Français » I Italiano » FIN Suomi » NL Nederlands » » » » HU Magyar S Svenska E Español RUS Pycc. КNЙ P Português TR Türkce EE Eesti © 2009 Aastra Technologies, LTD.

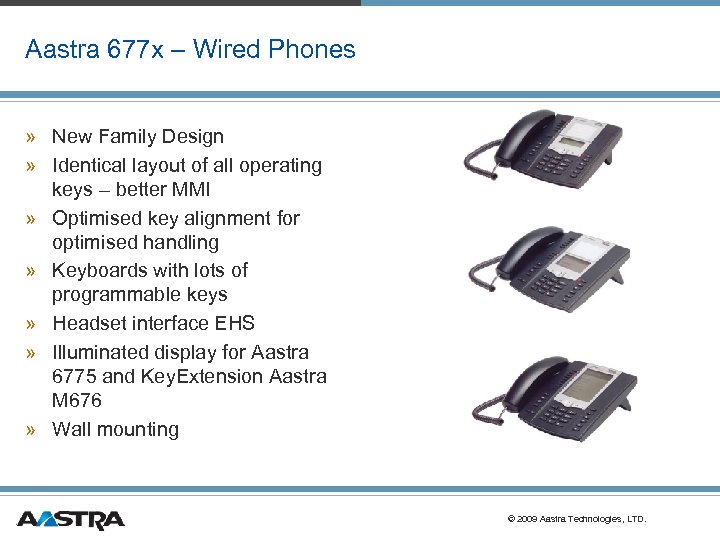

Aastra 677 x – Wired Phones » New Family Design » Identical layout of all operating keys – better MMI » Optimised key alignment for optimised handling » Keyboards with lots of programmable keys » Headset interface EHS » Illuminated display for Aastra 6775 and Key. Extension Aastra M 676 » Wall mounting © 2009 Aastra Technologies, LTD.

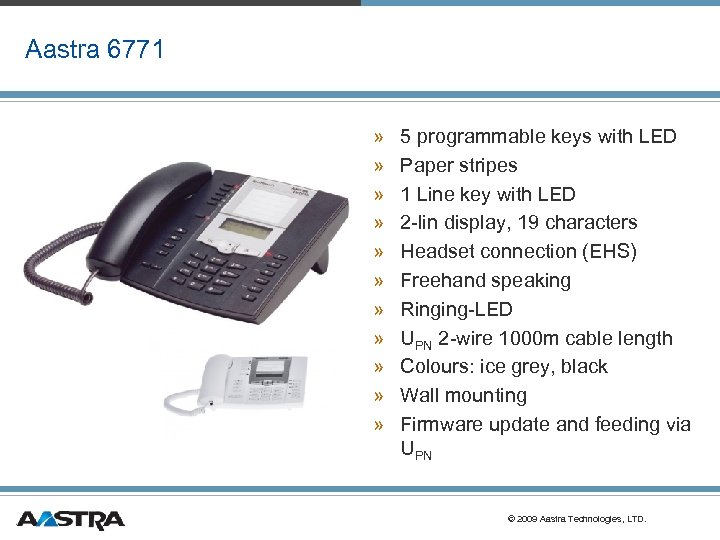

Aastra 6771 » » » 5 programmable keys with LED Paper stripes 1 Line key with LED 2 -lin display, 19 characters Headset connection (EHS) Freehand speaking Ringing-LED UPN 2 -wire 1000 m cable length Colours: ice grey, black Wall mounting Firmware update and feeding via UPN © 2009 Aastra Technologies, LTD.

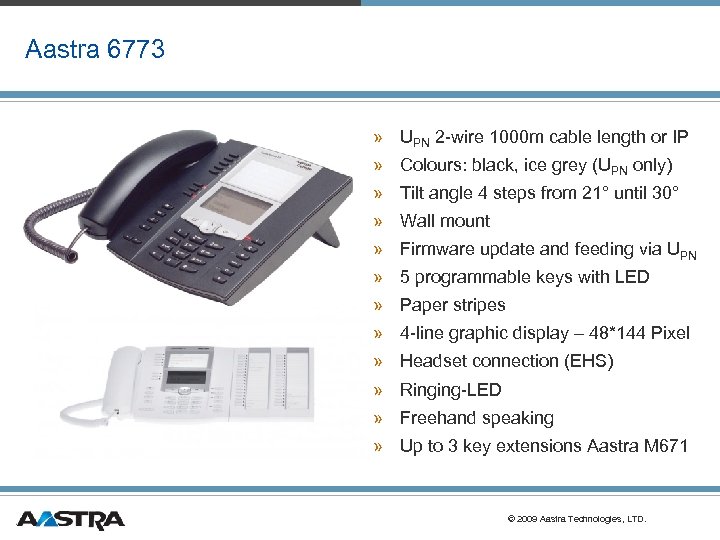

Aastra 6773 » UPN 2 -wire 1000 m cable length or IP » Colours: black, ice grey (UPN only) » Tilt angle 4 steps from 21° until 30° » Wall mount » Firmware update and feeding via UPN » 5 programmable keys with LED » Paper stripes » 4 -line graphic display – 48*144 Pixel » Headset connection (EHS) » Ringing-LED » Freehand speaking » Up to 3 key extensions Aastra M 671 © 2009 Aastra Technologies, LTD.

Aastra 6775 » » » UPN 2 -wire 1000 m cable length or IP Colours: black, ice grey (UPN only) Tilt angle 4 steps from 21° until 30° Wall mount Firmware update and feeding via UPN 1 line- + 8 programmable keys with display and LED Paper stripes 1 -line illuminated full graphic display Headset connection (EHS) Ringing-LED Freehand speaking Up to 3 key extensions Aastra M 671 or Aastra M 676 © 2009 Aastra Technologies, LTD.

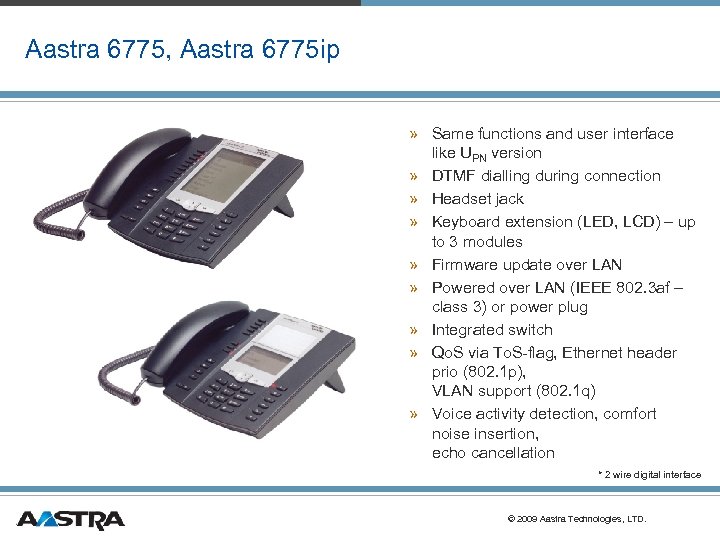

Aastra 6775, Aastra 6775 ip » Same functions and user interface like UPN version » DTMF dialling during connection » Headset jack » Keyboard extension (LED, LCD) – up to 3 modules » Firmware update over LAN » Powered over LAN (IEEE 802. 3 af – class 3) or power plug » Integrated switch » Qo. S via To. S-flag, Ethernet header prio (802. 1 p), VLAN support (802. 1 q) » Voice activity detection, comfort noise insertion, echo cancellation * 2 wire digital interface © 2009 Aastra Technologies, LTD.

Aastra M 671 » Key extension for Aastra 6773, 6775, 6773 ip, 6775 ip » 3 key extensions per terminal » Paper stripes for description » 36 keys with LED » Tilt angle 4 steps from 21° until 30° » Power feeding necessary – 1 plug-in power supply for up to 3 key extensions – or Power over Ethernet Po. E Aastra 6773 ip, 6775 ip © 2009 Aastra Technologies, LTD.

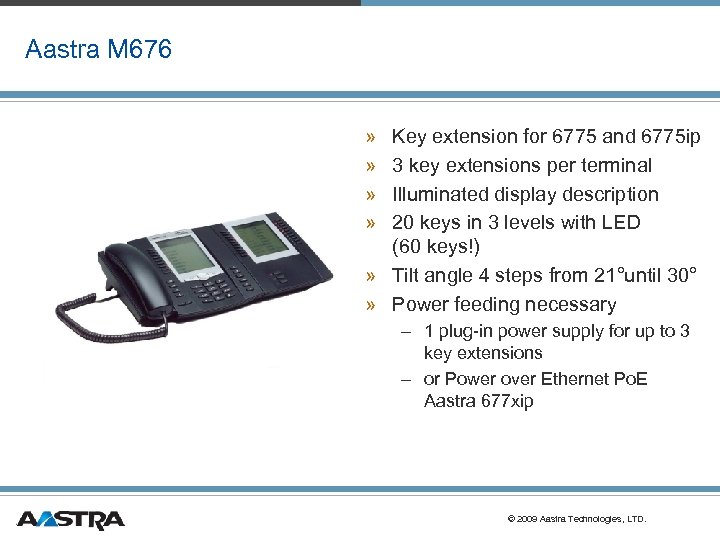

Aastra M 676 » » Key extension for 6775 and 6775 ip 3 key extensions per terminal Illuminated display description 20 keys in 3 levels with LED (60 keys!) » Tilt angle 4 steps from 21°until 30° » Power feeding necessary – 1 plug-in power supply for up to 3 key extensions – or Power over Ethernet Po. E Aastra 677 xip © 2009 Aastra Technologies, LTD.

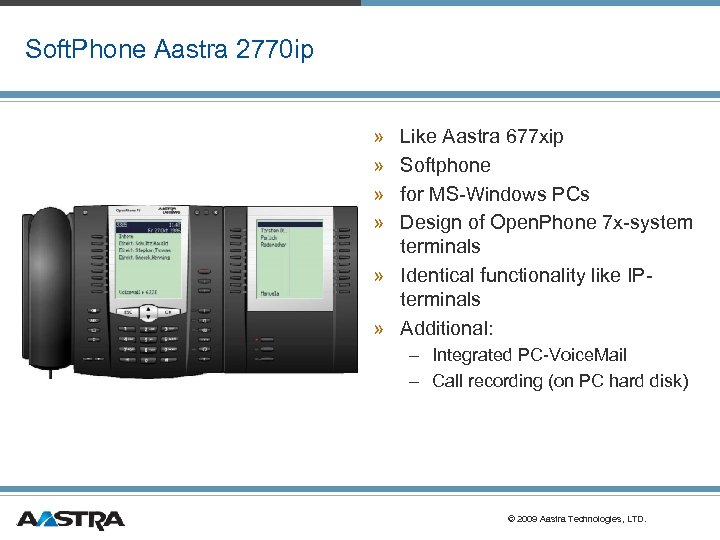

Soft. Phone Aastra 2770 ip » » Like Aastra 677 xip Softphone for MS-Windows PCs Design of Open. Phone 7 x-system terminals » Identical functionality like IPterminals » Additional: – Integrated PC-Voice. Mail – Call recording (on PC hard disk) © 2009 Aastra Technologies, LTD.

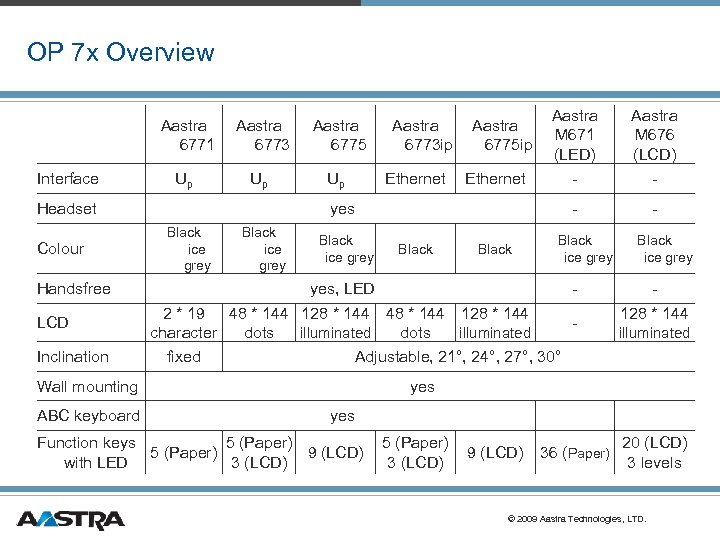

OP 7 x Overview Aastra 6771 Interface Aastra 6773 Aastra 6775 Up Up Up Headset Colour Inclination Black ice grey - - Ethernet Black ice grey yes, LED 2 * 19 48 * 144 128 * 144 illuminated character dots - Black ice grey - fixed 128 * 144 illuminated Adjustable, 21°, 24°, 27°, 30° Wall mounting ABC keyboard Aastra M 676 (LCD) yes Handsfree LCD Ethernet Aastra 6775 ip Aastra M 671 (LED) - Aastra 6773 ip yes Function keys 5 (Paper) 9 (LCD) with LED 3 (LCD) 5 (Paper) 3 (LCD) 9 (LCD) 36 (Paper) 20 (LCD) 3 levels © 2009 Aastra Technologies, LTD.

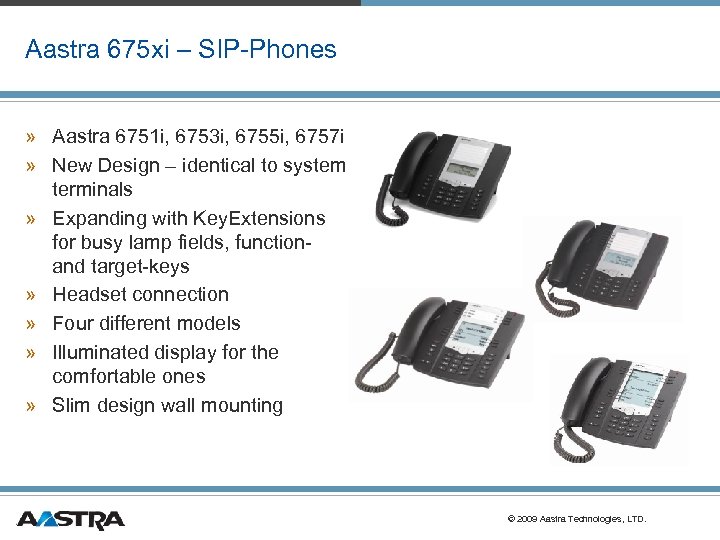

Aastra 675 xi – SIP-Phones » Aastra 6751 i, 6753 i, 6755 i, 6757 i » New Design – identical to system terminals » Expanding with Key. Extensions for busy lamp fields, function- and target-keys » Headset connection » Four different models » Illuminated display for the comfortable ones » Slim design wall mounting © 2009 Aastra Technologies, LTD.

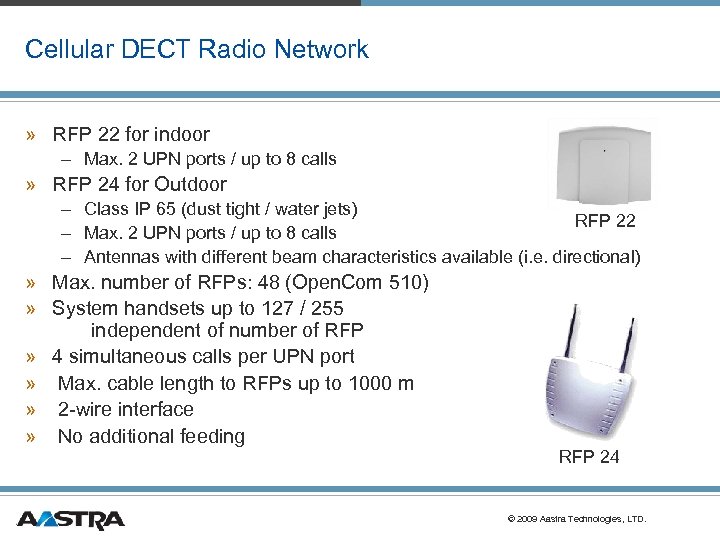

Cellular DECT Radio Network » RFP 22 for indoor – Max. 2 UPN ports / up to 8 calls » RFP 24 for Outdoor – Class IP 65 (dust tight / water jets) RFP 22 – Max. 2 UPN ports / up to 8 calls – Antennas with different beam characteristics available (i. e. directional) » Max. number of RFPs: 48 (Open. Com 510) » System handsets up to 127 / 255 independent of number of RFP » 4 simultaneous calls per UPN port » Max. cable length to RFPs up to 1000 m » 2 -wire interface » No additional feeding RFP 24 © 2009 Aastra Technologies, LTD.

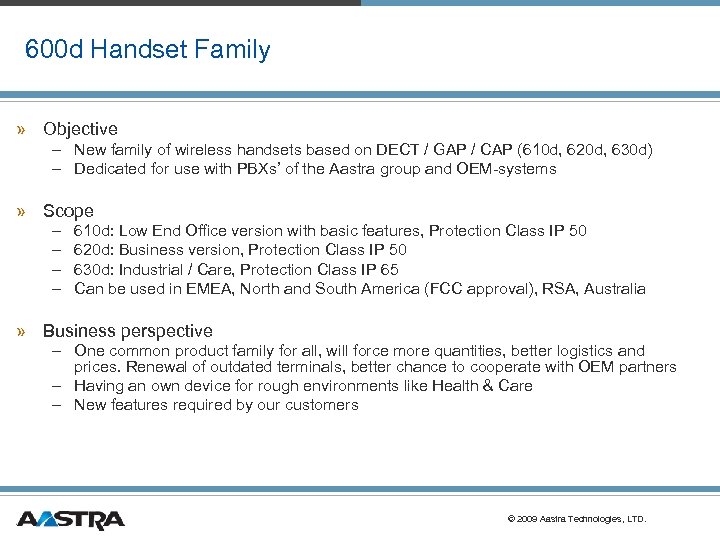

600 d Handset Family » Objective – New family of wireless handsets based on DECT / GAP / CAP (610 d, 620 d, 630 d) – Dedicated for use with PBXs’ of the Aastra group and OEM-systems » Scope – – 610 d: Low End Office version with basic features, Protection Class IP 50 620 d: Business version, Protection Class IP 50 630 d: Industrial / Care, Protection Class IP 65 Can be used in EMEA, North and South America (FCC approval), RSA, Australia » Business perspective – One common product family for all, will force more quantities, better logistics and prices. Renewal of outdated terminals, better chance to cooperate with OEM partners – Having an own device for rough environments like Health & Care – New features required by our customers © 2009 Aastra Technologies, LTD.

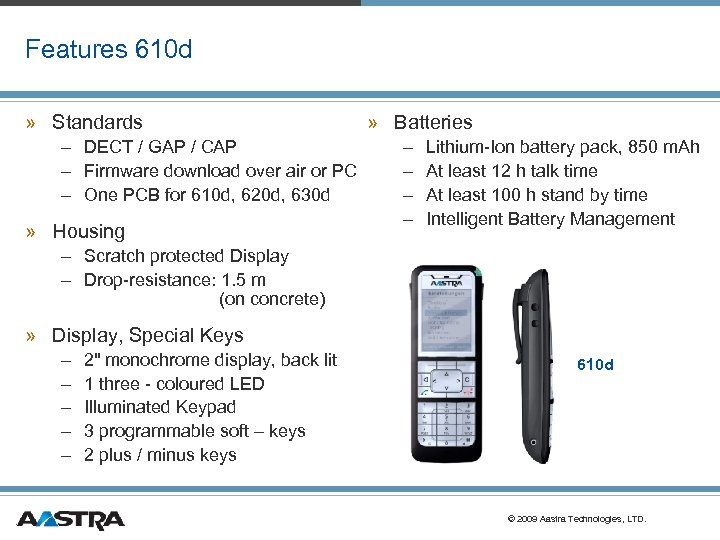

Features 610 d » Standards – DECT / GAP / CAP – Firmware download over air or PC – One PCB for 610 d, 620 d, 630 d » Housing » Batteries – – Lithium-Ion battery pack, 850 m. Ah At least 12 h talk time At least 100 h stand by time Intelligent Battery Management – Scratch protected Display – Drop-resistance: 1. 5 m (on concrete) » Display, Special Keys – – – 2" monochrome display, back lit 1 three - coloured LED Illuminated Keypad 3 programmable soft – keys 2 plus / minus keys 610 d © 2009 Aastra Technologies, LTD.

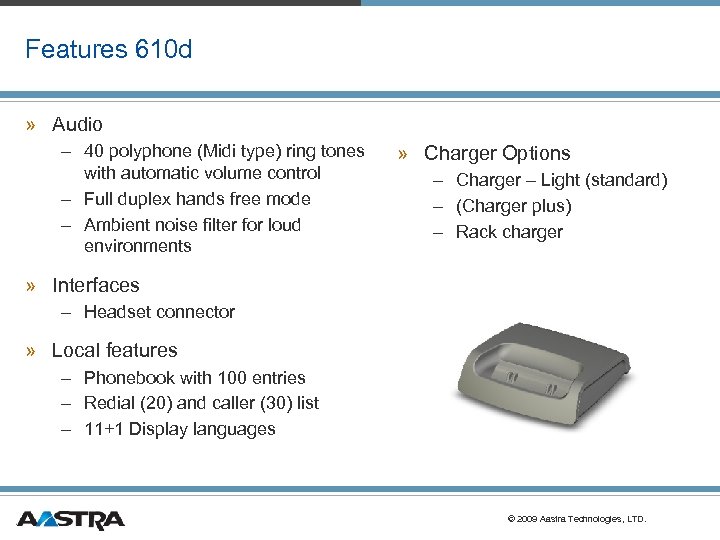

Features 610 d » Audio – 40 polyphone (Midi type) ring tones with automatic volume control – Full duplex hands free mode – Ambient noise filter for loud environments » Charger Options – Charger – Light (standard) – (Charger plus) – Rack charger » Interfaces – Headset connector » Local features – Phonebook with 100 entries – Redial (20) and caller (30) list – 11+1 Display languages © 2009 Aastra Technologies, LTD.

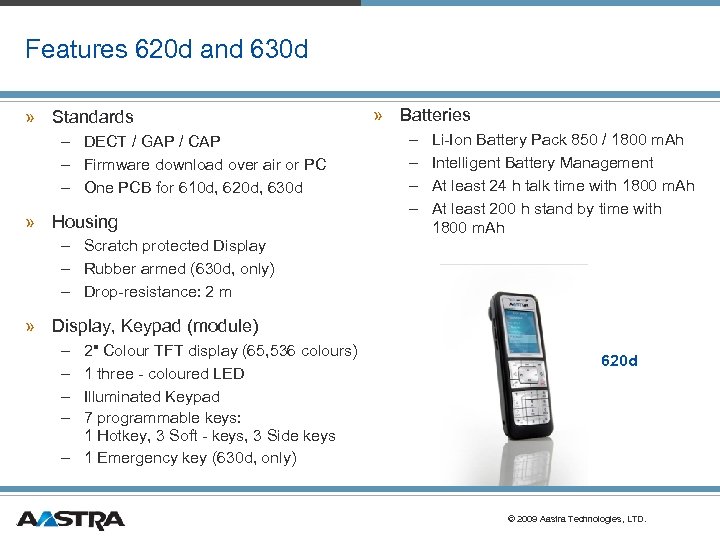

Features 620 d and 630 d » Standards – DECT / GAP / CAP – Firmware download over air or PC – One PCB for 610 d, 620 d, 630 d » Housing » Batteries – – Li-Ion Battery Pack 850 / 1800 m. Ah Intelligent Battery Management At least 24 h talk time with 1800 m. Ah At least 200 h stand by time with 1800 m. Ah – Scratch protected Display – Rubber armed (630 d, only) – Drop-resistance: 2 m » Display, Keypad (module) – – 2" Colour TFT display (65, 536 colours) 1 three - coloured LED Illuminated Keypad 7 programmable keys: 1 Hotkey, 3 Soft - keys, 3 Side keys – 1 Emergency key (630 d, only) 620 d © 2009 Aastra Technologies, LTD.

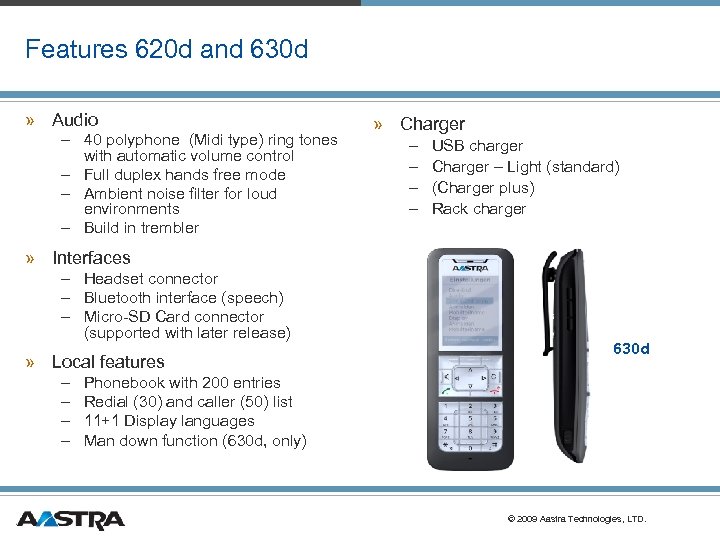

Features 620 d and 630 d » Audio – 40 polyphone (Midi type) ring tones with automatic volume control – Full duplex hands free mode – Ambient noise filter for loud environments – Build in trembler » Charger – – USB charger Charger – Light (standard) (Charger plus) Rack charger » Interfaces – Headset connector – Bluetooth interface (speech) – Micro-SD Card connector (supported with later release) » Local features – – 630 d Phonebook with 200 entries Redial (30) and caller (50) list 11+1 Display languages Man down function (630 d, only) © 2009 Aastra Technologies, LTD.

600 d Handset Family » New MMI style: – – Pop-up windows Scrollbar Colour based visualisation 620 d / 630 d: Colour schemes and small / large font selectable » Download options: – Download of new firmware, possible from PBX* and PC-Tool (later release) – 620 d / 630 d: Download of costumer specific melodies and idle pictures possible from PBX* and PC-Tool (later release) – Download of additional language file possible from PBX* and PC-Tool (later release) » Phonebook transfer via PBX* » Handset configuration and branding via Air-Interface from PBX* * If supported by PABX © 2009 Aastra Technologies, LTD.

Applications for Open. Com 100 » Open. CTI 50 – Browser based CTI-Function for all user i. e. Apple, Linux etc. » Open. Voice 200 – integrated Voice. Mail system up to 64 Boxes, also group boxes possible » Open. Attendant 205 – integrated interactive announcement and automated exchange system » Open. Company 45 – 5 companies in shared office - trunk, phonebook etc. for common or / and separate use » Open. Count 100 – 6000 call data recording and evaluation - Browser based use » Open. Hotel 100 / Open. Hotel 20 – Hotel application incl. Check-In, -Out, wake-up-call, call data recording, etc. » Open. Line SIP 2 – SIP-trunk, 2 additional channels (2 incl. with M 100 -IP) » Open. Line QSIG over IP – Networking between Open. Com machines © 2009 Aastra Technologies, LTD.

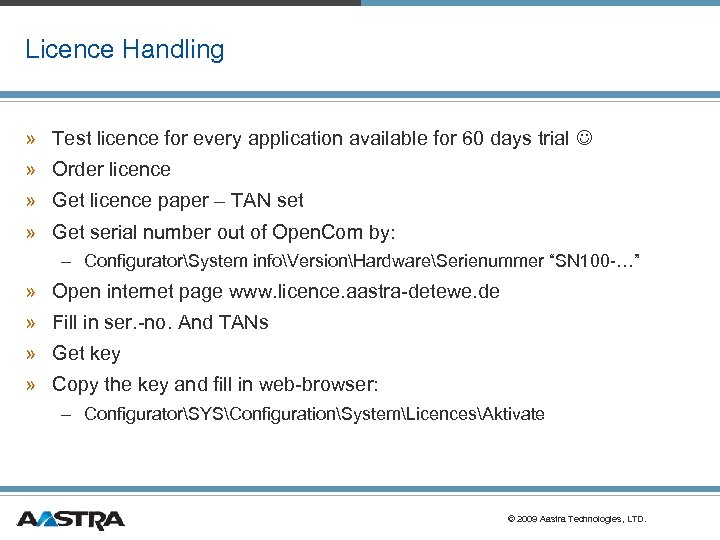

Licence Handling » Test licence for every application available for 60 days trial » Order licence » Get licence paper – TAN set » Get serial number out of Open. Com by: – ConfiguratorSystem infoVersionHardwareSerienummer “SN 100 -…” » Open internet page www. licence. aastra-detewe. de » Fill in ser. -no. And TANs » Get key » Copy the key and fill in web-browser: – ConfiguratorSYSConfigurationSystemLicencesAktivate © 2009 Aastra Technologies, LTD.

Open. CTI 50 – TAPI- (Windows-) independent CTI application – Web browser based solution (HTML 3. 2 + Java. Script) § Independent from operating system (Win, Apple, Unix, Linux etc. ) § No software installation – 60 days trial version – Specials: § Busy lamp field on up to 8 PCs § Internal text messages from/to system terminals (also to groups) § Export function Voice. Mail to. WAV format § Direct access to internal phonebook § Instant messaging with 9 prepared messages (each user can read in “his” language) § Transfer calls on PC/MAC § Comfortable usage of Open. Voice © 2009 Aastra Technologies, LTD.

Open. CTI 50 - Outgoing text messages » Text messages from PC to system terminals Open. Phone 2 x and 7 x » Texts to groups of terminals » Display of internal sent messages (max. 10) » Display with date/time » Entries may be deleted separately © 2009 Aastra Technologies, LTD.

Open. CTI 50 - Phonebook » 3 display versions: – personal phonebook – central phonebook – personal and central phonebook » » Search for name or number Page back/forward Dialling via symbol: Office, mobile, private Sending of internal text message or e-mail » Adding, editing, deleting of entries : – in personal phonebook – in company phonebook – in central phonebook » Import/export of personal phonebook » Import/export and deleting of central phonebook only in configurator © 2009 Aastra Technologies, LTD.

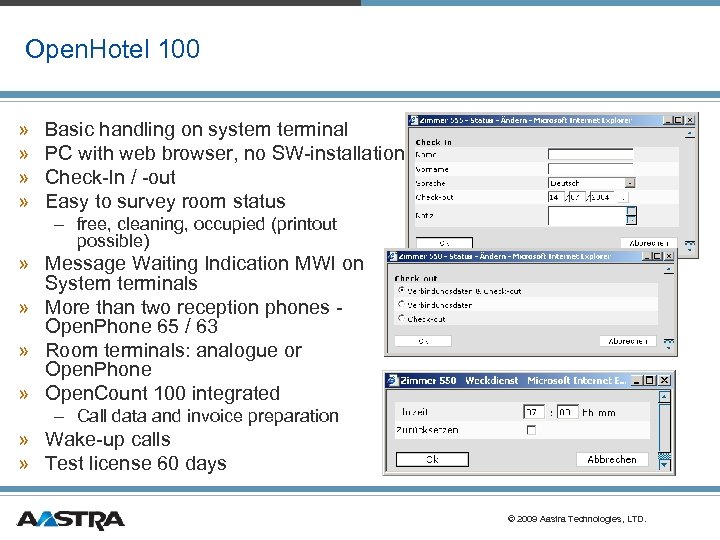

Open. Hotel 100 » » Basic handling on system terminal PC with web browser, no SW-installation Check-In / -out Easy to survey room status – free, cleaning, occupied (printout possible) » Message Waiting Indication MWI on System terminals » More than two reception phones - Open. Phone 65 / 63 » Room terminals: analogue or Open. Phone » Open. Count 100 integrated – Call data and invoice preparation » Wake-up calls » Test license 60 days © 2009 Aastra Technologies, LTD.

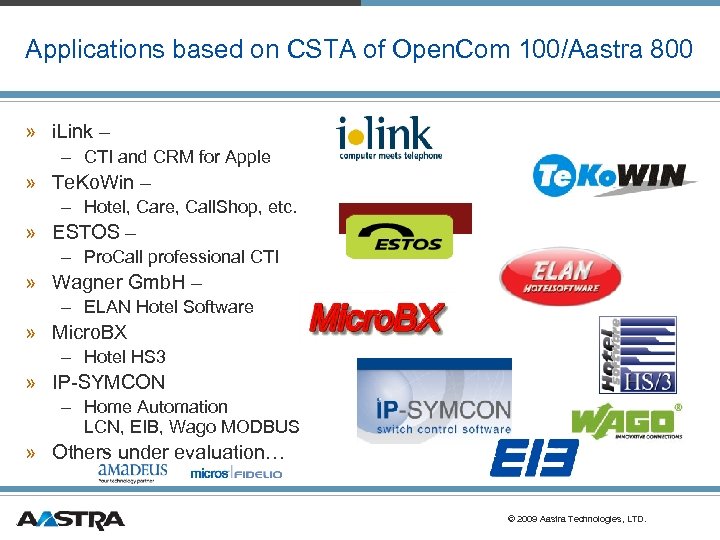

Applications based on CSTA of Open. Com 100/Aastra 800 » i. Link – – CTI and CRM for Apple » Te. Ko. Win – – Hotel, Care, Call. Shop, etc. » ESTOS – – Pro. Call professional CTI » Wagner Gmb. H – – ELAN Hotel Software » Micro. BX – Hotel HS 3 » IP-SYMCON – Home Automation LCN, EIB, Wago MODBUS » Others under evaluation… © 2009 Aastra Technologies, LTD.

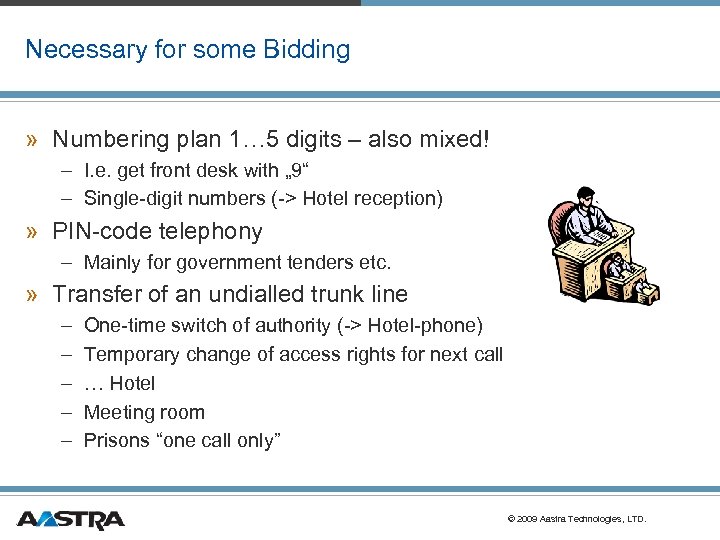

Necessary for some Bidding » Numbering plan 1… 5 digits – also mixed! – I. e. get front desk with „ 9“ – Single-digit numbers (-> Hotel reception) » PIN-code telephony – Mainly for government tenders etc. » Transfer of an undialled trunk line – – – One-time switch of authority (-> Hotel-phone) Temporary change of access rights for next call … Hotel Meeting room Prisons “one call only” © 2009 Aastra Technologies, LTD.

Nice and smart for the user » “Scrolling round” of display at system phones » Busy lamps for – Terminal busy if any call is active – Team key busy » Announcement protection per user » Caller list/redial for – Line keys – Other subscribers © 2009 Aastra Technologies, LTD.

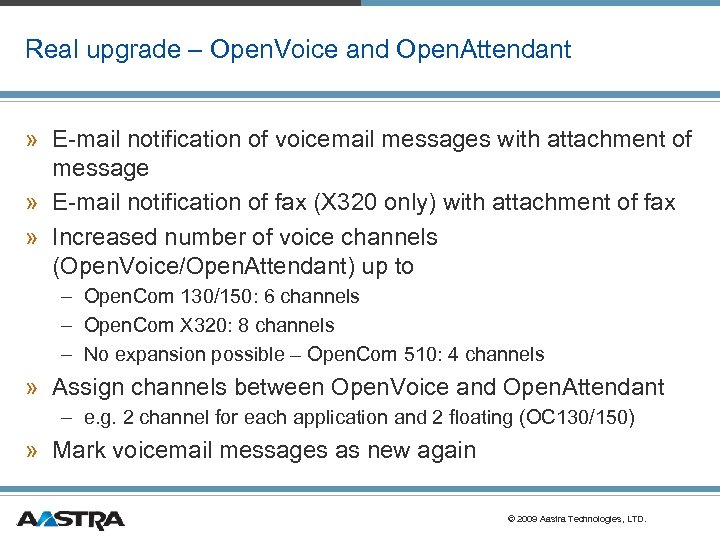

Real upgrade – Open. Voice and Open. Attendant » E-mail notification of voicemail messages with attachment of message » E-mail notification of fax (X 320 only) with attachment of fax » Increased number of voice channels (Open. Voice/Open. Attendant) up to – Open. Com 130/150: 6 channels – Open. Com X 320: 8 channels – No expansion possible – Open. Com 510: 4 channels » Assign channels between Open. Voice and Open. Attendant – e. g. 2 channel for each application and 2 floating (OC 130/150) » Mark voicemail messages as new again © 2009 Aastra Technologies, LTD.

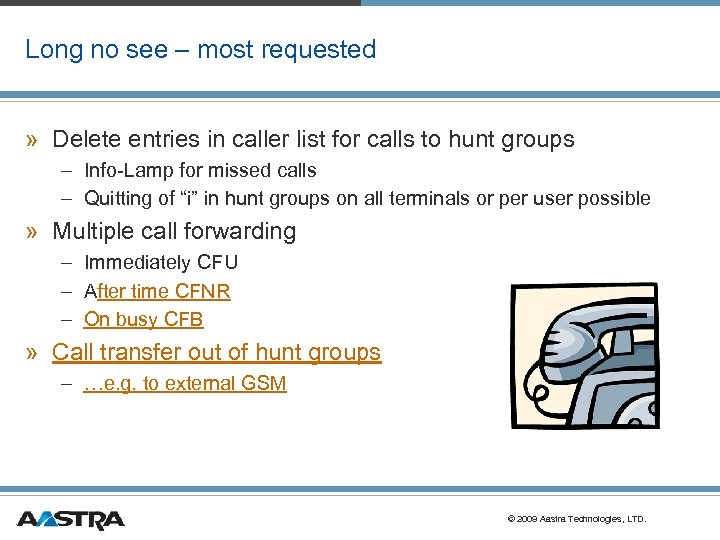

Long no see – most requested » Delete entries in caller list for calls to hunt groups – Info-Lamp for missed calls – Quitting of “i” in hunt groups on all terminals or per user possible » Multiple call forwarding – Immediately CFU – After time CFNR – On busy CFB » Call transfer out of hunt groups – …e. g. to external GSM © 2009 Aastra Technologies, LTD.

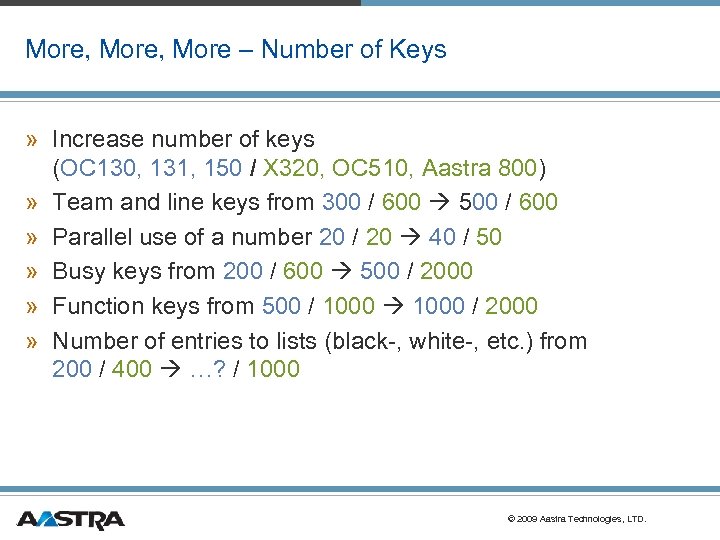

More, More – Number of Keys » Increase number of keys (OC 130, 131, 150 / X 320, OC 510, Aastra 800) » Team and line keys from 300 / 600 500 / 600 » Parallel use of a number 20 / 20 40 / 50 » Busy keys from 200 / 600 500 / 2000 » Function keys from 500 / 1000 / 2000 » Number of entries to lists (black-, white-, etc. ) from 200 / 400 …? / 1000 © 2009 Aastra Technologies, LTD.

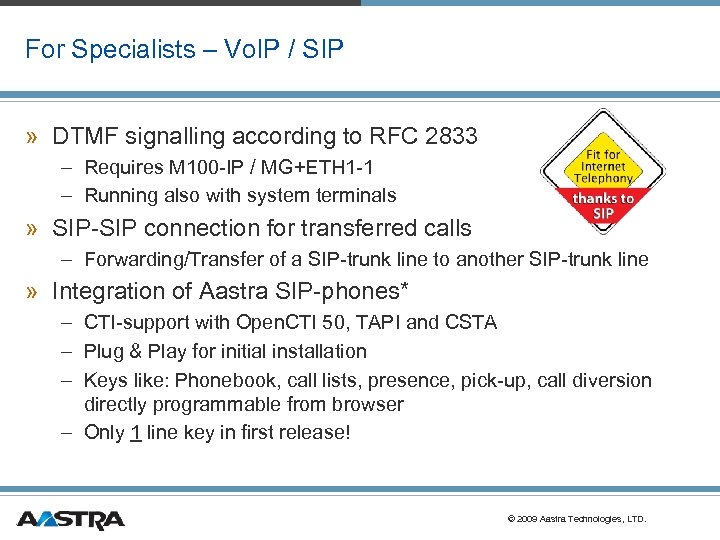

For Specialists – Vo. IP / SIP » DTMF signalling according to RFC 2833 – Requires M 100 -IP / MG+ETH 1 -1 – Running also with system terminals » SIP-SIP connection for transferred calls – Forwarding/Transfer of a SIP-trunk line to another SIP-trunk line » Integration of Aastra SIP-phones* – CTI-support with Open. CTI 50, TAPI and CSTA – Plug & Play for initial installation – Keys like: Phonebook, call lists, presence, pick-up, call diversion directly programmable from browser – Only 1 line key in first release! © 2009 Aastra Technologies, LTD.

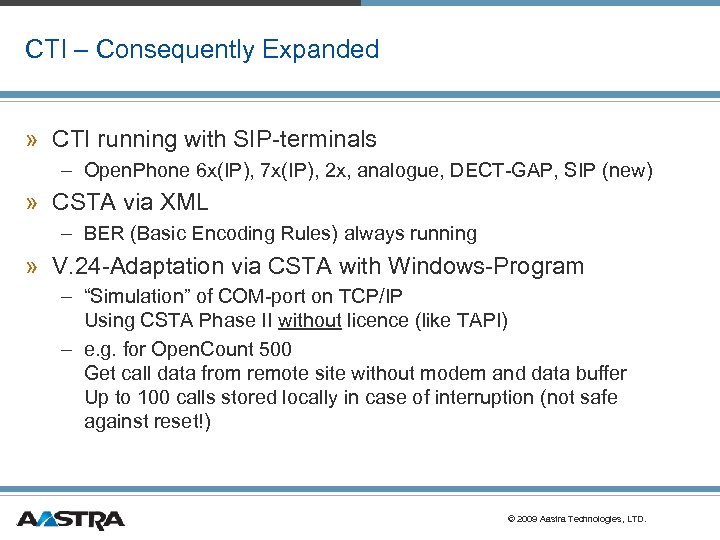

CTI – Consequently Expanded » CTI running with SIP-terminals – Open. Phone 6 x(IP), 7 x(IP), 2 x, analogue, DECT-GAP, SIP (new) » CSTA via XML – BER (Basic Encoding Rules) always running » V. 24 -Adaptation via CSTA with Windows-Program – “Simulation” of COM-port on TCP/IP Using CSTA Phase II without licence (like TAPI) – e. g. for Open. Count 500 Get call data from remote site without modem and data buffer Up to 100 calls stored locally in case of interruption (not safe against reset!) © 2009 Aastra Technologies, LTD.

NGN Preparation » NGN-Support – G. 726 (Little-Endian) compressing codec – DTMF according to RFC 2833 » Service – Remote-service via internet …because there is no more switched line like ISDN © 2009 Aastra Technologies, LTD.
