A Remote Sensing Model Estimating Water Body Evaporation Junming Wang, Ted Sammis, Vince Gutschick Department of Plant and Environmental Sciences New Mexico State University 2008 International Workshop on Earth Observation and Remote Sensing Applications June 30 - July 2, Beijing, China

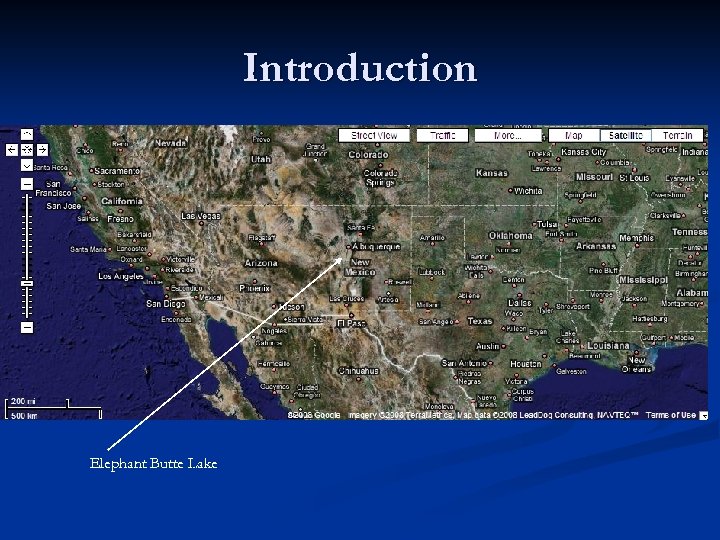

Introduction Elephant Butte Lake
Introduction Figure 1. Map of Elephant Butte Reservoir and Las Cruces area, NM, USA. From maps. google. com

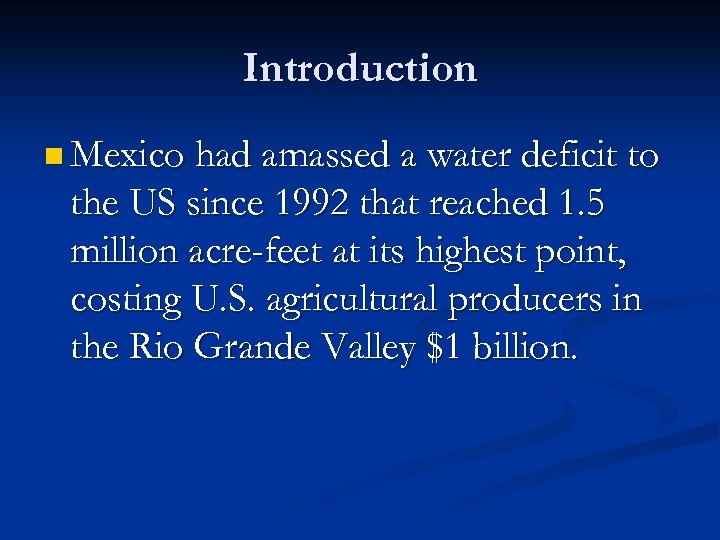

Introduction n Mexico had amassed a water deficit to the US since 1992 that reached 1. 5 million acre-feet at its highest point, costing U. S. agricultural producers in the Rio Grande Valley $1 billion.

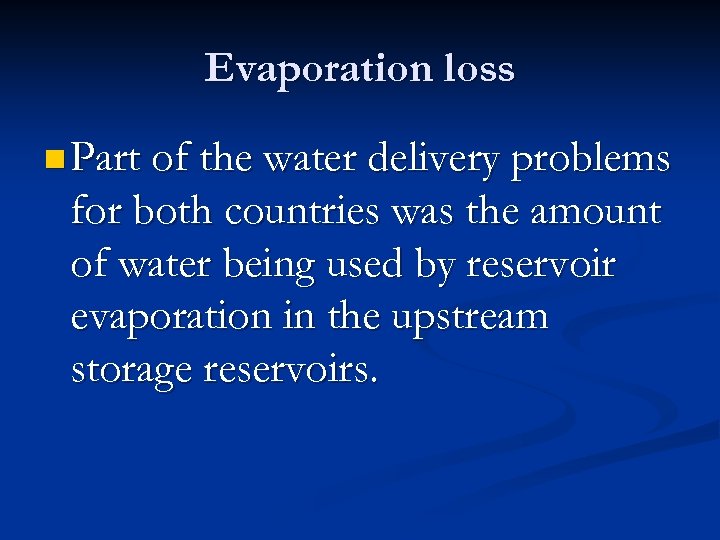

Evaporation loss n Part of the water delivery problems for both countries was the amount of water being used by reservoir evaporation in the upstream storage reservoirs.

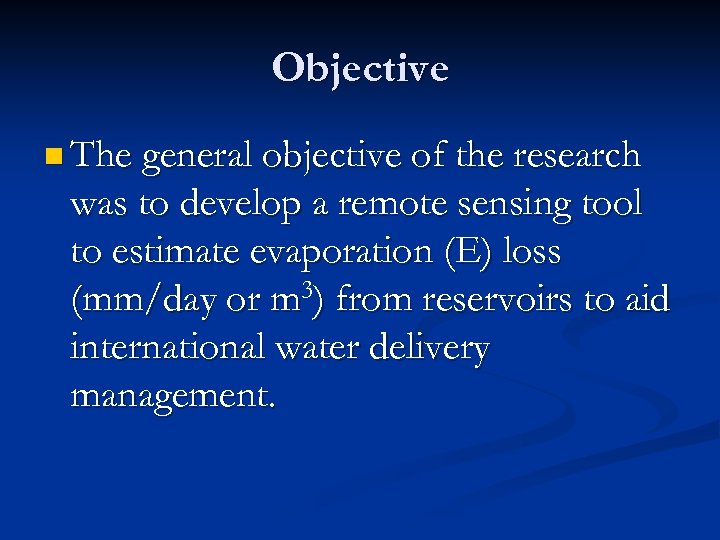

Objective n The general objective of the research was to develop a remote sensing tool to estimate evaporation (E) loss (mm/day or m 3) from reservoirs to aid international water delivery management.

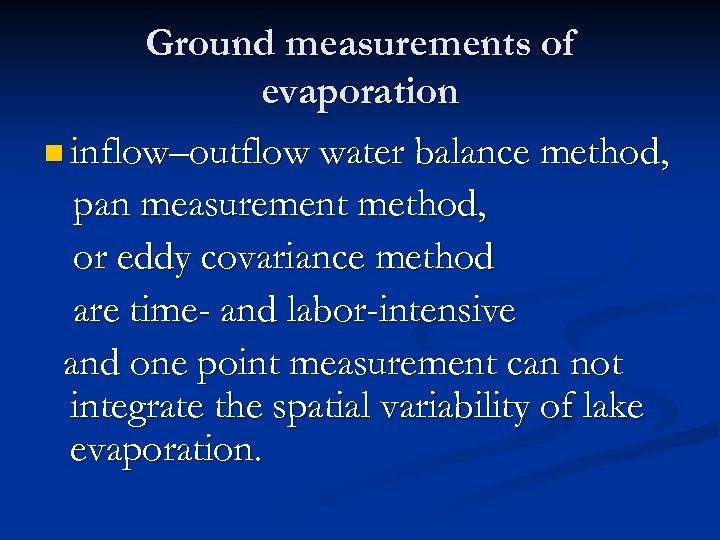

Ground measurements of evaporation n inflow–outflow water balance method, pan measurement method, or eddy covariance method are time- and labor-intensive and one point measurement can not integrate the spatial variability of lake evaporation.

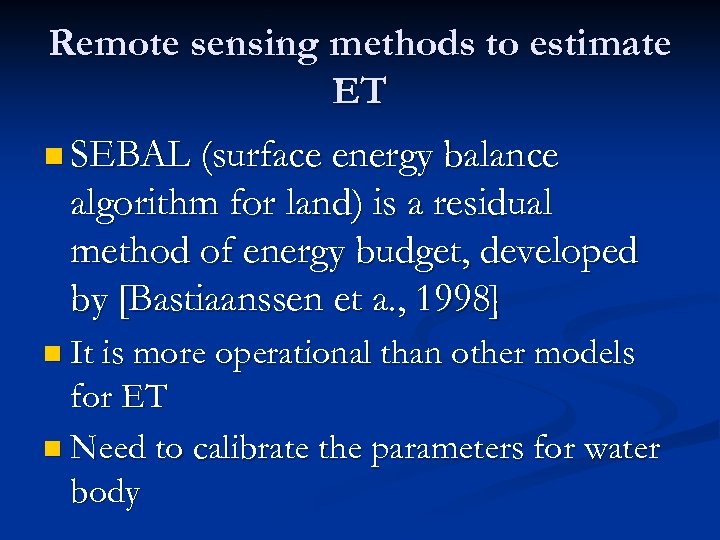

Remote sensing methods to estimate ET n SEBAL (surface energy balance algorithm for land) is a residual method of energy budget, developed by [Bastiaanssen et a. , 1998] n It is more operational than other models for ET n Need to calibrate the parameters for water body

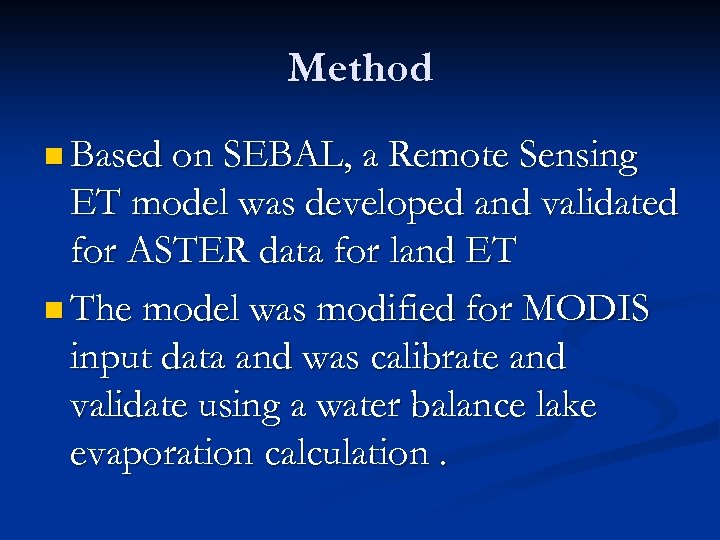

Method n Based on SEBAL, a Remote Sensing ET model was developed and validated for ASTER data for land ET n The model was modified for MODIS input data and was calibrate and validate using a water balance lake evaporation calculation.

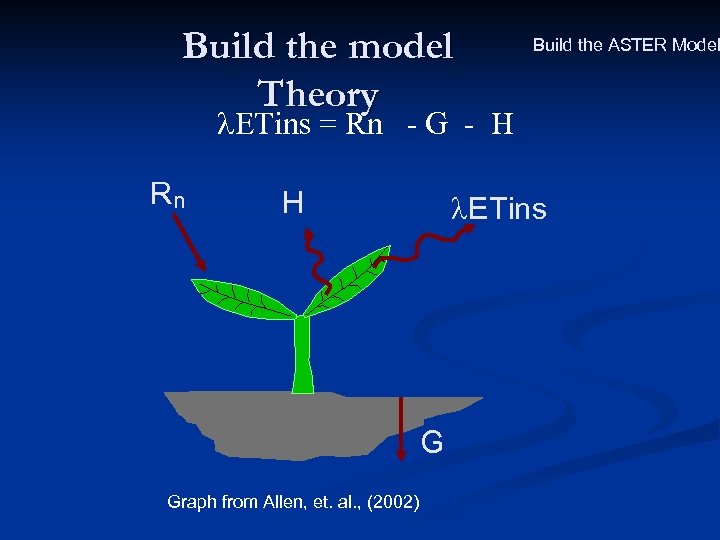

Build the model Theory Build the ASTER Model ETins = Rn - G - H Rn H ETins G Graph from Allen, et. al. , (2002)

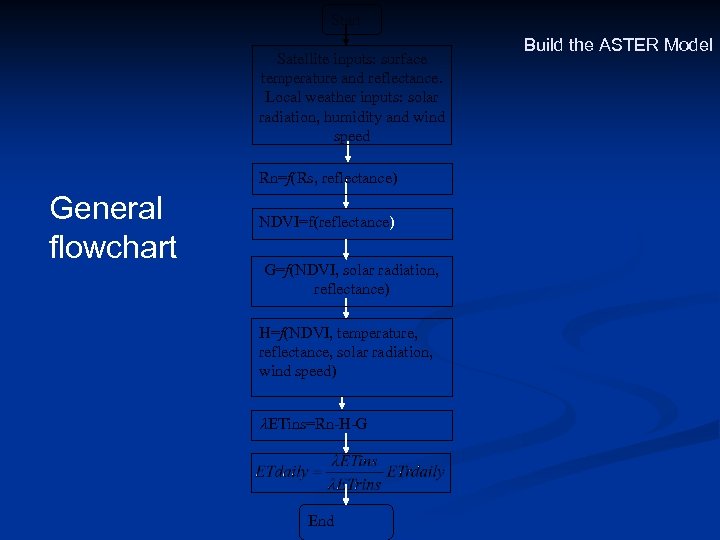

Start Satellite inputs: surface temperature and reflectance. Local weather inputs: solar radiation, humidity and wind speed Rn=f(Rs, reflectance) General flowchart NDVI=f(reflectance) G=f(NDVI, solar radiation, reflectance) H=f(NDVI, temperature, reflectance, solar radiation, wind speed) ETins=Rn-H-G End Build the ASTER Model

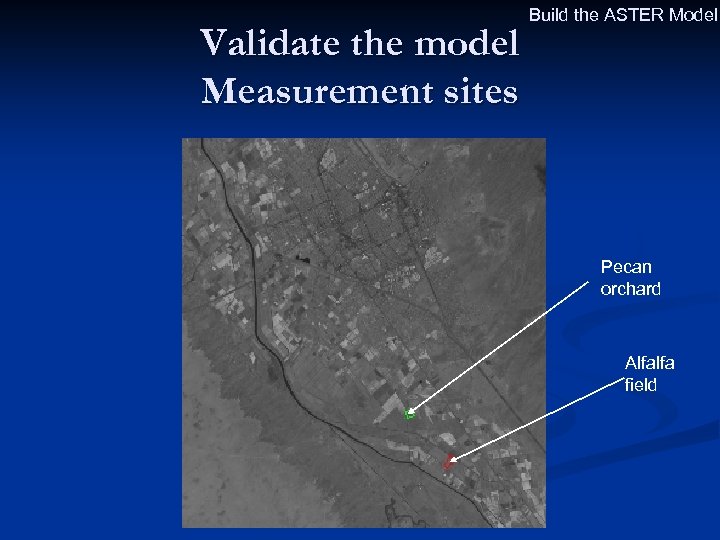

Validate the model Measurement sites Build the ASTER Model Pecan orchard Alfalfa field

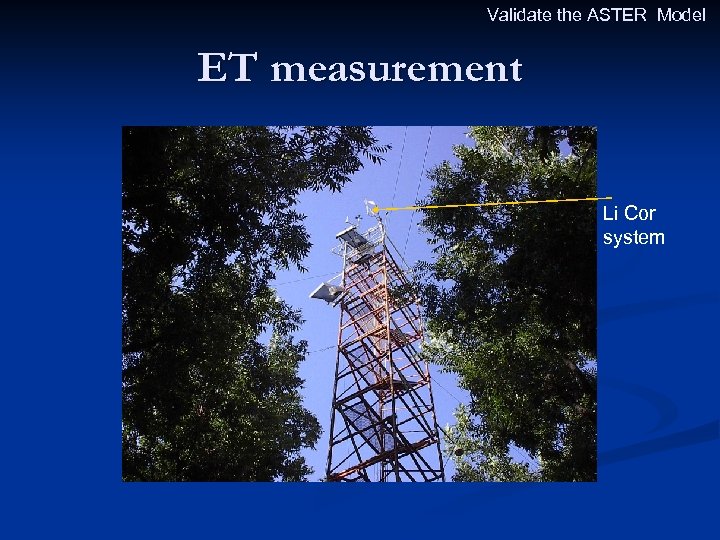

Validate the ASTER Model ET measurement Li Cor system

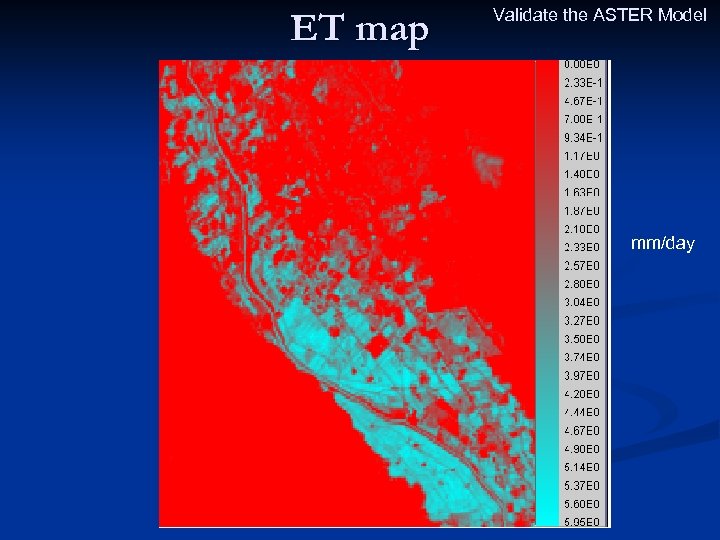

ET map Validate the ASTER Model mm/day

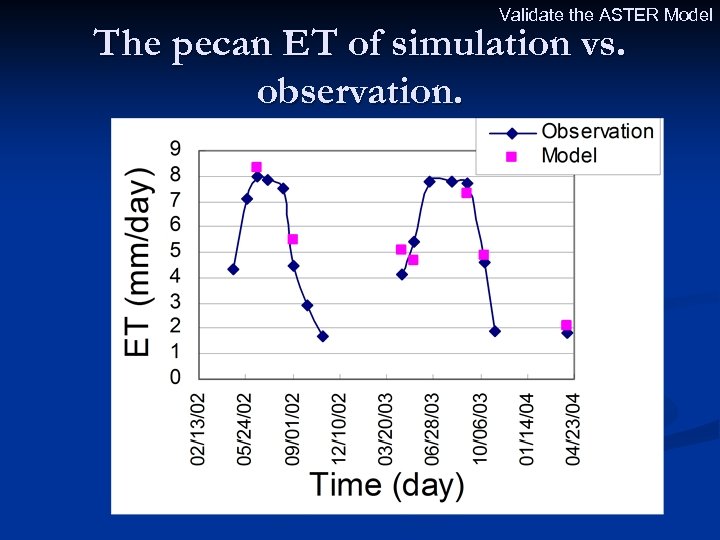

Validate the ASTER Model The pecan ET of simulation vs. observation.

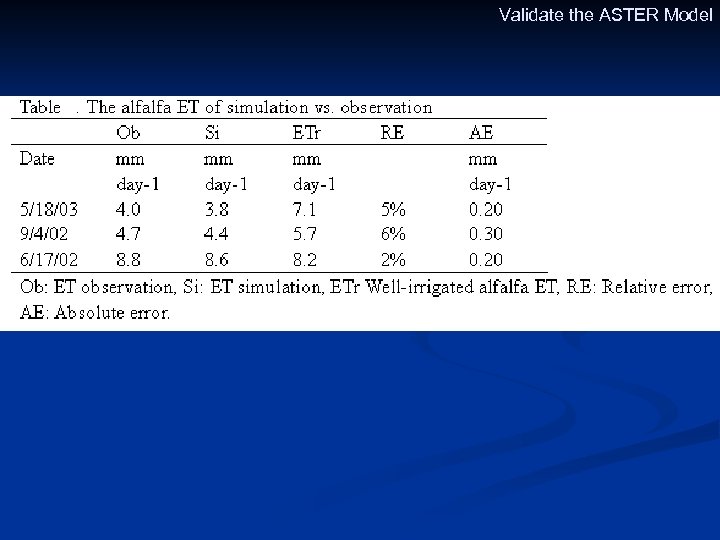

Validate the ASTER Model

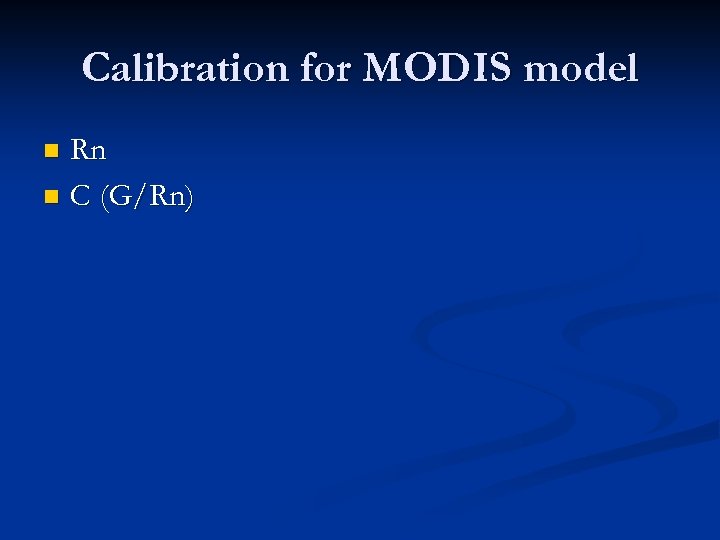

Calibration for MODIS model Rn n C (G/Rn) n

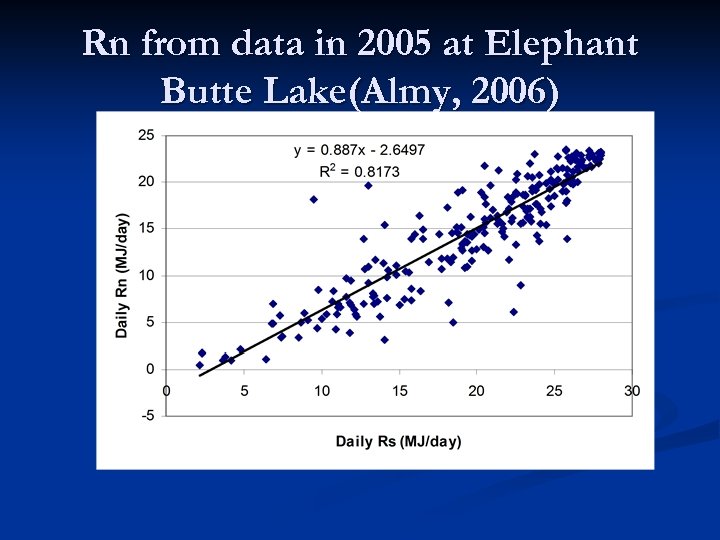

Rn from data in 2005 at Elephant Butte Lake(Almy, 2006)

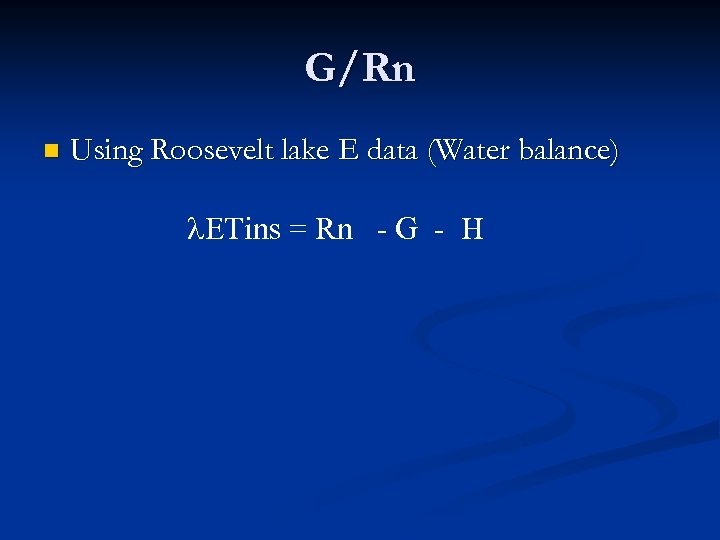

G/Rn n Using Roosevelt lake E data (Water balance) ETins = Rn - G - H

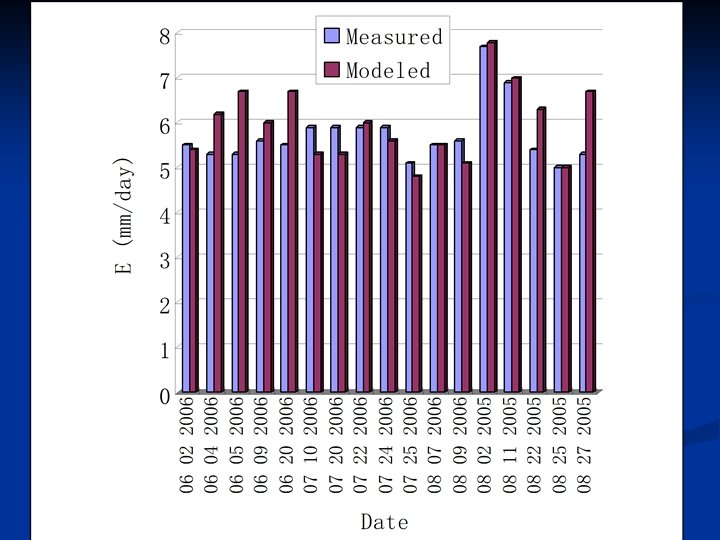

mm

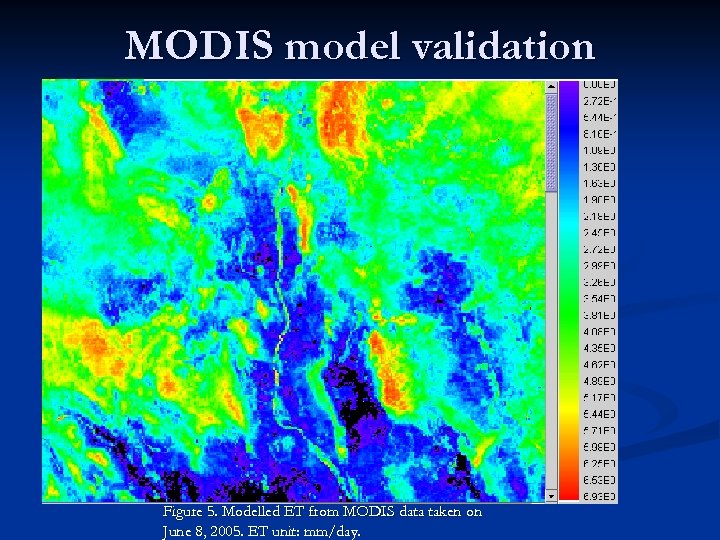

MODIS model validation Figure 5. Modelled ET from MODIS data taken on June 8, 2005. ET unit: mm/day.

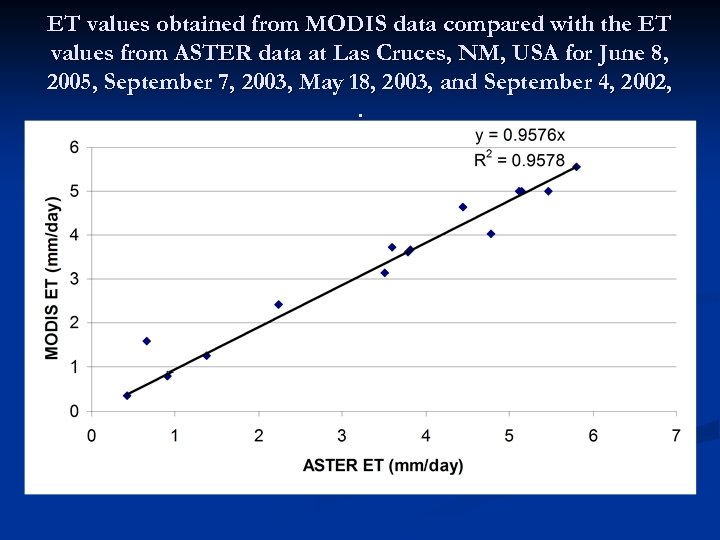

ET values obtained from MODIS data compared with the ET values from ASTER data at Las Cruces, NM, USA for June 8, 2005, September 7, 2003, May 18, 2003, and September 4, 2002, .
Conclusions For the summer time E estimate, the accuracy is within 1. 5 mm/day. The evapotranspiration accuracy is about 85%. n The model is capable for aiding international water delivery management. n The average evaporation of Elephant Butte Reservoir in summer time was 5. 6 mm/day. n

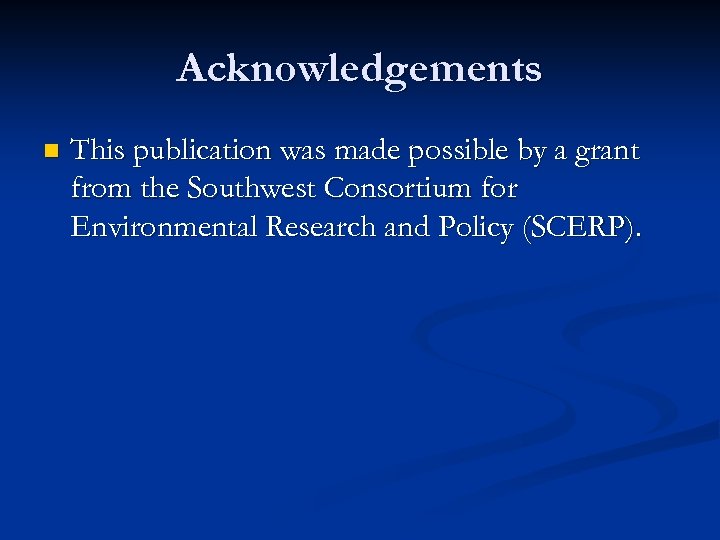

Acknowledgements n This publication was made possible by a grant from the Southwest Consortium for Environmental Research and Policy (SCERP).
