A Presentation on Business Intelligence June 10 th 2003 by Paul Balacky & Richard Fayers

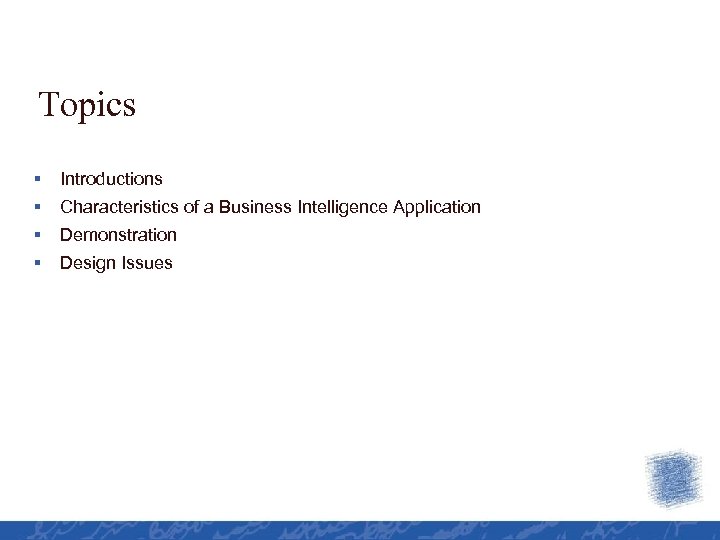

Topics § Introductions § Characteristics of a Business Intelligence Application § Demonstration § Design Issues
Introductions – Thorogood Associates Ltd § Established 1987 as Independent Business Intelligence Specialists § 45 people § We are located in London, High Wycombe, Manchester and Princeton USA § Microsoft Gold Certified Partner for Business Intelligence § 15 years experience in the application of Business Intelligence/OLAP technologies § We partner with key players in the market www. thorogood. com

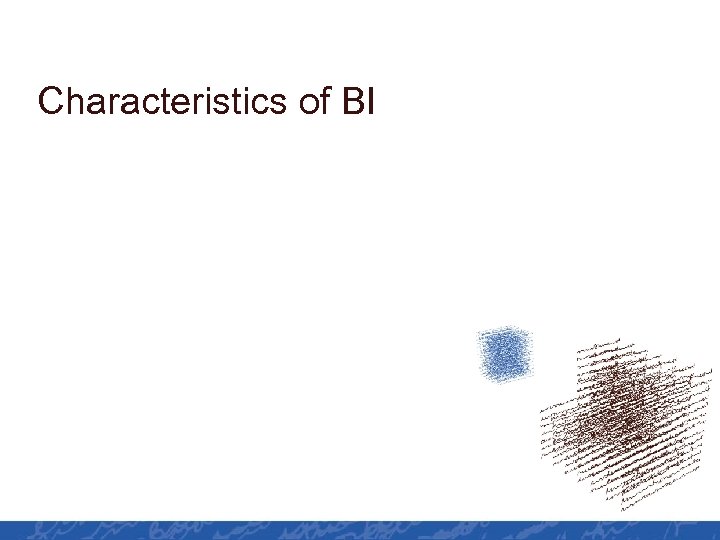

Characteristics of BI
Business Intelligence § The term Business Intelligence (BI) is relatively new but the it is synonymous with a range of applications that have been around for years; – Decision support systems – Executive Information Systems – On-line Analytical Processing (E. F Codd early 90’s) or multidimensional modelling § It is the conversion of data into information in such a way that the business is able to analyse the information to gain insight and take action
The BI Cycle Source: Business Intelligence, Elizabeth Vitt
BI Questions § What happened? – What were our total sales this month? § What’s happening? – § Are our sales going up or down, trend analysis Why? – Why have sales gone down? § What will happen? – Forecasting & What If Analysis § What do I want to happen? – Planning & Targets Source: Bill Baker, Microsoft

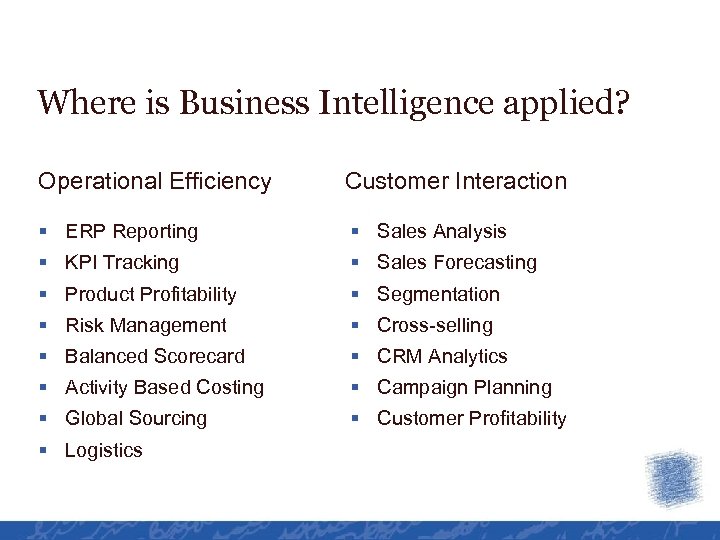

Where is Business Intelligence applied? Operational Efficiency Customer Interaction § ERP Reporting § Sales Analysis § KPI Tracking § Sales Forecasting § Product Profitability § Segmentation § Risk Management § Cross-selling § Balanced Scorecard § CRM Analytics § Activity Based Costing § Campaign Planning § Global Sourcing § Customer Profitability § Logistics

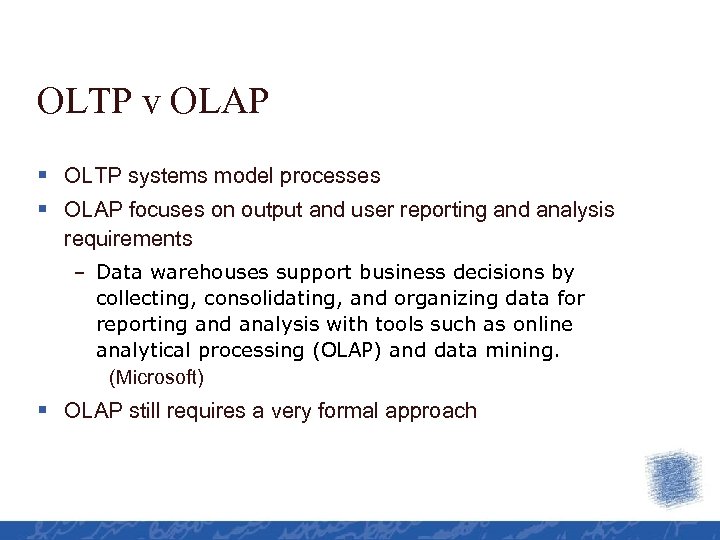

OLTP v OLAP § OLTP systems model processes § OLAP focuses on output and user reporting and analysis requirements – Data warehouses support business decisions by collecting, consolidating, and organizing data for reporting and analysis with tools such as online analytical processing (OLAP) and data mining. (Microsoft) § OLAP still requires a very formal approach

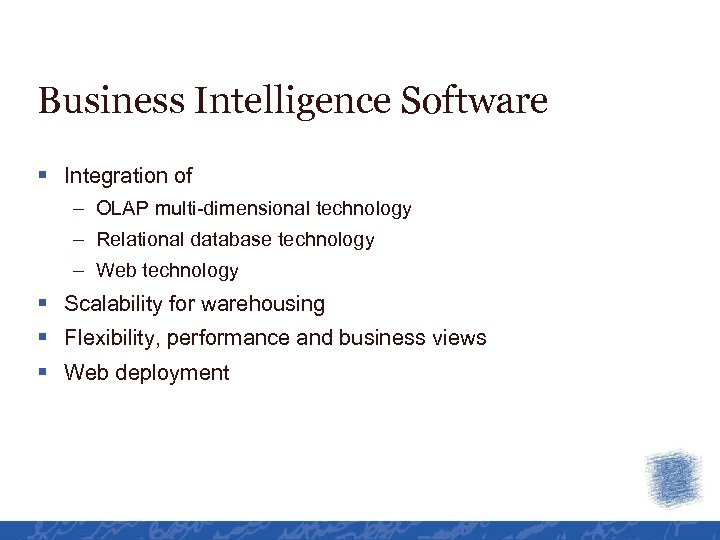

Business Intelligence Software § Integration of – OLAP multi-dimensional technology – Relational database technology – Web technology § Scalability for warehousing § Flexibility, performance and business views § Web deployment

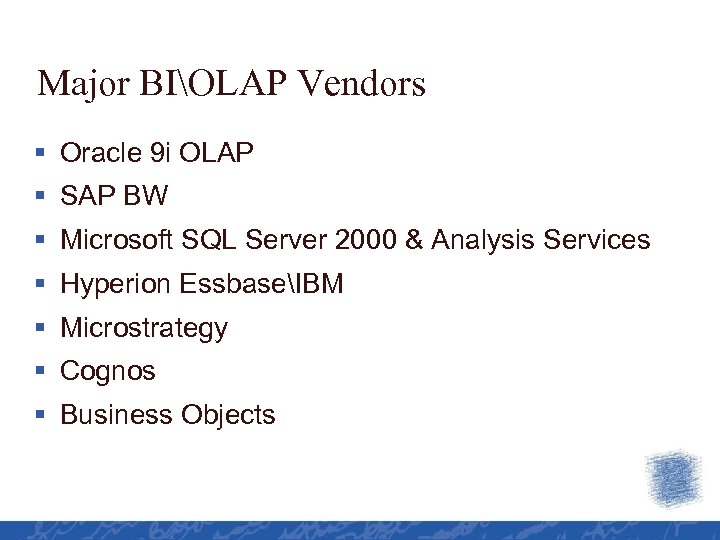

Major BIOLAP Vendors § Oracle 9 i OLAP § SAP BW § Microsoft SQL Server 2000 & Analysis Services § Hyperion EssbaseIBM § Microstrategy § Cognos § Business Objects

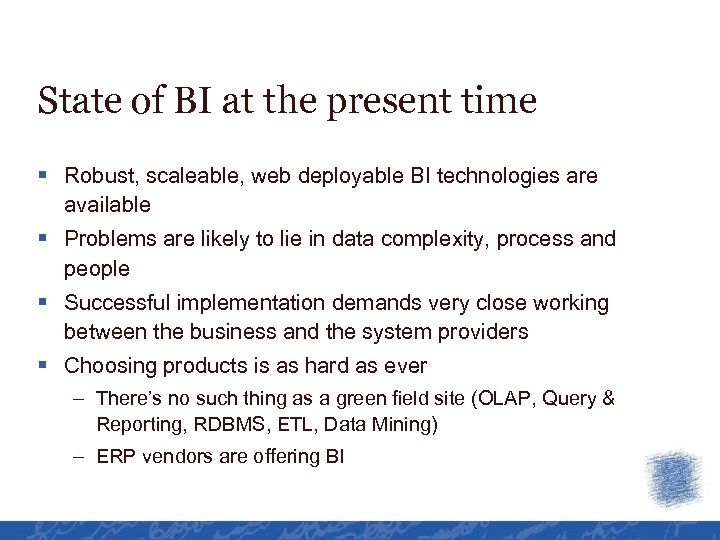

State of BI at the present time § Robust, scaleable, web deployable BI technologies are available § Problems are likely to lie in data complexity, process and people § Successful implementation demands very close working between the business and the system providers § Choosing products is as hard as ever – There’s no such thing as a green field site (OLAP, Query & Reporting, RDBMS, ETL, Data Mining) – ERP vendors are offering BI

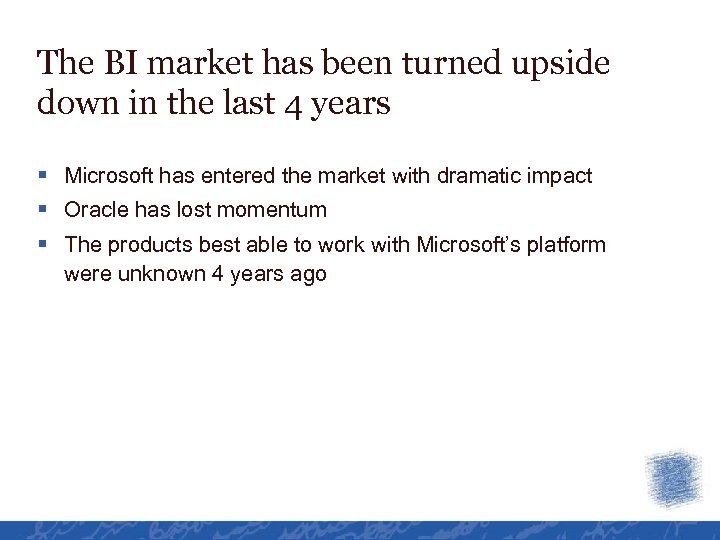

The BI market has been turned upside down in the last 4 years § Microsoft has entered the market with dramatic impact § Oracle has lost momentum § The products best able to work with Microsoft’s platform were unknown 4 years ago

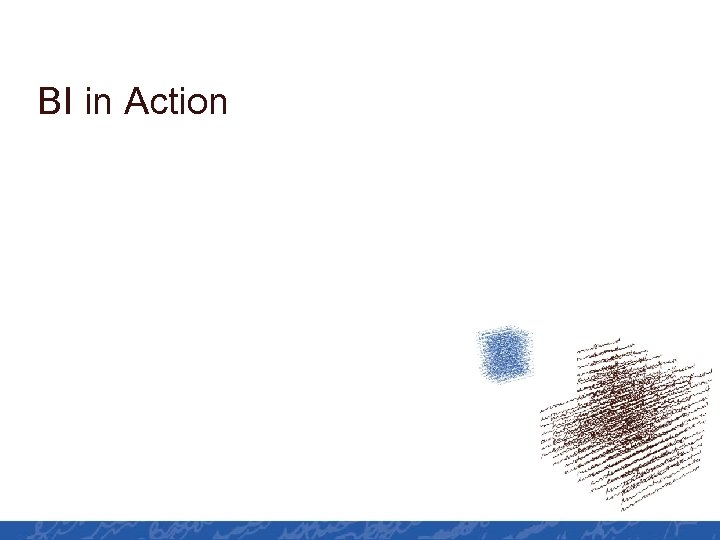

BI in Action

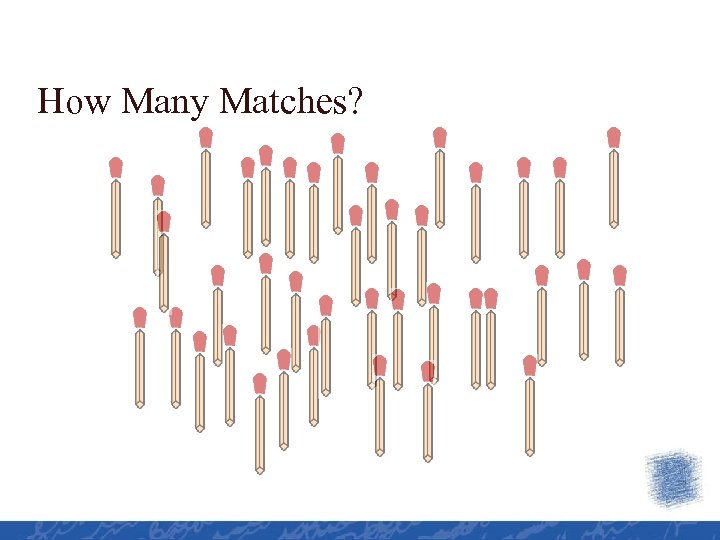

How Many Matches?

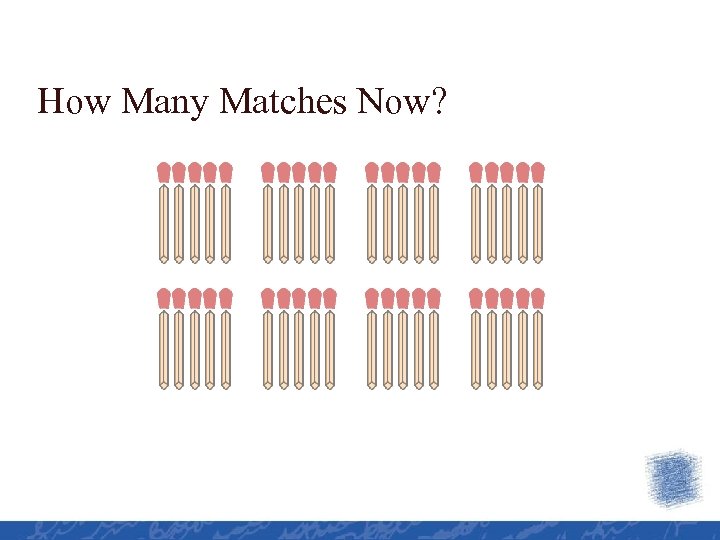

How Many Matches Now?

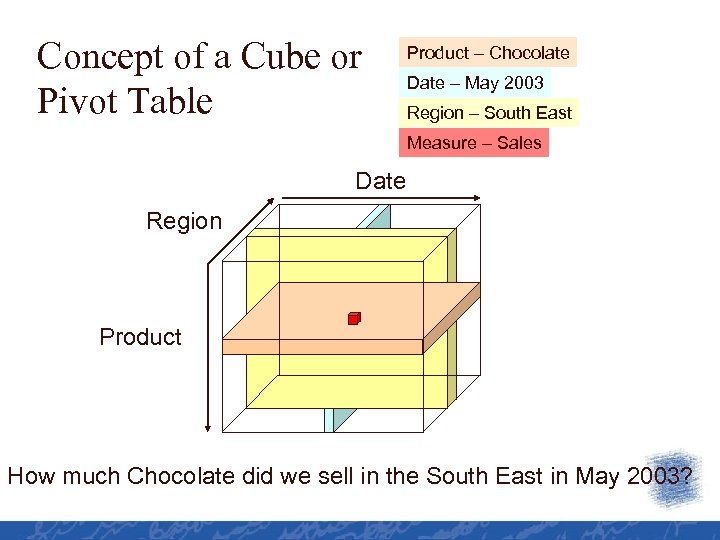

Concept of a Cube or Pivot Table Product – Chocolate Date – May 2003 Region – South East Measure – Sales Date Region Product How much Chocolate did we sell in the South East in May 2003?
Front-End Tools Client Server Web SQL Web MDX SQL Server 2000 Relational Database Analysis Services DTS Text Excel Informix Access Sybase SQL Server Oracle
Design Considerations

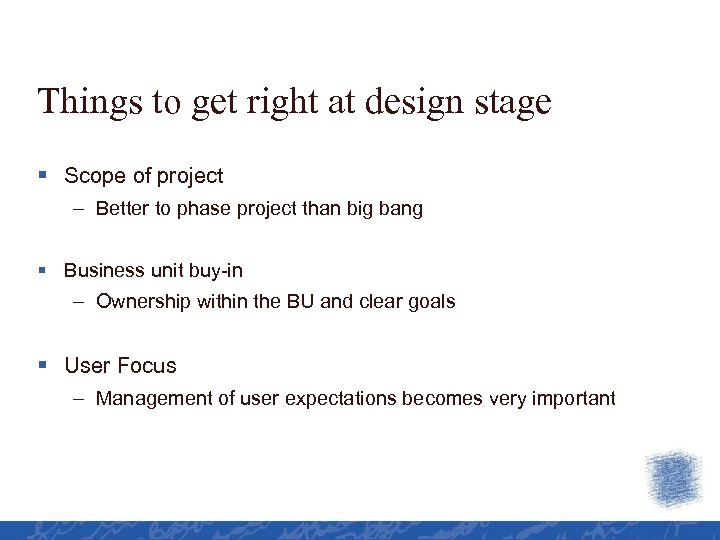

Things to get right at design stage § Scope of project – Better to phase project than big bang § Business unit buy-in – Ownership within the BU and clear goals § User Focus – Management of user expectations becomes very important

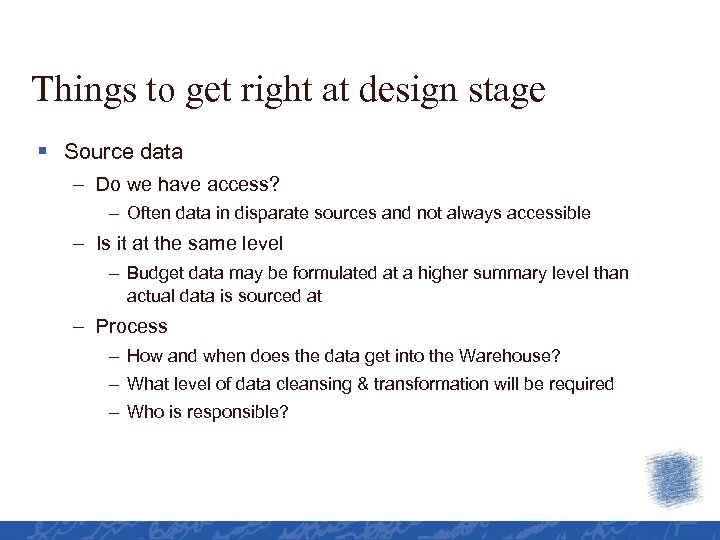

Things to get right at design stage § Source data – Do we have access? – Often data in disparate sources and not always accessible – Is it at the same level – Budget data may be formulated at a higher summary level than actual data is sourced at – Process – How and when does the data get into the Warehouse? – What level of data cleansing & transformation will be required – Who is responsible?
Things to get right at design stage § Source data – Are we able to match outputs to inputs – Merging and matching of data sources – Requirement for company wide data standards and definitions – Are there common keys? – Hierarchy movements over time – the need to restate or retain historic view? – Timeliness of data – Data volumes – Handling of missing values and relationships

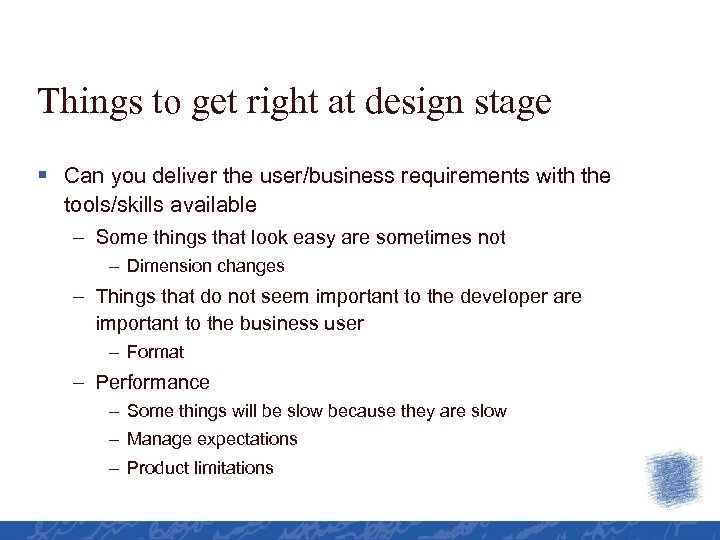

Things to get right at design stage § Can you deliver the user/business requirements with the tools/skills available – Some things that look easy are sometimes not – Dimension changes – Things that do not seem important to the developer are important to the business user – Format – Performance – Some things will be slow because they are slow – Manage expectations – Product limitations

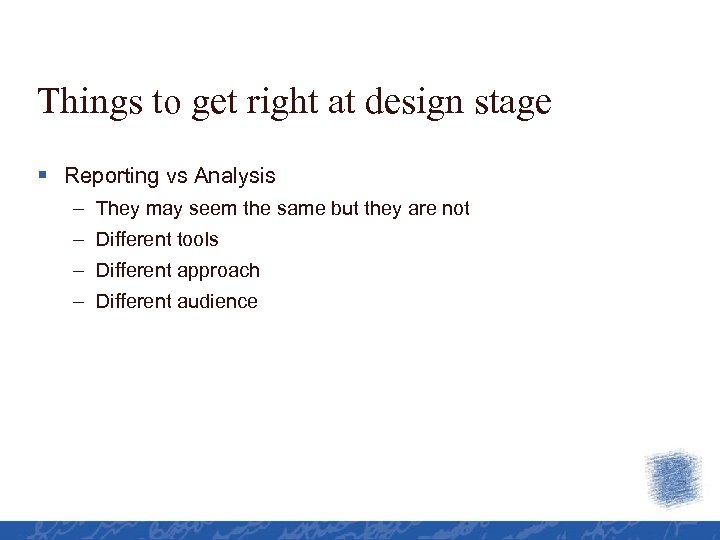

Things to get right at design stage § Reporting vs Analysis – They may seem the same but they are not – Different tools – Different approach – Different audience

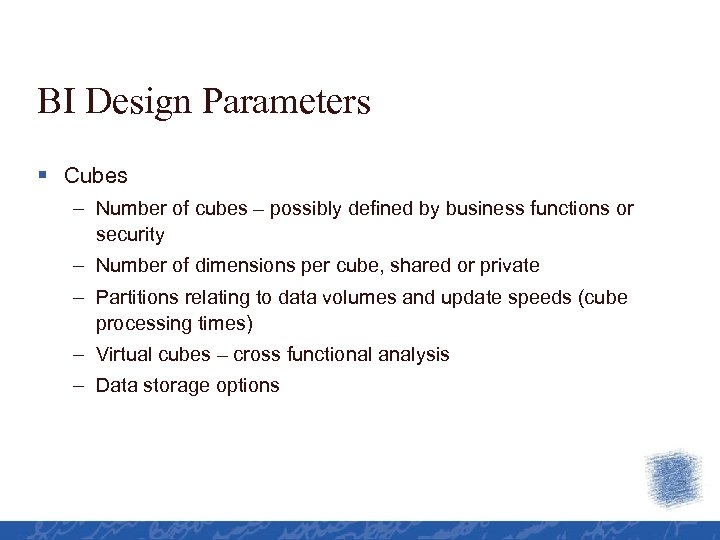

BI Design Parameters § Cubes – Number of cubes – possibly defined by business functions or security – Number of dimensions per cube, shared or private – Partitions relating to data volumes and update speeds (cube processing times) – Virtual cubes – cross functional analysis – Data storage options

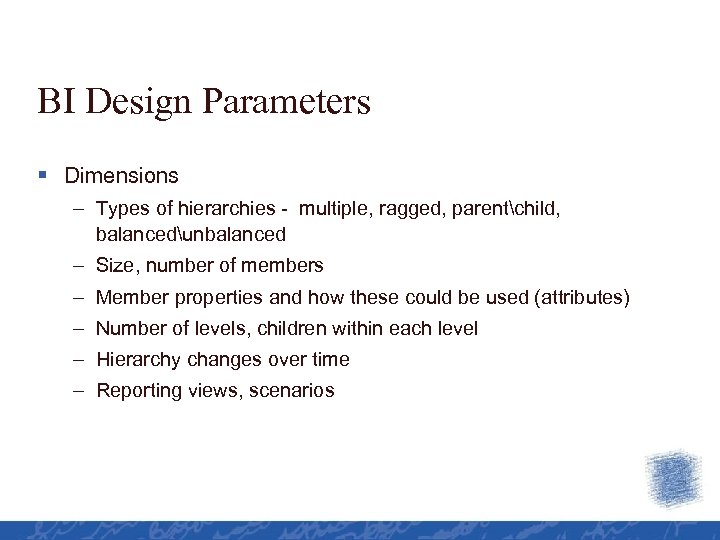

BI Design Parameters § Dimensions – Types of hierarchies - multiple, ragged, parentchild, balancedunbalanced – Size, number of members – Member properties and how these could be used (attributes) – Number of levels, children within each level – Hierarchy changes over time – Reporting views, scenarios

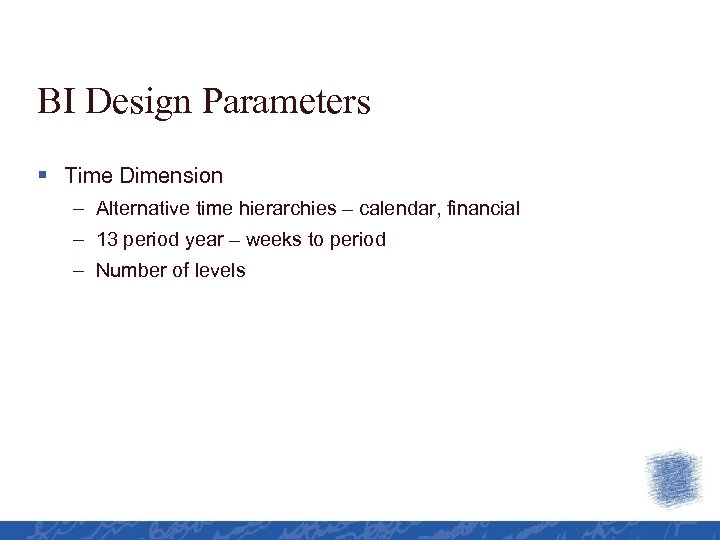

BI Design Parameters § Time Dimension – Alternative time hierarchies – calendar, financial – 13 period year – weeks to period – Number of levels

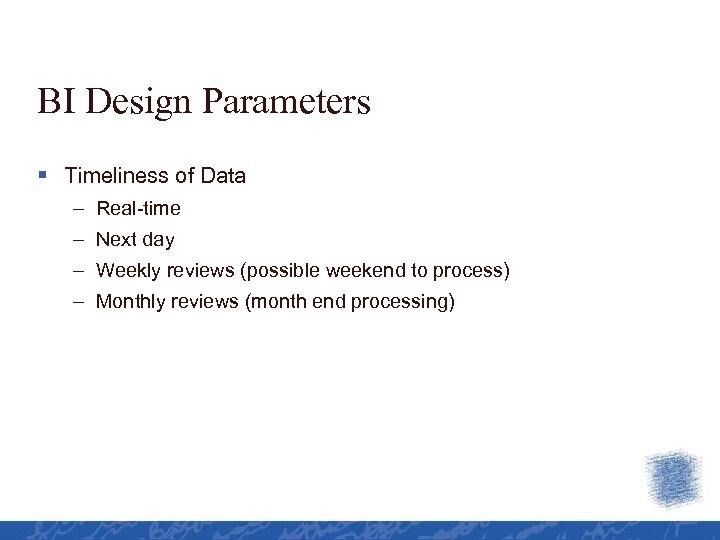

BI Design Parameters § Timeliness of Data – Real-time – Next day – Weekly reviews (possible weekend to process) – Monthly reviews (month end processing)

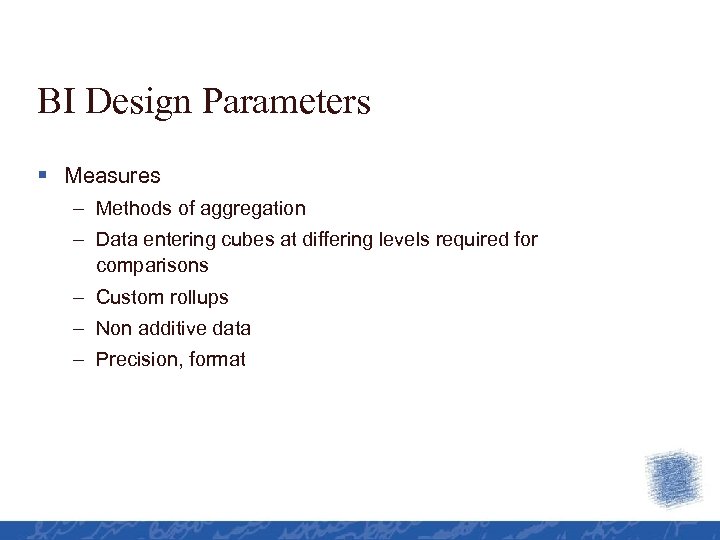

BI Design Parameters § Measures – Methods of aggregation – Data entering cubes at differing levels required for comparisons – Custom rollups – Non additive data – Precision, format

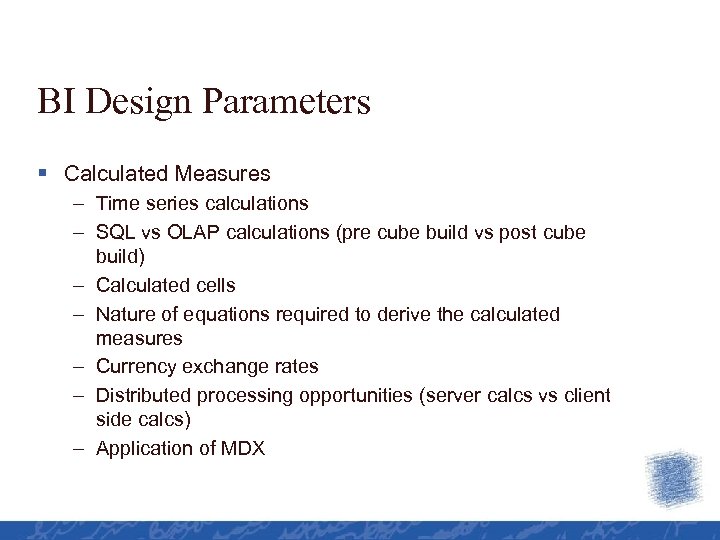

BI Design Parameters § Calculated Measures – Time series calculations – SQL vs OLAP calculations (pre cube build vs post cube build) – Calculated cells – Nature of equations required to derive the calculated measures – Currency exchange rates – Distributed processing opportunities (server calcs vs client side calcs) – Application of MDX

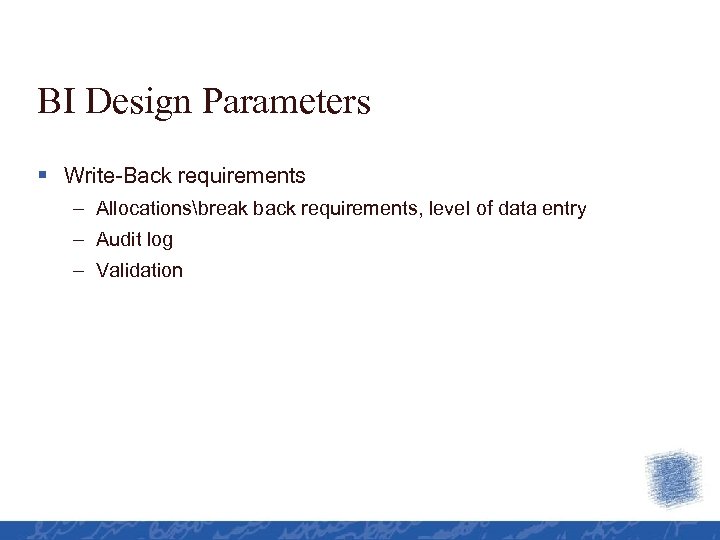

BI Design Parameters § Write-Back requirements – Allocationsbreak back requirements, level of data entry – Audit log – Validation
BI Design Parameters § Output requirements – – – – – User report definitions – format, layout, precision Types of adhoc analysis Actions Requirements for printed output Quantitative vs Qualitative data output BrowserOffice delivery OLAP database drill-through to SQL Server Number of users Report maintainability Security

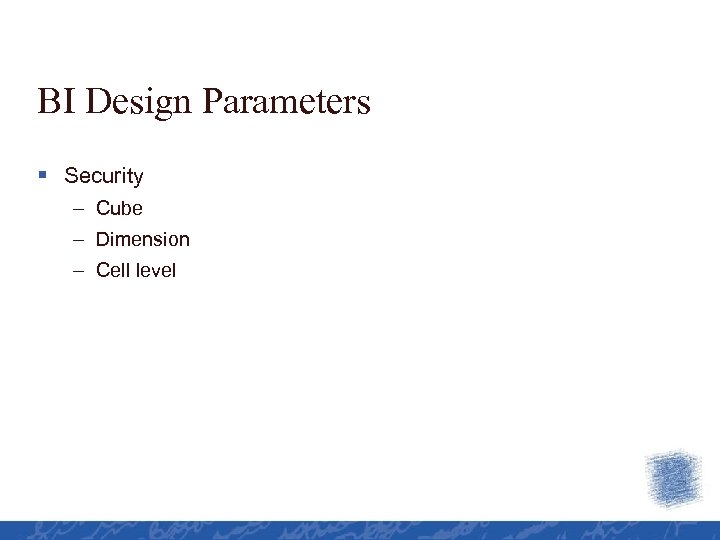

BI Design Parameters § Security – Cube – Dimension – Cell level
To consider when building BI applications. . § Users can fail to realise how much info they requested – leads to poor perceived performance § Complexity due to a large number of dimensions – users don’t understand the model/numbers § Hard to test because they are conceptually complex § Performance vs storage – consider MOLAP/HOLAP/ROLAP, on-the fly versus pre-aggregated data

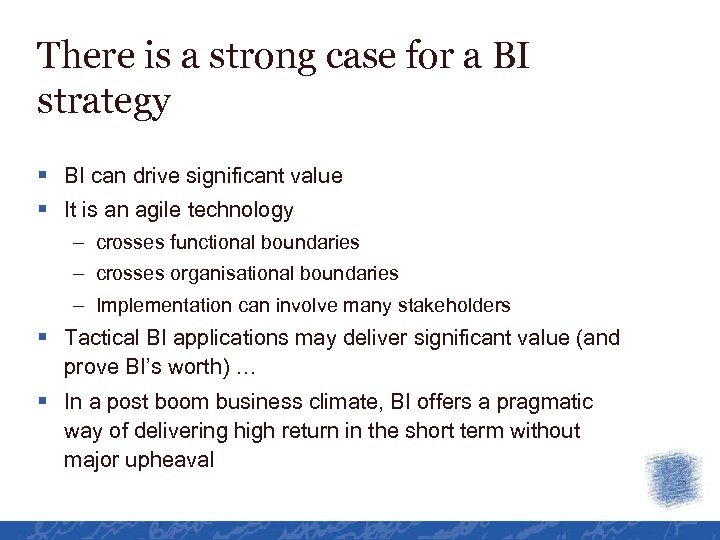

There is a strong case for a BI strategy § BI can drive significant value § It is an agile technology – crosses functional boundaries – crosses organisational boundaries – Implementation can involve many stakeholders § Tactical BI applications may deliver significant value (and prove BI’s worth) … § In a post boom business climate, BI offers a pragmatic way of delivering high return in the short term without major upheaval
