A Look at Current Malware Problems and Their Solutions Tzi-cker Chiueh

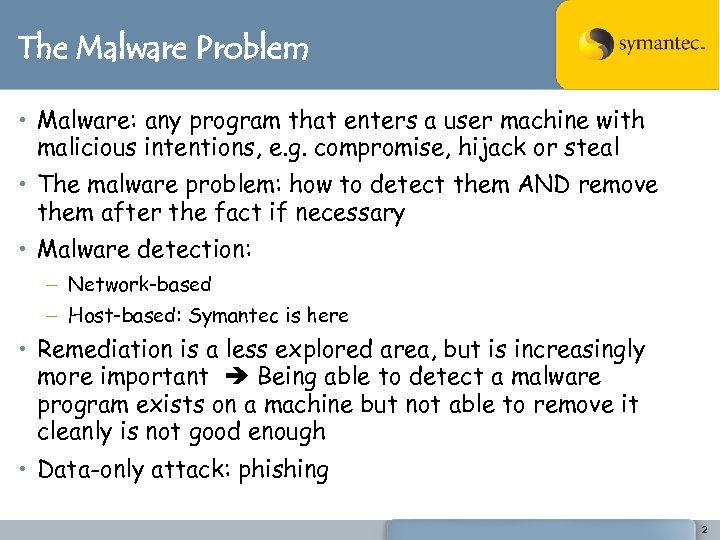

The Malware Problem • Malware: any program that enters a user machine with malicious intentions, e. g. compromise, hijack or steal • The malware problem: how to detect them AND remove them after the fact if necessary • Malware detection: – Network-based – Host-based: Symantec is here • Remediation is a less explored area, but is increasingly more important Being able to detect a malware program exists on a machine but not able to remove it cleanly is not good enough • Data-only attack: phishing 2

How do they get in? 1. Exploiting bugs in software applications, e. g. buffer overflow vulnerability 2. Entice a user to load and/or install an executable via social engineering, e. g. , “password cracking software for porn sites” 3. Embed code within legitimate data, e. g. include an IFrame in a legitimate web page that points to a malicious Javascript Bottom line: As soon as a new way of introducing code into a system is discovered, the hacker will exploit it 3

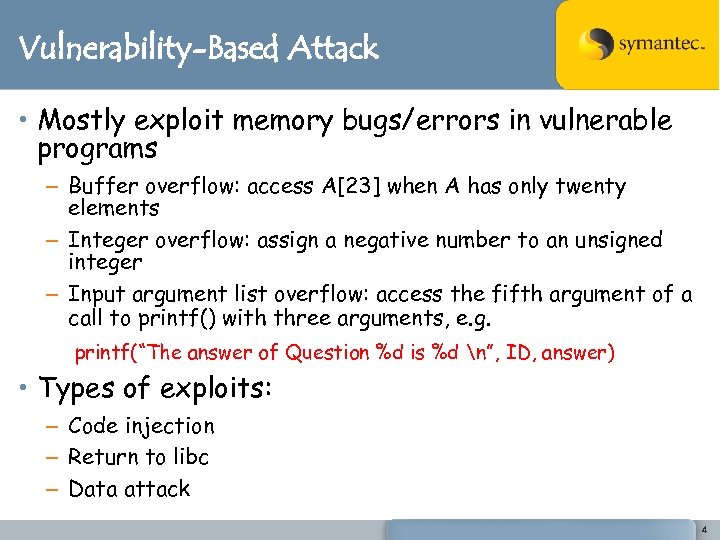

Vulnerability-Based Attack • Mostly exploit memory bugs/errors in vulnerable programs – Buffer overflow: access A[23] when A has only twenty elements – Integer overflow: assign a negative number to an unsigned integer – Input argument list overflow: access the fifth argument of a call to printf() with three arguments, e. g. printf(“The answer of Question %d is %d n”, ID, answer) • Types of exploits: – Code injection – Return to libc – Data attack 4

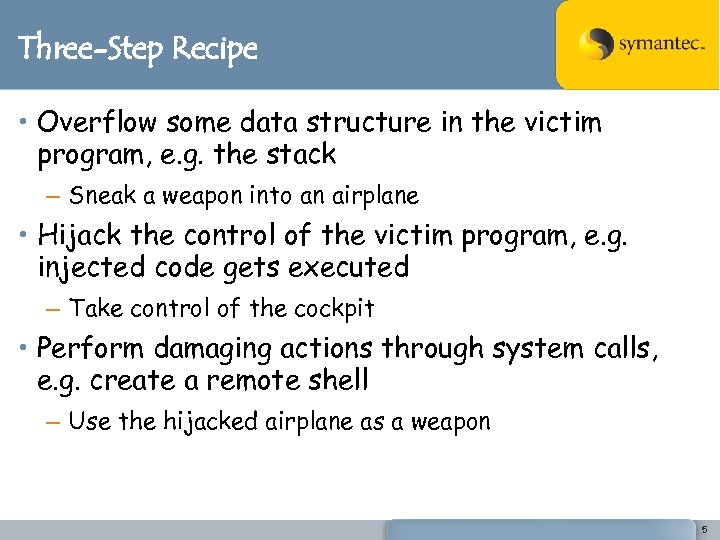

Three-Step Recipe • Overflow some data structure in the victim program, e. g. the stack – Sneak a weapon into an airplane • Hijack the control of the victim program, e. g. injected code gets executed – Take control of the cockpit • Perform damaging actions through system calls, e. g. create a remote shell – Use the hijacked airplane as a weapon 5

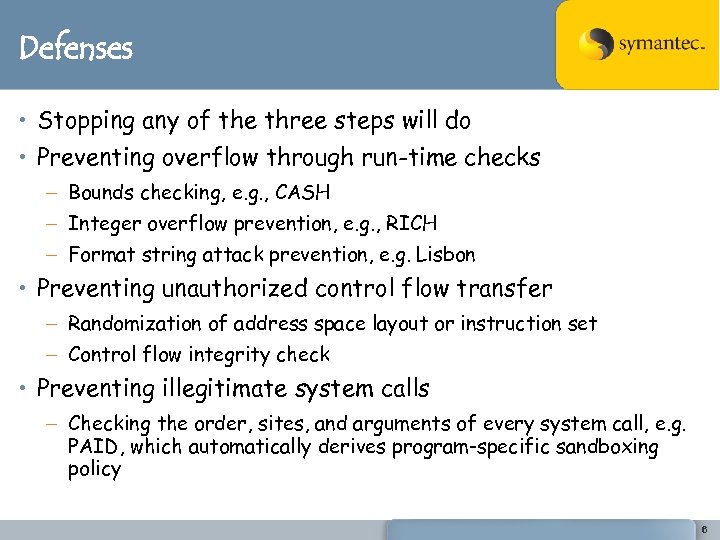

Defenses • Stopping any of the three steps will do • Preventing overflow through run-time checks – Bounds checking, e. g. , CASH – Integer overflow prevention, e. g. , RICH – Format string attack prevention, e. g. Lisbon • Preventing unauthorized control flow transfer – Randomization of address space layout or instruction set – Control flow integrity check • Preventing illegitimate system calls – Checking the order, sites, and arguments of every system call, e. g. PAID, which automatically derives program-specific sandboxing policy 6

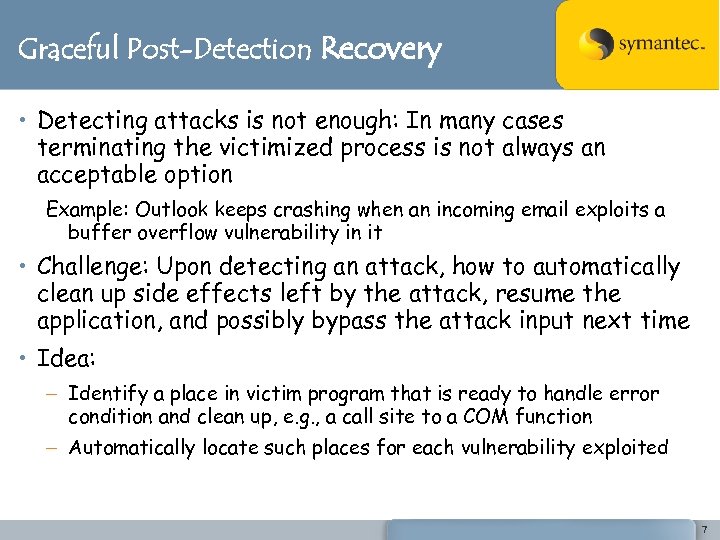

Graceful Post-Detection Recovery • Detecting attacks is not enough: In many cases terminating the victimized process is not always an acceptable option Example: Outlook keeps crashing when an incoming email exploits a buffer overflow vulnerability in it • Challenge: Upon detecting an attack, how to automatically clean up side effects left by the attack, resume the application, and possibly bypass the attack input next time • Idea: – Identify a place in victim program that is ready to handle error condition and clean up, e. g. , a call site to a COM function – Automatically locate such places for each vulnerability exploited 7

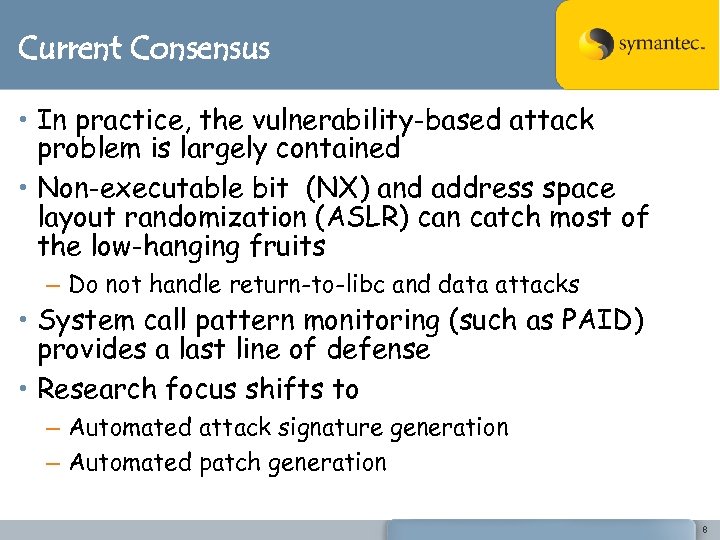

Current Consensus • In practice, the vulnerability-based attack problem is largely contained • Non-executable bit (NX) and address space layout randomization (ASLR) can catch most of the low-hanging fruits – Do not handle return-to-libc and data attacks • System call pattern monitoring (such as PAID) provides a last line of defense • Research focus shifts to – Automated attack signature generation – Automated patch generation 8

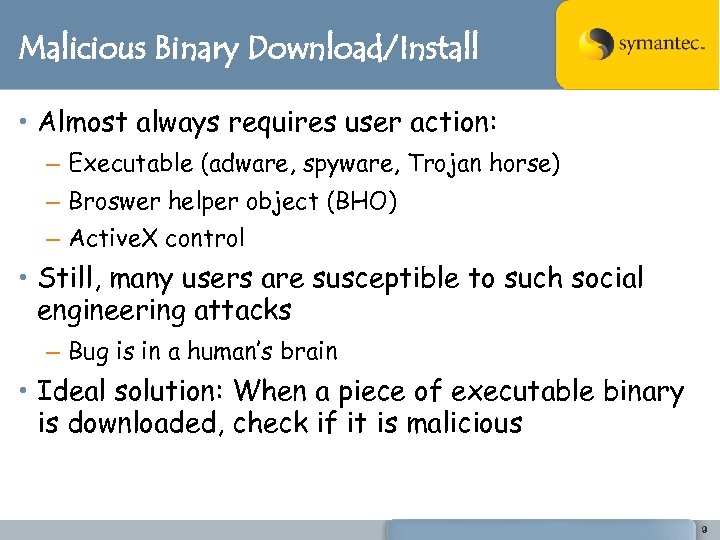

Malicious Binary Download/Install • Almost always requires user action: – Executable (adware, spyware, Trojan horse) – Broswer helper object (BHO) – Active. X control • Still, many users are susceptible to such social engineering attacks – Bug is in a human’s brain • Ideal solution: When a piece of executable binary is downloaded, check if it is malicious 9

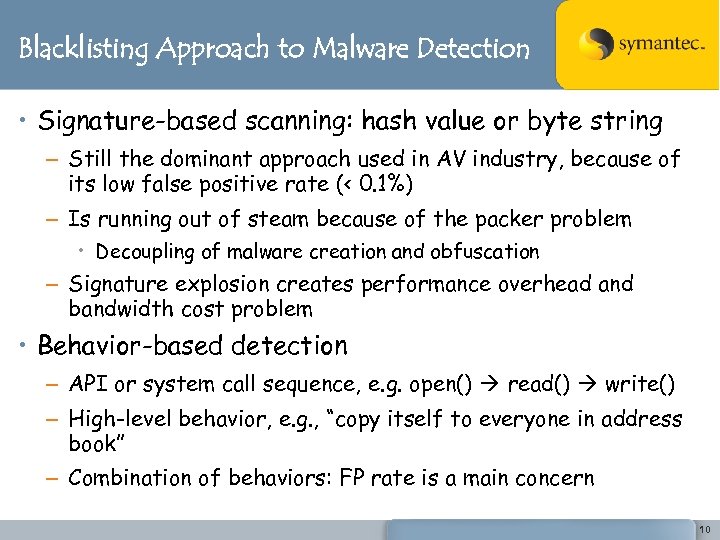

Blacklisting Approach to Malware Detection • Signature-based scanning: hash value or byte string – Still the dominant approach used in AV industry, because of its low false positive rate (< 0. 1%) – Is running out of steam because of the packer problem • Decoupling of malware creation and obfuscation – Signature explosion creates performance overhead and bandwidth cost problem • Behavior-based detection – API or system call sequence, e. g. open() read() write() – High-level behavior, e. g. , “copy itself to everyone in address book” – Combination of behaviors: FP rate is a main concern 10

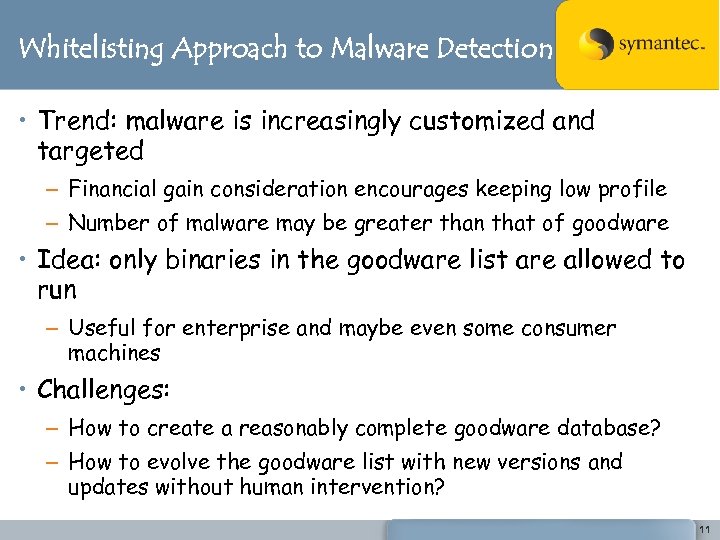

Whitelisting Approach to Malware Detection • Trend: malware is increasingly customized and targeted – Financial gain consideration encourages keeping low profile – Number of malware may be greater than that of goodware • Idea: only binaries in the goodware list are allowed to run – Useful for enterprise and maybe even some consumer machines • Challenges: – How to create a reasonably complete goodware database? – How to evolve the goodware list with new versions and updates without human intervention? 11

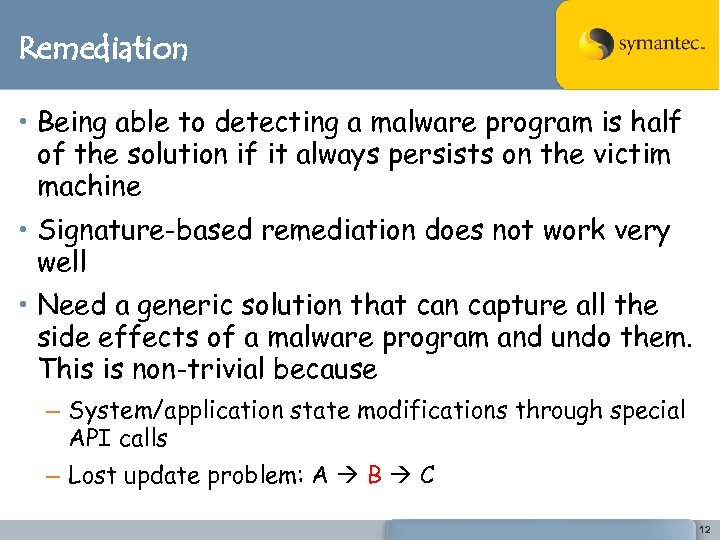

Remediation • Being able to detecting a malware program is half of the solution if it always persists on the victim machine • Signature-based remediation does not work very well • Need a generic solution that can capture all the side effects of a malware program and undo them. This is non-trivial because – System/application state modifications through special API calls – Lost update problem: A B C 12

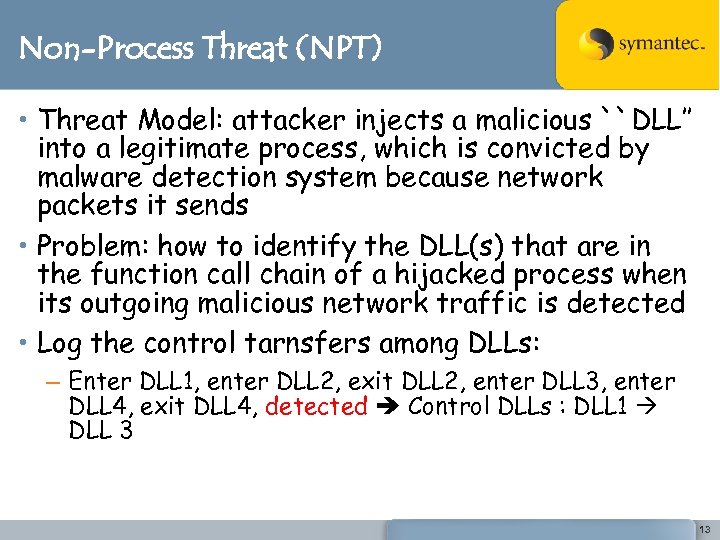

Non-Process Threat (NPT) • Threat Model: attacker injects a malicious ``DLL’’ into a legitimate process, which is convicted by malware detection system because network packets it sends • Problem: how to identify the DLL(s) that are in the function call chain of a hijacked process when its outgoing malicious network traffic is detected • Log the control tarnsfers among DLLs: – Enter DLL 1, enter DLL 2, exit DLL 2, enter DLL 3, enter DLL 4, exit DLL 4, detected Control DLLs : DLL 1 DLL 3 13

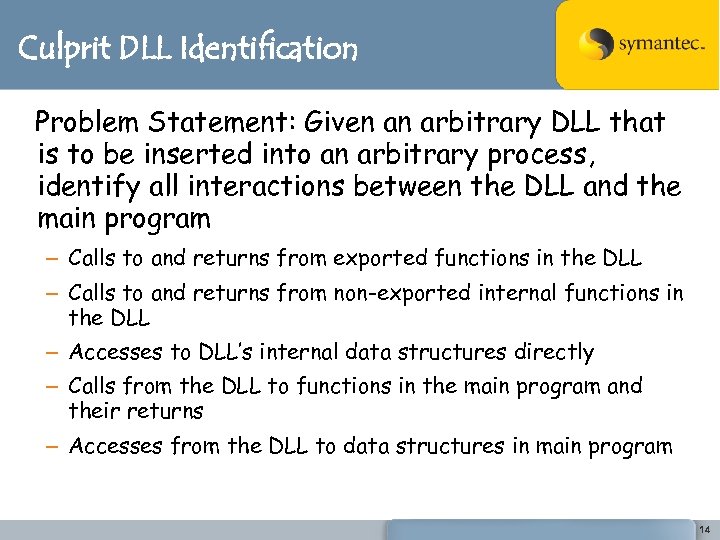

Culprit DLL Identification Problem Statement: Given an arbitrary DLL that is to be inserted into an arbitrary process, identify all interactions between the DLL and the main program – Calls to and returns from exported functions in the DLL – Calls to and returns from non-exported internal functions in the DLL – Accesses to DLL’s internal data structures directly – Calls from the DLL to functions in the main program and their returns – Accesses from the DLL to data structures in main program 14

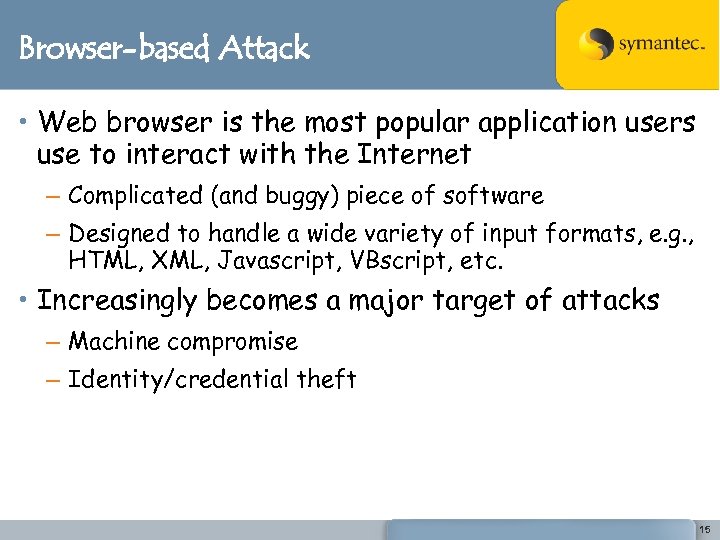

Browser-based Attack • Web browser is the most popular application users use to interact with the Internet – Complicated (and buggy) piece of software – Designed to handle a wide variety of input formats, e. g. , HTML, XML, Javascript, VBscript, etc. • Increasingly becomes a major target of attacks – Machine compromise – Identity/credential theft 15

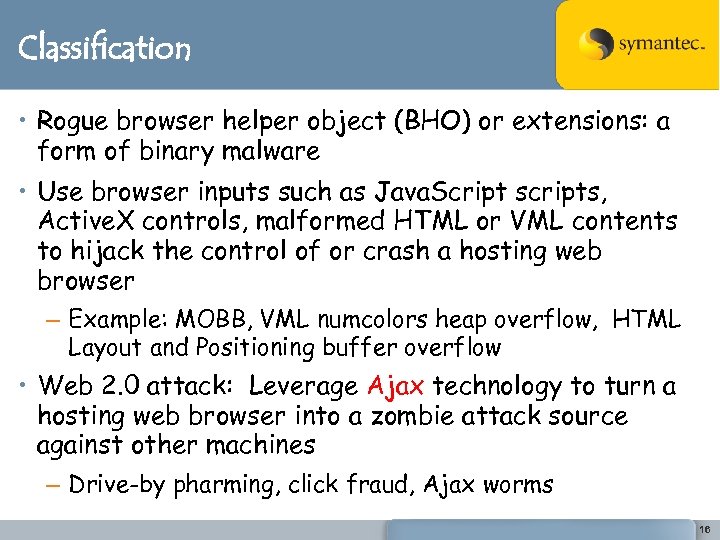

Classification • Rogue browser helper object (BHO) or extensions: a form of binary malware • Use browser inputs such as Java. Script scripts, Active. X controls, malformed HTML or VML contents to hijack the control of or crash a hosting web browser – Example: MOBB, VML numcolors heap overflow, HTML Layout and Positioning buffer overflow • Web 2. 0 attack: Leverage Ajax technology to turn a hosting web browser into a zombie attack source against other machines – Drive-by pharming, click fraud, Ajax worms 16

Web 2. 0 Attack • Downloaded Java. Script scripts that attack other machines rather than host machine • Cross-site scripting (XSS): – Reflective: A sends an email to V an incorrect URL destined to T, and T returns to V an error message – Persistent: A posts something to X’s profile in Myspace and V views X’s profile • Cross-site request forging (CSRF): – When a victim user V logs into a site S, a malicious injected script performs operations against S on behalf of V, e. g. changing your Gmail account’s forwarding address or issuing a stock trade 17

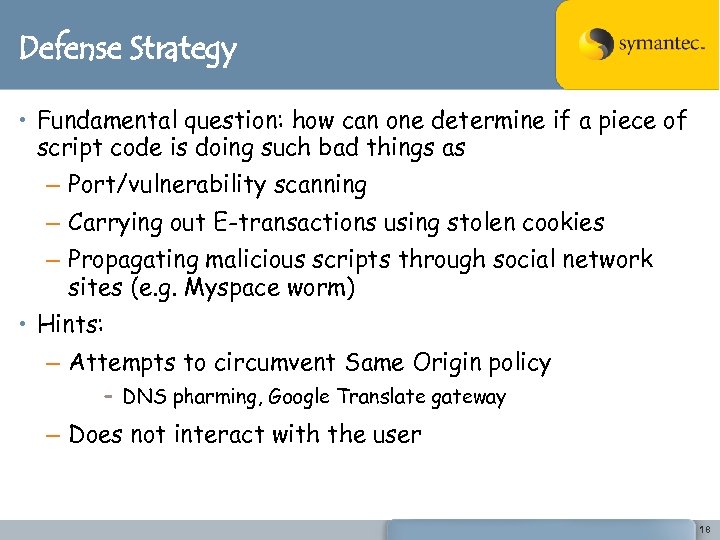

Defense Strategy • Fundamental question: how can one determine if a piece of script code is doing such bad things as – Port/vulnerability scanning – Carrying out E-transactions using stolen cookies – Propagating malicious scripts through social network sites (e. g. Myspace worm) • Hints: – Attempts to circumvent Same Origin policy – DNS pharming, Google Translate gateway – Does not interact with the user 18

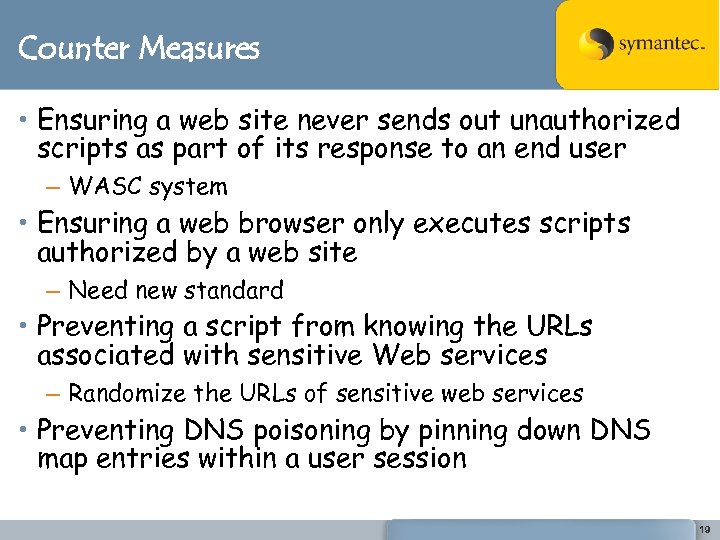

Counter Measures • Ensuring a web site never sends out unauthorized scripts as part of its response to an end user – WASC system • Ensuring a web browser only executes scripts authorized by a web site – Need new standard • Preventing a script from knowing the URLs associated with sensitive Web services – Randomize the URLs of sensitive web services • Preventing DNS poisoning by pinning down DNS map entries within a user session 19

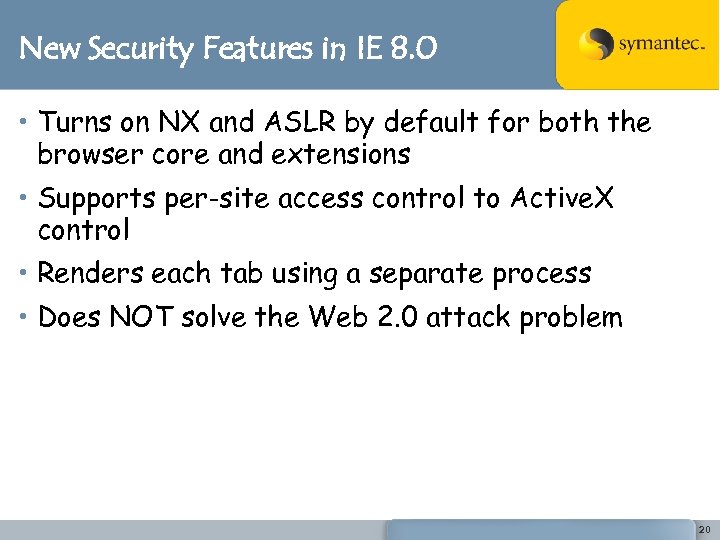

New Security Features in IE 8. 0 • Turns on NX and ASLR by default for both the browser core and extensions • Supports per-site access control to Active. X control • Renders each tab using a separate process • Does NOT solve the Web 2. 0 attack problem 20

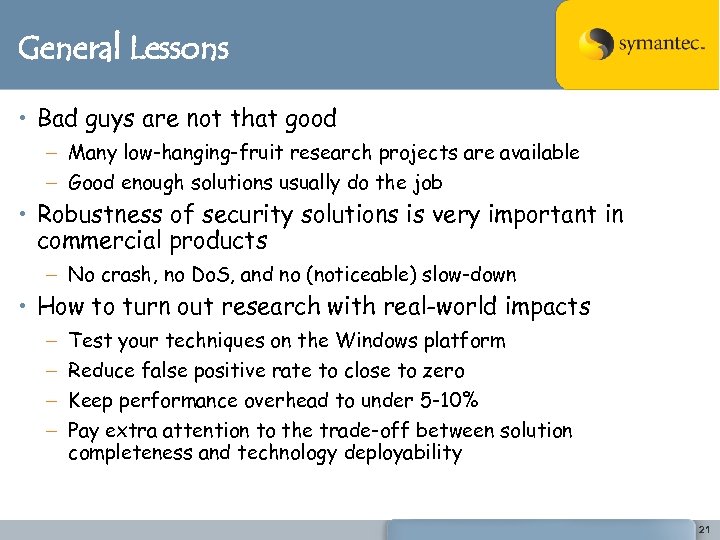

General Lessons • Bad guys are not that good – Many low-hanging-fruit research projects are available – Good enough solutions usually do the job • Robustness of security solutions is very important in commercial products – No crash, no Do. S, and no (noticeable) slow-down • How to turn out research with real-world impacts – – Test your techniques on the Windows platform Reduce false positive rate to close to zero Keep performance overhead to under 5 -10% Pay extra attention to the trade-off between solution completeness and technology deployability 21
