______ __ ______ ___ Power. Point® Slides by Lecturer Name. Element: Site Clearance or Site : Aminah M. Bakhari Preparation 1

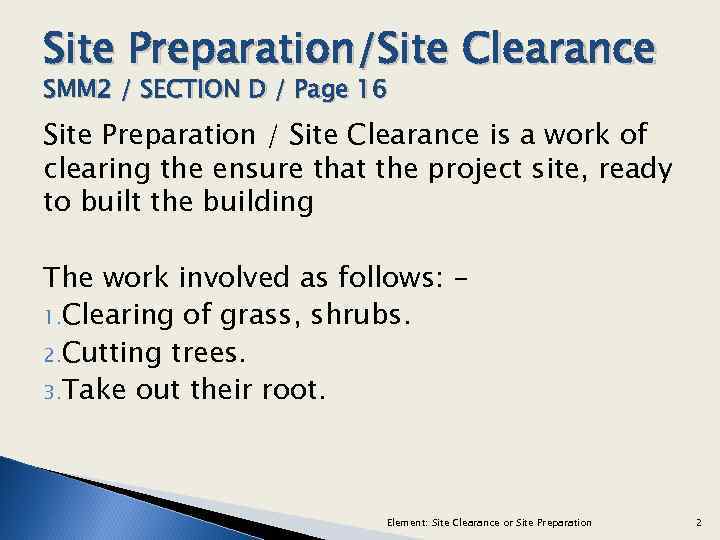

Site Preparation/Site Clearance SMM 2 / SECTION D / Page 16 Site Preparation / Site Clearance is a work of clearing the ensure that the project site, ready to built the building The work involved as follows: 1. Clearing of grass, shrubs. 2. Cutting trees. 3. Take out their root. Element: Site Clearance or Site Preparation 2

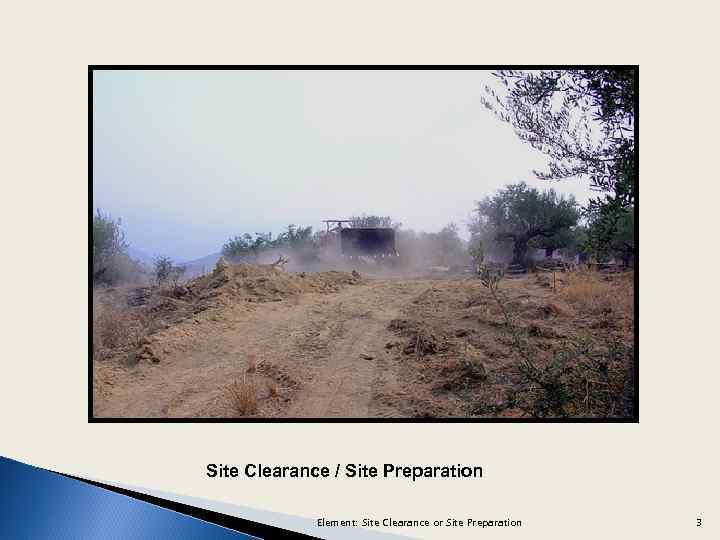

Site Clearance / Site Preparation Element: Site Clearance or Site Preparation 3

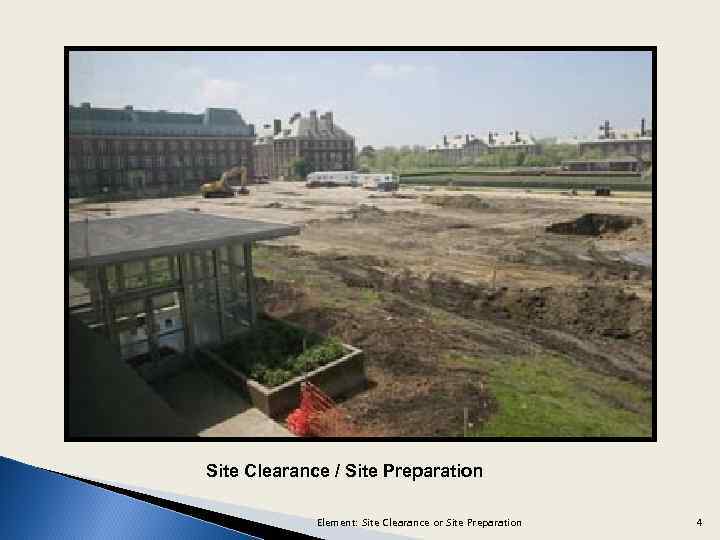

Site Clearance / Site Preparation Element: Site Clearance or Site Preparation 4

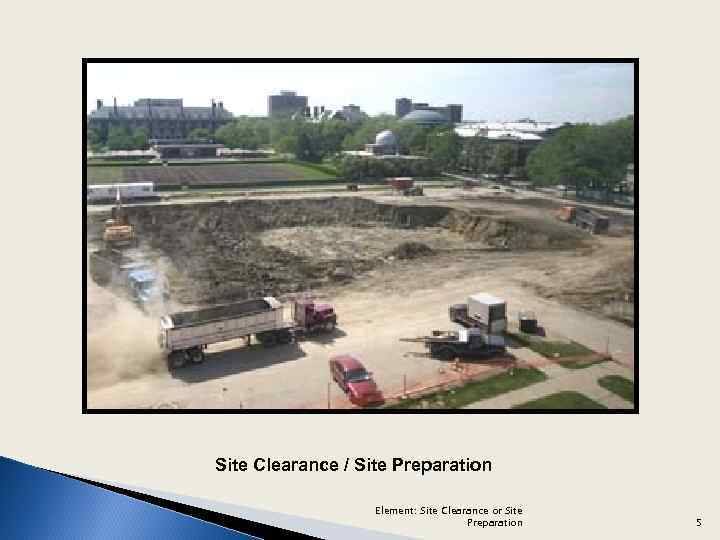

Site Clearance / Site Preparation Element: Site Clearance or Site Preparation 5
T. Off List SITE PLAN STANDARD METHOD OF MEASUREMENT (Building Works) SMM 2 SECTION D Page 16 Item (Taking Off List) Description 1. Clearing site of undergrowth bushes, scrub & the like & grubbing up their roots 2. Cutting down trees n. e 300 mm girth at 1. oom high above ground level & grubbing up their roots & filling voids left by removal of roots with material arising from excavation 3. Ditto; 300 mm b. n. e 600 mm girth; ditto 4. Ditto; 600 mm b. n. e 900 mm girth; ditto 5. Explanation of taking-off Explanation of measurement D. 3 –Removal of vegetation that was cut does not need to be mentioned because of the work included in the measurement items Title of work shall be described to facilitate review D. 4 - Give back filling the hole dug where necessary and work are separated by cutting trees in the tree circumference measured at 300 mm D. 4 – Cutting tree must be measured in no. D. 3 – Site clearance must be measured in m 2. D. 23 – Specify the type of material used to bury behind the hole according to the classification given. Ditto; 900 mm b. n. e 1200 mm girth; ditto Element: Site Clearance or Site Preparation 6

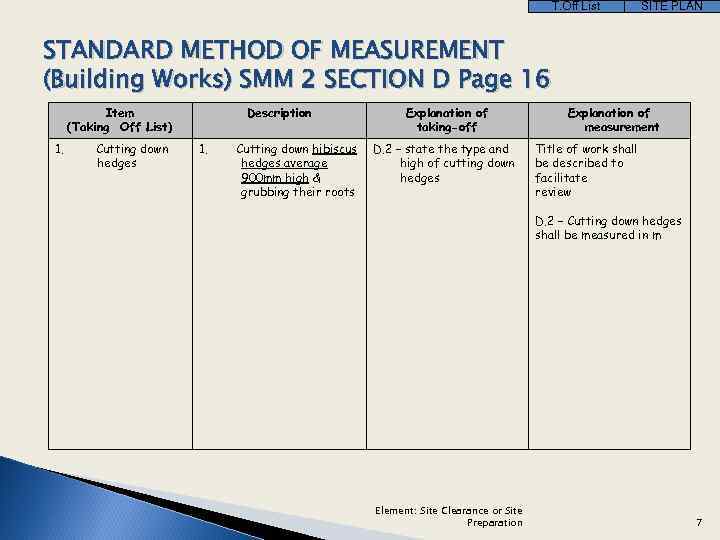

T. Off List SITE PLAN STANDARD METHOD OF MEASUREMENT (Building Works) SMM 2 SECTION D Page 16 Item (Taking Off List) 1. Cutting down hedges Description 1. Cutting down hibiscus hedges average 900 mm high & grubbing their roots Explanation of taking-off D. 2 – state the type and high of cutting down hedges Explanation of measurement Title of work shall be described to facilitate review D. 2 – Cutting down hedges shall be measured in m Element: Site Clearance or Site Preparation 7

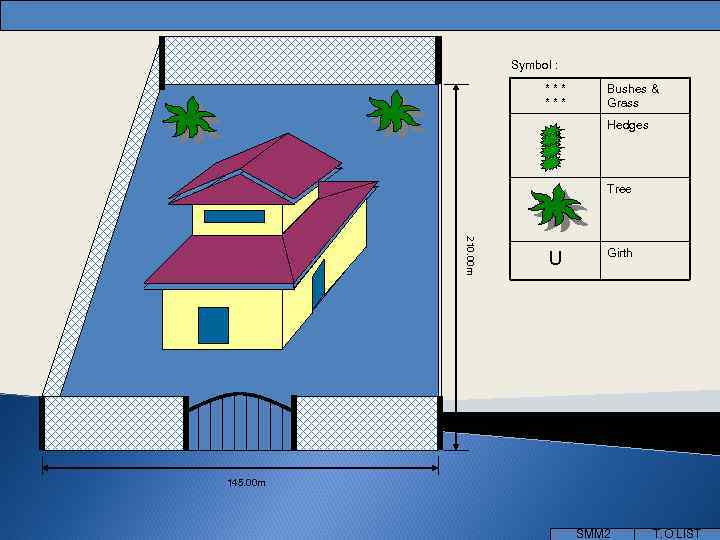

105. 00 m Symbol : *** Bushes & Grass Hedges Tree 210. 00 m U Girth 145. 00 m SMM 2 T. O LIST
Symbol : *** Bushes & Grass Hedges Tree U Girth SMM 2 T. O LIST

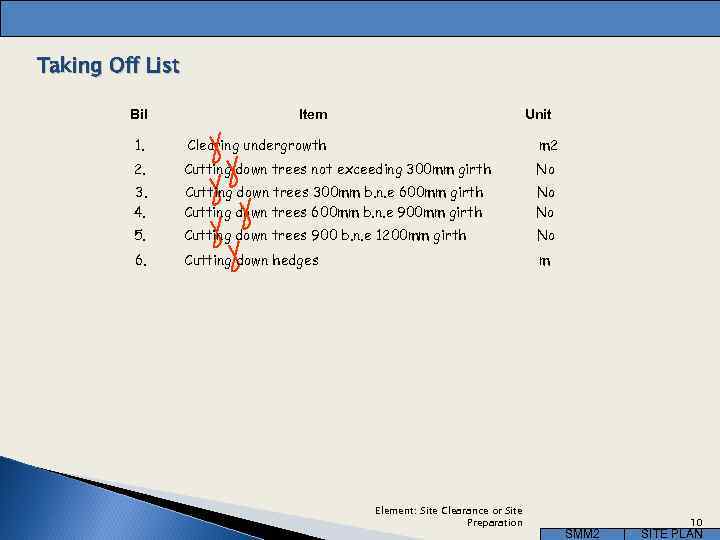

Taking Off List Bil Item Unit 1. Clearing undergrowth m 2 2. Cutting down trees not exceeding 300 mm girth No 3. 4. Cutting down trees 300 mm b. n. e 600 mm girth Cutting down trees 600 mm b. n. e 900 mm girth No No 5. Cutting down trees 900 b. n. e 1200 mm girth No 6. Cutting down hedges m Element: Site Clearance or Site Preparation SMM 2 10 SITE PLAN

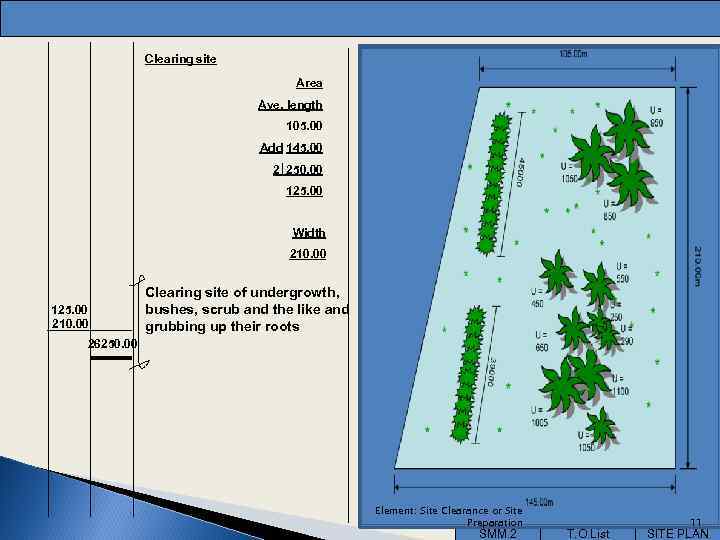

Clearing site Cutting down trees Area Ave. length 105. 00 Add 145. 00 2 2 250. 00 2 125. 00 Cutting down trees n. e 300 mm girth at 1. 00 m high above ground level and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Width 210. 00 125. 00 210. 00 26250. 00 Clearing site of undergrowth, bushes, scrub and the like and grubbing up their roots 2 2 Cutting down trees 300 mm b. n. e 600 mm girth at 1. 00 m high above ground level and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Element: Site Clearance or Site Preparation SMM 2 T. O List 11 SITE PLAN

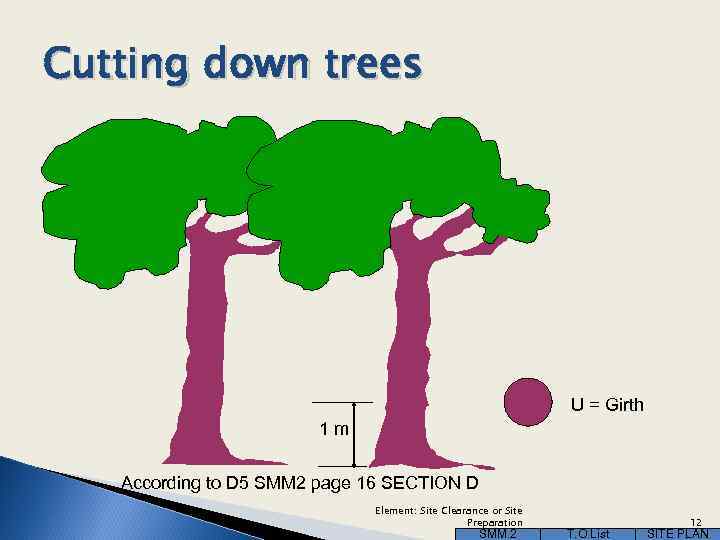

Cutting down trees U = Girth 1 m According to D 5 SMM 2 page 16 SECTION D Element: Site Clearance or Site Preparation SMM 2 T. O List 12 SITE PLAN
Cutting down trees U = 900 U = 250 U = 450 U = 300 U = 550 U = 1000 Not exceeding 300 2 nos Exceeding 300 mm but not exceeding 600 2 nos Exceeding 600 mm b. n. e 900 mm 1 no Exceeding 900 mm b. n. e 1200 mm 1 no Element: Site Clearance or Site Preparation SMM 2 T. O List 13 SITE PLAN
Clearing site Cutting down trees Area Ave. length 105. 00 Add 145. 00 2 2 250. 00 2 125. 00 Cutting down trees n. e 300 mm girth at 1. 00 m high above ground level and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Width 210. 00 125. 00 210. 00 26250. 00 Clearing site of undergrowth, bushes, scrub and the like and grubbing up their roots 2 2 Cutting down trees 300 mm b. n. e 600 mm girth at 1. 00 m high above ground level and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Element: Site Clearance or Site Preparation SMM 2 T. O List 14 SITE PLAN

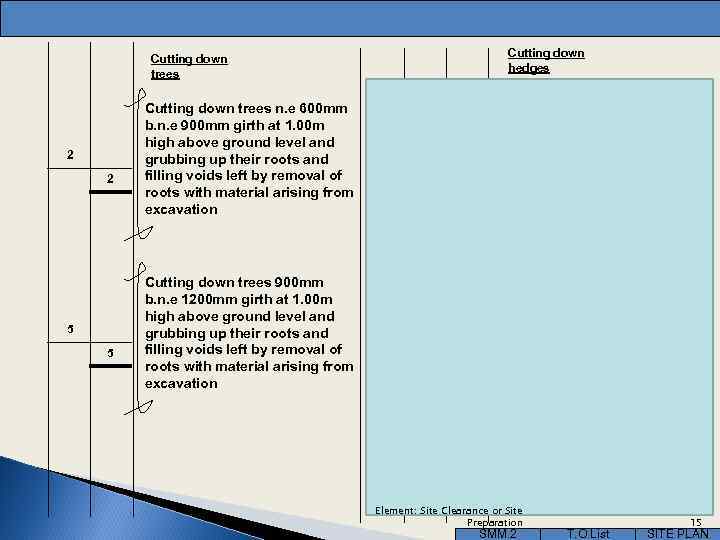

Cutting down hedges Cutting down trees 2 2 length 45000 Cutting down trees n. e 600 mm b. n. e 900 mm girth at 1. 00 m high above ground level and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Add 39000 84. 00 5 5 Cutting down trees 900 mm b. n. e 1200 mm girth at 1. 00 m high above ground level and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Cutting down hedges average 900 mm high and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Element: Site Clearance or Site Preparation SMM 2 T. O List 15 SITE PLAN

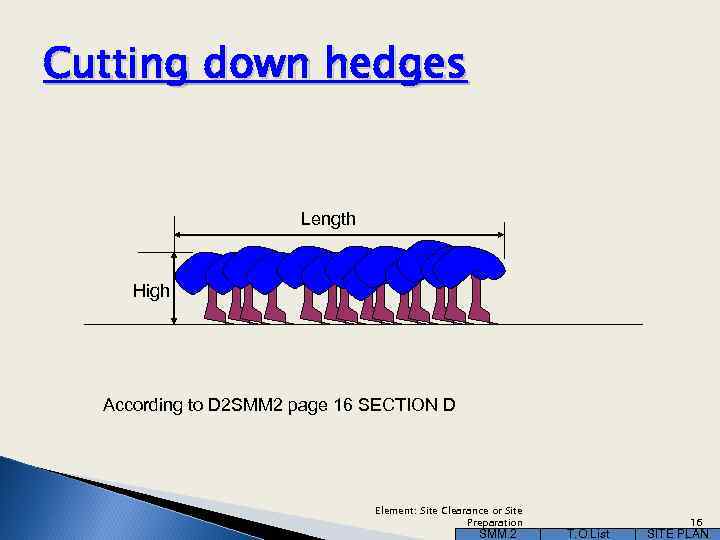

Cutting down hedges Length High According to D 2 SMM 2 page 16 SECTION D Element: Site Clearance or Site Preparation SMM 2 T. O List 16 SITE PLAN
Cutting down hedges Cutting down trees 2 2 length 45000 Cutting down trees n. e 600 mm b. n. e 900 mm girth at 1. 00 m high above ground level and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Add 39000 84. 00 5 5 Cutting down trees 900 mm b. n. e 1200 mm girth at 1. 00 m high above ground level and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Cutting down hedges average 900 mm high and grubbing up their roots and filling voids left by removal of roots with material arising from excavation Element: Site Clearance or Site Preparation SMM 2 T. O List 17 SITE PLAN
Element: Site Clearance or Site Preparation 18

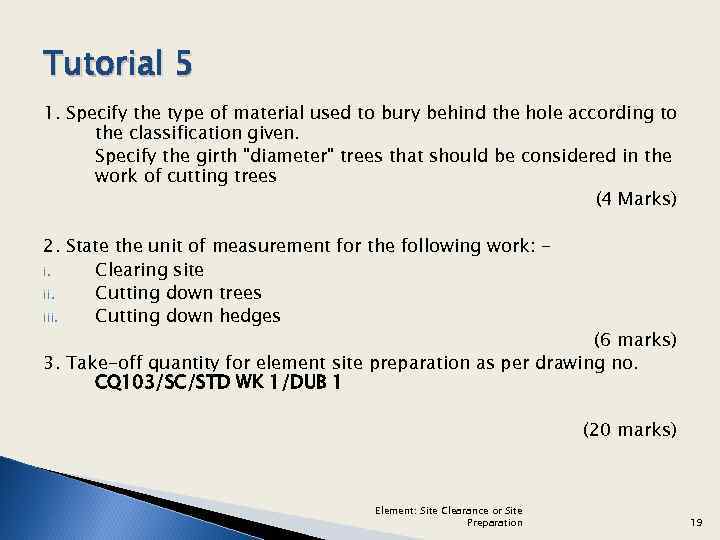

Tutorial 5 1. Specify the type of material used to bury behind the hole according to the classification given. Specify the girth "diameter" trees that should be considered in the work of cutting trees (4 Marks) 2. State the unit of measurement for the following work: i. Clearing site ii. Cutting down trees iii. Cutting down hedges (6 marks) 3. Take-off quantity for element site preparation as per drawing no. CQ 103/SC/STD WK 1/DUB 1 (20 marks) Element: Site Clearance or Site Preparation 19

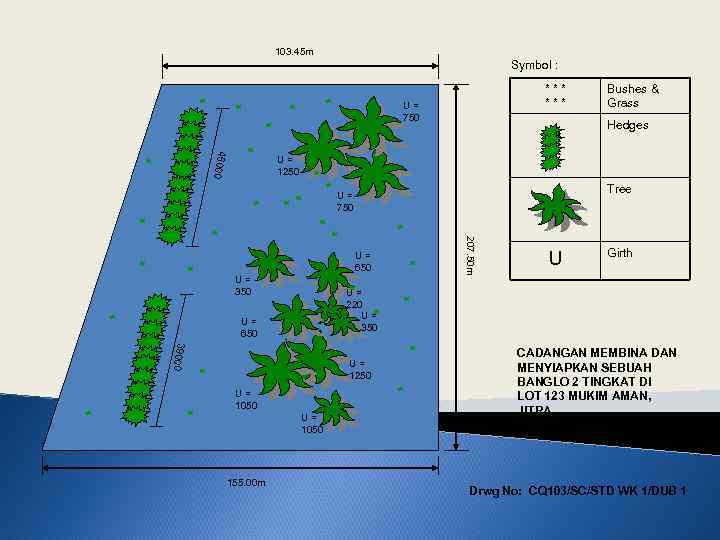

103. 45 m Symbol : * 45000 * * * * U= 1250 * ** Tree 750 * U= 350 * * * U= 220 U= 350 * U= 650 39000 * * * U= 1050 U Girth * U= 1250 155. 00 m Bushes & Grass Hedges * U= U= 650 * * U= 750 207. 50 m * * *** CADANGAN MEMBINA DAN MENYIAPKAN SEBUAH BANGLO 2 TINGKAT DI LOT 123 MUKIM AMAN, JITRA Drwg No: CQ 103/SC/STD WK 1/DUB 1
