900 Mbps Dual Band Ceiling Mount Wireless Access Point WDAP-C 7400 / 26
Presentation Outlines u Product Position u Product Overview u Product Installation u Product Benefits u Product Features u Applications u Web UI & Software u Product Comparison u Appendix

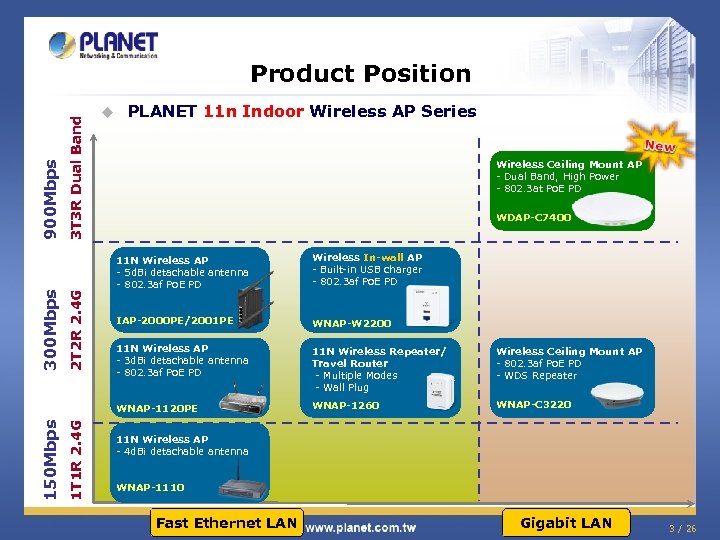

3 T 3 R Dual Band 900 Mbps Product Position u PLANET 11 n Indoor Wireless AP Series Wireless Ceiling Mount AP - Dual Band, High Power - 802. 3 at Po. E PD WDAP-C 7400 2 T 2 R 2. 4 G 1 T 1 R 2. 4 G 300 Mbps Wireless In-wall AP - Built-in USB charger - 802. 3 af Po. E PD IAP-2000 PE/2001 PE WNAP-W 2200 11 N Wireless AP - 3 d. Bi detachable antenna - 802. 3 af Po. E PD 11 N Wireless Repeater/ Travel Router - Multiple Modes - Wall Plug Wireless Ceiling Mount AP - 802. 3 af Po. E PD - WDS Repeater WNAP-1120 PE 150 Mbps 11 N Wireless AP - 5 d. Bi detachable antenna - 802. 3 af Po. E PD WNAP-1260 WNAP-C 3220 11 N Wireless AP - 4 d. Bi detachable antenna WNAP-1110 Fast Ethernet LAN Gigabit LAN 3 / 26
Product Overview u Dimensions: 200 x 40 mm (Φ x H) u Weight: 450 g u Power: IEEE 802. 3 at Po. E/PD 200 mm 40 mm 200 mm Front View Side View Rear View 4 / 26

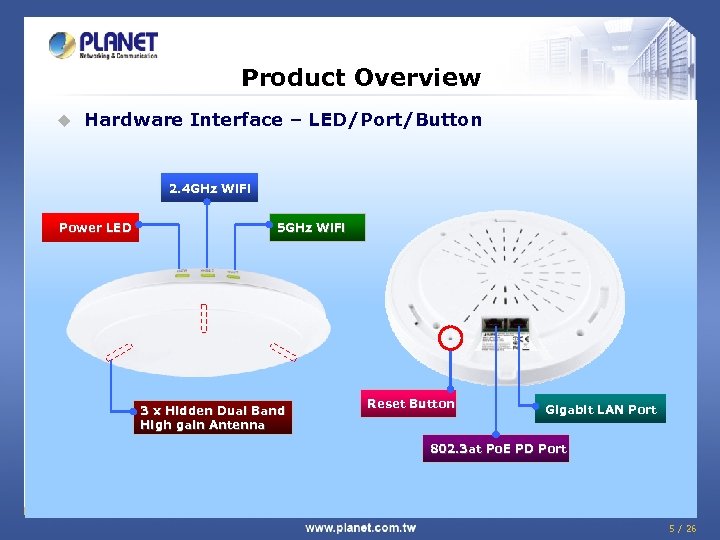

Product Overview u Hardware Interface – LED/Port/Button 2. 4 GHz Wi. Fi Power LED 5 GHz Wi. Fi 3 x Hidden Dual Band High gain Antenna Reset Button Gigabit LAN Port 802. 3 at Po. E PD Port 5 / 26

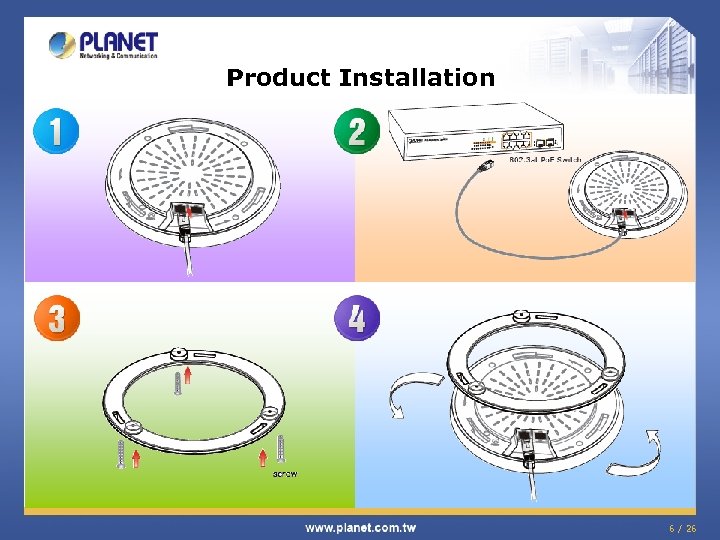

Product Installation 6 / 26

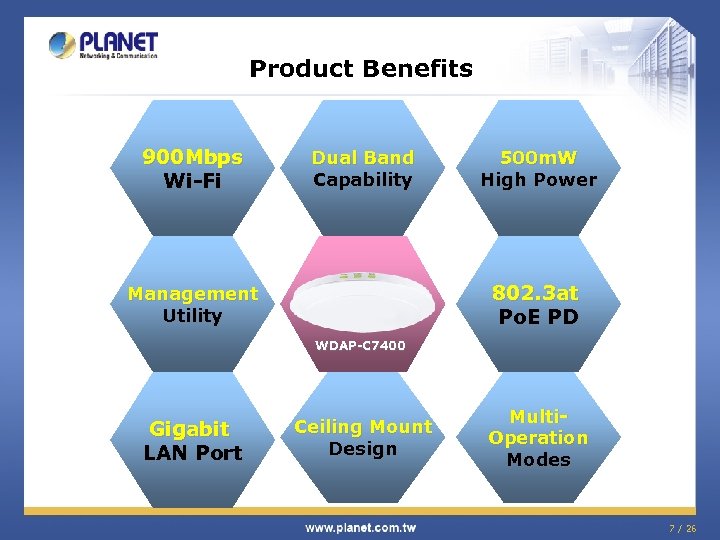

Product Benefits 900 Mbps Wi-Fi Dual Band Capability 500 m. W High Power 802. 3 at Po. E PD Management Utility WDAP-C 7400 Gigabit LAN Port Ceiling Mount Design Multi. Operation Modes 7 / 26

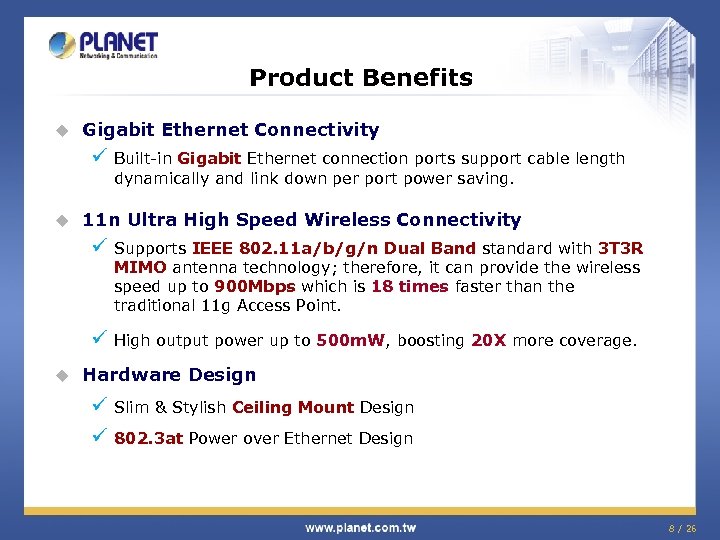

Product Benefits u Gigabit Ethernet Connectivity ü Built-in Gigabit Ethernet connection ports support cable length dynamically and link down per port power saving. u 11 n Ultra High Speed Wireless Connectivity ü Supports IEEE 802. 11 a/b/g/n Dual Band standard with 3 T 3 R MIMO antenna technology; therefore, it can provide the wireless speed up to 900 Mbps which is 18 times faster than the traditional 11 g Access Point. ü High output power up to 500 m. W, boosting 20 X more coverage. u Hardware Design ü Slim & Stylish Ceiling Mount Design ü 802. 3 at Power over Ethernet Design 8 / 26

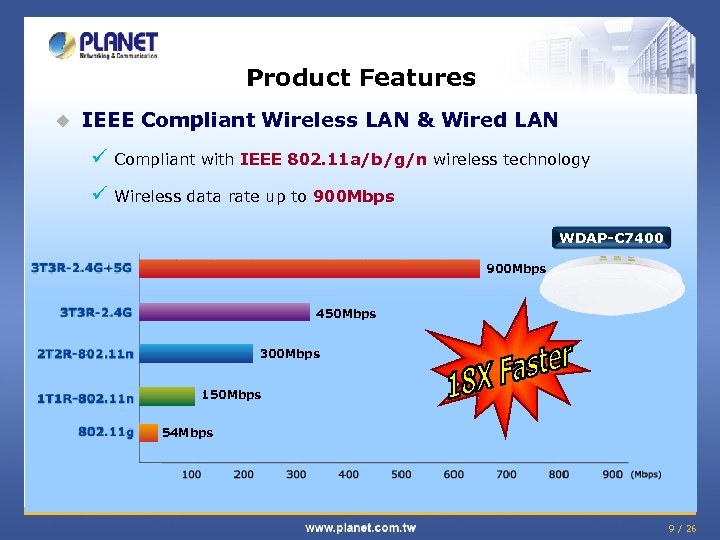

Product Features u IEEE Compliant Wireless LAN & Wired LAN ü Compliant with IEEE 802. 11 a/b/g/n wireless technology ü Wireless data rate up to 900 Mbps WDAP-C 7400 900 Mbps 450 Mbps 300 Mbps 150 Mbps 54 Mbps 9 / 26

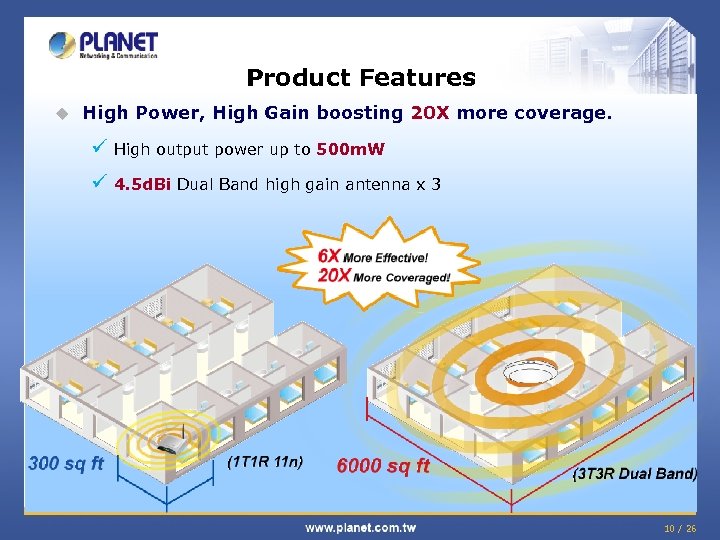

Product Features u High Power, High Gain boosting 20 X more coverage. ü High output power up to 500 m. W ü 4. 5 d. Bi Dual Band high gain antenna x 3 10 / 26

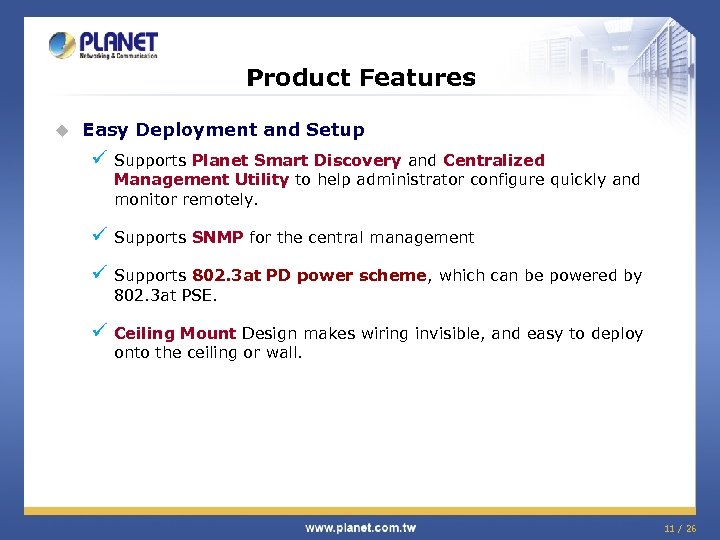

Product Features u Easy Deployment and Setup ü Supports Planet Smart Discovery and Centralized Management Utility to help administrator configure quickly and monitor remotely. ü Supports SNMP for the central management ü Supports 802. 3 at PD power scheme, which can be powered by 802. 3 at PSE. ü Ceiling Mount Design makes wiring invisible, and easy to deploy onto the ceiling or wall. 11 / 26

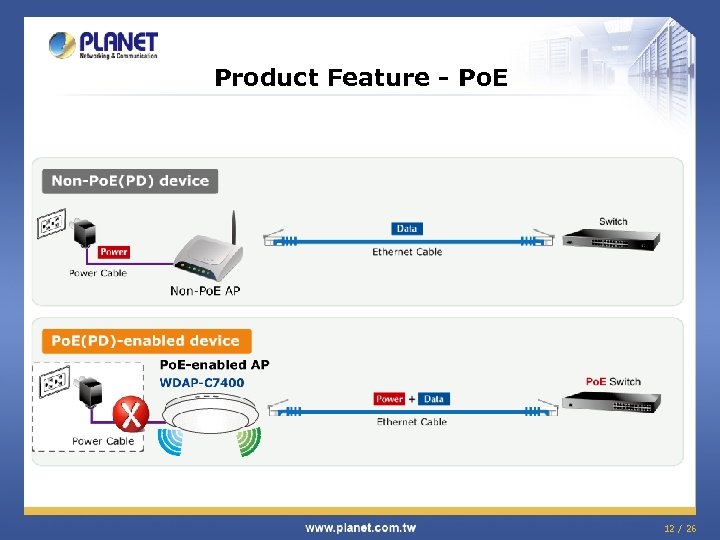

Product Feature - Po. E 12 / 26

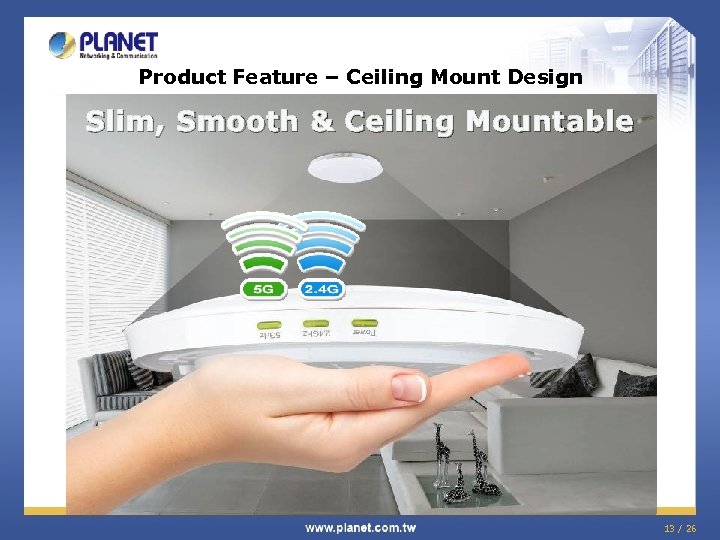

Product Feature – Ceiling Mount Design Slim, Smooth & Ceiling Mountable 13 / 26

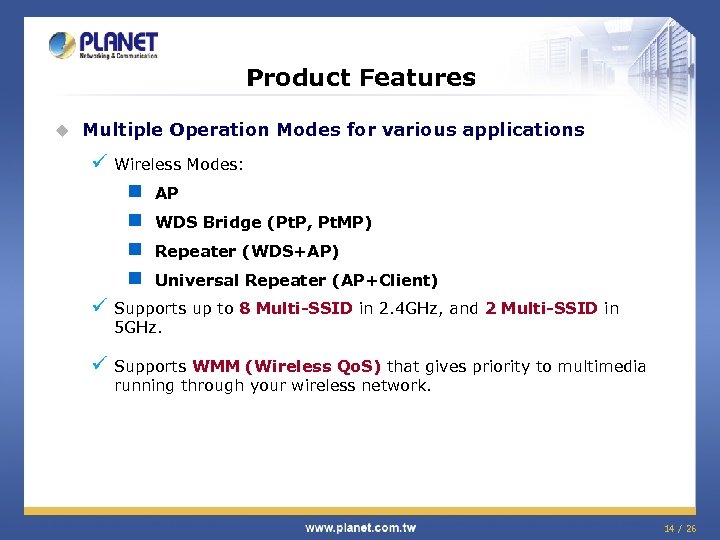

Product Features u Multiple Operation Modes for various applications ü Wireless Modes: n AP n WDS Bridge (Pt. P, Pt. MP) n Repeater (WDS+AP) n Universal Repeater (AP+Client) ü Supports up to 8 Multi-SSID in 2. 4 GHz, and 2 Multi-SSID in 5 GHz. ü Supports WMM (Wireless Qo. S) that gives priority to multimedia running through your wireless network. 14 / 26
Applications – Multiple Operation Modes 15 / 26

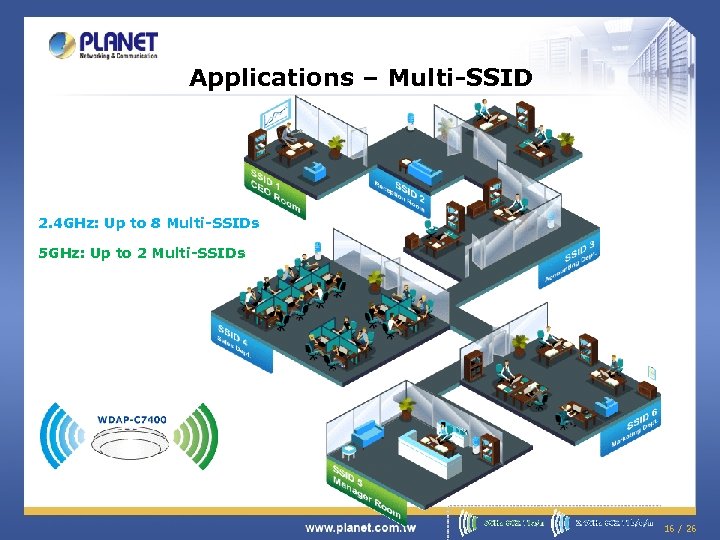

Applications – Multi-SSID 2. 4 GHz: Up to 8 Multi-SSIDs 5 GHz: Up to 2 Multi-SSIDs 16 / 26

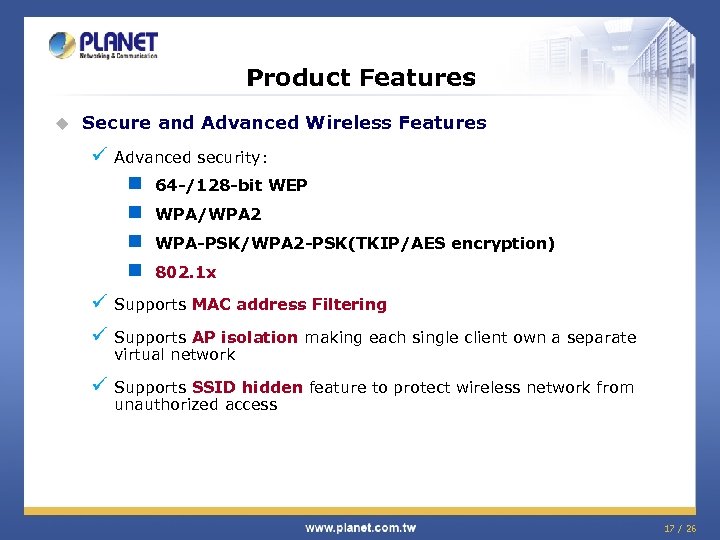

Product Features u Secure and Advanced Wireless Features ü Advanced security: n 64 -/128 -bit WEP n WPA/WPA 2 n WPA-PSK/WPA 2 -PSK(TKIP/AES encryption) n 802. 1 x ü Supports MAC address Filtering ü Supports AP isolation making each single client own a separate virtual network ü Supports SSID hidden feature to protect wireless network from unauthorized access 17 / 26

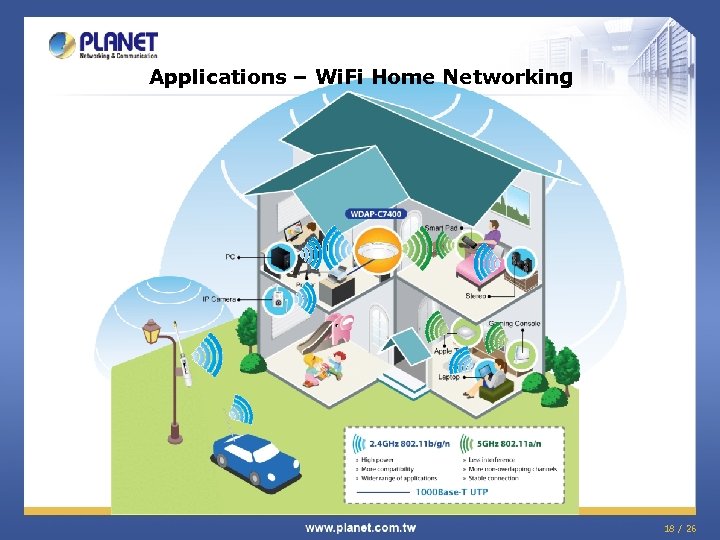

Applications – Wi. Fi Home Networking 18 / 26
Applications – LAN/WLAN WDAP-C 7400 802. 3 at Po. E Switch 19 / 26

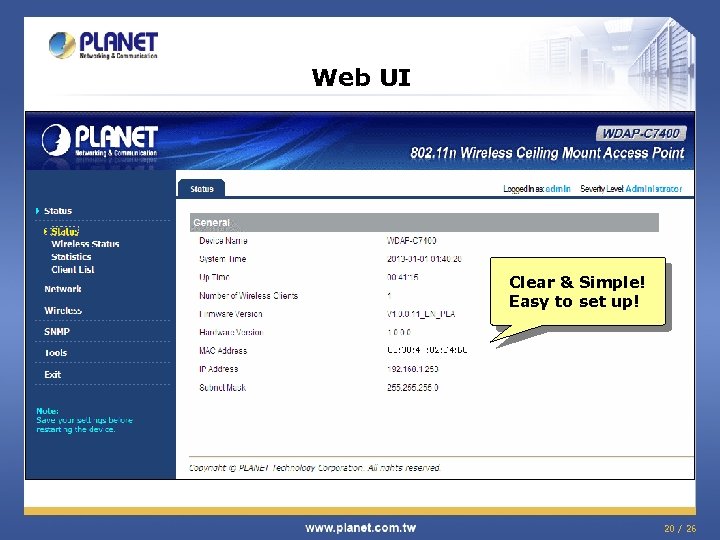

Web UI Clear & Simple! Easy to set up! 20 / 26
Smart Discovery Utility u Easy to search currently connected APs 21 / 26

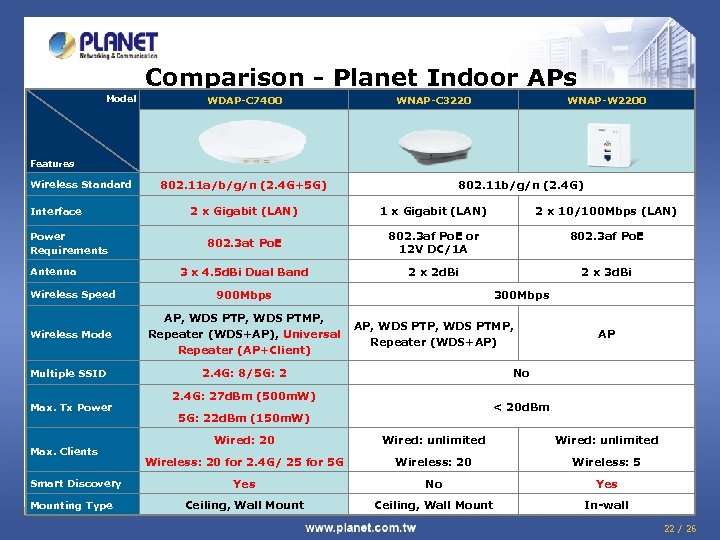

Comparison - Planet Indoor APs Model WDAP-C 7400 WNAP-C 3220 WNAP-W 2200 Features Wireless Standard Interface Power Requirements Antenna 802. 11 a/b/g/n (2. 4 G+5 G) 802. 11 b/g/n (2. 4 G) 2 x Gigabit (LAN) 1 x Gigabit (LAN) 2 x 10/100 Mbps (LAN) 802. 3 at Po. E 802. 3 af Po. E or 12 V DC/1 A 802. 3 af Po. E 3 x 4. 5 d. Bi Dual Band 2 x 2 d. Bi 2 x 3 d. Bi Wireless Speed 900 Mbps Wireless Mode AP, WDS PTMP, Repeater (WDS+AP), Universal Repeater (AP+Client) Multiple SSID 2. 4 G: 8/5 G: 2 Max. Tx Power Max. Clients Smart Discovery Mounting Type 300 Mbps AP, WDS PTMP, Repeater (WDS+AP) AP No 2. 4 G: 27 d. Bm (500 m. W) < 20 d. Bm 5 G: 22 d. Bm (150 m. W) Wired: 20 Wired: unlimited Wireless: 20 for 2. 4 G/ 25 for 5 G Wireless: 20 Wireless: 5 Yes No Yes Ceiling, Wall Mount In-wall 22 / 26

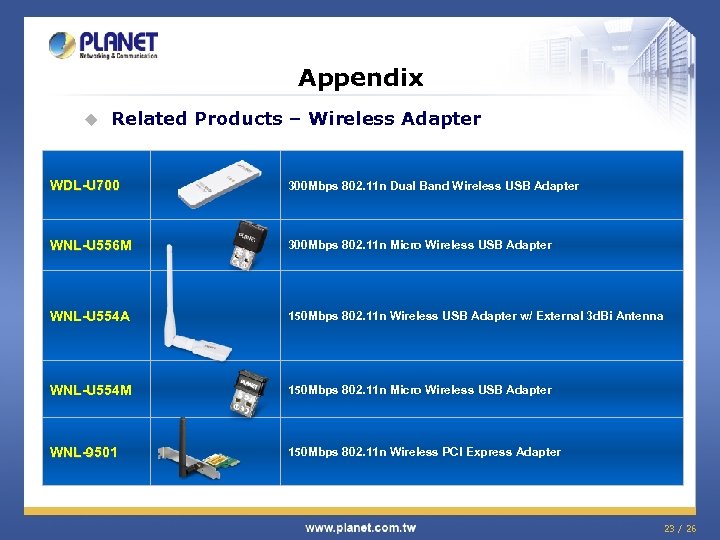

Appendix u Related Products – Wireless Adapter WDL-U 700 300 Mbps 802. 11 n Dual Band Wireless USB Adapter WNL-U 556 M 300 Mbps 802. 11 n Micro Wireless USB Adapter WNL-U 554 A 150 Mbps 802. 11 n Wireless USB Adapter w/ External 3 d. Bi Antenna WNL-U 554 M 150 Mbps 802. 11 n Micro Wireless USB Adapter WNL-9501 150 Mbps 802. 11 n Wireless PCI Express Adapter 23 / 26

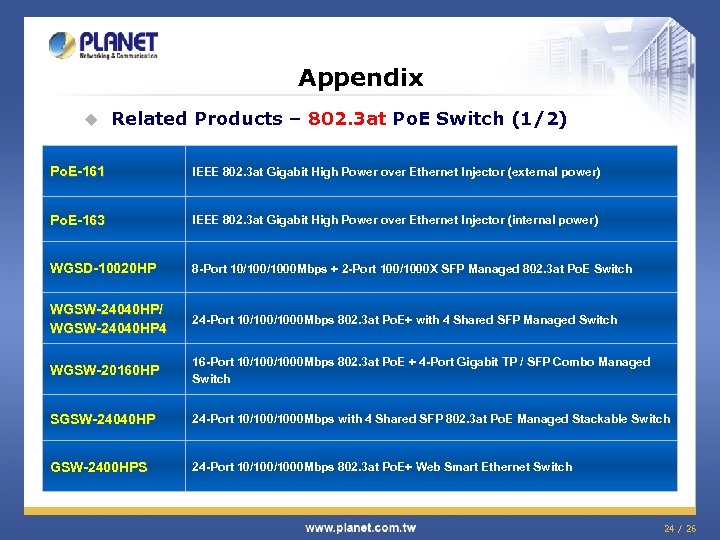

Appendix u Related Products – 802. 3 at Po. E Switch (1/2) Po. E-161 IEEE 802. 3 at Gigabit High Power over Ethernet Injector (external power) Po. E-163 IEEE 802. 3 at Gigabit High Power over Ethernet Injector (internal power) WGSD-10020 HP 8 -Port 10/1000 Mbps + 2 -Port 100/1000 X SFP Managed 802. 3 at Po. E Switch WGSW-24040 HP/ WGSW-24040 HP 4 24 -Port 10/1000 Mbps 802. 3 at Po. E+ with 4 Shared SFP Managed Switch WGSW-20160 HP 16 -Port 10/1000 Mbps 802. 3 at Po. E + 4 -Port Gigabit TP / SFP Combo Managed Switch SGSW-24040 HP 24 -Port 10/1000 Mbps with 4 Shared SFP 802. 3 at Po. E Managed Stackable Switch GSW-2400 HPS 24 -Port 10/1000 Mbps 802. 3 at Po. E+ Web Smart Ethernet Switch 24 / 26

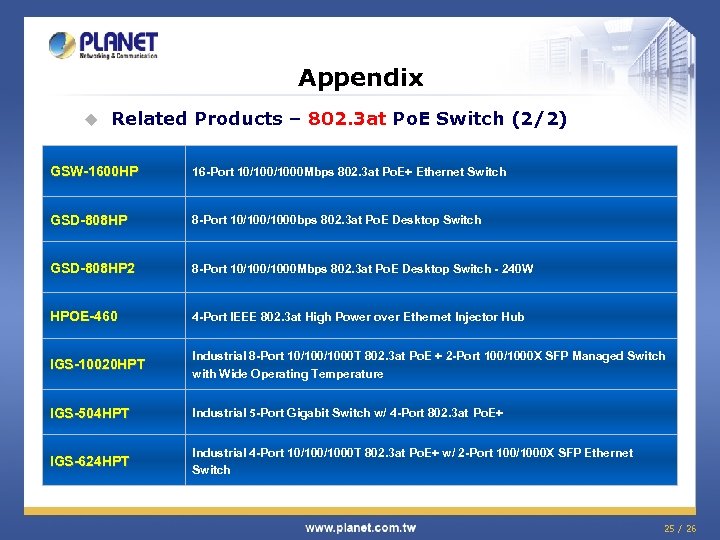

Appendix u Related Products – 802. 3 at Po. E Switch (2/2) GSW-1600 HP 16 -Port 10/1000 Mbps 802. 3 at Po. E+ Ethernet Switch GSD-808 HP 8 -Port 10/1000 bps 802. 3 at Po. E Desktop Switch GSD-808 HP 2 8 -Port 10/1000 Mbps 802. 3 at Po. E Desktop Switch - 240 W HPOE-460 4 -Port IEEE 802. 3 at High Power over Ethernet Injector Hub IGS-10020 HPT Industrial 8 -Port 10/1000 T 802. 3 at Po. E + 2 -Port 100/1000 X SFP Managed Switch with Wide Operating Temperature IGS-504 HPT Industrial 5 -Port Gigabit Switch w/ 4 -Port 802. 3 at Po. E+ IGS-624 HPT Industrial 4 -Port 10/1000 T 802. 3 at Po. E+ w/ 2 -Port 100/1000 X SFP Ethernet Switch 25 / 26
Appendix u Target Markets ü ü ü Public Area Access ü Profitable Products Telecom to Residential ü u Telecom to Business u Hotel, Resort, Library… Check these out • WNAP-W 2200 • WNAP-C 3220 • WNAP-1260 • WNAP-1120 PE • WNAP-1110 Benefits ü Maximum Bandwidth ü Multiple Applications ü Wide Coverage ü Flexible in deployment ü Saving wiring cost ü Meeting all your requirements • High Speed, High Performance • Solution for Hotels & Residents • Indoor Access Points • Po. E Access Points • AP supported central management 26
