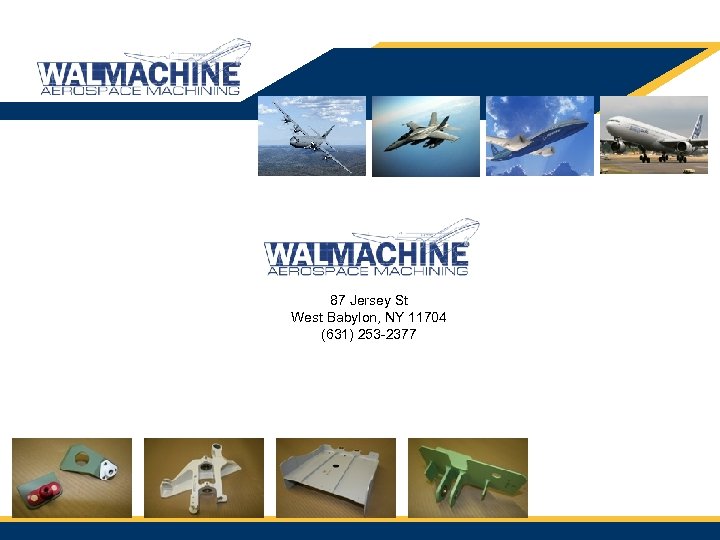

87 Jersey St West Babylon, NY 11704 (631) 253 -2377
About Wal Machine § Founded in 1965 § Highly Experienced & Dedicated Staff § Specializing in Hard Metals Machining (Titanium and Alloy Steels) and Complex Aluminum Fittings § 3, 4 & 5 Axis High Speed CNC Machining Capability § Parts up to 120” in Length § Next Level Assembly Capabilities § ISO 9001: 2000 / AS 9100 Rev C , NQA Certificate # 12013 § 23, 000 sq ft

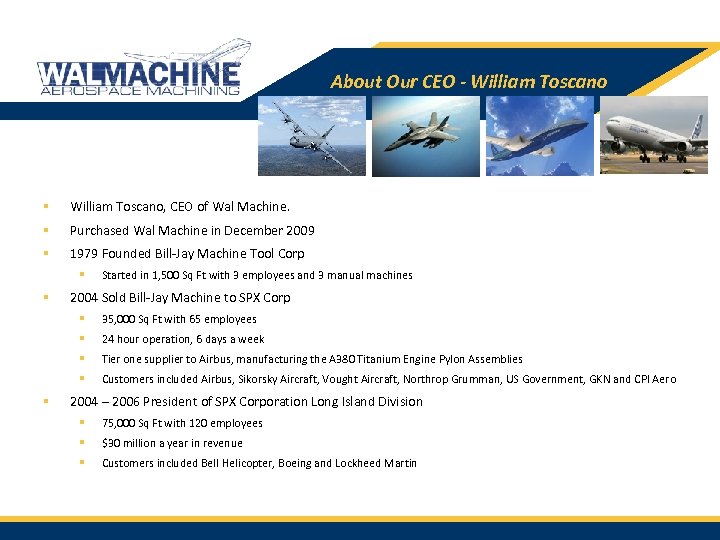

About Our CEO - William Toscano § William Toscano, CEO of Wal Machine. § Purchased Wal Machine in December 2009 § 1979 Founded Bill-Jay Machine Tool Corp § § Started in 1, 500 Sq Ft with 3 employees and 3 manual machines 2004 Sold Bill-Jay Machine to SPX Corp § § 24 hour operation, 6 days a week § Tier one supplier to Airbus, manufacturing the A 380 Titanium Engine Pylon Assemblies § § 35, 000 Sq Ft with 65 employees Customers included Airbus, Sikorsky Aircraft, Vought Aircraft, Northrop Grumman, US Government, GKN and CPI Aero 2004 – 2006 President of SPX Corporation Long Island Division § 75, 000 Sq Ft with 120 employees § $30 million a year in revenue § Customers included Bell Helicopter, Boeing and Lockheed Martin
Quality / Engineering § ISO 9001: 2000 / AS 9100 Rev C Certified § CATIA V 5 R 22, Unigraphics NX 6, Surfcam § Brown & Sharp CMM – Delivered August 2013 § Size: X: 42. 2” Y: 78. 7” Z: 39. 4” § w/ PC-DIMIS CATIA V 5 Direct CAD Interface § Starrett CMM RGDC § w/ PC-DIMIS CATIA V 5 Direct CAD Interface
Approved Supplier for § Airbus § CPI Aerostructures § GKN Aerospace Monitor Inc § Gulfstream Aerospace § JSF Fracture Critical § Magellan Aerospace § Northrop Grumman § Spirit Aerosystems § TARA Aerospace Systems Limited § Triumph Group Inc.

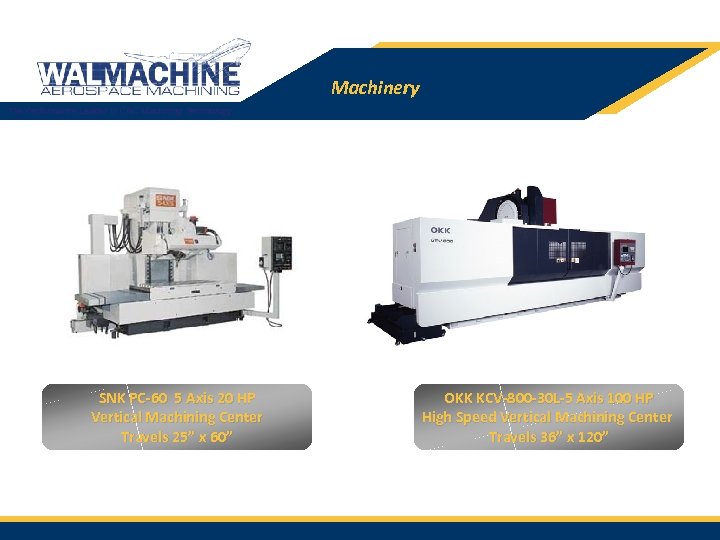

Machinery The Performance Leader in CNC Machining Technology SNK PC-60 5 Axis 20 HP Vertical Machining Center Travels 25” x 60” OKK KCV-800 -30 L-5 Axis 100 HP High Speed Vertical Machining Center Travels 36” x 120”
Machinery The Performance Leader in CNC Machining Technology OKK HM-1000 S 40 HP 12, 000 RPM Travels 55” x 43” x 39” OKK HM-60 30 HP High Speed Horizontal Machining Center Travels 30” x 29” x 32” Kuraki KMV-130 25 HP Machining Center Travels 50” x 120”
Machinery The Performance Leader in CNC Machining Technology OKK PCV-510 4 Axis Vertical Machining Center Travels 20” x 40” Makino A 99 4 Axis Horizontal Machining Center Travels X: 39. 4”, Y: 39. 4”, Z: 37. 4”

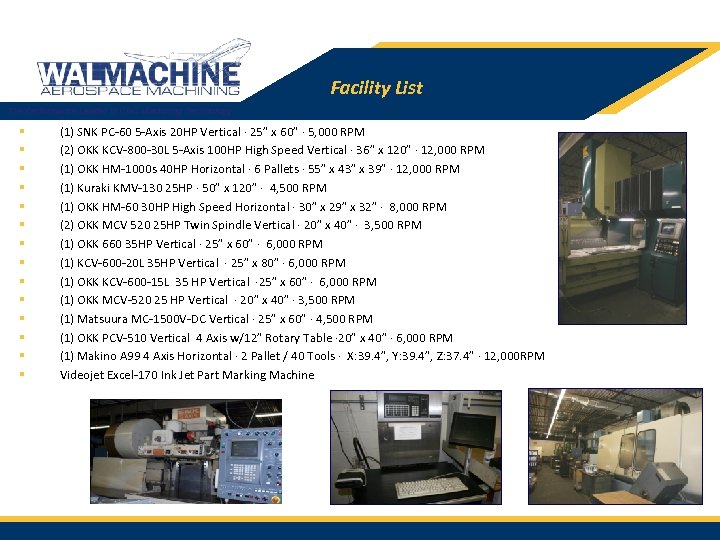

Facility List The Performance Leader in CNC Machining Technology § § § § (1) SNK PC-60 5 -Axis 20 HP Vertical · 25” x 60” · 5, 000 RPM (2) OKK KCV-800 -30 L 5 -Axis 100 HP High Speed Vertical · 36” x 120” · 12, 000 RPM (1) OKK HM-1000 s 40 HP Horizontal · 6 Pallets · 55” x 43” x 39” · 12, 000 RPM (1) Kuraki KMV-130 25 HP · 50” x 120” · 4, 500 RPM (1) OKK HM-60 30 HP High Speed Horizontal · 30” x 29” x 32” · 8, 000 RPM (2) OKK MCV 520 25 HP Twin Spindle Vertical · 20” x 40” · 3, 500 RPM (1) OKK 660 35 HP Vertical · 25” x 60” · 6, 000 RPM (1) KCV-600 -20 L 35 HP Vertical · 25” x 80” · 6, 000 RPM (1) OKK KCV-600 -15 L 35 HP Vertical · 25” x 60” · 6, 000 RPM (1) OKK MCV-520 25 HP Vertical · 20” x 40” · 3, 500 RPM (1) Matsuura MC-1500 V-DC Vertical · 25” x 60” · 4, 500 RPM (1) OKK PCV-510 Vertical 4 Axis w/12” Rotary Table · 20” x 40” · 6, 000 RPM (1) Makino A 99 4 Axis Horizontal · 2 Pallet / 40 Tools · X: 39. 4”, Y: 39. 4”, Z: 37. 4” · 12, 000 RPM Videojet Excel-170 Ink Jet Part Marking Machine

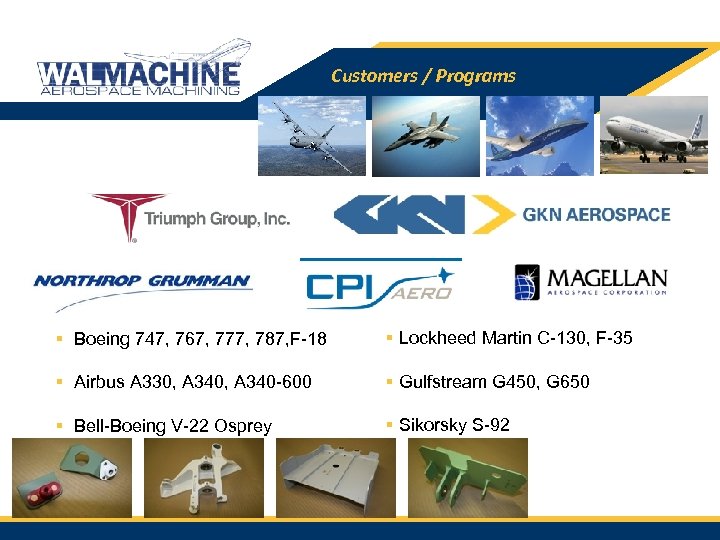

Customers / Programs § Boeing 747, 767, 777, 787, F-18 § Lockheed Martin C-130, F-35 § Airbus A 330, A 340 -600 § Gulfstream G 450, G 650 § Bell-Boeing V-22 Osprey § Sikorsky S-92

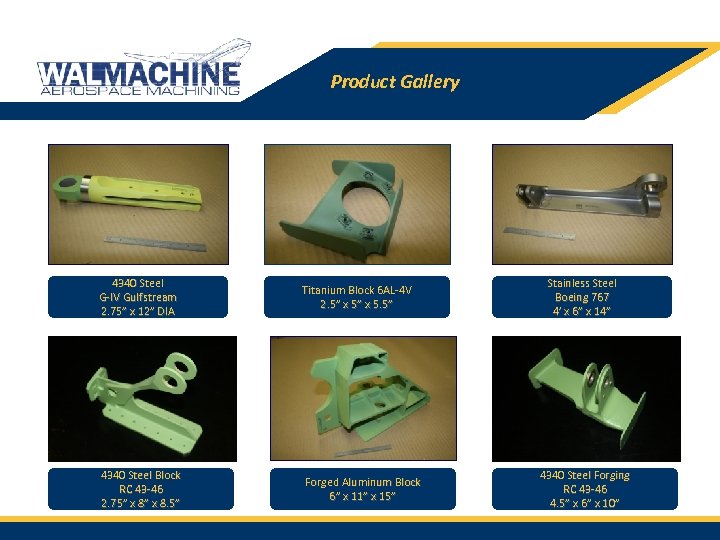

Product Gallery 4340 Steel G-IV Gulfstream 2. 75” x 12” DIA Titanium Block 6 AL-4 V 2. 5” x 5. 5” 4340 Steel Block RC 43 -46 2. 75” x 8. 5” Forged Aluminum Block 6” x 11” x 15” Stainless Steel Boeing 767 4’ x 6” x 14” 4340 Steel Forging RC 43 -46 4. 5” x 6” x 10”

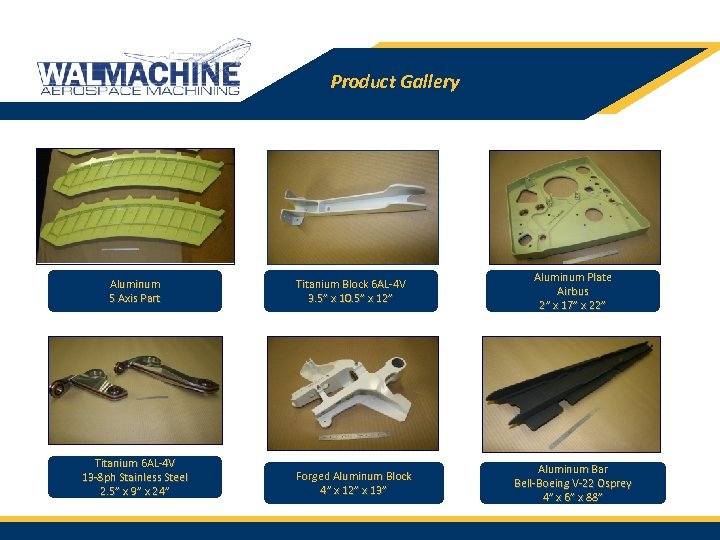

Product Gallery Aluminum 5 Axis Part Titanium Block 6 AL-4 V 3. 5” x 10. 5” x 12” Aluminum Plate Airbus 2” x 17” x 22” Titanium 6 AL-4 V 13 -8 ph Stainless Steel 2. 5” x 9” x 24” Forged Aluminum Block 4” x 12” x 13” Aluminum Bar Bell-Boeing V-22 Osprey 4” x 6” x 88”
Product Gallery Aluminum Parts Lockheed C-130
Product Gallery Hinge Rib Kits Boeing-777
Conclusion § Wal Machine is a Proven Small Business Prime Contractor § Responsiveness, Reliability & Relationship § Program Management & Integration § Kitting / Assembly Operations § Prime Contractor Quality System, ISO 9001/AS 9100 Certified § Approved Airbus Supplier § Wal Machine has Open Capacity and Resources § Financially Sound Company § Top Supplier Rating with Present Customers § Proven Supply Chain § Hard Metals & Aluminum § 5 Axis High Speed Capability § Up to 120” § Low Cost & Efficient

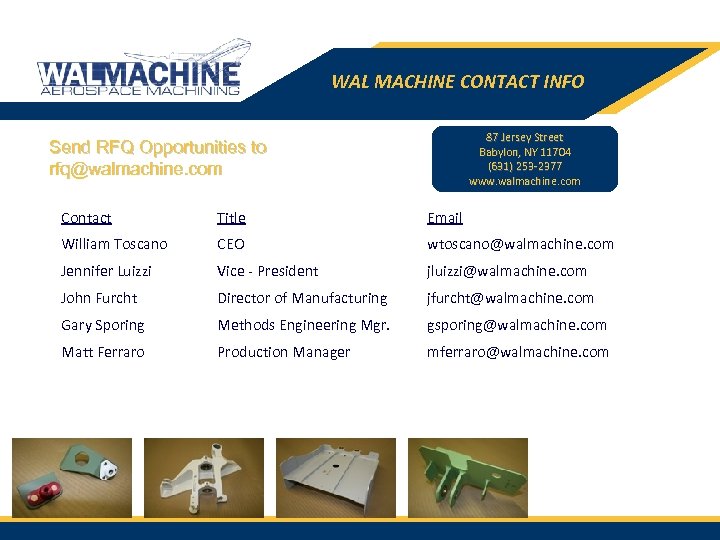

WAL MACHINE CONTACT INFO 87 Jersey Street Babylon, NY 11704 (631) 253 -2377 www. walmachine. com Send RFQ Opportunities to rfq@walmachine. com Contact Title Email William Toscano CEO wtoscano@walmachine. com Jennifer Luizzi Vice - President jluizzi@walmachine. com John Furcht Director of Manufacturing jfurcht@walmachine. com Gary Sporing www. walmachine. com Methods Engineering Mgr. gsporing@walmachine. com Matt Ferraro Production Manager mferraro@walmachine. com
