802 11 n Dual WAN VPN Router VRT-420

802. 11 n Dual WAN VPN Router VRT-420 N Copyright © PLANET Technology Corporation. All rights reserved.

Presentation Outline u Product Overview u Product Features u Product Application u Management u Product Comparison 2

Product Position Security Gateway MH, SG, CS Series NAT Firewall VPN Multi-WAN Anti-Virus/Spam SSL VPN Broadband Router NAT Firewall VPN VRT-401 100 -Tunnel Wired VRT-420 N 25 -Tunnel Wired + Wireless Dual-WAN VRT-402 N 25 -Tunnel Wired +wireless Internet Broadband Router XRT, WRT Series NAT Firewall 3

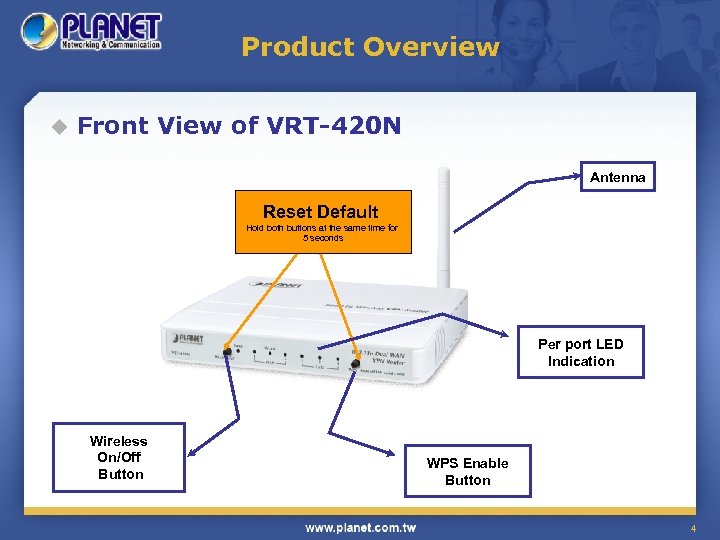

Product Overview u Front View of VRT-420 N Antenna Reset Default Hold both buttons at the same time for 5 seconds Per port LED Indication Wireless On/Off Button WPS Enable Button 4

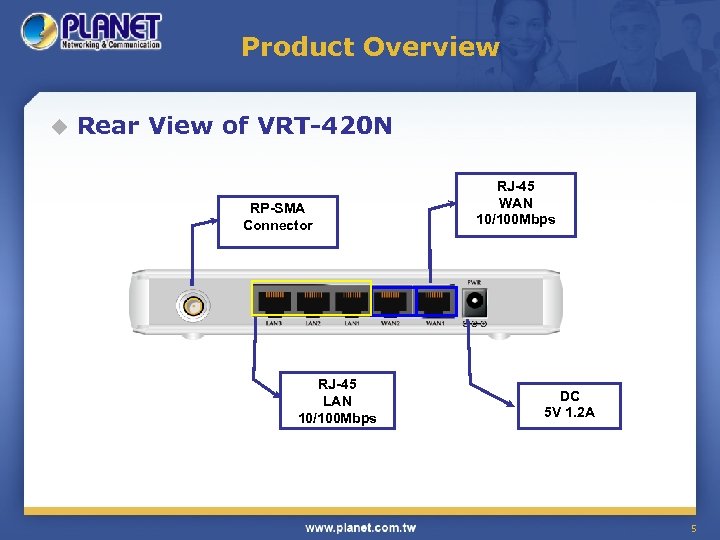

Product Overview u Rear View of VRT-420 N RP-SMA Connector RJ-45 LAN 10/100 Mbps RJ-45 WAN 10/100 Mbps DC 5 V 1. 2 A 5

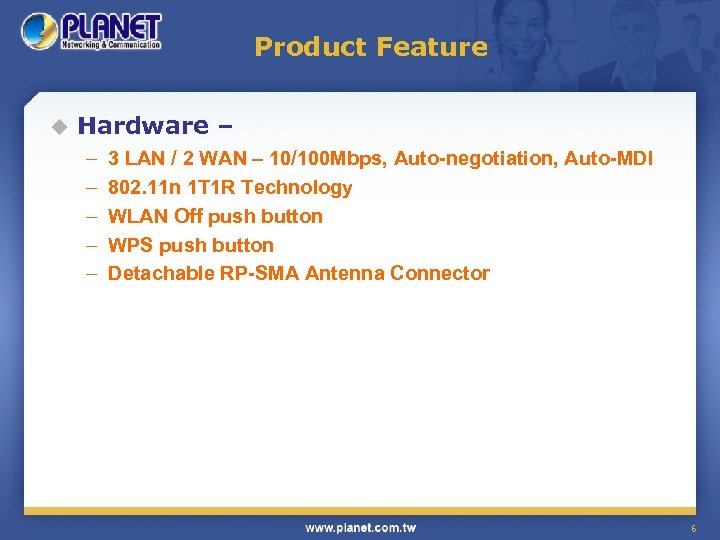

Product Feature u Hardware – – – 3 LAN / 2 WAN – 10/100 Mbps, Auto-negotiation, Auto-MDI 802. 11 n 1 T 1 R Technology WLAN Off push button WPS push button Detachable RP-SMA Antenna Connector 6

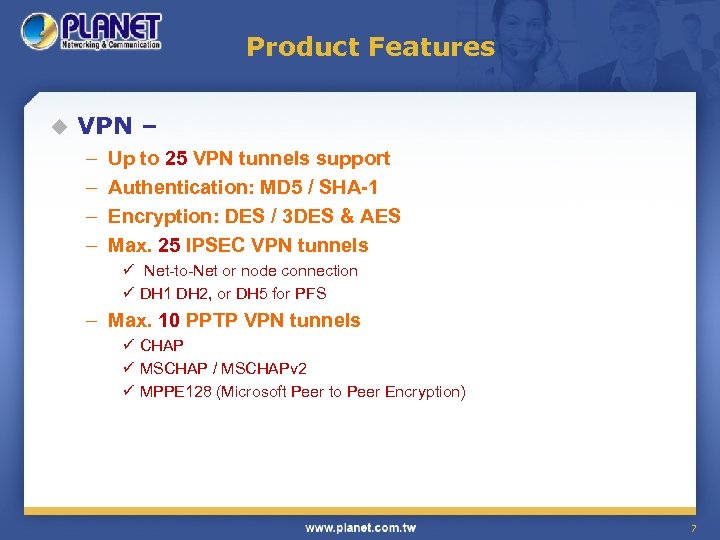

Product Features u VPN – – – Up to 25 VPN tunnels support Authentication: MD 5 / SHA-1 Encryption: DES / 3 DES & AES Max. 25 IPSEC VPN tunnels ü Net-to-Net or node connection ü DH 1 DH 2, or DH 5 for PFS – Max. 10 PPTP VPN tunnels ü CHAP ü MSCHAP / MSCHAPv 2 ü MPPE 128 (Microsoft Peer to Peer Encryption) 7

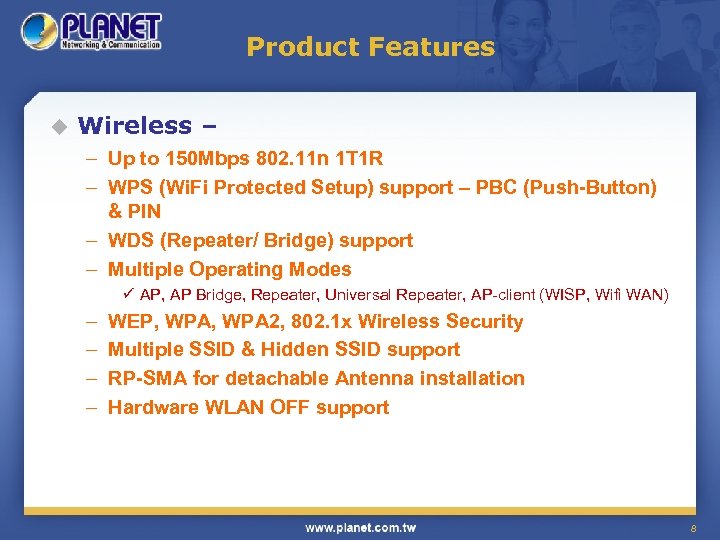

Product Features u Wireless – – Up to 150 Mbps 802. 11 n 1 T 1 R – WPS (Wi. Fi Protected Setup) support – PBC (Push-Button) & PIN – WDS (Repeater/ Bridge) support – Multiple Operating Modes ü AP, AP Bridge, Repeater, Universal Repeater, AP-client (WISP, Wifi WAN) – – WEP, WPA 2, 802. 1 x Wireless Security Multiple SSID & Hidden SSID support RP-SMA for detachable Antenna installation Hardware WLAN OFF support 8

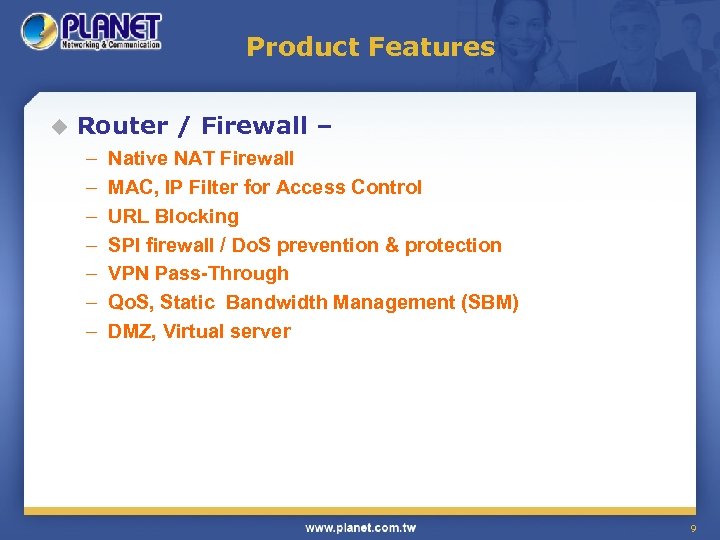

Product Features u Router / Firewall – – – – Native NAT Firewall MAC, IP Filter for Access Control URL Blocking SPI firewall / Do. S prevention & protection VPN Pass-Through Qo. S, Static Bandwidth Management (SBM) DMZ, Virtual server 9

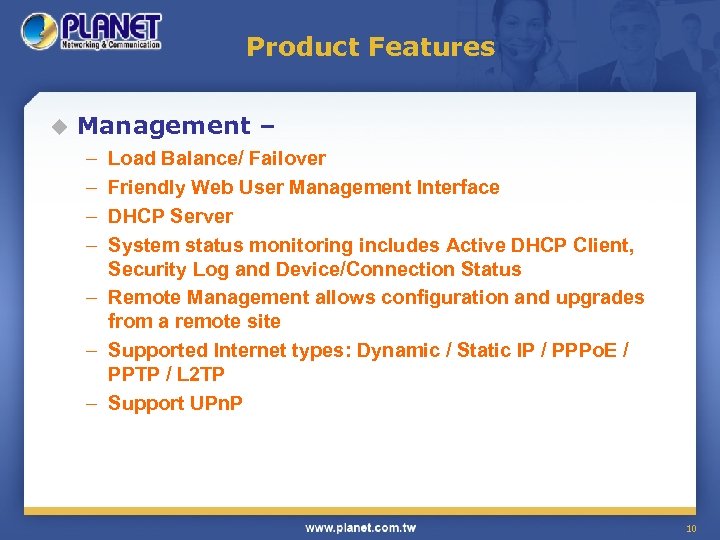

Product Features u Management – – – Load Balance/ Failover Friendly Web User Management Interface DHCP Server System status monitoring includes Active DHCP Client, Security Log and Device/Connection Status – Remote Management allows configuration and upgrades from a remote site – Supported Internet types: Dynamic / Static IP / PPPo. E / PPTP / L 2 TP – Support UPn. P 10

Product Application u Typical Application 11

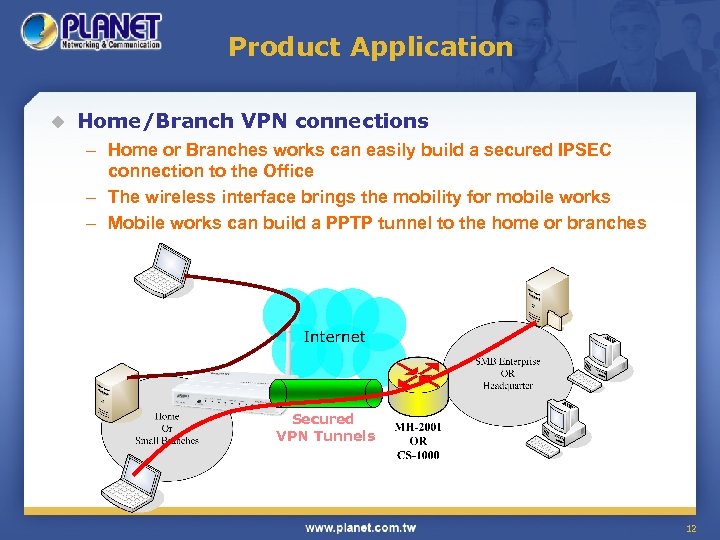

Product Application u Home/Branch VPN connections – Home or Branches works can easily build a secured IPSEC connection to the Office – The wireless interface brings the mobility for mobile works – Mobile works can build a PPTP tunnel to the home or branches Secured VPN Tunnels 12

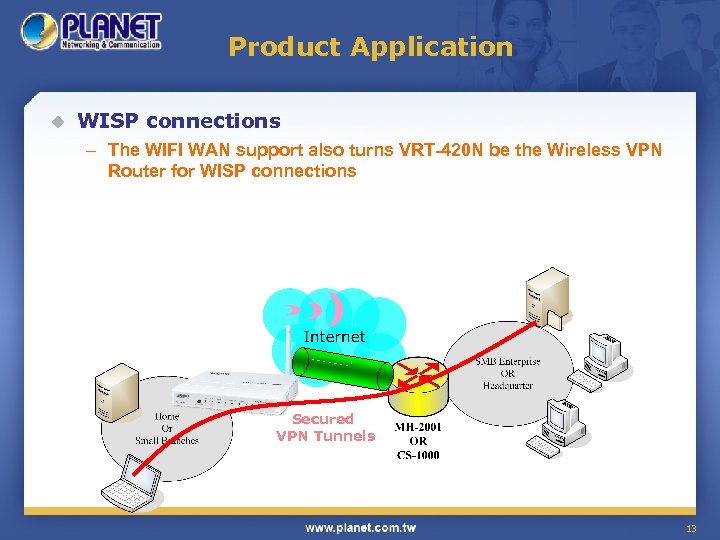

Product Application u WISP connections – The WIFI WAN support also turns VRT-420 N be the Wireless VPN Router for WISP connections Secured VPN Tunnels 13

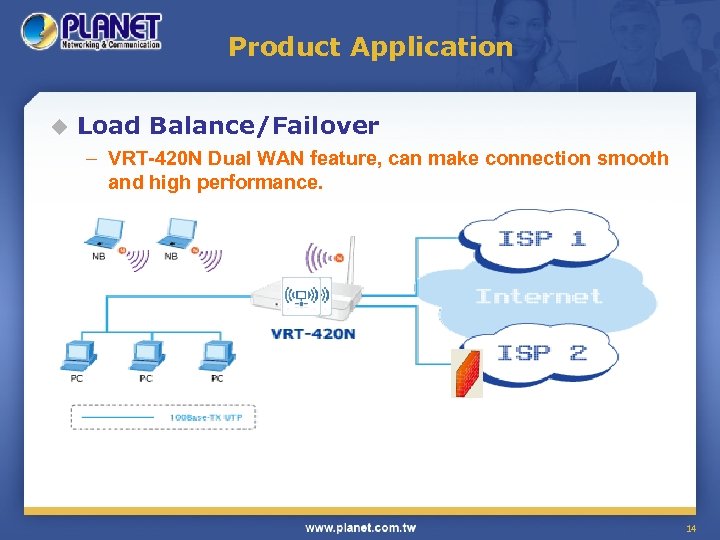

Product Application u Load Balance/Failover – VRT-420 N Dual WAN feature, can make connection smooth and high performance. 14

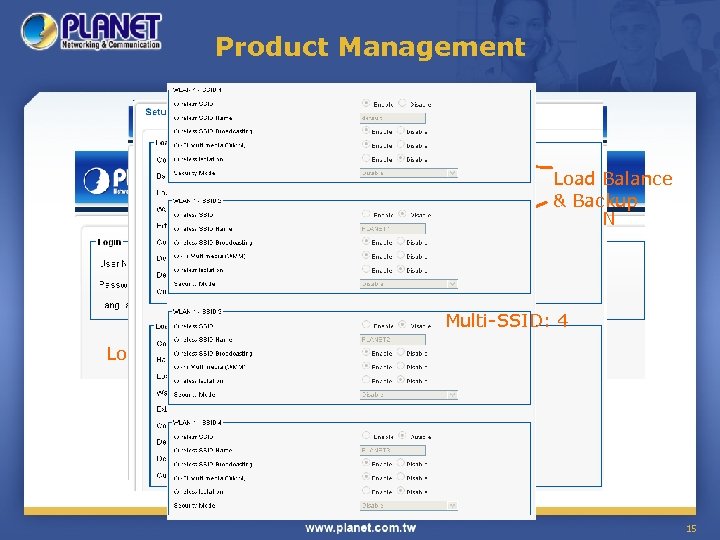

Product Management Load Balance & Backup Dual WAN Multi-SSID: 4 Login Page 15

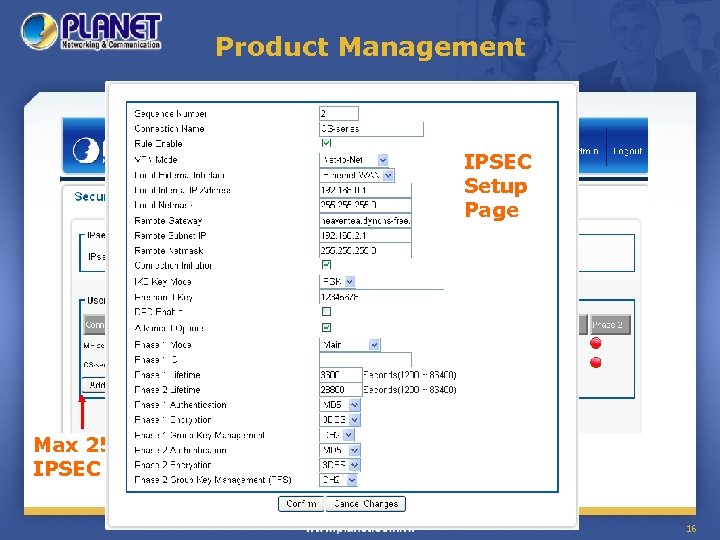

Product Management IPSEC Setup Page Max 25 IPSEC rules 16

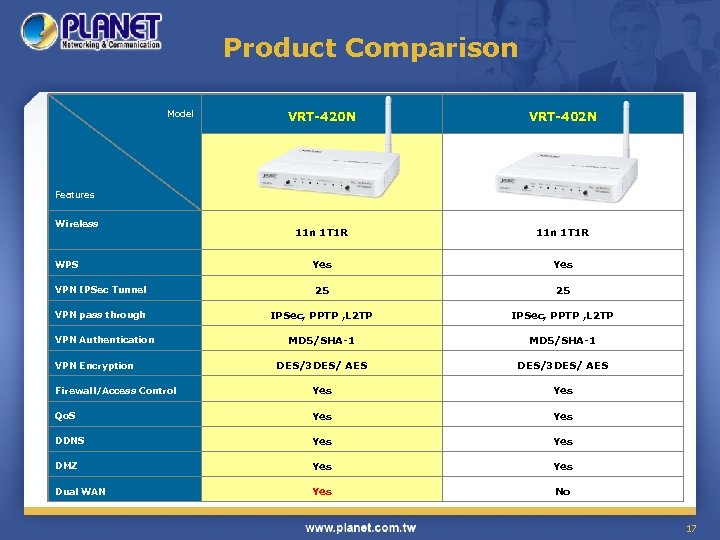

Product Comparison Model VRT-420 N VRT-402 N 11 n 1 T 1 R Yes VPN IPSec Tunnel 25 25 VPN pass through IPSec, PPTP , L 2 TP MD 5/SHA-1 DES/3 DES/ AES Firewall/Access Control Yes Qo. S Yes DDNS Yes DMZ Yes Dual WAN Yes No Features Wireless WPS VPN Authentication VPN Encryption 17

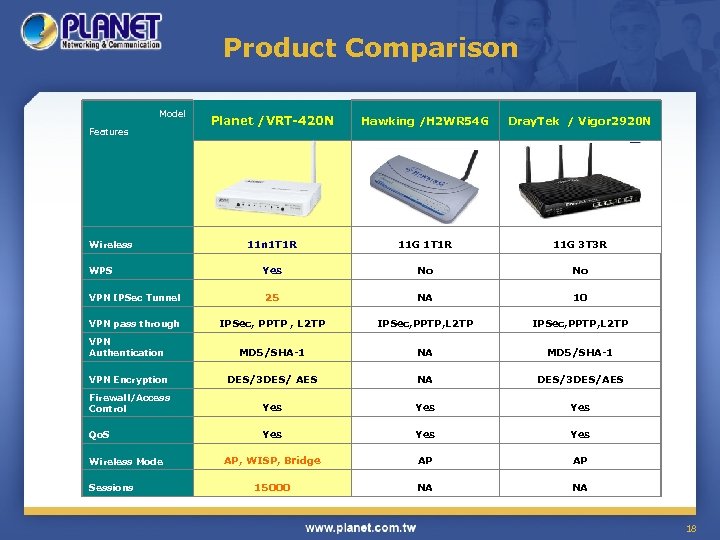

Product Comparison Model Planet /VRT-420 N Hawking /H 2 WR 54 G Dray. Tek / Vigor 2920 N 11 n 1 T 1 R 11 G 3 T 3 R Yes No No VPN IPSec Tunnel 25 NA 10 VPN pass through IPSec, PPTP , L 2 TP IPSec, PPTP, L 2 TP VPN Authentication MD 5/SHA-1 NA MD 5/SHA-1 VPN Encryption DES/3 DES/ AES NA DES/3 DES/AES Firewall/Access Control Yes Yes Qo. S Yes Yes AP, WISP, Bridge AP AP 15000 NA NA Features 　 Wireless WPS Wireless Mode Sessions 　 18

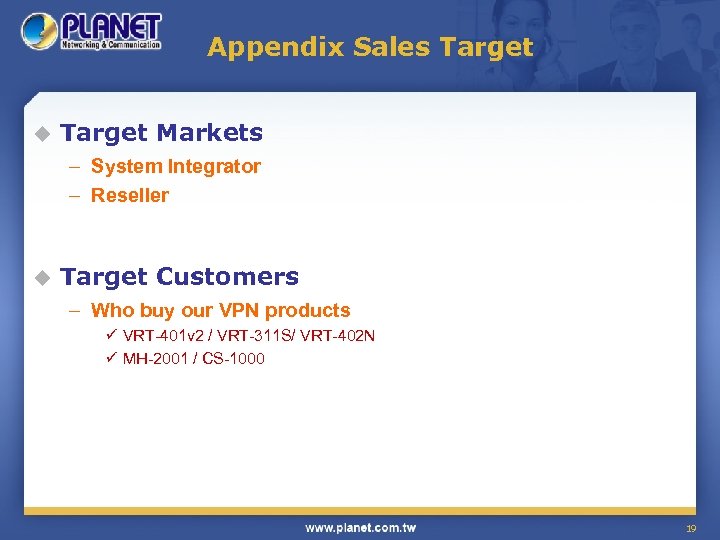

Appendix Sales Target u Target Markets – System Integrator – Reseller u Target Customers – Who buy our VPN products ü VRT-401 v 2 / VRT-311 S/ VRT-402 N ü MH-2001 / CS-1000 19

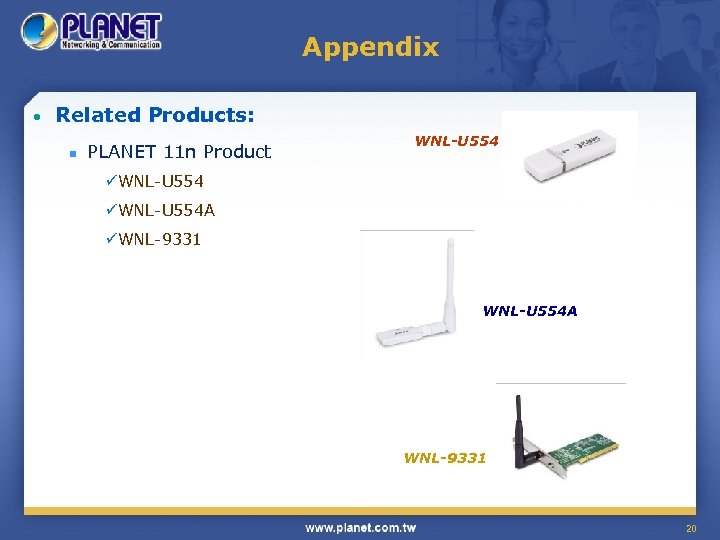

Appendix • Related Products: n PLANET 11 n Product WNL-U 554 üWNL-U 554 A üWNL-9331 WNL-U 554 A WNL-9331 20
