802. 11 b/g/n Wireless LAN Outdoor AP WNAP-6350

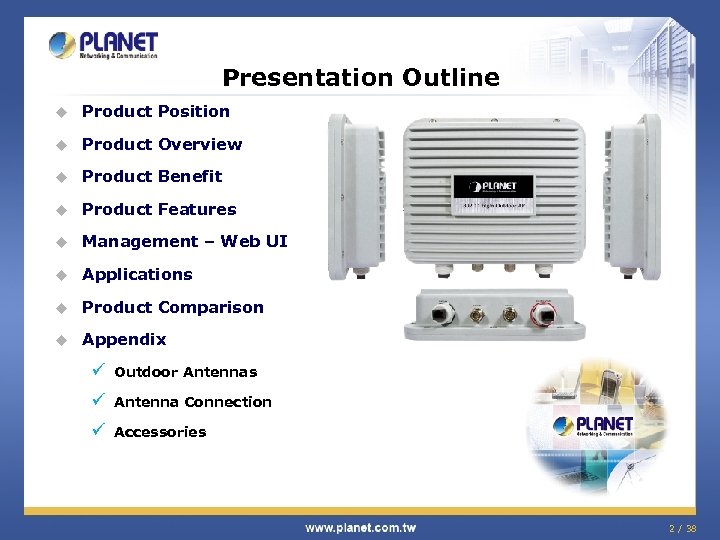

Presentation Outline u Product Position u Product Overview u Product Benefit u Product Features u Management – Web UI u Applications u Product Comparison u Appendix ü Outdoor Antennas ü Antenna Connection ü Accessories 2 / 38

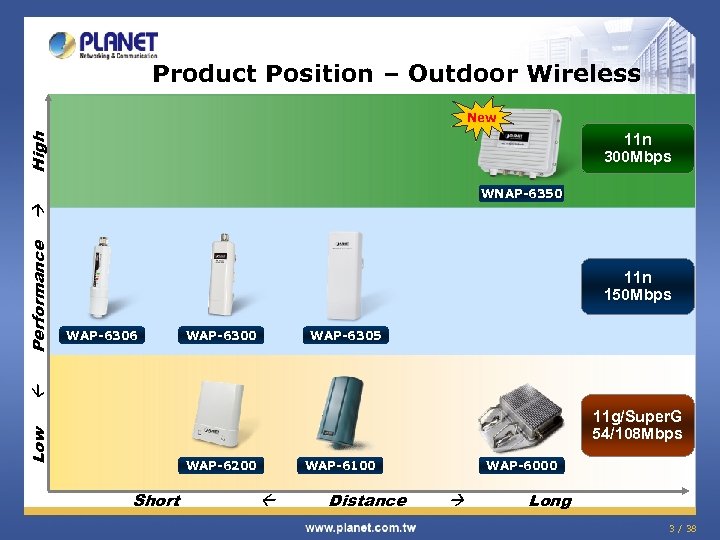

Product Position – Outdoor Wireless New High 11 n 300 Mbps 11 n 150 Mbps WAP-6306 WAP-6300 WAP-6305 Performance WNAP-6350 Low 11 g/Super. G 54/108 Mbps WAP-6200 Short WAP-6100 Distance WAP-6000 Long 3 / 38

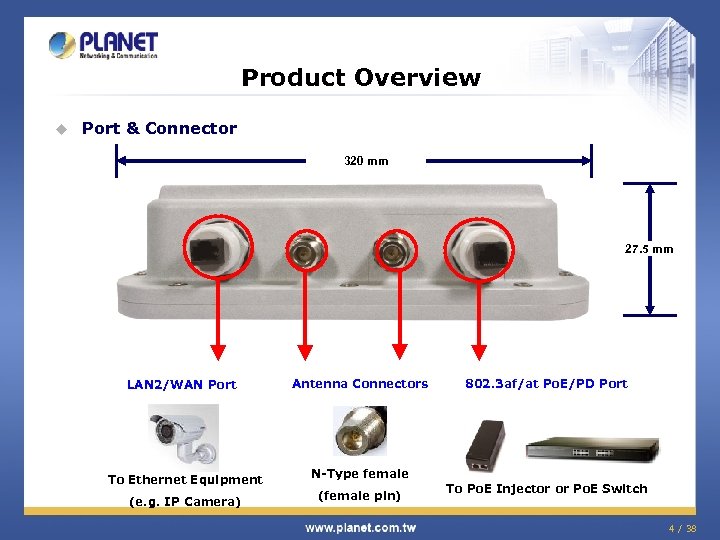

Product Overview u Port & Connector 320 mm 27. 5 mm LAN 2/WAN Port Antenna Connectors To Ethernet Equipment N-Type female (e. g. IP Camera) (female pin) 802. 3 af/at Po. E/PD Port To Po. E Injector or Po. E Switch 4 / 38

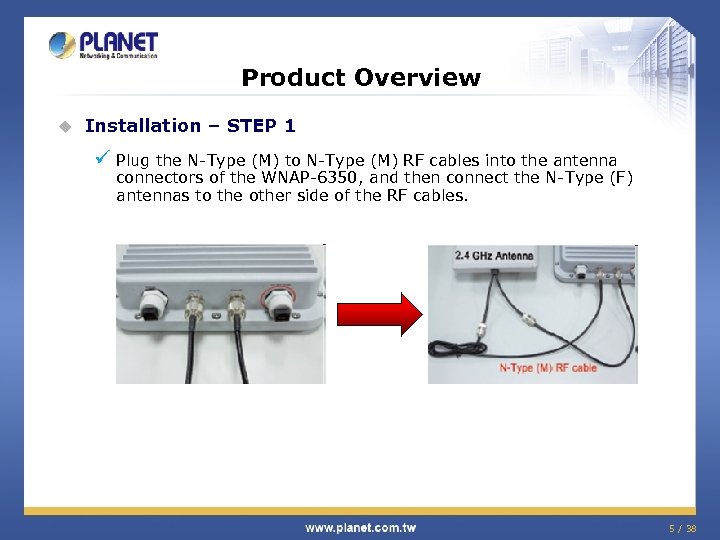

Product Overview u Installation – STEP 1 ü Plug the N-Type (M) to N-Type (M) RF cables into the antenna connectors of the WNAP-6350, and then connect the N-Type (F) antennas to the other side of the RF cables. 5 / 38

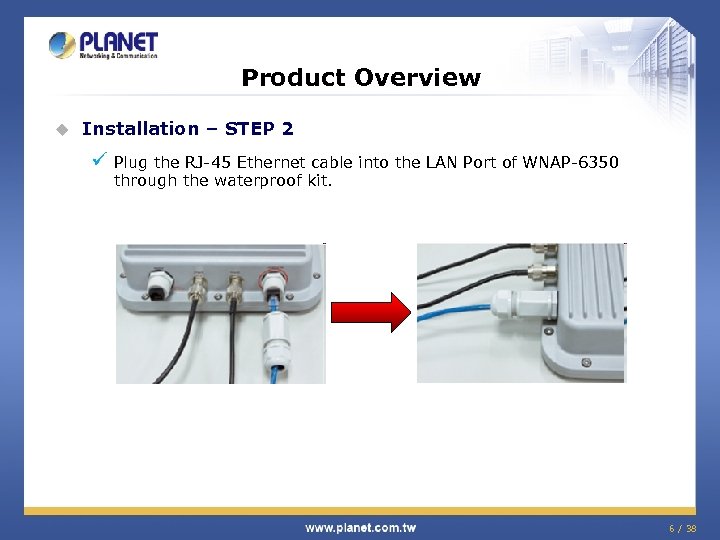

Product Overview u Installation – STEP 2 ü Plug the RJ-45 Ethernet cable into the LAN Port of WNAP-6350 through the waterproof kit. 6 / 38
Product Overview u Installation – STEP 3 ü Take out the power cord and Po. E injector, plug the power cord into the DC port and plug the other side of the RJ-45 cable into the POE port of the Po. E injector & Power cord 7 / 38

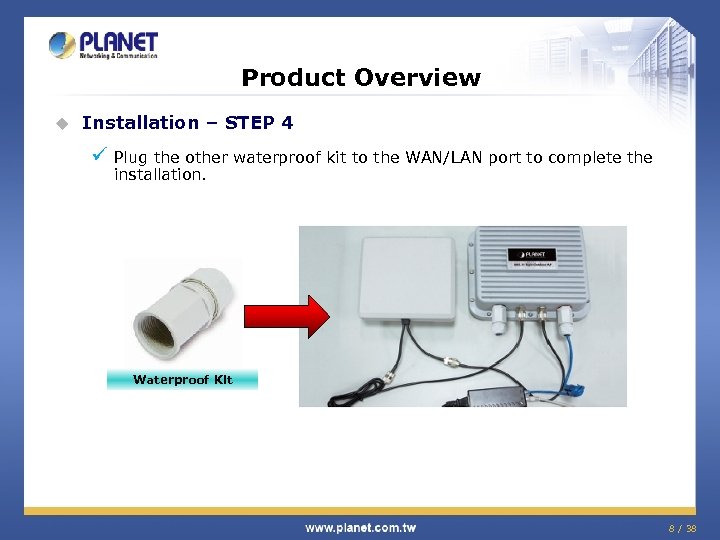

Product Overview u Installation – STEP 4 ü Plug the other waterproof kit to the WAN/LAN port to complete the installation. Waterproof Kit 8 / 38
Product Overview u Installation – Pole Mounting u (a 1) Attach the mounting u (a 2) Assemble the M bracket u (a 3) Install the mounting bracket assembly Mounting Kit 9 / 38
Product Overview u Installation – Wall Mounting u (b 1) Attach the mounting bracket u (b 2) Assemble the M bracket u (b 3) Install the mounting bracket assembly Mounting Kit 10 / 38

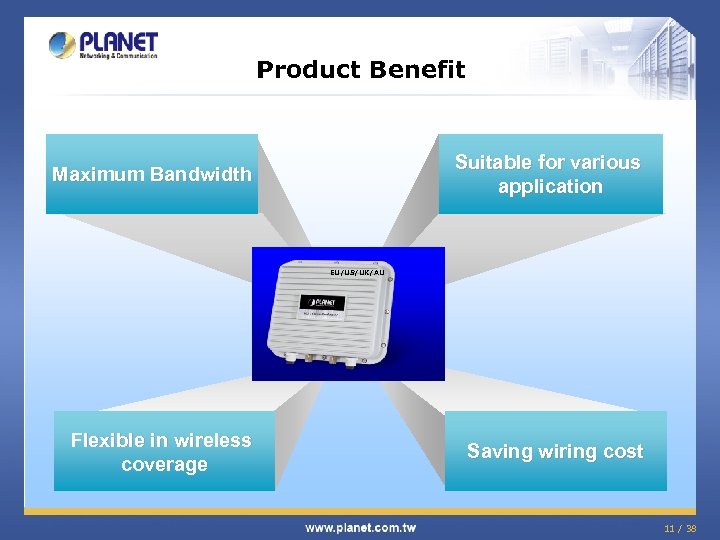

Product Benefit Suitable for various application Maximum Bandwidth EU/US/UK/AU Flexible in wireless coverage Saving wiring cost 11 / 38

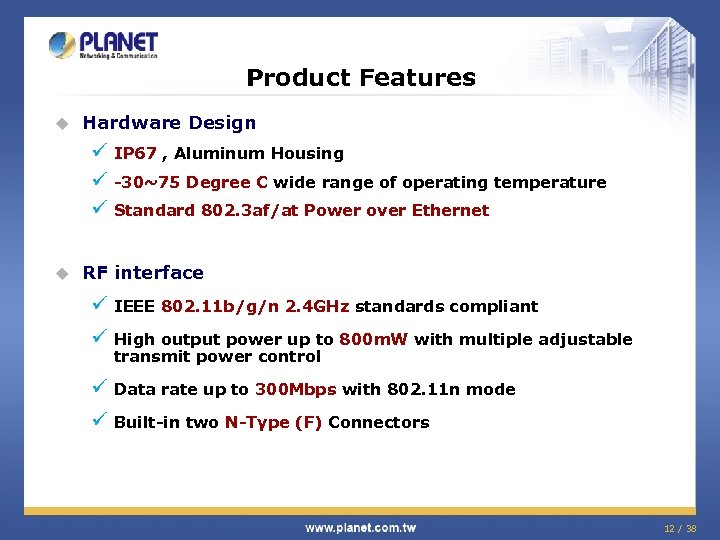

Product Features u Hardware Design ü IP 67 , Aluminum Housing ü -30~75 Degree C wide range of operating temperature ü Standard 802. 3 af/at Power over Ethernet u RF interface ü IEEE 802. 11 b/g/n 2. 4 GHz standards compliant ü High output power up to 800 m. W with multiple adjustable transmit power control ü Data rate up to 300 Mbps with 802. 11 n mode ü Built-in two N-Type (F) Connectors 12 / 38

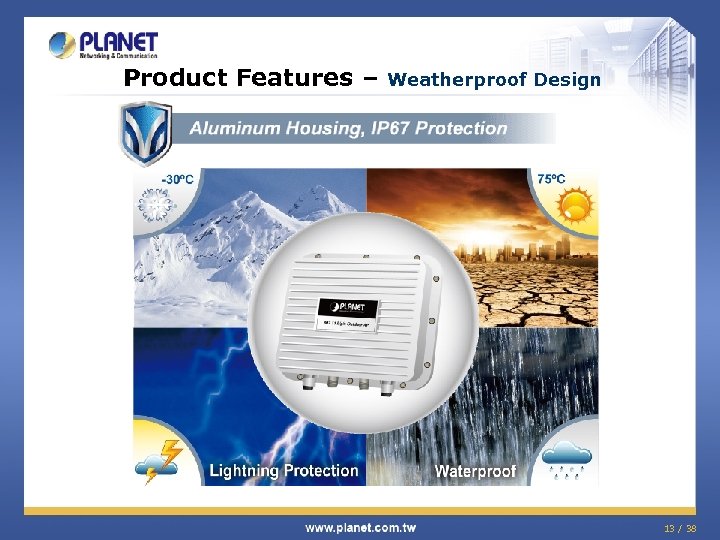

Product Features – Weatherproof Design 13 / 38
Product Features u Wireless ü Operation Mode • AP, Client CPE (WISP), WDS Pt. P, WDS Pt. MP, Repeater (AP+WDS) ü WDS up to 8 remote APs ü SSID Broadcast & Hide ü Supported Dual-SSID ü Wireless Security • 64/128 -bit WEP, WPA 2, WPA-PSK(TKIP), WPA 2 PSK(AES), and 802. 1 x Authentication ü Max. Wireless Client up to 40 Stations ü Output Power Control (Range 3~27 d. Bm) ü Distance Adjustment helps deployment 14 / 38
Product Features u Operation Mode Multiple Operation Mode ü AP, Client CPE(WISP), WDS Pt. P, WDS Pt. MP, Repeater(AP+WDS) 15 / 38

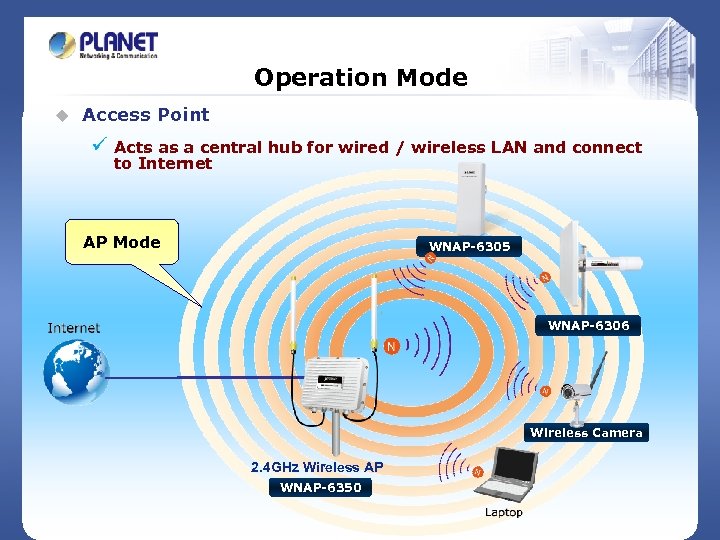

Operation Mode u Access Point ü Acts as a central hub for wired / wireless LAN and connect to Internet AP Mode WNAP-6305 WNAP-6306 Wireless Camera 2. 4 GHz Wireless AP WNAP-6350 16 / 25

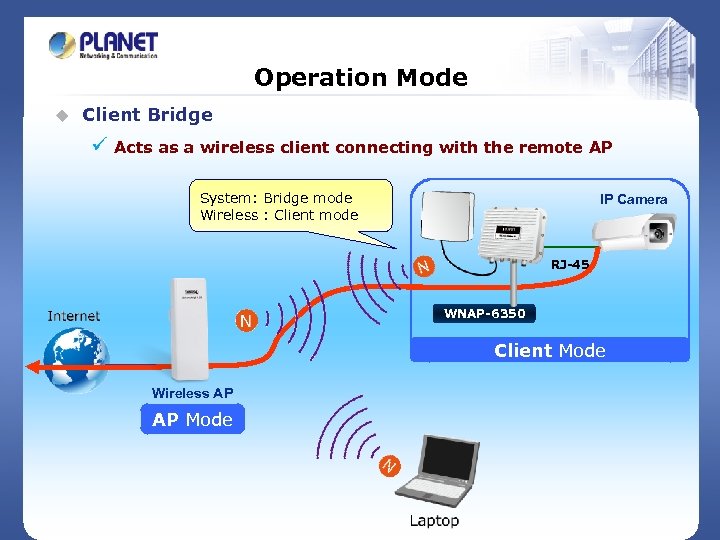

Operation Mode u Client Bridge ü Acts as a wireless client connecting with the remote AP System: Bridge mode Wireless : Client mode IP Camera RJ-45 WNAP-6350 Client Mode Wireless AP AP Mode 17 / 25

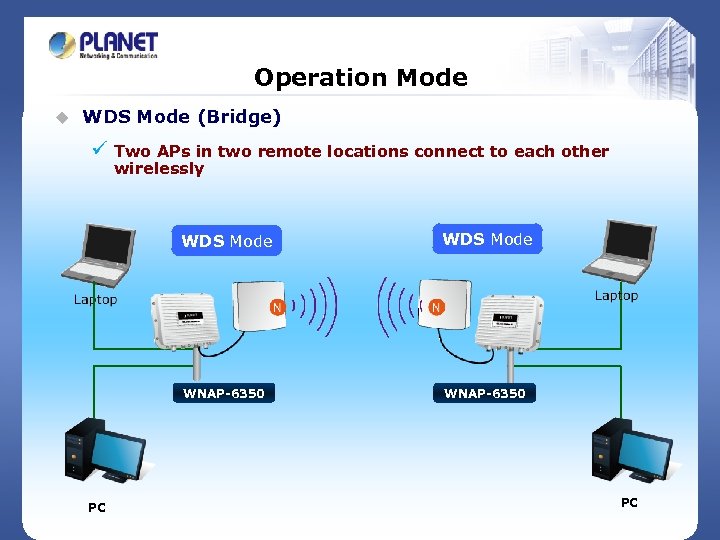

Operation Mode u WDS Mode (Bridge) ü Two APs in two remote locations connect to each other wirelessly WDS Mode WNAP-6350 PC 18 / 25

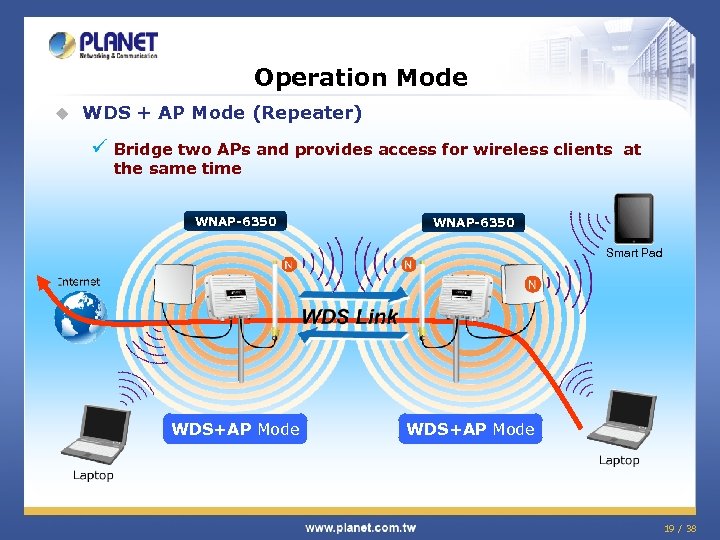

Operation Mode u WDS + AP Mode (Repeater) ü Bridge two APs and provides access for wireless clients the same time WNAP-6350 at WNAP-6350 Smart Pad WDS+AP Mode 19 / 38

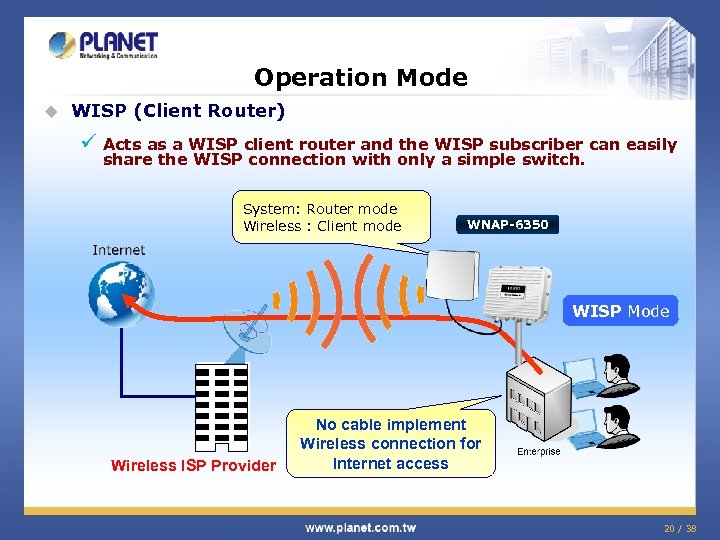

Operation Mode u WISP (Client Router) ü Acts as a WISP client router and the WISP subscriber can easily share the WISP connection with only a simple switch. System: Router mode Wireless : Client mode WNAP-6350 WISP Mode Wireless ISP Provider No cable implement Wireless connection for Internet access 20 / 38

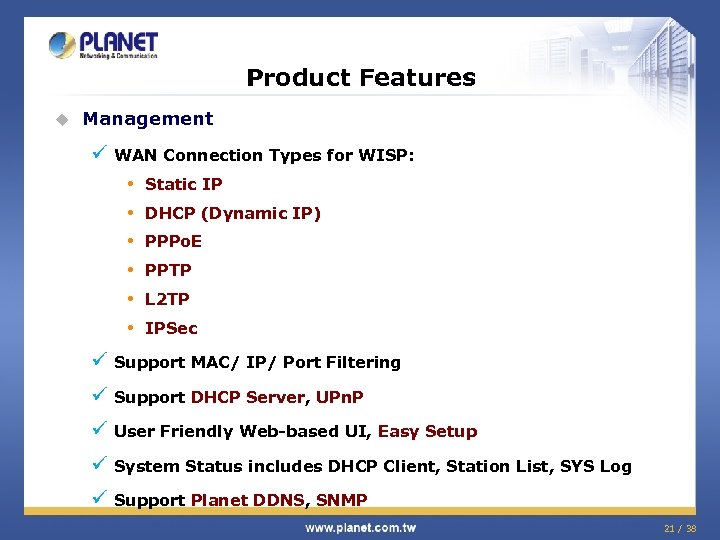

Product Features u Management ü WAN Connection Types for WISP: • Static IP • DHCP (Dynamic IP) • PPPo. E • PPTP • L 2 TP • IPSec ü Support MAC/ IP/ Port Filtering ü Support DHCP Server, UPn. P ü User Friendly Web-based UI, Easy Setup ü System Status includes DHCP Client, Station List, SYS Log ü Support Planet DDNS, SNMP 21 / 38

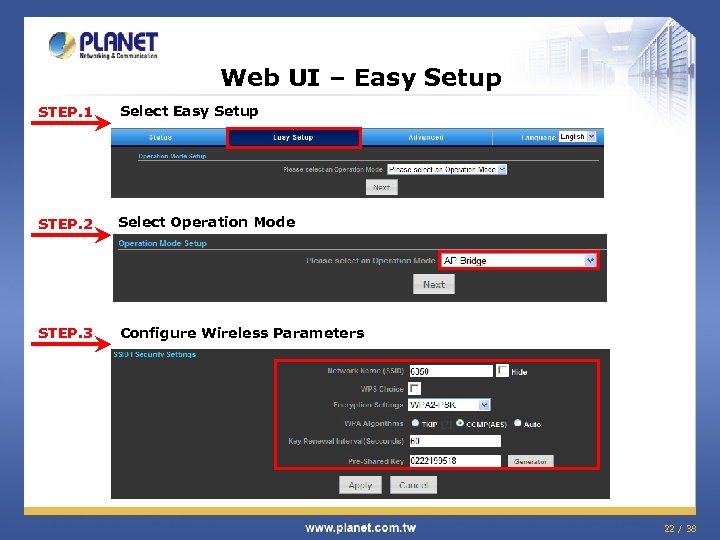

Web UI – Easy Setup STEP. 1 Select Easy Setup STEP. 2 Select Operation Mode STEP. 3 Configure Wireless Parameters 22 / 38
Web UI – Planet DDNS (Router Mode) STEP. 1 Go to http: //www. planetddns. com/ to register a Planet DDNS account. STEP. 2 Configure the DDNS account in WNAP-6350 STEP. 3 Allow Remote Access via WAN 23 / 38
Web UI - Status System Status Statistics DHCP Clients Station List 24 / 38
Product Features u Flexible Deployment with Po. E Feature ü Compliant with IEEE 802. 3 at/af Power over Ethernet standard. ü Broad compatibility with Po. E Power Sourcing Equipment (PSE). 100 m Ethernet Switch 802. 3 af Po. E Injector DATA Power DATA + Power 100 m 802. 3 at Po. E Switch Po. E Extender DATA + Power 100 m DATA + Power
Product Features u Flexible Deployment with Po. E Feature ü Integrated with PLANET Solar Power Po. E System to offer farther Wireless service in remote areas. Po. E BSP-300 Solar Power Po. E Switch 26 / 38

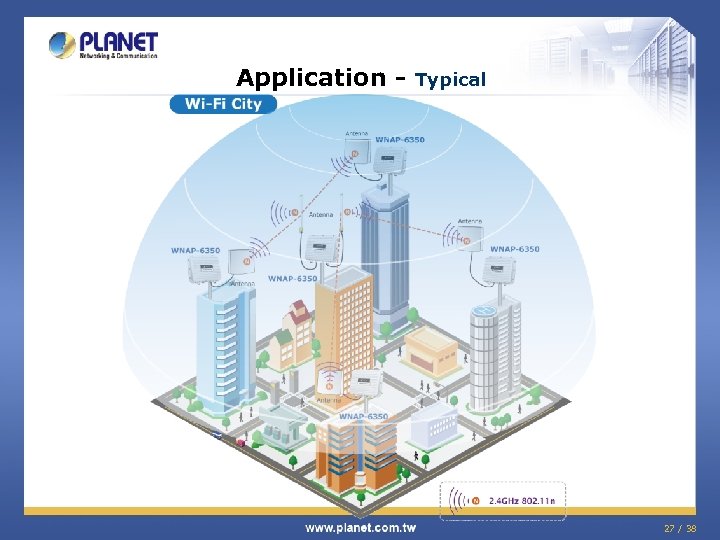

Application - Typical 27 / 38

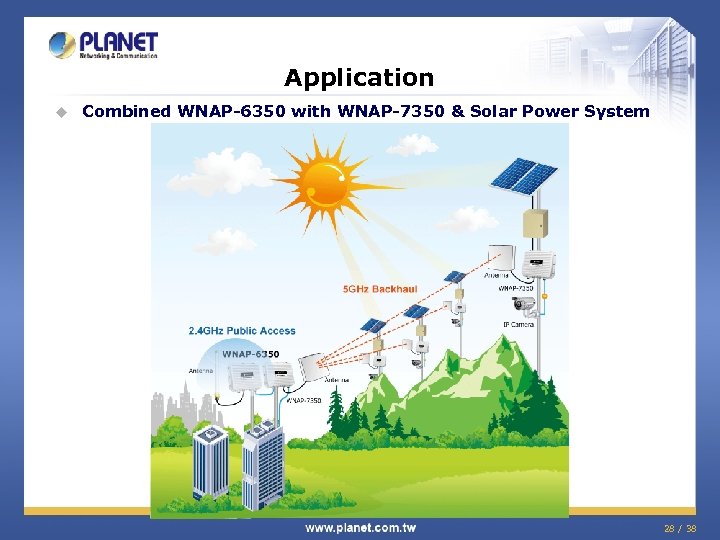

Application u Combined WNAP-6350 with WNAP-7350 & Solar Power System 28 / 38

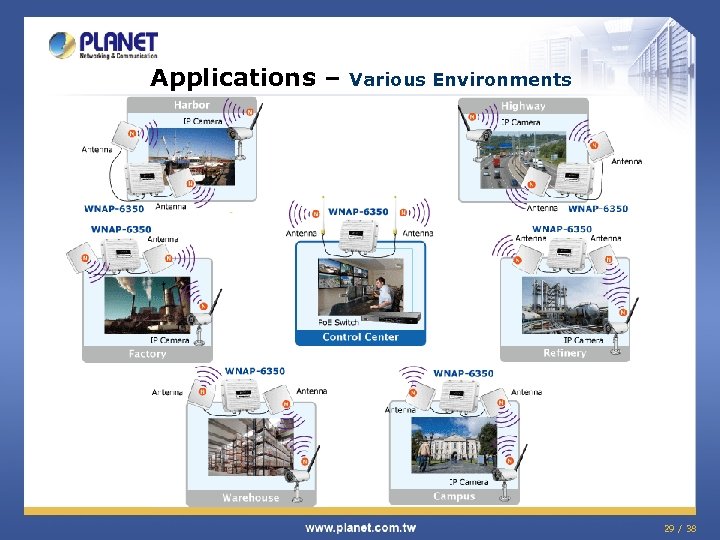

Applications – Various Environments 29 / 38

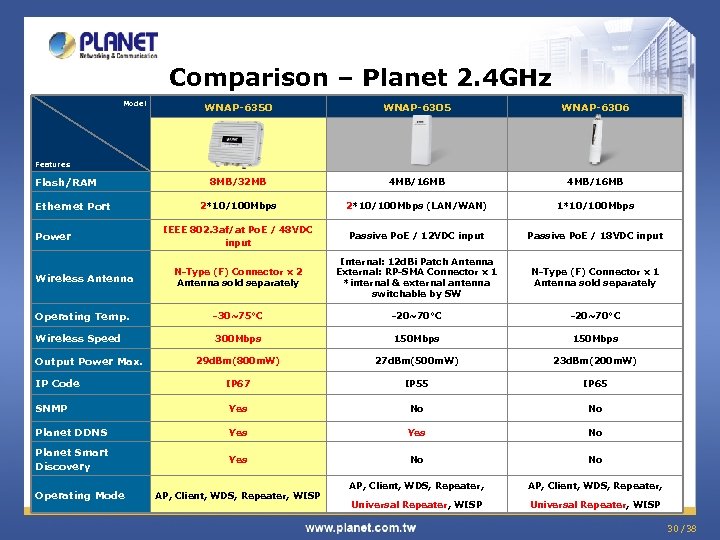

Comparison – Planet 2. 4 GHz Model WNAP-6350 WNAP-6305 WNAP-6306 8 MB/32 MB 4 MB/16 MB 2*10/100 Mbps (LAN/WAN) 1*10/100 Mbps IEEE 802. 3 af/at Po. E / 48 VDC input Passive Po. E / 12 VDC input Passive Po. E / 18 VDC input Wireless Antenna N-Type (F) Connector x 2 Antenna sold separately Internal: 12 d. Bi Patch Antenna External: RP-SMA Connector x 1 *internal & external antenna switchable by SW N-Type (F) Connector x 1 Antenna sold separately Operating Temp. -30~75°C -20~70°C Wireless Speed 300 Mbps 150 Mbps 29 d. Bm(800 m. W) 27 d. Bm(500 m. W) 23 d. Bm(200 m. W) IP 67 IP 55 IP 65 SNMP Yes No No Planet DDNS Yes No Planet Smart Discovery Yes No No AP, Client, WDS, Repeater, Universal Repeater, WISP Features Flash/RAM Ethernet Port Power Output Power Max. IP Code Operating Mode AP, Client, WDS, Repeater, WISP 30 /38

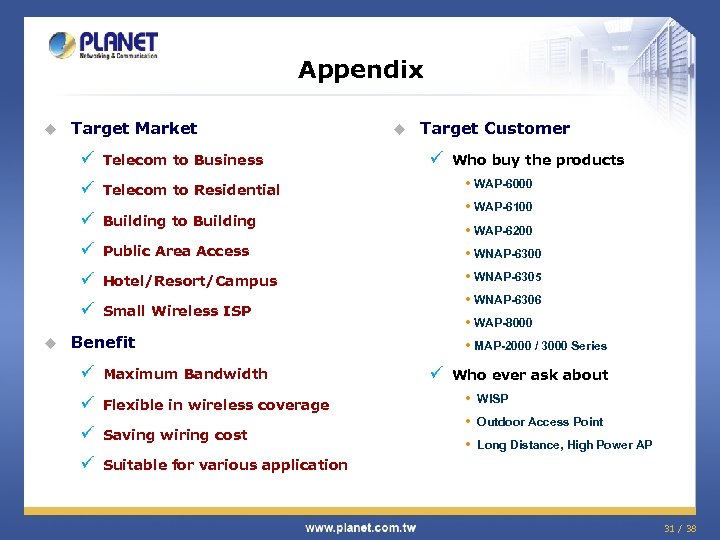

Appendix u Target Market ü ü Building to Building ü Public Area Access ü Hotel/Resort/Campus ü Target Customer Telecom to Residential ü u Telecom to Business u ü Small Wireless ISP • WAP-6000 • WAP-6100 • WAP-6200 • WNAP-6305 • WNAP-6306 • WAP-8000 • MAP-2000 / 3000 Series Benefit ü Maximum Bandwidth ü Flexible in wireless coverage ü Saving wiring cost ü Who buy the products Suitable for various application ü Who ever ask about • • • WISP Outdoor Access Point Long Distance, High Power AP 31 / 38

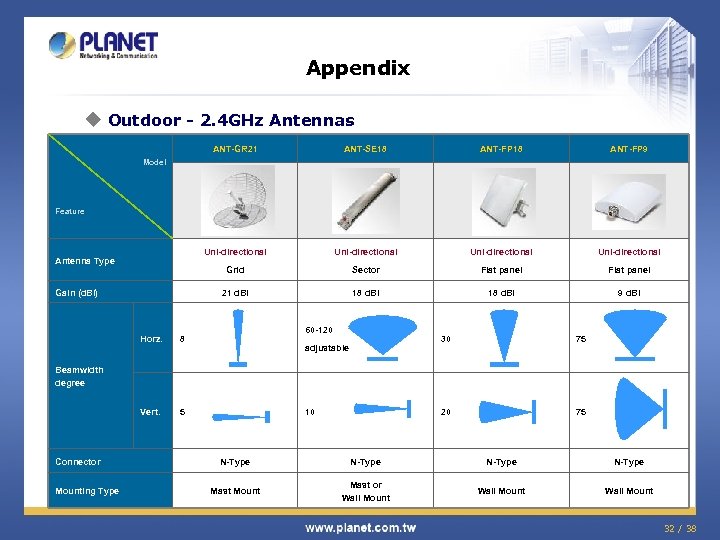

Appendix u Outdoor - 2. 4 GHz Antennas ANT-GR 21 ANT-SE 18 ANT-FP 9 Uni-directional Grid Sector Flat panel 21 d. Bi 18 d. Bi 9 d. Bi Model Feature Antenna Type Gain (d. Bi) Horz. Vert. 60 -120 8 5 30 75 20 adjustable 75 Beamwidth degree Connector Mounting Type 10 N-Type Mast Mount Mast or Wall Mount 32 / 38

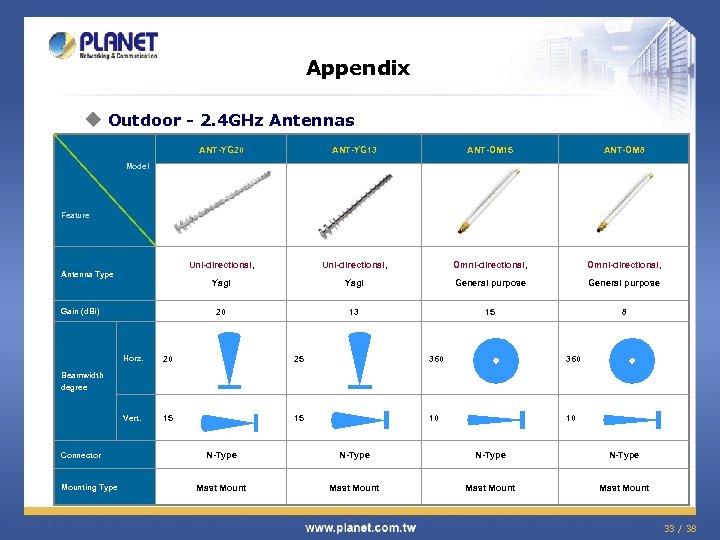

Appendix u Outdoor - 2. 4 GHz Antennas ANT-YG 20 ANT-YG 13 ANT-OM 15 ANT-OM 8 Uni-directional, Omni-directional, Yagi General purpose 20 13 15 8 Model Feature Antenna Type Gain (d. Bi) Horz. 20 25 360 Vert. 15 15 10 10 Beamwidth degree Connector Mounting Type N-Type Mast Mount 33 / 38
Appendix u Accessories For WNAP-6350 WL-SMA-0. 6 WL-SMA-6 WL-NM-0. 6 WL-MF-0. 6 RP-SMA (Male) to N-male (male pin) N-male (male pin) N-female (female pin) 0. 6 m 6 m 0. 6 m Model Feature Type Length Side-1 Connector Side-2 34 / 38

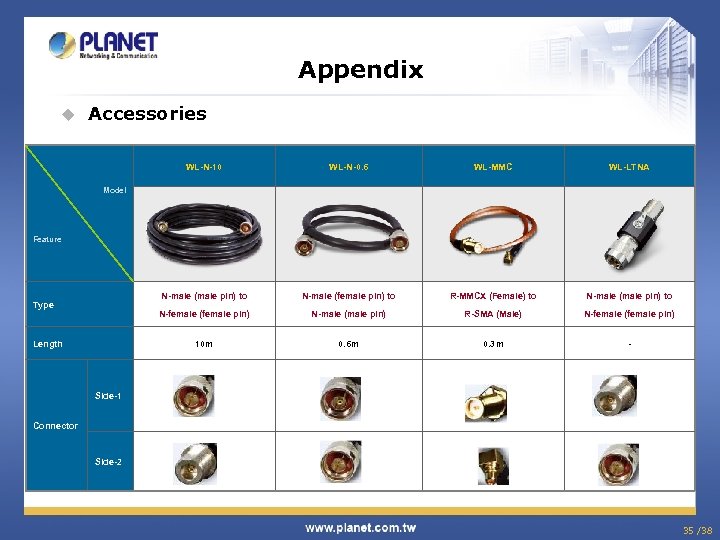

Appendix u Accessories WL-N-10 WL-N-0. 6 WL-MMC WL-LTNA N-male (male pin) to N-male (female pin) to R-MMCX (Female) to N-male (male pin) to N-female (female pin) N-male (male pin) R-SMA (Male) N-female (female pin) 10 m 0. 6 m 0. 3 m - Model Feature Type Length Side-1 Connector Side-2 35 /38

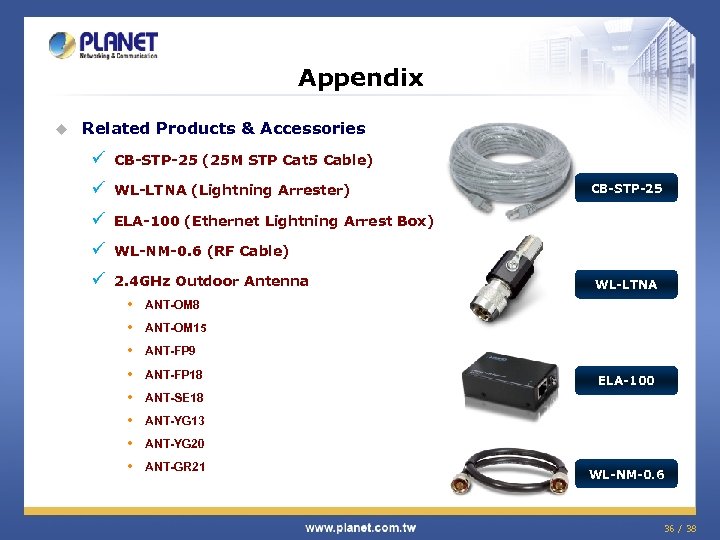

Appendix u Related Products & Accessories ü CB-STP-25 (25 M STP Cat 5 Cable) ü WL-LTNA (Lightning Arrester) ü ELA-100 (Ethernet Lightning Arrest Box) ü WL-NM-0. 6 (RF Cable) ü 2. 4 GHz Outdoor Antenna • • CB-STP-25 WL-LTNA ANT-OM 8 ANT-OM 15 ANT-FP 9 ANT-FP 18 ELA-100 ANT-SE 18 ANT-YG 13 ANT-YG 20 ANT-GR 21 WL-NM-0. 6 36 / 38

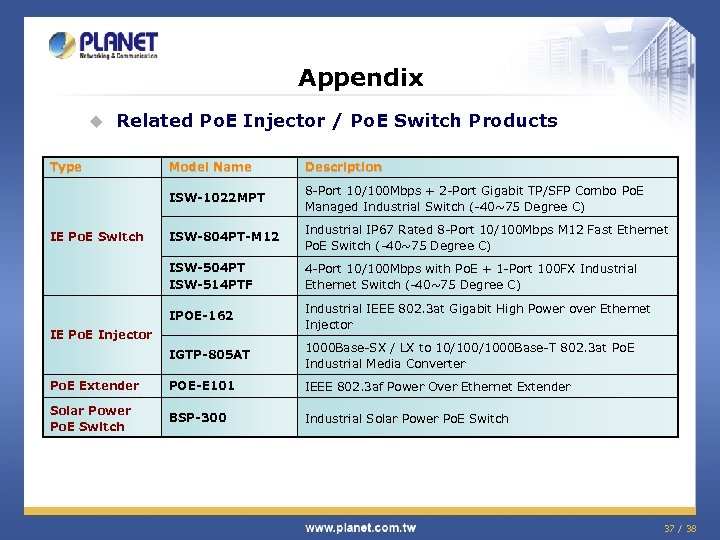

Appendix u Related Po. E Injector / Po. E Switch Products Type Model Name Description ISW-1022 MPT 8 -Port 10/100 Mbps + 2 -Port Gigabit TP/SFP Combo Po. E Managed Industrial Switch (-40~75 Degree C) ISW-804 PT-M 12 Industrial IP 67 Rated 8 -Port 10/100 Mbps M 12 Fast Ethernet Po. E Switch (-40~75 Degree C) ISW-504 PT ISW-514 PTF 4 -Port 10/100 Mbps with Po. E + 1 -Port 100 FX Industrial Ethernet Switch (-40~75 Degree C) IPOE-162 Industrial IEEE 802. 3 at Gigabit High Power over Ethernet Injector IGTP-805 AT 1000 Base-SX / LX to 10/1000 Base-T 802. 3 at Po. E Industrial Media Converter Po. E Extender POE-E 101 IEEE 802. 3 af Power Over Ethernet Extender Solar Power Po. E Switch BSP-300 Industrial Solar Power Po. E Switch IE Po. E Injector 37 / 38
38 / 38
