802. 1 – Activities & status Tony Jeffree, 802. 1 WG Chair 22 March 2008

Areas of work n 802 Architecture and interworking between 802 technologies – Cross-802 Architecture group – “Technical Plenary” if needed n Interworking – – – n “Traditional” (802. 1 D) bridging VLAN (802. 1 Q) bridging Provider bridging LAN management Discovery mechanisms Connectivity fault management AV bridging – Time synchronization – Stream reservation and transmission support n Data center bridging – Congestion management – Per priority flow control n Security – Secure frame transmission – Key management – Secure device identity

Officers n n n n n Chair: Tony Jeffree Vice Chair: Paul Congdon Recording Secretary: Michael Wright Interworking TG Chair: Steve Haddock Link Security TG Chair: Mick Seaman AV Bridging TG Chair: Michael Johas Teener Data Center Bridging TG Chair: Pat Thaler Maintenance of Email exploder: Hal Keen Maintenance of website: John Messenger – Website: http: //www. ieee 802. org/1/

Status of current projects - (1) n The following PARs are awaiting approval by the Standards Board: – P 802. 1 X Revision (will replace P 802. 1 af) – P 802. 1 Qaz - Enhanced Transmission Selection for Bandwidth Sharing Between Traffic Classes n n The following PARs have been submitted for approval this week: P 802. 1 BA – AVB Systems – n P 802. 1 Qbb – Priority-based flow control – n http: //www. ieee 802. org/1/files/public/docs 2008/aj-p 802 -1 aj-par-extension-0308. pdf P 802. 1 Q – Revision PAR – n http: //www. ieee 802. org/1/files/public/docs 2008/av-p 802 -1 qav-par-amendment-0308 -v 01. pdf P 802. 1 aj – extension request – n http: //www. ieee 802. org/1/files/public/docs 2008/new-dcb-thaler-pfc-draft-par-0208. pdf http: //www. ieee 802. org/1/files/public/docs 2008/new-dcb-thaler-draft-pfc-5 c-0208 -v 3. pdf P 802. 1 Qav – amendment to existing PAR – n http: //www. ieee 802. org/1/files/public/docs 2008/new-avb-systems-ba-draft-par-0208 -v 4. pdf http: //www. ieee 802. org/1/files/public/docs 2008/new-avb-systems-ba-draft-5 c-0208 -v 2. pdf http: //www. ieee 802. org/1/files/public/docs 2008/q-p 802 -1 q-revision-par-0308. pdf All active 802. 1 PARs can be found here (Sponsor=C/LM): https: //development. standards. ieee. org/pub/active-pars? n=3

Status of current projects - (2) n MAC Service revision (P 802. 1 ac) – Initial input generated based on ISO/IEC JTC 1 standard 15802 -1 plus ISS, E-ISS from 802. 1 D and 802. 1 Q – Second draft (D 0. 1) generated for circulation to the WG n P 802. 1 X Revision – was P 802. 1 af Key Agreement – Current draft is D 2. 1 – TG ballotting in progress; comment resolution completed. WG balloting will proceed.

Status of current projects - (3) n P 802. 1 ah – Provider Backbone Bridges – Proposed amendment to 802. 1 Q to provide further scaling characteristics in conjunction with P 802. 1 ad in large provider networks – Current draft is D 4. 1 – Sponsor ballot recirculation completed; comment resolution completed. Conditional approval for Rev. Com submission granted. n P 802. 1 aj – Two-port MAC Relay – Proposed amendment to 802. 1 Q to define a relay device, commonly known as a “media converter”, that will assist the integration of 802 LAN technologies with emulated LAN services in use in the provider networking space. – Current draft is 2. 2 – First WG ballot and comment resolution completed; awaiting next draft and recirc ballot.

Status of current projects - (4) n P 802. 1 ap - Management Information Base (MIB) definitions for VLAN Bridges – Draft D 3. 2 generated and issued for WG ballot – Comment resolution completed. Further WG balloting in progress. n P 802. 1 aq – Shortest Path Bridging – Current draft is D 0. 4 – Task Group ballot comment resolution this week n P 802. 1 AR – Secure Device Identity – Current draft is D 1. 4 – Task group balloting in progress. n P 802. 1 AS – Timing and Synchronization in LANs – Current draft D 2. 0 – Task Group ballot completed; comment resolution completed. Further TG balloting expected.

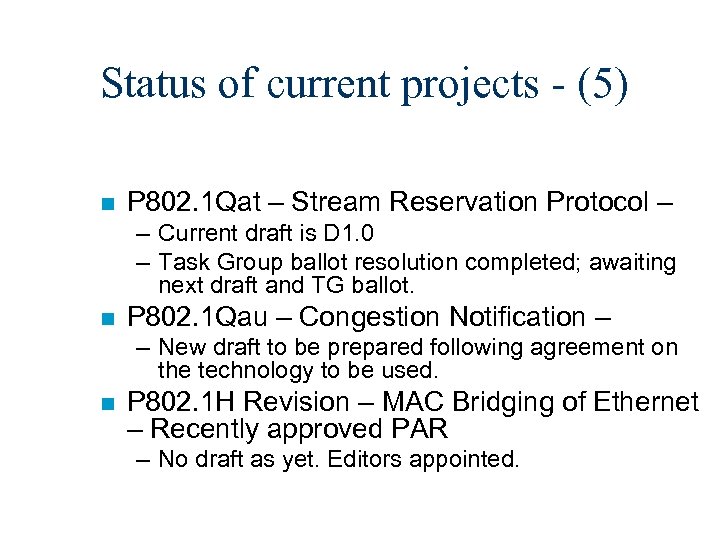

Status of current projects - (5) n P 802. 1 Qat – Stream Reservation Protocol – – Current draft is D 1. 0 – Task Group ballot resolution completed; awaiting next draft and TG ballot. n P 802. 1 Qau – Congestion Notification – – New draft to be prepared following agreement on the technology to be used. n P 802. 1 H Revision – MAC Bridging of Ethernet – Recently approved PAR – No draft as yet. Editors appointed.

Status of current projects - (6) n P 802. 1 Qav – Forwarding and queuing for time sensitive streams – Current draft is D 2. 0 – Task group ballot completed; awaiting next TG ballot. n P 802. 1 Qaw – Data dependent CFM – Current draft is D 2. 0 – Working Group balloting completed; comment resolution completed. Further W balloting expected. n P 802 -REV – Overview and Architecture revision – No draft as yet. First draft before July. n P 802. 1 AB-REV – Link layer discovery protocol revision – Current draft is D 2. 2 – Editing in progress prior to WG recirculation.

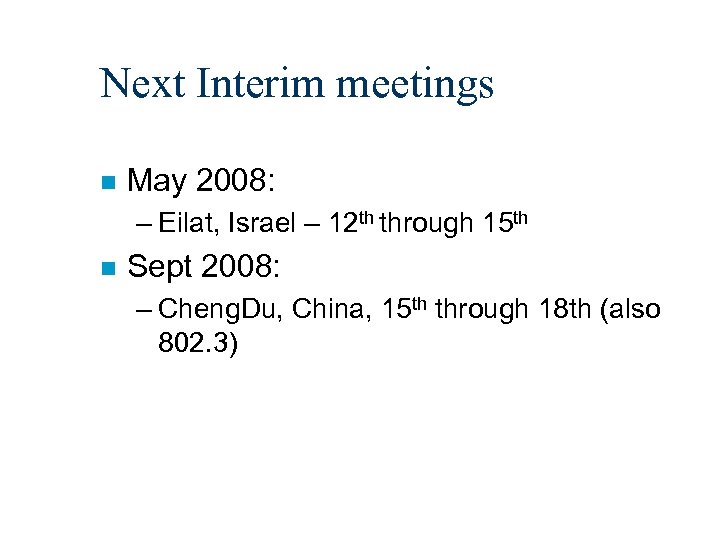

Next Interim meetings n May 2008: – Eilat, Israel – 12 th through 15 th n Sept 2008: – Cheng. Du, China, 15 th through 18 th (also 802. 3)
