70 YEARS OF EXPERIENCE QUALITY WITH ISO 9001 AND ISO 14000 CERTIFICATION VERSATILITY WITH 70 YEARS OF EXPERIENCE QUALITY WITH ISO 9001 AND ISO 14000 CERTIFICATION VERSATILITY WITH 100's OF WAX PRODUCTS FDA & KOSHER CERTIFICATION THE INTERNATIONAL GROUP, INC. (IGI) is an international leader in technology, development and manufacturing of wax based products with approximately 1 Billion USD in sales. We are a customer driven organization committed to meeting our customer's needs by supplying value-added products and services. We understand your demands for higher product quality (IGI is ISO 9001 and ISO 14000 certified) and superior performance. We want to contribute to your success by providing top quality products supported by sound technical service that can help you produce better products cost effectively.

IGI Waxes for the Personal Care Industry 3/18/2018 1 IGI Waxes for the Personal Care Industry 3/18/2018 1

IGIIGI Target’s Goal Leadership through Innovation 3/18/2018 3 IGIIGI Target’s Goal Leadership through Innovation 3/18/2018 3

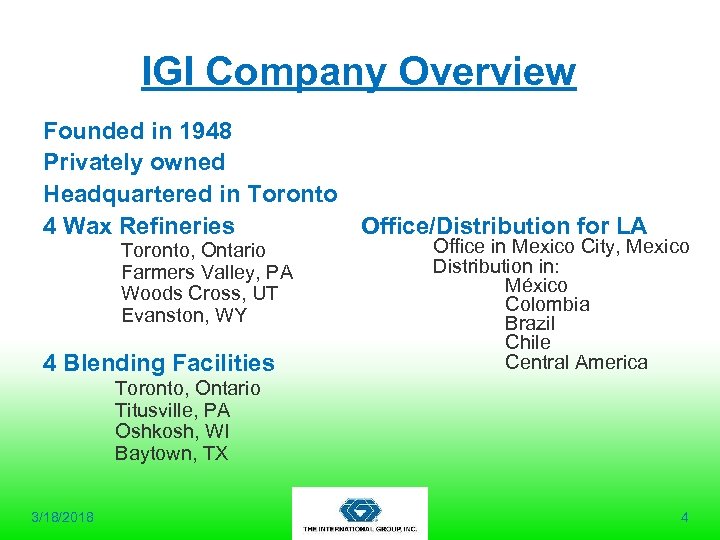

IGI Company Overview Founded in 1948 Privately owned Headquartered in Toronto Office/Distribution for LA IGI Company Overview Founded in 1948 Privately owned Headquartered in Toronto Office/Distribution for LA 4 Wax Refineries Toronto, Ontario Farmers Valley, PA Woods Cross, UT Evanston, WY 4 Blending Facilities Office in Mexico City, Mexico Distribution in: México Colombia Brazil Chile Central America Toronto, Ontario Titusville, PA Oshkosh, WI Baytown, TX 3/18/2018 4

IGI Product Overview • • • Paraffin Wax Microcrystalline Wax Natural - Hybrid – IGI Product Overview • • • Paraffin Wax Microcrystalline Wax Natural - Hybrid – USP Petrolatums Accumelt ™ Waxes / Acculin ™ Waxes / ISOPolymers Synthetic Wax 3/18/2018 5

Paraffin Waxes Complex mixtures of saturated aliphatic hydrocarbons Predominantly linear molecular chains (crystalline) Mw Paraffin Waxes Complex mixtures of saturated aliphatic hydrocarbons Predominantly linear molecular chains (crystalline) Mw 250 to 1200 (C 18 to C 80) 3/18/2018 6

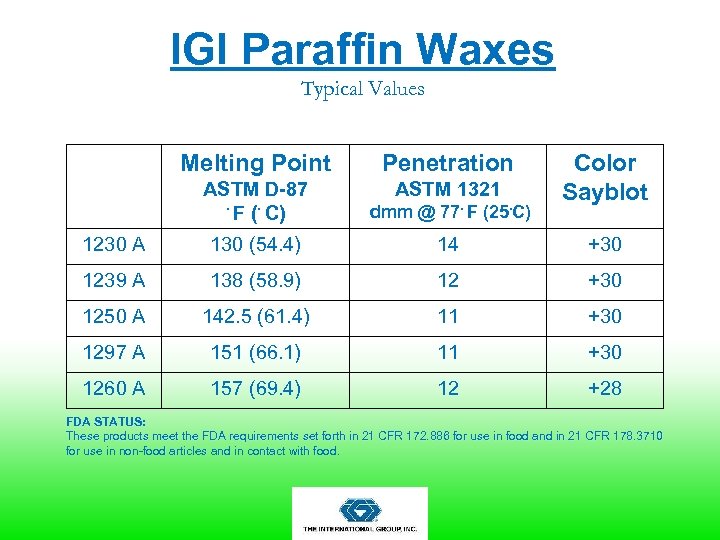

IGI Paraffin Waxes Typical Values Melting Point Penetration Color Sayblot ASTM D-87 ∙ F IGI Paraffin Waxes Typical Values Melting Point Penetration Color Sayblot ASTM D-87 ∙ F (∙ C) ASTM 1321 dmm @ 77∙ F (25∙C) 1230 A 130 (54. 4) 14 +30 1239 A 138 (58. 9) 12 +30 1250 A 142. 5 (61. 4) 11 +30 1297 A 151 (66. 1) 11 +30 1260 A 157 (69. 4) 12 +28 FDA STATUS: These products meet the FDA requirements set forth in 21 CFR 172. 886 for use in food and in 21 CFR 178. 3710 for use in non-food articles and in contact with food.

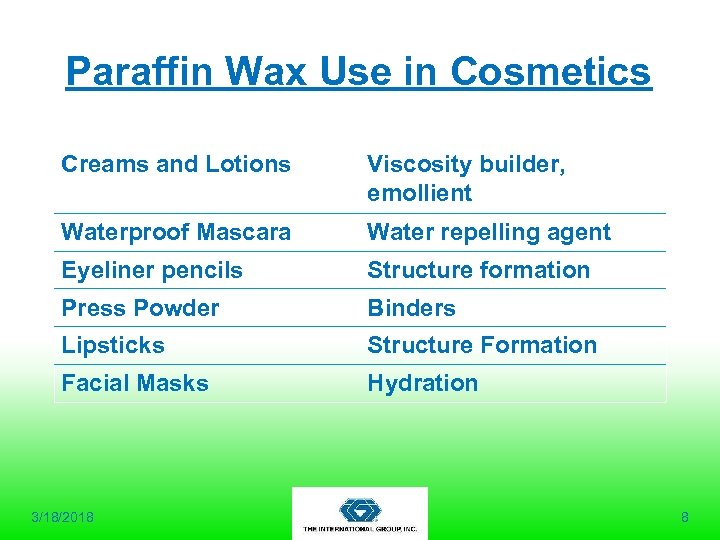

Paraffin Wax Use in Cosmetics Creams and Lotions Viscosity builder, emollient Waterproof Mascara Water Paraffin Wax Use in Cosmetics Creams and Lotions Viscosity builder, emollient Waterproof Mascara Water repelling agent Eyeliner pencils Structure formation Press Powder Binders Lipsticks Structure Formation Facial Masks Hydration 3/18/2018 8

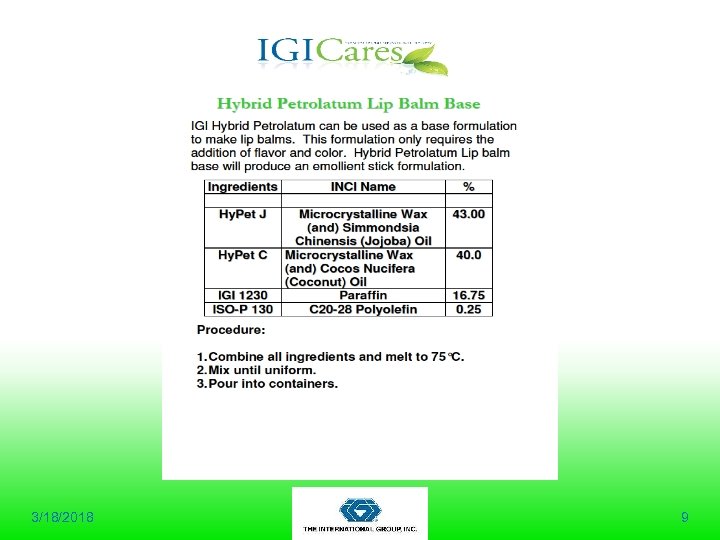

3/18/2018 9 3/18/2018 9

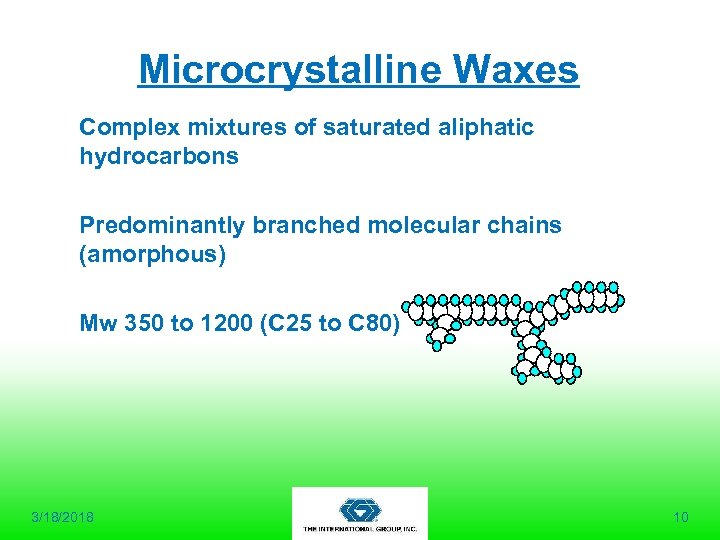

Microcrystalline Waxes Complex mixtures of saturated aliphatic hydrocarbons Predominantly branched molecular chains (amorphous) Mw Microcrystalline Waxes Complex mixtures of saturated aliphatic hydrocarbons Predominantly branched molecular chains (amorphous) Mw 350 to 1200 (C 25 to C 80) 3/18/2018 10

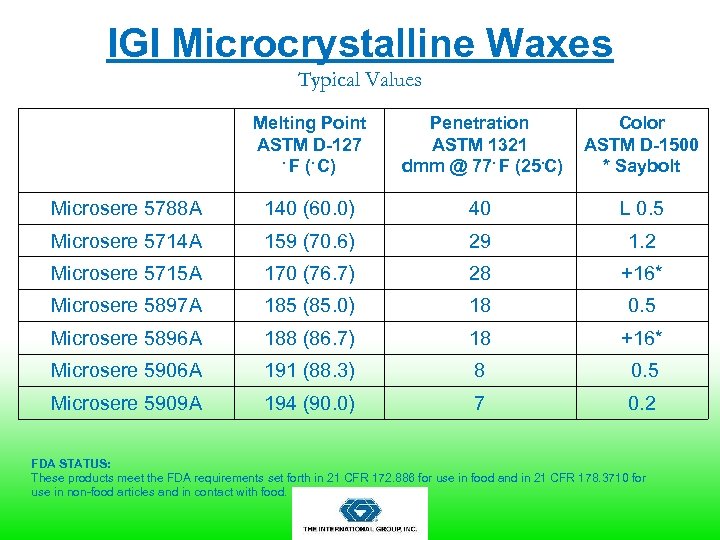

IGI Microcrystalline Waxes Typical Values Melting Point ASTM D-127 ∙ F (∙ C) Penetration IGI Microcrystalline Waxes Typical Values Melting Point ASTM D-127 ∙ F (∙ C) Penetration ASTM 1321 dmm @ 77∙ F (25∙C) Color ASTM D-1500 * Saybolt Microsere 5788 A 140 (60. 0) 40 L 0. 5 Microsere 5714 A 159 (70. 6) 29 1. 2 Microsere 5715 A 170 (76. 7) 28 +16* Microsere 5897 A 185 (85. 0) 18 0. 5 Microsere 5896 A 188 (86. 7) 18 +16* Microsere 5906 A 191 (88. 3) 8 0. 5 Microsere 5909 A 194 (90. 0) 7 0. 2 FDA STATUS: These products meet the FDA requirements set forth in 21 CFR 172. 886 for use in food and in 21 CFR 178. 3710 for use in non-food articles and in contact with food.

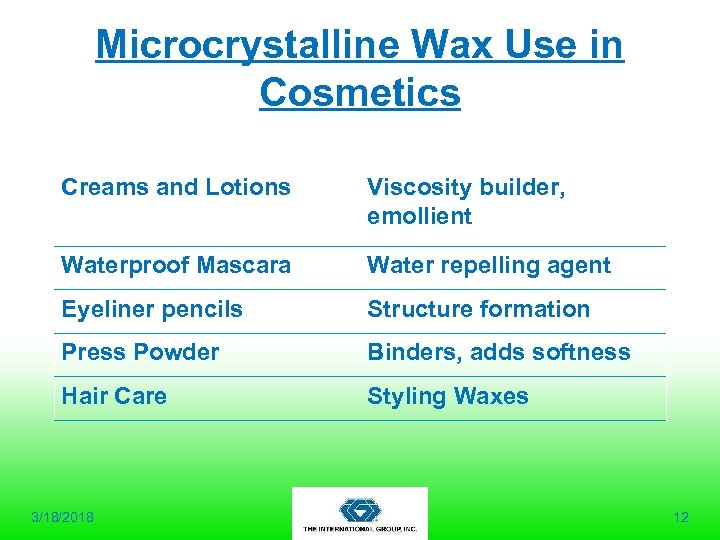

Microcrystalline Wax Use in Cosmetics Creams and Lotions Viscosity builder, emollient Waterproof Mascara Water Microcrystalline Wax Use in Cosmetics Creams and Lotions Viscosity builder, emollient Waterproof Mascara Water repelling agent Eyeliner pencils Structure formation Press Powder Binders, adds softness Hair Care Styling Waxes 3/18/2018 12

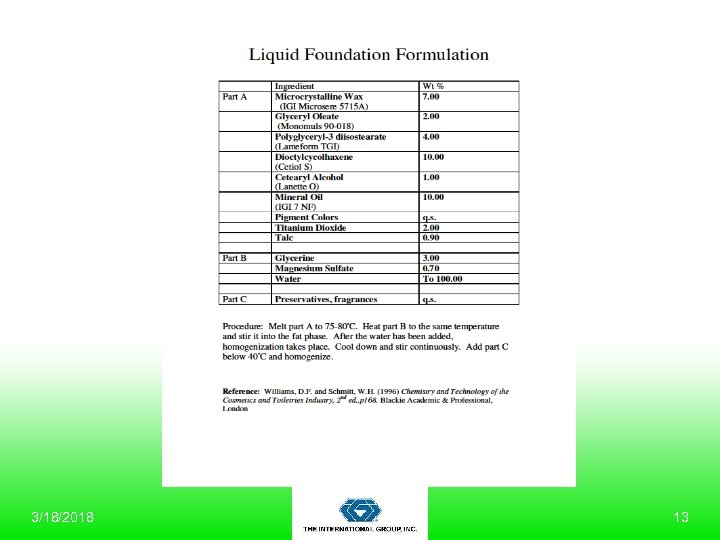

3/18/2018 13 3/18/2018 13

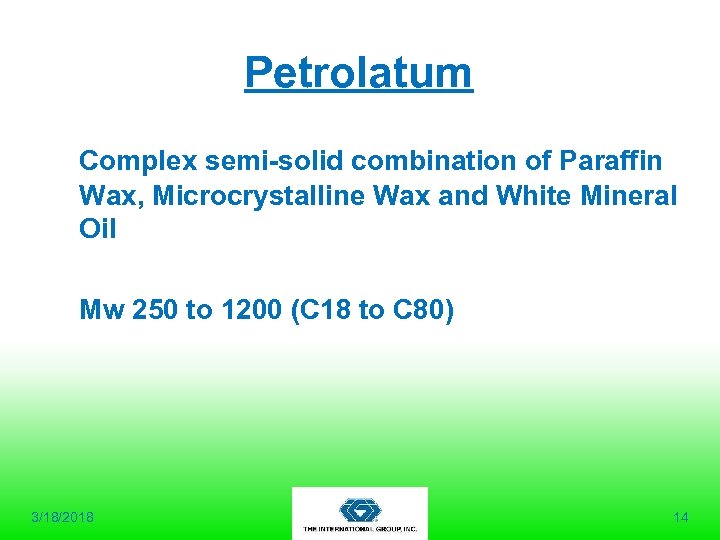

Petrolatum Complex semi-solid combination of Paraffin Wax, Microcrystalline Wax and White Mineral Oil Mw Petrolatum Complex semi-solid combination of Paraffin Wax, Microcrystalline Wax and White Mineral Oil Mw 250 to 1200 (C 18 to C 80) 3/18/2018 14

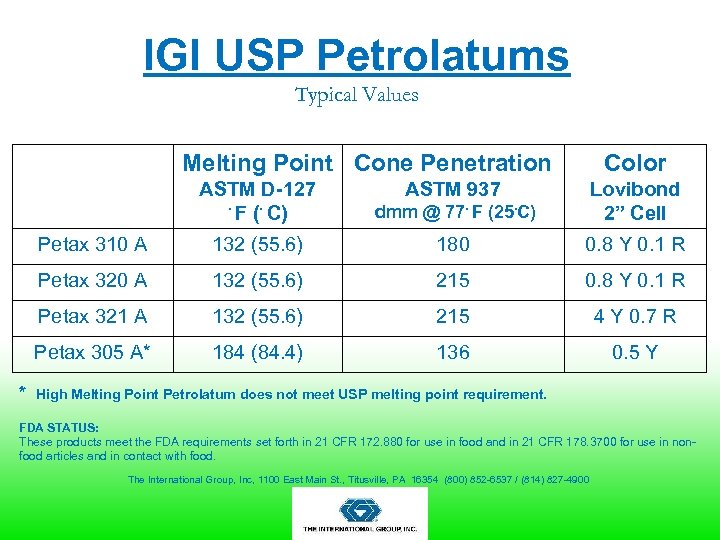

IGI USP Petrolatums Typical Values Melting Point Cone Penetration Color ASTM D-127 ∙ F IGI USP Petrolatums Typical Values Melting Point Cone Penetration Color ASTM D-127 ∙ F (∙ C) ASTM 937 dmm @ 77∙ F (25∙C) Lovibond 2” Cell Petax 310 A 132 (55. 6) 180 0. 8 Y 0. 1 R Petax 320 A 132 (55. 6) 215 0. 8 Y 0. 1 R Petax 321 A 132 (55. 6) 215 4 Y 0. 7 R Petax 305 A* 184 (84. 4) 136 0. 5 Y * High Melting Point Petrolatum does not meet USP melting point requirement. FDA STATUS: These products meet the FDA requirements set forth in 21 CFR 172. 880 for use in food and in 21 CFR 178. 3700 for use in nonfood articles and in contact with food. The International Group, Inc, 1100 East Main St. , Titusville, PA 16354 (800) 852 -6537 / (814) 827 -4900

Petrolatum Use in Cosmetics Creams and Lotions Moisture barrier Lipstick Emollient and adds shine Petrolatum Use in Cosmetics Creams and Lotions Moisture barrier Lipstick Emollient and adds shine Hair Care Styling Waxes 3/18/2018 16

3/18/2018 17 3/18/2018 17

Hybrid Petrolatum Complex combination of Microcrystalline Waxes and Selected Vegetable Oils Benefits: ○ Superior Hybrid Petrolatum Complex combination of Microcrystalline Waxes and Selected Vegetable Oils Benefits: ○ Superior moisturization of petrolatum. ○ Better esthetics than conventional Petrolatum ○ Eco-friendly incorporates a renewable resource. 3/18/2018 18

IGI Hybrid Petrolatums Typical Values Melting Point Cone Penetration ASTM 937 Color ASTM D-127 IGI Hybrid Petrolatums Typical Values Melting Point Cone Penetration ASTM 937 Color ASTM D-127 ∙ F (∙ C) dmm @ 77∙ F (25∙C) Lovibond 2” Cell Hy. Pet C 6019 A 142 (61. 1) 190 0. 9 Y 0. 2 R Hy. Pet J R-4452 B 138 (58. 9) 190 39. 0 Y 1. 0 R INCI Name: Hy. Pet C - Microcrystalline Wax (and) Cocos Nucifera (Coconut) Oil Hy. Pet J - Microcrystalline Wax (and) Simmondsia Chinensis (Jojoba) Oil The International Group, Inc, 1100 East Main St. , Titusville, PA 16354 (800) 852 -6537 / (814) 827 -4900

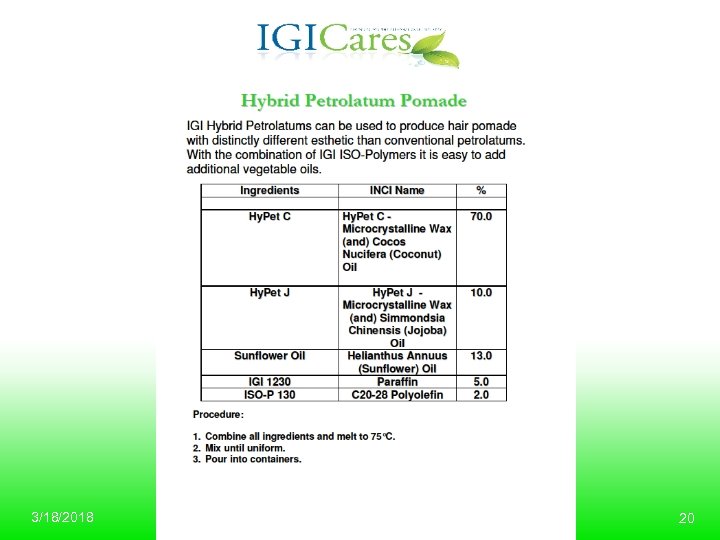

3/18/2018 20 3/18/2018 20

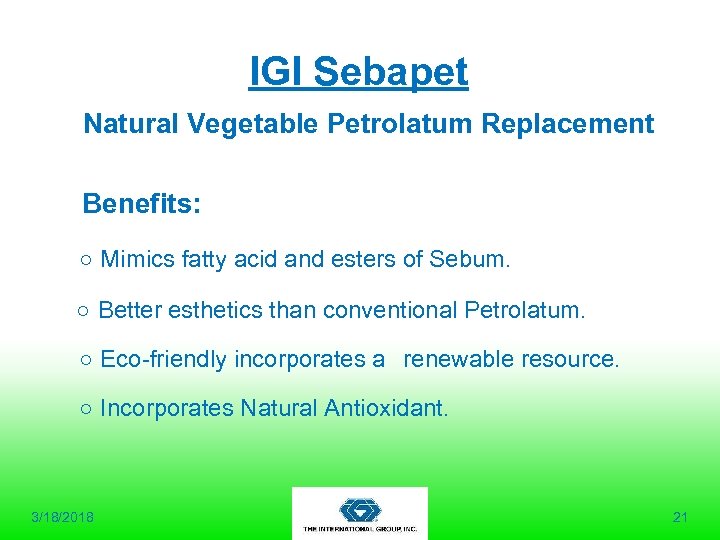

IGI Sebapet Natural Vegetable Petrolatum Replacement Benefits: ○ Mimics fatty acid and esters of IGI Sebapet Natural Vegetable Petrolatum Replacement Benefits: ○ Mimics fatty acid and esters of Sebum. ○ Better esthetics than conventional Petrolatum. ○ Eco-friendly incorporates a renewable resource. ○ Incorporates Natural Antioxidant. 3/18/2018 21

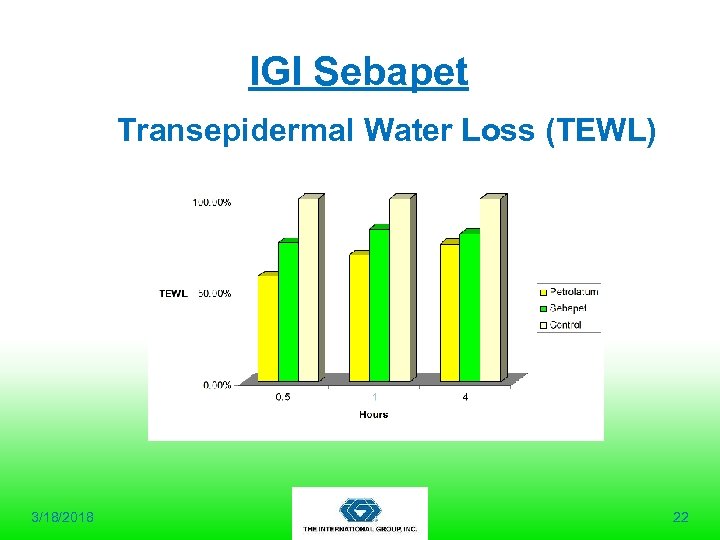

IGI Sebapet Transepidermal Water Loss (TEWL) 3/18/2018 22 IGI Sebapet Transepidermal Water Loss (TEWL) 3/18/2018 22

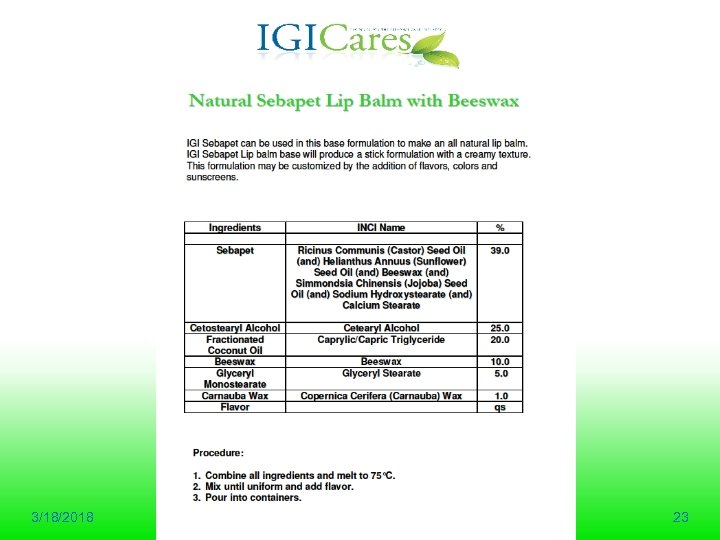

3/18/2018 23 3/18/2018 23

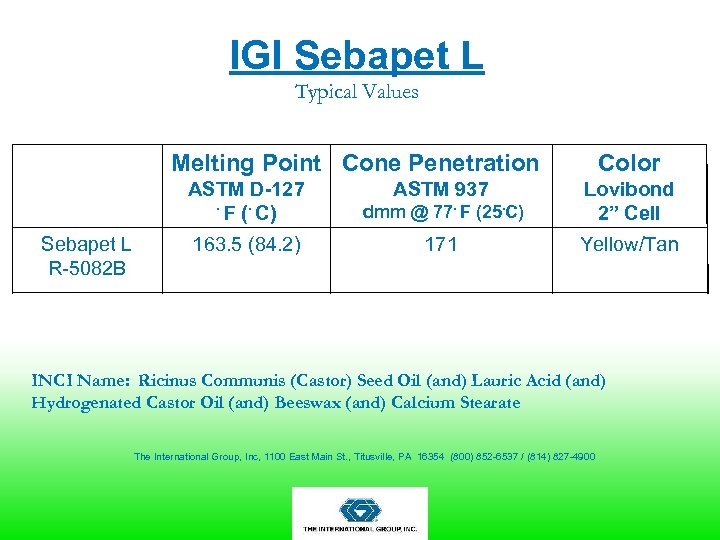

IGI Sebapet L Typical Values Melting Point Cone Penetration ASTM D-127 ∙ F (∙ IGI Sebapet L Typical Values Melting Point Cone Penetration ASTM D-127 ∙ F (∙ C) Sebapet L R-5082 B ASTM 937 Color dmm @ 77∙ F (25∙C) Lovibond 2” Cell 163. 5 (84. 2) 171 Yellow/Tan INCI Name: Ricinus Communis (Castor) Seed Oil (and) Lauric Acid (and) Hydrogenated Castor Oil (and) Beeswax (and) Calcium Stearate The International Group, Inc, 1100 East Main St. , Titusville, PA 16354 (800) 852 -6537 / (814) 827 -4900

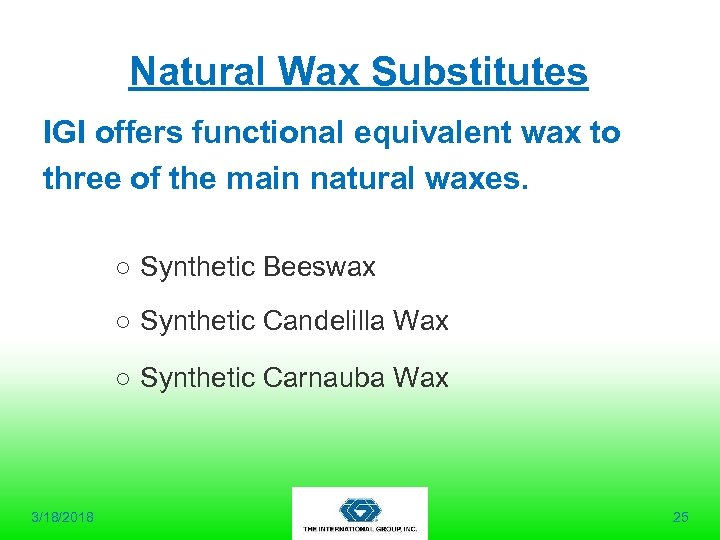

Natural Wax Substitutes IGI offers functional equivalent wax to three of the main natural Natural Wax Substitutes IGI offers functional equivalent wax to three of the main natural waxes. ○ Synthetic Beeswax ○ Synthetic Candelilla Wax ○ Synthetic Carnauba Wax 3/18/2018 25

IGI Synthetic Beeswax R-4863 A Typical Values ASTM TEST METHODS METHOD SPECIFICATIONS Color, Visual IGI Synthetic Beeswax R-4863 A Typical Values ASTM TEST METHODS METHOD SPECIFICATIONS Color, Visual Maximum TYPICAL 142 (61. 1) 151 (66. 1) 146. 5 (63. 6) ---- Congealing Point °F (°C) D 938 Minimum ---- Light Yellow Saybolt Color D 1833 ---- -12 Acid Value, mg KOH/g USP ---- 21. 5 Ester Value USP ---- 75. 5 Sapification Number USP ---- 97 INCI Name: Synthetic Beeswax The International Group, Inc, 1100 East Main St. , Titusville, PA 16354 (800) 852 -6537 / (814) 827 -4900

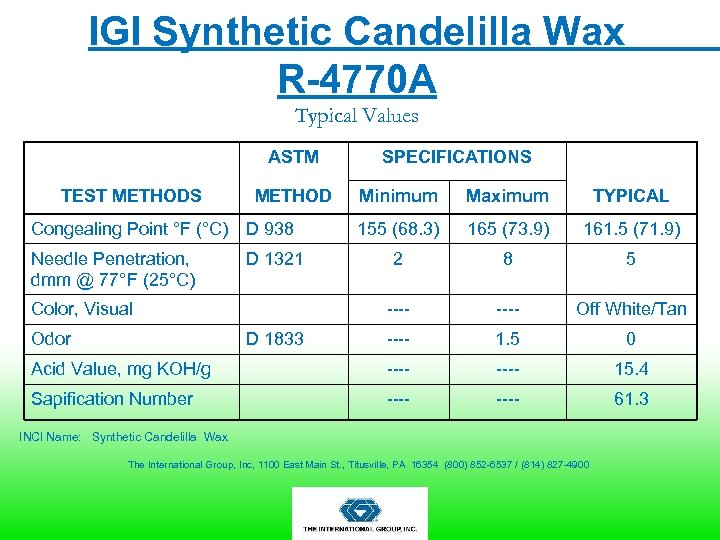

IGI Synthetic Candelilla Wax R-4770 A Typical Values ASTM TEST METHODS METHOD SPECIFICATIONS Minimum IGI Synthetic Candelilla Wax R-4770 A Typical Values ASTM TEST METHODS METHOD SPECIFICATIONS Minimum Maximum TYPICAL 155 (68. 3) 165 (73. 9) 161. 5 (71. 9) 2 8 5 ---- Off White/Tan ---- 1. 5 0 Acid Value, mg KOH/g ---- 15. 4 Sapification Number ---- 61. 3 Congealing Point °F (°C) D 938 Needle Penetration, dmm @ 77°F (25°C) D 1321 Color, Visual Odor D 1833 INCI Name: Synthetic Candelilla Wax The International Group, Inc, 1100 East Main St. , Titusville, PA 16354 (800) 852 -6537 / (814) 827 -4900

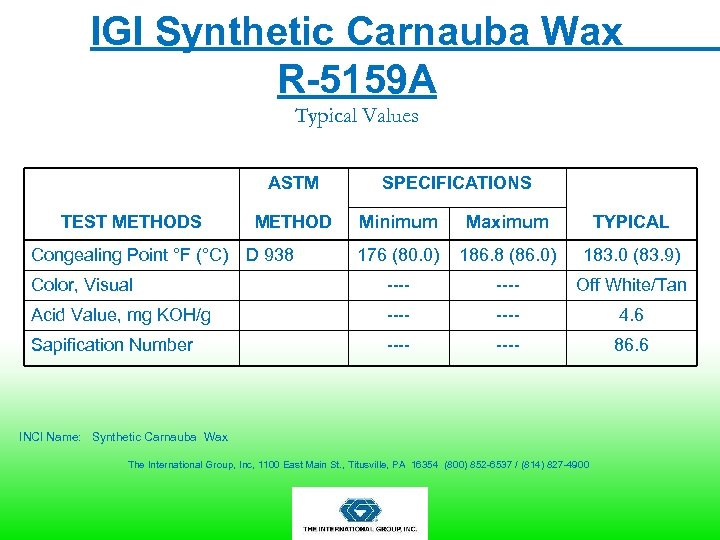

IGI Synthetic Carnauba Wax R-5159 A Typical Values ASTM TEST METHODS METHOD SPECIFICATIONS Minimum IGI Synthetic Carnauba Wax R-5159 A Typical Values ASTM TEST METHODS METHOD SPECIFICATIONS Minimum Maximum TYPICAL 176 (80. 0) 186. 8 (86. 0) 183. 0 (83. 9) Color, Visual ---- Off White/Tan Acid Value, mg KOH/g ---- 4. 6 Sapification Number ---- 86. 6 Congealing Point °F (°C) D 938 INCI Name: Synthetic Carnauba Wax The International Group, Inc, 1100 East Main St. , Titusville, PA 16354 (800) 852 -6537 / (814) 827 -4900

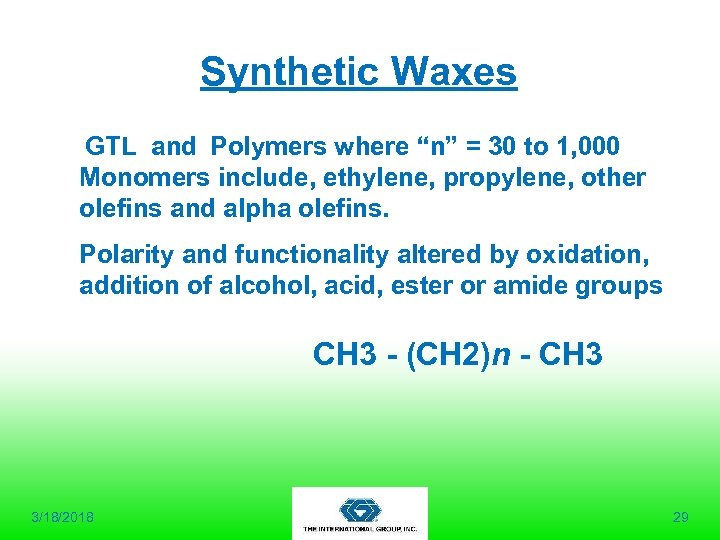

Synthetic Waxes GTL and Polymers where “n” = 30 to 1, 000 Monomers include, Synthetic Waxes GTL and Polymers where “n” = 30 to 1, 000 Monomers include, ethylene, propylene, other olefins and alpha olefins. Polarity and functionality altered by oxidation, addition of alcohol, acid, ester or amide groups CH 3 - (CH 2)n - CH 3 3/18/2018 29

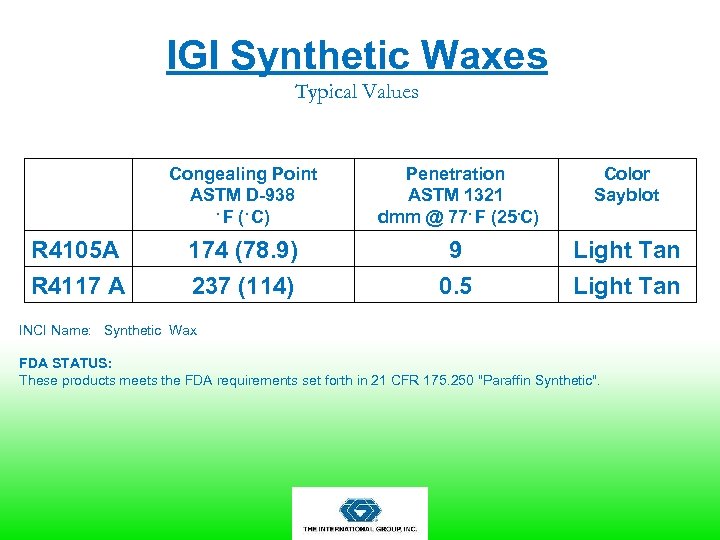

IGI Synthetic Waxes Typical Values Congealing Point ASTM D-938 ∙ F (∙ C) R IGI Synthetic Waxes Typical Values Congealing Point ASTM D-938 ∙ F (∙ C) R 4105 A R 4117 A Penetration ASTM 1321 dmm @ 77∙ F (25∙C) Color Sayblot 174 (78. 9) 237 (114) 9 0. 5 Light Tan INCI Name: Synthetic Wax FDA STATUS: These products meets the FDA requirements set forth in 21 CFR 175. 250 "Paraffin Synthetic".

Synthetic Wax Use in Cosmetics Creams and Lotions Film formers Eyeliner pencils Structure formation Synthetic Wax Use in Cosmetics Creams and Lotions Film formers Eyeliner pencils Structure formation Lipsticks Structure Formation Shower Products Exfoliant 3/18/2018 31

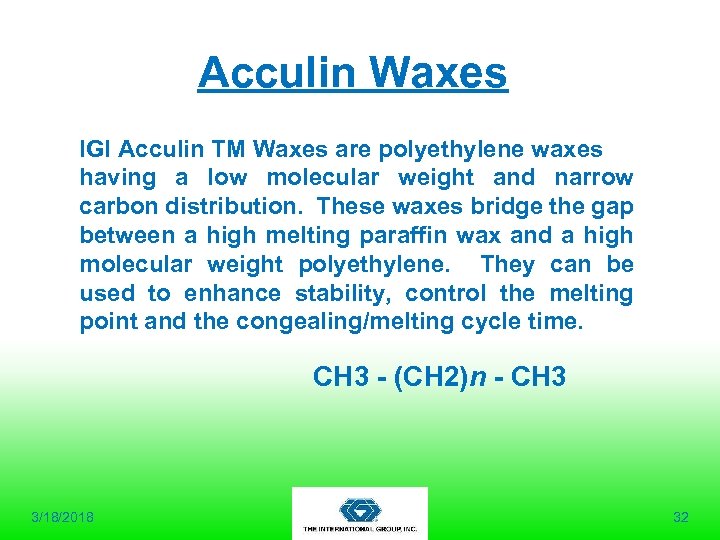

Acculin Waxes IGI Acculin TM Waxes are polyethylene waxes having a low molecular weight Acculin Waxes IGI Acculin TM Waxes are polyethylene waxes having a low molecular weight and narrow carbon distribution. These waxes bridge the gap between a high melting paraffin wax and a high molecular weight polyethylene. They can be used to enhance stability, control the melting point and the congealing/melting cycle time. CH 3 - (CH 2)n - CH 3 3/18/2018 32

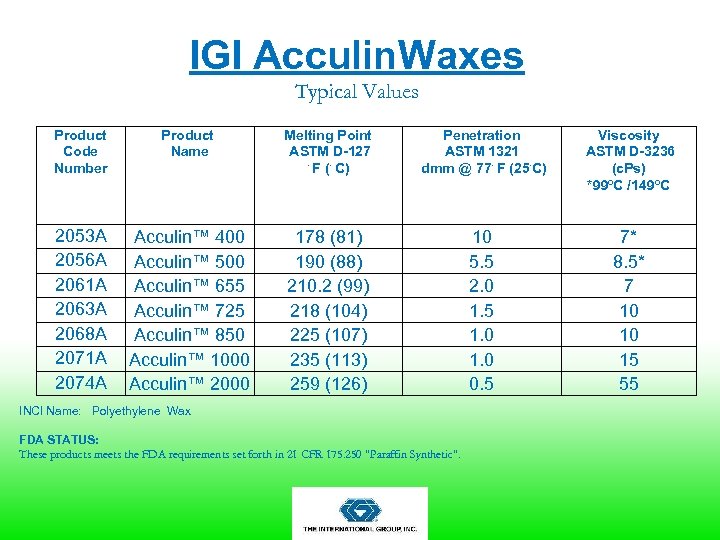

IGI Acculin. Waxes Typical Values Product Code Number Product Name Melting Point ASTM D-127 IGI Acculin. Waxes Typical Values Product Code Number Product Name Melting Point ASTM D-127 ∙ F (∙ C) Penetration ASTM 1321 dmm @ 77∙ F (25∙C) Viscosity ASTM D-3236 (c. Ps) *99ºC /149ºC 2053 A 2056 A 2061 A 2063 A 2068 A 2071 A 2074 A Acculin™ 400 Acculin™ 500 Acculin™ 655 Acculin™ 725 Acculin™ 850 Acculin™ 1000 Acculin™ 2000 178 (81) 190 (88) 210. 2 (99) 218 (104) 225 (107) 235 (113) 259 (126) 10 5. 5 2. 0 1. 5 1. 0 0. 5 7* 8. 5* 7 10 10 15 55 INCI Name: Polyethylene Wax FDA STATUS: These products meets the FDA requirements set forth in 21 CFR 175. 250 "Paraffin Synthetic".

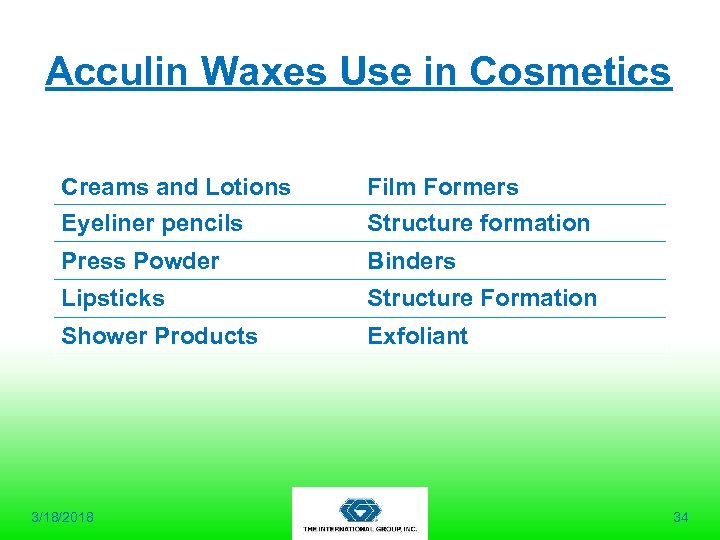

Acculin Waxes Use in Cosmetics Creams and Lotions Eyeliner pencils Film Formers Structure formation Acculin Waxes Use in Cosmetics Creams and Lotions Eyeliner pencils Film Formers Structure formation Press Powder Binders Lipsticks Structure Formation Shower Products Exfoliant 3/18/2018 34

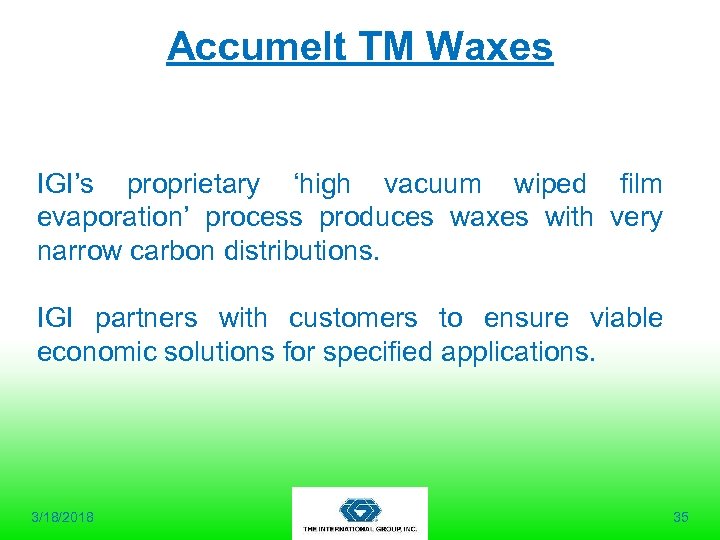

Accumelt TM Waxes IGI’s proprietary ‘high vacuum wiped film evaporation’ process produces waxes with Accumelt TM Waxes IGI’s proprietary ‘high vacuum wiped film evaporation’ process produces waxes with very narrow carbon distributions. IGI partners with customers to ensure viable economic solutions for specified applications. 3/18/2018 35

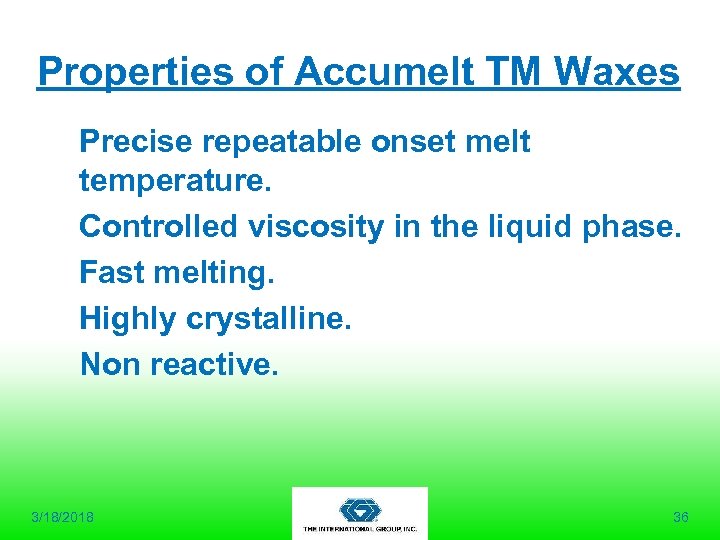

Properties of Accumelt TM Waxes Precise repeatable onset melt temperature. Controlled viscosity in the Properties of Accumelt TM Waxes Precise repeatable onset melt temperature. Controlled viscosity in the liquid phase. Fast melting. Highly crystalline. Non reactive. 3/18/2018 36

IGI Accumelt. TM Waxes Congealing Point ASTM D-938 ∙ F (∙ C) Penetration ASTM IGI Accumelt. TM Waxes Congealing Point ASTM D-938 ∙ F (∙ C) Penetration ASTM 1321 dmm @ 77∙ F (25∙C) Color Saybolt * ASTM Accumelt 85 8755 A 188. 6 (87. 0)1 5 < 0. 5* Accumelt 78 8722 A 166. 5 (74. 7) 13 > +26 Accumelt 72 8719 A 158. 0 (70. 0) 15 < 2. 0* Accumelt 64 8718 A 140. 0 (60) 19 > +26 1 Mettler Drop Melting Point ASTM 3954 INCI Name: Synthetic Wax The International Group, Inc, 1100 East Main ST. , Titusville, PA 16354 (800) 852 -6537 /(814) 827 -4900

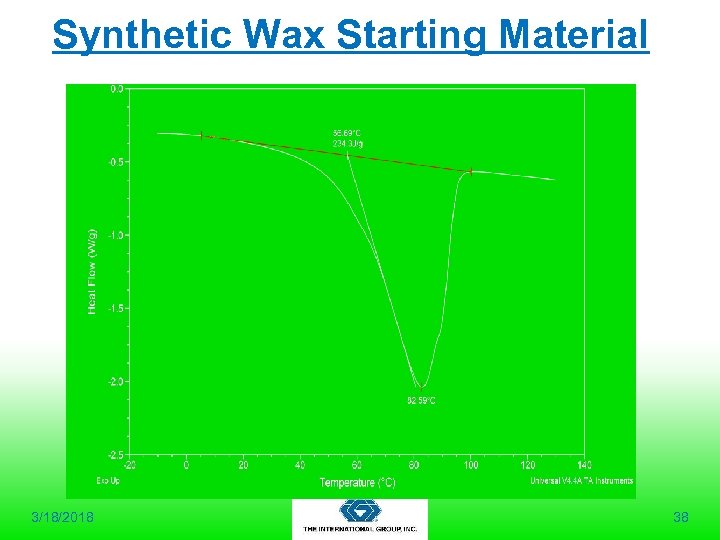

Synthetic Wax Starting Material 3/18/2018 38 Synthetic Wax Starting Material 3/18/2018 38

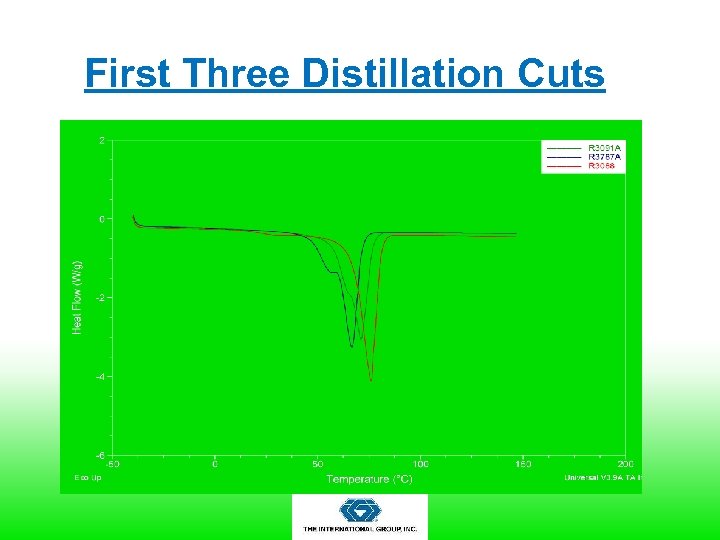

First Three Distillation Cuts First Three Distillation Cuts

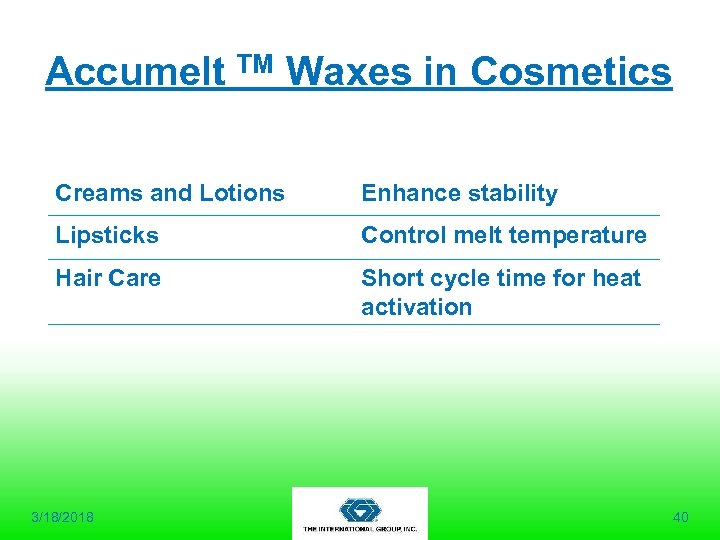

Accumelt TM Waxes in Cosmetics Creams and Lotions Enhance stability Lipsticks Control melt temperature Accumelt TM Waxes in Cosmetics Creams and Lotions Enhance stability Lipsticks Control melt temperature Hair Care Short cycle time for heat activation 3/18/2018 40

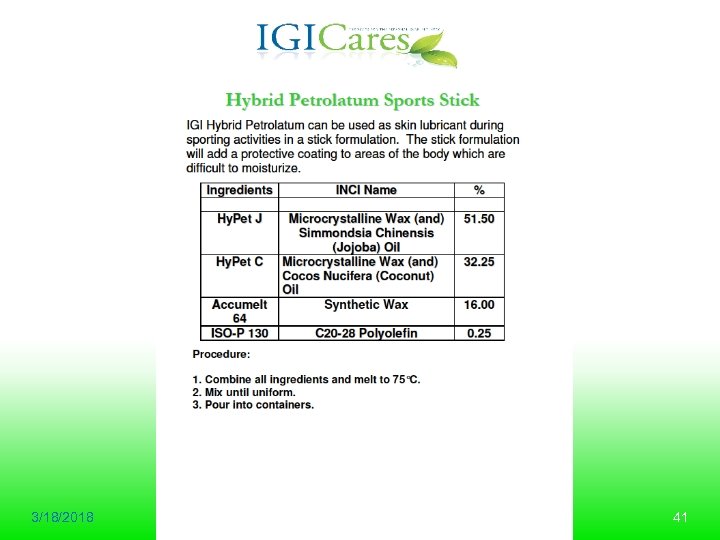

3/18/2018 41 3/18/2018 41

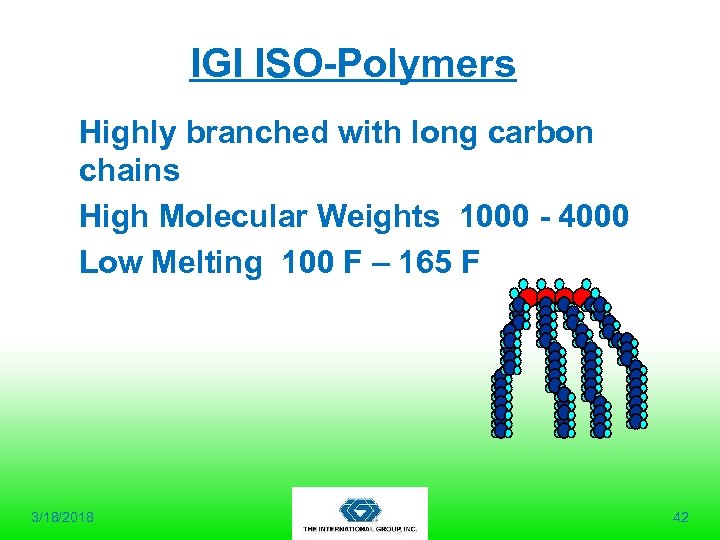

IGI ISO-Polymers Highly branched with long carbon chains High Molecular Weights 1000 - 4000 IGI ISO-Polymers Highly branched with long carbon chains High Molecular Weights 1000 - 4000 Low Melting 100 F – 165 F 3/18/2018 42

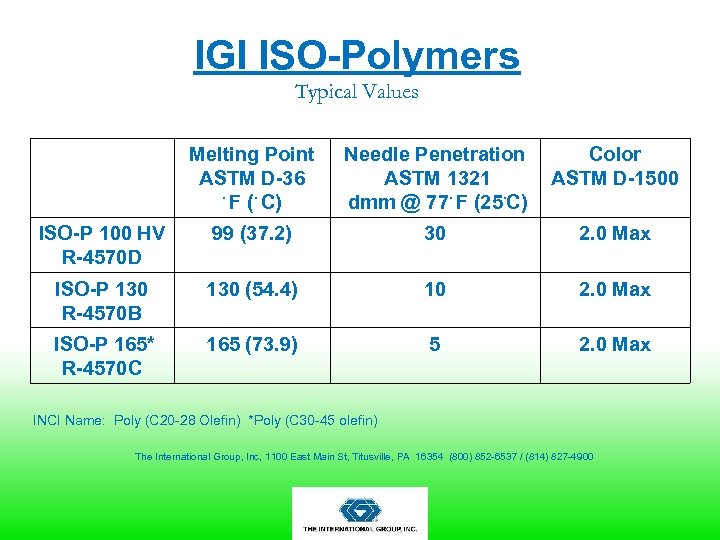

IGI ISO-Polymers Typical Values Melting Point ASTM D-36 ∙ F (∙ C) Needle Penetration IGI ISO-Polymers Typical Values Melting Point ASTM D-36 ∙ F (∙ C) Needle Penetration ASTM 1321 dmm @ 77∙ F (25∙C) Color ASTM D-1500 ISO-P 100 HV R-4570 D 99 (37. 2) 30 2. 0 Max ISO-P 130 R-4570 B 130 (54. 4) 10 2. 0 Max ISO-P 165* R-4570 C 165 (73. 9) 5 2. 0 Max INCI Name: Poly (C 20 -28 Olefin) *Poly (C 30 -45 olefin) The International Group, Inc, 1100 East Main St, Titusville, PA 16354 (800) 852 -6537 / (814) 827 -4900

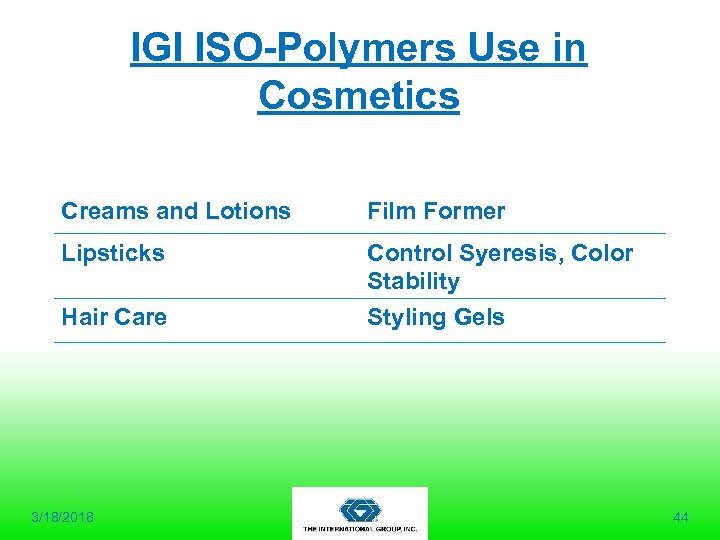

IGI ISO-Polymers Use in Cosmetics Creams and Lotions Film Former Lipsticks Control Syeresis, Color IGI ISO-Polymers Use in Cosmetics Creams and Lotions Film Former Lipsticks Control Syeresis, Color Stability Hair Care Styling Gels 3/18/2018 44

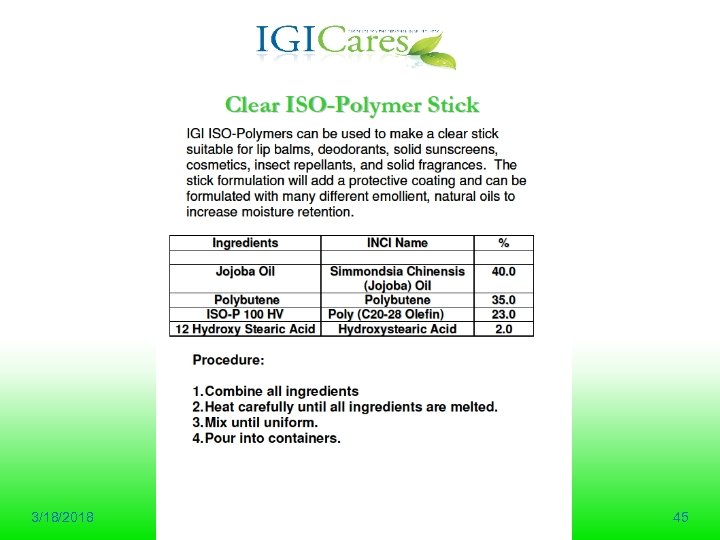

3/18/2018 45 3/18/2018 45

www. igicares. com www. igicares. com

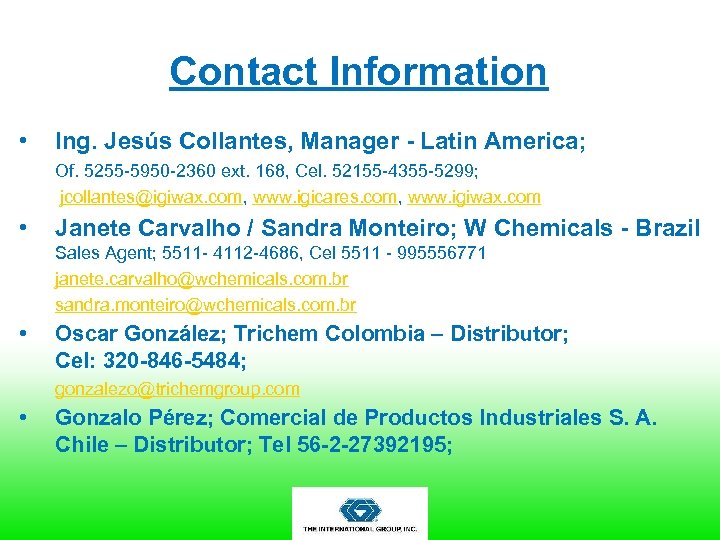

Contact Information • Ing. Jesús Collantes, Manager - Latin America; Of. 5255 -5950 -2360 Contact Information • Ing. Jesús Collantes, Manager - Latin America; Of. 5255 -5950 -2360 ext. 168, Cel. 52155 -4355 -5299; jcollantes@igiwax. com, www. igicares. com, www. igiwax. com • Janete Carvalho / Sandra Monteiro; W Chemicals - Brazil Sales Agent; 5511 - 4112 -4686, Cel 5511 - 995556771 janete. carvalho@wchemicals. com. br sandra. monteiro@wchemicals. com. br • Oscar González; Trichem Colombia – Distributor; Cel: 320 -846 -5484; gonzalezo@trichemgroup. com • Gonzalo Pérez; Comercial de Productos Industriales S. A. Chile – Distributor; Tel 56 -2 -27392195;
