7 -Port 10/100 Mbps + 3 Gigabit TP/SFP Combo Managed Industrial Ethernet Switch with Wide Operating Temperature ISW-1033 MT www. planet. com. tw Copyright © PLANET Technology Corporation. All rights reserved.

Presentation Outline www. planet. com. tw 2

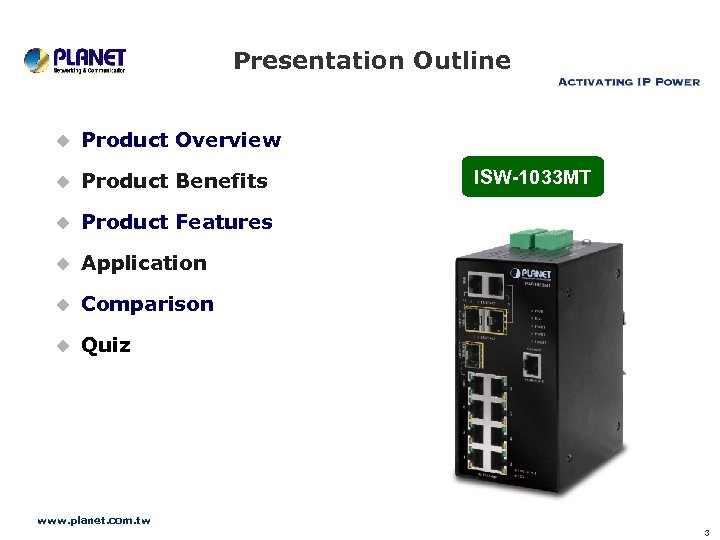

Presentation Outline u Product Overview u Product Benefits u Product Features u Application u Comparison u Quiz ISW-1033 MT www. planet. com. tw 3

Product Overview u Environments of Industrial Products Manufactory Building Transportation www. planet. com. tw 4

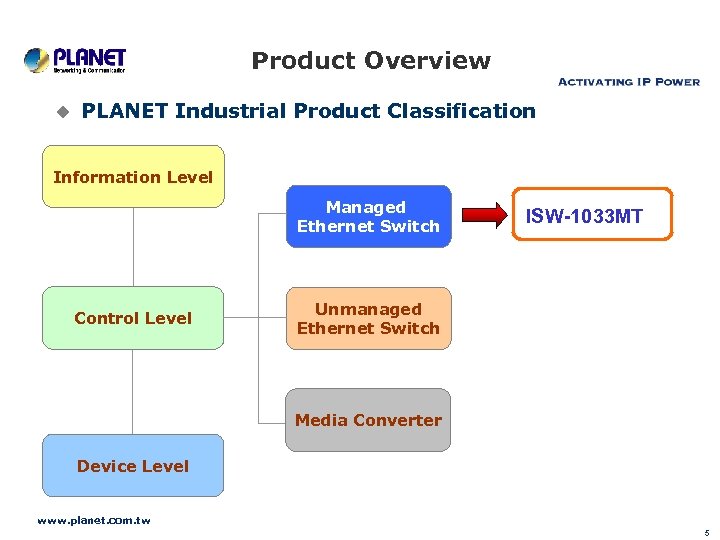

Product Overview u PLANET Industrial Product Classification Information Level Managed Ethernet Switch Control Level ISW-1033 MT Unmanaged Ethernet Switch Media Converter Device Level www. planet. com. tw 5

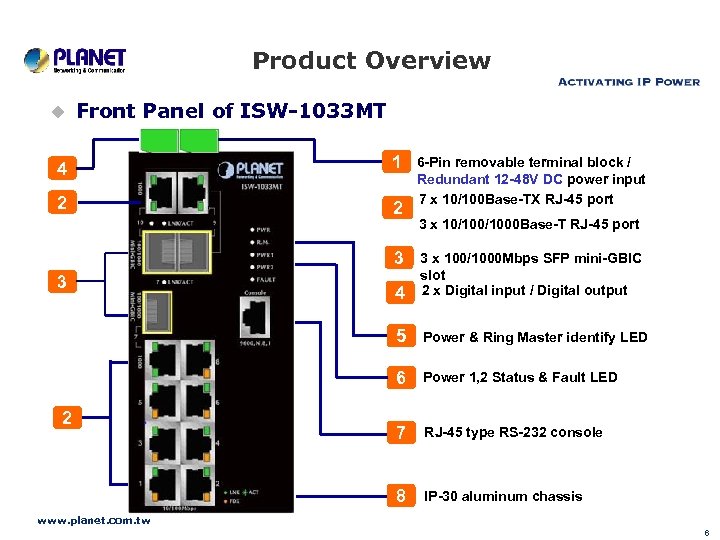

Product Overview u Front Panel of ISW-1033 MT 4 1 2 2 3 6 -Pin removable terminal block / Redundant 12 -48 V DC power input 7 x 10/100 Base-TX RJ-45 port 3 x 10/1000 Base-T RJ-45 port Power & Ring Master identify LED 6 Power 1, 2 Status & Fault LED 7 RJ-45 type RS-232 console 8 2 4 5 3 3 x 100/1000 Mbps SFP mini-GBIC slot 2 x Digital input / Digital output IP-30 aluminum chassis www. planet. com. tw 6

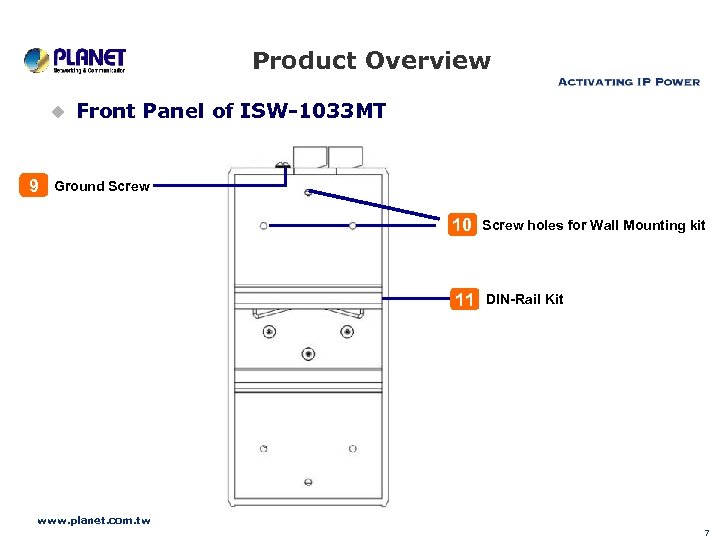

Product Overview u 9 Front Panel of ISW-1033 MT Ground Screw 10 Screw holes for Wall Mounting kit 11 DIN-Rail Kit www. planet. com. tw 7

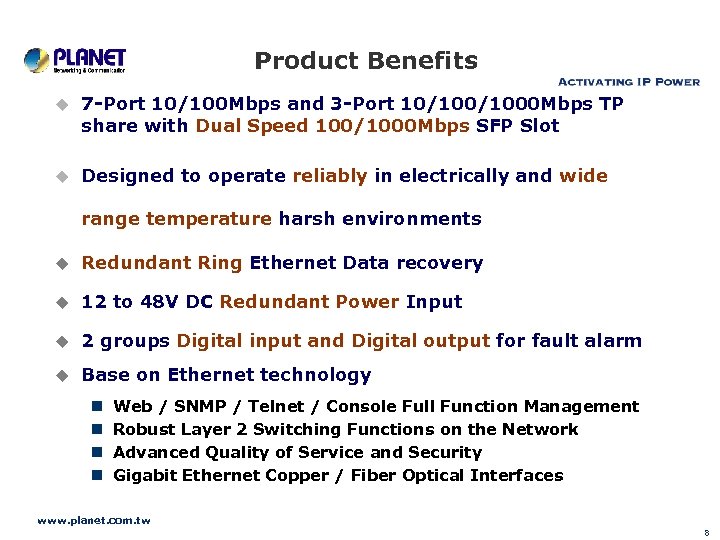

Product Benefits u 7 -Port 10/100 Mbps and 3 -Port 10/1000 Mbps TP share with Dual Speed 100/1000 Mbps SFP Slot u Designed to operate reliably in electrically and wide range temperature harsh environments u Redundant Ring Ethernet Data recovery u 12 to 48 V DC Redundant Power Input u 2 groups Digital input and Digital output for fault alarm u Base on Ethernet technology n n Web / SNMP / Telnet / Console Full Function Management Robust Layer 2 Switching Functions on the Network Advanced Quality of Service and Security Gigabit Ethernet Copper / Fiber Optical Interfaces www. planet. com. tw 8

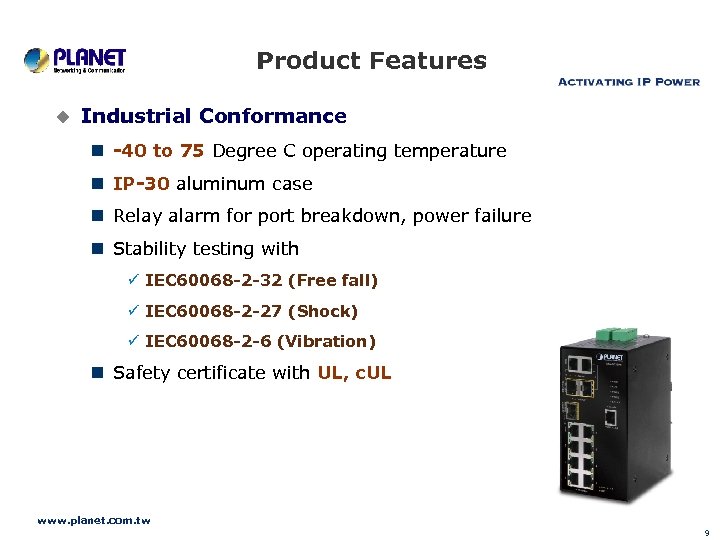

Product Features u Industrial Conformance n -40 to 75 Degree C operating temperature n IP-30 aluminum case n Relay alarm for port breakdown, power failure n Stability testing with ü IEC 60068 -2 -32 (Free fall) ü IEC 60068 -2 -27 (Shock) ü IEC 60068 -2 -6 (Vibration) n Safety certificate with UL, c. UL www. planet. com. tw 9

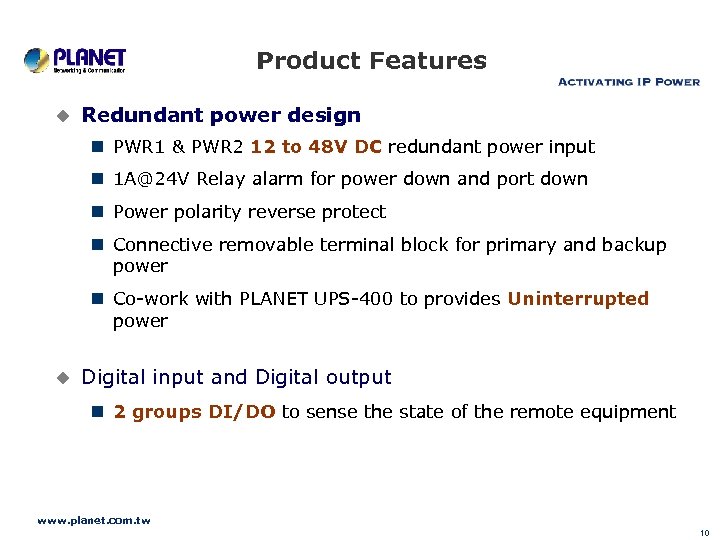

Product Features u Redundant power design n PWR 1 & PWR 2 12 to 48 V DC redundant power input n 1 A@24 V Relay alarm for power down and port down n Power polarity reverse protect n Connective removable terminal block for primary and backup power n Co-work with PLANET UPS-400 to provides Uninterrupted power u Digital input and Digital output n 2 groups DI/DO to sense the state of the remote equipment www. planet. com. tw 10

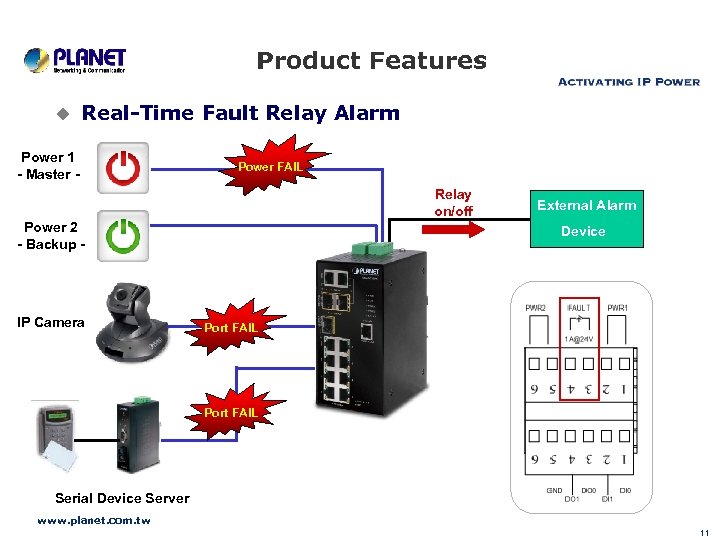

Product Features u Real-Time Fault Relay Alarm Power 1 - Master - Power FAIL Relay on/off Power 2 - Backup - IP Camera External Alarm Device Port FAIL Serial Device Server www. planet. com. tw 11

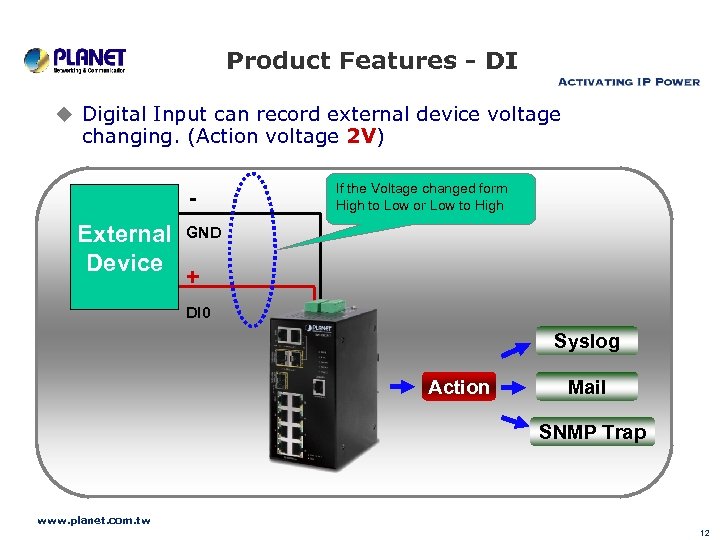

Product Features - DI u Digital Input can record external device voltage changing. (Action voltage 2 V) External Device If the Voltage changed form High to Low or Low to High GND + DI 0 Syslog Action Mail SNMP Trap www. planet. com. tw 12

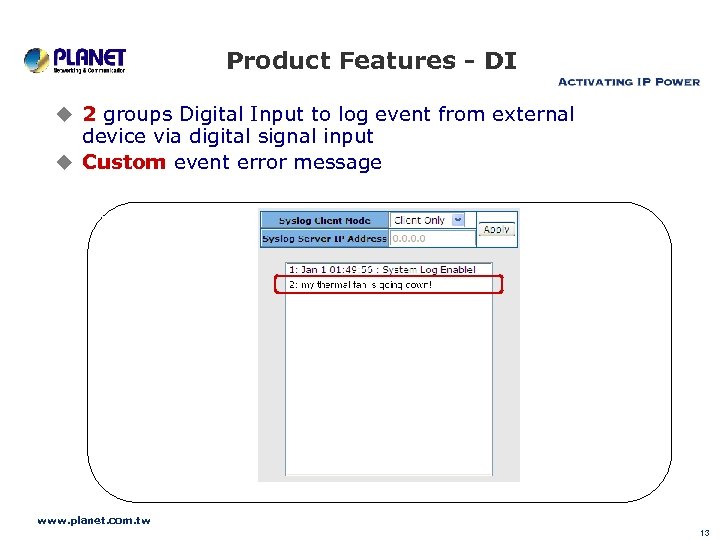

Product Features - DI u 2 groups Digital Input to log event from external device via digital signal input u Custom event error message www. planet. com. tw 13

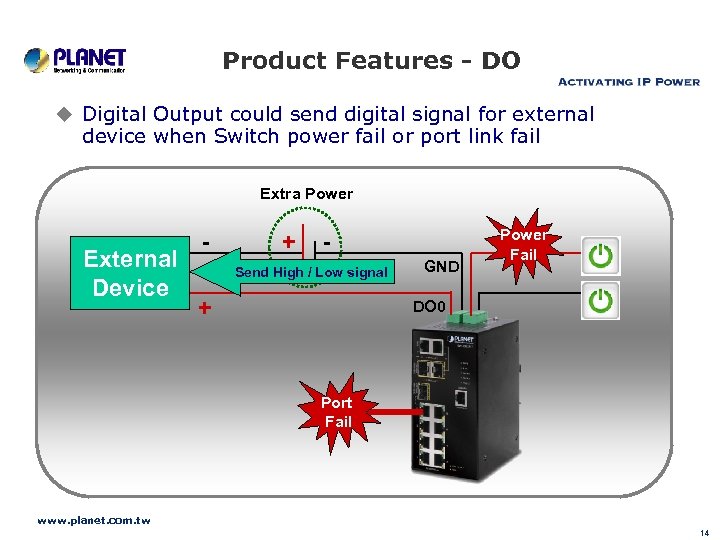

Product Features - DO u Digital Output could send digital signal for external device when Switch power fail or port link fail Extra Power External Device - + - Send High / Low signal + GND Power Fail DO 0 Port Fail www. planet. com. tw 14

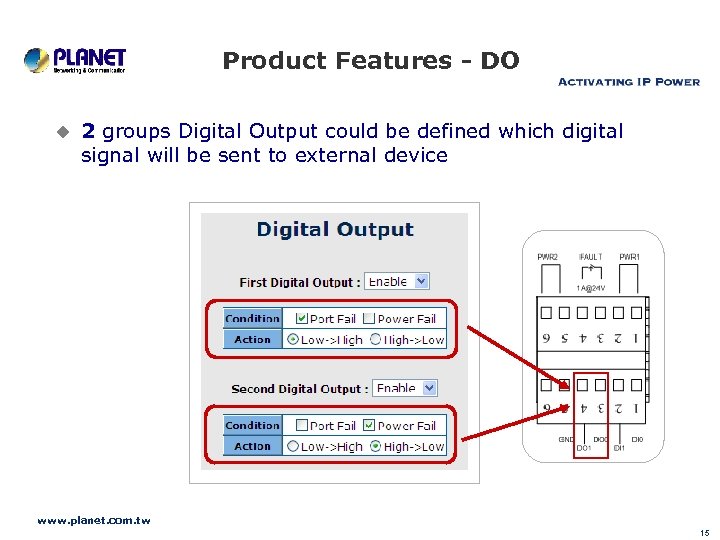

Product Features - DO u 2 groups Digital Output could be defined which digital signal will be sent to external device www. planet. com. tw 15

Product Features u Hardware n 7 -Port 10/100 Mbps RJ-45 / Copper interfaces n 3 -Port 10/1000 Mbps Gigabit RJ-45 / Copper interfaces n 3 share SFP slots, flexible for Gigabit and Fast Ethernet Fiber -optic network extension ü SFP type auto detection, plug and play ü 1000 Base-SX/LX : Maximum 120 kilometres (MGB-L 120) ü 100 Base-FX: Maximum 60 kilometres (MFB-F 60) www. planet. com. tw 16

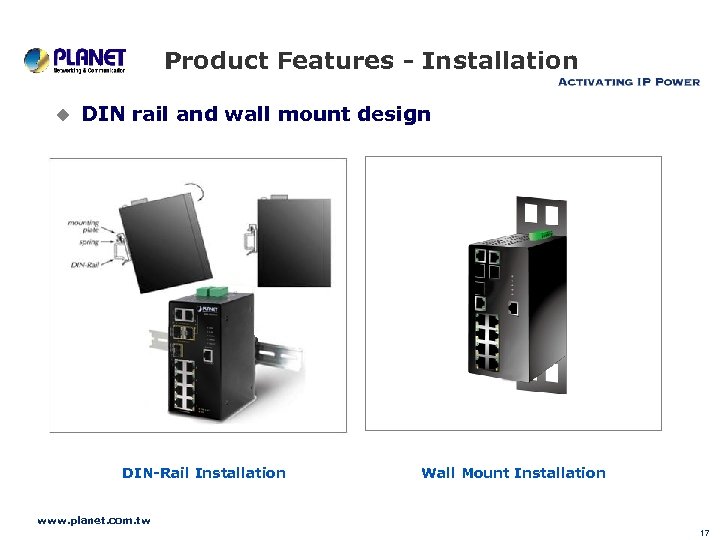

Product Features - Installation u DIN rail and wall mount design DIN-Rail Installation Wall Mount Installation www. planet. com. tw 17

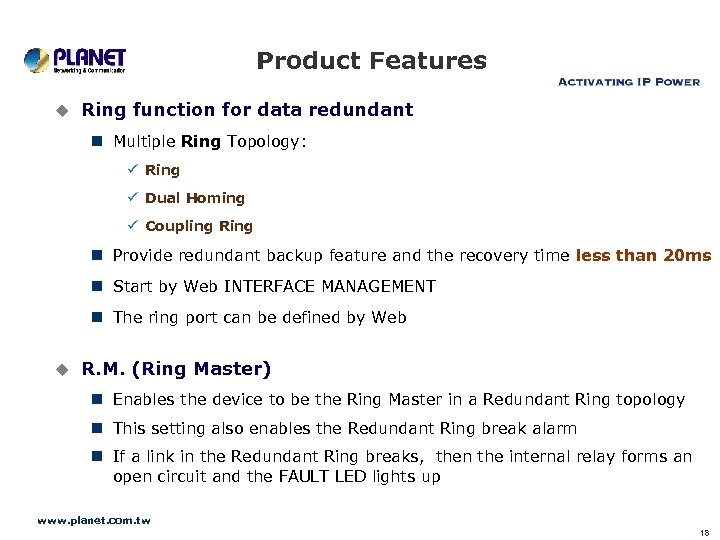

Product Features u Ring function for data redundant n Multiple Ring Topology: ü Ring ü Dual Homing ü Coupling Ring n Provide redundant backup feature and the recovery time less than 20 ms n Start by Web INTERFACE MANAGEMENT n The ring port can be defined by Web u R. M. (Ring Master) n Enables the device to be the Ring Master in a Redundant Ring topology n This setting also enables the Redundant Ring break alarm n If a link in the Redundant Ring breaks, then the internal relay forms an open circuit and the FAULT LED lights up www. planet. com. tw 18

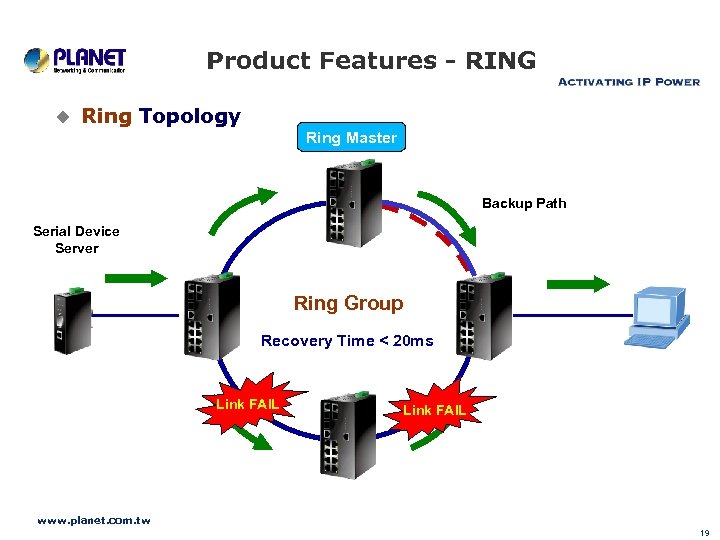

Product Features - RING u Ring Topology Ring Master Backup Path Serial Device Server Ring Group Recovery Time < 20 ms Link FAIL www. planet. com. tw 19

Product Features - RING u Coupling Ring Topology Coupling Ring Master Primary Path Coupling Ring Slave Link FAIL Serial Device Server Link FAIL Ring Group A Ring Group B Recovery Time < 20 ms Backup Path www. planet. com. tw 20

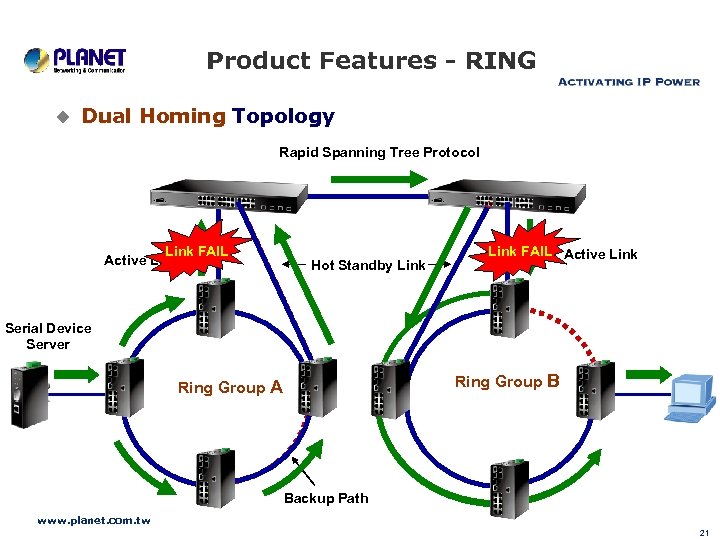

Product Features - RING u Dual Homing Topology Rapid Spanning Tree Protocol Link FAIL Active Link Hot Standby Link FAIL Active Link Serial Device Server Ring Group B Ring Group A Backup Path www. planet. com. tw 21

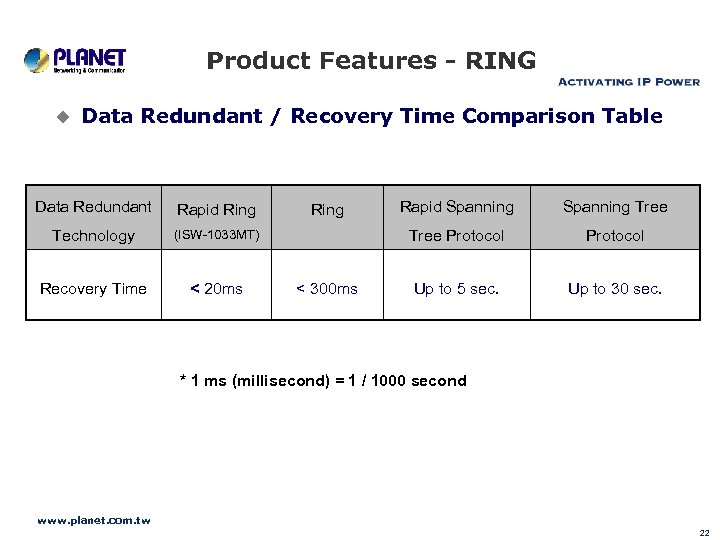

Product Features - RING u Data Redundant / Recovery Time Comparison Table Data Redundant Rapid Ring Technology (ISW-1033 MT) Recovery Time < 20 ms < 300 ms Rapid Spanning Tree Protocol Ring Protocol Up to 5 sec. Up to 30 sec. * 1 ms (millisecond) = 1 / 1000 second www. planet. com. tw 22

Product Features u Management n Local Console management n Remote IP-Based Web / SNMP / Telnet management n SNMP Protocols ü SNMP v 1, v 2 c and v 3 ü RMON Group 1, 2, 3 and 9 ( Statistics, History, Alarm, Event) n Alarm notification of events by: ü SNMP Trap ü SMTP email n IP security for illegal access prevention n System event log support www. planet. com. tw 23

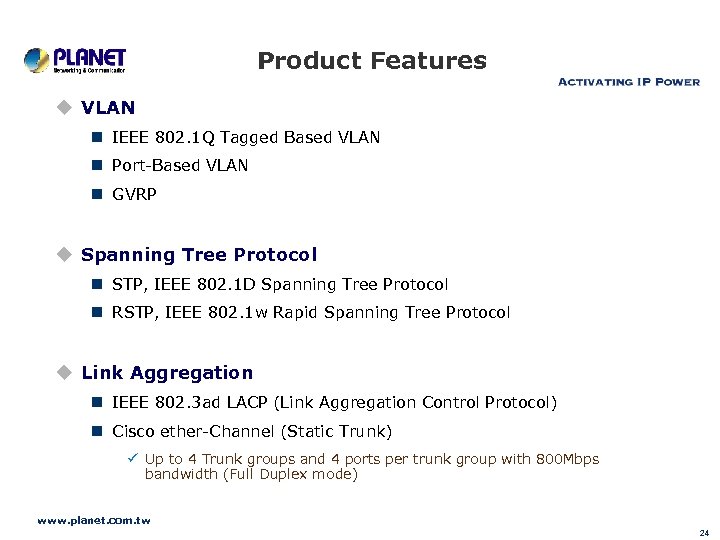

Product Features u VLAN n IEEE 802. 1 Q Tagged Based VLAN n Port-Based VLAN n GVRP u Spanning Tree Protocol n STP, IEEE 802. 1 D Spanning Tree Protocol n RSTP, IEEE 802. 1 w Rapid Spanning Tree Protocol u Link Aggregation n IEEE 802. 3 ad LACP (Link Aggregation Control Protocol) n Cisco ether-Channel (Static Trunk) ü Up to 4 Trunk groups and 4 ports per trunk group with 800 Mbps bandwidth (Full Duplex mode) www. planet. com. tw 24

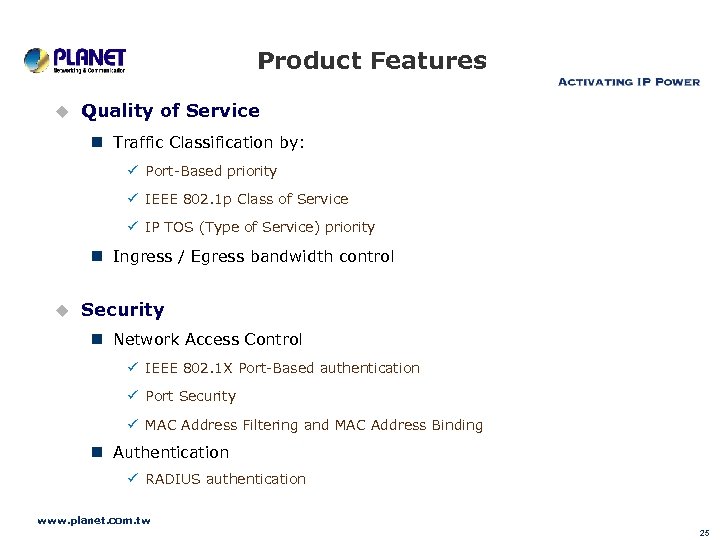

Product Features u Quality of Service n Traffic Classification by: ü Port-Based priority ü IEEE 802. 1 p Class of Service ü IP TOS (Type of Service) priority n Ingress / Egress bandwidth control u Security n Network Access Control ü IEEE 802. 1 X Port-Based authentication ü Port Security ü MAC Address Filtering and MAC Address Binding n Authentication ü RADIUS authentication www. planet. com. tw 25

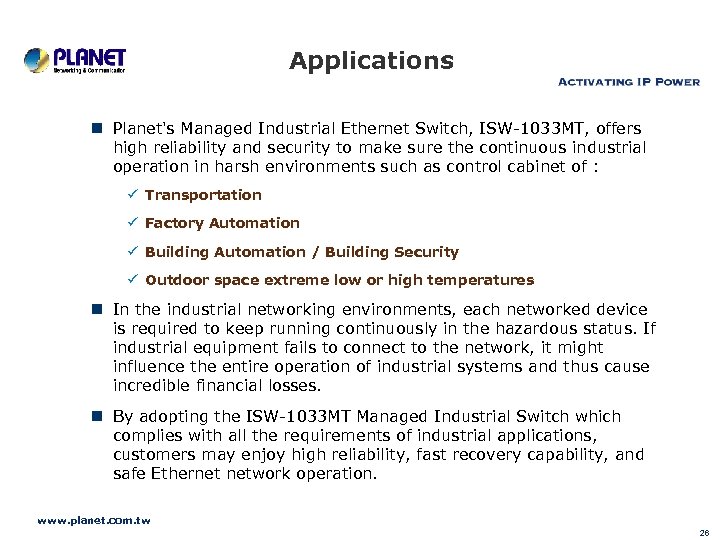

Applications n Planet's Managed Industrial Ethernet Switch, ISW-1033 MT, offers high reliability and security to make sure the continuous industrial operation in harsh environments such as control cabinet of : ü Transportation ü Factory Automation ü Building Automation / Building Security ü Outdoor space extreme low or high temperatures n In the industrial networking environments, each networked device is required to keep running continuously in the hazardous status. If industrial equipment fails to connect to the network, it might influence the entire operation of industrial systems and thus cause incredible financial losses. n By adopting the ISW-1033 MT Managed Industrial Switch which complies with all the requirements of industrial applications, customers may enjoy high reliability, fast recovery capability, and safe Ethernet network operation. www. planet. com. tw 26

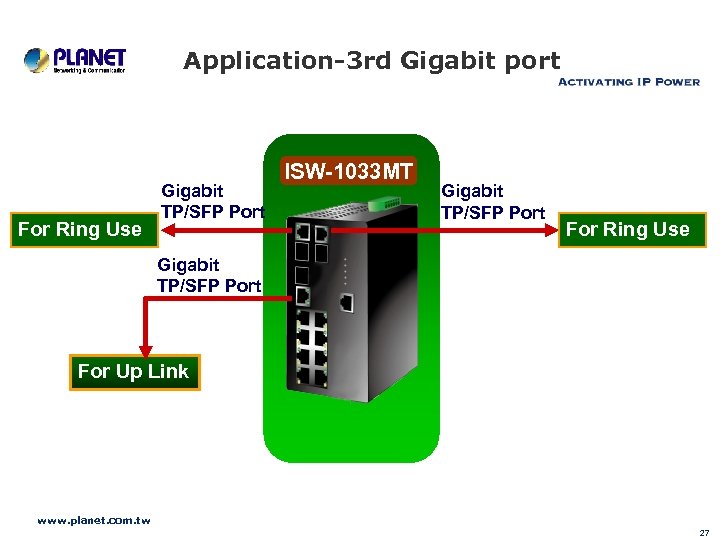

Application-3 rd Gigabit port For Ring Use Gigabit TP/SFP Port ISW-1033 MT Gigabit TP/SFP Port For Ring Use Gigabit TP/SFP Port For Up Link www. planet. com. tw 27

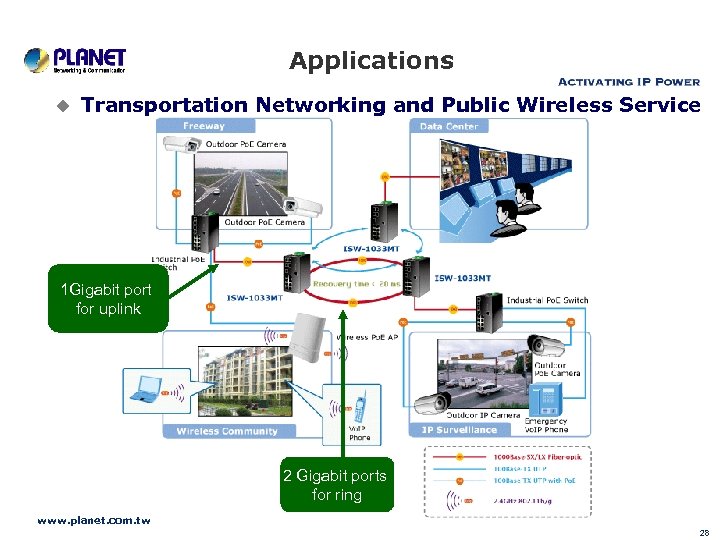

Applications u Transportation Networking and Public Wireless Service 1 Gigabit port for uplink 2 Gigabit ports for ring www. planet. com. tw 28

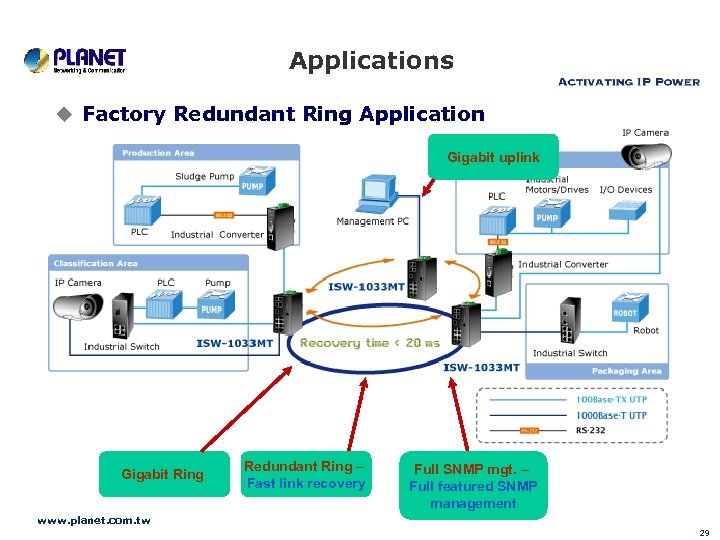

Applications u Factory Redundant Ring Application Gigabit uplink Gigabit Ring Redundant Ring – Fast link recovery Full SNMP mgt. – Full featured SNMP management www. planet. com. tw 29

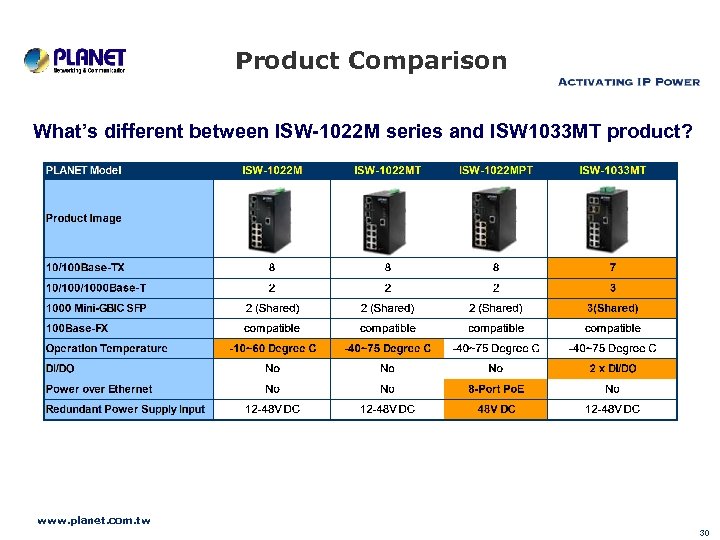

Product Comparison What’s different between ISW-1022 M series and ISW 1033 MT product? www. planet. com. tw 30

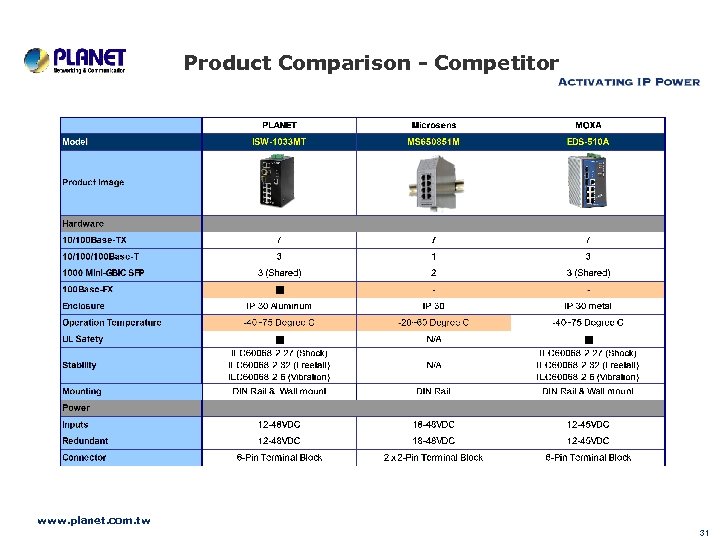

Product Comparison - Competitor www. planet. com. tw 31

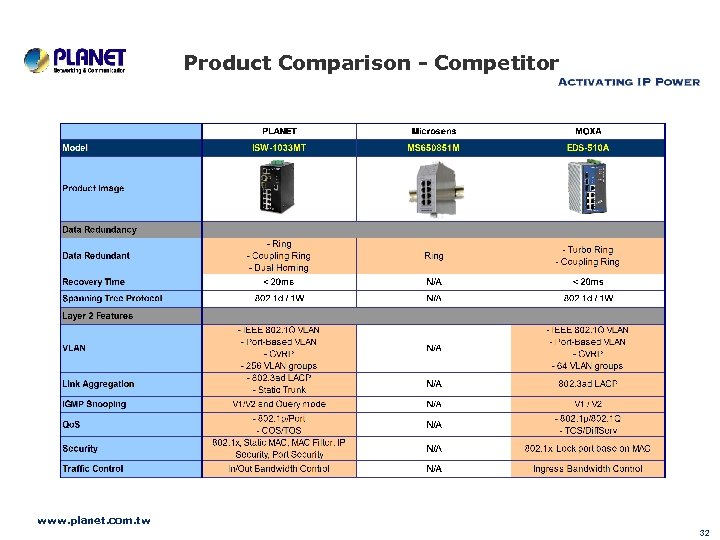

Product Comparison - Competitor www. planet. com. tw 32

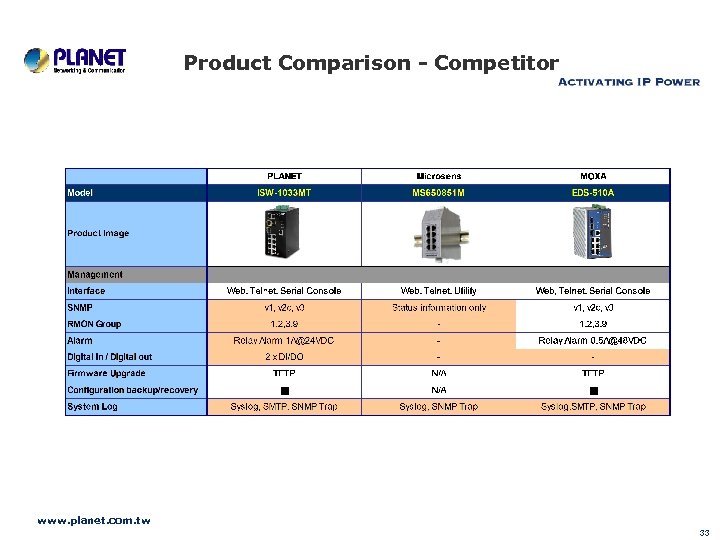

Product Comparison - Competitor www. planet. com. tw 33

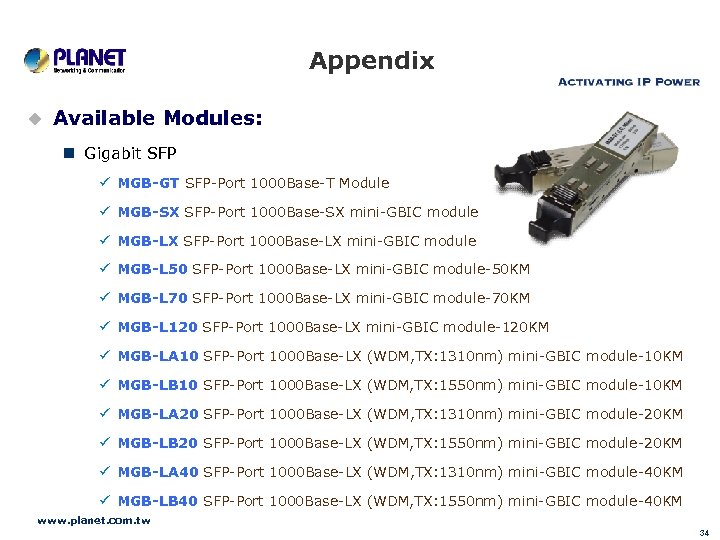

Appendix u Available Modules: n Gigabit SFP ü MGB-GT SFP-Port 1000 Base-T Module ü MGB-SX SFP-Port 1000 Base-SX mini-GBIC module ü MGB-LX SFP-Port 1000 Base-LX mini-GBIC module ü MGB-L 50 SFP-Port 1000 Base-LX mini-GBIC module-50 KM ü MGB-L 70 SFP-Port 1000 Base-LX mini-GBIC module-70 KM ü MGB-L 120 SFP-Port 1000 Base-LX mini-GBIC module-120 KM ü MGB-LA 10 SFP-Port 1000 Base-LX (WDM, TX: 1310 nm) mini-GBIC module-10 KM ü MGB-LB 10 SFP-Port 1000 Base-LX (WDM, TX: 1550 nm) mini-GBIC module-10 KM ü MGB-LA 20 SFP-Port 1000 Base-LX (WDM, TX: 1310 nm) mini-GBIC module-20 KM ü MGB-LB 20 SFP-Port 1000 Base-LX (WDM, TX: 1550 nm) mini-GBIC module-20 KM ü MGB-LA 40 SFP-Port 1000 Base-LX (WDM, TX: 1310 nm) mini-GBIC module-40 KM ü MGB-LB 40 SFP-Port 1000 Base-LX (WDM, TX: 1550 nm) mini-GBIC module-40 KM www. planet. com. tw 34

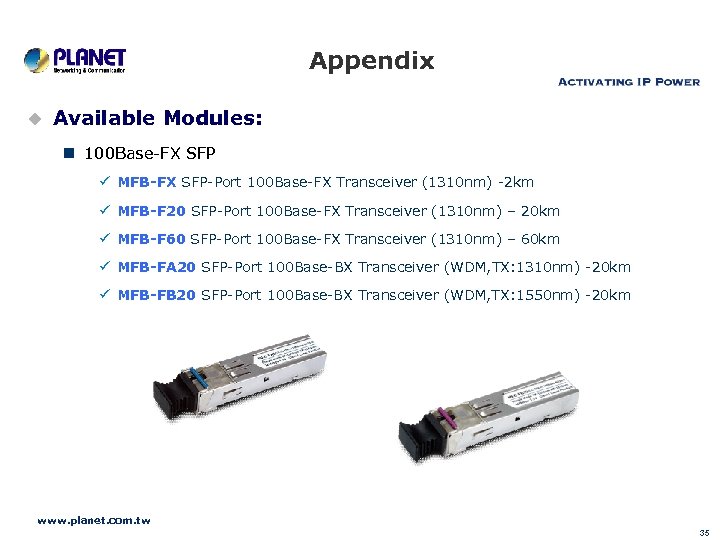

Appendix u Available Modules: n 100 Base-FX SFP ü MFB-FX SFP-Port 100 Base-FX Transceiver (1310 nm) -2 km ü MFB-F 20 SFP-Port 100 Base-FX Transceiver (1310 nm) – 20 km ü MFB-F 60 SFP-Port 100 Base-FX Transceiver (1310 nm) – 60 km ü MFB-FA 20 SFP-Port 100 Base-BX Transceiver (WDM, TX: 1310 nm) -20 km ü MFB-FB 20 SFP-Port 100 Base-BX Transceiver (WDM, TX: 1550 nm) -20 km www. planet. com. tw 35

Appendix u Related Products: n PLANET Managed Industrial Switch ü ISW-1022 M 8 -Port 10/100 Mbps + 2 G TP/SFP Managed Industrial Switch (-10~60 Degree C) üISW-1022 MT 8 -Port 10/100 Mbps + 2 G TP/SFP Managed Industrial Switch (-40~75 Degree C) üISW-1022 MPT 8 -Port 10/100 Mbos + 2 G TP/SFP Po. E Managed Industrial Switch (-40~75 Degree C) www. planet. com. tw 36

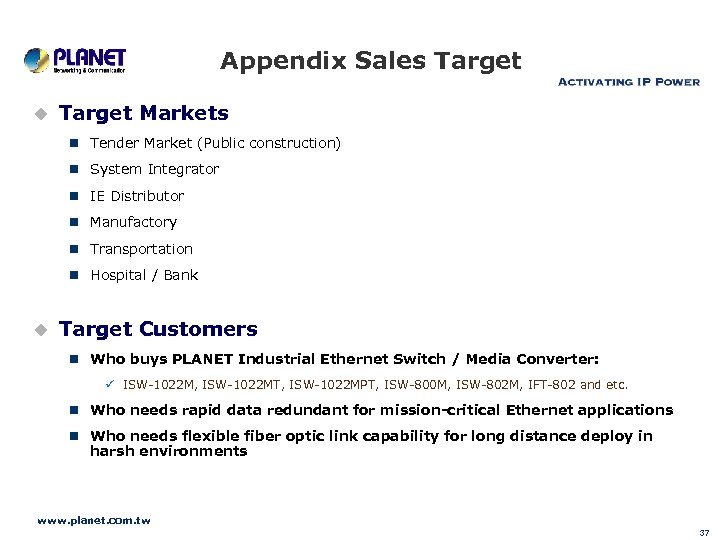

Appendix Sales Target u Target Markets n Tender Market (Public construction) n System Integrator n IE Distributor n Manufactory n Transportation n Hospital / Bank u Target Customers n Who buys PLANET Industrial Ethernet Switch / Media Converter: ü ISW-1022 M, ISW-1022 MT, ISW-1022 MPT, ISW-800 M, ISW-802 M, IFT-802 and etc. n Who needs rapid data redundant for mission-critical Ethernet applications n Who needs flexible fiber optic link capability for long distance deploy in harsh environments www. planet. com. tw 37
