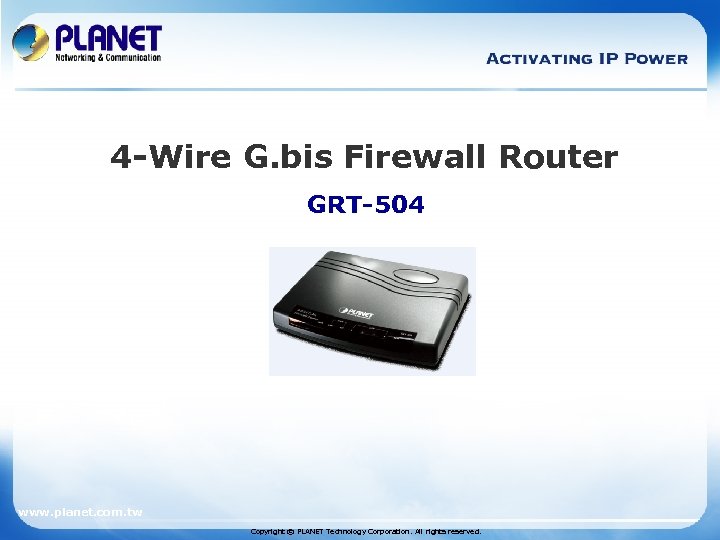

4 -Wire G bis Firewall Router GRT-504 www

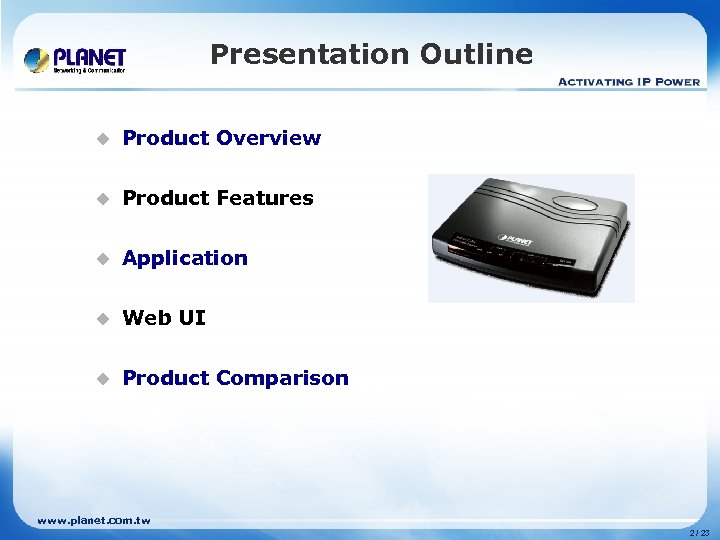

Presentation Outline u Product Overview u Product Features u Application u Web UI u Product Comparison www. planet. com. tw 2 / 23

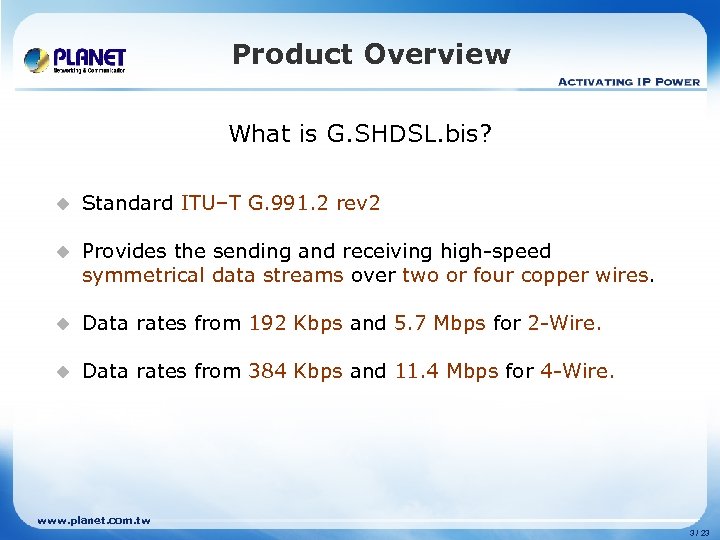

Product Overview What is G. SHDSL. bis? u Standard ITU–T G. 991. 2 rev 2 u Provides the sending and receiving high-speed symmetrical data streams over two or four copper wires. u Data rates from 192 Kbps and 5. 7 Mbps for 2 -Wire. u Data rates from 384 Kbps and 11. 4 Mbps for 4 -Wire. www. planet. com. tw 3 / 23

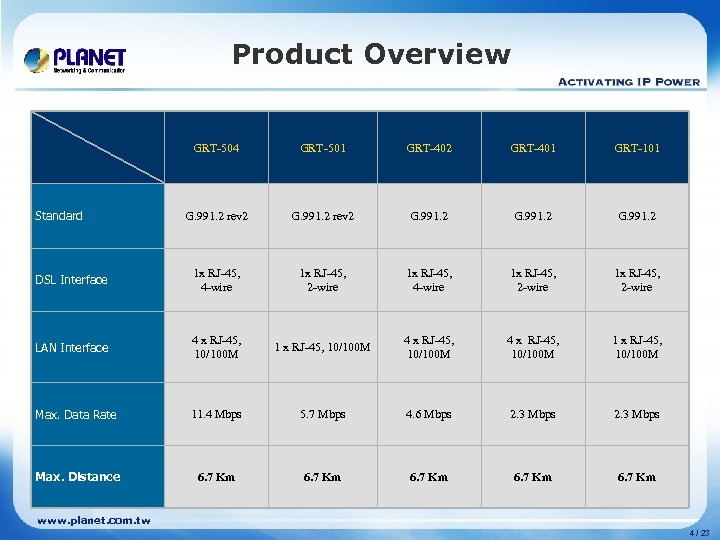

Product Overview GRT-504 GRT-501 GRT-402 GRT-401 GRT-101 G. 991. 2 rev 2 G. 991. 2 DSL Interface 1 x RJ-45, 4 -wire 1 x RJ-45, 2 -wire LAN Interface 4 x RJ-45, 10/100 M 1 x RJ-45, 10/100 M Max. Data Rate 11. 4 Mbps 5. 7 Mbps 4. 6 Mbps 2. 3 Mbps Max. Distance 6. 7 Km Standard www. planet. com. tw 4 / 23

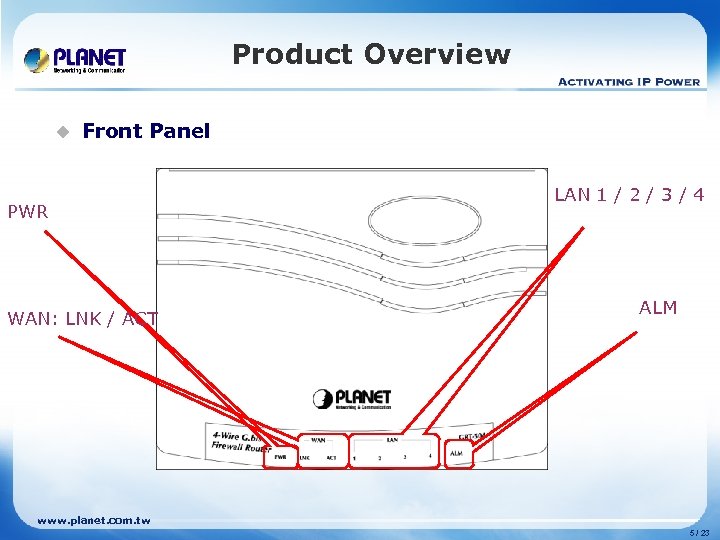

Product Overview u Front Panel PWR WAN: LNK / ACT LAN 1 / 2 / 3 / 4 ALM www. planet. com. tw 5 / 23

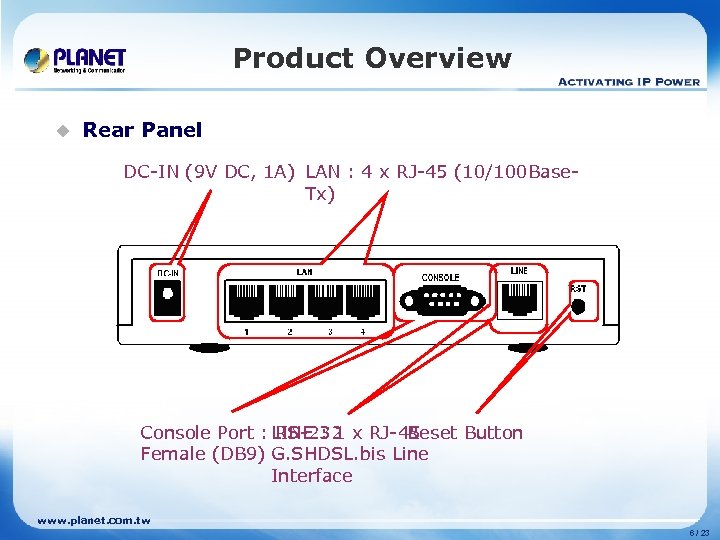

Product Overview u Rear Panel DC-IN (9 V DC, 1 A) LAN : 4 x RJ-45 (10/100 Base. Tx) Console Port : LINE : 1 x RJ-45 RS-232 Reset Button Female (DB 9) G. SHDSL. bis Line Interface www. planet. com. tw 6 / 23

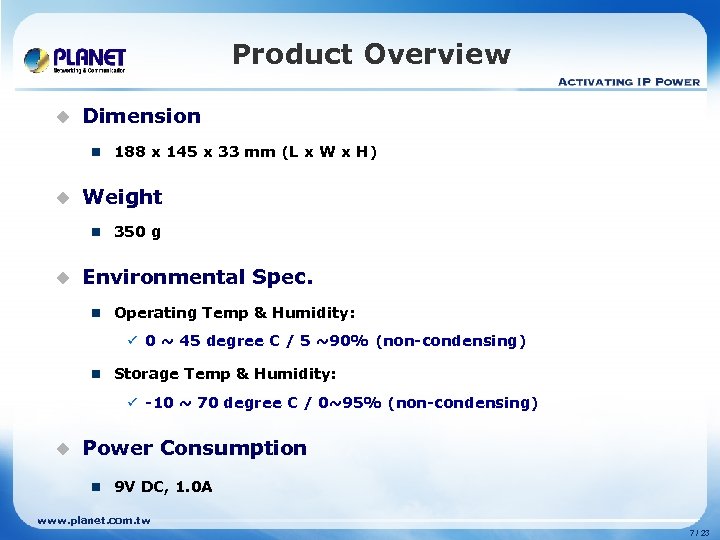

Product Overview u Dimension n 188 x 145 x 33 mm (L x W x H) u Weight n 350 g u Environmental Spec. n Operating Temp & Humidity: ü 0 ~ 45 degree C / 5 ~90% (non-condensing) n Storage Temp & Humidity: ü -10 ~ 70 degree C / 0~95% (non-condensing) u Power Consumption n 9 V DC, 1. 0 A www. planet. com. tw 7 / 23

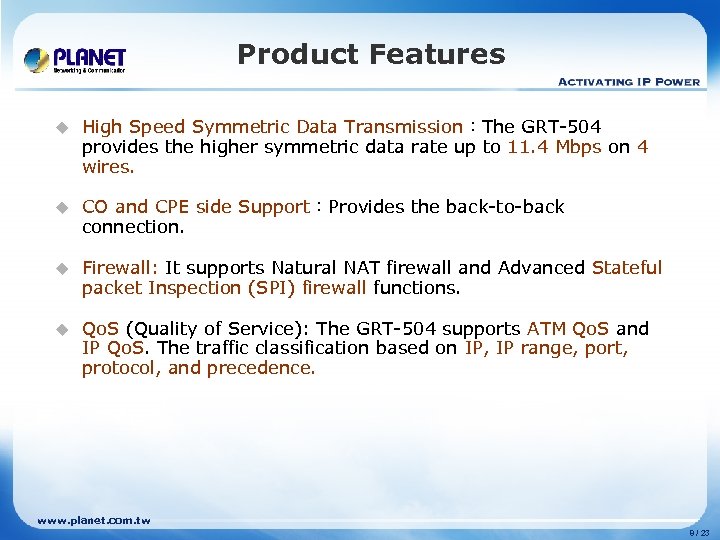

Product Features u High Speed Symmetric Data Transmission：The GRT-504 provides the higher symmetric data rate up to 11. 4 Mbps on 4 wires. u CO and CPE side Support：Provides the back-to-back connection. u Firewall: It supports Natural NAT firewall and Advanced Stateful packet Inspection (SPI) firewall functions. u Qo. S (Quality of Service): The GRT-504 supports ATM Qo. S and IP Qo. S. The traffic classification based on IP, IP range, port, protocol, and precedence. www. planet. com. tw 8 / 23

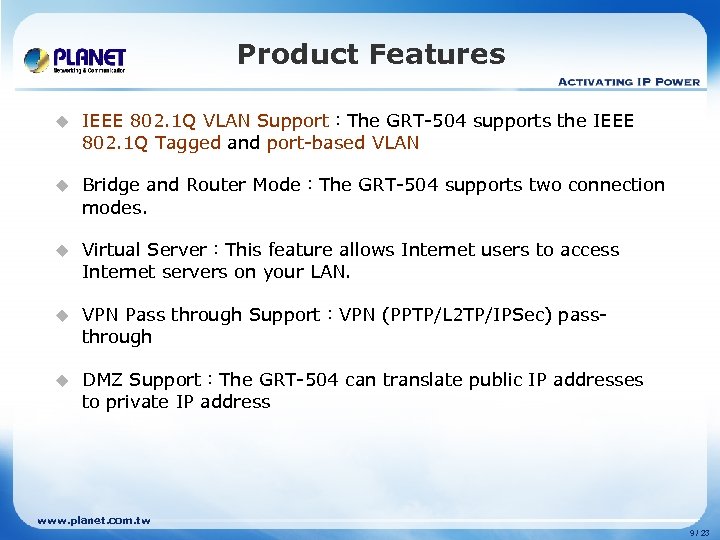

Product Features u IEEE 802. 1 Q VLAN Support：The GRT-504 supports the IEEE 802. 1 Q Tagged and port-based VLAN u Bridge and Router Mode：The GRT-504 supports two connection modes. u Virtual Server：This feature allows Internet users to access Internet servers on your LAN. u VPN Pass through Support：VPN (PPTP/L 2 TP/IPSec) passthrough u DMZ Support：The GRT-504 can translate public IP addresses to private IP address www. planet. com. tw 9 / 23

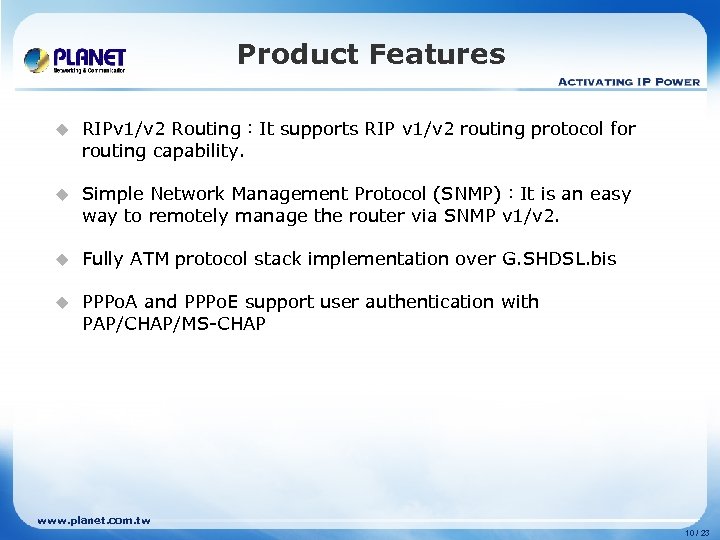

Product Features u RIPv 1/v 2 Routing：It supports RIP v 1/v 2 routing protocol for routing capability. u Simple Network Management Protocol (SNMP)：It is an easy way to remotely manage the router via SNMP v 1/v 2. u Fully ATM protocol stack implementation over G. SHDSL. bis u PPPo. A and PPPo. E support user authentication with PAP/CHAP/MS-CHAP www. planet. com. tw 10 / 23

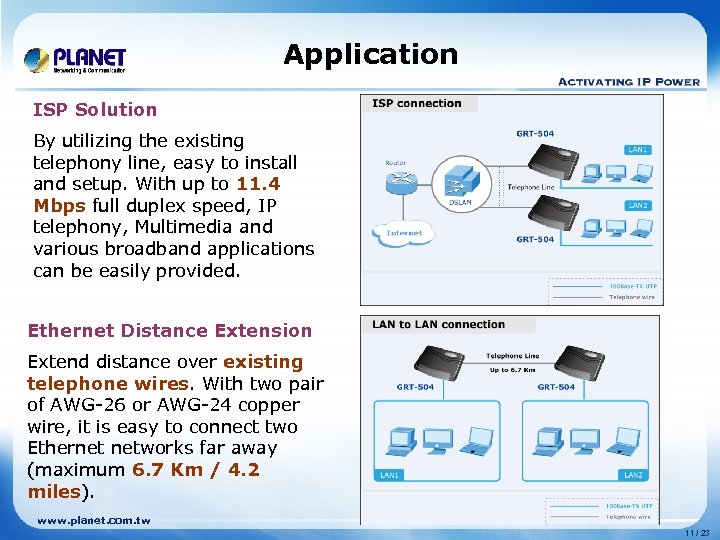

Application ISP Solution By utilizing the existing telephony line, easy to install and setup. With up to 11. 4 Mbps full duplex speed, IP telephony, Multimedia and various broadband applications can be easily provided. Ethernet Distance Extension Extend distance over existing telephone wires. With two pair of AWG-26 or AWG-24 copper wire, it is easy to connect two Ethernet networks far away (maximum 6. 7 Km / 4. 2 miles). www. planet. com. tw 11 / 23

Web UI Main Functions: 1. Basic 3. Status 2. Advanced 4. Admin 5. Utility www. planet. com. tw 12 / 23

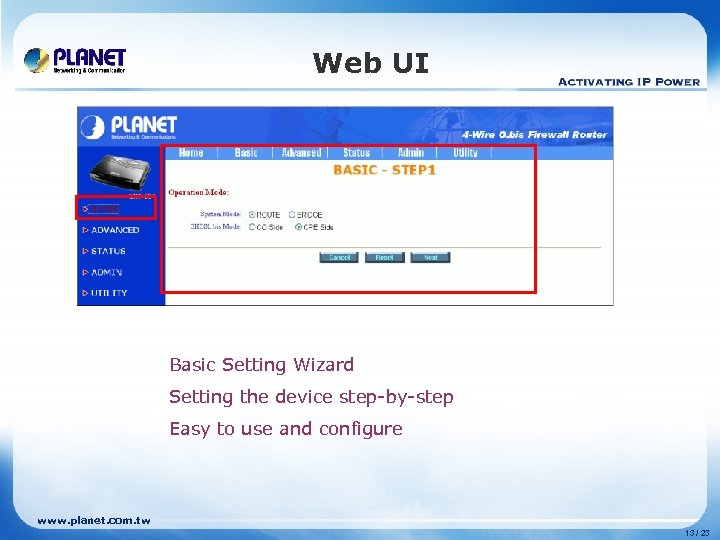

Web UI Basic Setting Wizard Setting the device step-by-step Easy to use and configure www. planet. com. tw 13 / 23

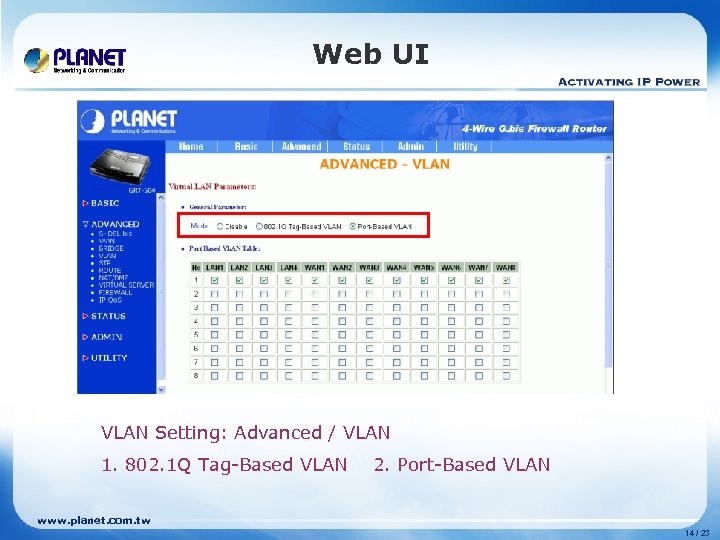

Web UI VLAN Setting: Advanced / VLAN 1. 802. 1 Q Tag-Based VLAN 2. Port-Based VLAN www. planet. com. tw 14 / 23

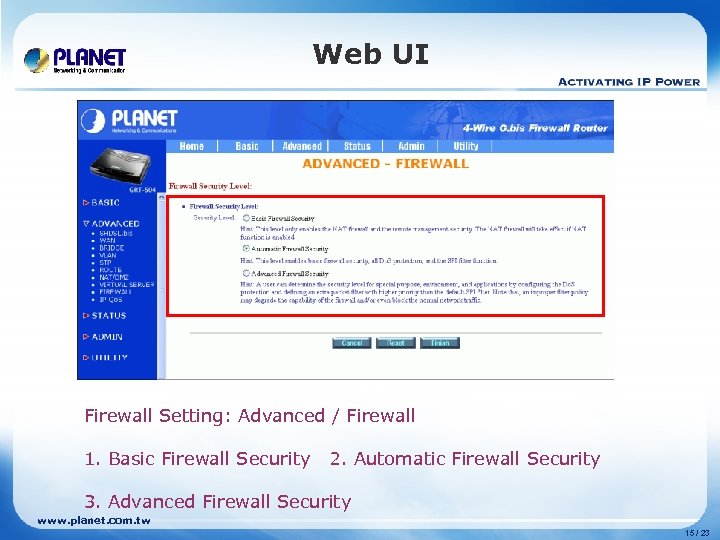

Web UI Firewall Setting: Advanced / Firewall 1. Basic Firewall Security 2. Automatic Firewall Security 3. Advanced Firewall Security www. planet. com. tw 15 / 23

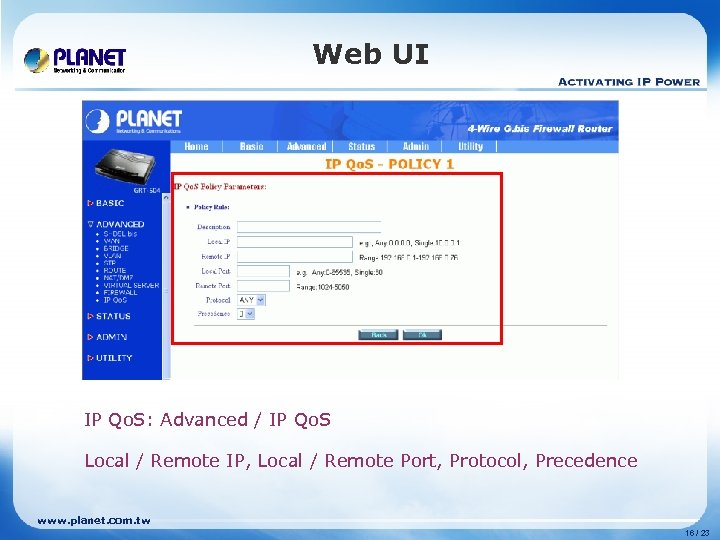

Web UI IP Qo. S: Advanced / IP Qo. S Local / Remote IP, Local / Remote Port, Protocol, Precedence www. planet. com. tw 16 / 23

Web UI Real Time SHDSL. bis Line Status: 5696 Kbps x 2 = 11. 4 Mbps Monitor and Check the Line Status Easily and Clearly www. planet. com. tw 17 / 23

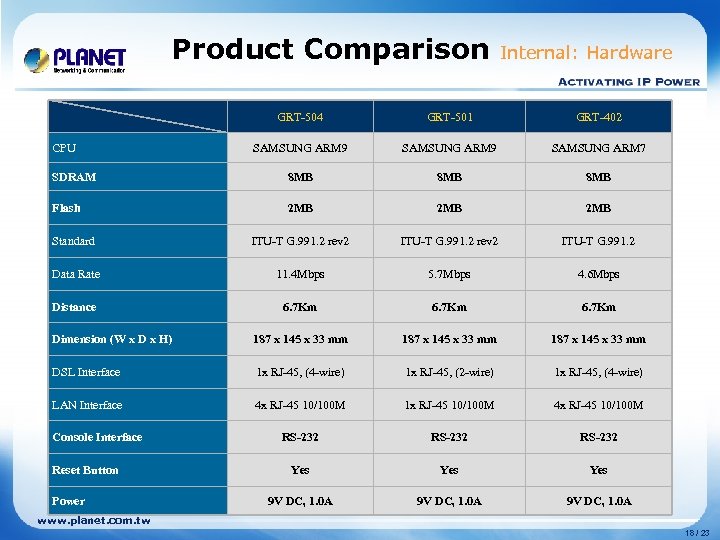

Product Comparison Internal: Hardware GRT-504 GRT-501 GRT-402 SAMSUNG ARM 9 SAMSUNG ARM 7 SDRAM 8 MB 8 MB Flash 2 MB 2 MB Standard ITU-T G. 991. 2 rev 2 ITU-T G. 991. 2 Data Rate 11. 4 Mbps 5. 7 Mbps 4. 6 Mbps Distance 6. 7 Km Dimension (W x D x H) 187 x 145 x 33 mm DSL Interface 1 x RJ-45, (4 -wire) 1 x RJ-45, (2 -wire) 1 x RJ-45, (4 -wire) LAN Interface 4 x RJ-45 10/100 M 1 x RJ-45 10/100 M 4 x RJ-45 10/100 M RS-232 Yes Yes 9 V DC, 1. 0 A CPU Console Interface Reset Button Power www. planet. com. tw 18 / 23

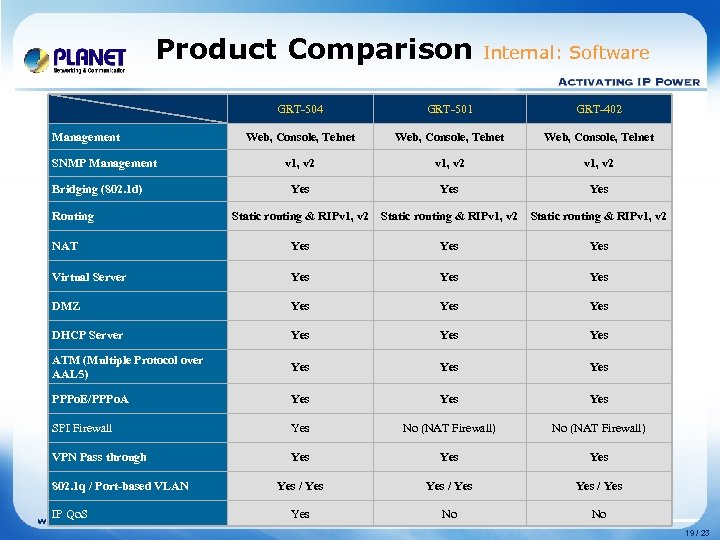

Product Comparison Internal: Software GRT-504 GRT-501 GRT-402 Web, Console, Telnet v 1, v 2 Yes Yes Static routing & RIPv 1, v 2 NAT Yes Yes Virtual Server Yes Yes DMZ Yes Yes DHCP Server Yes Yes ATM (Multiple Protocol over AAL 5) Yes Yes PPPo. E/PPPo. A Yes Yes SPI Firewall Yes No (NAT Firewall) VPN Pass through Yes Yes / Yes No No Management SNMP Management Bridging (802. 1 d) Routing 802. 1 q / Port-based VLAN IP Qo. S www. planet. com. tw 19 / 23

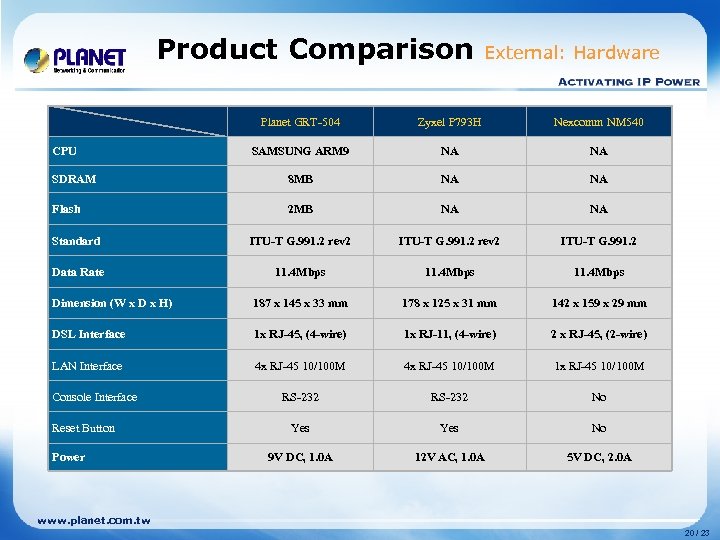

Product Comparison External: Hardware Planet GRT-504 Zyxel P 793 H Nexcomm NM 540 SAMSUNG ARM 9 NA NA SDRAM 8 MB NA NA Flash 2 MB NA NA Standard ITU-T G. 991. 2 rev 2 ITU-T G. 991. 2 Data Rate 11. 4 Mbps Dimension (W x D x H) 187 x 145 x 33 mm 178 x 125 x 31 mm 142 x 159 x 29 mm DSL Interface 1 x RJ-45, (4 -wire) 1 x RJ-11, (4 -wire) 2 x RJ-45, (2 -wire) LAN Interface 4 x RJ-45 10/100 M 1 x RJ-45 10/100 M RS-232 No Yes No 9 V DC, 1. 0 A 12 V AC, 1. 0 A 5 V DC, 2. 0 A CPU Console Interface Reset Button Power www. planet. com. tw 20 / 23

Product Comparison External: Software Planet GRT-504 Zyxel P 793 H Nexcomm NM 540 Web, Console, Telnet Web v 1, v 2 Yes Yes Static routing & RIPv 1, v 2 No NAT Yes No Virtual Server Yes No No DMZ Yes No No DHCP Server Yes No ATM (Multiple Protocol over AAL 5) Yes No PPPo. E/PPPo. A Yes No SPI Firewall Yes No VPN Pass through Yes Yes / Yes No / Yes / No Yes No No Management SNMP Management Bridging (802. 1 d) Routing 802. 1 q / Port-based VLAN IP Qo. S www. planet. com. tw 21 / 23

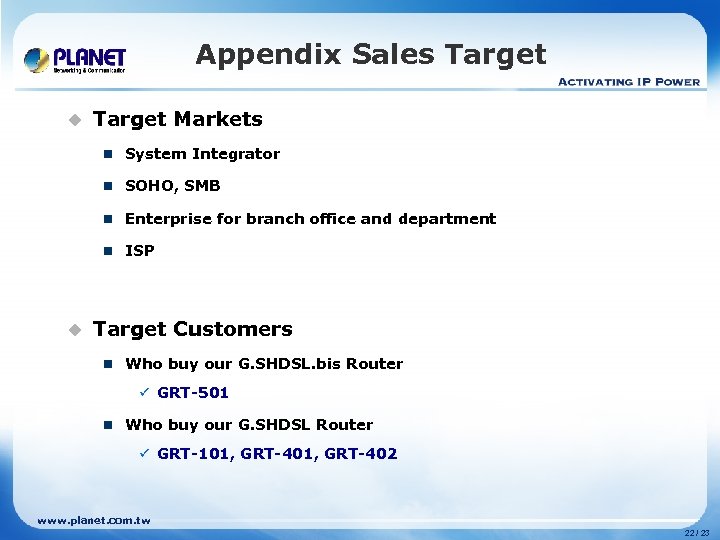

Appendix Sales Target u Target Markets n System Integrator n SOHO, SMB n Enterprise for branch office and department n ISP u Target Customers n Who buy our G. SHDSL. bis Router ü GRT-501 n Who buy our G. SHDSL Router ü GRT-101, GRT-402 www. planet. com. tw 22 / 23
