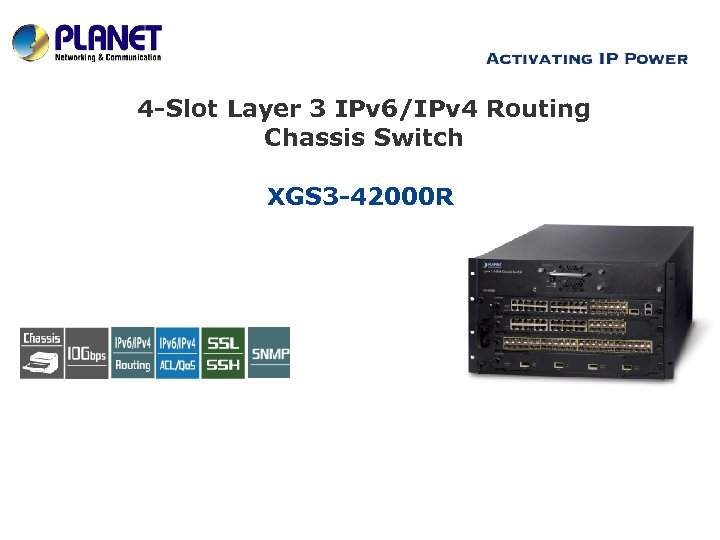

4 -Slot Layer 3 IPv 6/IPv 4 Routing Chassis Switch XGS 3 -42000 R 4 -Slot Layer 3 IPv 6/IPv 4 Routing Chassis Switch XGS 3 -42000 R www. planet. com. tw

Presentation Outline u Product Overview u Product Benefits u Product Features u Application u Presentation Outline u Product Overview u Product Benefits u Product Features u Application u Comparison www. planet. com. tw 2

Product Overview u The Advantages of XGS 3 -42000 R ü Extensive Layer 2 Product Overview u The Advantages of XGS 3 -42000 R ü Extensive Layer 2 / 3 / 4 Serve every kind of network application ü IPv 6 Next Generation IP Protocol ü 10 G Ultra High Speed and Bandwidth www. planet. com. tw 3

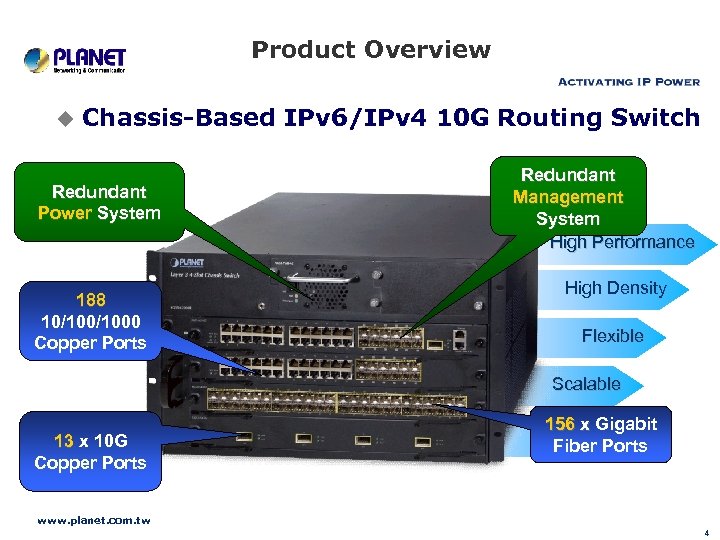

Product Overview u Chassis-Based IPv 6/IPv 4 10 G Routing Switch Redundant Power System Product Overview u Chassis-Based IPv 6/IPv 4 10 G Routing Switch Redundant Power System 188 10/1000 Copper Ports Redundant Management System High Performance High Density Flexible Scalable 13 x 10 G Copper Ports 156 x Gigabit Reliable Fiber Ports www. planet. com. tw 4

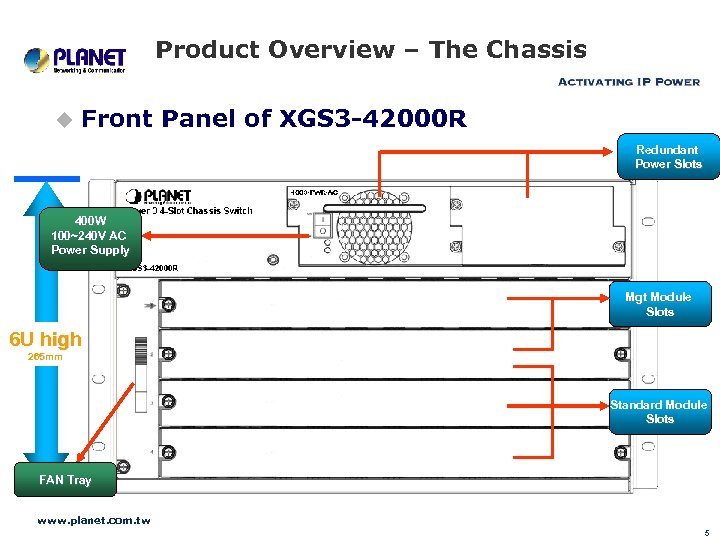

Product Overview – The Chassis u Front Panel of XGS 3 -42000 R Redundant Product Overview – The Chassis u Front Panel of XGS 3 -42000 R Redundant Power Slots 400 W 100~240 V AC Power Supply Mgt Module Slots 6 U high 265 mm Standard Module Slots FAN Tray www. planet. com. tw 5

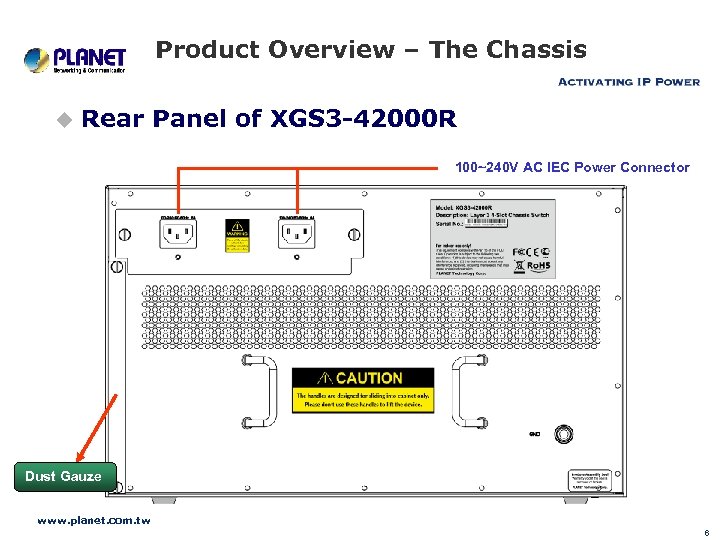

Product Overview – The Chassis u Rear Panel of XGS 3 -42000 R 100~240 Product Overview – The Chassis u Rear Panel of XGS 3 -42000 R 100~240 V AC IEC Power Connector Dust Gauze www. planet. com. tw 6

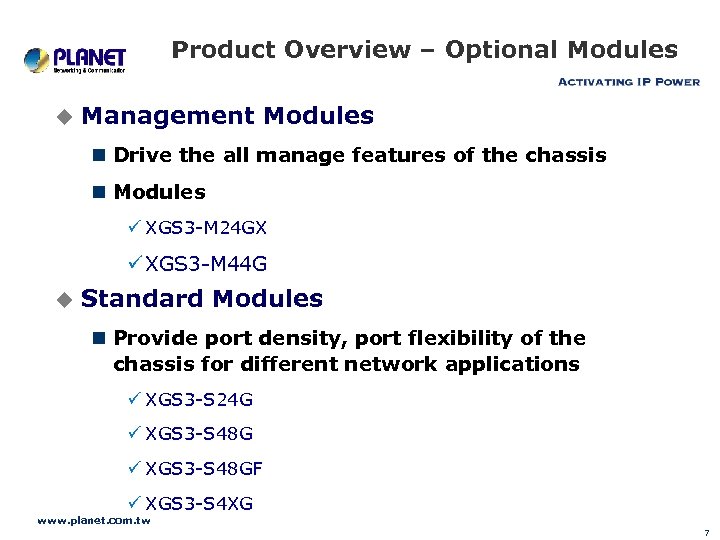

Product Overview – Optional Modules u Management Modules n Drive the all manage features Product Overview – Optional Modules u Management Modules n Drive the all manage features of the chassis n Modules ü XGS 3 -M 24 GX ü XGS 3 -M 44 G u Standard Modules n Provide port density, port flexibility of the chassis for different network applications ü XGS 3 -S 24 G ü XGS 3 -S 48 GF ü XGS 3 -S 4 XG www. planet. com. tw 7

Product Overview – Optional Modules u Management Modules n XGS 3 -M 24 GX Product Overview – Optional Modules u Management Modules n XGS 3 -M 24 GX ü 24 -Port 10/1000 Base-T RJ-45 ü 12 for 3. 3 VDC mini-GBIC/SFP slots – Shared with Port-13 and Port-24 – Compatible with 1000 Base-SX / LX / ZX / WDM SFP modules ü 1 -Port 10 GBase-SR/LR XFP slot ü 1 RJ-45 serial console Interface 10 G XFP Slot 24 x 10/1000 Base-T, RJ-45 www. planet. com. tw 1000 SX/LX SFP slots RJ-45 Console 8

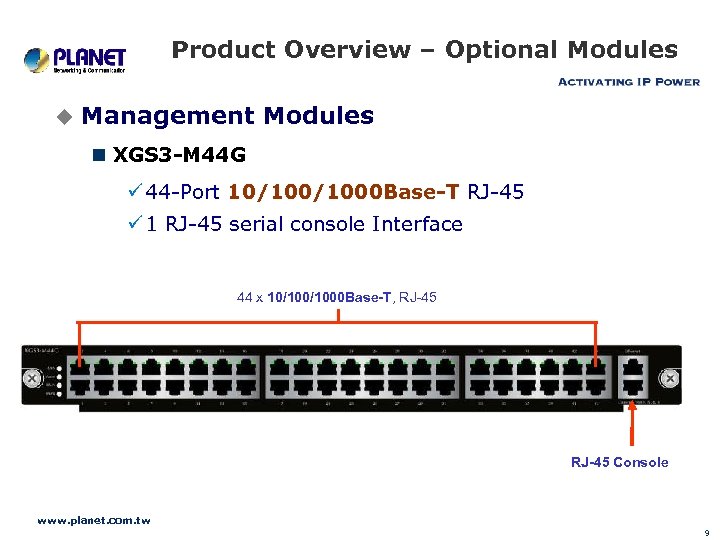

Product Overview – Optional Modules u Management Modules n XGS 3 -M 44 G Product Overview – Optional Modules u Management Modules n XGS 3 -M 44 G ü 44 -Port 10/1000 Base-T RJ-45 ü 1 RJ-45 serial console Interface 44 x 10/1000 Base-T, RJ-45 Console www. planet. com. tw 9

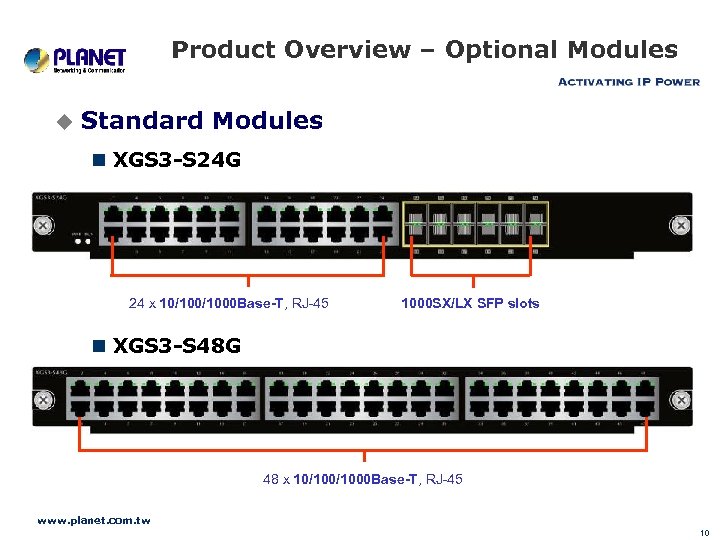

Product Overview – Optional Modules u Standard Modules n XGS 3 -S 24 G Product Overview – Optional Modules u Standard Modules n XGS 3 -S 24 G 24 x 10/1000 Base-T, RJ-45 1000 SX/LX SFP slots n XGS 3 -S 48 G 48 x 10/1000 Base-T, RJ-45 www. planet. com. tw 10

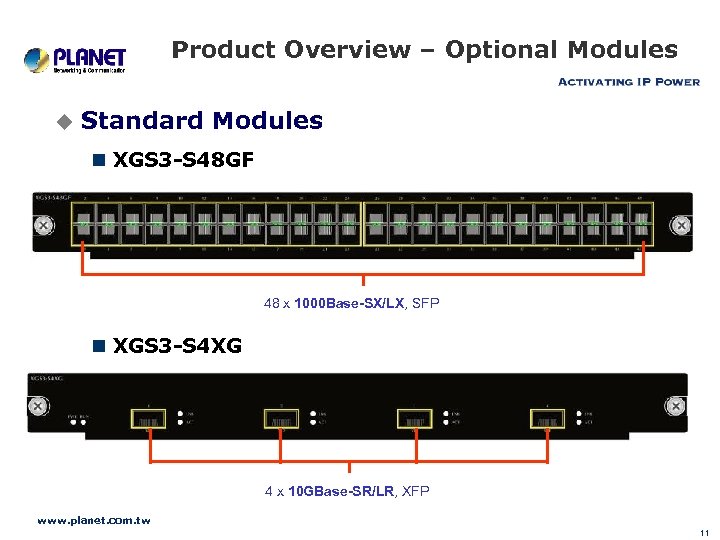

Product Overview – Optional Modules u Standard Modules n XGS 3 -S 48 GF Product Overview – Optional Modules u Standard Modules n XGS 3 -S 48 GF 48 x 1000 Base-SX/LX, SFP n XGS 3 -S 4 XG 4 x 10 GBase-SR/LR, XFP www. planet. com. tw 11

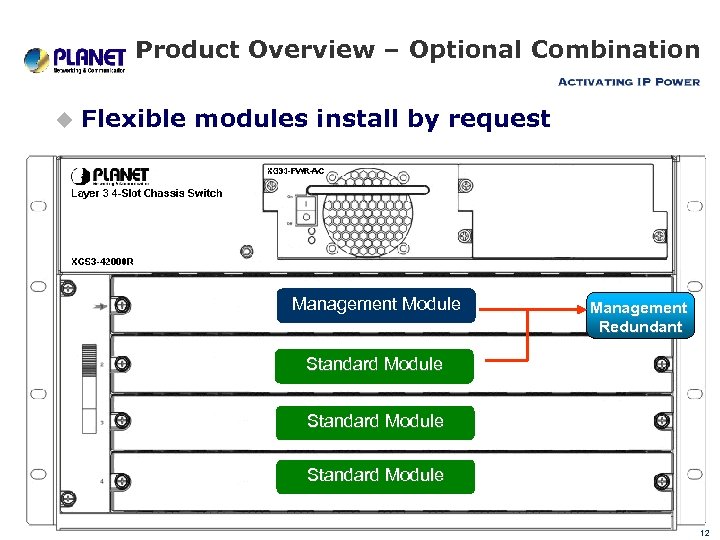

Product Overview – Optional Combination u Flexible modules install by request Management Module Management Product Overview – Optional Combination u Flexible modules install by request Management Module Management Redundant Management Module Standard Module www. planet. com. tw 12

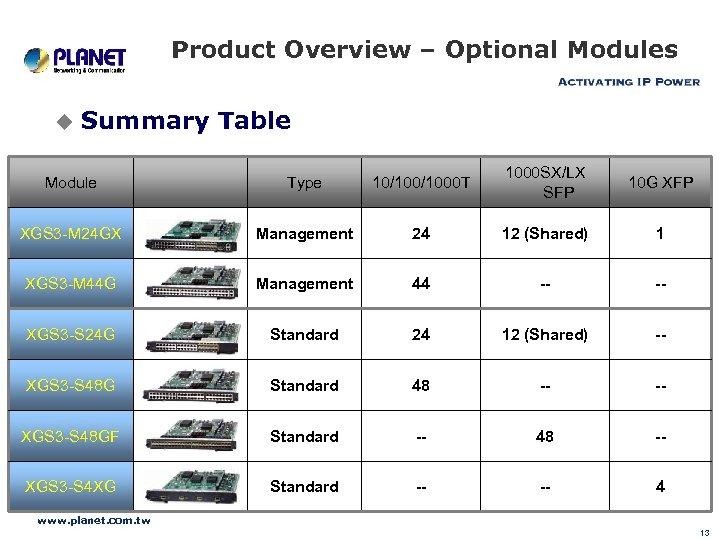

Product Overview – Optional Modules u Summary Table Module Type 10/1000 T 1000 SX/LX Product Overview – Optional Modules u Summary Table Module Type 10/1000 T 1000 SX/LX SFP 10 G XFP XGS 3 -M 24 GX Management 24 12 (Shared) 1 XGS 3 -M 44 G Management 44 -- -- XGS 3 -S 24 G Standard 24 12 (Shared) -- XGS 3 -S 48 G Standard 48 -- -- XGS 3 -S 48 GF Standard -- 48 -- XGS 3 -S 4 XG Standard -- -- 4 www. planet. com. tw 13

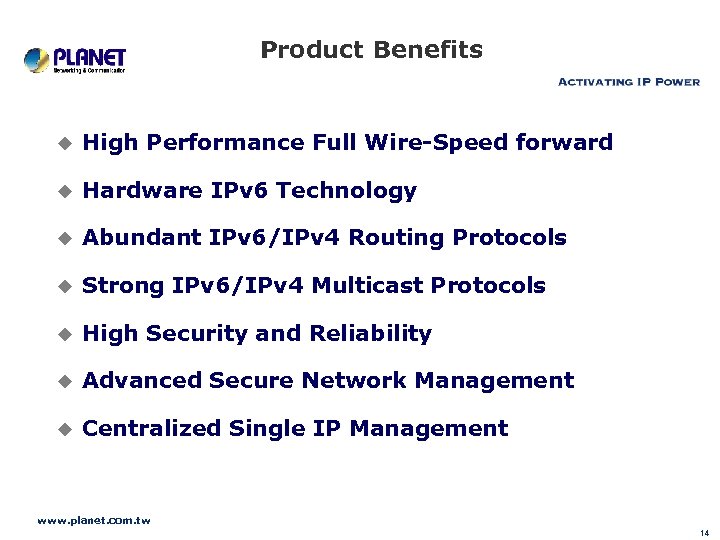

Product Benefits u High Performance Full Wire-Speed forward u Hardware IPv 6 Technology u Product Benefits u High Performance Full Wire-Speed forward u Hardware IPv 6 Technology u Abundant IPv 6/IPv 4 Routing Protocols u Strong IPv 6/IPv 4 Multicast Protocols u High Security and Reliability u Advanced Secure Network Management u Centralized Single IP Management www. planet. com. tw 14

Product Benefits – ISP / Telecom u Abundant IPv 6 Support n Hardware-based IPv Product Benefits – ISP / Telecom u Abundant IPv 6 Support n Hardware-based IPv 6 routing for maximum performance n Meet the need for larger addressing and higher security u Rich IPv 6 / IPv 4 Routing Protocol n RIP v 1/v 2, RIPng and OSPF v 2/v 3 provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. n VRRP prevents your system from failing by dynamically backing up multiple L 3 switches for routing. n Policy-Based Route is important for customer when www. planet. com. tw they need multi exit application. 15

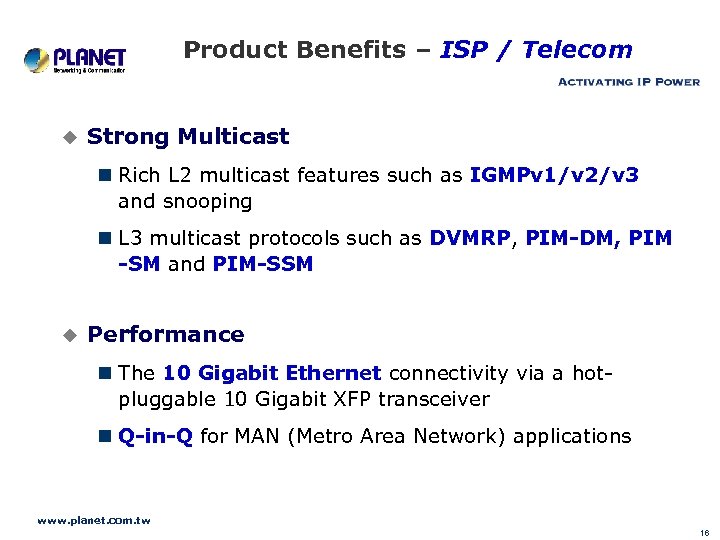

Product Benefits – ISP / Telecom u Strong Multicast n Rich L 2 multicast Product Benefits – ISP / Telecom u Strong Multicast n Rich L 2 multicast features such as IGMPv 1/v 2/v 3 and snooping n L 3 multicast protocols such as DVMRP, PIM-DM, PIM -SM and PIM-SSM u Performance n The 10 Gigabit Ethernet connectivity via a hotpluggable 10 Gigabit XFP transceiver n Q-in-Q for MAN (Metro Area Network) applications www. planet. com. tw 16

Product Benefits – Campus / Enterprise u Cost-Effective IPv 6 Managed Core Layer Switch Product Benefits – Campus / Enterprise u Cost-Effective IPv 6 Managed Core Layer Switch n IPv 4 / IPv 6 Dual Stack helps to connect to IPv 6 network now and in the future u Full / Secure Management n SSH / SSL / SNMPv 3 protocols ensure security management n SNMP , RMON and Trap alarm for Centralize Network Management u Excellent Layer 2 / 3 /4 , IPv 6 and IPv 4 Traffic Control n Layer 2 / 3 / 4 Qo. S Traffic Control n Layer 2 / 3 / 4 ACL Security n DDOS prevent u Reliable Management Modules n Redundant AC Power Supplies for non-stop operating n Redundant www. planet. com. tw 17

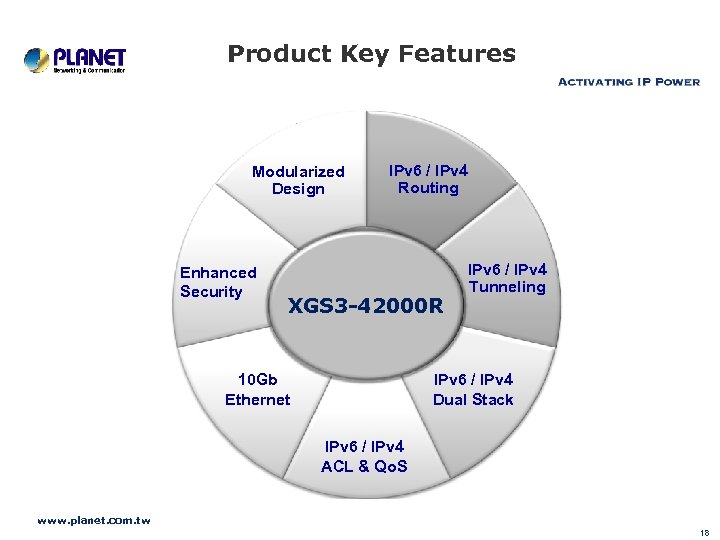

Product Key Features Modularized Design Enhanced Security IPv 6 / IPv 4 Routing XGS Product Key Features Modularized Design Enhanced Security IPv 6 / IPv 4 Routing XGS 3 -42000 R 10 Gb Ethernet IPv 6 / IPv 4 Tunneling IPv 6 / IPv 4 Dual Stack IPv 6 / IPv 4 ACL & Qo. S www. planet. com. tw 18

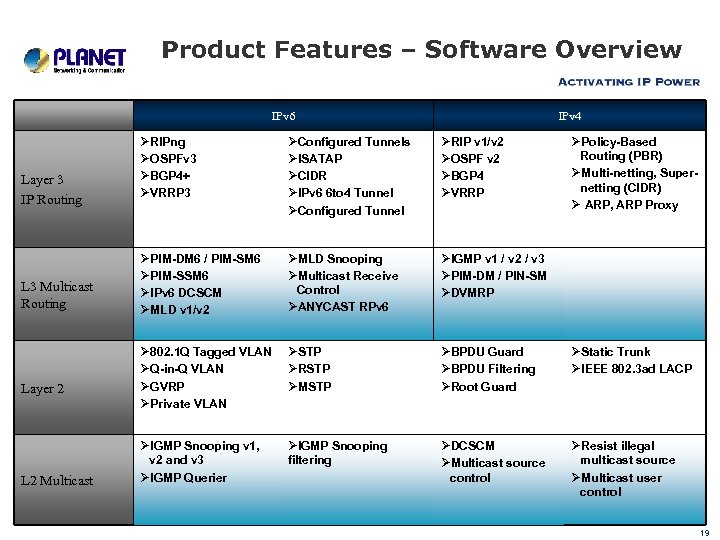

Product Features – Software Overview IPv 6 Layer 3 IP Routing L 3 Multicast Product Features – Software Overview IPv 6 Layer 3 IP Routing L 3 Multicast Routing Layer 2 L 2 Multicast IPv 4 ØRIPng ØOSPFv 3 ØBGP 4+ ØVRRP 3 ØConfigured Tunnels ØISATAP ØCIDR ØIPv 6 6 to 4 Tunnel ØConfigured Tunnel ØRIP v 1/v 2 ØOSPF v 2 ØBGP 4 ØVRRP ØPolicy-Based Routing (PBR) ØMulti-netting, Supernetting (CIDR) Ø ARP, ARP Proxy ØPIM-DM 6 / PIM-SM 6 ØPIM-SSM 6 ØIPv 6 DCSCM ØMLD v 1/v 2 ØMLD Snooping ØMulticast Receive Control ØANYCAST RPv 6 ØIGMP v 1 / v 2 / v 3 ØPIM-DM / PIN-SM ØDVMRP Ø 802. 1 Q Tagged VLAN ØQ-in-Q VLAN ØGVRP ØPrivate VLAN ØSTP ØRSTP ØMSTP ØBPDU Guard ØBPDU Filtering ØRoot Guard ØStatic Trunk ØIEEE 802. 3 ad LACP ØIGMP Snooping v 1, v 2 and v 3 ØIGMP Querier ØIGMP Snooping filtering ØDCSCM ØMulticast source control ØResist illegal multicast source ØMulticast user control www. planet. com. tw 19

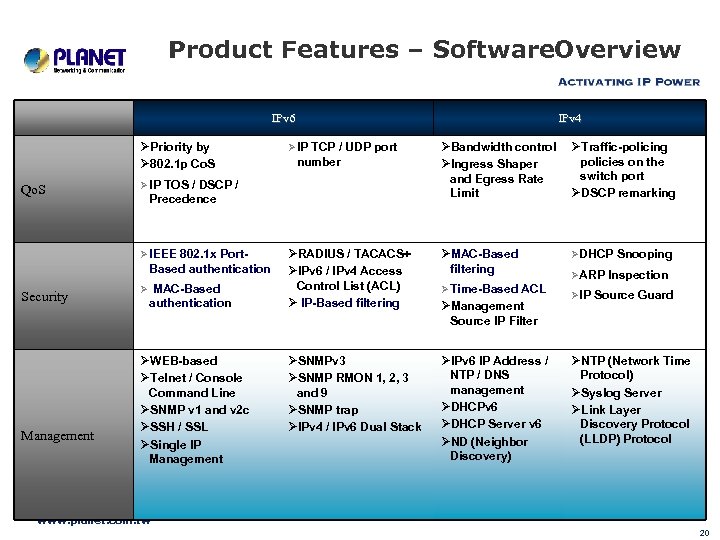

Product Features – Software. Overview IPv 6 ØPriority by Ø 802. 1 p Co. Product Features – Software. Overview IPv 6 ØPriority by Ø 802. 1 p Co. S Qo. S ØTraffic-policing policies on the switch port ØDSCP remarking ØRADIUS / TACACS+ ØIPv 6 / IPv 4 Access Control List (ACL) Ø IP-Based filtering ØMAC-Based filtering ØDHCP Snooping ØSNMPv 3 ØSNMP RMON 1, 2, 3 and 9 ØSNMP trap ØIPv 4 / IPv 6 Dual Stack ØIPv 6 IP Address / NTP / DNS management ØDHCPv 6 ØDHCP Server v 6 ØND (Neighbor Discovery) number Precedence Based authentication Management ØBandwidth control ØIngress Shaper and Egress Rate Limit Ø IP TCP / UDP port Ø IP TOS / DSCP / Ø IEEE 802. 1 x Port- Security IPv 4 Ø MAC-Based authentication ØWEB-based ØTelnet / Console Command Line ØSNMP v 1 and v 2 c ØSSH / SSL ØSingle IP Management Ø Time-Based ACL ØManagement Source IP Filter ØARP Inspection ØIP Source Guard ØNTP (Network Time Protocol) ØSyslog Server ØLink Layer Discovery Protocol (LLDP) Protocol www. planet. com. tw 20

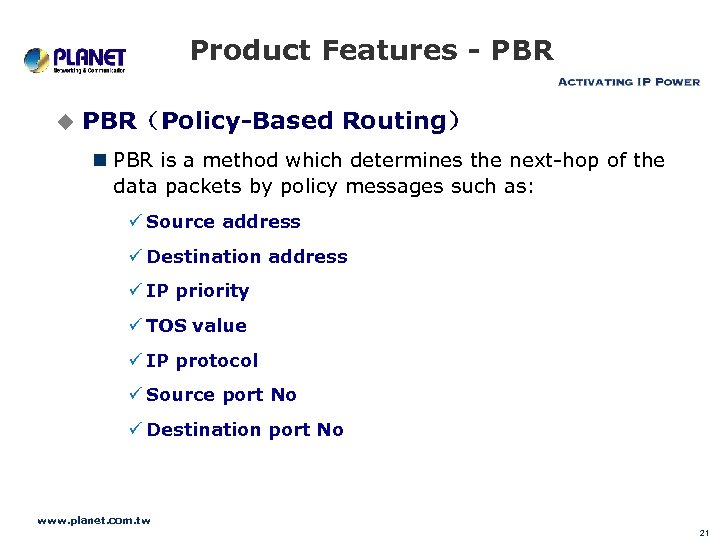

Product Features - PBR u PBR（Policy-Based Routing） n PBR is a method which determines Product Features - PBR u PBR（Policy-Based Routing） n PBR is a method which determines the next-hop of the data packets by policy messages such as: ü Source address ü Destination address ü IP priority ü TOS value ü IP protocol ü Source port No ü Destination port No www. planet. com. tw 21

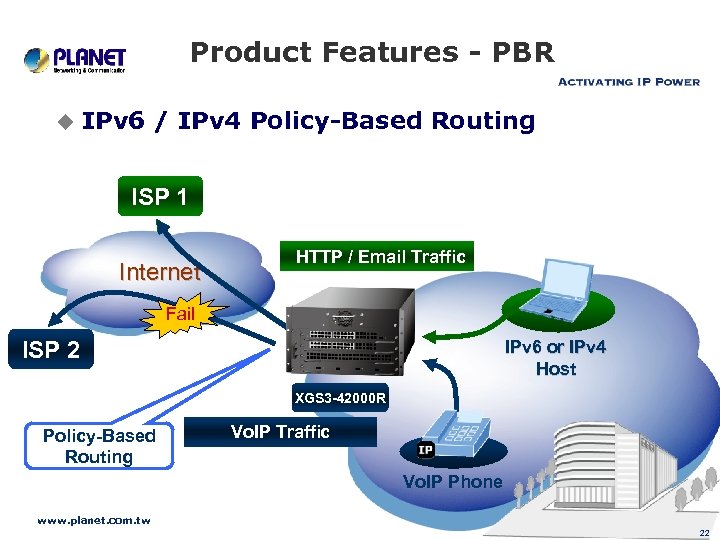

Product Features - PBR u IPv 6 / IPv 4 Policy-Based Routing ISP 1 Product Features - PBR u IPv 6 / IPv 4 Policy-Based Routing ISP 1 Internet HTTP / Email Traffic Fail ISP 2 IPv 6 or IPv 4 Host XGS 3 -42000 R Policy-Based Routing Vo. IP Traffic Vo. IP Phone www. planet. com. tw 22

Product Features – 6 to 4 Tunnel u IPv 6 6 to 4 Tunnel Product Features – 6 to 4 Tunnel u IPv 6 6 to 4 Tunnel n IPv 6 over IPv 4 Tunnel IPv 6 network A IPv 6 network B IPv 4 network 6 to 4 Tunnel IPv 6 Host XGS 3 -42000 R IPv 6 Traffic Tunneled IPv 6 Traffic www. planet. com. tw 23

Product Features – Dual Stack u IPv 6 / IPv 4 Dual Stack WEB Product Features – Dual Stack u IPv 6 / IPv 4 Dual Stack WEB TELNET Application SSL ICMP NTP DHCP Transport Layer SNMP SSH IPv 4 Stack IPv 4 network IPv 4 Host IPv 6 Stack IPv 6 network XGS 3 -42000 R IPv 6 Host www. planet. com. tw 24

Product Features – IPv 6 u IPv 6 / IPv 4 Routing IPv 4 Product Features – IPv 6 u IPv 6 / IPv 4 Routing IPv 4 / IPv 6 Internet IPv 4 network IPv 4 Host IPv 6 network XGS 3 -42000 R IPv 6 Host www. planet. com. tw 25

Applications Enterprise ISP / Telecom PLANET IPv 6 10 G Switch XGS 3 -42000 Applications Enterprise ISP / Telecom PLANET IPv 6 10 G Switch XGS 3 -42000 R Campus / Hospital www. planet. com. tw Data Center 26

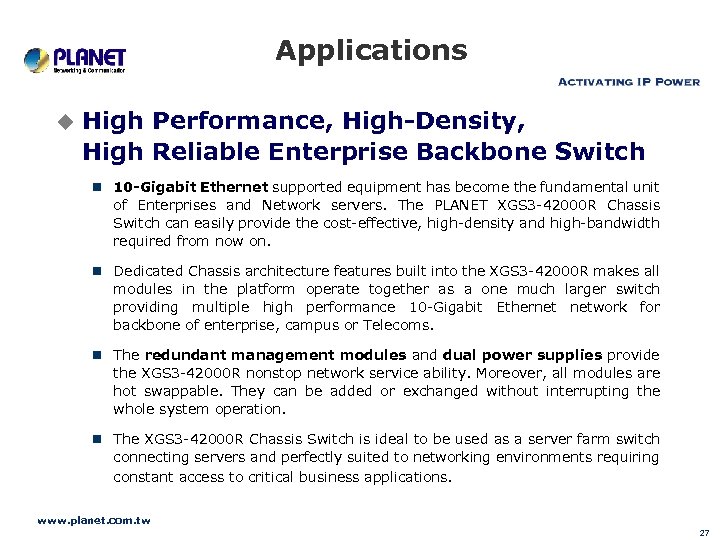

Applications u High Performance, High-Density, High Reliable Enterprise Backbone Switch n 10 -Gigabit Ethernet Applications u High Performance, High-Density, High Reliable Enterprise Backbone Switch n 10 -Gigabit Ethernet supported equipment has become the fundamental unit of Enterprises and Network servers. The PLANET XGS 3 -42000 R Chassis Switch can easily provide the cost-effective, high-density and high-bandwidth required from now on. n Dedicated Chassis architecture features built into the XGS 3 -42000 R makes all modules in the platform operate together as a one much larger switch providing multiple high performance 10 -Gigabit Ethernet network for backbone of enterprise, campus or Telecoms. n The redundant management modules and dual power supplies provide the XGS 3 -42000 R nonstop network service ability. Moreover, all modules are hot swappable. They can be added or exchanged without interrupting the whole system operation. n The XGS 3 -42000 R Chassis Switch is ideal to be used as a server farm switch connecting servers and perfectly suited to networking environments requiring constant access to critical business applications. www. planet. com. tw 27

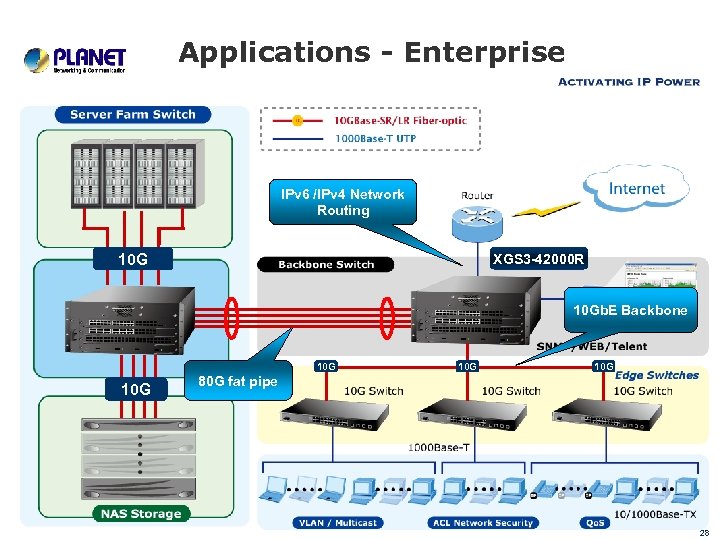

Applications - Enterprise IPv 6 /IPv 4 Network Routing 10 G XGS 3 -42000 Applications - Enterprise IPv 6 /IPv 4 Network Routing 10 G XGS 3 -42000 R 10 Gb. E Backbone 10 G 10 G 80 G fat pipe www. planet. com. tw 28

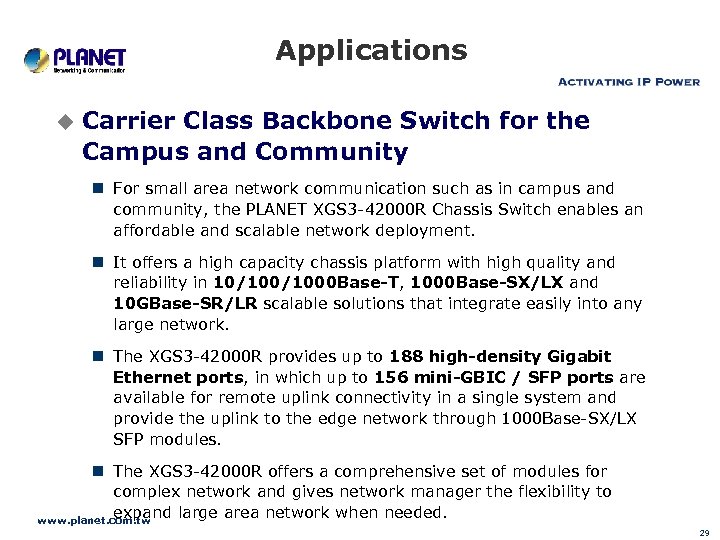

Applications u Carrier Class Backbone Switch for the Campus and Community n For small Applications u Carrier Class Backbone Switch for the Campus and Community n For small area network communication such as in campus and community, the PLANET XGS 3 -42000 R Chassis Switch enables an affordable and scalable network deployment. n It offers a high capacity chassis platform with high quality and reliability in 10/1000 Base-T, 1000 Base-SX/LX and 10 GBase-SR/LR scalable solutions that integrate easily into any large network. n The XGS 3 -42000 R provides up to 188 high-density Gigabit Ethernet ports, in which up to 156 mini-GBIC / SFP ports are available for remote uplink connectivity in a single system and provide the uplink to the edge network through 1000 Base-SX/LX SFP modules. n The XGS 3 -42000 R offers a comprehensive set of modules for complex network and gives network manager the flexibility to expand large area network when needed. www. planet. com. tw 29

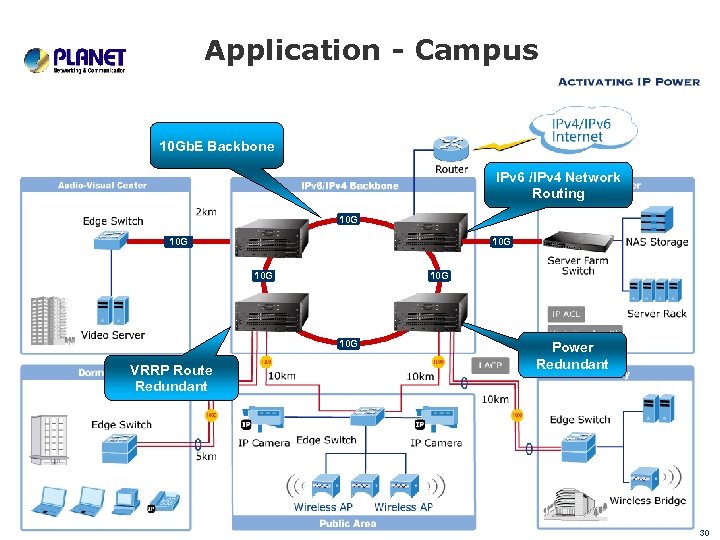

Application - Campus 10 Gb. E Backbone IPv 6 /IPv 4 Network Routing 10 Application - Campus 10 Gb. E Backbone IPv 6 /IPv 4 Network Routing 10 G 10 G 10 G VRRP Route Redundant Power Redundant www. planet. com. tw 30

Product Comparison 　 　 PLANET Cisco 3 COM Allied Telesis XGS 3 -42000 R Product Comparison 　 　 PLANET Cisco 3 COM Allied Telesis XGS 3 -42000 R Catalyst 4503 -E 7754 AT-SB 4004 Total Number of Slots 4 3 4 6 Max. Managment module 2 1 1 2 Max. Standard module (Line Card) 3 2 3 4 Management module Redundancy ■ -- -- ■ Number of Power Supply Bay 2 2 Switch Capacity 320 Gbps 136 Gbps* 120 Gbps 96 Gbps Max. 10 G Ports 13 14 3 (XENPAK) 3 (XFP) Max. 10/1000 Ports 188 108 148 96 Max. 1000 SFP Slots 156 104 64 96 Redundant Power 2 x AC or DC 2 X AC 2 x AC or 2 x DC IPv 6 Routing ■ Supervisor 6 L-E enhancements -- ■ Model name 　 Hardware www. planet. com. tw 31

Product Comparison 　 　 PLANET Cisco 3 COM Allied Telesis XGS 3 -42000 R Product Comparison 　 　 PLANET Cisco 3 COM Allied Telesis XGS 3 -42000 R Catalyst 4503 -E 7754 AT-SB 4004 VLAN Routing VLAN / Port Routing ? ? ? VLAN Routing Static Route ■ ■ RIP v 1 / v 2 ■ ■ OSPFv 2 ■ ■ BGP 4 ■ ■ ■ -- IGMP V 1, V 2, V 3 DVMRP ■ ■ N/A ■ PIM-DM ■ ■ ■ ■ PIM-SSM ■ ■ - - Policy-Based Routing ■ N/A ■ - VRRP ■ N/A ■ ■ Classless Inter-Domain Routing ■ N/A ■ - Multi-layer Ring Protection Protocol ■ N/A - - ICMP Router Discovery Messages - ■ - - RIPng ■ N/A N/A OSPFv 3 ■ N/A N/A MBGP 4+ ■ ■ N/A IPv 6 Tunnel (6 to 4 Tunnels) ■ N/A N/A ND (Neighbor Discovery) ■ N/A N/A ND Snooping ■ N/A - VRRPv 3 ■ N/A N/A www. planet. com. tw Intra-Site Automatic Tunnel Addressing ■ N/A - Model name IPv 4 Routing Interface IP Routing Multicast Routing IPv 6 Features Protoco 32

Product Comparison 　 　 PLANET Cisco 3 COM Allied Telesis XGS 3 -42000 R Product Comparison 　 　 PLANET Cisco 3 COM Allied Telesis XGS 3 -42000 R Catalyst 4503 -E 7754 AT-SB 4004 Static 128 Trunks / 8 Ports ? / 16 Ports ■ 5 Trunks / 8 Ports LACP 128 Trunks / 8 Ports ? / 16 Ports ■ 32 Trunks / 16 Ports 802. 1 Q ■ ■ Portocol-Based ■ ■ Q-in-Q ■ ■ N/A N /A GVRP ■ -- ■ ■ Private VLAN ■ ■ N/A - Voice VLAN ■ ■ N/A - 802. 1 d/1 w/1 s/PVST+ 802. 1 d/1 w/1 s 802. 1 d/1 w STP BPDU Guard ■ ■ ■ - BPDU Filtering ■ ■ N/A - V 1, V 2, V 3 V 1, V 2 IGMP Query mode ■ ■ ■ N/A IGMP Filtering ■ ■ ■ - MLDv 1/v 2 ■ ■ MLD v 1/v 2 Snooping ■ ■/- MSDP ■ ■ N/A - L 2 802. 1 p ■ / 8 queue L 3 IP TOS / DSCP ■ ■ L 4 TCP/UDP Port ■ ■ ■ N/A ■ ■ Model name Layer 2 Features Link Aggregation VLAN Spanning Tree Multicast IGMP Snooping Qo. S www. planet. com. tw Policy-Base Diff. Serv 33

Product Comparison 　 　 PLANET Cisco 3 COM Allied Telesis XGS 3 -42000 R Product Comparison 　 　 PLANET Cisco 3 COM Allied Telesis XGS 3 -42000 R Catalyst 4503 -E 7754 AT-SB 4004 ■ ■ ACL Time-Based ACL ■ L 2 / L 3 / L 4 ■ N/A L 2 / L 3 / L 4 - IP / MAC Security MAC Filter / IP-MAC Port Binding ? MAC Filtering / MAC Binding / Static MAC IP-MAC Port Binding ■/■ ■ ■ ■ ■/■ ■ ■ N/A ■/■ ■ ■ - Management & Configuration WEB, Telnet, Console Stacking IP Stacking, up to 36 units - - - Model name Security 802. 1 X Port Based MAC Based Authentication SSH / SSL RADIUS TACACS+ DHCP Snooping IP Source Guard ARP Inspection Do. S Protection Management IPv 6 Management ■ ■ N/A - V 3 ■ ■ RMON 4 Groups Logs, Syslog System Log SNMP DHCP Relay ■ ■ ■ - DHCP Option 82 ■ ■ ■ - DHCP Server IPv 6 / IPv 4 N/A - s. Flow ■ - - - SNTP, LLDP Cisco. Works, NTP, LLDP, CDP NTP - Internal 100~240 V AC N/A Internal 100~240 V AC 48 V DC Internal 100~240 V AC N/A Internal 100~240 V AC 　 Other Management 　 Physical AC Power www. planet. com. tw DC Power 34

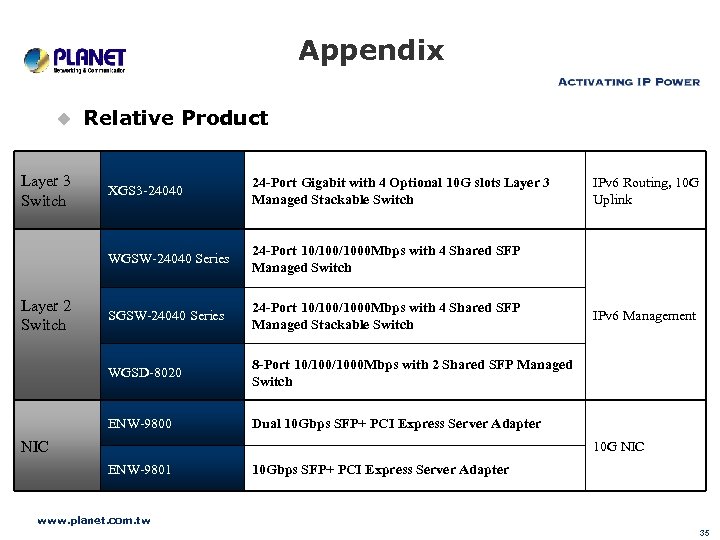

Appendix u Layer 3 Switch Relative Product 24 -Port Gigabit with 4 Optional 10 Appendix u Layer 3 Switch Relative Product 24 -Port Gigabit with 4 Optional 10 G slots Layer 3 Managed Stackable Switch WGSW-24040 Series 24 -Port 10/1000 Mbps with 4 Shared SFP Managed Switch SGSW-24040 Series 24 -Port 10/1000 Mbps with 4 Shared SFP Managed Stackable Switch WGSD-8020 8 -Port 10/1000 Mbps with 2 Shared SFP Managed Switch ENW-9800 Layer 2 Switch XGS 3 -24040 Dual 10 Gbps SFP+ PCI Express Server Adapter NIC IPv 6 Routing, 10 G Uplink IPv 6 Management 10 G NIC ENW-9801 10 Gbps SFP+ PCI Express Server Adapter www. planet. com. tw 35

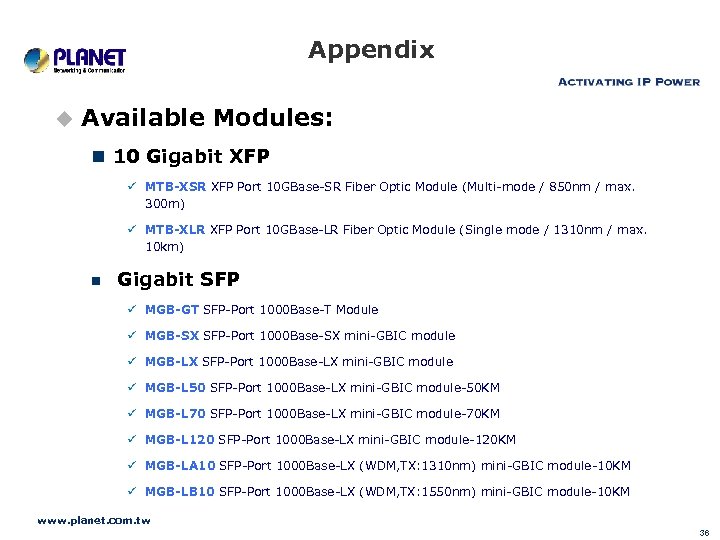

Appendix u Available Modules: n 10 Gigabit XFP ü MTB-XSR XFP Port 10 GBase-SR Appendix u Available Modules: n 10 Gigabit XFP ü MTB-XSR XFP Port 10 GBase-SR Fiber Optic Module (Multi-mode / 850 nm / max. 300 m) ü MTB-XLR XFP Port 10 GBase-LR Fiber Optic Module (Single mode / 1310 nm / max. 10 km) n Gigabit SFP ü MGB-GT SFP-Port 1000 Base-T Module ü MGB-SX SFP-Port 1000 Base-SX mini-GBIC module ü MGB-LX SFP-Port 1000 Base-LX mini-GBIC module ü MGB-L 50 SFP-Port 1000 Base-LX mini-GBIC module-50 KM ü MGB-L 70 SFP-Port 1000 Base-LX mini-GBIC module-70 KM ü MGB-L 120 SFP-Port 1000 Base-LX mini-GBIC module-120 KM ü MGB-LA 10 SFP-Port 1000 Base-LX (WDM, TX: 1310 nm) mini-GBIC module-10 KM ü MGB-LB 10 SFP-Port 1000 Base-LX (WDM, TX: 1550 nm) mini-GBIC module-10 KM www. planet. com. tw 36

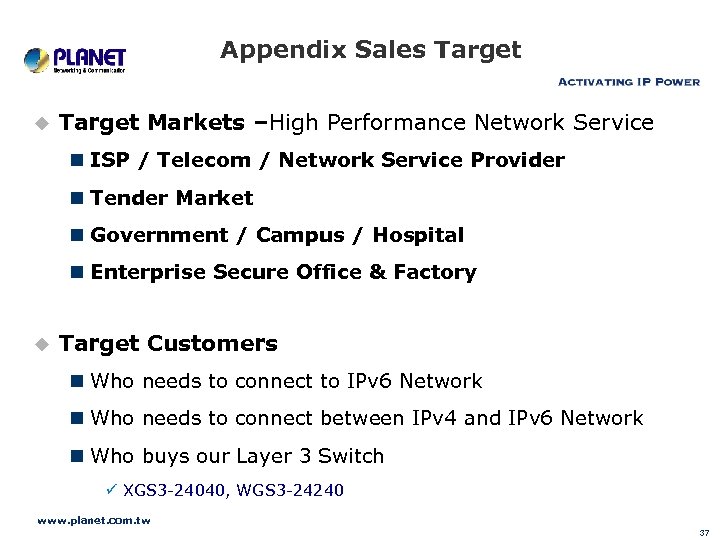

Appendix Sales Target u Target Markets –High Performance Network Service n ISP / Telecom Appendix Sales Target u Target Markets –High Performance Network Service n ISP / Telecom / Network Service Provider n Tender Market n Government / Campus / Hospital n Enterprise Secure Office & Factory u Target Customers n Who needs to connect to IPv 6 Network n Who needs to connect between IPv 4 and IPv 6 Network n Who buys our Layer 3 Switch ü XGS 3 -24040, WGS 3 -24240 www. planet. com. tw 37

www. planet. com. tw www. planet. com. tw

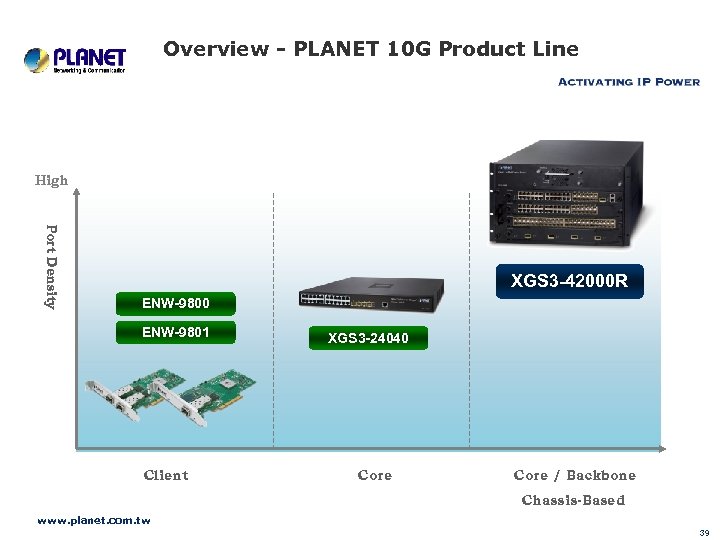

Overview - PLANET 10 G Product Line High Port Density XGS 3 -42000 R Overview - PLANET 10 G Product Line High Port Density XGS 3 -42000 R ENW-9800 ENW-9801 Client XGS 3 -24040 Core / Backbone Chassis-Based www. planet. com. tw 39

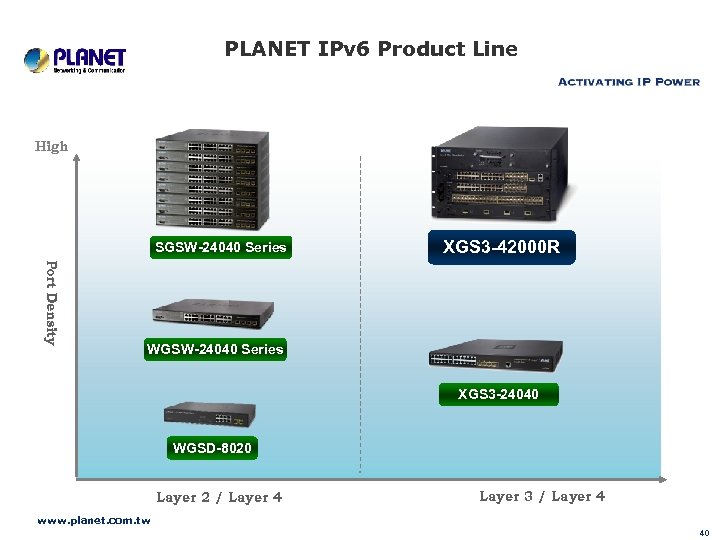

PLANET IPv 6 Product Line High SGSW-24040 Series XGS 3 -42000 R Port Density PLANET IPv 6 Product Line High SGSW-24040 Series XGS 3 -42000 R Port Density WGSW-24040 Series XGS 3 -24040 WGSD-8020 Layer 2 / Layer 4 Layer 3 / Layer 4 www. planet. com. tw 40
