4 Q 2014 Hardware Announcement Deep Dive Part

Скачать презентацию 4 Q 2014 Hardware Announcement Deep Dive Part

656ccd767a52488b30007d4a6a345466.ppt

Количество слайдов: 79

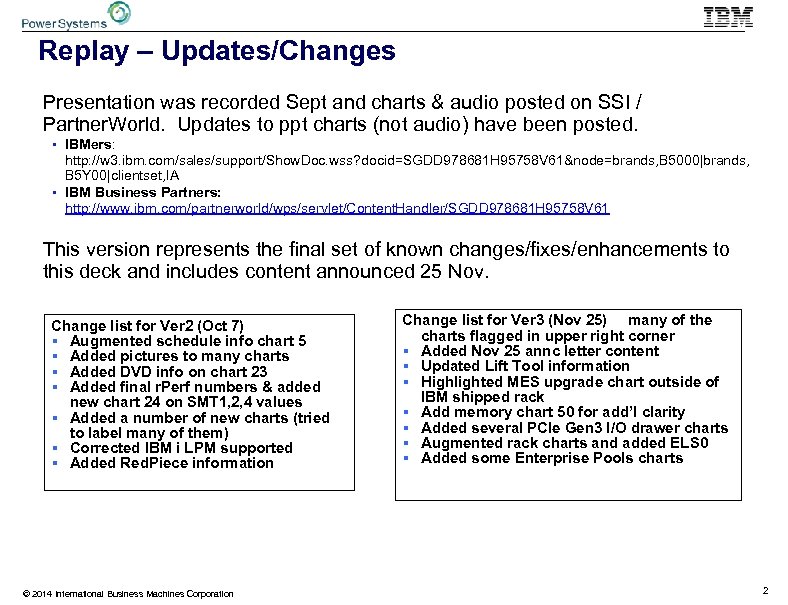

Replay – Updates/Changes Presentation was recorded Sept and charts & audio posted on SSI / Partner. World. Updates to ppt charts (not audio) have been posted. § IBMers: http: //w 3. ibm. com/sales/support/Show. Doc. wss? docid=SGDD 978681 H 95758 V 61&node=brands, B 5000|brands, B 5 Y 00|clientset, IA § IBM Business Partners: http: //www. ibm. com/partnerworld/wps/servlet/Content. Handler/SGDD 978681 H 95758 V 61 This version represents the final set of known changes/fixes/enhancements to this deck and includes content announced 25 Nov. Change list for Ver 2 (Oct 7) § Augmented schedule info chart 5 § Added pictures to many charts § Added DVD info on chart 23 § Added final r. Perf numbers & added new chart 24 on SMT 1, 2, 4 values § Added a number of new charts (tried to label many of them) § Corrected IBM i LPM supported § Added Red. Piece information © 2014 International Business Machines Corporation Change list for Ver 3 (Nov 25) many of the charts flagged in upper right corner § Added Nov 25 annc letter content § Updated Lift Tool information § Highlighted MES upgrade chart outside of IBM shipped rack § Add memory chart 50 for add’l clarity § Added several PCIe Gen 3 I/O drawer charts § Augmented rack charts and added ELS 0 § Added some Enterprise Pools charts 2

Agenda See othe r file for p CONTAINED IN PART ONE of TWO art 1 of 2 § Power E 870 & E 880 (Mark Olson) § POWER 8 E 870/E 880 scaling (Jeff Stuecheli) § CONTAINED IN PART TWO of TWO § POWER 8 Scale-out Announcements (Mark Olson) § § § S 824 L & more IBM Flash Optimized No. SQL Offering (Bob Sullivan) Easy Tier 1. 8 -inch SSD Power Big Data Solutions (Gina King) Additional Scale-out News § Power I/O news & announcements © 2014 International Business Machines Corporation 3

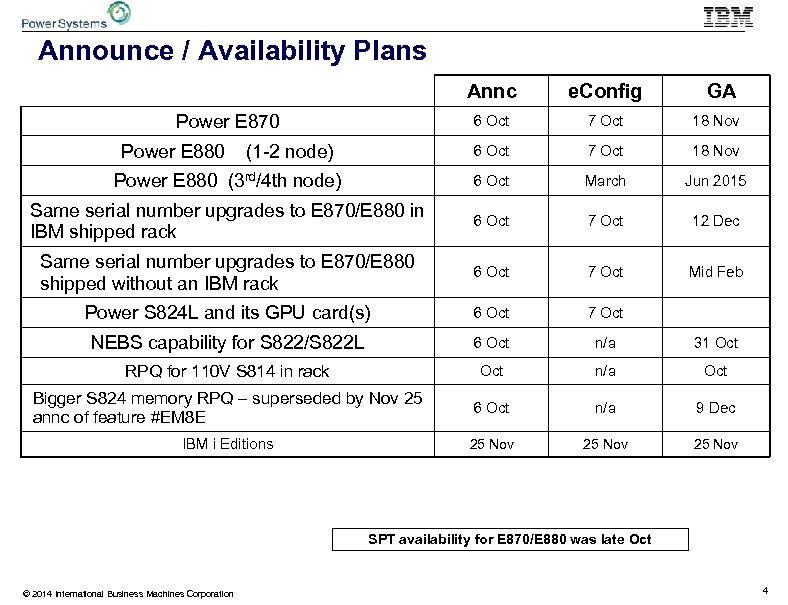

Announce / Availability Plans Annc e. Config GA Power E 870 6 Oct 7 Oct 18 Nov Power E 880 (1 -2 node) 6 Oct 7 Oct 18 Nov Power E 880 (3 rd/4 th node) 6 Oct March Jun 2015 Same serial number upgrades to E 870/E 880 in IBM shipped rack 6 Oct 7 Oct 12 Dec Same serial number upgrades to E 870/E 880 shipped without an IBM rack 6 Oct 7 Oct Mid Feb Power S 824 L and its GPU card(s) 6 Oct 7 Oct NEBS capability for S 822/S 822 L 6 Oct n/a 31 Oct RPQ for 110 V S 814 in rack Oct n/a Oct Bigger S 824 memory RPQ – superseded by Nov 25 annc of feature #EM 8 E 6 Oct n/a 9 Dec IBM i Editions 25 Nov SPT availability for E 870/E 880 was late Oct © 2014 International Business Machines Corporation 4

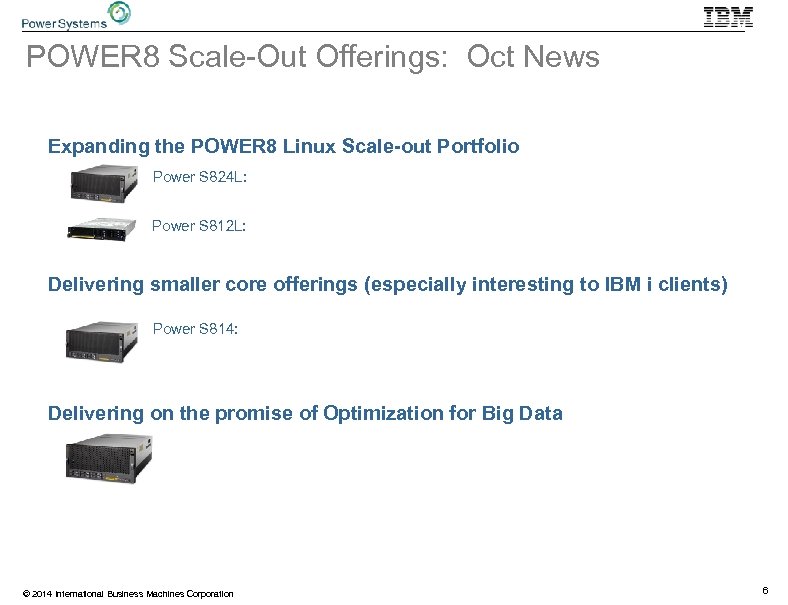

POWER 8 Scale-Out Offerings: Oct News Expanding the POWER 8 Linux Scale-out Portfolio Power S 824 L: Power S 812 L: Delivering smaller core offerings (especially interesting to IBM i clients) Power S 814: Delivering on the promise of Optimization for Big Data © 2014 International Business Machines Corporation 6

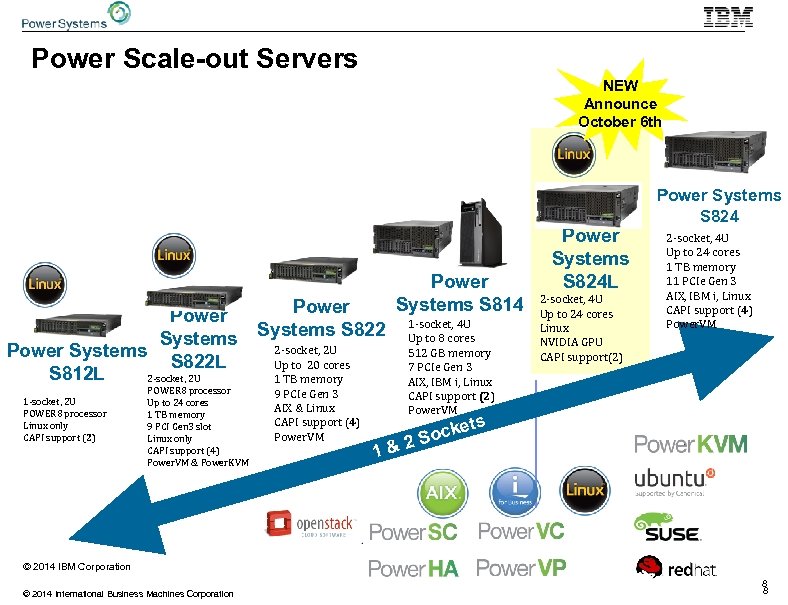

Power Scale-out Servers NEW Announce October 6 th Power Systems S 822 L S 812 L 2 -socket, 2 U 1 -socket, 2 U POWER 8 processor Linux only CAPI support (2) POWER 8 processor Up to 24 cores 1 TB memory 9 PCI Gen 3 slot Linux only CAPI support (4) Power. VM & Power. KVM Power Systems S 822 2 -socket, 2 U Up to 20 cores 1 TB memory 9 PCIe Gen 3 AIX & Linux CAPI support (4) Power. VM Power Systems S 814 1 -socket, 4 U Up to 8 cores 512 GB memory 7 PCIe Gen 3 AIX, IBM i, Linux CAPI support (2) Power. VM Power Systems S 824 L 2 -socket, 4 U Up to 24 cores Linux NVIDIA GPU CAPI support(2) Power Systems S 824 2 -socket, 4 U Up to 24 cores 1 TB memory 11 PCIe Gen 3 AIX, IBM i, Linux CAPI support (4) Power. VM ts 1& ke Soc 2 © 2014 IBM Corporation © 2014 International Business Machines Corporation 8 8

POWER S 824 L ( 8247 -42 L ) - Open Technology Platform for High Performance Analytics, Big Data, and Java Applications workloads Plan Availability Date October 31 st Incorporating the innovation of the Open. POWER Community § Partnership with NVIDIA Accelerates by GPU § Exploit the uncompromising performance of proven POWER 8 and NVIDIA GPU. High Performance Analytics, Big Data, Java Application Workhorse § © 2014 International Business Machines Corporation Aim to deliver a new class of technology that maximizes performance and efficiency for all types of technical compute and high performance analytics workloads as well as Java and Big Data Applications. 9 9

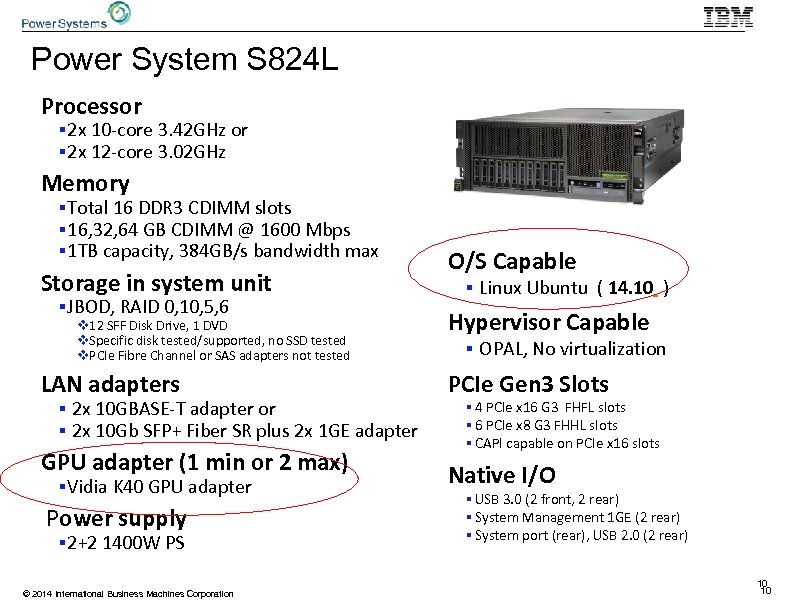

Power System S 824 L Processor § 2 x 10 -core 3. 42 GHz or § 2 x 12 -core 3. 02 GHz Memory § Total 16 DDR 3 CDIMM slots § 16, 32, 64 GB CDIMM @ 1600 Mbps § 1 TB capacity, 384 GB/s bandwidth max Storage in system unit § JBOD, RAID 0, 10, 5, 6 v 12 SFF Disk Drive, 1 DVD v. Specific disk tested/supported, no SSD tested v. PCIe Fibre Channel or SAS adapters not tested LAN adapters § § 2 x 10 GBASE-T adapter or 2 x 10 Gb SFP+ Fiber SR plus 2 x 1 GE adapter GPU adapter (1 min or 2 max) § Vidia K 40 GPU adapter Power supply § 2+2 1400 W PS © 2014 International Business Machines Corporation O/S Capable § Linux Ubuntu ( 14. 10 ) Hypervisor Capable § OPAL, No virtualization PCIe Gen 3 Slots § 4 PCIe x 16 G 3 FHFL slots § 6 PCIe x 8 G 3 FHHL slots § CAPI capable on PCIe x 16 slots Native I/O § USB 3. 0 (2 front, 2 rear) § System Management 1 GE (2 rear) § System port (rear), USB 2. 0 (2 rear) 10 10

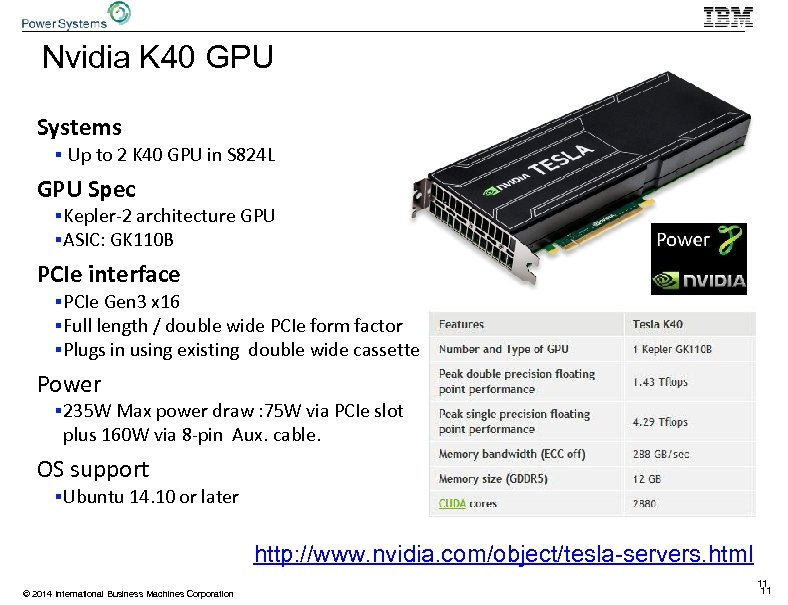

Nvidia K 40 GPU Systems § Up to 2 K 40 GPU in S 824 L GPU Spec § Kepler-2 architecture GPU § ASIC: GK 110 B PCIe interface § PCIe Gen 3 x 16 § Full length / double wide PCIe form factor § Plugs in using existing double wide cassette Power § 235 W Max power draw : 75 W via PCIe slot plus 160 W via 8 -pin Aux. cable. OS support § Ubuntu 14. 10 or later http: //www. nvidia. com/object/tesla-servers. html © 2014 International Business Machines Corporation 11 11

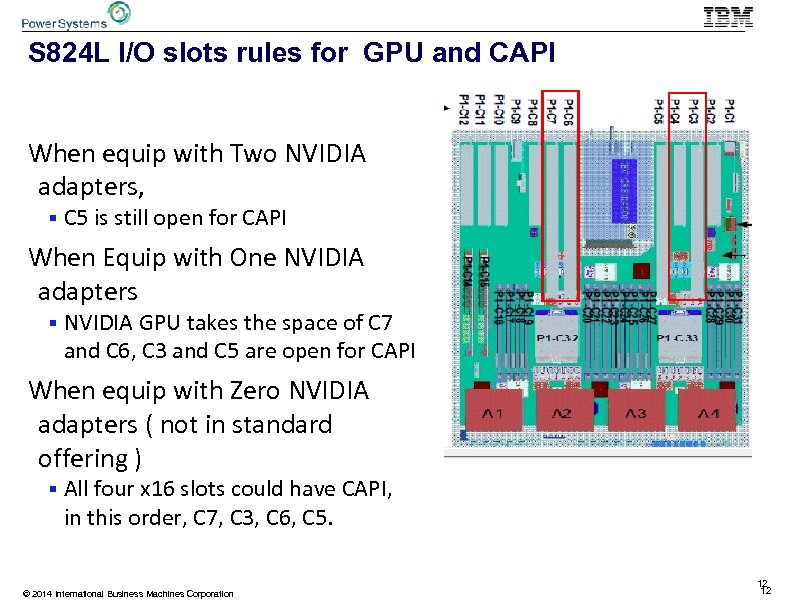

S 824 L I/O slots rules for GPU and CAPI When equip with Two NVIDIA adapters, § C 5 is still open for CAPI When Equip with One NVIDIA adapters § NVIDIA GPU takes the space of C 7 and C 6, C 3 and C 5 are open for CAPI When equip with Zero NVIDIA adapters ( not in standard offering ) § All four x 16 slots could have CAPI, in this order, C 7, C 3, C 6, C 5. © 2014 International Business Machines Corporation 12 12

AC Power Supplies (single phase) 900 W = #EB 2 L or #EL 1 A (Linux only) = 100 -120 or 200 -240 V 1400 W = #EB 2 M or #EL 1 B (Linux only) = 200 -240 V only 1 -socket 4 U uses 2 power supplies if tower uses two 900 W (100 -120 V or 200 -240 V) if rack uses two 1400 W (200 -240 V) ** RPQ uses two 900 W in rack for 100 -120 V option) factory install only 4 -core and 6 -core, not 8 -core NEW (Oct) RPQ 8 A 2217 2 -socket 4 U S 824 uses 4 900 W power supplies 200 -240 V * S 824 L uses 4 1400 W power supplies 200 -240 V 1 -socket 2 U uses 2 900 W power supplies 200 -240 V * 2 -socket 2 U uses 2 1400 W power supplies 200 -240 V * Note: Power Systems uses 200 -240 V PDUs in rack. Chart above assumes IBM PDUs for racks and doesn’t mention 100 -120 V. 900 W power supplies are capable of using 100 -120 V sources. © 2014 International Business Machines Corporation 13

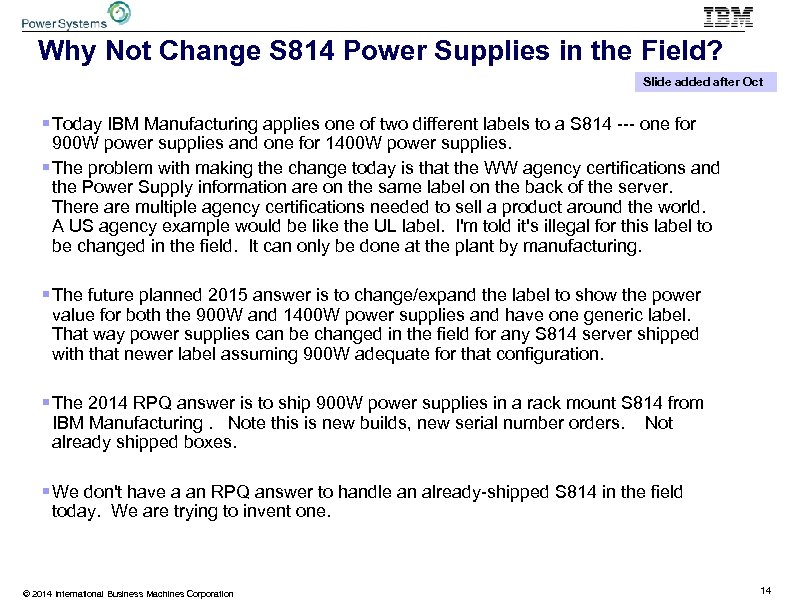

Why Not Change S 814 Power Supplies in the Field? Slide added after Oct § Today IBM Manufacturing applies one of two different labels to a S 814 --- one for 900 W power supplies and one for 1400 W power supplies. § The problem with making the change today is that the WW agency certifications and the Power Supply information are on the same label on the back of the server. There are multiple agency certifications needed to sell a product around the world. A US agency example would be like the UL label. I'm told it's illegal for this label to be changed in the field. It can only be done at the plant by manufacturing. § The future planned 2015 answer is to change/expand the label to show the power value for both the 900 W and 1400 W power supplies and have one generic label. That way power supplies can be changed in the field for any S 814 server shipped with that newer label assuming 900 W adequate for that configuration. § The 2014 RPQ answer is to ship 900 W power supplies in a rack mount S 814 from IBM Manufacturing. Note this is new builds, new serial number orders. Not already shipped boxes. § We don't have a an RPQ answer to handle an already-shipped S 814 in the field today. We are trying to invent one. © 2014 International Business Machines Corporation 14

POWER S 824 More Memory 2 X max memory Up to 2 TB RPQ announced mid October GA in December RPQ Number 8 A 2232 No e. Config support – manual t emen config nc nnou o Larger memorye. DIMM v a e 25 N (128 GB) s ed need r – ge n No lo Rules: a) No Mixing of DIMMs sizes. ( i. e when order 128 GB DIMM, no other size ( 64 GB, 32 GB, 16 GB ) can be mixed with ) b) Only qty 8 or qty 16 DIMMs ( no other qty accepted, so when order 128 GB DIMM, customer can either order them by quantity of 8 = 1 TB or quantity of 16=2 TB ) c) No MES Upgrade provided for installed systems. d) Only supported on Models S 824, no other Scale-out servers. Comment – FYI working to annc this as “regular (non. RPQ) feature” in the future © 2014 International Business Machines Corporation 15 15

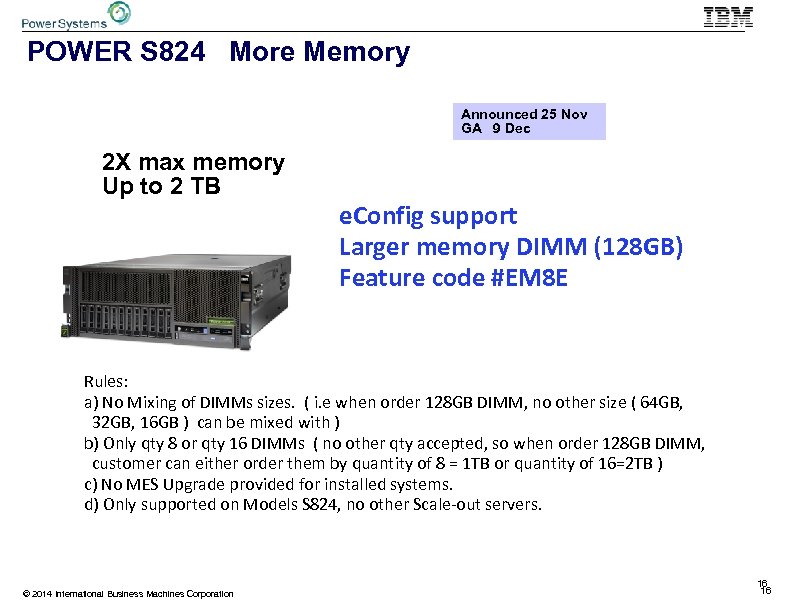

POWER S 824 More Memory Announced 25 Nov GA 9 Dec 2 X max memory Up to 2 TB e. Config support Larger memory DIMM (128 GB) Feature code #EM 8 E Rules: a) No Mixing of DIMMs sizes. ( i. e when order 128 GB DIMM, no other size ( 64 GB, 32 GB, 16 GB ) can be mixed with ) b) Only qty 8 or qty 16 DIMMs ( no other qty accepted, so when order 128 GB DIMM, customer can either order them by quantity of 8 = 1 TB or quantity of 16=2 TB ) c) No MES Upgrade provided for installed systems. d) Only supported on Models S 824, no other Scale-out servers. © 2014 International Business Machines Corporation 16 16

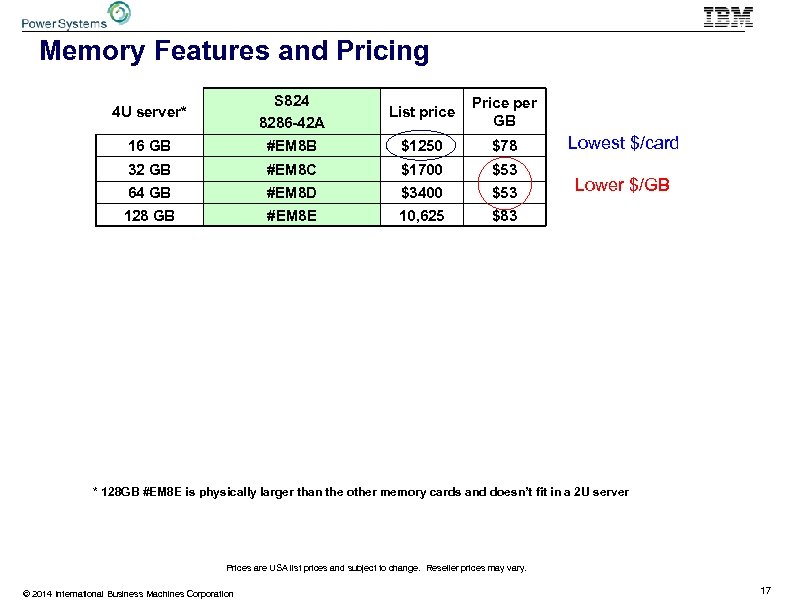

Memory Features and Pricing 4 U server* S 824 8286 -42 A List price Price per GB 16 GB #EM 8 B $1250 $78 32 GB #EM 8 C $1700 $53 64 GB 128 GB #EM 8 D #EM 8 E $3400 10, 625 $53 $83 Lowest $/card Lower $/GB * 128 GB #EM 8 E is physically larger than the other memory cards and doesn’t fit in a 2 U server Prices are USA list prices and subject to change. Reseller prices may vary. © 2014 International Business Machines Corporation 17

NEBS: Differentiated Value for Telecommunications Clients Designed for clients that require hardened infrastructures because of the industries they serve or data center environments where the equipment is located. Carrier-grade platforms for NGN infrastructure and application deployment, designed for extreme shock, vibration and thermal conditions which exceed normal datacenter design standards. Announcement Date: October 6 General available Date : October 31 st Eligible model : Power S 822 L and S 822 Certifications: NEBS Level-3 and ETSI Optional DC power supply and flexible thermal settings Power Supply, 2 x 750 Watt, -48 V DC, Hot-swap, Base and Redundant (#EB 3 H) v RPQ 8 A 2227 approval of configuration validation required § Flexible Thermal Settings for NEBS Applications (#0709) §For additional guidance, please consult your IBM sales specialist or visit: ibm. com/power/solutions/industry/telco or email powertel@us. ibm. com § © 2014 International Business Machines Corporation 18 18

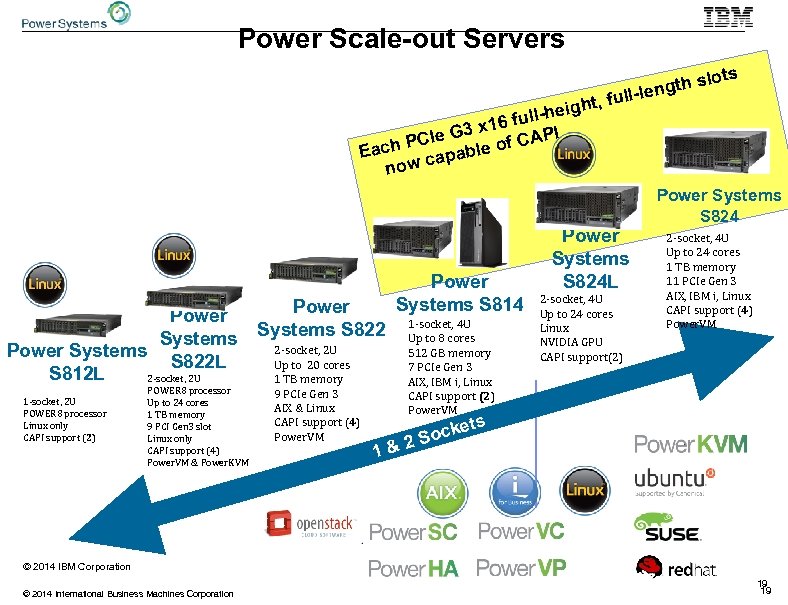

Power Scale-out Servers slo ngth ll-le ts t, fu h ll-heig 6 fu G 3 x 1 CAPI CIe ach P apable of E now c Power Systems S 822 L S 812 L 2 -socket, 2 U 1 -socket, 2 U POWER 8 processor Linux only CAPI support (2) POWER 8 processor Up to 24 cores 1 TB memory 9 PCI Gen 3 slot Linux only CAPI support (4) Power. VM & Power. KVM Power Systems S 822 2 -socket, 2 U Up to 20 cores 1 TB memory 9 PCIe Gen 3 AIX & Linux CAPI support (4) Power. VM Power Systems S 814 1 -socket, 4 U Up to 8 cores 512 GB memory 7 PCIe Gen 3 AIX, IBM i, Linux CAPI support (2) Power. VM Power Systems S 824 L 2 -socket, 4 U Up to 24 cores Linux NVIDIA GPU CAPI support(2) Power Systems S 824 2 -socket, 4 U Up to 24 cores 1 TB memory 11 PCIe Gen 3 AIX, IBM i, Linux CAPI support (4) Power. VM ts 1& ke Soc 2 © 2014 IBM Corporation © 2014 International Business Machines Corporation 19 19

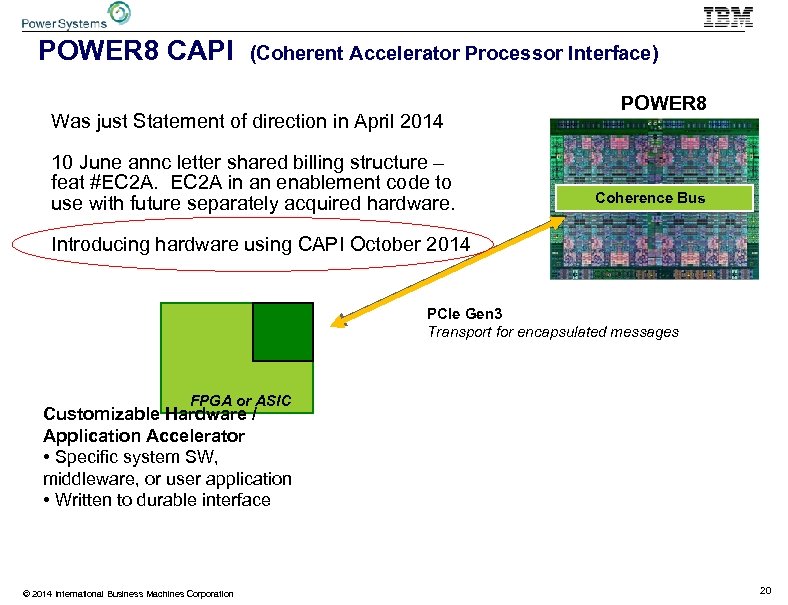

POWER 8 CAPI (Coherent Accelerator Processor Interface) Was just Statement of direction in April 2014 10 June annc letter shared billing structure – feat #EC 2 A. EC 2 A in an enablement code to use with future separately acquired hardware. POWER 8 Coherence Bus Introducing hardware using CAPI October 2014 PCIe Gen 3 Transport for encapsulated messages FPGA or ASIC Customizable Hardware / Application Accelerator • Specific system SW, middleware, or user application • Written to durable interface © 2014 International Business Machines Corporation 20

Possible Example: CAPI Attached Flash Optimization Application Attach flash memory to POWER 8 via CAPI coherent Attach Read/Write Syscall File. System strategy() iodone() 20 K Instructions LVM strategy() Pin buffers, Translate, Map DMA, Start I/O Interrupt, unmap, unpin, Iodone scheduling Posix Async I/O Style API aio_read() aio_write() User Library iodone() Disk & Adapter DD Application < 500 Instructions Shared Memory Work Queue § Issues Read/Write Commands from applications to eliminate 97% of instruction path length CAPI Flash controller Operates in User Space § Saves 10 Cores per 1 M IOPs © 2014 International Business Machines Corporation 21

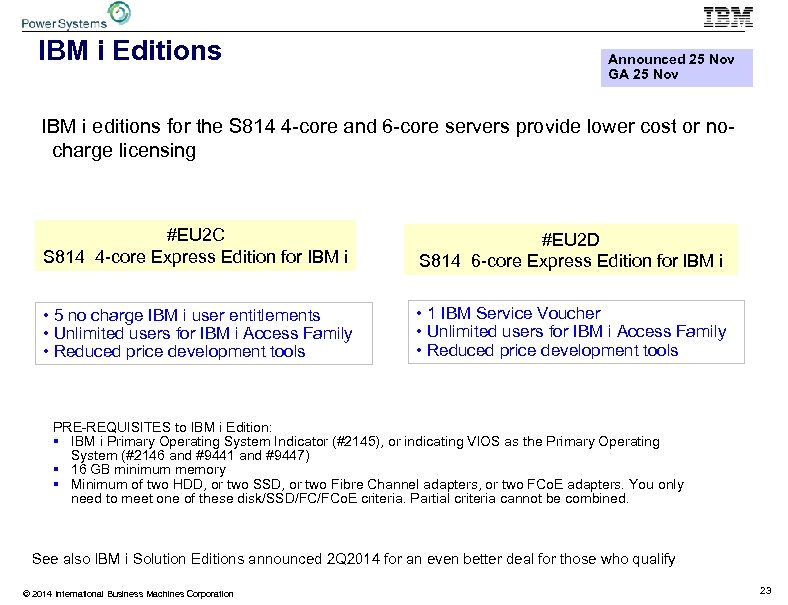

IBM i Editions Announced 25 Nov GA 25 Nov IBM i editions for the S 814 4 -core and 6 -core servers provide lower cost or nocharge licensing #EU 2 C S 814 4 -core Express Edition for IBM i #EU 2 D S 814 6 -core Express Edition for IBM i • 5 no charge IBM i user entitlements • Unlimited users for IBM i Access Family • Reduced price development tools • 1 IBM Service Voucher • Unlimited users for IBM i Access Family • Reduced price development tools PRE-REQUISITES to IBM i Edition: § IBM i Primary Operating System Indicator (#2145), or indicating VIOS as the Primary Operating System (#2146 and #9441 and #9447) § 16 GB minimum memory § Minimum of two HDD, or two SSD, or two Fibre Channel adapters, or two FCo. E adapters. You only need to meet one of these disk/SSD/FC/FCo. E criteria. Partial criteria cannot be combined. See also IBM i Solution Editions announced 2 Q 2014 for an even better deal for those who qualify © 2014 International Business Machines Corporation 23

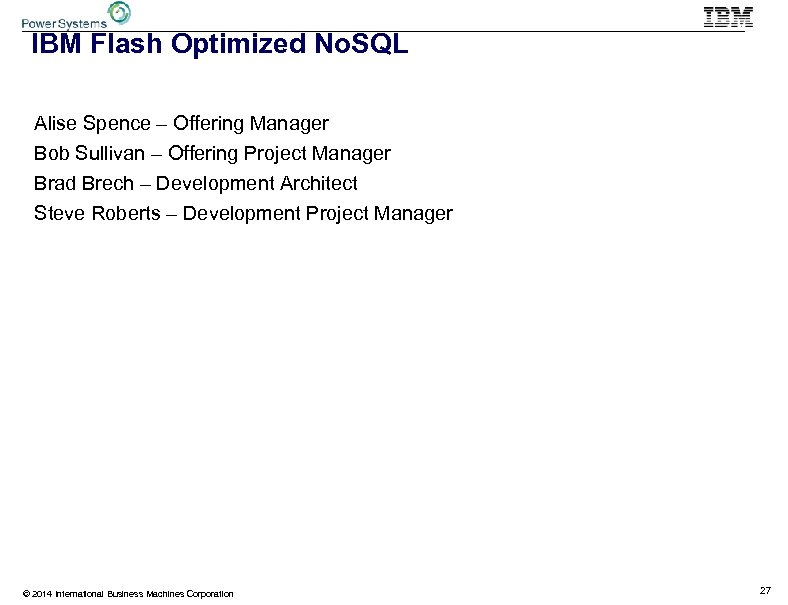

IBM Flash Optimized No. SQL Alise Spence – Offering Manager Bob Sullivan – Offering Project Manager Brad Brech – Development Architect Steve Roberts – Development Project Manager © 2014 International Business Machines Corporation 27

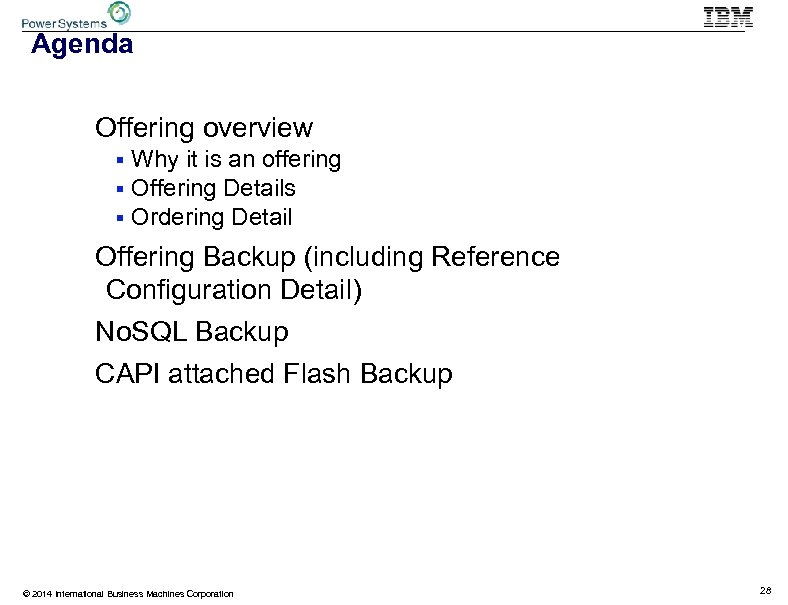

Agenda Offering overview § § § Why it is an offering Offering Details Ordering Detail Offering Backup (including Reference Configuration Detail) No. SQL Backup CAPI attached Flash Backup © 2014 International Business Machines Corporation 28

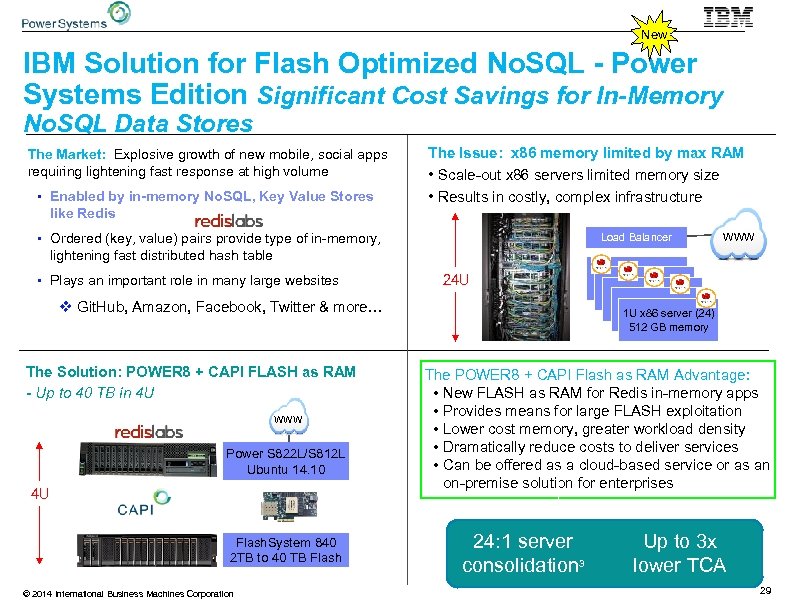

New IBM Solution for Flash Optimized No. SQL - Power Systems Edition Significant Cost Savings for In-Memory No. SQL Data Stores The Market: Explosive growth of new mobile, social apps requiring lightening fast response at high volume § Enabled by in-memory No. SQL, Key Value Stores The Issue: x 86 memory limited by max RAM • Scale-out x 86 servers limited memory size • Results in costly, complex infrastructure like Redis § Ordered (key, value) pairs provide type of in-memory, Load Balancer WWW lightening fast distributed hash table § Plays an important role in many large websites 24 U v Git. Hub, Amazon, Facebook, Twitter & more… The Solution: POWER 8 + CAPI FLASH as RAM - Up to 40 TB in 4 U WWW Power S 822 L/S 812 L Ubuntu 14. 10 4 U Flash. System 840 2 TB to 40 TB Flash © 2014 International Business Machines Corporation 500 GB Cache Node 1 U x 86 server (24) Node 512 GB memory The POWER 8 + CAPI Flash as RAM Advantage: • New FLASH as RAM for Redis in-memory apps • Provides means for large FLASH exploitation • Lower cost memory, greater workload density • Dramatically reduce costs to deliver services • Can be offered as a cloud-based service or as an on-premise solution for enterprises 24: 1 server consolidation 3 Up to 3 x lower TCA 29

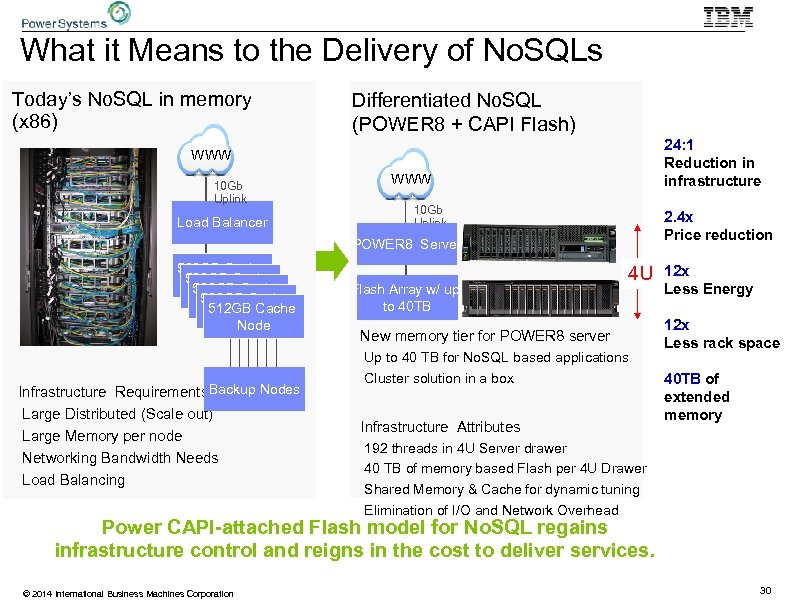

What it Means to the Delivery of No. SQLs Today’s No. SQL in memory (x 86) Differentiated No. SQL (POWER 8 + CAPI Flash) 24: 1 Reduction in infrastructure WWW 10 Gb Uplink Load Balancer WWW 10 Gb Uplink 2. 4 x Price reduction POWER 8 Server 500 GB Cache Node 512 GB Cache Node Infrastructure Requirements Backup Nodes Large Distributed (Scale out) Large Memory per node Networking Bandwidth Needs Load Balancing Flash Array w/ up to 40 TB 4 U New memory tier for POWER 8 server Up to 40 TB for No. SQL based applications Cluster solution in a box Infrastructure Attributes 12 x Less Energy 12 x Less rack space 40 TB of extended memory 192 threads in 4 U Server drawer 40 TB of memory based Flash per 4 U Drawer Shared Memory & Cache for dynamic tuning Elimination of I/O and Network Overhead Power CAPI-attached Flash model for No. SQL regains infrastructure control and reigns in the cost to deliver services. © 2014 International Business Machines Corporation 30

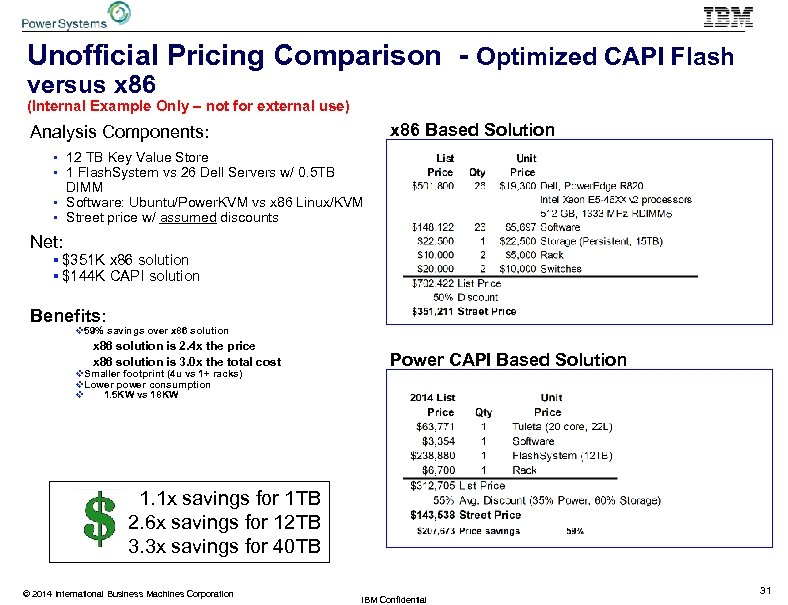

Unofficial Pricing Comparison - Optimized CAPI Flash versus x 86 (Internal Example Only – not for external use) x 86 Based Solution Analysis Components: § 12 TB Key Value Store § 1 Flash. System vs 26 Dell Servers w/ 0. 5 TB DIMM § Software: Ubuntu/Power. KVM vs x 86 Linux/KVM § Street price w/ assumed discounts Net: § $351 K x 86 solution § $144 K CAPI solution Benefits: v 59% savings over x 86 solution is 2. 4 x the price x 86 solution is 3. 0 x the total cost v. Smaller footprint (4 u vs 1+ racks) v. Lower power consumption v 1. 5 KW vs 18 KW Power CAPI Based Solution 1. 1 x savings for 1 TB 2. 6 x savings for 12 TB 3. 3 x savings for 40 TB © 2014 International Business Machines Corporation IBM Confidential 31

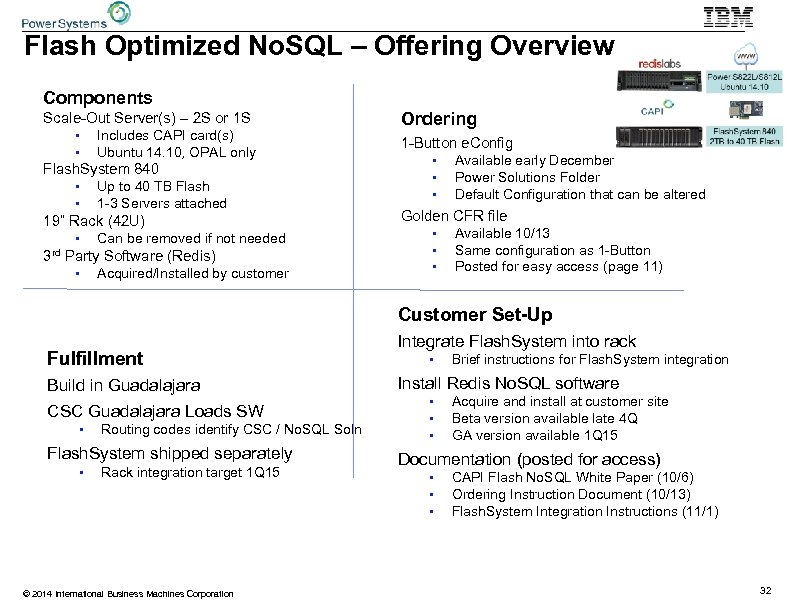

Flash Optimized No. SQL – Offering Overview Components Scale-Out Server(s) – 2 S or 1 S § § Includes CAPI card(s) Ubuntu 14. 10, OPAL only Flash. System 840 § § Up to 40 TB Flash 1 -3 Servers attached 19” Rack (42 U) § Can be removed if not needed 3 rd Party Software (Redis) § Acquired/Installed by customer Ordering 1 -Button e. Config § § § Available early December Power Solutions Folder Default Configuration that can be altered Golden CFR file § § § Available 10/13 Same configuration as 1 -Button Posted for easy access (page 11) Customer Set-Up Fulfillment Build in Guadalajara CSC Guadalajara Loads SW § Routing codes identify CSC / No. SQL Soln Flash. System shipped separately § Rack integration target 1 Q 15 © 2014 International Business Machines Corporation Integrate Flash. System into rack § Brief instructions for Flash. System integration Install Redis No. SQL software § § § Acquire and install at customer site Beta version available late 4 Q GA version available 1 Q 15 Documentation (posted for access) § § § CAPI Flash No. SQL White Paper (10/6) Ordering Instruction Document (10/13) Flash. System Integration Instructions (11/1) 32

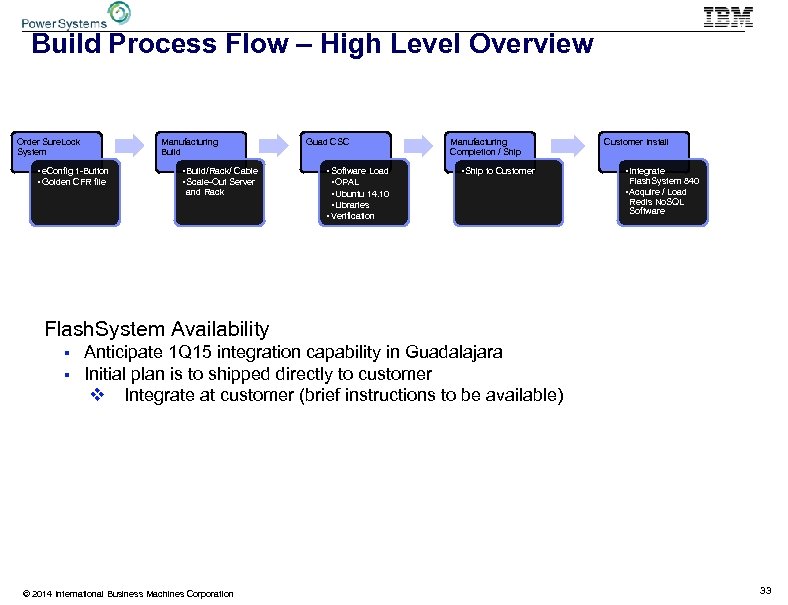

Build Process Flow – High Level Overview Order Sure. Lock System Manufacturing Build • e. Config 1 -Button • Golden CFR file • Build/Rack/ Cable • Scale-Out Server and Rack Guad CSC • Software Load • OPAL • Ubuntu 14. 10 • Libraries • Verification Manufacturing Completion / Ship • Ship to Customer Install • Integrate Flash. System 840 • Acquire / Load Redis No. SQL Software Flash. System Availability § § Anticipate 1 Q 15 integration capability in Guadalajara Initial plan is to shipped directly to customer v Integrate at customer (brief instructions to be available) © 2014 International Business Machines Corporation 33

Flash Optimized No. SQL – Offering Details (page 1) Components Scale-Out Server (2 S or 1 S) – 8247 -22 L , 8247 -21 L § Include CAPI card(s) – 2 x EJ 16 v I/O limitations with EJ 16 in initial release (coded into e. Config)… Shiners Card only § § § Includes Routing and CSC Charge feature codes 256 GB Memory (Should be increase if larger No. SQL DBs used) Key Feature Codes Included: v v EJ 16 (x 2) – CAPI card EC 2 A (x 2) – CAPI Activation EHKE (x 2) – Flash Optimized No. SQL Premium ECSM (x 1) – CSC Guad Solution Routing Code Flash. System 840 - 9843 -AE 1, 9840 -AE 1 § § § Choice of 1 or 3 year warranty (3 year default) Attached to CAPI card Up to 40 TB Flash, RAID 0 or RAID 5… Default 12 TB, Raid 0 Can have up to 3 Servers attached Shipped directly to customer (integration target 1 Q 15) T 42 Rack § Can be removed if customer has rack space / power available 3 rd Party Software § § Acquired and Installed at customer (customer responsibility) Redis: Beta (Late 4 Q), GA 1 Q 15 v Working to define process for Beta code acquisition © 2014 International Business Machines Corporation 34

Flash Optimized No. SQL – Offering Details (page 2) Ordering § 1 -Button Default Configuration in e. Config v Available early December (current tgt) v Generates default configuration (22 L + Flash. System w/ 12 TB + Rack) v Can be altered to meet deal requirements § Golden CFR File v To be generated by 10/13 (after 10/6 announce) v To match 1 -Button default configurations v Posted for access (refer to page 11) Fulfillment § § Built in Guadalajara CSC Guadalajara loads Software v Routing codes for CSC included in configuration v SOW being developed with trial orders § Flash. System fulfilled independently and shipped directly to customer v 1 Q 15 Rack integration target v Configuration will be updated to reflect integration Customer Set-Up § Integrate Flash. System with Rack v Brief instructions to be available § Install Redis No. SQL software v Beta version available 4 Q 14. Working to define process for acquiring Beta version v GA version available 1 Q 15 (more specific date expected in Nov) © 2014 International Business Machines Corporation 35

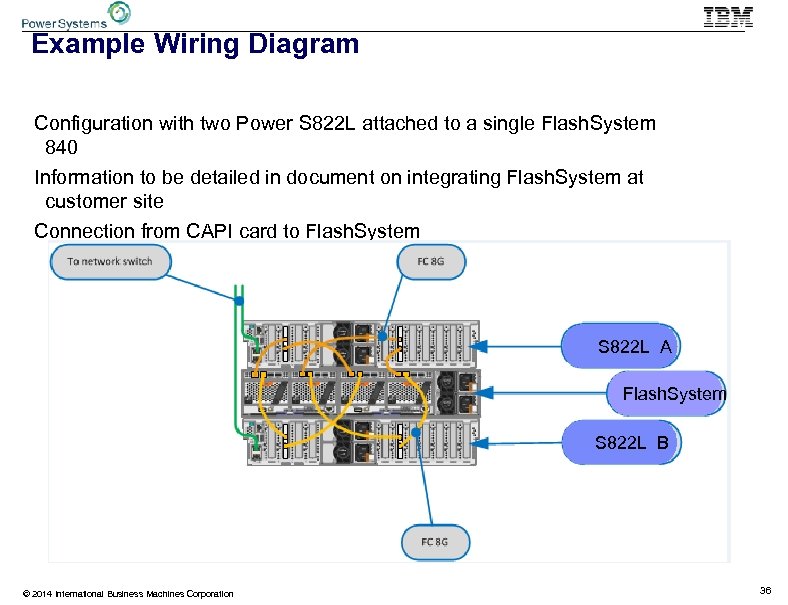

Example Wiring Diagram Configuration with two Power S 822 L attached to a single Flash. System 840 Information to be detailed in document on integrating Flash. System at customer site Connection from CAPI card to Flash. System S 822 L A Flash. System S 822 L B © 2014 International Business Machines Corporation 36

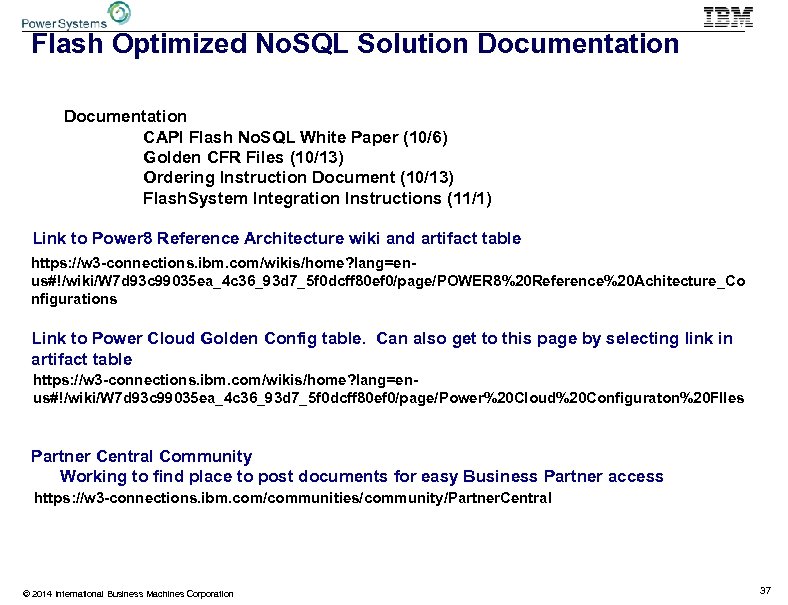

Flash Optimized No. SQL Solution Documentation CAPI Flash No. SQL White Paper (10/6) Golden CFR Files (10/13) Ordering Instruction Document (10/13) Flash. System Integration Instructions (11/1) Link to Power 8 Reference Architecture wiki and artifact table https: //w 3 -connections. ibm. com/wikis/home? lang=enus#!/wiki/W 7 d 93 c 99035 ea_4 c 36_93 d 7_5 f 0 dcff 80 ef 0/page/POWER 8%20 Reference%20 Achitecture_Co nfigurations Link to Power Cloud Golden Config table. Can also get to this page by selecting link in artifact table https: //w 3 -connections. ibm. com/wikis/home? lang=enus#!/wiki/W 7 d 93 c 99035 ea_4 c 36_93 d 7_5 f 0 dcff 80 ef 0/page/Power%20 Cloud%20 Configuraton%20 FIles Partner Central Community Working to find place to post documents for easy Business Partner access https: //w 3 -connections. ibm. com/communities/community/Partner. Central © 2014 International Business Machines Corporation 37

4 U Storage Backplane Options Must select one Expanded Function * Split 12 SFF SAS bays 1 SAS controller No write cache 6+6 SFF SAS bays 2 SAS controllers No write cache 18 SFF SAS bays Dual SAS controllers 7. 2 GB cache RAID-0, 1, 5, 6, 10 DVD bay 4 U server Base DVD bay External SAS ports 8 -bay SSD cage Easy Tier function Sweet SSD enhancement for § AIX / Linux / VIOS § S 824 & S 822 § Using Easy Tier function © 2014 International Business Machines Corporation 58

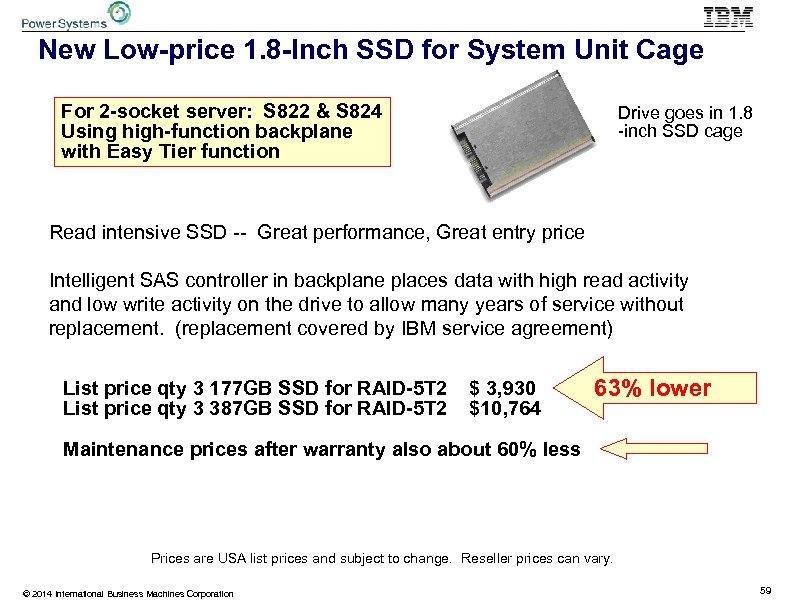

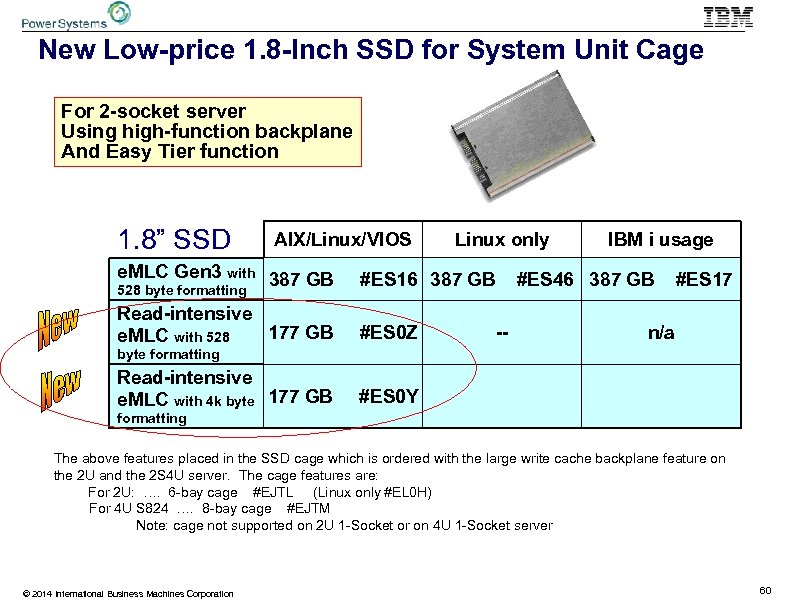

New Low-price 1. 8 -Inch SSD for System Unit Cage For 2 -socket server: S 822 & S 824 Using high-function backplane with Easy Tier function Drive goes in 1. 8 -inch SSD cage Read intensive SSD -- Great performance, Great entry price Intelligent SAS controller in backplane places data with high read activity and low write activity on the drive to allow many years of service without replacement. (replacement covered by IBM service agreement) List price qty 3 177 GB SSD for RAID-5 T 2 List price qty 3 387 GB SSD for RAID-5 T 2 $ 3, 930 $10, 764 63% lower Maintenance prices after warranty also about 60% less Prices are USA list prices and subject to change. Reseller prices can vary. © 2014 International Business Machines Corporation 59

New Low-price 1. 8 -Inch SSD for System Unit Cage For 2 -socket server Using high-function backplane And Easy Tier function 1. 8” SSD AIX/Linux/VIOS Linux only e. MLC Gen 3 with 387 GB 528 byte formatting #ES 16 387 GB Read-intensive 177 GB e. MLC with 528 #ES 0 Z IBM i usage #ES 46 387 GB -- #ES 17 n/a byte formatting Read-intensive e. MLC with 4 k byte 177 GB #ES 0 Y formatting The above features placed in the SSD cage which is ordered with the large write cache backplane feature on the 2 U and the 2 S 4 U server. The cage features are: For 2 U: …. 6 -bay cage #EJTL (Linux only #EL 0 H) For 4 U S 824 …. 8 -bay cage #EJTM Note: cage not supported on 2 U 1 -Socket or on 4 U 1 -Socket server © 2014 International Business Machines Corporation 60

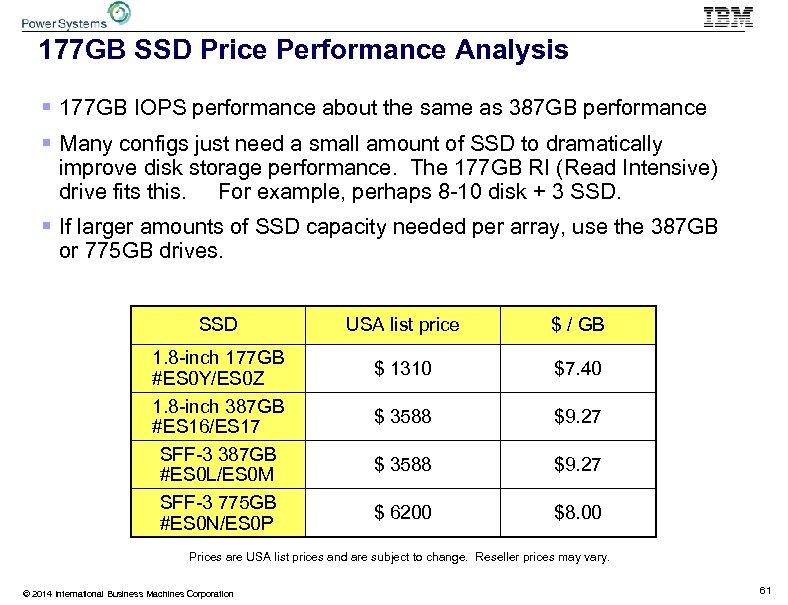

177 GB SSD Price Performance Analysis § 177 GB IOPS performance about the same as 387 GB performance § Many configs just need a small amount of SSD to dramatically improve disk storage performance. The 177 GB RI (Read Intensive) drive fits this. For example, perhaps 8 -10 disk + 3 SSD. § If larger amounts of SSD capacity needed per array, use the 387 GB or 775 GB drives. SSD 1. 8 -inch 177 GB #ES 0 Y/ES 0 Z 1. 8 -inch 387 GB #ES 16/ES 17 SFF-3 387 GB #ES 0 L/ES 0 M SFF-3 775 GB #ES 0 N/ES 0 P USA list price $ / GB $ 1310 $7. 40 $ 3588 $9. 27 $ 6200 $8. 00 Prices are USA list prices and are subject to change. Reseller prices may vary. © 2014 International Business Machines Corporation 61

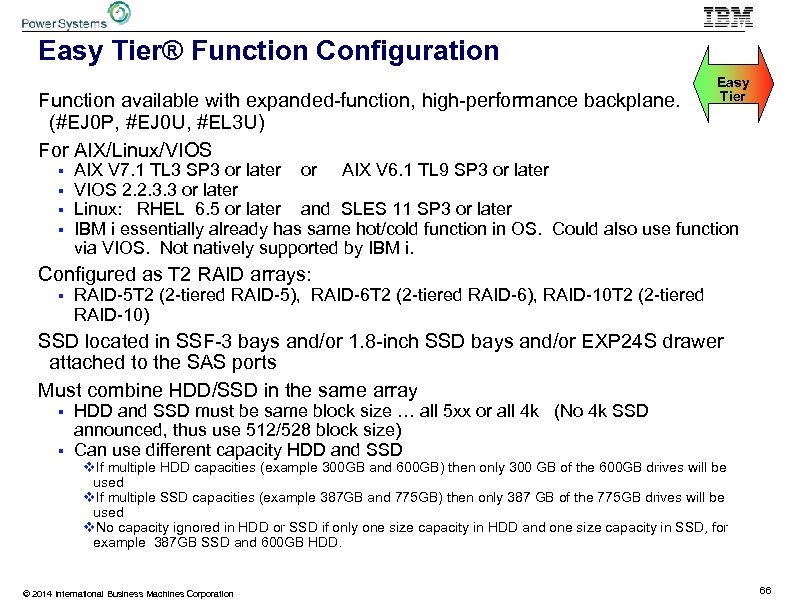

Easy Tier® Function Configuration Function available with expanded-function, high-performance backplane. (#EJ 0 P, #EJ 0 U, #EL 3 U) For AIX/Linux/VIOS § § Easy Tier AIX V 7. 1 TL 3 SP 3 or later or AIX V 6. 1 TL 9 SP 3 or later VIOS 2. 2. 3. 3 or later Linux: RHEL 6. 5 or later and SLES 11 SP 3 or later IBM i essentially already has same hot/cold function in OS. Could also use function via VIOS. Not natively supported by IBM i. Configured as T 2 RAID arrays: § RAID-5 T 2 (2 -tiered RAID-5), RAID-6 T 2 (2 -tiered RAID-6), RAID-10 T 2 (2 -tiered RAID-10) SSD located in SSF-3 bays and/or 1. 8 -inch SSD bays and/or EXP 24 S drawer attached to the SAS ports Must combine HDD/SSD in the same array HDD and SSD must be same block size … all 5 xx or all 4 k (No 4 k SSD announced, thus use 512/528 block size) § Can use different capacity HDD and SSD § v. If multiple HDD capacities (example 300 GB and 600 GB) then only 300 GB of the 600 GB drives will be used v. If multiple SSD capacities (example 387 GB and 775 GB) then only 387 GB of the 775 GB drives will be used v. No capacity ignored in HDD or SSD if only one size capacity in HDD and one size capacity in SSD, for example 387 GB SSD and 600 GB HDD. © 2014 International Business Machines Corporation 66

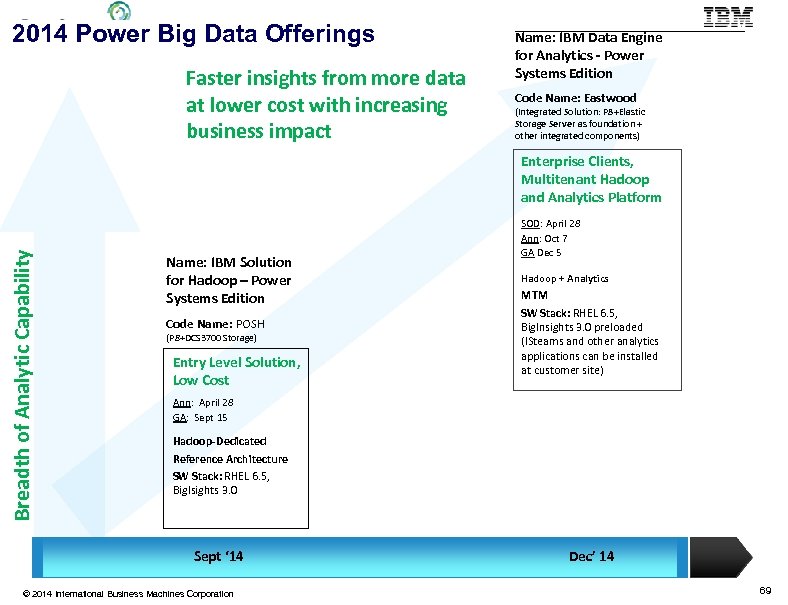

2014 Power Big Data Offerings Faster insights from more data at lower cost with increasing business impact Name: IBM Data Engine for Analytics - Power Systems Edition Code Name: Eastwood (Integrated Solution: P 8+Elastic Storage Server as foundation + other integrated components) Breadth of Analytic Capability Enterprise Clients, Multitenant Hadoop and Analytics Platform Name: IBM Solution for Hadoop – Power Systems Edition Code Name: POSH (P 8+DCS 3700 Storage) Entry Level Solution, Low Cost SOD: April 28 Ann: Oct 7 GA Dec 5 Hadoop + Analytics MTM SW Stack: RHEL 6. 5, Big. Insights 3. 0 preloaded (ISteams and other analytics applications can be installed at customer site) Ann: April 28 GA: Sept 15 Hadoop-Dedicated Reference Architecture SW Stack: RHEL 6. 5, Big. Isights 3. 0 Sept ‘ 14 © 2014 International Business Machines Corporation Dec’ 14 69

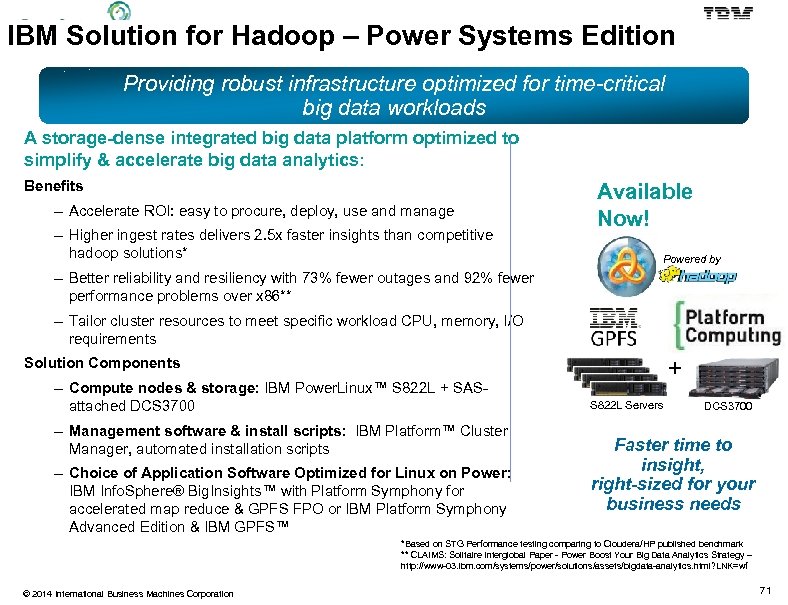

IBM Solution for Hadoop – Power Systems Edition Providing robust infrastructure optimized for time-critical big data workloads A storage-dense integrated big data platform optimized to simplify & accelerate big data analytics: Benefits – Accelerate ROI: easy to procure, deploy, use and manage – Higher ingest rates delivers 2. 5 x faster insights than competitive hadoop solutions* Available Now! Powered by – Better reliability and resiliency with 73% fewer outages and 92% fewer performance problems over x 86** – Tailor cluster resources to meet specific workload CPU, memory, I/O requirements Solution Components + – Compute nodes & storage: IBM Power. Linux™ S 822 L + SASattached DCS 3700 – Management software & install scripts: IBM Platform™ Cluster Manager, automated installation scripts – Choice of Application Software Optimized for Linux on Power: IBM Info. Sphere® Big. Insights™ with Platform Symphony for accelerated map reduce & GPFS FPO or IBM Platform Symphony Advanced Edition & IBM GPFS™ S 822 L Servers DCS 3700 Faster time to insight, right-sized for your business needs *Based on STG Performance testing comparing to Cloudera/HP published benchmark ** CLAIMS: Solitaire Interglobal Paper - Power Boost Your Big Data Analytics Strategy – http: //www-03. ibm. com/systems/power/solutions/assets/bigdata-analytics. html? LNK=wf © 2014 International Business Machines Corporation 71

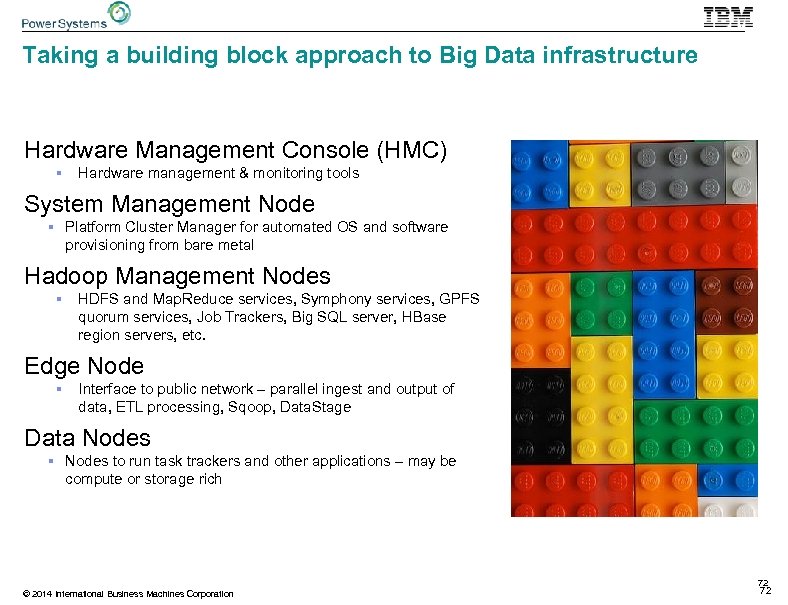

Taking a building block approach to Big Data infrastructure Hardware Management Console (HMC) § Hardware management & monitoring tools System Management Node § Platform Cluster Manager for automated OS and software provisioning from bare metal Hadoop Management Nodes § HDFS and Map. Reduce services, Symphony services, GPFS quorum services, Job Trackers, Big SQL server, HBase region servers, etc. Edge Node § Interface to public network – parallel ingest and output of data, ETL processing, Sqoop, Data. Stage Data Nodes § Nodes to run task trackers and other applications – may be compute or storage rich 72 © 2014 International Business Machines Corporation 72

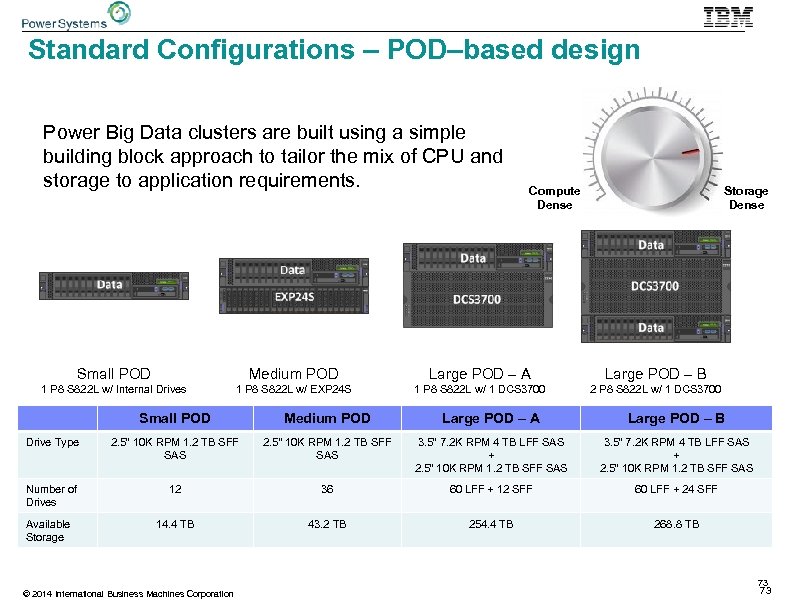

Standard Configurations – POD–based design Power Big Data clusters are built using a simple building block approach to tailor the mix of CPU and storage to application requirements. Compute Dense Storage Dense Small POD Medium POD Large POD – A Large POD – B 1 P 8 S 822 L w/ Internal Drives 1 P 8 S 822 L w/ EXP 24 S 1 P 8 S 822 L w/ 1 DCS 3700 2 P 8 S 822 L w/ 1 DCS 3700 Small POD Medium POD Large POD – A Large POD – B Drive Type 2. 5” 10 K RPM 1. 2 TB SFF SAS 3. 5” 7. 2 K RPM 4 TB LFF SAS + 2. 5” 10 K RPM 1. 2 TB SFF SAS Number of Drives 12 36 60 LFF + 12 SFF 60 LFF + 24 SFF 14. 4 TB 43. 2 TB 254. 4 TB 268. 8 TB Available Storage 73 © 2014 International Business Machines Corporation 73

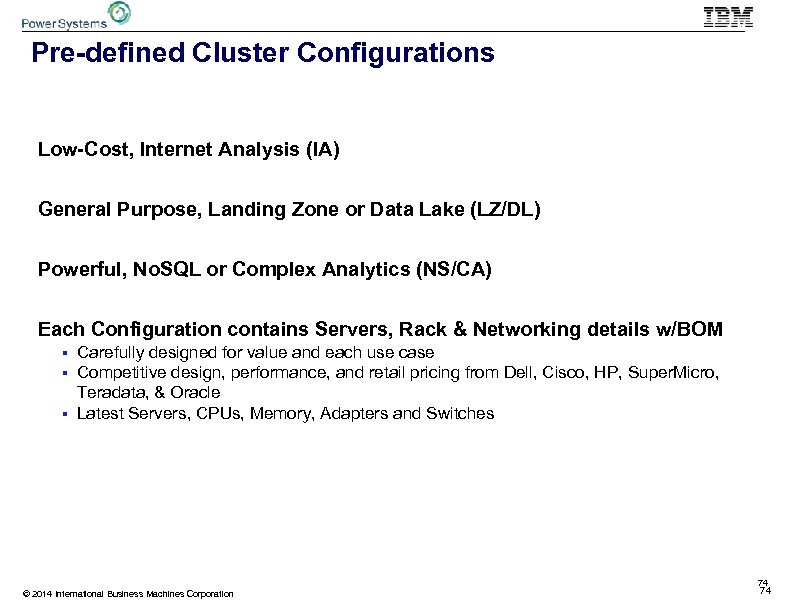

Pre-defined Cluster Configurations Low-Cost, Internet Analysis (IA) General Purpose, Landing Zone or Data Lake (LZ/DL) Powerful, No. SQL or Complex Analytics (NS/CA) Each Configuration contains Servers, Rack & Networking details w/BOM Carefully designed for value and each use case Competitive design, performance, and retail pricing from Dell, Cisco, HP, Super. Micro, Teradata, & Oracle § Latest Servers, CPUs, Memory, Adapters and Switches § § 74 © 2014 International Business Machines Corporation 74

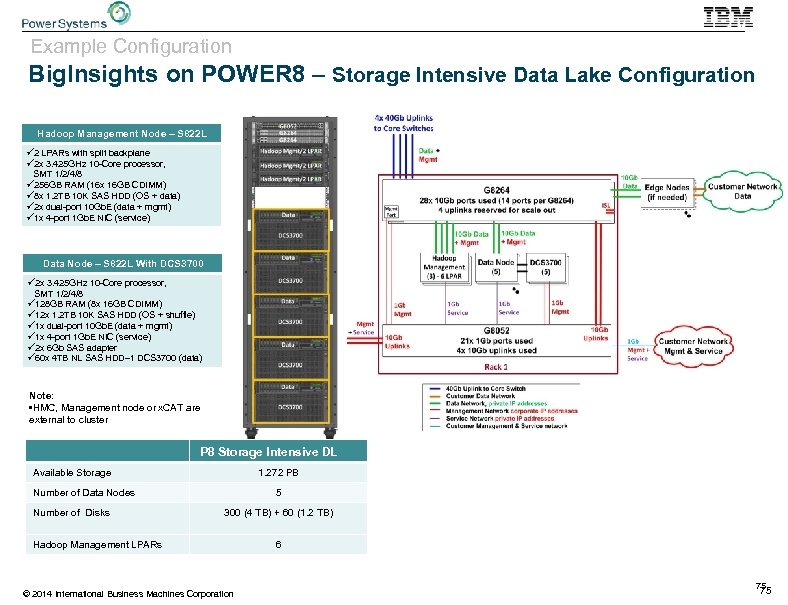

Example Configuration Big. Insights on POWER 8 – Storage Intensive Data Lake Configuration Hadoop Management Node – S 822 L ü 2 LPARs with split backplane ü 2 x 3. 425 GHz 10 -Core processor, SMT 1/2/4/8 ü 256 GB RAM (16 x 16 GB CDIMM) ü 8 x 1. 2 TB 10 K SAS HDD (OS + data) ü 2 x dual-port 10 Gb. E (data + mgmt) ü 1 x 4 -port 1 Gb. E NIC (service) Data Node – S 822 L With DCS 3700 ü 2 x 3. 425 GHz 10 -Core processor, SMT 1/2/4/8 ü 128 GB RAM (8 x 16 GB CDIMM) ü 12 x 1. 2 TB 10 K SAS HDD (OS + shuffle) ü 1 x dual-port 10 Gb. E (data + mgmt) ü 1 x 4 -port 1 Gb. E NIC (service) ü 2 x 6 Gb SAS adapter ü 60 x 4 TB NL SAS HDD– 1 DCS 3700 (data) Note: • HMC, Management node or x. CAT are external to cluster P 8 Storage Intensive DL Available Storage 1. 272 PB Number of Data Nodes Number of Disks 5 300 (4 TB) + 60 (1. 2 TB) Hadoop Management LPARs © 2014 International Business Machines Corporation 6 75 75

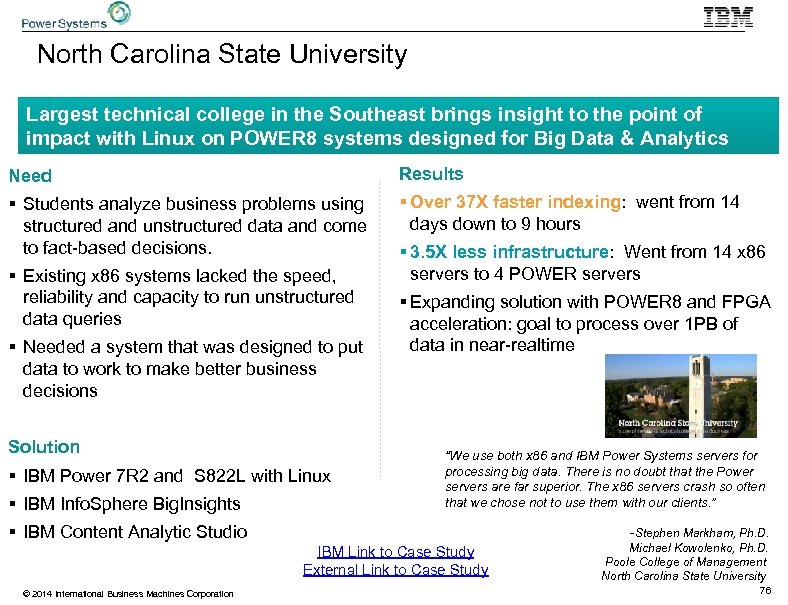

North Carolina State University Largest technical college in the Southeast brings insight to the point of impact with Linux on POWER 8 systems designed for Big Data & Analytics Need Results § Students analyze business problems using structured and unstructured data and come to fact-based decisions. § Over 37 X faster indexing: went from 14 days down to 9 hours § Existing x 86 systems lacked the speed, reliability and capacity to run unstructured data queries § Needed a system that was designed to put data to work to make better business decisions Solution § IBM Power 7 R 2 and S 822 L with Linux § IBM Info. Sphere Big. Insights § 3. 5 X less infrastructure: Went from 14 x 86 servers to 4 POWER servers § Expanding solution with POWER 8 and FPGA acceleration: goal to process over 1 PB of data in near-realtime “We use both x 86 and IBM Power Systems servers for processing big data. There is no doubt that the Power servers are far superior. The x 86 servers crash so often that we chose not to use them with our clients. ” § IBM Content Analytic Studio IBM Link to Case Study External Link to Case Study © 2014 International Business Machines Corporation -Stephen Markham, Ph. D. Michael Kowolenko, Ph. D. Poole College of Management North Carolina State University 76

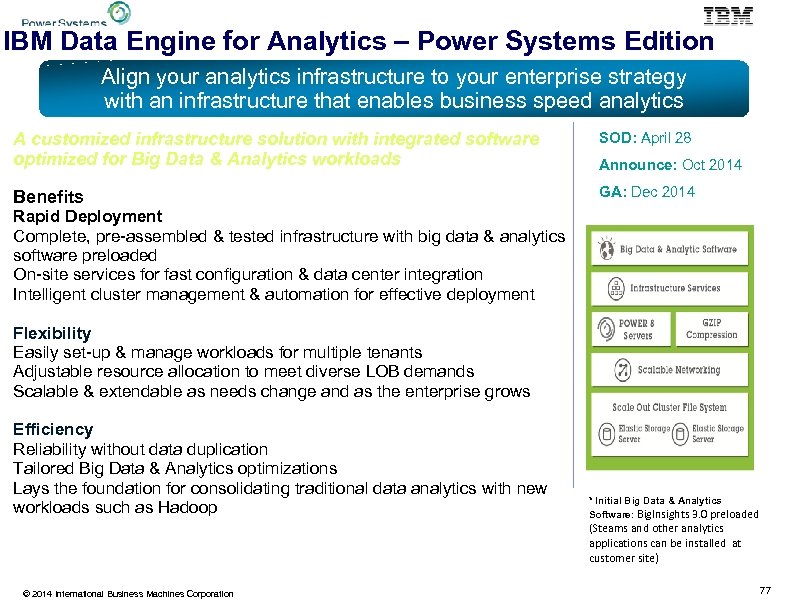

IBM Data Engine for Analytics – Power Systems Edition Align your analytics infrastructure to your enterprise strategy with an infrastructure that enables business speed analytics A customized infrastructure solution with integrated software optimized for Big Data & Analytics workloads SOD: April 28 Benefits GA: Dec 2014 Rapid Deployment Complete, pre-assembled & tested infrastructure with big data & analytics software preloaded On-site services for fast configuration & data center integration Intelligent cluster management & automation for effective deployment Announce: Oct 2014 * Flexibility Easily set-up & manage workloads for multiple tenants Adjustable resource allocation to meet diverse LOB demands Scalable & extendable as needs change and as the enterprise grows Efficiency Reliability without data duplication Tailored Big Data & Analytics optimizations Lays the foundation for consolidating traditional data analytics with new workloads such as Hadoop * Initial Big Data & Analytics Software: Big. Insights 3. 0 preloaded (Steams and other analytics applications can be installed at customer site) © 2014 International Business Machines Corporation 77

Eastwood Building Blocks Base Optional GA 1 Software Configuration RHEL 6. 5 (BE) Hardware 8247 -21 L EW/GSS Management node 10 Cores + 32 GB + NIC Power S 822 L 8247 -22 L (2 S 2 U) 24 cores / 256 GB Off-Load Acceleration Corsa A 7 (FC EJ 13) FPGA Gzip – Java Eastwood Compute node(s) Compute Nodes PCM 4. 2 SE (optional AE) 2 -port Dual ASICs 10 G Mellanox Connect. X-2 (FC EC 27/EC 29) RHEL 7 (BE) GSS Storage Node Or 2 -port Dual ASICs FDR Mellanox Connect. X-IB Storage GSS 2. 2 Gpfs 4. 1. 1 TL 1 Server 2 -port Dual ASICs 40 G Mellanox Connect. X-3 (FC EC 3 A) Data Engine Compute nodes GPFS 4. 1 Client Platform Symphony 6. 1. 1 IO Networking Or Elastic Storage Eastwood Big. Insights 3. 0 with Hadoop 2. 3 connnector GSS management/maintenance GUI Image Deployment /Management / Monitor / Alerts Platform Cluster Manager 4. 2. x XCAT 2. 9 Power S 822 L 8247 -22 L (20 core + 128/256 GB) GSSP 22 / GSSP 24 DCS 3700 E (1818 -80 E) – qty 2, 4 with 2 / 4 TB / 6 TB** HDDs: 348 -928 TB raw disk capacity (**4 Q 14) Max Config User selectable Ratio CPU: Storage User selectable IBM Networking Switches Extras 7014 -T 42 Enterprise Rack /PDU/cords HMC + TF 4 Display 78 © 2014 International Business Machines Corporation 78

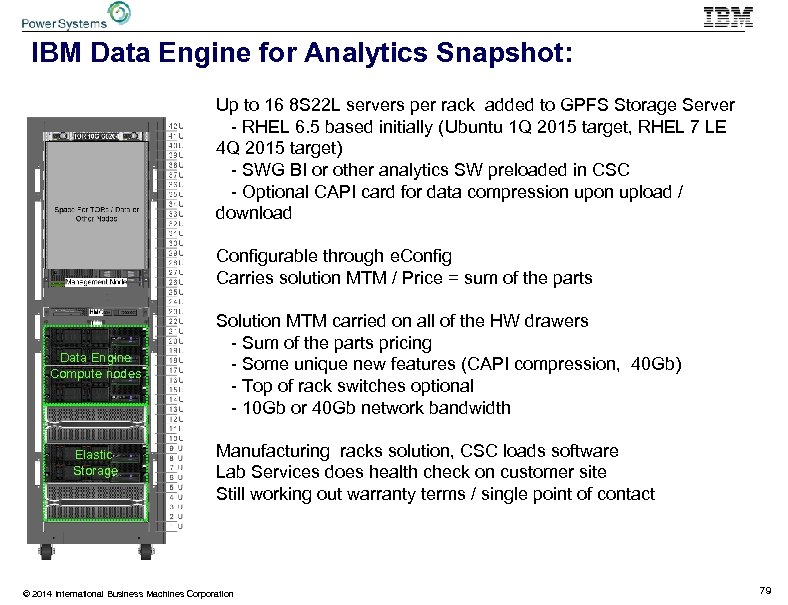

IBM Data Engine for Analytics Snapshot: Up to 16 8 S 22 L servers per rack added to GPFS Storage Server - RHEL 6. 5 based initially (Ubuntu 1 Q 2015 target, RHEL 7 LE 4 Q 2015 target) - SWG BI or other analytics SW preloaded in CSC - Optional CAPI card for data compression upload / download Configurable through e. Config Carries solution MTM / Price = sum of the parts Data Engine Compute nodes Elastic Storage Solution MTM carried on all of the HW drawers - Sum of the parts pricing - Some unique new features (CAPI compression, 40 Gb) - Top of rack switches optional - 10 Gb or 40 Gb network bandwidth Manufacturing racks solution, CSC loads software Lab Services does health check on customer site Still working out warranty terms / single point of contact © 2014 International Business Machines Corporation 79

Linux on Power Flexibility for Big Data Tailor cluster resources to meet workload CPU, memory, I/O requirements x 86 deployments are built using storage-dense server offerings: § Fixed core/disk ratio § Around 1: 1 for most offerings This ratio is NOT necessarily ideal for all Hadoop workloads § Some are more CPU and memory intensive § Some are more I/O intensive As customer starts to perform more analytics on Big Data § Core/disk mix of Power. Linux cluster can be readily adapted This is not possible with x 86 cluster with fixed core/disk ratio © 2014 International Business Machines Corporation 82

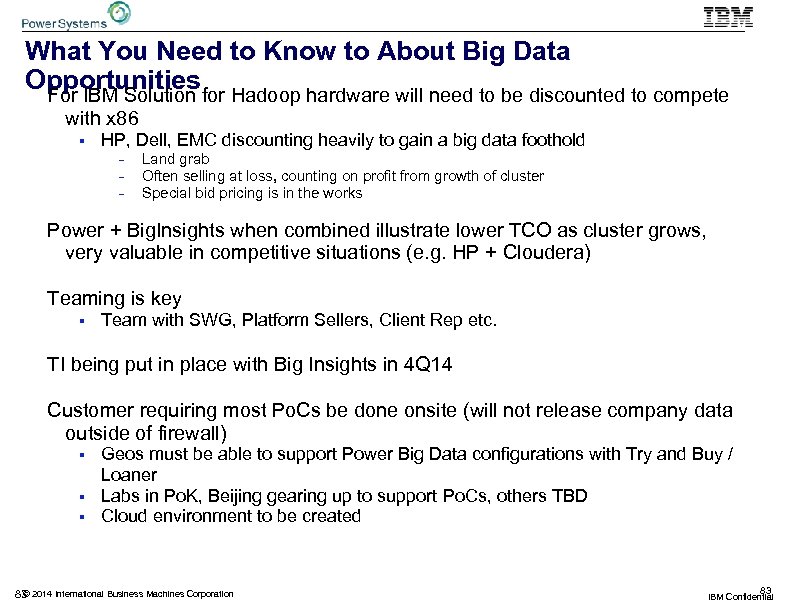

What You Need to Know to About Big Data Opportunities For IBM Solution for Hadoop hardware will need to be discounted to compete with x 86 § HP, Dell, EMC discounting heavily to gain a big data foothold - Land grab Often selling at loss, counting on profit from growth of cluster Special bid pricing is in the works Power + Big. Insights when combined illustrate lower TCO as cluster grows, very valuable in competitive situations (e. g. HP + Cloudera) Teaming is key § Team with SWG, Platform Sellers, Client Rep etc. TI being put in place with Big Insights in 4 Q 14 Customer requiring most Po. Cs be done onsite (will not release company data outside of firewall) Geos must be able to support Power Big Data configurations with Try and Buy / Loaner § Labs in Po. K, Beijing gearing up to support Po. Cs, others TBD § Cloud environment to be created § © 2014 International Business Machines Corporation 83 83 IBM Confidential

Current & Planned Buyers Journey Assets for Big Data on Linux on Power Learn • Client Testimonials: Solve • Analyst Papers: -NCSU (You. Tube, Case Study, Analytics on Linux on Power (Registration, IBM, BP, SDA) -NC State on Big Data on IBM Power Systems for Critical Decision Making (Registration, IBM, SDA) Apr 2014 -Solitaire on BD&A on Power (Webinar, Paper) Oct 2013 -Cabot Partners: Big Data on Power (October 2014) • Videos: -IBM Power Systems for Big Data (You. Tube) -Big Data on Power. Linux (You. Tube) -Unmatched Security for Big Data & Analytics (You. Tube) -Power Systems for Banks and Financial Institutions (You. Tube) -Why Power for Big Data (4 Q 14) • IBM Systems Magazine (Nov 2013) • Press: Power Launch (External) • $1 B Linux on Power Investment (IBM Press Release, Wall Street Journal Coverage) • Blogs: Linton Ward (6/17) • Power on Twitter, Linked. In, Flickr, You. Tube, Facebook, Tumbler • Solution Briefs: - IBM Big Data on Power (External) April 2014 - IBM Data Engine for Analytics – Power Systems Edition (IDEA) (October 2014) • Reference Architectures - IBM Solution for Hadoop – Power Systems Edition (Internal - STG Big Data wiki, External – Updated September 2014) - IBM Data Engine for Analytics – Power Systems Edition (IDEA) (4 Q 2014) • IBM Events (External) “SAINFRA" Compare • Power References -Gabriel Consulting Group: Big Data Enterprise Conference 2014) -China Telecom -Narus, Inc. Big Data Linux on Power Siebel code (Community) • Client Presentations: -Big Data & Analytics on Power Systems (IBM, BP, SDA) Weblecture (IBM) -POWER 8 Competitive Claims (IBM, BP, Wiki) • Websites: -Power Big Data & Analytics Solutions • developer. Works: (Linux on Power Community) Purchase • Power Deal Closer Program (IBM, BP) • Access to IBM SMEs (Meet the Experts) • Power Linux IFLs • Reference Architecture: IBM Solution for Hadoop – Power Systems Edition (Reference architecture document and ppt, sizing tool on STG Big Data wiki • Sales Enablement Assets: -Sales Kit (IBM, BP) -Battlecard (IBM, BP) -VITO Letters (IBM, BP) -Quick Proposals (IBM & BP) • Power Deal Closer Program (IBM, BP) • Access to IBM SMEs (Meet the Experts) • IBM Solution for Hadoop Reference Config Guide (IBM, BP) • Power Big Data Education Series (recorded May 2014, new training series in 4 Q 14) © 2014 International Business Machines Corporation 84

Big Data Analytics Resources Helpful Links & Resources • IBM STG Big Data Wiki (for IBMers) – All key big data Power assets posted here • Power. Linux Big Data Sales Proposal Fast Start Templates (SSI, Partner. World) • SWG's IM Acceleration Zone - Big Data Section • Business Analytics and Optimization Sales and Technical Community • Big Data Black Belt and Tiger team members Support for Your Big Data Deals • For Sizing and defining big data configurations and for Po. C Support (Big Data Systems Center/Austin/IBM) • Migration services (migr 8 te@us. ibm. com) • Jump Start services (Randy Greenberg/Austin/IBM) • Sales Leadership by Geo – – – – Latin America: Nicola Mistretta/Mexico/IBM Europe: David Chancellor-Maddison/UK/IBM Japan: Miho Kato/Japan/IBM@IBMJP AP: Rathiga Renganathan/Malaysia/IBM@IBMMY China: Jason Cheung/China/IBM@IBMCN North America: John Craig/Atlanta/IBM MEA: Abdo Gadmour/United Arab Emirates/IBM © 2014 International Business Machines Corporation Engage with WW Linux on Power Big Data Analytics SMEs! Ø WW STG Big Data System Center, Big Data Systems Center/Austin/IBM Ø Renato Loffreda-Mancinelli, WW Business Development Leader, Analytics and Big Data, loffreda@us. ibm. com Ø Gina King, Solution Offering Manager Big Data glking@us. ibm. com Ø Linton Ward, Chief Engineer for Big Data and Analytics Power Systems, us. ibm. com Ø Randy Greenberg, Lab Services Client Enablement Manager rsg@us. ibm. com Ø Bob Friske, Marketing Manager rfriske@us. ibm. com 85

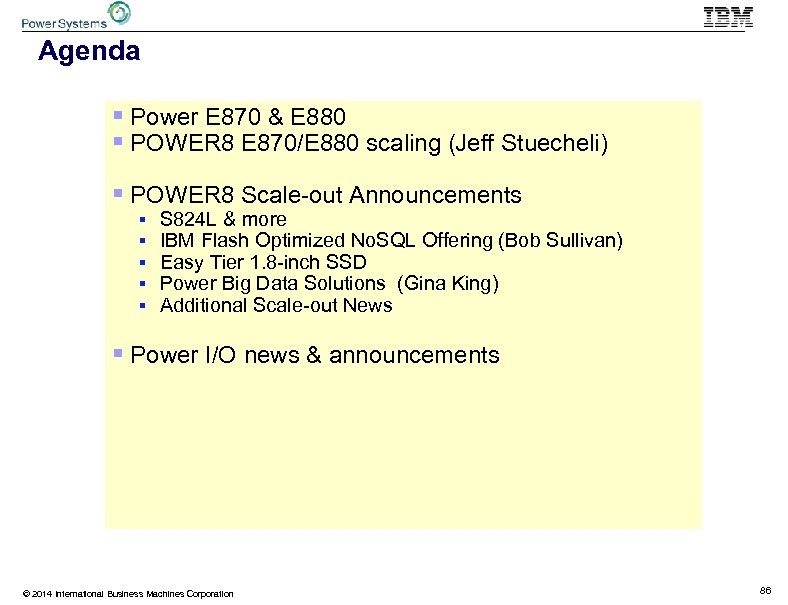

Agenda § Power E 870 & E 880 § POWER 8 E 870/E 880 scaling (Jeff Stuecheli) § POWER 8 Scale-out Announcements § § § S 824 L & more IBM Flash Optimized No. SQL Offering (Bob Sullivan) Easy Tier 1. 8 -inch SSD Power Big Data Solutions (Gina King) Additional Scale-out News § Power I/O news & announcements © 2014 International Business Machines Corporation 86

No 4 U Changing Rack to Tower or Vice Versa 1 S 4 U S 814 8286 -41 A Tower Rack Bezel for 12 SAS bay n/a #EJT 8 Bezel for 18 SAS bay n/a #EJT 9 Rail feature code n/a #EJTN Front Door & covers for 12 SAS bay #EJTG n/a Front Door & covers for 18 SAS bay #EJTH n/a Choose Rack / Tower Can NOT change S 814 from rack-mount to tower or vice versa • Originally communicated as supported change, but further analysis has found it not supportable. • Restriction due to a combination of factors. Labels with Power ratings and certifications are impacted since tower and rack use different power supplies. © 2014 International Business Machines Corporation 88

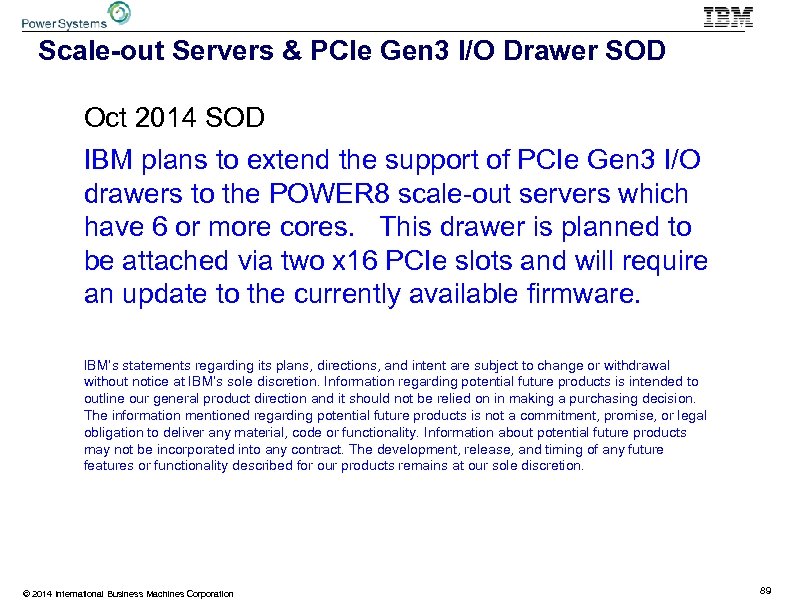

Scale-out Servers & PCIe Gen 3 I/O Drawer SOD Oct 2014 SOD IBM plans to extend the support of PCIe Gen 3 I/O drawers to the POWER 8 scale-out servers which have 6 or more cores. This drawer is planned to be attached via two x 16 PCIe slots and will require an update to the currently available firmware. IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and timing of any future features or functionality described for our products remains at our sole discretion. © 2014 International Business Machines Corporation 89

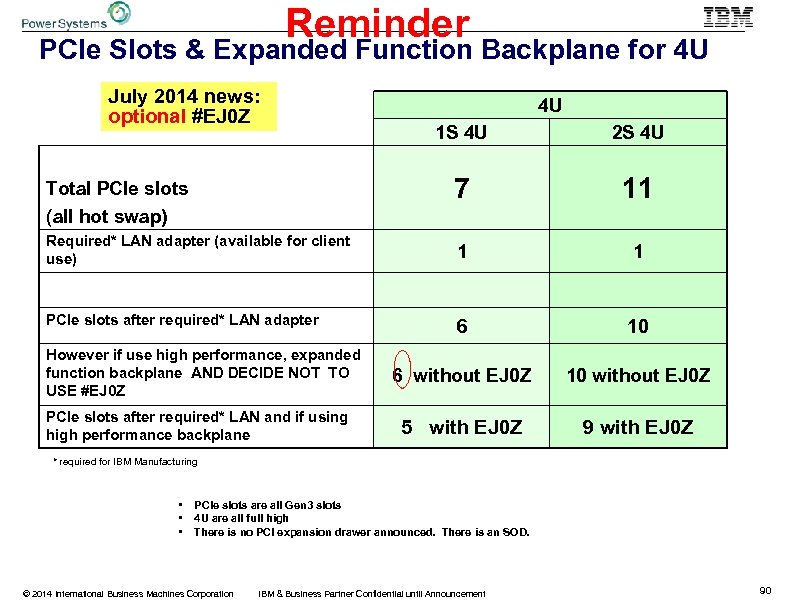

Reminder PCIe Slots & Expanded Function Backplane for 4 U July 2014 news: optional #EJ 0 Z 4 U 1 S 4 U 2 S 4 U 7 11 Required* LAN adapter (available for client use) 1 1 PCIe slots after required* LAN adapter 6 10 6 without EJ 0 Z 10 without EJ 0 Z 5 with EJ 0 Z 9 with EJ 0 Z Total PCIe slots (all hot swap) However if use high performance, expanded function backplane AND DECIDE NOT TO USE #EJ 0 Z PCIe slots after required* LAN and if using high performance backplane * required for IBM Manufacturing • • • PCIe slots are all Gen 3 slots 4 U are all full high There is no PCI expansion drawer announced. There is an SOD. © 2014 International Business Machines Corporation IBM & Business Partner Confidential until Announcement © 2014 International Business Machines Corporation 90

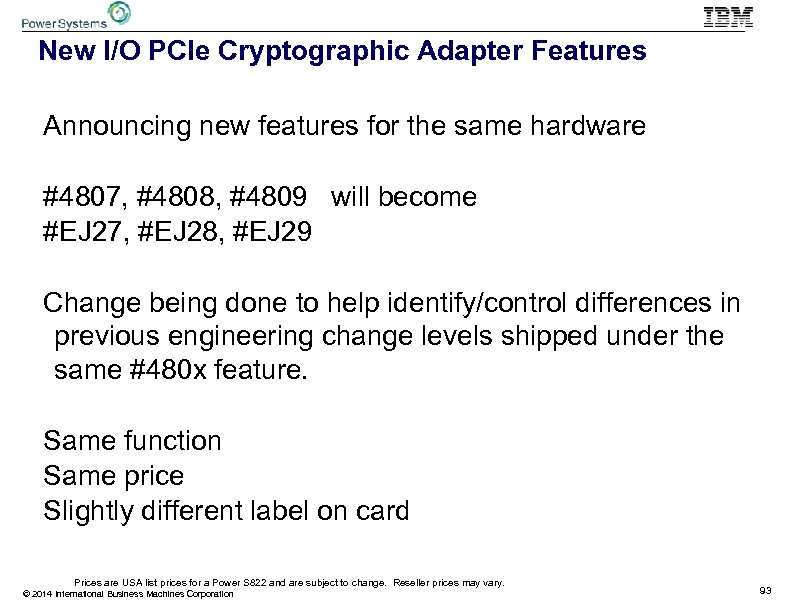

New I/O PCIe Cryptographic Adapter Features Announcing new features for the same hardware #4807, #4808, #4809 will become #EJ 27, #EJ 28, #EJ 29 Change being done to help identify/control differences in previous engineering change levels shipped under the same #480 x feature. Same function Same price Slightly different label on card Prices are USA list prices for a Power S 822 and are subject to change. Reseller prices may vary. © 2014 International Business Machines Corporation 93

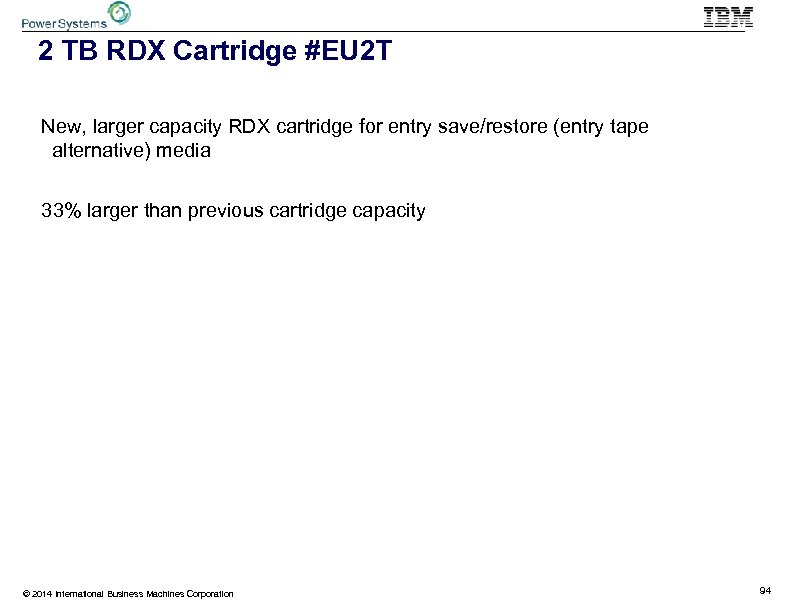

2 TB RDX Cartridge #EU 2 T New, larger capacity RDX cartridge for entry save/restore (entry tape alternative) media 33% larger than previous cartridge capacity © 2014 International Business Machines Corporation 94

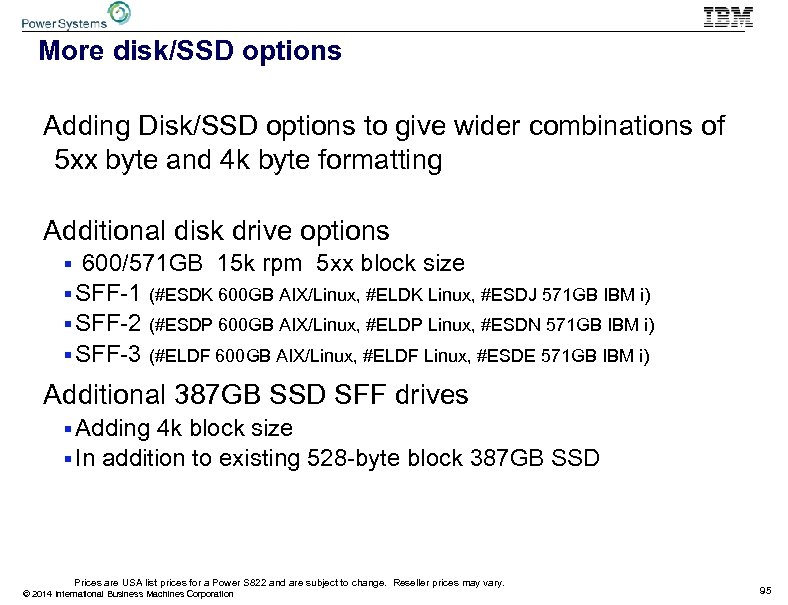

More disk/SSD options Adding Disk/SSD options to give wider combinations of 5 xx byte and 4 k byte formatting Additional disk drive options § 600/571 GB 15 k rpm 5 xx block size § SFF-1 (#ESDK 600 GB AIX/Linux, #ELDK Linux, #ESDJ 571 GB IBM i) § SFF-2 (#ESDP 600 GB AIX/Linux, #ELDP Linux, #ESDN 571 GB IBM i) § SFF-3 (#ELDF 600 GB AIX/Linux, #ELDF Linux, #ESDE 571 GB IBM i) Additional 387 GB SSD SFF drives § Adding 4 k block size § In addition to existing 528 -byte block 387 GB SSD Prices are USA list prices for a Power S 822 and are subject to change. Reseller prices may vary. © 2014 International Business Machines Corporation 95

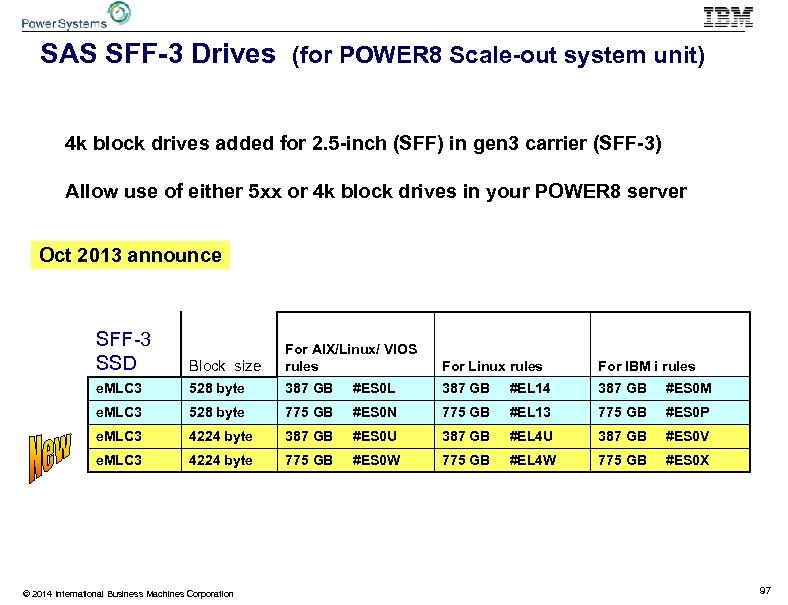

SAS SFF-3 Drives (for POWER 8 Scale-out system unit) 4 k block drives added for 2. 5 -inch (SFF) in gen 3 carrier (SFF-3) Allow use of either 5 xx or 4 k block drives in your POWER 8 server Oct 2013 announce SFF-3 SSD Block size For AIX/Linux/ VIOS rules For Linux rules For IBM i rules e. MLC 3 528 byte 387 GB #ES 0 L 387 GB #EL 14 387 GB #ES 0 M e. MLC 3 528 byte 775 GB #ES 0 N 775 GB #EL 13 775 GB #ES 0 P e. MLC 3 4224 byte 387 GB #ES 0 U 387 GB #EL 4 U 387 GB #ES 0 V e. MLC 3 4224 byte 775 GB #ES 0 W 775 GB #EL 4 W 775 GB #ES 0 X © 2014 International Business Machines Corporation 97

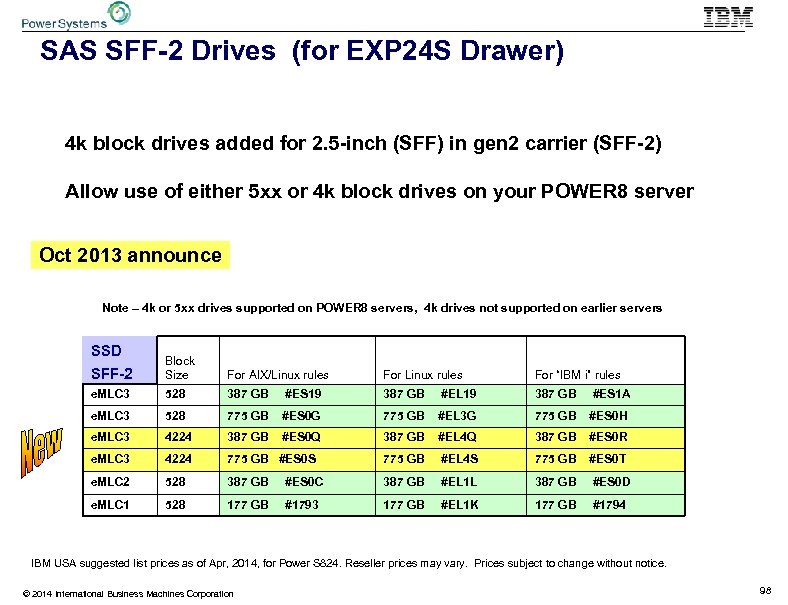

SAS SFF-2 Drives (for EXP 24 S Drawer) 4 k block drives added for 2. 5 -inch (SFF) in gen 2 carrier (SFF-2) Allow use of either 5 xx or 4 k block drives on your POWER 8 server Oct 2013 announce Note – 4 k or 5 xx drives supported on POWER 8 servers, 4 k drives not supported on earlier servers SSD SFF-2 Block Size For AIX/Linux rules For “IBM i” rules e. MLC 3 528 387 GB #ES 19 387 GB #EL 19 387 GB #ES 1 A e. MLC 3 528 775 GB #ES 0 G 775 GB #EL 3 G 775 GB #ES 0 H e. MLC 3 4224 387 GB #ES 0 Q 387 GB #EL 4 Q 387 GB #ES 0 R e. MLC 3 4224 775 GB #ES 0 S 775 GB #EL 4 S 775 GB #ES 0 T e. MLC 2 528 387 GB #ES 0 C 387 GB #EL 1 L 387 GB #ES 0 D e. MLC 1 528 177 GB #1793 177 GB #EL 1 K 177 GB #1794 IBM USA suggested list prices as of Apr, 2014, for Power S 824. Reseller prices may vary. Prices subject to change without notice. © 2014 International Business Machines Corporation 98

FYI … Disk Shipping a Little Differently Historically IBM shipped most drives for AIX/Linux/VIOS with 512 byte sectors (JBOD) Now on POWER 8 servers most disk shipped with 528 byte sectors Provides additional level of protection to client Newer generation SAS adapters/controllers get essentially the same performance § Save clients time from reformatting drives to 528 -byte sectors § § © 2014 International Business Machines Corporation 100

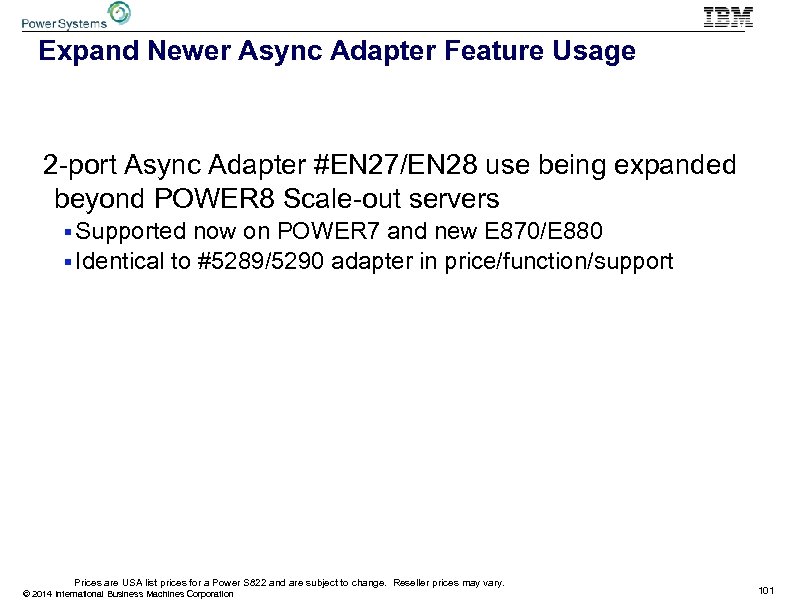

Expand Newer Async Adapter Feature Usage 2 -port Async Adapter #EN 27/EN 28 use being expanded beyond POWER 8 Scale-out servers § Supported now on POWER 7 and new E 870/E 880 § Identical to #5289/5290 adapter in price/function/support Prices are USA list prices for a Power S 822 and are subject to change. Reseller prices may vary. © 2014 International Business Machines Corporation 101

SR-IOV and POWER 8 SOD Oct 2014 SOD IBM plans to add NIC SR-IOV capability to POWER 8 servers using selected SR-IOV capable PCIe adapters. The adapters planned to be added are 4 -port Ethernet Adapters with copper twinax ports (#EN 0 K, #EN 0 L, #EL 3 C), SR optical ports (#EN 0 H, #EN 0 J, #EL 38) and LR optical ports (#EN 0 N, #EN 0 M). IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and timing of any future features or functionality described for our products remains at our sole discretion. Note: NIC SR-IOV already available on POWER 7+ 770/780 with proper software/firmware levels with the copper twinax and SR optical adapters. © 2014 International Business Machines Corporation 102

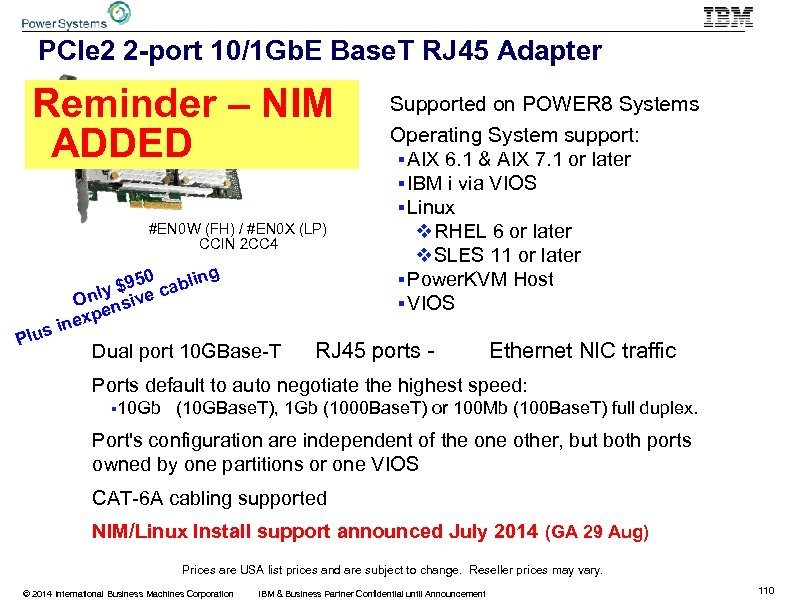

PCIe 2 2 -port 10/1 Gb. E Base. T RJ 45 Adapter Reminder – NIM ADDED #EN 0 W (FH) / #EN 0 X (LP) CCIN 2 CC 4 s Plu g 0 $95 cablin y Onl nsive pe nex i Supported on POWER 8 Systems Operating System support: § AIX 6. 1 & AIX 7. 1 or later § IBM i via VIOS § Linux v. RHEL 6 or later v. SLES 11 or later § Power. KVM Host § VIOS Dual port 10 GBase-T RJ 45 ports - Ethernet NIC traffic Ports default to auto negotiate the highest speed: § 10 Gb (10 GBase. T), 1 Gb (1000 Base. T) or 100 Mb (100 Base. T) full duplex. Port's configuration are independent of the one other, but both ports owned by one partitions or one VIOS CAT-6 A cabling supported NIM/Linux Install support announced July 2014 (GA 29 Aug) Prices are USA list prices and are subject to change. Reseller prices may vary. © 2014 International Business Machines Corporation IBM & Business Partner Confidential until Announcement © 2014 International Business Machines Corporation 110

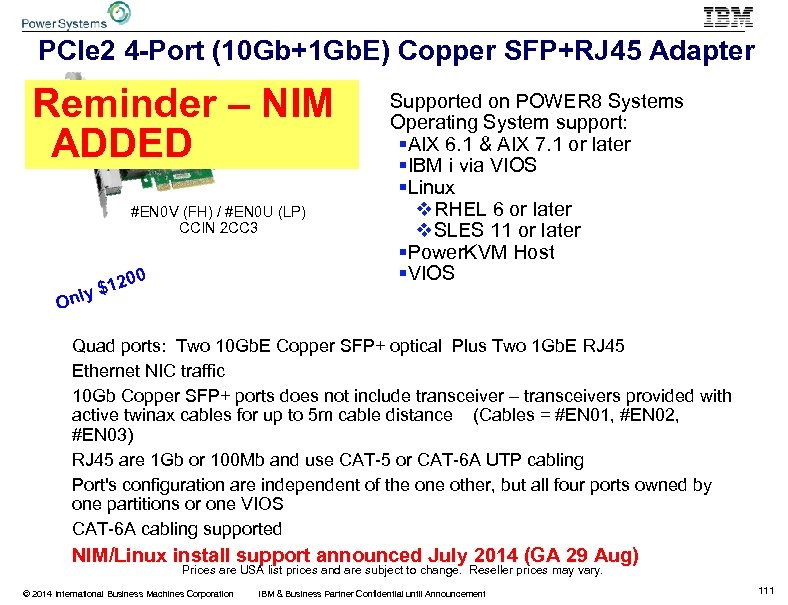

PCIe 2 4 -Port (10 Gb+1 Gb. E) Copper SFP+RJ 45 Adapter Reminder – NIM ADDED #EN 0 V (FH) / #EN 0 U (LP) CCIN 2 CC 3 On 00 $12 ly Supported on POWER 8 Systems Operating System support: §AIX 6. 1 & AIX 7. 1 or later §IBM i via VIOS §Linux v. RHEL 6 or later v. SLES 11 or later §Power. KVM Host §VIOS Quad ports: Two 10 Gb. E Copper SFP+ optical Plus Two 1 Gb. E RJ 45 Ethernet NIC traffic 10 Gb Copper SFP+ ports does not include transceiver – transceivers provided with active twinax cables for up to 5 m cable distance (Cables = #EN 01, #EN 02, #EN 03) RJ 45 are 1 Gb or 100 Mb and use CAT-5 or CAT-6 A UTP cabling Port's configuration are independent of the one other, but all four ports owned by one partitions or one VIOS CAT-6 A cabling supported NIM/Linux install support announced July 2014 (GA 29 Aug) Prices are USA list prices and are subject to change. Reseller prices may vary. © 2014 International Business Machines Corporation IBM & Business Partner Confidential until Announcement © 2014 International Business Machines Corporation 111

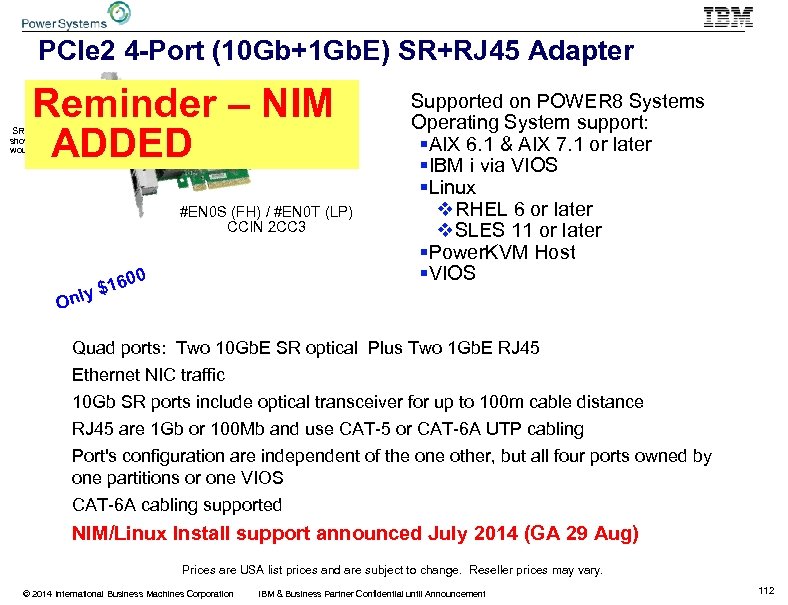

PCIe 2 4 -Port (10 Gb+1 Gb. E) SR+RJ 45 Adapter Reminder – NIM ADDED SR transceivers not shown in picture, but would be included in shipment #EN 0 S (FH) / #EN 0 T (LP) CCIN 2 CC 3 On 00 $16 ly Supported on POWER 8 Systems Operating System support: §AIX 6. 1 & AIX 7. 1 or later §IBM i via VIOS §Linux v. RHEL 6 or later v. SLES 11 or later §Power. KVM Host §VIOS Quad ports: Two 10 Gb. E SR optical Plus Two 1 Gb. E RJ 45 Ethernet NIC traffic 10 Gb SR ports include optical transceiver for up to 100 m cable distance RJ 45 are 1 Gb or 100 Mb and use CAT-5 or CAT-6 A UTP cabling Port's configuration are independent of the one other, but all four ports owned by one partitions or one VIOS CAT-6 A cabling supported NIM/Linux Install support announced July 2014 (GA 29 Aug) Prices are USA list prices and are subject to change. Reseller prices may vary. © 2014 International Business Machines Corporation IBM & Business Partner Confidential until Announcement © 2014 International Business Machines Corporation 112

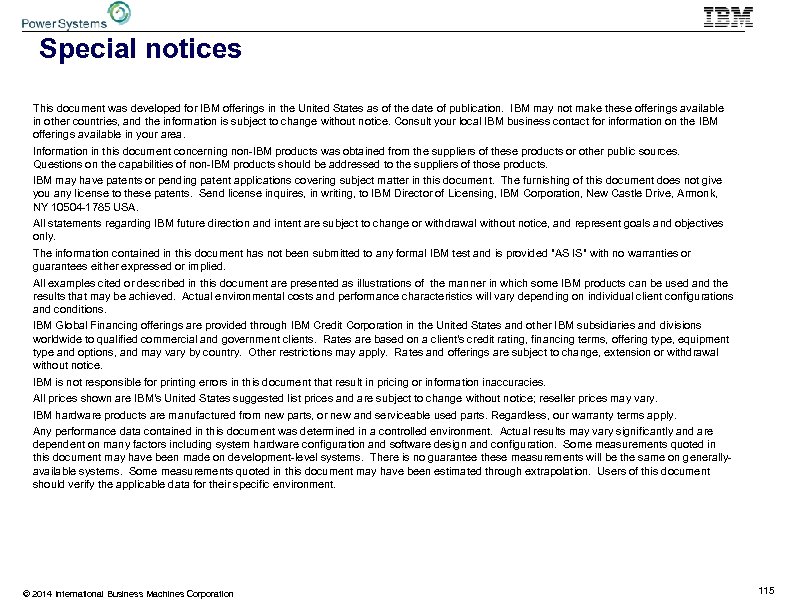

Special notices This document was developed for IBM offerings in the United States as of the date of publication. IBM may not make these offerings available in other countries, and the information is subject to change without notice. Consult your local IBM business contact for information on the IBM offerings available in your area. Information in this document concerning non-IBM products was obtained from the suppliers of these products or other public sources. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not give you any license to these patents. Send license inquires, in writing, to IBM Director of Licensing, IBM Corporation, New Castle Drive, Armonk, NY 10504 -1785 USA. All statements regarding IBM future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. The information contained in this document has not been submitted to any formal IBM test and is provided "AS IS" with no warranties or guarantees either expressed or implied. All examples cited or described in this document are presented as illustrations of the manner in which some IBM products can be used and the results that may be achieved. Actual environmental costs and performance characteristics will vary depending on individual client configurations and conditions. IBM Global Financing offerings are provided through IBM Credit Corporation in the United States and other IBM subsidiaries and divisions worldwide to qualified commercial and government clients. Rates are based on a client's credit rating, financing terms, offering type, equipment type and options, and may vary by country. Other restrictions may apply. Rates and offerings are subject to change, extension or withdrawal without notice. IBM is not responsible for printing errors in this document that result in pricing or information inaccuracies. All prices shown are IBM's United States suggested list prices and are subject to change without notice; reseller prices may vary. IBM hardware products are manufactured from new parts, or new and serviceable used parts. Regardless, our warranty terms apply. Any performance data contained in this document was determined in a controlled environment. Actual results may vary significantly and are dependent on many factors including system hardware configuration and software design and configuration. Some measurements quoted in this document may have been made on development-level systems. There is no guarantee these measurements will be the same on generallyavailable systems. Some measurements quoted in this document may have been estimated through extrapolation. Users of this document should verify the applicable data for their specific environment. © 2014 International Business Machines Corporation 115

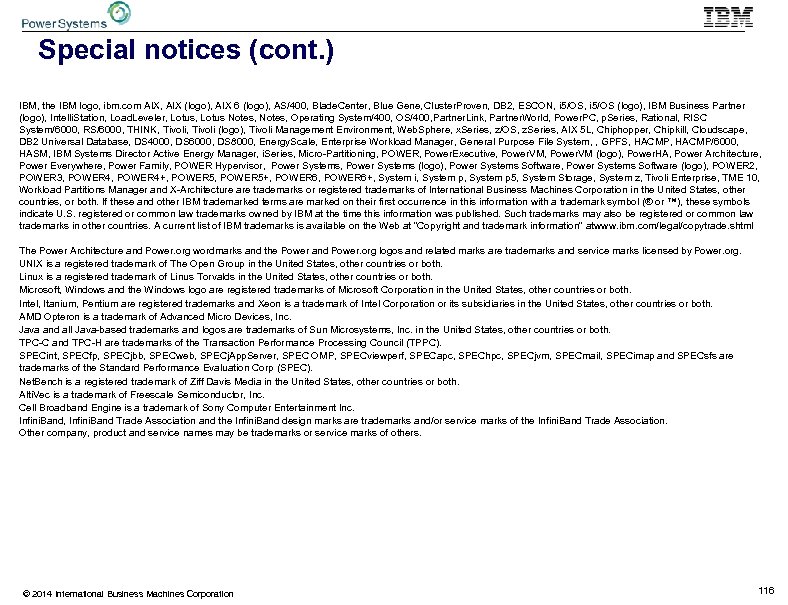

Special notices (cont. ) IBM, the IBM logo, ibm. com AIX, AIX (logo), AIX 6 (logo), AS/400, Blade. Center, Blue Gene, Cluster. Proven, DB 2, ESCON, i 5/OS (logo), IBM Business Partner (logo), Intelli. Station, Load. Leveler, Lotus Notes, Operating System/400, OS/400, artner. Link, Partner. World, Power. PC, p. Series, Rational, RISC P System/6000, RS/6000, THINK, Tivoli (logo), Tivoli Management Environment, Web. Sphere, x. Series, z/OS, z. Series, AIX 5 L, Chiphopper, Chipkill, Cloudscape, DB 2 Universal Database, DS 4000, DS 6000, DS 8000, Energy. Scale, Enterprise Workload Manager, General Purpose File System, , GPFS, HACMP/6000, HASM, IBM Systems Director Active Energy Manager, i. Series, Micro-Partitioning, POWER, Power. Executive, Power. VM (logo), Power. HA, Power Architecture, Power Everywhere, Power Family, POWER Hypervisor, Power Systems, Power Systems (logo), Power Systems Software (logo), POWER 2, POWER 3, POWER 4+, POWER 5+, POWER 6+, System i, System p 5, System Storage, System z, Tivoli Enterprise, TME 10, Workload Partitions Manager and X-Architecture are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this information with a trademark symbol (® or ™), these symbols indicate U. S. registered or common law trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available on the Web at "Copyright and trademark information" at ww. ibm. com/legal/copytrade. shtml w The Power Architecture and Power. org wordmarks and the Power and Power. org logos and related marks are trademarks and service marks licensed by Power. org. UNIX is a registered trademark of The Open Group in the United States, other countries or both. Linux is a registered trademark of Linus Torvalds in the United States, other countries or both. Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation in the United States, other countries or both. Intel, Itanium, Pentium are registered trademarks and Xeon is a trademark of Intel Corporation or its subsidiaries in the United States, other countries or both. AMD Opteron is a trademark of Advanced Micro Devices, Inc. Java and all Java-based trademarks and logos are trademarks of Sun Microsystems, Inc. in the United States, other countries or both. TPC-C and TPC-H are trademarks of the Transaction Performance Processing Council (TPPC). SPECint, SPECfp, SPECjbb, SPECweb, SPECj. App. Server, SPEC OMP, SPECviewperf, SPECapc, SPEChpc, SPECjvm, SPECmail, SPECimap and SPECsfs are trademarks of the Standard Performance Evaluation Corp (SPEC). Net. Bench is a registered trademark of Ziff Davis Media in the United States, other countries or both. Alti. Vec is a trademark of Freescale Semiconductor, Inc. Cell Broadband Engine is a trademark of Sony Computer Entertainment Inc. Infini. Band, Infini. Band Trade Association and the Infini. Band design marks are trademarks and/or service marks of the Infini. Band Trade Association. Other company, product and service names may be trademarks or service marks of others. © 2014 International Business Machines Corporation 116

Notes on benchmarks and values The IBM benchmarks results shown herein were derived using particular, well configured, development-level and generally-available computer systems. Buyers should consult other sources of information to evaluate the performance of systems they are considering buying and should consider conducting application oriented testing. For additional information about the benchmarks, values and systems tested, contact your local IBM office or IBM authorized reseller or access the Web site of the benchmark consortium or benchmark vendor. IBM benchmark results can be found in the IBM Power Systems Performance Report at http: //www. ibm. com/systems/p/hardware/system_perf. html. All performance measurements were made with AIX or AIX 5 L operating systems unless otherwise indicated to have used Linux. For new and upgraded systems, AIX Version 4. 3, AIX 5 L or AIX 6 were used. All other systems used previous versions of AIX. The SPEC CPU 2006, SPEC 2000, LINPACK, and Technical Computing benchmarks were compiled using IBM's high performance C, C++, and FORTRAN compilers for AIX 5 L and Linux. For new and upgraded systems, the latest versions of these compilers were used: XL C Enterprise Edition V 7. 0 for AIX, XL C/C++ Enterprise Edition V 7. 0 for AIX, XL FORTRAN Enterprise Edition V 9. 1 for AIX, XL C/C++ Advanced Edition V 7. 0 for Linux, and XL FORTRAN Advanced Edition V 9. 1 for Linux. The SPEC CPU 95 (retired in 2000) tests used preprocessors, KAP 3. 2 for FORTRAN and KAP/C 1. 4. 2 from Kuck & Associates and VAST-2 v 4. 01 X 8 from Pacific-Sierra Research. The preprocessors were purchased separately from these vendors. Other software packages like IBM ESSL for AIX, MASS for AIX and Kazushige oto’s BLAS Library for Linux were also used in some benchmarks. G For a definition/explanation of each benchmark and the full list of detailed results, visit the Web site of the benchmark consortium or benchmark vendor. TPC http: //www. tpc. org SPEC http: //www. spec. org LINPACK http: //www. netlib. org/benchmark/performance. pdf Pro/E http: //www. proe. com GPC http: //www. spec. org/gpc Notes. Bench http: //www. notesbench. org Volano. Mark http: //www. volano. com STREAM http: //www. cs. virginia. edu/stream/ SAP http: //www. sap. com/benchmark/ Oracle Applications http: //www. oracle. com/apps_benchmark/ People. Soft - To get information on People. Soft benchmarks, contact People. Soft directly Siebel http: //www. siebel. com/crm/performance_benchmark/index. shtm Baan http: //www. ssaglobal. com Microsoft Exchange http: //www. microsoft. com/exchange/evaluation/performance/default. asp Veritest http: //www. veritest. com/clients/reports Fluent http: //www. fluent. com/software/fluent/index. htm TOP 500 Supercomputers http: //www. top 500. org/ Ideas International http: //www. ideasinternational. com/benchmark/bench. html Storage Performance Council http: //www. storageperformance. org/results © 2014 International Business Machines Corporation Revised January 15, 2008 117

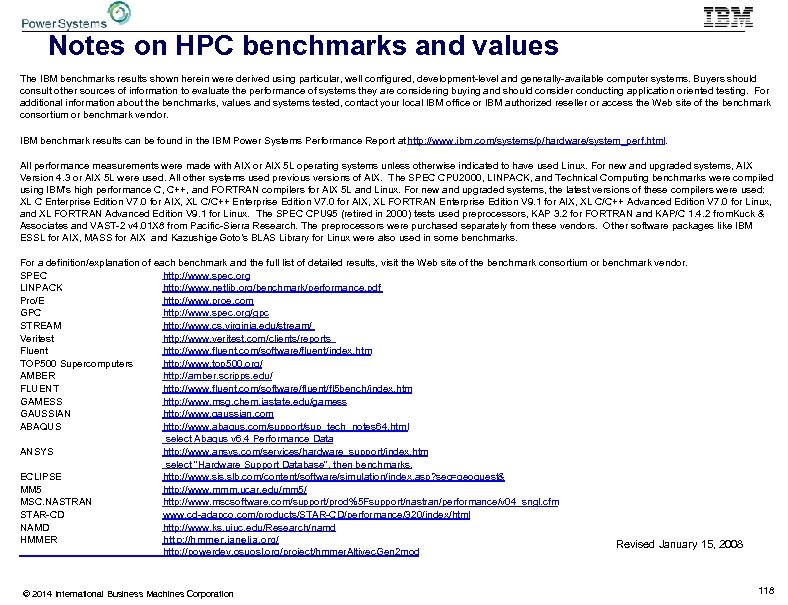

Notes on HPC benchmarks and values The IBM benchmarks results shown herein were derived using particular, well configured, development-level and generally-available computer systems. Buyers should consult other sources of information to evaluate the performance of systems they are considering buying and should consider conducting application oriented testing. For additional information about the benchmarks, values and systems tested, contact your local IBM office or IBM authorized reseller or access the Web site of the benchmark consortium or benchmark vendor. IBM benchmark results can be found in the IBM Power Systems Performance Report at http: //www. ibm. com/systems/p/hardware/system_perf. html. All performance measurements were made with AIX or AIX 5 L operating systems unless otherwise indicated to have used Linux. For new and upgraded systems, AIX Version 4. 3 or AIX 5 L were used. All other systems used previous versions of AIX. The SPEC CPU 2000, LINPACK, and Technical Computing benchmarks were compiled using IBM's high performance C, C++, and FORTRAN compilers for AIX 5 L and Linux. For new and upgraded systems, the latest versions of these compilers were used: XL C Enterprise Edition V 7. 0 for AIX, XL C/C++ Enterprise Edition V 7. 0 for AIX, XL FORTRAN Enterprise Edition V 9. 1 for AIX, XL C/C++ Advanced Edition V 7. 0 for Linux, and XL FORTRAN Advanced Edition V 9. 1 for Linux. The SPEC CPU 95 (retired in 2000) tests used preprocessors, KAP 3. 2 for FORTRAN and KAP/C 1. 4. 2 from uck & K Associates and VAST-2 v 4. 01 X 8 from Pacific-Sierra Research. The preprocessors were purchased separately from these vendors. Other software packages like IBM ESSL for AIX, MASS for AIX and Kazushige Goto’s BLAS Library for Linux were also used in some benchmarks. For a definition/explanation of each benchmark and the full list of detailed results, visit the Web site of the benchmark consortium or benchmark vendor. SPEC http: //www. spec. org LINPACK http: //www. netlib. org/benchmark/performance. pdf Pro/E http: //www. proe. com GPC http: //www. spec. org/gpc STREAM http: //www. cs. virginia. edu/stream/ Veritest http: //www. veritest. com/clients/reports Fluent http: //www. fluent. com/software/fluent/index. htm TOP 500 Supercomputers http: //www. top 500. org/ AMBER http: //amber. scripps. edu/ FLUENT http: //www. fluent. com/software/fluent/fl 5 bench/index. htm GAMESS http: //www. msg. chem. iastate. edu/gamess GAUSSIAN http: //www. gaussian. com ABAQUS http: //www. abaqus. com/support/sup_tech_notes 64. html select Abaqus v 6. 4 Performance Data ANSYS http: //www. ansys. com/services/hardware_support/index. htm select “Hardware Support Database”, then benchmarks. ECLIPSE http: //www. sis. slb. com/content/software/simulation/index. asp? seg=geoquest& MM 5 http: //www. mmm. ucar. edu/mm 5/ MSC. NASTRAN http: //www. mscsoftware. com/support/prod%5 Fsupport/nastran/performance/v 04_sngl. cfm STAR-CD www. cd-adapco. com/products/STAR-CD/performance/320/index/html NAMD http: //www. ks. uiuc. edu/Research/namd HMMER http: //hmmer. janelia. org/ Revised January 15, 2008 http: //powerdev. osuosl. org/project/hmmer. Altivec. Gen 2 mod © 2014 International Business Machines Corporation 118

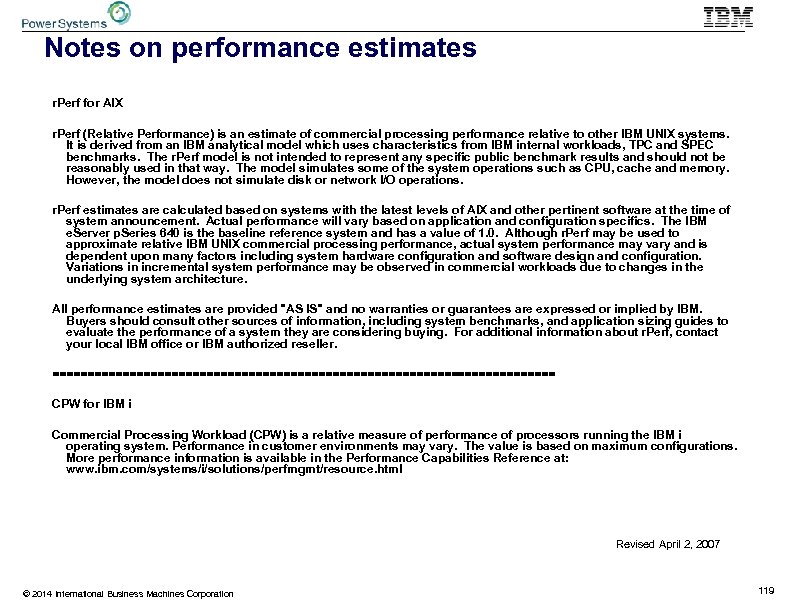

Notes on performance estimates r. Perf for AIX r. Perf (Relative Performance) is an estimate of commercial processing performance relative to other IBM UNIX systems. It is derived from an IBM analytical model which uses characteristics from IBM internal workloads, TPC and SPEC benchmarks. The r. Perf model is not intended to represent any specific public benchmark results and should not be reasonably used in that way. The model simulates some of the system operations such as CPU, cache and memory. However, the model does not simulate disk or network I/O operations. r. Perf estimates are calculated based on systems with the latest levels of AIX and other pertinent software at the time of system announcement. Actual performance will vary based on application and configuration specifics. The IBM e. Server p. Series 640 is the baseline reference system and has a value of 1. 0. Although r. Perf may be used to approximate relative IBM UNIX commercial processing performance, actual system performance may vary and is dependent upon many factors including system hardware configuration and software design and configuration. Variations in incremental system performance may be observed in commercial workloads due to changes in the underlying system architecture. All performance estimates are provided "AS IS" and no warranties or guarantees are expressed or implied by IBM. Buyers should consult other sources of information, including system benchmarks, and application sizing guides to evaluate the performance of a system they are considering buying. For additional information about r. Perf, contact your local IBM office or IBM authorized reseller. ==================================== CPW for IBM i Commercial Processing Workload (CPW) is a relative measure of performance of processors running the IBM i operating system. Performance in customer environments may vary. The value is based on maximum configurations. More performance information is available in the Performance Capabilities Reference at: www. ibm. com/systems/i/solutions/perfmgmt/resource. html Revised April 2, 2007 © 2014 International Business Machines Corporation 119
