300 Mbps 802. 11 n Wireless In-wall Access Point WNAP-W 2200
Presentation Outlines u Product Position u Product Overview u Product Installation u Product Benefits u Product Features u Applications u Web UI & Software u Appendix 2 / 24

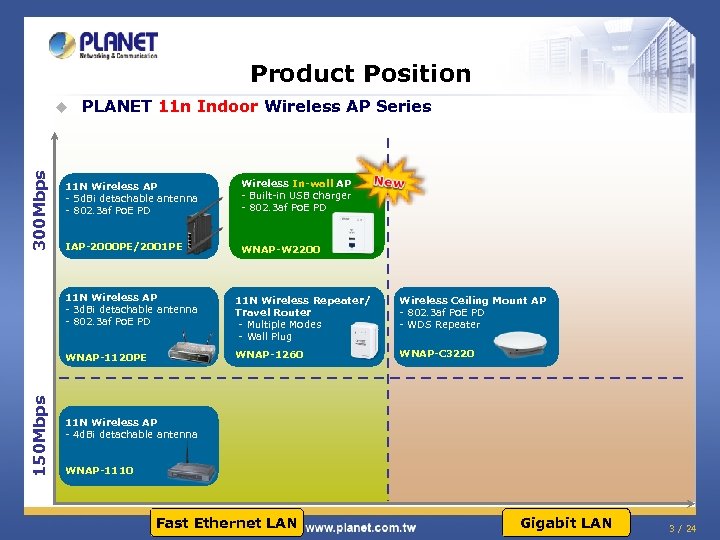

Product Position 300 Mbps u PLANET 11 n Indoor Wireless AP Series 11 N Wireless AP - 5 d. Bi detachable antenna - 802. 3 af Po. E PD Wireless In-wall AP - Built-in USB charger - 802. 3 af Po. E PD IAP-2000 PE/2001 PE WNAP-W 2200 11 N Wireless Repeater/ Travel Router - Multiple Modes - Wall Plug Wireless Ceiling Mount AP - 802. 3 af Po. E PD - WDS Repeater WNAP-1120 PE 150 Mbps 11 N Wireless AP - 3 d. Bi detachable antenna - 802. 3 af Po. E PD WNAP-1260 WNAP-C 3220 11 N Wireless AP - 4 d. Bi detachable antenna WNAP-1110 Fast Ethernet LAN Gigabit LAN 3 / 24

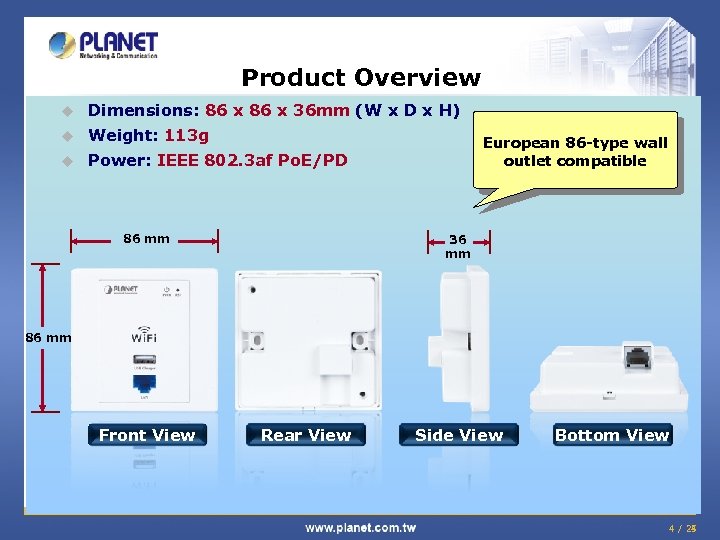

Product Overview u Dimensions: 86 x 36 mm (W x D x H) u Weight: 113 g u Power: IEEE 802. 3 af Po. E/PD 86 mm European 86 -type wall outlet compatible 36 mm 86 mm Front View Rear View Side View Bottom View 4 / 25 24

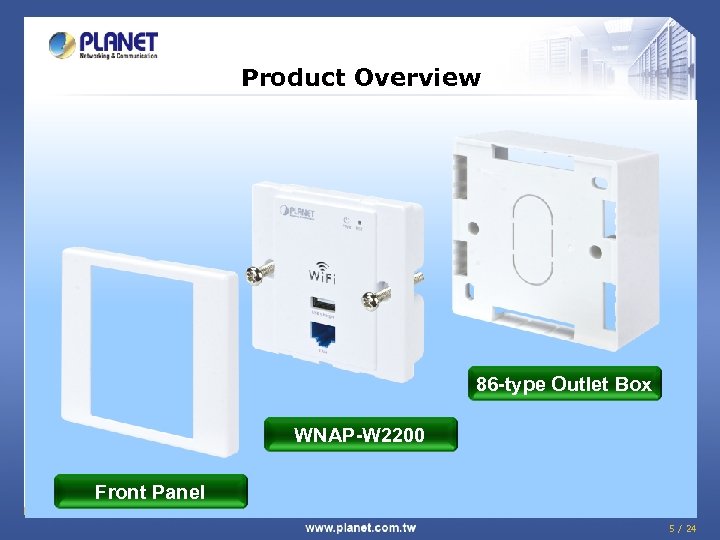

Product Overview 86 -type Outlet Box WNAP-W 2200 Front Panel 5 / 24

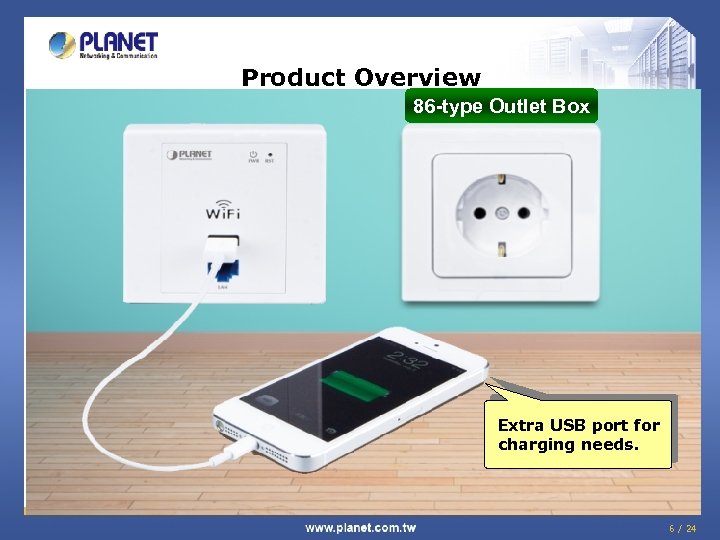

Product Overview 86 -type Outlet Box Extra USB port for charging needs. 6 / 24

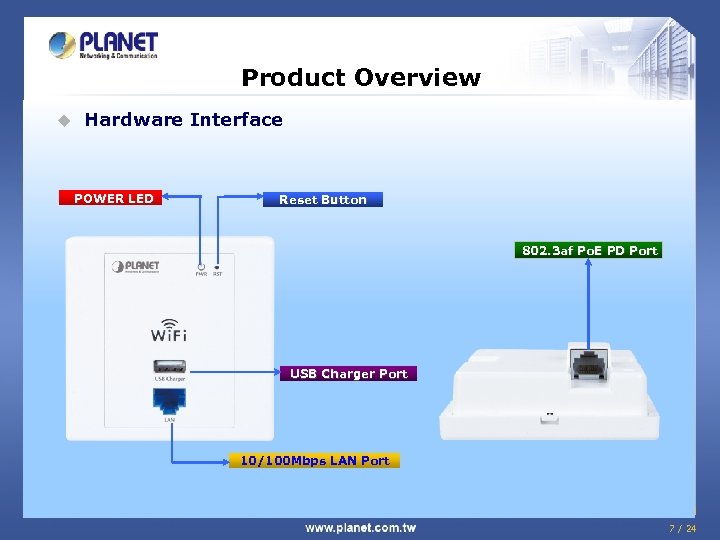

Product Overview u Hardware Interface POWER LED Reset Button 802. 3 af Po. E PD Port USB Charger Port 10/100 Mbps LAN Port 7 / 24
Product Installation 8 / 24

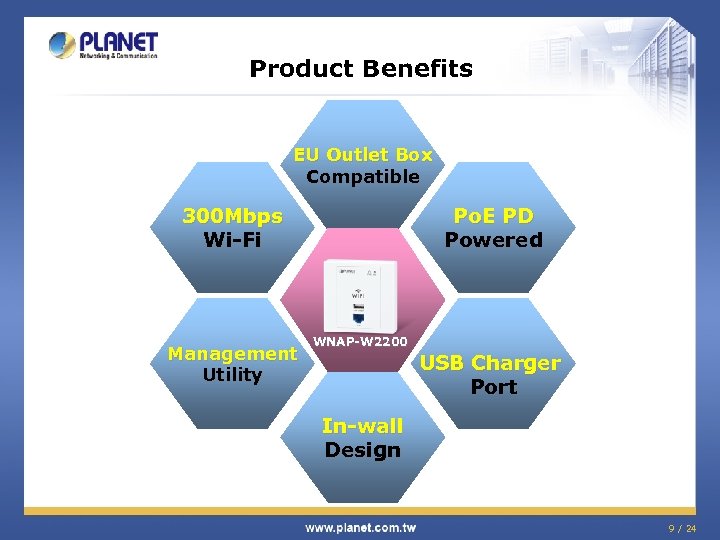

Product Benefits EU Outlet Box Compatible 300 Mbps Wi-Fi Management Utility Po. E PD Powered WNAP-W 2200 USB Charger Port In-wall Design 9 / 24
Product Benefits u Fast Ethernet Connectivity ü Built-in 10/100 Mbps Fast Ethernet connection ports support cable length dynamically and link down per port power saving. u 11 n Highest-Speed Wireless Connectivity ü The WNAP-W 2200 supports IEEE 802. 11 n standard with 2 T 2 R MIMO antenna technology; therefore, it can provide the wireless speed up to 300 Mbps which is 6 times faster than the traditional 11 g Access Point. u Convenient USB Charger ü One USB 2. 0 charger which comes with 5 V DC output can charge any USB compliant mobile devices, such as i. Phone, i. Pad, and other handheld devices. 10 / 24

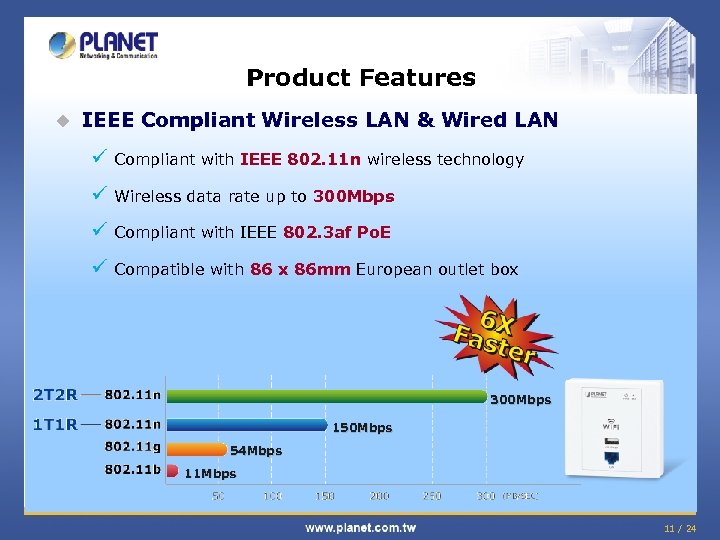

Product Features u IEEE Compliant Wireless LAN & Wired LAN ü Compliant with IEEE 802. 11 n wireless technology ü Wireless data rate up to 300 Mbps ü Compliant with IEEE 802. 3 af Po. E ü Compatible with 86 x 86 mm European outlet box 300 Mbps 150 Mbps 54 Mbps 11 / 24

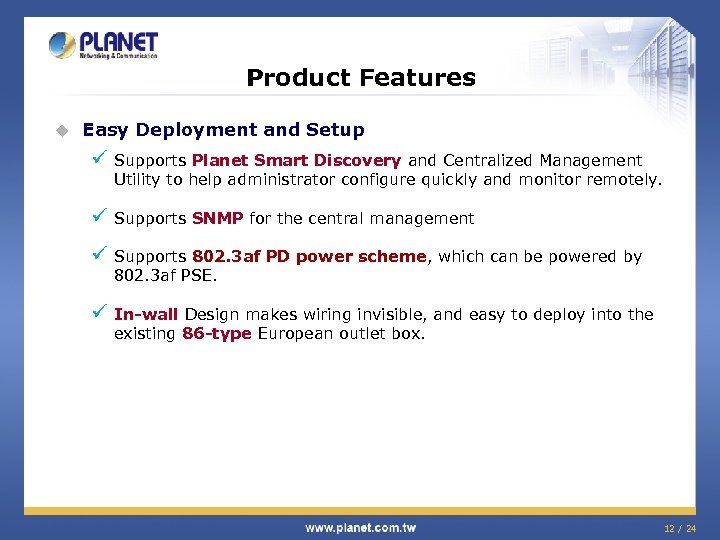

Product Features u Easy Deployment and Setup ü Supports Planet Smart Discovery and Centralized Management Utility to help administrator configure quickly and monitor remotely. ü Supports SNMP for the central management ü Supports 802. 3 af PD power scheme, which can be powered by 802. 3 af PSE. ü In-wall Design makes wiring invisible, and easy to deploy into the existing 86 -type European outlet box. 12 / 24

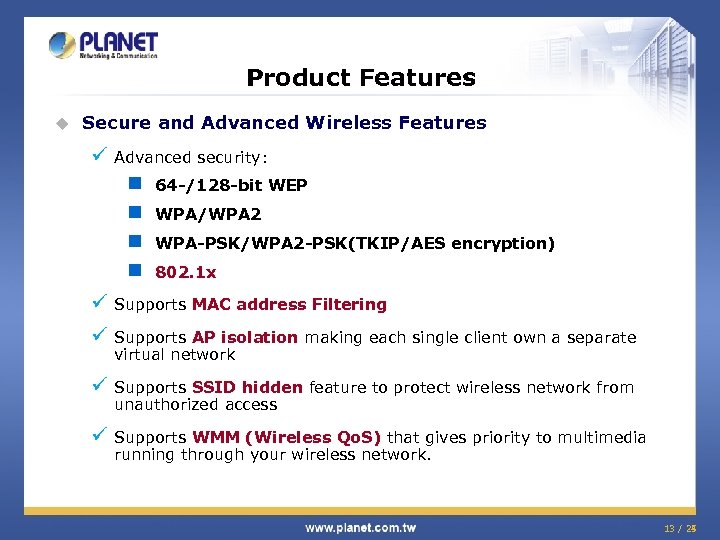

Product Features u Secure and Advanced Wireless Features ü Advanced security: n 64 -/128 -bit WEP n WPA/WPA 2 n WPA-PSK/WPA 2 -PSK(TKIP/AES encryption) n 802. 1 x ü Supports MAC address Filtering ü Supports AP isolation making each single client own a separate virtual network ü Supports SSID hidden feature to protect wireless network from unauthorized access ü Supports WMM (Wireless Qo. S) that gives priority to multimedia running through your wireless network. 13 / 25 24

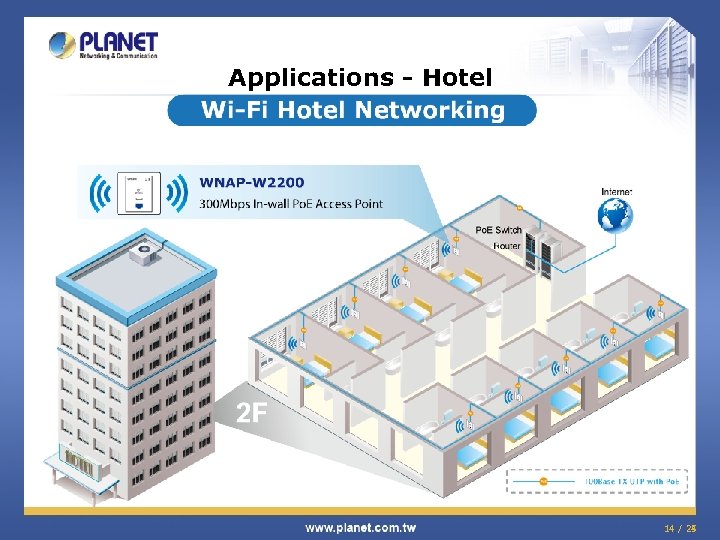

Applications - Hotel 14 / 25 24

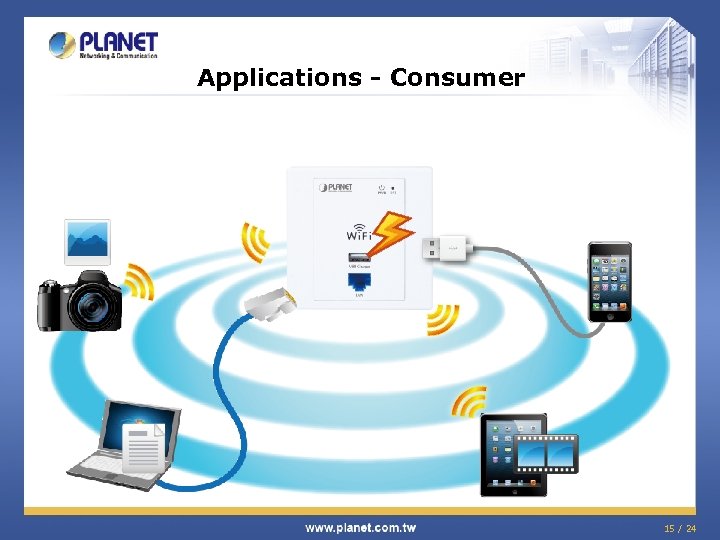

Applications - Consumer 15 / 24
Applications – Guest Room 16 / 24

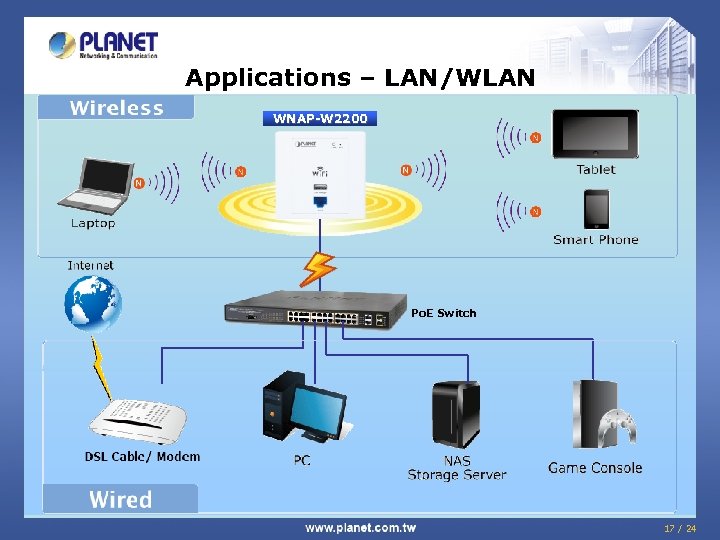

Applications – LAN/WLAN WNAP-W 2200 Po. E Switch 17 / 24

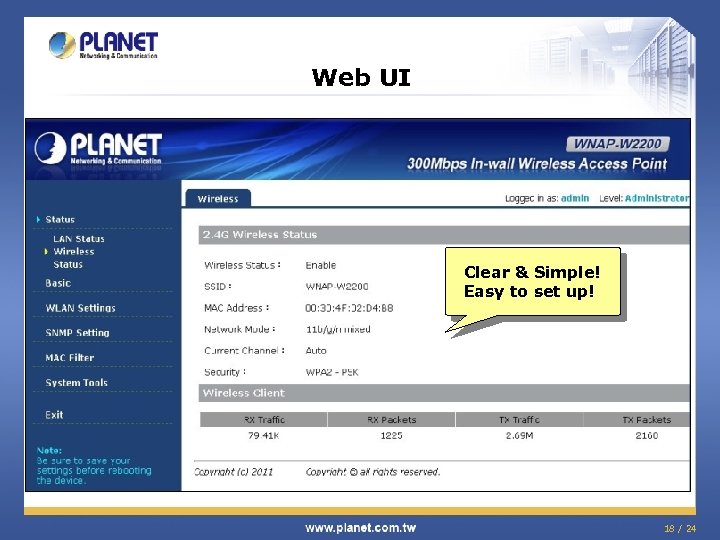

Web UI Clear & Simple! Easy to set up! 18 / 24

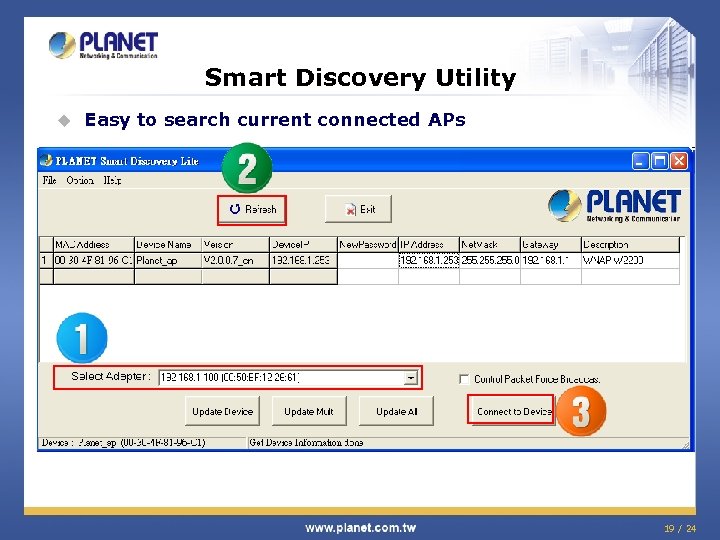

Smart Discovery Utility u Easy to search current connected APs 19 / 24

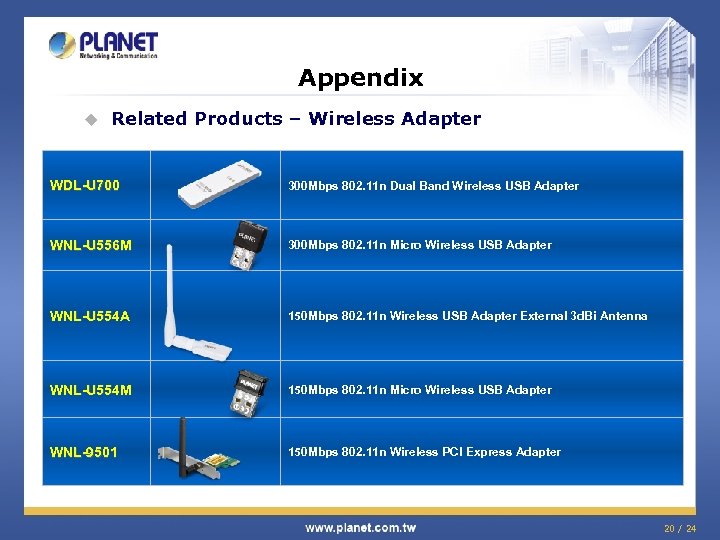

Appendix u Related Products – Wireless Adapter WDL-U 700 300 Mbps 802. 11 n Dual Band Wireless USB Adapter WNL-U 556 M 300 Mbps 802. 11 n Micro Wireless USB Adapter WNL-U 554 A 150 Mbps 802. 11 n Wireless USB Adapter External 3 d. Bi Antenna WNL-U 554 M 150 Mbps 802. 11 n Micro Wireless USB Adapter WNL-9501 150 Mbps 802. 11 n Wireless PCI Express Adapter 20 / 24

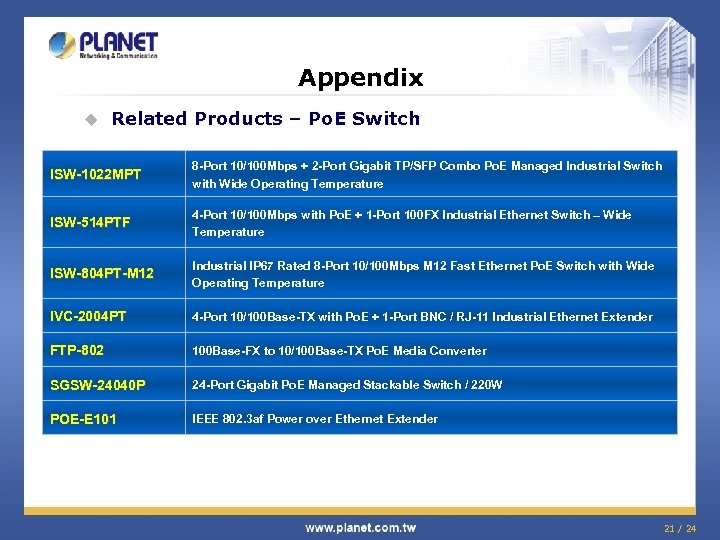

Appendix u Related Products – Po. E Switch ISW-1022 MPT 8 -Port 10/100 Mbps + 2 -Port Gigabit TP/SFP Combo Po. E Managed Industrial Switch with Wide Operating Temperature ISW-514 PTF 4 -Port 10/100 Mbps with Po. E + 1 -Port 100 FX Industrial Ethernet Switch – Wide Temperature ISW-804 PT-M 12 Industrial IP 67 Rated 8 -Port 10/100 Mbps M 12 Fast Ethernet Po. E Switch with Wide Operating Temperature IVC-2004 PT 4 -Port 10/100 Base-TX with Po. E + 1 -Port BNC / RJ-11 Industrial Ethernet Extender FTP-802 100 Base-FX to 10/100 Base-TX Po. E Media Converter SGSW-24040 P 24 -Port Gigabit Po. E Managed Stackable Switch / 220 W POE-E 101 IEEE 802. 3 af Power over Ethernet Extender 21 / 24
Appendix u Target Markets ü ü Public Area Access ü Profitable Products Telecom to Residential ü u Telecom to Business u Hotel, Resort, Library… Benefits ü Maximum Bandwidth ü Flexible in deployment ü Saving wiring cost ü Check these out • WNAP-C 3220 • WNAP-1260 • WNAP-1120 PE • WNAP-1110 ü Meeting all your requirements • Solution for Hotels & Residents • • • Indoor Access Points Po. E Access Points AP supported central management 22 /24
