Company history Coord 3 was established in 1973 The company mission was the manufacturing Company history Coord 3 was established in 1973 The company mission was the manufacturing of marking-out machines for the automotive tool makers.

Company history Throughout 70’s and 80’s more than 400 machines of this kind were Company history Throughout 70’s and 80’s more than 400 machines of this kind were built and installed. In the late 80’s the range was enhanced to include different architectures of machines: bridge, gantry, horizontal.

Company history In 1992 Coord 3 was one of the first makers to develop Company history In 1992 Coord 3 was one of the first makers to develop a Windows™ based CMM software for manual and CNC machines.

Recent facts 1999: new shareholders contribute with financing and management with 1999 the vision Recent facts 1999: new shareholders contribute with financing and management with 1999 the vision of an accelerated growth path for the company.

The growth Priorities: n Brand visibility n Local presence n Product development The growth Priorities: n Brand visibility n Local presence n Product development

Now Coord 3 has… A new Style. . . new …a new Control. . Now Coord 3 has… A new Style. . . new …a new Control. . . new enhanced local Machines Software Support. . . and Certified Quality System UNI EN ISO 9001: 2000

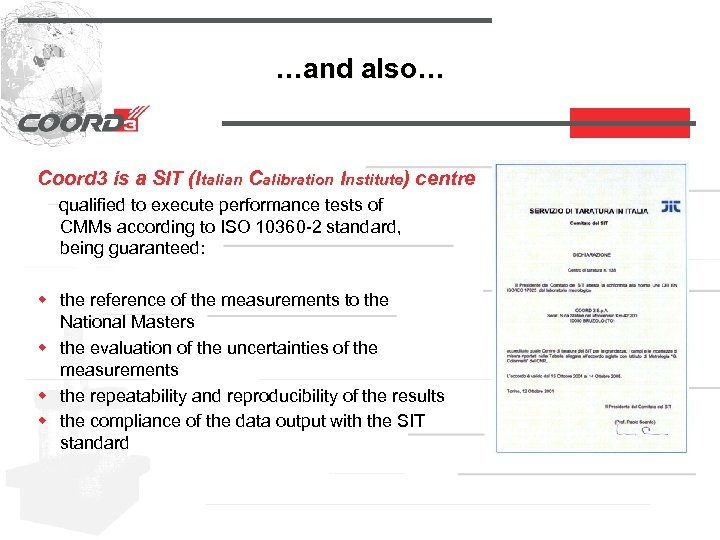

…and also… Coord 3 is a SIT (Italian Calibration Institute) centre qualified to execute …and also… Coord 3 is a SIT (Italian Calibration Institute) centre qualified to execute performance tests of CMMs according to ISO 10360 -2 standard, being guaranteed: w the reference of the measurements to the National Masters w the evaluation of the uncertainties of the measurements w the repeatability and reproducibility of the results w the compliance of the data output with the SIT standard

Direct distribution & support in Italy… Torino Milano Verona Pistoia Bari Direct distribution & support in Italy… Torino Milano Verona Pistoia Bari

… and in the World Coord 3 Beijing Coord 3 Brasil BRANCHES DISTRIBUTORS … and in the World Coord 3 Beijing Coord 3 Brasil BRANCHES DISTRIBUTORS

Sales: Main Sectors & Recent Major Customers AUTOMOTIVE INDUSTRY ALFA LANCIA INDUSTRIALE AUDI/VOLKSWAGEN BMW Sales: Main Sectors & Recent Major Customers AUTOMOTIVE INDUSTRY ALFA LANCIA INDUSTRIALE AUDI/VOLKSWAGEN BMW BOSCH CAGIVA CENTRO RICERCHE CAGIVA MOTOR CARROZZERIA BERTONE CENTRO RICERCHE FIAT DONGFENG MOTOR CORP. EATON FAGCC FASA-RENAULT FAW HAINAN FIAT AUTO FORD IVECO KARMAN STAMPOSTECH LEAR CORPORATION MAGNETI MARELLI PIAGGIO PININFARINA INDUSTRIE POLMO KALISZ RENAULT DO BRASIL TELCO TRW AIR BAG SYSTEMS UTIL INDUSTRIES VOLKSWAGEN ZDAS GENERAL MECHANICAL INDUSTRY COMAU FATA ALUMINIUM DALMINE JOBS S. C. M. GROUP CHARMILLES TECHNOLOGIE MAKINO AMADA LTD. CATERPILLAR AEROSPACE ALENIA G. AGUSTA FIAT AVIAZIONE MATRA MARCONI SPACE STAMPING EMARC LAMIER M. A. C. KIKUCHI STYLING CENTRES BERTONE IDEA ITALDESIGN LANDRA PININFARINA STOLA RANGER ITALIANA ALLGAIER WERKE HI-TECH MOLD TEXTRON AUTOMOTIVE OTHERS FERROVIE DELLO STATO SAFILO ENEA BRASIMONE NUOVO PIGNONE WHIRLPOOL EUROPE KRYPTON ELECTRONIC ENG. EROWA VERTRIEBS SWAROVSKY CRISTALLERIA N. 39 RESEARCH INSTITUTE

A new Coord 3 A new Coord 3

domestic/export market (value) 2004 (BUDGET) export domestic 2003 export domestic 2000 domestic export domestic/export market (value) 2004 (BUDGET) export domestic 2003 export domestic 2000 domestic export

Employees Coord 3 employees Years Employees Coord 3 employees Years

millions of Euro Coord 3 Sales Years millions of Euro Coord 3 Sales Years

Product overview Machines Product overview Machines

EOS w Half-bridge type CMM w Full aluminum technology design w Manual or motorized EOS w Half-bridge type CMM w Full aluminum technology design w Manual or motorized Travel range X 500 mm Y 400 mm Z 400 mm Accuracy 2. 5 + 3. 0 L µm 3 D speed 0. 52 m/s

ARES w w Bridge type CMM Aluminum movable structure Base in granite Manual or ARES w w Bridge type CMM Aluminum movable structure Base in granite Manual or motorized Travel range X from 700 to 1400 mm Y from 550 to 650 mm Z from 400 to 500 mm Accuracy 3. 0 + 3. 5 L µm 3 D speed 0. 52 m/s

AXIA w w Bridge type CMM Aluminum movable structure Base in granite Integrated Numeric AXIA w w Bridge type CMM Aluminum movable structure Base in granite Integrated Numeric Control Travel range X from 700 to 1200 mm Y from 600 to 700 mm Z from 550 to 650 mm Accuracy from 1. 9 + 2. 5 L µm 3 D speed 0. 87 m/s

HERA w Bridge type CMM w Aluminum movable structure w Base in granite Travel HERA w Bridge type CMM w Aluminum movable structure w Base in granite Travel range X from 1200 to 2400 mm Y from 850 to 1000 mm Z from 700 to 1000 mm Accuracy from 2. 5 + 3. 5 L µm 3 D speed 0. 75 m/s

KRONOS w Bridge type CMM w Aluminum movable structure w Base in granite Travel KRONOS w Bridge type CMM w Aluminum movable structure w Base in granite Travel range X from 1500 to 3000 mm Y from 1300 to 1500 mm Z from 1000 to 1300 mm Accuracy from 3. 7 + 4. 0 L µm 3 D speed 0. 66 m/s

ATHENA w Gantry CMM w Aluminum movable structure w Protected guideways by appropriate bellows ATHENA w Gantry CMM w Aluminum movable structure w Protected guideways by appropriate bellows Travel range X from 3000 to 5000 mm Y from 2000 to 2500 mm Z from 1000 to 1500 mm Accuracy from 6 + 6 L µm 3 D speed 0. 66 m/s

MCT Starlight w Gantry CMM w Manual or motorized w Monolithic version Travel range MCT Starlight w Gantry CMM w Manual or motorized w Monolithic version Travel range X from 2500 to 6000 mm Y from 1500 to 2500 mm Z from 1000 to 2000 mm Accuracy from 5. 0 + 5. 0 L µm 3 D speed 0. 60 m/s

MCT Plus w Gantry CMM w Large working volume w High accuracy Travel range MCT Plus w Gantry CMM w Large working volume w High accuracy Travel range X from 5000 to 12000 mm Y from 2500 to 3500 mm Z from 2000 to 2500 mm Accuracy from 7. 0 + 8. 0 L µm 3 D speed 0. 53 m/s

SWAN L w Horizontal ram CMM w Aluminum movable structure w Lateral air bearing SWAN L w Horizontal ram CMM w Aluminum movable structure w Lateral air bearing guideway integrated with the plane Travel range X from 2000 to 6000 mm Y from 1000 to 1500 mm Z from 1200 to 2000 mm Accuracy from 10 + 15 L µm 3 D speed 0. 52 m/s

SWAN SI w Horizontal ram CMM w Aluminum movable structure w Independent guideway Travel SWAN SI w Horizontal ram CMM w Aluminum movable structure w Independent guideway Travel range X from 3000 to 6000 mm Y from 1000 to 1500 mm Z from 1200 to 2000 mm Accuracy from 10 + 15 L µm 3 D speed 0. 52 m/s

JUPITER w Horizontal ram CMM w Aluminum movable structure w Independent guideway Travel range JUPITER w Horizontal ram CMM w Aluminum movable structure w Independent guideway Travel range X from 5000 to 8000 mm Y from 1400 to 1600 mm Z from 2000 to 3000 mm Accuracy from 14 + 14 L µm 3 D speed 0. 58 m/s

ECHO w Portable Measuring System w Six completely balanced axes w Wide range of ECHO w Portable Measuring System w Six completely balanced axes w Wide range of accessories Measuring range from 1500 to 4000 mm Single point accuracy (2 ) from 0. 026 mm Single point accuracy (E Max) from 0. 036 mm

Special and customized products MAGAM Flush & gap measurement Special and customized products MAGAM Flush & gap measurement

CC 3 proprietary CNC w Optimized installation layout w Easily upgradeable also after installation CC 3 proprietary CNC w Optimized installation layout w Easily upgradeable also after installation w Last generation CPU, it can perform 180 millions operations per second in floating point w Ruggedized components

Product overview Software Product overview Software

Software offer Coord 3 offers a wide selection of metrology software packages in order Software offer Coord 3 offers a wide selection of metrology software packages in order to support specific customer’s needs. www. metrologic. fr www. delcam. it www. mirai. it

ARCO family The new measuring software Powerful, User-friendly, Modular • Measuring software based on ARCO family The new measuring software Powerful, User-friendly, Modular • Measuring software based on DMIS language • It measures prismatic elements, edges and free surfaces • Direct Import of PRO-E, CATIA V 4, CATIA V 5, UNIGRAPHIC, IGES, VDA, DXF • Available for manual, point-to-point and continuous scanning measurement • The inspection and reverse engineering of profile is very fast • Powered by strong tools for graphic programming • The flexible module for graphical output allows to create custom reports • Graphical results output in QS-STAT and SPC LIGHT, HTML, PDF, MS-WORD, MS-EXCEL, TIFF • Use of dual arm measuring system extremely powerful • Easy integration of custom components

ARCO family ARCO Quick is the entry level software to measure prismatic elements with ARCO family ARCO Quick is the entry level software to measure prismatic elements with the self-teach tools and non CAD-based advanced programming. • ARCO Quick fully supports DMIS language in native mode: the portability of the programs created with ARCO is guaranteed • The programs in DMIS format are generated automatically by the system during the measurement of the first part • The calibration Wizard makes probe qualification quick and efficient, even with unconventional styli and stars tips, regardless of the angular position of the motorized head • ARCO Quick allows to create a reference system either in a traditional way or through dedicated procedures • Automatic cycles are available to measure elements • ARCO Quick handles the geometrical tolerances in accordance with the international standards • The use of the tool changer management is transparent to the operator because it is integrated in probe management • The output is available in HTML and in graphical format

ARCO family ARCO Graphics adds graphics tools to the power of ARCO Quick: the ARCO family ARCO Graphics adds graphics tools to the power of ARCO Quick: the geometrical elements are displayed in a dedicated area and the use of visual selection helps the operator to quickly choose what to use in the measurements. • ARCO Graphics allows machine volume and probe representation. The probe is represented, by size and direction, in the actual position within the machine volume and its movement is updated in real time. • Graphical representation of the measured geometrical elements • Graphical GOTO: on motorized machines it is possible to create the probe positions from the graphic environment • Representation of Form Errors: the geometrical elements can be monitor while programming, bad points can be graphically excluded from the calculation in order to realize a better inspection • During the creation of the reference systems it is possible to preview them • On motorized machines it is possible to pre-define measuring paths (strategies) on geometrical elements

ARCO family ARCO Cad , due to a powerful CAD engine, completes ARCO Quick ARCO family ARCO Cad , due to a powerful CAD engine, completes ARCO Quick and ARCO Graphics features. It is possible to import the CAD models of parts and build the programs with the graphical tools and the measurement of complex surfaces. • Direct import of the most used CAD formats: CATIA V 4, CATIA V 5, PRO-E, UG and the neutral IGES, VDA and DXF formats • Complete Layer CAD management, group management and geometrical elements extraction from CAD • On motorized machines it is possible to teach the point to be picked by selecting the point directly on the mathematical model • Through the use of the CAD model it is possible to create reference systems on free forms • Measuring surfaces and edges in real time. Measuring, creating and exporting profiles. Optimization of an existing reference • Graphical outputs available in fully customizable format
