30 th November 2000 Technical Briefing Copyright International Computers Limited 2000

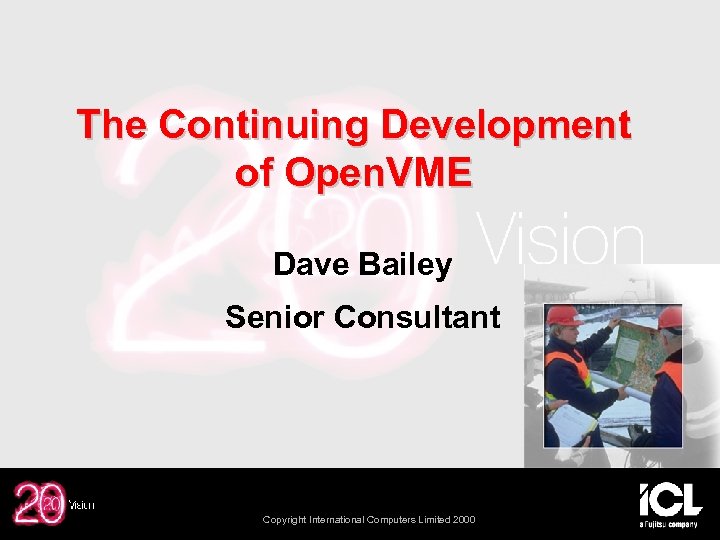

The Continuing Development of Open. VME Dave Bailey Senior Consultant Copyright International Computers Limited 2000

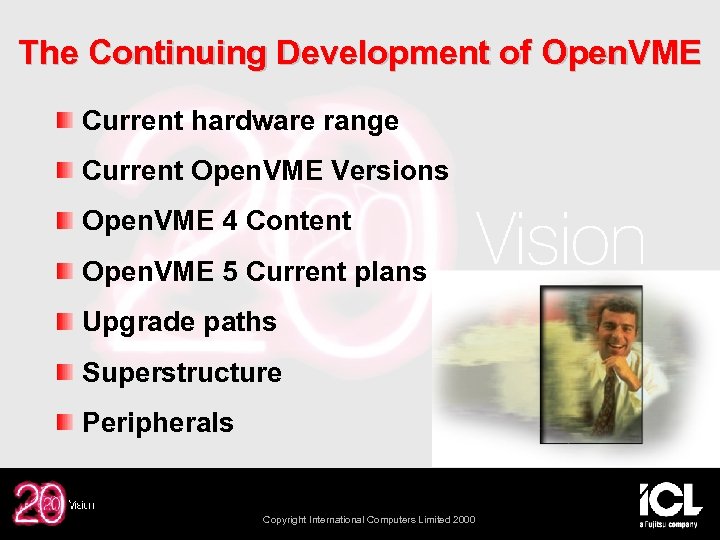

The Continuing Development of Open. VME Current hardware range Current Open. VME Versions Open. VME 4 Content Open. VME 5 Current plans Upgrade paths Superstructure Peripherals Copyright International Computers Limited 2000
Current Open. VME Hardware Copyright International Computers Limited 2000

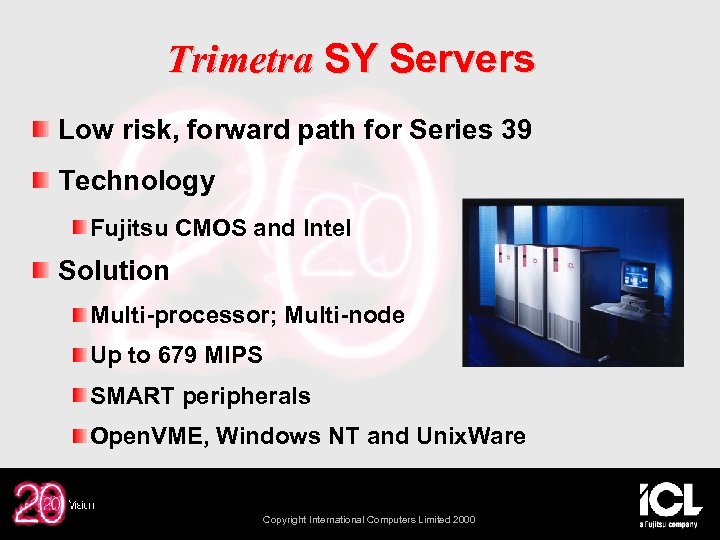

Trimetra SY Servers Low risk, forward path for Series 39 Technology Fujitsu CMOS and Intel Solution Multi-processor; Multi-node Up to 679 MIPS SMART peripherals Open. VME, Windows NT and Unix. Ware Copyright International Computers Limited 2000

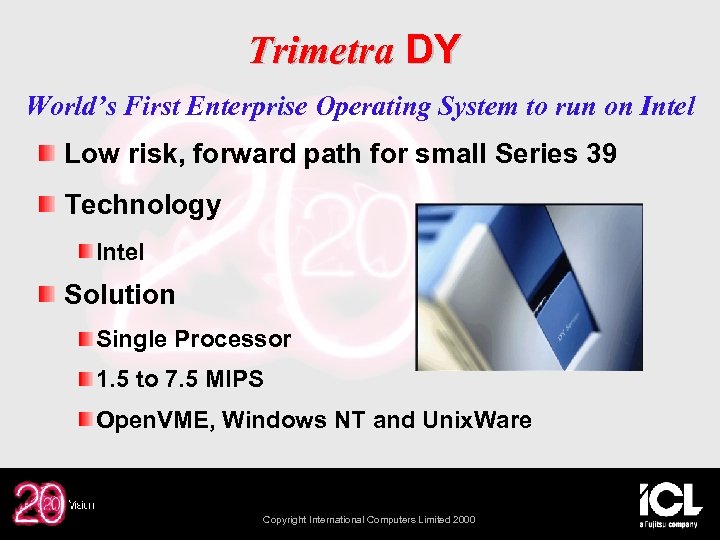

Trimetra DY World’s First Enterprise Operating System to run on Intel Low risk, forward path for small Series 39 Technology Intel Solution Single Processor 1. 5 to 7. 5 MIPS Open. VME, Windows NT and Unix. Ware Copyright International Computers Limited 2000

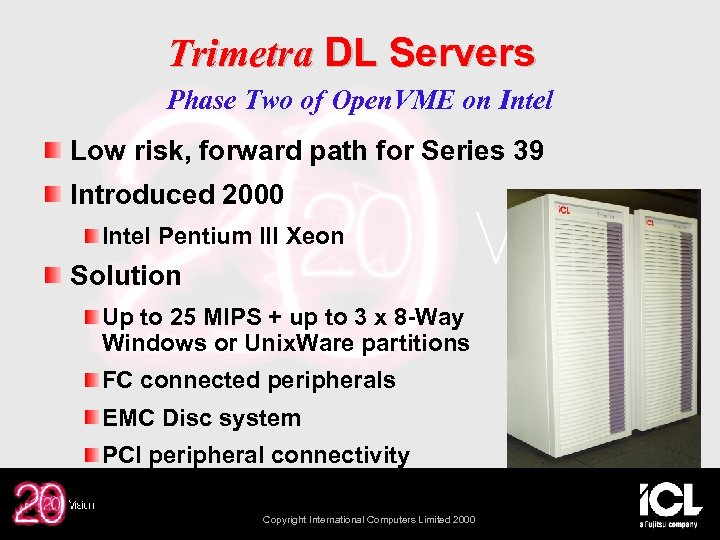

Trimetra DL Servers Phase Two of Open. VME on Intel Low risk, forward path for Series 39 Introduced 2000 Intel Pentium III Xeon Solution Up to 25 MIPS + up to 3 x 8 -Way Windows or Unix. Ware partitions FC connected peripherals EMC Disc system PCI peripheral connectivity Copyright International Computers Limited 2000

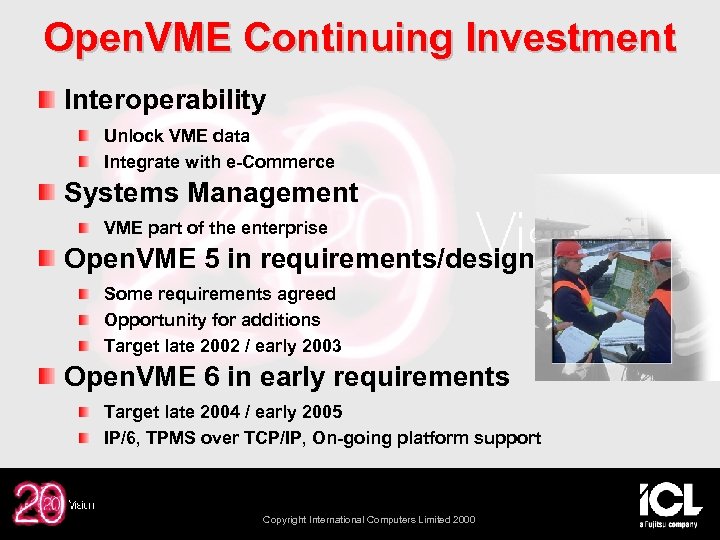

Open. VME Continuing Investment Interoperability Unlock VME data Integrate with e-Commerce Systems Management VME part of the enterprise Open. VME 5 in requirements/design Some requirements agreed Opportunity for additions Target late 2002 / early 2003 Open. VME 6 in early requirements Target late 2004 / early 2005 IP/6, TPMS over TCP/IP, On-going platform support Copyright International Computers Limited 2000
VME Releases Copyright International Computers Limited 2000

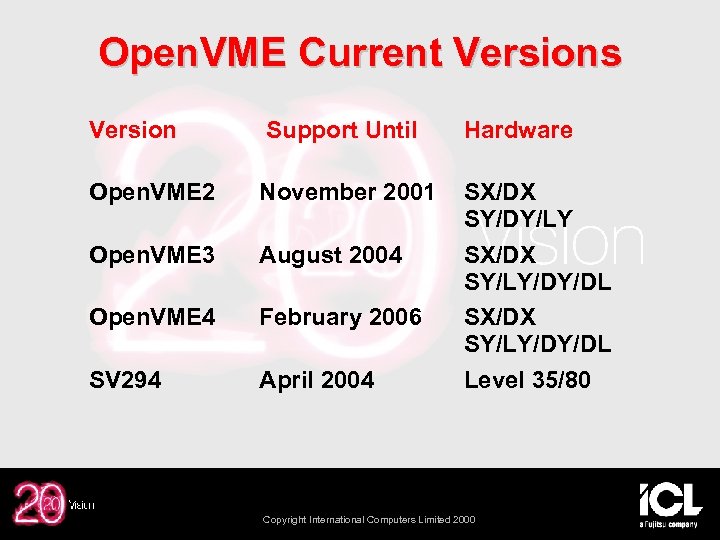

Open. VME Current Versions Version Support Until Hardware Open. VME 2 November 2001 Open. VME 3 August 2004 Open. VME 4 February 2006 SV 294 April 2004 SX/DX SY/DY/LY SX/DX SY/LY/DY/DL Level 35/80 Copyright International Computers Limited 2000
Open. VME Release 4 Copyright International Computers Limited 2000

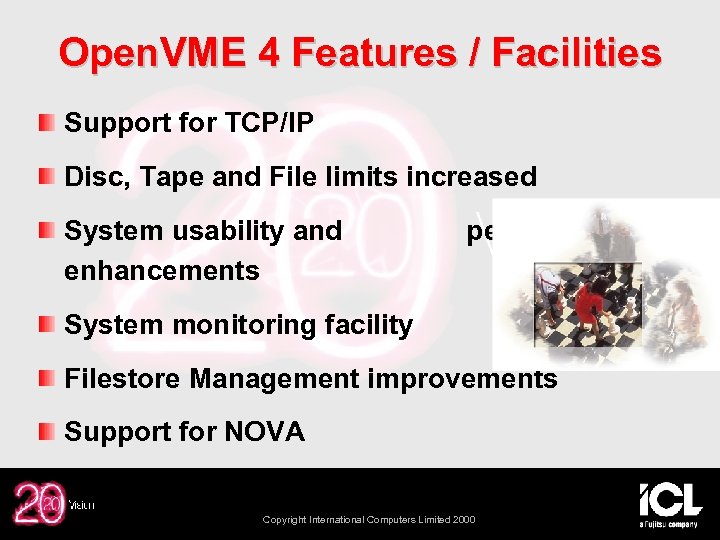

Open. VME 4 Features / Facilities Support for TCP/IP Disc, Tape and File limits increased System usability and enhancements performance System monitoring facility Filestore Management improvements Support for NOVA Copyright International Computers Limited 2000

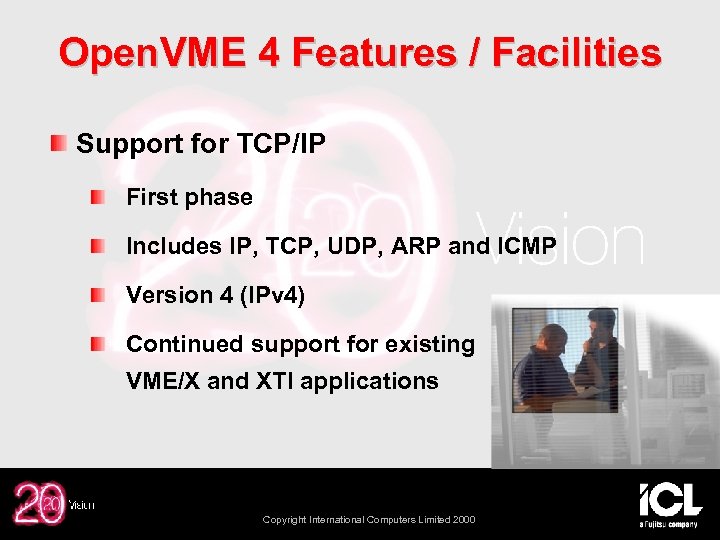

Open. VME 4 Features / Facilities Support for TCP/IP First phase Includes IP, TCP, UDP, ARP and ICMP Version 4 (IPv 4) Continued support for existing VME/X and XTI applications Copyright International Computers Limited 2000

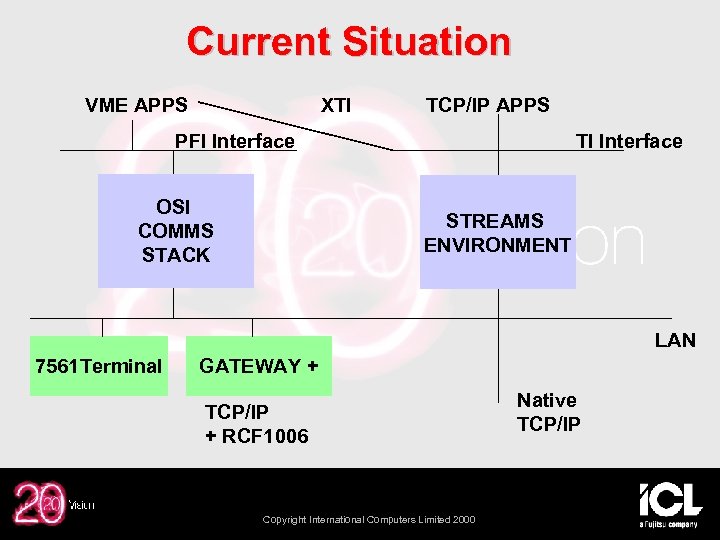

Current Situation VME APPS XTI TCP/IP APPS PFI Interface OSI COMMS STACK TI Interface STREAMS ENVIRONMENT LAN 7561 Terminal GATEWAY + TCP/IP + RCF 1006 Copyright International Computers Limited 2000 Native TCP/IP

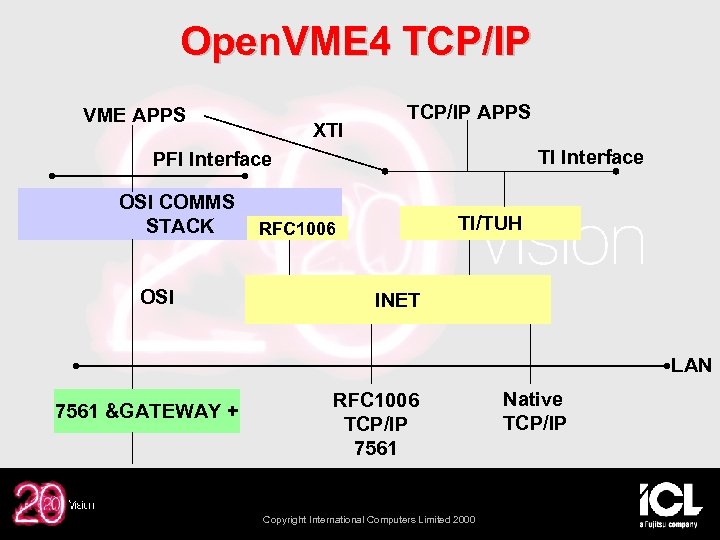

Open. VME 4 TCP/IP VME APPS XTI TCP/IP APPS TI Interface PFI Interface OSI COMMS STACK OSI TI/TUH RFC 1006 INET LAN 7561 &GATEWAY + RFC 1006 TCP/IP 7561 Copyright International Computers Limited 2000 Native TCP/IP

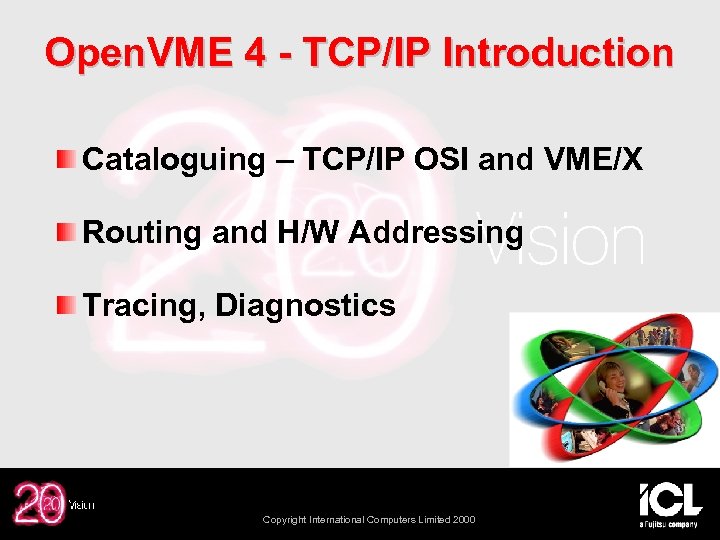

Open. VME 4 - TCP/IP Introduction Cataloguing – TCP/IP OSI and VME/X Routing and H/W Addressing Tracing, Diagnostics Copyright International Computers Limited 2000

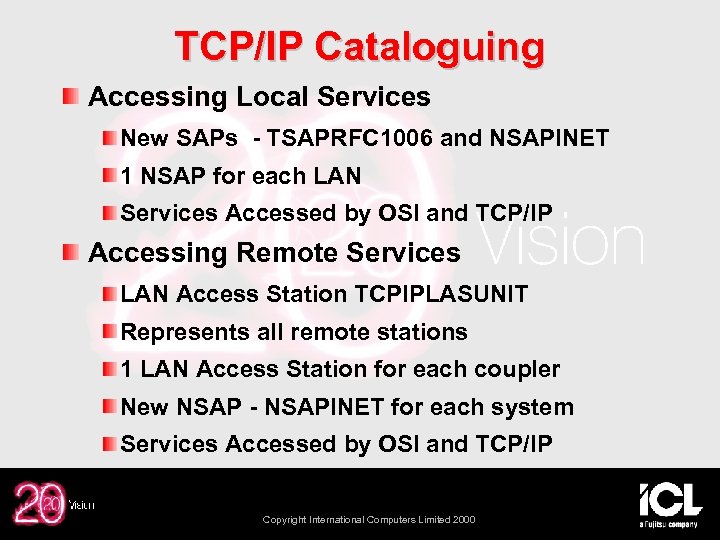

TCP/IP Cataloguing Accessing Local Services New SAPs - TSAPRFC 1006 and NSAPINET 1 NSAP for each LAN Services Accessed by OSI and TCP/IP Accessing Remote Services LAN Access Station TCPIPLASUNIT Represents all remote stations 1 LAN Access Station for each coupler New NSAP - NSAPINET for each system Services Accessed by OSI and TCP/IP Copyright International Computers Limited 2000

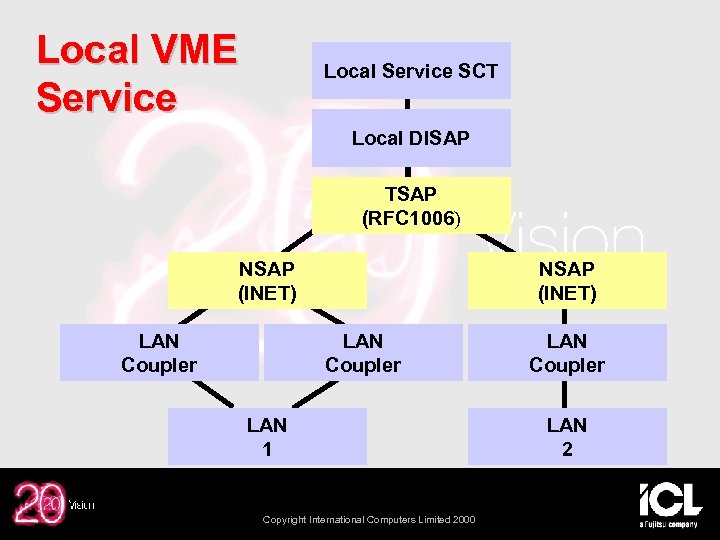

Local VME Service Local Service SCT Local DISAP TSAP (RFC 1006) NSAP (INET) LAN Coupler LAN 1 Copyright International Computers Limited 2000 LAN Coupler LAN 2
Remote Services Remote Service X Remote Service Y 1 Remote Service Y 2 DISAP TSAP (RFC 1006) NSAP (INET) LAN Access Station LAN Copyright International Computers Limited 2000

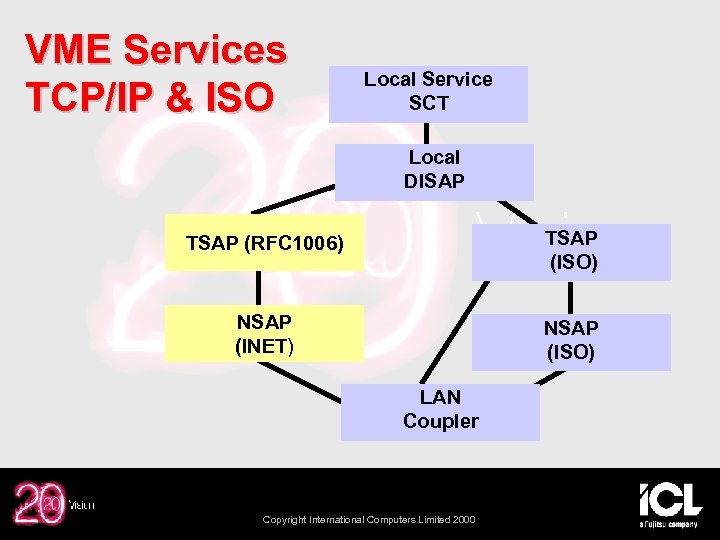

VME Services TCP/IP & ISO Local Service SCT Local DISAP TSAP (RFC 1006) TSAP (ISO) NSAP (INET) NSAP (ISO) LAN Coupler Copyright International Computers Limited 2000

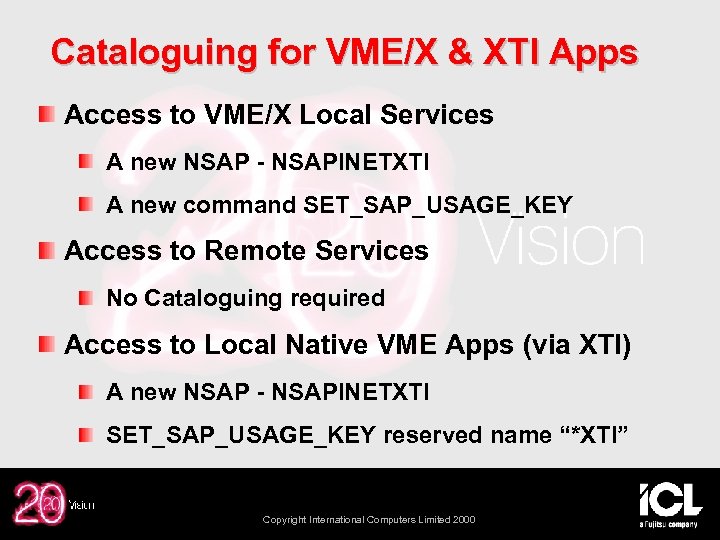

Cataloguing for VME/X & XTI Apps Access to VME/X Local Services A new NSAP - NSAPINETXTI A new command SET_SAP_USAGE_KEY Access to Remote Services No Cataloguing required Access to Local Native VME Apps (via XTI) A new NSAP - NSAPINETXTI SET_SAP_USAGE_KEY reserved name “*XTI” Copyright International Computers Limited 2000
Hardware Addresses & IP Routers (Gateways) IP routers for remote systems or hosts VME internal routing table SET_IP_ROUTE DISPLAY_IP_ROUTE Multiple or single default gateways Hardware Addresses of Remote Systems ARP normally responsible SET_ARP_ADDRESS Static mapping of IP and Ethernet address DISPLAY_ARP_ADDRESS Copyright International Computers Limited 2000

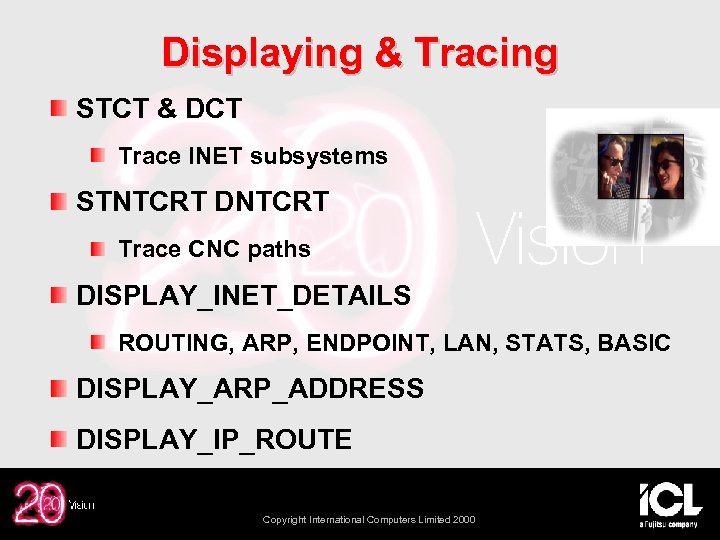

Displaying & Tracing STCT & DCT Trace INET subsystems STNTCRT DNTCRT Trace CNC paths DISPLAY_INET_DETAILS ROUTING, ARP, ENDPOINT, LAN, STATS, BASIC DISPLAY_ARP_ADDRESS DISPLAY_IP_ROUTE Copyright International Computers Limited 2000
Open. VME 4 - Disc, Tape and File limits Using Geometry Independent discs Partitions per volume increased (to 831) Maximum file size increased (to 32 GB) Tapes Volume descriptions No artificial limits Filestore Management System (FMS) Append facility Plex across categories Copyright International Computers Limited 2000
Open. VME 4 – The € EBCDIC value hex 45 / ISO A 4 replaces International Currency Symbol COBOL CURRENCY SIGN IS € Store and Transmit via VME Comms Client 2000 (NOT Cross Range ) May have to change DISAP descriptions to 8 bit ISO Printing – dependent on printer and gateway Copyright International Computers Limited 2000

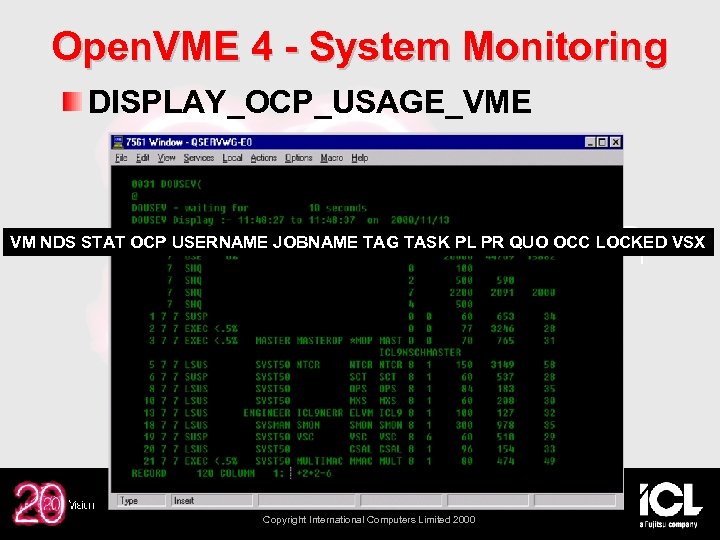

Open. VME 4 - System Monitoring DISPLAY_OCP_USAGE_VME VM NDS STAT OCP USERNAME JOBNAME TAG TASK PL PR QUO OCC LOCKED VSX Copyright International Computers Limited 2000
Other activities VME Message Queuing Open. DTS Windows 2000 Others? Java Gateway - in progress Further integration with CA-Unicenter Copyright International Computers Limited 2000
Open. VME Release 5 Copyright International Computers Limited 2000

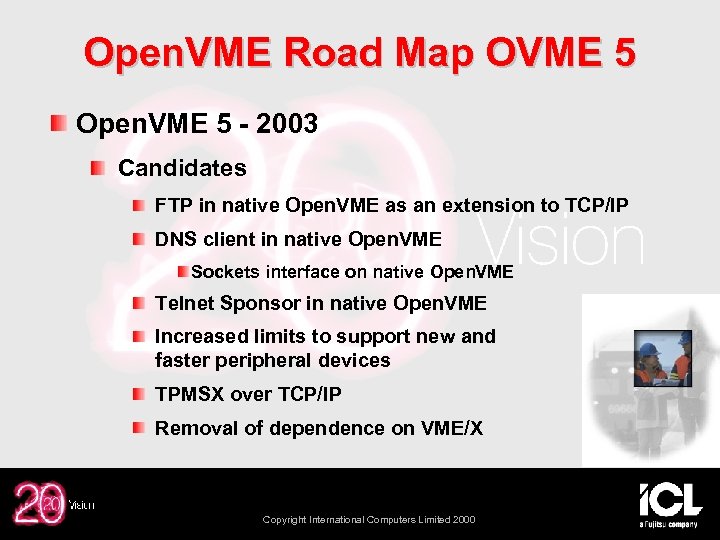

Open. VME Road Map OVME 5 Open. VME 5 - 2003 Candidates FTP in native Open. VME as an extension to TCP/IP DNS client in native Open. VME Sockets interface on native Open. VME Telnet Sponsor in native Open. VME Increased limits to support new and faster peripheral devices TPMSX over TCP/IP Removal of dependence on VME/X Copyright International Computers Limited 2000
Open. VME Upgrades Copyright International Computers Limited 2000

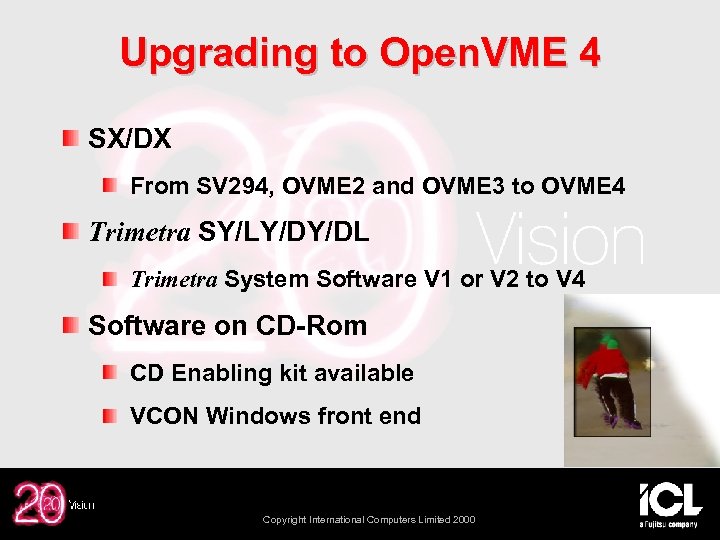

Upgrading to Open. VME 4 SX/DX From SV 294, OVME 2 and OVME 3 to OVME 4 Trimetra SY/LY/DY/DL Trimetra System Software V 1 or V 2 to V 4 Software on CD-Rom CD Enabling kit available VCON Windows front end Copyright International Computers Limited 2000

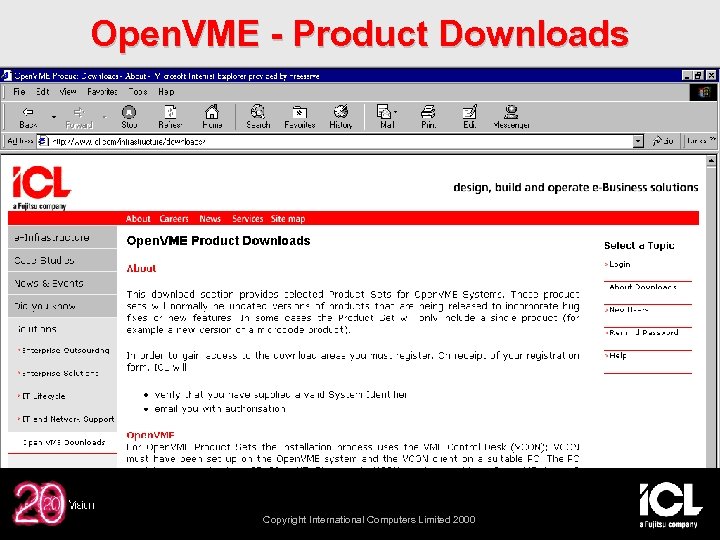

Open. VME - Product Downloads Copyright International Computers Limited 2000

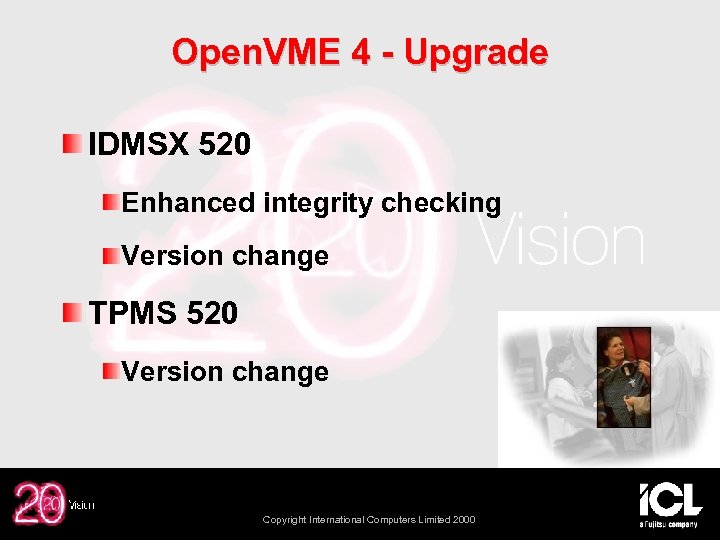

Open. VME 4 - Upgrade IDMSX 520 Enhanced integrity checking Version change TPMS 520 Version change Copyright International Computers Limited 2000
Open. VME Superstructure Copyright International Computers Limited 2000

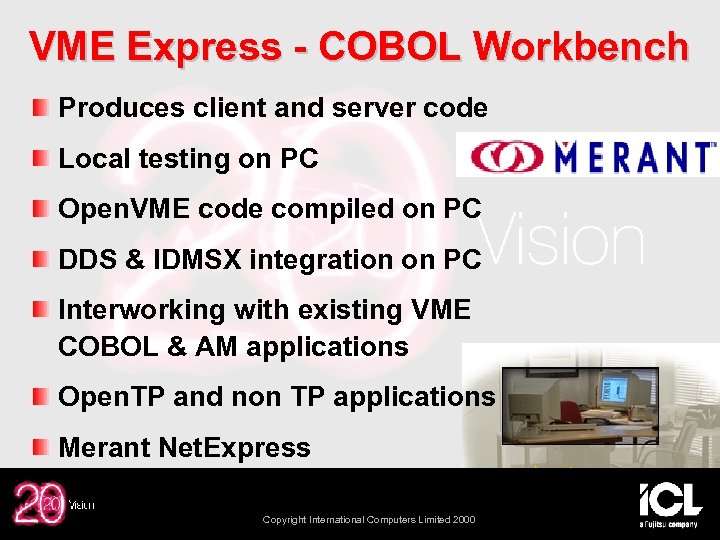

VME Express - COBOL Workbench Produces client and server code Local testing on PC Open. VME code compiled on PC DDS & IDMSX integration on PC Interworking with existing VME COBOL & AM applications Open. TP and non TP applications Merant Net. Express Copyright International Computers Limited 2000

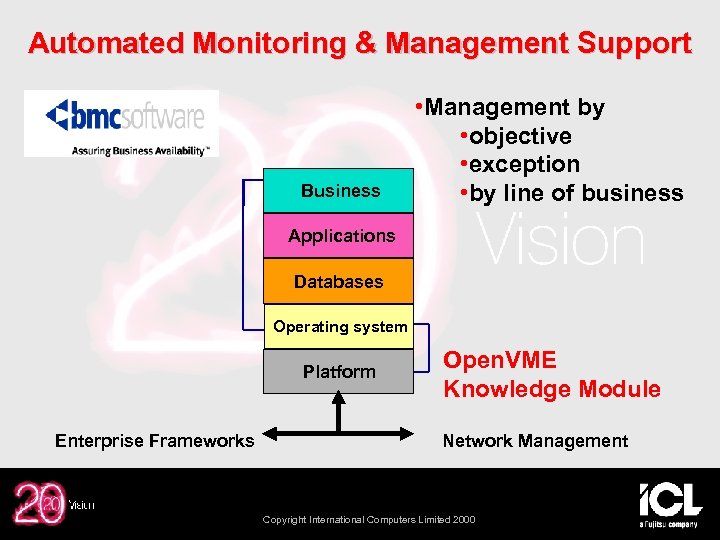

Automated Monitoring & Management Support Business • Management by • objective • exception • by line of business Applications Databases Operating system Platform Enterprise Frameworks Open. VME Knowledge Module Network Management Copyright International Computers Limited 2000

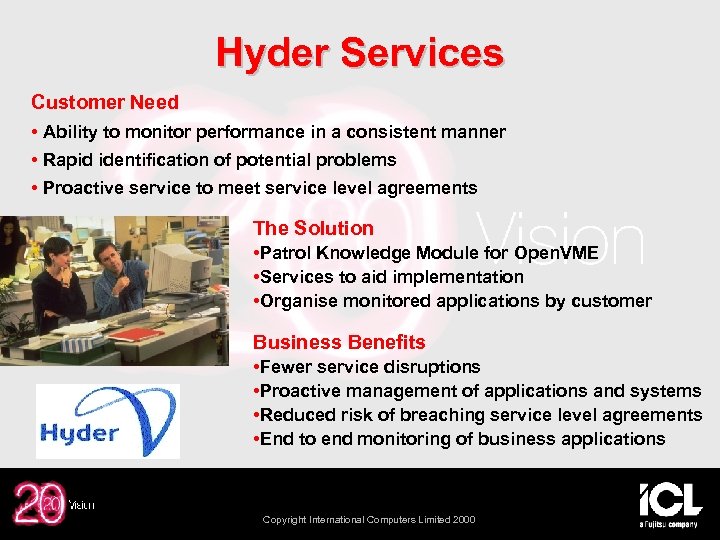

Hyder Services Customer Need • Ability to monitor performance in a consistent manner • Rapid identification of potential problems • Proactive service to meet service level agreements The Solution • Patrol Knowledge Module for Open. VME • Services to aid implementation • Organise monitored applications by customer Business Benefits • Fewer service disruptions • Proactive management of applications and systems • Reduced risk of breaching service level agreements • End to end monitoring of business applications Copyright International Computers Limited 2000
Open. VME New Peripherals Copyright International Computers Limited 2000

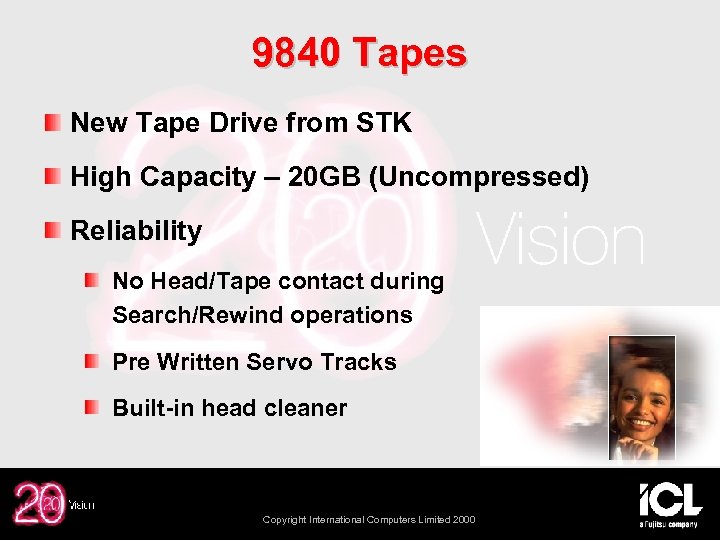

9840 Tapes New Tape Drive from STK High Capacity – 20 GB (Uncompressed) Reliability No Head/Tape contact during Search/Rewind operations Pre Written Servo Tracks Built-in head cleaner Copyright International Computers Limited 2000

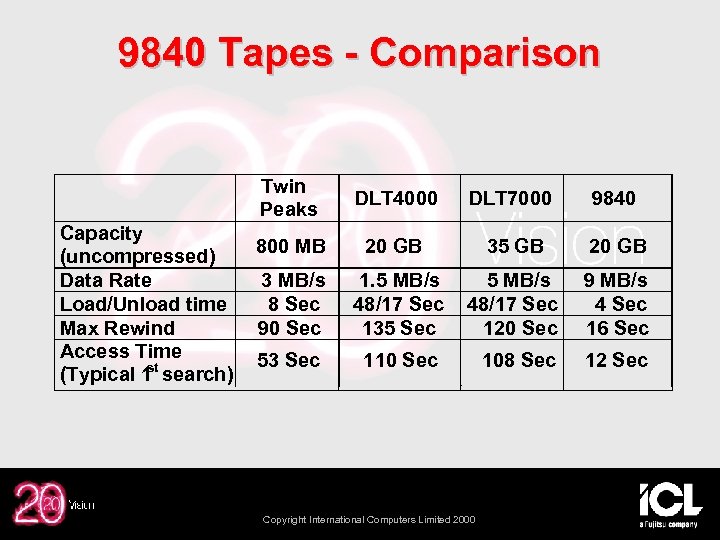

9840 Tapes - Comparison Twin Peaks Capacity (uncompressed) Data Rate Load/Unload time Max Rewind Access Time st (Typical 1 search) DLT 4000 DLT 7000 9840 800 MB 20 GB 35 GB 20 GB 3 MB/s 8 Sec 90 Sec 1. 5 MB/s 48/17 Sec 135 Sec 5 MB/s 48/17 Sec 120 Sec 9 MB/s 4 Sec 16 Sec 53 Sec 110 Sec 108 Sec 12 Sec Copyright International Computers Limited 2000

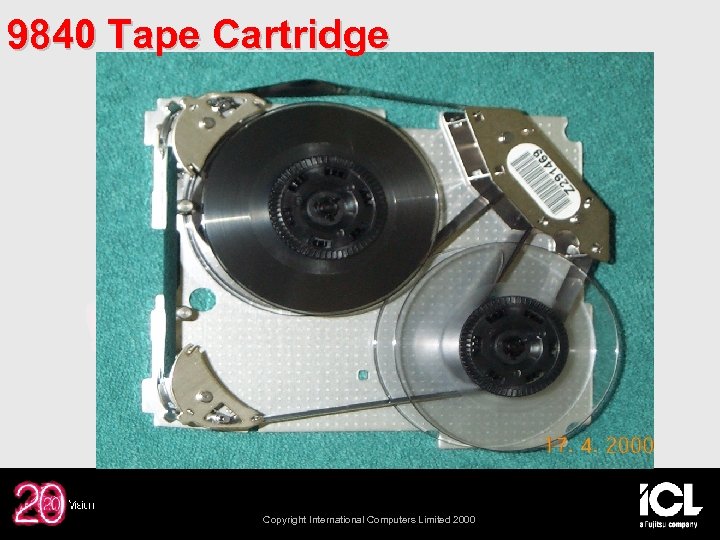

9840 Tape Cartridge Copyright International Computers Limited 2000

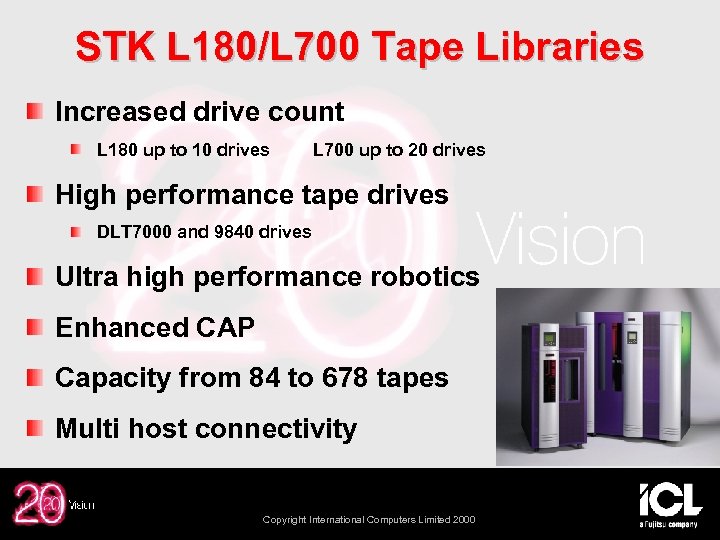

STK L 180/L 700 Tape Libraries Increased drive count L 180 up to 10 drives L 700 up to 20 drives High performance tape drives DLT 7000 and 9840 drives Ultra high performance robotics Enhanced CAP Capacity from 84 to 678 tapes Multi host connectivity Copyright International Computers Limited 2000
CLARii. ON Disc System Introduced with DL and Xtra. Server Disc Enclosure(DPE) 2 Storage Processors(SP) + 10 discs Disc Array(DAE) 10 discs Copyright International Computers Limited 2000
CLARii. ON Disc System SP - Resilient Pair - FC-AL front and back 2 Port mini hub and 512 MB Cache OVS CLARii. ON FC-AL PCI Cards SP 0 UNS SP 1 FC-AL PCI Cards Mini Hub 10, 000 RPM RAID Levels 0 1 3 Copyright International Computers Limited 2000 5 1/0

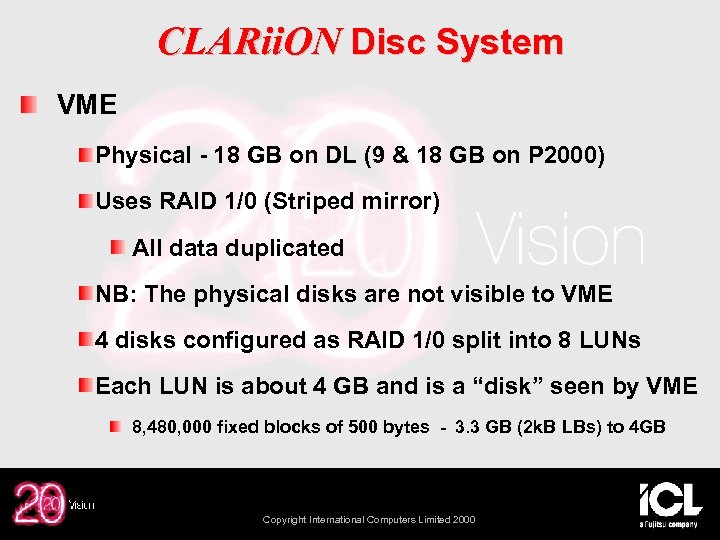

CLARii. ON Disc System VME Physical - 18 GB on DL (9 & 18 GB on P 2000) Uses RAID 1/0 (Striped mirror) All data duplicated NB: The physical disks are not visible to VME 4 disks configured as RAID 1/0 split into 8 LUNs Each LUN is about 4 GB and is a “disk” seen by VME 8, 480, 000 fixed blocks of 500 bytes - 3. 3 GB (2 k. B LBs) to 4 GB Copyright International Computers Limited 2000

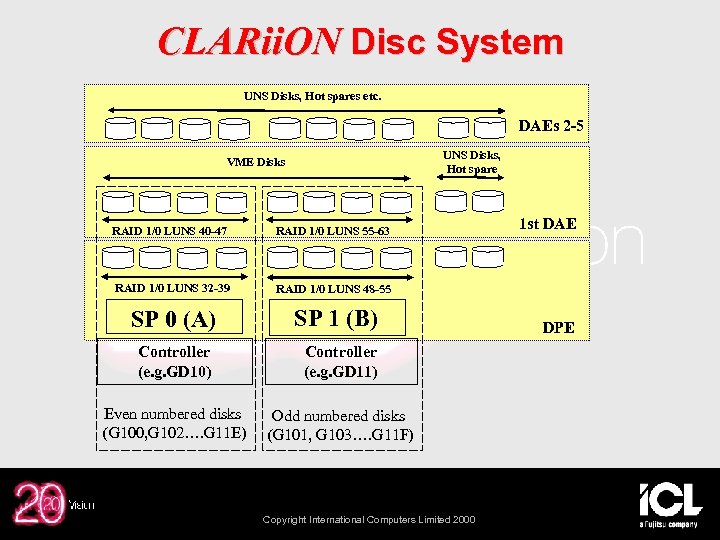

CLARii. ON Disc System UNS Disks, Hot spares etc. DAEs 2 -5 UNS Disks, Hot spare VME Disks RAID 1/0 LUNS 40 -47 RAID 1/0 LUNS 55 -63 RAID 1/0 LUNS 32 -39 RAID 1/0 LUNS 48 -55 SP 0 (A) SP 1 (B) Controller (e. g. GD 10) Controller (e. g. GD 11) Even numbered disks (G 100, G 102…. G 11 E) Odd numbered disks (G 101, G 103…. G 11 F) 1 st DAE Copyright International Computers Limited 2000 DPE

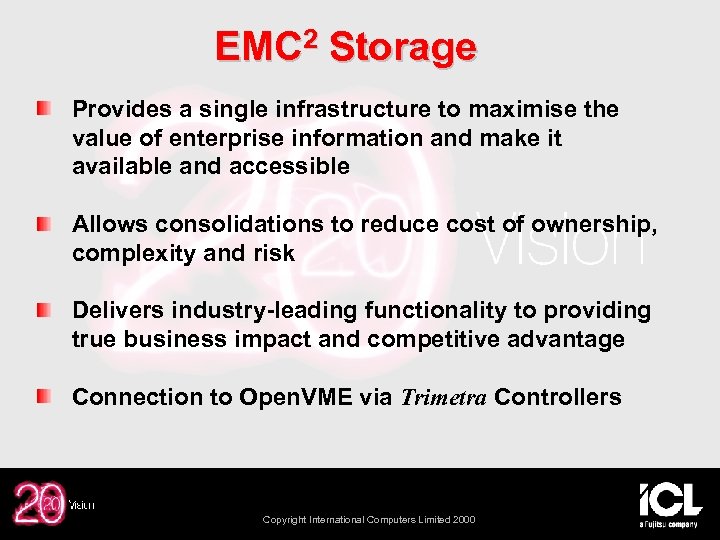

EMC 2 Storage Provides a single infrastructure to maximise the value of enterprise information and make it available and accessible Allows consolidations to reduce cost of ownership, complexity and risk Delivers industry-leading functionality to providing true business impact and competitive advantage Connection to Open. VME via Trimetra Controllers Copyright International Computers Limited 2000
EMC 2 Symmetrix Disc Storage Symmetrix 8430 Up to 6 FC, SCSI or ESCON Channel Directors Up to 96 3. 5” Disks (18/36/72) Supports up to 6. 9 TB raw capacity Up to 32 GB of internal memory Symmetrix 8730 Up to 8 FC, SCSI or ESCON Channel Directors Up to 384 3. 5” Disks (18/50/72) Supports up to 28 TB raw capacity Up to 32 GB of internal memory Copyright International Computers Limited 2000

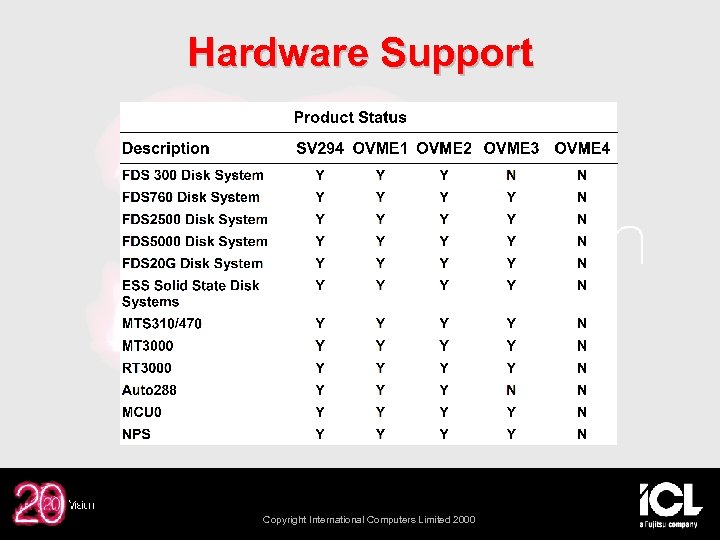

Hardware Support Copyright International Computers Limited 2000
? Any Questions? Copyright International Computers Limited 2000
30 th November 2000 Technical Briefing Copyright International Computers Limited 2000
