24 -Port Gigabit 802. 3 at Po. E Managed Stackable Switch SGSW-24040 HP

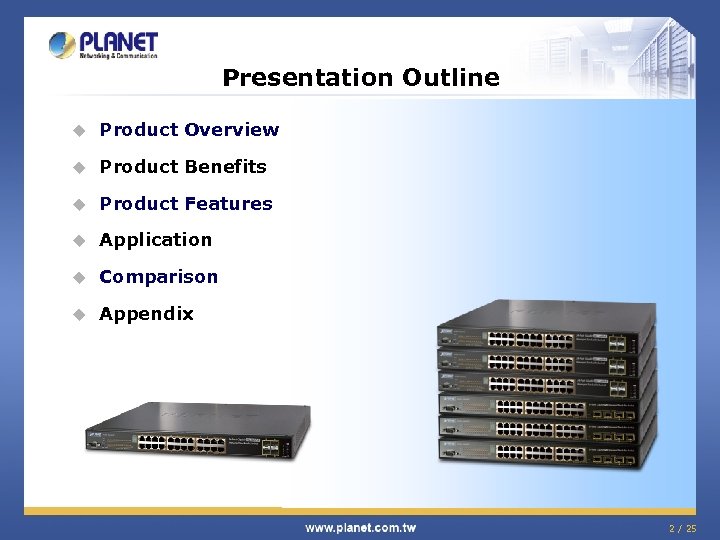

Presentation Outline u Product Overview u Product Benefits u Product Features u Application u Comparison u Appendix 2 / 25
Product Overview – High Power PLANET 802. 3 at Po. E+ / High Power Solution Gigabit u HPOE-2400 G SGSW-24040 HP HPOE-1200 G Fast Ethernet POE-161 WGSW-2620 HP FGSD-1022 HP Po. E Injector Hub Po. E Switch
Product Overview – SGSW Family u PLANET SGSW Series Stackable Switch Family SGSW-24040 R 2008 October SGSW-24240 R 2009 SGSW-24040 HP June May August 2010 2011 All series IPv 6 Upgrade SGSW-24040 P 4 April

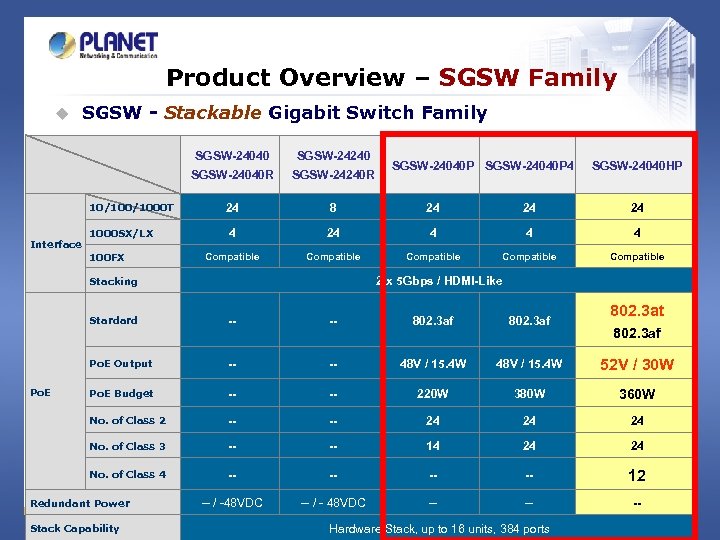

Product Overview – SGSW Family u SGSW - Stackable Gigabit Switch Family SGSW-24040 R 10/1000 T Interface 1000 SX/LX 100 FX SGSW-24240 R 24 8 24 24 24 4 4 4 Compatible Compatible SGSW-24040 P 4 SGSW-24040 HP 2 x 5 Gbps / HDMI-Like Stacking 802. 3 at Stardard -- 802. 3 af Po. E Output -- -- 48 V / 15. 4 W 52 V / 30 W Po. E Budget -- -- 220 W 380 W 360 W No. of Class 2 -- -- 24 24 24 No. of Class 3 -- -- 14 24 24 No. of Class 4 Po. E -- -- -- 12 -- / -48 VDC -- / - 48 VDC -- -- -- Redundant Power Stack Capability Hardware Stack, up to 16 units, 384 ports 802. 3 af

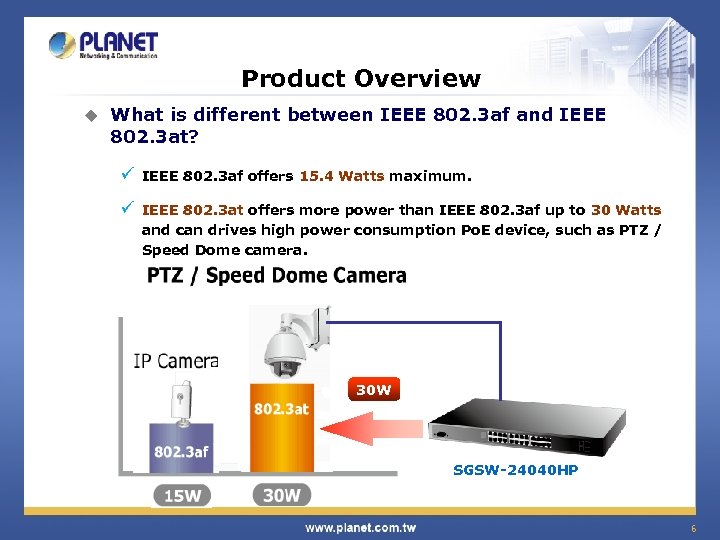

Product Overview u What is different between IEEE 802. 3 af and IEEE 802. 3 at? ü IEEE 802. 3 af offers 15. 4 Watts maximum. ü IEEE 802. 3 at offers more power than IEEE 802. 3 af up to 30 Watts and can drives high power consumption Po. E device, such as PTZ / Speed Dome camera. 30 W SGSW-24040 HP 6

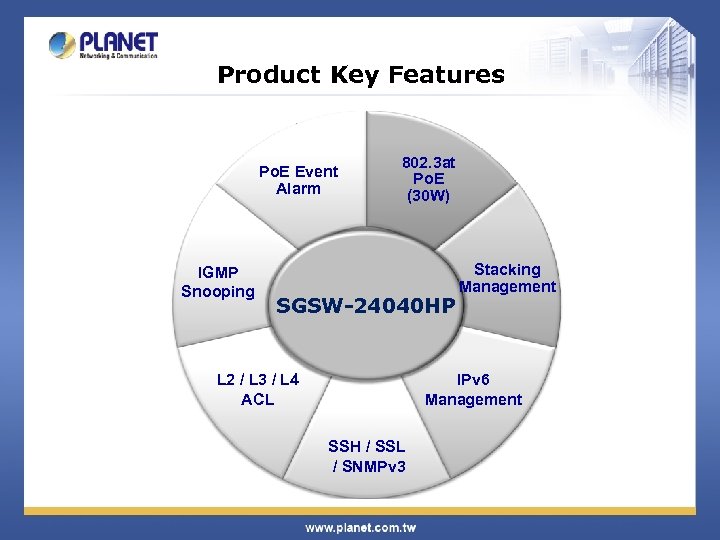

Product Key Features Po. E Event Alarm IGMP Snooping 802. 3 at Po. E (30 W) SGSW-24040 HP L 2 / L 3 / L 4 ACL Stacking Management IPv 6 Management SSH / SSL / SNMPv 3
Product Overview u Front Panel of SGSW-24040 HP ü 24 -Port 10/1000 Base-T RJ-45 • IEEE 802. 3 af / 802. 3 at Power over Ethernet End-Span injector ü 4 for 3. 3 VDC mini GBIC/SFP slots • Dual Speed, auto-detection • 100 Base-FX / 1000 Base-X compatible ü RS-232 console Interface ü One Reset button ü One 7 -segment display LED RS-232 Console Reset Button Master LED 100/1000 Base-SX/LX SFP slot Switch ID LED 24 x 10/1000 Base-T, RJ-45 802. 3 af Po. E Compliant Alert LED: -FAN -Po. E Power 8
Product Overview u Rear Panel of SGSW-24040 HP ü ü 2 dedicated HDMI Stacking Ports / 5 Gbps bandwidth 100~240 V AC, universal Power Supply One Power Switch 3 fans 2 x Stacking Ports Power Connector 3 x silent fans Power Switch 9
Product Benefits u 30 W IEEE 802. 3 at Po. E support u Total 360 W Po. E budget u Layer 2 / Layer 4 Managed Stackable / Gigabit Switch u IPv 6 Management u SSH / SSL Secure Management u Single IP management ü u Integrate Security and Qo. S for Po. E PD operating: ü ü u Up to 384 Gigabit PDs can be managed via one IP address Qo. S function ensure Po. E IP Phone’s quality of conversation ACL (Access Control List) protect monitoring security and accessing of Po. E IP Camera Prevent IP Cam be invaded by hacker MAC-Based Authentication helps Po. E Wireless AP to handle user login Po. E Power management ü Po. E Port power limit / Total limit to ensure stable system operating ü Monitor power usage, current usage, power consumption on Powered Devices

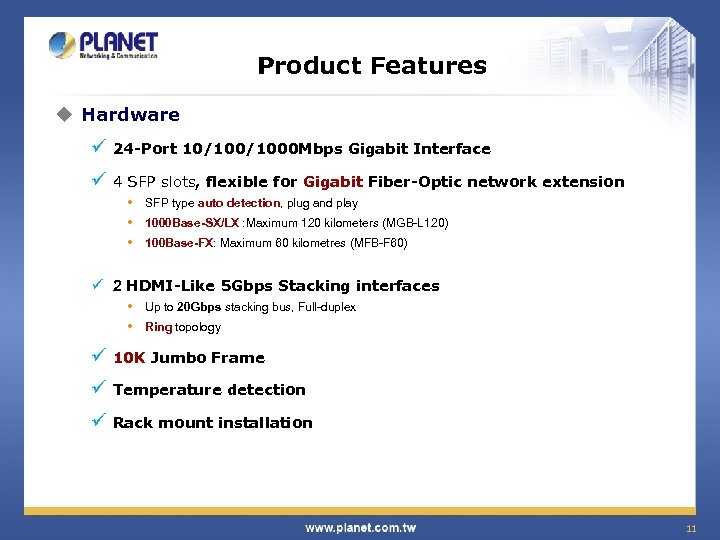

Product Features u Hardware ü 24 -Port 10/1000 Mbps Gigabit Interface ü 4 SFP slots, flexible for Gigabit Fiber-Optic network extension ● SFP type auto detection, plug and play ● 1000 Base-SX/LX : Maximum 120 kilometers (MGB-L 120) ● 100 Base-FX: Maximum 60 kilometres (MFB-F 60) ü 2 HDMI-Like 5 Gbps Stacking interfaces ● Up to 20 Gbps stacking bus, Full-duplex ● Ring topology ü 10 K Jumbo Frame ü Temperature detection ü Rack mount installation 11

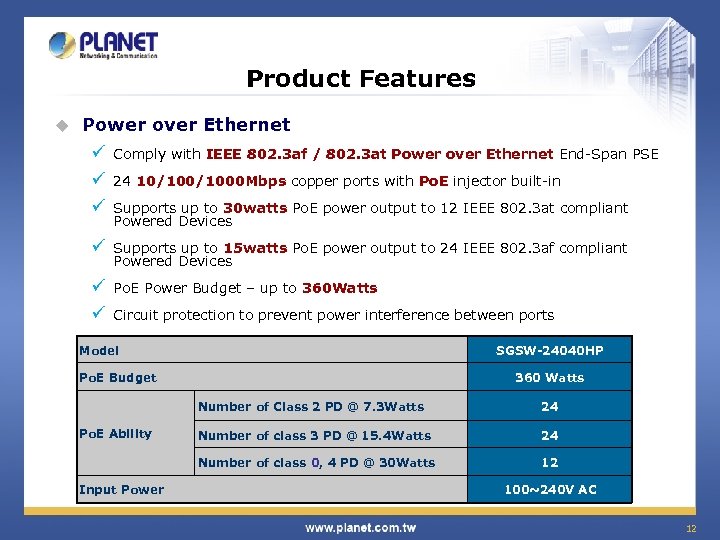

Product Features u Power over Ethernet ü ü ü Comply with IEEE 802. 3 af / 802. 3 at Power over Ethernet End-Span PSE ü Supports up to 15 watts Po. E power output to 24 IEEE 802. 3 af compliant Powered Devices ü ü Po. E Power Budget – up to 360 Watts 24 10/1000 Mbps copper ports with Po. E injector built-in Supports up to 30 watts Po. E power output to 12 IEEE 802. 3 at compliant Powered Devices Circuit protection to prevent power interference between ports Model SGSW-24040 HP Po. E Budget 360 Watts Number of Class 2 PD @ 7. 3 Watts Input Power Number of class 3 PD @ 15. 4 Watts 24 Number of class 0, 4 PD @ 30 Watts Po. E Ability 24 12 100~240 V AC 12

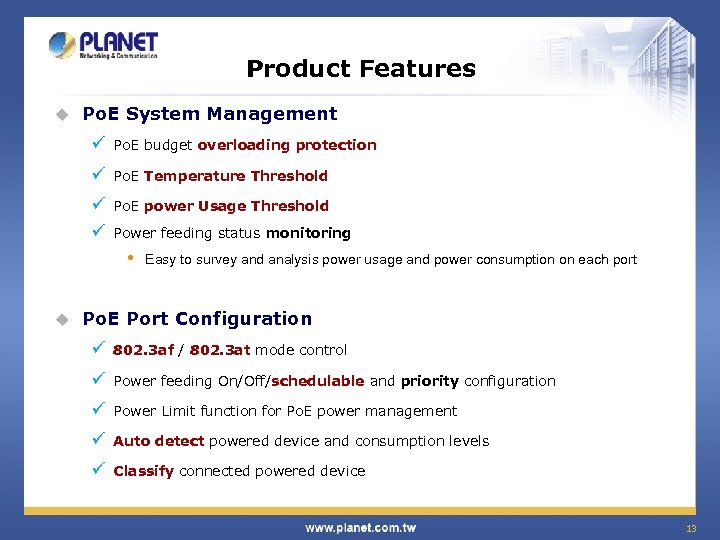

Product Features u Po. E System Management ü Po. E budget overloading protection ü Po. E Temperature Threshold ü ü Po. E power Usage Threshold Power feeding status monitoring • u Easy to survey and analysis power usage and power consumption on each port Po. E Port Configuration ü 802. 3 af / 802. 3 at mode control ü Power feeding On/Off/schedulable and priority configuration ü Power Limit function for Po. E power management ü Auto detect powered device and consumption levels ü Classify connected powered device 13

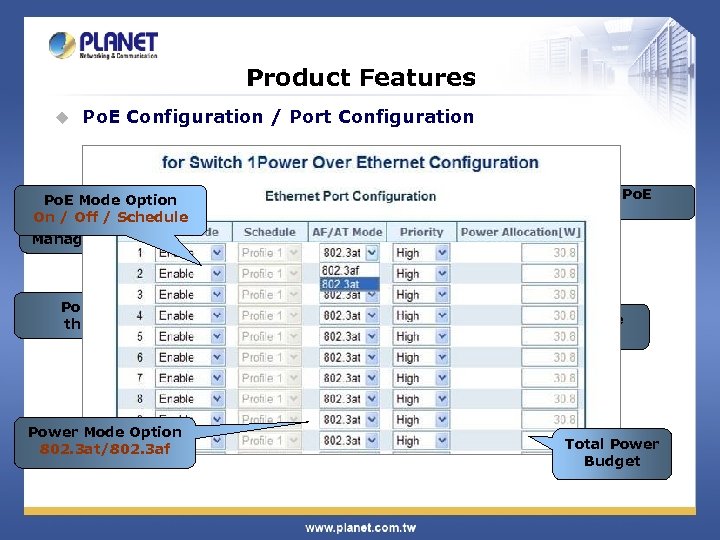

Product Features u Po. E Configuration / Port Configuration Po. E Mode Option On / Off / Schedule Power Turn on / off Po. E Function Management Mode Po. E Usage threshold Power Mode Option 802. 3 at/802. 3 af Temperature Threshold Total Power Budget

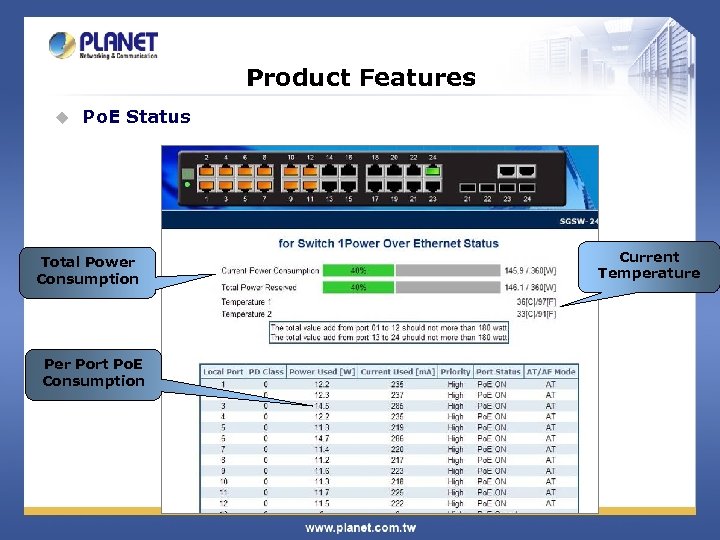

Product Features u Po. E Status Total Power Consumption Per Port Po. E Consumption Current Temperature

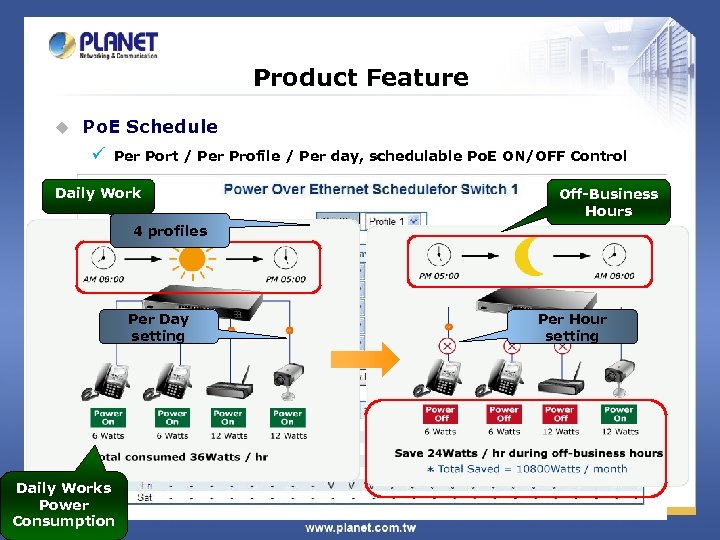

Product Feature u Po. E Schedule ü Per Port / Per Profile / Per day, schedulable Po. E ON/OFF Control Daily Work Off-Business Hours 4 profiles Per Day setting Daily Works Power Consumption Per Hour setting

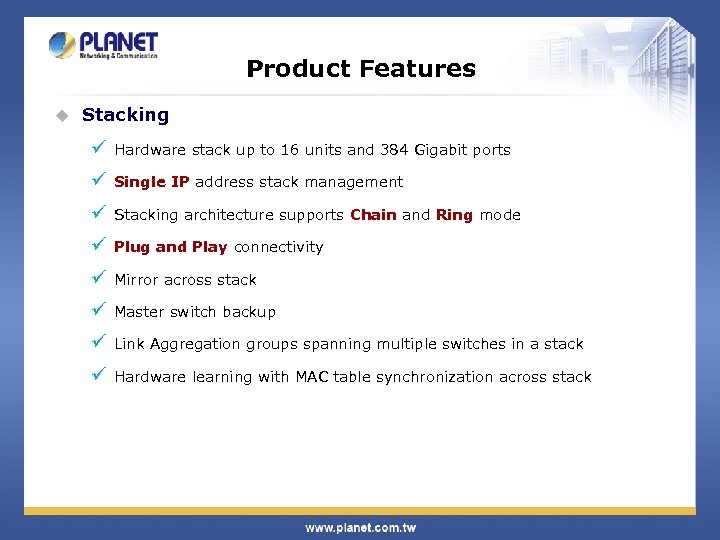

Product Features u Stacking ü Hardware stack up to 16 units and 384 Gigabit ports ü Single IP address stack management ü Stacking architecture supports Chain and Ring mode ü Plug and Play connectivity ü Mirror across stack ü Master switch backup ü Link Aggregation groups spanning multiple switches in a stack ü Hardware learning with MAC table synchronization across stack

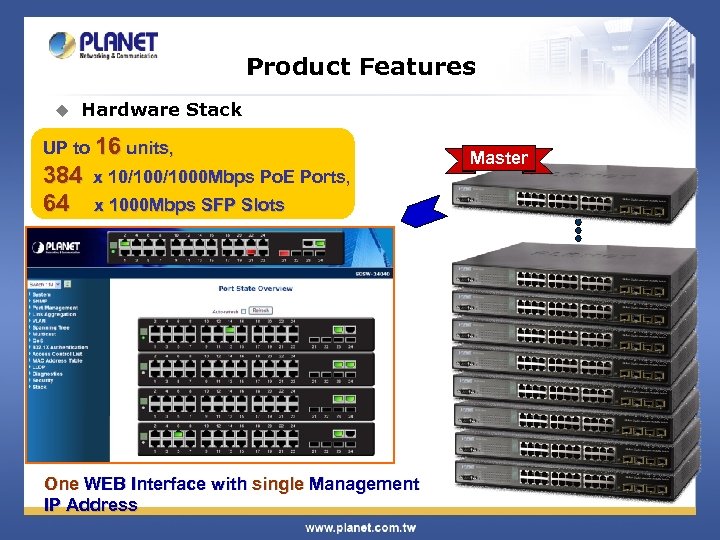

Product Features u Hardware Stack UP to 16 units, 384 64 x 10/1000 Mbps Po. E Ports, x 1000 Mbps SFP Slots One WEB Interface with single Management IP Address Master
Product Features u High Scalability ü To meet the various networking requirements and simplify the network deployment SGSW-24040 P SGSW-24040 HP Data + Power One large Switch
Product Features u Hardware Stack – Chain / Ring Topology

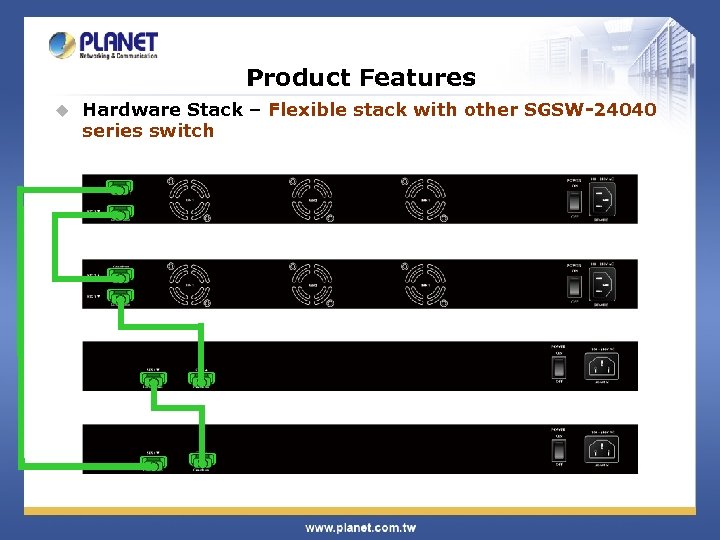

Product Features u Hardware Stack – Flexible stack with other SGSW-24040 series switch

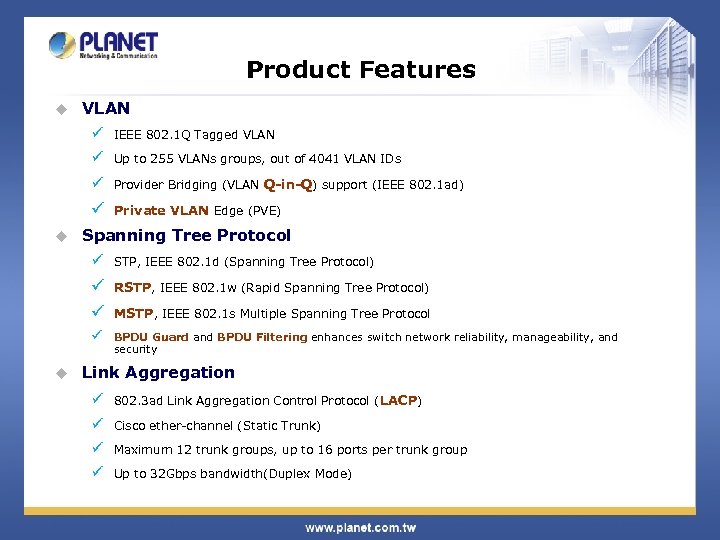

Product Features u VLAN ü ü Up to 255 VLANs groups, out of 4041 VLAN IDs ü Provider Bridging (VLAN Q-in-Q) support (IEEE 802. 1 ad) ü u IEEE 802. 1 Q Tagged VLAN Private VLAN Edge (PVE) Spanning Tree Protocol ü ü RSTP, IEEE 802. 1 w (Rapid Spanning Tree Protocol) ü MSTP, IEEE 802. 1 s Multiple Spanning Tree Protocol ü u STP, IEEE 802. 1 d (Spanning Tree Protocol) BPDU Guard and BPDU Filtering enhances switch network reliability, manageability, and security Link Aggregation ü 802. 3 ad Link Aggregation Control Protocol ( LACP) ü Cisco ether-channel (Static Trunk) ü Maximum 12 trunk groups, up to 16 ports per trunk group ü Up to 32 Gbps bandwidth(Duplex Mode)
Product Features u Quality of Service ü Traffic Classification by: • 802. 1 p Co. S • IP TOS / DSCP / Precedence of IPv 4 / IPv 6 packets • IP TCP/UDP port number ü ü u Ingress Shaper and Egress Rate Limit per port bandwidth control DSCP remarking Traffic-policing policies on the switch port Qo. S Control List Wizard makes Qo. S creation and configuration easier and more quickly Multicast ü Supports IGMP Snooping v 1, v 2 and v 3 ü Querier mode support ü IGMP Snooping filtering ü MVR ( Multicast VLAN Registration)

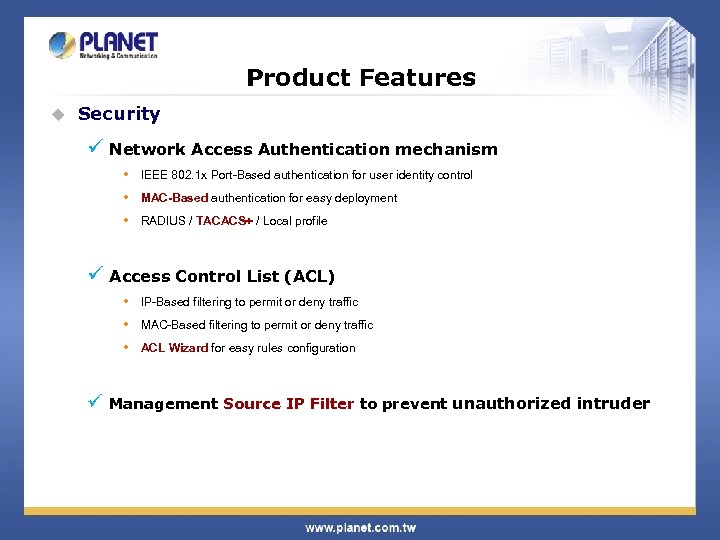

Product Features u Security ü Network Access Authentication mechanism • • • IEEE 802. 1 x Port-Based authentication for user identity control MAC-Based authentication for easy deployment RADIUS / TACACS+ / Local profile ü Access Control List (ACL) • • • ü IP-Based filtering to permit or deny traffic MAC-Based filtering to permit or deny traffic ACL Wizard for easy rules configuration Management Source IP Filter to prevent unauthorized intruder

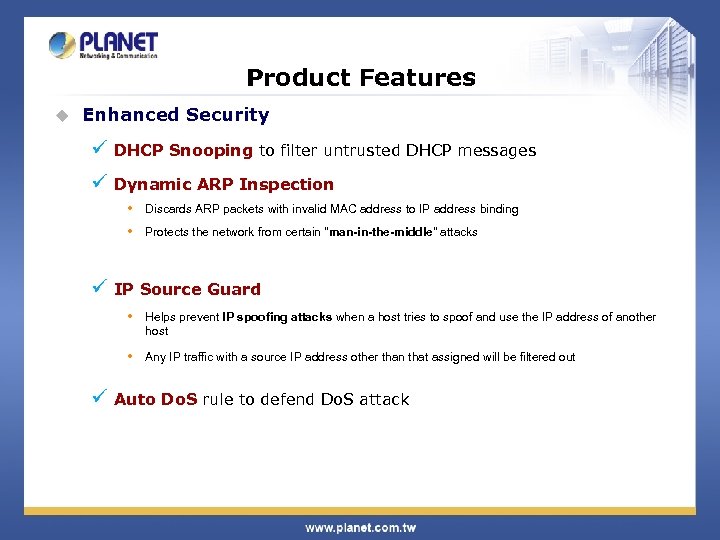

Product Features u Enhanced Security ü DHCP Snooping to filter untrusted DHCP messages ü Dynamic ARP Inspection • • Discards ARP packets with invalid MAC address to IP address binding Protects the network from certain "man-in-the-middle" attacks ü IP Source Guard • Helps prevent IP spoofing attacks when a host tries to spoof and use the IP address of another host • Any IP traffic with a source IP address other than that assigned will be filtered out ü Auto Do. S rule to defend Do. S attack

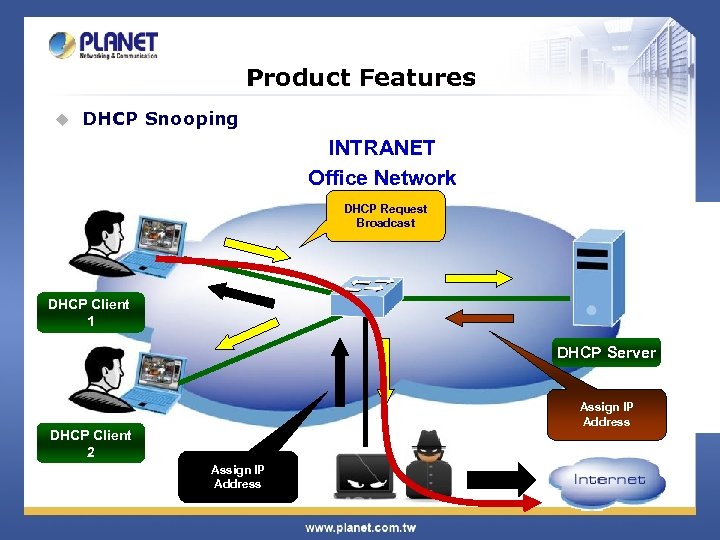

Product Features u DHCP Snooping INTRANET Office Network DHCP Request Broadcast DHCP Client 1 DHCP Server Assign IP Address DHCP Client 2 Assign IP Address

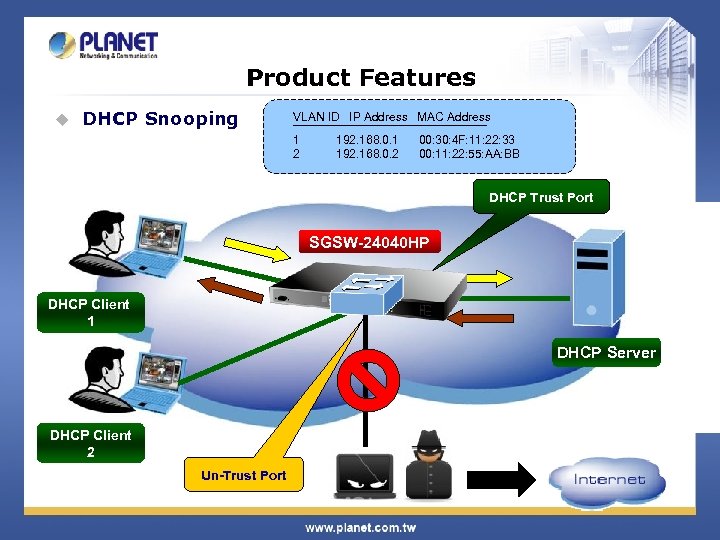

Product Features u DHCP Snooping VLAN ID IP Address MAC Address ------------------------1 192. 168. 0. 1 00: 30: 4 F: 11: 22: 33 2 192. 168. 0. 2 00: 11: 22: 55: AA: BB DHCP Trust Port SGSW-24040 HP DHCP Client 1 DHCP Server DHCP Client 2 Un-Trust Port

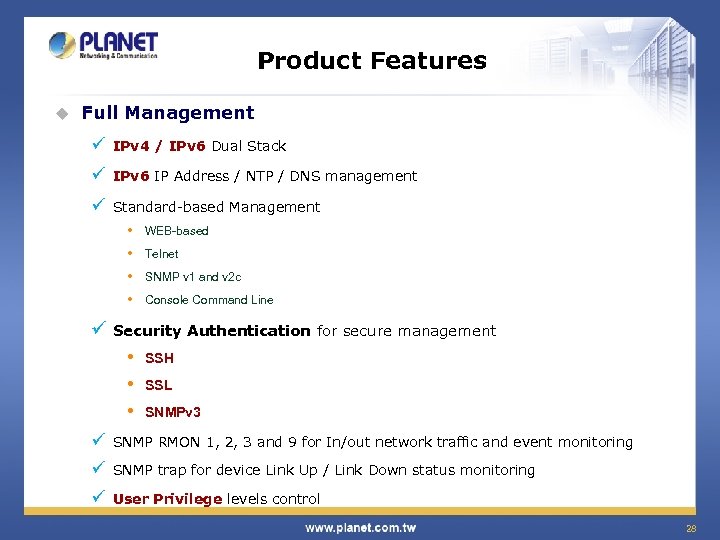

Product Features u Full Management ü IPv 4 / IPv 6 Dual Stack ü IPv 6 IP Address / NTP / DNS management ü Standard-based Management • • WEB-based Telnet SNMP v 1 and v 2 c Console Command Line ü Security Authentication for secure management • • • SSH SSL SNMPv 3 ü ü SNMP RMON 1, 2, 3 and 9 for In/out network traffic and event monitoring ü User Privilege levels control SNMP trap for device Link Up / Link Down status monitoring 28
Product Features u Management Tools ü Built-in Trivial File Transfer Protocol (TFTP) client ü DHCP for IP address assignment ü Firmware upload/download via HTTP / TFTP ü SNTP (Network Time Protocol) ü Link Layer Discovery Protocol (LLDP) Protocol ü Universal Plug and Play (u. Pn. P) ü Event Log and Alarm • • • Local System Log Remote Syslog SMTP / Email event alarm ü Cable diagnostic technology to detect and report potential cable issue ü Power Saving ability for Green networking ü PLANET Smart Discovery Utility for deploy management

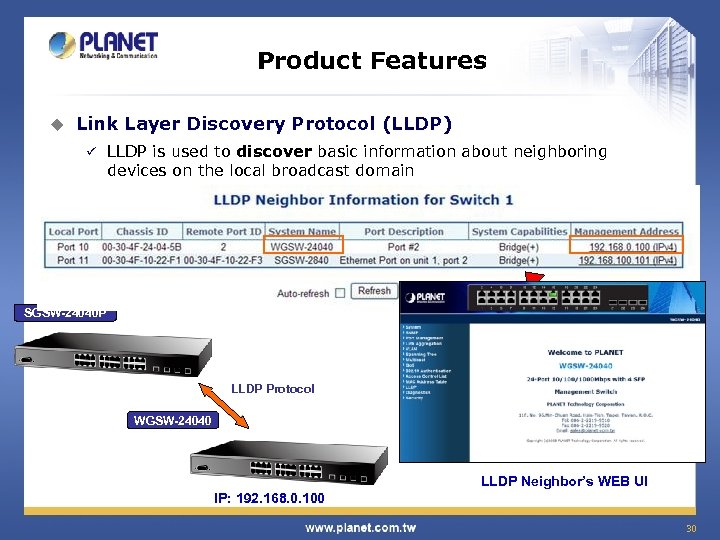

Product Features u Link Layer Discovery Protocol (LLDP) ü LLDP is used to discover basic information about neighboring devices on the local broadcast domain SGSW-24040 P LLDP Protocol WGSW-24040 LLDP Neighbor’s WEB UI IP: 192. 168. 0. 100 30

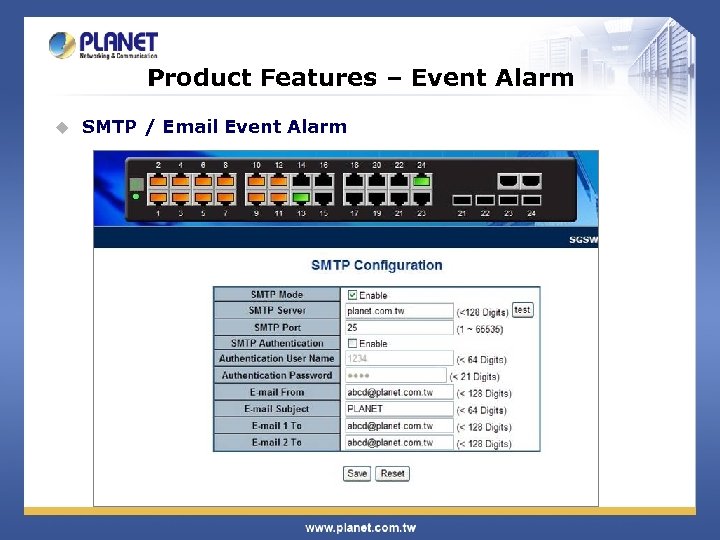

Product Features – Event Alarm u SMTP / Email Event Alarm

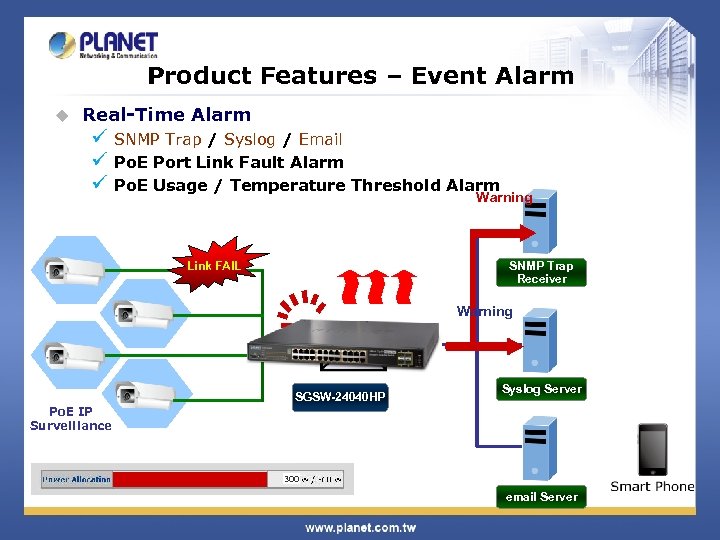

Product Features – Event Alarm u Real-Time Alarm ü SNMP Trap / Syslog / Email ü Po. E Port Link Fault Alarm ü Po. E Usage / Temperature Threshold Alarm Warning Link FAIL SNMP Trap Receiver Warning Po. E IP Surveillance SGSW-24040 HP Syslog Server 300 email Server
Application u Department / Workgroup High-power Po. E Switch ü Providing up to 24 -Port Gigabit High-power Po. E, in-line power interface, the SGSW-24040 HP High-Power Po. E Switch can easily build a centralcontrolled power network with wireless Gigabit AP, IP phone system, or Speed Dome IP Camera system group for the enterprises. ü For instance, 24 IP cameras and wireless APs can be easily installed around the corner in the company for surveillance demands or a wireless roaming environment in the office. ü Without the power-socket limitation, the stackable Po. E Switch makes the deployment of IP cameras or WLAN AP more easily and efficiently.

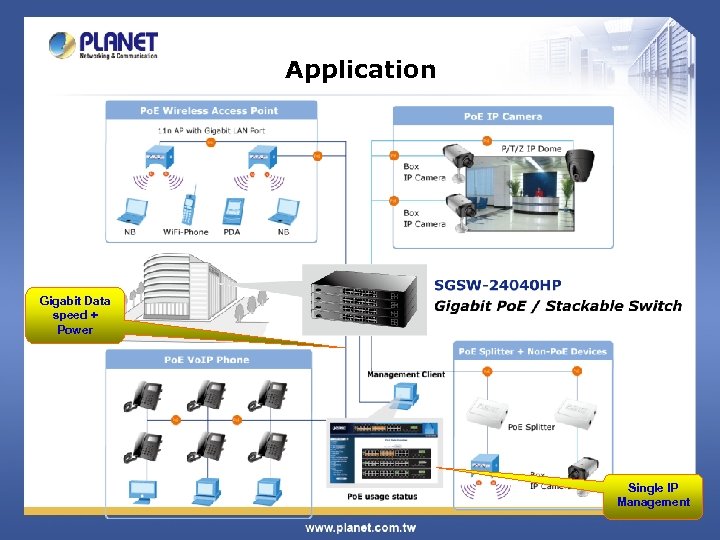

Application Gigabit Data speed + Power Single IP Management

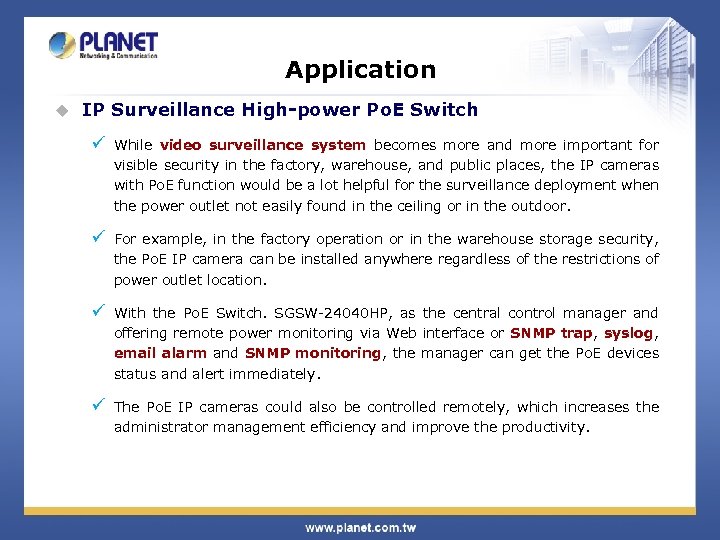

Application u IP Surveillance High-power Po. E Switch ü While video surveillance system becomes more and more important for visible security in the factory, warehouse, and public places, the IP cameras with Po. E function would be a lot helpful for the surveillance deployment when the power outlet not easily found in the ceiling or in the outdoor. ü For example, in the factory operation or in the warehouse storage security, the Po. E IP camera can be installed anywhere regardless of the restrictions of power outlet location. ü With the Po. E Switch. SGSW-24040 HP, as the central control manager and offering remote power monitoring via Web interface or SNMP trap, syslog, email alarm and SNMP monitoring, the manager can get the Po. E devices status and alert immediately. ü The Po. E IP cameras could also be controlled remotely, which increases the administrator management efficiency and improve the productivity.

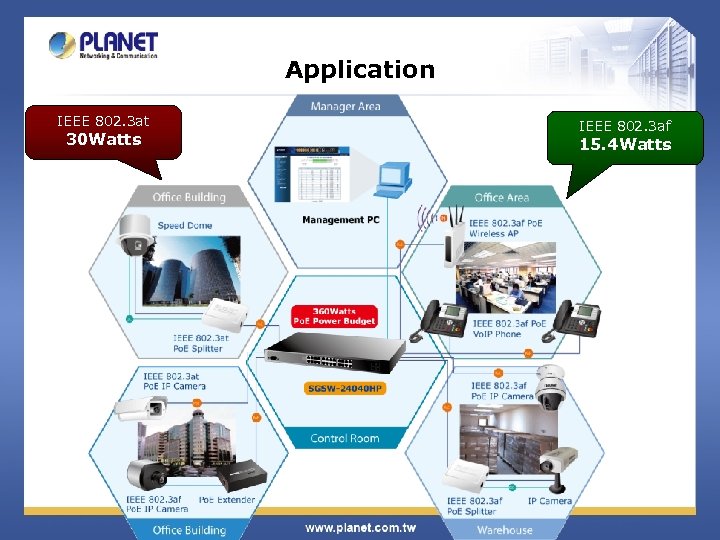

Application IEEE 802. 3 at 30 Watts IEEE 802. 3 af 15. 4 Watts
Application u High Performance, High-Density, High Reliable Po. E Switch for large scale of network ü The SGSW-24040 HP Gigabit Po. E Switch is ideally applicable for large scale of network deployment in the communities, Telecoms or campus. ü Up to 16 units, 384 high-density Gigabit Po. E ports can be managed by a stacking group with a single IP address. ü Dedicated stacking features built into SGSW-24040 HP switch makes all devices in the stack operate together as a one much larger switch providing multiple high performance Gigabit Ethernet network for backbone of enterprise or Telecoms. ü The Gigabit Po. E Switch also eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

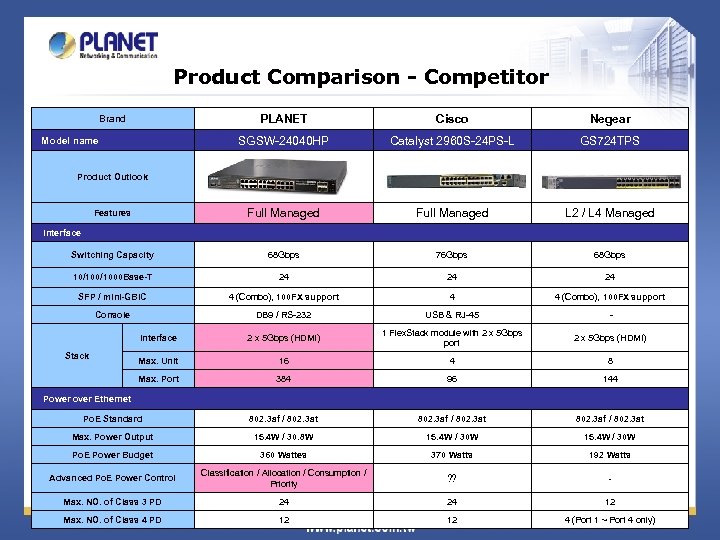

Product Comparison - Competitor PLANET Cisco Negear SGSW-24040 HP Catalyst 2960 S-24 PS-L GS 724 TPS Features Full Managed L 2 / L 4 Managed Switching Capacity 68 Gbps 76 Gbps 68 Gbps 10/1000 Base-T 24 24 24 SFP / mini-GBIC 4 (Combo), 100 FX support 4 4 (Combo), 100 FX support Console DB 9 / RS-232 USB & RJ-45 - Interface 2 x 5 Gbps (HDMI) 1 Flex. Stack module with 2 x 5 Gbps port 2 x 5 Gbps (HDMI) Max. Unit 16 4 8 Max. Port 384 96 144 Po. E Standard 802. 3 af / 802. 3 at Max. Power Output 15. 4 W / 30. 8 W 15. 4 W / 30 W Po. E Power Budget 360 Wattes 370 Watts 192 Watts Advanced Po. E Power Control Classification / Allocation / Consumption / Priority ? ? - Max. NO. of Class 3 PD 24 24 12 Max. NO. of Class 4 PD 12 12 4 (Port 1 ~ Port 4 only) Brand Model name Product Outlook Interface Stack Power over Ethernet

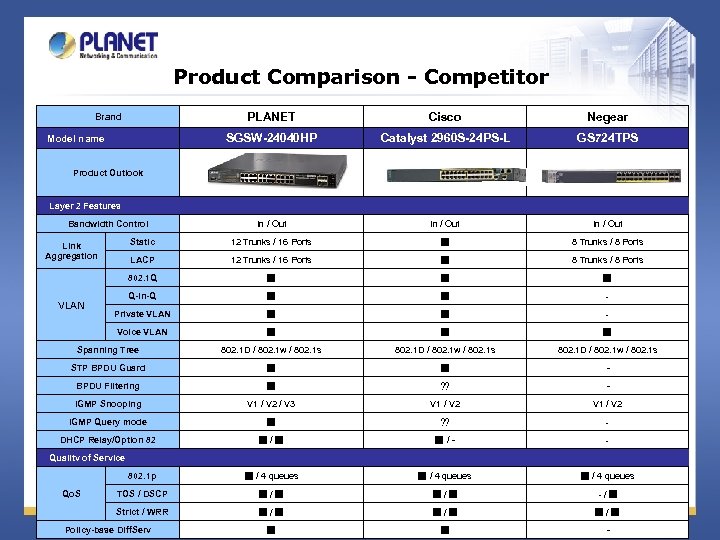

Product Comparison - Competitor PLANET Cisco Negear SGSW-24040 HP Catalyst 2960 S-24 PS-L GS 724 TPS In / Out Static 12 Trunks / 16 Ports ■ 8 Trunks / 8 Ports LACP 12 Trunks / 16 Ports ■ 8 Trunks / 8 Ports 802. 1 Q ■ ■ ■ Q-in-Q ■ ■ - Private VLAN ■ ■ - Voice VLAN ■ ■ ■ Spanning Tree 802. 1 D / 802. 1 w / 802. 1 s STP BPDU Guard ■ ■ - BPDU Filtering ■ ? ? - IGMP Snooping V 1 / V 2 / V 3 V 1 / V 2 IGMP Query mode ■ ? ? - DHCP Relay/Option 82 ■/■ ■/- - 802. 1 p ■ / 4 queues TOS / DSCP ■/■ -/■ Strict / WRR ■/■ ■/■ ■ ■ - Brand Model name Product Outlook Layer 2 Features Bandwidth Control Link Aggregation VLAN Qualitv of Service Qo. S Policy-base Diff. Serv

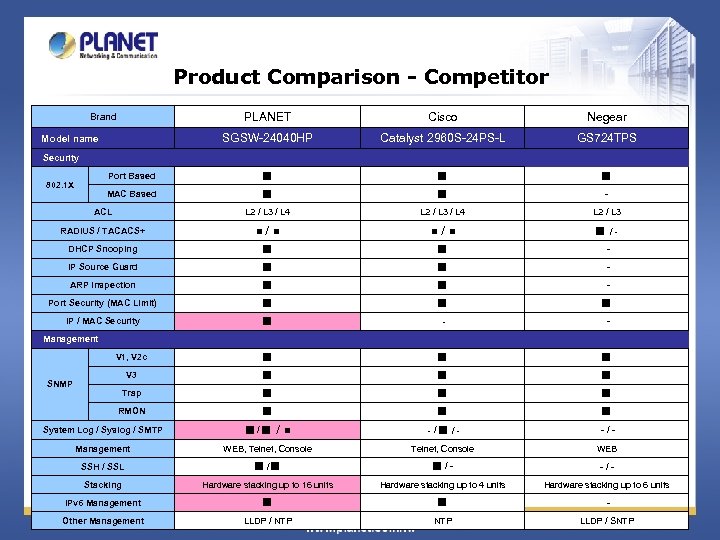

Product Comparison - Competitor PLANET Cisco Negear SGSW-24040 HP Catalyst 2960 S-24 PS-L GS 724 TPS Port Based ■ ■ ■ MAC Based ■ ■ - ACL L 2 / L 3 / L 4 L 2 / L 3 RADIUS / TACACS+ ■/■ ■ /- DHCP Snooping ■ ■ - IP Source Guard ■ ■ - ARP Inspection ■ ■ - Port Security (MAC Limit) ■ ■ ■ IP / MAC Security ■ - - V 1, V 2 c ■ ■ ■ V 3 ■ ■ ■ Trap ■ ■ ■ RMON ■ ■ ■ System Log / Syslog / SMTP ■/■ / ■ -/■ /- -/- Management WEB, Telnet, Console WEB SSH / SSL ■/■ ■/- -/- Stacking Hardware stacking up to 16 units Hardware stacking up to 4 units Hardware stacking up to 6 units IPv 6 Management ■ ■ - Other Management LLDP / NTP LLDP / SNTP Brand Model name Security 802. 1 X Management SNMP

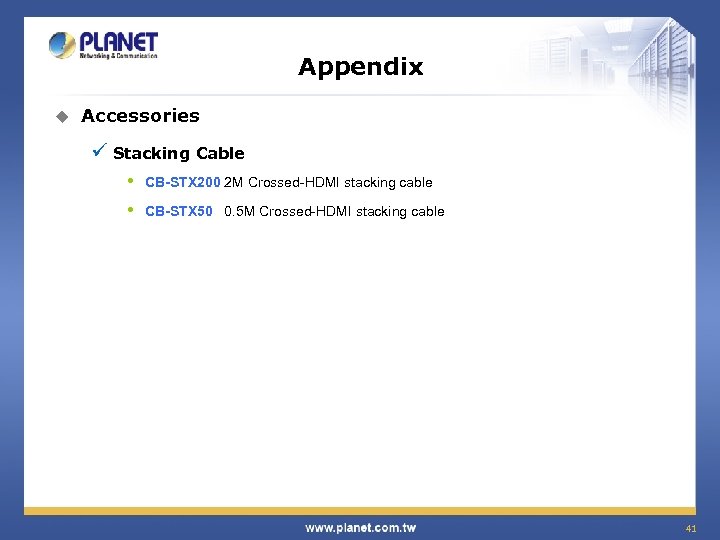

Appendix u Accessories ü Stacking Cable • CB-STX 200 2 M Crossed-HDMI stacking cable • CB-STX 50 0. 5 M Crossed-HDMI stacking cable 41

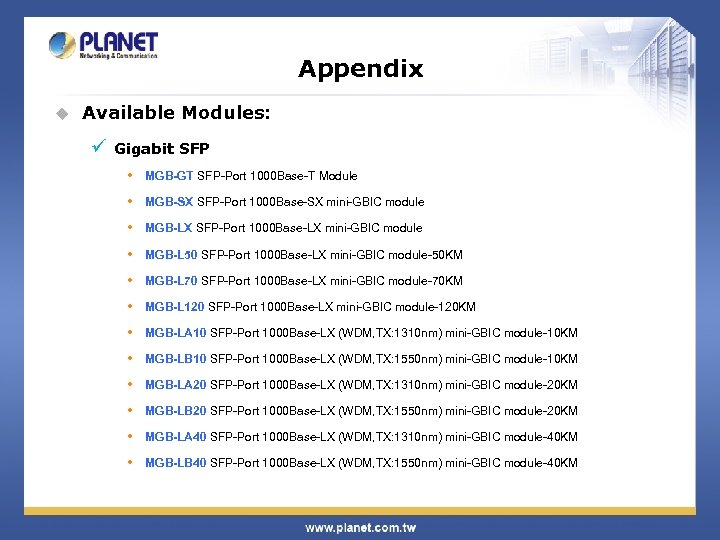

Appendix u Available Modules: ü Gigabit SFP • MGB-GT SFP-Port 1000 Base-T Module • MGB-SX SFP-Port 1000 Base-SX mini-GBIC module • MGB-LX SFP-Port 1000 Base-LX mini-GBIC module • MGB-L 50 SFP-Port 1000 Base-LX mini-GBIC module-50 KM • MGB-L 70 SFP-Port 1000 Base-LX mini-GBIC module-70 KM • MGB-L 120 SFP-Port 1000 Base-LX mini-GBIC module-120 KM • MGB-LA 10 SFP-Port 1000 Base-LX (WDM, TX: 1310 nm) mini-GBIC module-10 KM • MGB-LB 10 SFP-Port 1000 Base-LX (WDM, TX: 1550 nm) mini-GBIC module-10 KM • MGB-LA 20 SFP-Port 1000 Base-LX (WDM, TX: 1310 nm) mini-GBIC module-20 KM • MGB-LB 20 SFP-Port 1000 Base-LX (WDM, TX: 1550 nm) mini-GBIC module-20 KM • MGB-LA 40 SFP-Port 1000 Base-LX (WDM, TX: 1310 nm) mini-GBIC module-40 KM • MGB-LB 40 SFP-Port 1000 Base-LX (WDM, TX: 1550 nm) mini-GBIC module-40 KM

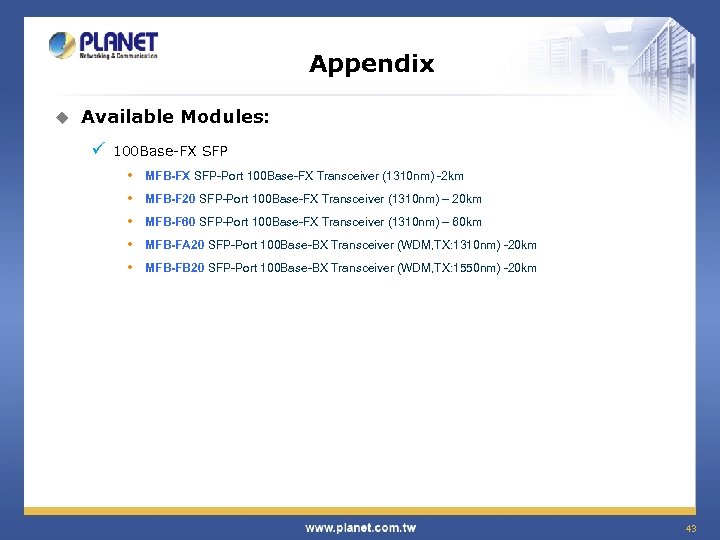

Appendix u Available Modules: ü 100 Base-FX SFP • • • MFB-FX SFP-Port 100 Base-FX Transceiver (1310 nm) -2 km MFB-F 20 SFP-Port 100 Base-FX Transceiver (1310 nm) – 20 km MFB-F 60 SFP-Port 100 Base-FX Transceiver (1310 nm) – 60 km MFB-FA 20 SFP-Port 100 Base-BX Transceiver (WDM, TX: 1310 nm) -20 km MFB-FB 20 SFP-Port 100 Base-BX Transceiver (WDM, TX: 1550 nm) -20 km 43
Appendix - Sales Target u Target Markets ü IP Surveillance integrator, Wireless Service Provider ü Enterprise / SMB Office / Government / Campus ü ISP / Telecom / Service Provider ü System Integrator u Target Customers ü Who buys 30 Watts High Power Injector / Splitter • ü Who buys 30 Watts High Power Switch / Injector Hub • • ü POE-161, POE-161 S FGSD-1022 HP, WGSW-2620 HP HPOE-1200 G, HPOE-2400 G Who buys 8/12/24 -Port Po. E Switch / injector Hub • • • FGSD-1022 P, FGSD-1022 HP, SGSD-1022 P FGSW-2612 PVM, FGSW-2620 VMP 4, SGSW-2840 P POE-2400 and POE-1200 series.
45 / 25

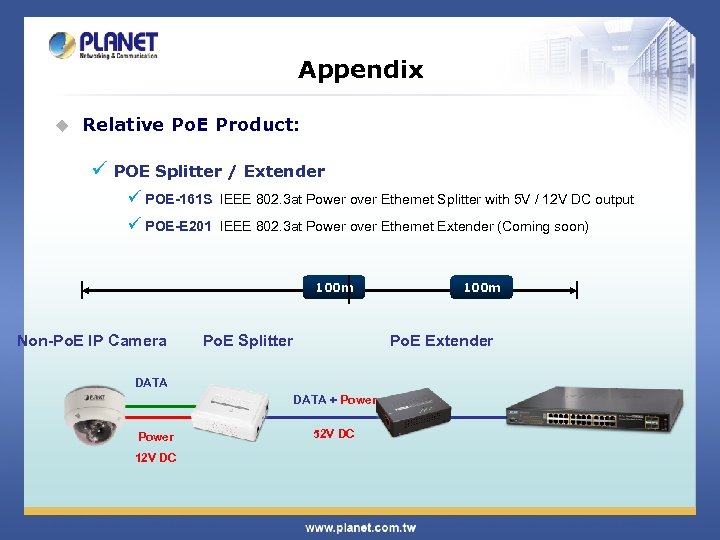

Appendix u Relative Po. E Product: ü POE Splitter / Extender ü POE-161 S ü POE-E 201 IEEE 802. 3 at Power over Ethernet Splitter with 5 V / 12 V DC output IEEE 802. 3 at Power over Ethernet Extender (Coming soon) 100 m Non-Po. E IP Camera Po. E Splitter Po. E Extender DATA + Power 12 V DC 100 m 52 V DC

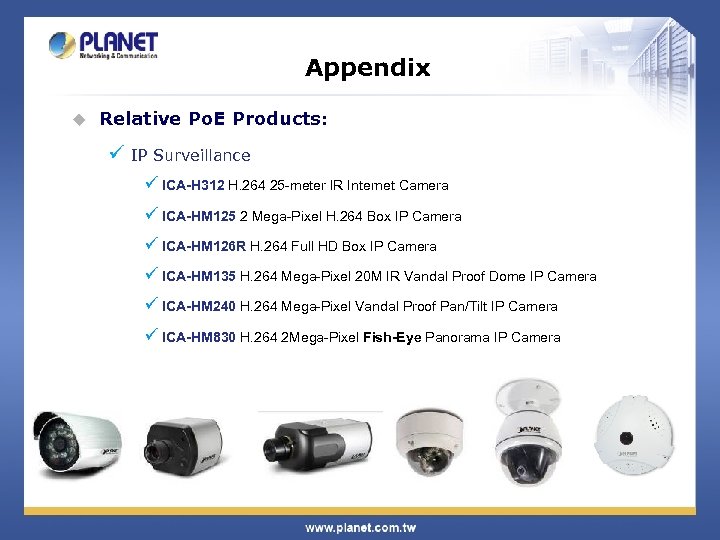

Appendix u Relative Po. E Products: ü IP Surveillance ü ICA-H 312 H. 264 25 -meter IR Internet Camera ü ICA-HM 125 2 Mega-Pixel H. 264 Box IP Camera ü ICA-HM 126 R H. 264 Full HD Box IP Camera ü ICA-HM 135 H. 264 Mega-Pixel 20 M IR Vandal Proof Dome IP Camera ü ICA-HM 240 H. 264 Mega-Pixel Vandal Proof Pan/Tilt IP Camera ü ICA-HM 830 H. 264 2 Mega-Pixel Fish-Eye Panorama IP Camera

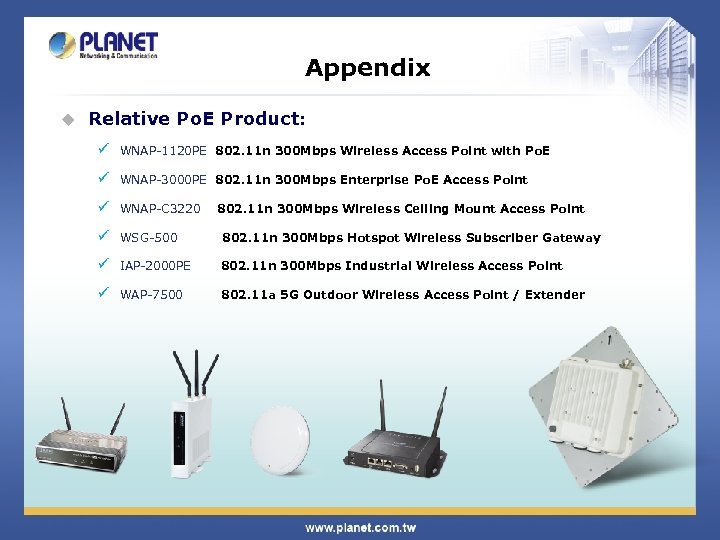

Appendix u Relative Po. E Product: ü WNAP-1120 PE 802. 11 n 300 Mbps Wireless Access Point with Po. E ü WNAP-3000 PE 802. 11 n 300 Mbps Enterprise Po. E Access Point ü WNAP-C 3220 ü WSG-500 802. 11 n 300 Mbps Hotspot Wireless Subscriber Gateway ü IAP-2000 PE 802. 11 n 300 Mbps Industrial Wireless Access Point ü WAP-7500 802. 11 a 5 G Outdoor Wireless Access Point / Extender 802. 11 n 300 Mbps Wireless Ceiling Mount Access Point

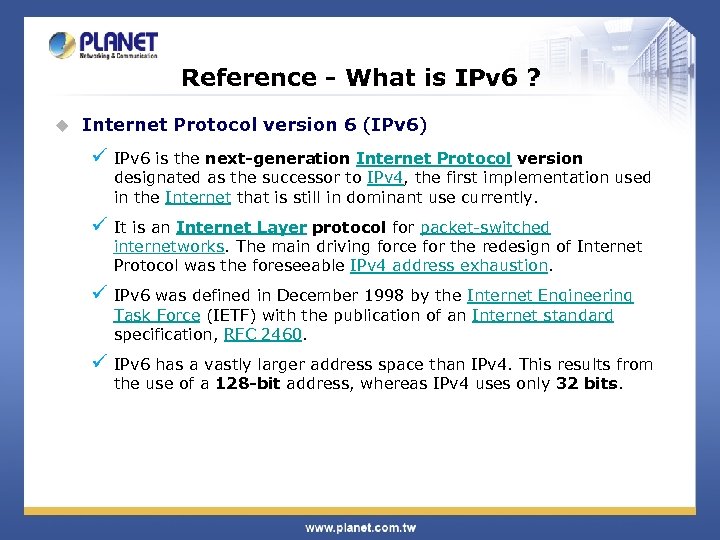

Reference - What is IPv 6 ? u Internet Protocol version 6 (IPv 6) ü IPv 6 is the next-generation Internet Protocol version designated as the successor to IPv 4, the first implementation used in the Internet that is still in dominant use currently. ü It is an Internet Layer protocol for packet-switched internetworks. The main driving force for the redesign of Internet Protocol was the foreseeable IPv 4 address exhaustion. ü IPv 6 was defined in December 1998 by the Internet Engineering Task Force (IETF) with the publication of an Internet standard specification, RFC 2460. ü IPv 6 has a vastly larger address space than IPv 4. This results from the use of a 128 -bit address, whereas IPv 4 uses only 32 bits.
Reference - Why IPv 6 ? u IPv 4 address is going to be not enough ü Nowadays, lots of electronic products or mobile devices can browse the Internet, which means the need of IP Address increases. However, the current IPv 4 network infrastructure is not capable enough to provide IP Address to each single users / Clients. ü The situation forces the ISP to build up the IPv 6 network infrastructure speedily. u IPv 6 / IPv 4 Dual Stack ü WGSD-8020 supports both IPv 4 and IPv 6 management functions. It can work with original network structure (IPv 4) and also support the new network structure (IPv 6) in the future. ü With easy and friendly management interfaces and plenty of management functions included, the WGSD-8020 is the best choice for ISP to build the IPv 6 FTTx edge service and for SMB to connect with IPv 6 network.
