2015 Michigan QSO Party Sponsored by The Mad River Radio Club

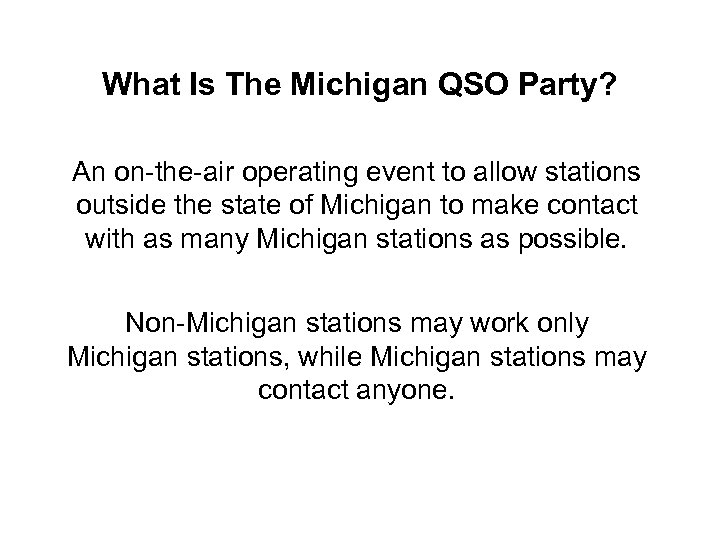

What Is The Michigan QSO Party? An on-the-air operating event to allow stations outside the state of Michigan to make contact with as many Michigan stations as possible. Non-Michigan stations may work only Michigan stations, while Michigan stations may contact anyone.

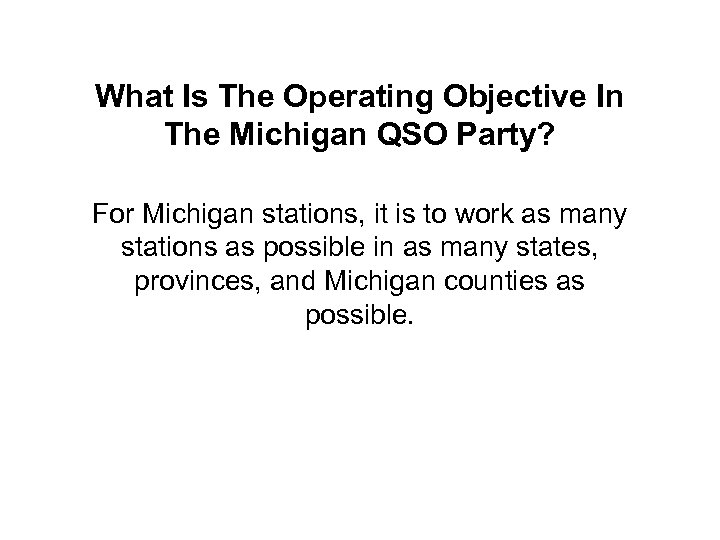

What Is The Operating Objective In The Michigan QSO Party? For Michigan stations, it is to work as many stations as possible in as many states, provinces, and Michigan counties as possible.

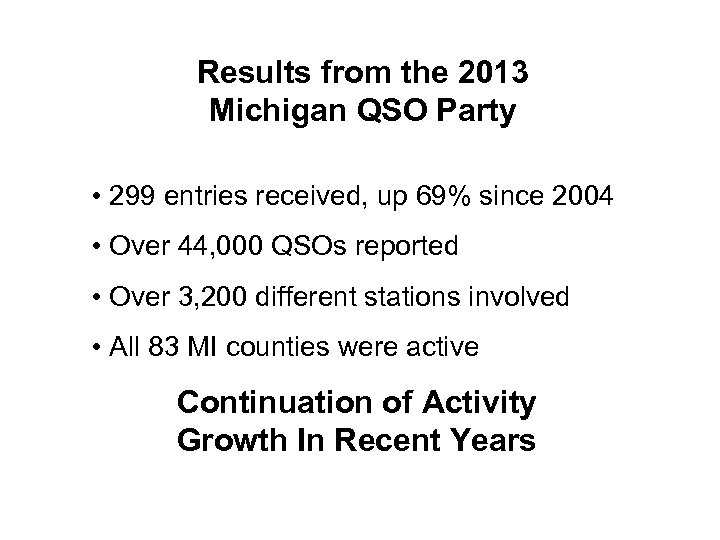

Results from the 2013 Michigan QSO Party • 299 entries received, up 69% since 2004 • Over 44, 000 QSOs reported • Over 3, 200 different stations involved • All 83 MI counties were active Continuation of Activity Growth In Recent Years

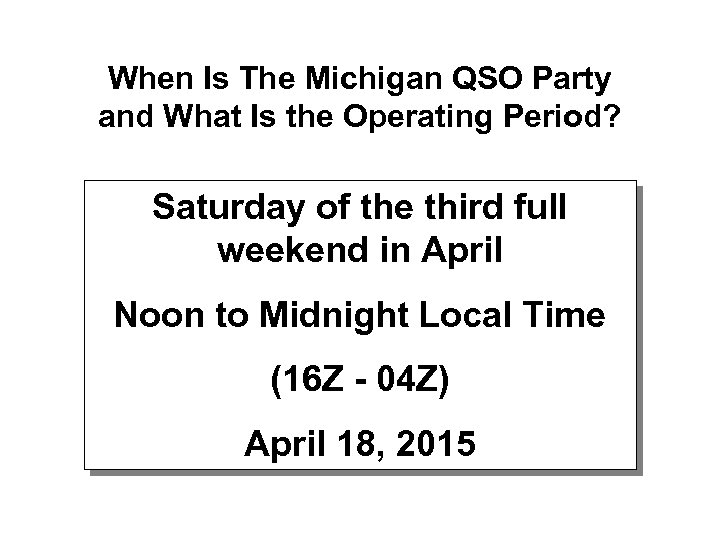

When Is The Michigan QSO Party and What Is the Operating Period? Saturday of the third full weekend in April Noon to Midnight Local Time (16 Z - 04 Z) April 18, 2015

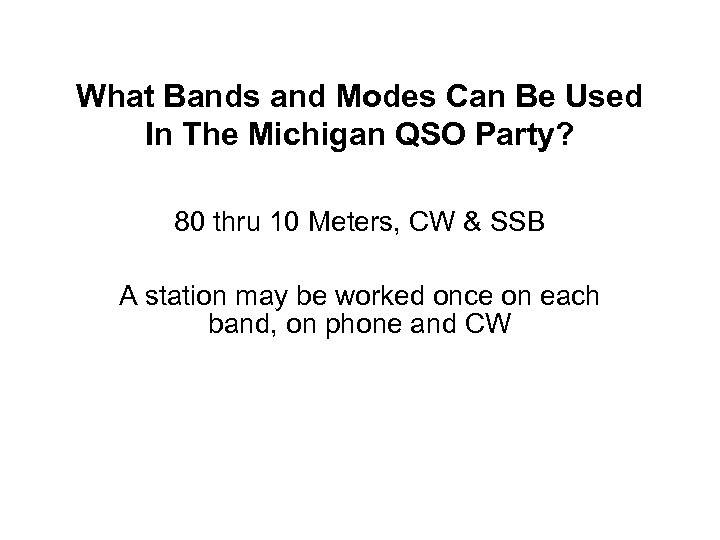

What Bands and Modes Can Be Used In The Michigan QSO Party? 80 thru 10 Meters, CW & SSB A station may be worked once on each band, on phone and CW

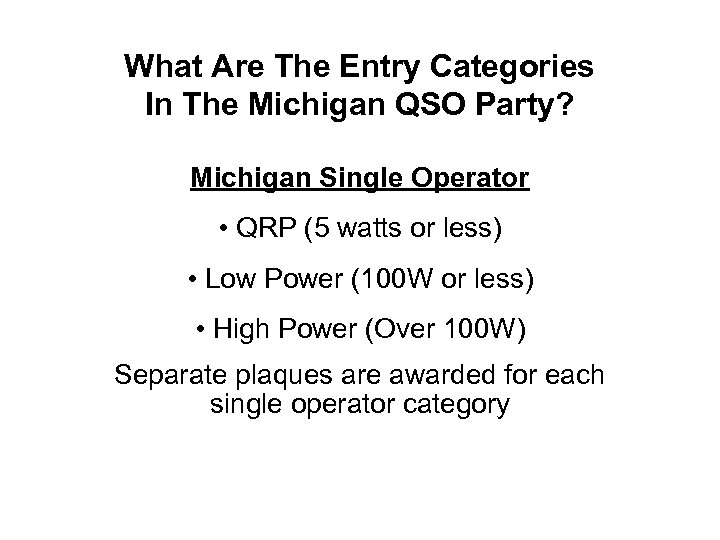

What Are The Entry Categories In The Michigan QSO Party? Michigan Single Operator • QRP (5 watts or less) • Low Power (100 W or less) • High Power (Over 100 W) Separate plaques are awarded for each single operator category

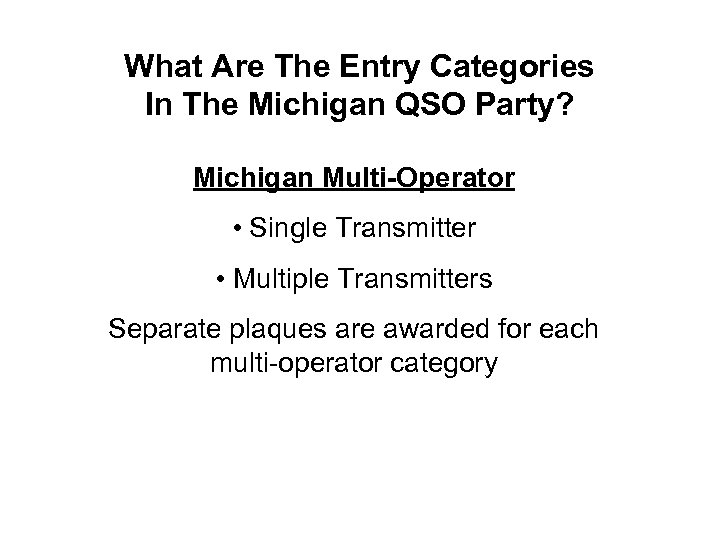

What Are The Entry Categories In The Michigan QSO Party? Michigan Multi-Operator • Single Transmitter • Multiple Transmitters Separate plaques are awarded for each multi-operator category

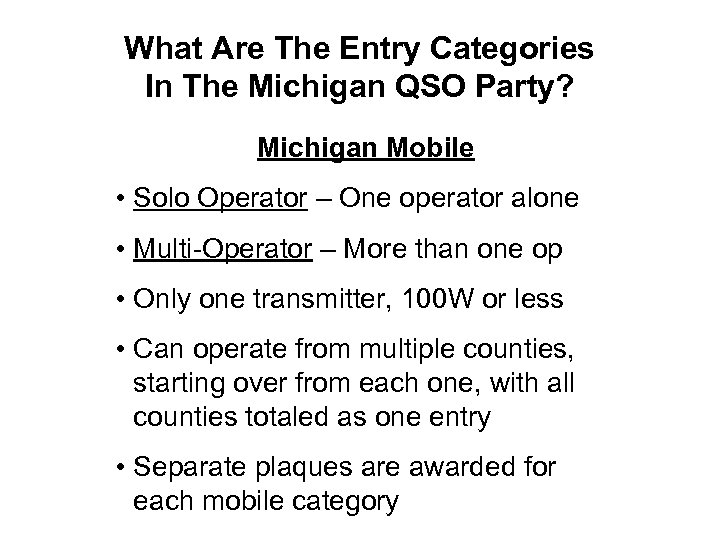

What Are The Entry Categories In The Michigan QSO Party? Michigan Mobile • Solo Operator – One operator alone • Multi-Operator – More than one op • Only one transmitter, 100 W or less • Can operate from multiple counties, starting over from each one, with all counties totaled as one entry • Separate plaques are awarded for each mobile category

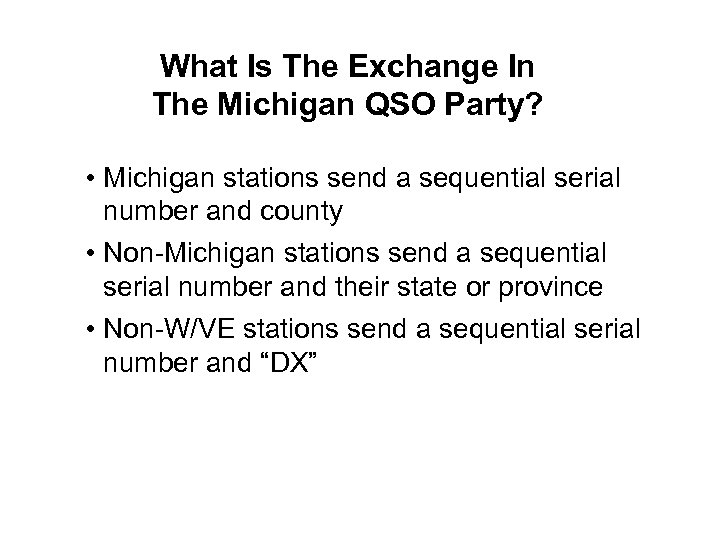

What Is The Exchange In The Michigan QSO Party? • Michigan stations send a sequential serial number and county • Non-Michigan stations send a sequential serial number and their state or province • Non-W/VE stations send a sequential serial number and “DX”

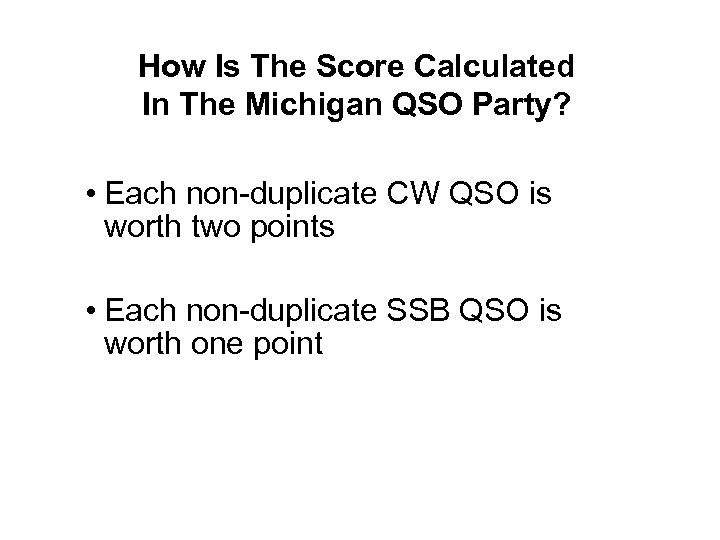

How Is The Score Calculated In The Michigan QSO Party? • Each non-duplicate CW QSO is worth two points • Each non-duplicate SSB QSO is worth one point

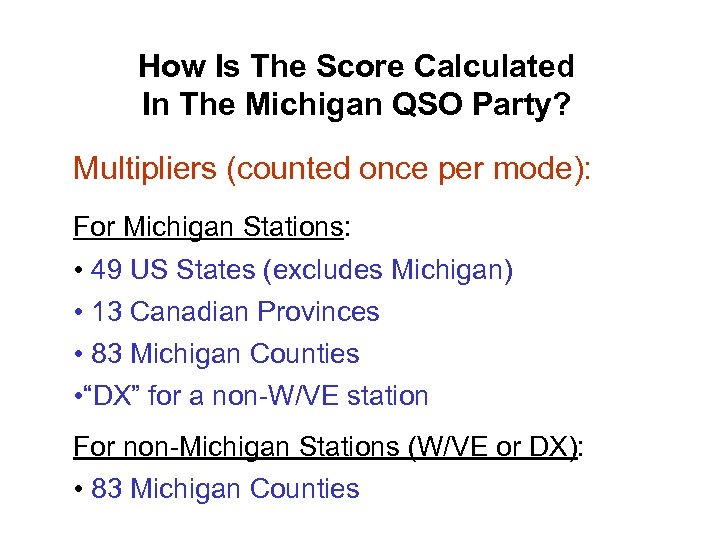

How Is The Score Calculated In The Michigan QSO Party? Multipliers (counted once per mode): For Michigan Stations: • 49 US States (excludes Michigan) • 13 Canadian Provinces • 83 Michigan Counties • “DX” for a non-W/VE station For non-Michigan Stations (W/VE or DX): • 83 Michigan Counties

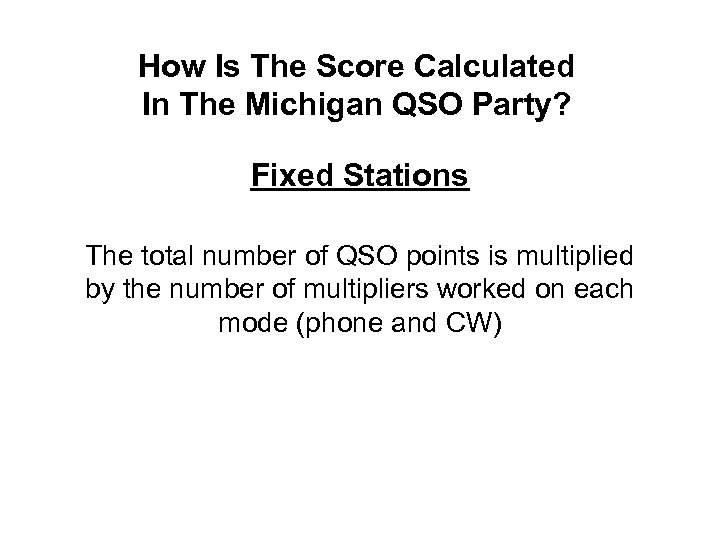

How Is The Score Calculated In The Michigan QSO Party? Fixed Stations The total number of QSO points is multiplied by the number of multipliers worked on each mode (phone and CW)

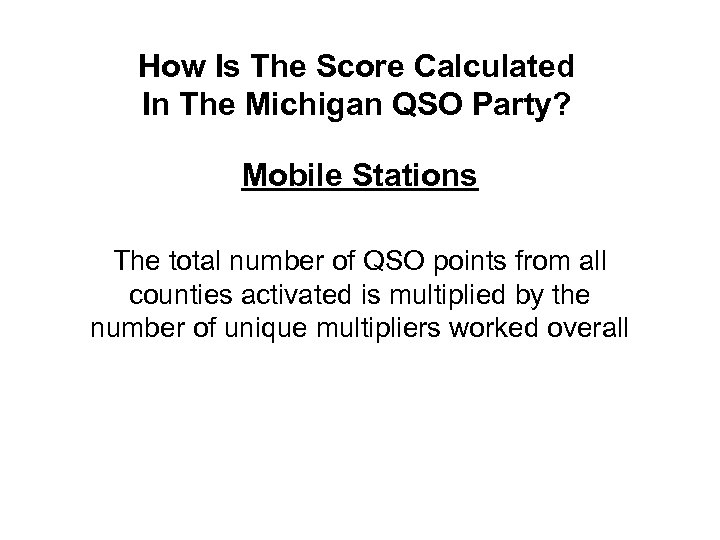

How Is The Score Calculated In The Michigan QSO Party? Mobile Stations The total number of QSO points from all counties activated is multiplied by the number of unique multipliers worked overall

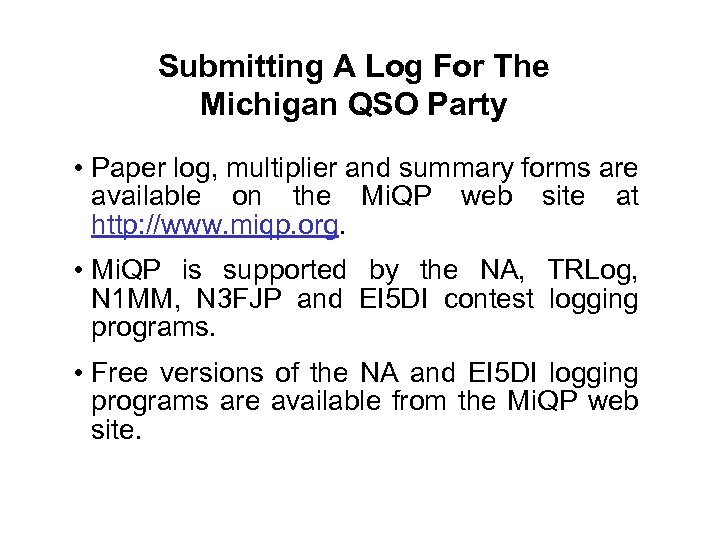

Submitting A Log For The Michigan QSO Party • Paper log, multiplier and summary forms are available on the Mi. QP web site at http: //www. miqp. org. • Mi. QP is supported by the NA, TRLog, N 1 MM, N 3 FJP and EI 5 DI contest logging programs. • Free versions of the NA and EI 5 DI logging programs are available from the Mi. QP web site.

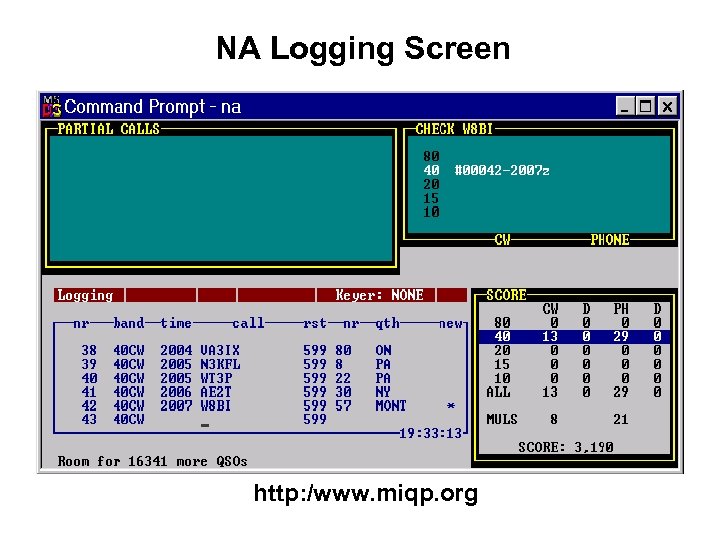

NA Logging Screen http: /www. miqp. org
Submitting A Log For The Michigan QSO Party • Paper logs should be mailed to: Mad River Radio Club 2727 Harris Road Ypsilanti, MI 48198 • Electronic logs can be uploaded to the Mi. QP log submittal page at: http: //www. miqp. org/submit. Log. File. Mi. QP. html Results will be posted to the Mi. QP web site http: //www. miqp. org
Michigan QSO Party Plaque Program • High Score - MI Single Operator - High Power • High Score - MI Single Operator - Low Power • High Score - MI Single Operator - QRP • High Score - MI Multi-Operator Single-Transmitter • High Score - MI Multi-Operator Multi-Transmitter • High Score - MI Mobile – Solo Operator • High Score - MI Mobile – Multi-Operator • High Score - Non-MI Single Operator – Eastern Region • High Score - Non-MI Single Operator – Western Region • High Score – Michigan EOC Station
Michigan QSO Party Certificate Program Michigan: • Certificate to the top single operator entry in each county making at least 50 QSOs. • Certificates to the top three solo and multiop mobile entries. • Certificates to the top three limited and unlimited multi-op entries. Out-state: • Certificate to the top entry from each state or province making at least 25 QSOs.

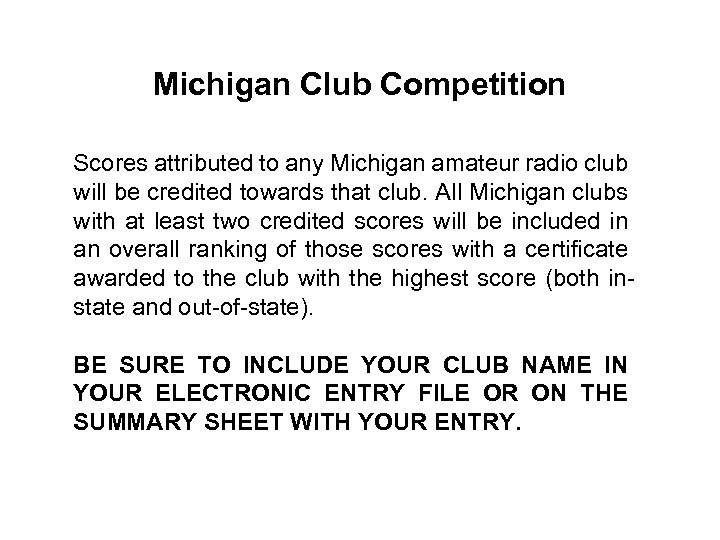

Michigan Club Competition Scores attributed to any Michigan amateur radio club will be credited towards that club. All Michigan clubs with at least two credited scores will be included in an overall ranking of those scores with a certificate awarded to the club with the highest score (both instate and out-of-state). BE SURE TO INCLUDE YOUR CLUB NAME IN YOUR ELECTRONIC ENTRY FILE OR ON THE SUMMARY SHEET WITH YOUR ENTRY.

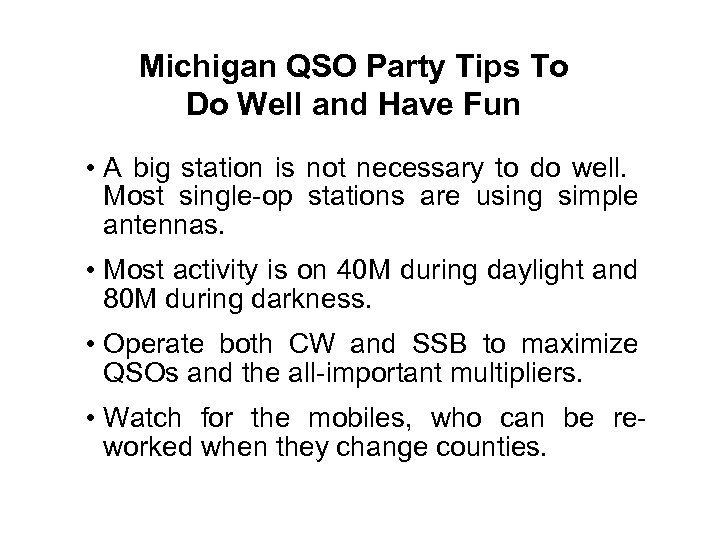

Michigan QSO Party Tips To Do Well and Have Fun • A big station is not necessary to do well. Most single-op stations are using simple antennas. • Most activity is on 40 M during daylight and 80 M during darkness. • Operate both CW and SSB to maximize QSOs and the all-important multipliers. • Watch for the mobiles, who can be reworked when they change counties.

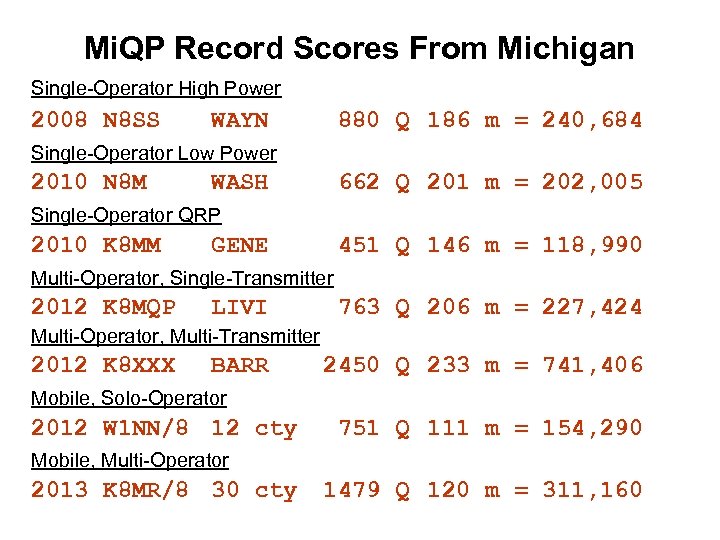

Mi. QP Record Scores From Michigan Single-Operator High Power 2008 N 8 SS WAYN 880 Q 186 m = 240, 684 Single-Operator Low Power 2010 N 8 M WASH 662 Q 201 m = 202, 005 Single-Operator QRP 2010 K 8 MM GENE 451 Q 146 m = 118, 990 Multi-Operator, Single-Transmitter 2012 K 8 MQP LIVI 763 Q 206 m = 227, 424 Multi-Operator, Multi-Transmitter 2012 K 8 XXX BARR 2450 Q 233 m = 741, 406 Mobile, Solo-Operator 2012 W 1 NN/8 12 cty 751 Q 111 m = 154, 290 Mobile, Multi-Operator 2013 K 8 MR/8 30 cty 1479 Q 120 m = 311, 160
Multi-Operator Mi. QP Operate from home… Or in the field
GPS Temporary Rig Location Mi. QP Mobiling K 8 CC/m Operating Position

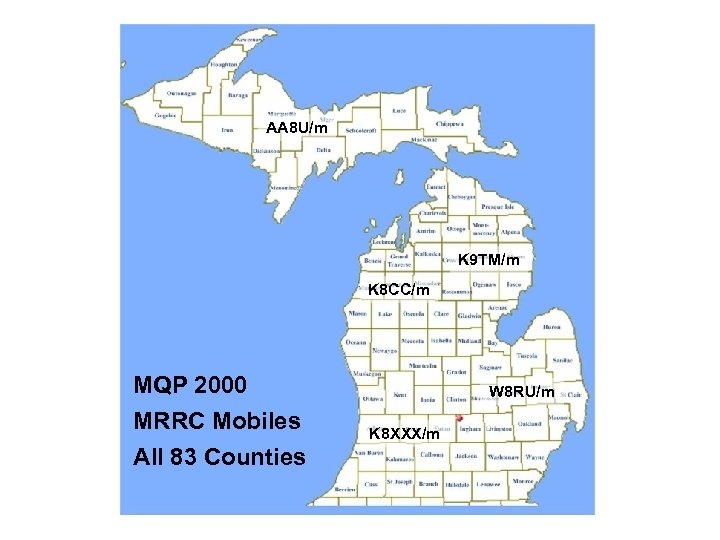

AA 8 U/m K 9 TM/m K 8 CC/m MQP 2000 MRRC Mobiles All 83 Counties W 8 RU/m K 8 XXX/m
2015 Michigan QSO Party Saturday, April 18, 2010 Noon to Midnight, Local Time (16 Z - 04 Z)
