2011 International Wind-Diesel Conference Remote System Architecture: Designs and Concepts Jito Coleman TDX Power 2011 International Wind-Diesel Conference Remote System Architecture: Designs and Concepts Jito Coleman TDX Power March 9, 2011

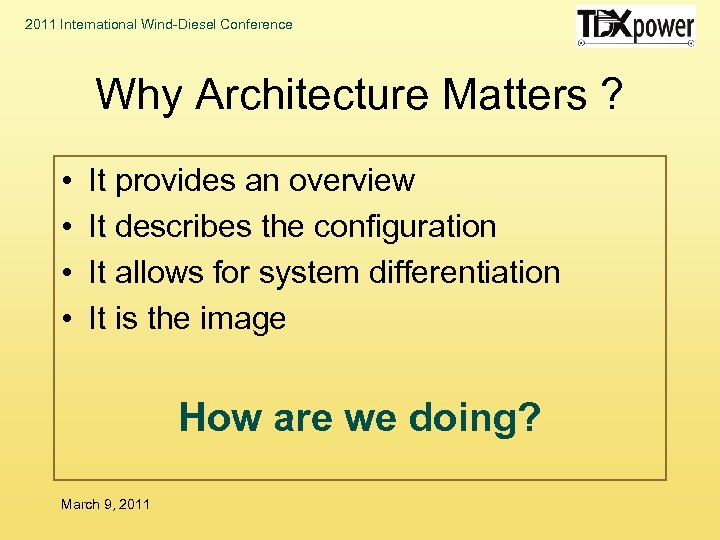

2011 International Wind-Diesel Conference Why Architecture Matters ? • • It provides an overview 2011 International Wind-Diesel Conference Why Architecture Matters ? • • It provides an overview It describes the configuration It allows for system differentiation It is the image How are we doing? March 9, 2011

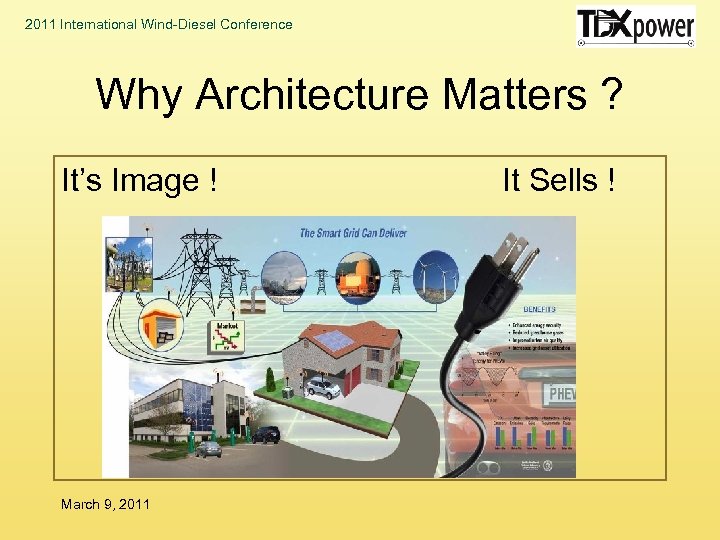

2011 International Wind-Diesel Conference Why Architecture Matters ? It’s Image ! March 9, 2011 2011 International Wind-Diesel Conference Why Architecture Matters ? It’s Image ! March 9, 2011 It Sells !

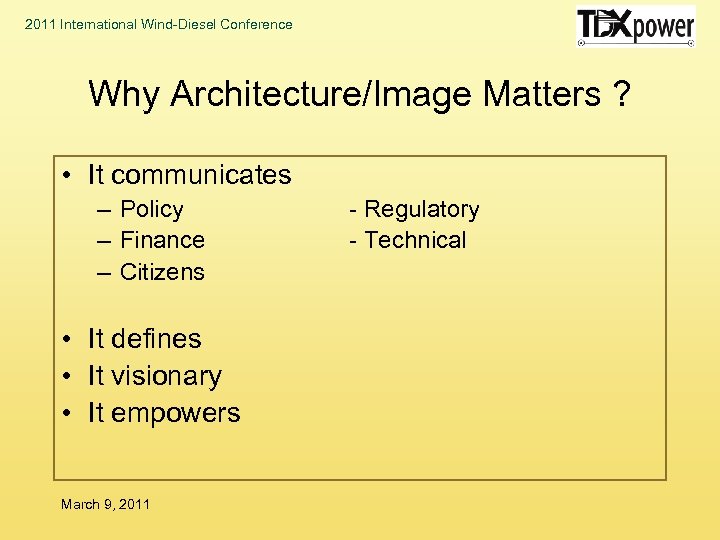

2011 International Wind-Diesel Conference Why Architecture/Image Matters ? • It communicates – Policy – 2011 International Wind-Diesel Conference Why Architecture/Image Matters ? • It communicates – Policy – Finance – Citizens • It defines • It visionary • It empowers March 9, 2011 - Regulatory - Technical

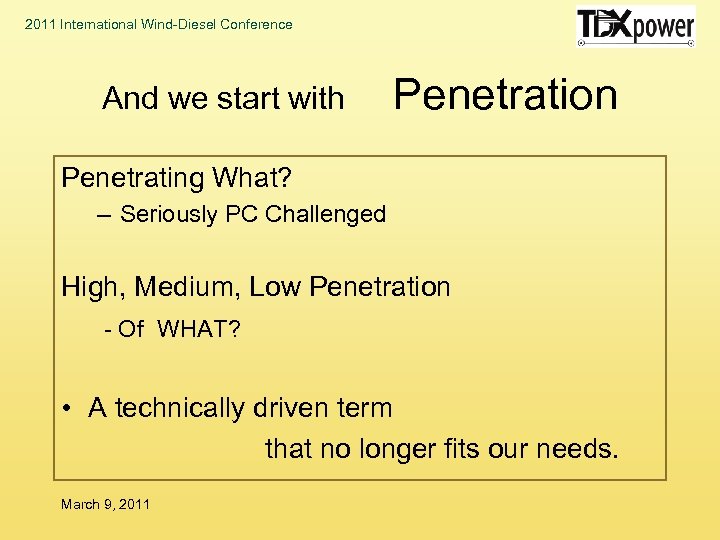

2011 International Wind-Diesel Conference And we start with Penetration Penetrating What? – Seriously PC 2011 International Wind-Diesel Conference And we start with Penetration Penetrating What? – Seriously PC Challenged High, Medium, Low Penetration - Of WHAT? • A technically driven term that no longer fits our needs. March 9, 2011

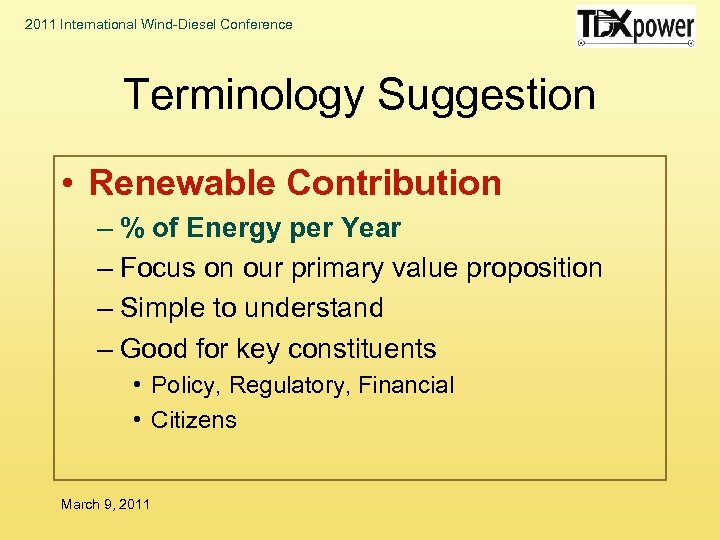

2011 International Wind-Diesel Conference Terminology Suggestion • Renewable Contribution – % of Energy per 2011 International Wind-Diesel Conference Terminology Suggestion • Renewable Contribution – % of Energy per Year – Focus on our primary value proposition – Simple to understand – Good for key constituents • Policy, Regulatory, Financial • Citizens March 9, 2011

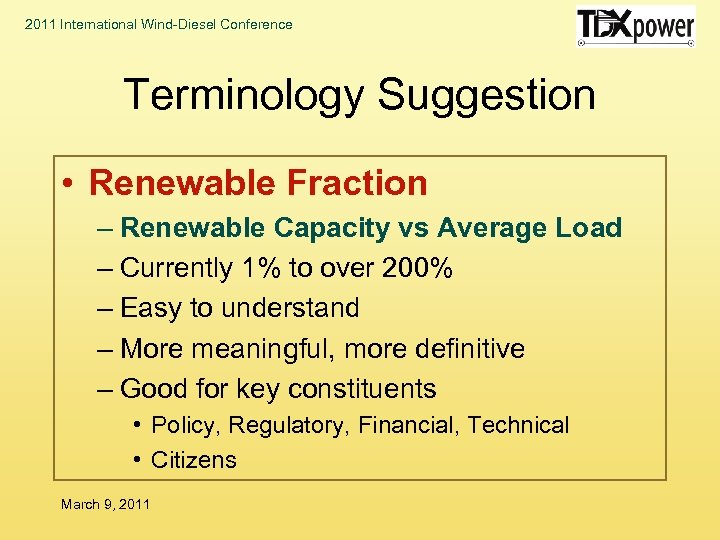

2011 International Wind-Diesel Conference Terminology Suggestion • Renewable Fraction – Renewable Capacity vs Average 2011 International Wind-Diesel Conference Terminology Suggestion • Renewable Fraction – Renewable Capacity vs Average Load – Currently 1% to over 200% – Easy to understand – More meaningful, more definitive – Good for key constituents • Policy, Regulatory, Financial, Technical • Citizens March 9, 2011

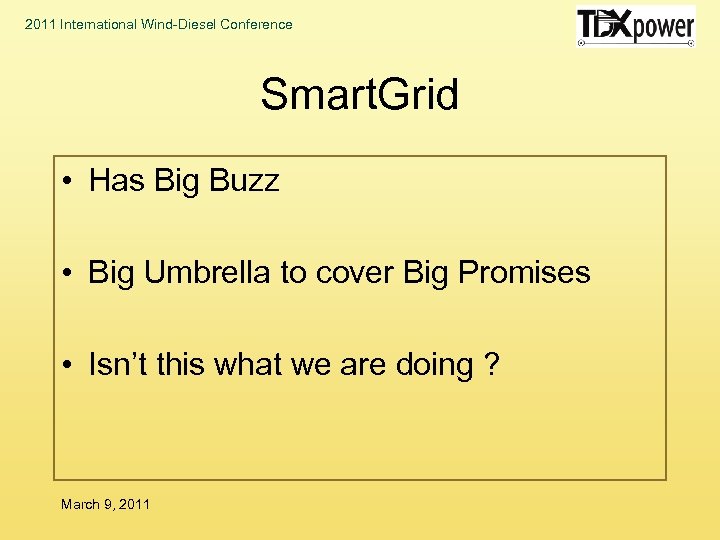

2011 International Wind-Diesel Conference Smart. Grid • Has Big Buzz • Big Umbrella to 2011 International Wind-Diesel Conference Smart. Grid • Has Big Buzz • Big Umbrella to cover Big Promises • Isn’t this what we are doing ? March 9, 2011

2011 International Wind-Diesel Conference Here’s an Image that Sell ? March 9, 2011 2011 International Wind-Diesel Conference Here’s an Image that Sell ? March 9, 2011

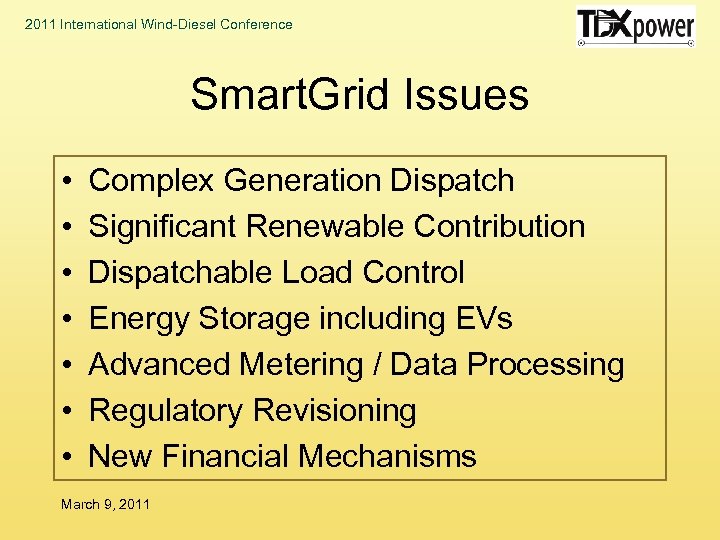

2011 International Wind-Diesel Conference Smart. Grid Issues • • Complex Generation Dispatch Significant Renewable 2011 International Wind-Diesel Conference Smart. Grid Issues • • Complex Generation Dispatch Significant Renewable Contribution Dispatchable Load Control Energy Storage including EVs Advanced Metering / Data Processing Regulatory Revisioning New Financial Mechanisms March 9, 2011

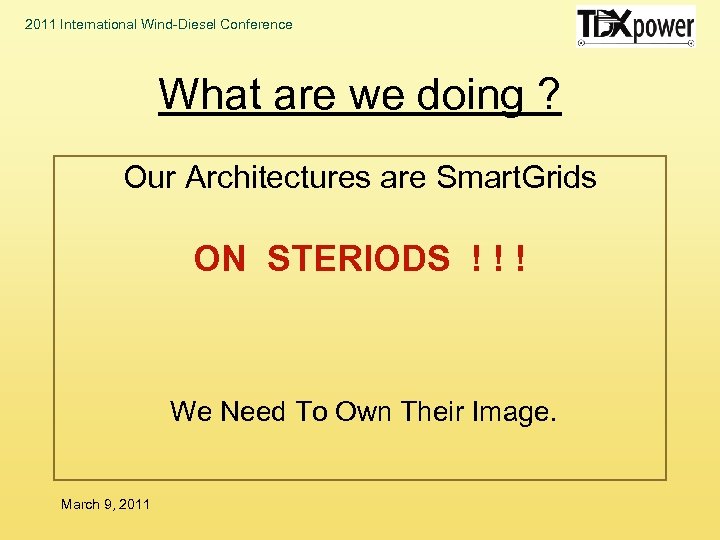

2011 International Wind-Diesel Conference What are we doing ? Our Architectures are Smart. Grids 2011 International Wind-Diesel Conference What are we doing ? Our Architectures are Smart. Grids ON STERIODS ! ! ! We Need To Own Their Image. March 9, 2011

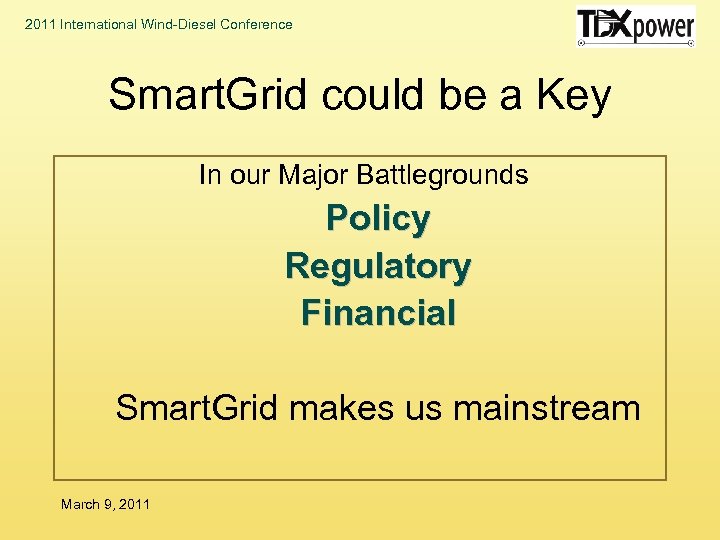

2011 International Wind-Diesel Conference Smart. Grid could be a Key In our Major Battlegrounds 2011 International Wind-Diesel Conference Smart. Grid could be a Key In our Major Battlegrounds Policy Regulatory Financial Smart. Grid makes us mainstream March 9, 2011

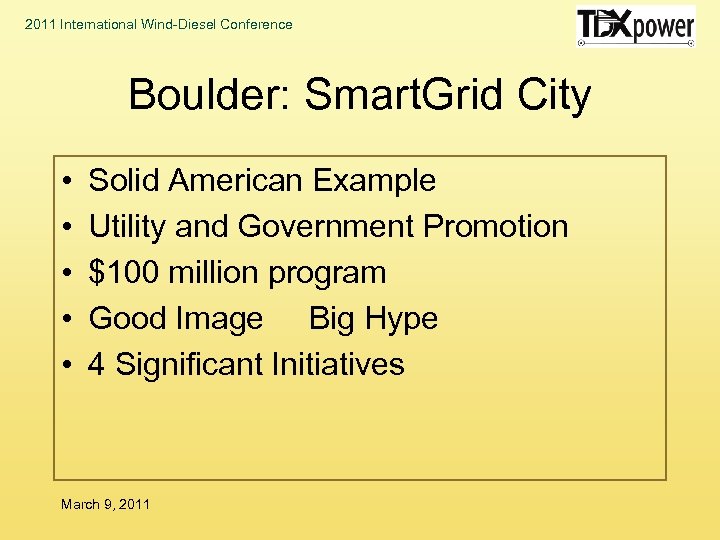

2011 International Wind-Diesel Conference Boulder: Smart. Grid City • • • Solid American Example 2011 International Wind-Diesel Conference Boulder: Smart. Grid City • • • Solid American Example Utility and Government Promotion $100 million program Good Image Big Hype 4 Significant Initiatives March 9, 2011

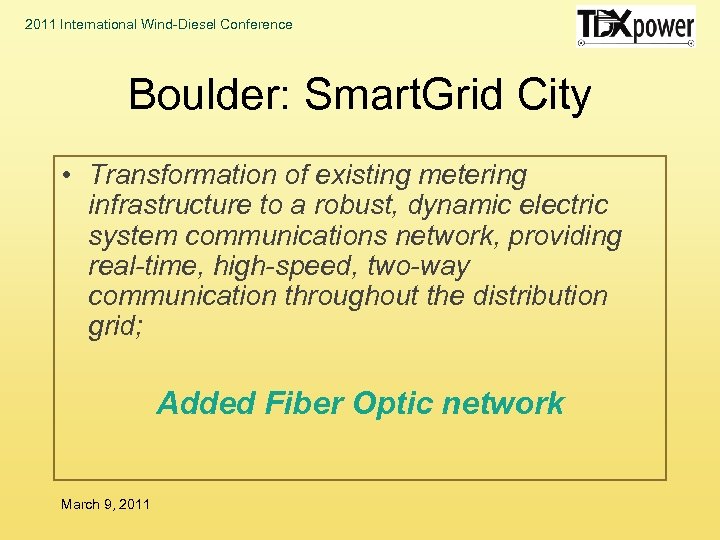

2011 International Wind-Diesel Conference Boulder: Smart. Grid City • Transformation of existing metering infrastructure 2011 International Wind-Diesel Conference Boulder: Smart. Grid City • Transformation of existing metering infrastructure to a robust, dynamic electric system communications network, providing real-time, high-speed, two-way communication throughout the distribution grid; Added Fiber Optic network March 9, 2011

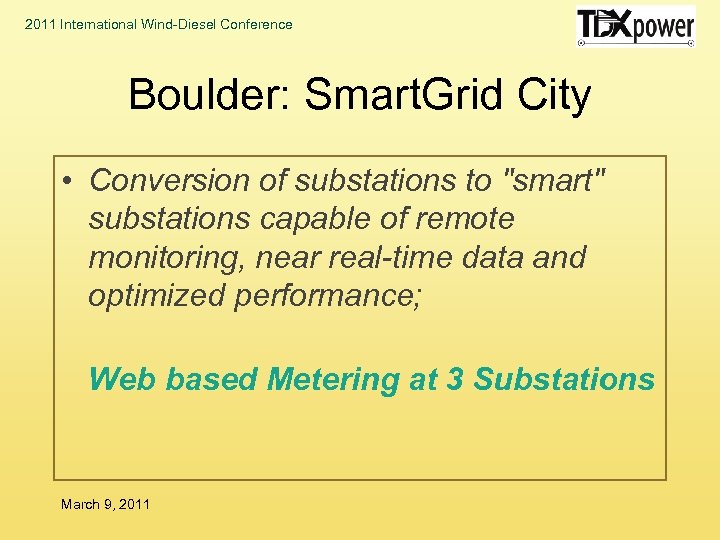

2011 International Wind-Diesel Conference Boulder: Smart. Grid City • Conversion of substations to 2011 International Wind-Diesel Conference Boulder: Smart. Grid City • Conversion of substations to "smart" substations capable of remote monitoring, near real-time data and optimized performance; Web based Metering at 3 Substations March 9, 2011

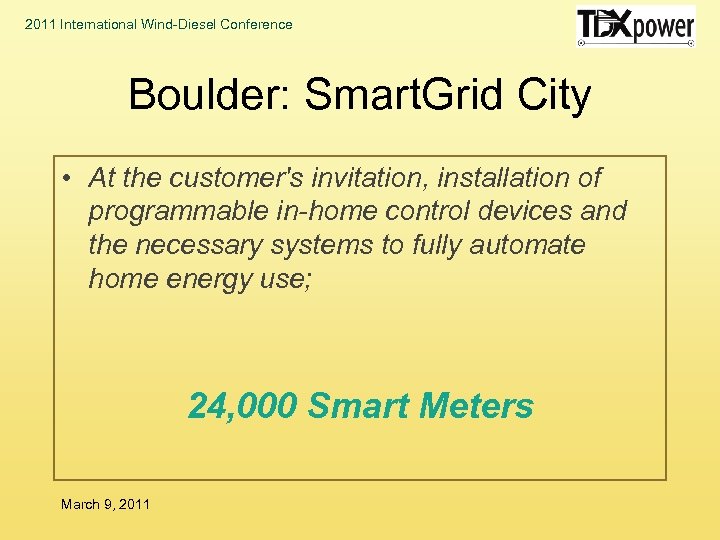

2011 International Wind-Diesel Conference Boulder: Smart. Grid City • At the customer's invitation, installation 2011 International Wind-Diesel Conference Boulder: Smart. Grid City • At the customer's invitation, installation of programmable in-home control devices and the necessary systems to fully automate home energy use; 24, 000 Smart Meters March 9, 2011

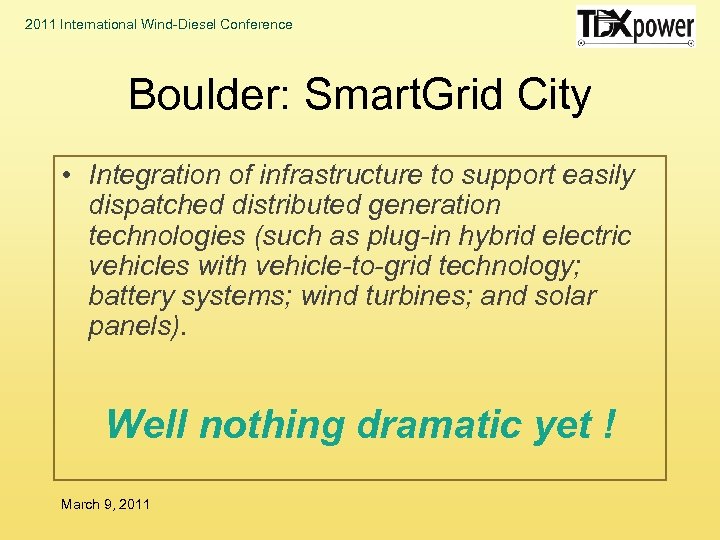

2011 International Wind-Diesel Conference Boulder: Smart. Grid City • Integration of infrastructure to support 2011 International Wind-Diesel Conference Boulder: Smart. Grid City • Integration of infrastructure to support easily dispatched distributed generation technologies (such as plug-in hybrid electric vehicles with vehicle-to-grid technology; battery systems; wind turbines; and solar panels). Well nothing dramatic yet ! March 9, 2011

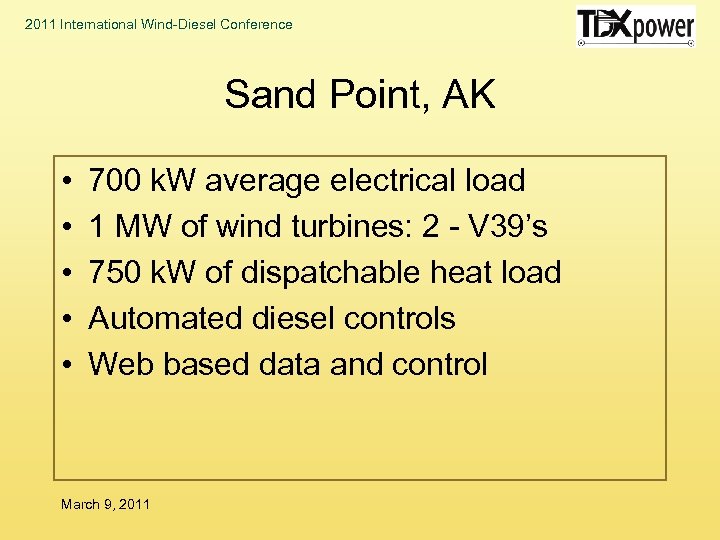

2011 International Wind-Diesel Conference Sand Point, AK • • • 700 k. W average 2011 International Wind-Diesel Conference Sand Point, AK • • • 700 k. W average electrical load 1 MW of wind turbines: 2 - V 39’s 750 k. W of dispatchable heat load Automated diesel controls Web based data and control March 9, 2011

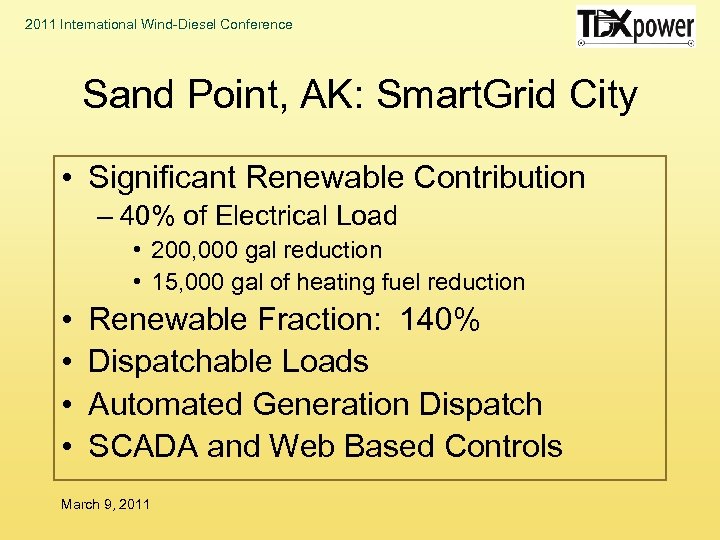

2011 International Wind-Diesel Conference Sand Point, AK: Smart. Grid City • Significant Renewable Contribution 2011 International Wind-Diesel Conference Sand Point, AK: Smart. Grid City • Significant Renewable Contribution – 40% of Electrical Load • 200, 000 gal reduction • 15, 000 gal of heating fuel reduction • • Renewable Fraction: 140% Dispatchable Loads Automated Generation Dispatch SCADA and Web Based Controls March 9, 2011

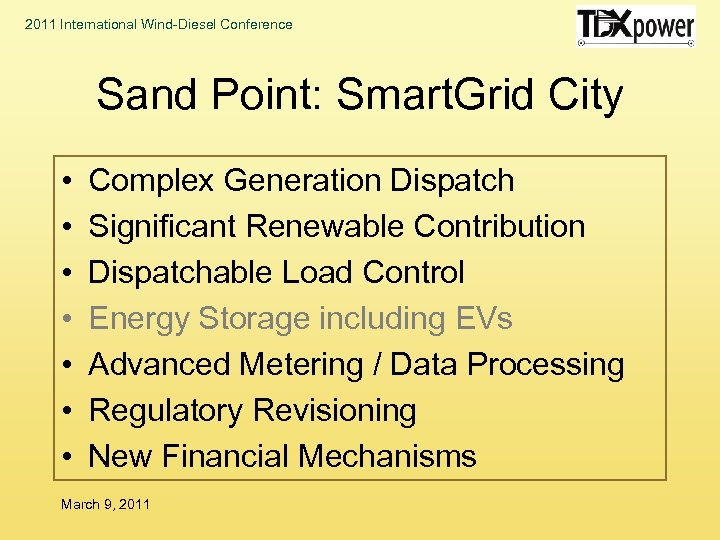

2011 International Wind-Diesel Conference Sand Point: Smart. Grid City • • Complex Generation Dispatch 2011 International Wind-Diesel Conference Sand Point: Smart. Grid City • • Complex Generation Dispatch Significant Renewable Contribution Dispatchable Load Control Energy Storage including EVs Advanced Metering / Data Processing Regulatory Revisioning New Financial Mechanisms March 9, 2011

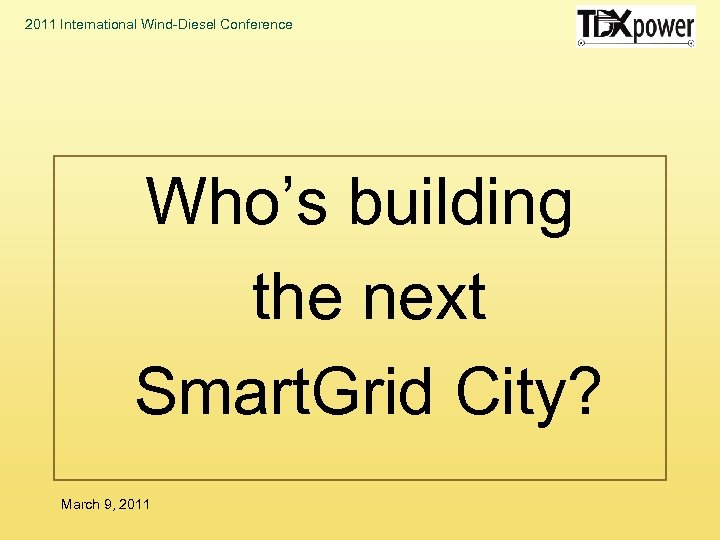

2011 International Wind-Diesel Conference Who’s building the next Smart. Grid City? March 9, 2011 2011 International Wind-Diesel Conference Who’s building the next Smart. Grid City? March 9, 2011
