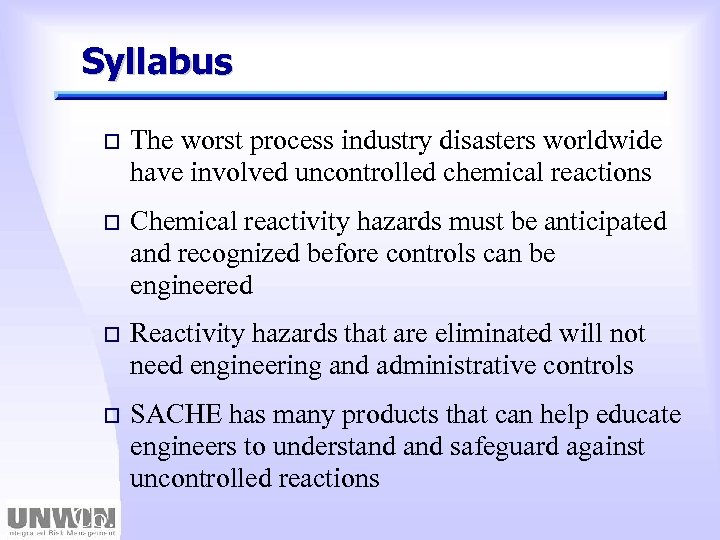

Syllabus o The worst process industry disasters worldwide have involved uncontrolled chemical reactions o Chemical reactivity hazards must be anticipated and recognized before controls can be engineered o Reactivity hazards that are eliminated will not need engineering and administrative controls o SACHE has many products that can help educate engineers to understand safeguard against uncontrolled reactions

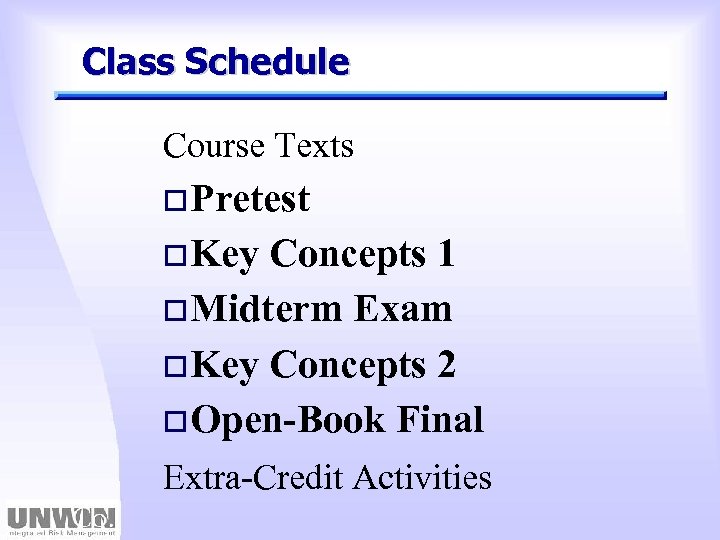

Class Schedule Course Texts o Pretest o Key Concepts 1 o Midterm Exam o Key Concepts 2 o Open-Book Final Extra-Credit Activities

Course Texts

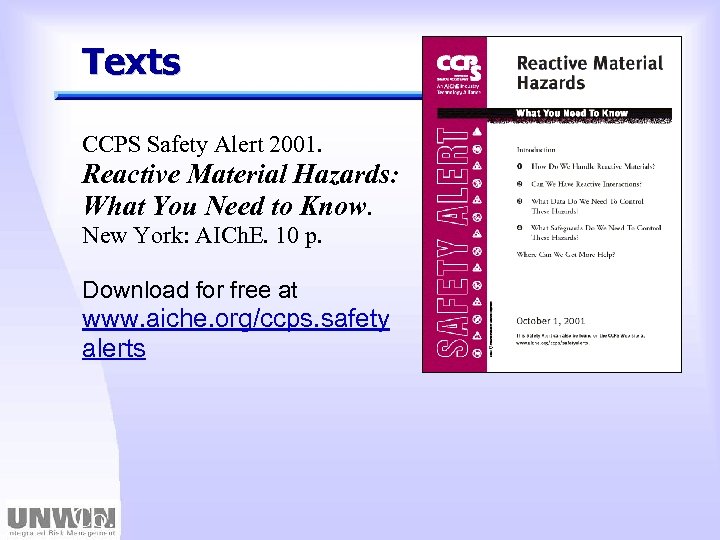

Texts CCPS Safety Alert 2001. Reactive Material Hazards: What You Need to Know. New York: AICh. E. 10 p. Download for free at www. aiche. org/ccps. safety alerts

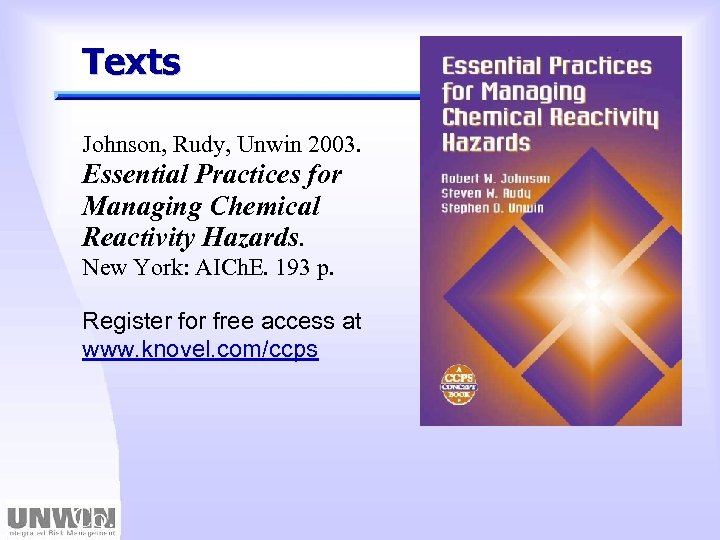

Texts Johnson, Rudy, Unwin 2003. Essential Practices for Managing Chemical Reactivity Hazards. New York: AICh. E. 193 p. Register for free access at www. knovel. com/ccps

Texts CCPS 1995. Guidelines for Chemical Reactivity Evaluation and Application to Process Design. New York: AICh. E. 210 p. AICh. E members can access for free at www. knovel. com

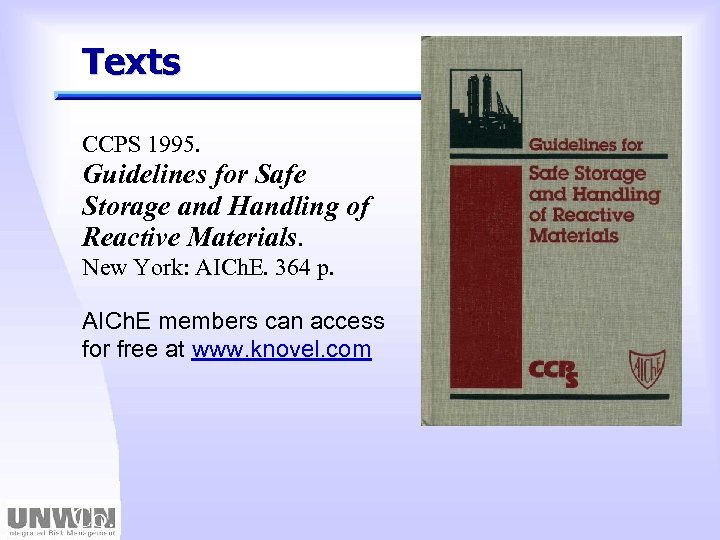

Texts CCPS 1995. Guidelines for Safe Storage and Handling of Reactive Materials. New York: AICh. E. 364 p. AICh. E members can access for free at www. knovel. com

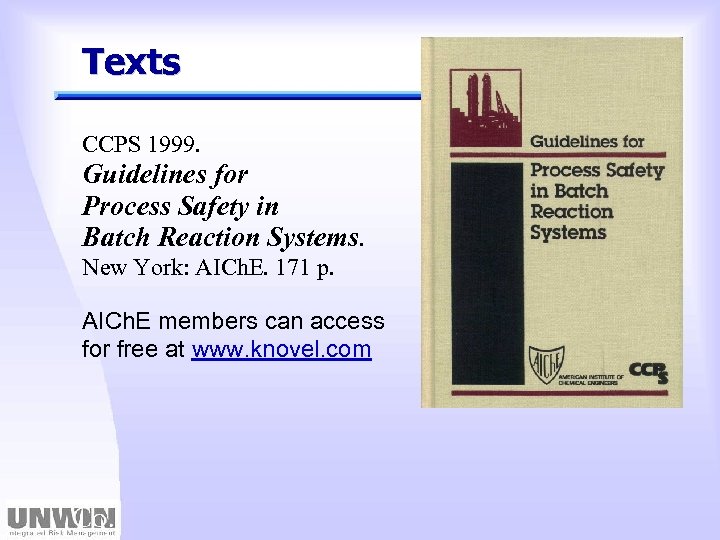

Texts CCPS 1999. Guidelines for Process Safety in Batch Reaction Systems. New York: AICh. E. 171 p. AICh. E members can access for free at www. knovel. com

Texts Hazard Investigation 2002. Improving Reactive Hazard Management. Washington, D. C. : U. S. Chemical Safety and Hazard Investigation Board. 150 p. Download for free at www. csb. gov

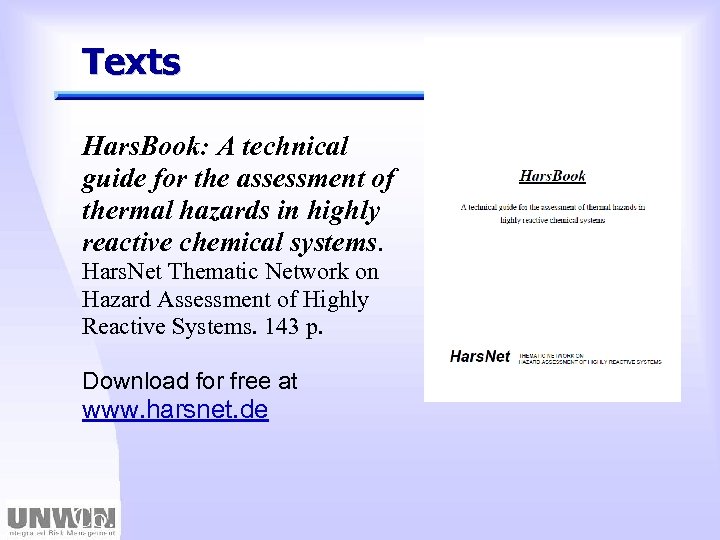

Texts Hars. Book: A technical guide for the assessment of thermal hazards in highly reactive chemical systems. Hars. Net Thematic Network on Hazard Assessment of Highly Reactive Systems. 143 p. Download for free at www. harsnet. de

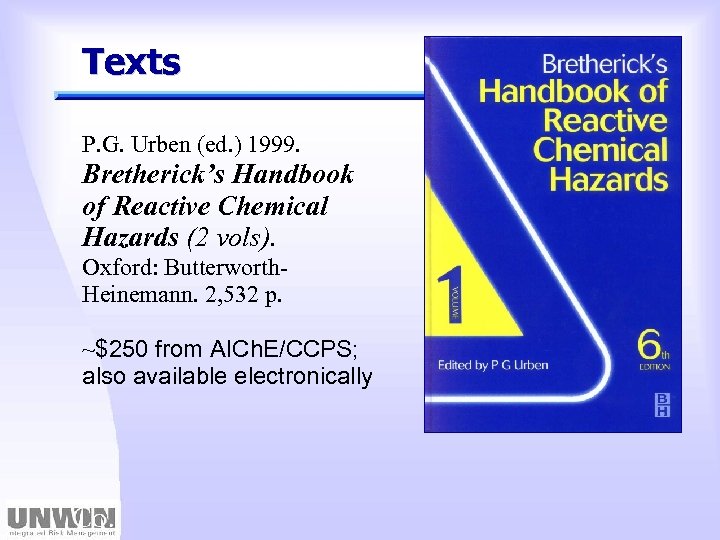

Texts P. G. Urben (ed. ) 1999. Bretherick’s Handbook of Reactive Chemical Hazards (2 vols). Oxford: Butterworth. Heinemann. 2, 532 p. ~$250 from AICh. E/CCPS; also available electronically

Pretest

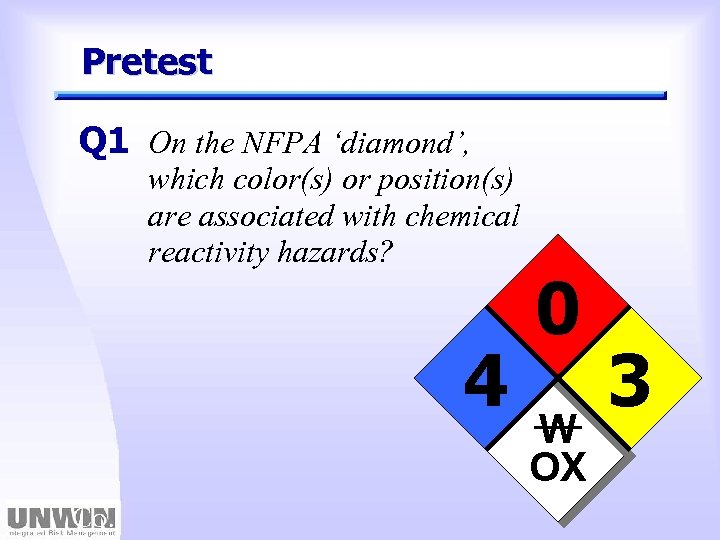

Pretest Q 1 On the NFPA ‘diamond’, which color(s) or position(s) are associated with chemical reactivity hazards? 4 0 W OX 3

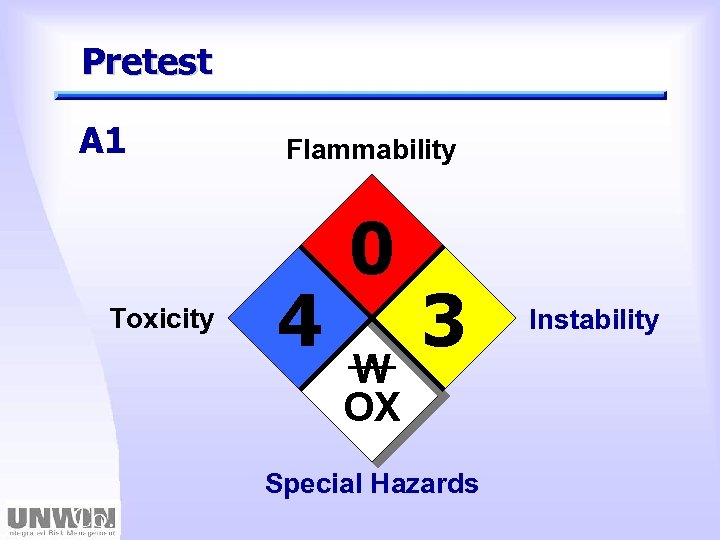

Pretest A 1 Toxicity Flammability 4 0 W OX 3 Special Hazards Instability

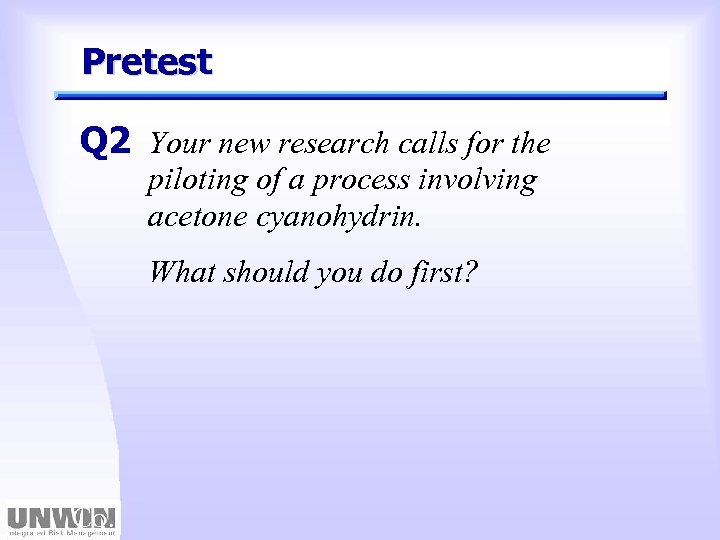

Pretest Q 2 Your new research calls for the piloting of a process involving acetone cyanohydrin. What should you do first?

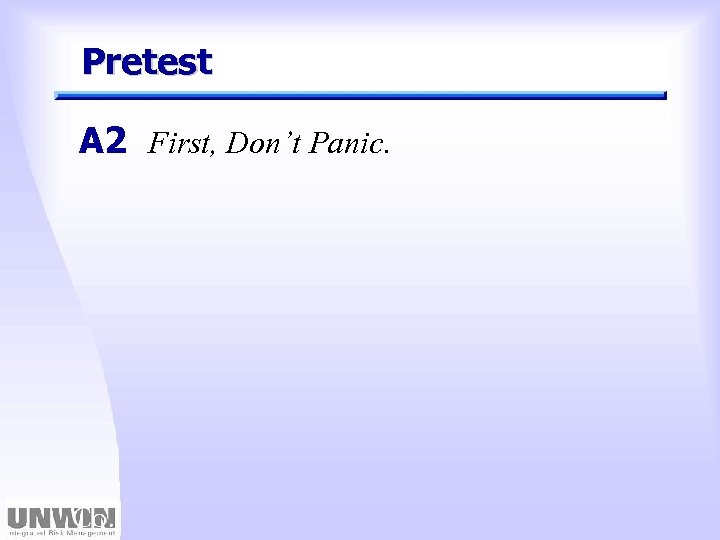

Pretest A 2 First, Don’t Panic.

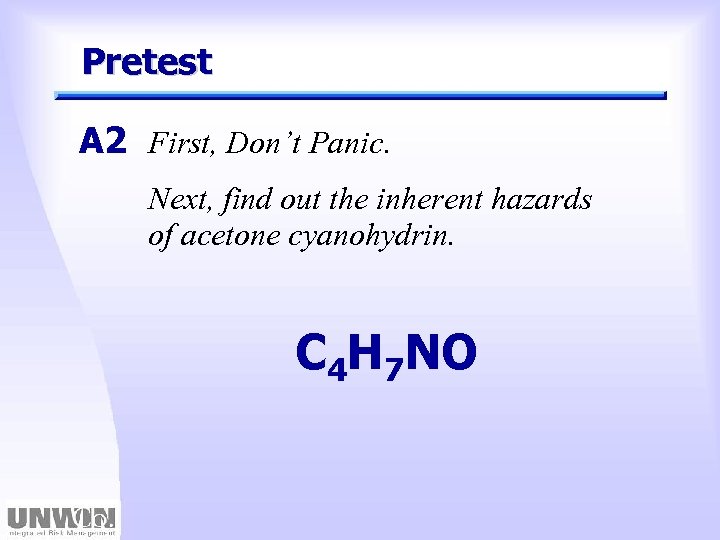

Pretest A 2 First, Don’t Panic. Next, find out the inherent hazards of acetone cyanohydrin. C 4 H 7 NO

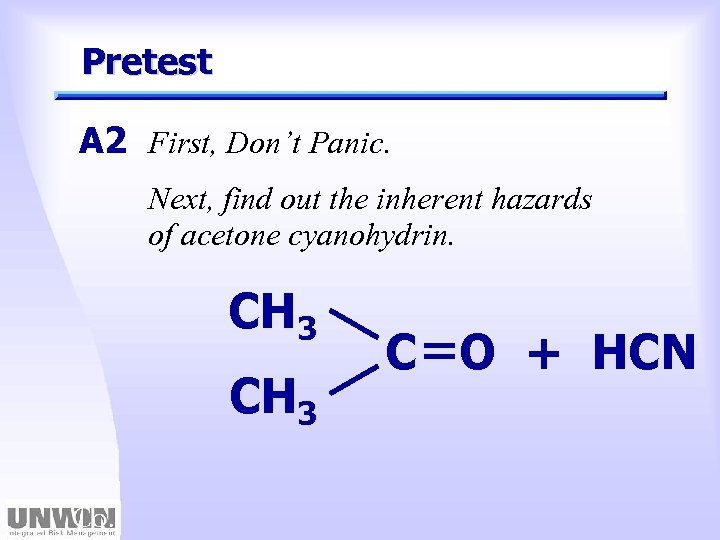

Pretest A 2 First, Don’t Panic. Next, find out the inherent hazards of acetone cyanohydrin. CH 3 C O + HCN

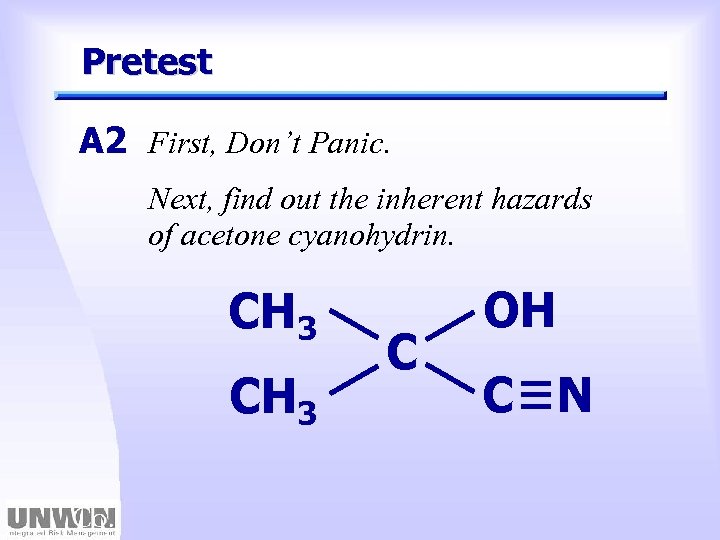

Pretest A 2 First, Don’t Panic. Next, find out the inherent hazards of acetone cyanohydrin. CH 3 C OH C N

Acetone Cyanohydrin NFPA 49 Severe health hazard; combustible; readily decomposes, producing HCN; no “special hazards”; reacts with acids, alkalis, oxidizing materials, reducing agents 3 2 1

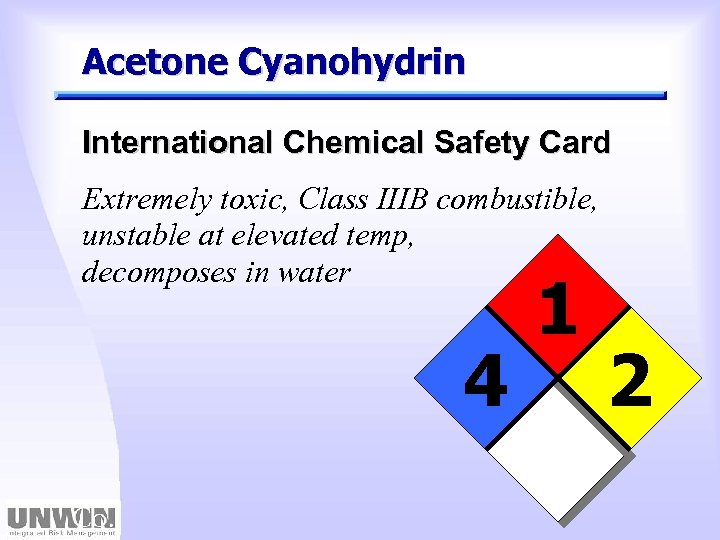

Acetone Cyanohydrin International Chemical Safety Card Extremely toxic, Class IIIB combustible, unstable at elevated temp, decomposes in water 4 1 2

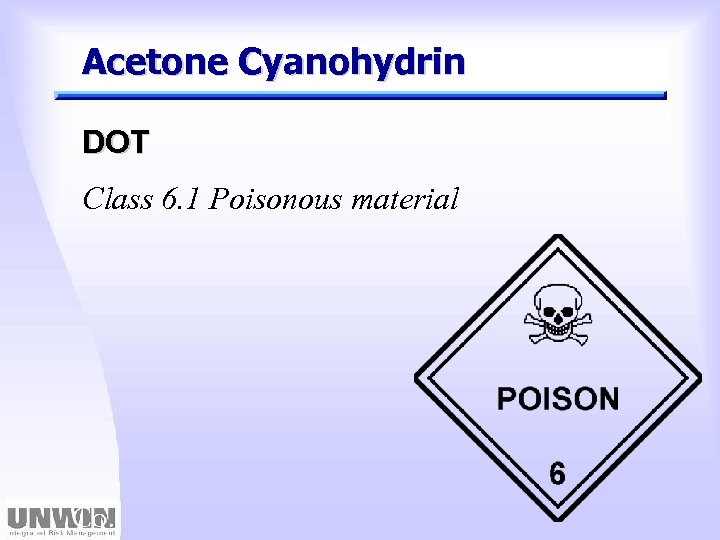

Acetone Cyanohydrin DOT Class 6. 1 Poisonous material

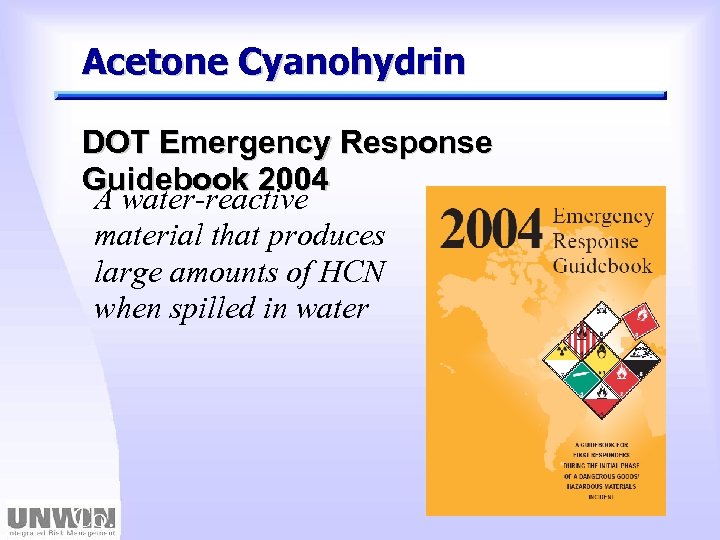

Acetone Cyanohydrin DOT Emergency Response Guidebook 2004 A water-reactive material that produces large amounts of HCN when spilled in water

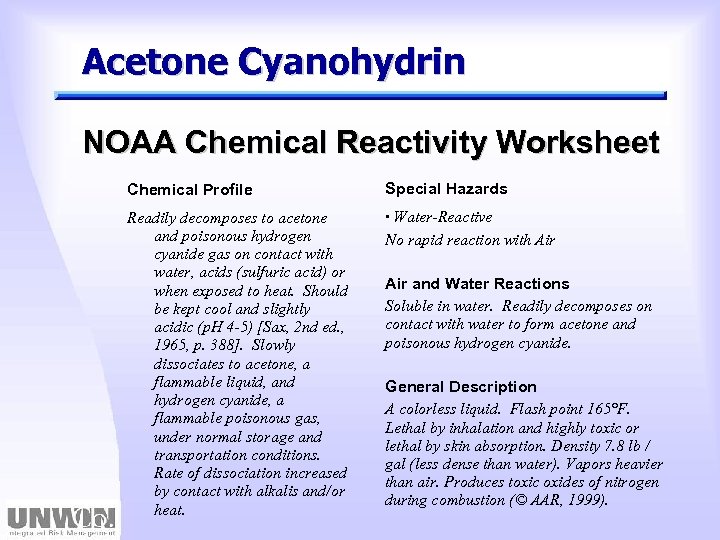

Acetone Cyanohydrin NOAA Chemical Reactivity Worksheet Chemical Profile Special Hazards Readily decomposes to acetone and poisonous hydrogen cyanide gas on contact with water, acids (sulfuric acid) or when exposed to heat. Should be kept cool and slightly acidic (p. H 4 -5) [Sax, 2 nd ed. , 1965, p. 388]. Slowly dissociates to acetone, a flammable liquid, and hydrogen cyanide, a flammable poisonous gas, under normal storage and transportation conditions. Rate of dissociation increased by contact with alkalis and/or heat. · Water-Reactive No rapid reaction with Air and Water Reactions Soluble in water. Readily decomposes on contact with water to form acetone and poisonous hydrogen cyanide. General Description A colorless liquid. Flash point 165°F. Lethal by inhalation and highly toxic or lethal by skin absorption. Density 7. 8 lb / gal (less dense than water). Vapors heavier than air. Produces toxic oxides of nitrogen during combustion (© AAR, 1999).

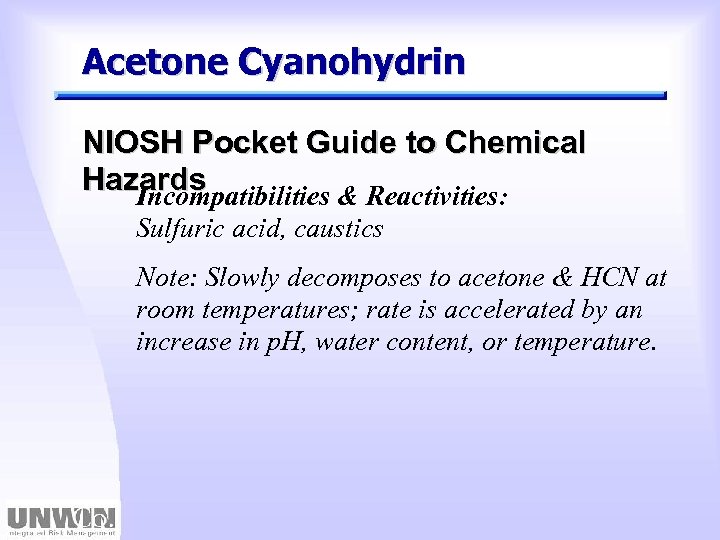

Acetone Cyanohydrin NIOSH Pocket Guide to Chemical Hazards Incompatibilities & Reactivities: Sulfuric acid, caustics Note: Slowly decomposes to acetone & HCN at room temperatures; rate is accelerated by an increase in p. H, water content, or temperature.

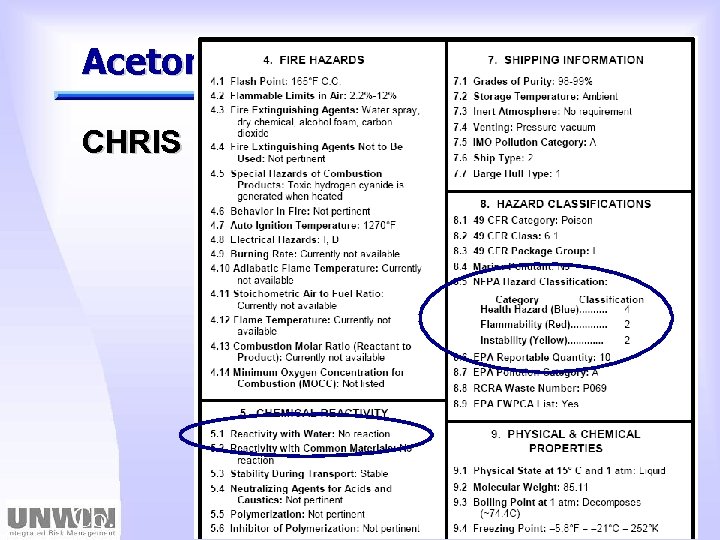

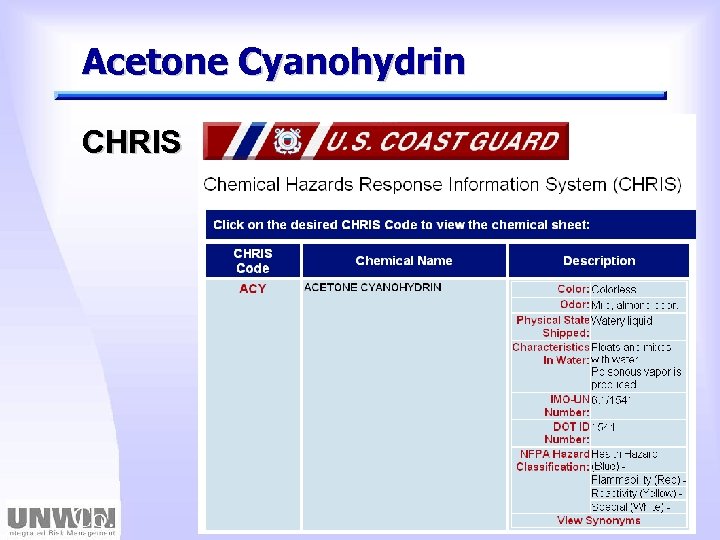

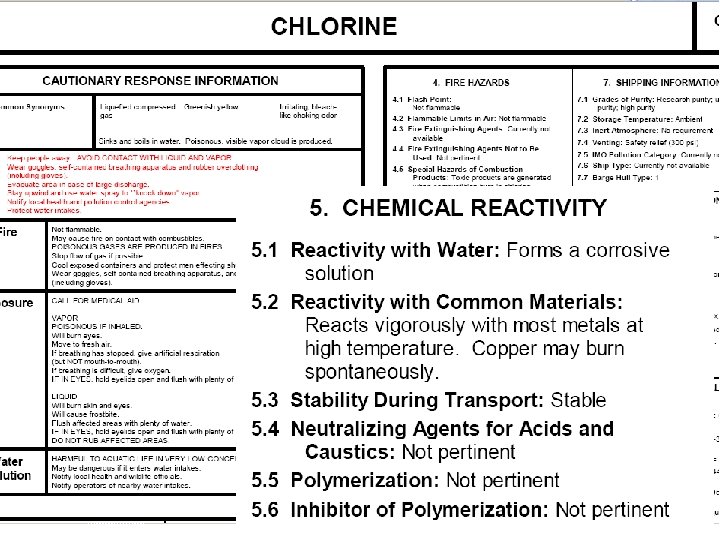

Acetone Cyanohydrin CHRIS

Acetone Cyanohydrin CHRIS

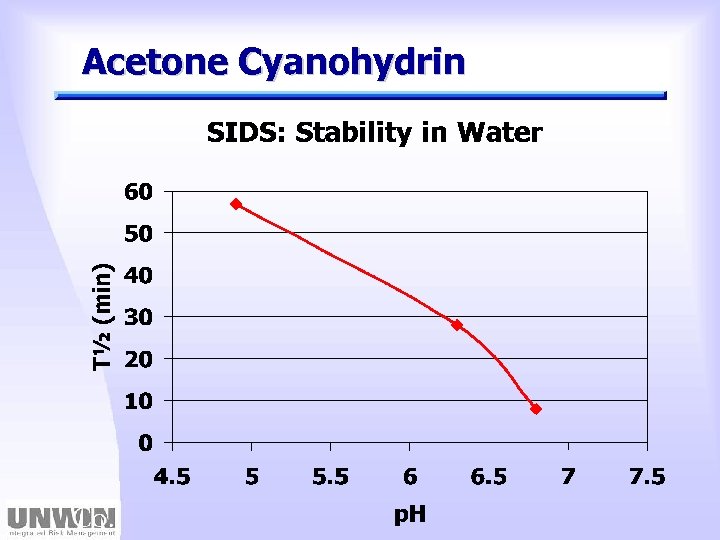

Acetone Cyanohydrin

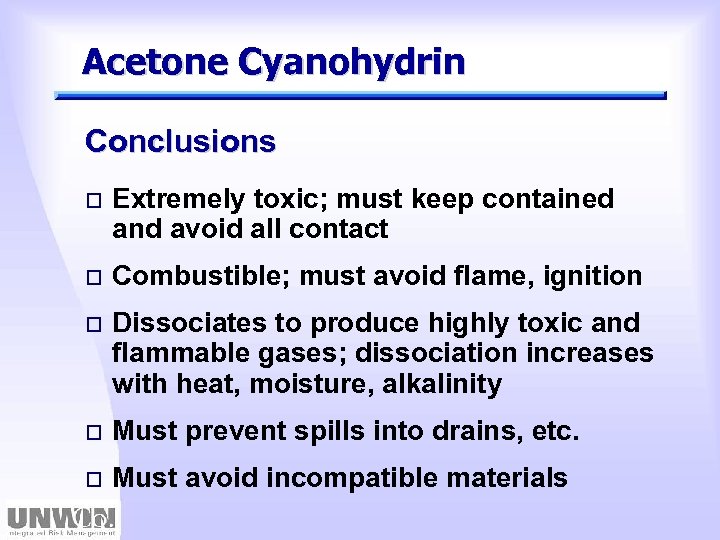

Acetone Cyanohydrin Conclusions o Extremely toxic; must keep contained and avoid all contact o Combustible; must avoid flame, ignition o Dissociates to produce highly toxic and flammable gases; dissociation increases with heat, moisture, alkalinity o Must prevent spills into drains, etc. o Must avoid incompatible materials

Key Concepts

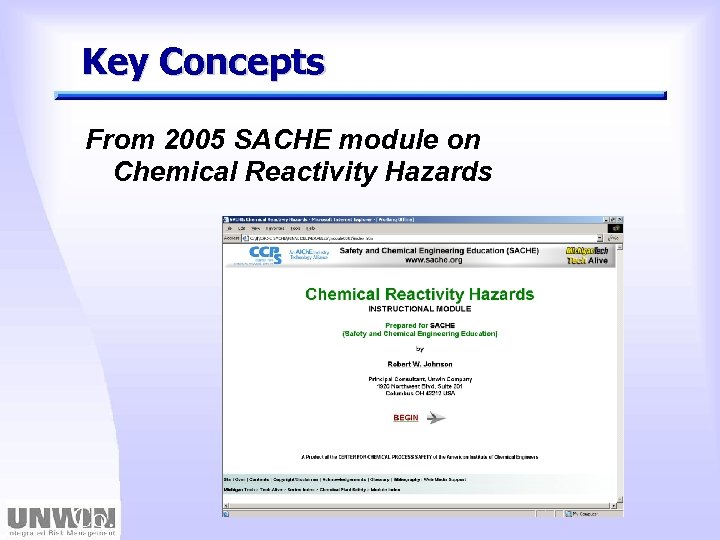

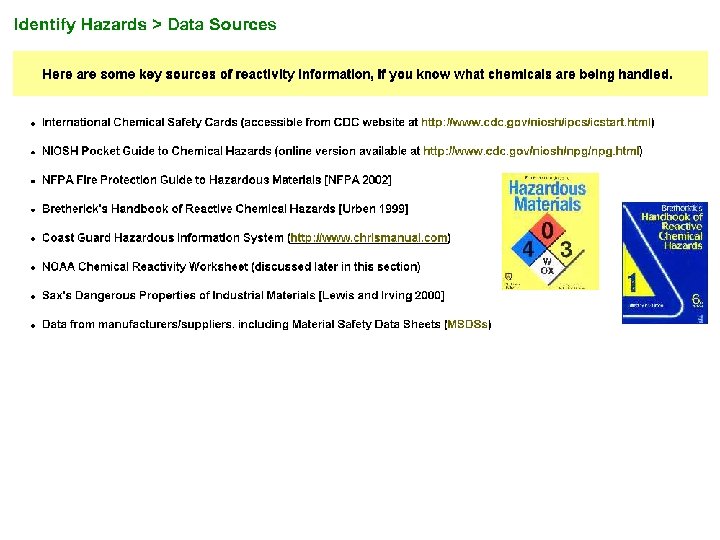

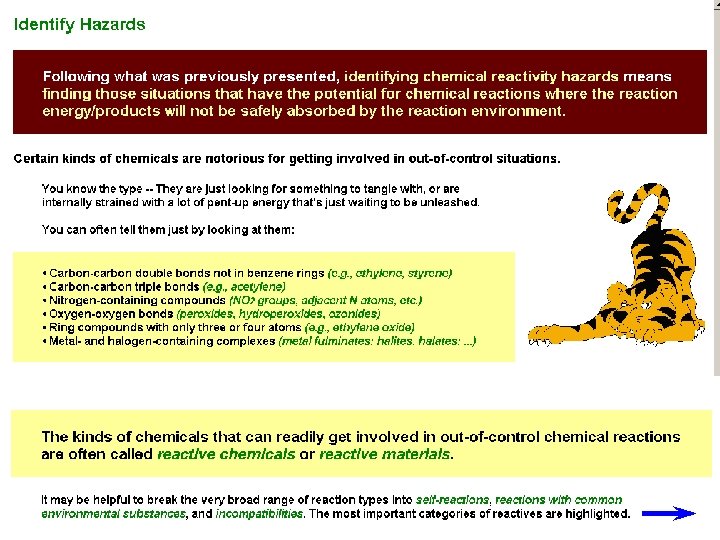

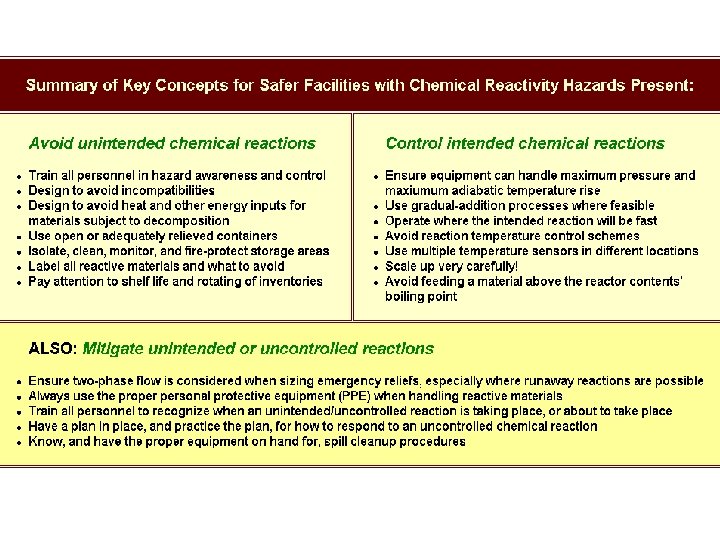

Key Concepts From 2005 SACHE module on Chemical Reactivity Hazards

(etc. )

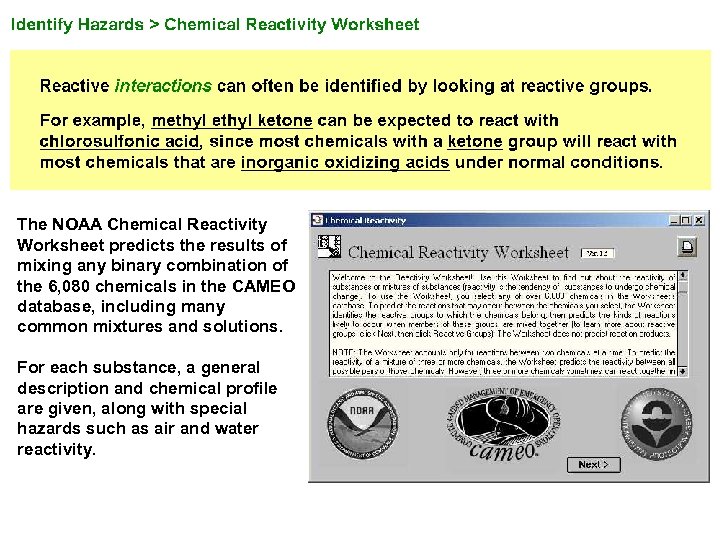

The NOAA Chemical Reactivity Worksheet predicts the results of mixing any binary combination of the 6, 080 chemicals in the CAMEO database, including many common mixtures and solutions. For each substance, a general description and chemical profile are given, along with special hazards such as air and water reactivity.

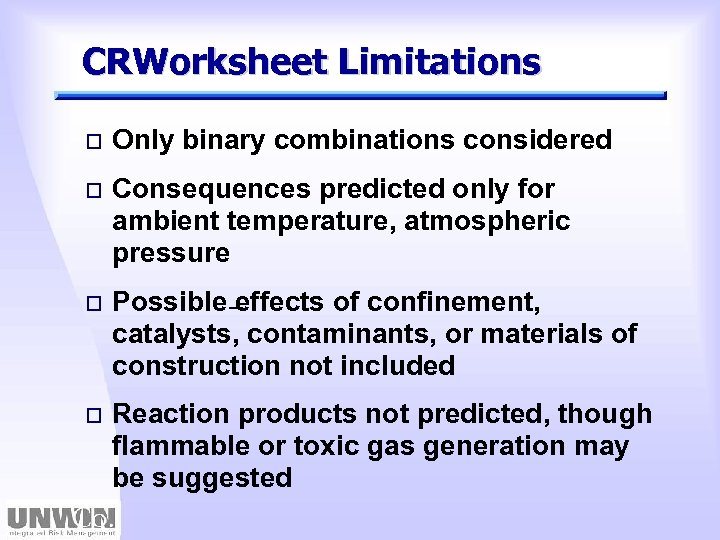

CRWorksheet Limitations o Only binary combinations considered o Consequences predicted only for ambient temperature, atmospheric pressure o Possible effects of confinement, catalysts, contaminants, or materials of construction not included o Reaction products not predicted, though flammable or toxic gas generation may be suggested

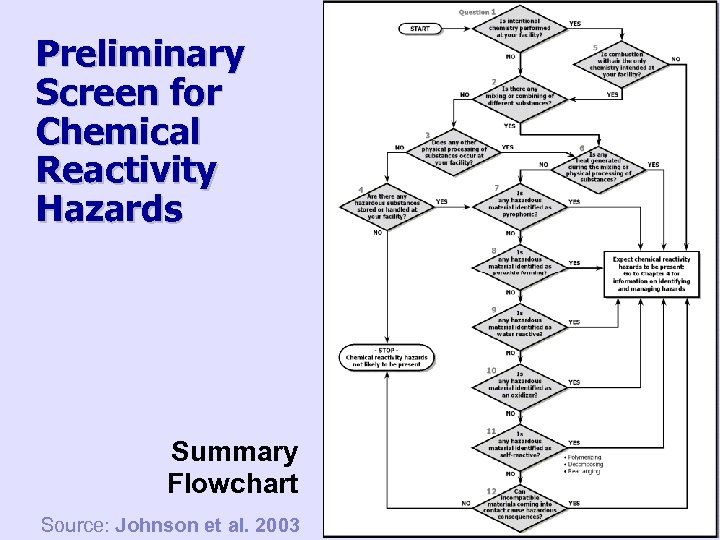

Preliminary Screen for Chemical Reactivity Hazards Summary Flowchart Source: Johnson et al. 2003

Incident April 21, 1995 o 5 worker fatalities o ~300 evacuated o Facility destroyed o Surrounding businesses damaged Ed Hill, The Bergen Record Used with permission

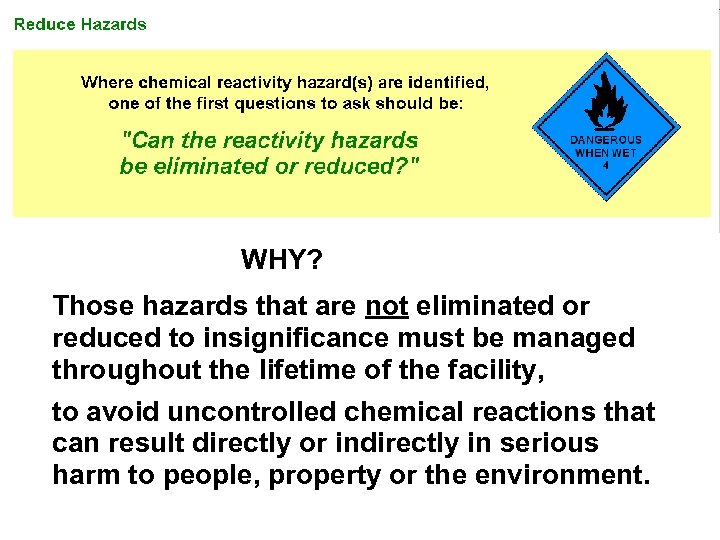

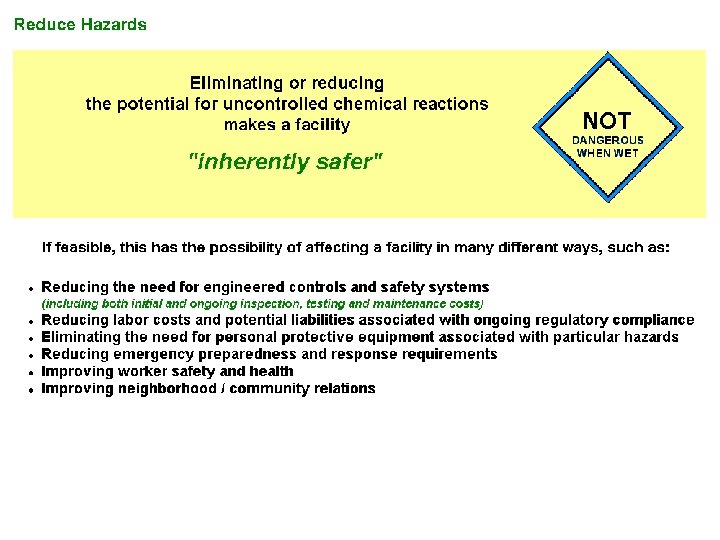

WHY? Those hazards that are not eliminated or reduced to insignificance must be managed throughout the lifetime of the facility, to avoid uncontrolled chemical reactions that can result directly or indirectly in serious harm to people, property or the environment.

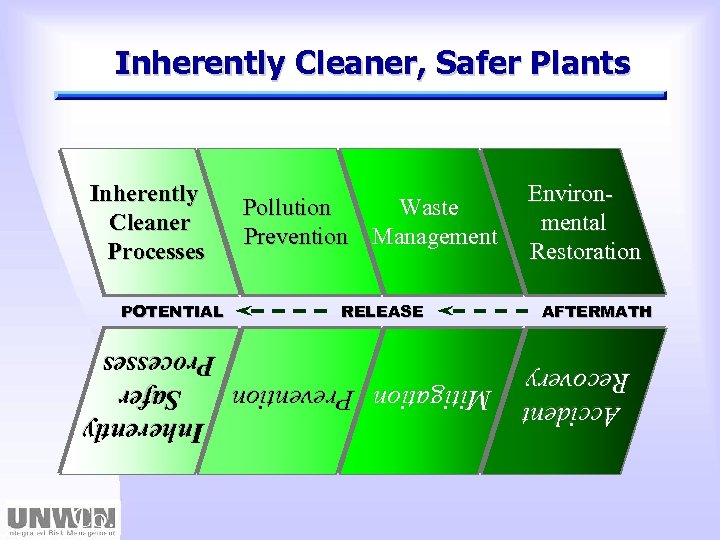

Inherently Cleaner, Safer Plants POTENTIAL Pollution Waste Prevention Management RELEASE Environmental Restoration AFTERMATH Accident Recovery Inherently Cleaner Processes Inherently Safer Mitigation Prevention Processes

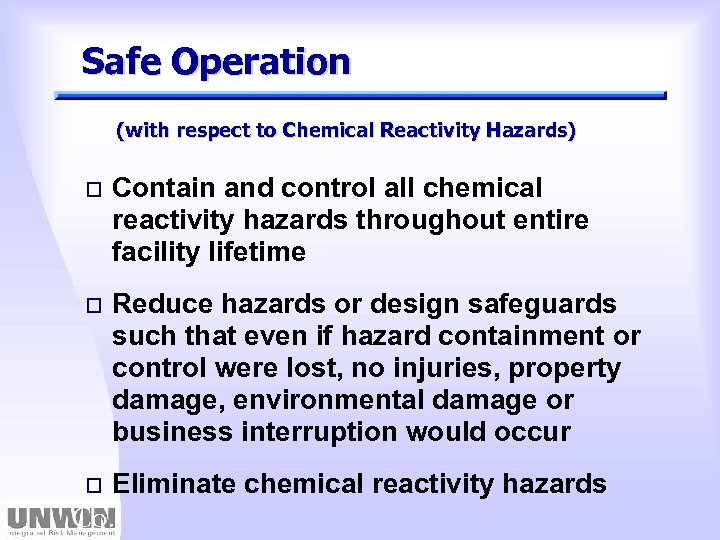

Safe Operation (with respect to Chemical Reactivity Hazards) o Contain and control all chemical reactivity hazards throughout entire facility lifetime o Reduce hazards or design safeguards such that even if hazard containment or control were lost, no injuries, property damage, environmental damage or business interruption would occur o Eliminate chemical reactivity hazards

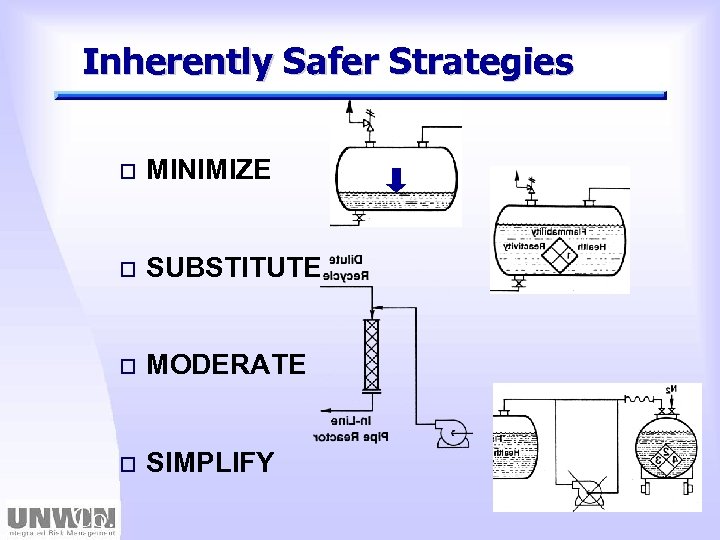

Inherently Safer Strategies o MINIMIZE o SUBSTITUTE o MODERATE o SIMPLIFY

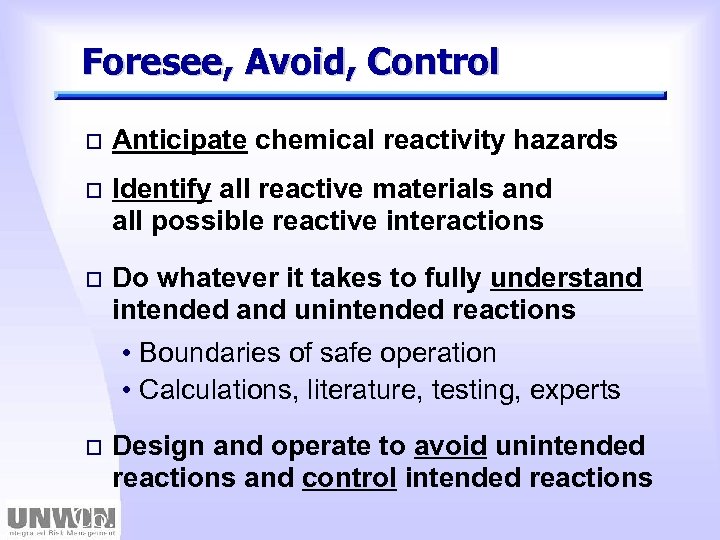

Foresee, Avoid, Control o Anticipate chemical reactivity hazards o Identify all reactive materials and all possible reactive interactions o Do whatever it takes to fully understand intended and unintended reactions • Boundaries of safe operation • Calculations, literature, testing, experts o Design and operate to avoid unintended reactions and control intended reactions

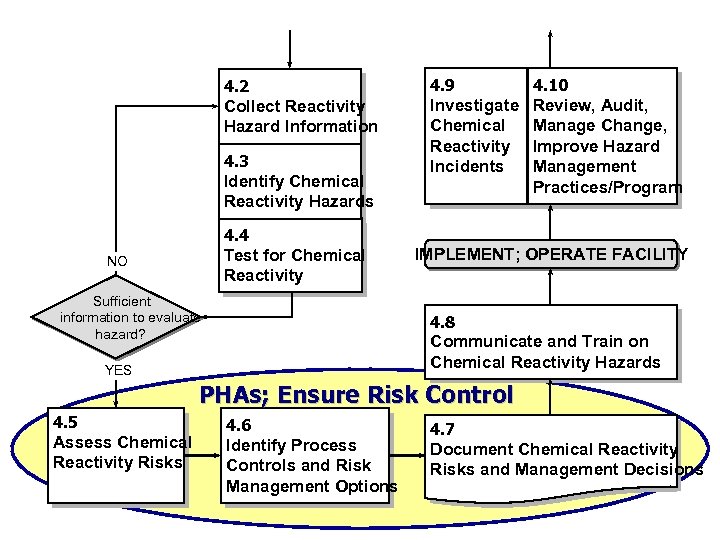

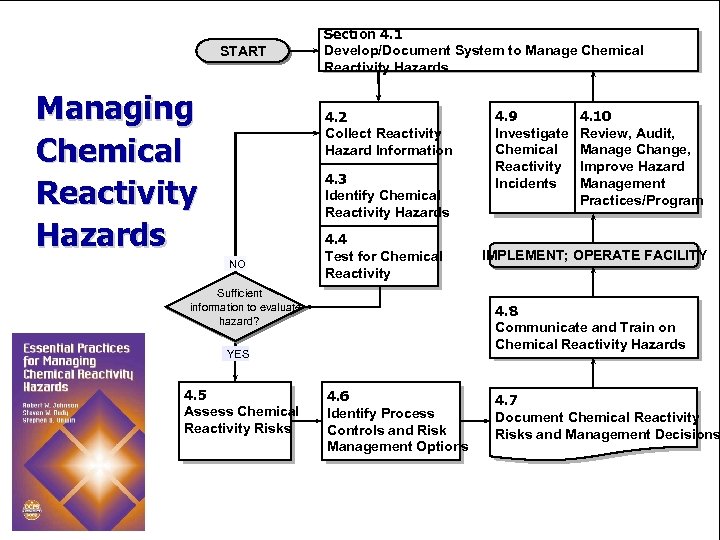

START Managing Chemical Reactivity Hazards Section 4. 1 Develop/Document System to Manage Chemical Reactivity Hazards 4. 2 Collect Reactivity Hazard Information 4. 3 Identify Chemical Reactivity Hazards NO 4. 4 Test for Chemical Reactivity Sufficient information to evaluate hazard? 4. 10 Review, Audit, Manage Change, Improve Hazard Management Practices/Program IMPLEMENT; OPERATE FACILITY 4. 8 Communicate and Train on Chemical Reactivity Hazards YES 4. 5 Assess Chemical Reactivity Risks 4. 9 Investigate Chemical Reactivity Incidents 4. 6 Identify Process Controls and Risk Management Options 4. 7 Document Chemical Reactivity Risks and Management Decisions

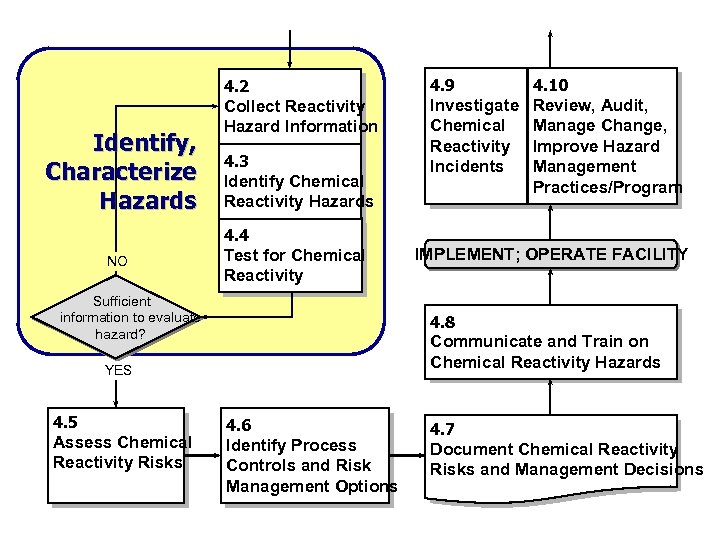

4. 2 Identify, Characterize Hazards 4. 9 4. 10 Collect Reactivity Hazard Information Investigate Chemical Reactivity Incidents Review, Audit, Manage Change, Improve Hazard Management Practices/Program 4. 3 Identify Chemical Reactivity Hazards 4. 4 NO Test for Chemical Reactivity Sufficient information to evaluate hazard? 4. 8 Communicate and Train on Chemical Reactivity Hazards YES 4. 5 Assess Chemical Reactivity Risks IMPLEMENT; OPERATE FACILITY 4. 6 Identify Process Controls and Risk Management Options 4. 7 Document Chemical Reactivity Risks and Management Decisions

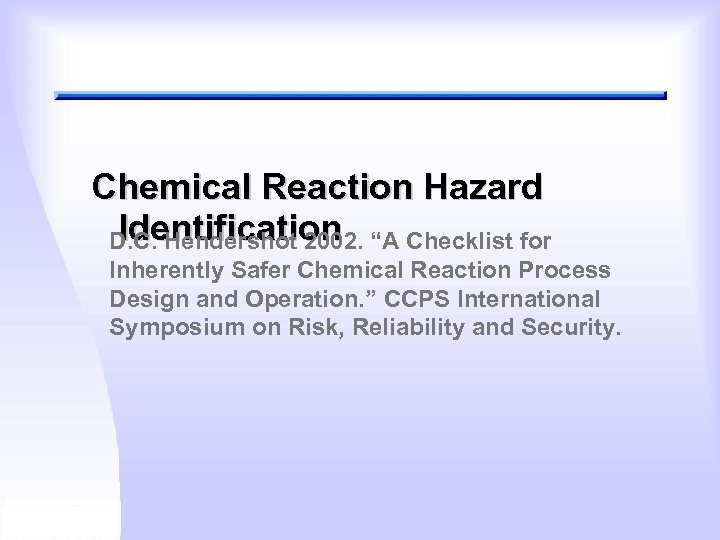

Chemical Reaction Hazard Identification D. C. Hendershot 2002. “A Checklist for Inherently Safer Chemical Reaction Process Design and Operation. ” CCPS International Symposium on Risk, Reliability and Security.

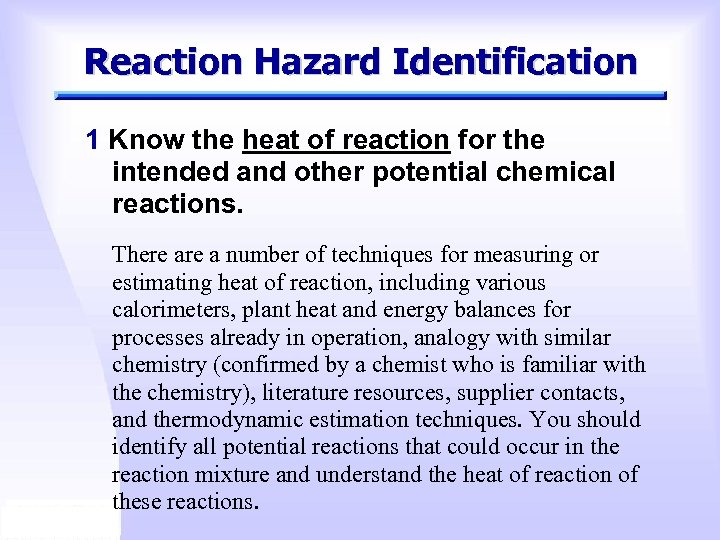

Reaction Hazard Identification 1 Know the heat of reaction for the intended and other potential chemical reactions. There a number of techniques for measuring or estimating heat of reaction, including various calorimeters, plant heat and energy balances for processes already in operation, analogy with similar chemistry (confirmed by a chemist who is familiar with the chemistry), literature resources, supplier contacts, and thermodynamic estimation techniques. You should identify all potential reactions that could occur in the reaction mixture and understand the heat of reaction of these reactions.

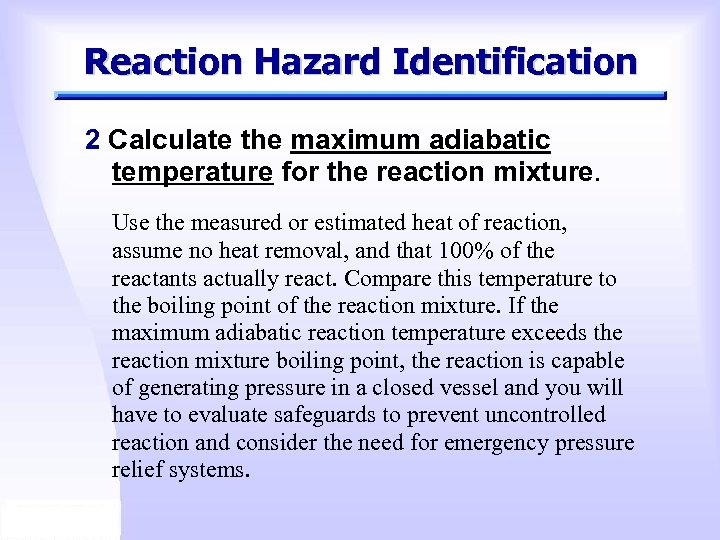

Reaction Hazard Identification 2 Calculate the maximum adiabatic temperature for the reaction mixture. Use the measured or estimated heat of reaction, assume no heat removal, and that 100% of the reactants actually react. Compare this temperature to the boiling point of the reaction mixture. If the maximum adiabatic reaction temperature exceeds the reaction mixture boiling point, the reaction is capable of generating pressure in a closed vessel and you will have to evaluate safeguards to prevent uncontrolled reaction and consider the need for emergency pressure relief systems.

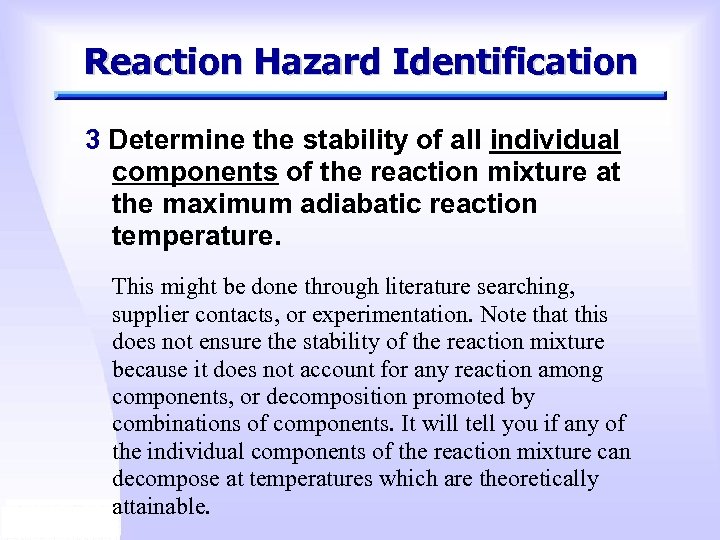

Reaction Hazard Identification 3 Determine the stability of all individual components of the reaction mixture at the maximum adiabatic reaction temperature. This might be done through literature searching, supplier contacts, or experimentation. Note that this does not ensure the stability of the reaction mixture because it does not account for any reaction among components, or decomposition promoted by combinations of components. It will tell you if any of the individual components of the reaction mixture can decompose at temperatures which are theoretically attainable.

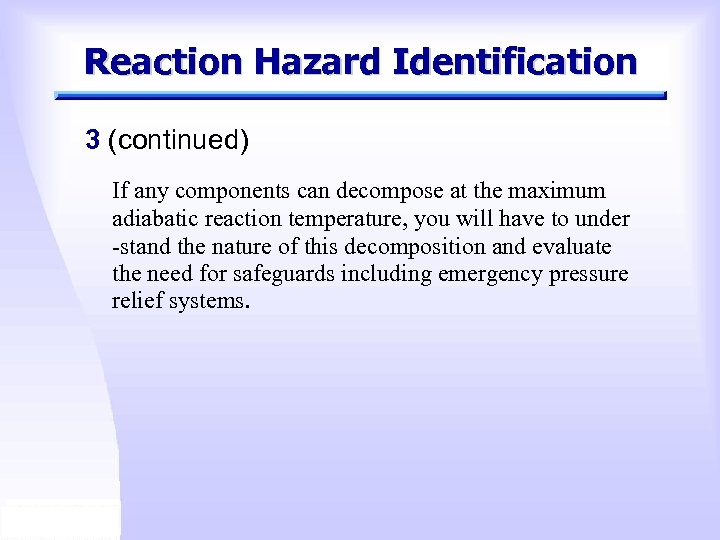

Reaction Hazard Identification 3 (continued) If any components can decompose at the maximum adiabatic reaction temperature, you will have to under -stand the nature of this decomposition and evaluate the need for safeguards including emergency pressure relief systems.

Reaction Hazard Identification 4 Understand the stability of the reaction mixture at the maximum adiabatic reaction temperature. Are there any chemical reactions, other than the intended reaction, which can occur at the maximum adiabatic reaction temperature? Consider possible decomposition reactions, particularly those which generate gaseous products. These are a particular concern because a small mass of reacting condensed liquid can generate a very large volume of gas from the reaction products, resulting in rapid pressure generation in a closed vessel.

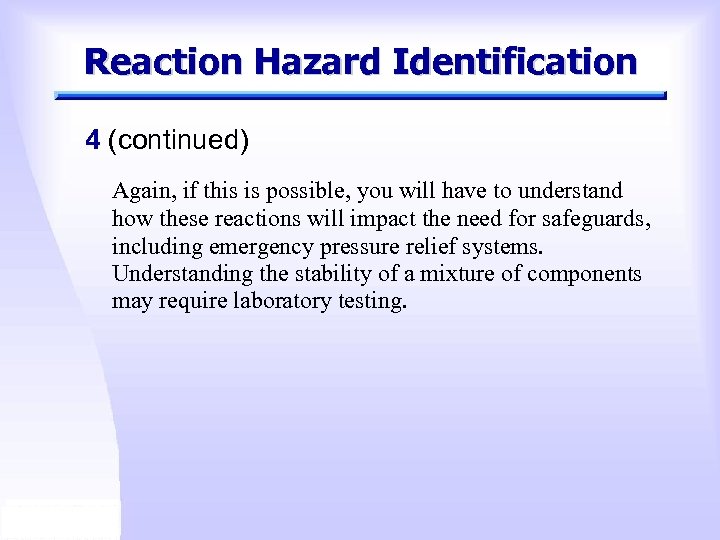

Reaction Hazard Identification 4 (continued) Again, if this is possible, you will have to understand how these reactions will impact the need for safeguards, including emergency pressure relief systems. Understanding the stability of a mixture of components may require laboratory testing.

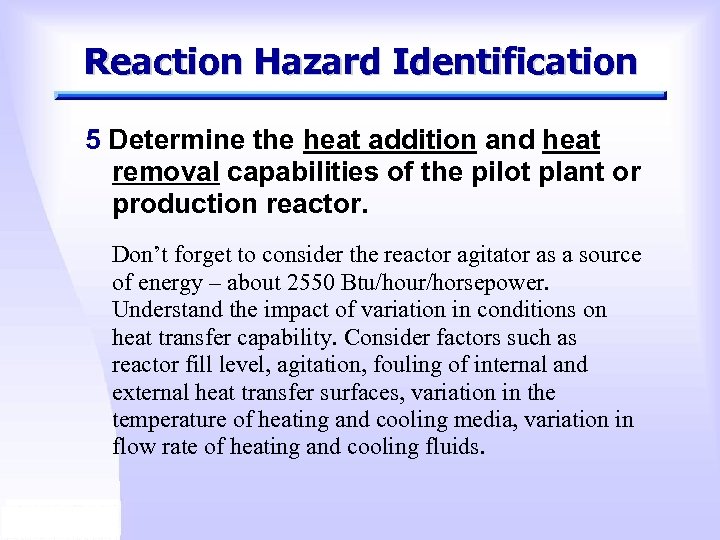

Reaction Hazard Identification 5 Determine the heat addition and heat removal capabilities of the pilot plant or production reactor. Don’t forget to consider the reactor agitator as a source of energy – about 2550 Btu/hour/horsepower. Understand the impact of variation in conditions on heat transfer capability. Consider factors such as reactor fill level, agitation, fouling of internal and external heat transfer surfaces, variation in the temperature of heating and cooling media, variation in flow rate of heating and cooling fluids.

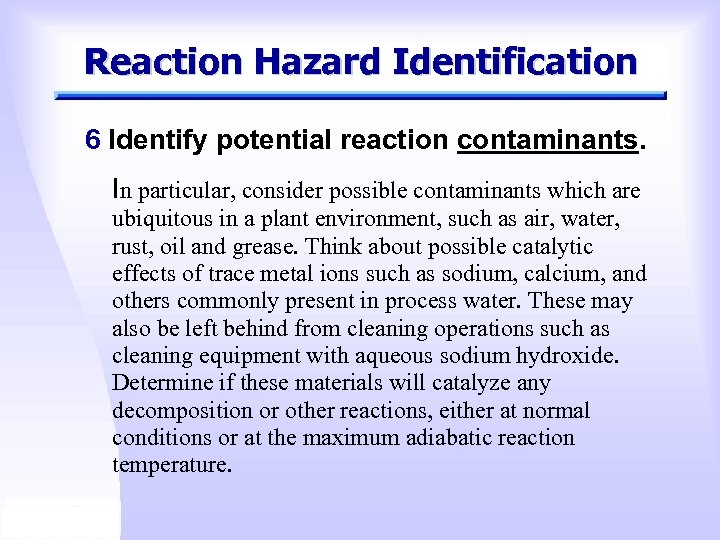

Reaction Hazard Identification 6 Identify potential reaction contaminants. In particular, consider possible contaminants which are ubiquitous in a plant environment, such as air, water, rust, oil and grease. Think about possible catalytic effects of trace metal ions such as sodium, calcium, and others commonly present in process water. These may also be left behind from cleaning operations such as cleaning equipment with aqueous sodium hydroxide. Determine if these materials will catalyze any decomposition or other reactions, either at normal conditions or at the maximum adiabatic reaction temperature.

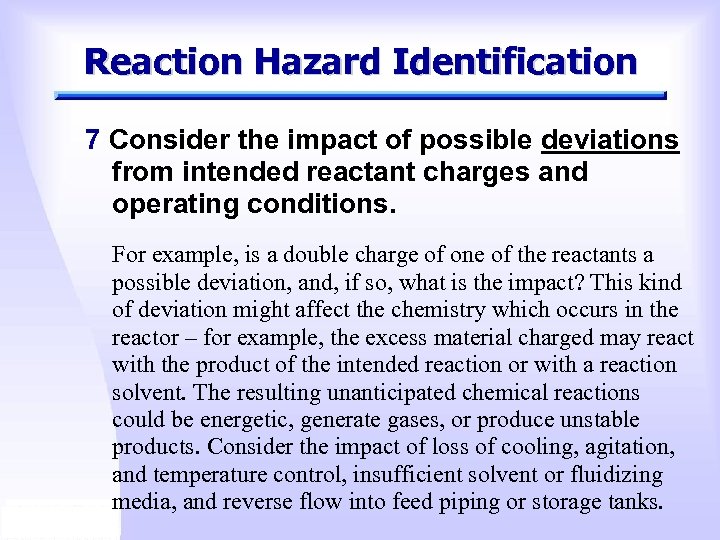

Reaction Hazard Identification 7 Consider the impact of possible deviations from intended reactant charges and operating conditions. For example, is a double charge of one of the reactants a possible deviation, and, if so, what is the impact? This kind of deviation might affect the chemistry which occurs in the reactor – for example, the excess material charged may react with the product of the intended reaction or with a reaction solvent. The resulting unanticipated chemical reactions could be energetic, generate gases, or produce unstable products. Consider the impact of loss of cooling, agitation, and temperature control, insufficient solvent or fluidizing media, and reverse flow into feed piping or storage tanks.

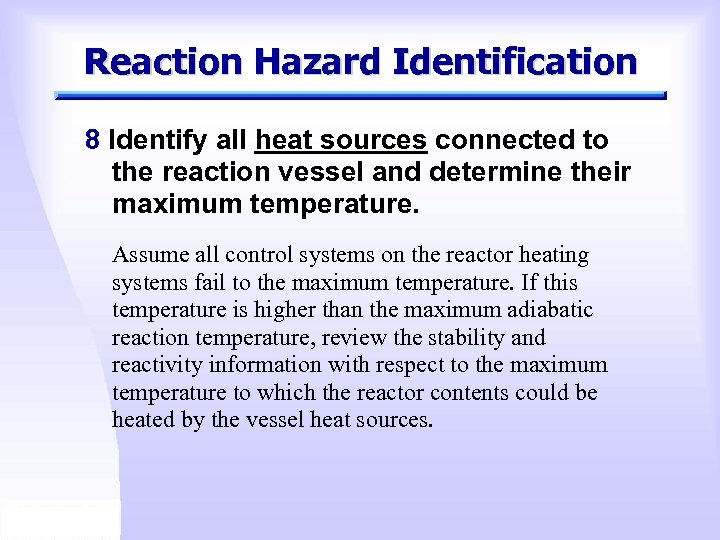

Reaction Hazard Identification 8 Identify all heat sources connected to the reaction vessel and determine their maximum temperature. Assume all control systems on the reactor heating systems fail to the maximum temperature. If this temperature is higher than the maximum adiabatic reaction temperature, review the stability and reactivity information with respect to the maximum temperature to which the reactor contents could be heated by the vessel heat sources.

Reaction Hazard Identification 9 Determine the minimum temperature to which the reactor cooling sources could cool the reaction mixture. Consider potential hazards resulting from too much cooling, such as freezing of reaction mixture components, fouling of heat transfer surfaces, increase in reaction mixture viscosity reducing mixing and heat transfer, precipitation of dissolved solids from the reaction mixture, and a reduced rate of reaction resulting in a hazardous accumulation of unreacted material.

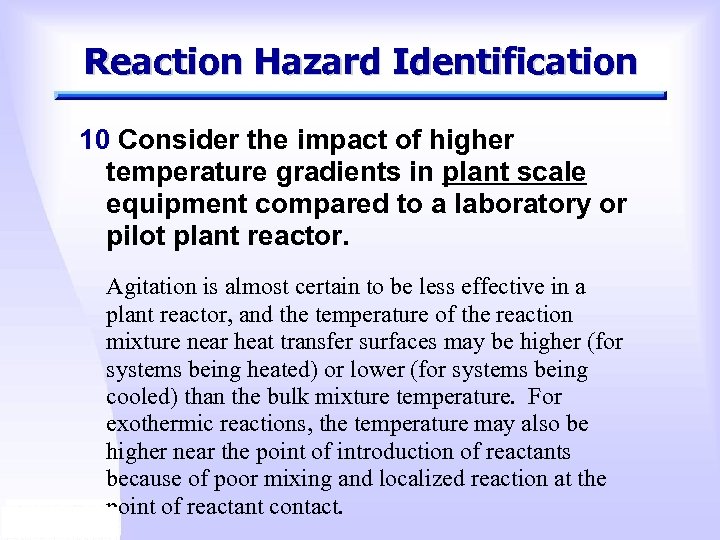

Reaction Hazard Identification 10 Consider the impact of higher temperature gradients in plant scale equipment compared to a laboratory or pilot plant reactor. Agitation is almost certain to be less effective in a plant reactor, and the temperature of the reaction mixture near heat transfer surfaces may be higher (for systems being heated) or lower (for systems being cooled) than the bulk mixture temperature. For exothermic reactions, the temperature may also be higher near the point of introduction of reactants because of poor mixing and localized reaction at the point of reactant contact.

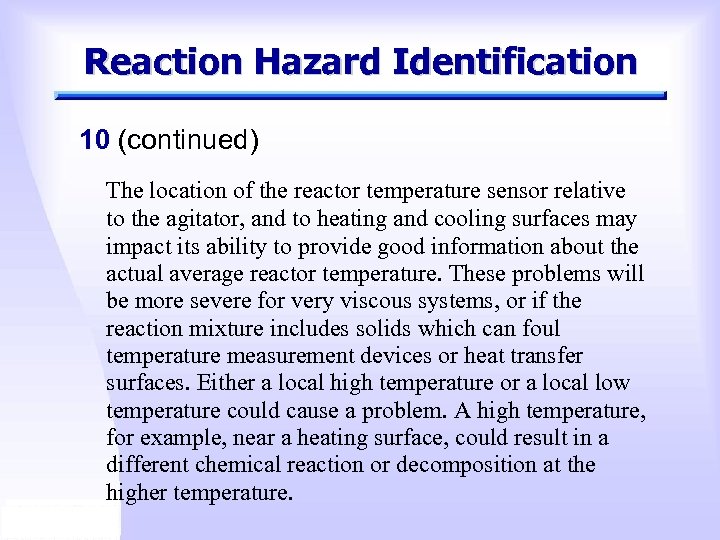

Reaction Hazard Identification 10 (continued) The location of the reactor temperature sensor relative to the agitator, and to heating and cooling surfaces may impact its ability to provide good information about the actual average reactor temperature. These problems will be more severe for very viscous systems, or if the reaction mixture includes solids which can foul temperature measurement devices or heat transfer surfaces. Either a local high temperature or a local low temperature could cause a problem. A high temperature, for example, near a heating surface, could result in a different chemical reaction or decomposition at the higher temperature.

Reaction Hazard Identification 10 (continued) A low temperature near a cooling coil could result in slower reaction and a buildup of unreacted material, increasing the potential chemical energy of reaction available in the reactor. If this material is subsequently reacted because of an increase in temperature or other change in reactor conditions, there is a possibility of an uncontrolled reaction due to the unexpectedly high quantity of unreacted material available.

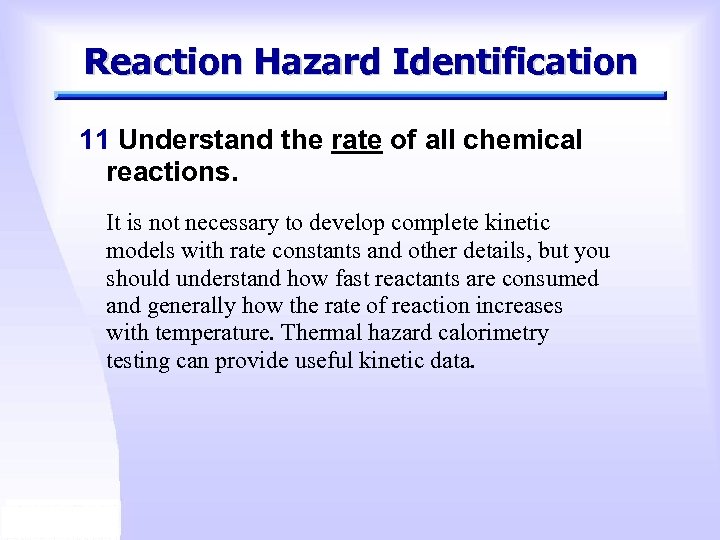

Reaction Hazard Identification 11 Understand the rate of all chemical reactions. It is not necessary to develop complete kinetic models with rate constants and other details, but you should understand how fast reactants are consumed and generally how the rate of reaction increases with temperature. Thermal hazard calorimetry testing can provide useful kinetic data.

Reaction Hazard Identification 12 Consider possible vapor phase reactions. These might include combustion reactions, other vapor phase reactions such as the reaction of organic vapors with a chlorine atmosphere, and vapor phase decomposition of materials such as ethylene oxide or organic peroxide.

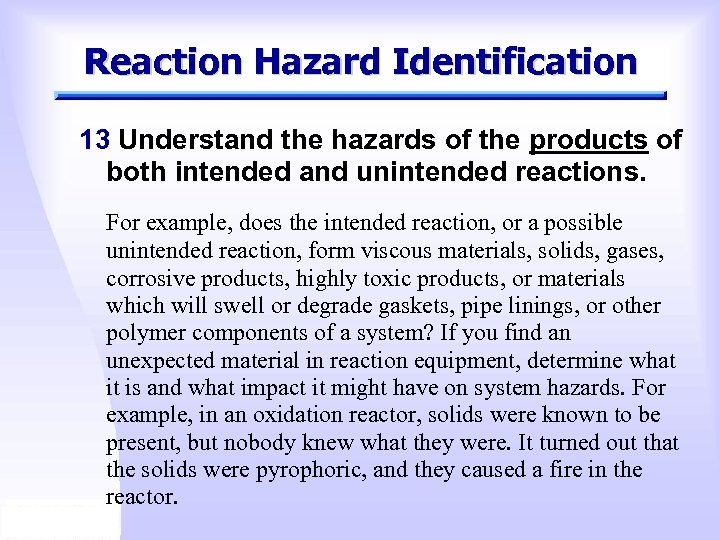

Reaction Hazard Identification 13 Understand the hazards of the products of both intended and unintended reactions. For example, does the intended reaction, or a possible unintended reaction, form viscous materials, solids, gases, corrosive products, highly toxic products, or materials which will swell or degrade gaskets, pipe linings, or other polymer components of a system? If you find an unexpected material in reaction equipment, determine what it is and what impact it might have on system hazards. For example, in an oxidation reactor, solids were known to be present, but nobody knew what they were. It turned out that the solids were pyrophoric, and they caused a fire in the reactor.

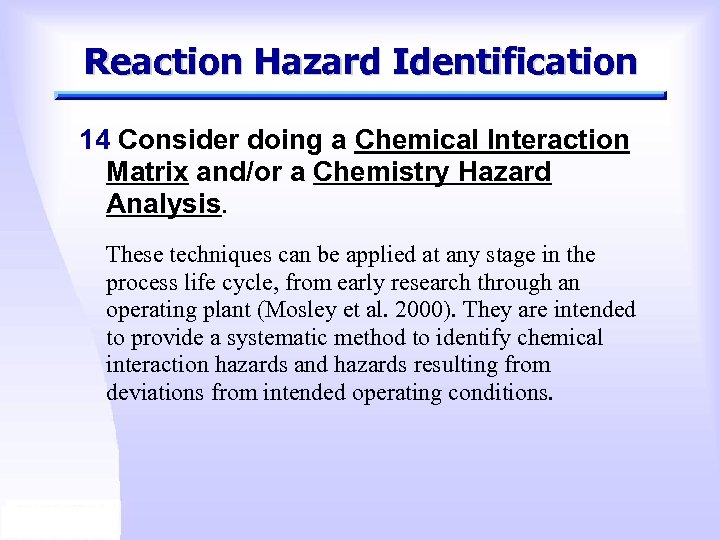

Reaction Hazard Identification 14 Consider doing a Chemical Interaction Matrix and/or a Chemistry Hazard Analysis. These techniques can be applied at any stage in the process life cycle, from early research through an operating plant (Mosley et al. 2000). They are intended to provide a systematic method to identify chemical interaction hazards and hazards resulting from deviations from intended operating conditions.

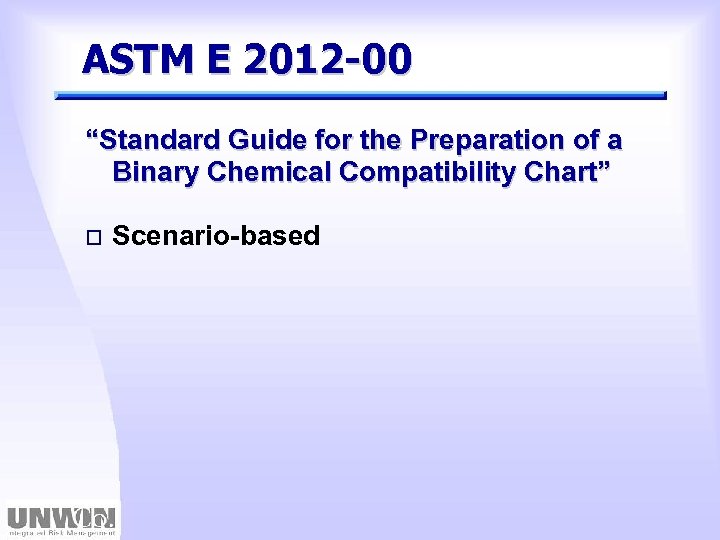

ASTM E 2012 -00 “Standard Guide for the Preparation of a Binary Chemical Compatibility Chart” o Scenario-based

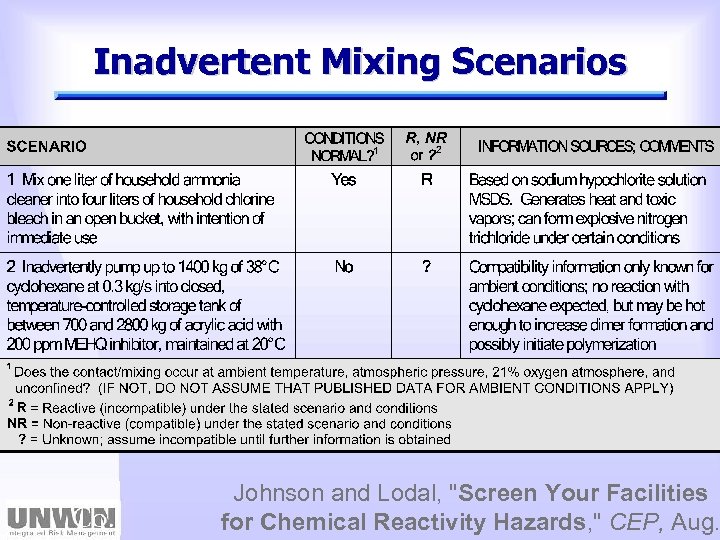

Inadvertent Mixing Scenarios Johnson and Lodal, "Screen Your Facilities for Chemical Reactivity Hazards, " CEP, Aug.

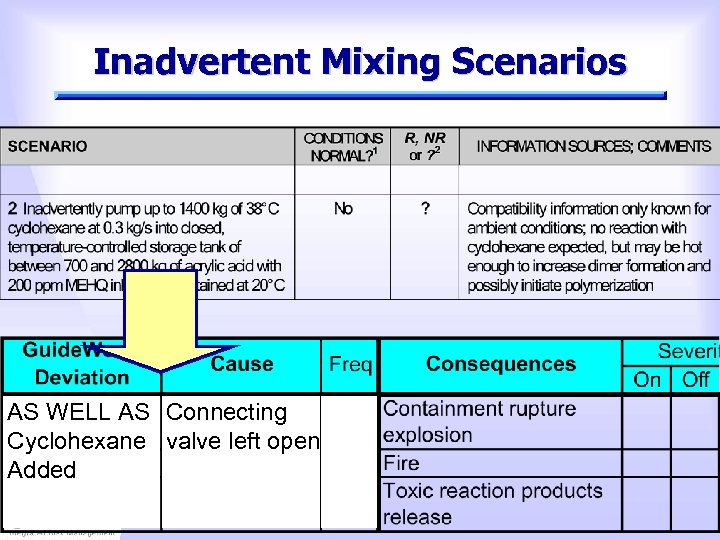

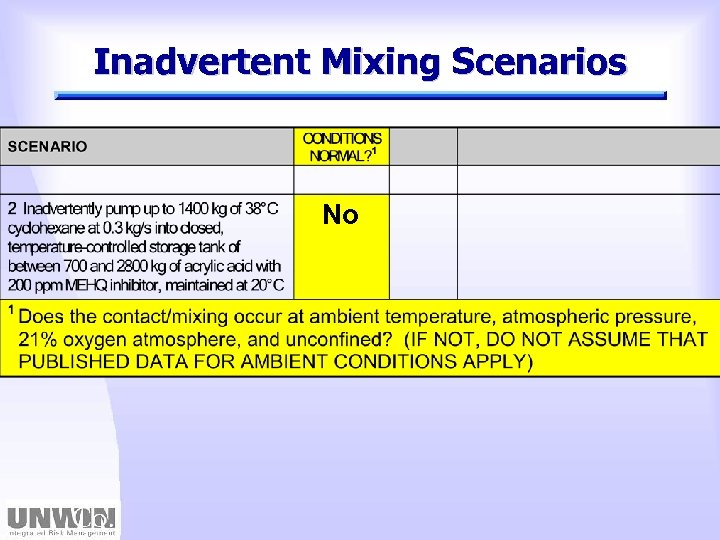

Inadvertent Mixing to 1400 kg 2 Inadvertently pump up. Scenarios of 38°C cyclohexane at 0. 3 kg/s into closed, temperature-controlled storage tank of between 700 and 2800 kg of acrylic acid with 200 ppm MEHQ inhibitor, maintained at 20°C

Inadvertent Mixing Scenarios No

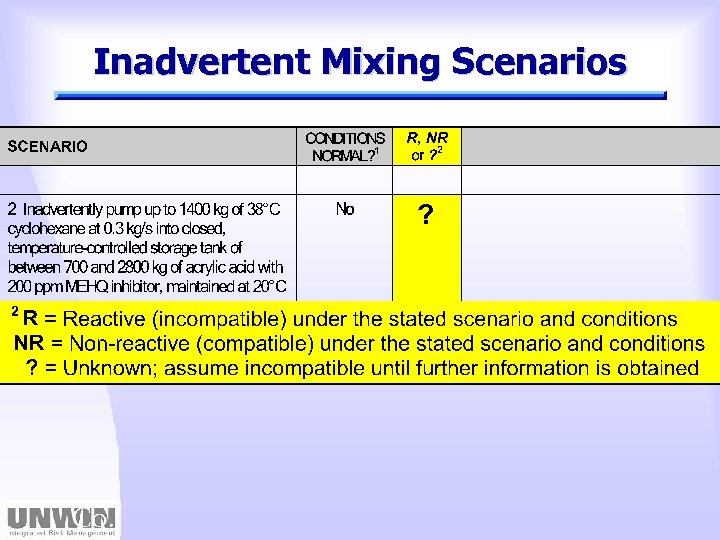

Inadvertent Mixing Scenarios ?

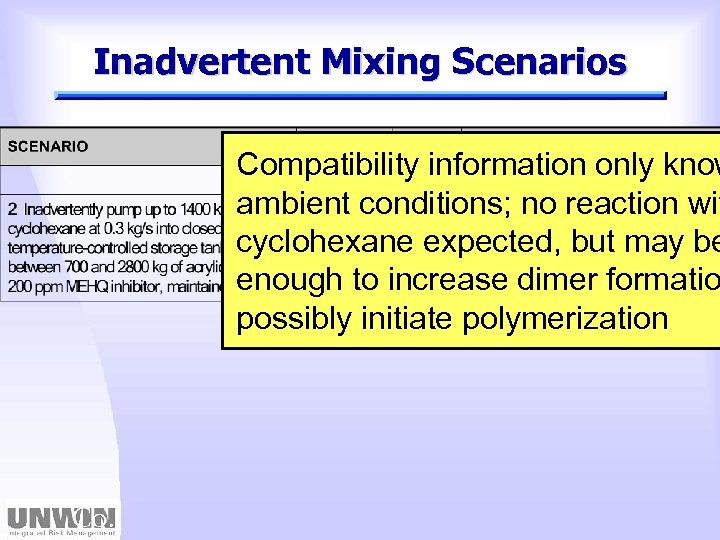

Inadvertent Mixing Scenarios Compatibility information only know ambient conditions; no reaction wit cyclohexane expected, but may be enough to increase dimer formatio possibly initiate polymerization

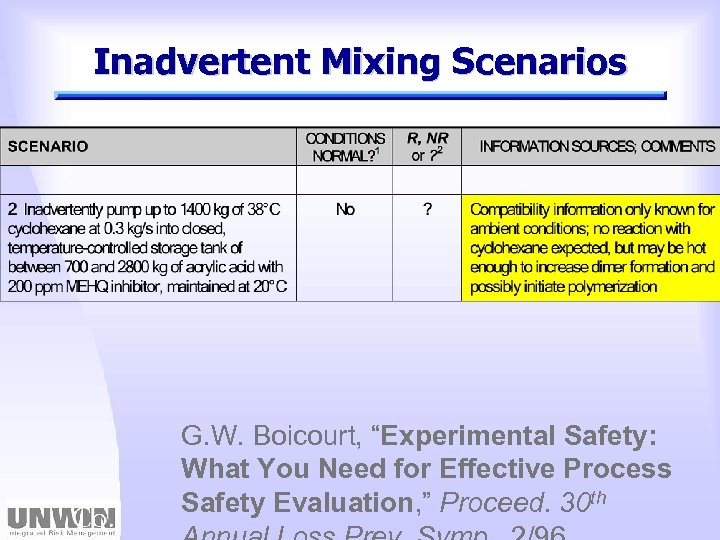

Inadvertent Mixing Scenarios G. W. Boicourt, “Experimental Safety: What You Need for Effective Process Safety Evaluation, ” Proceed. 30 th

Inadvertent Mixing Scenarios AS WELL AS Connecting Cyclohexane valve left open Added

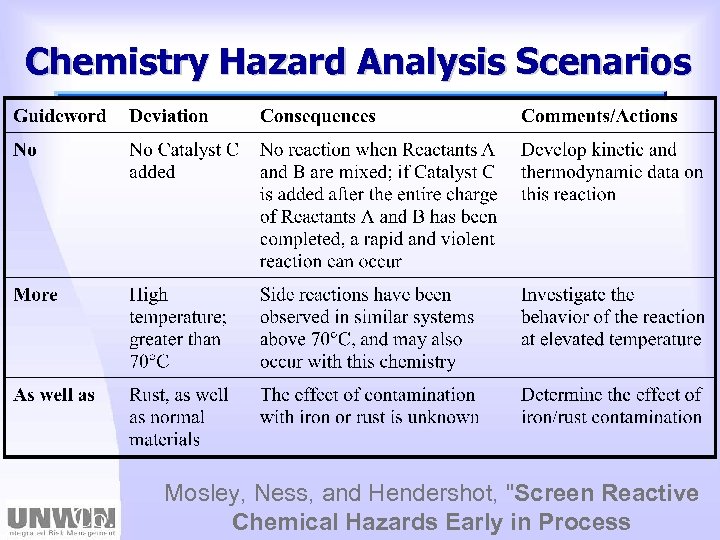

Chemistry Hazard Analysis Scenarios Mosley, Ness, and Hendershot, "Screen Reactive Chemical Hazards Early in Process

4. 2 4. 9 4. 10 Collect Reactivity Hazard Information Investigate Chemical Reactivity Incidents Review, Audit, Manage Change, Improve Hazard Management Practices/Program 4. 3 Identify Chemical Reactivity Hazards 4. 4 Test for Chemical Reactivity NO Sufficient information to evaluate hazard? IMPLEMENT; OPERATE FACILITY 4. 8 Communicate and Train on Chemical Reactivity Hazards YES PHAs; Ensure Risk Control 4. 5 Assess Chemical Reactivity Risks 4. 6 Identify Process Controls and Risk Management Options 4. 7 Document Chemical Reactivity Risks and Management Decisions

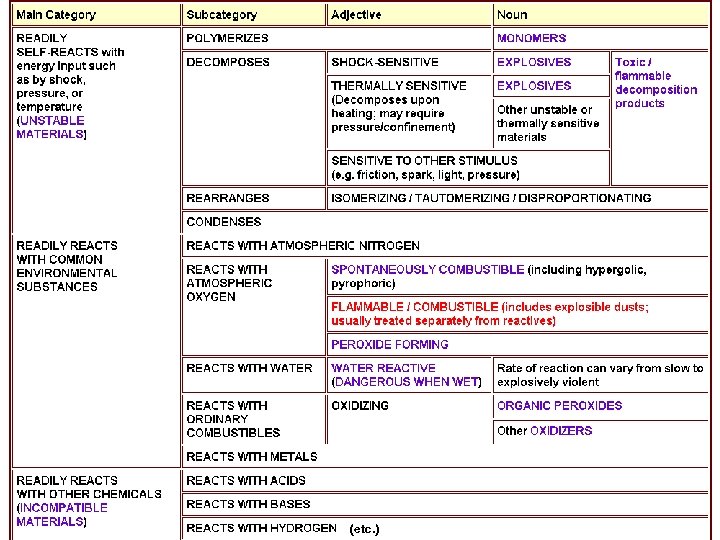

o Intentional Chemistry o Unintentional Chemistry • Materials Reactive with Ubiquitous Substances Chemical Reactivity Hazards – Spontaneously Combustible – Peroxide Forming – Water Reactive – Oxidizing • Self-Reactive Materials – Polymerizing – Decomposing – Rearranging Identify, characterize hazards • Reactive Interactions – Incompatibilities – Abnormal Conditions

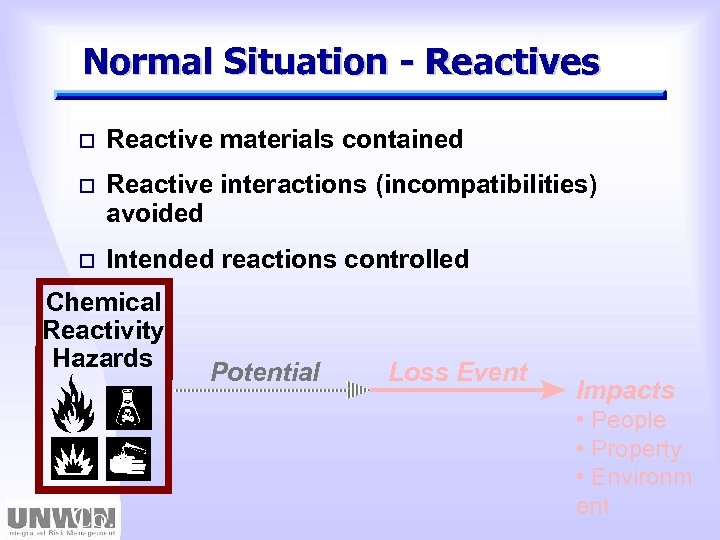

Normal Situation - Reactives o Reactive materials contained o Reactive interactions (incompatibilities) avoided o Intended reactions controlled Chemical Reactivity Hazards Potential Loss Event Impacts • People • Property • Environm ent

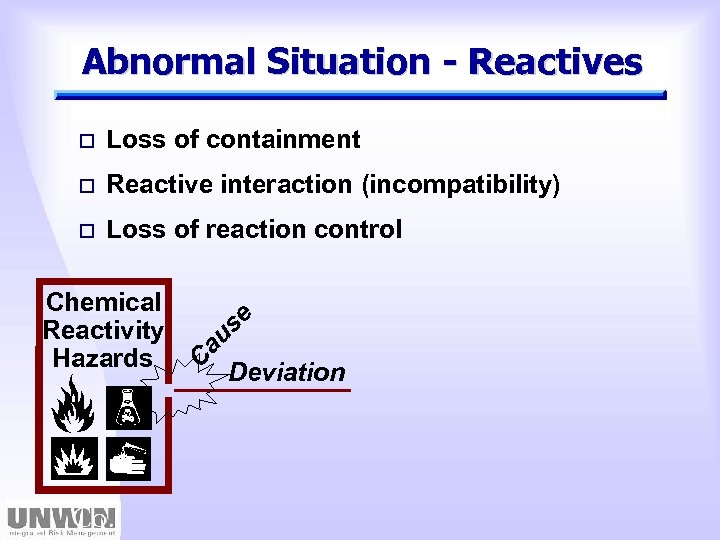

Abnormal Situation - Reactives Loss of containment o Reactive interaction (incompatibility) o Loss of reaction control au C Chemical Reactivity Hazards se o Deviation

Chemical Reactivity: Loss Events Johnson and Unwin, “Addressing Chemical Reactivity Hazards in Process Hazard Analysis, ” 18 th Annual International CCPS Conference, NY: AICh. E, Sept. 2003. Loss Event • Fire • Explosion • Release

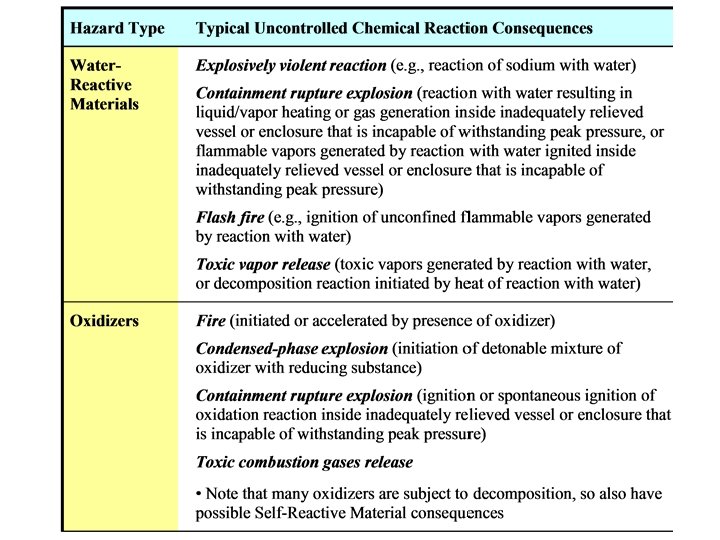

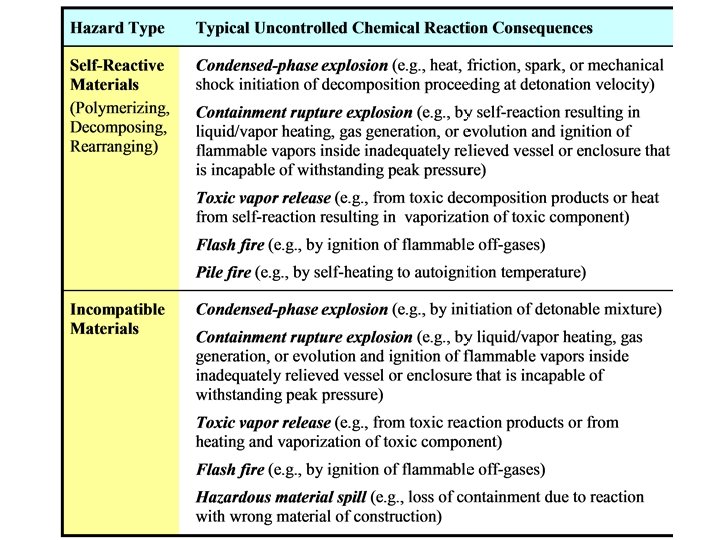

Loss Events Associated with Reactivity Hazards

Extra. Credit Activities

SACHE Reactivity Products Case Histories o Batch Polystyrene Reactor Runaway o The Bhopal Disaster o Methacrylic Acid Tankcar Explosion (video) o Explosion and Fire Caused By a Runaway Decomposition o Mini Case Histories

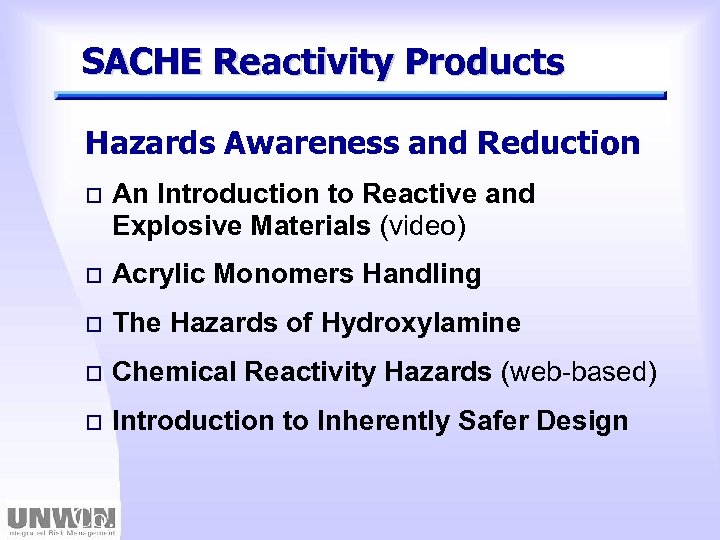

SACHE Reactivity Products Hazards Awareness and Reduction o An Introduction to Reactive and Explosive Materials (video) o Acrylic Monomers Handling o The Hazards of Hydroxylamine o Chemical Reactivity Hazards (web-based) o Introduction to Inherently Safer Design

SACHE Reactivity Products Emergency Relief Systems o Design for Overpressure and Underpressure Protection o Unit Operations Laboratory Experiment for Runaway Reactions and Vent Sizing o Relief System Design for Single- and Two-Phase Flow

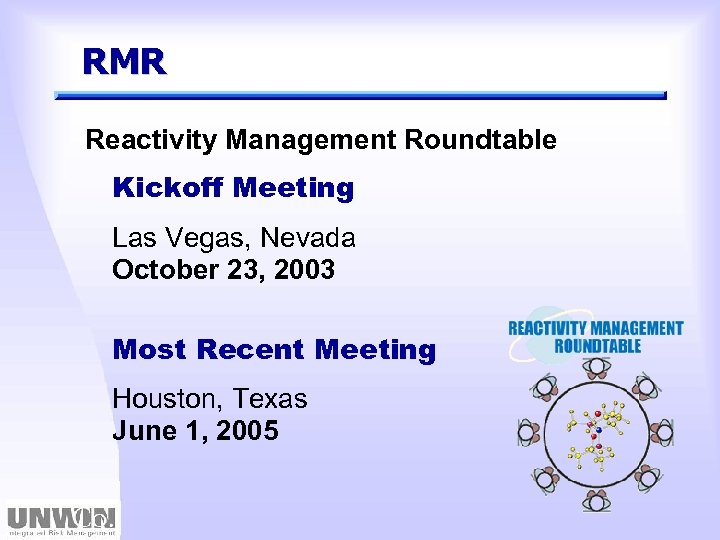

RMR Reactivity Management Roundtable Kickoff Meeting Las Vegas, Nevada October 23, 2003 Most Recent Meeting Houston, Texas June 1, 2005

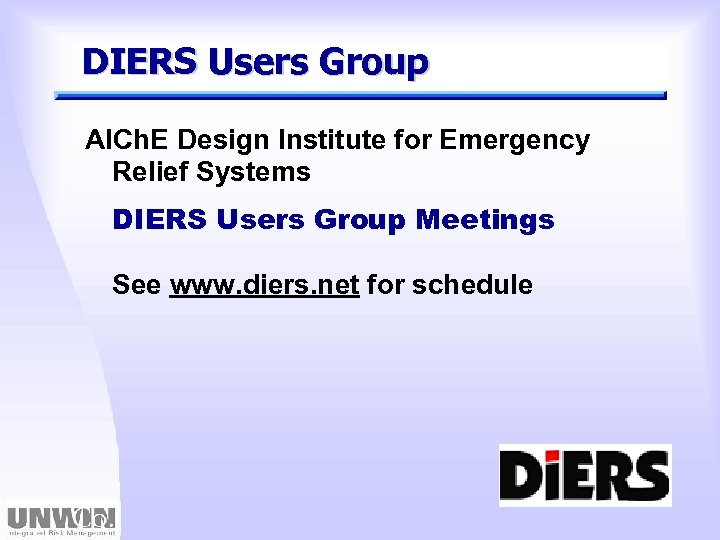

DIERS Users Group AICh. E Design Institute for Emergency Relief Systems DIERS Users Group Meetings See www. diers. net for schedule

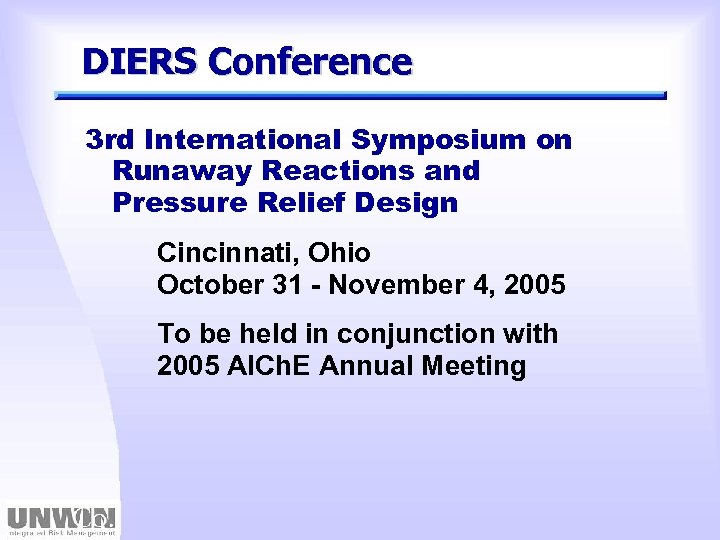

DIERS Conference 3 rd International Symposium on Runaway Reactions and Pressure Relief Design Cincinnati, Ohio October 31 - November 4, 2005 To be held in conjunction with 2005 AICh. E Annual Meeting

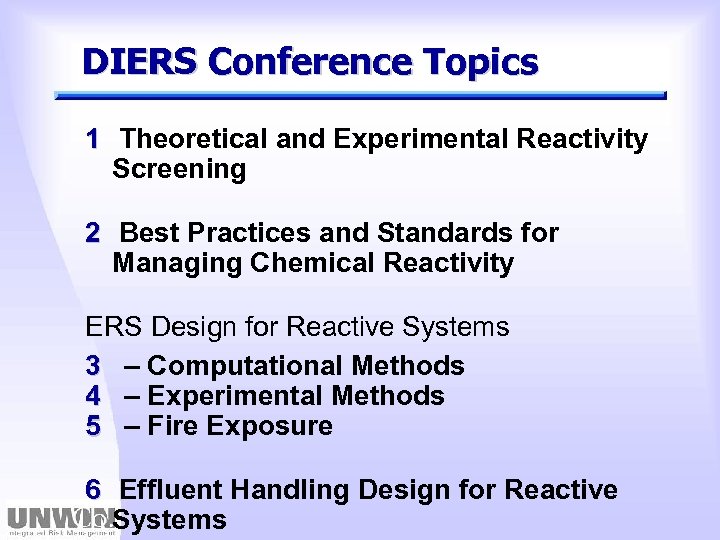

DIERS Conference Topics 1 Theoretical and Experimental Reactivity Screening 2 Best Practices and Standards for Managing Chemical Reactivity ERS Design for Reactive Systems 3 – Computational Methods 4 – Experimental Methods 5 – Fire Exposure 6 Effluent Handling Design for Reactive Systems

Loss Prevention Symposium 40 th Annual Loss Prevention Symposium Orlando, Florida April 23 -26, 2006 o o o Loss Prevention: Past, Present, and Future Fire, Explosion and Reactive Hazards Hazard Aspects of Combustion Equipment Hazards & Risks Associated with Alternate Energy Systems Mechanical Integrity Case Histories and Lessons Learned

Continuing Education Courses o AICh. E / ASME “Identifying and Managing Chemical Reactivity Hazards” o Mary Kay O’Connor Process Safety Ctr o ABS Group / Walt Frank
