20 -05 -2005 YOUR OWN NET POWERFULL PROGRESSIVE PROFITABLE BROADBAND for ALL IP/DVB/Wi. MAX F. MAGNE Thales CTO deputy francois. magne@thalesgroup. com

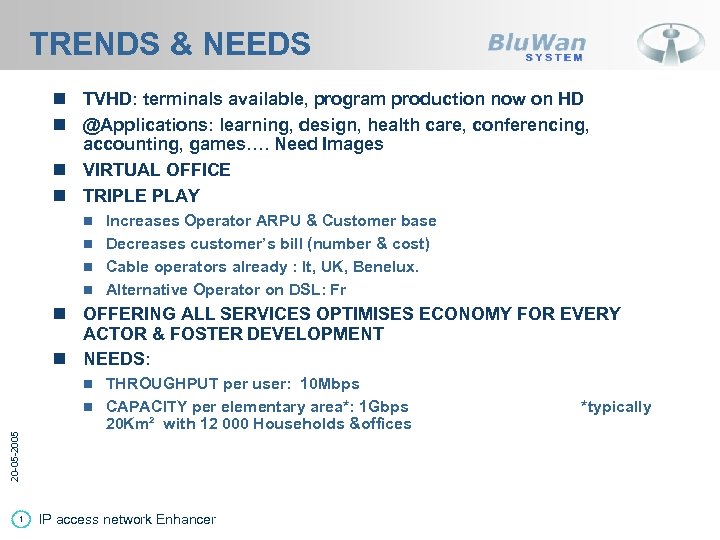

TRENDS & NEEDS n TVHD: terminals available, program production now on HD n @Applications: learning, design, health care, conferencing, accounting, games…. Need Images n VIRTUAL OFFICE n TRIPLE PLAY Increases Operator ARPU & Customer base n Decreases customer’s bill (number & cost) n Cable operators already : It, UK, Benelux. n Alternative Operator on DSL: Fr n n OFFERING ALL SERVICES OPTIMISES ECONOMY FOR EVERY ACTOR & FOSTER DEVELOPMENT n NEEDS: THROUGHPUT per user: 10 Mbps n CAPACITY per elementary area*: 1 Gbps *typically 20 Km² with 12 000 Households &offices 20 -05 -2005 n 1 IP access network Enhancer

WIRELESS ACCESS SPECTRUM Range & Capacity problem = Power x Bandwidth Authorised Power Up load Wi. MAX++ Down load 2 W 0, 1 W 0, O 1 Wi. Fi Wi. Max Wi. Fi 5 UWB. . BLR WMS UE . GHz 2. 4/2. 5 3. 4/3. 5 5. 6/5. 8 10. 410. 5 26 28 40. 5 43. 5 Band S Band C Band X Band Ka Bande Q 20 -05 -2005 ACCESS NERWORKS : REGULATED BANDS compulsory for prof. Pm. P 2 LOCAL NETWORKS, LIMITED CAPACITY & RANGE , NON REGULATED BAND (interference risk) access network termination use IP access network Enhancer

NETWORK 6 to 40 km TV + Internet + Vo. IP Broad multi uni cast HOT SPOT 20 -05 -2005 2 to 6 km 3 LAN CIE IP access network Enhancer

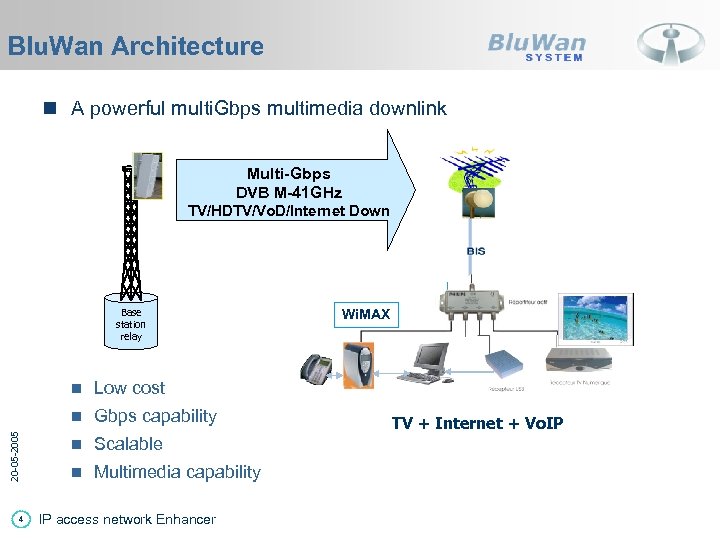

Blu. Wan Architecture n A powerful multi. Gbps multimedia downlink Multi-Gbps DVB M-41 GHz TV/HDTV/Vo. D/Internet Down Base station relay 4 Low cost n 20 -05 -2005 n Gbps capability n Scalable n Multimedia capability IP access network Enhancer Wi. MAX Splitter TV + Internet + Vo. IP

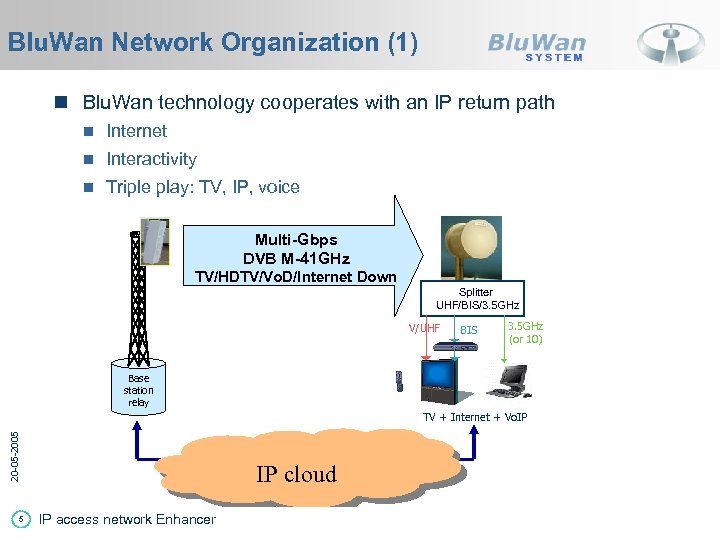

Blu. Wan Network Organization (1) n Blu. Wan technology cooperates with an IP return path n Internet n Interactivity n Triple play: TV, IP, voice Multi-Gbps DVB M-41 GHz TV/HDTV/Vo. D/Internet Down Splitter UHF/BIS/3. 5 GHz V/UHF BIS 3. 5 GHz (or 10) Base station relay 20 -05 -2005 TV + Internet + Vo. IP 5 IP cloud IP access network Enhancer

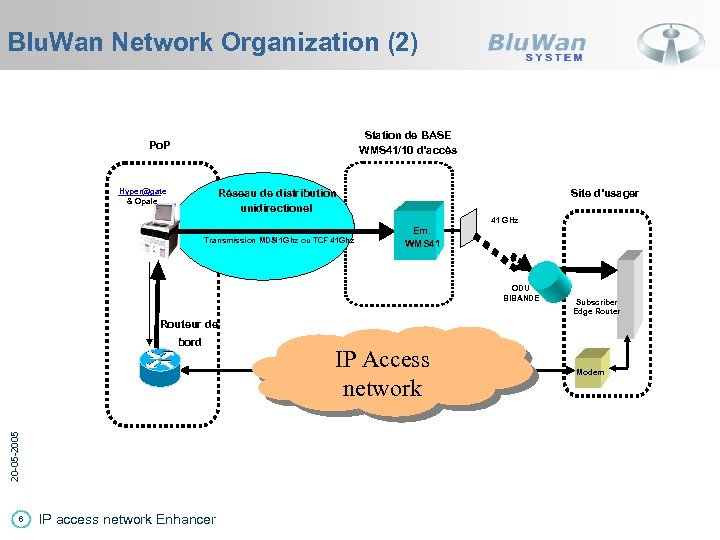

Blu. Wan Network Organization (2) Station de BASE WMS 41/10 d’accès Po. P Hyper@gate & Opale Réseau de distribution unidirectionel Site d’usager 41 GHz Transmission MDS /11 Ghz ou TCF 41 Ghz Em. WMS 41 ODU BIBANDE Subscriber Edge Router Routeur de 20 -05 -2005 bord 6 IP Access network Modem IP access network Enhancer

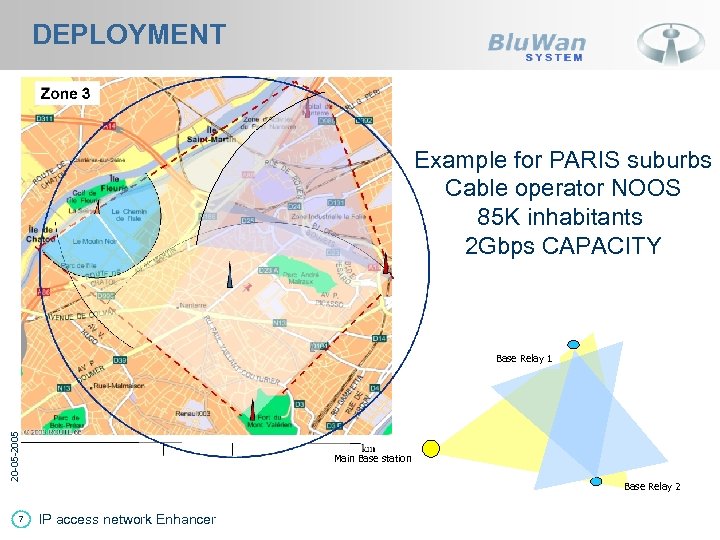

DEPLOYMENT Example for PARIS suburbs Cable operator NOOS 85 K inhabitants 2 Gbps CAPACITY 20 -05 -2005 Base Relay 1 7 Main Base station Base Relay 2 IP access network Enhancer

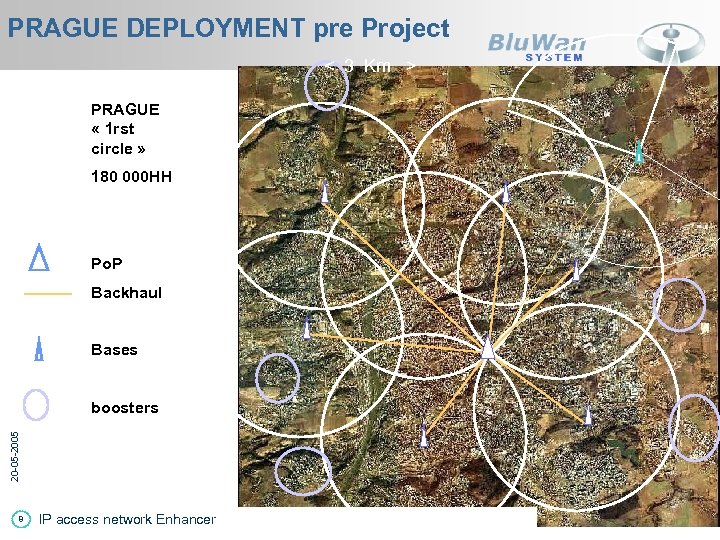

PRAGUE DEPLOYMENT pre Project < 3 Km > PRAGUE « 1 rst circle » 180 000 HH Po. P Backhaul Bases 20 -05 -2005 boosters 8 IP access network Enhancer

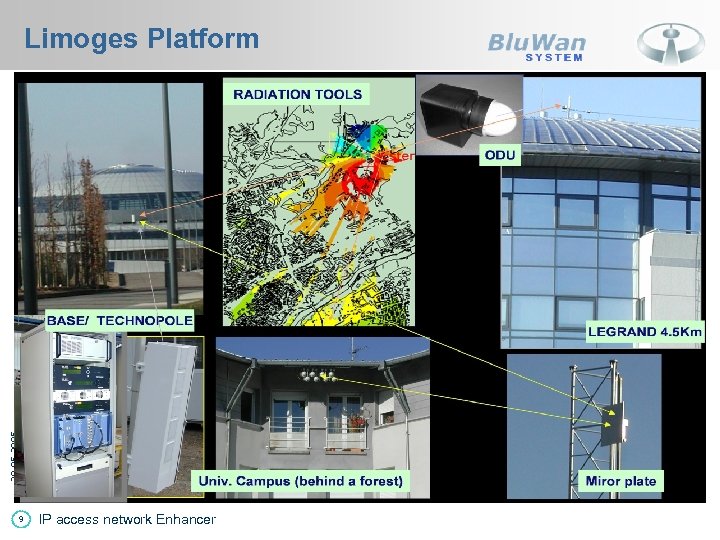

20 -05 -2005 Limoges Platform 9 IP access network Enhancer

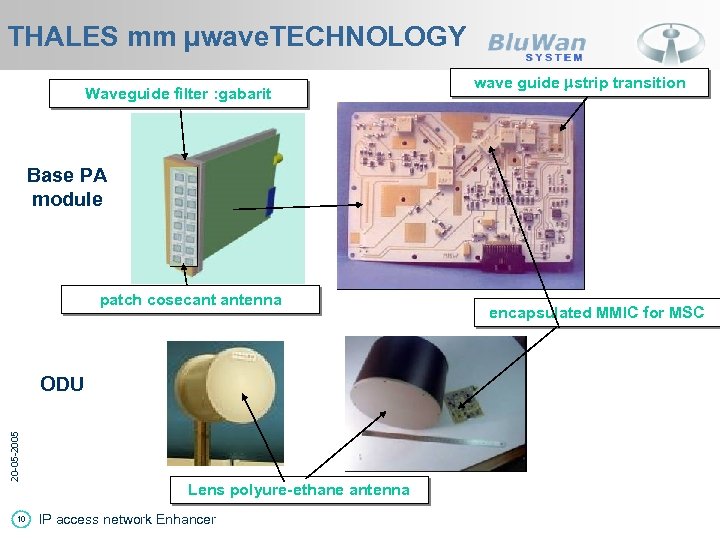

THALES mm µwave. TECHNOLOGY Waveguide filter : gabarit wave guide strip transition Base PA module patch cosecant antenna 20 -05 -2005 ODU 10 Lens polyure-ethane antenna IP access network Enhancer encapsulated MMIC for MSC

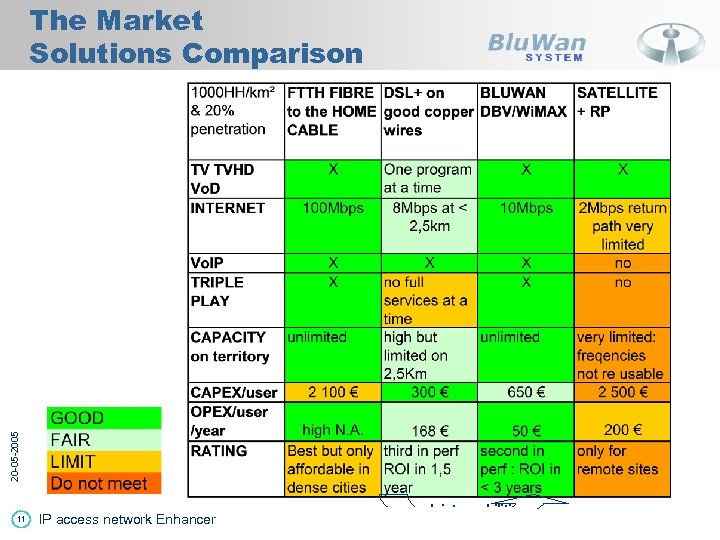

20 -05 -2005 The Market Solutions Comparison 11 IP access network Enhancer Joint capabilities

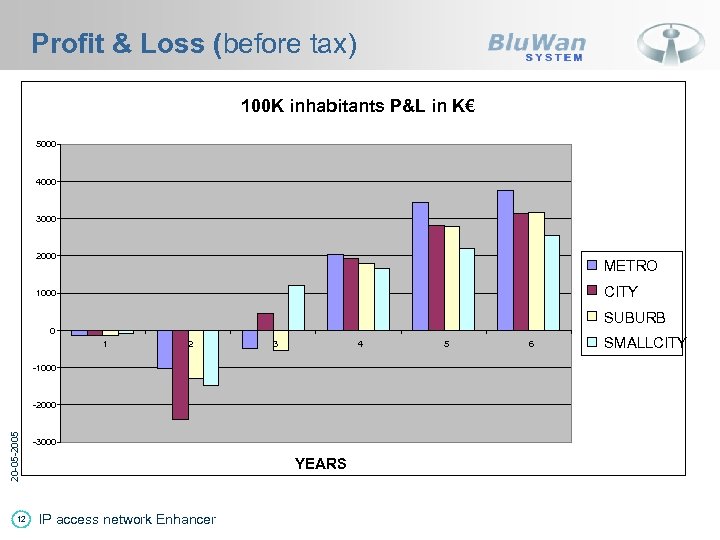

Profit & Loss (before tax) 100 K inhabitants P&L in K€ 5000 4000 3000 2000 METRO CITY 1000 SUBURB 0 1 2 3 4 -1000 20 -05 -2005 -2000 12 -3000 YEARS IP access network Enhancer 5 6 SMALLCITY

Return Path client: two approaches To fit the costs n Isolated client PC n DVB ingress PCI interface card n « IP return path » PCI modem card n n LAN Client Edge router n DVB ingress interface n WIMAX Interface n IP/PPPo. E/Eth interface 20 -05 -2005 n 13 l l ADSL modem Cable modem IP access network Enhancer

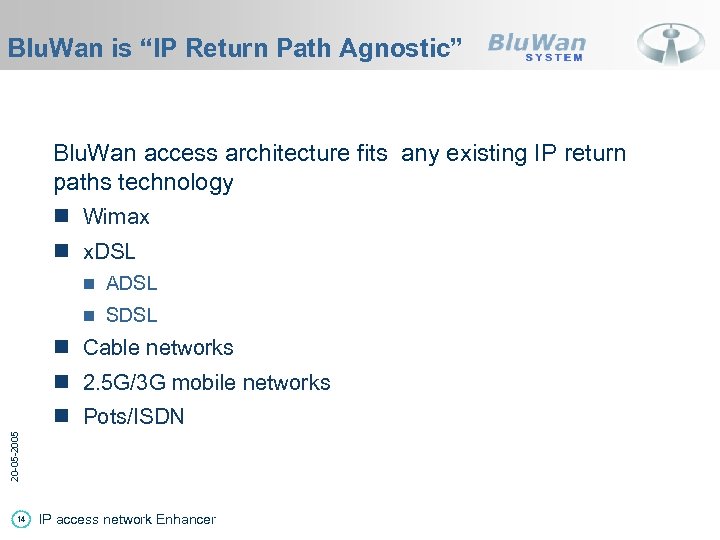

Blu. Wan is “IP Return Path Agnostic” Blu. Wan access architecture fits any existing IP return paths technology n Wimax n x. DSL n ADSL n SDSL n Cable networks n 2. 5 G/3 G mobile networks 20 -05 -2005 n Pots/ISDN 14 IP access network Enhancer

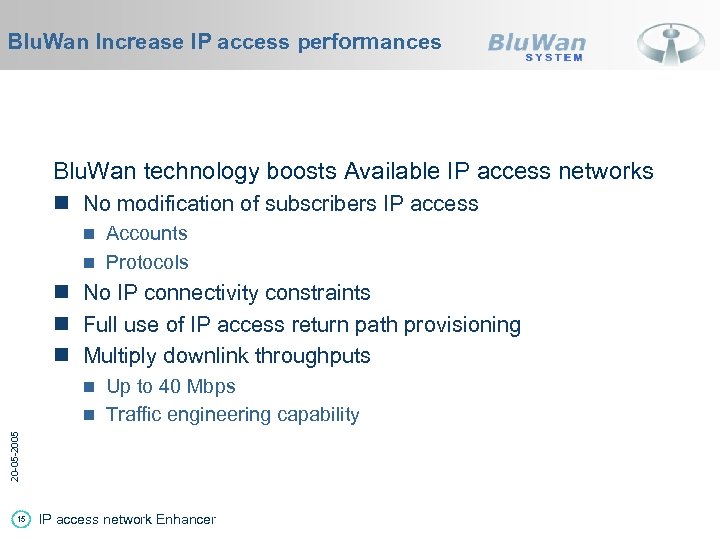

Blu. Wan Increase IP access performances Blu. Wan technology boosts Available IP access networks n No modification of subscribers IP access Accounts n Protocols n n No IP connectivity constraints n Full use of IP access return path provisioning n Multiply downlink throughputs Up to 40 Mbps n Traffic engineering capability 20 -05 -2005 n 15 IP access network Enhancer

ADSL return Path Blu. Wan technology is the main way to get the best of x. DSL capabilities: n Overprovision x. DSL capabilities n From 2 Mbps downlink to up to 40 Mpbs n No modification to introduce inside x. DSL access architecture n Uplink capability follows x. DSL technology stage ADSL n SDSL n VDSL 20 -05 -2005 n 16 IP access network Enhancer
