Presentation Outline u Product Overview u Product Benefits u Product Features u Application u Comparison 2 / 22

What is PON u PON (Passive Optical Network) ü ü A PON consists of an Optical Line Terminal (OLT) at the service provider's central office and a number of Optical Network Units (ONUs) near end users. A PON reduces the amount of fiber and central office equipment required compared with point-to-point architectures. ü u A passive optical network (PON) is a Point-to-Multipoint, Fiber to the Premises network architecture in which unpowered Optical Splitters are used to enable a single optical fiber to serve multiple premises, typically 16 -128. A passive optical network is a form of fiber-optic access network. OLT (Optical Line Termination ) ü u It is a device which serves as the service provider endpoint of a PON (Passive Optical Network). ONU (Optical Network Unit ) ü It is a device that transforms incoming optical signals into electronics at a customer's premises in order to provide telecommunications services over an optical fiber network. 3 / 22/ 21 3

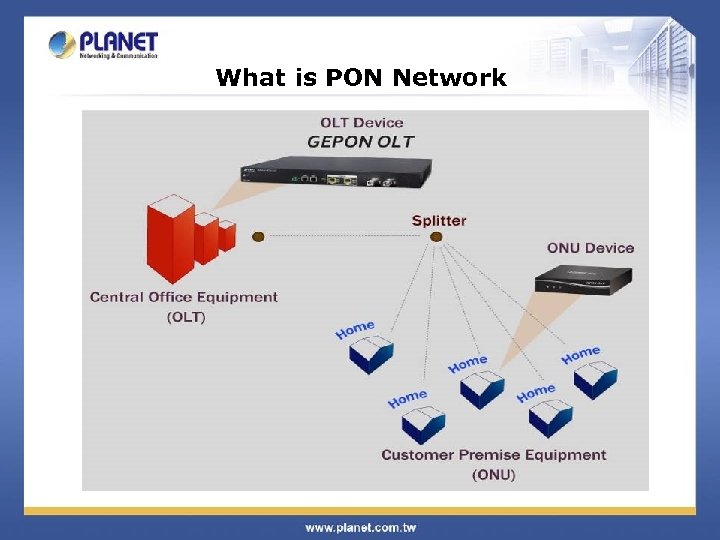

What is PON Network

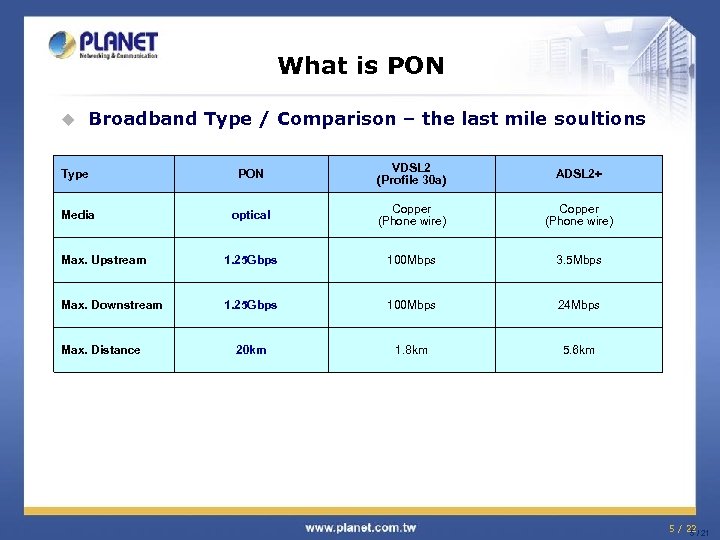

What is PON u Broadband Type / Comparison – the last mile soultions Type PON VDSL 2 (Profile 30 a) ADSL 2+ Media optical Copper (Phone wire) Max. Upstream 1. 25 Gbps 100 Mbps 3. 5 Mbps Max. Downstream 1. 25 Gbps 100 Mbps 24 Mbps 20 km 1. 8 km 5. 6 km Max. Distance 5 / 22/ 21 5

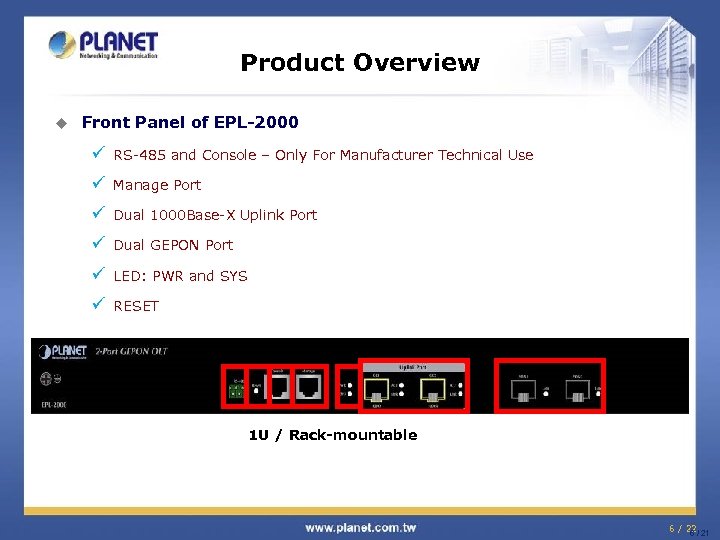

Product Overview u Front Panel of EPL-2000 ü RS-485 and Console – Only For Manufacturer Technical Use ü Manage Port ü Dual 1000 Base-X Uplink Port ü Dual GEPON Port ü LED: PWR and SYS ü RESET 1 U / Rack-mountable 6 / 22/ 21 6

Product Overview u Diagram 7 / 22

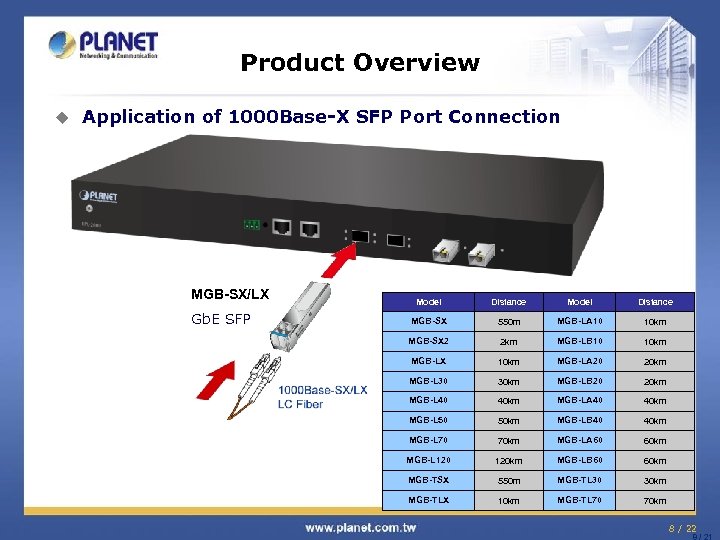

Product Overview u Application of 1000 Base-X SFP Port Connection MGB-SX/LX Gb. E SFP Model Distance MGB-SX 550 m MGB-LA 10 10 km MGB-SX 2 2 km MGB-LB 10 10 km MGB-LX 10 km MGB-LA 20 20 km MGB-L 30 30 km MGB-LB 20 20 km MGB-L 40 40 km MGB-LA 40 40 km MGB-L 50 50 km MGB-LB 40 40 km MGB-L 70 70 km MGB-LA 60 60 km MGB-L 120 km MGB-LB 60 60 km MGB-TSX 550 m MGB-TL 30 30 km MGB-TLX 10 km MGB-TL 70 70 km 8 / 22 8 / 21

Product Overview u Application of PON Port Connection Last Mile 1 km Long Distance 19 km 9 / 22 9 / 21

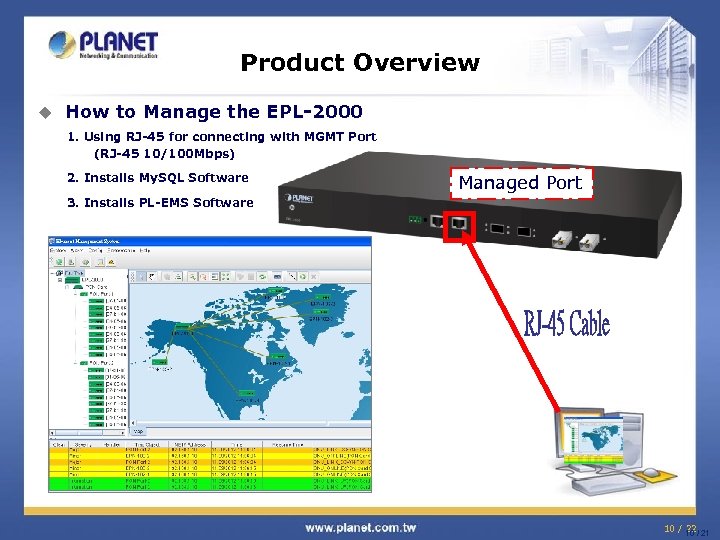

Product Overview u How to Manage the EPL-2000 1. Using RJ-45 for connecting with MGMT Port (RJ-45 10/100 Mbps) 2. Installs My. SQL Software Managed Port 3. Installs PL-EMS Software 10 / 21 22

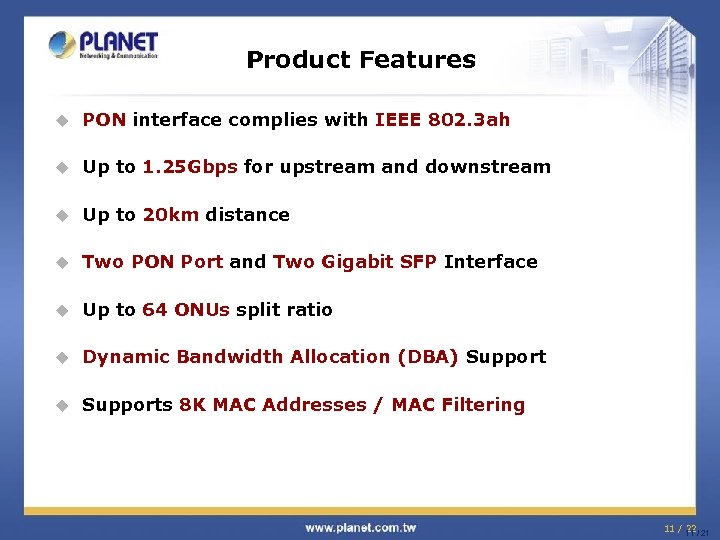

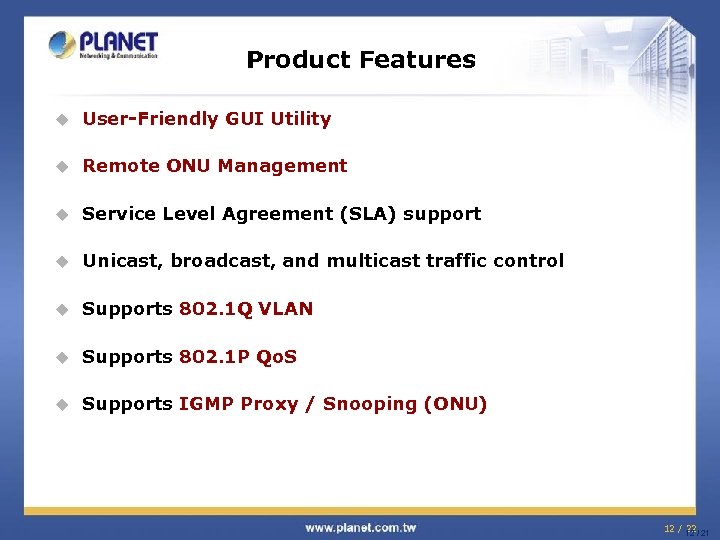

Product Features u PON interface complies with IEEE 802. 3 ah u Up to 1. 25 Gbps for upstream and downstream u Up to 20 km distance u Two PON Port and Two Gigabit SFP Interface u Up to 64 ONUs split ratio u Dynamic Bandwidth Allocation (DBA) Support u Supports 8 K MAC Addresses / MAC Filtering 11 / 21 22

Product Features u User-Friendly GUI Utility u Remote ONU Management u Service Level Agreement (SLA) support u Unicast, broadcast, and multicast traffic control u Supports 802. 1 Q VLAN u Supports 802. 1 P Qo. S u Supports IGMP Proxy / Snooping (ONU) 12 / 21 22

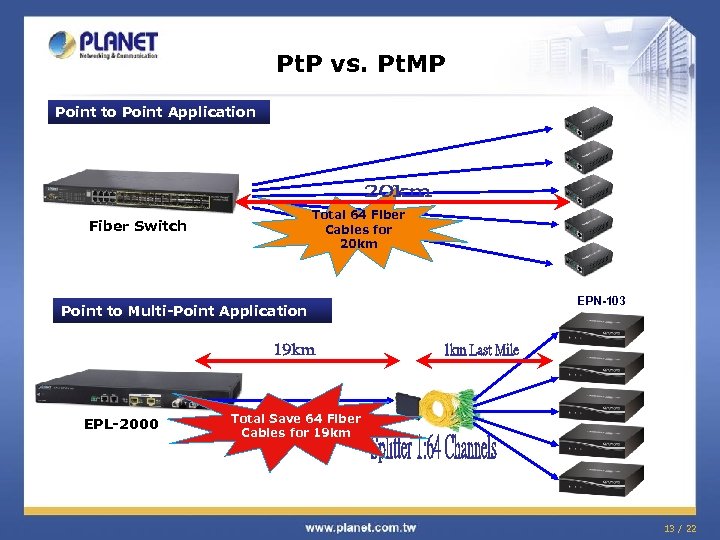

Pt. P vs. Pt. MP Point to Point Application Total 64 Fiber Cables for 20 km Fiber Switch Point to Multi-Point Application EPL-2000 EPN-103 Total Save 64 Fiber Cables for 19 km 13 / 22

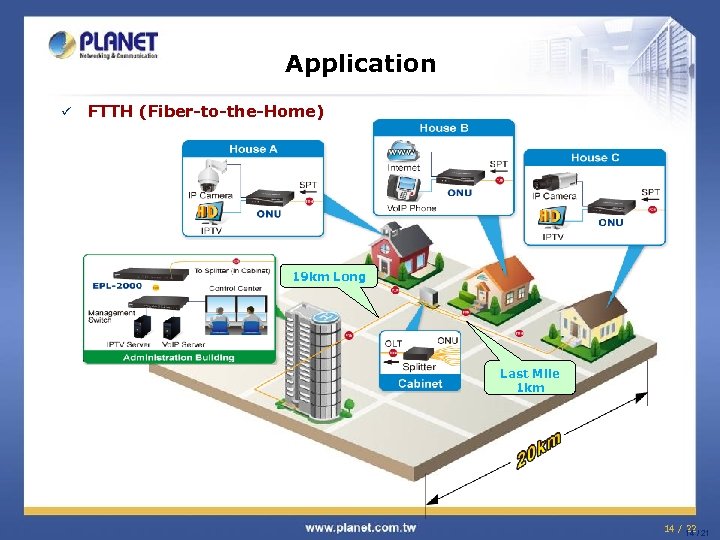

Application ü FTTH (Fiber-to-the-Home) 19 km Long Last Mile 1 km 14 / 21 22

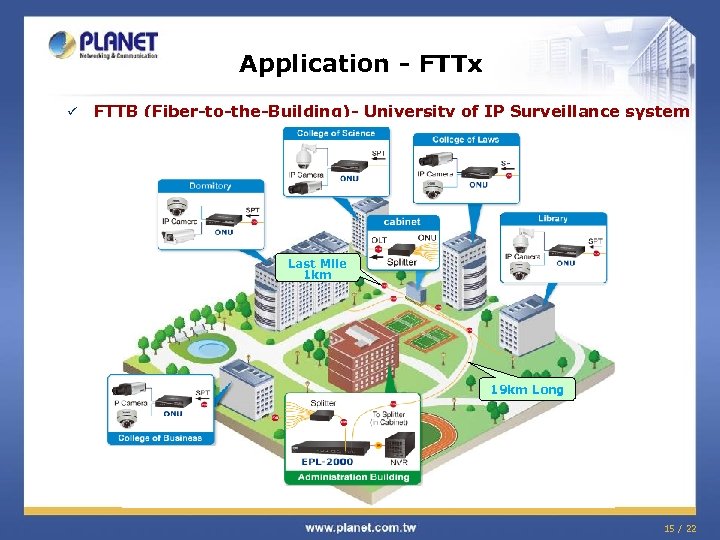

Application - FTTx ü FTTB (Fiber-to-the-Building)- University of IP Surveillance system Last Mile 1 km 19 km Long 15 / 22

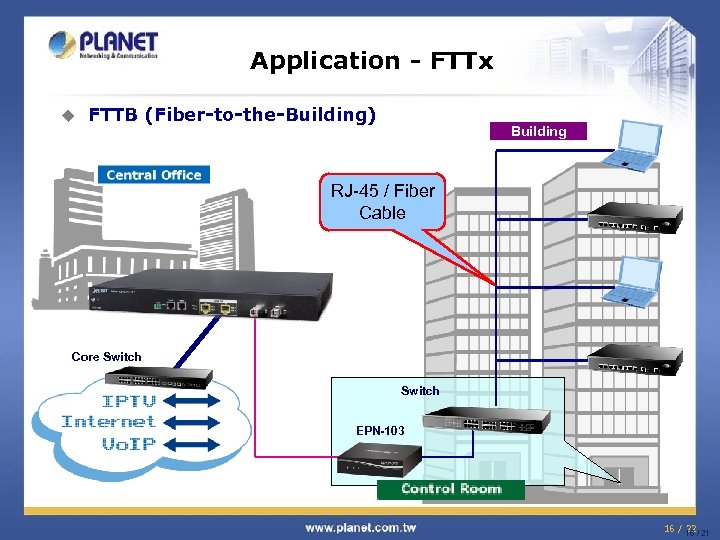

Application - FTTx u FTTB (Fiber-to-the-Building) Building RJ-45 / Fiber Cable Core Switch EPN-103 16 / 21 22

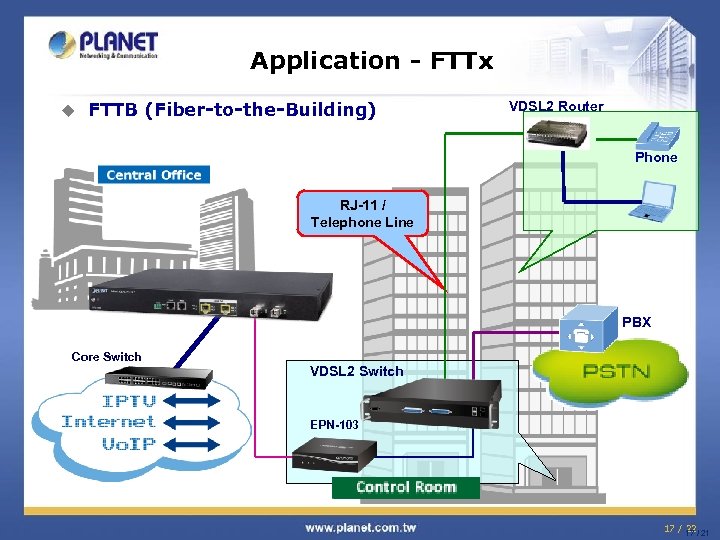

Application - FTTx u FTTB (Fiber-to-the-Building) VDSL 2 Router Phone RJ-11 / Telephone Line PBX Core Switch VDSL 2 Switch EPN-103 17 / 21 22

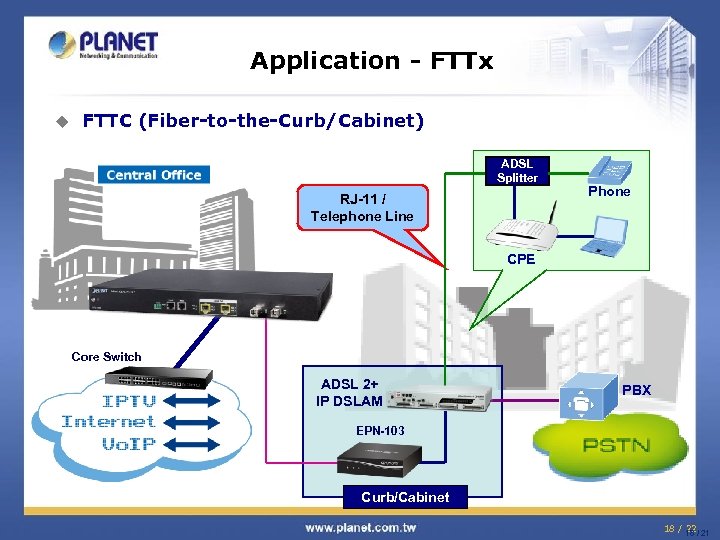

Application - FTTx u FTTC (Fiber-to-the-Curb/Cabinet) ADSL Splitter RJ-11 / Telephone Line Phone CPE Core Switch ADSL 2+ IP DSLAM PBX EPN-103 Curb/Cabinet 18 / 21 22

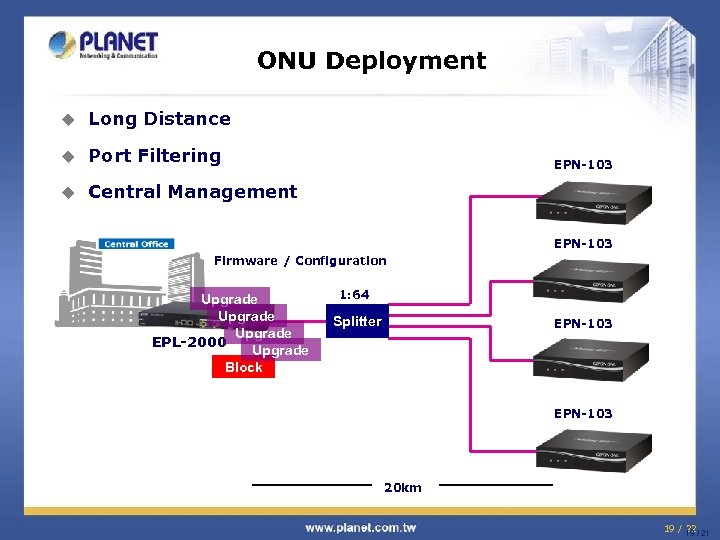

ONU Deployment u Long Distance u Port Filtering u Central Management EPN-103 Firmware / Configuration Upgrade EPL-2000 Upgrade Block 1: 64 Splitter EPN-103 20 km 19 / 21 22

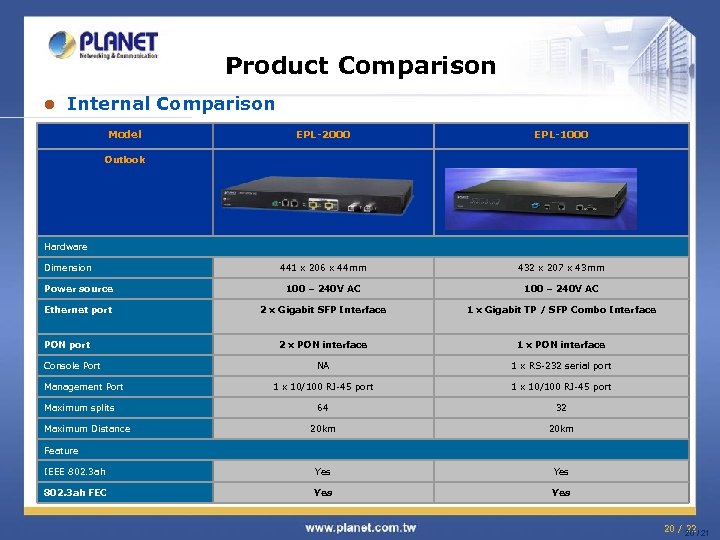

Product Comparison l Internal Comparison Model EPL-2000 EPL-1000 441 x 206 x 44 mm 432 x 207 x 43 mm Power source 100 – 240 V AC Ethernet port 2 x Gigabit SFP Interface 1 x Gigabit TP / SFP Combo Interface 2 x PON interface 1 x PON interface NA 1 x RS-232 serial port 1 x 10/100 RJ-45 port 64 32 20 km IEEE 802. 3 ah Yes 802. 3 ah FEC Yes Outlook Hardware Dimension PON port Console Port Management Port Maximum splits Maximum Distance Feature 20 / 21 22

Product Comparison Model EPL-2000 EPL-1000 OAM (Operation Administration Management) Yes DBA (Dynamic Bandwidth Allocation) Yes SLA (Service Level Agreement) Yes 802. 1 Q VLAN Yes 802. 1 P Qo. S Yes IGMP Proxy Yes MAC Filtering Yes 128 -bit AES encryption NA Yes 802. 1 x authentication NA Yes 239 256 MAC Addresses 8 K 4 K Queues NA 32 GUI Management Yes ONU Management Yes Bandwidth Control Yes Outlook IGMP LLID (Logical Link IDs) 21 / 21 22

Appendix u Target Markets ü ü u System Integrator Telecom Provider ISP (Internet Service Provider) NSP (Network Service Provider) Target Customers ü Who used to buy our GEPON ONU and OLT series • ü Who used to buy our VDSL series • • ü EPN-102 / 104 / EPL-1000 VC-820 M / VC-2400 MR VC-231 / VC-234 Who buy our Media Conversion and Fiber switch • • GT-80 x / GT-90 x / GT-1205 A SGSW-24240 / MGSW-24160 F / XGS 3 -24242 22 / 21 22

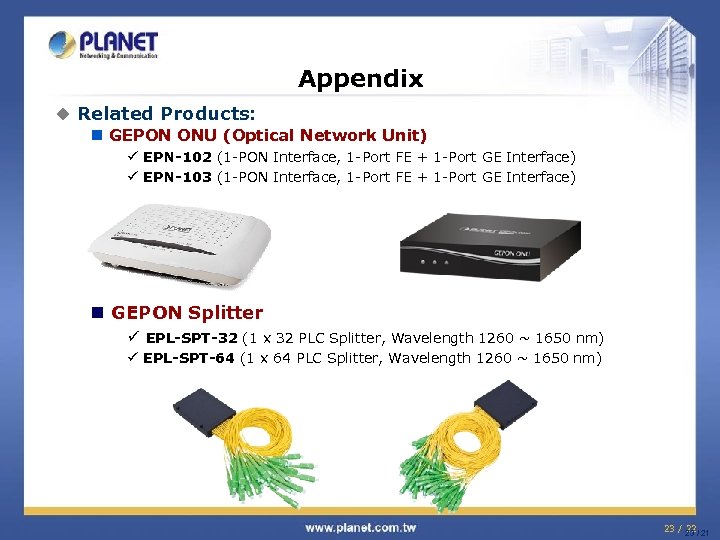

Appendix u Related Products: n GEPON ONU (Optical Network Unit) ü EPN-102 (1 -PON Interface, 1 -Port FE + 1 -Port GE Interface) ü EPN-103 (1 -PON Interface, 1 -Port FE + 1 -Port GE Interface) n GEPON Splitter ü EPL-SPT-32 (1 x 32 PLC Splitter, Wavelength 1260 ~ 1650 nm) ü EPL-SPT-64 (1 x 64 PLC Splitter, Wavelength 1260 ~ 1650 nm) 23 / 21 22
