2 N Net Audio System 2 N

2 N Net Audio System

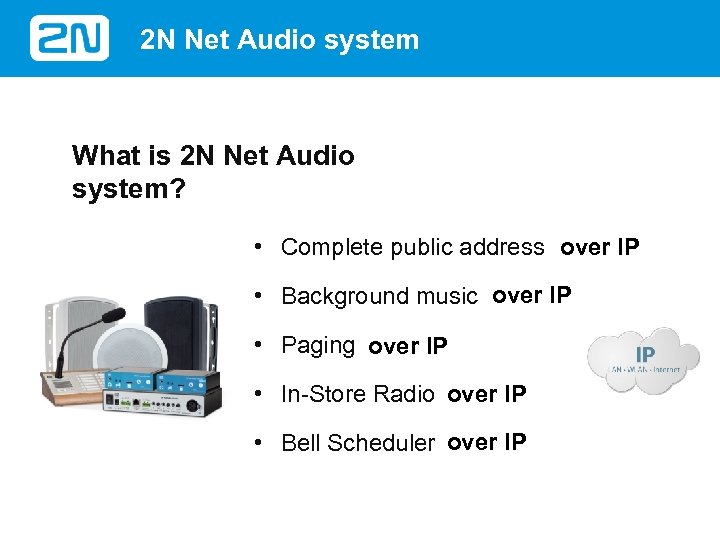

2 N Net Audio system What is 2 N Net Audio system? • Complete public address over IP • Background music over IP • Paging over IP • In-Store Radio over IP • Bell Scheduler over IP

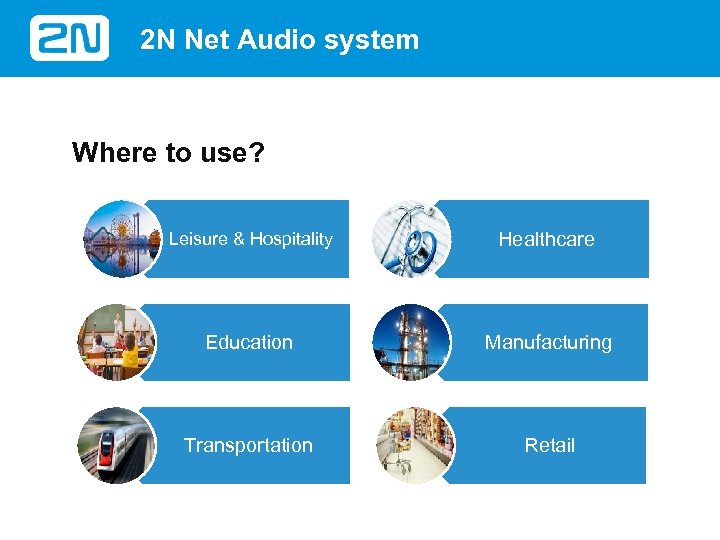

2 N Net Audio system Where to use? Leisure & Hospitality Healthcare Education Manufacturing Transportation Retail

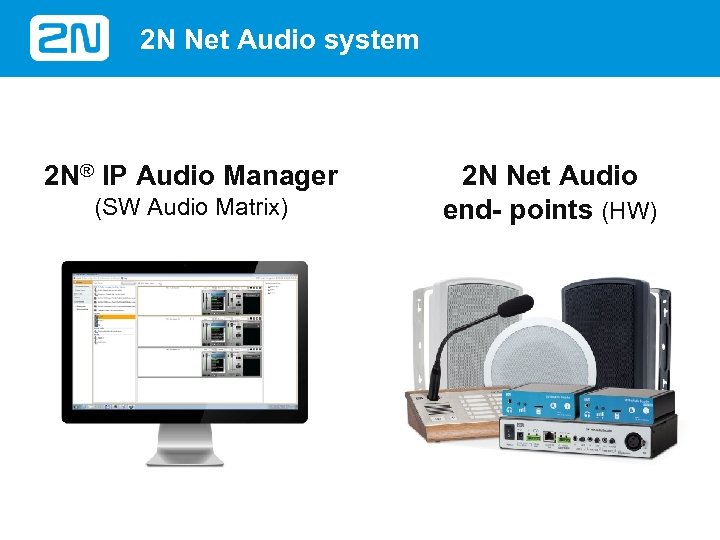

2 N Net Audio system 2 N® IP Audio Manager (SW Audio Matrix) 2 N Net Audio end- points (HW)

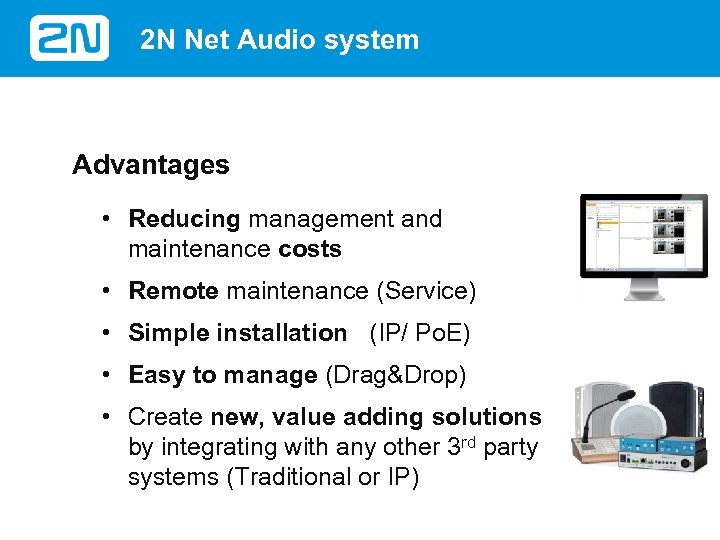

2 N Net Audio system Advantages • Reducing management and maintenance costs • Remote maintenance (Service) • Simple installation (IP/ Po. E) • Easy to manage (Drag&Drop) • Create new, value adding solutions by integrating with any other 3 rd party systems (Traditional or IP)

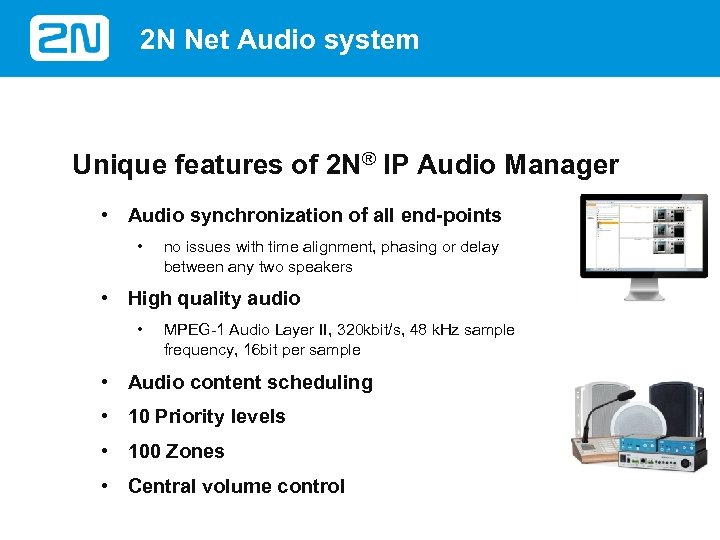

2 N Net Audio system Unique features of 2 N® IP Audio Manager • Audio synchronization of all end-points • no issues with time alignment, phasing or delay between any two speakers • High quality audio • MPEG-1 Audio Layer II, 320 kbit/s, 48 k. Hz sample frequency, 16 bit per sample • Audio content scheduling • 10 Priority levels • 100 Zones • Central volume control

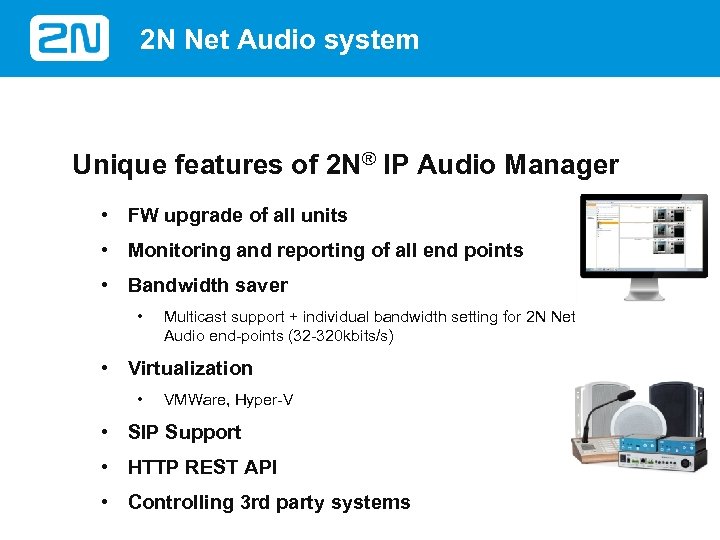

2 N Net Audio system Unique features of 2 N® IP Audio Manager • FW upgrade of all units • Monitoring and reporting of all end points • Bandwidth saver • Multicast support + individual bandwidth setting for 2 N Net Audio end-points (32 -320 kbits/s) • Virtualization • VMWare, Hyper-V • SIP Support • HTTP REST API • Controlling 3 rd party systems

Typical architecture

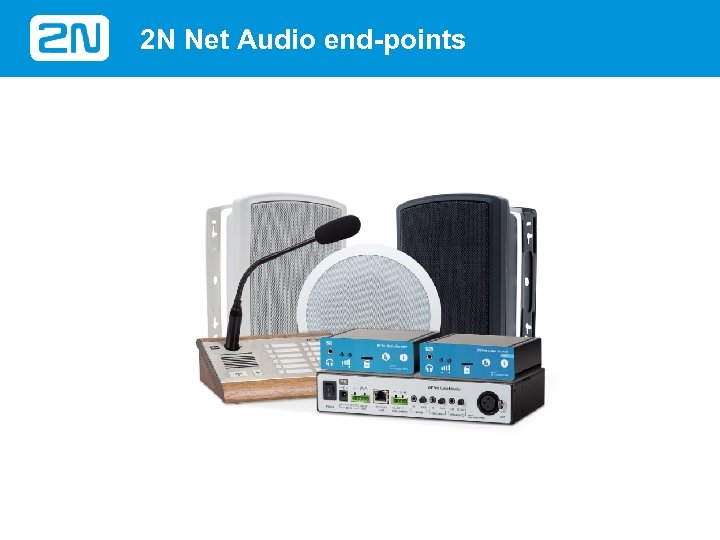

2 N Net Audio end-points

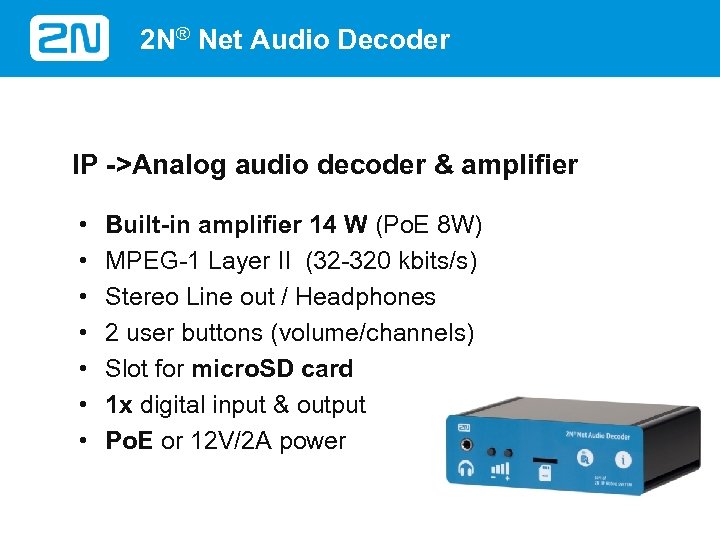

2 N® Net Audio Decoder IP ->Analog audio decoder & amplifier • • Built-in amplifier 14 W (Po. E 8 W) MPEG-1 Layer II (32 -320 kbits/s) Stereo Line out / Headphones 2 user buttons (volume/channels) Slot for micro. SD card 1 x digital input & output Po. E or 12 V/2 A power

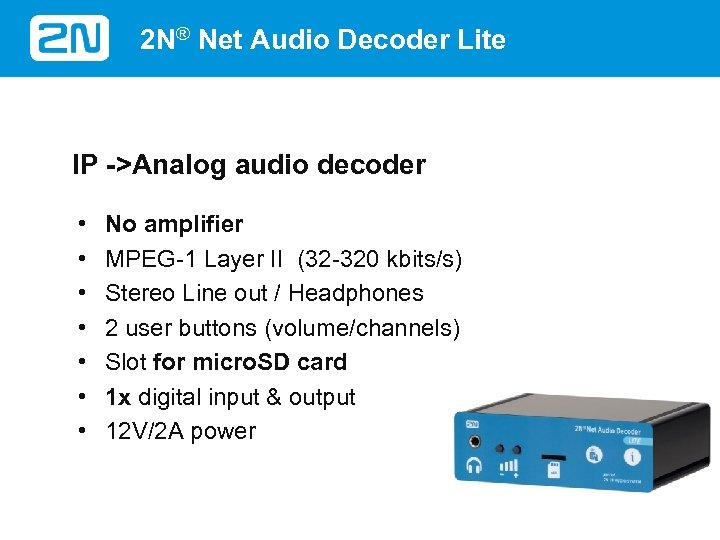

2 N® Net Audio Decoder Lite IP ->Analog audio decoder • • No amplifier MPEG-1 Layer II (32 -320 kbits/s) Stereo Line out / Headphones 2 user buttons (volume/channels) Slot for micro. SD card 1 x digital input & output 12 V/2 A power

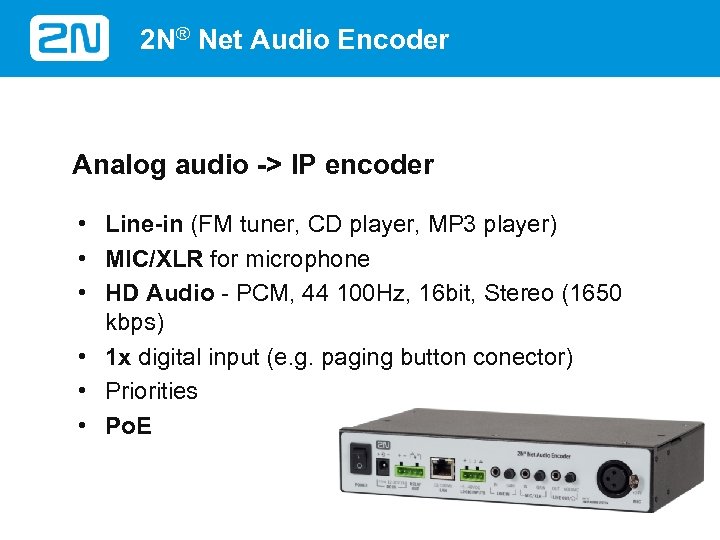

2 N® Net Audio Encoder Analog audio -> IP encoder • Line-in (FM tuner, CD player, MP 3 player) • MIC/XLR for microphone • HD Audio - PCM, 44 100 Hz, 16 bit, Stereo (1650 kbps) • 1 x digital input (e. g. paging button conector) • Priorities • Po. E

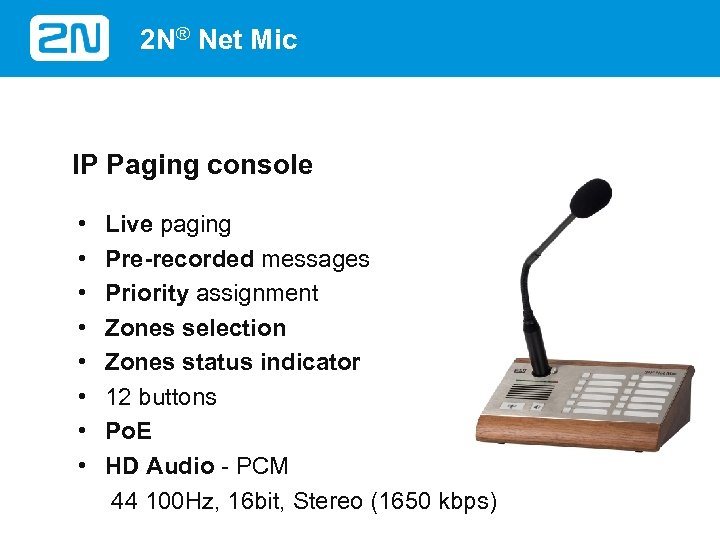

2 N® Net Mic IP Paging console • • Live paging Pre-recorded messages Priority assignment Zones selection Zones status indicator 12 buttons Po. E HD Audio - PCM 44 100 Hz, 16 bit, Stereo (1650 kbps)

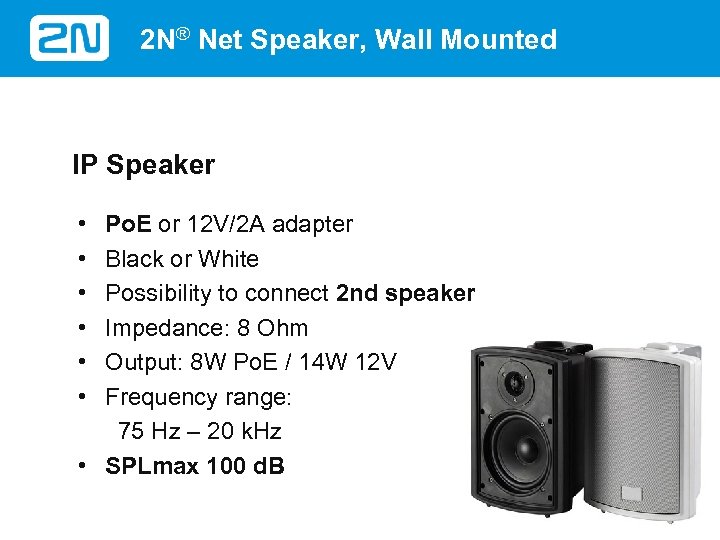

2 N® Net Speaker, Wall Mounted IP Speaker • • • Po. E or 12 V/2 A adapter Black or White Possibility to connect 2 nd speaker Impedance: 8 Ohm Output: 8 W Po. E / 14 W 12 V Frequency range: 75 Hz – 20 k. Hz • SPLmax 100 d. B

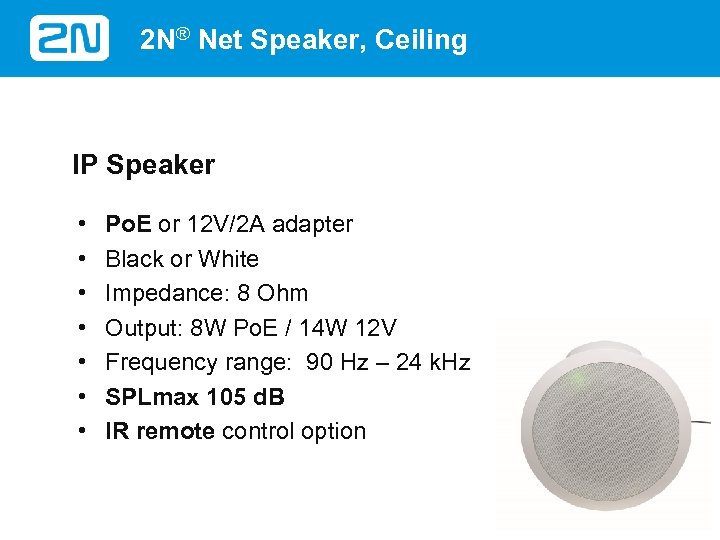

2 N® Net Speaker, Ceiling IP Speaker • • Po. E or 12 V/2 A adapter Black or White Impedance: 8 Ohm Output: 8 W Po. E / 14 W 12 V Frequency range: 90 Hz – 24 k. Hz SPLmax 105 d. B IR remote control option

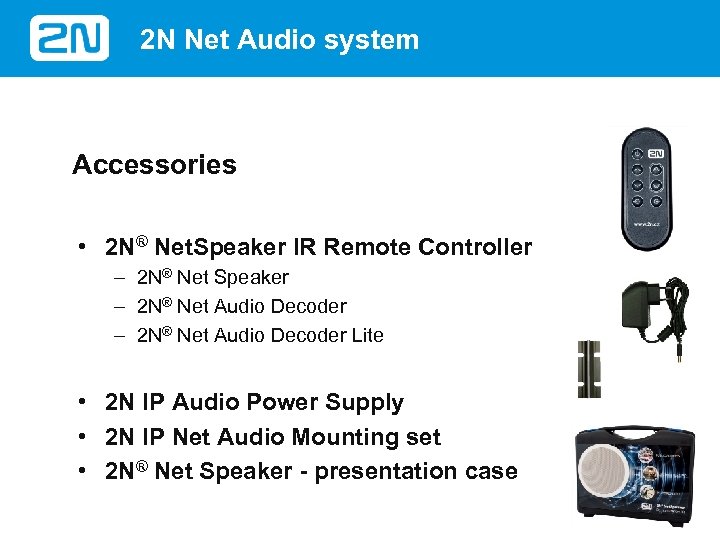

2 N Net Audio system Accessories • 2 N® Net. Speaker IR Remote Controller – 2 N® Net Speaker – 2 N® Net Audio Decoder Lite • 2 N IP Audio Power Supply • 2 N IP Net Audio Mounting set • 2 N® Net Speaker - presentation case

2 N Net Audio SW

2 N® IP Audio Control Panel Admin tool • Drag-and-drop system configuration • 2 N Net Audio end-points settings • Zone & Destination creating • Managing the audio inputs • Creating of audio sessions • Event scheduling • User management

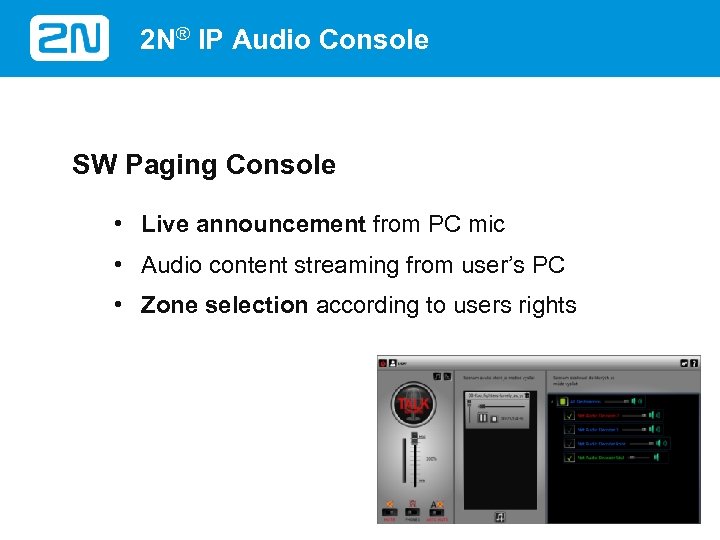

2 N® IP Audio Console SW Paging Console • Live announcement from PC mic • Audio content streaming from user’s PC • Zone selection according to users rights

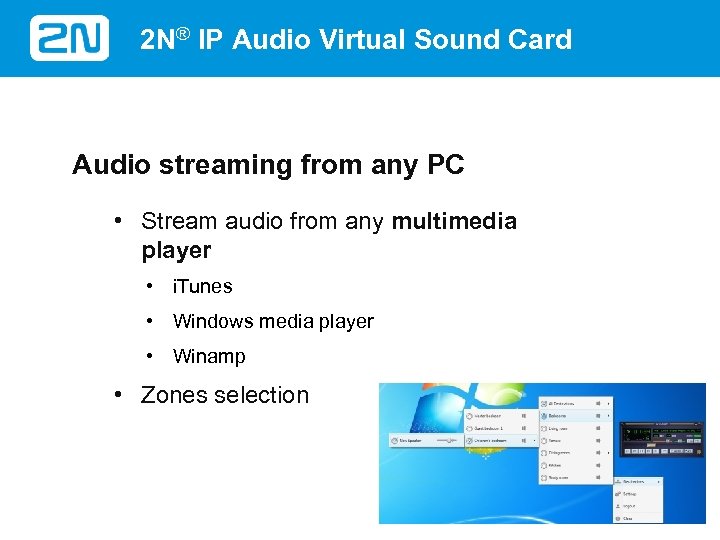

2 N® IP Audio Virtual Sound Card Audio streaming from any PC • Stream audio from any multimedia player • i. Tunes • Windows media player • Winamp • Zones selection

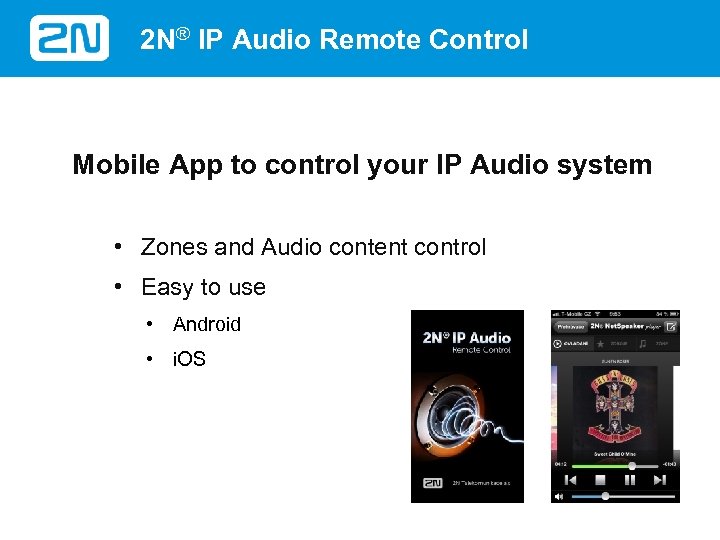

2 N® IP Audio Remote Control Mobile App to control your IP Audio system • Zones and Audio content control • Easy to use • Android • i. OS

When to offer 2 N Net Audio system? • • • IP infrastructure is ready Multiple buildings High number of zones (10+) Scheduled announcements required Expanding existing traditional (25 -100 V) system to remote locations

2 N Net Audio system success stories

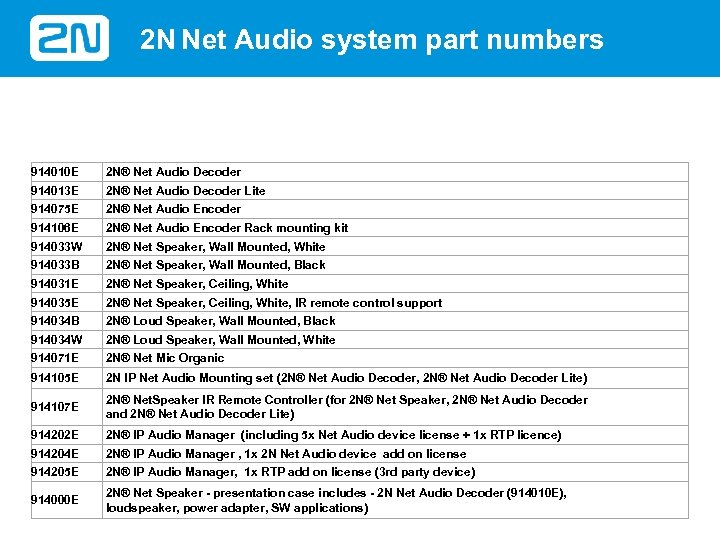

2 N Net Audio system part numbers 914010 E 2 N® Net Audio Decoder 914013 E 2 N® Net Audio Decoder Lite 914075 E 2 N® Net Audio Encoder 914106 E 2 N® Net Audio Encoder Rack mounting kit 914033 W 2 N® Net Speaker, Wall Mounted, White 914033 B 2 N® Net Speaker, Wall Mounted, Black 914031 E 2 N® Net Speaker, Ceiling, White 914035 E 2 N® Net Speaker, Ceiling, White, IR remote control support 914034 B 2 N® Loud Speaker, Wall Mounted, Black 914034 W 2 N® Loud Speaker, Wall Mounted, White 914071 E 2 N® Net Mic Organic 914105 E 2 N IP Net Audio Mounting set (2 N® Net Audio Decoder, 2 N® Net Audio Decoder Lite) 914107 E 2 N® Net. Speaker IR Remote Controller (for 2 N® Net Speaker, 2 N® Net Audio Decoder and 2 N® Net Audio Decoder Lite) 914202 E 2 N® IP Audio Manager (including 5 x Net Audio device license + 1 x RTP licence) 914204 E 2 N® IP Audio Manager , 1 x 2 N Net Audio device add on license 914205 E 2 N® IP Audio Manager, 1 x RTP add on license (3 rd party device) 914000 E 2 N® Net Speaker - presentation case includes - 2 N Net Audio Decoder (914010 E), loudspeaker, power adapter, SW applications)

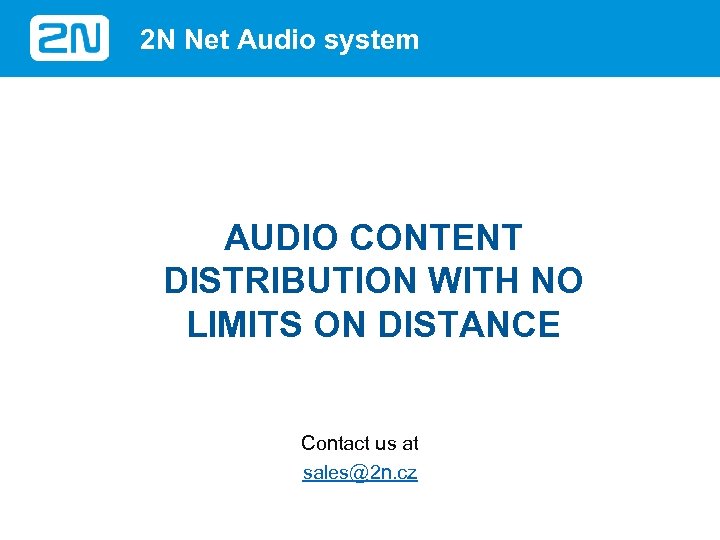

2 N Net Audio system AUDIO CONTENT DISTRIBUTION WITH NO LIMITS ON DISTANCE Contact us at sales@2 n. cz
