2. Attacks on Anonymized Social Networks

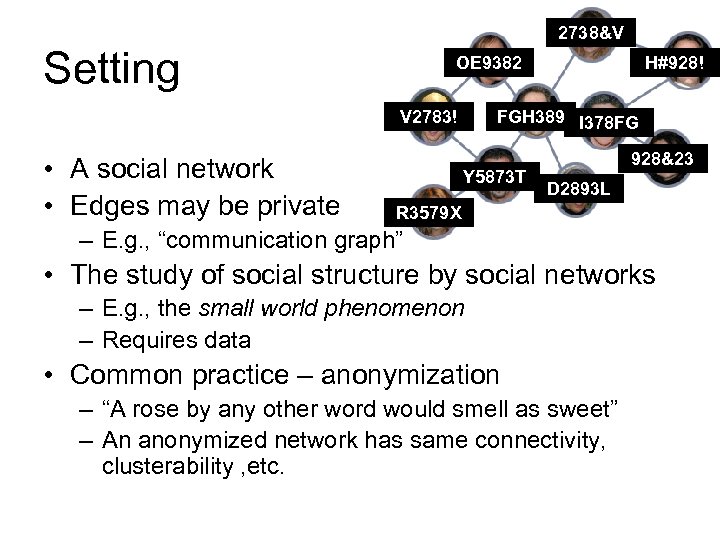

2738&V Setting OE 9382 V 2783! • A social network • Edges may be private H#928! FGH 389 I 378 FG Y 5873 T 928&23 D 2893 L R 3579 X – E. g. , “communication graph” • The study of social structure by social networks – E. g. , the small world phenomenon – Requires data • Common practice – anonymization – “A rose by any other word would smell as sweet” – An anonymized network has same connectivity, clusterability , etc.

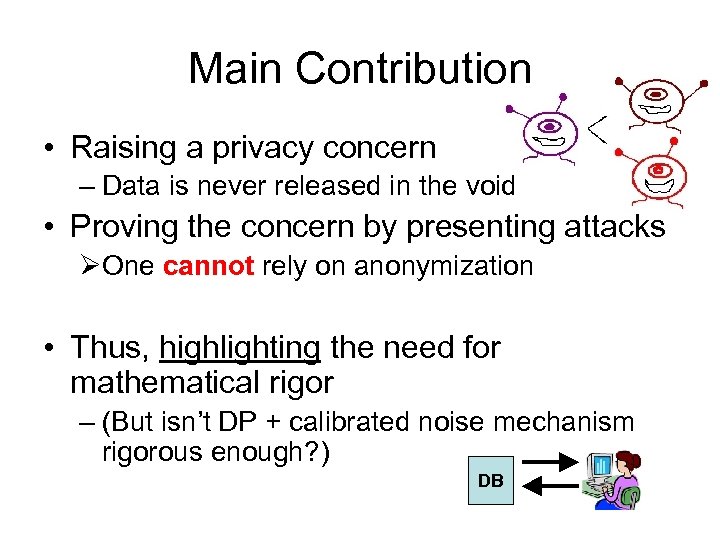

Main Contribution • Raising a privacy concern – Data is never released in the void • Proving the concern by presenting attacks ØOne cannot rely on anonymization • Thus, highlighting the need for mathematical rigor – (But isn’t DP + calibrated noise mechanism rigorous enough? ) DB

Key Idea • Goal: Given a single anonymized network, deanonymize 2 nodes and learn if connected • What is the challenge? – Compare to breaking anonymity of Netflix • What special kind of auxiliary data can be used? – Hint: Active attacks in Cryptography • Solution – “Steganography”

Outline • Attacks on anonymized networks – high level description • The “Walk-Based” active attack – Description – Analysis – Experiments • Passive attack

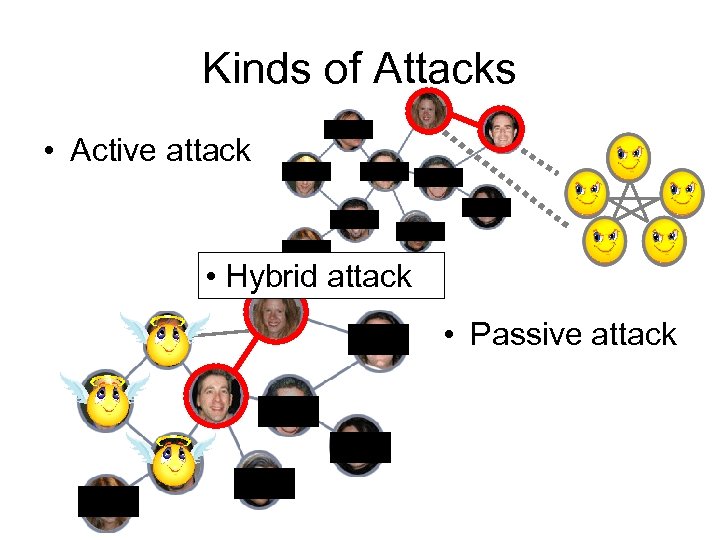

Kinds of Attacks • Active attack • Hybrid attack • Passive attack

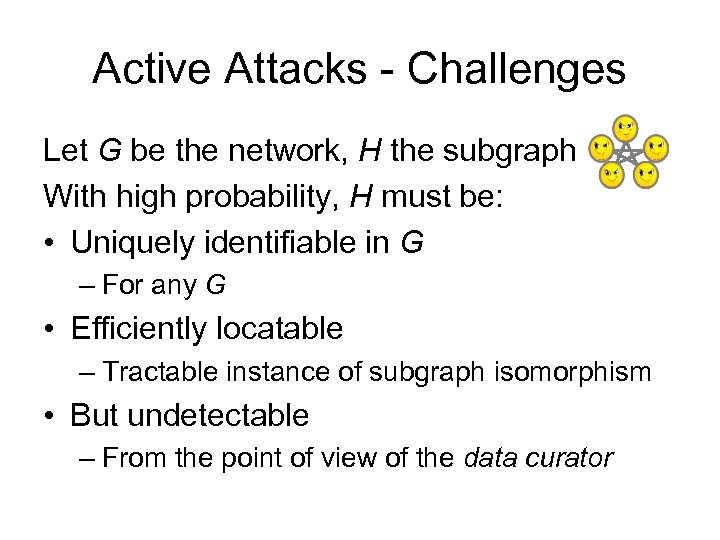

Active Attacks - Challenges Let G be the network, H the subgraph With high probability, H must be: • Uniquely identifiable in G – For any G • Efficiently locatable – Tractable instance of subgraph isomorphism • But undetectable – From the point of view of the data curator

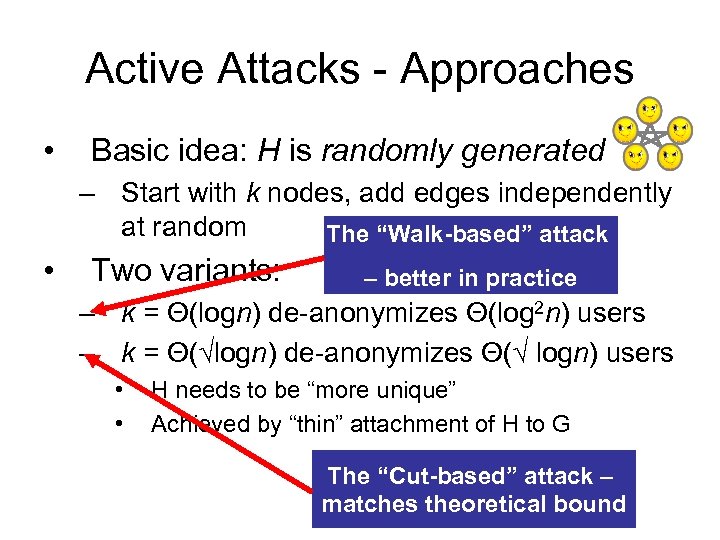

Active Attacks - Approaches • Basic idea: H is randomly generated – Start with k nodes, add edges independently at random The “Walk-based” attack • Two variants: – better in practice – k = Θ(logn) de-anonymizes Θ(log 2 n) users – k = Θ(√logn) de-anonymizes Θ(√ logn) users • • H needs to be “more unique” Achieved by “thin” attachment of H to G The “Cut-based” attack – matches theoretical bound

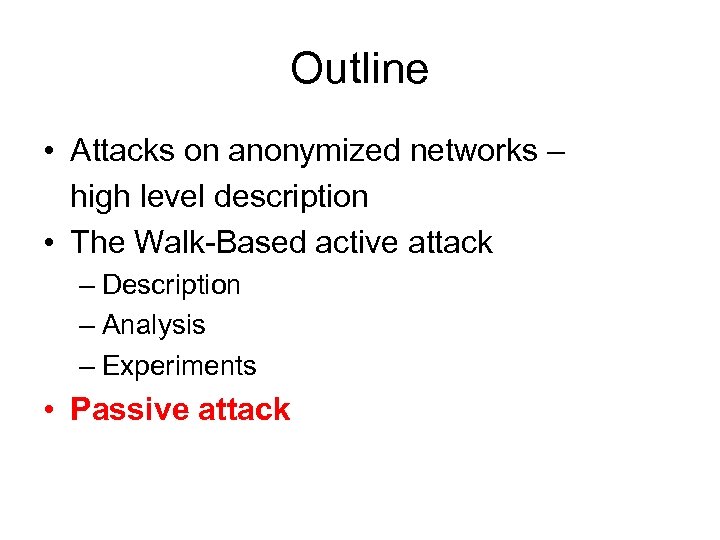

Outline • Attacks on anonymized networks – high level description • The Walk-Based active attack – Description – Analysis – Experiments • Passive attack

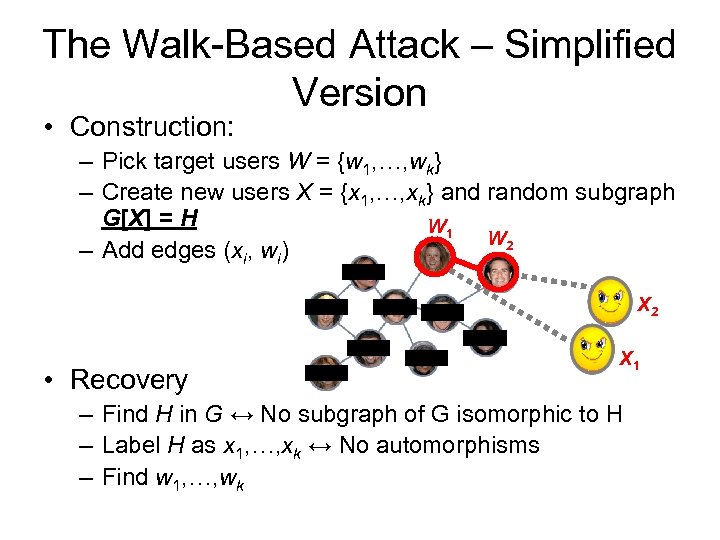

The Walk-Based Attack – Simplified Version • Construction: – Pick target users W = {w 1, …, wk} – Create new users X = {x 1, …, xk} and random subgraph G[X] = H W 1 W 2 – Add edges (xi, wi) X 2 • Recovery X 1 – Find H in G ↔ No subgraph of G isomorphic to H – Label H as x 1, …, xk ↔ No automorphisms – Find w 1, …, wk

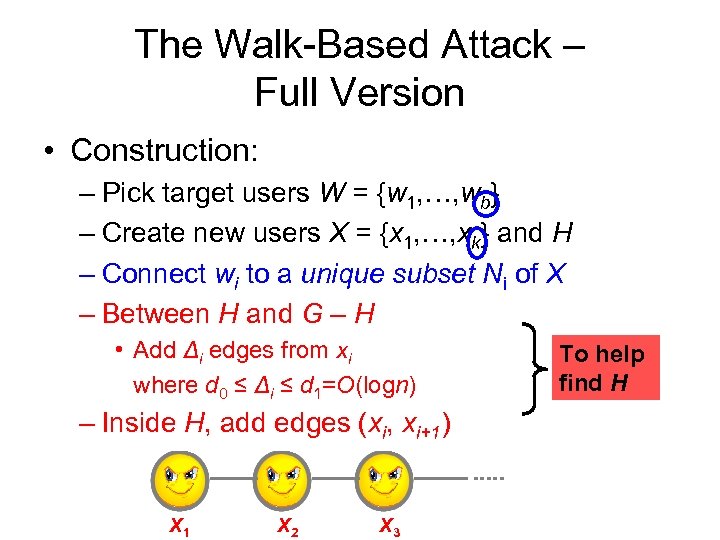

The Walk-Based Attack – Full Version • Construction: – Pick target users W = {w 1, …, wb} – Create new users X = {x 1, …, xk} and H – Connect wi to a unique subset Ni of X – Between H and G – H • Add Δi edges from xi where d 0 ≤ Δi ≤ d 1=O(logn) – Inside H, add edges (xi, xi+1) X 1 X 2 X 3 To help find H

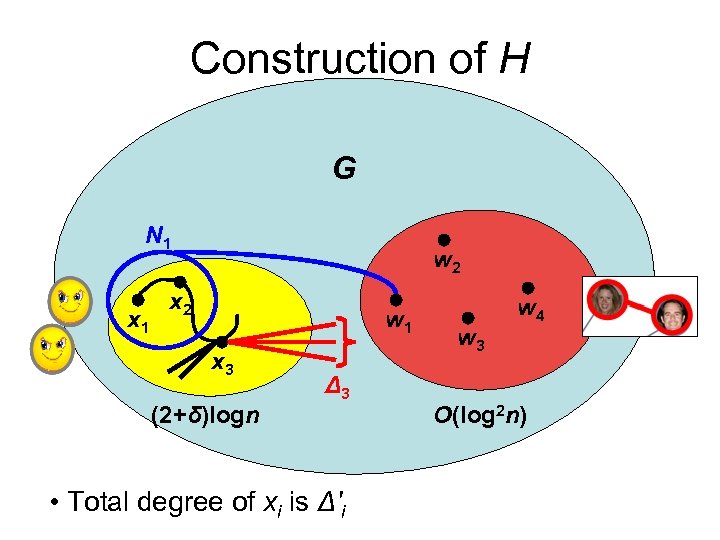

Construction of H G N 1 x 1 w 2 x 2 w 1 x 3 (2+δ)logn Δ 3 • Total degree of xi is Δ'i w 3 w 4 O(log 2 n)

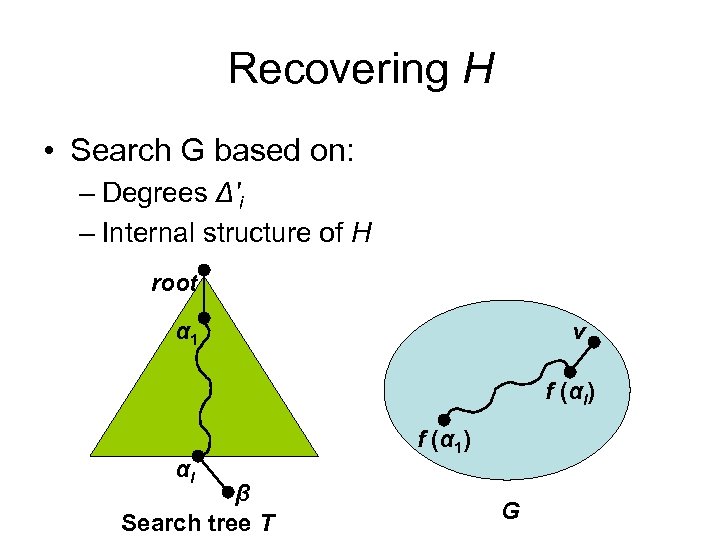

Recovering H • Search G based on: – Degrees Δ'i – Internal structure of H root α 1 v f (αl) αl β Search tree T f (α 1) G

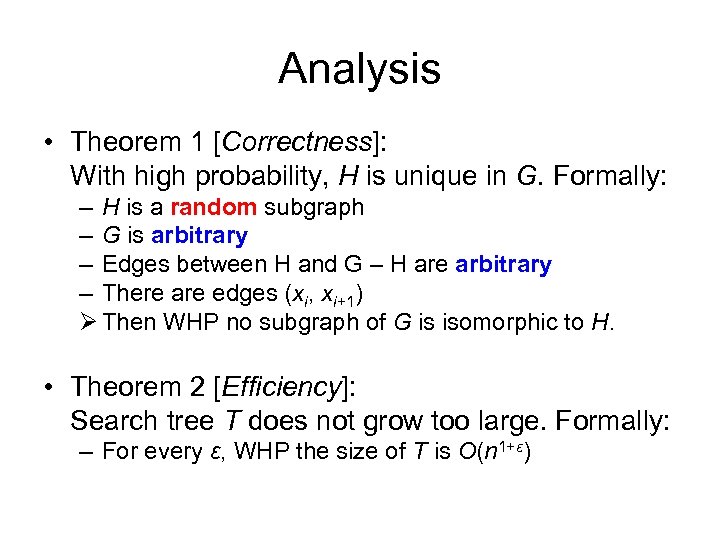

Analysis • Theorem 1 [Correctness]: With high probability, H is unique in G. Formally: – H is a random subgraph – G is arbitrary – Edges between H and G – H are arbitrary – There are edges (xi, xi+1) Ø Then WHP no subgraph of G is isomorphic to H. • Theorem 2 [Efficiency]: Search tree T does not grow too large. Formally: – For every ε, WHP the size of T is O(n 1+ε)

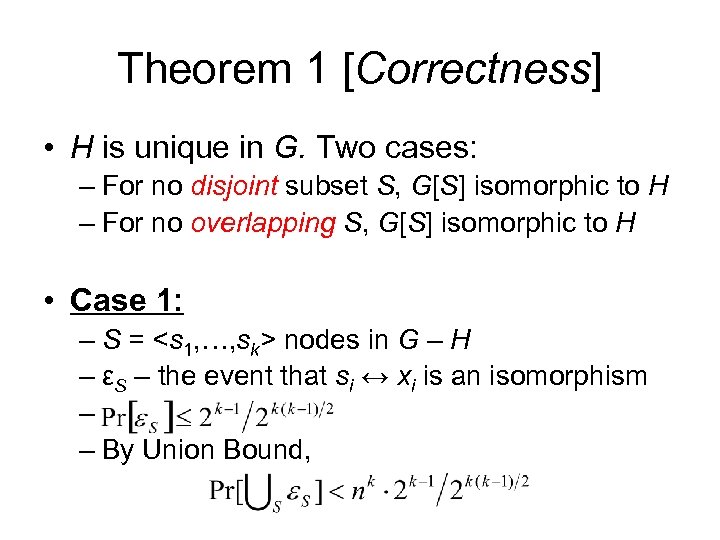

Theorem 1 [Correctness] • H is unique in G. Two cases: – For no disjoint subset S, G[S] isomorphic to H – For no overlapping S, G[S] isomorphic to H • Case 1: – S = nodes in G – H – εS – the event that si ↔ xi is an isomorphism – – By Union Bound,
