1750 Mbps 11 ac Dual Band Ceilingmount Enterprise Wireless Access Point WDAP-C 1750
Presentation Outlines u Product Positioning u Applications u Product Overview u Web UI u Product Installation u Product Comparison u Product Benefits u Appendix u Product Features 2 / 35
Product Positioning

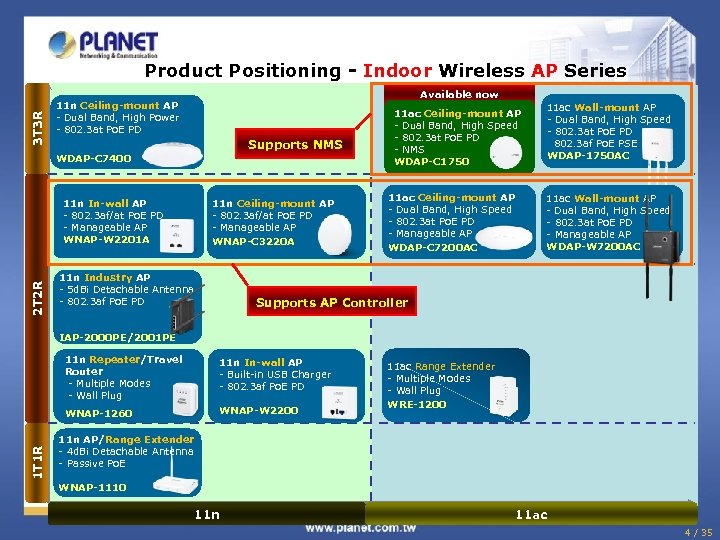

3 T 3 R Product Positioning - Indoor Wireless AP Series Available now 11 n Ceiling-mount AP - Dual Band, High Power - 802. 3 at Po. E PD Supports NMS WDAP-C 7400 11 n Ceiling-mount AP - 802. 3 af/at Po. E PD - Manageable AP WNAP-C 3220 A 2 T 2 R 11 n In-wall AP - 802. 3 af/at Po. E PD - Manageable AP WNAP-W 2201 A 11 n Industry AP - 5 d. Bi Detachable Antenna - 802. 3 af Po. E PD 11 ac Ceiling-mount AP - Dual Band, High Speed - 802. 3 at Po. E PD - NMS WDAP-C 1750 11 ac Ceiling-mount AP - Dual Band, High Speed - 802. 3 at Po. E PD - Manageable AP WDAP-C 7200 AC 11 ac Wall-mount AP - Dual Band, High Speed - 802. 3 at Po. E PD 802. 3 af Po. E PSE WDAP-1750 AC 11 ac Wall-mount AP - Dual Band, High Speed - 802. 3 at Po. E PD - Manageable AP WDAP-W 7200 AC Supports AP Controller IAP-2000 PE/2001 PE 11 n In-wall AP - Built-in USB Charger - 802. 3 af Po. E PD WNAP-1260 1 T 1 R 11 n Repeater/Travel Router - Multiple Modes - Wall Plug WNAP-W 2200 11 ac Range Extender - Multiple Modes - Wall Plug WRE-1200 11 n AP/Range Extender - 4 d. Bi Detachable Antenna - Passive Po. E WNAP-1110 11 n 11 ac 4 / 35
Product Overview

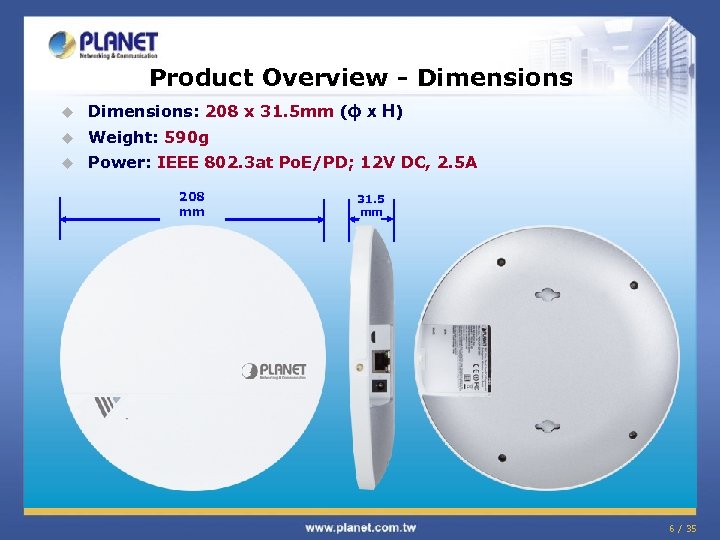

Product Overview - Dimensions u Dimensions: 208 x 31. 5 mm (ɸ x H) u Weight: 590 g u Power: IEEE 802. 3 at Po. E/PD; 12 V DC, 2. 5 A 208 mm 31. 5 mm 6 / 35

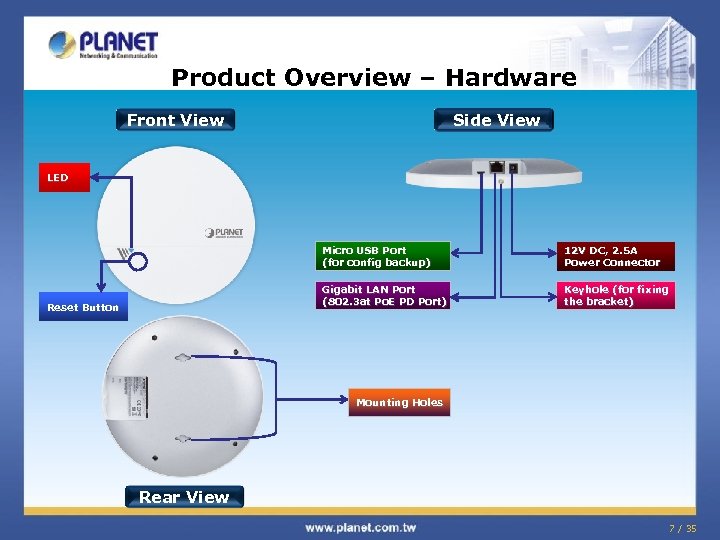

Product Overview – Hardware Front View Side View LED Micro USB Port (for config backup) Gigabit LAN Port (802. 3 at Po. E PD Port) Reset Button 12 V DC, 2. 5 A Power Connector Keyhole (for fixing the bracket) Mounting Holes Rear View 7 / 35
Product Installation

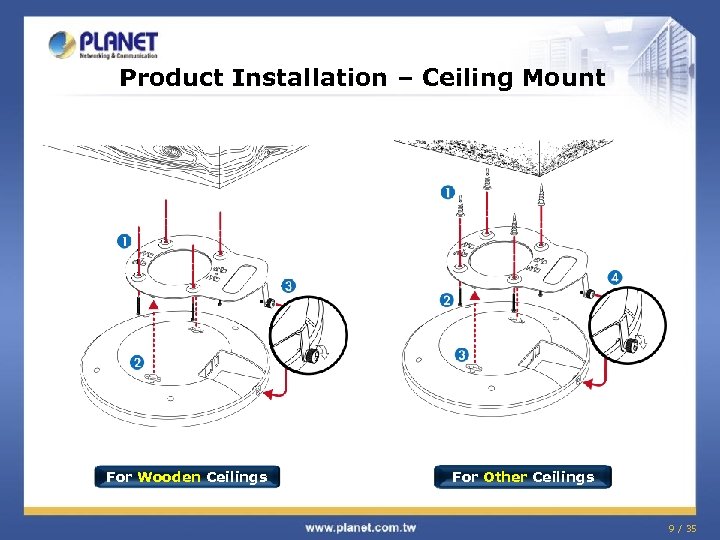

Product Installation – Ceiling Mount For Wooden Ceilings For Other Ceilings 9 / 35

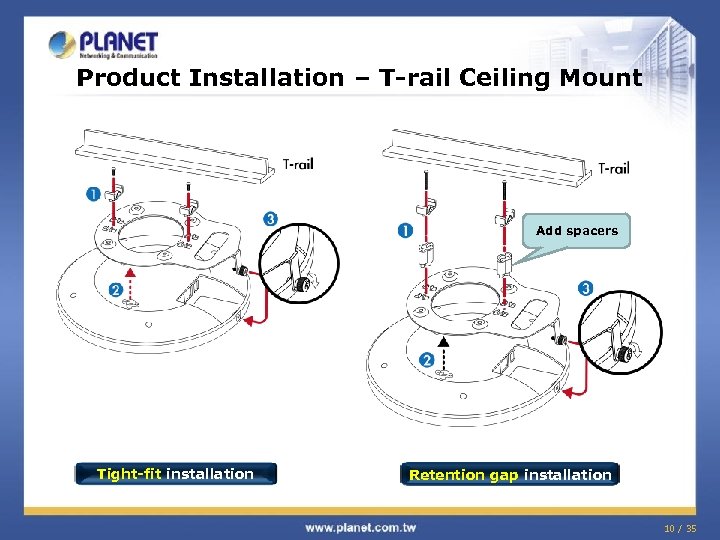

Product Installation – T-rail Ceiling Mount Add spacers Tight-fit installation Retention gap installation 10 / 35
Product Benefits

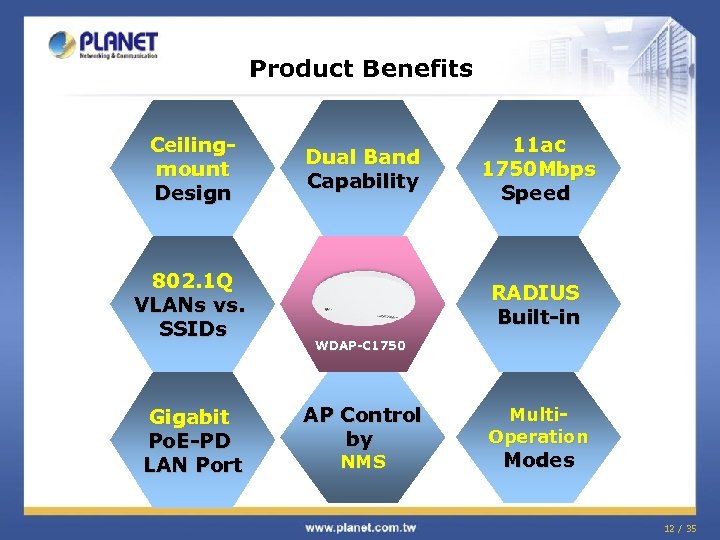

Product Benefits Ceilingmount Design 802. 1 Q VLANs vs. SSIDs Gigabit Po. E-PD LAN Port Dual Band Capability 11 ac 1750 Mbps Speed RADIUS Built-in WDAP-C 1750 AP Control by NMS Multi. Operation Modes 12 / 35

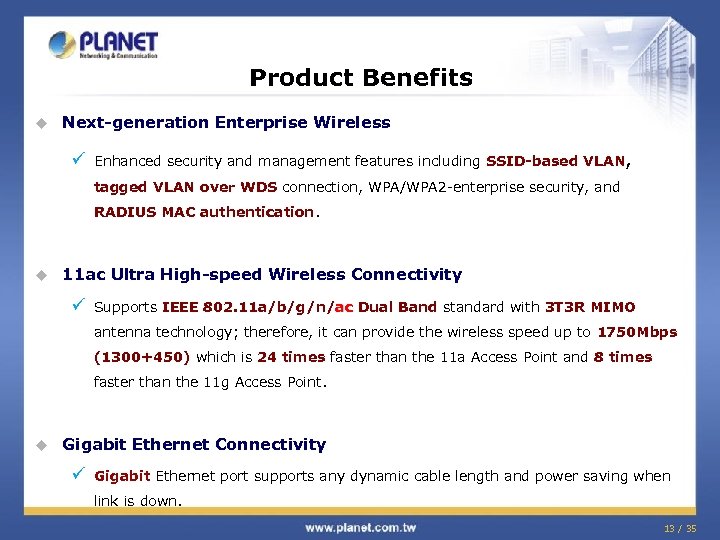

Product Benefits u Next-generation Enterprise Wireless ü Enhanced security and management features including SSID-based VLAN, tagged VLAN over WDS connection, WPA/WPA 2 -enterprise security, and RADIUS MAC authentication. u 11 ac Ultra High-speed Wireless Connectivity ü Supports IEEE 802. 11 a/b/g/n/ac Dual Band standard with 3 T 3 R MIMO antenna technology; therefore, it can provide the wireless speed up to 1750 Mbps (1300+450) which is 24 times faster than the 11 a Access Point and 8 times faster than the 11 g Access Point. u Gigabit Ethernet Connectivity ü Gigabit Ethernet port supports any dynamic cable length and power saving when link is down. 13 / 35
Product Features

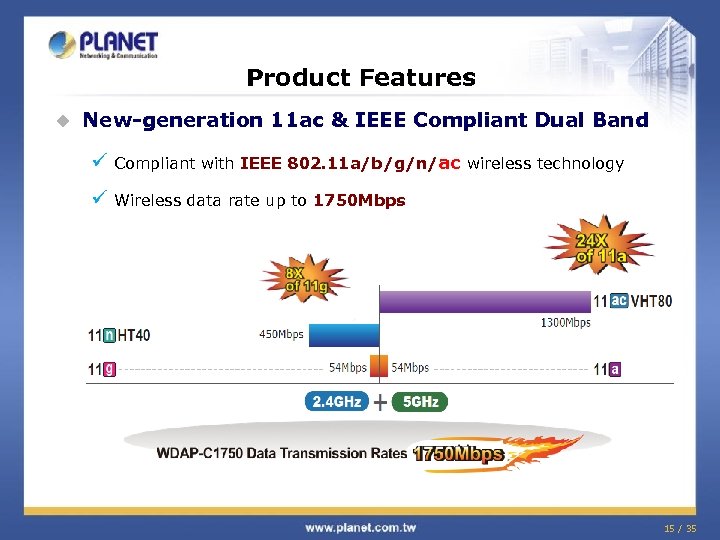

Product Features u New-generation 11 ac & IEEE Compliant Dual Band ü Compliant with IEEE 802. 11 a/b/g/n/ac wireless technology ü Wireless data rate up to 1750 Mbps 15 / 35

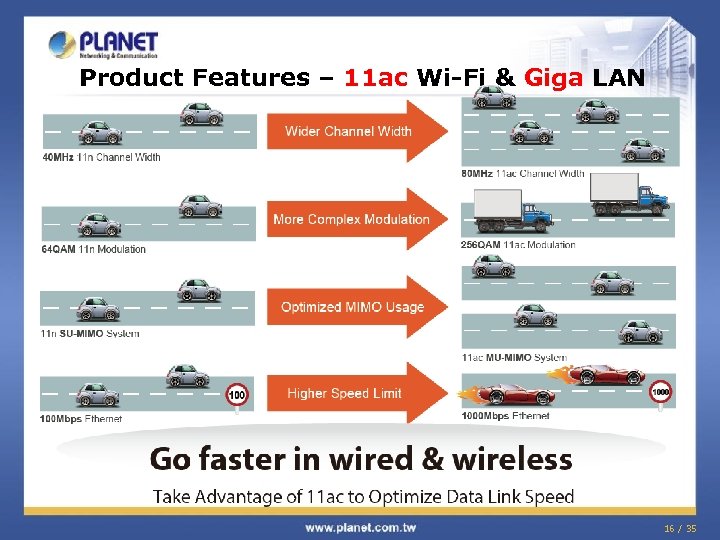

Product Features – 11 ac Wi-Fi & Giga LAN 16 / 35

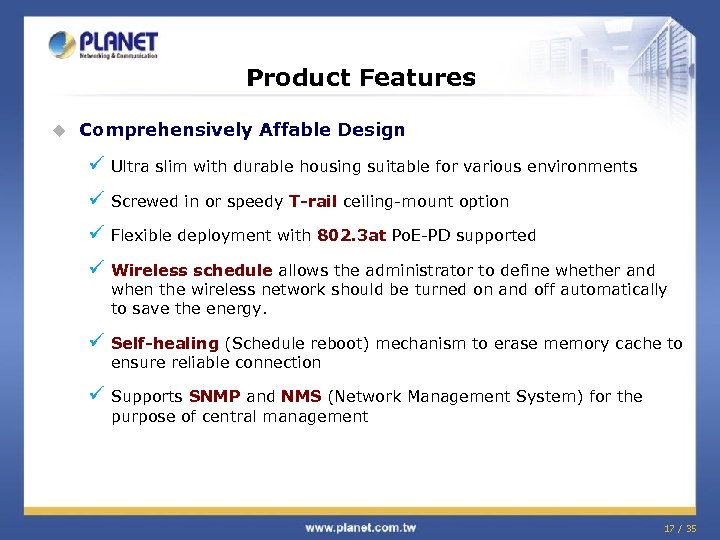

Product Features u Comprehensively Affable Design ü Ultra slim with durable housing suitable for various environments ü Screwed in or speedy T-rail ceiling-mount option ü Flexible deployment with 802. 3 at Po. E-PD supported ü Wireless schedule allows the administrator to define whether and when the wireless network should be turned on and off automatically to save the energy. ü Self-healing (Schedule reboot) mechanism to erase memory cache to ensure reliable connection ü Supports SNMP and NMS (Network Management System) for the purpose of central management 17 / 35
Applications – Various Environments 18 / 35
Product Feature – Ceiling Mount 19 / 35

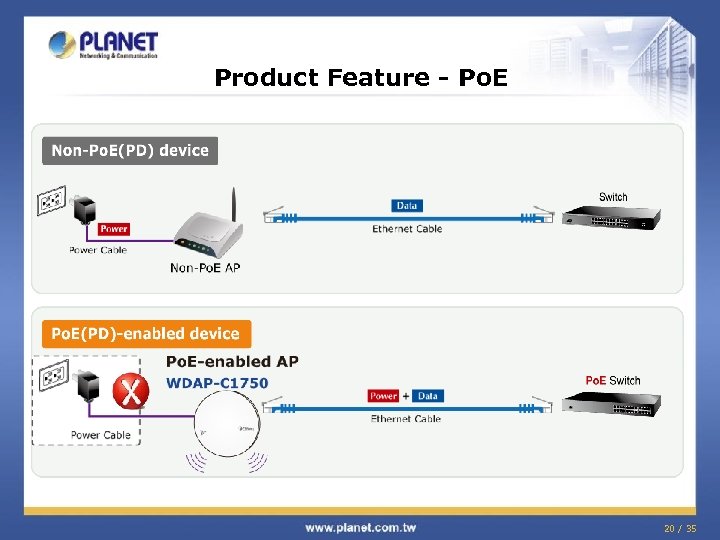

Product Feature - Po. E 20 / 35

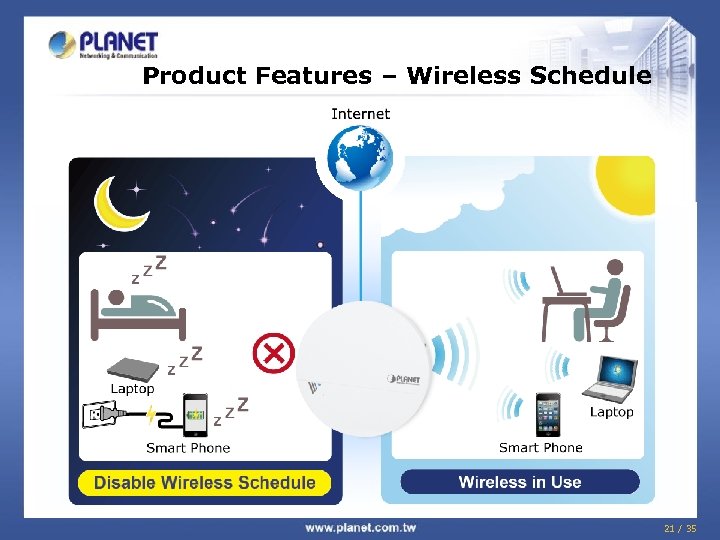

Product Features – Wireless Schedule 21 / 35

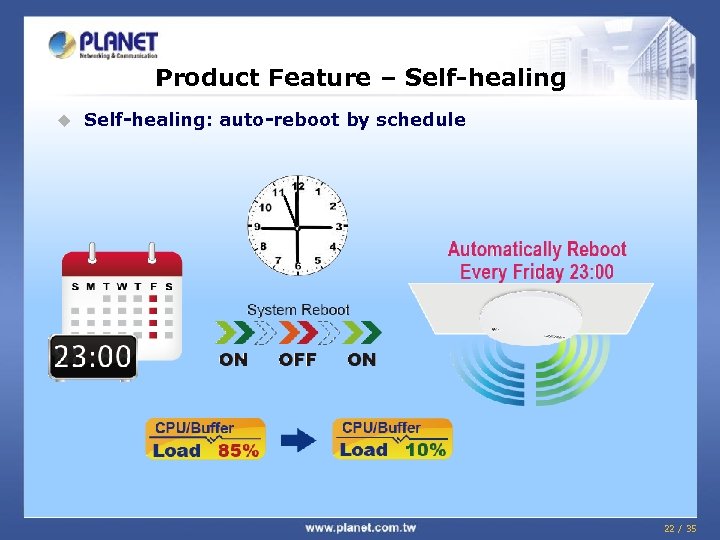

Product Feature – Self-healing u Self-healing: auto-reboot by schedule 22 / 35
Applications – NMS 23 / 35

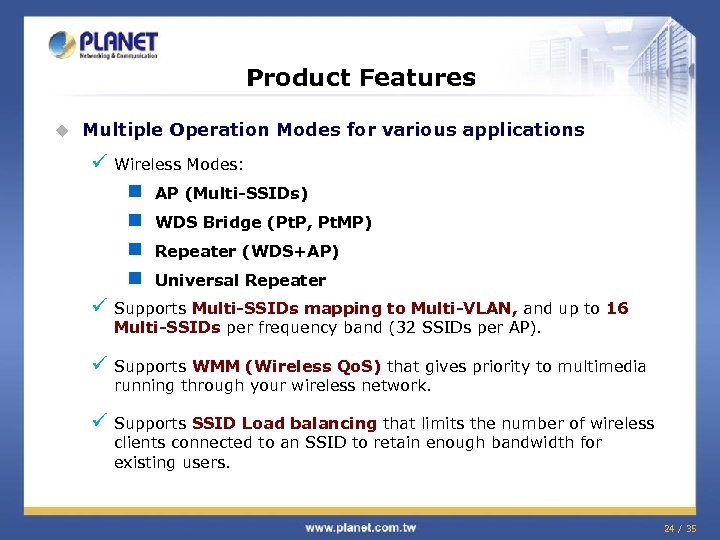

Product Features u Multiple Operation Modes for various applications ü Wireless Modes: n AP (Multi-SSIDs) n WDS Bridge (Pt. P, Pt. MP) n Repeater (WDS+AP) n Universal Repeater ü Supports Multi-SSIDs mapping to Multi-VLAN, and up to 16 Multi-SSIDs per frequency band (32 SSIDs per AP). ü Supports WMM (Wireless Qo. S) that gives priority to multimedia running through your wireless network. ü Supports SSID Load balancing that limits the number of wireless clients connected to an SSID to retain enough bandwidth for existing users. 24 / 35

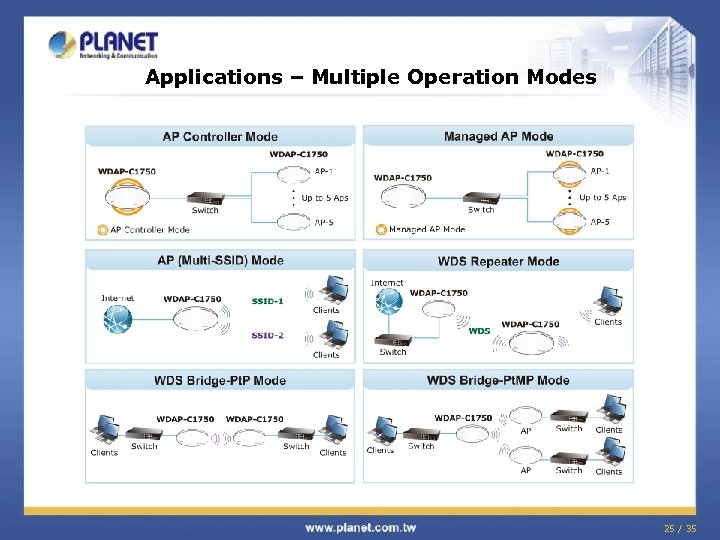

Applications – Multiple Operation Modes 25 / 35
Applications – Multi-SSIDs u 2. 4 GHz: up to 16 Multi-SSIDs u 5 GHz: up to 16 Multi-SSIDs 26 / 35

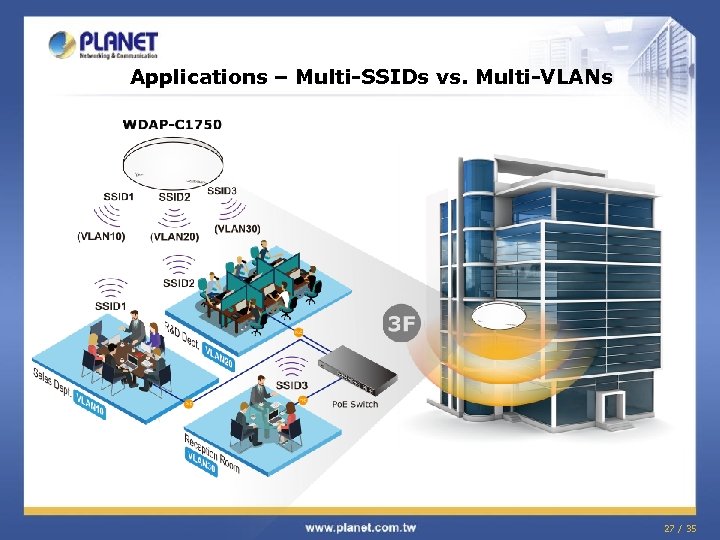

Applications – Multi-SSIDs vs. Multi-VLANs 27 / 35

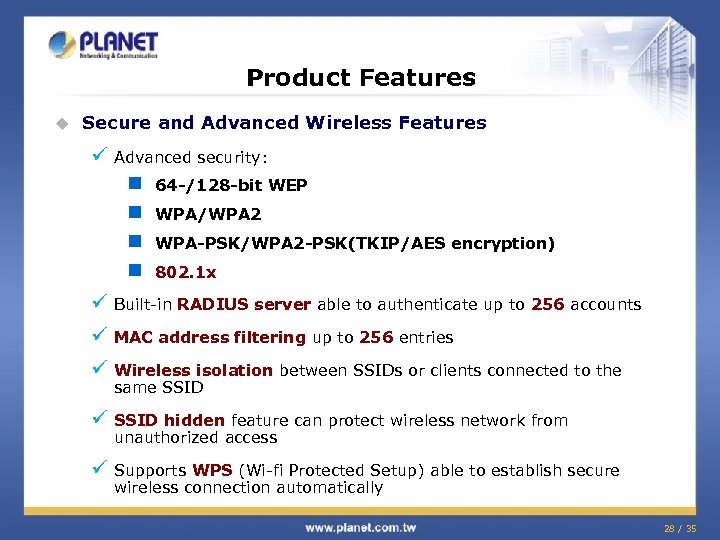

Product Features u Secure and Advanced Wireless Features ü Advanced security: n 64 -/128 -bit WEP n WPA/WPA 2 n WPA-PSK/WPA 2 -PSK(TKIP/AES encryption) n 802. 1 x ü Built-in RADIUS server able to authenticate up to 256 accounts ü MAC address filtering up to 256 entries ü Wireless isolation between SSIDs or clients connected to the same SSID ü SSID hidden feature can protect wireless network from unauthorized access ü Supports WPS (Wi-fi Protected Setup) able to establish secure wireless connection automatically 28 / 35

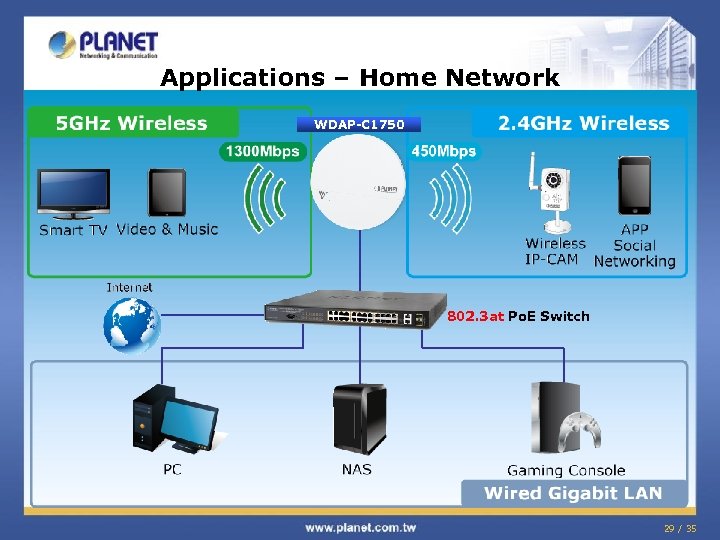

Applications – Home Network WDAP-C 1750 802. 3 at Po. E Switch 29 / 35

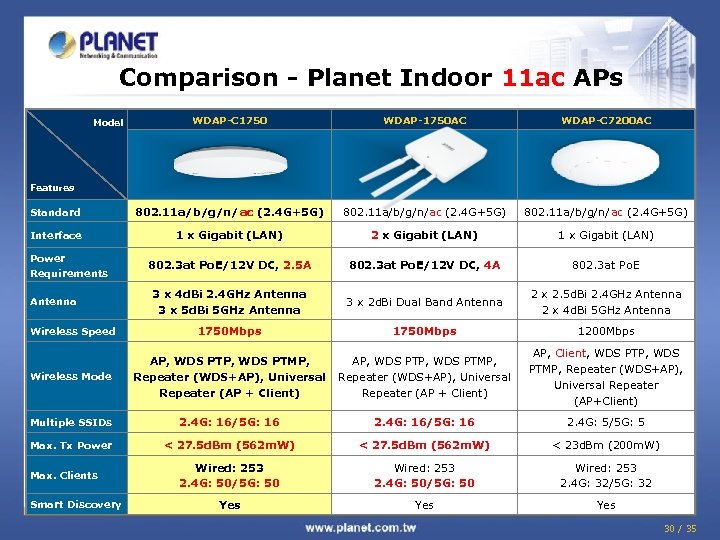

Comparison - Planet Indoor 11 ac APs WDAP-C 1750 WDAP-1750 AC WDAP-C 7200 AC Standard 802. 11 a/b/g/n/ac (2. 4 G+5 G) Interface 1 x Gigabit (LAN) 2 x Gigabit (LAN) 1 x Gigabit (LAN) 802. 3 at Po. E/12 V DC, 2. 5 A 802. 3 at Po. E/12 V DC, 4 A 802. 3 at Po. E 3 x 4 d. Bi 2. 4 GHz Antenna 3 x 5 d. Bi 5 GHz Antenna 3 x 2 d. Bi Dual Band Antenna 2 x 2. 5 d. Bi 2. 4 GHz Antenna 2 x 4 d. Bi 5 GHz Antenna Wireless Speed 1750 Mbps 1200 Mbps Wireless Mode AP, WDS PTP, WDS PTMP, Repeater (WDS+AP), Universal Repeater (AP + Client) AP, Client, WDS PTP, WDS PTMP, Repeater (WDS+AP), Universal Repeater (AP+Client) Multiple SSIDs 2. 4 G: 16/5 G: 16 2. 4 G: 5/5 G: 5 Max. Tx Power < 27. 5 d. Bm (562 m. W) < 23 d. Bm (200 m. W) Wired: 253 2. 4 G: 50/5 G: 50 Wired: 253 2. 4 G: 32/5 G: 32 Yes Yes Model Features Power Requirements Antenna Max. Clients Smart Discovery 30 / 35

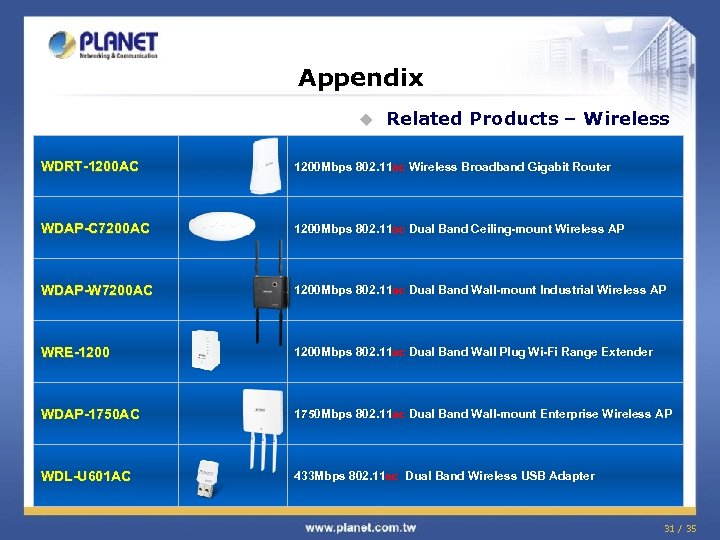

Appendix u Related Products – Wireless WDRT-1200 AC 1200 Mbps 802. 11 ac Wireless Broadband Gigabit Router WDAP-C 7200 AC 1200 Mbps 802. 11 ac Dual Band Ceiling-mount Wireless AP WDAP-W 7200 AC 1200 Mbps 802. 11 ac Dual Band Wall-mount Industrial Wireless AP WRE-1200 Mbps 802. 11 ac Dual Band Wall Plug Wi-Fi Range Extender WDAP-1750 AC 1750 Mbps 802. 11 ac Dual Band Wall-mount Enterprise Wireless AP WDL-U 601 AC 433 Mbps 802. 11 ac Dual Band Wireless USB Adapter 31 / 35

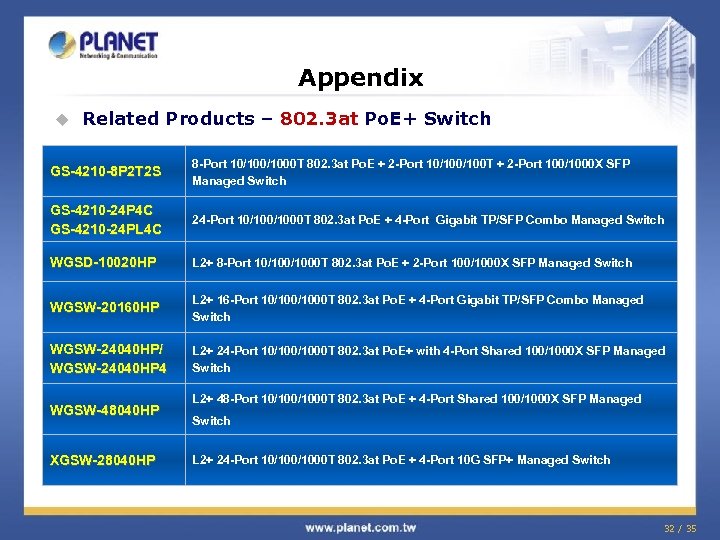

Appendix u Related Products – 802. 3 at Po. E+ Switch GS-4210 -8 P 2 T 2 S 8 -Port 10/1000 T 802. 3 at Po. E + 2 -Port 10/100 T + 2 -Port 100/1000 X SFP Managed Switch GS-4210 -24 P 4 C GS-4210 -24 PL 4 C 24 -Port 10/1000 T 802. 3 at Po. E + 4 -Port Gigabit TP/SFP Combo Managed Switch WGSD-10020 HP L 2+ 8 -Port 10/1000 T 802. 3 at Po. E + 2 -Port 100/1000 X SFP Managed Switch WGSW-20160 HP L 2+ 16 -Port 10/1000 T 802. 3 at Po. E + 4 -Port Gigabit TP/SFP Combo Managed Switch WGSW-24040 HP/ WGSW-24040 HP 4 L 2+ 24 -Port 10/1000 T 802. 3 at Po. E+ with 4 -Port Shared 100/1000 X SFP Managed Switch WGSW-48040 HP XGSW-28040 HP L 2+ 48 -Port 10/1000 T 802. 3 at Po. E + 4 -Port Shared 100/1000 X SFP Managed Switch L 2+ 24 -Port 10/1000 T 802. 3 at Po. E + 4 -Port 10 G SFP+ Managed Switch 32 / 35

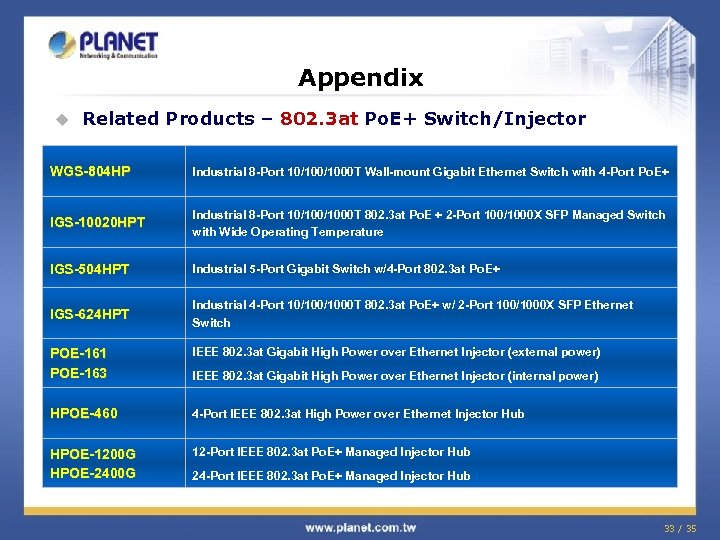

Appendix u Related Products – 802. 3 at Po. E+ Switch/Injector WGS-804 HP Industrial 8 -Port 10/1000 T Wall-mount Gigabit Ethernet Switch with 4 -Port Po. E+ IGS-10020 HPT Industrial 8 -Port 10/1000 T 802. 3 at Po. E + 2 -Port 100/1000 X SFP Managed Switch with Wide Operating Temperature IGS-504 HPT Industrial 5 -Port Gigabit Switch w/4 -Port 802. 3 at Po. E+ IGS-624 HPT Industrial 4 -Port 10/1000 T 802. 3 at Po. E+ w/ 2 -Port 100/1000 X SFP Ethernet Switch POE-161 POE-163 IEEE 802. 3 at Gigabit High Power over Ethernet Injector (external power) HPOE-460 4 -Port IEEE 802. 3 at High Power over Ethernet Injector Hub HPOE-1200 G HPOE-2400 G 12 -Port IEEE 802. 3 at Po. E+ Managed Injector Hub IEEE 802. 3 at Gigabit High Power over Ethernet Injector (internal power) 24 -Port IEEE 802. 3 at Po. E+ Managed Injector Hub 33 / 35

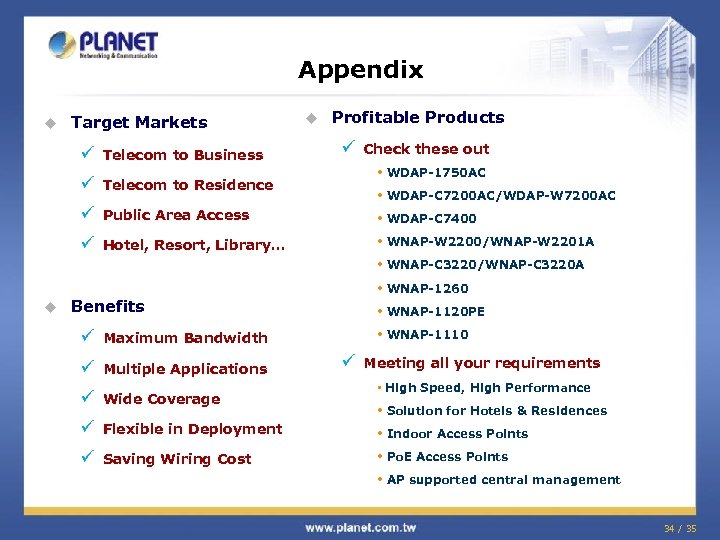

Appendix u Target Markets ü ü ü Public Area Access ü Profitable Products Telecom to Residence ü u Telecom to Business u Hotel, Resort, Library… • WDAP-1750 AC • WDAP-C 7200 AC/WDAP-W 7200 AC • WDAP-C 7400 • WNAP-W 2200/WNAP-W 2201 A • WNAP-C 3220/WNAP-C 3220 A • WNAP-1260 • WNAP-1120 PE • WNAP-1110 Benefits ü Maximum Bandwidth ü Multiple Applications ü Wide Coverage ü Flexible in Deployment ü Saving Wiring Cost Check these out ü Meeting all your requirements • High Speed, High Performance • Solution for Hotels & Residences • Indoor Access Points • Po. E Access Points • AP supported central management 34 / 35
35 / 35
