16 -Channel Network Video Recorder with HDMI NVR-1620

16 -Channel Network Video Recorder with HDMI NVR-1620 Copyright © PLANET Technology Corporation. All rights reserved.

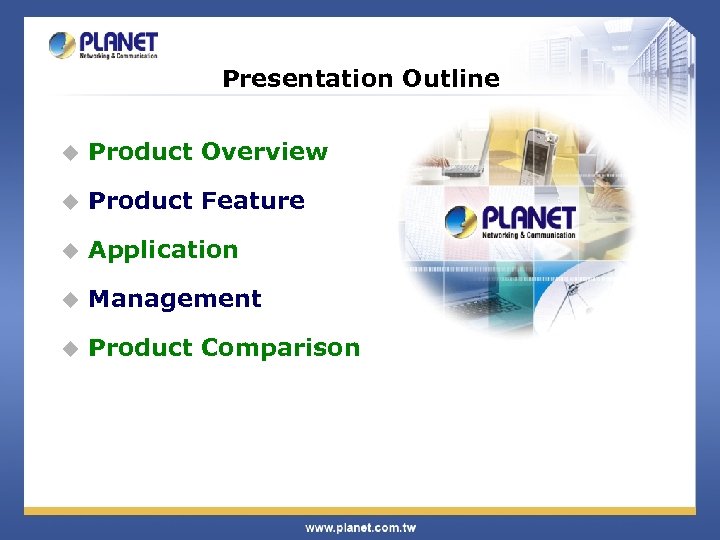

Presentation Outline u Product Overview u Product Feature u Application u Management u Product Comparison

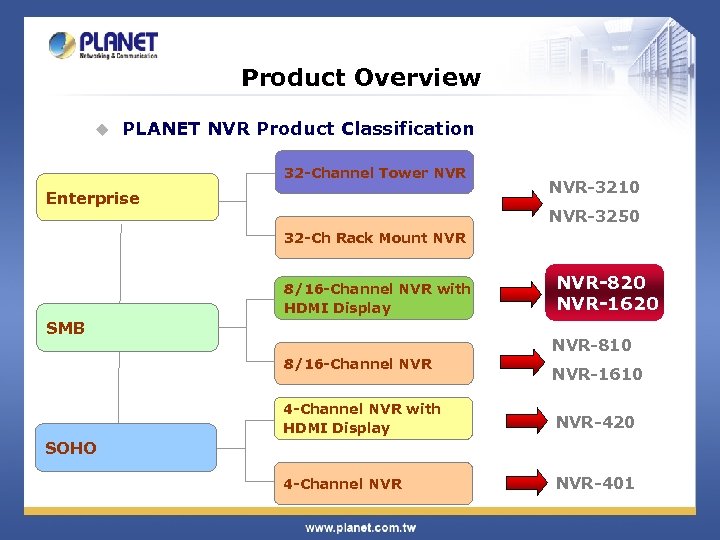

Product Overview u PLANET NVR Product Classification 32 -Channel Tower NVR Enterprise NVR-3210 NVR-3250 32 -Ch Rack Mount NVR 8/16 -Channel NVR with HDMI Display SMB NVR-820 NVR-1620 NVR-810 8/16 -Channel NVR-1610 4 -Channel NVR with HDMI Display NVR-420 4 -Channel NVR-401 SOHO

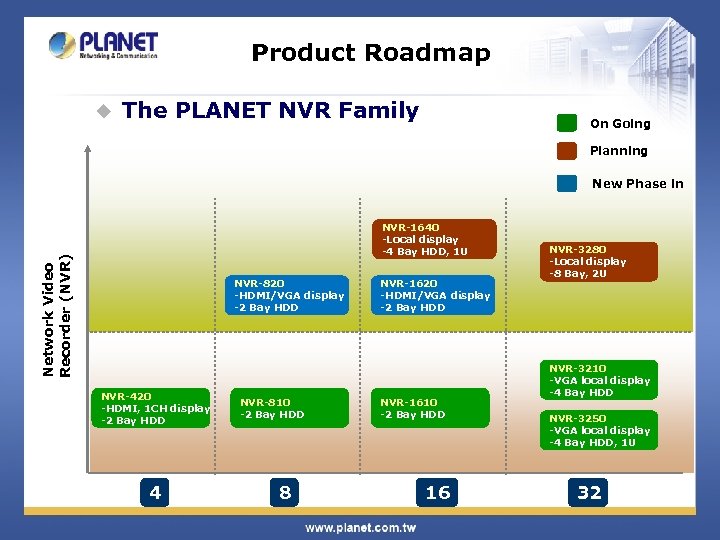

Product Roadmap u The PLANET NVR Family On Going Planning New Phase in Network Video Recorder (NVR) NVR-1640 -Local display -4 Bay HDD, 1 U NVR-820 -HDMI/VGA display -2 Bay HDD NVR-420 -HDMI, 1 CH display -2 Bay HDD 4 NVR-810 -2 Bay HDD 8 NVR-1620 -HDMI/VGA display -2 Bay HDD NVR-1610 -2 Bay HDD 16 NVR-3280 -Local display -8 Bay, 2 U NVR-3210 -VGA local display -4 Bay HDD NVR-3250 -VGA local display -4 Bay HDD, 1 U 32

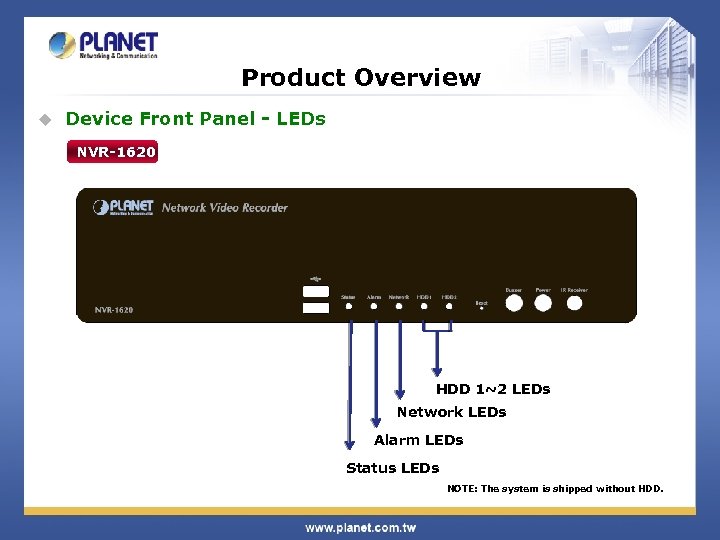

Product Overview u Device Front Panel - LEDs NVR-1620 HDD 1~2 LEDs Network LEDs Alarm LEDs Status LEDs NOTE: The system is shipped without HDD.

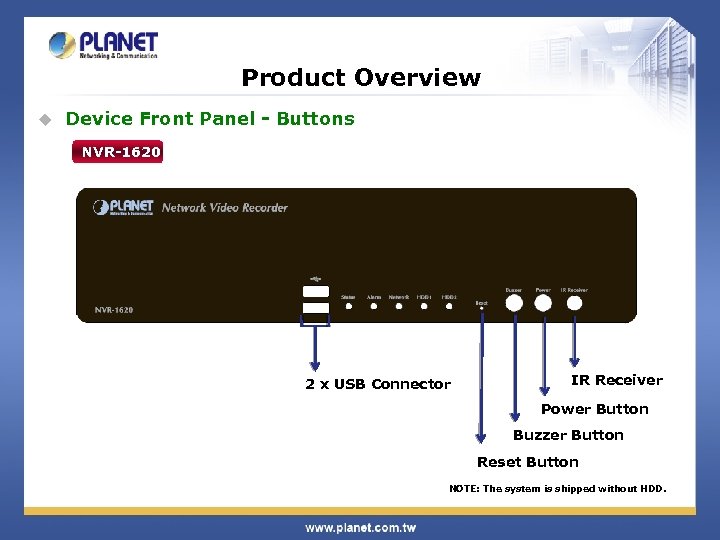

Product Overview u Device Front Panel - Buttons NVR-1620 2 x USB Connector IR Receiver Power Button Buzzer Button Reset Button NOTE: The system is shipped without HDD.

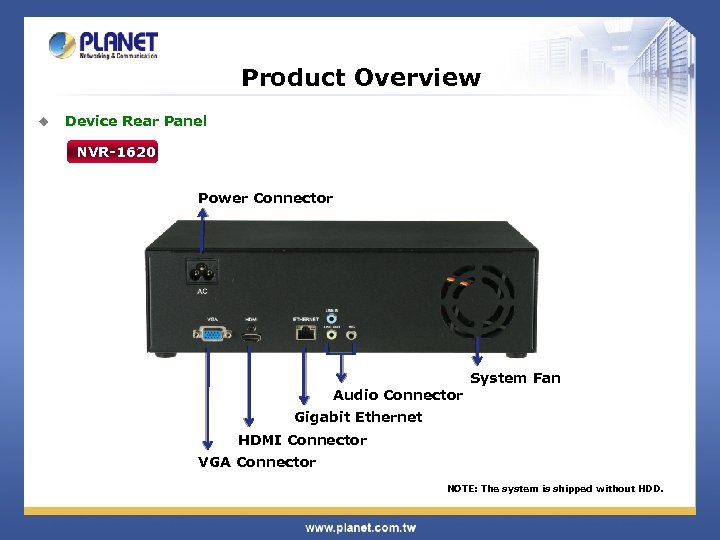

Product Overview u Device Rear Panel NVR-1620 Power Connector Audio Connector System Fan Gigabit Ethernet HDMI Connector VGA Connector NOTE: The system is shipped without HDD.

Product Features u Hardware ü ü Supports Gigabit Ethernet port ü Supports VGA / HDMI dual local display ü u Linux-embedded, highly reliable standalone NVR Supports 3. 5" SATA x 2 HDD Video / Audio ü Supports M-JPEG / MPEG-4 / H. 264 compressions ü Auto configuration for PLANET IP camera ü Video resolution up to 5 mega-pixel (2560 x 1920) ü Supports up to 120 fps @ 1080 P (H. 264) ü 2 -way audio support with enhanced audio quality

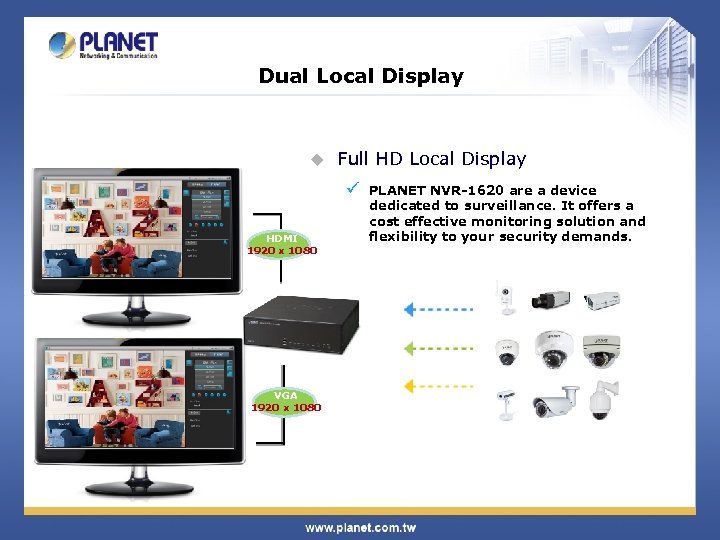

Dual Local Display u Full HD Local Display ü HDMI 1920 x 1080 VGA 1920 x 1080 PLANET NVR-1620 are a device dedicated to surveillance. It offers a cost effective monitoring solution and flexibility to your security demands.

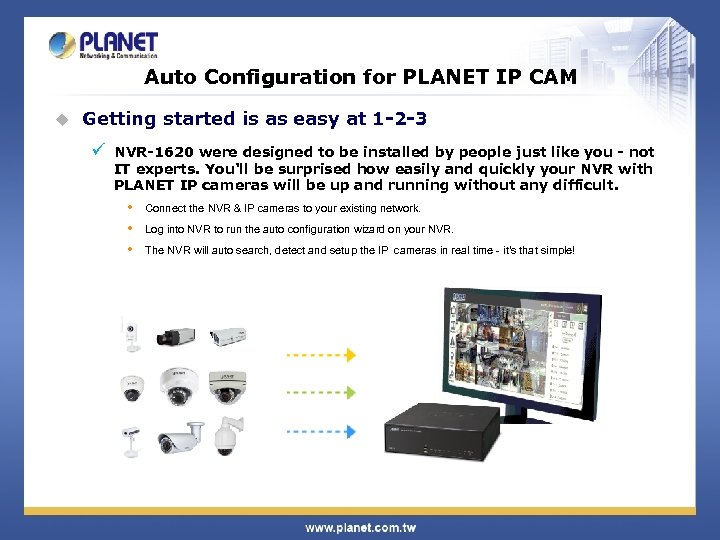

Auto Configuration for PLANET IP CAM u Getting started is as easy at 1 -2 -3 ü NVR-1620 were designed to be installed by people just like you - not IT experts. You'll be surprised how easily and quickly your NVR with PLANET IP cameras will be up and running without any difficult. • • • Connect the NVR & IP cameras to your existing network. Log into NVR to run the auto configuration wizard on your NVR. The NVR will auto search, detect and setup the IP cameras in real time - it's that simple!

Product Features u Video Recording / Backup ü ü Manual or schedule recording of 16 IP cameras simultaneously ü Video recycle function makes the video recording in 24/7 ü Exports recorded video file to AVI format to USB device or local storage ü u Simultaneous recording and live video streams Instant Event Notification and recording Network Service ü Easy access with PLANET Dynamic DNS and Built-in NTP Server ü Supports DHCP Server/client (Auto detection)

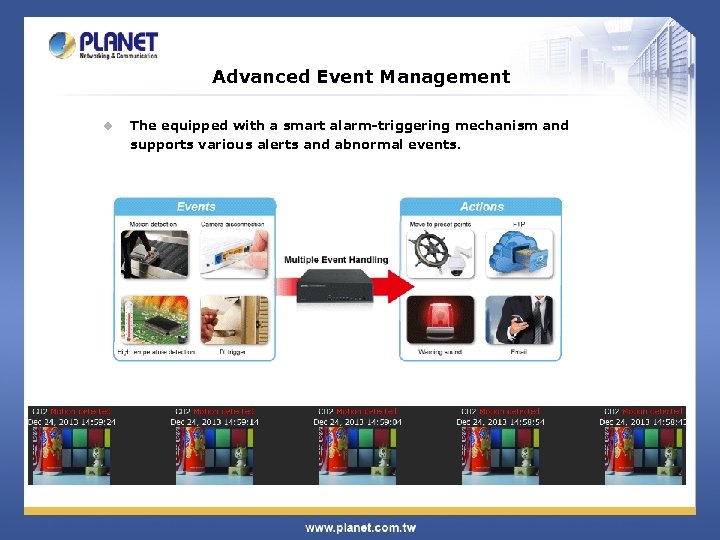

Advanced Event Management u The equipped with a smart alarm-triggering mechanism and supports various alerts and abnormal events.

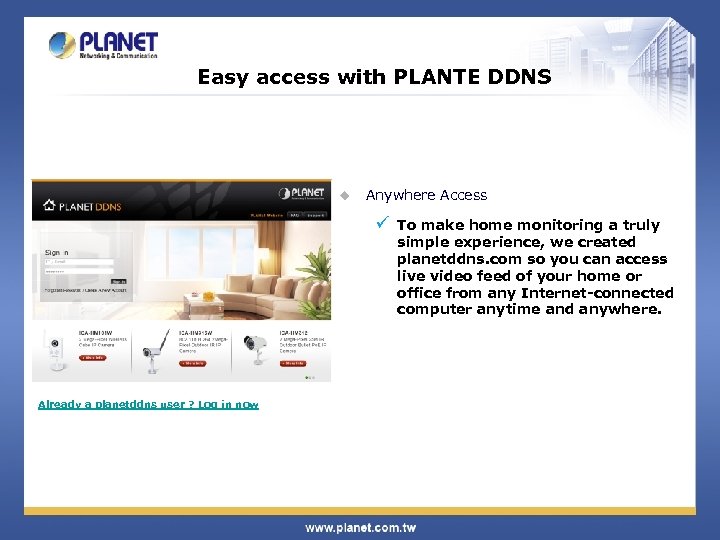

Easy access with PLANTE DDNS u Anywhere Access ü Already a planetddns user ? Log in now To make home monitoring a truly simple experience, we created planetddns. com so you can access live video feed of your home or office from any Internet-connected computer anytime and anywhere.

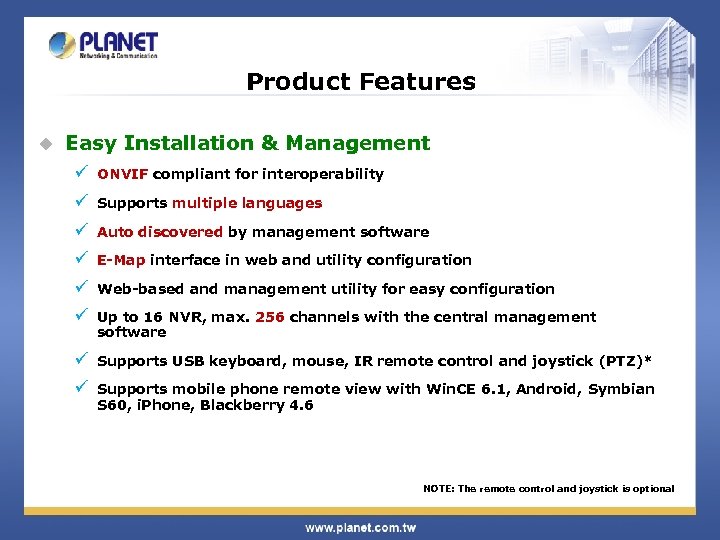

Product Features u Easy Installation & Management ü ONVIF compliant for interoperability ü Supports multiple languages ü Auto discovered by management software ü E-Map interface in web and utility configuration ü Web-based and management utility for easy configuration ü Up to 16 NVR, max. 256 channels with the central management software ü Supports USB keyboard, mouse, IR remote control and joystick (PTZ)* ü Supports mobile phone remote view with Win. CE 6. 1, Android, Symbian S 60, i. Phone, Blackberry 4. 6 NOTE: The remote control and joystick is optional

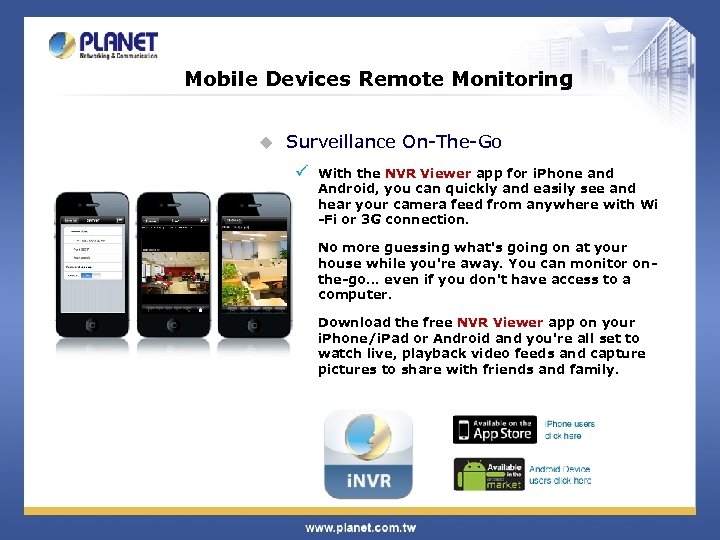

Mobile Devices Remote Monitoring u Surveillance On-The-Go ü With the NVR Viewer app for i. Phone and Android, you can quickly and easily see and hear your camera feed from anywhere with Wi -Fi or 3 G connection. No more guessing what's going on at your house while you're away. You can monitor onthe-go. . . even if you don't have access to a computer. Download the free NVR Viewer app on your i. Phone/i. Pad or Android and you're all set to watch live, playback video feeds and capture pictures to share with friends and family.

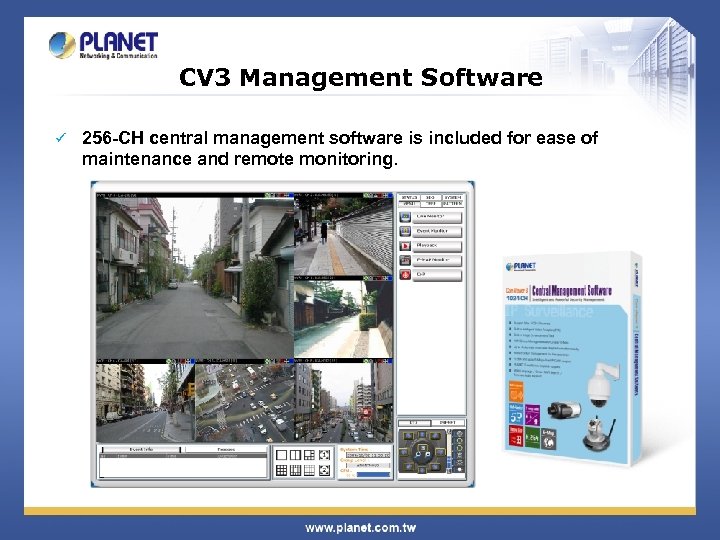

CV 3 Management Software ü 256 -CH central management software is included for ease of maintenance and remote monitoring.

Web Management - Main View u Real-Time image of Live View

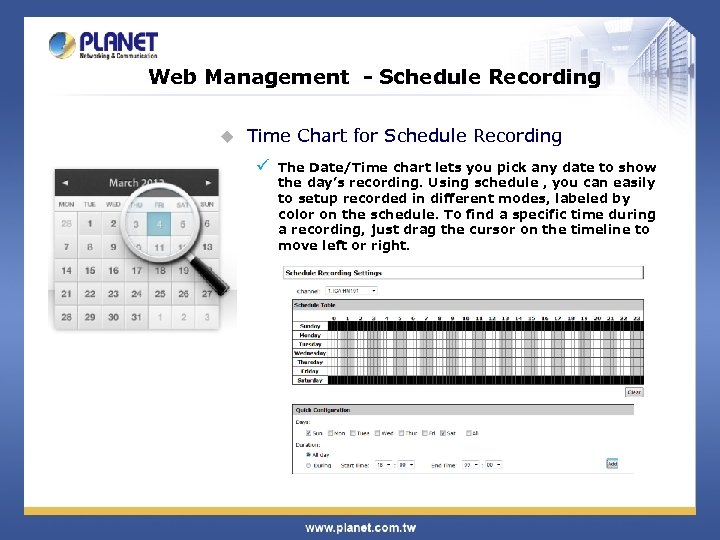

Web Management - Schedule Recording u Time Chart for Schedule Recording ü The Date/Time chart lets you pick any date to show the day’s recording. Using schedule , you can easily to setup recorded in different modes, labeled by color on the schedule. To find a specific time during a recording, just drag the cursor on the timeline to move left or right.

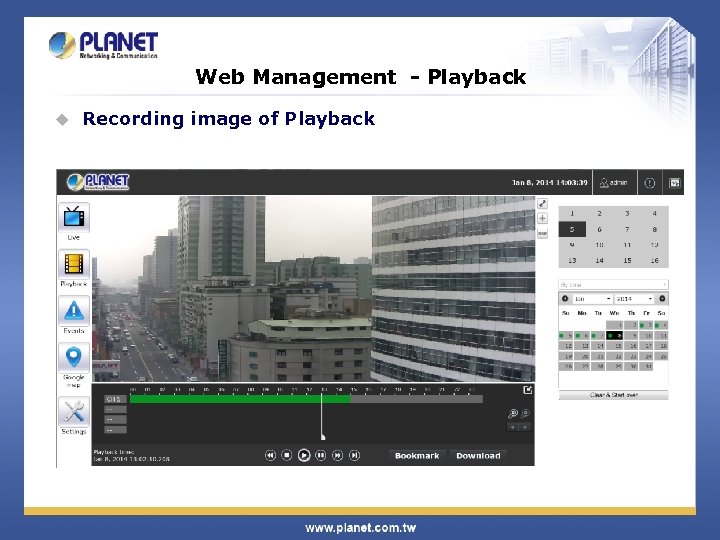

Web Management - Playback u Recording image of Playback

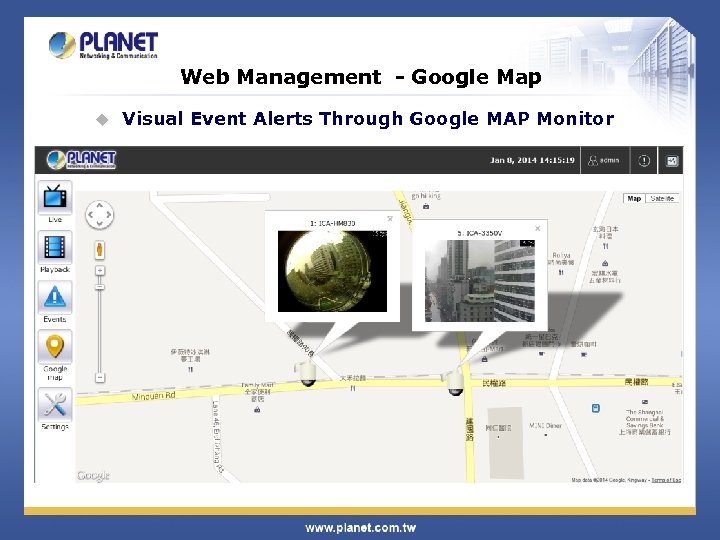

Web Management - Google Map u Visual Event Alerts Through Google MAP Monitor

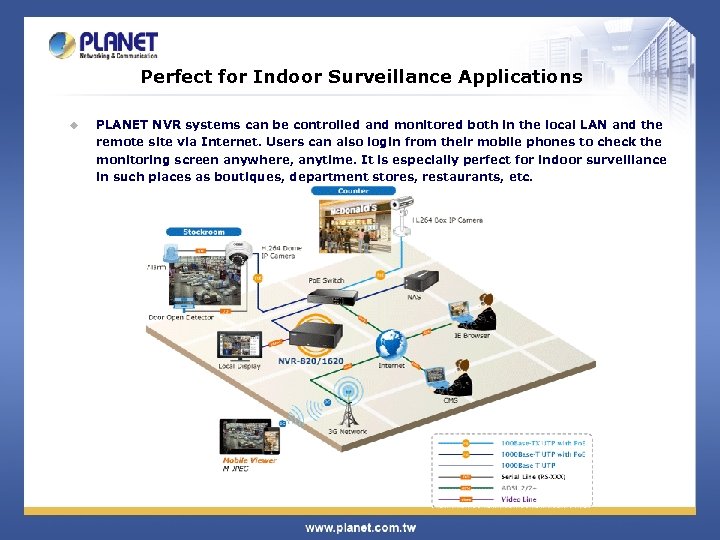

Perfect for Indoor Surveillance Applications u PLANET NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. Users can also login from their mobile phones to check the monitoring screen anywhere, anytime. It is especially perfect for indoor surveillance in such places as boutiques, department stores, restaurants, etc.

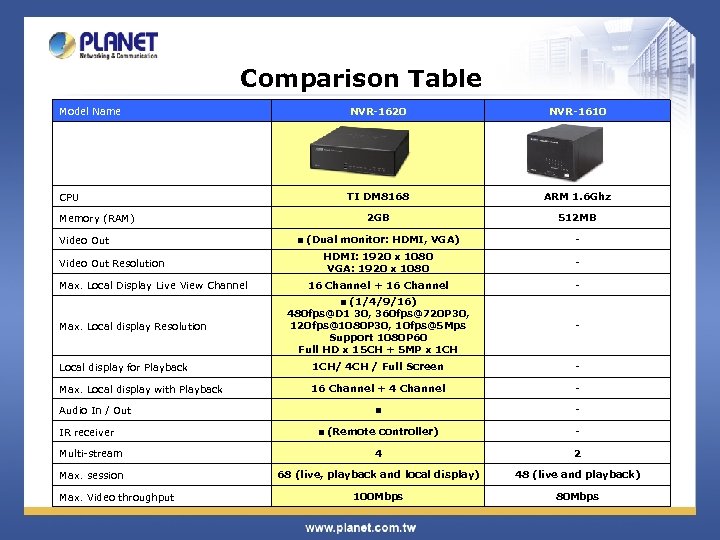

Comparison Table Model Name NVR-1620 NVR-1610 CPU TI DM 8168 ARM 1. 6 Ghz 2 GB 512 MB ■ (Dual monitor: HDMI, VGA) - HDMI: 1920 x 1080 VGA: 1920 x 1080 - 16 Channel + 16 Channel - ■ (1/4/9/16) 480 fps@D 1 30, 360 fps@720 P 30, 120 fps@1080 P 30, 10 fps@5 Mps Support 1080 P 60 Full HD x 15 CH + 5 MP x 1 CH - Local display for Playback 1 CH/ 4 CH / Full Screen - Max. Local display with Playback 16 Channel + 4 Channel - ■ (Remote controller) - Multi-stream 4 2 Max. session 68 (live, playback and local display) 48 (live and playback) 100 Mbps 80 Mbps Memory (RAM) Video Out Resolution Max. Local Display Live View Channel Max. Local display Resolution Audio In / Out IR receiver Max. Video throughput

Appendix Sales Target u Target Markets ü ü IP Surveillance System Integrator ü u Enterprise / SMB Office CCTV System / Reseller Target Customers ü Who buy our NVR ü Who buy our CV 3 P ü Who buys PLANET IP cameras
