15 -213 Exceptional Control Flow Part I October 22, 2007 Topics n n n class 14. ppt Exceptions Process context switches Creating and destroying processes 15 -213, F’ 07

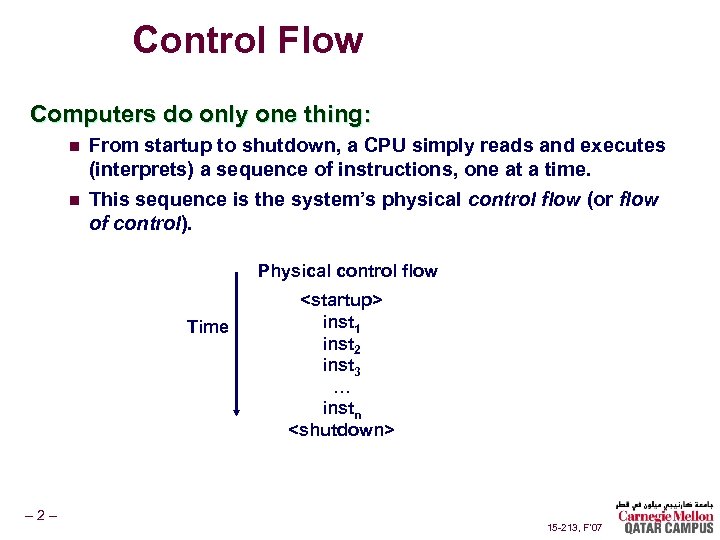

Control Flow Computers do only one thing: n n From startup to shutdown, a CPU simply reads and executes (interprets) a sequence of instructions, one at a time. This sequence is the system’s physical control flow (or flow of control). Physical control flow Time – 2– <startup> inst 1 inst 2 inst 3 … instn <shutdown> 15 -213, F’ 07

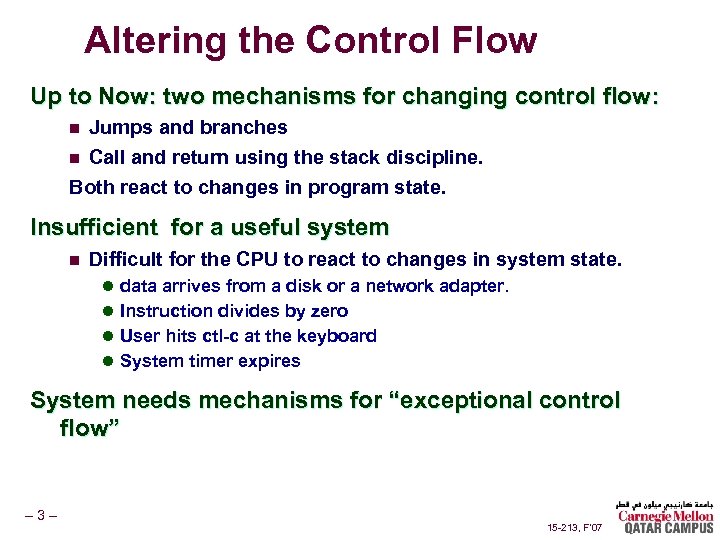

Altering the Control Flow Up to Now: two mechanisms for changing control flow: n Jumps and branches Call and return using the stack discipline. Both react to changes in program state. n Insufficient for a useful system n Difficult for the CPU to react to changes in system state. l data arrives from a disk or a network adapter. l Instruction divides by zero l User hits ctl-c at the keyboard l System timer expires System needs mechanisms for “exceptional control flow” – 3– 15 -213, F’ 07

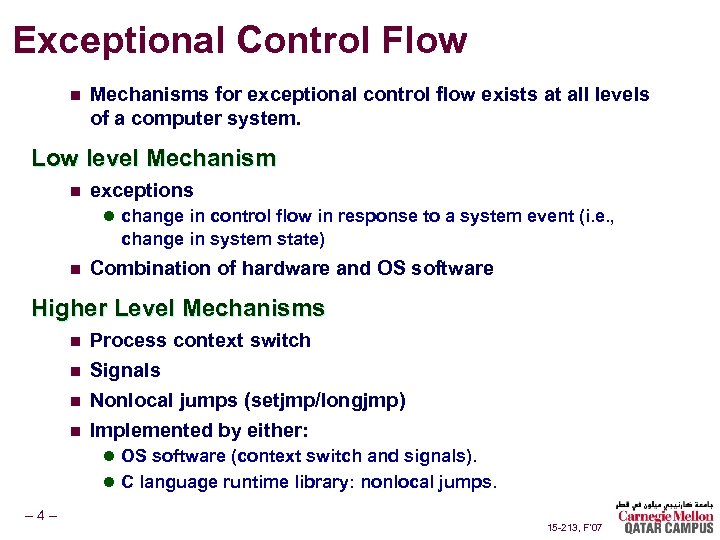

Exceptional Control Flow n Mechanisms for exceptional control flow exists at all levels of a computer system. Low level Mechanism n exceptions l change in control flow in response to a system event (i. e. , change in system state) n Combination of hardware and OS software Higher Level Mechanisms n n Process context switch Signals Nonlocal jumps (setjmp/longjmp) Implemented by either: l OS software (context switch and signals). l C language runtime library: nonlocal jumps. – 4– 15 -213, F’ 07

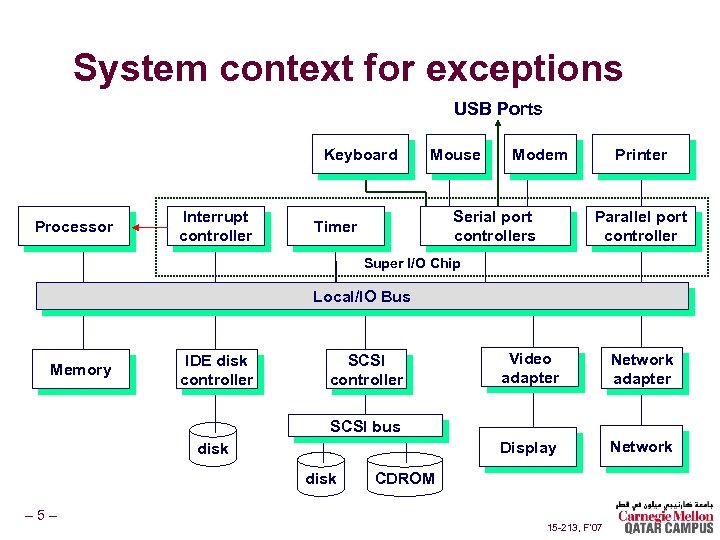

System context for exceptions USB Ports Keyboard Processor Interrupt controller Mouse Modem Serial port controllers Timer Printer Parallel port controller Super I/O Chip Local/IO Bus Memory IDE disk controller Video adapter Network adapter Display SCSI controller Network SCSI bus disk – 5– CDROM 15 -213, F’ 07

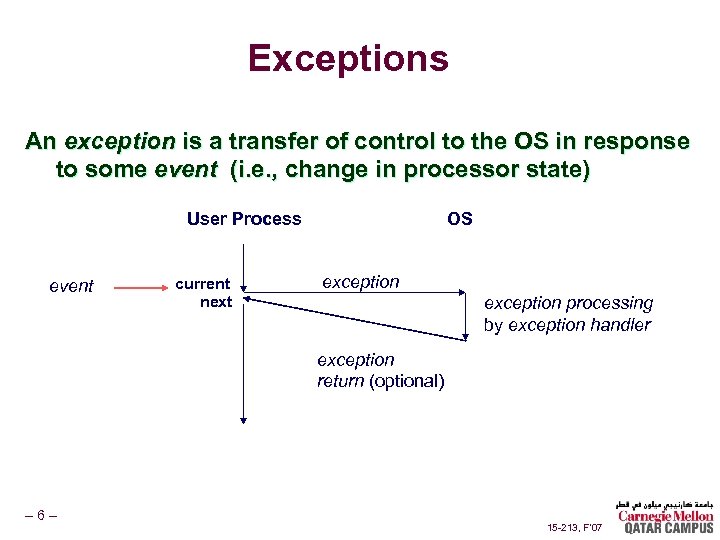

Exceptions An exception is a transfer of control to the OS in response to some event (i. e. , change in processor state) User Process event current next OS exception processing by exception handler exception return (optional) – 6– 15 -213, F’ 07

Interrupt Vectors Exception numbers code for exception handler 0 interrupt vector 0 1 2 n-1 . . . n Each type of event has a unique exception number k n code for exception handler 1 n Index into jump table (a. k. a. , interrupt vector) Jump table entry k points to a function (exception handler). Handler k is called each time exception k occurs. code for exception handler 2 . . . n code for exception handler n-1 – 7– 15 -213, F’ 07

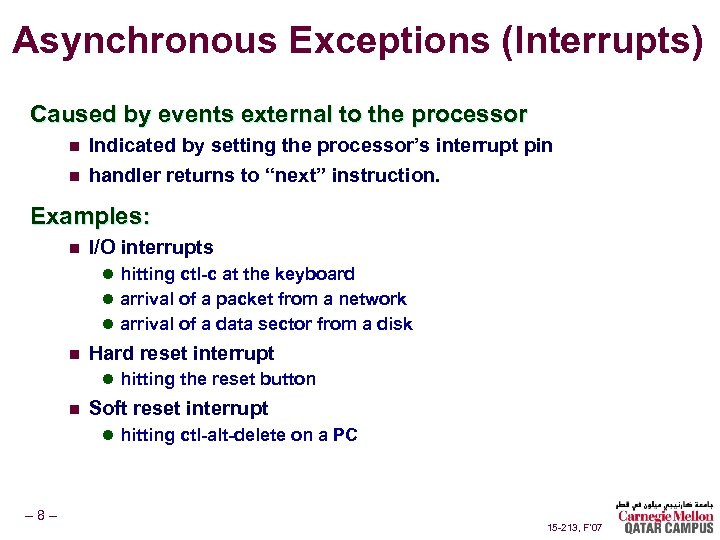

Asynchronous Exceptions (Interrupts) Caused by events external to the processor n Indicated by setting the processor’s interrupt pin n handler returns to “next” instruction. Examples: n I/O interrupts l hitting ctl-c at the keyboard l arrival of a packet from a network l arrival of a data sector from a disk n Hard reset interrupt l hitting the reset button n Soft reset interrupt l hitting ctl-alt-delete on a PC – 8– 15 -213, F’ 07

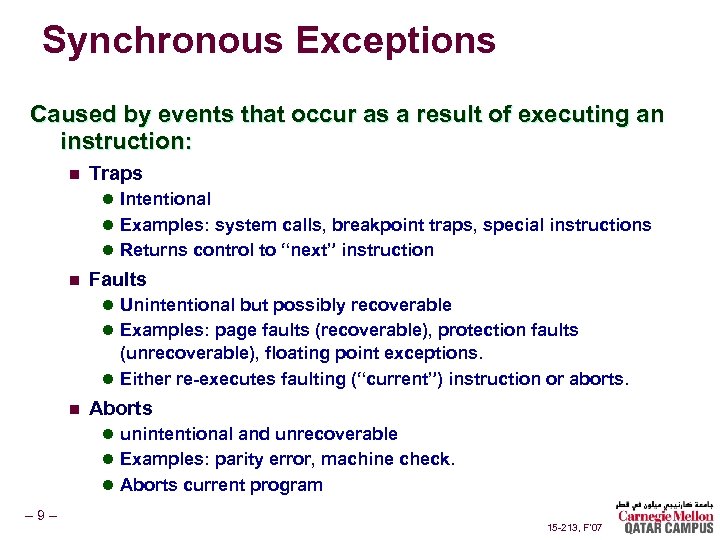

Synchronous Exceptions Caused by events that occur as a result of executing an instruction: n Traps l Intentional l Examples: system calls, breakpoint traps, special instructions l Returns control to “next” instruction n Faults l Unintentional but possibly recoverable l Examples: page faults (recoverable), protection faults (unrecoverable), floating point exceptions. l Either re-executes faulting (“current”) instruction or aborts. n Aborts l unintentional and unrecoverable l Examples: parity error, machine check. l Aborts current program – 9– 15 -213, F’ 07

Trap Example Opening a File n User calls open(filename, options) 0804 d 070 <__libc_open>: . . . 804 d 082: cd 80 804 d 084: 5 b. . . int pop $0 x 80 %ebx l Function open executes system call instruction int n OS must find or create file, get it ready for reading or writing n Returns integer file descriptor User Process int pop – 10 – OS exception Open file return 15 -213, F’ 07

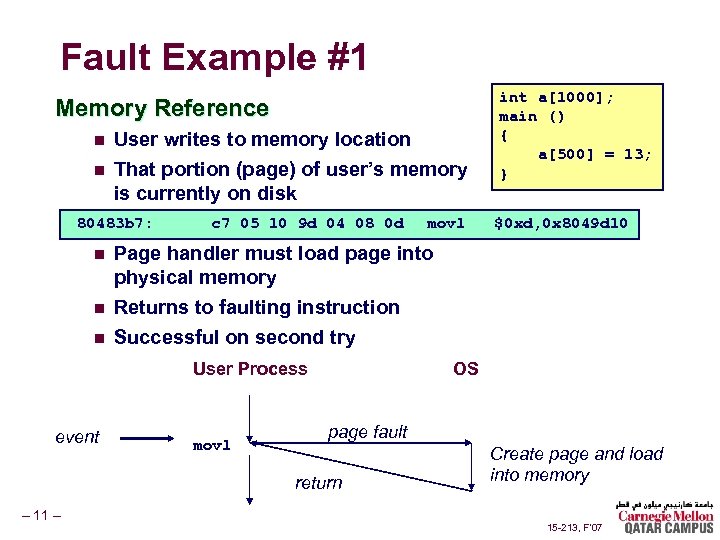

Fault Example #1 Memory Reference n User writes to memory location n That portion (page) of user’s memory is currently on disk 80483 b 7: n n n c 7 05 10 9 d 04 08 0 d movl OS page fault return – 11 – $0 xd, 0 x 8049 d 10 Page handler must load page into physical memory Returns to faulting instruction Successful on second try User Process event movl int a[1000]; main () { a[500] = 13; } Create page and load into memory 15 -213, F’ 07

Fault Example #2 int a[1000]; main () { a[5000] = 13; } Invalid Memory Reference n User writes to memory location n Address is not valid 80483 b 7: c 7 05 60 e 3 04 08 0 d movl $0 xd, 0 x 804 e 360 n Page handler detects invalid address Sends SIGSEG signal to user process n User process exits with “segmentation fault” n User Process event movl OS page fault Detect invalid address Signal process – 12 – 15 -213, F’ 07

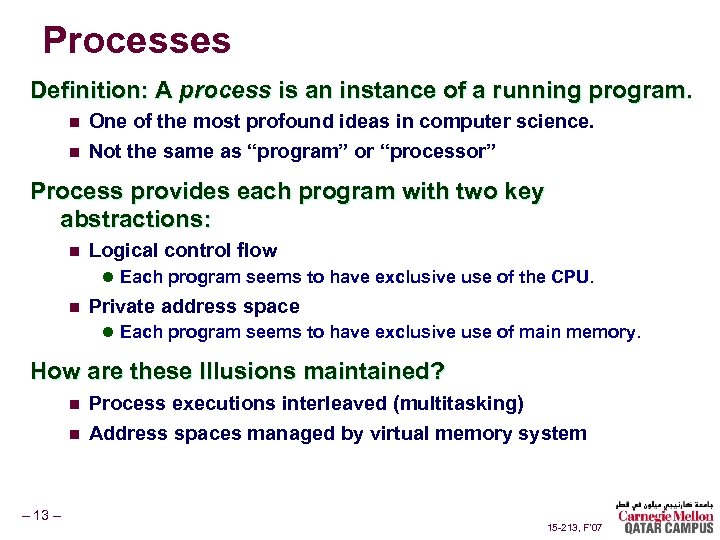

Processes Definition: A process is an instance of a running program. n One of the most profound ideas in computer science. n Not the same as “program” or “processor” Process provides each program with two key abstractions: n Logical control flow l Each program seems to have exclusive use of the CPU. n Private address space l Each program seems to have exclusive use of main memory. How are these Illusions maintained? n n – 13 – Process executions interleaved (multitasking) Address spaces managed by virtual memory system 15 -213, F’ 07

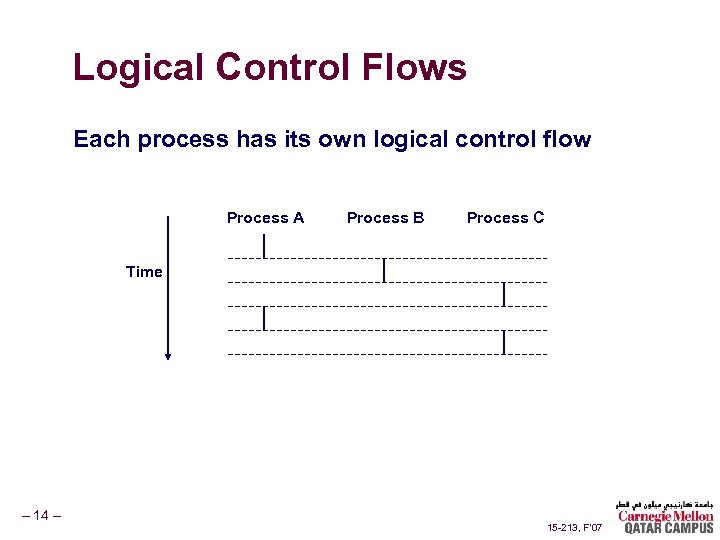

Logical Control Flows Each process has its own logical control flow Process A Process B Process C Time – 14 – 15 -213, F’ 07

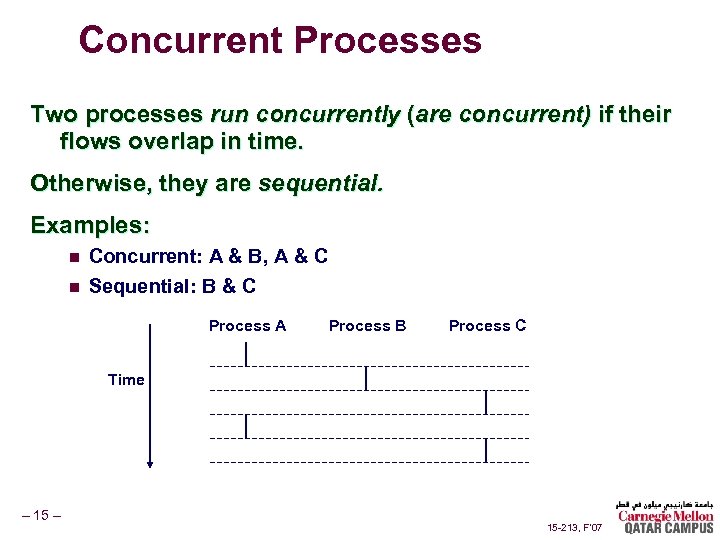

Concurrent Processes Two processes run concurrently (are concurrent) if their flows overlap in time. Otherwise, they are sequential. Examples: n n Concurrent: A & B, A & C Sequential: B & C Process A Process B Process C Time – 15 -213, F’ 07

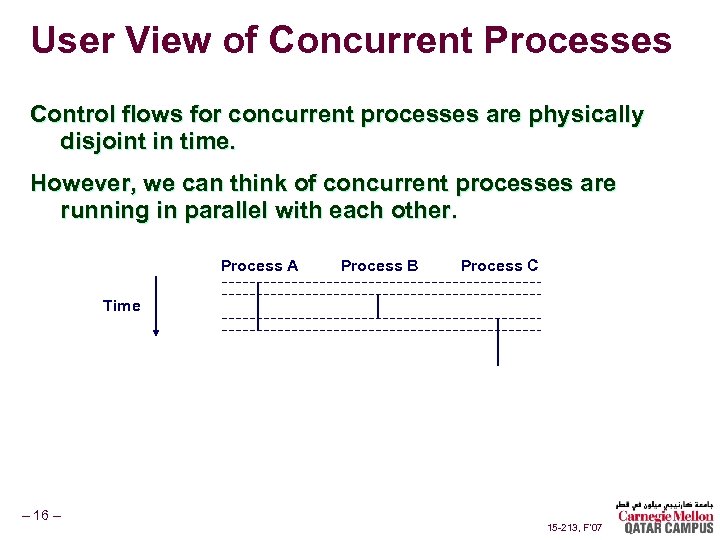

User View of Concurrent Processes Control flows for concurrent processes are physically disjoint in time. However, we can think of concurrent processes are running in parallel with each other. Process A Process B Process C Time – 16 – 15 -213, F’ 07

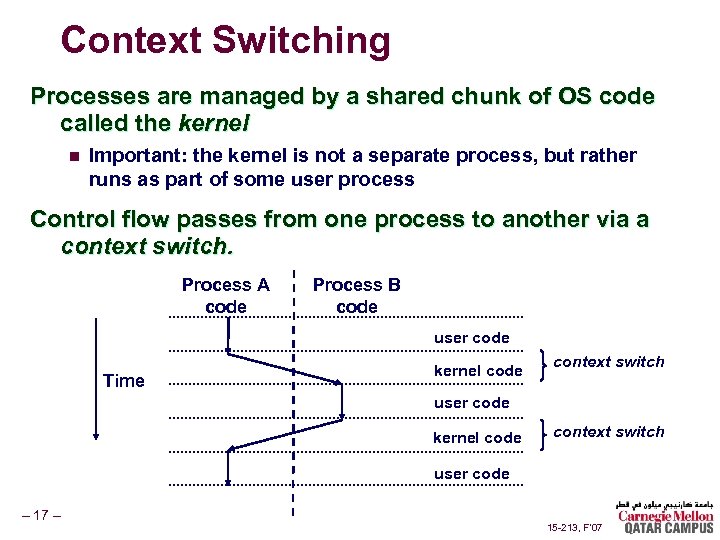

Context Switching Processes are managed by a shared chunk of OS code called the kernel n Important: the kernel is not a separate process, but rather runs as part of some user process Control flow passes from one process to another via a context switch. Process A code Process B code user code Time kernel code context switch user code – 17 – 15 -213, F’ 07

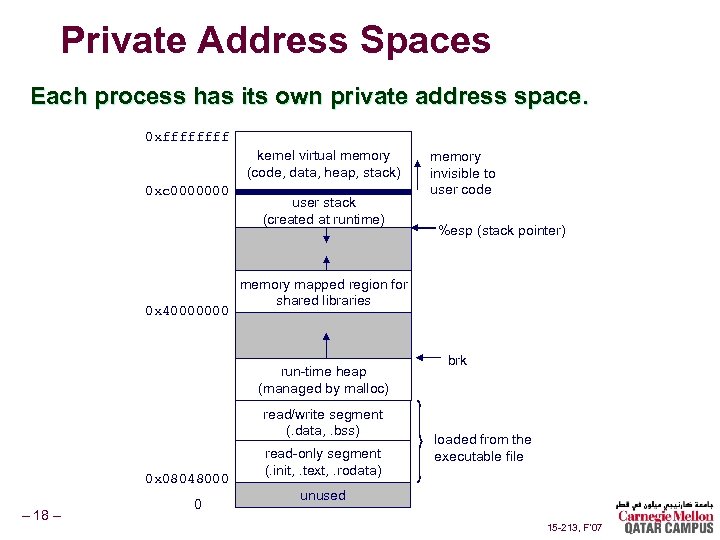

Private Address Spaces Each process has its own private address space. 0 xffff kernel virtual memory (code, data, heap, stack) 0 xc 0000000 0 x 40000000 user stack (created at runtime) read/write segment (. data, . bss) – 18 – 0 %esp (stack pointer) memory mapped region for shared libraries run-time heap (managed by malloc) 0 x 08048000 memory invisible to user code read-only segment (. init, . text, . rodata) brk loaded from the executable file unused 15 -213, F’ 07

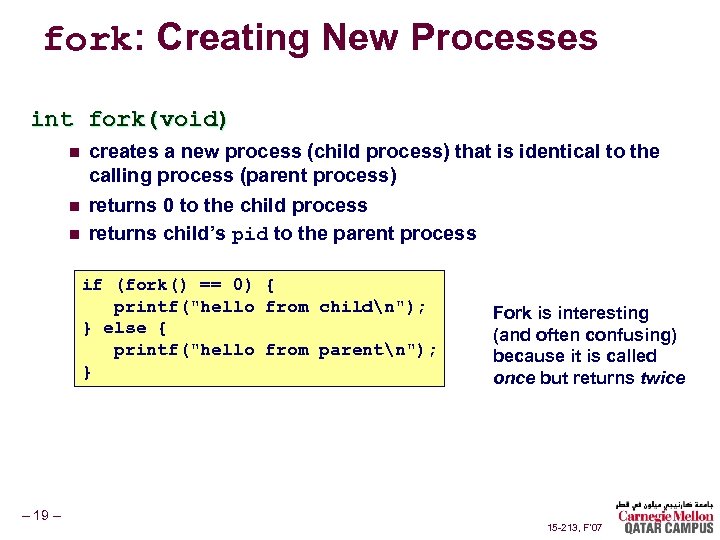

fork: Creating New Processes int fork(void) n n n creates a new process (child process) that is identical to the calling process (parent process) returns 0 to the child process returns child’s pid to the parent process if (fork() == 0) { printf("hello from childn"); } else { printf("hello from parentn"); } – 19 – Fork is interesting (and often confusing) because it is called once but returns twice 15 -213, F’ 07

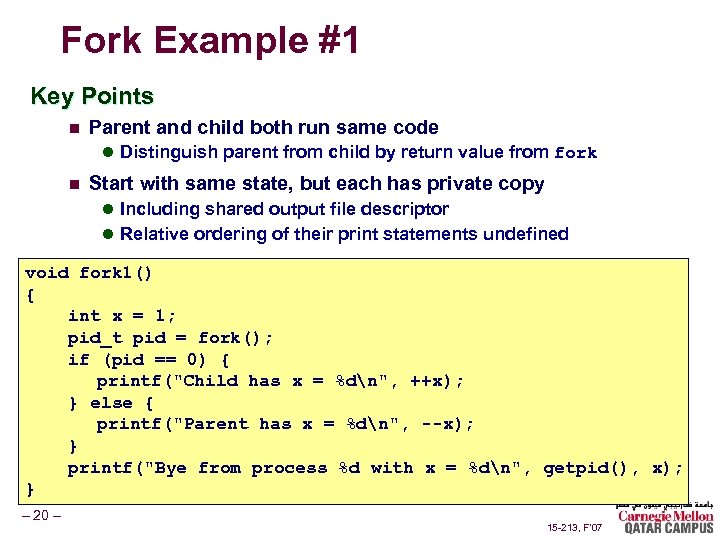

Fork Example #1 Key Points n Parent and child both run same code l Distinguish parent from child by return value from fork n Start with same state, but each has private copy l Including shared output file descriptor l Relative ordering of their print statements undefined void fork 1() { int x = 1; pid_t pid = fork(); if (pid == 0) { printf("Child has x = %dn", ++x); } else { printf("Parent has x = %dn", --x); } printf("Bye from process %d with x = %dn", getpid(), x); } – 20 – 15 -213, F’ 07

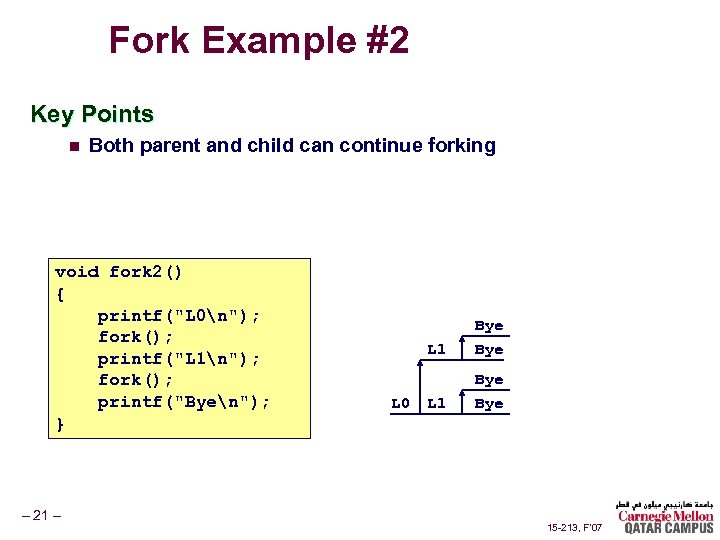

Fork Example #2 Key Points n Both parent and child can continue forking void fork 2() { printf("L 0n"); fork(); printf("L 1n"); fork(); printf("Byen"); } – 21 – L 1 L 0 Bye L 1 Bye 15 -213, F’ 07

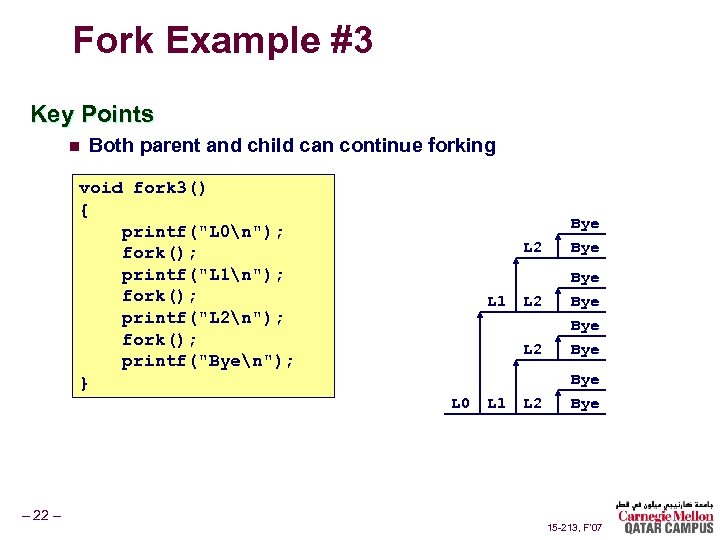

Fork Example #3 Key Points n Both parent and child can continue forking void fork 3() { printf("L 0n"); fork(); printf("L 1n"); fork(); printf("L 2n"); fork(); printf("Byen"); } L 2 L 0 – 22 – L 1 L 2 Bye L 2 L 1 Bye Bye L 2 Bye 15 -213, F’ 07

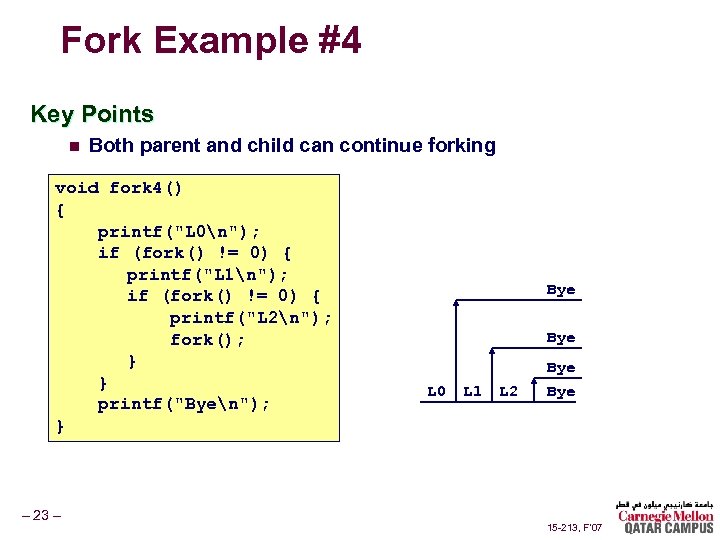

Fork Example #4 Key Points n Both parent and child can continue forking void fork 4() { printf("L 0n"); if (fork() != 0) { printf("L 1n"); if (fork() != 0) { printf("L 2n"); fork(); } } printf("Byen"); } – 23 – Bye L 0 L 1 L 2 Bye 15 -213, F’ 07

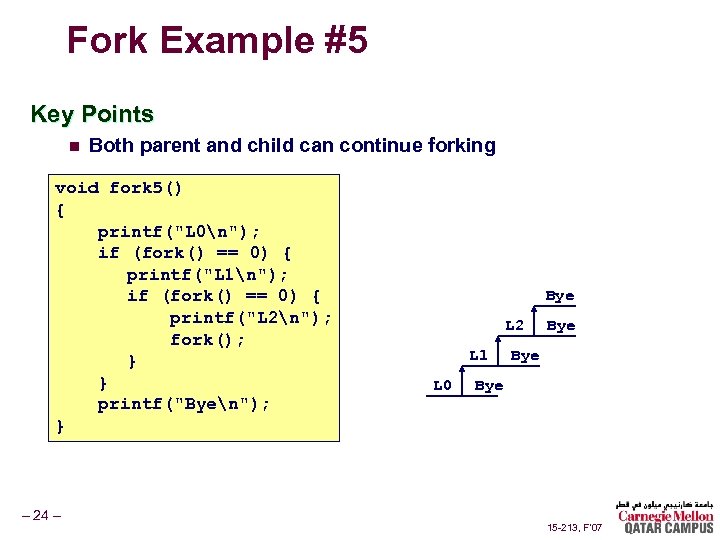

Fork Example #5 Key Points n Both parent and child can continue forking void fork 5() { printf("L 0n"); if (fork() == 0) { printf("L 1n"); if (fork() == 0) { printf("L 2n"); fork(); } } printf("Byen"); } – 24 – Bye L 2 L 1 L 0 Bye Bye 15 -213, F’ 07

exit: Destroying Process void exit(int status) n exits a process l Normally return with status 0 n atexit() registers functions to be executed upon exit void cleanup(void) { printf("cleaning upn"); } void fork 6() { atexit(cleanup); fork(); exit(0); } – 25 – 15 -213, F’ 07

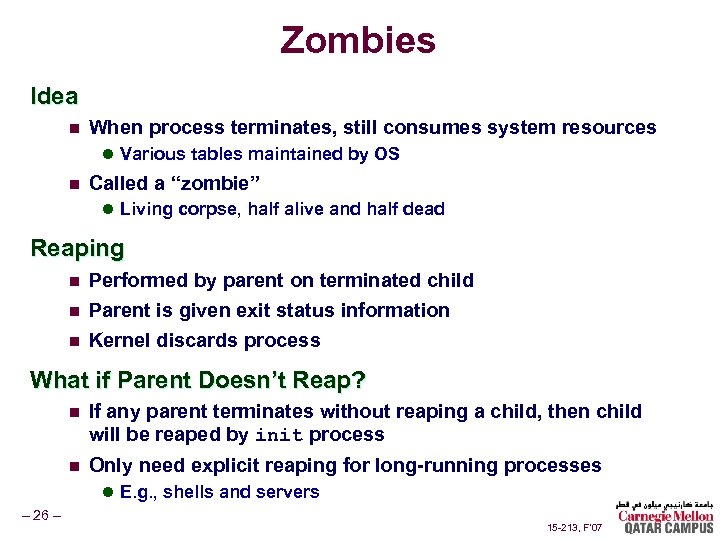

Zombies Idea n When process terminates, still consumes system resources l Various tables maintained by OS n Called a “zombie” l Living corpse, half alive and half dead Reaping n n n Performed by parent on terminated child Parent is given exit status information Kernel discards process What if Parent Doesn’t Reap? n If any parent terminates without reaping a child, then child will be reaped by init process n Only need explicit reaping for long-running processes l E. g. , shells and servers – 26 – 15 -213, F’ 07

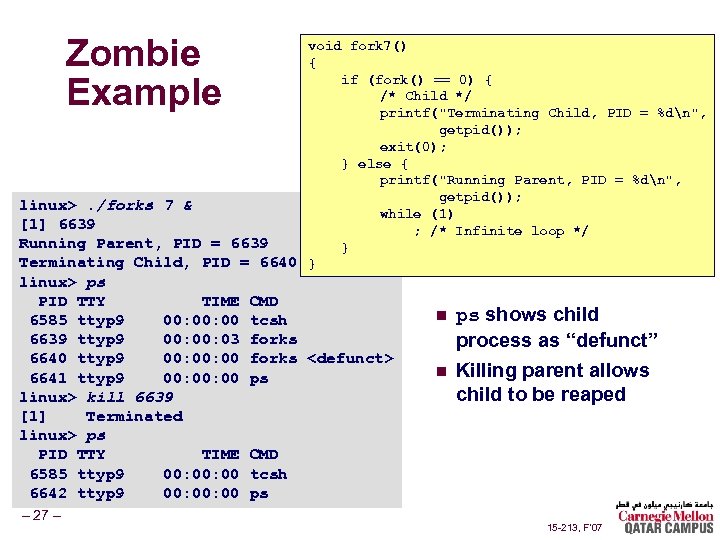

Zombie Example void fork 7() { if (fork() == 0) { /* Child */ printf("Terminating Child, PID = %dn", getpid()); exit(0); } else { printf("Running Parent, PID = %dn", getpid()); linux>. /forks 7 & while (1) [1] 6639 ; /* Infinite loop */ Running Parent, PID = 6639 } Terminating Child, PID = 6640 } linux> ps PID TTY TIME 6585 ttyp 9 00: 00 6639 ttyp 9 00: 03 6640 ttyp 9 00: 00 6641 ttyp 9 00: 00 linux> kill 6639 [1] Terminated linux> ps PID TTY TIME 6585 ttyp 9 00: 00 6642 ttyp 9 00: 00 – 27 – CMD tcsh forks <defunct> ps n ps shows child process as “defunct” n Killing parent allows child to be reaped CMD tcsh ps 15 -213, F’ 07

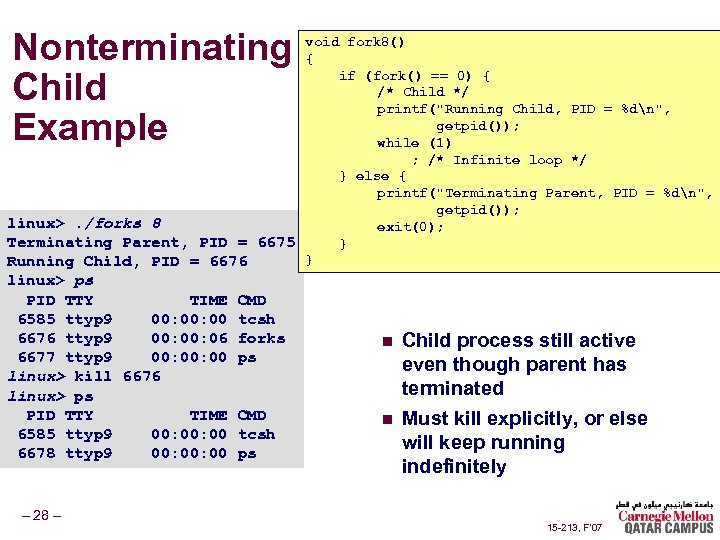

Nonterminating Child Example void fork 8() { if (fork() == 0) { /* Child */ printf("Running Child, PID = %dn", getpid()); while (1) ; /* Infinite loop */ } else { printf("Terminating Parent, PID = %dn", getpid()); linux>. /forks 8 exit(0); Terminating Parent, PID = 6675 } } Running Child, PID = 6676 linux> ps PID TTY TIME 6585 ttyp 9 00: 00 6676 ttyp 9 00: 06 6677 ttyp 9 00: 00 linux> kill 6676 linux> ps PID TTY TIME 6585 ttyp 9 00: 00 6678 ttyp 9 00: 00 – 28 – CMD tcsh forks ps CMD tcsh ps n n Child process still active even though parent has terminated Must kill explicitly, or else will keep running indefinitely 15 -213, F’ 07

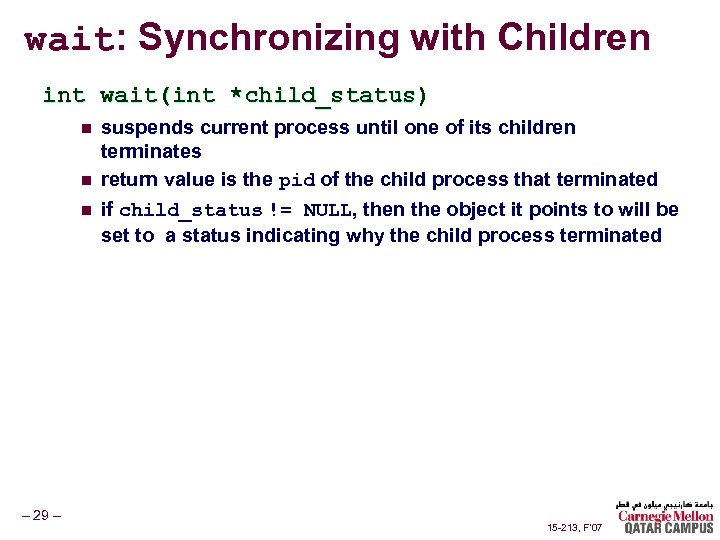

wait: Synchronizing with Children int wait(int *child_status) n n n – 29 – suspends current process until one of its children terminates return value is the pid of the child process that terminated if child_status != NULL, then the object it points to will be set to a status indicating why the child process terminated 15 -213, F’ 07

$wait: Synchronizing with Children void fork 9() { int child_status; if (fork() == 0)$

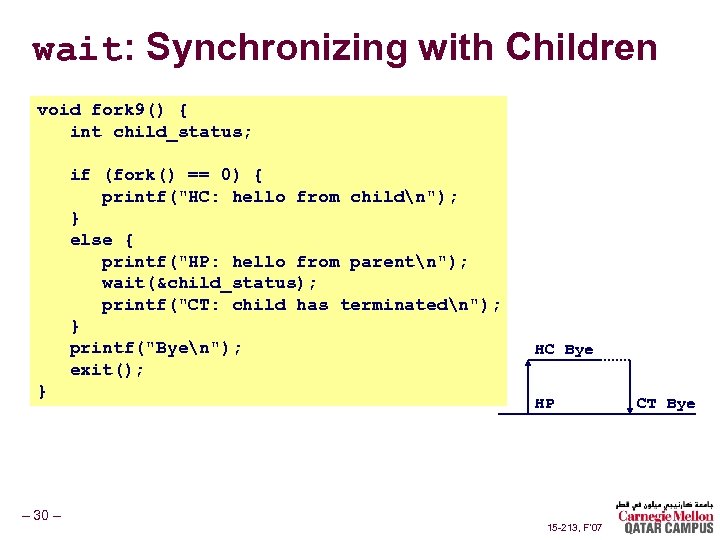

wait: Synchronizing with Children void fork 9() { int child_status; if (fork() == 0) { printf("HC: hello from childn"); } else { printf("HP: hello from parentn"); wait(&child_status); printf("CT: child has terminatedn"); } printf("Byen"); exit(); } – 30 – HC Bye HP 15 -213, F’ 07 CT Bye

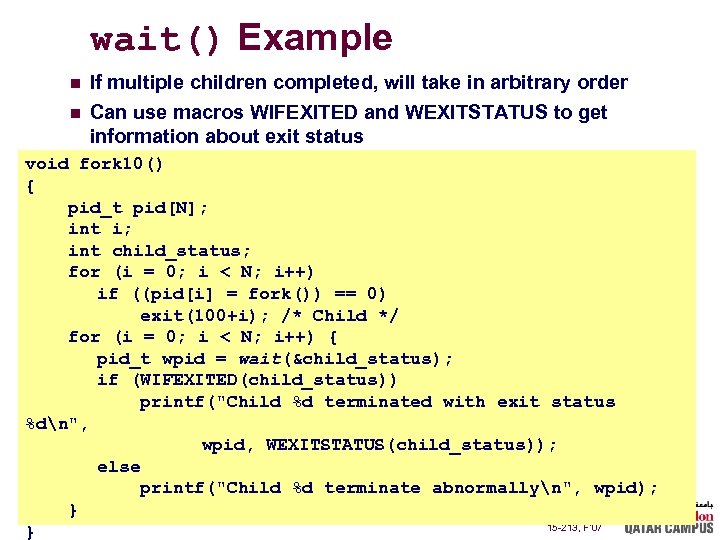

wait() Example n n If multiple children completed, will take in arbitrary order Can use macros WIFEXITED and WEXITSTATUS to get information about exit status void fork 10() { pid_t pid[N]; int i; int child_status; for (i = 0; i < N; i++) if ((pid[i] = fork()) == 0) exit(100+i); /* Child */ for (i = 0; i < N; i++) { pid_t wpid = wait(&child_status); if (WIFEXITED(child_status)) printf("Child %d terminated with exit status %dn", wpid, WEXITSTATUS(child_status)); else printf("Child %d terminate abnormallyn", wpid); – 31 – } 15 -213, F’ 07 }

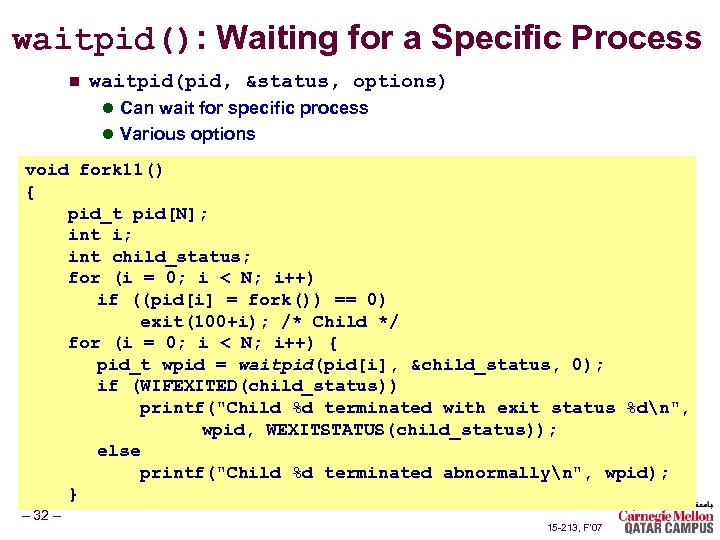

waitpid(): Waiting for a Specific Process n waitpid(pid, &status, options) l Can wait for specific process l Various options void fork 11() { pid_t pid[N]; int i; int child_status; for (i = 0; i < N; i++) if ((pid[i] = fork()) == 0) exit(100+i); /* Child */ for (i = 0; i < N; i++) { pid_t wpid = waitpid(pid[i], &child_status, 0); if (WIFEXITED(child_status)) printf("Child %d terminated with exit status %dn", wpid, WEXITSTATUS(child_status)); else printf("Child %d terminated abnormallyn", wpid); } – 32 – 15 -213, F’ 07

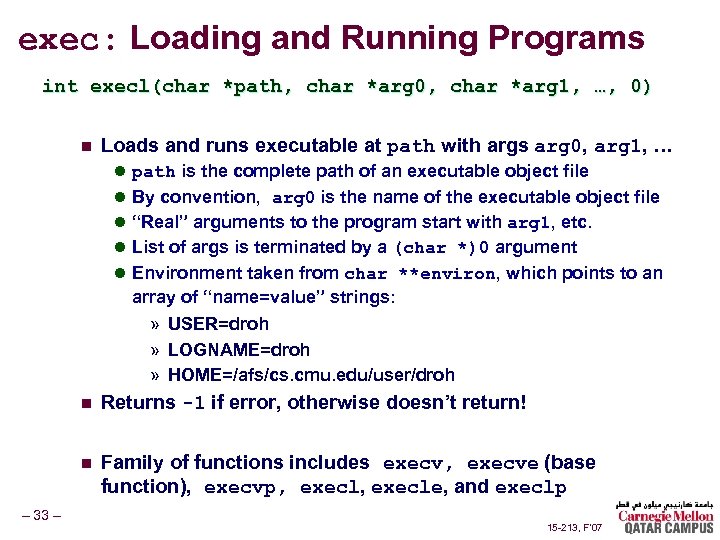

exec: Loading and Running Programs int execl(char *path, char *arg 0, char *arg 1, …, 0) n Loads and runs executable at path with args arg 0, arg 1, … l path is the complete path of an executable object file l By convention, arg 0 is the name of the executable object file l “Real” arguments to the program start with arg 1, etc. l List of args is terminated by a (char *)0 argument l Environment taken from char **environ, which points to an array of “name=value” strings: » USER=droh » LOGNAME=droh » HOME=/afs/cs. cmu. edu/user/droh n n – 33 – Returns -1 if error, otherwise doesn’t return! Family of functions includes execv, execve (base function), execvp, execle, and execlp 15 -213, F’ 07

exec: Loading and Running Programs main() { if (fork() == 0) { execl("/usr/bin/cp", "foo", "bar", 0); } wait(NULL); printf("copy completedn"); exit(); } – 34 – 15 -213, F’ 07

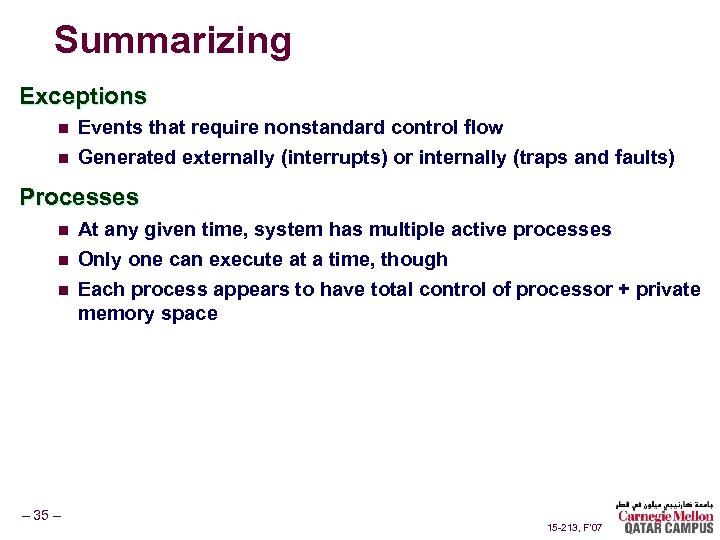

Summarizing Exceptions n Events that require nonstandard control flow n Generated externally (interrupts) or internally (traps and faults) Processes n n n – 35 – At any given time, system has multiple active processes Only one can execute at a time, though Each process appears to have total control of processor + private memory space 15 -213, F’ 07

Summarizing (cont. ) Spawning Processes n Call to fork l One call, two returns Terminating Processes n Call exit l One call, no return Reaping Processes n Call wait or waitpid Loading and Running Programs n Call execl (or variant) l One call, (normally) no return – 36 – 15 -213, F’ 07
