Presentation to KIB-TEK Northern Cyprus (16/11/2005) 2
Introductions • Graham Pryce – International Sales Manager Lucy Switchgear, UK • Bill Carlyle – Business Development Manager Lucy Switchgear, UK 3

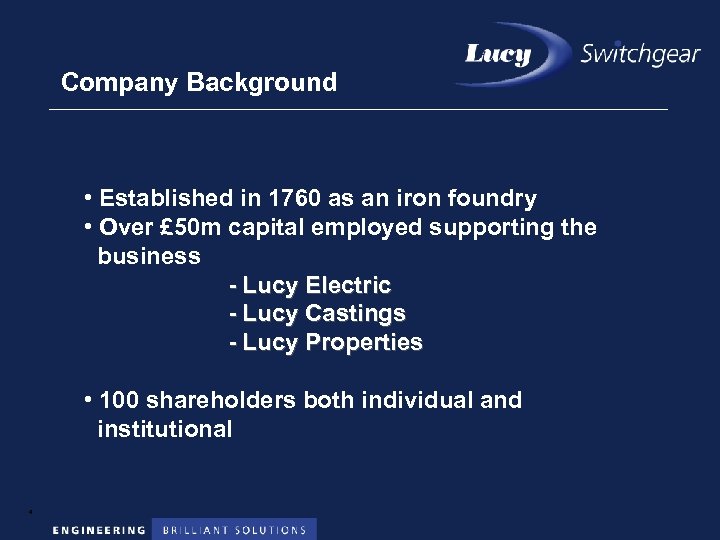

Company Background • Established in 1760 as an iron foundry • Over £ 50 m capital employed supporting the business - Lucy Electric - Lucy Castings - Lucy Properties • 100 shareholders both individual and institutional 4
Company Structure W Lucy & Co Ltd Lucy Electric Group Lucy Switchgear Lucy Castings Lucy Lighting Lucy Switchgear HQ – Thame, UK Lucy Switchgear – Banbury Power Isolators Ltd Lucy Switchgear - Dubai Lucy Properties Lucy Switchgear FZE – Oil Lucy Switchgear FZE – SF 6 Lucy Switchgear – Commercial Office Saudi Lucy – Saudi Arabia Crompton Greaves Lucy - India 5
Lucy Switchgear - UK 6

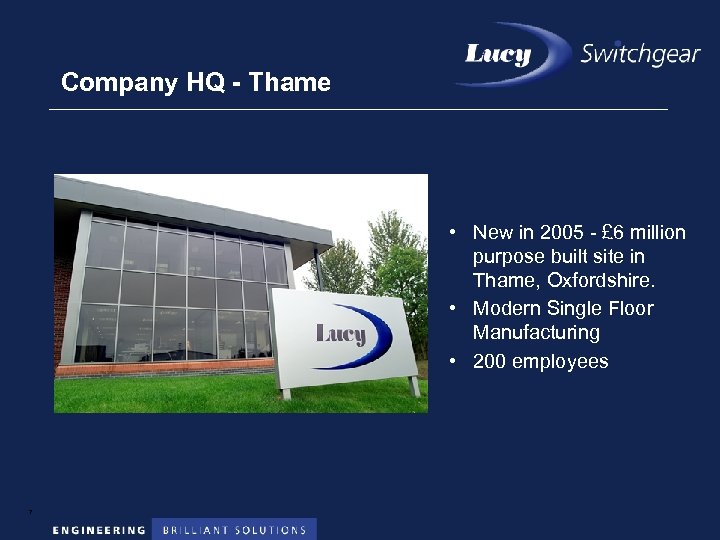

Company HQ - Thame • New in 2005 - £ 6 million purpose built site in Thame, Oxfordshire. • Modern Single Floor Manufacturing • 200 employees 7

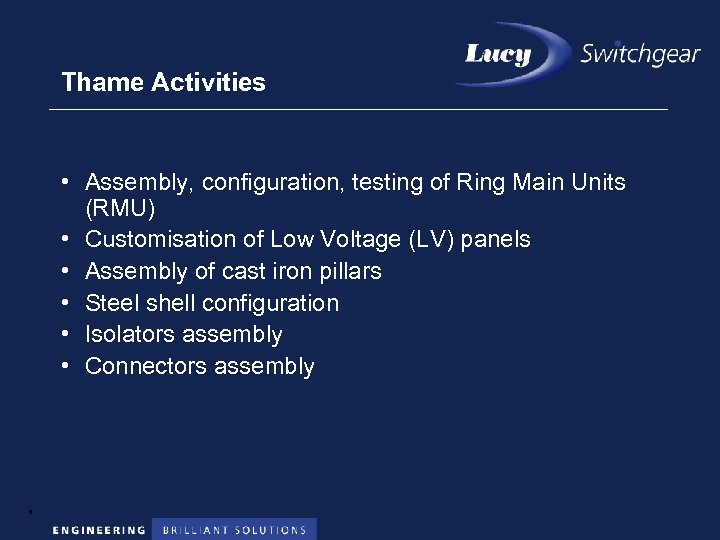

Thame Activities • Assembly, configuration, testing of Ring Main Units (RMU) • Customisation of Low Voltage (LV) panels • Assembly of cast iron pillars • Steel shell configuration • Isolators assembly • Connectors assembly 8
Lucy Switchgear - Banbury – R&D for ground and pole mounted switchgear – Automation – Manufacturing of pole mounted switchgear – Rapier RX, Rapier DSB 9
Lucy Switchgear FZE 10

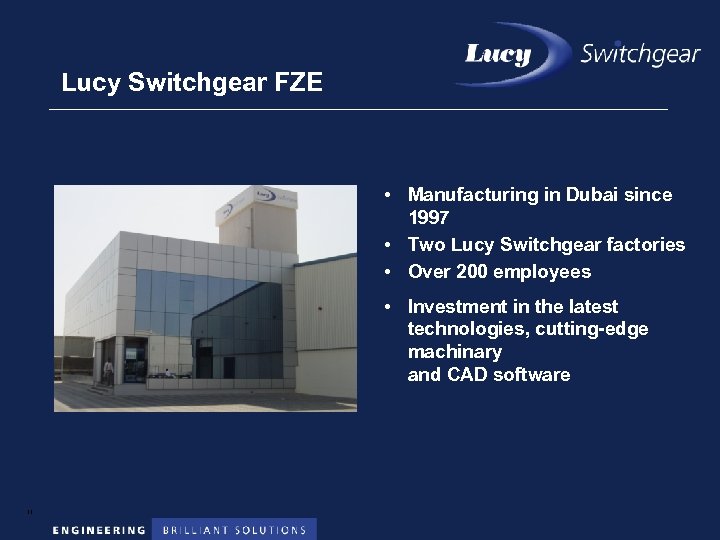

Lucy Switchgear FZE • Manufacturing in Dubai since 1997 • Two Lucy Switchgear factories • Over 200 employees • Investment in the latest technologies, cutting-edge machinary and CAD software 11

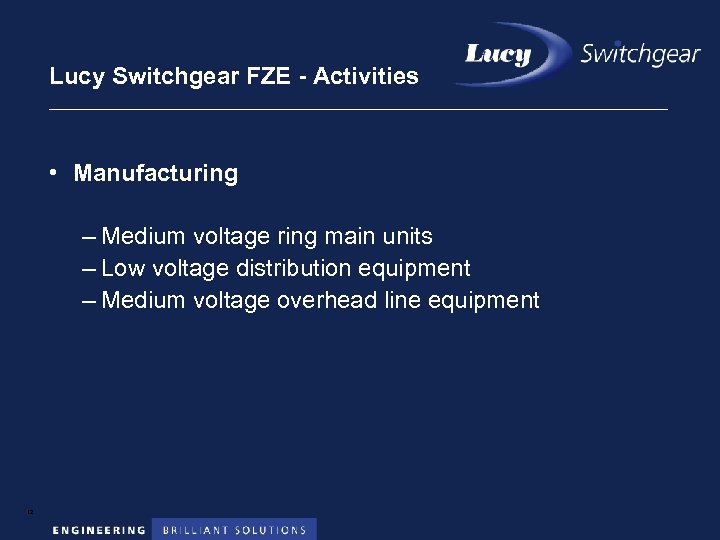

Lucy Switchgear FZE - Activities • Manufacturing – Medium voltage ring main units – Low voltage distribution equipment – Medium voltage overhead line equipment 12
Global Presence 13

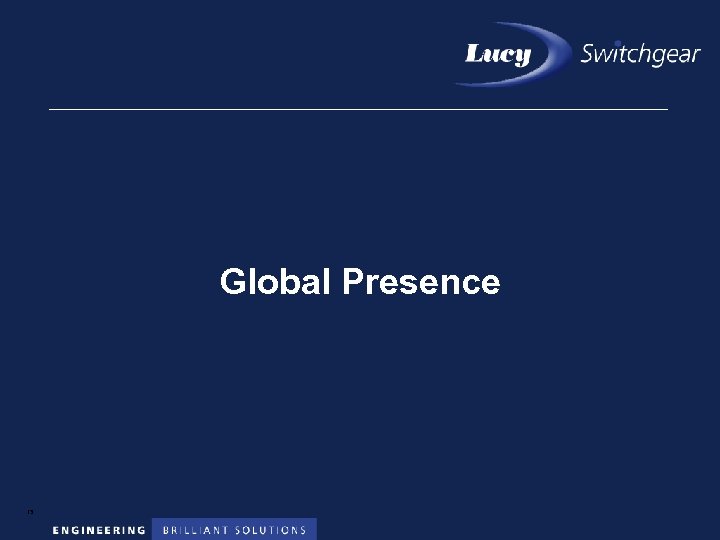

Global Presence 14

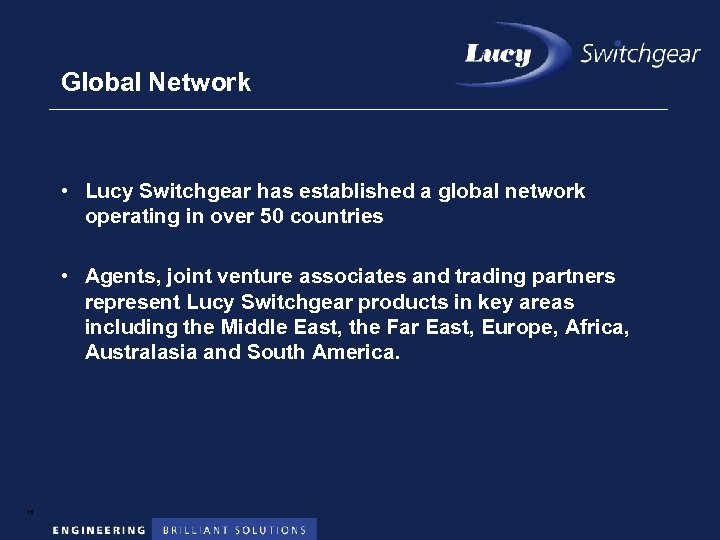

Global Network • Lucy Switchgear has established a global network operating in over 50 countries • Agents, joint venture associates and trading partners represent Lucy Switchgear products in key areas including the Middle East, the Far East, Europe, Africa, Australasia and South America. 15
New SABRE VRN 2 a 16

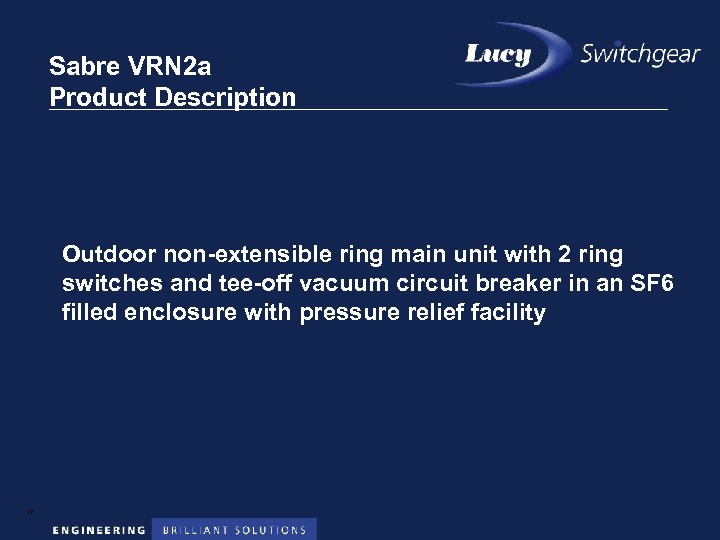

Sabre VRN 2 a Product Description Outdoor non-extensible ring main unit with 2 ring switches and tee-off vacuum circuit breaker in an SF 6 filled enclosure with pressure relief facility 17

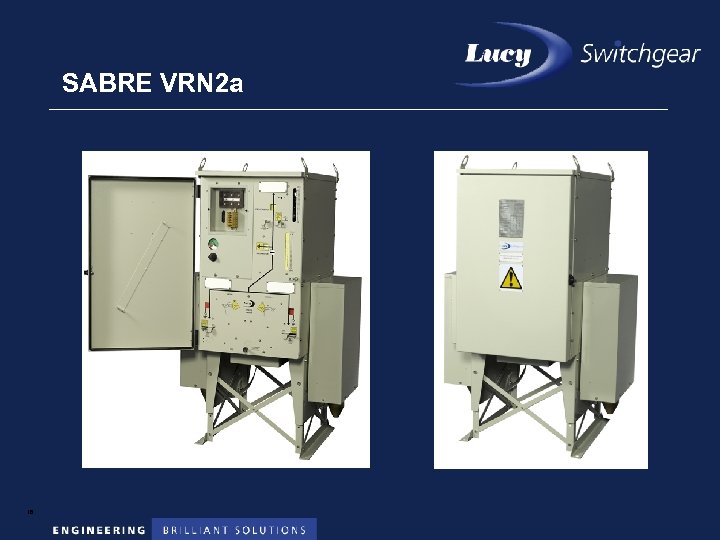

SABRE VRN 2 a 18

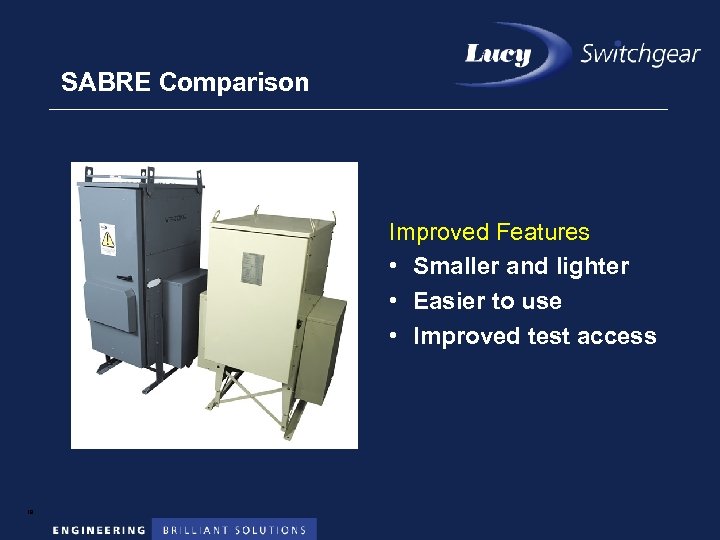

SABRE Comparison Improved Features • Smaller and lighter • Easier to use • Improved test access 19

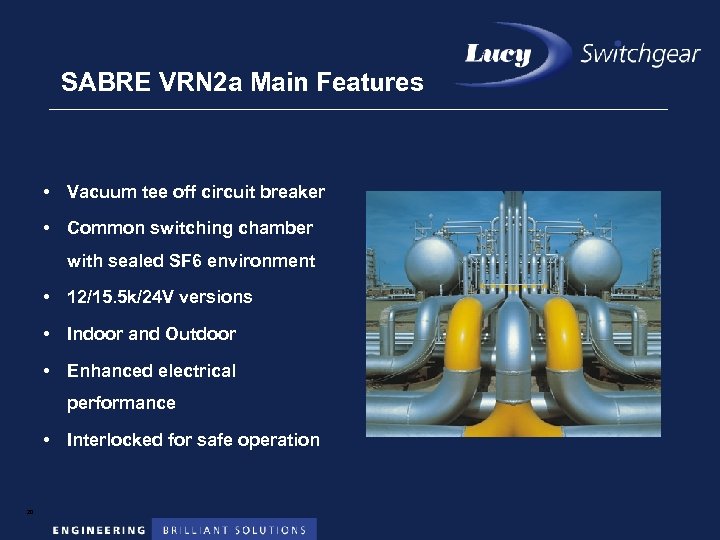

SABRE VRN 2 a Main Features • Vacuum tee off circuit breaker • Common switching chamber with sealed SF 6 environment • 12/15. 5 k/24 V versions • Indoor and Outdoor • Enhanced electrical performance • Interlocked for safe operation 20
SABRE VRN 2 a Main Features • Integral ring cable testing • Internal arc tested cable boxes • Side and rear cable access for maximum operator safety • Fault passage indicators • IP 54 rated sheet steel housing • Pre-wired for motor actuation • Variety of protection options including relay and TLF 21

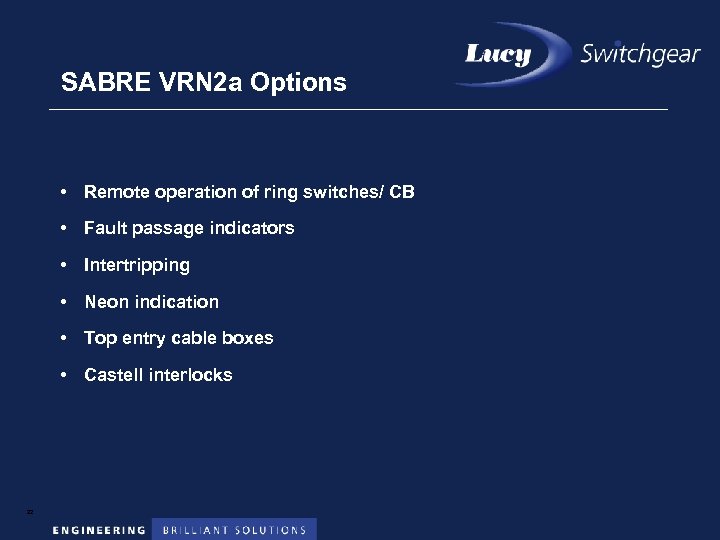

SABRE VRN 2 a Options • Remote operation of ring switches/ CB • Fault passage indicators • Intertripping • Neon indication • Top entry cable boxes • Castell interlocks 22

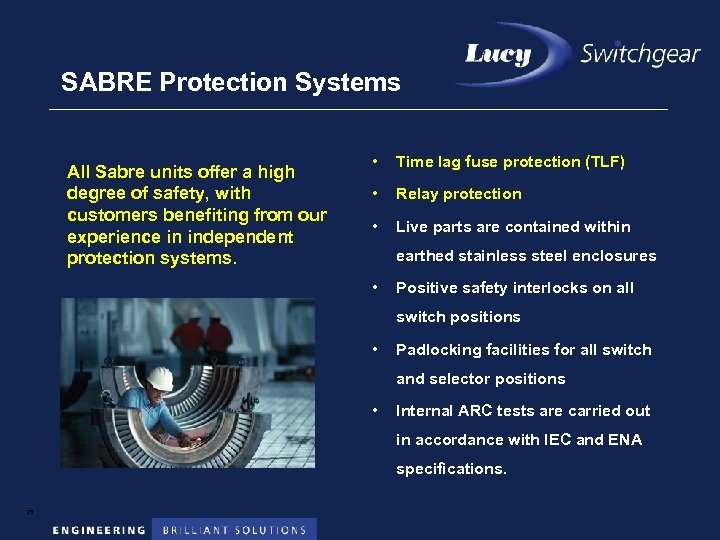

SABRE Protection Systems All Sabre units offer a high degree of safety, with customers benefiting from our experience in independent protection systems. • Time lag fuse protection (TLF) • Relay protection • Live parts are contained within earthed stainless steel enclosures • Positive safety interlocks on all switch positions • Padlocking facilities for all switch and selector positions • Internal ARC tests are carried out in accordance with IEC and ENA specifications. 23

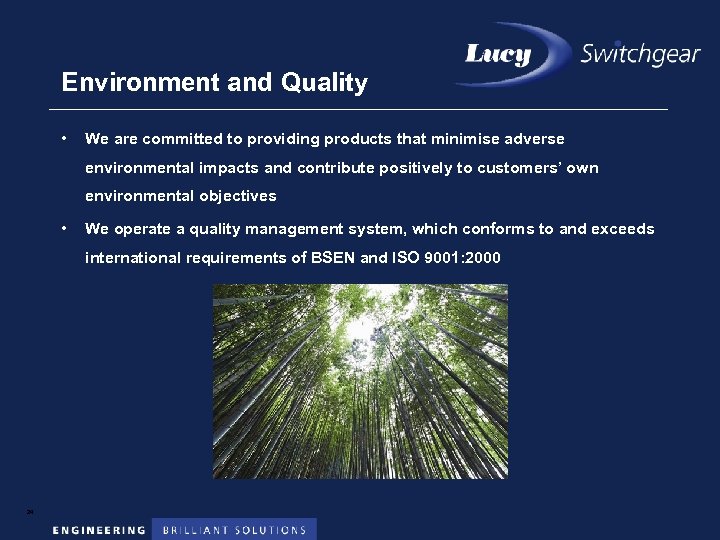

Environment and Quality • We are committed to providing products that minimise adverse environmental impacts and contribute positively to customers’ own environmental objectives • We operate a quality management system, which conforms to and exceeds international requirements of BSEN and ISO 9001: 2000 24

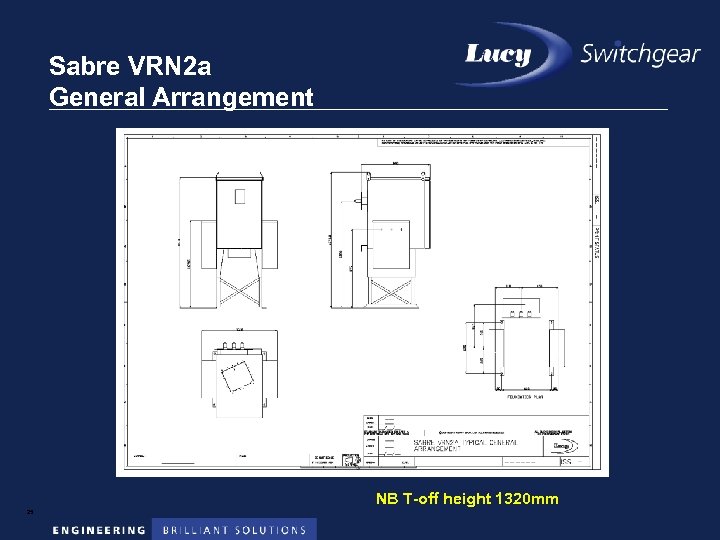

Sabre VRN 2 a General Arrangement NB T-off height 1320 mm 25

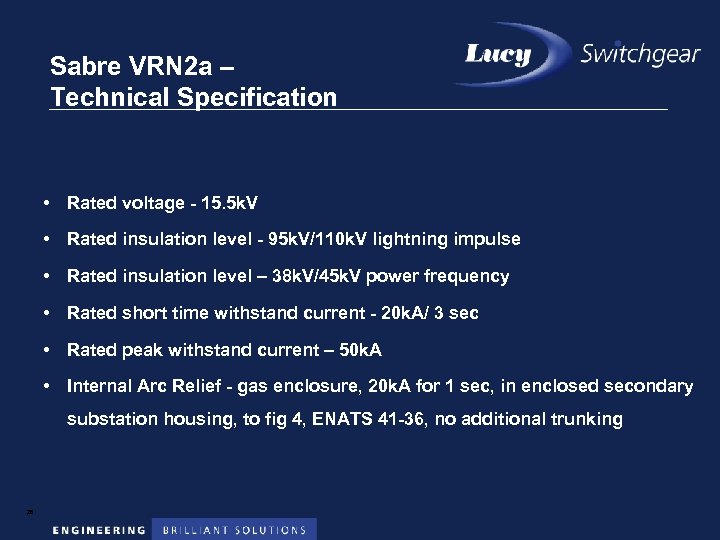

Sabre VRN 2 a – Technical Specification • Rated voltage - 15. 5 k. V • Rated insulation level - 95 k. V/110 k. V lightning impulse • Rated insulation level – 38 k. V/45 k. V power frequency • Rated short time withstand current - 20 k. A/ 3 sec • Rated peak withstand current – 50 k. A • Internal Arc Relief - gas enclosure, 20 k. A for 1 sec, in enclosed secondary substation housing, to fig 4, ENATS 41 -36, no additional trunking 26

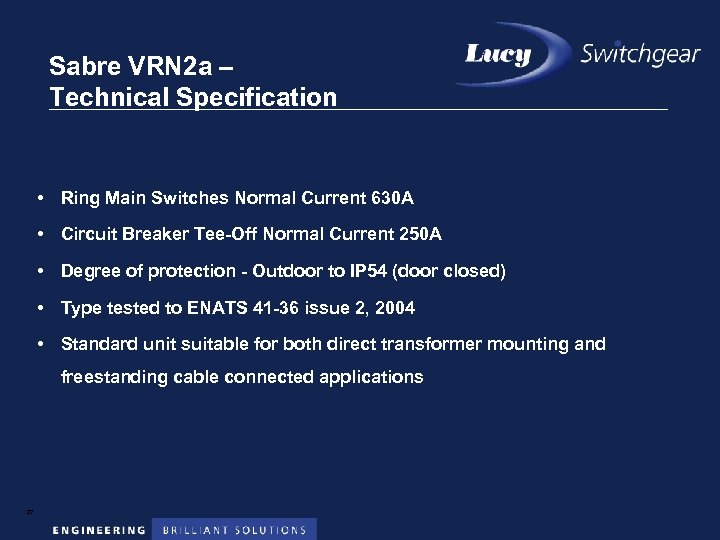

Sabre VRN 2 a – Technical Specification • Ring Main Switches Normal Current 630 A • Circuit Breaker Tee-Off Normal Current 250 A • Degree of protection - Outdoor to IP 54 (door closed) • Type tested to ENATS 41 -36 issue 2, 2004 • Standard unit suitable for both direct transformer mounting and freestanding cable connected applications 27

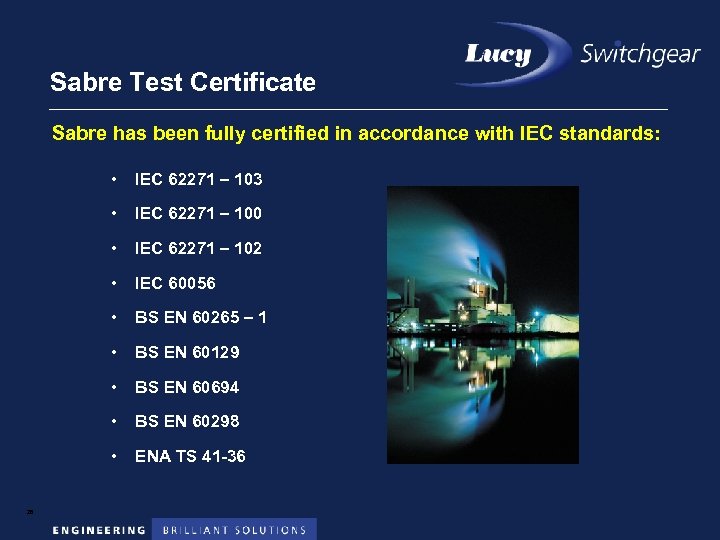

Sabre Test Certificate Sabre has been fully certified in accordance with IEC standards: • • IEC 62271 – 100 • IEC 62271 – 102 • IEC 60056 • BS EN 60265 – 1 • BS EN 60129 • BS EN 60694 • BS EN 60298 • 28 IEC 62271 – 103 ENA TS 41 -36

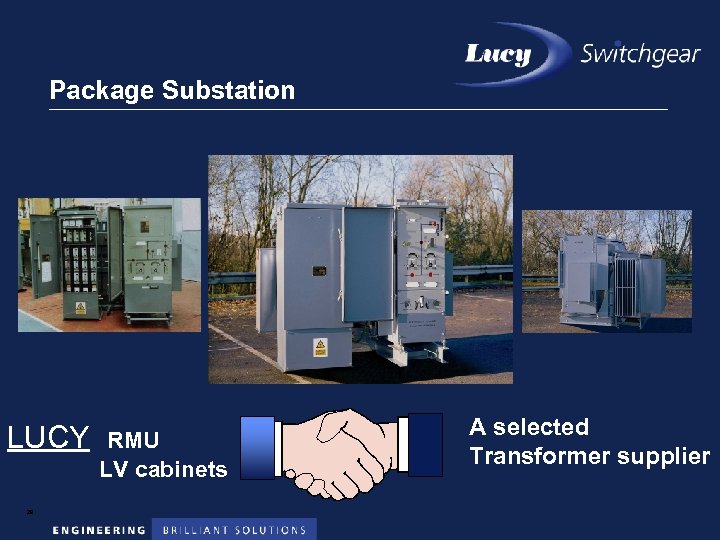

Package Substation LUCY 29 RMU LV cabinets A selected Transformer supplier

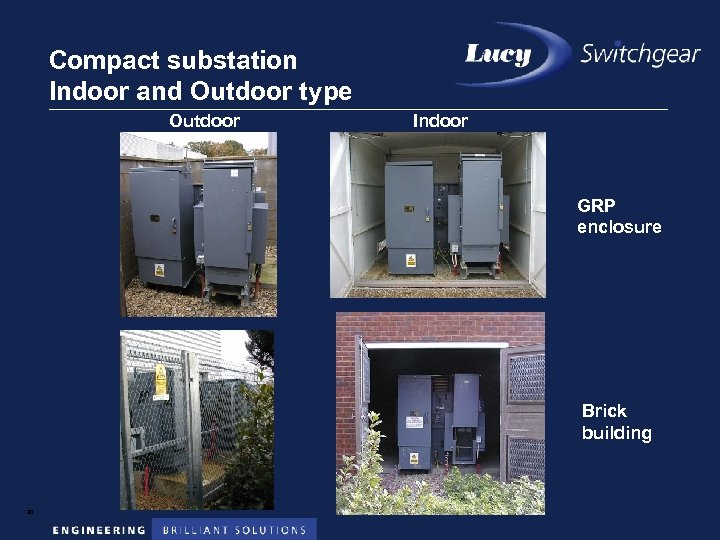

Compact substation Indoor and Outdoor type Outdoor Indoor GRP enclosure Brick building 30
Automation Products & Systems 31
RMU Automation & Retrofit Actuator Solutions 32
Automated SABRE VRN 2 a • Designed with automation in mind • Wiring loom standard for both ring switches and indications • Microprocessor controlled rotary actuator - same for both ring switches • Simple plug-in installation to front of panel 33
Automated Sabre VRN 2 a • Easy to remove actuator for manual operation • CB actuator available as an option • Fully integrated with Gemini. RTU for remote control & monitoring 34

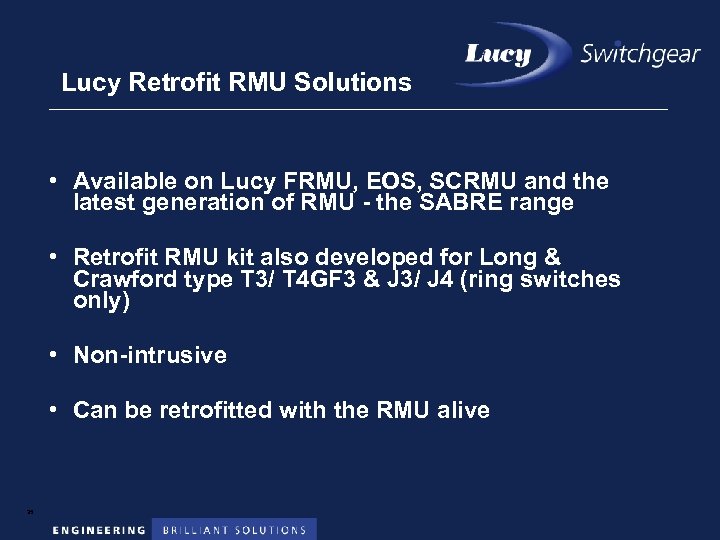

Lucy Retrofit RMU Solutions • Available on Lucy FRMU, EOS, SCRMU and the latest generation of RMU - the SABRE range • Retrofit RMU kit also developed for Long & Crawford type T 3/ T 4 GF 3 & J 3/ J 4 (ring switches only) • Non-intrusive • Can be retrofitted with the RMU alive 35

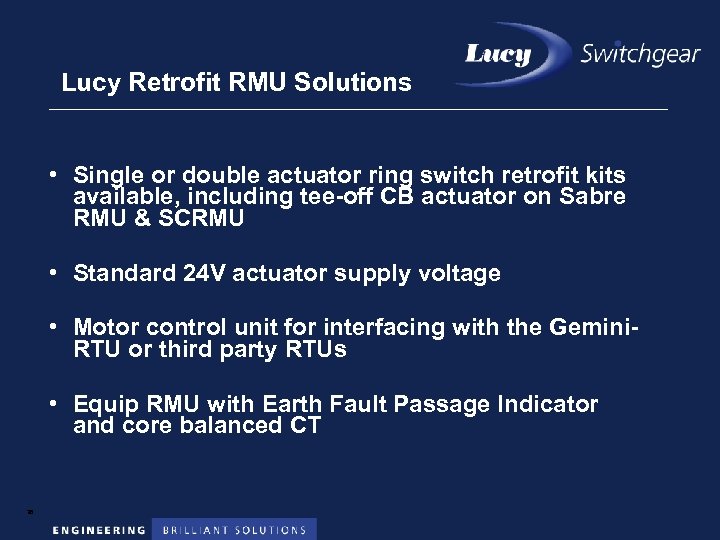

Lucy Retrofit RMU Solutions • Single or double actuator ring switch retrofit kits available, including tee-off CB actuator on Sabre RMU & SCRMU • Standard 24 V actuator supply voltage • Motor control unit for interfacing with the Gemini. RTU or third party RTUs • Equip RMU with Earth Fault Passage Indicator and core balanced CT 36

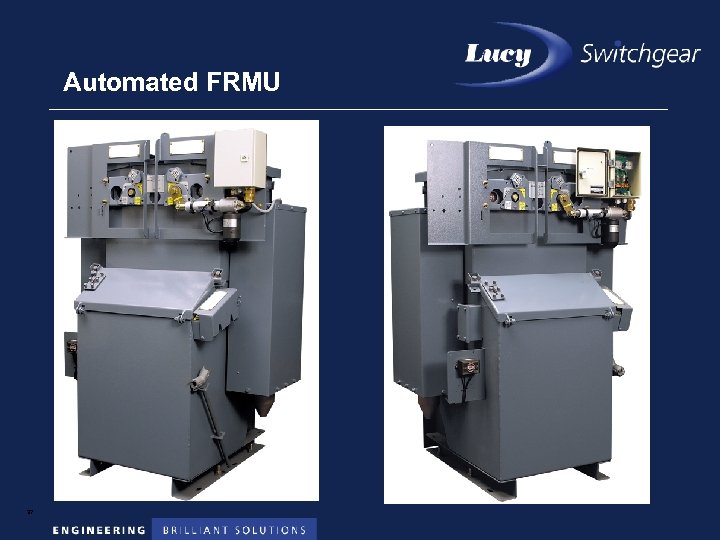

Automated FRMU 37

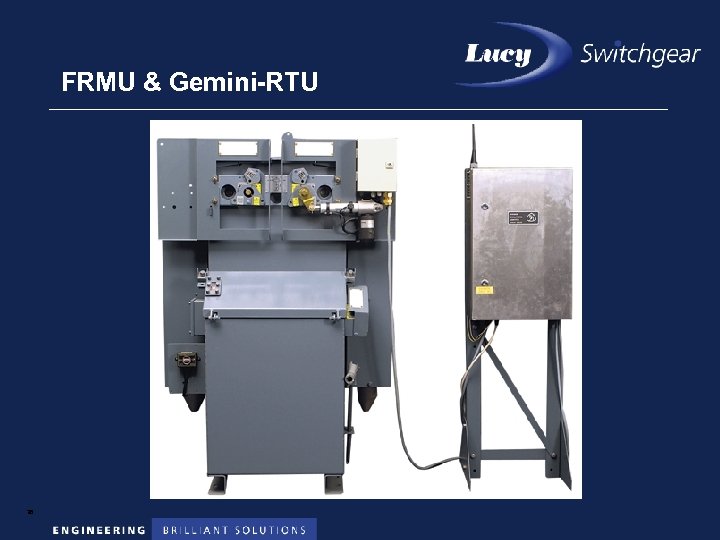

FRMU & Gemini-RTU 38

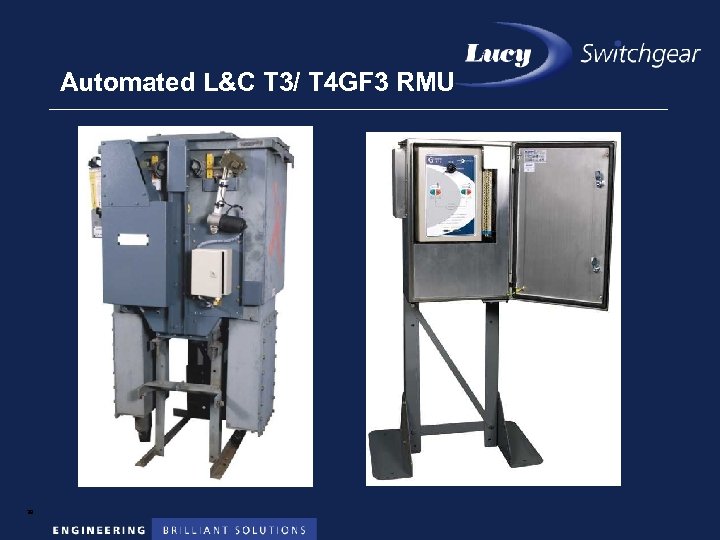

Automated L&C T 3/ T 4 GF 3 RMU 39
L&C J 3/J 4 Retrofit Actuator 40
RAPIER Overhead Range 41

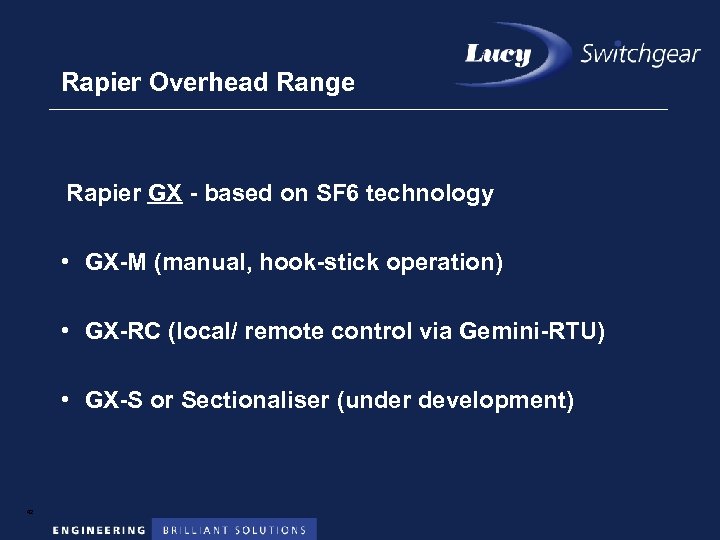

Rapier Overhead Range Rapier GX - based on SF 6 technology • GX-M (manual, hook-stick operation) • GX-RC (local/ remote control via Gemini-RTU) • GX-S or Sectionaliser (under development) 42
Rapier GX Load Break Switch Features • Ratings up to 38 k. V • SF 6 gas utilised as both arc quenching and insulating medium • Equipped with 3 current transformers and 6 VCT’s in the bushings • Stainless Steel enclosure sealed for life • Motor actuator for DA • Overpressure membrane for internal arc protection 43

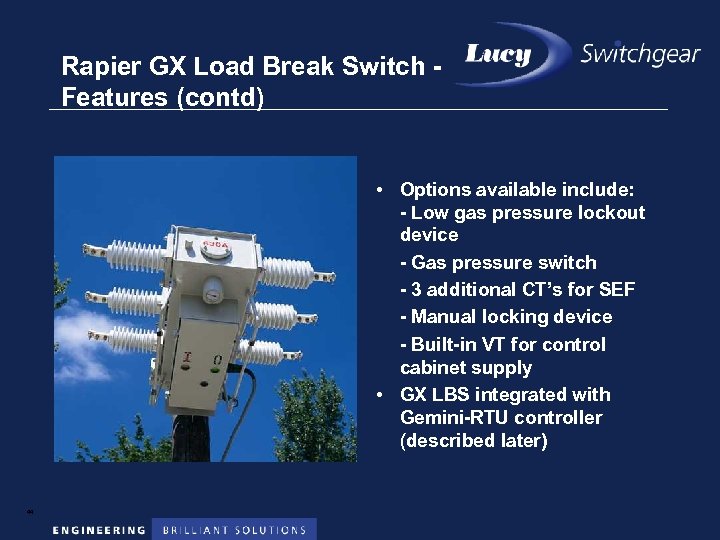

Rapier GX Load Break Switch Features (contd) • Options available include: - Low gas pressure lockout device - Gas pressure switch - 3 additional CT’s for SEF - Manual locking device - Built-in VT for control cabinet supply • GX LBS integrated with Gemini-RTU controller (described later) 44

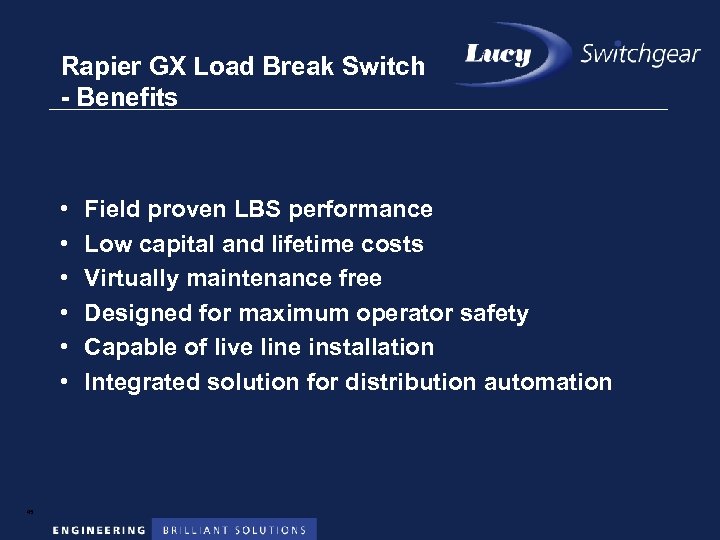

Rapier GX Load Break Switch - Benefits • • • 45 Field proven LBS performance Low capital and lifetime costs Virtually maintenance free Designed for maximum operator safety Capable of live line installation Integrated solution for distribution automation

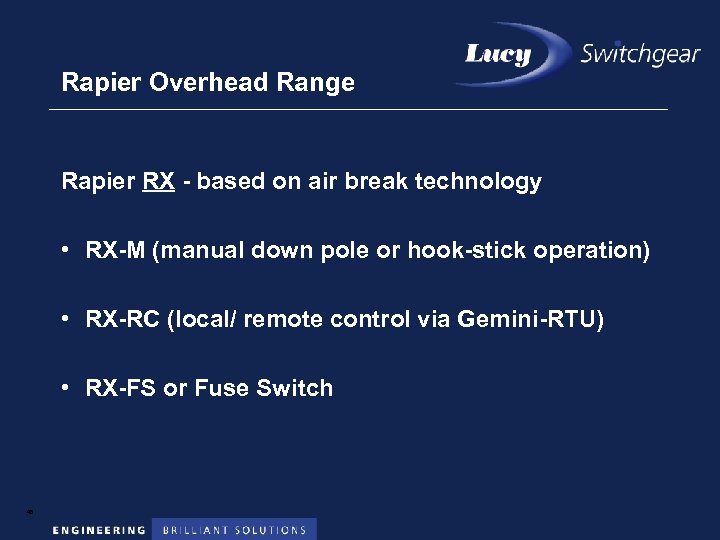

Rapier Overhead Range Rapier RX - based on air break technology • RX-M (manual down pole or hook-stick operation) • RX-RC (local/ remote control via Gemini-RTU) • RX-FS or Fuse Switch 46
Problems Associated with Older Air Break Designs • Mechanisms would seize up over time due to stiff bearings and corroded main contacts • Load Break Heads seized up due to complex design • Braided flexes and joints suffered corrosion • Significant maintenance over the switches’ lifecycle 47
New Features in RX Design • Low friction, corrosion resistant bearing leading to low maintenance and improved reliability • Laminated flexes with no corrosive effects. (Tested for 2, 000 operations before single lamination broke) • New simpler design of Arc Chute device for rapid arc extinction when load breaking • New tungsten tipped contacts so that Fault Make Heads can be fitted as an option • All key components now stainless steel for corrosion resistance 48
New Rapier RX Switch Arc Chute Laminated Flexes Universal Main Contacts Fault Make Head Pin Bearing 49

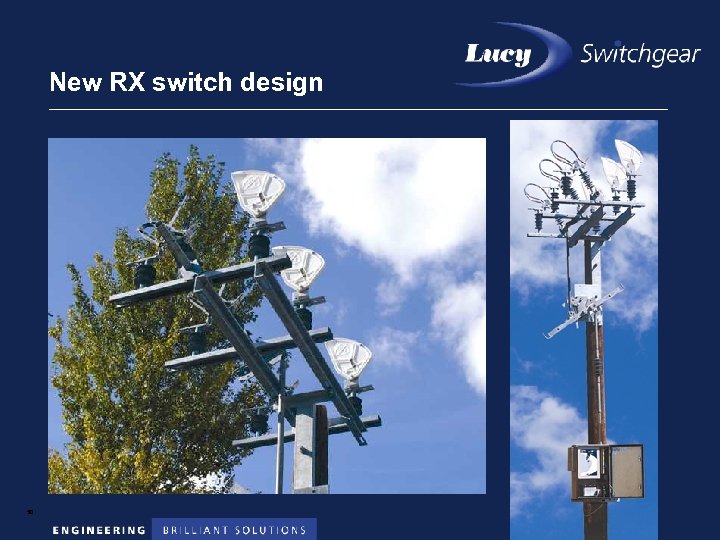

New RX switch design 50
Double Acting Spring Mechanism (DASM) Vertical drive rod De-latching arms Closed or hook ends 51 Operating arm Overtravel stops

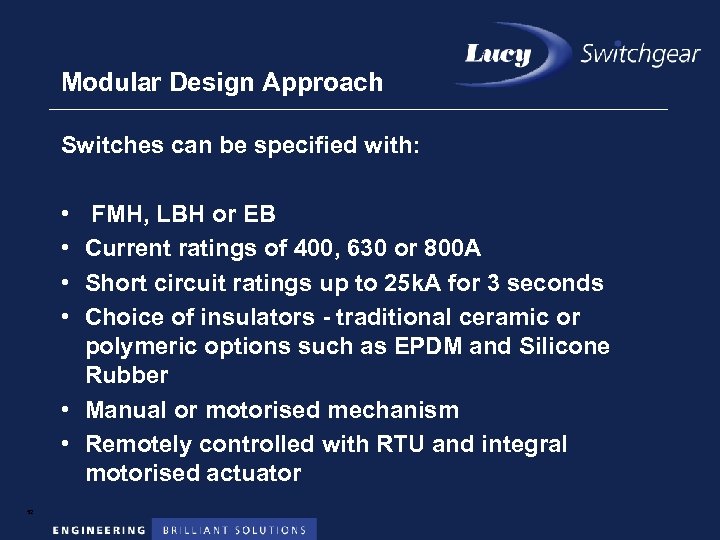

Modular Design Approach Switches can be specified with: • • FMH, LBH or EB Current ratings of 400, 630 or 800 A Short circuit ratings up to 25 k. A for 3 seconds Choice of insulators - traditional ceramic or polymeric options such as EPDM and Silicone Rubber • Manual or motorised mechanism • Remotely controlled with RTU and integral motorised actuator 52

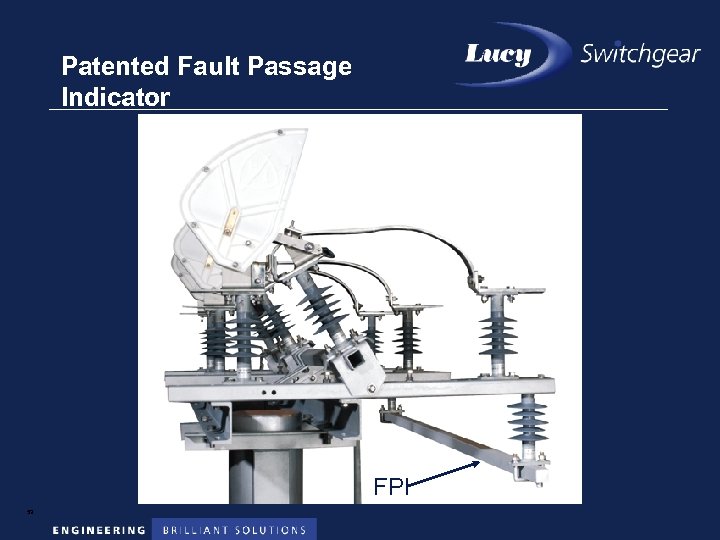

Patented Fault Passage Indicator FPI 53

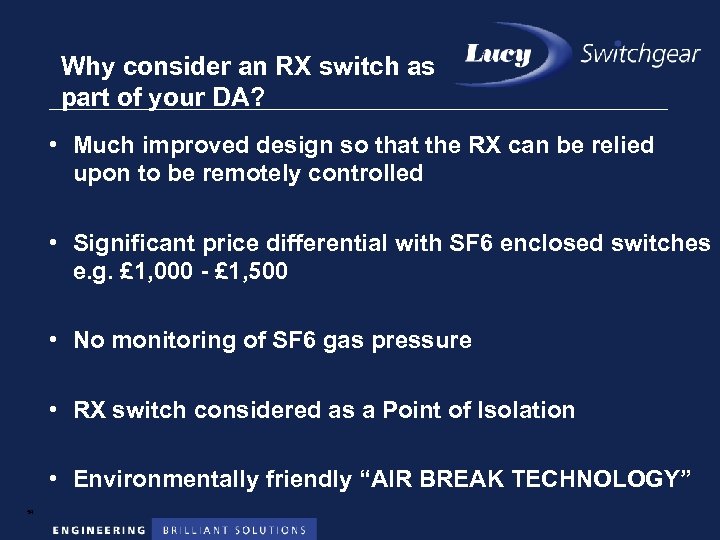

Why consider an RX switch as part of your DA? • Much improved design so that the RX can be relied upon to be remotely controlled • Significant price differential with SF 6 enclosed switches e. g. £ 1, 000 - £ 1, 500 • No monitoring of SF 6 gas pressure • RX switch considered as a Point of Isolation • Environmentally friendly “AIR BREAK TECHNOLOGY” 54

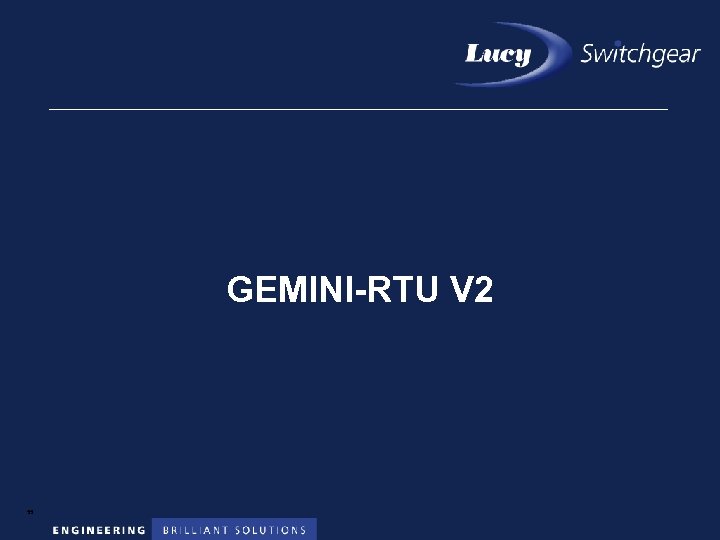

GEMINI-RTU V 2 55

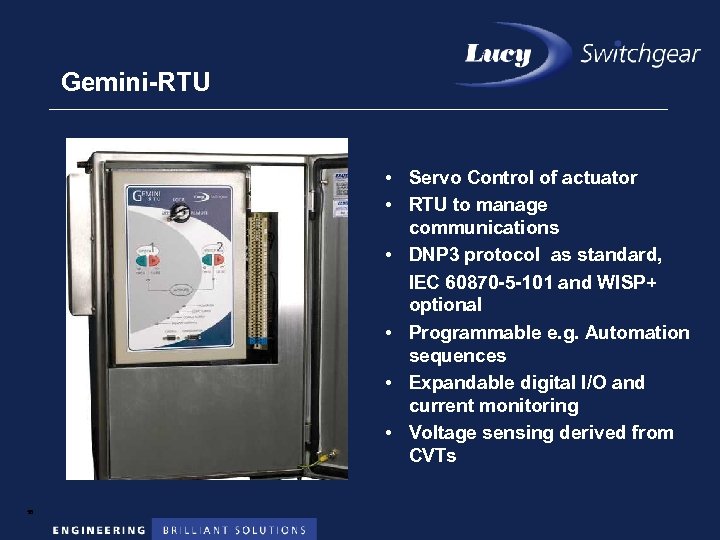

Gemini-RTU • Servo Control of actuator • RTU to manage communications • DNP 3 protocol as standard, IEC 60870 -5 -101 and WISP+ optional • Programmable e. g. Automation sequences • Expandable digital I/O and current monitoring • Voltage sensing derived from CVTs 56
Gemini-RTU • 24 V battery backup • Battery condition monitoring - low battery voltage alarm - deep discharge protection - configurable on-load battery test - loss of AC voltage alarm to DC charger unit • Local/ remote operation • Flexible communications media such as radio, Packet Data, GSM/ GPRS, PSTN, leased lines and fibre optic • Common RTU platform for the pole and ground-mounted switchgear - can control up to four switching functions 57

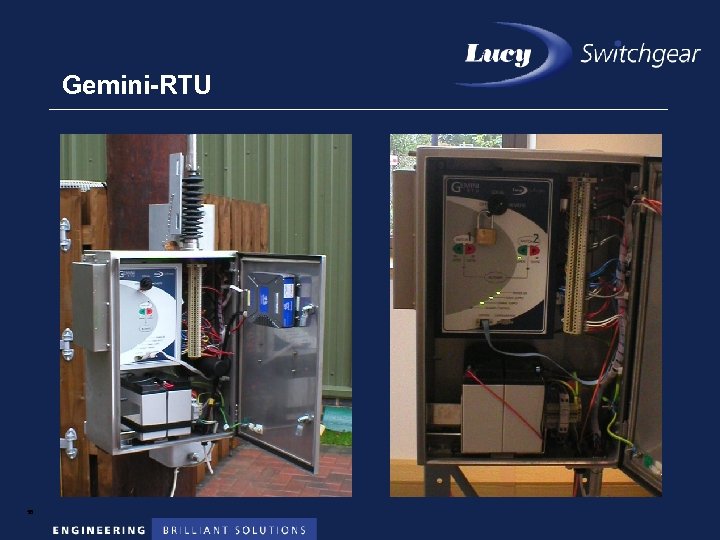

Gemini-RTU 58
Other GEMINI Systems 59

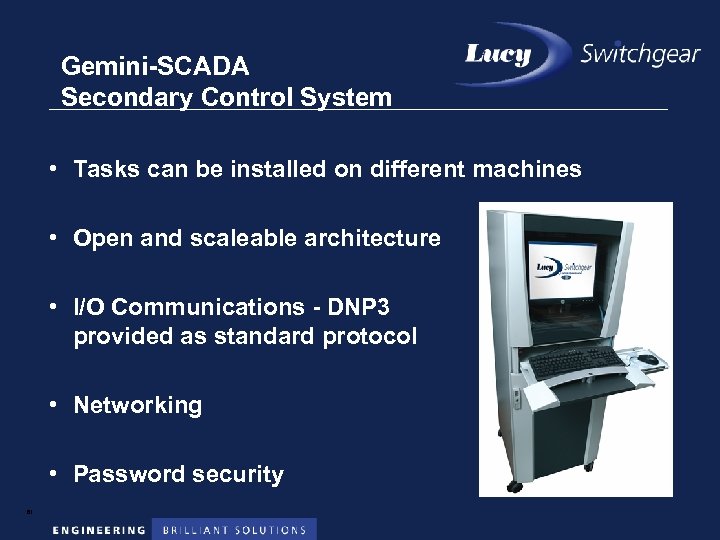

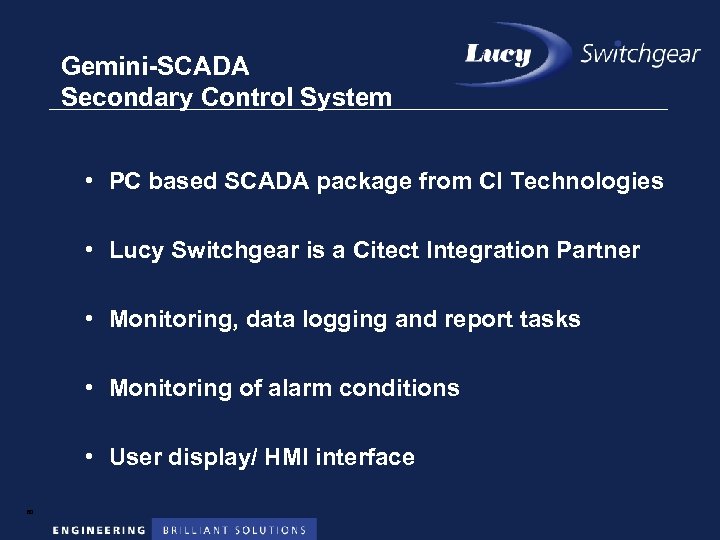

Gemini-SCADA Secondary Control System • PC based SCADA package from CI Technologies • Lucy Switchgear is a Citect Integration Partner • Monitoring, data logging and report tasks • Monitoring of alarm conditions • User display/ HMI interface 60
Gemini-SCADA Secondary Control System • Tasks can be installed on different machines • Open and scaleable architecture • I/O Communications - DNP 3 provided as standard protocol • Networking • Password security 61

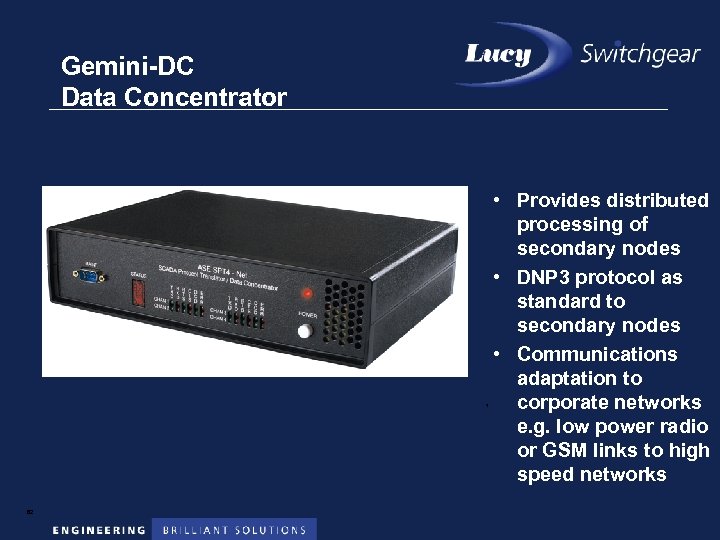

Gemini-DC Data Concentrator 1 62 • Provides distributed processing of secondary nodes • DNP 3 protocol as standard to secondary nodes • Communications adaptation to corporate networks e. g. low power radio or GSM links to high speed networks
Gemini-DC Data Concentrator/ Bridge • Product development close to completion (available Jan 2005) • Provides distributed processing of secondary nodes • DNP 3 protocol as standard to secondary nodes with IEC 60870 -5 -101 or DNP 3 on host port to master SCADA/ RTU • Communications adaptation to corporate networks e. g. low power radio or GSM links to high speed networks 1 63
System Architectures 64
Existing SCADA Systems Existing SCADA or NMS Modem Communications Media Modems Gemini-RTUs Switchgear 65

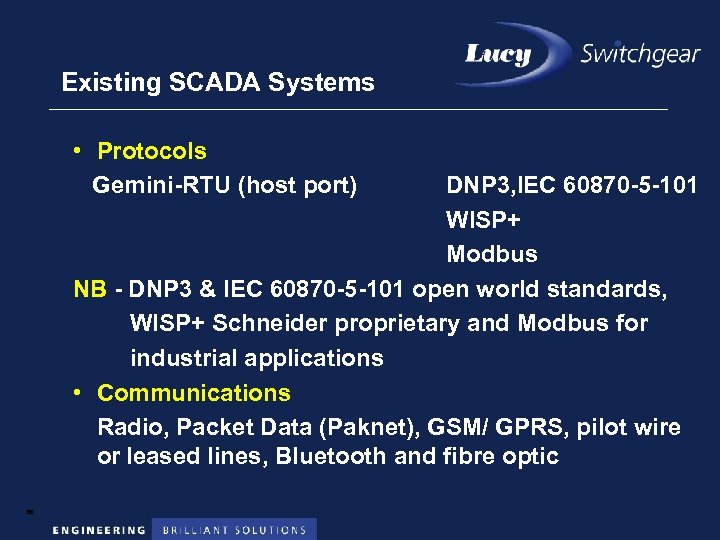

Existing SCADA Systems • Protocols Gemini-RTU (host port) DNP 3, IEC 60870 -5 -101 WISP+ Modbus NB - DNP 3 & IEC 60870 -5 -101 open world standards, WISP+ Schneider proprietary and Modbus for industrial applications • Communications Radio, Packet Data (Paknet), GSM/ GPRS, pilot wire or leased lines, Bluetooth and fibre optic 66

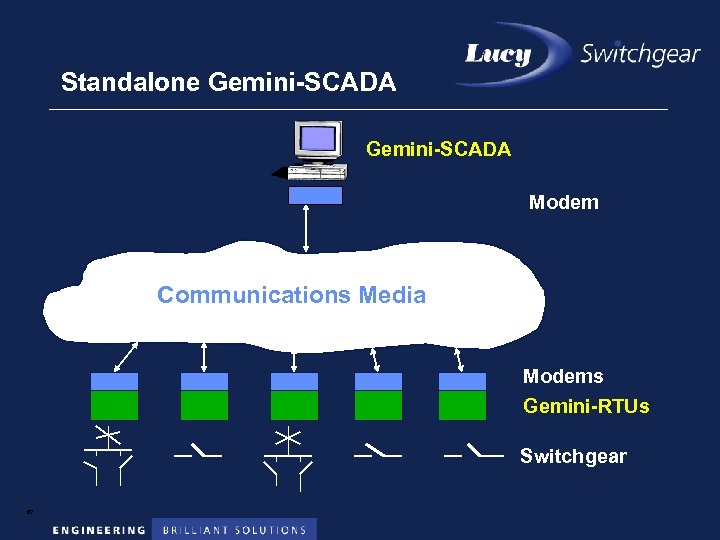

Standalone Gemini-SCADA Modem Communications Media Modems Gemini-RTUs Switchgear 67

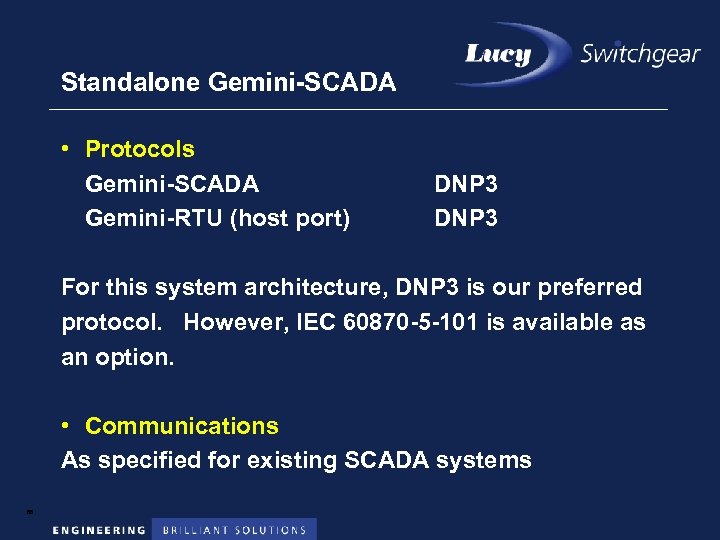

Standalone Gemini-SCADA • Protocols Gemini-SCADA Gemini-RTU (host port) DNP 3 For this system architecture, DNP 3 is our preferred protocol. However, IEC 60870 -5 -101 is available as an option. • Communications As specified for existing SCADA systems 68

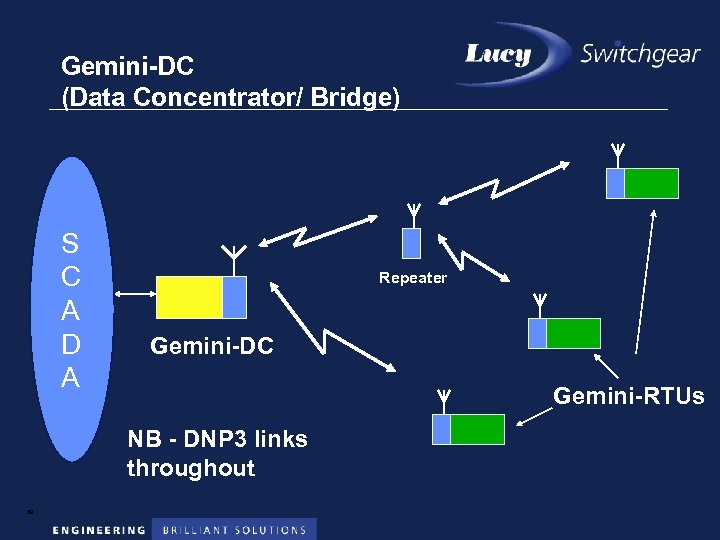

Gemini-DC (Data Concentrator/ Bridge) S C A D A Repeater Gemini-DC Gemini-RTUs NB - DNP 3 links throughout 69

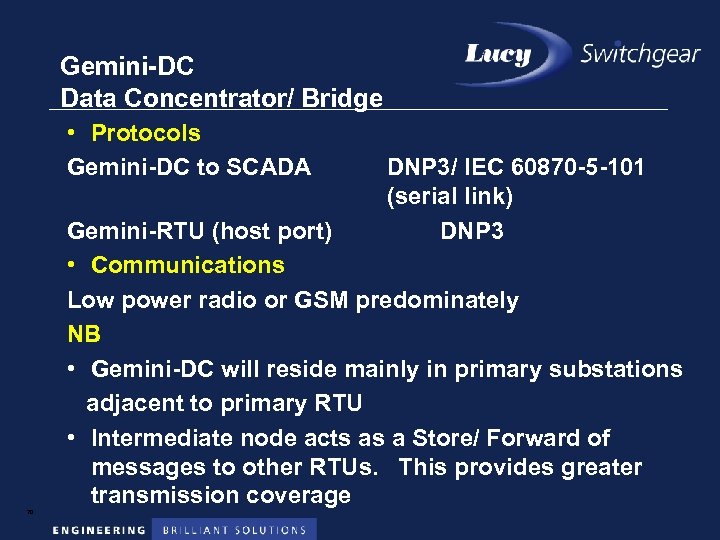

Gemini-DC Data Concentrator/ Bridge • Protocols Gemini-DC to SCADA 70 DNP 3/ IEC 60870 -5 -101 (serial link) DNP 3 Gemini-RTU (host port) • Communications Low power radio or GSM predominately NB • Gemini-DC will reside mainly in primary substations adjacent to primary RTU • Intermediate node acts as a Store/ Forward of messages to other RTUs. This provides greater transmission coverage
Automation Project References 71

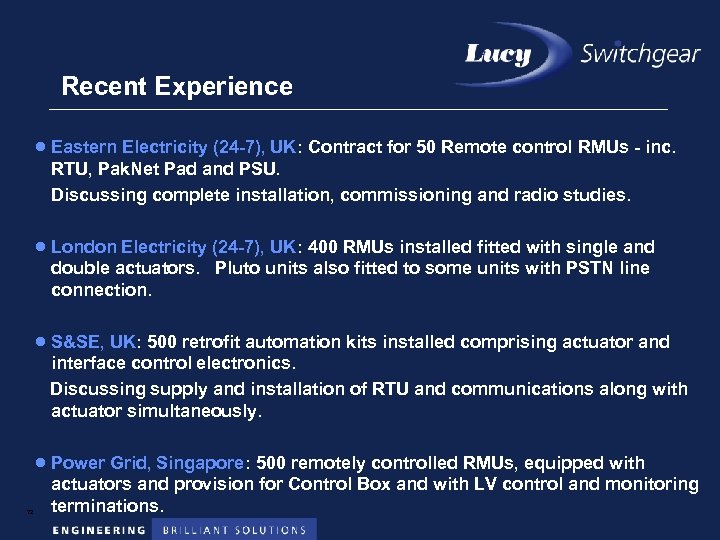

Recent Experience · Eastern Electricity (24 -7), UK: Contract for 50 Remote control RMUs - inc. RTU, Pak. Net Pad and PSU. Discussing complete installation, commissioning and radio studies. · London Electricity (24 -7), UK: 400 RMUs installed fitted with single and double actuators. Pluto units also fitted to some units with PSTN line connection. · S&SE, UK: 500 retrofit automation kits installed comprising actuator and interface control electronics. Discussing supply and installation of RTU and communications along with actuator simultaneously. · Power Grid, Singapore: 500 remotely controlled RMUs, equipped with 72 actuators and provision for Control Box and with LV control and monitoring terminations.

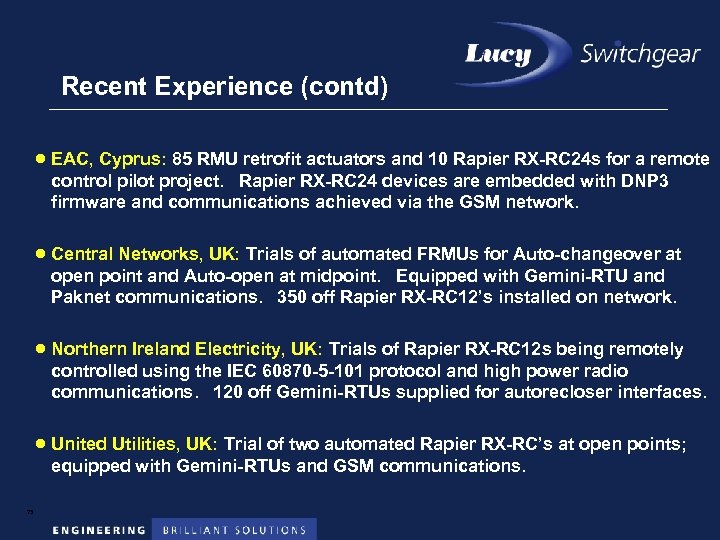

Recent Experience (contd) · EAC, Cyprus: 85 RMU retrofit actuators and 10 Rapier RX-RC 24 s for a remote control pilot project. Rapier RX-RC 24 devices are embedded with DNP 3 firmware and communications achieved via the GSM network. · Central Networks, UK: Trials of automated FRMUs for Auto-changeover at open point and Auto-open at midpoint. Equipped with Gemini-RTU and Paknet communications. 350 off Rapier RX-RC 12’s installed on network. · Northern Ireland Electricity, UK: Trials of Rapier RX-RC 12 s being remotely controlled using the IEC 60870 -5 -101 protocol and high power radio communications. 120 off Gemini-RTUs supplied for autorecloser interfaces. · United Utilities, UK: Trial of two automated Rapier RX-RC’s at open points; equipped with Gemini-RTUs and GSM communications. 73
End of Presentation Any questions? 74
