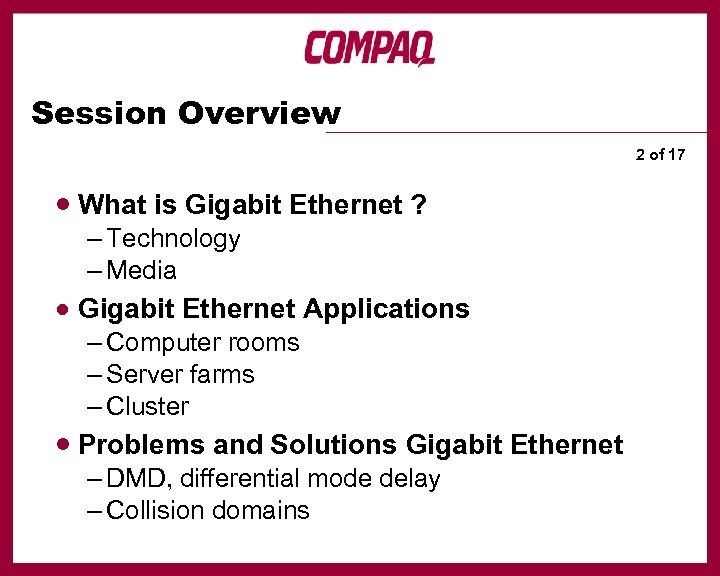

Session Overview 2 of 17 · What is Gigabit Ethernet ? – Technology – Media · Gigabit Ethernet Applications – Computer rooms – Server farms – Cluster · Problems and Solutions Gigabit Ethernet – DMD, differential mode delay – Collision domains

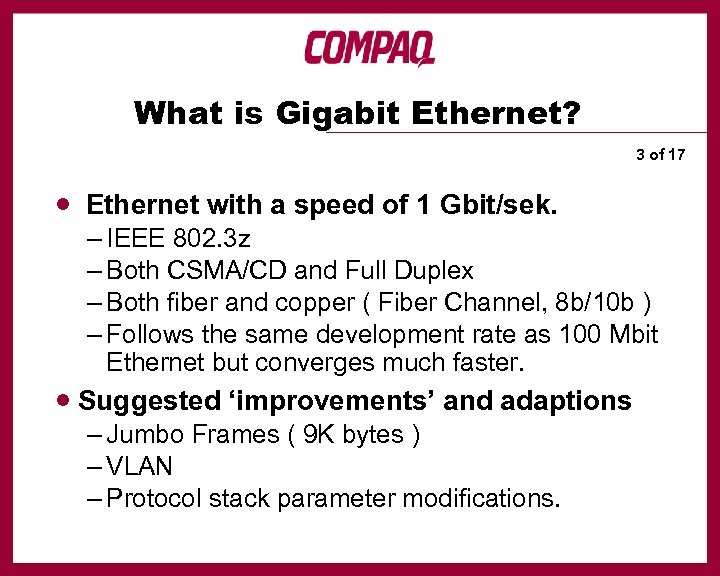

What is Gigabit Ethernet? 3 of 17 · Ethernet with a speed of 1 Gbit/sek. – IEEE 802. 3 z – Both CSMA/CD and Full Duplex – Both fiber and copper ( Fiber Channel, 8 b/10 b ) – Follows the same development rate as 100 Mbit Ethernet but converges much faster. · Suggested ‘improvements’ and adaptions – Jumbo Frames ( 9 K bytes ) – VLAN – Protocol stack parameter modifications.

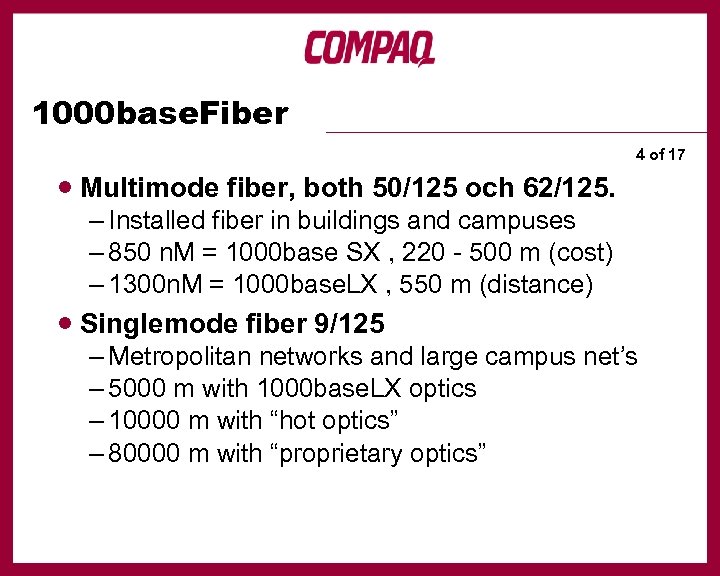

1000 base. Fiber · Multimode fiber, both 50/125 och 62/125. 4 of 17 – Installed fiber in buildings and campuses – 850 n. M = 1000 base SX , 220 - 500 m (cost) – 1300 n. M = 1000 base. LX , 550 m (distance) · Singlemode fiber 9/125 – Metropolitan networks and large campus net’s – 5000 m with 1000 base. LX optics – 10000 m with “hot optics” – 80000 m with “proprietary optics”

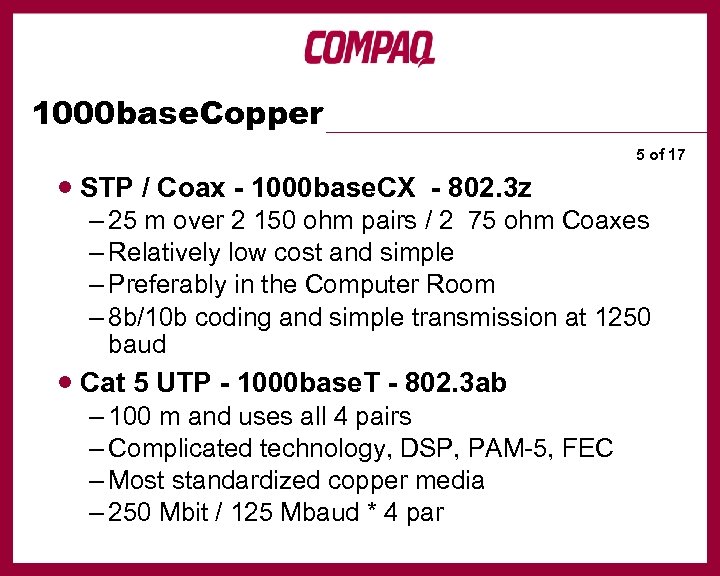

1000 base. Copper · STP / Coax - 1000 base. CX - 802. 3 z 5 of 17 – 25 m over 2 150 ohm pairs / 2 75 ohm Coaxes – Relatively low cost and simple – Preferably in the Computer Room – 8 b/10 b coding and simple transmission at 1250 baud · Cat 5 UTP - 1000 base. T - 802. 3 ab – 100 m and uses all 4 pairs – Complicated technology, DSP, PAM-5, FEC – Most standardized copper media – 250 Mbit / 125 Mbaud * 4 par

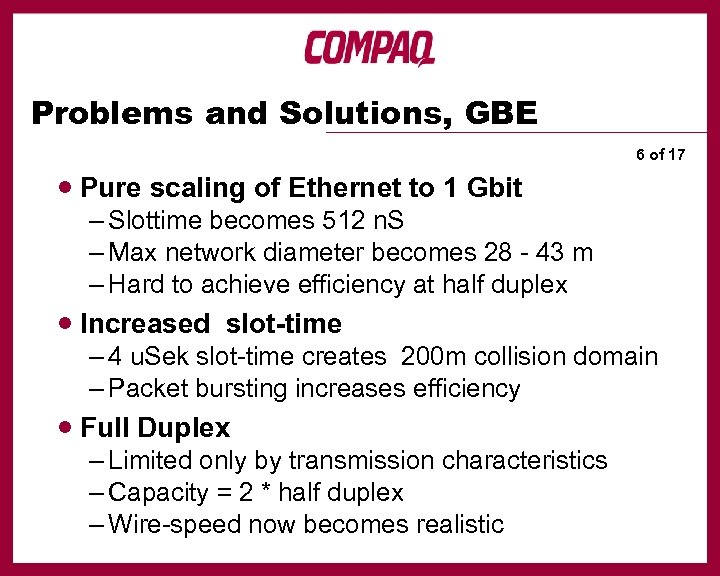

Problems and Solutions, GBE · Pure scaling of Ethernet to 1 Gbit 6 of 17 – Slottime becomes 512 n. S – Max network diameter becomes 28 - 43 m – Hard to achieve efficiency at half duplex · Increased slot-time – 4 u. Sek slot-time creates 200 m collision domain – Packet bursting increases efficiency · Full Duplex – Limited only by transmission characteristics – Capacity = 2 * half duplex – Wire-speed now becomes realistic

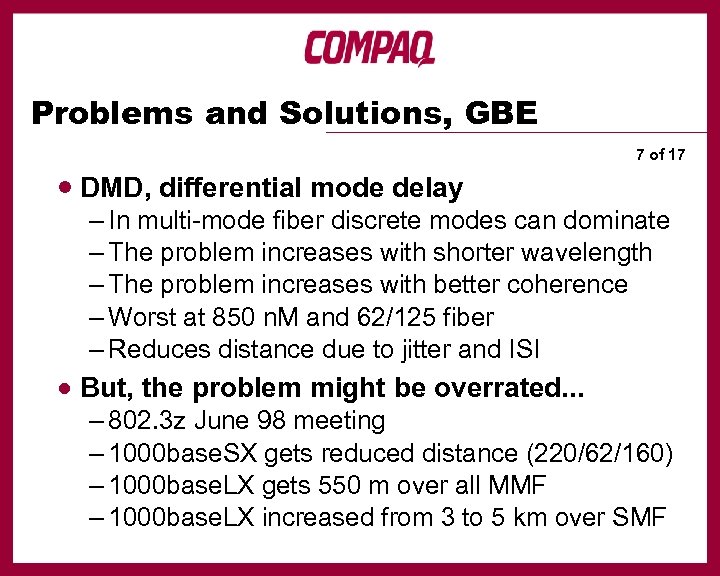

Problems and Solutions, GBE · DMD, differential mode delay 7 of 17 – In multi-mode fiber discrete modes can dominate – The problem increases with shorter wavelength – The problem increases with better coherence – Worst at 850 n. M and 62/125 fiber – Reduces distance due to jitter and ISI · But, the problem might be overrated. . . – 802. 3 z June 98 meeting – 1000 base. SX gets reduced distance (220/62/160) – 1000 base. LX gets 550 m over all MMF – 1000 base. LX increased from 3 to 5 km over SMF

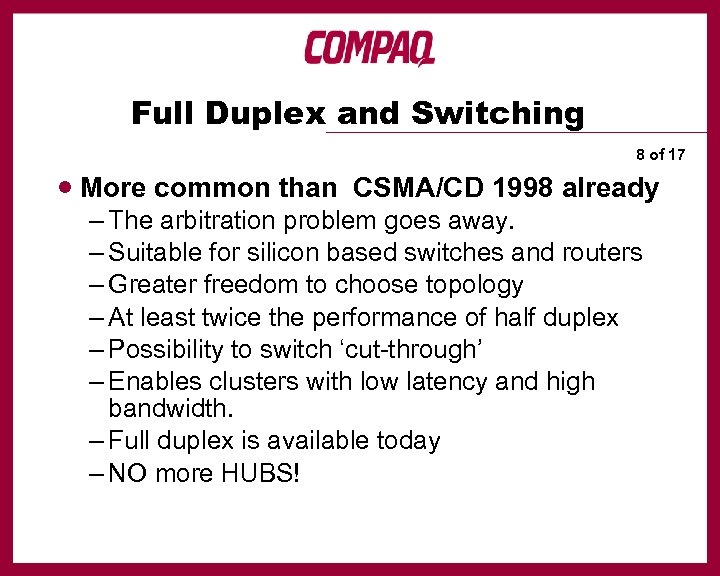

Full Duplex and Switching 8 of 17 · More common than CSMA/CD 1998 already – The arbitration problem goes away. – Suitable for silicon based switches and routers – Greater freedom to choose topology – At least twice the performance of half duplex – Possibility to switch ‘cut-through’ – Enables clusters with low latency and high bandwidth. – Full duplex is available today – NO more HUBS!

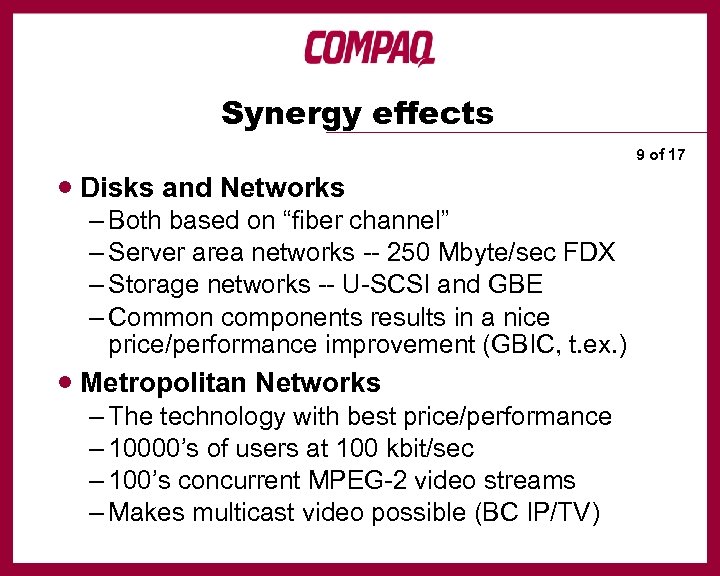

Synergy effects · Disks and Networks – Both based on “fiber channel” – Server area networks -- 250 Mbyte/sec FDX – Storage networks -- U-SCSI and GBE – Common components results in a nice price/performance improvement (GBIC, t. ex. ) · Metropolitan Networks – The technology with best price/performance – 10000’s of users at 100 kbit/sec – 100’s concurrent MPEG-2 video streams – Makes multicast video possible (BC IP/TV) 9 of 17

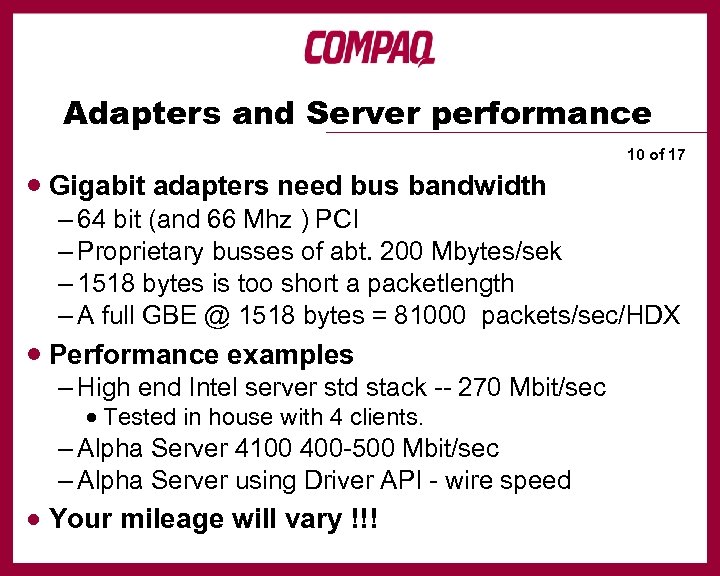

Adapters and Server performance · Gigabit adapters need bus bandwidth 10 of 17 – 64 bit (and 66 Mhz ) PCI – Proprietary busses of abt. 200 Mbytes/sek – 1518 bytes is too short a packetlength – A full GBE @ 1518 bytes = 81000 packets/sec/HDX · Performance examples – High end Intel server std stack -- 270 Mbit/sec · Tested in house with 4 clients. – Alpha Server 4100 400 -500 Mbit/sec – Alpha Server using Driver API - wire speed · Your mileage will vary !!!

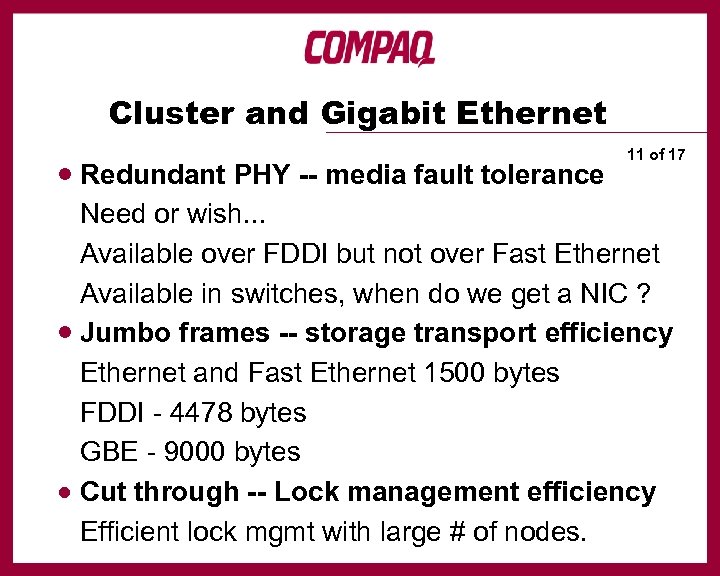

Cluster and Gigabit Ethernet · Redundant PHY -- media fault tolerance 11 of 17 Need or wish. . . Available over FDDI but not over Fast Ethernet Available in switches, when do we get a NIC ? · Jumbo frames -- storage transport efficiency Ethernet and Fast Ethernet 1500 bytes FDDI - 4478 bytes GBE - 9000 bytes · Cut through -- Lock management efficiency Efficient lock mgmt with large # of nodes.

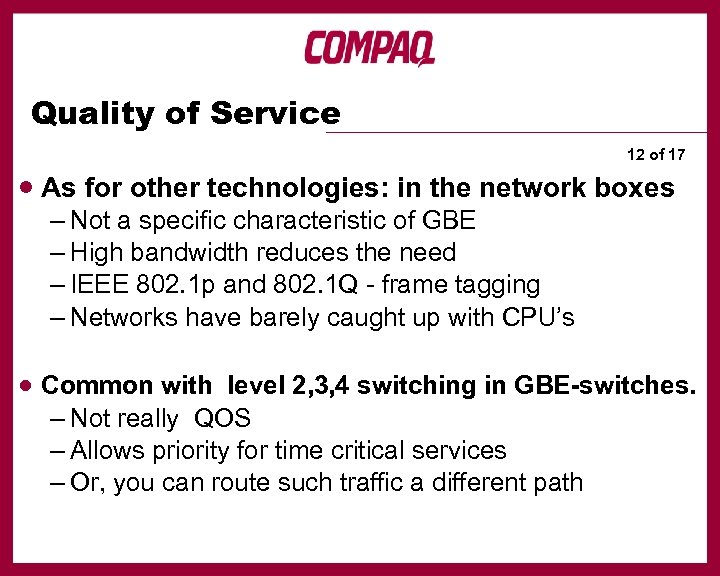

Quality of Service 12 of 17 · As for other technologies: in the network boxes – Not a specific characteristic of GBE – High bandwidth reduces the need – IEEE 802. 1 p and 802. 1 Q - frame tagging – Networks have barely caught up with CPU’s · Common with level 2, 3, 4 switching in GBE-switches. – Not really QOS – Allows priority for time critical services – Or, you can route such traffic a different path

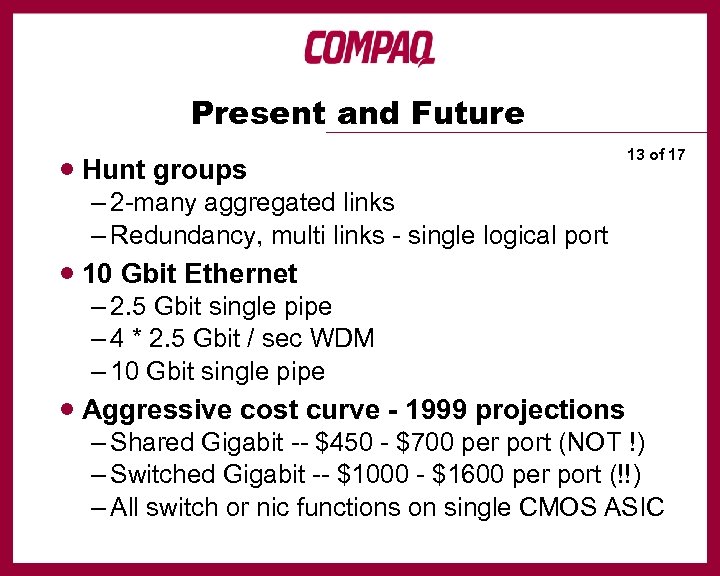

Present and Future · Hunt groups 13 of 17 – 2 -many aggregated links – Redundancy, multi links - single logical port · 10 Gbit Ethernet – 2. 5 Gbit single pipe – 4 * 2. 5 Gbit / sec WDM – 10 Gbit single pipe · Aggressive cost curve - 1999 projections – Shared Gigabit -- $450 - $700 per port (NOT !) – Switched Gigabit -- $1000 - $1600 per port (!!) – All switch or nic functions on single CMOS ASIC

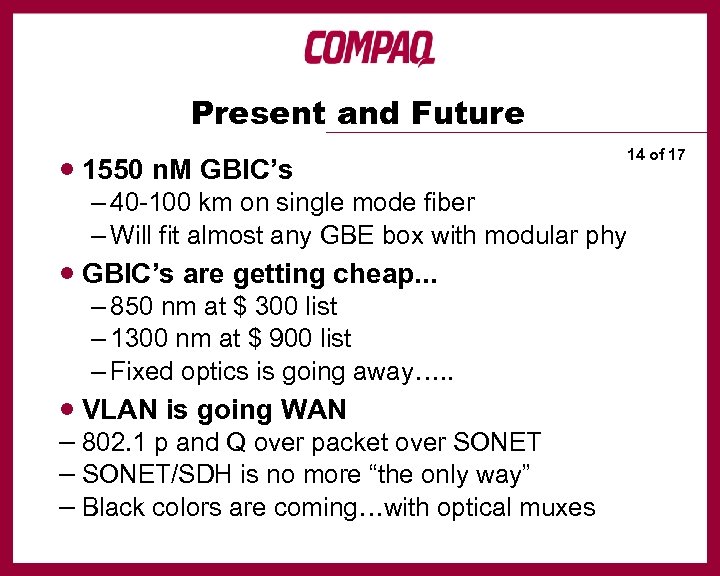

Present and Future · 1550 n. M GBIC’s 14 of 17 – 40 -100 km on single mode fiber – Will fit almost any GBE box with modular phy · GBIC’s are getting cheap. . . – 850 nm at $ 300 list – 1300 nm at $ 900 list – Fixed optics is going away…. . · VLAN is going WAN – 802. 1 p and Q over packet over SONET – SONET/SDH is no more “the only way” – Black colors are coming…with optical muxes

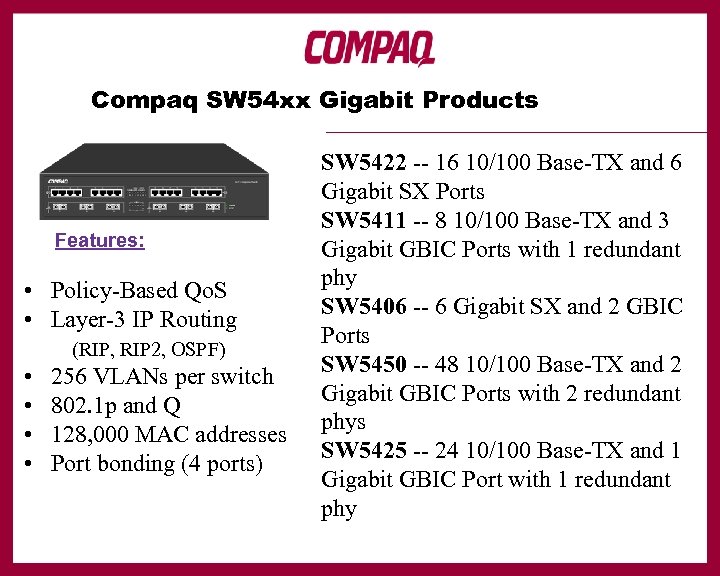

Compaq SW 54 xx Gigabit Products Features: • Policy-Based Qo. S • Layer-3 IP Routing (RIP, RIP 2, OSPF) • • 256 VLANs per switch 802. 1 p and Q 128, 000 MAC addresses Port bonding (4 ports) SW 5422 -- 16 10/100 Base-TX and 6 Gigabit SX Ports SW 5411 -- 8 10/100 Base-TX and 3 Gigabit GBIC Ports with 1 redundant phy SW 5406 -- 6 Gigabit SX and 2 GBIC Ports SW 5450 -- 48 10/100 Base-TX and 2 Gigabit GBIC Ports with 2 redundant phys SW 5425 -- 24 10/100 Base-TX and 1 Gigabit GBIC Port with 1 redundant phy

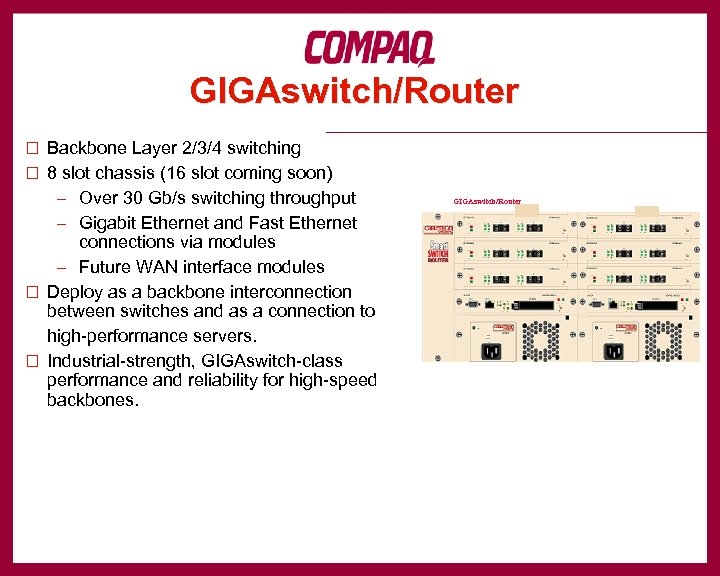

GIGAswitch/Router ¨ Backbone Layer 2/3/4 switching ¨ 8 slot chassis (16 slot coming soon) – Over 30 Gb/s switching throughput – Gigabit Ethernet and Fast Ethernet connections via modules – Future WAN interface modules ¨ Deploy as a backbone interconnection between switches and as a connection to high-performance servers. ¨ Industrial-strength, GIGAswitch-class performance and reliability for high-speed backbones. GIGAswitch/Router

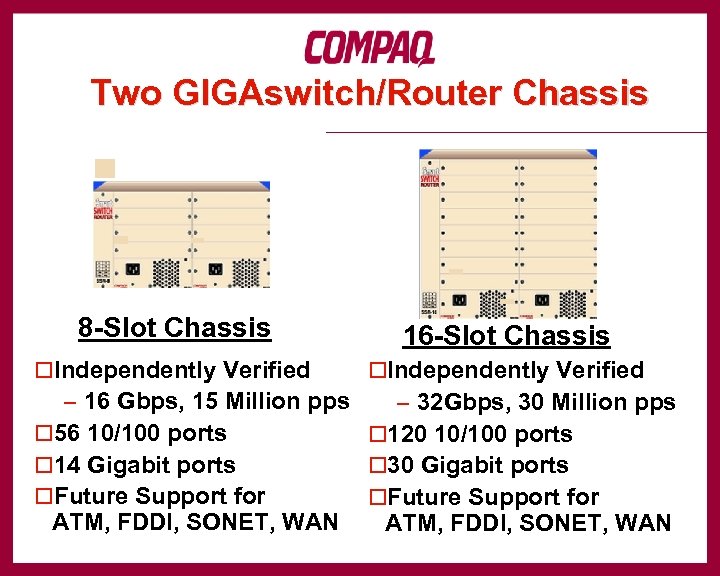

Two GIGAswitch/Router Chassis 8 -Slot Chassis ¨Independently Verified – 16 Gbps, 15 Million pps ¨ 56 10/100 ports ¨ 14 Gigabit ports ¨Future Support for ATM, FDDI, SONET, WAN 16 -Slot Chassis ¨Independently Verified – 32 Gbps, 30 Million pps ¨ 120 10/100 ports ¨ 30 Gigabit ports ¨Future Support for ATM, FDDI, SONET, WAN
