1 Module 2: The Web Server

2 Overview • The Web Server • Overview of IIS • Overview of Apache

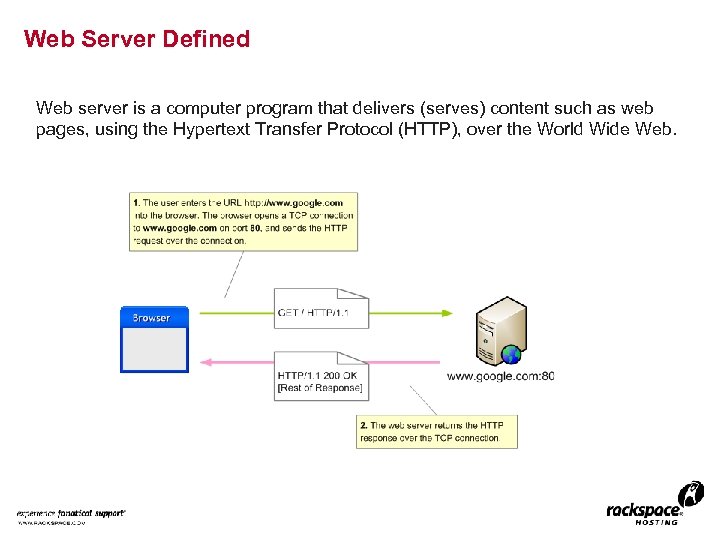

Web Server Defined Web server is a computer program that delivers (serves) content such as web pages, using the Hypertext Transfer Protocol (HTTP), over the World Wide Web.

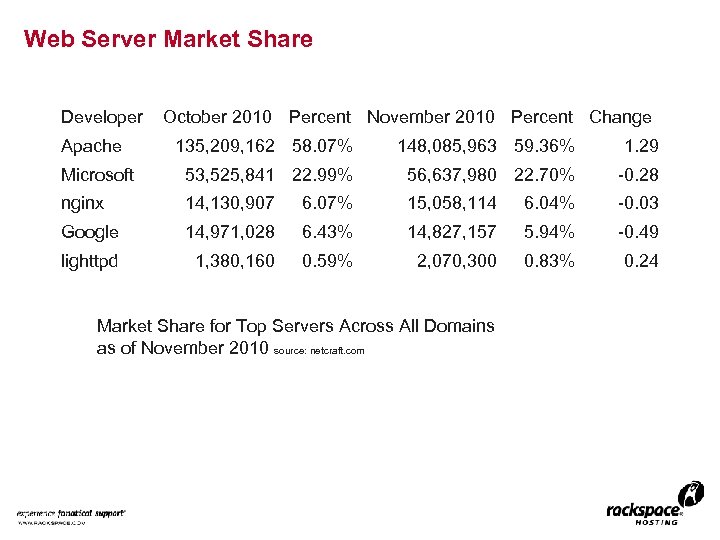

Web Server Market Share Developer Apache October 2010 Percent November 2010 Percent Change 135, 209, 162 58. 07% 148, 085, 963 59. 36% 1. 29 Microsoft 53, 525, 841 22. 99% 56, 637, 980 22. 70% -0. 28 nginx 14, 130, 907 6. 07% 15, 058, 114 6. 04% -0. 03 Google 14, 971, 028 6. 43% 14, 827, 157 5. 94% -0. 49 lighttpd 1, 380, 160 0. 59% 2, 070, 300 0. 83% 0. 24 Market Share for Top Servers Across All Domains as of November 2010 source: netcraft. com

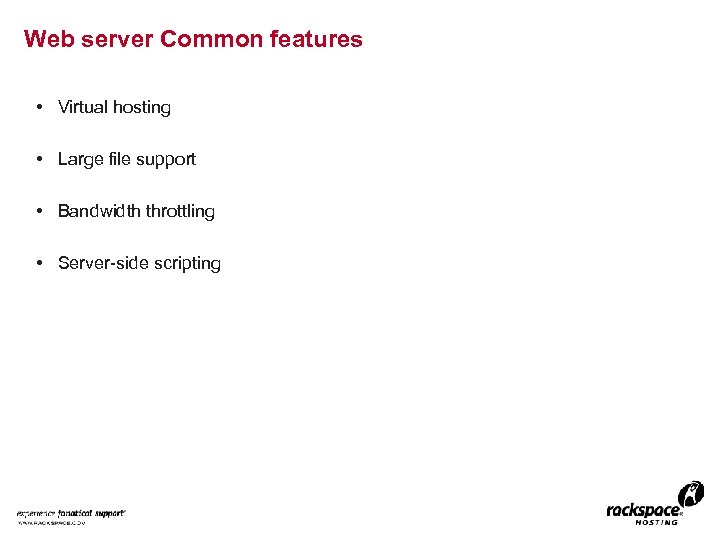

Web server Common features • Virtual hosting • Large file support • Bandwidth throttling • Server-side scripting

7 Internet Information Services (IIS) • Overview of IIS • IIS Features • IIS Authentication • The. Net Framework • ASP. Net

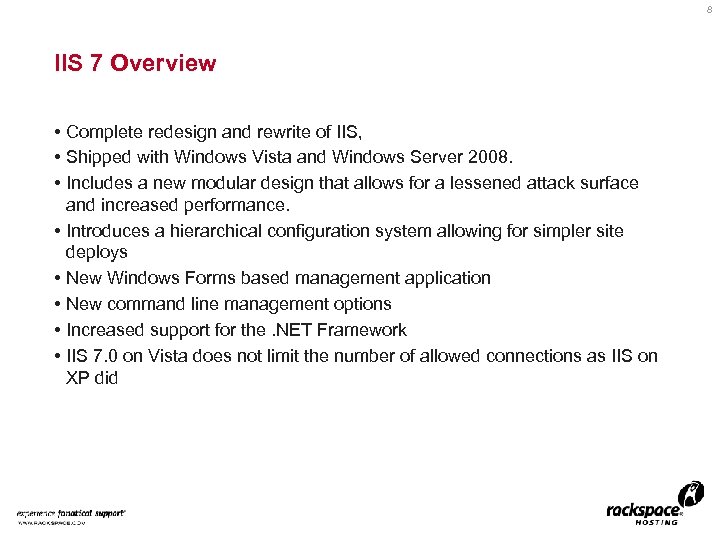

8 IIS 7 Overview • Complete redesign and rewrite of IIS, • Shipped with Windows Vista and Windows Server 2008. • Includes a new modular design that allows for a lessened attack surface and increased performance. • Introduces a hierarchical configuration system allowing for simpler site deploys • New Windows Forms based management application • New command line management options • Increased support for the. NET Framework • IIS 7. 0 on Vista does not limit the number of allowed connections as IIS on XP did

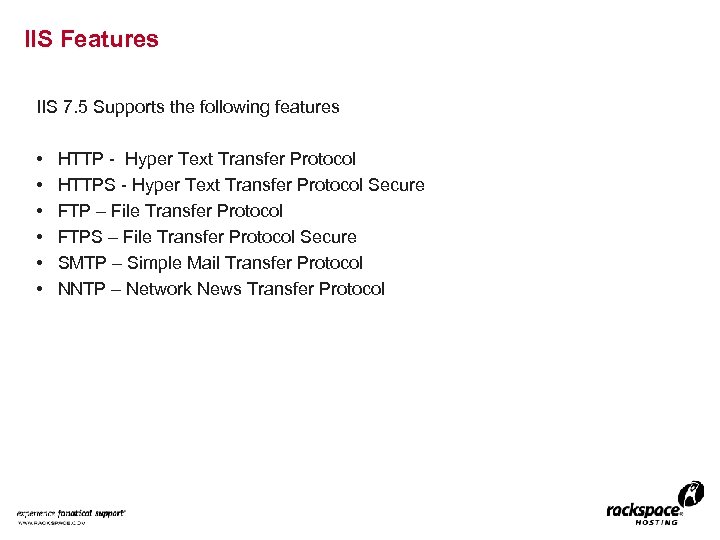

IIS Features IIS 7. 5 Supports the following features • • • HTTP - Hyper Text Transfer Protocol HTTPS - Hyper Text Transfer Protocol Secure FTP – File Transfer Protocol FTPS – File Transfer Protocol Secure SMTP – Simple Mail Transfer Protocol NNTP – Network News Transfer Protocol

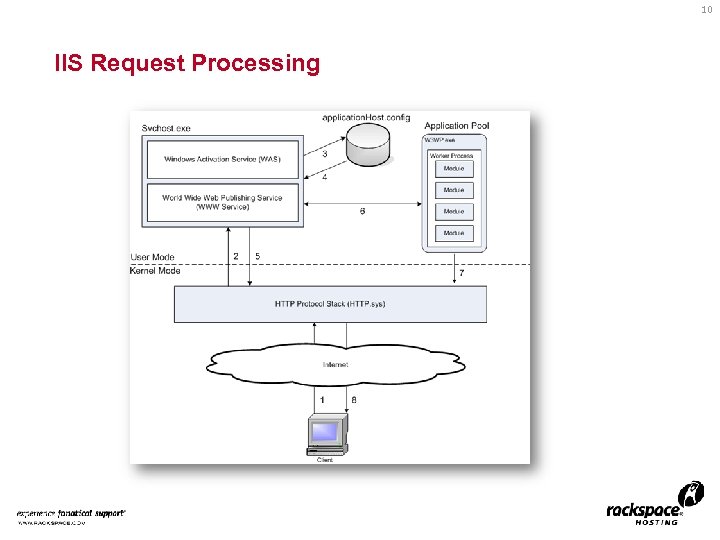

10 IIS Request Processing

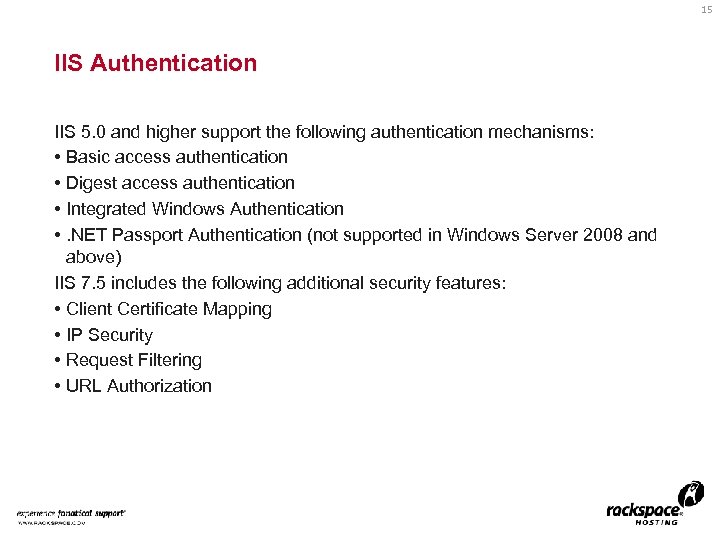

15 IIS Authentication IIS 5. 0 and higher support the following authentication mechanisms: • Basic access authentication • Digest access authentication • Integrated Windows Authentication • . NET Passport Authentication (not supported in Windows Server 2008 and above) IIS 7. 5 includes the following additional security features: • Client Certificate Mapping • IP Security • Request Filtering • URL Authorization

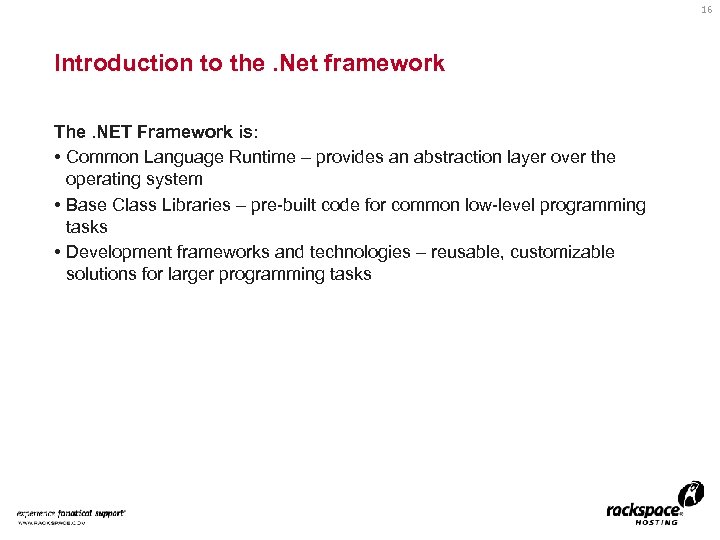

16 Introduction to the. Net framework The. NET Framework is: • Common Language Runtime – provides an abstraction layer over the operating system • Base Class Libraries – pre-built code for common low-level programming tasks • Development frameworks and technologies – reusable, customizable solutions for larger programming tasks

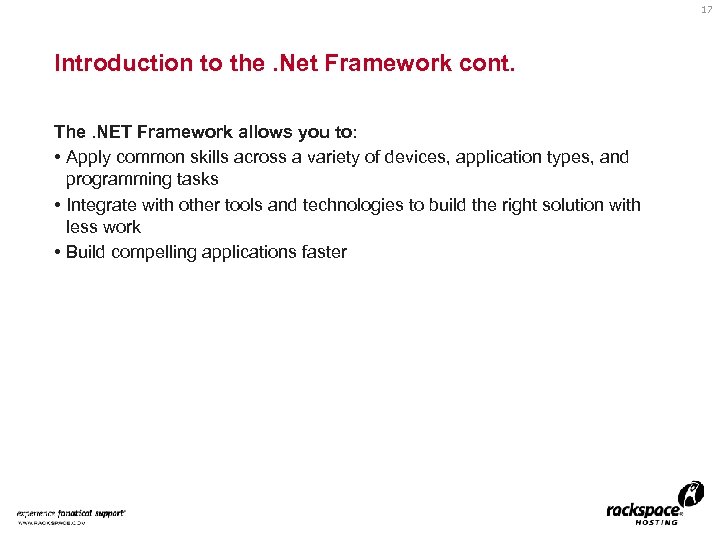

17 Introduction to the. Net Framework cont. The. NET Framework allows you to: • Apply common skills across a variety of devices, application types, and programming tasks • Integrate with other tools and technologies to build the right solution with less work • Build compelling applications faster

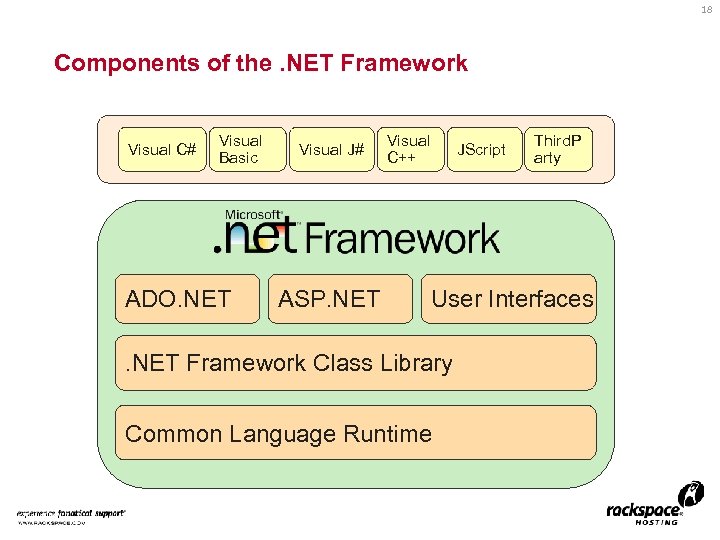

18 Components of the. NET Framework Visual C# Visual Basic ADO. NET Visual J# ASP. NET Visual C++ JScript Third. P arty User Interfaces . NET Framework Class Library Common Language Runtime

IIS and ASP. Net

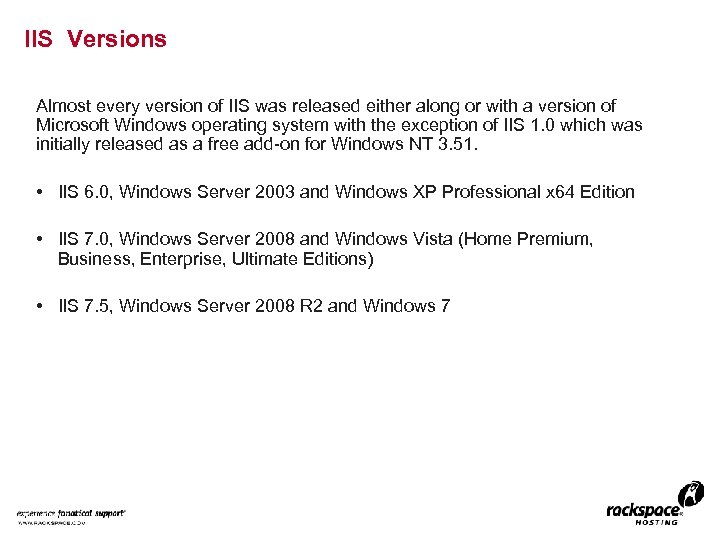

IIS Versions Almost every version of IIS was released either along or with a version of Microsoft Windows operating system with the exception of IIS 1. 0 which was initially released as a free add-on for Windows NT 3. 51. • IIS 6. 0, Windows Server 2003 and Windows XP Professional x 64 Edition • IIS 7. 0, Windows Server 2008 and Windows Vista (Home Premium, Business, Enterprise, Ultimate Editions) • IIS 7. 5, Windows Server 2008 R 2 and Windows 7

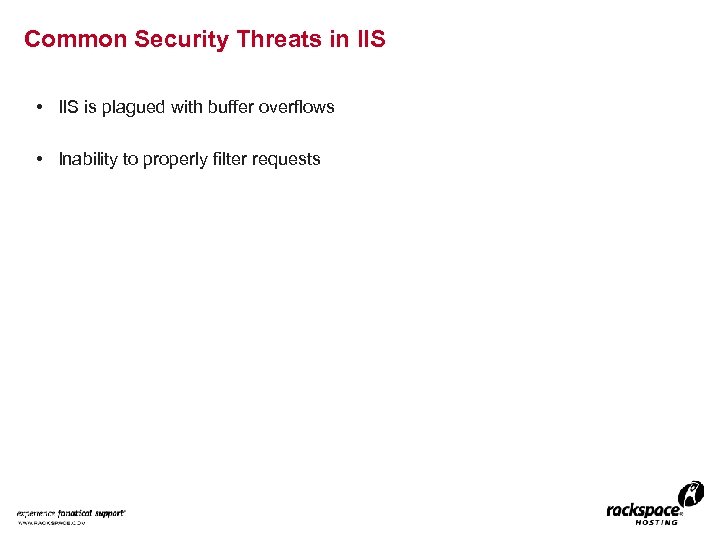

Common Security Threats in IIS • IIS is plagued with buffer overflows • Inability to properly filter requests

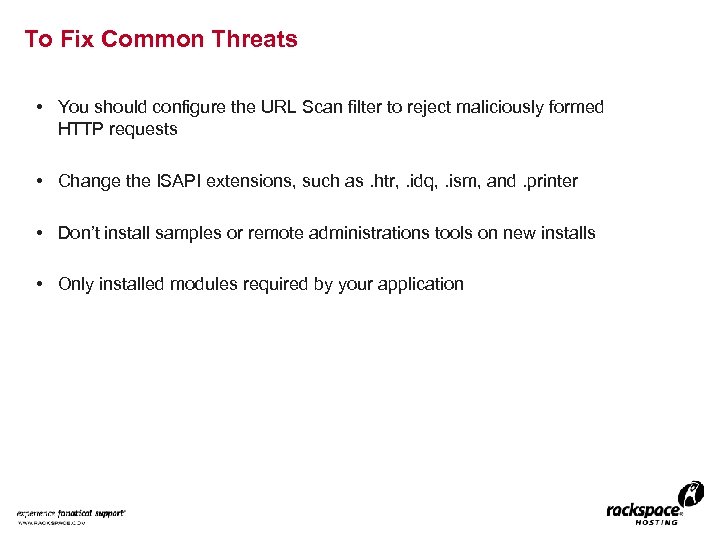

To Fix Common Threats • You should configure the URL Scan filter to reject maliciously formed HTTP requests • Change the ISAPI extensions, such as. htr, . idq, . ism, and. printer • Don’t install samples or remote administrations tools on new installs • Only installed modules required by your application

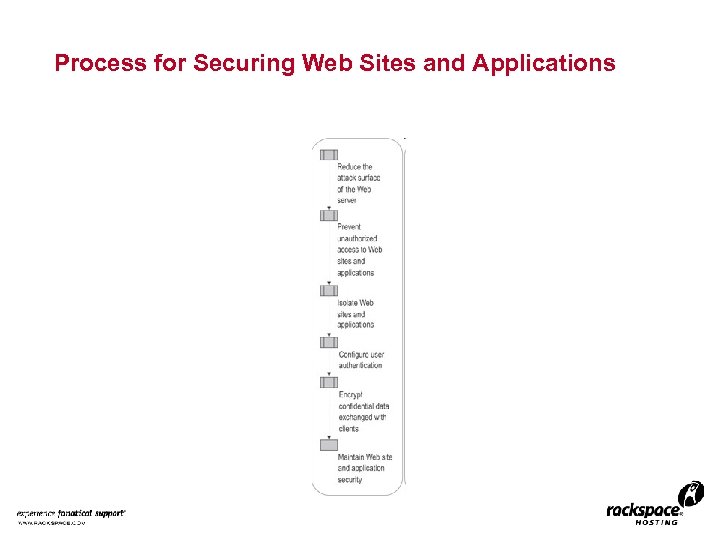

Process for Securing Web Sites and Applications

32 Overview of Apache

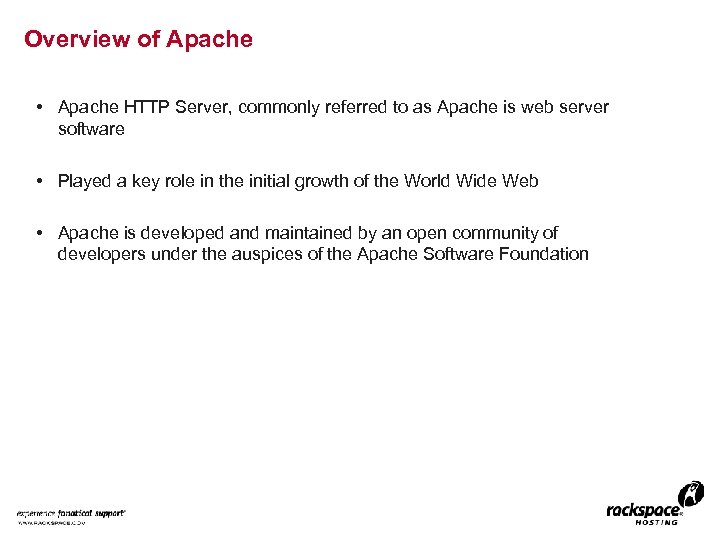

Overview of Apache • Apache HTTP Server, commonly referred to as Apache is web server software • Played a key role in the initial growth of the World Wide Web • Apache is developed and maintained by an open community of developers under the auspices of the Apache Software Foundation

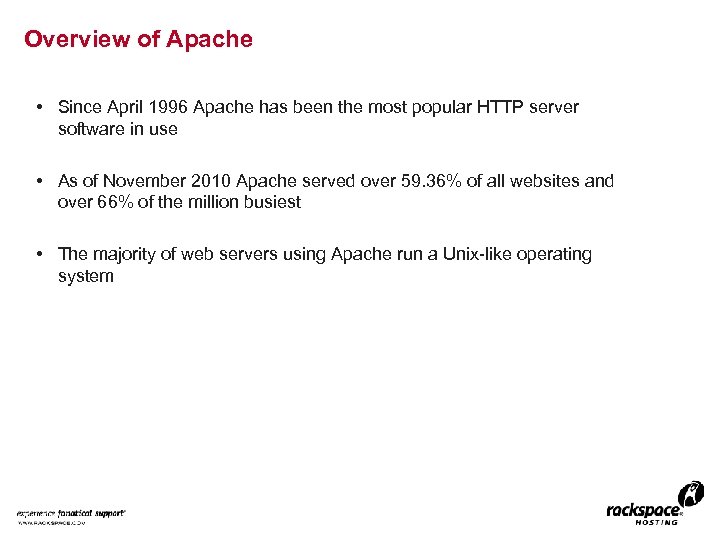

Overview of Apache • Since April 1996 Apache has been the most popular HTTP server software in use • As of November 2010 Apache served over 59. 36% of all websites and over 66% of the million busiest • The majority of web servers using Apache run a Unix-like operating system

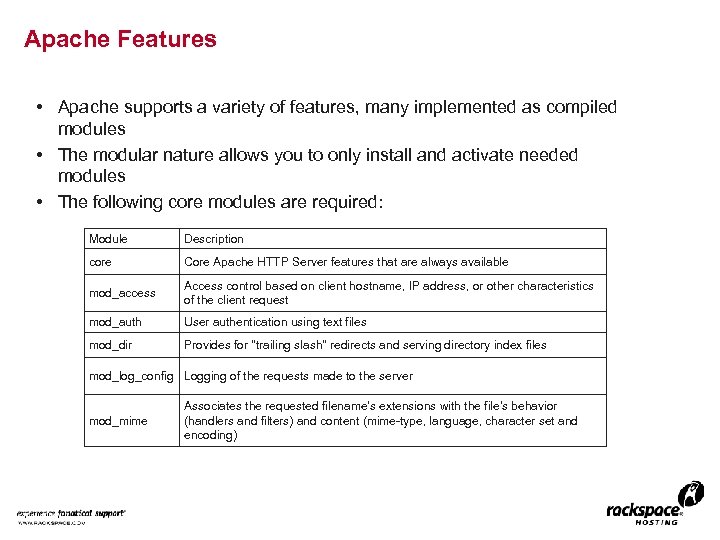

Apache Features • Apache supports a variety of features, many implemented as compiled modules • The modular nature allows you to only install and activate needed modules • The following core modules are required: Module Description core Core Apache HTTP Server features that are always available mod_access Access control based on client hostname, IP address, or other characteristics of the client request mod_auth User authentication using text files mod_dir Provides for "trailing slash" redirects and serving directory index files mod_log_config Logging of the requests made to the server mod_mime Associates the requested filename's extensions with the file's behavior (handlers and filters) and content (mime-type, language, character set and encoding)

36 Virtual hosting • For example, one machine with one Apache installation could simultaneously serve www. example. com, www. test. com, test 47. testserver. test. com, etc. • Apache features configurable error messages

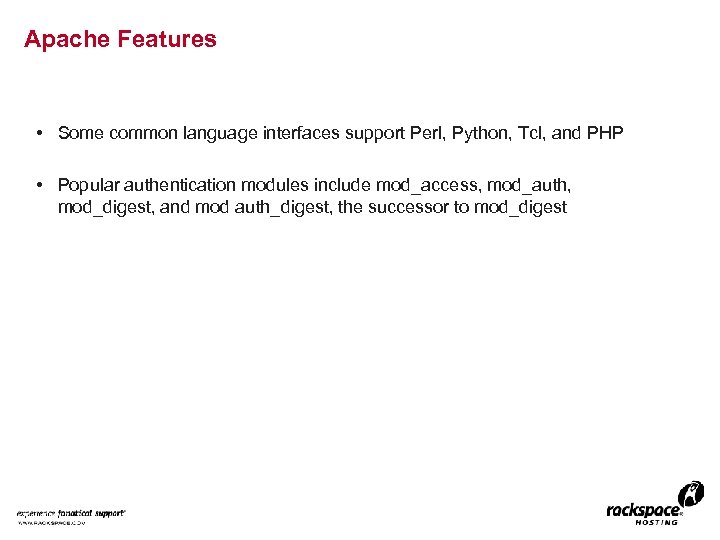

Apache Features • Some common language interfaces support Perl, Python, Tcl, and PHP • Popular authentication modules include mod_access, mod_auth, mod_digest, and mod auth_digest, the successor to mod_digest

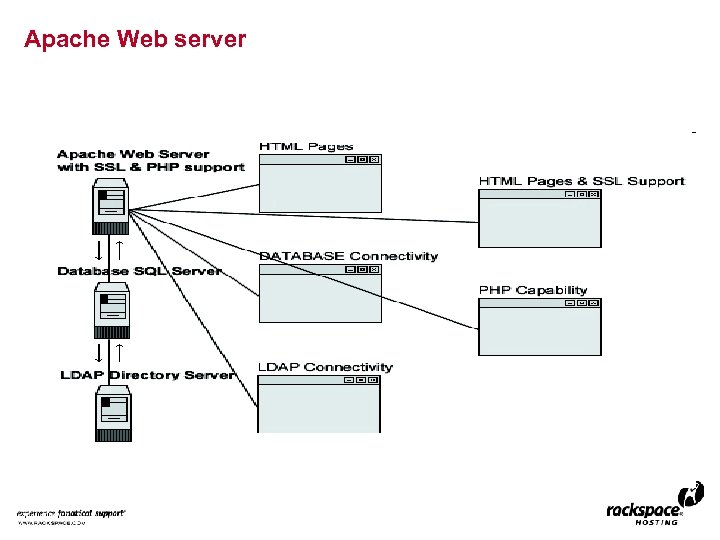

Apache Web server

Apache System Requirements • Java 1. 4. x or greater. • ANT 1. 6. 3 or greater. • JUnit 3. 8. 2 if you wish to run the unit tests. • CPU, Disk and Memory requirements are based on the many choices made in implementing Lucene

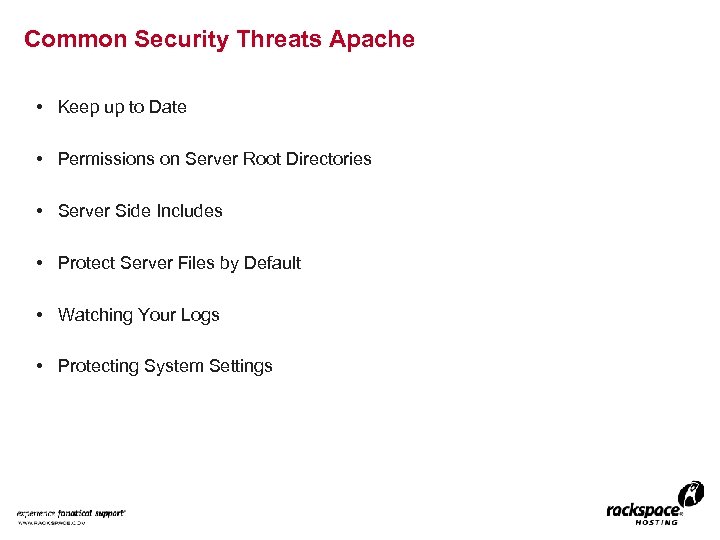

Common Security Threats Apache • Keep up to Date • Permissions on Server Root Directories • Server Side Includes • Protect Server Files by Default • Watching Your Logs • Protecting System Settings

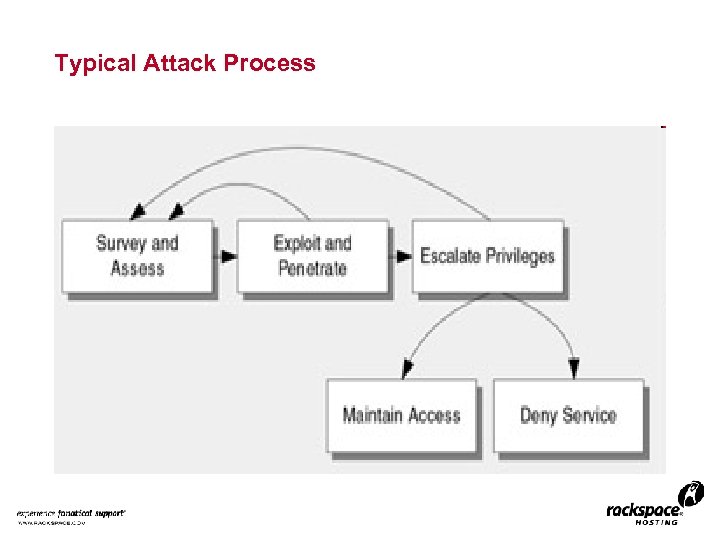

Typical Attack Process

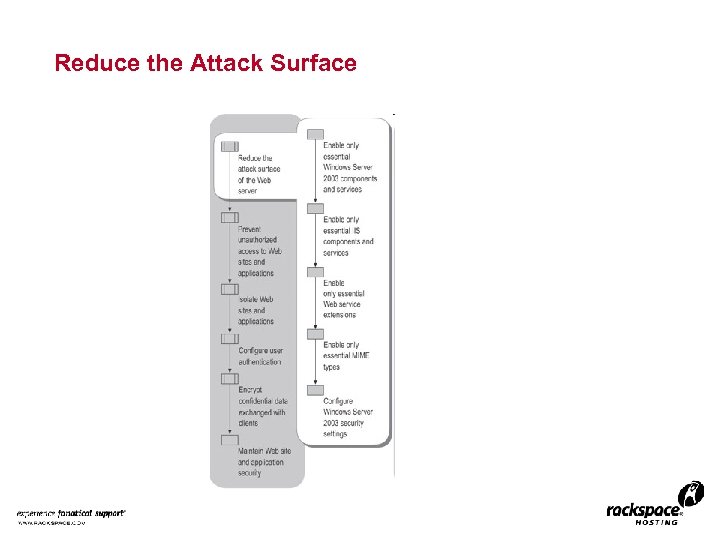

Reduce the Attack Surface

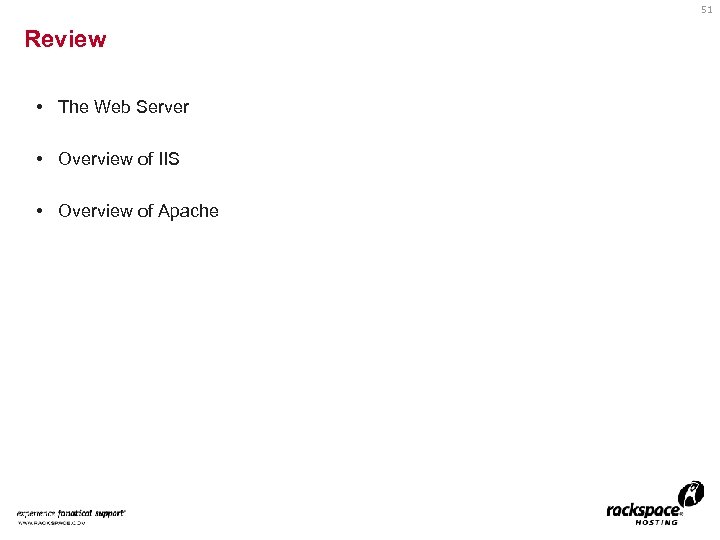

51 Review • The Web Server • Overview of IIS • Overview of Apache
