1 Ireland s ADQ Implementation Plan Aeronautical Surfaces Screening

1 Ireland’s ADQ Implementation Plan Aeronautical Surfaces Screening Evaluation Tool ASSET James O’Sullivan Pans-Ops & Airspace Inspector Irish SRD/NSA CGH/IAA Proprietary 3/17/2018

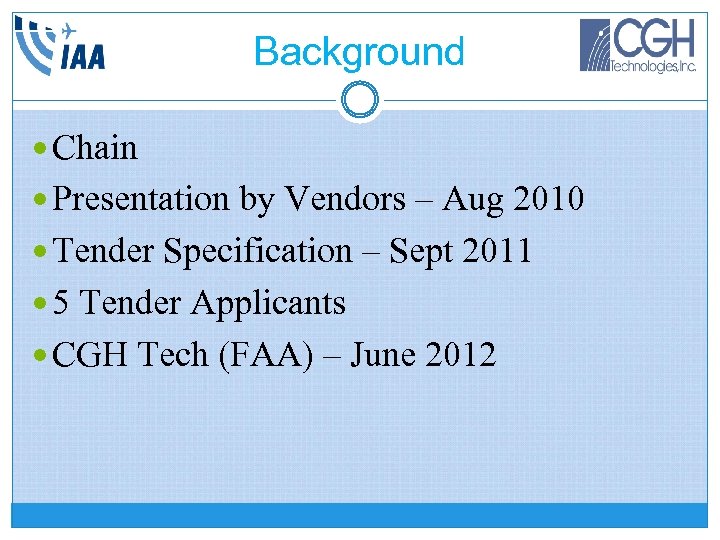

Background Chain Presentation by Vendors – Aug 2010 Tender Specification – Sept 2011 5 Tender Applicants CGH Tech (FAA) – June 2012

Roadmap e. TOD ADQ 1 & ADQ 2 FUA Annex 4 Electronic/Digital Charting AMDB Annex 10 Annex 11 Annex 15 Permission Based, Digital, ISO 9001 QMS, Traceability, SLA, Data Exchange, Licences

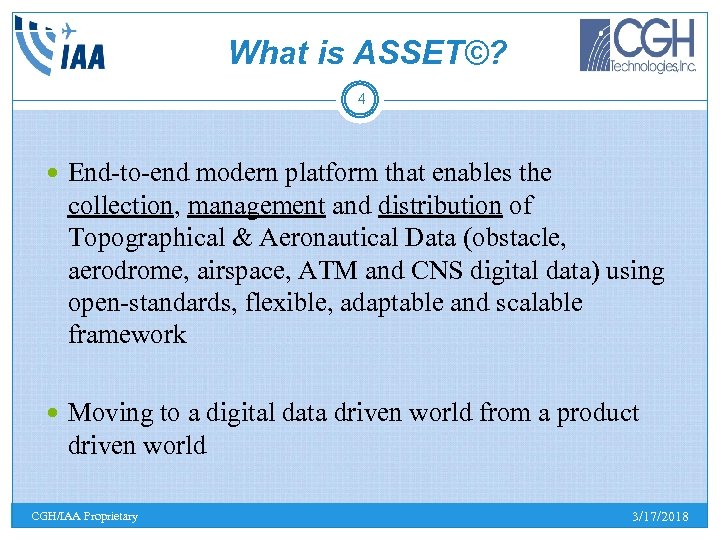

What is ASSET©? 4 End-to-end modern platform that enables the collection, management and distribution of Topographical & Aeronautical Data (obstacle, aerodrome, airspace, ATM and CNS digital data) using open-standards, flexible, adaptable and scalable framework Moving to a digital data driven world from a product driven world CGH/IAA Proprietary 3/17/2018

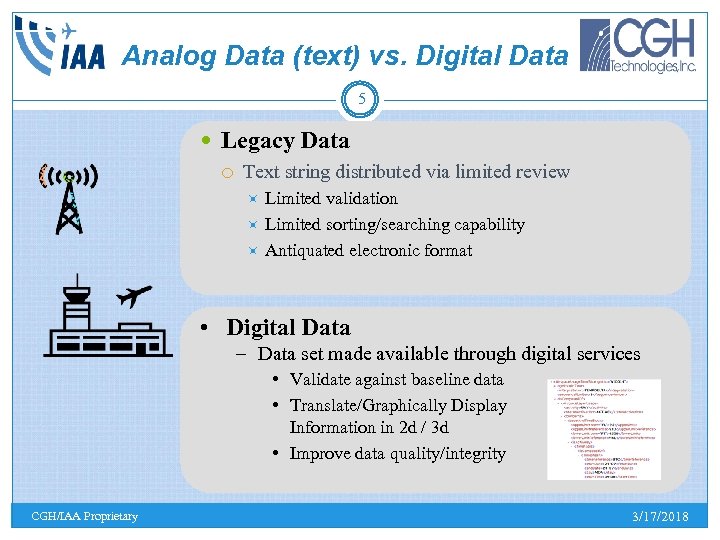

Analog Data (text) vs. Digital Data 5 Legacy Data Text string distributed via limited review Limited validation Limited sorting/searching capability Antiquated electronic format • Digital Data – Data set made available through digital services • Validate against baseline data • Translate/Graphically Display Information in 2 d / 3 d • Improve data quality/integrity CGH/IAA Proprietary 3/17/2018

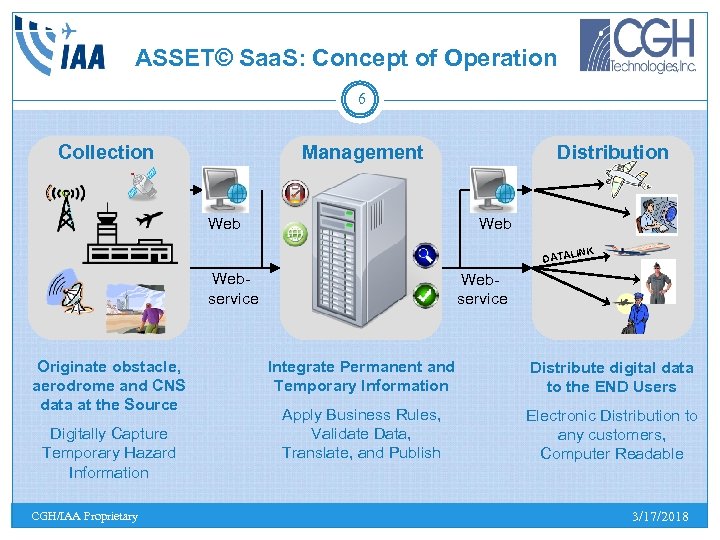

ASSET© Saa. S: Concept of Operation 6 Collection Management Web Distribution Web INK DATAL Webservice Originate obstacle, aerodrome and CNS data at the Source Digitally Capture Temporary Hazard Information CGH/IAA Proprietary Webservice Integrate Permanent and Temporary Information Distribute digital data to the END Users Apply Business Rules, Validate Data, Translate, and Publish Electronic Distribution to any customers, Computer Readable 3/17/2018

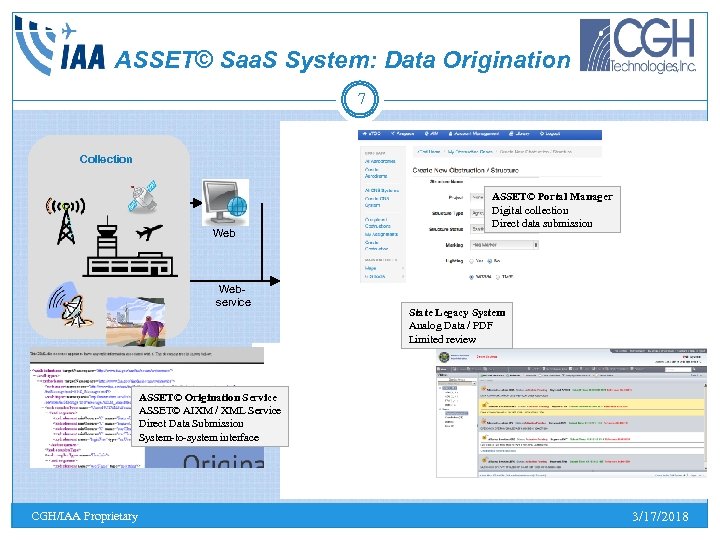

ASSET© Saa. S System: Data Origination 7 Collection Management Distribution ASSET© Portal Manager Digital collection Direct data submission Web Webservice DATAL INK State Legacy System Analog Data Web/ PDF service Limited review Integrate Permanent and Temporary Information ASSET© Origination Service Apply Business Rules, Validate Data, ASSET© AIXM / XML Service Translate, and Publish Direct Data Submission System-to-system interface CGH/IAA Proprietary 3/17/2018

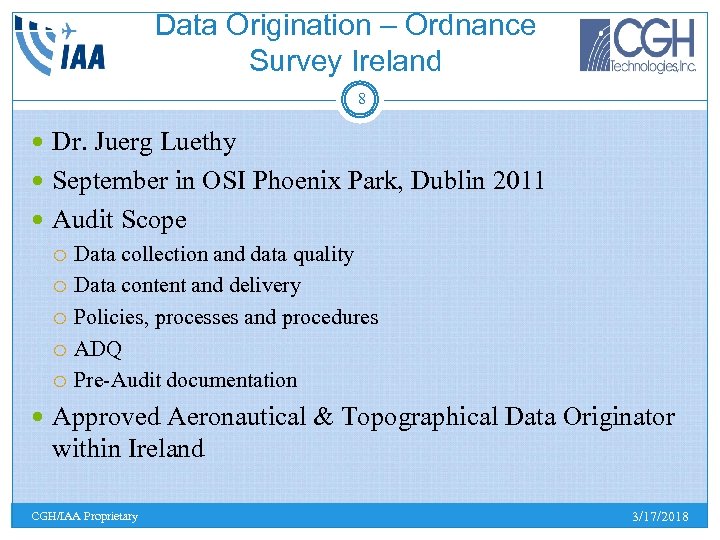

Data Origination – Ordnance Survey Ireland 8 Dr. Juerg Luethy September in OSI Phoenix Park, Dublin 2011 Audit Scope Data collection and data quality Data content and delivery Policies, processes and procedures ADQ Pre-Audit documentation Approved Aeronautical & Topographical Data Originator within Ireland CGH/IAA Proprietary 3/17/2018

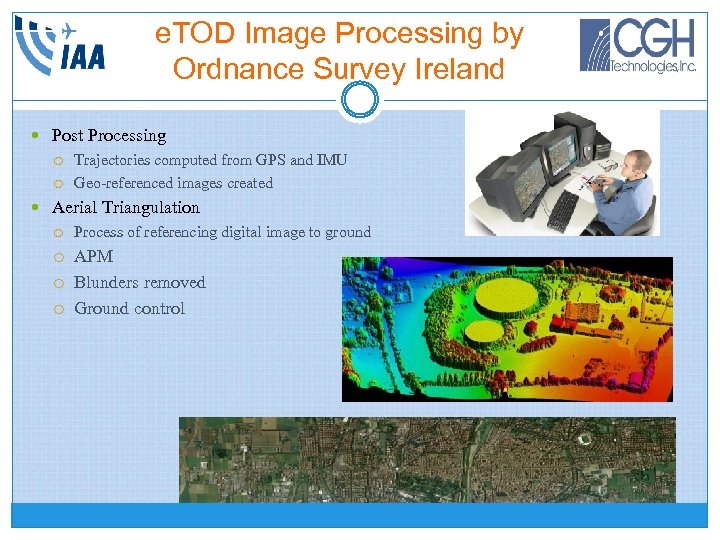

e. TOD Image Processing by Ordnance Survey Ireland Post Processing Trajectories computed from GPS and IMU Geo-referenced images created Aerial Triangulation Process of referencing digital image to ground APM Blunders removed Ground control

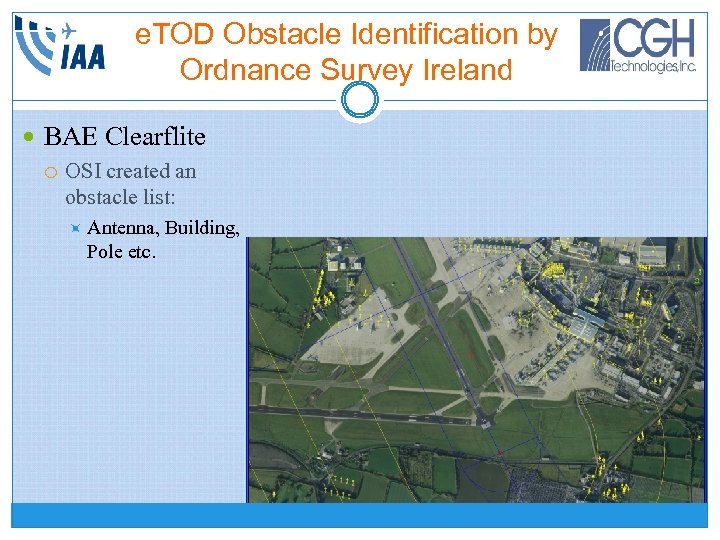

e. TOD Obstacle Identification by Ordnance Survey Ireland BAE Clearflite OSI created an obstacle list: Antenna, Pole etc. Building,

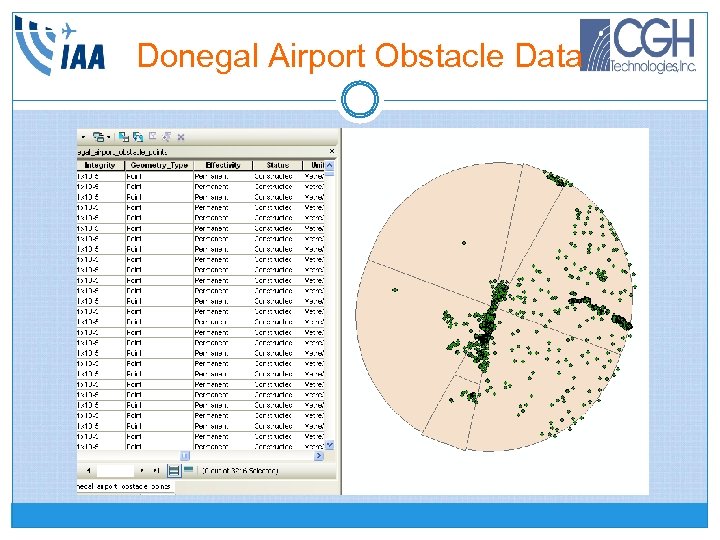

Donegal Airport Obstacle Data

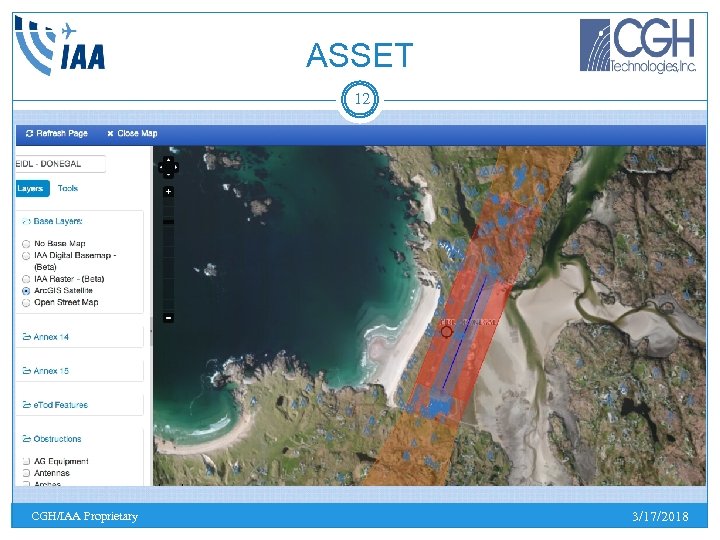

ASSET 12 CGH/IAA Proprietary 3/17/2018

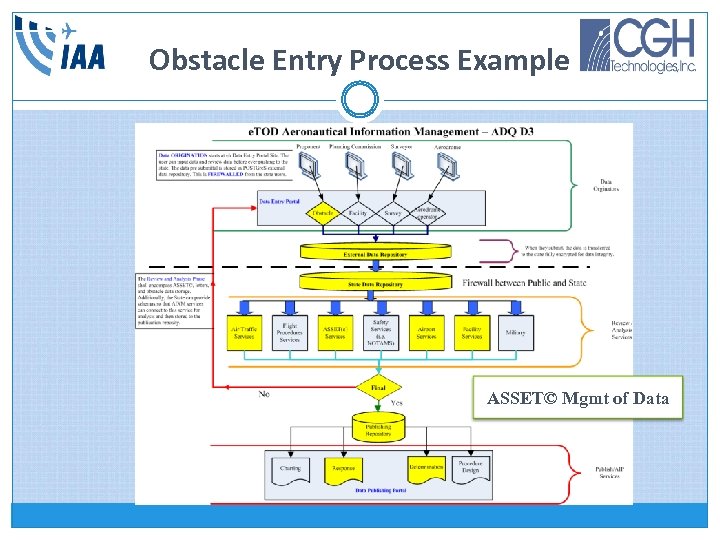

Obstacle Entry Process Example ASSET© Mgmt of Data

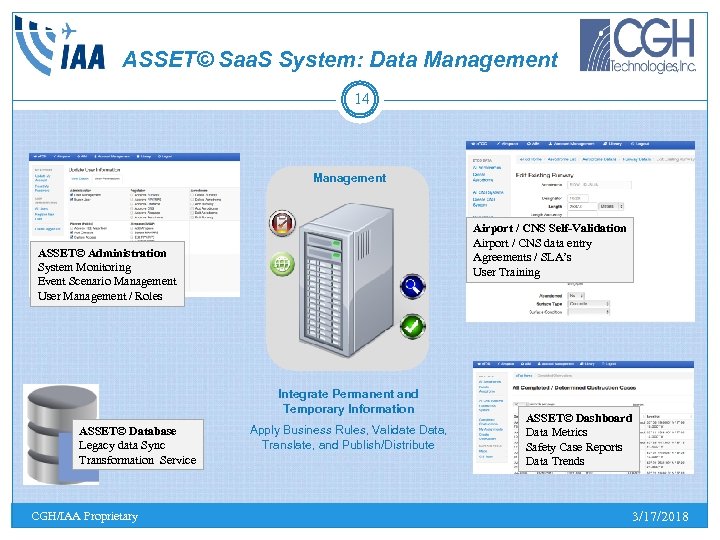

ASSET© Saa. S System: Data Management 14 Management Airport / CNS Self-Validation Airport / CNS data entry Agreements / SLA’s User Training ASSET© Administration System Monitoring Event Scenario Management User Management / Roles Integrate Permanent and Temporary Information ASSET© Database Legacy data Sync Transformation Service CGH/IAA Proprietary Apply Business Rules, Validate Data, Translate, and Publish/Distribute ASSET© Dashboard Data Metrics Safety Case Reports Data Trends 3/17/2018

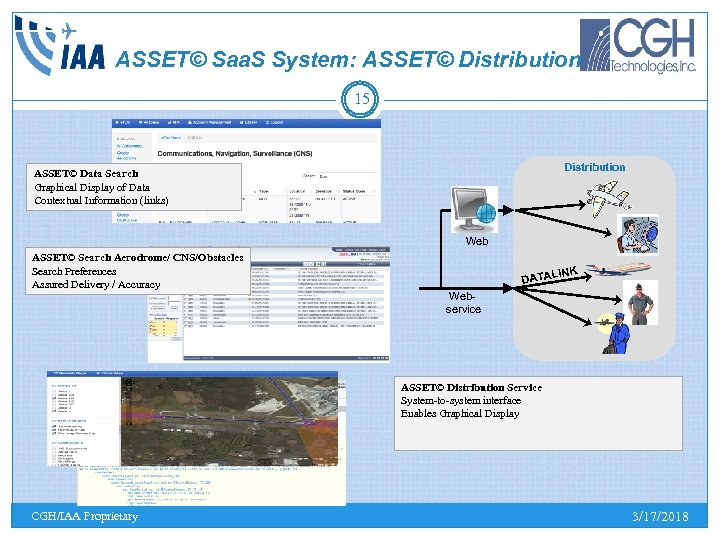

ASSET© Saa. S System: ASSET© Distribution 15 Distribution ASSET© Data Search Graphical Display of Data Contextual Information (links) Web ASSET© Search Aerodrome/ CNS/Obstacles Search Preferences Assured Delivery / Accuracy INK DATAL Webservice Distribute NOTAMs to the Users ASSET© Distribution Service System-to-system interface Electronic Distribution to FAA Enables Graphical Displaycustomers, Computer Readable CGH/IAA Proprietary 3/17/2018

ASSET© Saa. S Services 16 Origination ASSET© Portal Manager ASSET© Origination and Validation Service Data Web Service Distribution ASSET© Search and Downloads ASSET© Distribution Service to other systems Management ASSET© Permission Based ASSET© Admin Validation / SLA Automation CGH/IAA Proprietary 3/17/2018

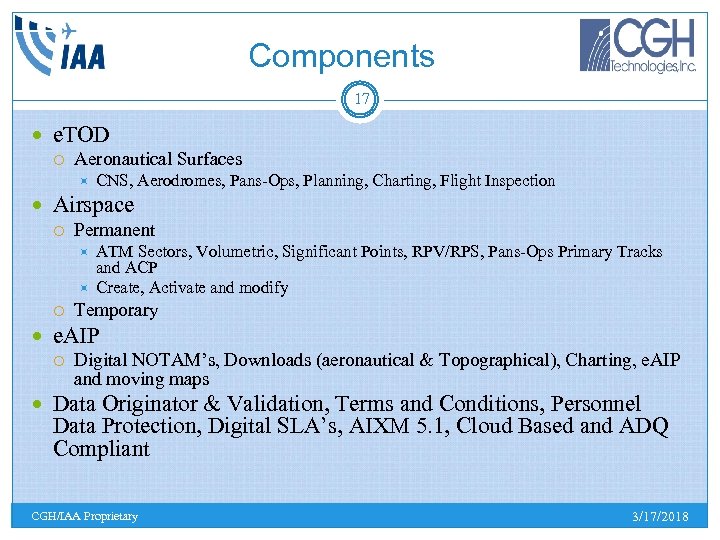

Components 17 e. TOD Aeronautical Surfaces CNS, Aerodromes, Pans-Ops, Planning, Charting, Flight Inspection Airspace Permanent ATM Sectors, Volumetric, Significant Points, RPV/RPS, Pans-Ops Primary Tracks and ACP Create, Activate and modify Temporary e. AIP Digital NOTAM’s, Downloads (aeronautical & Topographical), Charting, e. AIP and moving maps Data Originator & Validation, Terms and Conditions, Personnel Data Protection, Digital SLA’s, AIXM 5. 1, Cloud Based and ADQ Compliant CGH/IAA Proprietary 3/17/2018

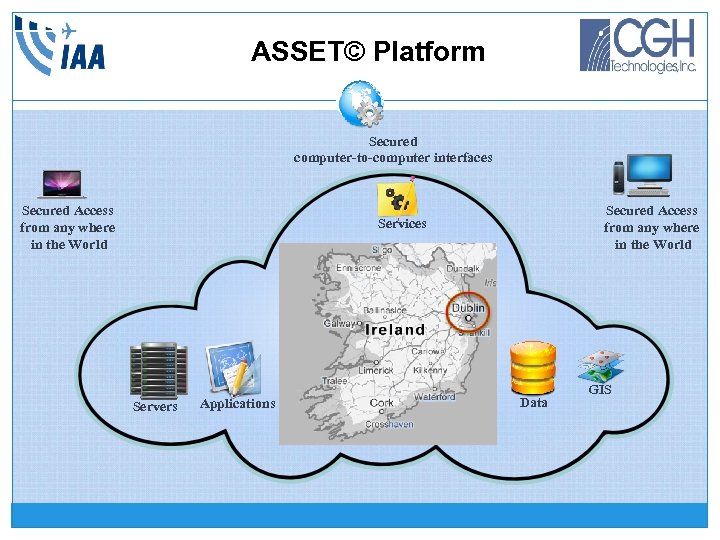

ASSET© Platform Secured computer-to-computer interfaces Secured Access from any where in the World Services Servers Applications Data GIS

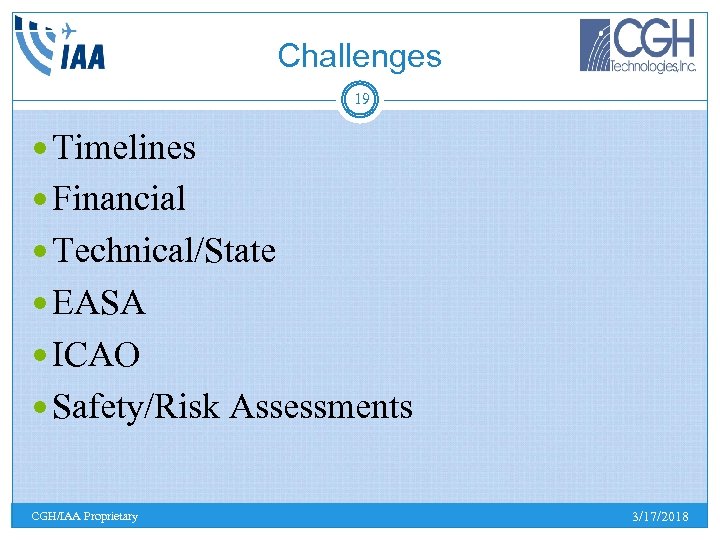

Challenges 19 Timelines Financial Technical/State EASA ICAO Safety/Risk Assessments CGH/IAA Proprietary 3/17/2018

Thank you for your attention Any questions? James O’Sullivan james. osullivan@iaa. ie Pans-Ops & Airspace Inspector Safety Regulation Division Irish Aviation Authority
