1. Goal & Motivation of spotlights. TN/GTF 2. Principles of development 3. GTF-CM / 1. Goal & Motivation of spotlights. TN/GTF 2. Principles of development 3. GTF-CM / Examples 4. Further steps Eduard Ruffert & Dr. Benedikt Mandel email: ruffert@mkm. de & mandel@mkm. de MKmetric Gesellschaft für Systemplanung mb. H, Karlsruhe 11 th October 2001 Barcelona MKmetric

Goal of spotlights. TN/GTF • Get the modelling community in Europe (in the World) Goal of spotlights. TN/GTF • Get the modelling community in Europe (in the World) to “establish the necessity of a common exchange format for transportation models” suggestion of a conceptual view as a basis • contact modellers / software providers • discuss GTF Goal means for discussion: GTF-CM • Email spotlights@mkm. de discuss GTF-CM: • Forum gtf. mkm. de • Mailinglist gtf@lists. mkm. de Outcome: 11 th October 2001 Agreement & Common Understanding Barcelona MKmetric

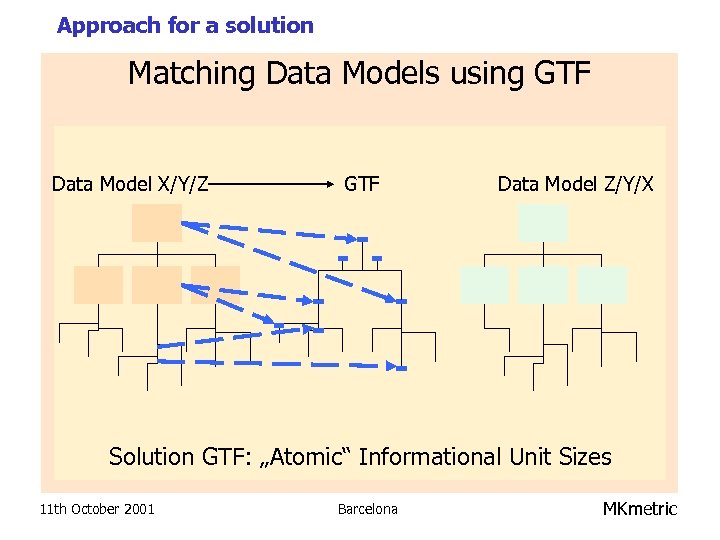

Approach for a solution Matching Data Models using GTF Data Model X/Y/Z GTF Data Approach for a solution Matching Data Models using GTF Data Model X/Y/Z GTF Data Model Z/Y/X Solution GTF: „Atomic“ Informational Unit Sizes 11 th October 2001 Barcelona MKmetric

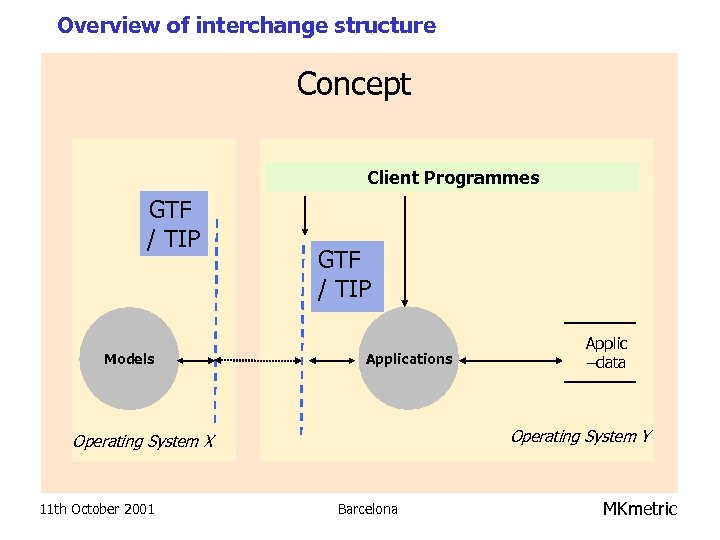

Overview of interchange structure Concept Client Programmes GTF / TIP Models GTF / TIP Overview of interchange structure Concept Client Programmes GTF / TIP Models GTF / TIP Applications Operating System Y Operating System X 11 th October 2001 Applic –data Barcelona MKmetric

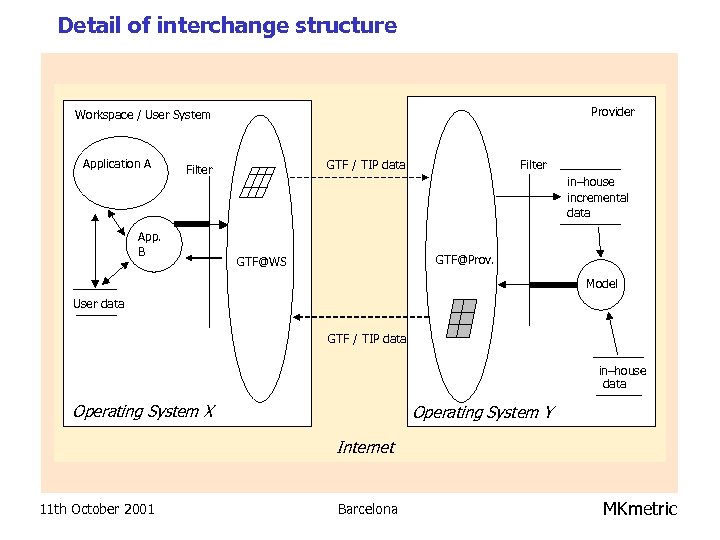

Detail of interchange structure Provider Workspace / User System Application A App. B Filter Detail of interchange structure Provider Workspace / User System Application A App. B Filter GTF / TIP data Filter in–house incremental data GTF@Prov. GTF@WS Model User data GTF / TIP data in–house data Operating System X Operating System Y Internet 11 th October 2001 Barcelona MKmetric

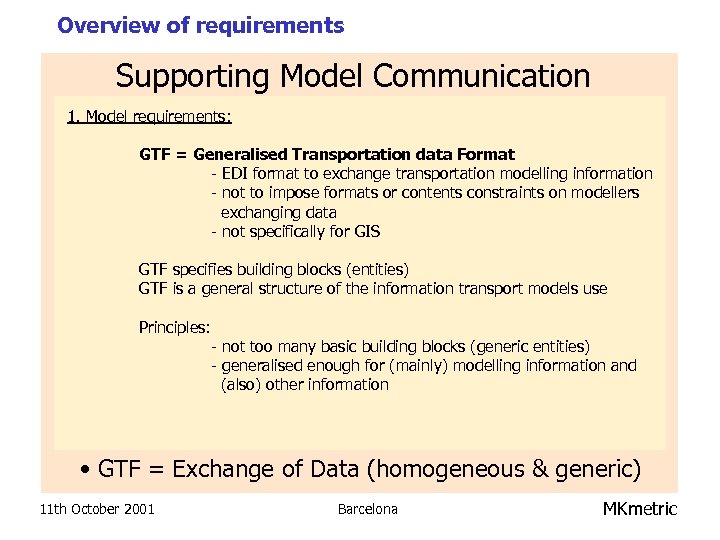

Overview of requirements Supporting Model Communication 1. Model requirements: GTF = Generalised Transportation data Overview of requirements Supporting Model Communication 1. Model requirements: GTF = Generalised Transportation data Format - EDI format to exchange transportation modelling information - not to impose formats or contents constraints on modellers exchanging data - not specifically for GIS GTF specifies building blocks (entities) GTF is a general structure of the information transport models use Principles: - not too many basic building blocks (generic entities) - generalised enough for (mainly) modelling information and (also) other information • GTF = Exchange of Data (homogeneous & generic) 11 th October 2001 Barcelona MKmetric

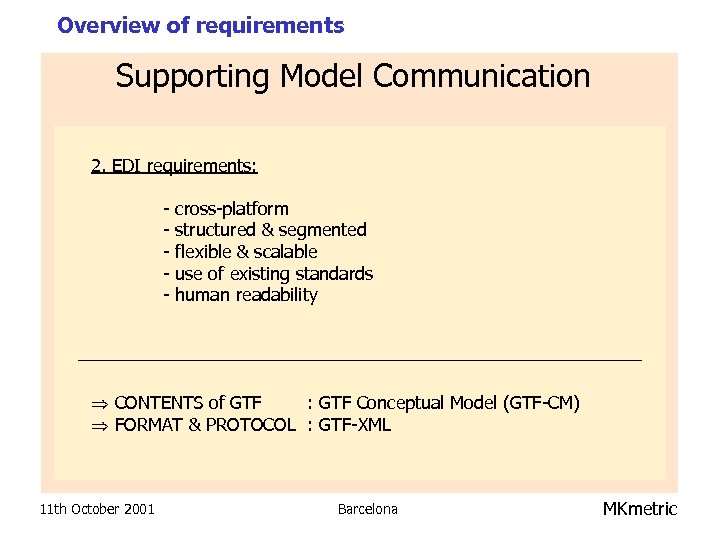

Overview of requirements Supporting Model Communication 2. EDI requirements: - cross-platform structured & segmented Overview of requirements Supporting Model Communication 2. EDI requirements: - cross-platform structured & segmented flexible & scalable use of existing standards human readability CONTENTS of GTF : GTF Conceptual Model (GTF-CM) FORMAT & PROTOCOL : GTF-XML 11 th October 2001 Barcelona MKmetric

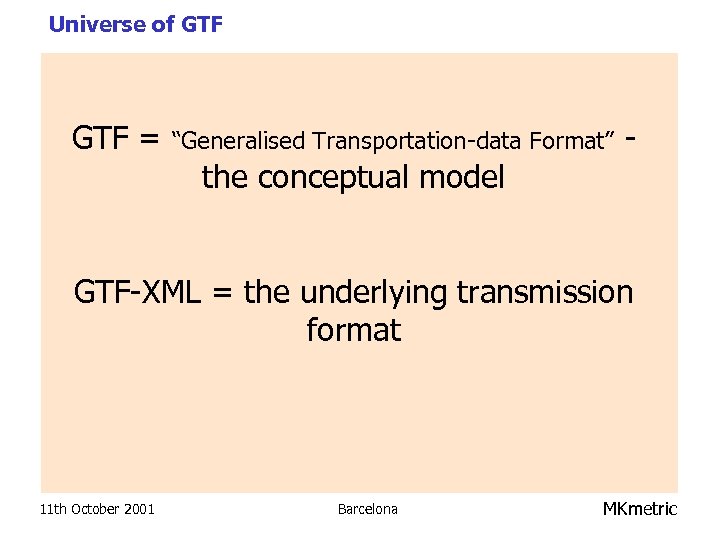

Universe of GTF = “Generalised Transportation-data Format” the conceptual model - GTF-XML = the Universe of GTF = “Generalised Transportation-data Format” the conceptual model - GTF-XML = the underlying transmission format 11 th October 2001 Barcelona MKmetric

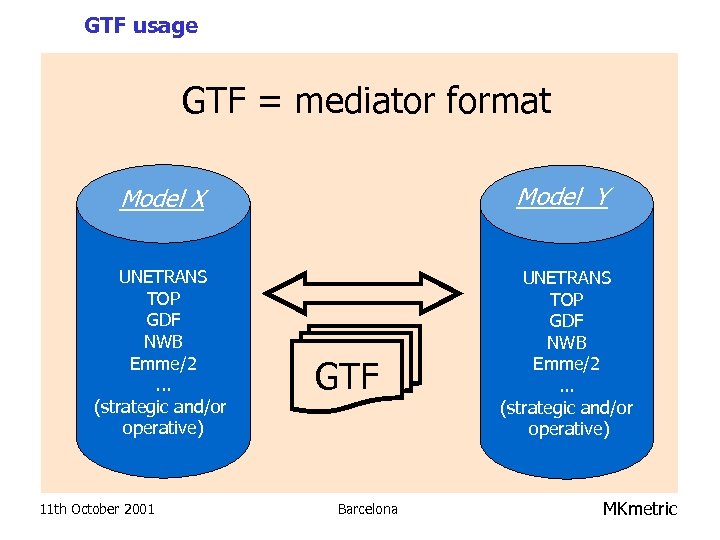

GTF usage GTF = mediator format Model X Model Y UNETRANS TOP GDF NWB GTF usage GTF = mediator format Model X Model Y UNETRANS TOP GDF NWB Emme/2. . . (strategic and/or operative) 11 th October 2001 GTF Barcelona MKmetric

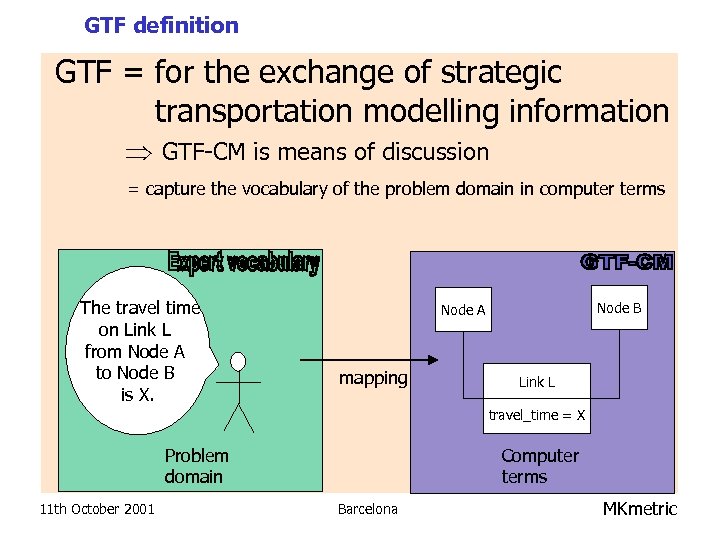

GTF definition GTF = for the exchange of strategic transportation modelling information GTF-CM is GTF definition GTF = for the exchange of strategic transportation modelling information GTF-CM is means of discussion = capture the vocabulary of the problem domain in computer terms The travel time on Link L from Node A to Node B is X. Node B Node A mapping Link L travel_time = X Problem domain 11 th October 2001 Computer terms Barcelona MKmetric

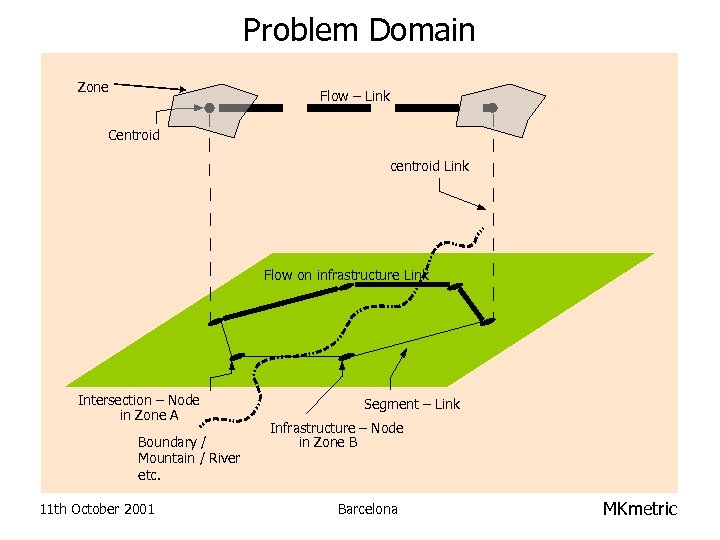

Problem Domain Zone Flow – Link Centroid centroid Link Flow on infrastructure Link Intersection Problem Domain Zone Flow – Link Centroid centroid Link Flow on infrastructure Link Intersection – Node in Zone A Boundary / Mountain / River etc. 11 th October 2001 Segment – Link Infrastructure – Node in Zone B Barcelona MKmetric

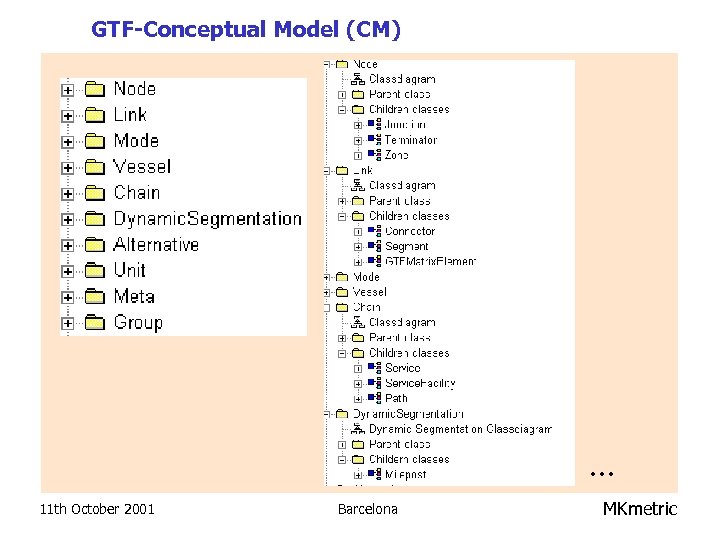

GTF-Conceptual Model (CM) . . . 11 th October 2001 Barcelona MKmetric GTF-Conceptual Model (CM) . . . 11 th October 2001 Barcelona MKmetric

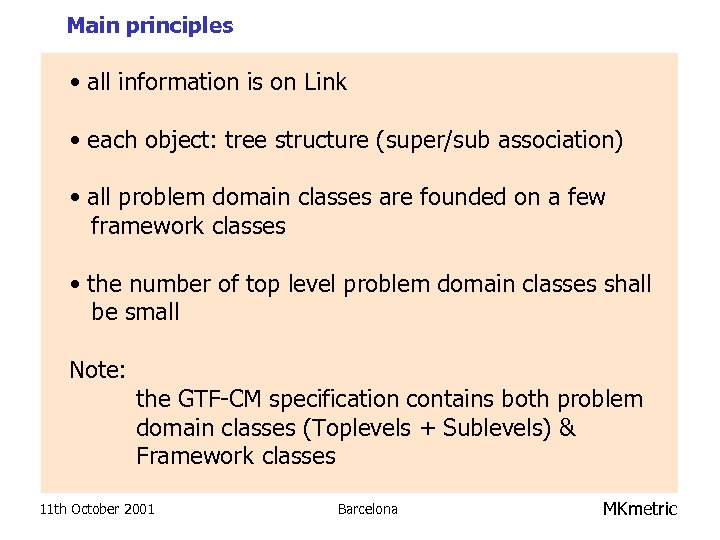

Main principles • all information is on Link • each object: tree structure (super/sub Main principles • all information is on Link • each object: tree structure (super/sub association) • all problem domain classes are founded on a few framework classes • the number of top level problem domain classes shall be small Note: the GTF-CM specification contains both problem domain classes (Toplevels + Sublevels) & Framework classes 11 th October 2001 Barcelona MKmetric

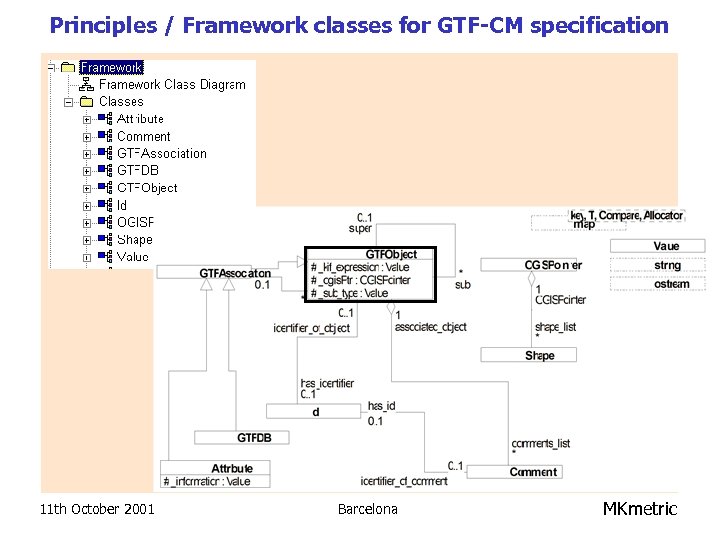

Principles / Framework classes for GTF-CM specification 11 th October 2001 Barcelona MKmetric Principles / Framework classes for GTF-CM specification 11 th October 2001 Barcelona MKmetric

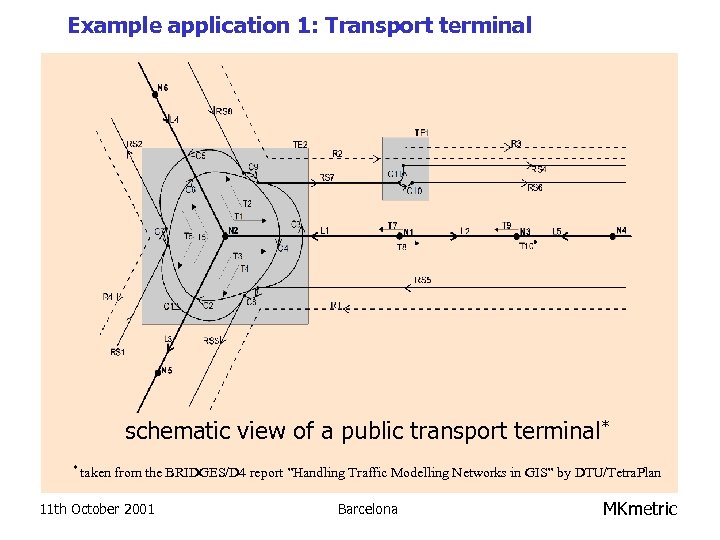

Example application 1: Transport terminal schematic view of a public transport terminal* * taken Example application 1: Transport terminal schematic view of a public transport terminal* * taken from the BRIDGES/D 4 report ”Handling Traffic Modelling Networks in GIS” by DTU/Tetra. Plan 11 th October 2001 Barcelona MKmetric

Example application 1: in GTF terms Node P Node “Airport” A 5) 1) 2) Example application 1: in GTF terms Node P Node “Airport” A 5) 1) 2) 6) 3) 4) 8) 7) Node Q 11 th October 2001 Barcelona MKmetric

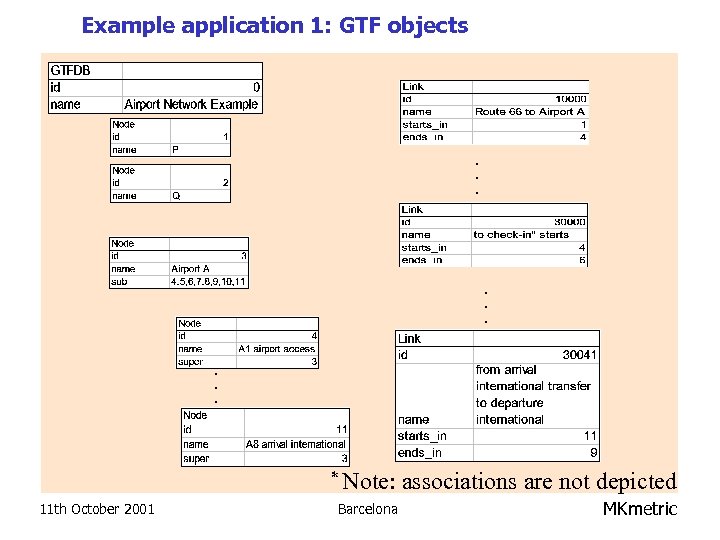

Example application 1: GTF objects . . * Note: 11 th October 2001 associations Example application 1: GTF objects . . * Note: 11 th October 2001 associations are not depicted Barcelona MKmetric

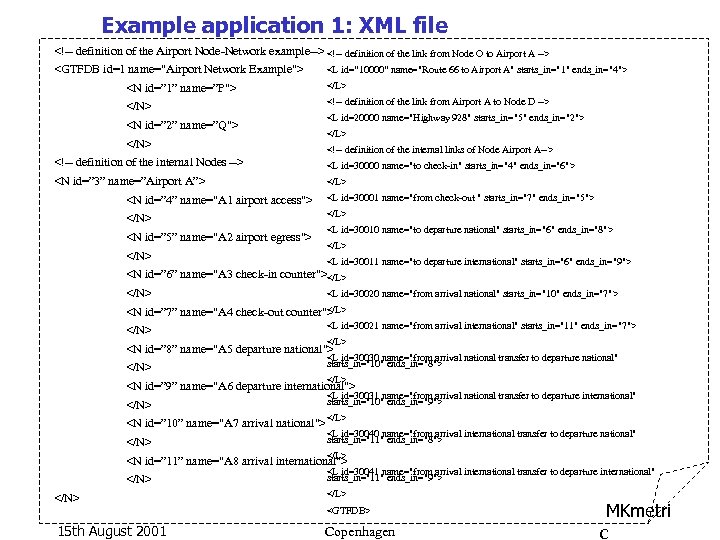

Example application 1: XML file <!-- definition of the Airport Node-Network example--> <!-- definition Example application 1: XML file 15 th August 2001 Copenhagen MKmetri c

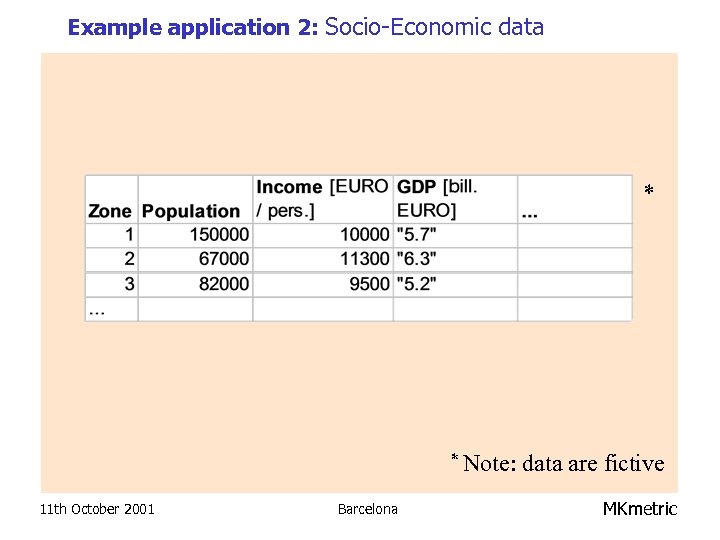

Example application 2: Socio-Economic data * * Note: 11 th October 2001 Barcelona data Example application 2: Socio-Economic data * * Note: 11 th October 2001 Barcelona data are fictive MKmetric

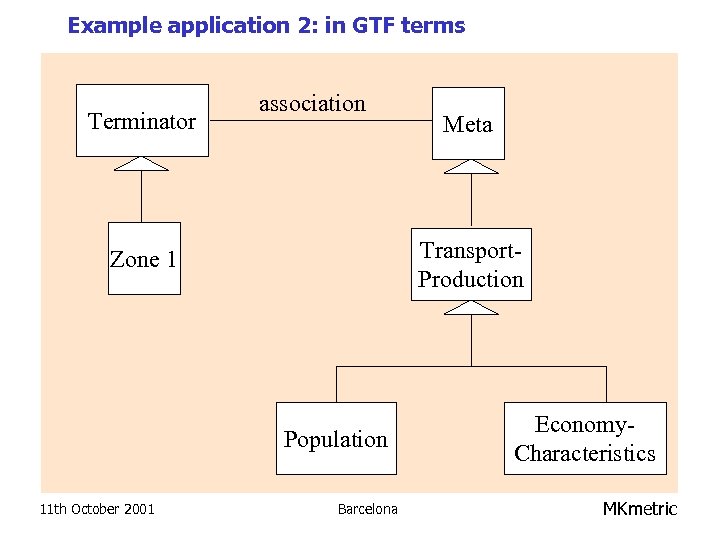

Example application 2: in GTF terms Terminator association Transport. Production Zone 1 Population 11 Example application 2: in GTF terms Terminator association Transport. Production Zone 1 Population 11 th October 2001 Meta Barcelona Economy. Characteristics MKmetric

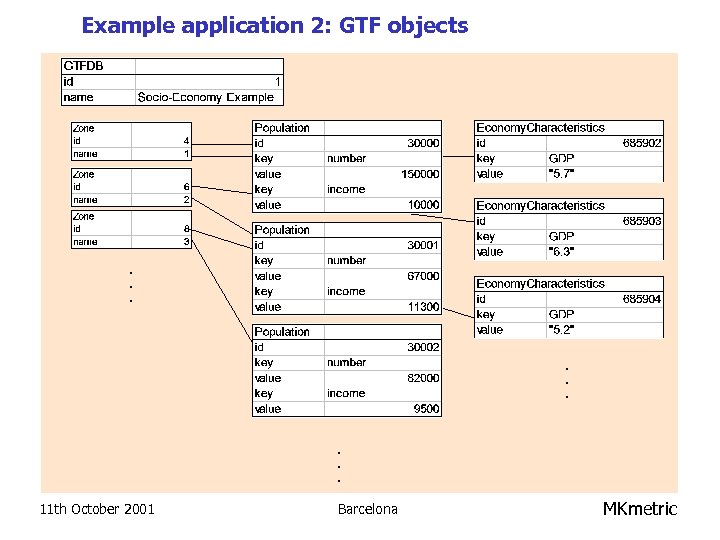

Example application 2: GTF objects . . 11 th October 2001 Barcelona MKmetric Example application 2: GTF objects . . 11 th October 2001 Barcelona MKmetric

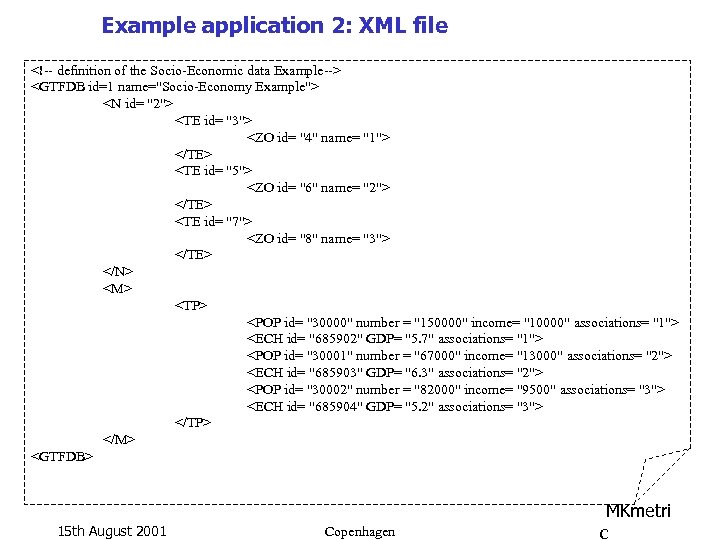

Example application 2: XML file <!-- definition of the Socio-Economic data Example--> <GTFDB id=1 Example application 2: XML file 15 th August 2001 Copenhagen MKmetri c

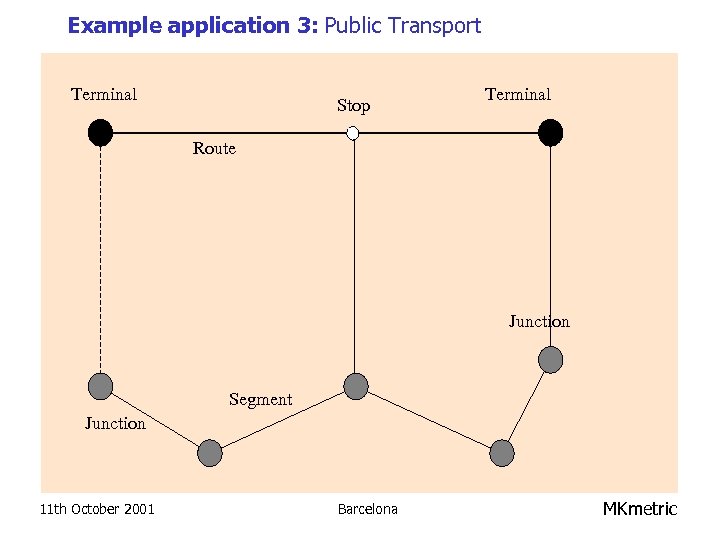

Example application 3: Public Transport Terminal Stop Terminal Route Junction Segment Junction 11 th Example application 3: Public Transport Terminal Stop Terminal Route Junction Segment Junction 11 th October 2001 Barcelona MKmetric

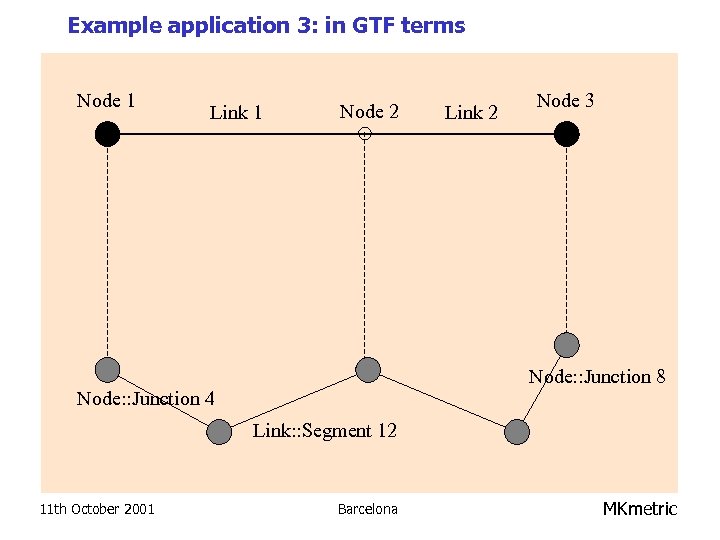

Example application 3: in GTF terms Node 1 Link 1 Node 2 Link 2 Example application 3: in GTF terms Node 1 Link 1 Node 2 Link 2 Node 3 Node: : Junction 8 Node: : Junction 4 Link: : Segment 12 11 th October 2001 Barcelona MKmetric

Example application 3: GTF objects * Note: 11 th October 2001 associations are not Example application 3: GTF objects * Note: 11 th October 2001 associations are not depicted Barcelona MKmetric

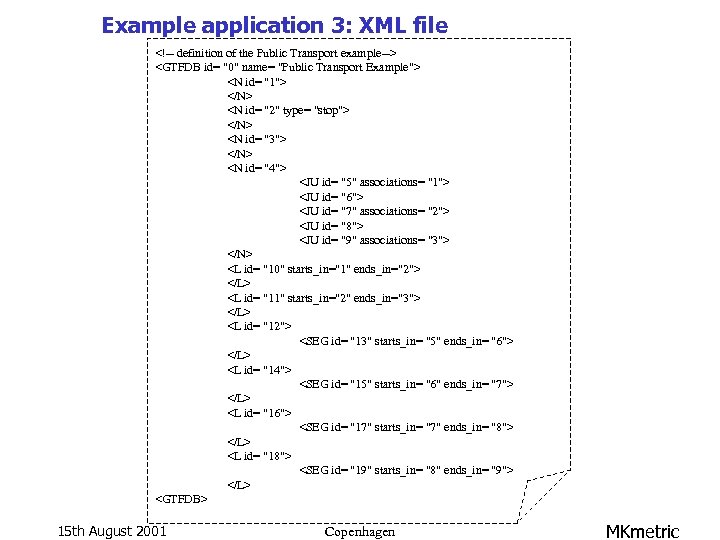

Example application 3: XML file <!-- definition of the Public Transport example--> <GTFDB id= Example application 3: XML file 15 th August 2001 Copenhagen MKmetric

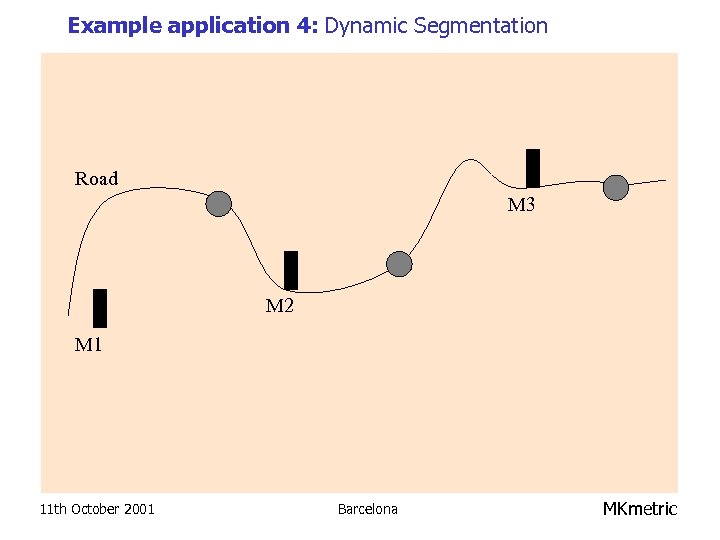

Example application 4: Dynamic Segmentation Road M 3 M 2 M 1 11 th Example application 4: Dynamic Segmentation Road M 3 M 2 M 1 11 th October 2001 Barcelona MKmetric

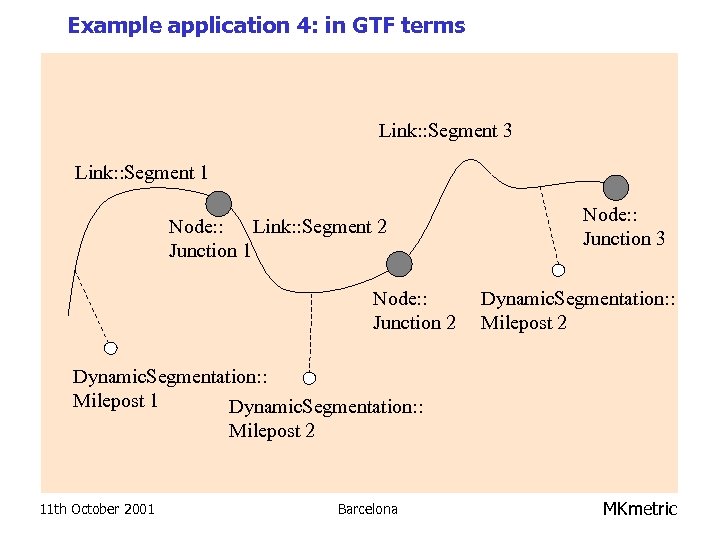

Example application 4: in GTF terms Link: : Segment 3 Link: : Segment 1 Example application 4: in GTF terms Link: : Segment 3 Link: : Segment 1 Node: : Link: : Segment 2 Junction 1 Node: : Junction 2 Node: : Junction 3 Dynamic. Segmentation: : Milepost 2 Dynamic. Segmentation: : Milepost 1 Dynamic. Segmentation: : Milepost 2 11 th October 2001 Barcelona MKmetric

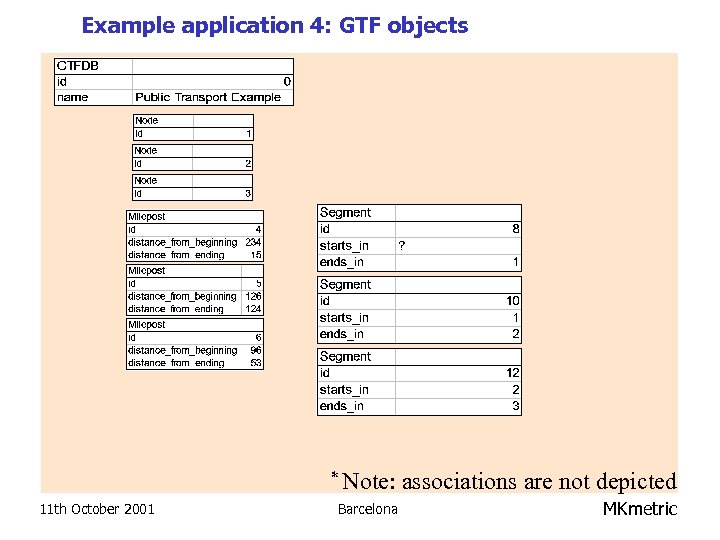

Example application 4: GTF objects * Note: 11 th October 2001 associations are not Example application 4: GTF objects * Note: 11 th October 2001 associations are not depicted Barcelona MKmetric

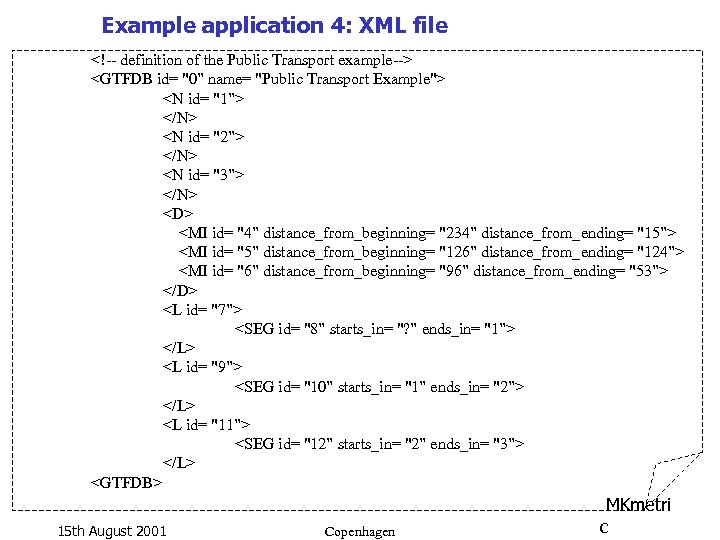

Example application 4: XML file <!-- definition of the Public Transport example--> <GTFDB id= Example application 4: XML file 15 th August 2001 Copenhagen MKmetri c

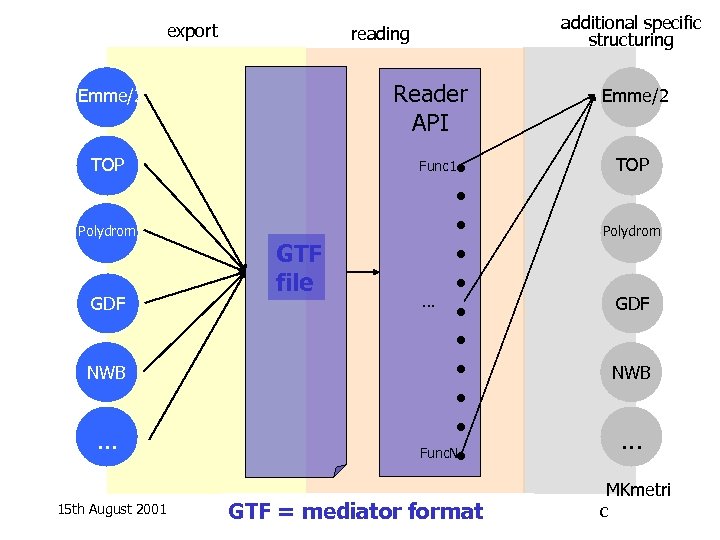

export Reader API Emme/2 TOP Polydrom GDF NWB . . . 15 th August export Reader API Emme/2 TOP Polydrom GDF NWB . . . 15 th August 2001 additional specific structuring reading • • • . . . • • • Func. N • Func 1 GTF file GTF = mediator format Emme/2 TOP Polydrom GDF NWB . . . MKmetri c

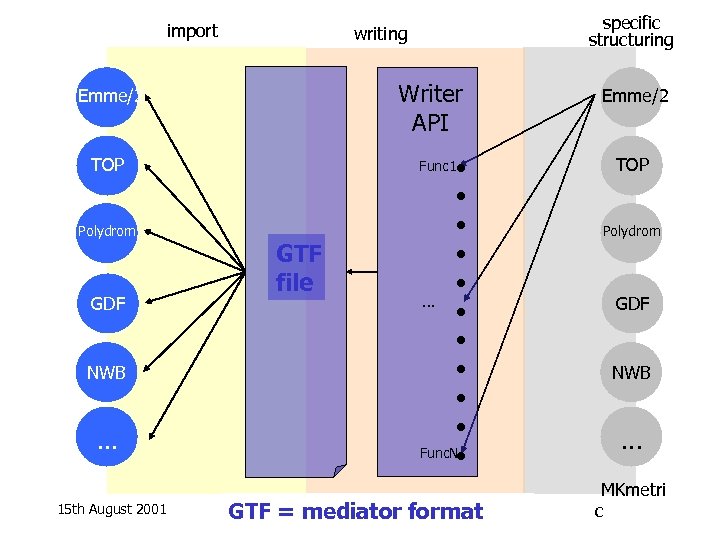

import Writer API Emme/2 TOP Polydrom GDF NWB . . . 15 th August import Writer API Emme/2 TOP Polydrom GDF NWB . . . 15 th August 2001 specific structuring writing • • • . . . • • • Func. N • Func 1 GTF file GTF = mediator format Emme/2 TOP Polydrom GDF NWB . . . MKmetri c

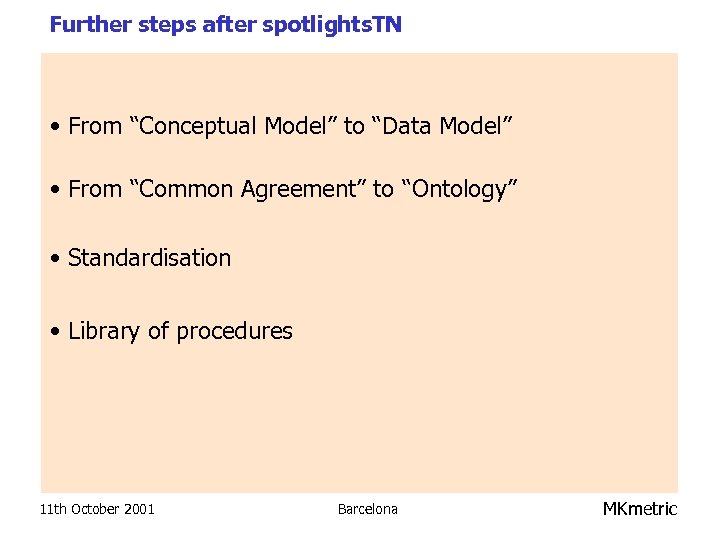

Further steps after spotlights. TN • From “Conceptual Model” to “Data Model” • From Further steps after spotlights. TN • From “Conceptual Model” to “Data Model” • From “Common Agreement” to “Ontology” • Standardisation • Library of procedures 11 th October 2001 Barcelona MKmetric

Email spotlights@mkm. de Forum http: //gtf. mkm. de Mailinglist gtf@lists. mkm. de Contact Eduard Email spotlights@mkm. de Forum http: //gtf. mkm. de Mailinglist gtf@lists. mkm. de Contact Eduard Ruffert email: ruffert@mkm. de Tel. : ++49 (0) 700 MKMETRIC 11 th October 2001 Barcelona MKmetric
