1 Demonstration of Near-real Time Analysis of Sea

1 Demonstration of Near-real Time Analysis of Sea Ice Motion at 400 m Resolution Cathleen Geiger Research Associate Professor University of Delaware

2 Outline Background & Motivation n Recent Field Project n Summary n Request to IICWG n

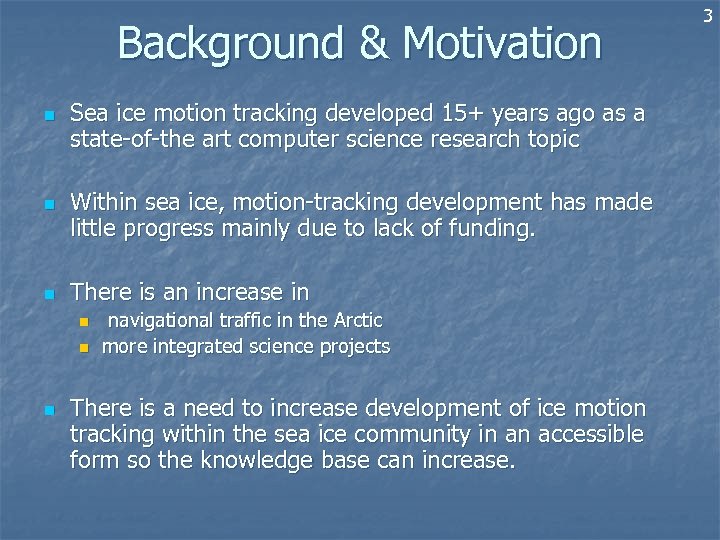

Background & Motivation n Sea ice motion tracking developed 15+ years ago as a state-of-the art computer science research topic Within sea ice, motion-tracking development has made little progress mainly due to lack of funding. There is an increase in n navigational traffic in the Arctic more integrated science projects There is a need to increase development of ice motion tracking within the sea ice community in an accessible form so the knowledge base can increase. 3

4 IPY Project: Sea-ice Experiment – Dynamic Nature of the Arctic (SEDNA) Thank You NSF From University of Alaska Fairbanks (ARC-0612527) ERDC/CRREL (ARC-0611991) University of Delaware (ARC-0612105)

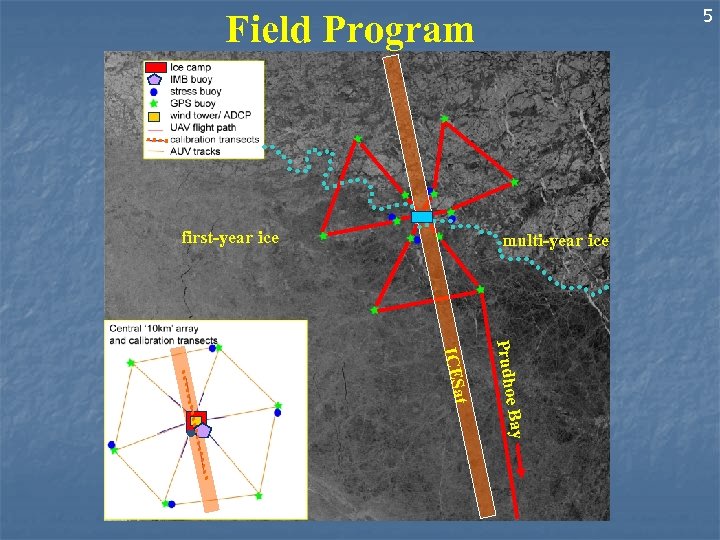

5 Field Program first-year ice multi-year ice e Bay Prudho t ICESa

6 Map of Moving Topography (MMT) Mani Thomas Cathleen Geiger Chandra Kambhamettu

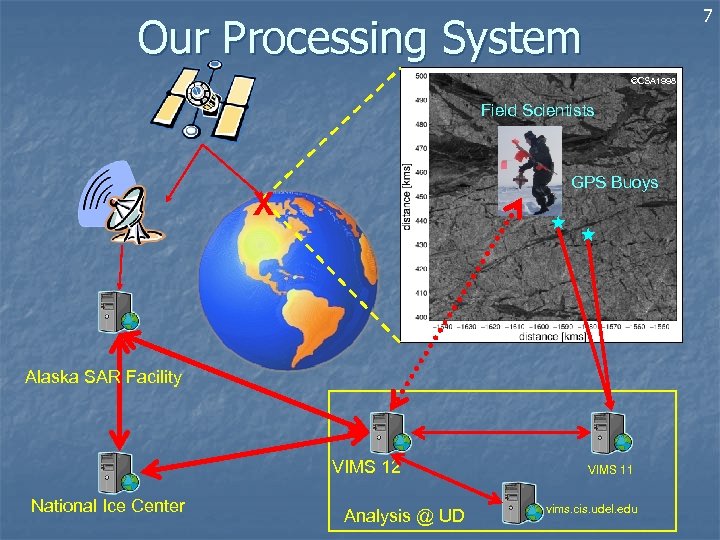

7 Our Processing System ©CSA 1998 Field Scientists GPS Buoys X Alaska SAR Facility VIMS 12 National Ice Center Analysis @ UD VIMS 11 vims. cis. udel. edu

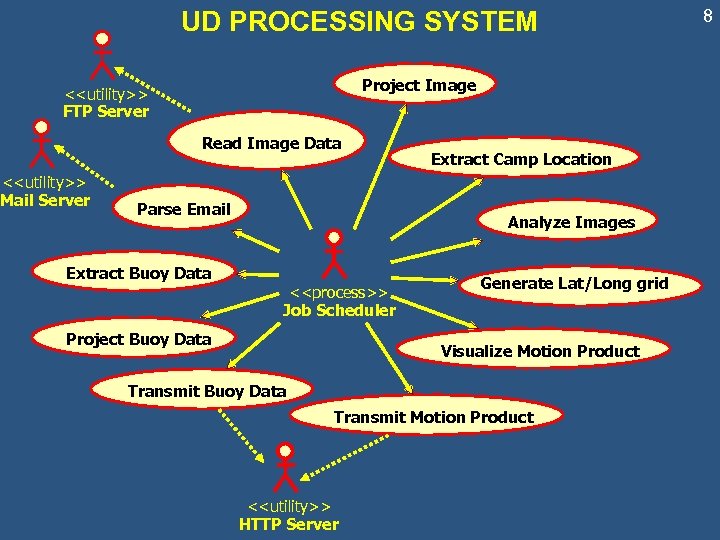

UD PROCESSING SYSTEM Project Image <> FTP Server Read Image Data <> Mail Server Parse Email Extract Buoy Data Extract Camp Location Analyze Images <> Job Scheduler Project Buoy Data Generate Lat/Long grid Visualize Motion Product Transmit Buoy Data Transmit Motion Product <> HTTP Server 8

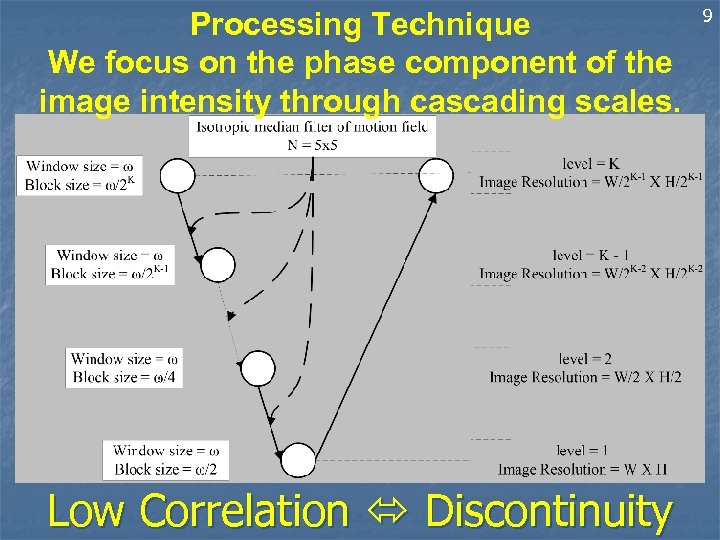

Processing Technique We focus on the phase component of the image intensity through cascading scales. Low Correlation Discontinuity 9

Data Layering Scheme 10

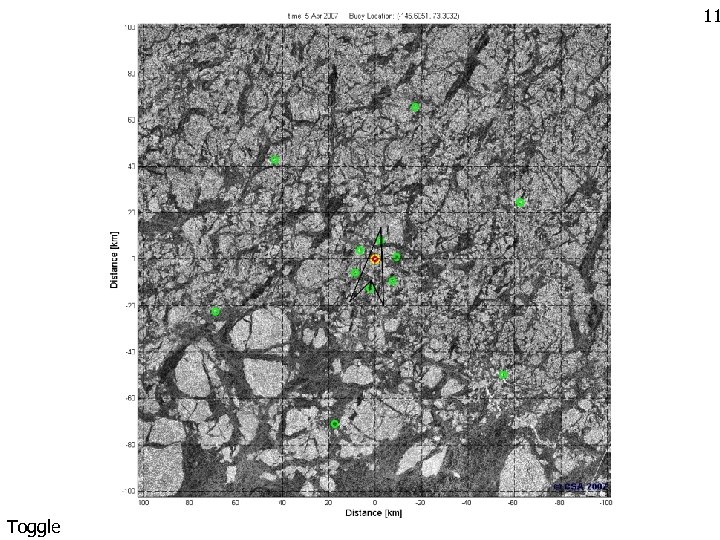

11 Toggle

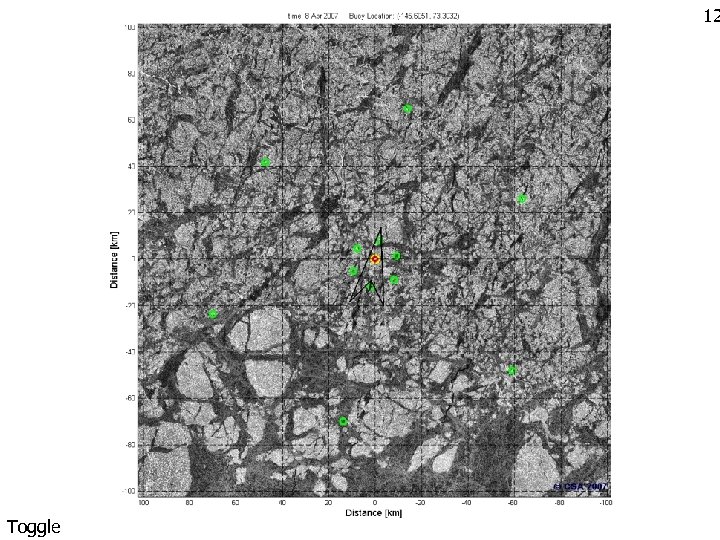

12 Toggle

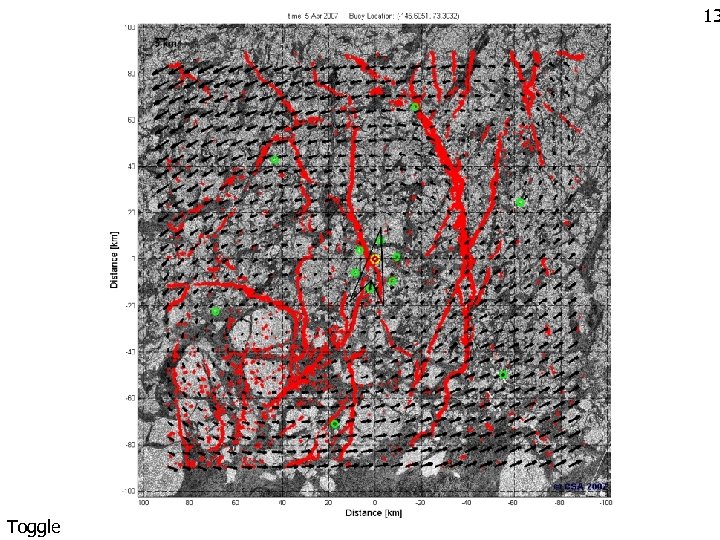

13 Toggle

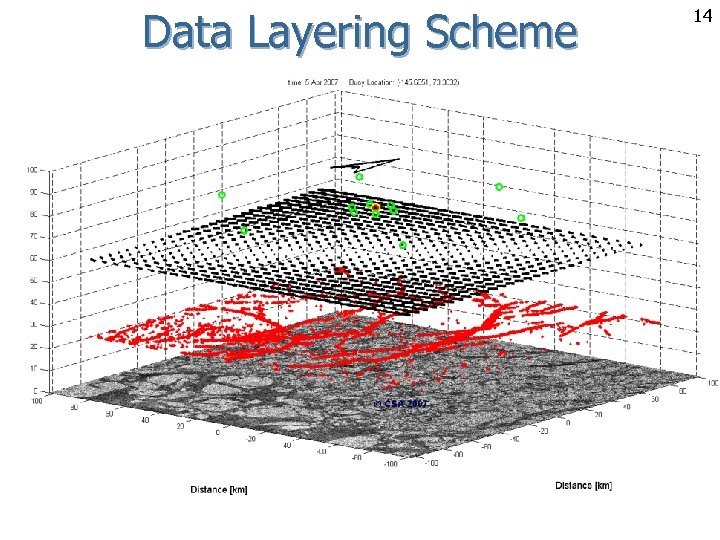

Data Layering Scheme 14

15 Overview of Program Successes n n 144 images provided through ASF<-> NIC <-> UD interface ~100 image pairs analyzed at UD Turn around time from downlink at ASF to completed product at UD < 2 hours Biggest impediment was ice camp delivery n n n Iridium satellite phones still too slow Daily “Gold Streak” courier service of DVD with all camp needs ($30 per delivery) Anticipate greater potential to shorten delivery time to a ship with greater bandwidth transmission.

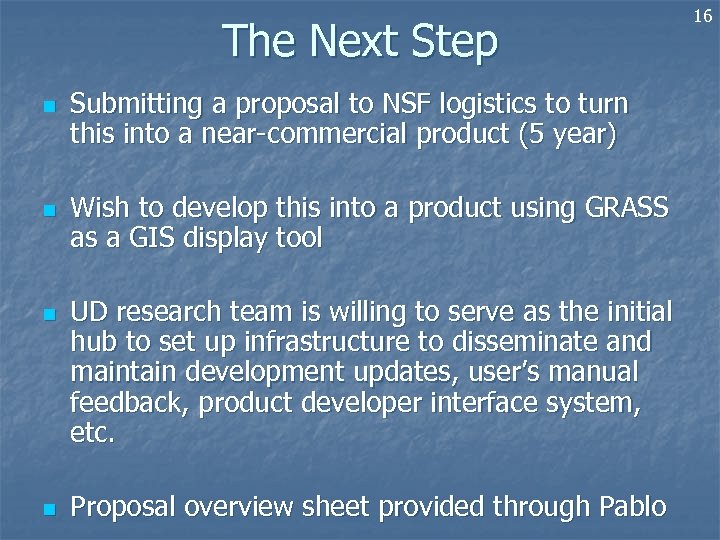

The Next Step n n Submitting a proposal to NSF logistics to turn this into a near-commercial product (5 year) Wish to develop this into a product using GRASS as a GIS display tool UD research team is willing to serve as the initial hub to set up infrastructure to disseminate and maintain development updates, user’s manual feedback, product developer interface system, etc. Proposal overview sheet provided through Pablo 16

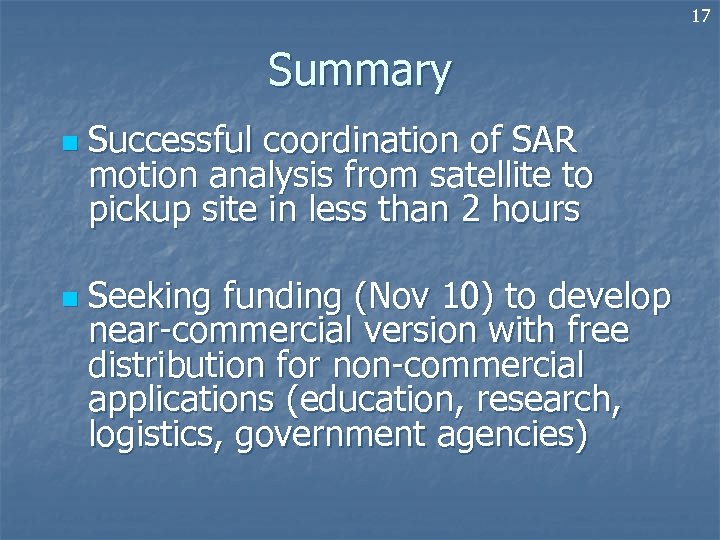

17 Summary n n Successful coordination of SAR motion analysis from satellite to pickup site in less than 2 hours Seeking funding (Nov 10) to develop near-commercial version with free distribution for non-commercial applications (education, research, logistics, government agencies)

18 REQUEST A letter of support from IICWG. Potential as a resource in support of navigation and safety in ice-covered waters n Statement saying that you would work with this research team to disseminate this product to the international navigational community for non-commercial applications n
